Synthesis, Anticonvulsant, Sedative and Anxiolytic Activities of Novel Annulated Pyrrolo[1,4]benzodiazepines

by
Kumaraswamy Sorra
1,2,†,
Chien-Shu Chen
3,†,
Chi-Fen Chang
4,
Srinivas Pusuluri
1,
Khagga Mukkanti
2,
Chi-Rei Wu
5,* and
Ta-Hsien Chuang
3,6,*
1
Medicinal Chemistry Laboratory, Gunapati Venkata Krishnareddy Biosciences Private Limited, Plot No. 28A, Industrial Development Area Nacharam, Hyderabad 500076, India
2
Chemistry Division, Institute of Science and Technology, Jawaharlal Nehru Technological University, Kukatpally, Hyderabad 500085, India
3
School of Pharmacy, China Medical University, Taichung 40402, Taiwan
4
Department of Anatomy, School of Medicine, China Medical University, Taichung 40402, Taiwan
5
Department of Chinese Pharmaceutical Sciences and Chinese Medicine Resources, China Medical University, Taichung 40402, Taiwan
6
Research Center for Chinese Herbal Medicine, China Medical University, Taichung 40402, Taiwan
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2014, 15(9), 16500-16510; https://doi.org/10.3390/ijms150916500
Submission received: 14 August 2014 / Revised: 5 September 2014 / Accepted: 9 September 2014 / Published: 18 September 2014
(This article belongs to the Section Biochemistry)
Browse Figures
Versions Notes

Abstract

:
Four new pentacyclic benzodiazepine derivatives (PBDTs 13–16) were synthesized by conventional thermal heating and microwave-assisted intramolecular cyclocondensation. Their anticonvulsant, sedative and anxiolytic activities were evaluated by drug-induced convulsion models, a pentobarbital-induced hypnotic model and an elevated plus maze in mice. PBDT 13, a triazolopyrrolo[2,1-c][1,4]benzodiazepin-8-one fused with a thiadiazolone ring, exhibited the best anticonvulsant, sedative and anxiolytic effects in our tests. There was no significant difference in potency between PBDT 13 and diazepam, and we proposed that the action mechanism of PBDT 13 could be similar to that of diazepam via benzodiazepine receptors.

1. Introduction

The benzodiazepine nucleus is a privileged scaffold that has emerged as a core structural fragment of various muscle relaxant, anxiolytic and anticonvulsant agents [1,2,3,4,5]. Tricyclic, tetracyclic and polycyclic benzodiazepines fused with various hetero-cyclic rings have been a focus of study in the field of medicinal chemistry. Midazolam (1), estazolam (2), alprazolam (3) and triazolam (4) are fused imidazole- and triazole-benzodiazepines, and these are well known as psychotropic agents (Figure 1) [6,7,8,9,10]. The tricyclic pyrrolobenzodiazepines (PBDs) are an important class of sequence-selective DNA interactive agents, and they are produced by Streptomyces species as natural antitumor antibiotics [11,12,13,14]. Bretazenil (5), a tetracyclic benzodiazepine, has attracted interest in the treatment of CNS disorders and neurodegenerative diseases [15,16]. The polycyclic benzodiazepine alkaloids isolated from Aspergillus and Penicillium sp. species, such as circumdatins (6–11), benzomalvins, asperlicins and sclerotigenin, exhibit promising bioactivities [17,18,19,20,21,22]. Moreover, (−)-circumdatin H is an inhibitor of the mammalian mitochondrial respiratory chain; benzomalvins A–C show potent inhibitory activity against substance P at the guinea pig, rat and human neurokinin NK1 receptor, and asperlicin is well known as a potent cholecystokinin antagonist [23,24,25,26].
Ijms 15 16500 g001 1024

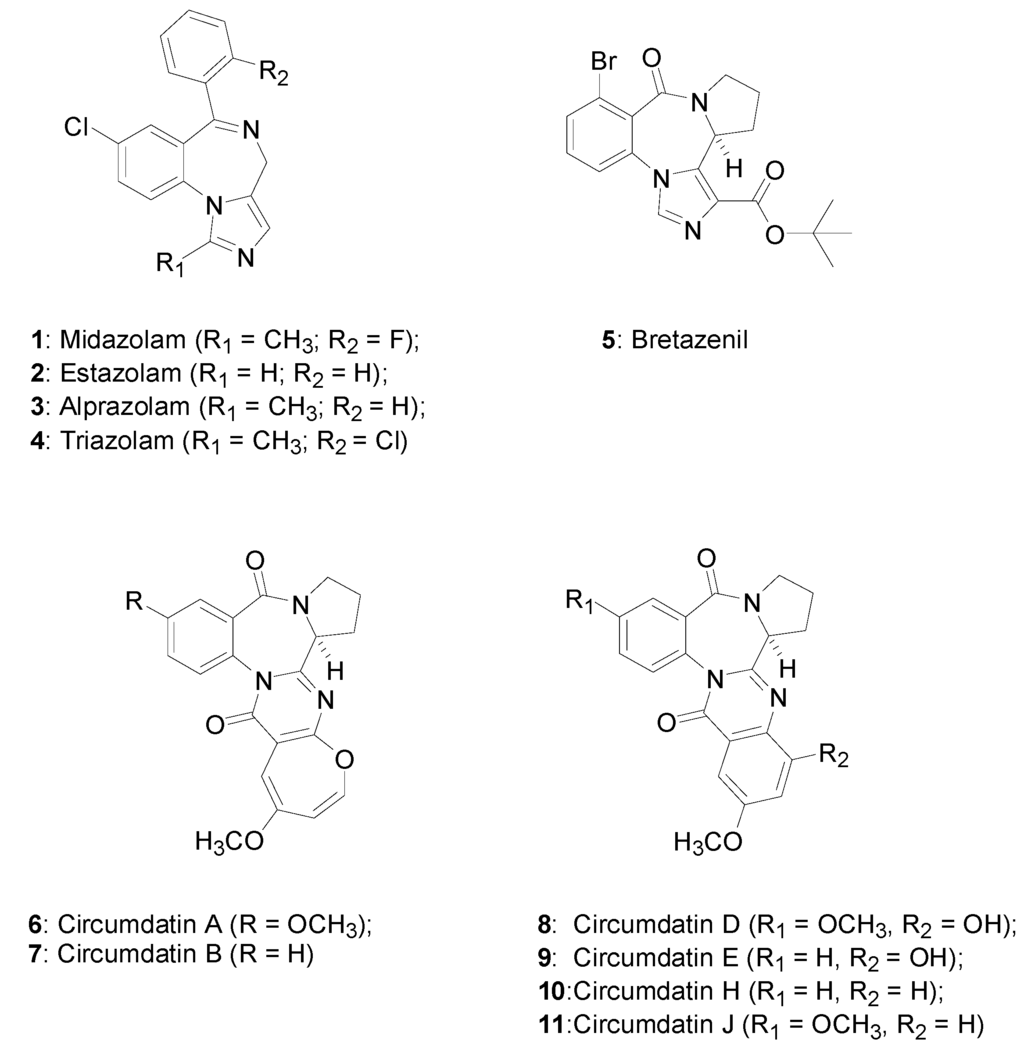

Figure 1. Members of the fused hetero-cyclic benzodiazepine family.
Figure 1. Members of the fused hetero-cyclic benzodiazepine family.
Ijms 15 16500 g001
Recently, we have communicated the synthesis of amido-substituted triazolopyrrolo[2,1-c][1,4]benzodiazepine (pentacyclic benzodiazepine derivative (PBDT)) derivatives and the evaluation of their cytotoxicity against Mahlavu cells [27]. Intrigued by the interesting biological activities and our ongoing interest in benzodiazepine-derived compounds, we became interested in the synthesis of some model compounds of polycyclic benzodiazepine alkaloids. In this paper, we report the synthesis, anticonvulsant, sedative and anxiolytic activity of annulated pyrrolobenzodiazepines, based on the anxiolytic drug (5).

2. Results and Discussion

2.1. Synthesis

The synthesis strategy for constructing the annulated pyrrolo[1,4]benzodiazepines derivatives 13–16 is shown in Scheme 1. 3-Amino triazolopyrrolo[2,1-c][1,4]benzodiazepin-8-one (12), a key intermediate for the synthesis of polycyclic benzodiazepine derivatives, has been synthesized from isatoic anhydride and l-proline in four steps according to our previous reported method [27,28]. The final pentacyclic benzodiazepine derivatives 13–16 were prepared by the intramolecular cyclocondensation of the tetracyclic intermediate 12 with chlorocarbonylsulfenyl chloride, ethyl propiolate, ethyl acetoacetate and diethyl ethoxymethylenemalonate. Firstly, the fused thiadiazolone derivative 13 was produced in a 65% yield by cyclocondensation of the intermediate 12 with chlorocarbonylsulfenyl chloride under basic conditions [29]. However, the cyclocondensation of bis-nucleophilic intermediate 12 with ethyl propiolate using conventional thermal heating (EtOH, reflux, 20 h) gave Compound 14 in a poor yield (15%), with unreacted starting material as the predominant species. The intramolecular cyclocondensation was efficiently promoted by a microwave-assisted method, and a fused pyrimidinone derivative 14 was obtained in a satisfactory yield (66%) [30]. Similarly, tetracyclic Compound 12 was treated with ethyl acetoacetate and diethyl ethoxymethylenemalonate under microwave conditions, affording the fused substituted pyrimidinone derivatives, 15 and 16, in 72% and 61% yields, respectively [31].

2.2. Biology

Benzodiazepines are common muscle relaxant, anxiolytic and anticonvulsant agents, but their side effects limit their clinical use. It is significant to develop modified benzodiazepines to minimize the side effects. Four PBDT derivatives 13–16 are synthesized from a core skeleton tetracyclic 3-amino triazolopyrrolo[2,1-c][1,4]benzodiazepin-8-one (12), and we evaluated their anticonvulsant, sedative and anxiolytic activities by drug-induced convulsion models, a pentobarbital-induced hypnotic model, and an elevated plus maze (EPM) in mice.
Firstly, we selected two drugs (picrotoxin (10 mg/kg, sc) or strychnine (2 mg/kg, ip)) to induce convulsion to evaluate the anticonvulsant activities of PBDTs 13–16 and used diazepam as a positive control (Table 1). In the picrotoxin-induced convulsion model, only PBDT 13 could prolong the duration of clonic–tonic convulsion induced by picrotoxin or strychnine (p < 0.001). However, PBDT 14 only prolonged the duration of strychnine-induced, but not picrotoxin-induced, clonic–tonic convulsion (p < 0.001). On the contrary, PBDTs 15 and 16 only prolonged the duration of clonic–tonic convulsion induced by picrotoxin, but not strychnine (p < 0.05). Diazepam at 1 mg/kg also prolonged the latency of myoclonic jerks and the duration of clonic–tonic convulsion induced by picrotoxin or strychnine (p < 0.01, p < 0.001). Therefore, we suggested that PBDT 13 among PBDT derivatives possesses better anticonvulsant effects, and its anticonvulsant mechanism could be similar to diazepam, which mainly acts at benzodiazepine receptors.
Ijms 15 16500 g004 1024

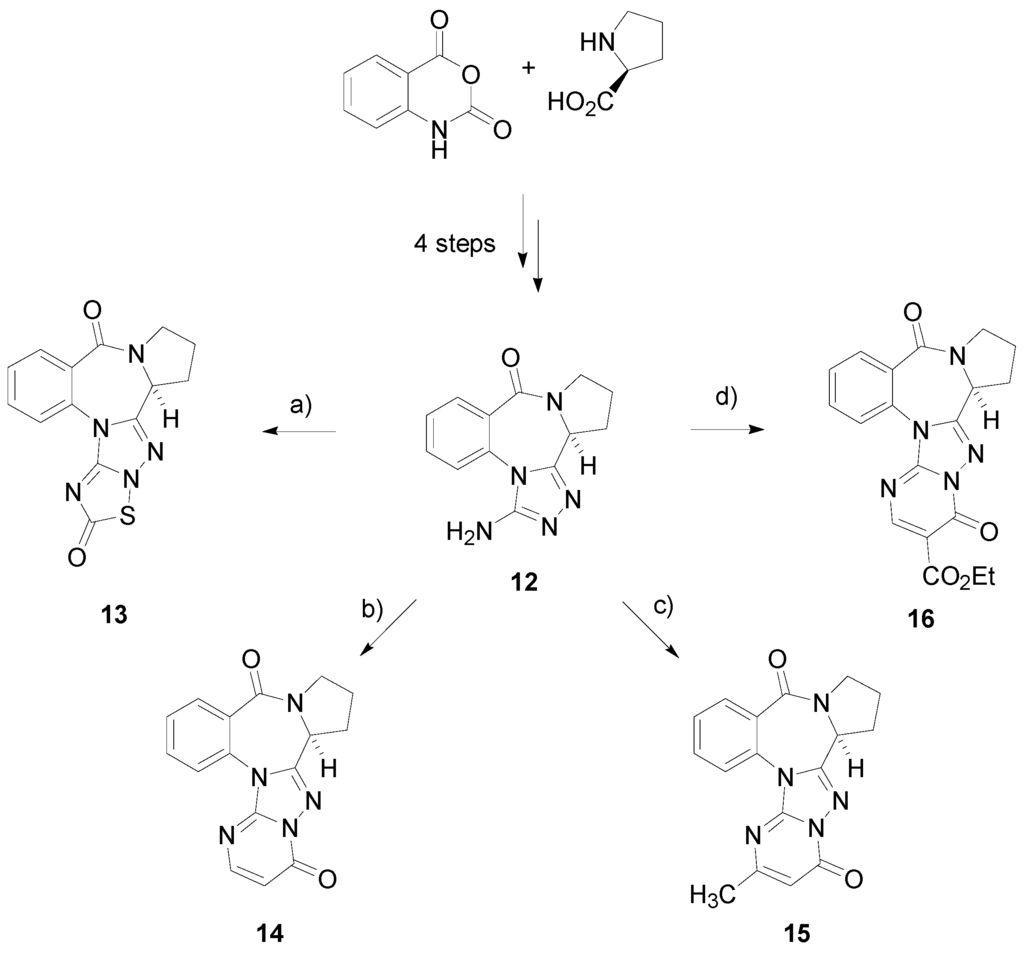

Scheme 1. Synthesis of annulated benzodiazepines. Reagents and conditions: (a) chlorocarbonylsulfenyl chloride, Na2CO3, CH2Cl2–H2O, 0 °C, 30 min, 65% yield; (b) ethyl propiolate, EtOH, 150 °C, 20 min, MW, 66% yield; (c) ethyl acetoacetate, AcOH, 150 °C, 20 min, MW, 72% yield; (d) diethyl ethoxymethylenemalonate, EtOH, 150 °C, 20 min, MW, 61% yield.
Scheme 1. Synthesis of annulated benzodiazepines. Reagents and conditions: (a) chlorocarbonylsulfenyl chloride, Na2CO3, CH2Cl2–H2O, 0 °C, 30 min, 65% yield; (b) ethyl propiolate, EtOH, 150 °C, 20 min, MW, 66% yield; (c) ethyl acetoacetate, AcOH, 150 °C, 20 min, MW, 72% yield; (d) diethyl ethoxymethylenemalonate, EtOH, 150 °C, 20 min, MW, 61% yield.
Ijms 15 16500 g004
Table
Table 1. The effects of pentacyclic benzodiazepine derivatives (PBDTs) (1 mg/kg, ip) or diazepam (1 mg/kg, ip) on picrotoxin- and strychnine-induced convulsion in mice.
Table 1. The effects of pentacyclic benzodiazepine derivatives (PBDTs) (1 mg/kg, ip) or diazepam (1 mg/kg, ip) on picrotoxin- and strychnine-induced convulsion in mice.
TreatmentDose (mg/kg)PicrotoxinStrychnine
Latency (s)Duration (s)Latency (s)Duration (s)
Vehicle–294.4 ± 26.6182.9 ± 14.3304.6 ± 12.4184.7 ± 14.9
PBDT 131377.0 ± 28.1 *445.7 ± 29.2 ***260.6 ± 23.3266.8 ± 7.9 ***
PBDT 141297.5 ± 3.2181.1 ± 36.3357.5 ± 30.5325.5 ± 4.6 ***
PBDT 151312.8 ± 11.2395.8 ± 38.9 ***304.6 ± 21.7171.6 ± 6.1
PBDT 161313.0 ± 18.7296.9 ± 35.6 *313.0 ± 18.7185.6 ± 2.0
Diazepam1440.5 ± 20.1 **481.1 ± 18.7 ***367.1 ± 31.0 *459.7 ± 24.0 ***
Values are the mean ± SEM, n = 4 mice; * p < 0.05, ** p < 0.01, *** p < 0.001, compared with the vehicle group.
Next, we evaluated the sedative effects of PBDTs 13–16 by the pentobarbital-induced hypnotic model. The sedative effects of PBDTs 13–16 and diazepam on the pentobarbital (30 mg/kg, ip)-induced hypnotic model are shown in Figure 2. PBDTs 13 and 15 augmented the duration of sleeping time induced by pentobarbital (Figure 2B; * p < 0.05, ** p < 0.01), but only PBDT 13 shortened the onset of sleeping induced by pentobarbital (Figure 2A; ** p < 0.01). No significant changes in the onset of sleeping and the duration of sleeping time induced by pentobarbital were observed by the administration of PBDTs 14 and 16. Diazepam at 1 mg/kg also induced a significant decrement in the onset of sleep and increased the duration of sleeping time (** p < 0.01). Therefore, we further suggested that only PBDT 13, similar to diazepam, possesses better sedative effects via benzodiazepine receptors.
Ijms 15 16500 g002 1024

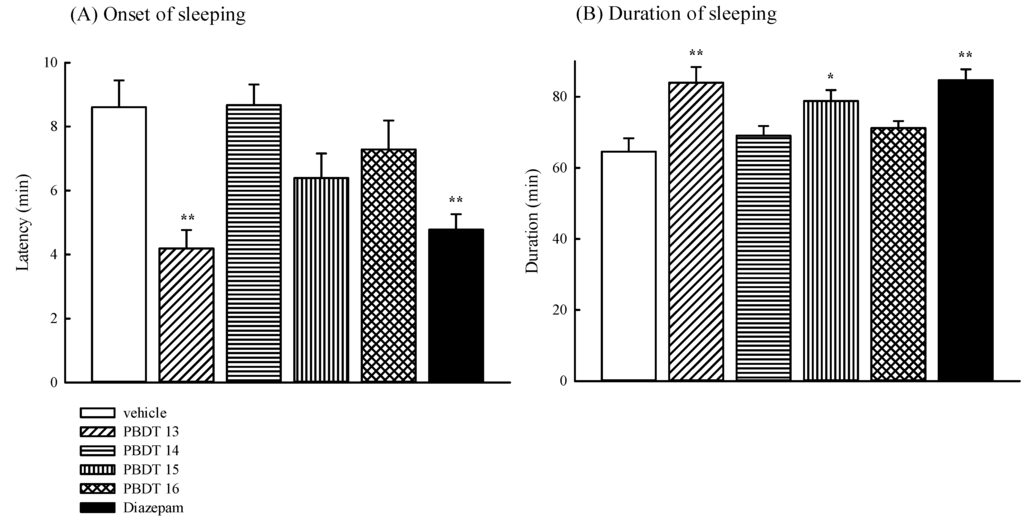

Figure 2. The effects of PBDTs 13–16 (1 mg/kg, ip) or diazepam (1 mg/kg, ip) on the (A) the latency to the loss of righting reflex and (B) total duration of sleeping time induced by sodium pentobarbital (30 mg/kg, ip). Values are the mean ± SEM, n = 4 mice; * p < 0.05, ** p < 0.01, compared with the vehicle group.
Figure 2. The effects of PBDTs 13–16 (1 mg/kg, ip) or diazepam (1 mg/kg, ip) on the (A) the latency to the loss of righting reflex and (B) total duration of sleeping time induced by sodium pentobarbital (30 mg/kg, ip). Values are the mean ± SEM, n = 4 mice; * p < 0.05, ** p < 0.01, compared with the vehicle group.
Ijms 15 16500 g002
Finally, we evaluated the anxiolytic effects of PBDTs 13–16 by the elevated plus maze. EPM is the most popular test of anxiety and the first-choice test for screening anxiolytic drugs [32]. The anxiolytic effects of PBDTs 13–16 and diazepam on the elevated plus maze are shown in Figure 3. PBDTs 13 and 15 increased the percentage of the time spent in the open arms (*** p < 0.001), but only PBDT 13 increased the percentage of the entries into open arms in the elevated plus maze (* p < 0.05). No significant changes in the percentage of the entries into open arms and the time spent in the open arms in the elevated plus maze were observed by the administration of PBDTs 14 and 16. Diazepam at 1 mg/kg also induced a significant increment in the percentage of the entries into open arms and the time spent in the open arms (* p < 0.05, *** p < 0.001). Therefore, we further suggested that only PBDT 13, similar to diazepam, possesses a better anxiolytic effects via benzodiazepine receptors.
From these above results, we suggested that PBDT 13 possessed the best anticonvulsant, sedative and anxiolytic effects among PBDT derivatives 13–16, and then, the next derivative was PBDT 15. A new potential anxiolytic compound, PBDT 13, was found. There was no significant difference in potency between PBDT 13 and diazepam in our tests, and the action mechanism of PBDT 13 was similar to that of diazepam via the benzodiazepine receptors.
Ijms 15 16500 g003 1024

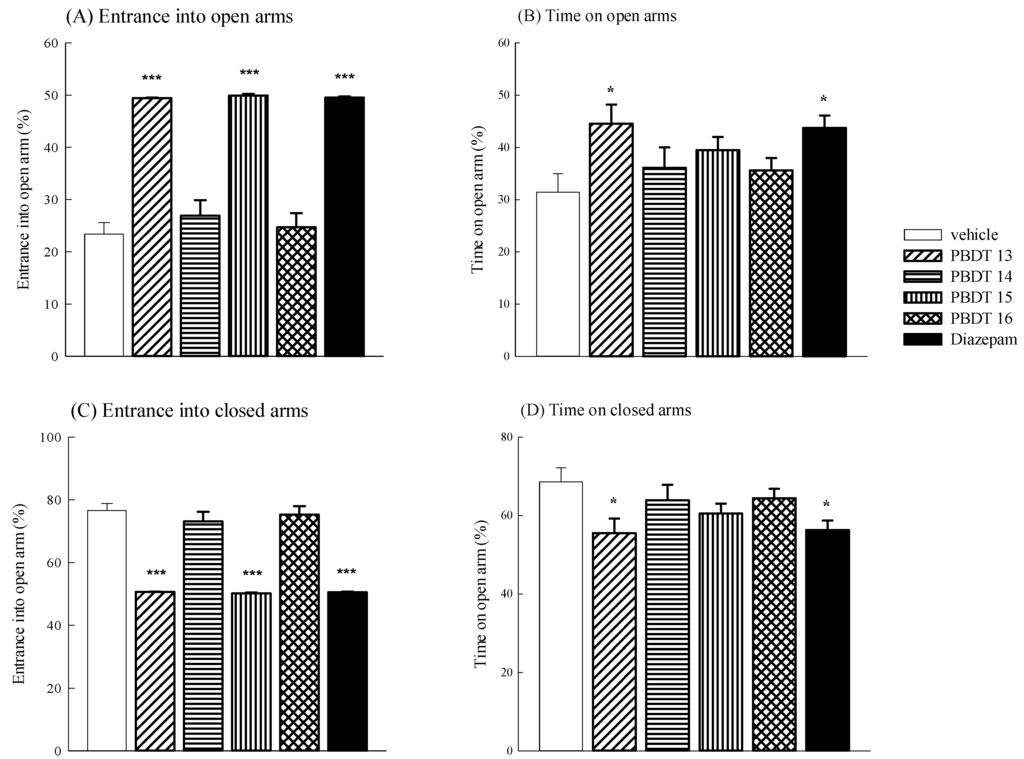

Figure 3. The effects of PBDTs 13–16 (1 mg/kg, ip) or diazepam (1 mg/kg, ip) on the (A) the percentage of open arm entries; (B) the percentage of time spent in open arm entries; (C) the percentage of closed arm entries and (D) the percentage of time spent in the closed arm entries of the elevated pus maze during a 5-min test in male mice. Values are the mean ± SEM, n = 4 mice; * p < 0.05, *** p < 0.001, compared with the vehicle group.
Figure 3. The effects of PBDTs 13–16 (1 mg/kg, ip) or diazepam (1 mg/kg, ip) on the (A) the percentage of open arm entries; (B) the percentage of time spent in open arm entries; (C) the percentage of closed arm entries and (D) the percentage of time spent in the closed arm entries of the elevated pus maze during a 5-min test in male mice. Values are the mean ± SEM, n = 4 mice; * p < 0.05, *** p < 0.001, compared with the vehicle group.
Ijms 15 16500 g003

3. Experimental Section

3.1. General

Melting points were recorded on a Yanaco MP-3 melting point apparatus (Yanaco Corp., Kyoto, Japan) and were not corrected. IR spectra were recorded on a Nicolet Magna FT-IR spectrophotometer (Nicolet Instrument, Inc., Madison, WI, USA). NMR spectra were recorded on Bruker AMX 500 FT-NMR spectrometers (Bruker, Karlsruhe, Germany); all chemical shifts were given in ppm from tetramethylsilane as an internal standard. Mass spectra were obtained on a VG 70-250S spectrometer by a direct inlet system (Micromass Corp., Manchester, UK).
(2S)-18-Thia-6,14,16,19,20-pentaazapentacyclo[12.6.0.02,6.08,13.015,19] icosa-1(20),8,10,12,15-pentaene-7,17-dione (13): To a solution of Compound 12 (100 mg, 0.39 mmol) and Na2CO3 in CH2Cl2–H2O (0.5 mL, 1:1) was added chlorocarbonylsulfenyl chloride (51 mg, 0.39 mmol) slowly at 0 °C and stirred for 30 min at the same temperature. The reaction mixture was diluted with CH2Cl2, separating the organic layer. The aqueous layer was extracted with CH2Cl2. The combined organic layer was washed with brine solution, dried over Na2SO4 and concentrated. The residue was purified by column chromatography to afford 13 (80 mg, 65%) as a pale yellow solid. mp 284–286 °C; νmax (KBr) 2850, 1705, 1627, 1573, 1465, 1411, 1273, 1226, 1165, 786, 756, 702 cm−1; 1H NMR (500 MHz, CDCl3) δ 8.12 (1H, d, J = 7.9 Hz), 8.07 (1H, d, J = 8.1 Hz), 7.69 (1H, t, J = 8.1 Hz), 7.53 (1H, t, J = 7.9 Hz), 4.68 (1H, dd, J = 8.3, 2.3 Hz), 3.93–3.89 (1H, m), 3.75–3.69 (1H, m), 3.06–3.02 (1H, m), 2.43–2.36 (1H, m), 2.29–2.21 (1H, m), 2.18–2.11 (1H, m); 13C NMR (125 MHz, CDCl3) δ 168.4, 163.8, 157.5, 146.4, 132.9, 132.5, 129.0, 128.5, 128.1, 121.4, 51.8, 47.9, 26.5, 23.3; MS (ES) m/z 314 [M + H]+; HRMS (ES): calculated for C14H12N5O2S [M + H]+ 314.0706, found 314.0699.
(2S)-6,14,16,20,21-Pentaazapentacyclo[12.7.0.02,6.08,13.015,20] henicosa-1(21),8,10,12,15,17-hexaene-7,19-dione (14): To a 2.5-mL microwave vial were added Compound 12 (100 mg, 0.39 mmol) and ethyl propiolate (0.04 mg, 0.41 mmol) in EtOH (1 mL) with a stir bar. The reaction vessel was sealed and heated under microwave irradiation for 20 min at 150 °C. After cooling, the reaction vessel was uncapped, the vial contents poured into ice cold water, and the resulting precipitated solid was collected by filtration, washed with cold water and dried to give pure 14 (80 mg, 66%) as an off-white sold. mp 300 °C (decomp.); νmax (KBr) 3093, 2947, 2885, 1643, 1519, 1473, 1411, 1087, 825, 763, 709 cm−1; 1H NMR (500 MHz, CDCl3) δ 8.21 (1H, d, J = 7.8 Hz), 8.07 (1H, d, J = 7.9 Hz), 7.93 (1H, t, J = 7.9 Hz), 7.69 (1H, t, J = 7.5 Hz), 7.54 (1H, t, J = 7.5 Hz), 6.39 (1H, d, J = 7.7 Hz), 4.73 (1H, m), 3.92–3.88 (1H, m), 3.75–3.70 (1H, m), 2.97–2.94 (1H, m), 2.48–2.40 (1H, m), 2.22–2.17 (2H, m); 13C NMR (125 MHz, CDCl3) δ 169.4, 163.9, 151.6, 149.1, 133.3, 132.7, 131.8, 128.9, 128.9, 128.5, 124.3, 112.8, 51.1, 47.6, 26.5, 23.4; MS (ES) m/z 308 [M + H]+; HRMS (ES): calculated for C16H14N5O2 [M + H]+ 308.1142, found 308.1141.
(2S)-17-Methyl-6,14,16,20,21-pentaazapentacyclo[12.7.0.02,6.08,13.015,20] henicosa-1(21),8,10,12,15,17-hexaene-7,19-dione (15): To a 2.5-mL microwave vial were added Compound 12 (100 mg, 0.39 mmol), ethyl acetoacetate (56 mg, 0.43 mmol) and glacial acetic acid (1 mL) with a stir bar. The reaction vessel was sealed and heated under microwave irradiation for 20 min at 150 °C. After cooling, the reaction vessel was uncapped, the reaction mixture was concentrated and the residue suspended with ice cold water, and the resulting precipitated solid was collected by filtration, washed with cold water and dried to give pure 15 (90 mg, 72%) as an off-white solid. mp > 300 °C; νmax (KBr) 3070, 2924, 2854, 1697, 1635, 1612, 1573, 1535, 1465, 1411, 1273, 1188, 1002, 887, 794, 756 cm−1; 1H NMR (500 MHz, CDCl3) δ 8.14 (1H, d, J = 8.2 Hz), 8.11 (1H, d, J = 7.9 Hz), 7.73 (1H, t, J = 7.9 Hz), 7.58 (1H, t, J = 7.9 Hz), 6.22 (1H, s), 4.77 (1H, dd, J = 8.3, 2.6 Hz), 3.90–3.85 (1H, m), 3.75–3.69 (1H, m), 3.27–3.22 (1H, m), 2.48–2.40 (1H, m), 2.39 (3H, s), 2.34–2.28 (1H, m), 2.18–2.11 (1H, m); 13C NMR (125 MHz, CDCl3) δ 164.7, 163.8, 156.4, 151.8, 147.9, 132.4, 131.9, 129.4, 129.1, 128.9, 123.8, 104.7, 51.4, 47.7, 26.6, 24.4, 23.5; MS (ES) m/z 322 [M + H]+; HRMS (ES): calculated for C17H16N5O2 [M + H]+ 322.1299, found 322.1297.
Ethyl (2S)-7,19-dioxo-6,14,16,20,21-pentaazapentacyclo [12.7.0.02,6.08,13.015,20] henicosa-1(21),8,10,12,15,17-hexaene-18-carboxylate (16): To a 2.5-mL microwave vial were added Compound 12 (100 mg, 0.39 mmol), diethyl ethoxymethylenemalonate (93 mg, 043 mmol) and EtOH (2 mL) with a stir bar. The reaction vessel was sealed and heated under microwave irradiation for 20 min at 150 °C. After cooling, the reaction vessel was uncapped, the vial contents poured into of ice cold water, and the resulting precipitated solid was collected by filtration, washed with cold water and dried to give pure 16 (90 mg, 61%) as an off-white solid. mp 298–300 °C; νmax (KBr) 2978, 1720, 1643, 1581, 1512, 1411, 1296, 1126, 794 cm−1; 1H NMR (500 MHz, CDCl3) δ 8.84 (1H, s), 8.14 (1H, d, J = 7.9 Hz), 8.08 (1H, d, J = 8.1 Hz), 7.76 (1H, t, J = 8.0 Hz), 7.63 (1H, t, J = 7.4 Hz), 4.81 (1H, dd, J = 8.3, 2.6 Hz), 4.40 (2H, q), 3.91–3.87 (1H, m), 3.76–3.70 (1H, m), 3.28–3.23 (1H, m), 2.52–2.46 (1H, m), 2.33–2.25 (1H, m), 2.20–2.13 (1H, m), 1.40 (3H, t, J = 7.1 Hz); 13C NMR (125 MHz, CDCl3) δ 164.1, 163.5, 159.5, 152.9, 152.5, 150.2, 132.5, 132.2, 129.6, 129.5, 128.4, 123.9, 109.3, 61.1, 51.4, 47.8, 26.6, 23.4, 14.2; MS (ES) m/z 380 [M + H]+; HRMS (ES): calculated for C19H17N5O4Na [M + Na]+ 402.1173, found 402.1177.

3.2. Animals

Male ICR mice, weighing 20–25 g, were used for the anticonvulsant, hypnotic and anxiolytic assays. All mice were used in accordance to the Guiding Principles and the experimental protocol (No. 102-250-B) was approved on 20 July 2013 by the Institutional Animal Care and Use Committee (IACUC) of the China Medical University. They were housed for at least 1 week before starting the experiment with free access to standard food pellets (supplied and designed by Fwusow Industry Co. LTD., Taiwan) and tap water and housed in a regulated environment (23 ± 1 °C temperature and 60% humidity), wherein a 12:12 h light/dark cycle (light phase: 08:00–20:00 h) was maintained. PBDT derivatives were administered, and the anticonvulsant, hypnotic and anxiolytic assays were performed using the double-blind method.

3.3. Picrotoxin- or Strychnine-Induced Convulsion in Mice

In brief, clonic–tonic convulsion was induced by a subcutaneous (sc) injection of picrotoxin or intraperitoneal (ip) injection of strychnine. The mice were pretreated with PBDT derivatives (1 mg/kg, ip), diazepam (1 mg/kg, ip) or vehicle, 15 min before the injection of picrotoxin (10 mg/kg, sc) or strychnine (2 mg/kg, ip). After the picrotoxin or strychnine injection, mice were placed in the testing chamber. The latencies to myoclonic jerks and the duration from clonic to tonic convulsion were recorded [33].

3.4. Pentobarbital-Induced Hypnotic Model in Mice

In brief, the hypnotic model was induced by an intraperitoneal injection of sodium pentobarbital. The mice were pretreated with PBDT derivatives (1 mg/kg, ip), diazepam (1 mg/kg, ip) or vehicle, 15 min before the injection of sodium pentobarbital (30 mg/kg, ip). After the sodium pentobarbital injection, mice were placed in the testing chamber. The latency to the loss of righting reflex (induction time in seconds) and the time required to recover righting reflex or awakening (sleeping time in minutes) were recorded [33].

3.5. Elevated Plus Maze in Mice

The elevated plus maze is comprised of two open arms (30 × 5 × 0.25 cm) and two closed arms (30 × 5 × 15 cm) that extended from a common central platform (5 × 5 cm) that was elevated to a height of 50 cm above the floor level. Mice were given PBDT derivatives (1 mg/kg, ip), diazepam (1 mg/kg, ip) or vehicle 15 min before their placement on the elevated plus maze. In the experimental period, every precaution was taken to ensure that no external stimuli could evoke anxiety in the mice. After each test, the maze was carefully cleaned up with a wet tissue paper (10% ethanol solution) to eliminate the interference of the olfactory cues on the next mice. All tests were recorded by a video camera and an automated video tracking system device equipped with Etho Vision XT software (Noldus Information Technology, Leesburg, VA, USA). The number of entries and the time spent in the open and closed arms were recorded during a 5-min test period. The percentage of arm entries in each arm (open or closed arm entry × 100/total entries) and the percentage of time spent in each arm (time spent in open or closed × 100/time spent in both arms) were calculated for each mouse [33].

3.6. Statistical Analysis

All data were expressed as the mean ± SEM for each experimental group. Statistical analysis was performed by one-way analysis of variance (ANOVA) followed by Dunnett’s test. When the probability (p) was less than 0.05, the difference was considered significant. IBM SPSS Statistics 12.0 (SPSS Inc., Chicago, IL, USA) was used in this study.

4. Conclusions

We have synthesized four pentacyclic benzodiazepine derivatives (PBDTs 13–16) from 3-amino triazolopyrrolo[2,1-c][1,4]benzodiazepin-8-one (12) via conventional thermal heating and microwave-assisted intramolecular cyclocondensation. The biological evaluation of these compounds revealed that PBDT 13 possessed the best anticonvulsant, sedative and anxiolytic effects. There was no significant difference in potency between PBDT 13 and diazepam in our tests, and the action mechanism of PBDT 13 could be similar to that of diazepam via the benzodiazepine receptors.

Acknowledgments

Financial support from GVK Biosciences, the Ministry of Science and Technology of the Republic of China (MOST 102-2918-I-039-009) and China Medical University (CMU101-N2-09) are gratefully acknowledged.

Author Contributions

Kumaraswamy Sorra and Chien-Shu Chen designed and performed experiments; Chi-Fen Chang, Srinivas Pusuluri and Khagga Mukkanti performed experiments; Chi-Rei Wu performed experiments and wrote the paper; and Ta-Hsien Chuang analyzed data and wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mohler, H.; Okada, T. Benzodiazepine receptor: Demonstration in the central nervous system. Science 1977, 198, 849–851. [Google Scholar]
  2. Mombereau, C.; Kaupmann, K.; van der Putten, H.; Cryan, J.F. Altered response to benzodiazepine anxiolytics in mice lacking GABAB(1) receptors. Eur. J. Pharmacol. 2004, 497, 119–120. [Google Scholar]
  3. Basile, A.S.; Lippa, A.S.; Skolnick, P. Anxioselective anxiolytics: Can less be more? Eur. J. Pharmacol. 2004, 500, 441–451. [Google Scholar]
  4. Berezhnoy, D.; Nyfeler, Y.; Gonthier, A.; Schwob, H.; Goeldner, M.; Sigel, E. On the benzodiazepine binding pocket in GABAA receptors. J. Biol. Chem. 2004, 279, 3160–3168. [Google Scholar]
  5. Brandão, M.L.; de Aguiar, J.C.; Graeff, F.G. GABA mediation of the anti-aversive action of minor tranquilizers. Pharmacol. Biochem. Behav. 1982, 16, 397–402. [Google Scholar]
  6. Thomas, A.W. A concise route to triazolobenzodiazepine derivatives via a one-pot alkyne-azide cycloaddition reaction. Bioorg. Med. Chem. Lett. 2002, 12, 1881–1884. [Google Scholar]
  7. Rogers-Evans, M.; Spurr, P.; Hennig, M. The isolation and use of a benzodiazepine iminochloride for the efficient construction of flumazenil. Tetrahedron Lett. 2003, 44, 2425–2428. [Google Scholar]
  8. Broggini, G.; Molteni, G.; Terraneo, A.; Zecchi, G. A facile synthesis of flumazenil analogues. Tetrahedron 1999, 55, 14803–14806. [Google Scholar]
  9. Gu, Z.Q.; Wong, G.; Dominguez, C.; de Costa, B.R.; Rice, K.C.; Skolnick, P. Synthesis and evaluation of imidazo[1,5-a][1,4]benzodiazepine esters with high affinities and selectivities at “diazepam-insensitive” benzodiazepine receptors. J. Med. Chem. 1993, 36, 1001–1006. [Google Scholar]
  10. Brabcová, R.; Kubová, H.; Velíšek, L.; Mareš, P. Effects of a benzodiazepine, bretazenil (Ro 16-6028), on rhythmic metrazol EEG activity: Comparison with standard anticonvulsants. Epilepsia 1993, 34, 1135–1140. [Google Scholar]
  11. Thurston, D.E. Molecular Aspects of Anticancer Drug DNA Interactions; Neidle, D., Waring, M.J., Eds.; The Macmillan Press Ltd.: London, UK, 1993; p. 54. [Google Scholar]
  12. Tendler, M.D.; Korman, S. “Refuin”: A non-cytotoxic carcinostatic compound proliferated by a thermophilic actinomycete. Nature 1963, 199, 501. [Google Scholar]
  13. Hurley, L.H.; Petrusek, R. Proposed structure of the anthramycin–DNA adduct. Nature 1979, 282, 529–531. [Google Scholar]
  14. Thurston, D.E. Advances in the study of pyrrolo [2,1-c][1,4]-benzodiazepine (PBD) antitumour antibiotics. In Molecular Aspects of Anticancer Drug-DNA Interactions; Neidle, S., Waring, M.J., Eds.; The Macmillan Press Ltd.: London, UK, 1993; pp. 54–88. [Google Scholar]
  15. Broggini, G.; de Marchi, I.; Martinelli, M.; Paladino, G.; Pilati, T.; Terraneo, A. Effective synthesis of enantiopure [1,2,3]triazolo[1,5-a]- and pyrazolo[1,5-a]-pyrrolo[2,1-c][1,4]benzodiazepines by diastereoselective intramolecular azide and nitrilimine cycloadditions. Synthesis 2005, 2246–2252. [Google Scholar]
  16. Hunkeler, W. Benzodiazepines, the story of the antagonist flumazenil and of the partial agonist bretazenil. Chimia 1993, 47, 141–147. [Google Scholar]
  17. Goetz, M.A.; Lopez, M.; Monaghan, R.L.; Chang, R.S.L.; Lotti, V.J.; Chen, T.B. Asperlicin, a novel non-peptidal cholecystokinin antagonist from Aspergillus alliaceus. J. Antibiot. 1985, 38, 1633–1637. [Google Scholar]
  18. Chang, R.S.L.; Lotti, V.J.; Monaghan, R.L.; Birnbaum, J.; Stapley, E.O.; Goetz, M.A.; Albers-Schonberg, G.; Patchett, A.A.; Liesch, J.M.; Hensens, O.D.; et al. A potent nonpeptide cholecystokinin antagonist selective for peripheral tissues isolated from Aspergillus alliaceus. Science 1985, 230, 177–179. [Google Scholar]
  19. Joshi, B.K.; Gloer, J.B.; Wicklow, D.T.; Dowd, P.F. Sclerotigenin: A New antiinsectan benzodiazepine from the sclerotia of Penicillium sclerotigenum. J. Nat. Prod. 1999, 62, 650–652. [Google Scholar]
  20. Dai, J.R.; Carté, B.K.; Sidebottom, P.J.; Yew, A.L.S.; Ng, S.W.; Huang, Y.; Butler, M.S. Circumdatin G, a new alkaloid from the fungus Aspergillus ochraceus. J. Nat. Prod. 2001, 64, 125–126. [Google Scholar]
  21. Rahbæk, L.; Breinholt, J. Circumdatins D, E, and F: Further fungal benzodiazepine analogues from Aspergillus ochraceus. J. Nat. Prod. 1999, 62, 904–905. [Google Scholar]
  22. Ookura, R.; Kito, K.; Ooi, T.; Namikoshi, M.; Kusumi, T. Structure revision of circumdatins A and B, benzodiazepine alkaloids produced by marine fungus Aspergillus ostianus, by X-ray crystallography. J. Org. Chem. 2008, 73, 4245–4247. [Google Scholar]
  23. Rahbæk, L.; Breinholt, J.; Frisvad, J.C.; Christophersen, C. Circumdatin A, B, and C: Three new benzodiazepine alkaloids isolated from a culture of the fungus Aspergillus ochraceus. J. Org. Chem. 1999, 64, 1689–1692. [Google Scholar]
  24. Bock, M.G.; DiPardo, R.M.; Rittle, K.E.; Evans, B.E.; Freidinger, R.M.; Veber, D.F.; Chang, R.S.L.; Chen, T.B.; Keegan, M.E.; Lotti, V.J.; et al. Cholecystokinin antagonists. Synthesis of asperlicin analogs with improved potency and water solubility. J. Med. Chem. 1986, 29, 1941–1945. [Google Scholar]
  25. Sun, H.H.; Barrow, C.J.; Sedlock, D.M.; Gillum, A.M.; Cooper, R. Benzomalvins, new substance P inhibitors from a Penicillium sp. J. Antibiot. 1994, 47, 515–522. [Google Scholar]
  26. Lopez-Gresa, M.P.; Gonzalez, M.C.; Primo, J.; Moya, P.; Romero, V.; Estornell, E. Circumdatin H, a new inhibitor of mitochondrial NADH oxidase, from Aspergillus ochraceus. J. Antibiot. 2005, 58, 416–419. [Google Scholar]
  27. Kumaraswamy, S.; Chang, C.F.; Pusuluri, S.; Mukkanti, K.; Laiu, M.C.; Bao, B.Y.; Su, C,H.; Chuang, T.H. Synthesis and cytotoxicity testing of new amido-substituted triazolopyrrolo[2,1-c][1,4]benzodiazepine (PBDT) derivatives. Molecules 2012, 17, 8762–8772. [Google Scholar]
  28. Kumaraswamy, S.; Mukkanti, K.; Pusuluri, S. Palladium catalyzed synthesis of quinazolino [1,4] benzodiazepine alkaloids and analogous. Tetrahedron 2012, 68, 2001–2006. [Google Scholar]
  29. Perronnet, J.; Taliani, L. Action des isocyanates sur les benzisothiazol-2,1 ones-3 (1H) et sur les thiadiazol-1,2,4 ones-5: Un nouveau réarrangement avec extrusion de l’atome de soufre. J. Heterocycl. Chem. 1980, 17, 673–678. (In French) [Google Scholar]
  30. Medwid, J.B.; Paul, R.; Baker, J.S.; Brockman, J.A.; Du, M.T.; Hallett, W.A.; Hanifin, J.W.; Hardy, R.A., Jr.; Tarrant, M.E.; Torley, L.W.; et al. Preparation of triazolo[1,5-c]pyrimidines as potential antiasthma agents. J. Med. Chem. 1990, 33, 1230–1241. [Google Scholar]
  31. Nasr, M.N. Synthesis and antibacterial activity of fused 1,2,4-triazolo[4,3-a]quinoxaline and oxopyrimido[2',1':5,1]-1,2,4-triazolo[4,3-a]quinoxaline derivatives. Arch. Pharm. 2002, 335, 389–394. [Google Scholar]
  32. Pathak, N.L.; Kasture, S.B.; Bhatt, N.M.; Patel, R.G. Experimental modeling of anxiety. J. Appl. Pharm. Sci. 2011, 1, 6–10. [Google Scholar]
  33. Kebebew, Z.; Shibeshi, W. Evaluation of anxiolytic and sedative effects of 80% ethanolic Carica papaya L. (Caricaceae) pulp extract in mice. J. Ethnopharmacol. 2013, 150, 665–671. [Google Scholar]
