Au(I)-Catalyzed Annulation of Propargyl Amine with Aldehydes: One-Pot Cascade Synthesis of 2,5-Dimethylpyrazines

by
Ji Su
1,2,
Huixin Liu
1 and
Ruimao Hua
1,*
1
Department of Chemistry, Tsinghua University, Beijing 100084, China
2
National Engineering Laboratory for Rice and Byproduct Deep Processing, Central South University of Forestry and Technology, Changsha 410004, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2015, 16(2), 3599-3608; https://doi.org/10.3390/ijms16023599
Submission received: 25 December 2014 / Accepted: 2 February 2015 / Published: 5 February 2015
(This article belongs to the Section Materials Science)
Browse Figures
Versions Notes

Abstract

:
3-Substituted 2,5-dimethylpyrazines were synthesized in high yields via a one-pot cascade annulation of easily available propargyl amine with aldehydes catalyzed by Au(PPh2Cy)Cl.

Graphical Abstract

1. Introduction

Transition-metal-catalyzed cyclization of alkynes with nitrogen-containing compounds has provided the efficient synthetic methods for N-heterocyclic compounds [1,2,3,4]. With the interest of developing the efficient procedures approach to N-heterocyclic compounds, we have recently studied the cyclization of alkynes or 1,3-butadiynes with various nitrogen-containing compounds affording 1,2,5-trisubsituted pyrroles [5], isoquinolines [6,7], 2,4,6-triarylpyridines [8], benzo[f]quinazolines [9], indoles [10], ring-fused phenanthroimidazoles [11], and 1,2,4-oxadiazoles [12]. On the other hand, cyclic compounds containing the structural unit of 2,5-dimethylpyrazine (DMP) show interesting physiological and biological activities found to be the pheromone of ants [13,14], and fungicide active agents [15] (Scheme 1). In addition, the structural unit of DMP has become increasingly important applications as versatile ligands in the field of supramolecular chemistry due to their coordinative ability of two symmetric nitrogen atoms [16,17,18,19,20].
Ijms 16 03599 g001 1024

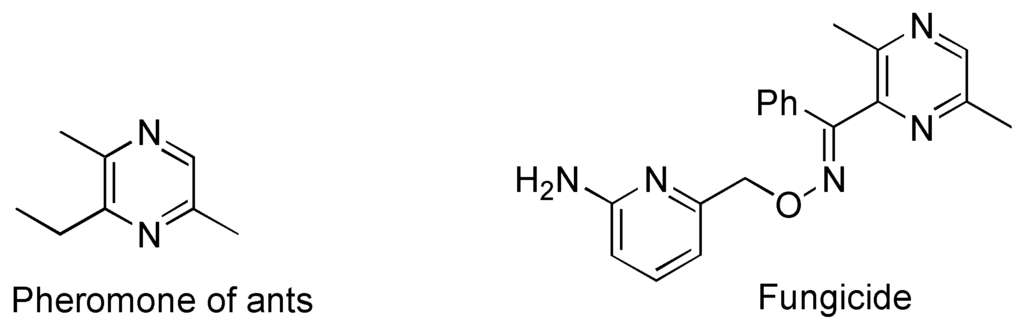

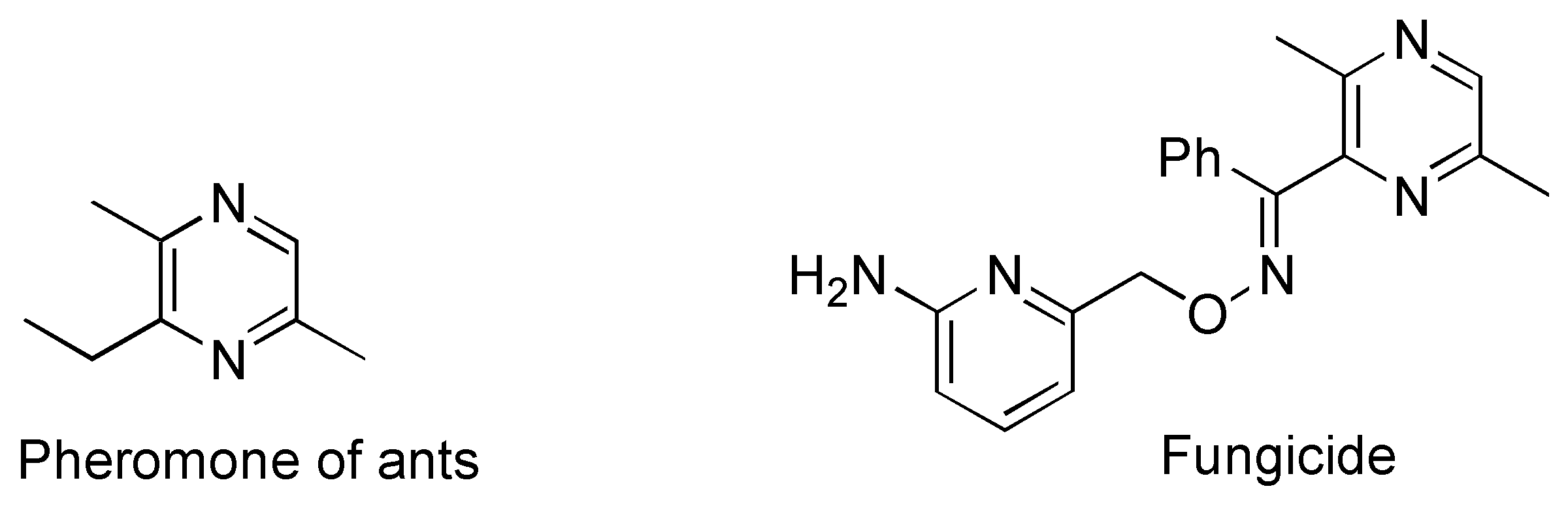

Scheme 1. Examples of natural products having structural unit of 2,5-dimethylpyrazine (DMP).
Scheme 1. Examples of natural products having structural unit of 2,5-dimethylpyrazine (DMP).
Ijms 16 03599 g001
It has been well documented that propargylic compounds, such as propargyl amines [21,22], and propargyl alcohols [23,24,25] have been widely applied as one of the important building blocks in the synthesis of a variety of heterocyclic compounds containing the relevant heteroatoms. As a continuation of our interest in the applications of propargylic compounds on the synthesis of heterocyclic compounds [23,24,25], we are interested in exploring the possible application of prop-2-yn-1-amine (a simplest molecule of propargyl amine) in the synthesis of DMP. Therefore, we designed a synthetic protocol for the formation of DMP as shown in Scheme 2. It involves the dimerization of propargyl amines via the hydroamination to give α-amino enamine A and its rearranged isomer A', which serves as a nucleophile to undergo the aldol addition with aldehyde to form α-amino imine intermediate B [26]. The subsequent intramolecular hydroamination and dehydration/isomerization form cyclic structure of pyrazine. After we developed the catalytic system and finished the experiments [27], a similar procedure for the formation of pyrazine ring was recently reported [28].
Ijms 16 03599 g002 1024

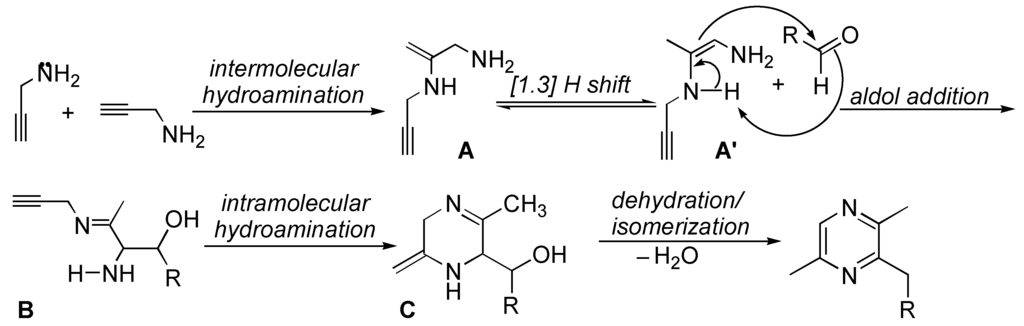

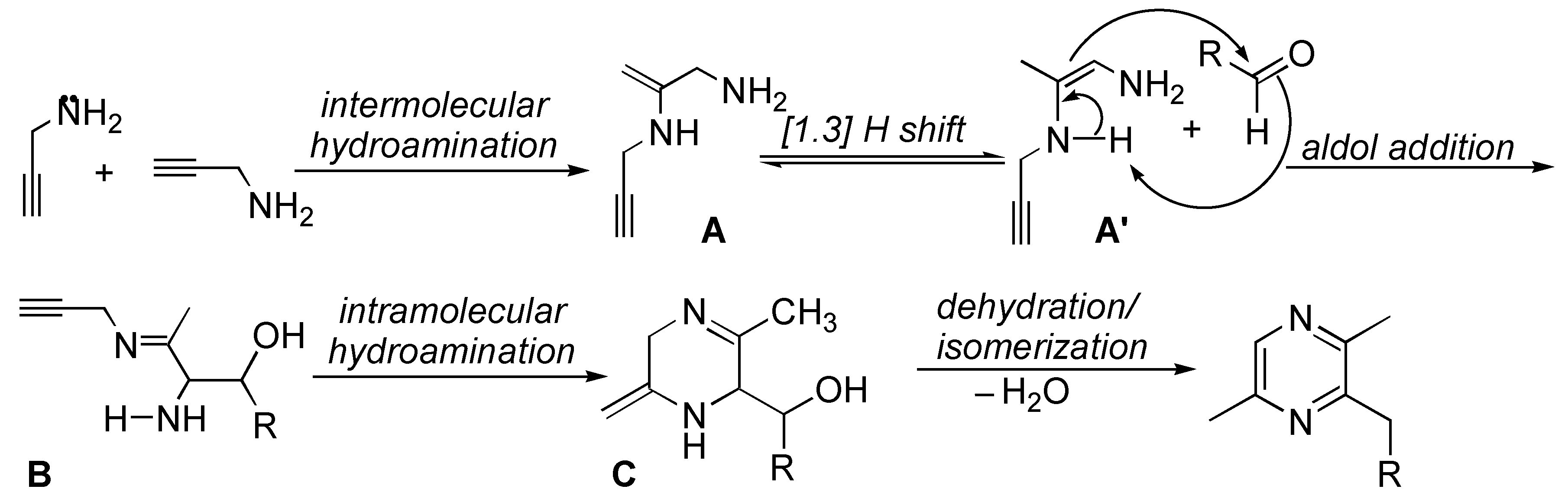

Scheme 2. Proposed mechanism for the formation of pyrazine’s ring.
Scheme 2. Proposed mechanism for the formation of pyrazine’s ring.
Ijms 16 03599 g002

2. Results and Discussion

We initiated our investigation on the reaction of prop-2-yn-1-amine with benzaldehyde (1a) in presence of Au(I) complexes, since Au(I) complexes have been found to be the efficient catalysts for the intermolecular [29,30] and intramolecular hydroamination of alkynes [31,32,33], as well as cycloisomerization of alkynes [34,35] to give N-heterocyclic compounds. As concluded in Table 1, when a mixture of benzaldehyde (1.0 mmol, 1a) and propargyl amine (3.0 equiv) and Au(PPh3)Cl (0.05 mmol) in toluene was heated with stirring at 60 °C for 48 h, the analyses of the reaction mixture by GC-MS revealed that a new dehydrative cyclization of one molecule of 1a with two molecules of propargyl amine occurred to produce 3-benzyl-2,5-dimethylpyrazine (2a) in 13% GC yield (entry 1). The formation of 2a greatly depended on the solvents used. For example, when THF was used to lead to no formation of 2a at all (entry 2). However, the yield of 2a could be substantially increased to 45%, when CH3CN was employed (entry 3). Increasing the reaction temperature to 80 °C in CH3CN resulted in the reaction much more efficiently to afford 2a in 77% yield (entry 4), and the almost quantitative yields of 2a could be obtained by simply replacing PPh3 ligand to PPh2Me (entry 5) or PPh2Cy (entry 6) in CH3CN at 60 °C. In the presence of Au(PPh2Cy)Cl, repeating the reaction in toluene (entry 7) and THF (entry 8) resulted in low yield or no formation of 2a. In addition, Au(PPhMe2)Cl and Au(PCy3)Cl also showed good catalytic activities to give 2a in 72% (entry 9) and 88% GC (entry 10) yields, respectively. It should be noted that reduction of reaction time to 24 h led to the slight decrease of the yields of 2a in the cases of Au(PPh2Me)Cl (entry 11, 89%) and Au(PPh2Cy)Cl (entry 12, 92%) used.
Table
Table 1. Optimizing the reaction conditions for the formation of 3-benzyl-2,5-dimethylpyrazine (2a) a.
Table 1. Optimizing the reaction conditions for the formation of 3-benzyl-2,5-dimethylpyrazine (2a) a.
Ijms 16 03599 i001
EntryCatalystSolventTemp. (°C)/Time (h)Yield (%) b
1Au(PPh3)Cltoluene60/4813
2Au(PPh3)ClTHF60/480
3Au(PPh3)ClCH3CN60/4845
4Au(PPh3)ClCH3CN80/4877
5Au(PPh2Me)ClCH3CN60/48>99
6Au(PPh2Cy)ClCH3CN60/48>99 (92)
7Au(PPh2Cy)Cltoluene60/4820
8Au(PPh2Cy)ClTHF60/480
9Au(PPhMe2)ClCH3CN60/4872
10Au(PCy3)ClCH3CN60/4888
11Au(PPh2Me)ClCH3CN60/2489
12Au(PPh2Cy)ClCH3CN60/2492
a Reactions were carried out using 1.0 mmol of benzaldehyde (1a), 3.0 mmol of pro-2-yn-1-amine, and 0.05 mmol of catalyst in 2.0 mL of solvent in a sealed tube under nitrogen atmosphere; b GC yield based on the amount of 1a used. Number in parenthesis is isolated yield.
With the optimized reaction condition indicated in entry 6 of Table 1, the generality for the formation of 3-substituted 2,5-dimethylpyrazines was studied. As shown in Table 2, benzaldehydes bearing chloro group at para-, meta- or ortho-position, or having bromo, fluoro, methyl or methoxy group at para-position reacted with propargyl amine smoothly to afford the corresponding pyrazines 2b–f and 2h–i in high yields. No significant steric effect was observed when para-chlorobenzaldehyde (for 2b), meta-chlorobenzaldehyde (for 2c) and ortho-chlorobenzaldehyde (for 2d) were used, and the desired products 2b–d were obtained in similar yields. By comparison of the reactions in the cases of para-chlorobenzaldehyde (for 2b), para-fluorobenzaldehyde (for 2e), para-methylbenzaldehyde (for 2h) and para-methoxybenzaldehyde (for 2i) used, the electron effect of substitute groups could not affect the formation of the corresponding pyrazines in high yields either. Only in the case of 2,4-dichlorobenzaldehyde employed, the corresponding product was formed in a declined yield (2g, 73%). In addition, it was very important to note that under the reaction conditions, C–X bond (X = F, Cl, Br) remained intact, and the obtained 3-arylmethyl-2,5-dimethylpyrazines can be easily transferred into their new derivatives by C–X bond activation and its coupling reaction. In addition, we also examined the present cyclization employing aliphatic aldehydes, and the reactions occurred smoothly to afford the corresponding desired pyrazines (2k–m) with high yields.
Table

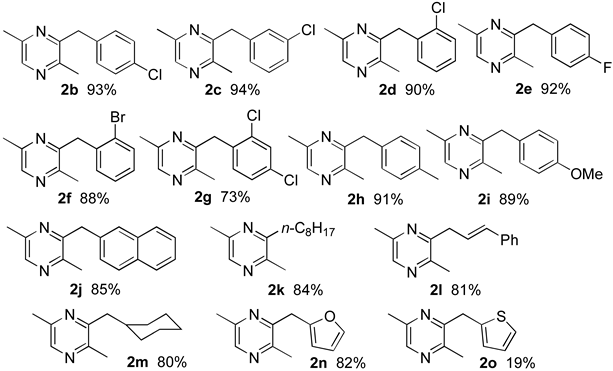

Table 2. Synthesis of 2,5-dimethylpyrazine derivatives a.
Table 2. Synthesis of 2,5-dimethylpyrazine derivatives a.
Ijms 16 03599 i002
a Reactions were carried out using 2.0 mmol of aldehyde, 6.0 mmol of prop-2-yn-1-amine, and 0.1 mmol of catalyst in 4.0 mL of MeCN at 60 °C for 48 h.
Moreover, the annulation of propargyl amine with heterocyclic aldehydes such as 2-furaldehyde and 2-thiophenaldehyde were also studied, and in the case of 2-furaldehyde used, the corresponding 2,5-dimethylpyrazine (2n) was obtained in high yield. However, when 2-thiophenaldehyde was subjected to the similar reaction conditions, the desired product (2o) formed in 19% isolated yield, accompanied with the formation of N-(prop-2-yn-1-yl)-1-thiophen-2-ylmethanimine in 70% yield resulting from the traditional nucleophilic addition of propargyl amine to aldehyde and subsequent dehydration reaction.
However, unfortunately, the reactions of 1a or 1k with 3-substituted propargyl amines such as 3-phenyl-2-propyn-1-amine and 2-heptyn-1-amine resulted in neither affording the corresponding pyrazine derivatives, nor forming other N-heterocyclic compounds.

3. Experimental Section

3.1. General Methods

All organic starting materials and solvents are analytically pure and used without further purification. Nuclear magnetic resonance (NMR) spectra were recorded on a JEOL ECA-300 spectrometer (JEOL, Tokyo, Japan) using CDCl3 as a solvent at 298 K. 1H NMR (300 MHz) chemical shifts (δ) were referenced to internal standard TMS (for 1H, δ = 0.00 ppm). 13C NMR (75 MHz) chemical shifts were referenced to internal solvent CDCl3 (for 13C, δ = 77.16 ppm). Mass spectra (MS) were obtained on a Shimadzu GCMS-QP2010S (Shimadzu, Tokyo, Japan), and high-resolution mass spectra (ESI) were obtained with a micrOTOF-Q 10142 spectrometer (Agilent, San Diego, CA, USA).

3.2. A Typical Experiment Procedure for the Reaction of Benzaldehyde (1a) with Prop-2-yn-1-amine Affording 3-Benzyl-2,5-dimethylpyrazine (2a) (Table 1, Entry 6)

A mixture of benzaldehyde (1a) (106.0 mg, 1.0 mmol), prop-2-yn-1-amine (165.0 mg, 3.0 mmol), Au(PPh2Cy)Cl (25.0 mg, 0.05 mmol) and CH3CN (2.0 mL) was heated at 60 °C (oil bath temperature) with stirring for 48 h in a screw-capped thick-walled Pyrex tube under a nitrogen atmosphere. After the reaction mixture was cooled to room temperature, CH2Cl2 (3.0 mL) and n-octadecane (51.0 mg, 0.2 mmol as internal standard for GC analysis) was then added with stirring. After GC and GC-MS analyses of the reaction mixture, volatiles were removed under reduced pressure, and the residue was subjected to silica gel column chromatography (silica gel was alkalized by a solution of petroleum ether with 2% (v/v) triethylamine), eluted with a mixture of solvents of triethylamine/ethyl acetate/petroleum ether (1:20:80 in volume). 2a was obtained in 182.0 mg (0.92 mmol, 92%) as a yellow oil. The GC analysis of reaction mixture disclosed the formation of 2a in >99% GC yield.
Characterization data of products (the charts of 1H- and 13C-NMR are reported in Supplementary Materials):
3-Benzyl-2,5-dimethylpyrazine (2a) [36]: yellow oil; 1H NMR (300 MHz, CDCl3) δ 8.20 (s, 1H), 7.28–7.15 (m, 5H), 4.15 (s, 2H), 2.51 (s, 3H), 2.43 (s, 3H); 13C NMR (75 MHz, CDCl3) δ 152.9, 150.1, 149.3, 141.4, 137.9, 128.6, 128.4, 126.4, 41.6, 21.4, 21.0; GCMS m/z (% rel. intensity) 198 (M+, 66), 197 (100), 183 (40), 128 (8), 91 (14); HRMS (ESI): Calcd. for C13H15N2 [M + H]+: 199.1230; found: 199.1232.
3-(4-Chlorobenzyl)-2,5-dimethylpyrazine (2b): yellow oil; 1H NMR (300 MHz, CDCl3) δ 8.22 (s, 1H), 7.22 (d, 2H, J = 8.6 Hz), 7.11 (d, 2H, J = 8.3 Hz), 4.11 (s, 2H), 2.51 (s, 3H), 2.43 (s, 3H); 13C NMR (75 MHz, CDCl3) δ 153.3, 150.3, 149.1, 141.5, 136.4, 132.2, 129.9, 128.5, 40.8, 21.3, 21.0; GCMS m/z (% rel. intensity) 233 (44), 232 (M+, 79), 231 (100), 217 (34), 197 (23), 196 (24), 182 (17); HRMS (ESI): Calcd. for C13H14ClN2 [M + H]+: 233.0840; found: 233.0844.
3-(3-Chlorobenzyl)-2,5-dimethylpyrazine (2c): yellow oil; 1H NMR (300 MHz, CDCl3) δ 8.23 (s, 1H), 7.25–7.12 (m, 3H), 7.07 (m, 1H), 4.13 (s, 2H), 2.52 (s, 3H), 2.45 (s, 3H); 13C NMR (75 MHz, CDCl3) δ 152.1, 150.4, 149.2, 141.7, 140.0, 134.3, 129.7, 128.6, 126.8, 126.6, 41.1, 21.4, 21.1; GCMS m/z (% rel. intensity) 233 (41), 232 (M+, 76), 231 (100), 217 (47), 197 (24), 196 (27), 182 (19), 116 (22); HRMS (ESI): Calcd. for C13H14ClN2 [M + H]+: 233.0840; found: 233.0847.
3-(2-Chlorobenzyl)-2,5-dimethylpyrazine (2d): yellow oil; 1H NMR (300 MHz, CDCl3) δ 8.24 (s, 1H), 7.38 (d, 1H, J = 7.9 Hz), 7.20–7.08 (m, 2H), 6.88 (d, 1H, J = 7.2 Hz), 4.27 (s, 2H), 2.50 (s, 3H), 2.43 (s, 3H); 13C NMR (75 MHz, CDCl3) δ 152.0, 150.4, 149.6, 141.6, 136.0, 134.1, 129.9, 129.4, 127.8, 126.8, 38.6, 21.3, 21.1; GCMS m/z (% rel. intensity) 197 (100), 116 (8), 89 (7); HRMS (ESI): Calcd. for C13H14ClN2 [M + H]+: 233.0840; found: 233.0838.
3-(4-Fluorobenzyl)-2,5-dimethylpyrazine (2e): yellow oil; 1H NMR (300 MHz, CDCl3) δ 8.22 (s, 1H), 7.20–2.09 (m, 2H), 6.97–6.90 (m, 2H), 4.12 (s, 2H), 2.52 (s, 3H), 2.44 (s, 3H); 13C NMR (75 MHz, CDCl3) δ 161.5 (d, JC–F = 242.4 Hz), 152.7, 150.3, 149.1, 141.5, 133.6 (d, JC–F = 2.9 Hz), 130.0 (d, JC–F = 7.9 Hz), 115.2 (d, JC–F = 20.8 Hz), 40.7, 21.3, 21.0; GCMS m/z (% rel. intensity) 216 (M+, 71), 215 (100), 201 (38), 109 (22); HRMS (ESI): Calcd. for C13H14FN2 [M + H]+: 217.1136; found: 217.1126.
3-(2-Bromobenzyl)-2,5-dimethylpyrazine (2f): yellow solid; 1H NMR (300 MHz, CDCl3) δ 8.24 (s, 1H), 7.56 (d, 1H, J = 6.5 Hz), 7.20–7.01 (m, 2H), 6.84 (d, 1H, J = 7.6 Hz), 4.26 (s, 2H), 2.49 (s, 3H), 2.43 (s, 3H); 13C NMR (75 MHz, CDCl3) δ 151.9, 150.3, 149.6, 141.6, 137.7, 132.7, 129.9, 128.0, 127.4, 124.7, 41.3, 21.3, 31.1; GCMS m/z (% rel. intensity) 197 (M–Br−, 100), 154 (5), 128 (10), 89 (9), 63 (5); HRMS (ESI): Calcd. for C13H14BrN2 [M + H]+: 277.0335; found: 277.0327.
3-(2,4-Dichlorobenzyl)-2,5-dimethylpyrazine (2g): yellow oil; 1H NMR (300 MHz, CDCl3) δ 8.24 (s, 1H), 7.40 (s, 1H), 7.12 (d, 1H, J = 7.5 Hz), 6.86 (d, 1H, J = 8.2 Hz), 4.21 (s, 2H), 2.49 (s, 3H), 2.44 (s, 3H); 13C NMR (75 MHz, CDCl3) δ 151.5, 150.6, 149.5, 141.8, 134.7, 133.5, 132.9, 131.0, 129.2, 127.1, 38.0, 21.3, 21.1; GCMS m/z (% rel. intensity) 231 (M–Cl−, 100), 196 (84), 150 (8), 80 (8), 51 (5); HRMS (ESI): Calcd. for C13H13Cl2N2 [M + H]+: 267.0450; found: 267.0457.
3-(4-Methylbenzyl)-2,5-dimethylpyrazine (2h): yellow oil; 1H NMR (300 MHz, CDCl3) δ 8.18 (s, 1H), 7.10–7.00 (m, 4H), 4.10 (s, 2H), 2.49 (s, 3H), 2.42 (s, 3H), 2.25 (s, 3H); 13C NMR (75 MHz, CDCl3) δ 152.9, 149.8, 149.0, 141.0, 135.6, 134.6, 128.9, 128.3, 41.0, 21.2, 20.8, 20.7; GCMS m/z (% rel. intensity) 212 (M+, 75), 211 (100), 197 (53), 128 (11), 105 (30), 77 (16); HRMS (ESI): Calcd. for C14H17N2 [M + H]+:213.1385; found: 213.1385.
3-(4-Methoxybenzyl)-2,5-dimethylpyrazine (2i): yellow solid; 1H NMR (300 MHz, CDCl3) δ 8.20 (s, 1H), 7.10 (d, 2H, J = 8.3 Hz), 6.81 (d, 2H, J = 8.2 Hz), 4.10 (s, 2H), 3.75 (s, 3H), 2.52 (s, 3H), 2.44 (s, 3H); 13C NMR (75 MHz, CDCl3) δ 158.2, 153.3, 150.2, 149.3, 141.3, 130.0, 129.6, 113.9, 55.2, 40.9, 21.5, 21.1; GCMS m/z (% rel. intensity) 228 (M+, 100), 227 (44), 213 (74), 185 (17), 121 (87), 91 (14); HRMS (ESI): Calcd. for C14H17N2O [M + H]+: 229.1335; found: 229.1330.
3-(2-Naphthylmethyl)-2,5-dimethylpyrazine (2j): yellow oil; 1H NMR (300 MHz, CDCl3) δ 8.19 (s, 1H), 7.75–7.66 (m, 3H), 7.53 (s, 1H), 7.41–7.30 (m, 3H), 4.27 (s, 2H), 2.50 (s, 3H), 2.43 (s, 3H); 13C NMR (75 MHz, CDCl3) δ 152.7, 150.1, 149.4, 141.4, 135.4, 133.4, 132.1, 128.1, 127.5, 127.4, 127.0, 126.8, 126.0, 125.4, 41.7, 21.4, 21.0; GCMS m/z (% rel. intensity) 248 (M+, 85), 247 (100), 233 (42), 141 (29), 115 (27); HRMS (ESI): Calcd. for C17H17N2 [M + H]+: 249.1386; found: 249.1392.
3-Octyl-2,5-dimethylpyrazine (2k): yellow oil; 1H NMR (300 MHz, CDCl3) δ 8.15 (s, 1H), 2.76 (t, 2H, J = 7.6 Hz), 2.53 (s, 3H), 2.49 (s, 3H), 1.73–1.62 (m, 2H), 1.48–1.21 (m, 10H), 0.88 (t, 3H, J = 6.5 Hz); 13C NMR (75 MHz, CDCl3) δ 154.9, 150.0, 148.5, 140.6, 35.2, 31.9, 29.7, 29.5, 29.3, 28.6, 22.7, 21.2, 21.1, 14.1; GCMS m/z (% rel. intensity) 135 (11), 122 (100); HRMS (ESI): Calcd. for C14H25N2 [M + H]+: 221.2012; found: 221.2019.
3-Cinnamyl-2,5-dimethylpyrazine (2l): orange oil; 1H NMR (300 MHz, CDCl3) δ 8.20 (s, 1H), 7.35–7.20 (m, 5H), 6.50–6.31 (m, 2H), 3.71 (d, 2H, J = 5.8 Hz), 2.55 (s, 3H), 2.50 (s, 3H); 13C NMR (75 MHz, CDCl3) δ 152.4, 150.4, 149.1, 141.4, 137.2, 131.9, 128.5, 127.4, 126.2, 125.9, 39.2, 21.2, 21.1; GCMS m/z (% rel. intensity) 224 (M+, 47), 223 (28), 209 (34). 147 (45), 122 (100), 115 (27), 91 (15); HRMS (ESI): Calcd. for C15H17N2 [M + H]+: 225.1386; found: 225.1375.
3-Cyclohexylmethyl-2,5-dimethylpyrazine (2m): yellow oil; 1H NMR (300 MHz, CDCl3) δ 8.14 (s, 1H), 2.66 (d, 2H, J = 7.2 Hz), 2.52 (s, 3H), 2.50 (s, 3H), 1.85–1.63 (m, 6H), 1.29–0.99 (m, 5H); 13C NMR (75 MHz, CDCl3) δ 154.1, 150.0, 149.0, 140.6, 42.5, 38.3, 33.3, 26.5, 26.3, 21.6, 21.2; GCMS m/z (% rel. intensity) 204 (M+, 0.2), 189 (1), 161 (2), 147 (2), 122 (100), 80 (2), 55 (4); HRMS (ESI): Calcd. for C13H21N2 [M + H]+: 205.1699; found: 205.1702.
3-(2-Furylmethyl)-2,5-dimethylpyrazine (2n): yellow oil; 1H NMR (300 MHz, CDCl3) δ 8.23 (s, 1H), 7.31 (d, 1H, J = 1.1 Hz), 6.28 (d, 1H, J = 1.5 Hz), 6.00 (d, 1H, J = 3.1 Hz), 4.16 (s, 2H), 2.53 (s, 3H), 2.51 (s, 3H); 13C NMR (75 MHz, CDCl3) δ 151.7, 150.6, 150.4, 149.4, 141.9, 141.7, 110.4, 106.7, 35.0, 21.3, 21.1; GCMS m/z (% rel. intensity) 188 (M+, 80), 159 (100), 145 (15), 91 (10), 81 (36); HRMS (ESI): Calcd. for C11H17N2O [M + H]+: 189.1022; found: 189.1017.
2,5-Dimethyl-3-(2-thienylmethyl)pyrazine (2o): yellow oil; 1H NMR (300 MHz, CDCl3) δ 8.22 (s, 1H), 7,13 (d, 1H, J = 6.5 Hz), 6.90 (dd, 1H, J = 3.4 Hz, 5.1 Hz), 6.78 (m, 1H), 4.32 (s, 2H), 2.52 (s, 6H); 13C NMR (75 MHz, CDCl3) δ 152.1, 150.4, 149.0, 141.8, 140.4, 126.8, 125.4, 124.3, 36.2, 21.3, 21.1; GCMS m/z (% rel. intensity) 204 (100), 189 (15), 171 (30), 159 (35), 97 (95), 80 (9), 53 (16); HRMS (ESI): Calcd. for C11H13N2S [M + H]+: 205.0794; found: 205.0790.

4. Conclusions

In summary, we have developed a cascade annulation of propargyl amine with aldehydes approach to 3-substituted 2,5-dimethylpyrazines in high yields catalyzed by Au(PPh2Cy)Cl, which involves the intermolecular hydroamination and intramolecular cyclic hydroamination, as well as the dehydration reaction. The present work has developed the application of propargyl amines in the synthesis of nitrogen-containing heterocycles with the advantages of readily accessible starting materials and high atom-efficiency.

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1422-0067/16/02/3599/s1.

Acknowledgments

This project was supported by the National Natural Science Foundation of China (21473097, 21273125, 21032004), and the Specialized Research Fund for the Doctoral Program of Higher Education (20110002110051).

Author Contributions

Both co-authors did the research work including optimization of reaction conditions and study on the substrate scope.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Varela, J.A.; Saá, C. Construction of pyridine rings by metal-mediated [2 + 2 + 2] cycloaddition. Chem. Rev. 2003, 103, 3787–3801. [Google Scholar]
  2. Nakamura, I.; Yamamoto, Y. Transition metal catalyzed reactions in heterocyclic synthesis. Chem. Rev. 2004, 104, 2127–2198. [Google Scholar]
  3. Hua, R.; Abrenica, M.V.A.; Wang, P. Cycloaddition of alkynes: Atom-economic protocols for constructing six-membered cycles. Curr. Org. Chem. 2011, 15, 712–729. [Google Scholar]
  4. Nizami, T.A.; Hua, R. Cycloaddition of 1,3-butadiynes: Efficient synthesis of carbo- and heterocycles. Molecules 2014, 19, 13788–13802. [Google Scholar]
  5. Zheng, Q.; Hua, R. CuCl-catalyzed cycloaddition of 1,3-butadiynes with primary amines: An atom-economic process for synthesis of 1,2,5-trisubsituted pyrroles. Tetrahedron Lett. 2010, 51, 4512–4514. [Google Scholar]
  6. Zheng, L.; Ju, J.; Bin, Y.; Hua, R. Synthesis of isoquinolines and heterocycle-fused pyridines via three-component cascade reaction of aryl ketones, hydroxylamine, and alkynes. J. Org. Chem. 2012, 77, 5794–5800. [Google Scholar]
  7. Ju, J.; Hua, R. Copper-catalyzed synthesis of isoquinolines by the cyclocondensation of ortho-alkynyl aromatic aldehydes or ketones with urea. Curr. Org. Synth. 2013, 10, 328–332. [Google Scholar]
  8. Wang, P.; Hua, R.; Li, C.-J. One-pot synthesis of 2,4,6-triarylpyridines by the oxidative cyclocondensation of benzaldehydes, aromatic alkynes and ammonium bifluoride. Curr. Org. Synth. 2013, 10, 655–660. [Google Scholar]
  9. Yang, L.; Hua, R. Cycloaddition of 1,4-diaryl-1,3-butadiynes with nitriles: An atom-economic one-pot approach to benzo[f]quinazolines. Chem. Lett. 2013, 42, 769–771. [Google Scholar]
  10. Zheng, L.; Hua, R. Rhodium(III)-catalyzed C–H activation and indole synthesis with hydrazone as an auto-formed and auto-cleavable directing group. Chem. Eur. J. 2014, 20, 2352–2356. [Google Scholar]
  11. Zheng, L.; Hua, R. Modular assembly of ring-fused and π-extended phenanthroimidazoles via C−H activation and alkyne annulation. J. Org. Chem. 2014, 79, 3930–3936. [Google Scholar]
  12. Guo, J.; Hua, R.; Sui, Y.; Cao, J. Synthesis of 3,5-disubstituted 1,2,4-oxadiazoles and their behavior of liquid crystallines. Tetrahedron Lett. 2014, 55, 1557–1560. [Google Scholar]
  13. Sato, N.; Matsuura, T. Studies on pyrazines. Part 32. Synthesis of trisubstituted and tetrasubstituted pyrazines as ant pheromones. J. Chem. Soc. Perkin Trans. 1 1996, 2345–2350. [Google Scholar] [CrossRef]
  14. Ali, M.F.; Morgan, E.D.; Detrain, C.; Attygalle, A.B. Identification of a component of the trail pheromone of the ant Pheidole pullidulu (Hymenoptera: Formicidae). Physiol. Entomol. 1988, 13, 251–265. [Google Scholar]
  15. Beier, C.; Benting, J.; Bernier, D.; Christian, I.; Coqueron, P.-Y.; Desbordes, P.; Dubost, C.; Genix, P.; Grosjean-Cournoyer, M.-C.; Portz, D.; et al. Preparation of Fungicide Hydroximoyl-Heterocycles Derivatives. In PCT Int. Appl.; WO 2009130193 A1, 21 April 2009. [Google Scholar]
  16. Awwadi, F.F.; Landee, C.P.; Turnbull, M.M.; Twamley, B.; Wells, B.M. Low-dimensional quantum magnetic systems: Synthesis, structure and magnetic behavior of (2,5-dimethylpyrazine)copper(II) chloride and synthesis and magnetic behavior of bis(2,6-dimethylpyrazine)copper(II) chloride. Polyhedron 2005, 24, 2153–2159. [Google Scholar]
  17. Yeung, W.-F.; Gao, S.; Wong, W.-T.; Lau, T.-C. Antiferromagnetic ordering in a novel five-connected 3D polymer {Cu2(2,5-Me2pyz)[N(CN)2]4}n (2,5-Me2pyz = 2,5-dimethylpyrazine). New J. Chem. 2002, 26, 523–525. [Google Scholar]
  18. Otieno, T.; Blanton, J.R.; Lanham, K.J.; Parkin, S. Poly-μ-2,5-dimethylpyrazine-μ-dithiocyanato-N,S,S-dicopper(I): A three-dimensional coordination polymer containing both molecular and anionic rod ligands. J. Chem. Cryst. 2003, 33, 335–339. [Google Scholar]
  19. Wriedt, M.; Jeß, I.; Näther, C. Synthesis, crystal structures, and thermal properties of new [ZnX2(2,5-dimethylpyrazine)] (X = Cl, Br, I) coordination compounds. Eur. J. Inorg. Chem. 2009, 2009, 363–372. [Google Scholar]
  20. Wang, Z.-H.; Wang, D.-F.; Zhang, T.; Huang, R.-B.; Zheng, L.-S. Effect of different carboxylates on two Ag(I) coordination polymers with 2,5-dimethylpyrazine ligand. J. Mol. Struct. 2014, 1064, 27–31. [Google Scholar]
  21. Shi, M.; Shen, Y.-M. Transition-metal-catalyzed reactions of propargylamine with carbon dioxide and carbon disulfide. J. Org. Chem. 2002, 67, 16–21. [Google Scholar]
  22. Abahmane, L.; Knauer, A.; Ritter, U.; Köhler, J.M.; Groß, G.A. Heterogeneous catalyzed pyridine synthesis using montmorillionite and nanoparticle-impregnated alumina in a continuous micro flow system. Chem. Eng. Technol. 2009, 32, 1799–1805. [Google Scholar]
  23. Zeng, H.; Ju, J.; Hua, R. ReCl(CO)5-catalyzed cyclocondensation of phenols with 2-methyl-3-butyn-2-ol to afford 2,2-dimethyl-2H-chromenes. Tetrahedron Lett. 2011, 52, 3926–3928. [Google Scholar]
  24. Su, J.; Ju, J.; Hua, R. An efficient copper-catalyzed cyclocondensation of anilines with propargyl alcohols approach to 1,2-dihydroquinolines. Curr. Org. Synth. 2012, 9, 273–277. [Google Scholar]
  25. Su, J.; Hua, R. One-pot approach to 4-vinyl-1,2,3-triazoles by cycloaddition of azides with propargyl alcohols catalyzed by Cu(I)/Ru(III)/TFA. Curr. Org. Synth. 2012, 9, 898–902. [Google Scholar]
  26. Bahmanyar, S.; Houk, K.N. Transition states of amine-catalyzed aldol reactions involving enamine intermediates: Theoretical studies of mechanism, reactivity, and stereoselectivity. J. Am. Chem. Soc. 2001, 123, 11273–11283. [Google Scholar]
  27. Hua, R.; Su, J. Preparation Method for 2,5-Dimethylpyrazine Derivative. China Patent 201210132707, 28 April 2012. [Google Scholar]
  28. Alcaide, B.; Almendros, P.; Alonso, J.M.; Fernández, I.; Gómez-Campillos, G.; Torres, M.R. A gold-catalysed imine–propargylamine cascade sequence: Synthesis of 3-substituted-2,5-dimethylpyrazines and the reaction mechanism. Chem. Commun. 2014, 50, 4567–4570. [Google Scholar]
  29. Duan, H.; Sengupta, S.; Petersen, J.L.; Akhmedov, N.G.; Shi, X. Triazole-Au(I) complexes: A new class of catalysts with improved thermal stability and reactivity for intermolecular alkyne hydroamination. J. Am. Chem. Soc. 2009, 131, 12100–12102. [Google Scholar]
  30. Hesp, K.D.; Stradiotto, M. Stereo- and regioselective gold-catalyzed hydroamination of internal alkynes with dialkylamines. J. Am. Chem. Soc. 2010, 132, 18026–18029. [Google Scholar]
  31. Surmont, R.; Verniest, G.; Kimpe, N.D. Gold-catalyzed synthesis of 2-aryl-3-fluoropyrroles. Org. Lett. 2009, 11, 2920–2923. [Google Scholar]
  32. Zhang, L.; Ye, D.J.; Zhou, Y.; Liu, G.N.; Feng, E.G.; Jiang, H.L.; Liu, H. Regioselective synthesis of 3-benzazepinones and unexpected 5-bromo-3-benzazepinones. J. Org. Chem. 2010, 75, 3671–3677. [Google Scholar]
  33. Huang, J.; Huang, X.; Liu, B. Gold-catalyzed synthesis of nitrogen-containing heterocycles from ε-N-protected propargylic esters. Org. Biomol. Chem. 2010, 8, 2697–2699. [Google Scholar]
  34. Davies, P.W.; Martin, N. An efficient and selective synthesis of 2,5-substituted pyrroles by gold-catalysed ring expansion of alkynyl aziridines. J. Organomet. Chem. 2011, 696, 159–164. [Google Scholar]
  35. Kern, N.; Blanc, A.; Weibel, J.-M.; Pale, P. Gold(I)-catalyzed rearrangement of aryl alkynylaziridines to spiro[isochroman-4,2'-pyrrolines]. Chem. Commun. 2011, 47, 6665–6667. [Google Scholar]
  36. Flament, I.; Sonnay, P.; Ohloff, G. Pyrazines. III. Condensation of dihydropyrazines with carbonyl compounds: Synthesis of substituted pyrazines and 6,7-dihydro-5H-cyclopenta[b]pyrazines. Bull. Soc. Chim. Belg. 1979, 88, 941–950. [Google Scholar]
