Genome-Wide Identification, Expression, and Functional Analysis of the Alkaline/Neutral Invertase Gene Family in Pepper

by
Long-Bin Shen
1,†,
Yuan Yao
2,†,
Huang He
1,†,
Yu-Ling Qin
1,
Zi-Ji Liu
1,
Wei-Xia Liu
1,
Zhi-Qiang Qi
1,
Li-Jia Yang
3,
Zhen-Mu Cao
1,* and
Yan Yang
1,*
1
Tropical Crops Genetic Resources Institute, Chinese Academy of Tropical Agricultural Sciences/Key Laboratory of Crop Gene Resources and Germplasm Enhancement in Southern China, Ministry of Agriculture, Danzhou 571737, China
2
Key Laboratory of Biology and Genetic Resources of Tropical Crops, Ministry of Agriculture, Institute of Tropical Bioscience and Biotechnology, Chinese Academy of Tropical Agricultural Sciences, Haikou 571101, China
3
Institute of Tropical Agriculture and Forestry, Hainan University, Danzhou 571737, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2018, 19(1), 224; https://doi.org/10.3390/ijms19010224
Submission received: 6 December 2017 / Revised: 5 January 2018 / Accepted: 8 January 2018 / Published: 11 January 2018
(This article belongs to the Section Molecular Plant Sciences)
Browse Figures
Versions Notes

Abstract

:
Alkaline/neutral invertase (NINV) proteins irreversibly cleave sucrose into fructose and glucose, and play important roles in carbohydrate metabolism and plant development. To investigate the role of NINVs in the development of pepper fruits, seven NINV genes (CaNINV1–7) were identified. Phylogenetic analysis revealed that the CaNINV family could be divided into α and β groups. CaNINV1–6 had typical conserved regions and similar protein structures to the NINVs of other plants, while CaNINV7 lacked amino acid sequences at the C-terminus and N-terminus ends. An expression analysis of the CaNINV genes in different tissues demonstrated that CaNINV5 is the dominant NINV in all the examined tissues (root, stem, leaf, bud, flower, and developmental pepper fruits stage). Notably, the expression of CaNINV5 was found to gradually increase at the pre-breaker stages, followed by a decrease at the breaker stages, while it maintained a low level at the post-breaker stages. Furthermore, the invertase activity of CaNINV5 was identified by functional complementation of the invertase-deficient yeast strain SEY2102, and the optimum pH of CaNINV5 was found to be ~7.5. The gene expression and enzymatic activity of CaNINV5 suggest that it might be the main NINV enzyme for hydrolysis of sucrose during pepper fruit development.

1. Introduction

In higher plants, sucrose is the major product of photosynthesis and it provides carbohydrates for the development of reproductive organs (flowers and fruits) [1,2]. Sucrose is imported into the developing reproductive organs by phloem transport, and it is catalytically hydrolyzed by two different enzymes: invertase (EC 3.2.1.26) and sucrose synthase (EC 2.4.1.13) [3,4]. Sucrose synthase catalyzes the reversible conversion of sucrose to fructose and UDP-glucose, whereas invertases catalyze the irreversibly hydrolysis of sucrose into glucose and fructose [5,6]. Invertases can be distinguished by their optimum pH (acid or alkaline/neutral) [7]. Acid invertases are β-fructofuranosidases with an acidic pH optimum (pH 4.5–5.0), and are located in the cell wall or vacuole, whereas alkaline/neutral invertases belong to a novel family of glucosidases with alkaline/neutral pH optimum (pH 6.5–8.0), and are located in the cytosol or organelles [8]. Alkaline/neutral invertases were classified into two different isoforms: alkaline-Invs (optimum pH 6.5–7.0) or neutral-Invs (optimum pH 7.8–8.0) [9]. The molecular mechanism of different optimum pH between two isoforms is unclear. Many studies have described that acid invertases are involved in various aspects of the plant life cycle, including sucrose partitioning [10], environmental stimuli response [11,12], cell enlargement [13], and plant development [14]. However, the function of alkaline/neutral invertases was historically much less known, because of their low and unstable enzymatic activity [9]. Over the past few years, the alkaline/neutral invertase family genes have been identified from the genome of species, such as Arabidopsis thaliana [15], Populus trichocarpa [16], Manihot esculenta Crantz [17], Vitis vinifera [18], Lotus japonicus [19], Hevea brasiliensis [20], and Oryza sativa [15]. Plant alkaline/neutral invertases are divided into two different phylogenetic groups, named α and β clades [18]. In O. sativa, α clade members contain six exons (OsNIN1–4), while the members in β cladecontain four exons (OsNIN5–8). Notably, 10 amino acid residues within the conserved motifs were difference consistently between α and β clades of OsNINs [15]. The α clade alkaline/neutral invertases are localized in organelles (mitochondria, chloroplasts, nucleus), whereas the β clade alkaline/neutral invertases are localized in the cytosol [8]. The diversity of subcellular localization suggests that alkaline/neutral invertases have a variety of physiological functions. For instance, they have been reported to be involved in cellulose biosynthesis [21], biological and abiotic stress [22,23], shoot and root growth [24,25], germination, and flower and fruit development [8].
Pepper (Capsicum annuum L.) is an important vegetable and spice. In addition to its spicy flavor, the fruit is rich in natural colors and antioxidant compounds (such as vitamin C and carotenoids) [26]. Pepper is an important cash crop and it is widely used as a food flavoring substance in China. The pepper fruit is a typical sink organ. Sucrose is transported from the leaves to the pepper fruits through the phloem. Enzyme activity assay results have shown that alkaline/neutral invertases are important in determining the fate of imported sucrose during pepper fruits development [27]. The fruit set of pepper is related to the level of sugar supply [28,29]. Therefore, alkaline/neutral invertases are likely to play an important role in the formation and development of pepper fruits. However, the alkaline/neutral invertase genes of pepper have not been identified. In this study, all of the alkaline/neutral invertases were identified, based on the available sequences of the pepper genome. The evolutionary relationships, exon–intron structures, motif distributions, subcellular localizations, and three-dimensional (3D) structures of CaNINV proteins were investigated. The temporal and spatial expression patterns of CaNINV1–7 were analyzed by RNA-seq data. Finally, the alkaline/neutral invertase activity of CaNINV5 was investigated through functional complementation experiments using the invertase-deficient yeast strain SEY2102. These results contribute to further understanding the roles of alkaline/neutral invertases in sucrose metabolism during the development of the pepper plant.

2. Results

2.1. Identification and Characterization of CaNINV Genes in Pepper

Based on the previously identified alkaline/neutral invertase sequences in Arabidopsis thaliana, BLAST analysis of the pepper genome database identified seven neutral/alkaline invertase genes in the pepper genome, which were named as CaNINV1 to 7. The full-length coding sequences of the CaNINV genes ranged from 861 bp (CaNINV7) to 1968 bp (CaNINV3). The size of deduced CaNINV proteins varied between 268 and 655 amino acids (aa), with an average of 552 aa. The molecular weight (Mw) varied from 32.49 to 73.57 kDa, and the theoretical pI of these genes ranged from 6.02 to 7.07 (Table 1). Computational analyses using ChloroP v.1.1, TargetP v.1.01, and Mitoprot II web tools showed that the resultant neutral/alkaline invertase proteins from three of the seven full-length cDNA clones might be located in cell organelles (CaNINV1 in mitochondria and/or plastid, CaNINV2, and 3 in plastid) (Table 1). Alignment analysis of amino acids showed that CaNINVs share 48.25–78.72% identity among all the family genes. CaNINVs have a higher similarity at the C-terminus, but a low similarity at the N-terminus of the amino acid sequence (Figure 1). CaNINVs contain multiple conserved residues that may play a key role in substrate-binding (using the numbering based on CaNINV1, the residues are D293 and E519) and catalytic function (using the numbering based on CaNINV1, the residues are N144, Y145, F148, R150, D151, I225, M291, R294, Y475, H476, Q537, and W539).

2.2. Phylogenetic Analysis of CaNINV Genes

To determine the evolutionary relationship among the plant alkaline/neutral invertase (NINV) proteins, sequences of 51 NINV family members from Capsicum annuum, M. esculenta, Populus trichocarpa, A. thaliana, and O. sativa were analyzed using a Neighbor-Joining (NJ) phylogenetic tree. These plant NINV proteins were classified into two groups (α and β groups) (Figure 2). CaNINV1, 2, and 3 were classified in the α group. CaNINV4, 5, 6, and 7 were classified in the β group. In the α group, CaNINV1 had a close relationship with MeNINV7, 10, and PtNIN2, 5, and these genes were grouped into the α1 group. CaNINV2 and 3 shared 69.10% amino acid identity and showed a close relationship, so they were grouped into the α2 group, while CaNINV2 and MeNINV9 formed a clade. In the β group, CaNINV4 had a close relationship with At1G35580 and At4G09510, and these genes were grouped into the β2 group. CaNINV5, 6, and 7 had a close relationship and were grouped into the β3 group. In addition, CaNINV5 and 7 formed a clade, with 73.08% amino acid similarity.

2.3. Structure Analysis and Chromosomal Distribution of the CaNINV Family Genes

In order to gain further insight into the evolutionary relationships of CaNINVs, the exon–intron structure for each member of this family was analyzed. The number of exons in CaNINV genes ranged from three to six (Figure 3). Among the α group members, CaNINV1, 2, and 3 had six exons, and their fifth exon was the smallest one among all of the exons in CaNINVs. Among the β group members, CaNINV4, 5, and 6 had four exons, and the exon–intron structures of CaNINV5 and 6 were similar. CaNINV7 had only three exons.
The chromosomal distribution and orientation of CaNINV genes were also identified. The results showed that the seven CaNINV genes are mapped to six chromosomes of the pepper genome (Figure 4). No tandem duplication of the pepper CaNINV genes was found. CaNINV5, 1, 2, and 3 had the same orientation and are present on chromosome 4, 5, 11, and 12, respectively. CaNINV4 was found to be present on chromosome 6, while CaNINV6 and 7 were mapped to chromosome 8, with opposite orientation.

2.4. Motif Distribution in CaNINV Proteins

To further investigate the structural features of CaNINV proteins in pepper, the putative motifs were analyzed according to their phylogenetic relationships, and 15 distinct motifs were identified. The distribution of these motifs was similar in CaNINVs and AtNINVs (Figure 5). Motifs 1, 3, 4, 9, 10, and 11 were widely distributed in all of the analyzed NINV proteins. Motifs 1 and 5 contain the catalytic residues. Most of the motifs classified in α or β CaNINV groups are similar, but the non-conserved sequences at N-terminus were longer in α group when compared with the β group. In addition, motif 15 was specifically distributed in α group, whereas motifs 12 and 14 were specifically distributed in β group. Especially in β group, several motifs of CaNINV7 were lost, in comparison with the other members of β group, at C-terminus (motifs 8 and 14) and N-terminus (motifs 2, 5, 7, 12, and 13).

2.5. Three-Dimensional Structure of CaNINV Proteins

To obtain a reasonable theoretical structure of CaNINVs, protein homology modeling was performed using crystal structure of NINV protein from Anabaena (Protein Databank ID 5GOR) as a template, which shared 55.48%, 54.73%, 55.98%, 56.66%, 56.21%, and 54.33% sequence identity with CaNINV1–6, respectively. The 3D structure of CaNINV7 was not constructed by homology modeling. The predicted 3D models of CaNINV1–6 were validated using the QMEAN server (http://swissmodel.expasy.org/qmean/cgi/index.cgi) for model quality estimation. The total QMEAN scores (the estimated model reliability between 0 and 1) of the predicted 3D models for CaNINV1–6 were 0.65, 0.62, 0.60, 0.70, 0.68, and 0.68, respectively. These results indicated that all the sequences for CaNINV1–6 matched the homologous templates well on the server, implying that the models were reliable. CaNINV1–6 had very similar structural models. All CaNINVs can form a hexamer, wherein each monomer consists of a (α/α) 6-barrel core structure and an insertion of three helices. To predict the theoretical position of the sites for sucrose binding with CaNINVs, the primary models of CaNINVs were further structurally aligned with a model of the NINV protein from Anabaena (Protein Databank ID 5GOR) using the PyMOL program (Schrödinger, New York, NY, USA). The results showed that sucrose is predicted to bind in the catalytic pocket (Figure 6h) and the enzyme active sites (using the numbering based on CaNINV1, the residues were Asp293 and Glu519) of CaNINVs assumed the same orientation toward the sucrose molecules (Figure 7).

2.6. Expression Analysis of CaNINV Genes for Different Tissues and Developmental Stages

To establish the spatio-temporal expression patterns of CaNINV genes, the RNA-seq data from different tissues and developmental stages (root, stem, leaf, buds, flower, and nine stages of developing fruits) of pepper cultivar Zunla-1 [30] were used to generate a heat map. The expression pattern of each CaNINV gene was significantly different across different tissues and developmental stages (Figure 8). The expression of CaNINV1 and CaNINV6 were low in all of the tested tissues, and no expression of CaNINV7 was detected. CaNINV4 was mainly expressed in the root, and a lower expression was observed in fruits. The expression of CaNINV2 and CaNINV3 in fruits was higher than in rest of the tissues. Surprisingly, the expression of CaNINV5 was the highest among all the CaNINV genes in all of the tested tissues. The expression of CaNINV5 in the root, stem, leaves, and buds was similar, and was lowest in the flowers. During pepper fruit development, the expression of CaNINV5 gradually increased at the pre-breaker stages, followed by a decrease at the breaker stages, and maintained a low level at the post- breaker stages.

2.7. Yeast Complementation of CaNINV5

CaNINV5 was the most highly expressed CaNINV gene across the different tissues and developmental stages of pepper. Therefore, its activity was further examined in the yeast triple mutant SEY2102, which lacks endogenous invertase activity. This yeast mutant is unable to grow on a medium with sucrose as the sole carbon source. First, the cDNA of CaNINV5 was inserted into a yeast expression vector pDR196 to generate pDR196-CaNINV5. The results showed that yeast cells transformed with the empty pDR196 vector could not grow on the selection medium containing sucrose, whereas the yeast cells that were transformed with pDR196-CaNINV5 could grow on this medium (Figure 9). This result suggested that CaNINV5 has an invertase activity.

2.8. Optimum pH Determination for CaNINV5

To confirm if CaNINV5 proteins indeed encode alkaline/neutral invertase, we extracted the crude proteins expressed by CaNINV5 gene from S. cerevisiae strain SEY2102. The enzyme activities of CaNINV5 at different pH values (pH 5.0–9.0) were assayed. The results show that the optimum pH of CaNINV5 is ~7.5 (Figure 10), indicating that CaNINV5 is an alkaline/neutral invertase.

3. Discussion

3.1. Identification and Characterization of CaNINV Genes

Alkaline/neutral invertases play an important role in sugar metabolism during fruit development [31]. In addition, alkaline/neutral invertases have been reported to be involved in carbohydrate metabolism during the development of pepper fruits [32,33]. However, no further information is available about the alkaline/neutral invertase gene family in pepper. Previous studies have reported that the members of the alkaline/neutral invertase gene family vary among plant species. For instance, it has sixteen members in Populus trichocarpa [16], eleven members in Manihot esculenta Crantz, eight members in Oryza sativa [15], and nine members in A. thaliana [18]. In the present study, seven alkaline/neutral invertase genes (CaNINV1–7) were found in pepper (Table 1). P. trichocarpa have more NINVs than M. esculenta, O. sativa, A. thaliana, and C. annuum due to the salicoid genome duplication event [16]. CaNINVs (32.49–73.57 kDa) have larger molecular weight range than MeNINVs (48.6–79.7 kDa) from M. esculenta [17]. All of the CaNINV proteins were found to contain multiple conserved residues (Figure 1), which are consistent with the reported NINVs in other plants, such as At1G56560 from A. thaliana [34]. While, CaNINV7 is lost a catalytic residues and two substrate-binding residues at C-terminus. Phylogenetic analysis of the 51 NINV proteins from five plants showed that the CaNINVs could be classified into α and β groups, among which, the α group is predicted to be located in the organelles (Table 1, Figure 2). This result is consistent with the evolutionary characteristics of invertases [8]. The α group members have similar exon–intron structures and motif distributions. In contrast, CaNINV7 appears to have lost amino acid sequences at both C-terminus and N-terminus, and has different exon–intron structures and motif distribution compared with the other members in β group (Figure 1, Figure 2 and Figure 4). when compared to the motif distributions of NINVs from A. thaliana and C. annuum may reveal their natural variability. The α2 group members (CaNINV2, CaNINV3, and At5G22510) all have 15 distinct motifs, while the α1 group members CaNINV1 and At3G05820 are lost motif 6 and motif 11, respectively. The β group members CaNINV7 and At1G7200 are both lost motif 14, while CaNINV7 lost more motifs (Figure 2 and Figure 4). Similarly, it was found that MeNINV5 and MeNINV9 from M. esculenta are lost several motifs [17]. Recently, the first crystal structure of alkaline/neutral invertase (InvA) from Anabaena was reported, which was proposed to be the ancestor of the modern plant alkaline/neutral invertase [34]. In this study, the 3D structural models of CaNINV1–6 showed that all of these proteins can form a hexamer, wherein each monomer consists of an (α/α) 6-barrel core structure and an insertion of three helices, and sucrose is predicted to bind in the catalytic pocket (Figure 6). The enzyme active sites of CaNINVs assumed the same orientation toward the sucrose molecules (Figure 7). These structures are typical of InvA proteins [34]. The results of the sequence and 3D structure analyses of CaNINV1–6 suggest that all these alkaline/neutral invertase members from pepper can catalyze the irreversible hydrolysis of sucrose to glucose and fructose.

3.2. Differential Expression and Enzymatic Activities of CaNINVs

The tissue-specific expression patterns of CaNINVs could provide a basis for understanding their functions in pepper plant development. The expression patterns of CaNINV1–7 in various organs and tissues were examined. CaNINV1–5 were widely expressed in most plant tissues. CaNINV2 and CaNINV3 were highly expressed in the fruits and showed a lower expression in other tissues, while the proteins of these two genes were both predicted to localize in the plastid. The plastid in pericarp tissue is important for pepper fruit development, and chloroplasts can be transformed to chromoplasts during ripening [35]. This result suggests that these two genes might play a key role in plastid development. The expression of CaNINV1, CaNINV6, and CaNINV7 was low or undetectable. The expression of some plant NINV genes has been reported to be affected by abiotic stress. In A. thaliana, NINV gene AtCYT-INV1 is involved in osmotic stress-induced inhibition on lateral root growth [36]; the expression of A/N-InvA (a mitochondrial NINV) and A/N-InvG (a cytosolic NINV) was induced under H2O2 treatment, and was involved in oxidative stress defense connection [37]. The expression of NINV gene Ta-A-Inv is induced in response to osmotic and cold stress in mature primary wheat leaves [38]. Therefore, we speculate that the expression of CaNINV1, CaNINV6, and CaNINV7 might be related to some stress conditions. CaNINV4 was mainly expressed in the root. Rice NINV gene SRT5 has been reported to have a role in carbon and energy supply during early root development [24]. Therefore, we speculate that CaNINV4 might play a role in sucrose metabolism during pepper root development. Interestingly, CaNINV5 was the most active gene among the CaNINVs in all of the tested tissues. During pepper fruit development, the expression of CaNINV5 gradually increased at the pre-breaker stages, then decreased at the breaker stages, and maintained a low level at the post-breaker stages. This expression pattern of CaNINV5 is consistent with the previously reported trend of alkaline/neutral invertase activity [27]. Further investigation showed that CaNINV5 could complement an invertase-deficient yeast strain to grow on a medium with sucrose as the sole carbon source, indicating that CaNINV5 can catalyze the hydrolysis of sucrose. The optimum pH for the enzyme activity of alkaline/neutral invertases is typically between pH 6.5 and 8.2 [5,14]. To confirm if CaNINV5 indeed encodes an alkaline/neutral invertase, the enzyme activity of CaNINV5 was assayed at different pH values. The results showed that the optimum pH of CaNINV5 is ~7.5, indicating that CaNINV5 is an alkaline/neutral invertase. This result indicates that CaNINV5 plays a key role in the sucrose catabolism and the development of pepper fruit.

4. Materials and Methods

4.1. Plant Materials

The leaves were collected from pepper cultivar “Zunla-1” (Capsicum annuum L.) plants (provided by the Pepper Institute, the Zunyi Academy of Agricultural Sciences, Zunyi, China), which were planted in the field and were used for gene cloning. Fresh leaves from the plants were collected and frozen in liquid nitrogen for subsequent RNA isolation.

4.2. Identification and Sequence Analysis of CaNINV Proteins in Pepper

To identify pepper genes encoding CaNINV proteins, the alkaline/neutral invertase proteins AtINV1–9 in Arabidopsis thaliana were used to do BLASTP search in pepper genome databases (http://peppersequence.genomics.cn/page/species/index.jsp, release 2.0) with an expected value (e-value) cut-off of 0.01 [8]. All of the protein sequences obtained were confirmed by the Pfam (http://pfam.xfam.org/search) and SMART (http://smart.embl-heidelberg.de/). The deduced amino acids of CaNINVs were analyzed by multiple alignment using DNAman 6.0 software (Lynnon Biosoft, Quebec City, QC, Canada). Molecular weight (MV) and theoretical isoelectric point (PI) of CaNINV proteins were computed by ProtParam (http://web.expasy.org/protparam/). The subcellular location of CaNINV proteins were predicted using ChloroP (http://www.cbs.dtu.dk/services/ChloroP/, version 1.1), TargetP (http://www.cbs.dtu.dk/services/TargetP/, version 1.1) and Mitoprot II (https://ihg.gsf.de/ihg/mitoprot.html, version 1.101) web tools. The catalytic residues and substrate-binding residues of CaNINV proteins are depicted correspond with the residues of Anabaena alkaline invertase InvA proposed by Xie et al. [34].

4.3. Phylogenetic Analyses

A total of 51 NINVs from C. annuum, M. esculenta, P. trichocarpa, A. thaliana, and O. sativa were aligned using the MUSCLE program. The resulting alignment was manually optimized by removing unaligned residues, and the phylogenetic tree was constructed and drawn using Molecular Evolutionary Genetics Analysis Version 7.0 (MEGA7, Tokyo Metropolitan University, Tokyo, Japan) by the Neighbor-Joining (NJ) method. The branching reliability was assessed by the bootstrap re-sampling method using 1000 bootstrap replicates.

4.4. Exon–Intron Structure Analysis and Chromosomal Mapping

In order to display the structure of introns and exons of CaNINV genes, the cDNA sequences of CaNINV genes were aligned with the corresponding genomic DNA sequences from the pepper genome database (http://peppersequence.genomics.cn/page/species/index.jsp, release 2.0). The Gene Structure Display Server (GSDS) program (http://gsds.cbi.pku.edu.cn/, version 2.0) was used to visualize the gene structure [39]. The genomic position of the CaNINV genes and the total length of each chromosome were obtained from the pepper genome database. Subsequently, the CaNINV genes were manually mapped onto chromosomes.

4.5. Conserved Motif Analysis

The program MEME was used to predict the potential motifs in the protein sequences of alkaline/neutral invertases in C. annuum and A. thaliana. MEME was run online (http://meme-suite.org/tools/meme, version 4.12.0) using the following parameters: distribution of motif occurrences (zero or one per sequence), number of different motifs (15), minimum motif width (6), and maximum motif width (50).

4.6. Prediction of Three-Dimensional Structure of the CaNINV Proteins

Full-length amino acid sequences of the seven pepper CaNINV proteins were submitted to the Swiss-Model server (http://beta.swissmodel.expasy.org/) to predict their three-dimensional structure, and the crystal structure of NINV protein from Anabaena (Protein Databank ID 5GOR) was used as a template. The three-dimensional structure and catalytic residues of CaNINVs were displayed using the Pymol software (Delino Scientific, San Carlos, CA, USA).

4.7. Pepper RNA-Seq Data Analysis

Spatio-temporal (root, stem, leaves, buds, flowers, and nine developmental stages of fruit) expression profiling of pepper CaNINV genes was done using the Illumina RNA-seq data from pepper (cultivar Zunla-1) genome sequencing [30]. The expression values of pepper CaNINV genes were calculated as fragments per kilobase of transcript per million fragments mapped (FPKM). The HemI (Heatmap Illustrator, version 1.0, Huazhong University, Wuhan, China) software packages were used to construct a heat map to visualize the expression profiling based on log2-transformed RPKM values.

4.8. Cloning of Full-Length CaNINV5

Full-length cDNAs of the CaNINV5 gene were isolated by reverse transcription PCR using gene-specific primers: CaNINV5-F (5′ ATGCCTAGCCCTGTGGATGTGTC 3′) and CaNINV5-R (5′ TTAACAGGTCCAAGAAGCAGATCTT 3′). Total RNA was isolated from pepper leaves using RNAplant Plus reagent (TianGen, Beijing, China). First-strand cDNA was synthesized from 3 μg of total RNA sample using Anchored Oligo(dT)18 Primer primers and the TransScript First-Strand cDNA Synthesis SuperMix Kit (TransGen, Beijing, China), following the manufacturer’s instructions. The PCR fragment was cloned into the pEASY®-T3 cloning vector (TransGen, Beijing, China) and the sequencing of independent clones was performed on both of the strands by Sangon Biological Engineering Technology and Services (Shanghai, China).

4.9. Yeast Complementation and Enzymatic Analysis of CaNINV5

For the S. cerevisiae complementation assays, an invertase-deficient strain SEY2102 was kindly provided by Liu, et al. [23]. The yeast shuttle vector pDR196, containing URA3 as a selective marker, was used for transformation. The cDNA of CaNINV5 was inserted into the EcoRI/XhoI sites within pDR196, and the new plasmid was verified by sequencing and designated as pDR196-CaNINV5. pDR196 and pDR196-CaNINV5 vectors were transformed into the SEY2102 strain using PEG/LiAc method. Transformants were selected on synthetic dropout (SD) medium without uracil. The function of CaNINV5 was confirmed by the growth status of the transformant strain on SD medium, with sucrose as the sole carbon source.
SEY2102 yeast cells, transformed with pDR196–CaNINV5, were grown in 30 mL of −URA/sucrose liquid media for 3 days. Yeast cells were spun down and yeast protein was extracted by vortexing with glass beads. Protein contents were measured by Bradford’s method. Crude enzyme extracts were used for determination of enzyme activities of CaNINV5 at different pH values. Enzyme activity analysis was carried out as in Liu, et al. [23].

Acknowledgments

This study was supported by the key research and development projects of Hainan Province (No. ZDYF2017173), the 948 project of the Ministry of agriculture (No. 2016-X17), the Key Technology Research and Demonstration Project of Farmland Improvement of Hainan Province (HNGDpz2015) and the Central Public-Interest Scientific Institution Basal Research Fund from the Chinese Academy of Tropical Agricultural Sciences (Nos. 1630032017027, 1630032016019).

Author Contributions

Long-Bin Shen and Yuan Yao were responsible for all aspects of the research, including experimental design, data acquisition and analysis, and manuscript preparation. Yu-Ling Qin, Zi-Ji Liu, and Wei-Xia Liu worked on the preparation of the studied materials and gene cloning. Huang He worked on the yeast complementation. Zhi-Qiang Qi and Li-Jia Yang worked on primer design, and technical and informatics analyses of these genes. Zhen-Mu Cao and Yan Yang were responsible for the programs and all experiments, critically revised the manuscript, and provided the final approval of the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Qin, G.; Zhu, Z.; Wang, W.; Cai, J.; Chen, Y.; Li, L.; Tian, S. A tomato vacuolar invertase inhibitor mediates sucrose metabolism and influences fruit ripening. Plant Physiol. 2016, 172, 1596–1611. [Google Scholar] [CrossRef] [PubMed]
  2. Zhang, H.P.; Wu, J.Y.; Qin, G.H.; Yao, G.F.; Qi, K.J.; Wang, L.F.; Zhang, S.L. The role of sucrose-metabolizing enzymes in pear fruit that differ in sucrose accumulation. Acta Physiol. Plant. 2014, 36, 71–77. [Google Scholar] [CrossRef]
  3. Chen, C.; Yuan, Y.; Zhang, C.; Li, H.; Ma, F.; Li, M. Sucrose phloem unloading follows an apoplastic pathway with high sucrose synthase in actinidia fruit. Plant Sci. 2017, 255, 40–50. [Google Scholar] [CrossRef] [PubMed]
  4. Oury, V.; Caldeira, C.F.; Prodhomme, D.; Pichon, J.P.; Gibon, Y.; Tardieu, F.; Turc, O. Is change in ovary carbon status a cause or a consequence of maize ovary abortion in water deficit during flowering? Plant Physiol. 2016, 171, 997–1008. [Google Scholar] [CrossRef] [PubMed]
  5. Ruan, Y.L. Sucrose metabolism: Gateway to diverse carbon use and sugar signaling. Annu. Rev. Plant Biol. 2014, 65, 33–67. [Google Scholar] [CrossRef] [PubMed]
  6. Bieniawska, Z.; Paul Barratt, D.H.; Garlick, A.P.; Thole, V.; Kruger, N.J.; Martin, C.; Zrenner, R.; Smith, A.M. Analysis of the sucrose synthase gene family in Arabidopsis. Plant J. 2007, 49, 810–828. [Google Scholar] [CrossRef] [PubMed]
  7. Fotopoulos, V. Plant invertases: Structure, function and regulation of a diverse enzyme family. J. Biol. Res. 2005, 4, 127–137. [Google Scholar]
  8. Roitsch, T.; González, M.C. Function and regulation of plant invertases: Sweet sensations. Trends Plant Sci. 2004, 9, 606–613. [Google Scholar] [CrossRef] [PubMed]
  9. Vargas, W.A.; Salerno, G.L. The cinderella story of sucrose hydrolysis: Alkaline/neutral invertases, from cyanobacteria to unforeseen roles in plant cytosol and organelles. Plant Sci. 2010, 178, 1–8. [Google Scholar] [CrossRef]
  10. Sturm, A. Invertases. Primary structures, functions, and roles in plant development and sucrose partitioning. Plant Physiol. 1999, 121, 1–8. [Google Scholar] [CrossRef] [PubMed]
  11. Roitsch, T.; Balibrea, M.E.; Hofmann, M.; Proels, R.; Sinha, A.K. Extracellular invertase: Key metabolic enzyme and PR protein. J. Exp. Bot. 2003, 54, 513–524. [Google Scholar] [CrossRef] [PubMed]
  12. Proels, R.K.; Hückelhoven, R. Cell-wall invertases, key enzymes in the modulation of plant metabolism during defence responses. Mol. Plant Pathol. 2014, 15, 858–864. [Google Scholar] [CrossRef] [PubMed]
  13. Wang, L.; Cook, A.; Patrick, J.W.; Chen, X.Y.; Ruan, Y.L. Silencing the vacuolar invertase gene GHVIN1 blocks cotton fiber initiation from the ovule epidermis, probably by suppressing a cohort of regulatory genes via sugar signaling. Plant J. 2014, 78, 686–696. [Google Scholar] [CrossRef] [PubMed]
  14. Tang, G.Q.; Luscher, M.; Sturm, A. Antisense repression of vacuolar and cell wall invertase in transgenic carrot alters early plant development and sucrose partitioning. Plant Cell 1999, 11, 177–189. [Google Scholar] [CrossRef] [PubMed]
  15. Ji, X.; Van den Ende, W.; Van Laere, A.; Cheng, S.; Bennett, J. Structure, evolution, and expression of the two invertase gene families of rice. J. Mol. Evol. 2005, 60, 615–634. [Google Scholar] [CrossRef] [PubMed]
  16. Bocock, P.N.; Morse, A.M.; Dervinis, C.; Davis, J.M. Evolution and diversity of invertase genes in Populus trichocarpa. Planta 2008, 227, 565–576. [Google Scholar] [CrossRef] [PubMed]
  17. Yao, Y.; Geng, M.T.; Wu, X.H.; Liu, J.; Li, R.M.; Hu, X.W.; Guo, J.C. Genome-wide identification, expression, and activity analysis of alkaline/neutral invertase gene family from cassava (Manihot esculenta crantz). Plant Mol. Biol. Report. 2015, 33, 304–315. [Google Scholar] [CrossRef]
  18. Nonis, A.; Ruperti, B.; Pierasco, A.; Canaguier, A.; Adam-Blondon, A.F.; di Gaspero, G.; Vizzotto, G. Neutral invertases in grapevine and comparative analysis with Arabidopsis, poplar and rice. Planta 2008, 229, 129–142. [Google Scholar] [CrossRef] [PubMed]
  19. Welham, T.; Pike, J.; Horst, I.; Flemetakis, E.; Katinakis, P.; Kaneko, T.; Sato, S.; Tabata, S.; Perry, J.; Parniske, M. A cytosolic invertase is required for normal growth and cell development in the model legume, Lotus japonicus. J. Exp. Bot. 2009, 60, 3353–3365. [Google Scholar] [CrossRef] [PubMed]
  20. Liu, S.; Lan, J.; Zhou, B.; Qin, Y.; Zhou, Y.; Xiao, X.; Yang, J.; Gou, J.; Qi, J.; Huang, Y. HbNIN2, a cytosolic alkaline/neutral-invertase, is responsible for sucrose catabolism in rubber-producing laticifers of Hevea brasiliensis (para rubber tree). New Phytol. 2015, 206, 709–725. [Google Scholar] [CrossRef] [PubMed]
  21. Rende, U.; Wang, W.; Gandla, M.L.; Jönsson, L.J.; Niittylä, T. Cytosolic invertase contributes to the supply of substrate for cellulose biosynthesis in developing wood. New Phytol. 2017, 214, 796–807. [Google Scholar] [CrossRef] [PubMed]
  22. Dahro, B.; Wang, F.; Peng, T.; Liu, J.H. PtrA/NINV, an alkaline/neutral invertase gene of Poncirus trifoliata, confers enhanced tolerance to multiple abiotic stresses by modulating ROS levels and maintaining photosynthetic efficiency. BMC Plant Biol. 2016, 16, 76. [Google Scholar] [CrossRef] [PubMed]
  23. Liu, J.; Han, L.; Huai, B.; Zheng, P.; Chang, Q.; Guan, T.; Li, D.; Huang, L.; Kang, Z. Down-regulation of a wheat alkaline/neutral invertase correlates with reduced host susceptibility to wheat stripe rust caused by Puccinia striiformis. J. Exp. Bot. 2015, 66, 7325–7338. [Google Scholar] [CrossRef] [PubMed]
  24. Yao, S.G.; Kodama, R.; Wang, H.; Ichii, M.; Taketa, S.; Yoshida, H. Analysis of the rice SHORT-ROOT5 gene revealed functional diversification of plant neutral/alkaline invertase family. Plant Sci. 2009, 176, 627–634. [Google Scholar] [CrossRef]
  25. Martín, M.L.; Lechner, L.; Zabaleta, E.J.; Salerno, G.L. A mitochondrial alkaline/neutral invertase isoform (A/N-InvC) functions in developmental energy-demanding processes in Arabidopsis. Planta 2013, 237, 813–822. [Google Scholar] [CrossRef] [PubMed]
  26. Elwan, M.W.M.; El-Hamahmy, M.A.M. Improved productivity and quality associated with salicylic acid application in greenhouse pepper. Sci. Hortic. 2009, 122, 521–526. [Google Scholar] [CrossRef]
  27. Hubbard, N.L.; Pharr, D.M. Developmental changes in carbohydrate concentration and activaties of sucrose metabolizing enzymes in fruits of two Capsicum annuum L. genotypes. Plant Sci. 1992, 86, 33–39. [Google Scholar] [CrossRef]
  28. Aloni, B.; Karni, L.; Zaidman, Z.; Schaffer, A.A. Changes of carbohydrates in pepper (Capsicum annuum L.) flowers in relation to their abscission under different shading regimes. Ann. Bot. 1996, 78, 163–168. [Google Scholar] [CrossRef]
  29. Marcelis, L.F.; Heuvelink, E.; Hofman-Eijer, L.R.; Bakker, J.D.; Xue, L.B. Flower and fruit abortion in sweet pepper in relation to source and sink strength. J. Exp. Bot. 2004, 55, 2261–2268. [Google Scholar] [CrossRef] [PubMed]
  30. Qin, C.; Yu, C.; Shen, Y.; Fang, X.; Chen, L.; Min, J.; Cheng, J.; Zhao, S.; Xu, M.; Luo, Y. Whole-genome sequencing of cultivated and wild peppers provides insights into Capsicum domestication and specialization. Proc. Natl. Acad. Sci. USA 2014, 111, 5135–5140. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Li, M.; Feng, F.; Cheng, L. Expression patterns of genes involved in sugar metabolism and accumulation during apple fruit development. PLoS ONE 2012, 7, e33055. [Google Scholar] [CrossRef] [PubMed]
  32. Wang, X.; Chang, L.; Tong, Z.; Wang, D.; Yin, Q.; Wang, D.; Jin, X.; Yang, Q.; Wang, L.; Sun, Y. Proteomics profiling reveals carbohydrate metabolic enzymes and 14-3-3 proteins play important roles for starch accumulation during cassava root tuberization. Sci. Rep. 2016, 6, 19643. [Google Scholar] [CrossRef] [PubMed]
  33. Sheffield, J.; Taylor, N.C.; Chen, S. The cassava (Manihot esculenta Crantz) root proteome: Protein identification and differential expression. Proteomics 2006, 6, 1588–1598. [Google Scholar] [CrossRef] [PubMed]
  34. Xie, J.; Cai, K.; Hu, H.X.; Jiang, Y.L.; Yang, F.; Hu, P.F.; Cao, D.D.; Li, W.F.; Chen, Y.; Zhou, C.Z. Structural analysis of the catalytic mechanism and substrate specificity of Anabaena alkaline invertase inva reveals a novel glucosidase. J. Biol. Chem. 2016, 291, 25667–25677. [Google Scholar] [CrossRef] [PubMed]
  35. Pan, Y.; Bradley, G.; Pyke, K.; Ball, G.; Lu, C.; Fray, R.; Marshall, A.; Jayasuta, S.; Baxter, C.; Van, W.R. Network inference analysis identifies an APRR2-like gene linked to pigment accumulation in tomato and pepper fruits. Plant Physiol. 2013, 161, 1476–1485. [Google Scholar] [CrossRef] [PubMed]
  36. Qi, X.; Wu, Z.; Li, J.; Mo, X.; Wu, S.; Chu, J.; Wu, P. AtCYT-INV1, a neutral invertase, is involved in osmotic stress-induced inhibition on lateral root growth in Arabidopsis. Plant Mol. Biol. 2007, 64, 575–587. [Google Scholar] [CrossRef] [PubMed]
  37. Xiang, L.; le Roy, K.; Bolouri-Moghaddam, M.R.; Vanhaecke, M.; Lammens, W.; Rolland, F.; van den Ende, W. Exploring the neutral invertase-oxidative stress defence connection in Arabidopsis thaliana. J. Exp. Bot. 2011, 62, 3849–3862. [Google Scholar] [CrossRef] [PubMed]
  38. Vargas, W.A.; Pontis, H.G.; Salerno, G.L. Differential expression of alkaline and neutral invertases in response to environmental stresses: Characterization of an alkaline isoform as a stress-response enzyme in wheat leaves. Planta 2007, 226, 1535–1545. [Google Scholar] [CrossRef] [PubMed]
  39. Hu, B.; Jin, J.; Guo, A.Y.; Zhang, H.; Luo, J.; Gao, G. GSDS 2.0: An upgraded gene feature visualization server. Bioinformatics 2015, 31, 1296–1297. [Google Scholar] [CrossRef] [PubMed]
Ijms 19 00224 g001 550

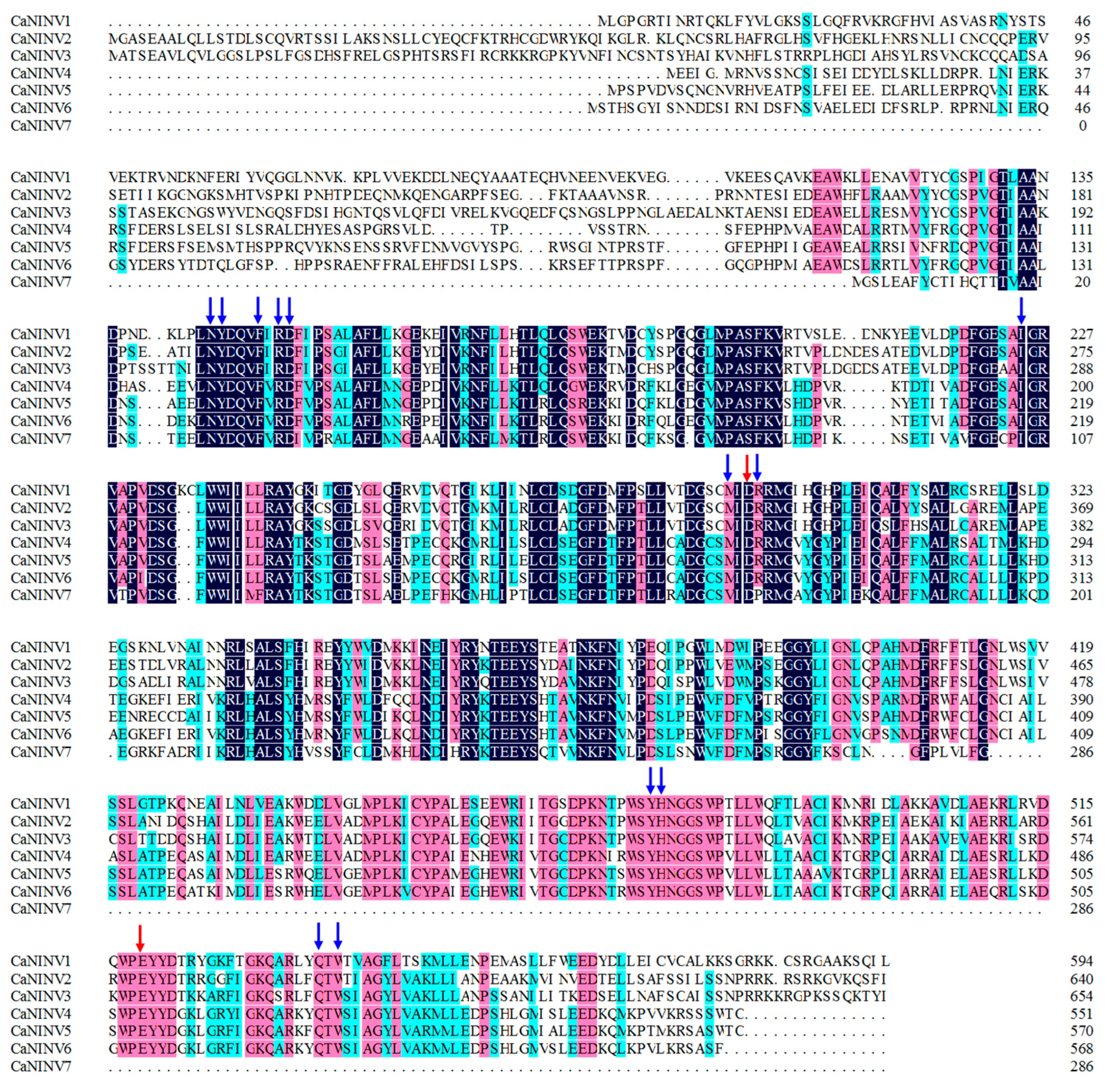

Figure 1. Alignment of the deduced amino acid sequences of the seven pepper neutral/alkaline invertases. Dark-blue shading, pinkish shading and light blue shading reflect 100%, 75% and 50% amino acid residues conservation, respectively. The catalytic residues and substrate-binding residues are depicted by red and blue arrows, respectively.
Figure 1. Alignment of the deduced amino acid sequences of the seven pepper neutral/alkaline invertases. Dark-blue shading, pinkish shading and light blue shading reflect 100%, 75% and 50% amino acid residues conservation, respectively. The catalytic residues and substrate-binding residues are depicted by red and blue arrows, respectively.
Ijms 19 00224 g001
Ijms 19 00224 g002 550

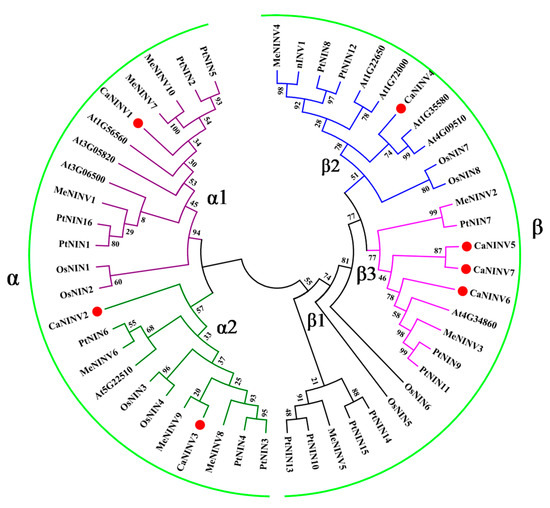

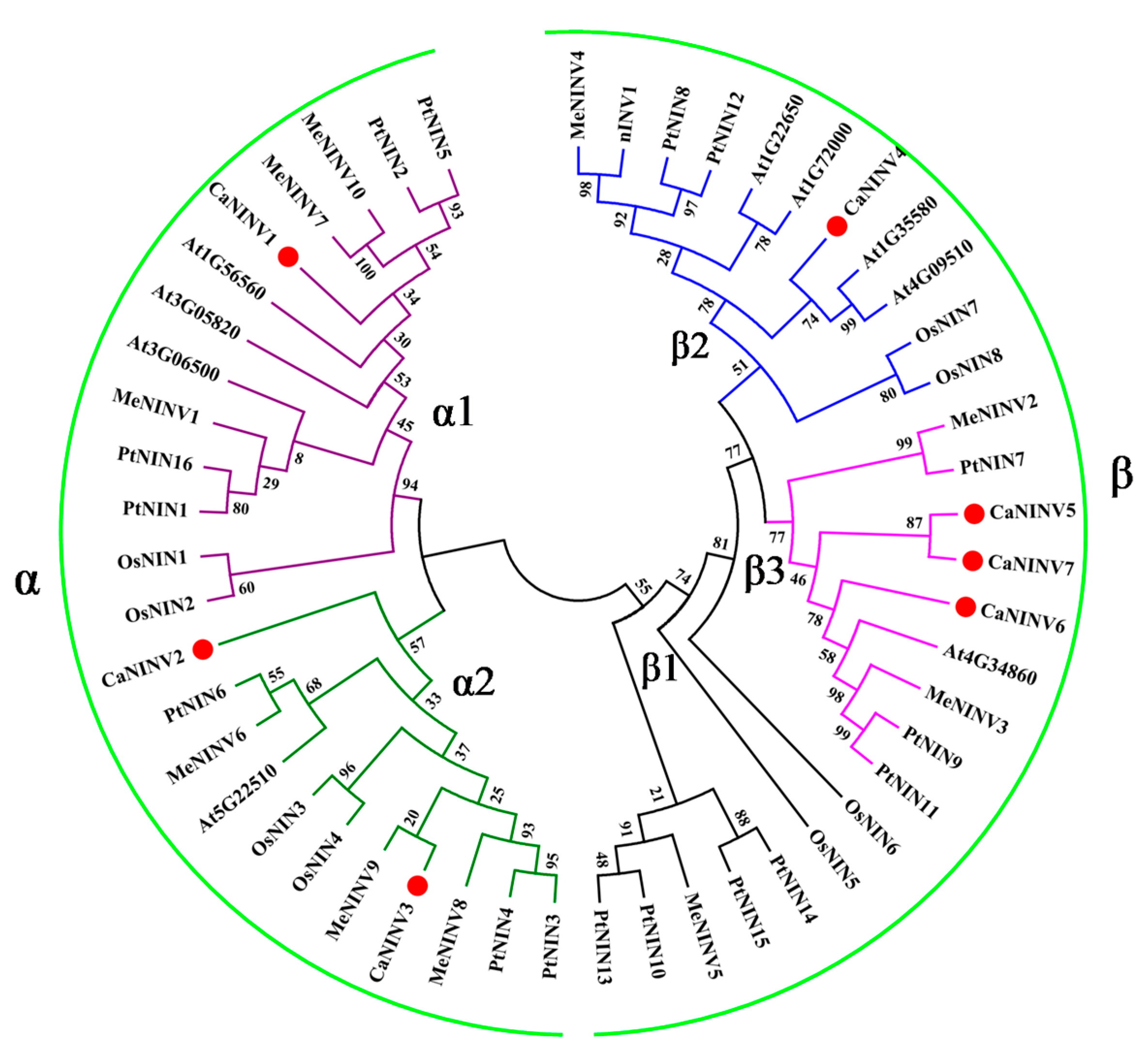

Figure 2. Phylogenetic analysis of alkaline/neutral invertase (NINV) proteins from C. annuum, M. esculenta, P. trichocarpa, A. thaliana, and O. sativa. The phylogenetic tree was constructed by Neighbor-Joining method (1000 bootstrap replicates) using Molecular Evolutionary Genetics Analysis 7.0 software. Red dots indicate the NINVs from C. annuum.
Figure 2. Phylogenetic analysis of alkaline/neutral invertase (NINV) proteins from C. annuum, M. esculenta, P. trichocarpa, A. thaliana, and O. sativa. The phylogenetic tree was constructed by Neighbor-Joining method (1000 bootstrap replicates) using Molecular Evolutionary Genetics Analysis 7.0 software. Red dots indicate the NINVs from C. annuum.
Ijms 19 00224 g002
Ijms 19 00224 g003 550

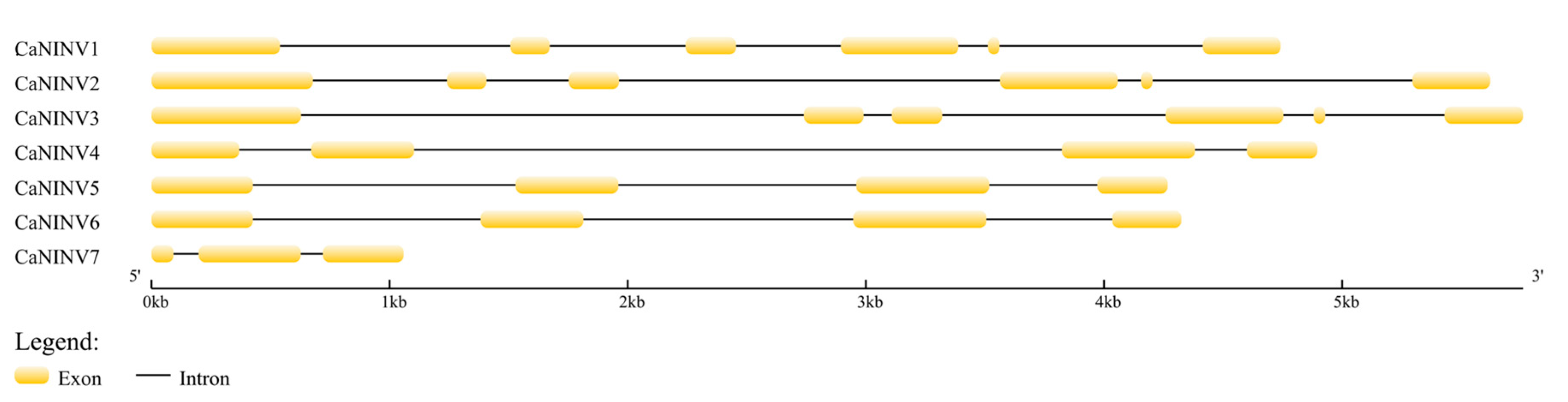

Figure 3. Exon–intron structure of the seven NINVs in pepper. Introns are shown as black lines, exons are shown as yellow boxes.
Figure 3. Exon–intron structure of the seven NINVs in pepper. Introns are shown as black lines, exons are shown as yellow boxes.
Ijms 19 00224 g003
Ijms 19 00224 g004 550

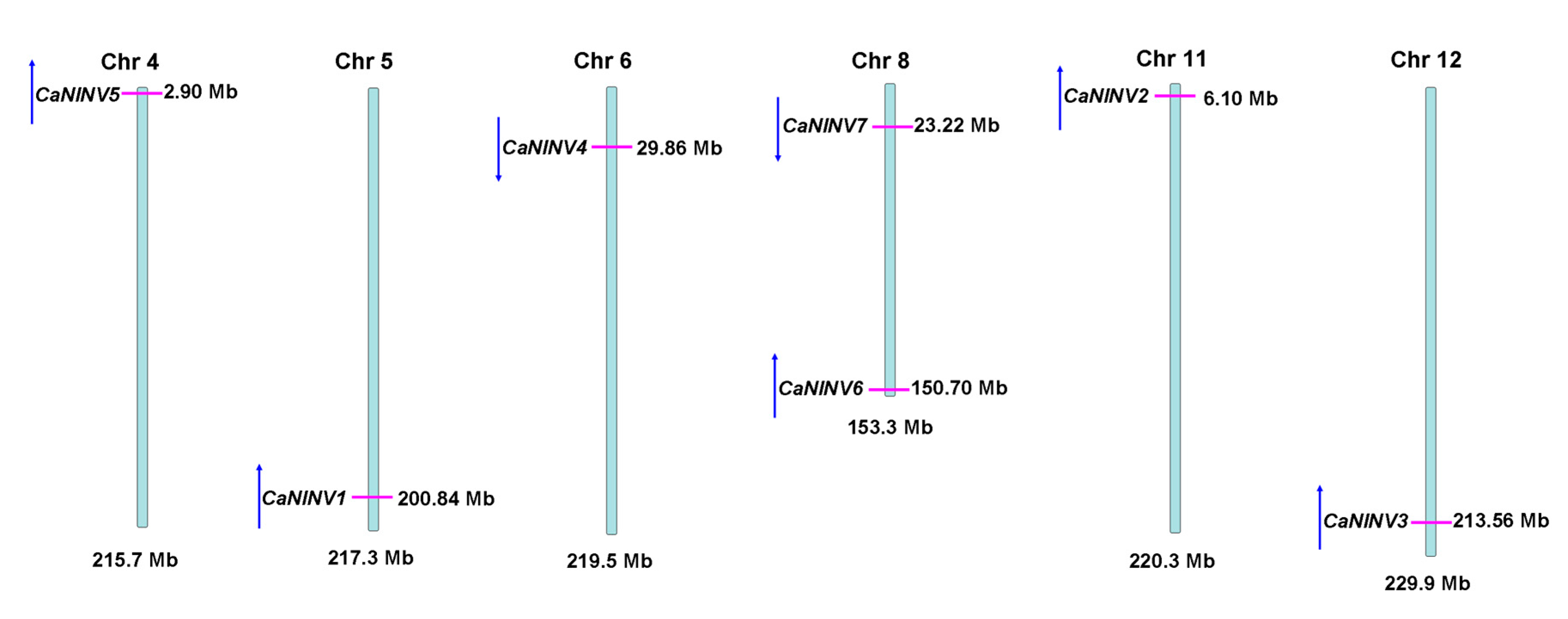

Figure 4. Chromosome localization of CaNINV genes from pepper. The positions of the CaNINV genes are shown as red lines. The genes orientation is shown as blue arrows.
Figure 4. Chromosome localization of CaNINV genes from pepper. The positions of the CaNINV genes are shown as red lines. The genes orientation is shown as blue arrows.
Ijms 19 00224 g004
Ijms 19 00224 g005 550

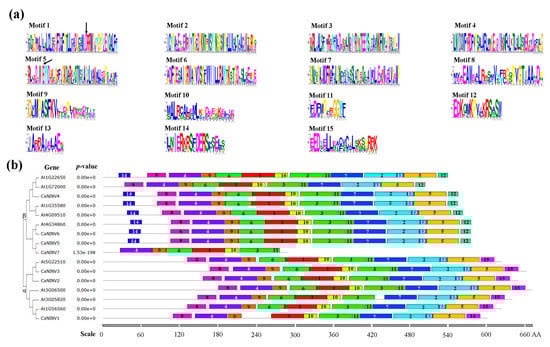

Figure 5. The conserved motifs of NINV proteins from C. annuum and A. thaliana according to the phylogenetic analysis. (a) The motif sequences in NINVs, which were identified by MEME. The catalytic residues are indicated by black arrow; (b) The motif distribution in NINVs. The NJ tree was constructed with full amino acid sequences of CaNINVs and AtNINVs using Muscle and MEGA7 software with 1000 bootstraps. Gray lines represent the non-conserved sequences, and each motif is indicated by a colored box and numbered at the box. The length of the motifs in each protein is shown proportionally.
Figure 5. The conserved motifs of NINV proteins from C. annuum and A. thaliana according to the phylogenetic analysis. (a) The motif sequences in NINVs, which were identified by MEME. The catalytic residues are indicated by black arrow; (b) The motif distribution in NINVs. The NJ tree was constructed with full amino acid sequences of CaNINVs and AtNINVs using Muscle and MEGA7 software with 1000 bootstraps. Gray lines represent the non-conserved sequences, and each motif is indicated by a colored box and numbered at the box. The length of the motifs in each protein is shown proportionally.
Ijms 19 00224 g005
Ijms 19 00224 g006 550

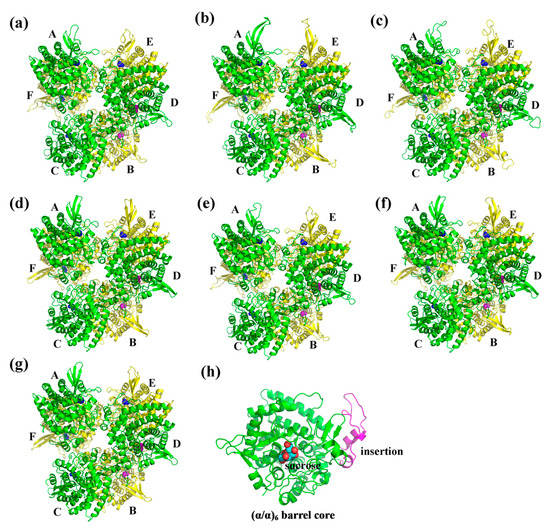

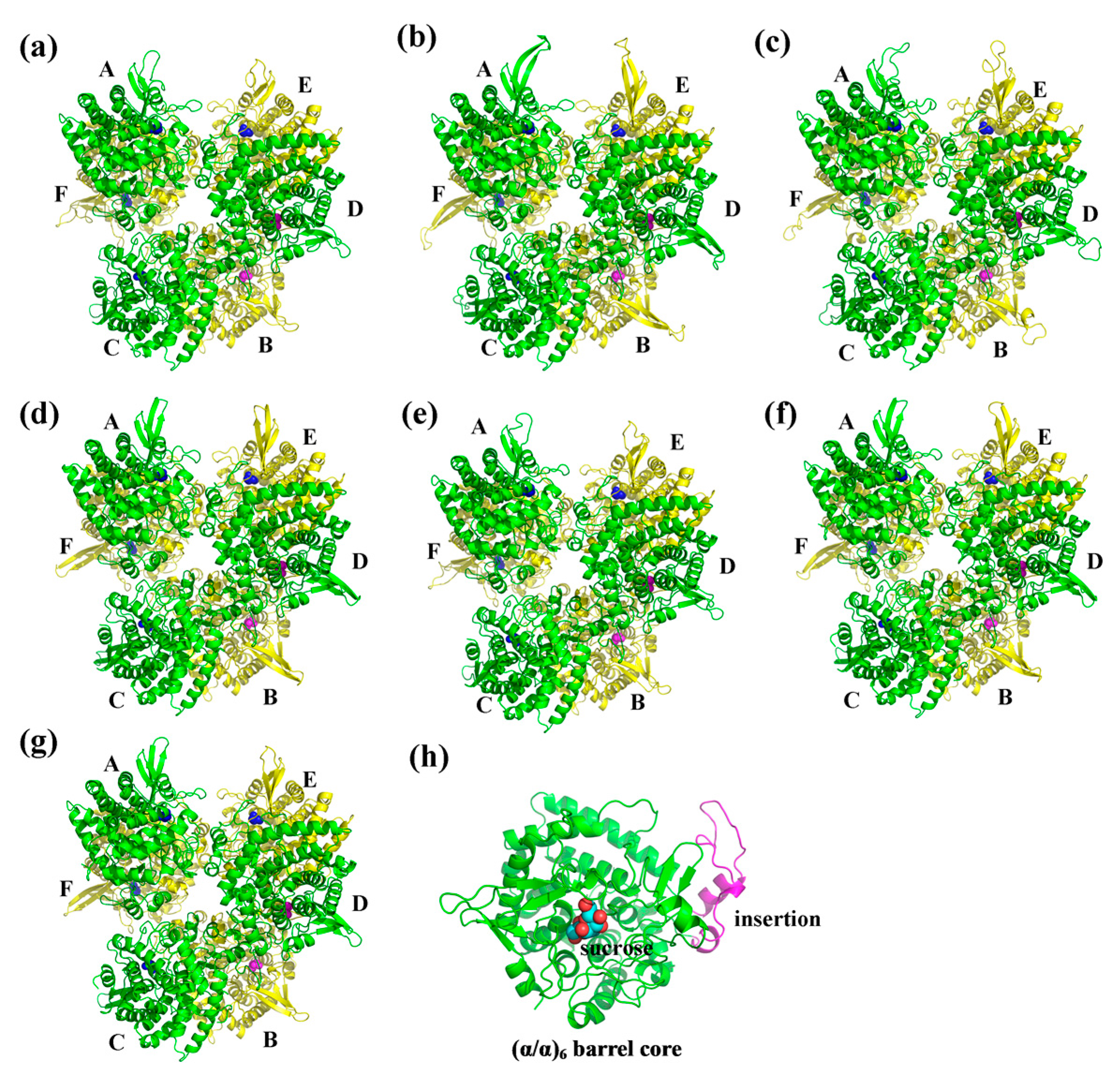

Figure 6. Cartoon representation of the predicted three-dimensional structure models of CaNINV1–6. (a) CaNINV1; (b) CaNINV2; (c) CaNINV3; (d) CaNINV4; (e) CaNINV5; (f) CaNINV6; and, (g) NINV protein from Anabaena; (h) the monomer of CaNINV1. The six subunits are sequentially labeled as A–F. The spherical structures indicate sucrose molecules. The image was generated using the PyMOL program (Schrödinger, Inc., New York, NY, USA).
Figure 6. Cartoon representation of the predicted three-dimensional structure models of CaNINV1–6. (a) CaNINV1; (b) CaNINV2; (c) CaNINV3; (d) CaNINV4; (e) CaNINV5; (f) CaNINV6; and, (g) NINV protein from Anabaena; (h) the monomer of CaNINV1. The six subunits are sequentially labeled as A–F. The spherical structures indicate sucrose molecules. The image was generated using the PyMOL program (Schrödinger, Inc., New York, NY, USA).
Ijms 19 00224 g006
Ijms 19 00224 g007 550

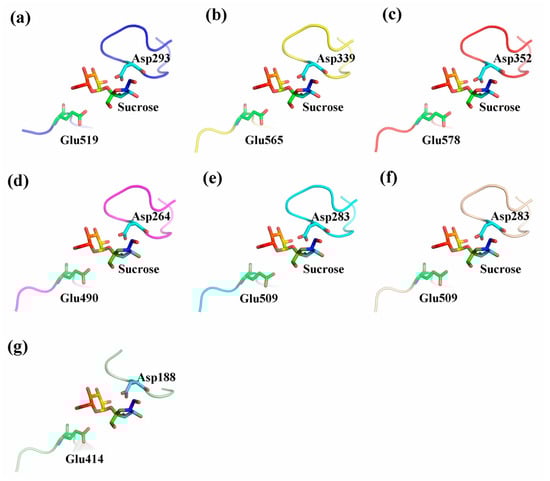

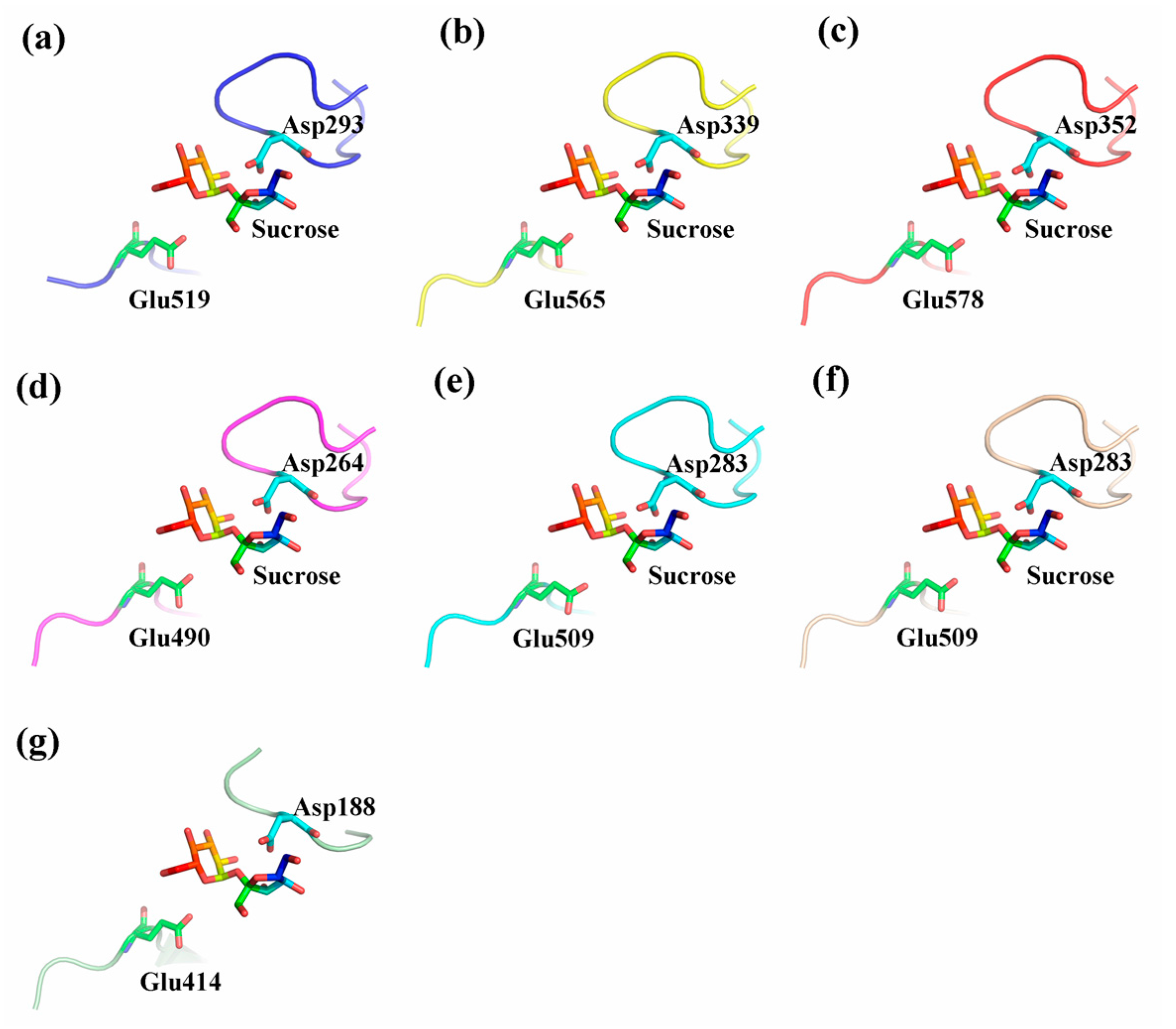

Figure 7. Predicted catalytic residues of CaNINV1–6 with sucrose molecules. (a) CaNINV1; (b) CaNINV2; (c) CaNINV3; (d) CaNINV4; (e) CaNINV5; (f) CaNINV6; (g) NINV protein from Anabaena (Protein Databank ID 5GOR). Colored stick structures indicate sucrose molecules. Green stick and blue stick structures represent the catalytic residues of Glu and Asp, respectively. The image was generated using the PyMOL program (Schrödinger, Inc., New York, NY, USA).
Figure 7. Predicted catalytic residues of CaNINV1–6 with sucrose molecules. (a) CaNINV1; (b) CaNINV2; (c) CaNINV3; (d) CaNINV4; (e) CaNINV5; (f) CaNINV6; (g) NINV protein from Anabaena (Protein Databank ID 5GOR). Colored stick structures indicate sucrose molecules. Green stick and blue stick structures represent the catalytic residues of Glu and Asp, respectively. The image was generated using the PyMOL program (Schrödinger, Inc., New York, NY, USA).
Ijms 19 00224 g007
Ijms 19 00224 g008 550

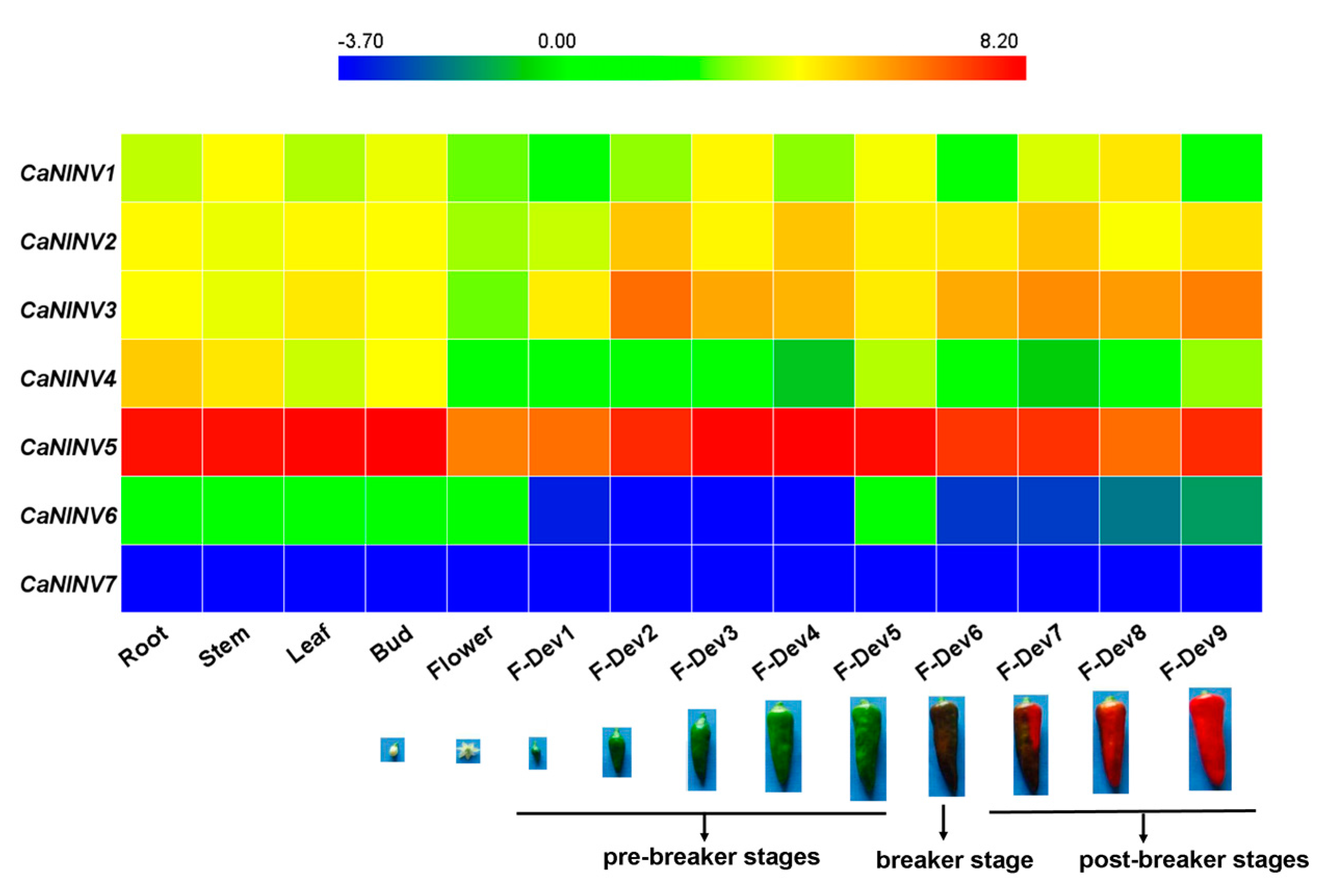

Figure 8. Expression profiles of seven pepper CaNINV genes for different tissues and developmental stages. The expression data were collect from the Illumina RNA-seq data obtained by pepper (cultivar Zunla-1) genome sequencing [30]. The images of the developmental stages of pepper fruit were cited from Qin et al. [30]. The FPKM values were log2 transformed and the heat map was generated using HemI (Heatmap Illustrator, version 1.0) software package. Bar at the top represents log2-transformed values. Genes highly or weakly expressed in the tissues are colored blue and red, respectively.
Figure 8. Expression profiles of seven pepper CaNINV genes for different tissues and developmental stages. The expression data were collect from the Illumina RNA-seq data obtained by pepper (cultivar Zunla-1) genome sequencing [30]. The images of the developmental stages of pepper fruit were cited from Qin et al. [30]. The FPKM values were log2 transformed and the heat map was generated using HemI (Heatmap Illustrator, version 1.0) software package. Bar at the top represents log2-transformed values. Genes highly or weakly expressed in the tissues are colored blue and red, respectively.
Ijms 19 00224 g008
Ijms 19 00224 g009 550
Figure 9. Complementation of the invertase-deficient strain SEY2102 with CaNINV5. S. cerevisiae strains were grown on SD media, which lacked uracil and had Suc as the sole carbon source, at 28 °C for 3 days. CaNINV5: the pDR196-CaNINV5 vector was transformed into SEY2102; PRD196: the empty pDR196 vector was transformed into SEY2102; SEY2102: the mutant yeast cells without any vector transformation.
Figure 9. Complementation of the invertase-deficient strain SEY2102 with CaNINV5. S. cerevisiae strains were grown on SD media, which lacked uracil and had Suc as the sole carbon source, at 28 °C for 3 days. CaNINV5: the pDR196-CaNINV5 vector was transformed into SEY2102; PRD196: the empty pDR196 vector was transformed into SEY2102; SEY2102: the mutant yeast cells without any vector transformation.
Ijms 19 00224 g009
Ijms 19 00224 g010 550

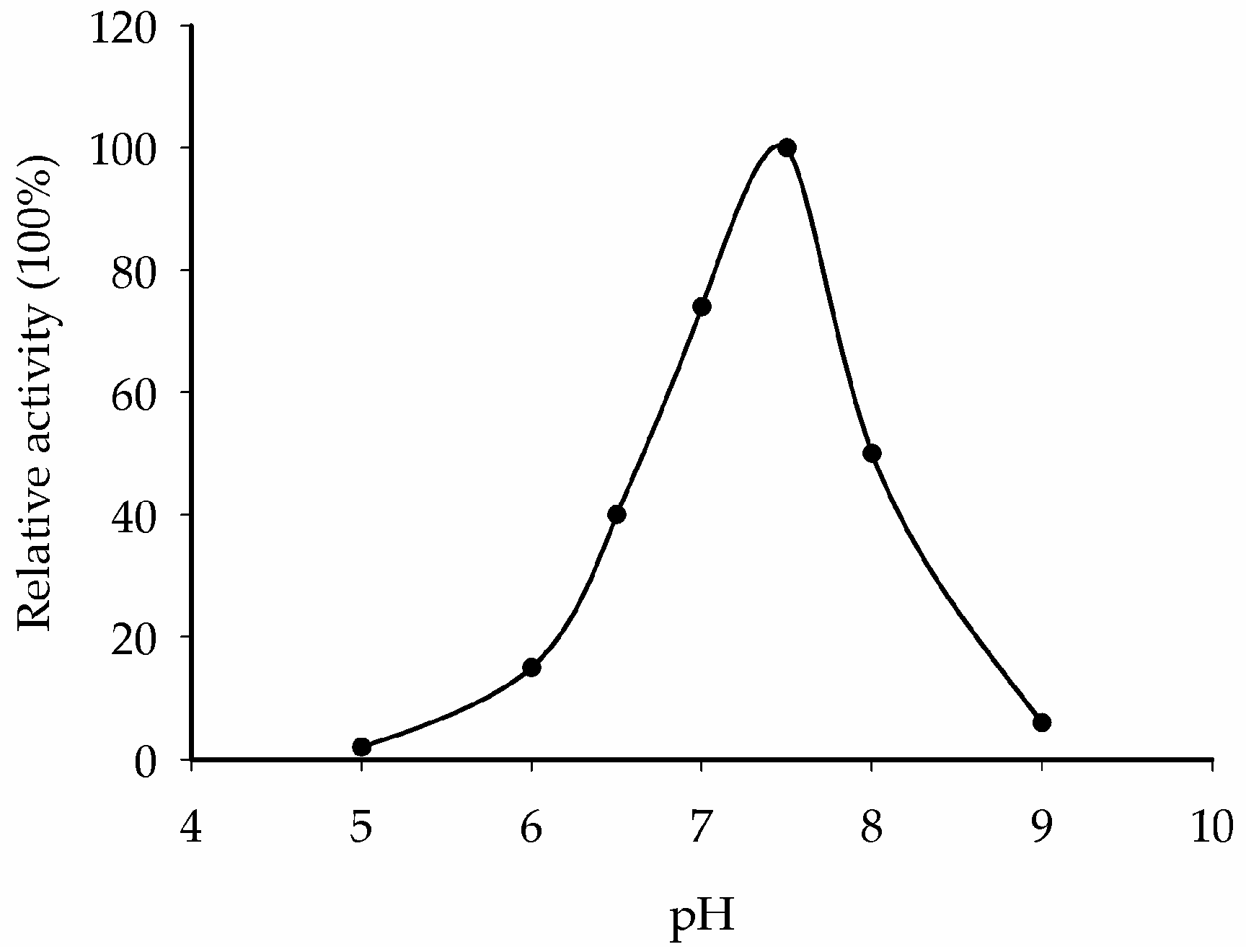

Figure 10. Representation of the pH dependence of alkaline/neutral invertase activity of CaNINV5.
Figure 10. Representation of the pH dependence of alkaline/neutral invertase activity of CaNINV5.
Ijms 19 00224 g010
Table
Table 1. Basic information of seven pepper alkaline/neutral invertase genes (CaNINVs).
Table 1. Basic information of seven pepper alkaline/neutral invertase genes (CaNINVs).
Gene NameGene IDORF Length (bp)Protein Length (aa)MW (kDa)PILocalization
CaNINV1Capana05g002151178859567.846.04Mitochondria and/or plastid
CaNINV2Capana11g000243192664172.776.94Plastid
CaNINV3Capana12g002379196865573.576.18Plastid
CaNINV4Capana06g001364165655162.986.07
CaNINV5Capana04g000213171357065.186.02
CaNINV6Capana08g002679170756865.096.35
CaNINV7Capana08g00025986128632.497.07
