Identification of Putative Novel Class-I Lanthipeptides in Firmicutes: A Combinatorial In Silico Analysis Approach Performed on Genome Sequenced Bacteria and a Close Inspection of Z-Geobacillin Lanthipeptide Biosynthesis Gene Cluster of the Thermophilic Geobacillus sp. Strain ZGt-1
1
Biotechnology, Department of Chemistry, Lund University, SE-221 00 Lund, Sweden
2
Department of Biology, Lund University, SE-221 00 Lund, Sweden
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2018, 19(9), 2650; https://doi.org/10.3390/ijms19092650
Submission received: 10 July 2018
/
Revised: 23 August 2018
/
Accepted: 4 September 2018
/
Published: 6 September 2018
(This article belongs to the Section Molecular Biophysics)
Abstract
:Lanthipeptides are ribosomally synthesized and post-translationally modified polycyclic peptides. Lanthipeptides that have antimicrobial activity are known as lantibiotics. Accordingly, the discovery of novel lantibiotics constitutes a possible solution for the problem of antibiotic resistance. We utilized the publicly available genome sequences and the bioinformatic tools tailored for the detection of lanthipeptides. We designed our strategy for screening of 252 firmicute genomes and detecting class-I lanthipeptide-coding gene clusters. The designed strategy resulted in identifying 69 class-I lanthipeptide sequences, of which more than 10% were putative novel. The identified putative novel lanthipeptides have not been annotated on the original or the RefSeq genomes, or have been annotated merely as coding for hypothetical proteins. Additionally, we identified bacterial strains that have not been previously recognized as lanthipeptide-producers. Moreover, we suggest corrections for certain firmicute genome annotations, and recommend lanthipeptide records for enriching the bacteriocin genome mining tool (BAGEL) databases. Furthermore, we propose Z-geobacillin, a putative class-I lanthipeptide coded on the genome of the thermophilic strain Geobacillus sp. ZGt-1. We provide lists of putative novel lanthipeptide sequences and of the previously unrecognized lanthipeptide-producing bacterial strains, so they can be prioritized for experimental investigation. Our results are expected to benefit researchers interested in the in vitro production of lanthipeptides.
Keywords:
antimicrobial; antiSMASH; bacteriocins; BAGEL; firmicutes; Geobacillus; lanthipeptides; lantibiotics; lantipeptides; Z-geobacillin
1. Introduction
In parallel with the continuously growing problem of bacterial multidrug resistance together with the customer requirements for using natural antimicrobial compounds and food preservatives in food products, there is a growing need for identifying new natural antimicrobial compounds, among which is the family of lanthipeptides.
Lanthipeptides are ribosomally synthesized cyclic peptides, distinguished by the presence of unusual thioether-linked amino acids, lanthionine (Lan) and (2S,3S,6R)-3-methyllanthionine (MeLan) [1]. Lanthipeptides that have antimicrobial activity are known as lantibiotics (for lanthionine-containing antibiotics) [1]. The lanthipeptide is synthesized as a precursor peptide (generally designated as LanA) that undergoes post-translational modifications to produce the bioactive mature lanthipeptide. The modifications involve dehydration of serine (Ser) and threonine (Thr) residues to dehydroalanine (Dha) and dehydrobutyrine (Dhb), respectively, followed by addition of the thiol groups of cysteine (Cys) residues onto Dha and Dhb which results in the formation of thioether cross-links, yielding the Lan and MeLan residues, respectively [1].
Lanthipeptides are classified based on the biosynthetic enzymes involved in the post-translational modifications into four classes [1]. In the current study, we are focusing on class-I lanthipeptides. For a comprehensive overview of the other classes, we recommend that the reader refer to the review by Arnison et al., 2013 [1]. In class-I lanthipeptides, the dehydration is carried out by a dedicated lanthipeptide dehydratase, generally designated as LanB, while the cyclization is carried out by a lanthipeptide cyclase, generally designated as LanC. LanA is composed of a leader peptide and a core peptide [1,2]. The post-translational modifications take place in the core-peptide which gives the bioactive mature peptide [2]. The modified peptide is exported outside the producing cell via a transmembrane ATP-binding cassette (ABC) transporter, generally designated as LanT [2]. The leader peptide is cleaved off either intracellularly or extracellularly by a lanthipeptide-dedicated serine protease (LanP) or by another protease produced by the host cell [2]. The biosynthesis of lanthipeptides is regulated via the two-component response regulatory system; the sensor histidine kinase (LanK) and the cytoplasmic response regulator (LanR). The lanthipeptide-producing cell protects itself against the inhibitory effect of its own lanthipeptide via immunity proteins (LanIEFG) [1] (details are given in Section 2.3.2).
A great deal of attention has recently been directed towards lanthipeptides, thanks to their polycyclic nature which offers them protease-resistance and stability, as well as target-specificity due to their limited conformational freedom, making them superior to many other peptide compounds [3]. Moreover, different research studies have demonstrated evidence of the potential applications of antimicrobially-active lanthipeptides as therapeutic alternatives to traditional antibiotics, as prophylactics in the veterinary applications, as food natural preservatives [4], and also as antimicrobial agents against plant pathogens [5]. The antimicrobial activity of a number of class-I lanthipeptides against different pathogens has been proven. For example; the most well-studied lanthipeptide, nisin, produced by Lactococcus lactis, antagonizes the growth of different food-borne pathogens, food-spoiling bacteria [6], and methicillin-resistant Staphylococcus aureus (MRSA) strains [7]. Other lanthipeptides have also proved their potent antimicrobial activity. Accordingly, the interest in discovering new lanthipeptides is rising [3], and the increase in the bacterial genomic sequence data deposited in the public databases—through in silico analyses and genome-mining strategies—is aiding in finding putative lanthipeptides coded on the genomes of bacterial strains that have not yet been identified as lanthipeptide producers [2].
In addition to the significant potential applications of lanthipeptides, the need for revealing their presence on bacterial genomes also comes from the role the lanthipeptides might be playing in enhancing the pathogenicity of the virulent lanthipeptide-producing bacteria, such as MRSA, as proposed in [8,9]. Production of antimicrobially-active lanthipeptides by pathogens is supposed to have a negative impact on the infected host since lanthipeptide-sensitive microbes maybe out-competed resulting in a growing number of pathogens [8,9]. This indicates that it is critical to achieve further progress in identifying lanthipeptides coded on the bacterial genome, since they could be targeted as a therapeutic intervention in such cases [8,9]. In other words, identification of lanthipeptides coded on the genomes of microorganisms is clinically important, whether for the sake of developing new antibiotics or for the prevention of infection.
Among the significant microorganisms in terms of lanthipeptide production are firmicutes. Members of the phylum Firmicutes are widely distributed in nature. The endospore-forming ones, as bacilli, are able to survive or even thrive in harsh conditions, and have broad metabolic diversity [10]. These features facilitate the establishment of vast industrial and biomedical applications [11]. To date, the majority of the identified antimicrobially-active lanthipeptides are produced by firmicutes [12]. However, we have found that there are still several lanthipeptide-coding genes harbored on the genomes of firmicutes that have been overlooked during the annotation of the original genome data submitted by the research group, inaccurately annotated, annotated as coding for hypothetical proteins, or have been annotated as coding for antibiotics without specifying the type of ‘antibiotic’. We have also observed similar cases with the NCBI Reference Sequence (RefSeq) annotation of certain firmicute genomes. Given the biotechnological potential of firmicutes and our research interest in their antimicrobial potential, especially the thermophilic Geobacillus, and due to the fact that firmicutes also include lanthipeptide-producing pathogens, such as staphylococci, we decided to screen the publicly-available genome sequences of firmicutes for lanthipeptide-coding genes.
In silico screening for class-II lanthipeptide clusters (lanM genes) was carried out previously and resulted in identification of novel lanthipeptides [13,14]. However, there is only one comprehensive study aimed for the identification of novel class-I lanthipeptides through in silico screening of bacterial genome sequences. The identification was carried out by Marsh et al. and the study was published in 2010 [15]. From 2010 until now, the availability of genomic sequence data has dramatically increased, and the genome-mining software tools available for identifying putative lanthipeptide clusters have improved, raising the chance for predicting new putative lanthipeptide-producing bacterial strains. Within this context, antiSMASH (antibiotics and secondary metabolite analysis shell) is a useful software pipeline, which has been accessible for lanthipeptide prediction, among other secondary metabolites—starting from 2011 [16]—and has been greatly improved for lanthipeptide detection and classification starting from 2014 [17]. The antiSMASH software analyzes the genome sequence, detects putative lanthipeptide biosynthetic gene clusters, predicts the post-translational modifications, determines the class of the detected lanthipeptide based on the classification given by Arnison et al., 2013 [1], and predicts the properties of the modified lanthipeptide [18].
At another level, to fulfill the need for discovering novel antimicrobial compounds, the isolation of bacterial strains from extreme habitats constitutes a promising resource. The bacterial diversity in these ecological systems, particularly the untapped ones, is likely to offer a diverse array of novel natural compounds [19].
In the current study, we employed an in silico-based approach using different lanthipeptide identification tools to screen firmicute genomes that have the status of ‘complete sequence’ for class-I lanthipeptides. We identified seven putative novel class-I lanthipeptides that have not been recognized as such neither by the research group who submitted the genome, nor by the NCBI prokaryotic genome annotation pipeline (PGAP) used for annotating the RefSeq genome records (Table 1). Moreover, these putative lanthipeptides are not identical to any of the known lanthipeptides, and some of them do not even show any homology to known lanthipeptides. We also identified lanthipeptides coded on genomes of bacterial strains that have not been recognized as lanthipeptide producers. Furthermore, we are paying close attention to the thermophilic Geobacillus, which is seen as a genus with a great biotechnological potential [20].
2. Results and Discussion
2.1. Lanthipeptide Identification Workflow

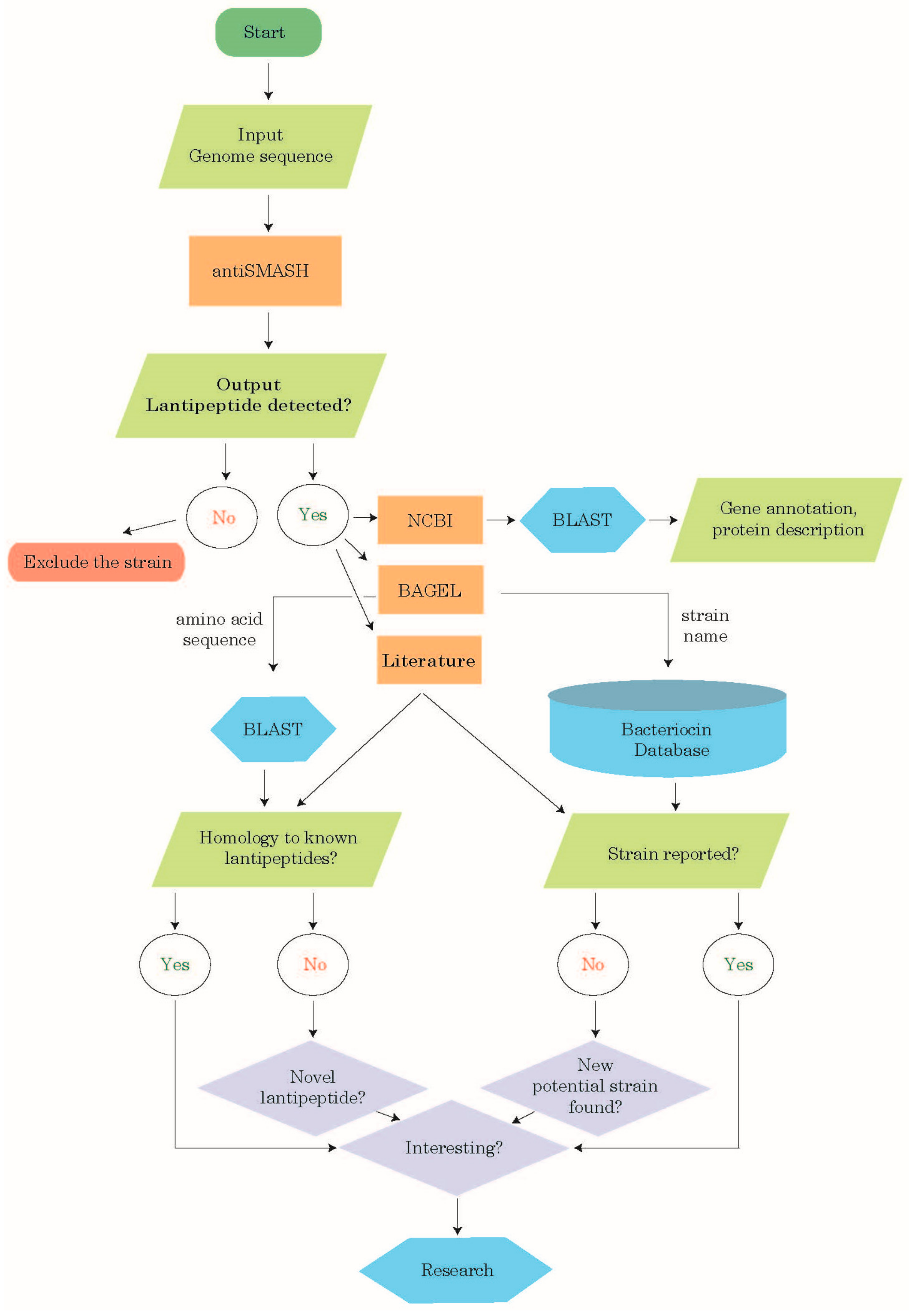

The strategy we plotted for identifying class-I lanthipeptides started with downloading the complete genome sequences of firmicute bacterial strains deposited in the RefSeq genome database (Figure 1). This was followed by screening the genome sequences for class-I lanthipeptide clusters using the latest version of antiSMASH (antiSMASH 4.0.2; hereafter referred to as antiSMASH, except for when a context of comparison between different versions of the software is set, then the version number is stated, as discussed below) [23]. This version of antiSMASH analyzes the genome sequence and identifies the gene coding for the lanthipeptide precursor using an algorithm from RODEO (Rapid ORF Description and Evaluation Online) genome-mining platform. The utilized robust algorithm employs a combination of the machine-learning algorithm and lanthipeptide motif analysis. In certain cases, in addition to applying antiSMASH 4, we used the older version of antiSMASH (antiSMASH 3.0.4; hereafter referred to as antiSMASH 3) [24]. After retrieving the amino acid (aa) sequences of the predicted lanthipeptides, we analyzed them using blastp and tblastn [25].
In addition to the NCBI BLAST analysis, we conducted bacteriocin genome mining tool (BAGEL) BLAST analysis [26] of the antiSMASH-predicted lanthipeptide sequences against BAGEL4 class-I and class-II bacteriocin databases (Figure 1). This step aimed at evaluating whether the predicted lanthipeptide was homologous to previously characterized bacteriocins reported in BAGEL4 databases, or represented a putative novel lanthipeptide, and thus, an attractive target for further research. To identify bacterial strains that have not been previously described as lanthipeptide producers, we referred to BAGEL4 databases [26], where we checked whether the strain, whose genome sequence was predicted by antiSMASH to harbor a class-I lanthipeptide cluster(s), had been previously reported as a producer of bacteriocins, or not yet. We have also referred to the literature to complement the information in BAGEL databases. In some cases, in addition to using antiSMASH, we applied BAGEL4 genome mining tool [26].
For graphical antiSMASH output of the lanthipeptide biosynthesis gene clusters of each of the genomes, please see (http://130.235.46.10/Lanthipeptides/) (last checked on the 5 September 2018).
2.2. Identification of Putative Novel Lanthipeptides
Bacteriocin-coding-genes can be overlooked by the automated genome annotation tools due to their short open reading frames (ORFs) [27], making it difficult to have a complete bacteriocin database [28]. Therefore, even in case of accurate detection of the short ORF, it is not necessarily possible to identify the gene product as a bacteriocin [29]. The gene product could instead be annotated as a protein of unknown function, or as a hypothetical/uncharacterized protein [29]. These proteins could represent putative novel bacteriocins yet to be identified. The difficulties in the detection of bacteriocins call for carrying out a continuous and thorough analysis of different microbial genome sequences.
In the current study, the resulting antiSMASH-predicted lanthipeptide data set was composed of 69 aa sequences (Table S1). To identify the putative novel lanthipeptides among them, we adopted the following criterion; a given antiSMASH-predicted lanthipeptide is identified in the present study as putative novel when it has not been previously reported or identified as a lanthipeptide. Accordingly, a lanthipeptide predicted in the current study is described as putative novel when it fulfills all of the following conditions: (1) its coding gene was not annotated or annotated in the original genome record, which was submitted by the research group who sequenced the genome and deposited it in NCBI GenBank, as coding for a hypothetical/uncharacterized protein; (2) its coding gene has not been annotated or annotated in the RefSeq genome record, which was annotated by the NCBI PGAP, as coding for a hypothetical/uncharacterized protein; (3) BAGEL BLAST of the aa sequence of the predicted lanthipeptide returned protein hit(s) with less than 100% identity to the characterized small bacteriocins deposited in BAGEL databases; and (4) the predicted lanthipeptide has not previously been highlighted in literature studies, whether that study was based on an in silico analysis of the genome analyzed in our study, or based on an experimental investigation of the predicted lanthipeptide. As a result, we identified seven putative novel lanthipeptides.
In addition to the 69 identified lanthipeptides, we propose the lanthipeptide Z-geobacillin predicted to be produced by the novel Geobacillus sp. strain ZGt-1 which we isolated from Zara hot spring in Jordan [21,22] as a putative novel lanthipeptide (Table 1; Table S1), and hereby we report it and describe its biosynthesis gene cluster.

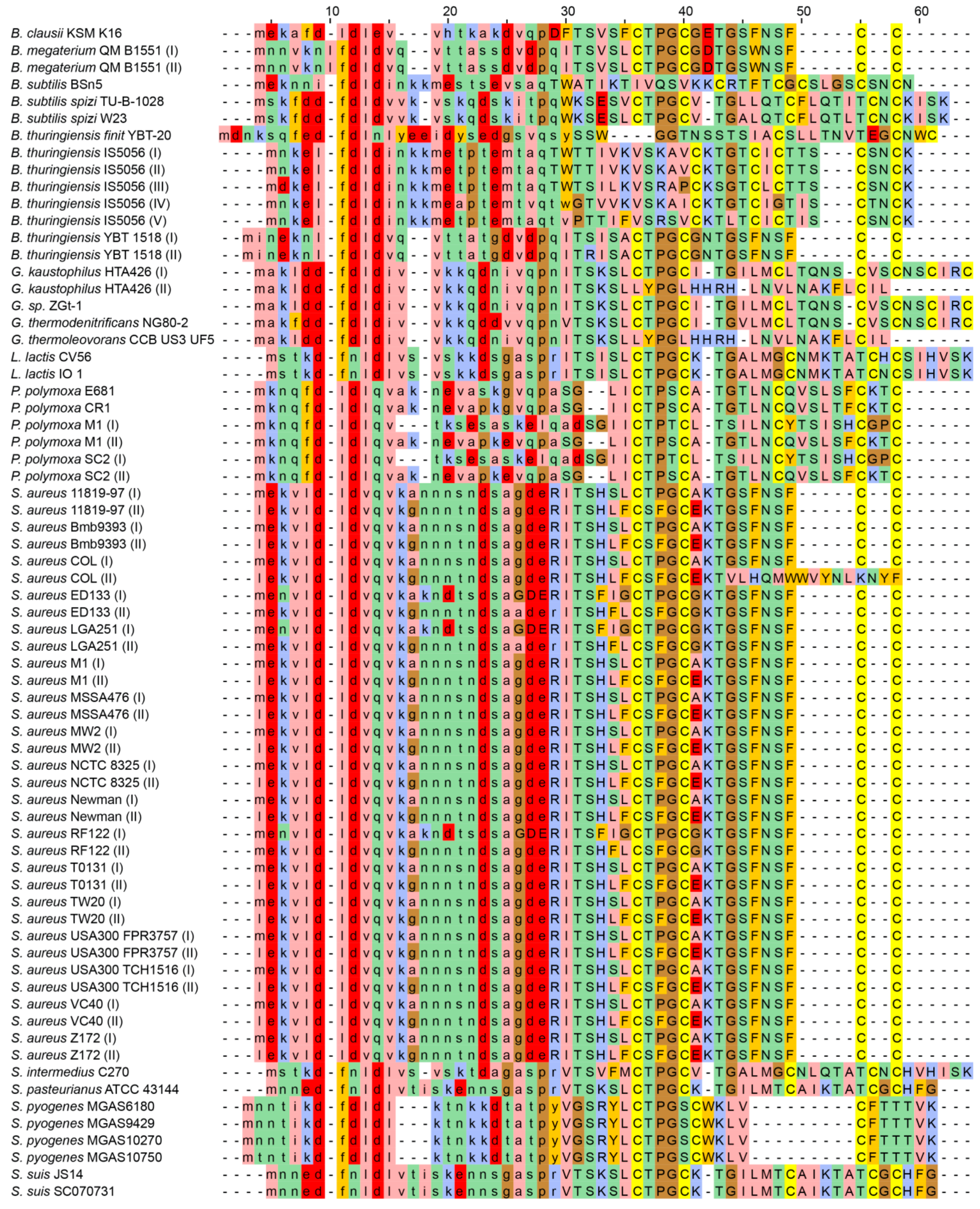

Accordingly, out of the resulting set of antiSMASH-predicted lanthipeptides, we identified eight putative novel lanthipeptides in total (Table 1). Among the producers of these putative novel lanthipeptides, there was one species that has not been reported in the literature as a lanthipeptide producer. We also identified 40 bacterial strains that have not been experimentally investigated as potential lanthipeptide producers (Table 2).
2.3. Class-I Lanthipeptide Biosynthetic Gene Clusters in Firmicutes
The identified lanthipeptide producers among firmicutes are discussed below in alphabetical order, and the alignment of these lanthipeptides is illustrated in Figure 2. In the figure, aa abbreviations in the leader peptides are in lowercase while the core peptides are in uppercase. As seen in the alignment, the boundary between leader and core peptides is probably not always correctly predicted by antiSMASH; for example, the arginine (R) in position 29. The core peptides are rich in cysteine residues, but also—to a lesser extent—in serine and threonine residues, which constitute a prerequisite for the thioether cross-links to form. Not immediately recognized, since about half of the sequences derive from Staphylococcus aureus strains, is that the homology between sequences from different species is quite low. Therefore, identification of lanthipeptides cannot solely rely on sequence homology.
2.3.1. Identification of Bacillus-associated Lanthipeptide Gene Clusters
Bacterial members of the genus Bacillus belong to the class ‘Bacilli’, order Bacillales, family Bacillaceae [40]. They are Gram-positive, motile or non-motile, aerobic or facultative anaerobic, and are spore-formers [40]. They can be isolated from different ecological niches, such as soil, water, food, and clinical samples [40]. The Bacillus genus represents a rich source of antimicrobial compounds, including lanthipeptides with a broad spectrum of inhibitory activity [32,41]. Below, we are presenting strains of different Bacillus species coding for class-I lanthipeptides.
• Bacillus clausii KSM-K16
Different strains of B. clausii have been described as probiotics, as they demonstrate antimicrobial and immunomodulatory activities [42]. A class-I lanthipeptide with antimicrobial activity; clausin, has been isolated from a strain of B. clausii [43]. Our analysis indicated that this strain produces a class-I lanthipeptide other than clausin, and this is in agreement with the RefSeq annotation. Please refer to S.2.3.1.1 in the Supplementary Material file for a full description of the analysis. To our knowledge, the potential of strain KSM-K16 as a lanthipeptide producer has not been experimentally investigated so far (Table 2).
• Bacillus megaterium QM B1551
B. megaterium is the largest species among all bacilli in terms of cell size [44]. The antiSMASH analysis indicated that the chromosomal DNA of strain QM B1551 does not code for lanthipeptides. On the other hand, the strain has seven plasmids, and our analysis indicated that plasmid pBM700 harbors a class-I lanthipeptide cluster which has two putative genes coding for two identical class-I lanthipeptides. The antiSMASH results are in agreement with the RefSeq annotation and with Xin et al., 2015 [31] (details are given in S.2.3.1.2). To our knowledge, the potential of this strain as a lanthipeptide-producer has not been experimentally characterized (Table 2).
• Bacillus subtilis
B. subtilis strains produce a variety of antimicrobial compounds, including different kinds of lanthipeptides as reviewed in [45]. Below, we are presenting three strains as (potential) producers of class-I lanthipeptides.
B. subtilis BSn5
Strain BSn5 is an endophytic bacterium of the plant Amorphophallus konjac [33]. The strain harbors a class-I lanthipeptide biosynthetic gene cluster coded on the chromosomal DNA, and has not been experimentally investigated for lanthipeptide production (Table 2).
The nucleotide (nt) sequence of the gene coding for the antiSMASH-predicted lanthipeptide (Table S1) is 100% identical to ‘BSN5_RS12800’ which codes for a hypothetical protein in the RefSeq record (Table S2). Deng et al., 2011 who sequenced the genome of strain BSn5 noted the presence of the gene and described it as paenibacillin-like lanthipeptide [33]. Phelan et al., 2013 briefly mentioned that strain BSn5 has a putative lanthipeptide-coding gene and identified the lanthipeptide as subtilomycin [32]. Thus, these results support our analysis (Table S6). BAGEL BLAST indicated that the predicted lanthipeptide is 100% identical to subtilomycin (Table 2; Table S2).
B. subtilis spizizenii DSM 15029T (TU-B-10)
Strain DSM 15029 (also known as TU-B-10) was isolated from soil in Tunisia [46], and is the type strain of B. subtilis subsp. spizizenii, as indicated in the German Collection of Microorganisms and Cell Cultures (DSMZ). The strain is known for producing entianin, a class-I lanthipeptide [47]. The antiSMASH results are in agreement with this fact and with the RefSeq annotation (details are given in S.2.3.1.3).
B. subtilis spizizenii W23
Strain W23 is the best characterized strain of B. subtilis spizizenii [48]. However, to our knowledge, it has not been investigated for the production of bacteriocins (Table 2). Our analysis indicated that strain W23 has the potential to produce a class-I lanthipeptide, and this is in agreement with the RefSeq annotation (details are given in S.2.3.1.4).
• Bacillus thuringiensis
B. thuringiensis strains are widely spread in nature; they have been isolated from soil, insects, and plant leaves [49]. They are used as natural biopesticides due to the production of toxic proteinaceous crystals [50,51]. Some strains of B. thuringiensis are also known for the production of peptides with antibacterial, antifungal, and anticancer activities, as reviewed in [52].
B. thuringiensis serovar finitimus YBT-020
This strain represents one of only a few examples of B. thuringiensis strains with a special phenotype of the toxic crystals [53] (for details, the reader is recommended to refer to [51,53]). The lanthipeptide production potential of strain YBT-020 has not been investigated (Table 2).
Our analysis indicated that the strain has a putative class-I lanthipeptide cluster, and it also showed that the gene coding for the antiSMASH-predicted lanthipeptide has not been annotated in the RefSeq record (Table S2). On the other hand, the gene has been annotated on the original genome. While the nt sequence of the gene coding for the predicted lanthipeptide (Table S1) is 100% identical to ‘YBT020_05970’ annotated on the original genome as coding for a hypothetical protein (Table S2), the last nt in the stop codon of ‘YBT020_05970’ (i.e., A in TAA) has not been reported by antiSMASH 4. Accordingly, the reported positions of the coding gene do not match those of ‘YBT020_05970’. In order to resolve the correct position of the antiSMASH-predicted gene, and thus, its nt sequence, we analyzed the genome of the strain using antiSMASH 3. The position of the gene was identical to that of ‘YBT020_05970’ where no nt was missing from the antiSMASH 3–predicted gene. Therefore, we corrected the gene position and presented it in Table S1.
InterPro analysis did not identify a lanthipeptide-related domain in the protein. In order to inspect the antiSMASH prediction, we checked the nearby genes in the genome records for the presence of the genes coding for lanthipeptide modifying enzymes. In the original genome, there is a LanB-coding gene annotated as ‘YBT020_05955’ which is upstream of the putative lanthipeptide coding gene ‘YBT020_05970’. However, this protein has been annotated in the RefSeq genome record as a hypothetical protein. Analyzing the aa sequence of this protein using InterPro confirmed its identity as a LanB. A LanC protein coding-gene is also annotated in the original genome record as ‘YBT020_05980’ downstream of ‘YBT020_05970’, but it has been annotated as a hypothetical protein in the RefSeq genome record. InterPro analysis confirmed its identity as a LanC. The presence of these two lanthipeptide modifying enzymes makes it likely that the short ‘hypothetical protein’, which is coded by ‘YBT020_05970’ and predicted as a lanthipeptide by antiSMASH (Table S1), is a lanthipeptide. Furthermore, BAGEL4 genome mining tool as well identified the existence of a class-I lanthipeptide cluster and confirmed the presence of LanB and LanC. BAGEL BLAST indicated that the predicted lanthipeptide did not have any hits to any known small bacteriocins (Table 2). These results indicate that the predicted lanthipeptide could be novel (Table 1) and of interest to be explored. We recommend considering the RefSeq genome record of this strain for re-annotation, and we suggest annotating ‘YBT020_05970’ at the position presented in the original genome as well as by antiSMASH 3 (Table S1).
B. thuringiensis serovar IS5056
B. thuringiensis serovar IS5056 was isolated from soil in Poland, and is an effective biopesticide [50]. In addition, strain IS5056 has the potential to produce class-I lanthipeptides, as discussed below.
The analysis using antiSMASH indicated that the chromosome of the strain does not possess genes coding for lanthipeptides. On the other hand, the plasmid (pIS56-233) of the strain harbors five putative class-I lanthipeptide-coding genes clustered together. This is a rare case for a lanthipeptide gene cluster, since clustered lanthipeptide-coding genes rarely exceed two [31]. The nt sequences of the first two putative coding genes (H175_233p095; H175_233p096) are identical (Table S1), indicating a gene duplication. These two genes have been annotated as coding for hypothetical proteins on the RefSeq genome (Table S2). However, in addition to our analysis, literature studies suggest these proteins to be lanthipeptides, as discussed below. The other three putative coding genes—H175_233p097 coding for lanthipeptide III, H175_233p098 coding for lanthipeptide IV, and H175_233p099 coding for lanthipeptide V—do not share identical nt sequences (Table S1) and are also predicted to code for hypothetical proteins (Table S2). Strain IS5056 has also been in silico-predicted by Xin et al., 2015 as a lanthipeptide-producer using BAGEL3 genome mining tool [31], which supports our results (Table S6).
We noticed that the aa sequences of the predicted five lanthipeptides of strain IS5056 are identical to those of the thuricin 4A biosynthetic gene cluster, coded on the chromosome of B. thuringiensis serovar thuringiensis strain T01001 [31]. The antibacterial activity of the thuricin 4A cluster was verified by Xin et al., 2015, and ascribed to only one of its four coded lanthipeptides, named as thuricin 4A-4 [31]. The aa sequence of thuricin 4A-4 is identical to the duplicated lanthipeptides coded on the genome of strain IS5056 (Table 2; Table S2). Therefore, an investigation of the antibacterial activity of the five-lanthipeptide coding gene cluster in strain IS5056 should be of interest, especially when B. thuringiensis serovar IS5056 has not been experimentally investigated as a producer of class-I lanthipeptides (Table 2). We noticed that thuricin 4A-4 has not been reported in BAGEL databases.
B. thuringiensis YBT-1518
Although B. thuringiensis is a known producer of antibacterial peptides, to our knowledge, the potential of strain YBT-1518 as a lanthipeptide producer has not been experimentally characterized (Table 2). The antiSMASH analysis indicated that strain YBT-1518 harbors a class-I lanthipeptide biosynthetic gene cluster. This is in agreement with the RefSeq annotation (details are given in S.2.3.1.5).
2.3.2. Identification of Geobacillus-associated Lanthipeptide Gene Clusters
Bacterial members of the genus Geobacillus belong to the class Bacilli, order Bacillales, and family Bacillaceae. Little is known about lanthipeptides from thermophilic bacteria in general, and the genus Geobacillus in particular, with only two lanthipeptides—geobacillin I and geobacillin II, produced by Geobacillus thermodenitrificans NG80-2—have been characterized [34]. Investigating the lanthipeptide potential of thermophiles is of significant interest. Although nisin, produced by mesophilic lactic acid bacteria, retained its antibacterial activity at pH 2 when autoclaved at 121 °C, it lost its activity when it was at pH 11 and heated at 63 °C for 30 min (reviewed in [6]). Lanthipeptides from thermophiles are expected to be more stable, as demonstrated by Garg et al., 2012 [34]. In the current study, we are presenting three potential class-I lanthipeptide-producing geobacilli. The graphical output of the lanthipeptide biosynthesis gene clusters of the presented geobacilli genomes, and all other genomes as well, is available online (http://130.235.46.10/Lanthipeptides/) (last checked on the 5 September 2018).
• Geobacillus kaustophilus HTA426
G. kaustophilus HTA426 is a thermophilic bacterium that was isolated from the deep-sea sediment of the Mariana Trench [54]. The strain harbors a class-I lanthipeptide cluster coding for two different lanthipeptides. The antiSMASH results of lanthipeptide (I) are in agreement with the RefSeq annotation and with Garg et al., 2012 [34] (details are given in S.2.3.2.1). To our knowledge, the lanthipeptides of G. kaustophilus have not been produced in vitro (Table 2).
The nt sequence of the gene coding for the predicted lanthipeptide (II) (Table S1) is 100% identical to that annotated on the original genome as GK0924, coding for a lanthipeptide precursor. This in turn supports our results (Table S6). On the other hand, the gene was inaccurately annotated on the RefSeq genome. The positions of the coding gene indicated by tblastn analysis did not match the positions reported by antiSMASH 4 and the RefSeq. The reported positions were identical to the positions reported for ‘GK_RS01950’ that is longer than the one that should code for the antiSMASH-predicted lanthipeptide which is 50 aa in length. To resolve this issue, we analyzed the genome of the strain using antiSMASH 3 as it annotates the genome independently of the RefSeq annotation, using Prodigal. antiSMASH 3 retrieved a lanthipeptide that is identical to the one retrieved by antiSMASH 4 (50 aa), but with different gene positions (i.e., gene length) that correctly corresponded to a 50-aa lanthipeptide and agreed with the positions presented by tblastn. BAGEL4 genome mining tool detected the presence of a class-I lanthipeptide cluster in the strain but did not identify lanA. To confirm that the prediction of the lanthipeptide by antiSMASH 3 and antiSMASH 4 was correct, we analyzed the aa sequence for its protein family. InterPro confirmed that the predicted peptide is a lanthipeptide. Therefore, we suggest annotating the lanthipeptide-coding gene on the RefSeq genome at the detected position presented in (Table S1). As inferred from BAGEL BLAST, the predicted lanthipeptide (II) has 79% identity to geobacillin I (Table 2). Our results agree with the findings of Marsh et al., 2010, who reported the potential of strain HTA426 to produce lanthipeptides I and II [15] (Table S6).
• Geobacillus sp. ZGt-1
Geobacillus sp. strain ZGt-1 is a thermophilic bacterial strain which we earlier have isolated from Zara hot spring in Jordan [21,22]. Since exploring novel repositories of microorganisms is recommended as it could lead to the identification of novel metabolites [55], we investigated the antimicrobial potential of strain ZGt-1. The strain demonstrated antibacterial activity against a strain of the food spoiling bacterium G. stearothermophilus, and against the mesophilic bacterium B. subtilis and the pathogenic Gram-negative bacterium Salmonella typhimurium [22]. We have confirmed the ability of strain ZGt-1 to produce antimicrobial proteins using culture-based methods and tandem mass spectrometric analysis [22].
Moreover, we analyzed the genome sequence of strain ZGt-1 in order to identify antimicrobial peptide-coding genes. The analysis indicated the potential of ZGt-1 to produce bacteriocins, including a lanthipeptide [21]. Since lanthipeptides produced by thermophilic bacteria are of interest due to the reasons mentioned above together with the fact that microbiota of hot springs have not been investigated for their potential as lanthipeptide producers, we decided in the current study to take a closer look at the lanthipeptide coded on the chromosome of strain ZGt-1, as a first step towards characterizing it.
• Architecture of the Z-geobacillin lanthipeptide gene cluster in Geobacillus sp. strain ZGt-1

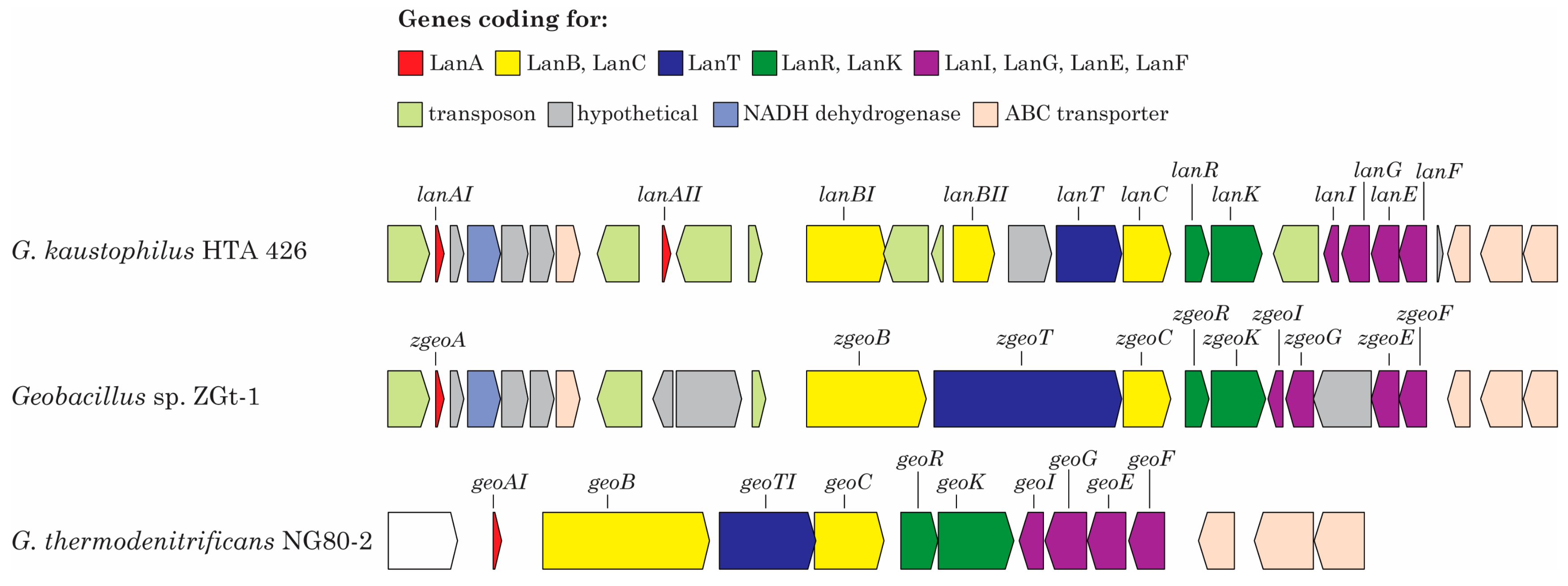

Analysis of the chromosome genome sequence (LDPD01000000) of Geobacillus sp. strain ZGt-1 using antiSMASH indicated that the strain harbors a class-I lanthipeptide biosynthesis gene cluster. The cluster contains all the machinery genes commonly found in clusters of this class of lanthipeptides, as reviewed in [2,56]. The cluster contains a short ORF (171 base pairs), designated here as zgeoA, coding for the precursor peptide on the forward DNA strand (Table S1), on contig 6_34 (Table S3). The genes required for the biosynthesis, modification, and transport of Z-geobacillin, as well as the self-immunity protein-coding genes are located downstream of zgeoA (Figure 3). These genes are a lanthipeptide dehydratase-coding gene (zgeoB), a lanthipeptide cyclase-coding gene (zgeoC), ABC transporter-coding gene (zgeoT), a two-component transcriptional regulator; sensor histidine kinase-coding gene (zgeoK) and response regulator-coding gene (zgeoR), and self-immunity protein-coding genes zgeoI, zgeoG, zgeoE, and zgeoF (Figure 3). However, the cluster does not contain a gene coding for a lanthipeptide protease (LanP) to remove the leader peptide. Similar cases were reported by Garg et al., 2012 for different strains of Geobacillus [34]. Proteolytic removal of the leader peptide may be carried out by another protease coded anywhere on the genome of the producing bacterium, as previously reported for subtilin produced by B. subtilis [57].
The putative lanthipeptide precursor—ZgeoA—is composed of 56 aa residues (Figure 4; Table S1). The leader peptide (23 aa) is positioned at the N-terminal region of ZgeoA (Figure 4; Table S1). Usually, the leader peptide is cleaved off in the final step of biosynthesis by a protease [34]. Based on the antiSMASH prediction, the site of the proteolytic cleavage is ProAsn↓Ile (PN↓I) (Figure 4). The core peptide at the C-terminus of ZgeoA has 33 aa residues (Table S1), and it is this part that undergoes post-translational modifications which, with the leader peptide removal, should give the final bioactive Z-geobacillin. Since not all Ser/Thr residues necessarily undergo dehydration, antiSMASH predicted alternative molecular weights of Z-geobacillin based on different probabilities of the number of Ser/Thr residues expected to be post-translationally modified to form Dha/Dhb, respectively [18]. The predictions gave 3292.0 Da (assuming that all the nine Ser and Thr residues in the core peptide are dehydrated), 3310.0 Da (assuming that one of these residues is not dehydrated), or 3328.0 Da (assuming that two of the residues are not dehydrated). There are seven Cys residues in the core peptide of ZgeoA expected to be involved in Lan or MeLan bridges with Dha or Dhb residues; therefore, the thioether (Me)Lan bridges in the core peptide are predicted to be seven. The bridges confer conformational rigidity and stability to the lanthipeptide [34].
As indicated by BLAST analysis, Z-geobacillin shows 100% identity over its entire length to lanthipeptide (I) of G. kaustophilus HTA426 (Figure 4), but it is 91% identical to geobacillin I (Table 2). As shown in Figure 4, the different residues between the sequences of geobacillin I and Z-geobacillin, are synonymous as they share similar chemical properties, with the differences being more frequent in the leader peptide. These differences come in the form of having Leu (L) at position 4 in Z-geobacillin versus Phe (F) in geobacillin I, Asn (N) at position 18 versus Asp (D), and Ile (I) at position 19 versus Val (V) (Figure 4). On the other hand, the core peptide has differences at positions 1 and 15 where there are Ile (I) residues in the core of Z-geobacillin versus Val (V) in geobacillin I (Figure 4). As in the case of Z-geobacillin, thioether bridges in geobacillin I are also seven, as predicted by antiSMASH and as reported by Garg et al., 2012 [34]. The same number of bridges was predicted by antiSMASH to form in the putative core peptide of lanthipeptide (I) of G. kaustophilus HTA426 as well. Interestingly, Garg et al., 2012 proved that geobacillin I was more stable than nisin at pH 7 and 8, at temperatures 37 and 60 °C [34]. In addition to the thermophilic nature of Geobacillus, the stability of geobacillin I can be ascribed to the larger number of thioether bridges (seven) compared to those in nisin (five) [34]. Since Z-geobacillin is also predicted to form seven thioether bridges, it is expected to have a similar stability as geobacillin I.
The putative proteins coded by the Z-geobacillin gene cluster and predicted as ZgeoB, ZgeoC, and ZgeoT are 99% identical to those associated with the lanthipeptides of G. kaustophilus HTA426 and G. thermodenitrificans NG80-2. LanR is 100% identical to that coded by G. kaustophilus but only over part of its length. As inferred by antiSMASH analysis and also indicated in [15], G. kaustophilus strain has two putative lanthipeptide precursors and two putative LanB coded by its lanthipeptide gene cluster (Figure 3). On the other hand, one of each of these protein types is coded by the gene cluster of Z-geobacillin and that of geobacillin I. Moreover, the putative cluster of Z-geobacillin has genes predicted to code for transposases and hypothetical proteins, and these genes are inserted between the predicted lanthipeptide-associated genes (Figure 3). However, the insertions in the putative Z-geobacillin gene cluster are less frequent than those found in the cluster of G. kaustophilus HTA426 (Figure 3). Consequently, the positions of the predicted genes in the putative clusters of strain ZGt-1 and HTA426 are not the same (Figure 3). On the contrary, the geobacillin I gene cluster is condensed and has no inserted genes (Figure 3). Thus, even with the (almost) identical precursor peptide in the three strains, the biosynthetic gene clusters are not identical. It is worth mentioning that strain ZGt-1 and strain HTA426 were isolated from aquatic environments; from Zara hot spring and from the deep-sea sediment of the Mariana Trench [54], as discussed above, respectively, unlike G. thermodenitrificans NG80-2 which was isolated from Dagang oil fields in China [59].
The antibacterial activity of geobacillin I has been experimentally verified [34]. It has been proven active to different extents against different Gram-positive bacteria [34]. Geobacillin I has been more active than nisin against Streptococcus dysgalactiae ATCC 27957 which causes bovine mastitis [34]. These features of geobacillin I support the possibility that Z-geobacillin is a putative antibacterially-active lanthipeptide.
• Putative Biosynthesis Pathway of Z-Geobacillin Lanthipeptide in Strain ZGt-1
The organization of the lanthipeptide genes in clusters makes it easy to deduce the biosynthetic pathway [1]. The lanthipeptide biosynthesis pathway, or post-ribosomal peptide synthesis as referred to by Arnison et al., 2013 [1], follows a general model [60]. Due to the in silico detection of all the crucial class-I lanthipeptide biosynthetic genes in the genome of ZGt-1, we expect the strain to have a complete biosynthetic pathway. This was confirmed when the lanthipeptide biosynthetic pathway of strain ZGt-1 was evaluated using the Kyoto Encyclopedia of Genes and Genomes (KEGG) Automatic Annotation Server (KAAS) [61] (Figure 5).

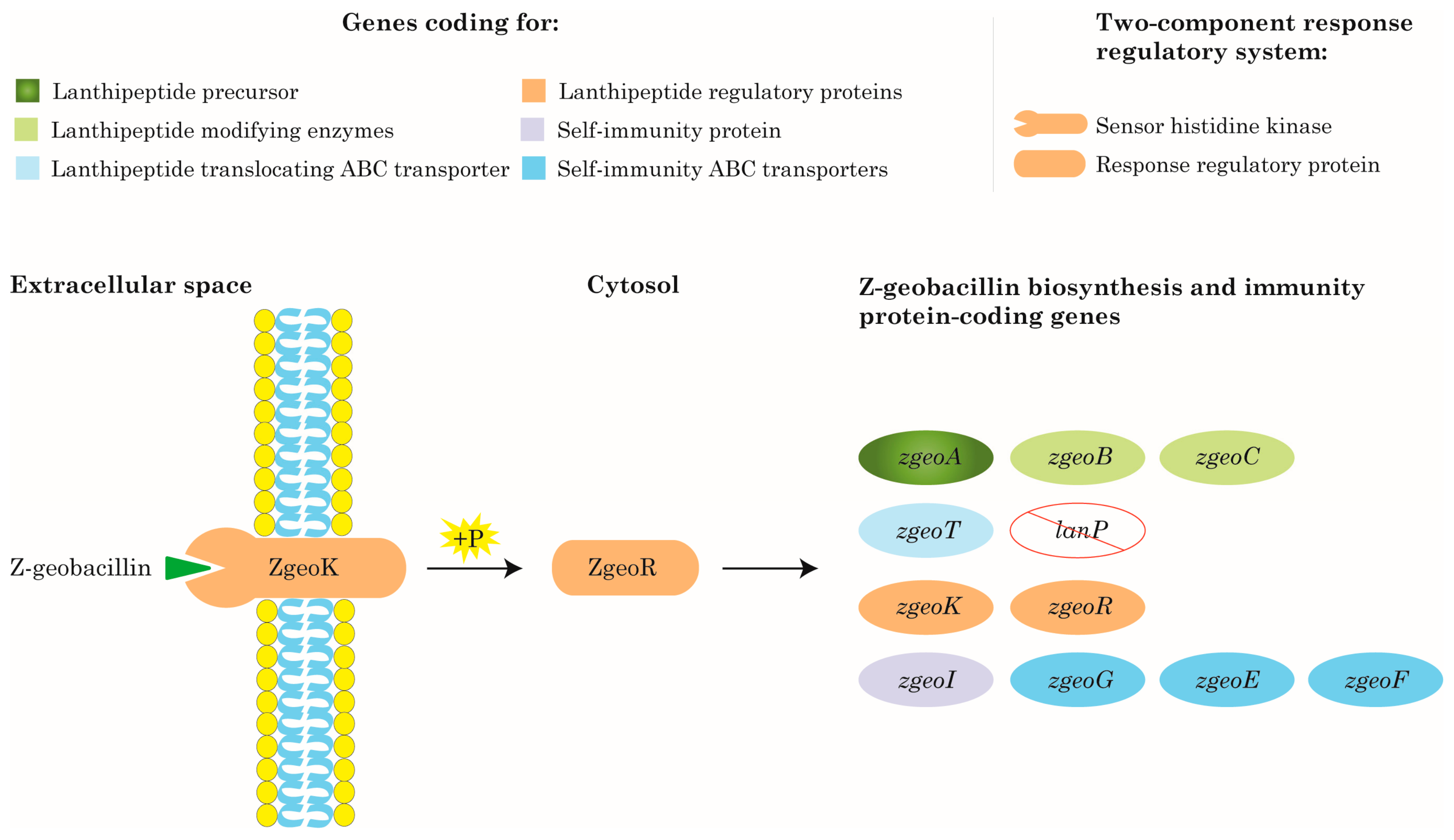

We suggest a model of the biosynthesis pathway of Z-geobacillin and the regulation of its production. Previous research suggests that the model will behave as described below.
The biosynthesis pathway of Z-geobacillin is expected to start with the translation of the putative gene; zgeoA coding for precursor peptide ZgeoA which consists of leader and core peptides. Dehydration of Ser and Thr residues in the core peptide by the putative lanthipeptide dehydratase ZgeoB will result in the formation of Dha and Dhb residues, respectively. This will be followed by the cyclization reaction, catalyzed by the putative lanthipeptide cyclase ZgeoC, where the thioether cross-links will be formed. The modified peptide is expected to be exported outside the producing cell via the putative transmembrane ABC transporter, ZgeoT. The lanthipeptide remains inactive until the cleavage of the leader peptide, which usually takes place either extracellularly after exporting the modified peptide or intracellularly before translocation by the ABC transporter [2,62]. As mentioned above, in case of Z-geobacillin, this proteolytic cleavage is expected to be carried out by a protease coded elsewhere on the genome of strain ZGt-1, as inferred from [34,57].
In principle, the regulation of lanthipeptide biosynthesis is controlled by the two-component regulatory system; the membrane-bound sensor histidine kinase and the cytoplasmic response regulator [60,63]. We expect the regulation of Z-geobacillin biosynthesis in strain ZGt-1 to follow what has been described in [60,63]. When the concentration of the secreted lanthipeptide reaches a certain threshold that the membrane-bound sensor histidine kinase (corresponding to the putative ZgeoK in strain ZGt-1) senses, ZgeoK is expected to auto-phosphorylate resulting in the phosphorylation of the cytoplasmic response regulator (corresponding to the putative ZgeoR). The phosphorylated ZgeoR should activate the transcription of the putative zgeoA and zgeoBTC genes leading to the expression, modification, and transportation of increasing amount of ZgeoA. ZgeoR should also activate the transcription of the genes coding for the immunity proteins, putative ZgeoI and ZgeoGEF, which should protect the producing cell from being inhibited by its own lanthipeptide [60,63]. In general, the immunity protein (corresponding to ZgeoI) is expected to be a peripheral membrane lipoprotein [62] that protects the cell via blocking the pore formation by the secreted lanthipeptide. On the other hand, the ZgeoGEF are putative specialized ABC-transporters. Such ABC-transporters pump the lanthipeptides which have penetrated the membrane back to the exterior environment [60,62]. Based on the roles of immunity proteins as reviewed in [62], the putative gene zgeoF is expected to code for the intracellular ATP-binding domain, while the putative zgeoE and zgeoG are expected to code for the membrane-spanning subunits. In addition to the activation of these genes, based on the biosynthesis scheme [60], we expect ZgeoR to further activate zgeoR and zgeoK genes. Future experimental research will further clarify the pathway of Z-geobacillin biosynthesis.
• Geobacillus thermoleovorans CCB_US3_UF5
G. thermoleovorans strain CCB_US3_UF55 is a thermophilic bacterium that was isolated from a hot spring in Malaysia [64]. To our knowledge, the strain has not been experimentally studied for the production of any kind of bacteriocins (Table 2). The antiSMASH analysis of the genome sequence showed that the strain has a putative class-I lanthipeptide cluster coding for one lanthipeptide.
The gene coding for the antiSMASH-predicted lanthipeptide (Table S1) has been inaccurately annotated on the RefSeq genome (Table S2). Here as well, we want to point out that the positions of the coding gene indicated by tblastn analysis did not match the positions reported by antiSMASH 4 and the RefSeq. The reported positions were identical to the positions reported for ‘GTCCBUS3UF5_RS01945’. Although this annotated gene also codes for a lanthipeptide, it is longer than the one that should code for the antiSMASH-predicted lanthipeptide which is 50 aa in length. To resolve this issue, we analyzed the genome of the strain using antiSMASH 3, as we did with G. kaustophilus mentioned above. That resulted in the identification of gene positions that agreed with the positions presented by tblastn. InterPro confirmed that the predicted peptide is a lanthipeptide. Moreover, BAGEL4 genome mining tool also retrieved the same lanthipeptide. Therefore, we suggest annotating the lanthipeptide-coding gene on the RefSeq genome at the detected position presented in Table S1.
The antiSMASH-predicted lanthipeptide of G. thermoleovorans is identical to lanthipeptide (II) of G. kaustophilus. As inferred from BAGEL BLAST, the predicted lanthipeptide has 79% identity to geobacillin I produced by G. thermodenitrificans NG80-2 (Table 2; Table S2). Since G. thermoleovorans has not been experimentally studied for lanthipeptide production so far, we suggest G. thermoleovorans to be a potential class-I lanthipeptide producer, and strain CCB_US3_UF55 as the potential candidate for the species. Noteworthy is that Novotny and Perry, 1992 reported the production of bacteriocins by two strains of Bacillus thermoleovorans, the former taxonomic identity of G. thermoleovorans, but neither the class nor the aa sequence of the produced bacteriocins were identified [65].
2.3.3. Identification of Lactococcus-associated Lanthipeptide Gene Clusters
Members of the genus Lactococcus are spherical or ovoid in shape, Gram-positive, facultatively anaerobic, non-motile, and non-spore formers [66]. They belong to the class Bacilli, order Lactobacillales, and family Streptococcaeae [66].
• Lactococcus lactis
L. lactis is the type species of the genus Lactococcus [66]. Strains of this species constitute the majority of lactic acid bacteria in dairy products [67]. They produce different types of bacteriocins, including lanthipeptides [67]. However, not all strains of this species are capable of producing bacteriocins [67].
L. lactis Strains CV56 and IO-1
Strains CV56 and IO-1 were isolated from different non-dairy sources. Strain CV56 was a clinical isolate [35], while strain IO-1 was isolated from household water [68]. Our analysis indicated that both strains have genes coding for class-I lanthipeptides that are 98% identical, and this is in agreement with the RefSeq annotation (details are given in S.2.3.3.1). Neither of these two strains has been experimentally investigated as a lanthipeptide producer (Table 2).
2.3.4. Identification of Paenibacillus-associated Lanthipeptide Gene Clusters
Members of the genus Panibacillus are rod-shaped, facultatively anaerobic or strictly aerobic, motile cells [69]. They belong to the class Bacilli, order Bacillales, and family Paenibacillaceae [69].
• Paenibacillus polymyxa
P. polymyxa is the type species of the genus Paenibacillus [69]. It inhabits soils, roots, rhizospheres of crop plants, fermented food, and marine sediments [70]. P. polymyxa represents a significant resource of industrially potential products, among which are the antimicrobial agents [70]. Different strains of P. polymyxa have been reported as producers of different antimicrobial agents [70,71,72,73,74]. However, production of lanthipeptides by P. polymyxa has not been widely studied, except for only a few examples; such as the lanthipeptide produced by P. polymyxa strain OSY-DF [74,75], and another produced by strain E681, as discussed below.
P. polymyxa CR1
Analysis of the genome sequence of strain CR1 showed that it harbors a class-I lanthipeptide cluster that codes for a lanthipeptide highly similar to paenilan, which was characterized in [36]. The nt sequence of the gene coding for the predicted lanthipeptide (Table S1) is 100% identical to ‘X809_RS07820’, which has been annotated on the RefSeq genome as coding for a hypothetical protein (WP_023987834) (Table S2). The potential of strain CR1 as a class-I lanthipeptide-producer has not been experimentally investigated, but Eastman et al., 2014 mentioned the presence of a lanthipeptide-coding gene on the genome [37]. Interestingly, in the RefSeq genome record of strain CR1, there are genes coding for ‘lantibiotic biosynthesis proteins’; ‘WP_023987835’ and ‘WP_023987837’ positioned downstream of ‘X809_RS07820’. The presence of these neighboring genes thus supports the antiSMASH prediction. Moreover, BAGEL4 genome mining tool as well identified the antiSMASH-predicted lanthipeptide of strain CR1 as a lanthipeptide. These results support our analysis, and suggest that the protein ‘WP_023987834’ annotated on the RefSeq genome of strain CR1 as ‘hypothetical’ is likely to be a lanthipeptide. The identity between paenilan and the predicted lanthipeptide of strain CR1 is 94% (Table 2; Table S2). We noticed that paenilan has not been added to BAGEL databases.
P. polymyxa E681
Analysis of the genome sequence of strain E681 showed that it harbors a class-I lanthipeptide cluster. The antiSMASH results are in agreement with the RefSeq annotation and the analysis of Park et al. [36] (details are given in S.2.3.4.1).
P. polymyxa strains M1 and SC2
Our analysis indicated that each of strains M1 and SC2 has a class-I lanthipeptide cluster coding for two different lanthipeptides. The aa sequence of lanthipeptide (I) of strain M1 is identical to that of strain SC2. Similarly, the aa sequence of lanthipeptide (II) of strain M1 is identical to that of strain SC2. The presence of a lanthipeptide cluster in strain SC2 was predicted and briefly mentioned by Ma et al., 2011 who sequenced the genome of the strain [38]. However, to our knowledge, and as interpreted from BAGEL databases, neither strain M1 nor strain SC2 has been experimentally investigated as a lanthipeptide-producer so far (Table 2).
The gene coding for the antiSMASH-predicted lanthipeptide (I) of strain M1 (Table S1) has not been annotated on the original genome (Table S2). The gene, however, has been annotated on the RefSeq genome, as discussed below. On the other hand, the gene coding for the predicted lanthipeptide (I) of strain SC2 (Table S1) has not been annotated on the original genome with its full length (Table S2). One part of the predicted gene is overlapping with a gene annotated as coding for subtilin (AKA44201). We want to point out here that the aa sequence of AKA44201 does not match that of the experimentally confirmed ‘lantibiotic subtilin’ (AAB91589; WP_003220055) produced by B. subtilis. Accordingly, the antiSMASH-predicted lanthipeptide could not be subtilin. In the RefSeq records of strains M1 and SC2, the antiSMASH-predicted coding genes have been annotated as ‘PPM_RS07455’ and ‘PPSC2_RS36195’, respectively, each of which has been annotated as coding for a hypothetical protein (WP_025676407). Interestingly, on the RefSeq genomes of strains M1 and SC2, there are genes coding for ‘lantibiotic biosynthesis protein’ (WP_013370169) and (WP_014599582), positioned downstream of the predicted lanthipeptide-coding genes. The presence of these neighboring genes supports the antiSMASH prediction. Moreover, BAGEL4 genome mining tool, as well, identified the antiSMASH-predicted lanthipeptide (I) as a lanthipeptide. The potential of strain SC2 as a producer of lanthipeptide (I) was very briefly mentioned by van Heel et al., 2016, but the class of the lanthipeptide was not clarified and only the core sequence of the lanthipeptide was mentioned [30]. Lanthipeptide (I) is 64% identical to paenilan (Table 2).
The gene coding for the antiSMASH-predicted lanthipeptide (II) of strain M1 has not been annotated in the original genome record (Table S2). However, the gene has been annotated on the RefSeq genome, as discussed below. On the other hand, the nt sequence of the gene coding for the predicted lanthipeptide (II) of strain SC2 is 100% identical to ‘PPSC2_07480’ annotated on the original genome as coding for ‘subtilin lantibiotic’ (ADO55541) (Table S2). Similar to what was mentioned above, the predicted lanthipeptide (II) could not be subtilin. On the other hand, in the RefSeq records of both strains, the antiSMASH-predicted genes are 100% identical to ‘PPM_RS07465’ in strain M1 and to ‘PPSC2_RS36205’ in strain SC2. Each of these two genes codes for a hypothetical protein and is positioned within the same genome context of lanthipeptide (I), in each strain (Table S2). BAGEL4 genome mining tool confirmed that the predicted lanthipeptide (II) is a lanthipeptide in both strains. This in turn supports the antiSMASH prediction. Moreover, lanthipeptide (II) is 96% identical to paenilan (Table 2). Taken altogether, these results indicate that the antimicrobial potential of lanthipeptide (I) and (II) should be of interest to explore.
2.3.5. Identification of Staphylococcus-associated Lanthipeptide Gene Clusters
Bacterial members of the genus Staphylococcus belong to the class Bacilli, order Bacillales, family Staphylococcaceae [76]. They are Gram-positive, cocci, non-motile, and non-spore-forming mesophiles [76]. The genus includes pathogenic and non-pathogenic species [77], and it comprises a number of class-I lanthipeptide-producing strains whose antimicrobial activity has been confirmed, such as Pep 5, epilancin K7, Epicidin 280, and epilancin 15X produced by S. epidermidis strains; reviewed in [9], gallidermin produced by S. gallinarum DSMZ 4616 [78], and staphyloccin Au-26 [79] and BSA (bacteriocin of Staphylococcus aureus) produced by S. aureus strains including the methicillin-resistant S. aureus (MRSA) strains [8]. Our analysis identified additional S. aureus strains harboring putative class-I lanthipeptides.
• Staphylococcus aureus
S. aureus is the type species of the genus Staphylococcus [76]. It is a commensal microorganism, living on the human skin and mucous membranes in the nasal pharynx, but it is also an opportunistic pathogen, causing nosocomial infections associated with high levels of mortality and morbidity [80]. One of the antimicrobially-active lanthipeptides produced by S. aureus strains is the BsaA2 type [8].
S. aureus 11819-97
The antiSMASH analysis of the genome sequence of strain 11819-97 showed that the strain harbors a class-I lanthipeptide cluster coding for two different lanthipeptides. The antiSMASH results are in agreement with the RefSeq annotation (details are given in S.2.3.5.1). To our knowledge, strain 11819-97 has not been experimentally investigated for the production of lanthipeptides.
S. aureus COL
The antiSMASH analysis of the genome sequence of strain COL showed that the strain harbors a class-I lanthipeptide cluster coding for two different lanthipeptides. The antiSMASH results are in agreement with the RefSeq annotation and Daly et al. [8] (details are given in S.2.3.5.2). To our knowledge, strain COL has not been experimentally investigated for the production of lanthipeptides.
S. aureus ED133
The antiSMASH analysis of the genome sequence of strain ED133 showed that the strain harbors a class-I lanthipeptide cluster coding for two different lanthipeptides, one of which is identical to BacCH91 produced by S. aureus strain CH91 [81]. The antiSMASH results are in agreement with the RefSeq annotations (details are given in S.2.3.5.3). To our knowledge, strain ED133 has not been experimentally investigated for the production of lanthipeptides.
S. aureus M1
The antiSMASH analysis of the genome sequence of strain M1 showed that the strain harbors a class-I lanthipeptide cluster coding for two different lanthipeptides. The antiSMASH results are in agreement with the RefSeq annotation (details are given in S.2.3.5.4). To our knowledge, strain M1 has not been experimentally investigated for the production of lanthipeptides.
S. aureus MSSA476
The antiSMASH analysis of the genome sequence of strain MSSA476 showed that the strain MSSA476 harbors a class-I lanthipeptide cluster coding for two different lanthipeptides. The antiSMASH results are in agreement with the RefSeq annotation and Daly et al. [8] (details are given in S.2.3.5.5). To our knowledge, strain MSSA476 has not been experimentally investigated for the production of lanthipeptides (Table 2).
S. aureus MW2
The antiSMASH analysis of the genome sequence of strain MW2 showed that the strain harbors a class-I lanthipeptide cluster coding for two different lanthipeptides. The antiSMASH results are in agreement with the RefSeq annotation and Daly et al. [8] (details are given in S.2.3.5.6). To our knowledge, strain MW2 has not been experimentally investigated for the production of lanthipeptides.
S. aureus NCTC 8325
The antiSMASH analysis of the genome sequence of strain NCTC 8325 showed that the strain harbors a class-I lanthipeptide cluster coding for two different lanthipeptides. The antiSMASH results of lanthipeptide (I) are in agreement with the RefSeq annotation and Daly et al. [8] (details are given in S.2.3.5.7).
Analysis of the aa sequence of the antiSMASH-predicted lanthipeptide (II) (Table S1) showed that the predicted gene has neither been annotated in the original nor in the RefSeq genome records (Table S2). However, analyzing the aa sequence of the predicted peptide using InterPro confirmed that the peptide was properly predicted by antiSMASH as a lanthipeptide. Moreover, BAGEL4 genome mining tool also confirmed that the predicted peptide is a lanthipeptide. However, the position of the lanthipeptide-coding gene predicted by antiSMASH was incorrect with one nt difference. This was also confirmed by tblastn analysis; therefore, we corrected the position of the predicted gene (Table S1). It is noteworthy that antiSMASH 3, however, did not predict this lanthipeptide. BAGEL BLAST showed that lanthipeptide (II) is 83% identical to BsaA2 (Table 2). Taken altogether, we recommend annotating the lanthipeptide-coding gene in the RefSeq genome record of the strain on the position presented in Table S1. This predicted lanthipeptide has not been reported previously (Table 1).
S. aureus RF122
The antiSMASH analysis of the genome sequence of strain RF122 (also known as ET3-1) showed that the strain harbors a class-I lanthipeptide cluster coding for two different lanthipeptides. The antiSMASH results are in agreement with the RefSeq annotations (details are given in S.2.3.5.8).
S. aureus T0131
The antiSMASH analysis of the genome sequence of strain T0131 showed that the strain harbors a class-I lanthipeptide cluster coding for two different lanthipeptides. The antiSMASH results are in agreement with the RefSeq annotation (details are given in S.2.3.5.9). To our knowledge, strain T0131 has not been reported as a producer of lanthipeptides.
S. aureus strains USA300 FPR3757 and USA300_TCH1516
Analysis of the genome sequences of strains USA300 FPR3757 and USA300_TCH1516 using antiSMASH showed that each of the strains harbors a class-I lanthipeptide cluster coding for two different lanthipeptides. The antiSMASH results of both strains are in agreement with the RefSeq annotations and Daly et al. [8] (details are given in S.2.3.5.8.10). To our knowledge, neither of the strains has been experimentally investigated for the production of lanthipeptides.
S. aureus Z172
The antiSMASH analysis of the genome sequence of strain Z172 showed that the strain harbors a class-I lanthipeptide cluster coding for two different lanthipeptides. The antiSMASH results are in agreement with the RefSeq annotation (details are given in S.2.3.5.8.11). To our knowledge, strain Z172 has not been reported for its lanthipeptide production.
Other strains of S. aureus
In addition to the above mentioned lanthipeptides coded on the genomes of different S. aureus strains, antiSMASH analysis indicated the potential of additional S. aureus strains as lanthipeptide producers. Strains Bmb 9393, Newman, TW20, VC40, and LGA251 have two lanthipeptides coded in the same cluster. These strains have not been experimentally investigated (Table 2). The antiSMASH results are in agreement with the RefSeq annotations (details are given in S.2.3.5.8).
2.3.6. Identification of Streptococcus-associated Lanthipeptide Gene Clusters
Bacterial members of the genus Streptococcus belong to the class Bacilli, order Lactobacillales, family Streptococcaceae [82]. They are Gram-positive, spherical or ovoid in shape, occur in chains or pairs, non-motile, and non-spore-formers [82]. Most of the species are facultatively anaerobic [82]. While some Streptococcus species are part of the human microflora, others are pathogenic [83].
Streptococci are known bacteriocin-producers, but only a few species, mainly pathogenic, have been in the focus of bacteriocin-isolation and characterization [84]. Most of the produced bacteriocins are antimicrobially-active lanthipeptides [84], among which are the class-I lanthipeptides streptin [85], nisin U [86], and some mutacins [87,88,89]. Marsh et al., 2010, identified putative class-I lanthipeptides in some streptococci [15]. In the current study, we have identified putative class-I lanthipeptides in species and strains that have not previously been described as potential lanthipeptide producers.
• Streptococcus intermedius
S. intermedius is usually a commensal microorganism of the mouth, and the upper respiratory and intestinal tracts, but it can cause diseases in immunocompromised individuals [90]. To our knowledge, none of the members of S. intermedius species has been reported as a lanthipeptide producer previously. This in turn makes investigating strains of S. intermedius as lanthipeptide producers of significant interest. In the current study, we are presenting two strains; B196 and C270 as putative class-I lanthipeptide producers (Table 2).
S. intermedius B196
S. intermedius strain B196 is a clinical isolate that was obtained from a patient with broncho-pulmonary disease and a combination of joint, muscle, and bone infections [91].
The antiSMASH analysis of the genome sequence of strain B196 showed that the strain has a putative class-I lanthipeptide cluster. Analysis of the aa sequence of the antiSMASH-predicted lanthipeptide (Table S1) indicated that the predicted coding gene has not been annotated on the original genome (Table S2). However, the gene has been annotated on the RefSeq as ‘SIR_RS12740’ which codes for a hypothetical protein (WP_037582862) (Table S2). We checked the neighboring genes in the RefSeq record and found that the ‘biosynthesis protein’ (WP_021002593), coded downstream of the putative lanthipeptide, has a lanthionine synthetase C-like domain (IPR007822) as indicated by InterPro analysis. Therefore, this ‘biosynthesis protein’ is most likely to be LanC. Moreover, we found that the ‘hypothetical protein’ (WP_041787401), coded upstream of the putative lanthipeptide, has “lantibiotic dehydratase, N-terminal” (Lant_dehydr_N) and “lantibiotic dehydratase, C-terminal” (Lant_dehydr_C) domains which characterize LanB proteins. Therefore, the ‘hypothetical protein’ (WP_041787401) is most likely to be LanB. The presence of genes coding for these two lanthipeptide-modifying enzymes makes it likely that the protein (WP_037582862) annotated on the RefSeq as a ‘hypothetical protein’ and predicted as a lanthipeptide by antiSMASH (Table S1) is a lanthipeptide. Moreover, BAGEL4 genome mining tool as well identified the existence of a class-I lanthipeptide cluster and confirmed the presence of LanB and LanC. Therefore, we suggest re-annotating these proteins in the RefSeq record. BAGEL BLAST showed that the predicted lanthipeptide did not have any hits to any known small bacteriocins (Table 2). These results indicate that the antimicrobial potential of lanthipeptide (I) and (II) should be of significant interest to explore.
S. intermedius C270
S. intermedius strain C270 is a clinical isolate that was obtained from the respiratory tract of a patient with a broncho-pulmonary disease [91]. The antiSMASH analysis of the genome sequence of strain C270 showed that the strain has a putative class-I lanthipeptide cluster. The antiSMASH results are in agreement with the RefSeq annotation (details are given in S.2.3.6.1).
• Streptococcus pasteurianus
S. pasteurianus is also known as S. gallolyticus subsp. pasteurianus. Members of this species are part of the intestinal microflora in humans but can also cause diseases especially in immunocompromised patients [92]. Zhang et al., 2012 briefly mentioned the potential of this species as a class-I lanthipeptide producer [93]. To our knowledge, members of S. pasteurianus have not been experimentally investigated as lanthipeptide producers. In the current study, we are presenting S. pasteurianus strain ATCC43144 as a potential class-I lanthipeptide producer.
S. pasteurianus Strain ATCC 43144
Strain ATCC 43144 is part of the normal flora of the gut in human, but it also causes various diseases [39]. In silico analysis of its genome sequence, carried out by Lin et al., 2011, indicated that the strain acquired a biosynthetic gene cluster including a lanthipeptide-coding gene, nisin U, from another Streptococcus strain [39]. Our analysis using antiSMASH confirmed the presence of a class-I lanthipeptide cluster. The antiSMASH results are in agreement with the RefSeq annotation (details are given in S.2.3.6.2).
• Streptococcus pyogenes
S. pyogenes is the type species of the genus Streptococcus [82]. S. pyogenes strains are bacteriocin-producers. Streptin is a known class-I lanthipeptide that has antibacterial activity produced by different strains of S. pyogenes [84].
S. pyogenes strain MGAS9429
Strain MGAS9429 has not been previously reported as a lanthipeptide producer. Our analysis indicated that this S. pyogenes strain as well is a putative streptin-producer. The antiSMASH results are in agreement with the RefSeq annotation (details are given in S.2.3.6.3).
Other strains of S. pyogenes
Analysis using antiSMASH indicated that strains MGAS6180, MGAS10270, and MGAS10750 of S. pyogenes harbor class-I lanthipeptide clusters. The antiSMASH results are in agreement with the RefSeq annotations and with the results of Marsh et al., 2010 [15] (details are given in S.2.3.6.4).
• Streptococcus suis
S. suis is a swine pathogen that can be transmitted to humans; it causes meningitis and septic shock syndrome that may lead to death [94]. Some strains of this species have been reported as lanthipeptide producers [95,96].
S. suis strains JS14 and SC070731
The antiSMASH analysis of the genome sequences of strains JS14 and SC07073 showed that each of the strains has a putative class-I lanthipeptide cluster (Table S1). The lanthipeptide production potential of strains JS14 and SC07073 has not yet been investigated. The antiSMASH results are in agreement with the RefSeq annotation (details are given in S.2.3.6.5).
3. Methods
3.1. Selection of the Genome Sequences to be Analyzed
All 252 available firmicute RefSeq genome sequences were downloaded from the bacterial genome section of NCBI (ftp://ftp.ncbi.nlm.nih.gov/genomes/Bacteria) on 28 April 2015. They were then subjected to different analyses. Due to the long time period of analysis, a check was made before finalizing the study to see if any additional firmicute species had been added to the assembly section of NCBI (https://www.ncbi.nlm.nih.gov/assembly). Only complete genomes belonging to the RefSeq category ‘Representative’ were chosen (20 June 2018). Out of the 292 genomes, only four; Staphylococcus capitis subsp. capitis strain AYP1020, Bacillus mycoides strain ATCC 6462, Streptococcus salivarius strain NCTC 8618, and Paenibacillus sp. BD3526 contained genes coding for class-I lanthipeptides that we had not analyzed before. These species have not been included in the detailed analysis.
3.2. Identification of Class-I Lanthipeptides Using antiSMASH
For the identification of class-I lanthipeptide-coding genes, all genome sequences were subjected to antiSMASH analysis. The antiSMASH standalone docker version (4.0.2) was run on GenBank genome records [23]. For certain genome sequences, where the gene position reported by antiSMASH 4.0.2 did not match that reported by tblastn, the antiSMASH standalone for Ubuntu (3.0.4) [24] was run on genome fasta files.
Using custom made scripts, class-I lanthipeptides including their leader peptides were extracted from the antiSMASH (4.0.2) output files with extension final.gbk. The aa residues in the leader peptide segment of the full peptide were converted to lowercase. The sequences were aligned using MUSCLE (version 3.8.31) with default settings [97]. The resulting alignment was then calibrated using the refine option. The output from antiSMASH, both version 3.0.4 and 4.0.2, together with the source code for in-house developed programs and a description of how the analysis was conducted are found at: http://130.235.46.10/Lanthipeptides (last checked on the 5 September 2018).
A set of previously described lanthipeptides that support the predictions of antiSMASH is presented in (Table S6).
3.3. Analysis of the Identified Class-I Lanthipeptides
3.3.1. NCBI BLAST Analysis
The antiSMASH-predicted lanthipeptides were analyzed with various NCBI BLAST programs (2.8.0+) [25] using non-redundant and RefSeq as databases, where gene annotation and position of the lanthipeptide-coding gene were retrieved. Additionally, manual inspections of genome files—the original genome records and the RefSeq records—were performed.
3.3.2. BAGEL Analysis
Each of the antiSMASH-predicted lanthipeptides was subjected to BAGEL4 BLAST analysis against class-I and class-II bacteriocin databases [26]. Moreover, we referred to BAGEL4 databases to check whether the strain, which was predicted by antiSMASH to harbor a class-I lanthipeptide biosynthesis gene cluster(s), has been reported as a lanthipeptide-producer, or yet to be. Additionally, for certain genome sequences given in the main text, BAGEL4 genome mining tool [26] was employed as well in addition to antiSMASH in order to identify class-I lanthipeptides and confirm the antiSMASH predictions.
3.3.3. InterPro Analysis
The protein family of a given lanthipeptide was detected using the InterProScan sequence search tool [98]. It was used for certain lanthipeptides, given in the main text, to confirm that the prediction of the lanthipeptide by antiSMASH 3 and antiSMASH 4 was correct.
3.4. Mapping of Z-Geobacillin Biosynthetic Pathway
The putative biosynthetic pathway of Z-geobacillin in Geobacillus sp. ZGt-1 was plotted using KAAS [61].
3.5. Alignment of Lanthipeptide Sequences of Geobacillus strains

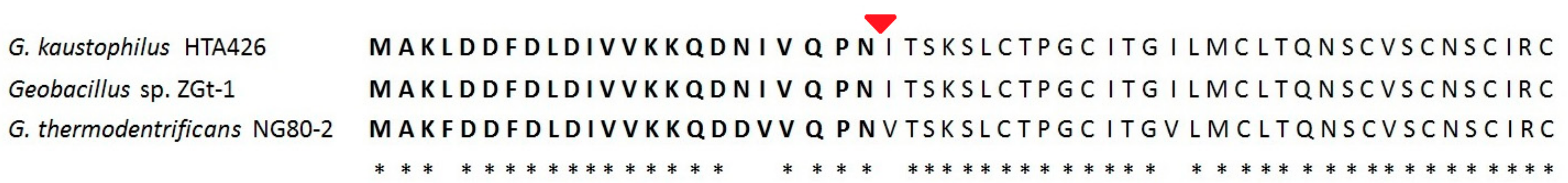

The three lanthipeptide sequences of G. kaustophilus HTA426, Geobacillus sp. ZGt-1 (Z-geobacillin), and G. thermodenitrificans NG80-2 (geobacillin I) were aligned using the ClustalW Multiple alignment option in BioEdit 7.0.5.3 [58].
4. Conclusions
We identified 69 class-I lanthipeptides out of the analyzed 252 firmicute completely-sequenced genomes. Out of these 69 lanthipeptides, we have presented a list of seven putative novel class-I lanthipeptide candidates (Table 1). In addition, we identified one more lanthipeptide; Z-geobacillin, which we inspected closely (Table 1). We also presented a list of 40 bacterial strains that have not been investigated so far as class-I lanthipeptide producers. We proposed these strains as good nominees for experimental investigations of their lanthipeptide production potential (Table 2). The presented in silico genome analysis-based strategy for the identification of lanthipeptides was conducted by employing the antiSMASH software and BAGEL databases, and BAGEL genome mining tool in some cases, in order to screen for class-I lanthipeptide biosynthetic gene clusters, and identify putative lanthipeptides. The presented proposal is meant to benefit researchers interested in producing lanthipeptides in vitro. It reduces the time required for finding and prioritizing the ‘right’ candidates to be investigated. As suggested by Xin et al., 2015, even lanthipeptides that show similarity to known ones can still constitute potentially novel lanthipeptides, especially when some studies have demonstrated that lanthipeptide engineering can lead to the production of lanthipeptides with improved characteristics, such as thermal stability and broader spectrum of inhibitory actions [31]. In addition to proposing putative lanthipeptides and potential strains, we identified lanthipeptide-coding genes that have been overlooked during the annotation of some genome sequences (Table 1).
Besides the in silico analysis-based strategy, we presented an example on a combinatorial strategy. This strategy starts with the conventional (culture-based) approach and is complemented with the in silico analysis. The conventional approach for cultivable bacterial strains launches with sampling from preferably special ecosystems; such as extreme habitats [19], cultivation, and isolation of microorganisms, screening for their antimicrobial activity using specific biological assays, then proceeding with in silico analysis of the genomic data of the isolated strain for identifying the potential antimicrobial compound(s).
As a potential nominee, we presented the thermophilic Geobacillus sp. strain ZGt-1, which was isolated from Zara hot spring in Jordan and the genome was sequenced [21,22], as a putative producer of the lanthipeptide, Z-geobacillin. This lanthipeptide will be purified and characterized, and its antimicrobial activity will be evaluated in future studies.
Each strategy has its own pros and cons; the in silico analysis-based strategy proved its success [1]. It is an efficient avenue since it shortens the time and efforts spent on screening for potential producers compared to the wet-lab screening [14]. It is also independent of the bias which the selected laboratory conditions could have on the lanthipeptide production during cultivating the putative producer [14,99]. Therefore, the in silico analysis minimizes the probability of overlooking producing strains whose lanthipeptide production might not be expressed under the selected cultivation conditions in vitro [14]. It is noteworthy here that the in silico predictions may vary depending on the employed prediction methodology as shown by Walsh et al., 2015 [99]. In our study, we found that the analyzed bacterial strains that have been previously described as class-I lanthipeptide producers were successfully predicted by antiSMASH (Table S6). Concerning the proved lanthipeptides that have not yet been listed in BAGEL databases, we will notify the team of programmers of the BAGEL software to add those lanthipeptides to the database.
The in silico analysis, however, does not guarantee that the predicted lanthipeptide will be expressed in vitro, and does not confirm its antimicrobial activity [1]. Therefore, the in silico analysis-based strategy needs to be pursued with experimental validation to ensure the production of the lanthipeptide and evaluate its antagonistic activity against different indicator microorganisms of interest [99].
On the other hand, the conventional approach is time-consuming and laborious [14] but selecting a unique ecological niche for isolating potential microorganisms raises the probability of discovering novel natural compounds.
Combining the conventional approach with the in silico analysis is an effective route towards unraveling novel lanthipeptides. Sequencing and analyzing the genome of the isolated bacterium, using the right genome analysis tools, provides valuable insights into the genes coding for secondary metabolites. Accordingly, identification of the lanthipeptide-coding genes among all the other genes coding for metabolites produced by the strain in question becomes accessible. Successively, genome sequencing and analysis aid in designing the right methodology for the in vitro production and purification of the lanthipeptide of interest.
Supplementary Materials
Supplementary materials can be found at https://www.mdpi.com/1422-0067/19/9/2650/s1.
Author Contributions
Conceptualization, R.N.A. and B.C.; Data curation, R.N.A. and B.C.; Formal analysis, R.N.A.; Methodology, R.N.A. and B.C.; Software, B.C.; Supervision, B.C.; Writing—original draft, R.N.A.; Writing—review & editing, B.C.
Acknowledgments
This work was supported by Erasmus Mundus Partnership (JOSYLEEN).
Conflicts of Interest
The authors declare no conflict of interest.
Abbreviations
| aa | amino acid |
| ABC transporters | ATP-binding cassette transporters |
| antiSMASH | Antibiotics and Secondary Metabolite Analysis Shell |
| BAGEL | bacteriocin genome mining tool |
| BSA | bacteriocin of Staphylococcus aureus |
| Dha | dehydroalanine |
| Dhb | dehydrobutyrine |
| GeoAI | geobacillin I precursor peptide |
| GeoB | geobacillin I dehydratase enzyme |
| GeoC | geobacillin I cyclase enzyme |
| GeoGEF | self-immunity ABC transporter proteins |
| GeoI | geobacillin I self-immunity protein |
| GeoK | geobacillin I sensor histidine kinase protein; part of the two-component response regulatory system |
| GeoR | geobacillin I response regulatory protein; part of the two-component response regulatory system |
| GeoTI | geobacillin I ABC transporter protein |
| KAAS | KEGG Automatic Annotation Server |
| KEGG | Kyoto Encyclopedia of Genes and Genomes |
| Lan | lanthionine |
| LanP | lanthipepttide processing protease |
| MeLan | (2S,3S,6R)-3-methyllanthionine |
| Nt | nucleotide |
| PGAP | prokaryotic genome annotation pipeline |
| RODEO | Rapid ORF Description and Evaluation Online genome-mining platform |
| ZgeoA | Z-geobacillin precursor peptide |
| ZgeoB | Z-geobacillin dehydratase enzyme |
| ZgeoC | Z-geobacillin cyclase enzyme |
| ZgeoGEF | Z-geobacillin self-immunity ABC transporter proteins |
| ZgeoI | Z-geobacillin self-immunity protein |
| ZgeoK | Z-geobacillin sensor histidine kinase protein; part of the two-component response regulatory system |
| ZgeoR | Z-geobacillin response regulatory protein; part of the two-component response regulatory system |
| ZgeoT | Z-geobacillin ABC transporter protein |
References
- Arnison, P.G.; Bibb, M.J.; Bierbaum, G.; Bowers, A.A.; Bugni, T.S.; Bulaj, G.; Camarero, J.A.; Campopiano, D.J.; Challis, G.L.; Clardy, J.; et al. Ribosomally synthesized and post-translationally modified peptide natural products: Overview and recommendations for a universal nomenclature. Nat. Prod. Rep. 2013, 30, 108–160. [Google Scholar] [CrossRef] [PubMed]
- Knerr, P.J.; van der Donk, W.A. Discovery, biosynthesis, and engineering of lantipeptides. Annu. Rev. Biochem. 2012, 81, 479–505. [Google Scholar] [CrossRef] [PubMed]
- Ongey, E.L.; Neubauer, P. Lanthipeptides: Chemical synthesis versus in vivo biosynthesis as tools for pharmaceutical production. Microb. Cell Fact. 2016, 15, 97. [Google Scholar] [CrossRef] [PubMed]
- Dischinger, J.; Basi Chipalu, S.; Bierbaum, G. Lantibiotics: Promising candidates for future applications in health care. Int. J. Med. Microbiol. 2014, 304, 51–62. [Google Scholar] [CrossRef] [PubMed]
- Stein, T.; Borchert, S.; Conrad, B.; Feesche, J.; Hofemeister, B.; Hofemeister, J.; Entian, K.-D. Two Different Lantibiotic-Like Peptides Originate from the Ericin Gene Cluster of Bacillus subtilis A1/3. J. Bacteriol. 2002, 184, 1703–1711. [Google Scholar] [CrossRef] [PubMed]
- Gharsallaoui, A.; Oulahal, N.; Joly, C.; Degraeve, P. Nisin as a Food Preservative: Part 1: Physicochemical Properties, Antimicrobial Activity, and Main Uses. Crit. Rev. Food Sci. Nutr. 2016, 56, 1262–1274. [Google Scholar] [CrossRef] [PubMed]
- Okuda, K.-I.; Zendo, T.; Sugimoto, S.; Iwase, T.; Tajima, A.; Yamada, S.; Sonomoto, K.; Mizunoe, Y. Effects of Bacteriocins on Methicillin-Resistant Staphylococcus aureus Biofilm. Antimicrob. Agents Chemother. 2013, 57, 5572–5579. [Google Scholar] [CrossRef] [PubMed]
- Daly, K.M.; Upton, M.; Sandiford, S.K.; Draper, L.A.; Wescombe, P.A.; Jack, R.W.; O’Connor, P.M.; Rossney, A.; Gotz, F.; Hill, C.; et al. Production of the Bsa lantibiotic by community-acquired Staphylococcus aureus strains. J. Bacteriol. 2010, 192, 1131–1142. [Google Scholar] [CrossRef] [PubMed]
- Daly, K.M.; Cotter, P.D.; Hill, C.; Ross, R.P. Lantibiotic Production by Pathogenic Microorganisms. Curr. Protein Pept. Sci. 2012, 13, 509–523. [Google Scholar] [CrossRef] [PubMed]
- Bueche, M.; Wunderlin, T.; Roussel-Delif, L.; Junier, T.; Sauvain, L.; Jeanneret, N.; Junier, P. Quantification of Endospore-Forming Firmicutes by Quantitative PCR with the Functional Gene spo0A. Appl. Environ. Microbiol. 2013, 79, 5302–5312. [Google Scholar] [CrossRef] [PubMed]
- Lanza, V.F.; Tedim, A.P.; Martínez, J.L.; Baquero, F.; Coque, T.M. The Plasmidome of Firmicutes: Impact on the Emergence and the Spread of Resistance to Antimicrobials. Microbiol. Spectr. 2015, 3. [Google Scholar] [CrossRef] [PubMed]
- Li, X.; O’Sullivan, D.J. Contribution of the Actinobacteria to the growing diversity of lantibiotics. Biotechnol. Lett. 2012, 34, 2133–2145. [Google Scholar] [CrossRef] [PubMed]
- Singh, M.; Sareen, D. Novel LanT Associated Lantibiotic Clusters Identified by Genome Database Mining. PLoS ONE 2014, 9, e91352. [Google Scholar] [CrossRef] [PubMed]
- Begley, M.; Cotter, P.D.; Hill, C.; Ross, R.P. Identification of a novel two-peptide lantibiotic, lichenicidin, following rational genome mining for LanM proteins. Appl. Environ. Microbiol. 2009, 75, 5451–5460. [Google Scholar] [CrossRef] [PubMed]
- Marsh, A.J.; O’Sullivan, O.; Ross, R.P.; Cotter, P.D.; Hill, C. In silico analysis highlights the frequency and diversity of type 1 lantibiotic gene clusters in genome sequenced bacteria. BMC Genom. 2010, 11, 679. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Medema, M.H.; Blin, K.; Cimermancic, P.; de Jager, V.; Zakrzewski, P.; Fischbach, M.A.; Weber, T.; Takano, E.; Breitling, R. antiSMASH: Rapid identification, annotation and analysis of secondary metabolite biosynthesis gene clusters in bacterial and fungal genome sequences. Nucleic Acids Res. 2011, 39, W339–W346. [Google Scholar] [CrossRef] [PubMed]
- Blin, K.; Medema, M.H.; Kottmann, R.; Lee, S.Y.; Weber, T. The antiSMASH database, a comprehensive database of microbial secondary metabolite biosynthetic gene clusters. Nucleic Acids Res. 2017, 45, D555–D559. [Google Scholar] [CrossRef] [PubMed]
- Blin, K.; Kazempour, D.; Wohlleben, W.; Weber, T. Improved Lanthipeptide Detection and Prediction for antiSMASH. PLoS ONE 2014, 9, e89420. [Google Scholar] [CrossRef] [PubMed]
- Chan, P.F.; Macarron, R.; Payne, D.J.; Zalacain, M.; Holmes, D.J. Novel Antibacterials: A Genomics Approach to Drug Discovery. Curr. Drug Targets Infect. Disord. 2002, 2, 291–308. [Google Scholar] [PubMed]
- Satyanarayana, T.; Sharma, A.; Mehta, D.; Puri, A.K.; Kumar, V.; Nisha, M.; Joshi, S. Biotechnological Applications of Biocatalysts from the Firmicutes Bacillus and Geobacillus Species. In Microorganisms in Sustainable Agriculture and Biotechnology; Satyanarayana, T., Johri, B.N., Prakash, A., Eds.; Springer: Dordrecht, The Netherlands, 2012; pp. 343–379. [Google Scholar]
- Alkhalili, R.N.; Hatti-Kaul, R.; Canbäck, B. Genome Sequence of Geobacillus sp. Strain ZGt-1, an Antibacterial Peptide-Producing Bacterium from Hot Springs in Jordan. Genome Announc. 2015, 3. [Google Scholar] [CrossRef] [PubMed]
- Alkhalili, R.N.; Bernfur, K.; Dishisha, T.; Mamo, G.; Schelin, J.; Canback, B.; Emanuelsson, C.; Hatti-Kaul, R. Antimicrobial Protein Candidates from the Thermophilic Geobacillus sp. Strain ZGt-1: Production, Proteomics, and Bioinformatics Analysis. Int. J. Mol. Sci. 2016, 17, 1363. [Google Scholar] [CrossRef] [PubMed]
- Blin, K.; Wolf, T.; Chevrette, M.G.; Lu, X.; Schwalen, C.J.; Kautsar, S.A.; Suarez Duran, H.G.; de Los Santos, E.L.C.; Kim, H.U.; Nave, M.; et al. antiSMASH 4.0-improvements in chemistry prediction and gene cluster boundary identification. Nucleic Acids Res. 2017, 45, W36–W41. [Google Scholar] [CrossRef] [PubMed]
- Weber, T.; Blin, K.; Duddela, S.; Krug, D.; Kim, H.U.; Bruccoleri, R.; Lee, S.Y.; Fischbach, M.A.; Muller, R.; Wohlleben, W.; et al. antiSMASH 3.0-a comprehensive resource for the genome mining of biosynthetic gene clusters. Nucleic Acids Res. 2015, 43, W237–W243. [Google Scholar] [CrossRef] [PubMed]
- Altschul, S.F.; Gish, W.; Miller, W.; Myers, E.W.; Lipman, D.J. Basic local alignment search tool. J. Mol. Biol. 1990, 215, 403–410. [Google Scholar] [CrossRef]
- Van Heel, A.J.; de Jong, A.; Song, C.; Viel, J.H.; Kok, J.; Kuipers, O.P. BAGEL4: A user-friendly web server to thoroughly mine RiPPs and bacteriocins. Nucleic Acids Res. 2018, 46, W278–W281. [Google Scholar] [CrossRef] [PubMed]
- Van Heel, A.J.; de Jong, A.; Montalban-Lopez, M.; Kok, J.; Kuipers, O.P. BAGEL3: Automated identification of genes encoding bacteriocins and (non-)bactericidal posttranslationally modified peptides. Nucleic Acids Res. 2013, 41, W448–W453. [Google Scholar] [CrossRef] [PubMed]
- Drissi, F.; Buffet, S.; Raoult, D.; Merhej, V. Common occurrence of antibacterial agents in human intestinal microbiota. Front. Microbiol. 2015, 6, 441. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Whisstock, J.C.; Lesk, A.M. Prediction of protein function from protein sequence and structure. Q. Rev. Biophys. 2003, 36, 307–340. [Google Scholar] [CrossRef] [PubMed]
- Van Heel, A.J.; Kloosterman, T.G.; Montalban-Lopez, M.; Deng, J.; Plat, A.; Baudu, B.; Hendriks, D.; Moll, G.N.; Kuipers, O.P. Discovery, Production and Modification of Five Novel Lantibiotics Using the Promiscuous Nisin Modification Machinery. ACS Synth. Biol. 2016, 5, 1146–1154. [Google Scholar] [CrossRef] [PubMed]
- Xin, B.; Zheng, J.; Xu, Z.; Song, X.; Ruan, L.; Peng, D.; Sun, M. The Bacillus cereus group is an excellent reservoir of novel lanthipeptides. Appl. Environ. Microbiol. 2015, 81, 1765–1774. [Google Scholar] [CrossRef] [PubMed]
- Phelan, R.W.; Barret, M.; Cotter, P.D.; O’Connor, P.M.; Chen, R.; Morrissey, J.P.; Dobson, A.D.; O’Gara, F.; Barbosa, T.M. Subtilomycin: A new lantibiotic from Bacillus subtilis strain MMA7 isolated from the marine sponge Haliclona simulans. Mar. Drugs 2013, 11, 1878–1898. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Deng, Y.; Zhu, Y.; Wang, P.; Zhu, L.; Zheng, J.; Li, R.; Ruan, L.; Peng, D.; Sun, M. Complete genome sequence of Bacillus subtilis BSn5, an endophytic bacterium of Amorphophallus konjac with antimicrobial activity for the plant pathogen Erwinia carotovora subsp. carotovora. J. Bacteriol. 2011, 193, 2070–2071. [Google Scholar] [CrossRef] [PubMed]
- Garg, N.; Tang, W.; Goto, Y.; Nair, S.K.; van der Donk, W.A. Lantibiotics from Geobacillus thermodenitrificans. Proc. Natl. Acad. Sci. USA 2012, 109, 5241–5246. [Google Scholar] [CrossRef] [PubMed]
- Gao, Y.; Lu, Y.; Teng, K.-L.; Chen, M.-L.; Zheng, H.-J.; Zhu, Y.-Q.; Zhong, J. Complete Genome Sequence of Lactococcus lactis subsp. lactis CV56, a Probiotic Strain Isolated from the Vaginas of Healthy Women. J. Bacteriol. 2011, 193, 2886–2887. [Google Scholar] [PubMed]
- Park, J.E.; Kim, H.R.; Park, S.Y.; Choi, S.K.; Park, S.H. Identification of the biosynthesis gene cluster for the novel lantibiotic paenilan from Paenibacillus polymyxa E681 and characterization of its product. J. Appl. Microbiol. 2017, 123, 1133–1147. [Google Scholar] [CrossRef] [PubMed]
- Eastman, A.W.; Heinrichs, D.E.; Yuan, Z.C. Comparative and genetic analysis of the four sequenced Paenibacillus polymyxa genomes reveals a diverse metabolism and conservation of genes relevant to plant-growth promotion and competitiveness. BMC Genom. 2014, 15, 851. [Google Scholar] [CrossRef] [PubMed]
- Ma, M.; Wang, C.; Ding, Y.; Li, L.; Shen, D.; Jiang, X.; Guan, D.; Cao, F.; Chen, H.; Feng, R.; et al. Complete genome sequence of Paenibacillus polymyxa SC2, a strain of plant growth-promoting Rhizobacterium with broad-spectrum antimicrobial activity. J. Bacteriol. 2011, 193, 311–312. [Google Scholar] [CrossRef] [PubMed]
- Lin, I.H.; Liu, T.T.; Teng, Y.T.; Wu, H.L.; Liu, Y.M.; Wu, K.M.; Chang, C.H.; Hsu, M.T. Sequencing and comparative genome analysis of two pathogenic Streptococcus gallolyticus subspecies: Genome plasticity, adaptation and virulence. PLoS ONE 2011, 6, e20519. [Google Scholar] [CrossRef] [PubMed]
- Logan, N.A.; Vos, P.D. Bacillus. In Bergey’s Manual of Systematics of Archaea and Bacteria; Whitman, W.B.R.F., Kämpfer, P., Trujillo, M., Chun, J., DeVos, P., Hedlund, B., Dedysh, S., Eds.; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 2015. [Google Scholar]
- Barbosa, J.; Caetano, T.; Mendo, S. Class I and Class II Lanthipeptides Produced by Bacillus spp. J. Nat. Prod. 2015, 78, 2850–2866. [Google Scholar] [CrossRef] [PubMed]
- Urdaci, M.C.; Bressollier, P.; Pinchuk, I. Bacillus clausii Probiotic Strains: Antimicrobial and Immunomodulatory Activities. J. Clin. Gastroenterol. 2003, 38, S86–S90. [Google Scholar] [CrossRef]
- Bouhss, A.; Al-Dabbagh, B.; Vincent, M.; Odaert, B.; Aumont-Nicaise, M.; Bressolier, P.; Desmadril, M.; Mengin-Lecreulx, D.; Urdaci, M.C.; Gallay, J. Specific interactions of clausin, a new lantibiotic, with lipid precursors of the bacterial cell wall. Biophys. J. 2009, 97, 1390–1397. [Google Scholar] [CrossRef] [PubMed]
- Eppinger, M.; Bunk, B.; Johns, M.A.; Edirisinghe, J.N.; Kutumbaka, K.K.; Koenig, S.S.; Creasy, H.H.; Rosovitz, M.J.; Riley, D.R.; Daugherty, S.; et al. Genome sequences of the biotechnologically important strains QM B1551 and DSM319. J. Bacteriol. 2011, 193, 4199–4213. [Google Scholar] [CrossRef] [PubMed]
- Stein, T. Bacillus subtilis antibiotics: Structures, syntheses and specific functions. Mol. Microbiol. 2005, 56, 845–857. [Google Scholar] [CrossRef] [PubMed]
- Earl, A.M.; Eppinger, M.; Fricke, W.F.; Rosovitz, M.J.; Rasko, D.A.; Daugherty, S.; Losick, R.; Kolter, R.; Ravel, J. Whole-genome sequences of Bacillus subtilis and close relatives. J. Bacteriol. 2012, 194, 2378–2379. [Google Scholar] [CrossRef] [PubMed]
- Fuchs, S.W.; Jaskolla, T.W.; Bochmann, S.; Kotter, P.; Wichelhaus, T.; Karas, M.; Stein, T.; Entian, K.D. Entianin, a novel subtilin-like lantibiotic from Bacillus subtilis subsp. spizizenii DSM 15029T with high antimicrobial activity. Appl. Environ. Microbiol. 2011, 77, 1698–1707. [Google Scholar] [PubMed]
- Zeigler, D.R. The genome sequence of Bacillus subtilis subsp. spizizenii W23: Insights into speciation within the B. subtilis complex and into the history of B. subtilis genetics. Microbiology 2011, 157, 2033–2041. [Google Scholar]
- Schnepf, E.; Crickmore, N.; Van Rie, J.; Lereclus, D.; Baum, J.; Feitelson, J.; Zeigler, D.R.; Dean, D.H. Bacillus thuringiensis and Its Pesticidal Crystal Proteins. Microbiol. Mol. Biol. Rev. 1998, 62, 775–806. [Google Scholar] [PubMed]
- Murawska, E.; Fiedoruk, K.; Bideshi, D.K.; Swiecicka, I. Complete genome sequence of Bacillus thuringiensis subsp. thuringiensis strain IS5056, an isolate highly toxic to Trichoplusia ni. Genome Announc. 2013, 1, e0010813. [Google Scholar] [PubMed]
- Ji, F.; Zhu, Y.; Ju, S.; Zhang, R.; Yu, Z.; Sun, M. Promoters of crystal protein genes do not control crystal formation inside exosporium of Bacillus thuringiensis ssp. finitimus strain YBT-020. FEMS Microbiol. Lett. 2009, 300, 11–17. [Google Scholar] [CrossRef] [PubMed]
- Sumi, C.D.; Yang, B.W.; Yeo, I.C.; Hahm, Y.T. Antimicrobial peptides of the genus Bacillus: A new era for antibiotics. Can. J. Microbiol. 2015, 61, 93–103. [Google Scholar] [CrossRef] [PubMed]
- Zhu, Y.; Shang, H.; Zhu, Q.; Ji, F.; Wang, P.; Fu, J.; Deng, Y.; Xu, C.; Ye, W.; Zheng, J.; et al. Complete Genome Sequence of Bacillus thuringiensis Serovar finitimus Strain YBT-020. J. Bacteriol. 2011, 193, 2379–2380. [Google Scholar] [CrossRef] [PubMed]
- Takami, H.; Takaki, Y.; Chee, G.J.; Nishi, S.; Shimamura, S.; Suzuki, H.; Matsui, S.; Uchiyama, I. Thermoadaptation trait revealed by the genome sequence of thermophilic Geobacillus kaustophilus. Nucleic Acids Res. 2004, 32, 6292–6303. [Google Scholar] [CrossRef] [PubMed]
- Yarbrough, G.G.; Taylor, D.P.; Rowlands, R.T.; Crawford, M.S.; Lasur, L.L. Screening Microbial Metabolites For New Drugs-Theoretical And Practical Issues. J. Antibiot. 1993, 46, 535–544. [Google Scholar] [CrossRef] [PubMed]
- Siezen, R.J.; Kuipers, O.P.; de Vos, W.M. Comparison of lantibiotic gene clusters and encoded proteins. Antonie Van Leeuwenhoek 1996, 69, 171–184. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Corvey, C.; Stein, T.; Düsterhus, S.; Karas, M.; Entian, K.-D. Activation of subtilin precursors by Bacillus subtilis extracellular serine proteases subtilisin (AprE), WprA, and Vpr. Biochem. Biophys. Res. Commun. 2003, 304, 48–54. [Google Scholar] [CrossRef]
- Hall, T.A. BioEdit: A user-friendly biological sequence alignment editor and analysis program for Windows 95/98/NT. Nucleic Acids Symp. Ser. 1999, 41, 95–98. [Google Scholar]
- Feng, L.; Wang, W.; Cheng, J.; Ren, Y.; Zhao, G.; Gao, C.; Tang, Y.; Liu, X.; Han, W.; Peng, X.; et al. Genome and proteome of long-chain alkane degrading Geobacillus thermodenitrificans NG80-2 isolated from a deep-subsurface oil reservoir. Proc. Natl. Acad. Sci. USA 2007, 104, 5602–5607. [Google Scholar] [CrossRef] [PubMed]
- Chen, H.; Hoover, D.G. Bacteriocins and their Food Applications. Compr. Rev. Food Sci. Food Saf. 2003, 2, 82–100. [Google Scholar]
- Moriya, Y.; Itoh, M.; Okuda, S.; Yoshizawa, A.C.; Kanehisa, M. KAAS: An automatic genome annotation and pathway reconstruction server. Nucleic Acids Res. 2007, 35, W182–W185. [Google Scholar] [CrossRef] [PubMed]
- McAuliffe, O.; Ross, R.P.; Hill, C. Lantibiotics: Structure, biosynthesis and mode of action. FEMS Microbiol. Rev. 2001, 25, 285–308. [Google Scholar] [CrossRef] [PubMed]
- Arias, A.A.; Craig, M.; Fickers, P. Gram-Positive Antibiotic Biosynthetic Clusters: A Review; Formatex Research Center: Badajoz, Spain, 2011; Volume 2, pp. 693–1348. [Google Scholar]
- Sakaff, M.K.L.M.; Abdul Rahman, A.Y.; Saito, J.A.; Hou, S.; Alam, M. Complete Genome Sequence of the Thermophilic Bacterium Geobacillus thermoleovorans CCB_US3_UF5. J. Bacteriol. 2012, 194, 1239. [Google Scholar] [CrossRef] [PubMed]
- Novotny, J.F.; Perry, J.J. Characterization of bacteriocins from two strains of Bacillus thermoleovorans, a thermophilic hydrocarbon-utilizing species. Appl. Environ. Microbiol. 1992, 58, 2393–2396. [Google Scholar] [PubMed]
- Teuber, M. Lactococcus. In Bergey’s Manual of Systematics of Archaea and Bacteria; Whitman, W.B.R.F., Kämpfer, P., Trujillo, M., Chun, J., DeVos, P., Hedlund, B., Dedysh, S., Eds.; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 2015. [Google Scholar]
- Alegría, Á.; Delgado, S.; Roces, C.; López, B.; Mayo, B. Bacteriocins produced by wild Lactococcus lactis strains isolated from traditional, starter-free cheeses made of raw milk. Int. J. Food Microbiol. 2010, 143, 61–66. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Kato, H.; Shiwa, Y.; Oshima, K.; Machii, M.; Araya-Kojima, T.; Zendo, T.; Shimizu-Kadota, M.; Hattori, M.; Sonomoto, K.; Yoshikawa, H. Complete Genome Sequence of Lactococcus lactis IO-1, a Lactic Acid Bacterium That Utilizes Xylose and Produces High Levels of l-Lactic Acid. J. Bacteriol. 2012, 194, 2102–2103. [Google Scholar] [CrossRef] [PubMed]
- Priest, F.G. Paenibacillus. In Bergey’s Manual of Systematics of Archaea and Bacteria; Whitman, W.B.R.F., Kämpfer, P., Trujillo, M., Chun, J., DeVos, P., Hedlund, B., Dedysh, S., Eds.; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 2015. [Google Scholar]
- Lal, S.; Tabacchioni, S. Ecology and biotechnological potential of Paenibacillus polymyxa: A minireview. Indian J. Microbiol. 2009, 49, 2–10. [Google Scholar] [CrossRef] [PubMed]
- Piuri, M.; Sanchez-Rivas, C.; Ruzal, S.M. A novel antimicrobial activity of a Paenibacillus polymyxa strain isolated from regional fermented sausages. Lett. Appl. Microbiol. 1998, 27, 9–13. [Google Scholar] [CrossRef] [PubMed]
- Vater, J.; Niu, B.; Dietel, K.; Borriss, R. Characterization of Novel Fusaricidins Produced by Paenibacillus polymyxa-M1 Using MALDI-TOF Mass Spectrometry. J. Am. Soc. Mass Spectrom. 2015, 26, 1548–1558. [Google Scholar] [CrossRef] [PubMed]
- Kim, J.F.; Jeong, H.; Park, S.Y.; Kim, S.B.; Park, Y.K.; Choi, S.K.; Ryu, C.M.; Hur, C.G.; Ghim, S.Y.; Oh, T.K.; et al. Genome sequence of the polymyxin-producing plant-probiotic rhizobacterium Paenibacillus polymyxa E681. J. Bacteriol. 2010, 192, 6103–6104. [Google Scholar] [CrossRef] [PubMed]
- He, Z.; Kisla, D.; Zhang, L.; Yuan, C.; Green-Church, K.B.; Yousef, A.E. Isolation and identification of a Paenibacillus polymyxa strain that coproduces a novel lantibiotic and polymyxin. Appl. Environ. Microbiol. 2007, 73, 168–178. [Google Scholar] [CrossRef] [PubMed]
- Huang, E.; Yousef, A.E. Biosynthesis of paenibacillin, a lantibiotic with N-terminal acetylation, by Paenibacillus polymyxa. Microbiol. Res. 2015, 181, 15–21. [Google Scholar] [CrossRef] [PubMed]
- Schleifer, K.-H.; Bell, J.A. Staphylococcus. In Bergey’s Manual of Systematics of Archaea and Bacteria; Whitman, W.B.R.F., Kämpfer, P., Trujillo, M., Chun, J., DeVos, P., Hedlund, B., Dedysh, S., Eds.; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 2015. [Google Scholar]
- Rosenstein, R.; Gotz, F. What distinguishes highly pathogenic staphylococci from medium- and non-pathogenic? Curr. Top. Microbiol. Immunol. 2013, 358, 33–89. [Google Scholar] [PubMed]
- Kellner, R.; Jung, G.; HÖRner, T.; ZÄHner, H.; Schnell, N.; Entian, K.-D.; GÖTz, F. Gallidermin: A new lanthionine-containing polypeptide antibiotic. Eur. J. Biochem. 1988, 177, 53–59. [Google Scholar] [CrossRef] [PubMed]
- Scott, J.C.; Sahl, H.-G.; Carne, A.; Tagg, J.R. Lantibiotic-mediated anti-lactobacillus activity of a vaginal Staphylococcus aureus isolate. FEMS Microbiol. Lett. 1992, 93, 97–102. [Google Scholar] [CrossRef]
- Méric, G.; Miragaia, M.; de Been, M.; Yahara, K.; Pascoe, B.; Mageiros, L.; Mikhail, J.; Harris, L.G.; Wilkinson, T.S.; Rolo, J.; et al. Ecological Overlap and Horizontal Gene Transfer in Staphylococcus aureus and Staphylococcus epidermidis. Genome Biol. Evol. 2015, 7, 1313–1328. [Google Scholar] [CrossRef] [PubMed]
- Wladyka, B.; Wielebska, K.; Wloka, M.; Bochenska, O.; Dubin, G.; Dubin, A.; Mak, P. Isolation, biochemical characterization, and cloning of a bacteriocin from the poultry-associated Staphylococcus aureus strain CH-91. Appl. Microbiol. Biotechnol. 2013, 97, 7229–7239. [Google Scholar] [CrossRef] [PubMed]
- Whiley, R.A.; Hardie, J.M. Streptococcus. In Bergey’s Manual of Systematics of Archaea and Bacteria; Whitman, W.B.R.F., Kämpfer, P., Trujillo, M., Chun, J., DeVos, P., Hedlund, B., Dedysh, S., Eds.; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 2015. [Google Scholar]
- Mundt, J.O. The ecology of the streptococci. Microb. Ecol. 1982, 8, 355–369. [Google Scholar] [CrossRef] [PubMed]
- Nes, I.F.; Diep, D.B.; Holo, H. Bacteriocin diversity in Streptococcus and Enterococcus. J. Bacteriol. 2007, 189, 1189–1198. [Google Scholar] [CrossRef] [PubMed]
- Wescombe, P.A.; Tagg, J.R. Purification and Characterization of Streptin, a Type A1 Lantibiotic Produced by Streptococcus pyogenes. Appl. Environ. Microbiol. 2003, 69, 2737–2747. [Google Scholar] [CrossRef] [PubMed]
- Wirawan, R.E.; Klesse, N.A.; Jack, R.W.; Tagg, J.R. Molecular and Genetic Characterization of a Novel Nisin Variant Produced by Streptococcus uberis. Appl. Environ. Microbiol. 2006, 72, 1148–1156. [Google Scholar] [CrossRef] [PubMed]
- Qi, F.; Chen, P.; Caufield, P.W. Purification of Mutacin III from Group III Streptococcus mutans UA787 and Genetic Analyses of Mutacin III Biosynthesis Genes. Appl. Environ. Microbiol. 1999, 65, 3880–3887. [Google Scholar] [PubMed]
- Hillman, J.D.; Novák, J.; Sagura, E.; Gutierrez, J.A.; Brooks, T.A.; Crowley, P.J.; Hess, M.; Azizi, A.; Leung, K.-P.; Cvitkovitch, D.; et al. Genetic and Biochemical Analysis of Mutacin 1140, a Lantibiotic from Streptococcus mutans. Infect. Immun. 1998, 66, 2743–2749. [Google Scholar] [PubMed]
- Mota-Meira, M.; Lacroix, C.; LaPointe, G.; Lavoie, M.C. Purification and structure of mutacin B-Ny266: A new lantibiotic produced by Streptococcus mutans. FEBS Lett. 1997, 410, 275–279. [Google Scholar] [CrossRef]
- Calza, L.; Manfrede, R.; Briganti, E.; Attard, L.; Chiodo, F. Iliac osteomyelitis and gluteal muscle abscess caused by Streptococcus intermedius. J. Med. Microbiol. 2001, 50, 480–482. [Google Scholar] [CrossRef] [PubMed]
- Olson, A.B.; Kent, H.; Sibley, C.D.; Grinwis, M.E.; Mabon, P.; Ouellette, C.; Tyson, S.; Graham, M.; Tyler, S.D.; Van Domselaar, G.; et al. Phylogenetic relationship and virulence inference of Streptococcus Anginosus Group: Curated annotation and whole-genome comparative analysis support distinct species designation. BMC Genom. 2013, 14, 895. [Google Scholar] [CrossRef] [PubMed]
- Alex, D.; Garvin, D.; Peters, S. Streptococcus pasteurianus septicemia. Indian J. Med. Microbiol. 2013, 31, 310–312. [Google Scholar] [PubMed]
- Zhang, Q.; Yu, Y.; Velasquez, J.E.; van der Donk, W.A. Evolution of lanthipeptide synthetases. Proc. Natl. Acad. Sci. USA 2012, 109, 18361–18366. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Lun, Z.-R.; Wang, Q.-P.; Chen, X.-G.; Li, A.-X.; Zhu, X.-Q. Streptococcus suis: An emerging zoonotic pathogen. Lancet Infect. Dis. 2007, 7, 201–209. [Google Scholar] [CrossRef]
- Wang, J.; Gao, Y.; Teng, K.; Zhang, J.; Sun, S.; Zhong, J. Restoration of bioactive lantibiotic suicin from a remnant lan locus of pathogenic Streptococcus suis serotype 2. Appl. Environ. Microbiol. 2014, 80, 1062–1071. [Google Scholar] [CrossRef] [PubMed]
- LeBel, G.; Vaillancourt, K.; Frenette, M.; Gottschalk, M.; Grenier, D. Suicin 90-1330 from a nonvirulent strain of Streptococcus suis: A nisin-related lantibiotic active on gram-positive swine pathogens. Appl. Environ. Microbiol. 2014, 80, 5484–5492. [Google Scholar] [CrossRef] [PubMed]
- Edgar, R.C. MUSCLE: Multiple sequence alignment with high accuracy and high throughput. Nucleic Acids Res. 2004, 32, 1792–1797. [Google Scholar] [CrossRef] [PubMed]
- Jones, P.; Binns, D.; Chang, H.-Y.; Fraser, M.; Li, W.; McAnulla, C.; McWilliam, H.; Maslen, J.; Mitchell, A.; Nuka, G.; et al. InterProScan 5: Genome-scale protein function classification. Bioinformatics 2014, 30, 1236–1240. [Google Scholar] [CrossRef] [PubMed]
- Walsh, C.J.; Guinane, C.M.; Hill, C.; Ross, R.P.; O’Toole, P.W.; Cotter, P.D. In silico identification of bacteriocin gene clusters in the gastrointestinal tract, based on the Human Microbiome Project’s reference genome database. BMC Microbiol. 2015, 15, 183. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Figure 1.
Workflow chart summarizing the analyses steps carried out in this study.
Figure 2.
Alignment of all identified class-I LanA precursors with the exception of the lanthipeptide of Streptococcus intermedius strain B196 which aligned poorly. Leader peptides are in lower case and are reported as shown in the results of antiSMASH. No manual editing of the alignment was performed. For the full name of bacterial species, see Table S1.
Figure 2.
Alignment of all identified class-I LanA precursors with the exception of the lanthipeptide of Streptococcus intermedius strain B196 which aligned poorly. Leader peptides are in lower case and are reported as shown in the results of antiSMASH. No manual editing of the alignment was performed. For the full name of bacterial species, see Table S1.
Figure 3.
Class-I lanthipeptide clusters of three Geobacillus strains, G. kaustophilus HTA426, Geobacillus sp. ZGt-1, and G. thermodenitrificans NG80-2. The illustrated clusters were drawn after the lanthipeptide biosynthesis gene clusters generated by antiSMASH 3, which was run by analyzing the genome FASTA files of the strains [24]. The locus-tags of the genes and accession numbers of the coded proteins are presented in Tables S3–S5 for strains Geobacillus sp. ZGt-1, G. kaustophilus HTA426, and G. thermodenitrificans NG80-2, respectively.
Figure 3.
Class-I lanthipeptide clusters of three Geobacillus strains, G. kaustophilus HTA426, Geobacillus sp. ZGt-1, and G. thermodenitrificans NG80-2. The illustrated clusters were drawn after the lanthipeptide biosynthesis gene clusters generated by antiSMASH 3, which was run by analyzing the genome FASTA files of the strains [24]. The locus-tags of the genes and accession numbers of the coded proteins are presented in Tables S3–S5 for strains Geobacillus sp. ZGt-1, G. kaustophilus HTA426, and G. thermodenitrificans NG80-2, respectively.
Figure 4.
Amino acid sequence alignment of the class-I lanthipeptides of G. kaustophilus HTA426 (lanthipeptide I), Geobacillus sp. ZGt-1 (Z-geobacillin), and G. thermodenitrificans NG80-2 (geobacillin I). The leader peptides are typed in bold as opposed to the core peptides. (*) denotes a conserved aa in the three strains. The red arrow indicates the (antiSMASH-predicted) proteolytic cleavage site for the removal of the leader peptide. The alignment was performed using BioEdit [58].
Figure 4.
Amino acid sequence alignment of the class-I lanthipeptides of G. kaustophilus HTA426 (lanthipeptide I), Geobacillus sp. ZGt-1 (Z-geobacillin), and G. thermodenitrificans NG80-2 (geobacillin I). The leader peptides are typed in bold as opposed to the core peptides. (*) denotes a conserved aa in the three strains. The red arrow indicates the (antiSMASH-predicted) proteolytic cleavage site for the removal of the leader peptide. The alignment was performed using BioEdit [58].
Figure 5.
Schematic illustration of the putative biosynthesis pathway of Z-geobacillin. Amino acid sequences of the in silico-predicted proteins of strain ZGt-1 were annotated using the pathway mapping tool available from KEGG Automatic Annotation Server (KAAS) [61]. Predicted pathway indicated that the strain has all the genes required for the lanthipeptide biosynthesis, regulation and self-immunity, except for a dedicated protease-coding gene (represented as a white oval shape with a crossing red line). Details of the biosynthesis pathway are given in the text. The scheme was re-drawn after the KAAS-generated lanthipeptide biosynthesis pathway map of strain ZGt-1. Identical colors reflect correlated biological functions.
Figure 5.
Schematic illustration of the putative biosynthesis pathway of Z-geobacillin. Amino acid sequences of the in silico-predicted proteins of strain ZGt-1 were annotated using the pathway mapping tool available from KEGG Automatic Annotation Server (KAAS) [61]. Predicted pathway indicated that the strain has all the genes required for the lanthipeptide biosynthesis, regulation and self-immunity, except for a dedicated protease-coding gene (represented as a white oval shape with a crossing red line). Details of the biosynthesis pathway are given in the text. The scheme was re-drawn after the KAAS-generated lanthipeptide biosynthesis pathway map of strain ZGt-1. Identical colors reflect correlated biological functions.
Table 1.
Bacterial genomes where a total of eight putative novel class-I lanthipeptides were identified. Annotations of the lanthipeptide-coding gene in the original genome and the RefSeq records are presented.
Table 1.
Bacterial genomes where a total of eight putative novel class-I lanthipeptides were identified. Annotations of the lanthipeptide-coding gene in the original genome and the RefSeq records are presented.
| Bacterial Species, Strain (Lanthipeptide Reference Number) | RefSeq Genome Accession Number | Annotation of the Lanthipeptide-Coding Gene | |
|---|---|---|---|
| Original Genome Record | RefSeq Genome Record | ||
| Bacillus thuringiensis serovar finitimus YBT-020 | NC_017200 | ‘Hypothetical protein’ | Unannotated |
| Geobacillus sp. ZGt-1 | LDPD01000000 1 | Lanthipeptide | Unavailable in RefSeq |
| Paenibacillus polymyxa M1 (I) | NC_017542 | Unannotated | ‘Hypothetical protein’ |
| Paenibacillus polymyxa M1 (II) | NC_017542 | Unannotated | ‘Hypothetical protein’ |
| Paenibacillus polymyxa SC2 (I) 2 | NC_014622 | Partly inaccurately annotated | ‘Hypothetical protein’ |
| Paenibacillus polymyxa SC2 (II) | NC_014622 | Incorrectly annotated as coding for subtilin | ‘Hypothetical protein’ |
| Staphylococcus aureus NCTC 8325 (II) | NC_007795 | Unannotated | Unannotated |
| Streptococcus intermedius B196 3 | NC_022246 | Unannotated | ‘Hypothetical protein’ |
1 The presented genome sequence accession number for Geobacillus sp. ZGt-1 belongs to the original genome record; the whole genome shotgun (WGS) project. 2 Only the core sequence of this lanthipeptide was briefly mentioned in another study, but the lanthipeptide was not clearly classified as class-I (details are given in the text). 3 S. intermedius has not been reported in literature as a class-I lanthipeptide-producer.
Table 2.
Bacterial strains with predicted lanthipeptide production potential, representing possible subjects for future experimental investigations. Strains typed in bold belong to a firmicute species that has not been reported in literature as a producer of class-I lanthipeptides, but the lanthipeptide production potential of its presented strains has been addressed in the current study.
Table 2.
Bacterial strains with predicted lanthipeptide production potential, representing possible subjects for future experimental investigations. Strains typed in bold belong to a firmicute species that has not been reported in literature as a producer of class-I lanthipeptides, but the lanthipeptide production potential of its presented strains has been addressed in the current study.
| Bacterial Strain | RefSeq Genome Accession Number | Total Number of Harbored Class-I Lanthipeptides | Lanthipeptide Reference Number 1 | Identity to Experimentally Verified Lanthipeptide 2 | Reference 3 |
|---|---|---|---|---|---|
| Bacillus clausii KSM-K16 | NC_006582 | 1 | - 4 | 56% clausin | [30], and this study |
| Bacillus megaterium QM B1551 | NC_014023 | 2 | I and II | 56% gallidermin | [30,31], and this study |
| Bacillus subtilis BSn5 | NC_014976 | 1 | - 4 | 100% subtilomycin | [32,33], and this study |
| Bacillus subtilis spizizenii W23 | NC_014479 | 1 | - 4 | 100% subtilin | This study |
| Bacillus thuringiensis serovar finitimus YBT-020 | NC_017200 | 1 | - 4 | No hits | This study |
| Bacillus thuringiensis serovar IS5056 | NC_020394 | 5 | I and II III IV V | 100% thuricin 4A-4 86% thuricin 4A-4 84% thuricin 4A-4 82% thuricin 4A-4 | [31], and this study |
| Bacillus thuringiensis YBT 1518 | NC_022873 | 2 | I II | 53% gallidermin 51% gallidermin | This study |
| Geobacillus kaustophilus HTA426 | NC_006510 | 2 | I II | 91% geobacillin I 79% geobacillin I | [15,34], and this study |
| Geobacillus sp. ZGt-1 | LDPD01000000 | 1 | - 4 | 91% geobacillin I | This study |
| Geobacillus thermoleovorans CCB_US3_UF5 | NC_016593 | 1 | - 4 | 79% geobacillin I | This study |
| Lactococcus lactis CV56 | NC_017486 | 1 | - 4 | 100% nisin A | [15,35], and this study |
| Lactococcus lactis IO-1 | NC_020450 | 1 | - 4 | 100% nisin Z | This study |
| Paenibacillus polymyxa CR1 | NC_023037 | 1 | - 4 | 94% paenilan | [36,37], and this study |
| Paenibacillus polymyxa M1 | NC_017542 | 2 | I II | 64% paenilan 96% paenilan | [36], and this study |
| Paenibacillus polymyxa SC2 | NC_014622 | 2 | I II | 64% paenilan 96% paenilan | [30,36,38], and this study |
| Staphylococcus aureus 11819-97 | NC_017351 | 2 | I II | 100% BsaA2 83% BsaA2 | This study |
| Staphylococcus aureus Bmb 9393 | NC_021670 | 2 | I II | 100% BsaA2 83% BsaA2 | This study |
| Staphylococcus aureus COL | NC_002951 | 2 | I II | 100% BsaA2 79% BsaA2 | [8], and this study |
| Staphylococcus aureus ED133 | NC_017337 | 2 | I II | 100% BacCH91 85% BsaA2 | [30], and this study |
| Staphylococcus aureus LGA251 | NC_017349 | 2 | I II | 81% BsaA2 85% BsaA2 | This study |
| Staphylococcus aureus M1 | NC_021059 | 2 | I II | 100% BsaA2 83% BsaA2 | This study |
| Staphylococcus aureus MSSA476 | NC_002953 | 2 | I II | 100% BsaA2 83% BsaA2 | [8], and this study |
| Staphylococcus aureus MW2 | NC_003923 | 2 | I II | 100% BsaA2 83% BsaA2 | [8], and this study |
| Staphylococcus aureus NCTC 8325 | NC_007795 | 2 | I II | 100% BsaA2 83% BsaA2 | [8], and this study |
| Staphylococcus aureus Newman | NC_009641 | 2 | I II | 100% BsaA2 83% BsaA2 | [8], and this study |
| Staphylococcus aureus T0131 | NC_017347 | 2 | I II | 100% BsaA2 83% BsaA2 | This study |
| Staphylococcus aureus TW20 | NC_017331 | 2 | I II | 100% BsaA2 83% BsaA2 | This study |
| Staphylococcus aureus USA300 FPR3757 | NC_007793 | 2 | I II | 100% BsaA2 83% BsaA2 | [8], and this study |
| Staphylococcus aureus USA300_TCH1516 | NC_010079 | 2 | I II | 100% BsaA2 83% BsaA2 | [8], and this study |
| Staphylococcus aureus VC40 | NC_016912 | 2 | I II | 100% BsaA2 83% BsaA2 | This study |
| Staphylococcus aureus Z172 | NC_022604 | 2 | I II | 100% BsaA2 83% BsaA2 | This study |
| Streptococcus intermedius B196 | NC_022246 | 1 | - 4 | No hits | This study |
| Streptococcus intermedius C270 | NC_022237 | 1 | - 4 | 81% nisin F | This study |
| Streptococcus pasteurianus ATCC 43144 | NC_015600 | 1 | - 4 | 91% nisin U | [39], and this study |
| Streptococcus pyogenes MGAS6180 | NC_007296 | 1 | - 4 | 100% streptin | [15], and this study |
| Streptococcus pyogenes MGAS9429 | NC_008021 | 1 | - 4 | 100% streptin | This study |
| Streptococcus pyogenes MGAS10270 | NC_008022 | 1 | - 4 | 100% streptin | [15], and this study |
| Streptococcus pyogenes MGAS10750 | NC_008024 | 1 | - 4 | 98% streptin | [15], and this study |
| Streptococcus suis JS14 | NC_017618 | 1 | - 4 | 100% suicin 90-1330 | This study |
| Streptococcus suis SC070731 | NC_020526 | 1 | - 4 | 100% suicin 90-1330 | This study |
1 The amino acid (aa) sequences of the lanthipeptides are presented in Table S1. 2 Identity (%) to the experimentally verified lanthipeptides is based on the bacteriocin genome mining tool (BAGEL) BLAST, the literature, or both. 3 The cited references represent studies where the respective strain was mentioned as a potential lanthipeptide producer based on an in silico analysis. In some of these studies, the lanthipeptide aa sequences have not been determined. 4 (-) Indicates the lack of a lanthipeptide reference number because the strain has only one class-I lanthipeptide.
© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Alkhalili, R.N.; Canbäck, B. Identification of Putative Novel Class-I Lanthipeptides in Firmicutes: A Combinatorial In Silico Analysis Approach Performed on Genome Sequenced Bacteria and a Close Inspection of Z-Geobacillin Lanthipeptide Biosynthesis Gene Cluster of the Thermophilic Geobacillus sp. Strain ZGt-1. Int. J. Mol. Sci. 2018, 19, 2650. https://doi.org/10.3390/ijms19092650
AMA Style
Alkhalili RN, Canbäck B. Identification of Putative Novel Class-I Lanthipeptides in Firmicutes: A Combinatorial In Silico Analysis Approach Performed on Genome Sequenced Bacteria and a Close Inspection of Z-Geobacillin Lanthipeptide Biosynthesis Gene Cluster of the Thermophilic Geobacillus sp. Strain ZGt-1. International Journal of Molecular Sciences. 2018; 19(9):2650. https://doi.org/10.3390/ijms19092650
Chicago/Turabian StyleAlkhalili, Rawana N., and Björn Canbäck. 2018. "Identification of Putative Novel Class-I Lanthipeptides in Firmicutes: A Combinatorial In Silico Analysis Approach Performed on Genome Sequenced Bacteria and a Close Inspection of Z-Geobacillin Lanthipeptide Biosynthesis Gene Cluster of the Thermophilic Geobacillus sp. Strain ZGt-1" International Journal of Molecular Sciences 19, no. 9: 2650. https://doi.org/10.3390/ijms19092650
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
