Characterization of the Mitochondrial Genome of a Wheat AL-Type Male Sterility Line and the Candidate CMS Gene
by
, ,
Miaomiao Hao
1,2,†,
Wenlong Yang
1,3,*,†,
Weiwen Lu
1,2,
Linhe Sun
1,2,4
,
Muhammad Shoaib
1,2,
Jiazhu Sun
1,
Dongcheng Liu
1,
Xin Li
1 and
Aimin Zhang
1,* 1
State Key Laboratory of Plant Cell and Chromosome Engineering, Institute of Genetics and Developmental Biology, Innovative Academy of Seed Design, Chinese Academy of Sciences, Beijing 100101, China
2
University of Chinese Academy of Sciences, Beijing 100049, China
3
Institute of Vegetables and Flowers, Chinese Academy of Agricultural Sciences, Beijing 100081, China
4
Institute of Botany, Jiangsu Province and Chinese Academy of Sciences (Nanjing Botanical Garden Memorial Sun Yat-Sen), Nanjing 210014, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2021, 22(12), 6388; https://doi.org/10.3390/ijms22126388
Submission received: 22 May 2021
/
Revised: 8 June 2021
/
Accepted: 11 June 2021
/
Published: 15 June 2021
(This article belongs to the Collection Feature Papers in Molecular Plant Sciences)
Abstract
:Heterosis utilization is very important in hybrid seed production. An AL-type cytoplasmic male sterile (CMS) line has been used in wheat-hybrid seed production, but its sterility mechanism has not been explored. In the present study, we sequenced and verified the candidate CMS gene in the AL-type sterile line (AL18A) and its maintainer line (AL18B). In the late uni-nucleate stage, the tapetum cells of AL18A showed delayed programmed cell death (PCD) and termination of microspore at the bi-nucleate stage. As compared to AL18B, the AL18A line produced 100% aborted pollens. The mitochondrial genomes of AL18A and AL18B were sequenced using the next generation sequencing such as Hiseq and PacBio. It was found that the mitochondrial genome of AL18A had 99% similarity with that of Triticum timopheevii, AL18B was identical to that of Triticum aestivum cv. Chinese Yumai. Based on transmembrane structure prediction, 12 orfs were selected as candidate CMS genes, including a previously suggested orf256. Only the lines harboring orf279 showed sterility in the transgenic Arabidopsis system, indicating that orf279 is the CMS gene in the AL-type wheat CMS lines. These results provide a theoretical basis and data support to further analyze the mechanism of AL-type cytoplasmic male sterility in wheat.
1. Introduction
Plant cytoplasmic male sterility (CMS) is a maternally inherited trait maintaining female fertility but producing abortive pollen. CMS is widespread among plants and widely used to produce hybrids with significant heterosis [1]. CMS is usually associated with chimeric open reading frames (ORF) caused by mitochondrial genome reorganization [2,3,4]. In many cases, pollen fertility of the CMS plants can be restored by corresponding nuclear-encoded fertility restorer genes which indicate that CMS is an ideal model system to study nuclear-cytoplasmic gene interaction [5]. Much progress has been made in the molecular mechanism of CMS and fertility restoration in plants. Many novel chimeric mitochondrial genes have been identified and are responsible for CMS through a variety of mechanisms (such as orf79/orfH79/WA352 from rice, urf13/orf355 from maize, pcf from petunia, orf224/orf222 from rapeseed, etc.) [3,6,7,8,9,10,11,12,13]. The fertility restoring genes are present in the nucleus, and most of them are triangular pentapeptide repeat (PPR) proteins (such as Rf1a and Rf1b to orf79 in rice, Rf-PPR592 to pcf in petunia, etc.) [8,14].
There are three main types of CMS in wheat, i.e., CMS-T, CMS-K, and CMS-V [15]. Orf256, located upstream of COXI, might be the sterility gene in the CMS-T type plants [16,17]. Eight restorer genes (Rf1-Rf8) for CMS-T type have been mapped on Chromosome 1A, 1B, 2D, 5D, 6B, 6D, 7B, and 7D; and five (Rf1, Rf2, Rf4, Rf5, Rf7) of them originated from T. timopheevi [18]. Rf1 and Rf3 of CMS-T type can cleave the mitochondrial gene orf279 and restore fertility in transgenic wheat [19]. There are large repetitive units in the mitochondrial genome of the CMS-K type line; however, the maintainer line is similar to the Chinese Spring wheat [20]. CMS-AL, another type of male sterility derived from the F2 of Bainong 71-22 × Xinong 73 (36) 9-1-16, produced 100% sterile pollens; and its restorer, Bainong 86T2026, has strong restoring ability controlled by a single dominant gene. 99AR144-1 can restore the fertility of AL18A, studies have shown one major QTL (Chr1B) and one minor QTL (Chr5A) in 99AR144-1 [21]. AL18A is an excellent sterile line with a certain angle of glume opening, stigma partly exposed, and strong vitality and long duration. The natural outcrossing rate of AL18A is 65.02%, which is good for hybrid seeds production [22]. Using the AL-type CMS line AL18A, a wheat hybrid line Xindong 43 has been produced [23]. Their cytoplasm was believed to be originated from the common wheat variety “Huixianhong”, however, the molecular genetic mechanism of this CMS line is still not clear. In the present study, we sequenced the mitochondrial genomes of AL18A and its maintainer line AL18B and identified the candidate genes for AL-type CMS in wheat. Our results provide further insight to elaborate the mechanism of AL-type CMS in wheat, and the CMS gene could be used to design molecular markers to facilitate the application of AL18A in heterosis utilization and breeding in wheat.
2. Results
2.1. The Wheat AL-CMS Line AL18A Is the Typical Sterile Type
The seed setting rate of the AL18A was calculated to confirm its sterility. Selfing of AL18A produced no seed; however, an AL18A × AL18B cross showed a 90% seed set (Figure S1). The pollens of AL18A were abortive, but the pistils were normal. By I2-KI staining, it was found that the mature pollens of AL18A were smaller and lighter as compared to that of AL18B. Scanning electron microscope (SEM) was used to examine the inner and outer walls of anthers and pollen grains from AL18A and AL18B. Results revealed that the pollen grains of AL18A were shriveled and shrunken; however, no significant difference was detected between the inner walls of the anthers from AL18A and AL18B, respectively (Figure 1A). The earliest abnormal anther of AL18A was observed through the paraffin sectioning at the monocyte vacuole stage. The tapetum cells of AL18A also had delayed cell collapse compared to AL18B (Figure 1B). The pollen grains of AL18A showed abnormal nuclear division and light color staining at the bi-nucleate stage, which might have seized its development because of which the tri- nucleate stage was not detected (Figure 1C). These results suggested that the AL18A showed a typical type of pollen abortion.
2.2. Mitochondrial Genome of Wheat AL18A and AL18B
To explore the CMS genes in AL18A, we sequenced the mitochondrial genomes of AL18A and AL18B using Hiseq (next generation sequencing) and PacBio (single-molecule, real-time sequencing) sequencing technology. The Hiseq technology generated the clean data of 4116 MB and 5469 MB for AL18A and AL18B, respectively (Table 1). The length of subreads for AL18A ranged from 5000 to 15,000 bp, with an average of 7960 bp, and for AL18B, the read length ranged from 5000 to 10,000 bp, with an average length of 7467 bp, respectively (Table 2). After de novo assembly, the mitochondrial genome AL18A and AL18B were 442,712 and 452,491 bp in length, respectively. Mitochondrial DNA (mtDNA) sequence of AL18B was similar to T. triticum cv. Chinese Yumai (Figure 2B) and of AL18A was similar to T. timopheevi (Figure 2A), however, 102 SNPs and InDels were found between the later.
The flanking regions of the polymorphic sites were sequenced by sanger technology to validate the variations in the mitochondrial genome. As a result, the mitochondrial genome of AL18B was refined to 452,526 bp, consistent with that of Chinese Yumai, and AL18A was refined to 442,573 bp, similar but not identical to T. timopheevi (443,419 bp), respectively.
Fragmenting the mitochondrial genome of AL18A and T. timopheevi into two large sections, i.e., 1–21,521 bp and 21,428–442,573 bp for AL18A, and 1–21,518 bp and 22,310–443,419 bp for T. timopheevi, increased their sequence similarity up to 99%. These results predict that the mitochondria of the wheat AL-type CMS line may have derived from T. timopheevi, and the AL18A belongs to T-type CMS line.
2.3. The Mitochondrial Genome Composition of AL18A and AL18B
The coding and non-coding genes of the verified mitochondrial genomes of AL18A and AL18B were predicted and assembled into a circular mitochondrial genome (Figure 3). The GC content of AL18A and AL18B was similar to the other wheat varieties, i.e., 44.34% and 44.35%, respectively. Comparative analysis of the three genomes revealed that AL18A and T. timopheevi, had same number of coding genes whereas, AL18B has two copies of atp6 and atp8, and missing one copy of ccmc-p, cobA, cox2a-p, rpl6-p, and rpl2-p (Table 3). Analysis of the non-coding genes revealed that AL18A had four Met-tRNA and no Ala-tRNA while T. timopheevi had three Met-tRNA and one Ala-tRNA. In AL18B, there were two Lys-tRNA and two Gln-tRNA, but no Leu-tRNA and Ile-tRNA, whereas AL18A had two Leu-tRNA and one Ile-tRNA (Table 4).
2.4. CMS Candidate Genes of AL18A
Previously, it has been reported that mitochondrial CMS genes are produced by recombination of repetitive sequences, which have the characteristics of chimerism and co transcription [8,12]. Further, 523 and 526 orfs, longer than 200 bp, were predicted in the mitochondrial genomes of AL18A and AL18B, respectively. After removing the repetitive orfs, comparative analysis disclosed 58 orfs specific to AL18A (Figure 4). Transcriptomic analysis of 58 AL18A specific orfs revealed that 45 of them were explicitly expressed in the anther tissue of the male-sterile line and distributed on 13 locations of the AL18A mitochondrial genome. Trans-membrane structure analysis revealed that out of 45, only 11 orfs contained the transmembrane structure (Table 5), which hence were assumed to be the candidate CMS genes for AL18A.
Expression of candidate orfs were evaluated in the F1 hybrids of a cross between AL18A and a restorer line 99AR144-1 (AL18A × 99AR144-1). Results showed that all the candidate orfs were expressive in the presence of a restorer gene (Figure 5). As a female parent, AL18A was also crossed with wheat varieties Liangxing 99, Taishan 23, Zhongmai 895, Zhengmai 9045, and KN199, resulting in sterile F1 hybrids. These results indicated that the male parents did not contain the restorer gene, which hence could be used as AL18A maintainer lines. Nine out of 11 candidate genes (except orf66 and orf124) were expressive in the F1 generations of all the five crosses.
It is reported that orf256 might be the CMS gene in T-type CMS lines [17], which can also be the case for AL18A. Amplifying with PCR primers which located in the upstream of orf256 and downstream of cox1 of AL18A mitochondrial genome, produced two PCR bands. Sequencing and multiple alignment revealed the absence of orf256 upstream of cox1 in one of the sequences, while the other one was consistent with T. timopheevi, i.e., presence of orf256 upstream of cox1. The chemical dose effect may cause this phenomenon in the plant mitochondrial genome, i.e., there were many kinds of mitochondrial DNA molecules in AL18A. In addition, the expression of orf256 was also detected in AL18A by RT-PCR. Therefore, we considered orf256 as a candidate gene, and its function was verified through the Arabidopsis transgenic system.
2.5. Functional Analysis of CMS Candidate Genes of AL18A
From AL18A, 12 candidate gene constructs were developed to study their function in the Arabidopsis transgenic system. The plant vector pCambia1300-221, driven by CaMV35S promoter and connected with a signal peptide from rice fertility restoring gene Rf1b, was used to target the mitochondria. Transgenic vectors were constructed both with 105 and 315 bp mitochondrial signal peptides, respectively.
The fertility of the transgenic plants containing the 315 bp of Rf1b as a mitochondrial signal peptide was not affected (Table 6). Additionally, 80% of the transgenic plants harboring the orf66, orf83, orf85, orf103, orf124, orf129, orf139, orf256, orf232, orf279, and orf376 construct had more than 50% seed setting rate, implying these orfs has no role in sterility. The orf74 construct significantly lowered fertility at the early developmental stages as 50% of the transgenics had less than 50% seed set; however, the fertility was gradually regained until maturity. Therefore, the function of orf74 needed to be reconsidered.
Fertility of the transgenic plants harboring the orf279 and 105 bp of Rf1b as mitochondrial signal peptide were significantly reduced as 43% were almost sterile, 33% were partially fertile, and 24% were fully fertile (Table 7). Vegetative growth of transgenic plants was similar to wild-type plants; however, at the reproductive stage, the transgenic plants showed longer petiole, more prominent calyx, delayed floral degeneration, less pollen, lower pollen germination rate (Table 8, Figure S2), and abnormal pod development. The vegetative and reproductive growth of transgenic plants containing the orf256, previously considered as T-type CMS gene in wheat, was similar to that of wild-type plants, indicating that orf256 is not related to sterility (Figure 6). Fertility of transgenics harboring orf74, orf83, orf376, orf139, orf124, orf66, orf103, orf232, orf129, and orf83 was more than 87%, indicating these genes were not related to sterility.
ORF279 contained two transmembrane domains (Figure 7A). Its function was annotated as an ATP synthase subunit 8 gene. ATP8 contained a transmembrane domain (Figure 7B). Compared to the protein sequences of ATP8 and ORF279, the first 96 amino acids of them were identical, and the first transmembrane domain of ORF279 was consistent with ATP8. It was speculated that ORF279 may affect the normal function of ATP8 and mitochondrial ATP synthesis.
3. Discussion
3.1. Mitochondrial Origin of AL-Type Cytoplasmic Male Sterile Line AL18A
In the 1990s, Wang et al. bred a cytoplasmic male sterile line AL18A [24]. Its cytoplasm was derived from a common wheat variety, ‘Huixianhong’, so they thought its mitochondrial genome should be similar to common wheat. By sequencing the mitochondrial genome of AL18A, we found that the mitochondrial genome of AL18A is almost identical to that of T. timopheevi, but significantly different from common wheat. Therefore, we believe that the mitochondrial genome of AL18A may be derived from T. timopheevi and belongs to T-CMS. There is some evidence that AL18A belongs to T-CMS. For example, Wang observed AL-type and other wheat CMS lines by scanning electron microscope and found that most mature pollen grains of AL-type male sterile lines were shrunk, and a few were plump, and the pollen sterility was 100%. Almost all the mature pollen grains of T-type male sterile lines were also shrunk, indicating that the AL-type and T-type CMS have similar pollen abortion phenotypes [24]. Jiang (2002) found that Q-type, T-type, and AL-type CMS lines of wheat have similar restoration and maintenance relationship, which may be the same kind of male sterile lines [25]. In conclusion, AL18A and T-CMS have the same morphology of sterile pollen grains, the same restoration and maintenance relationship, and a similar mitochondrial genome. Therefore, we conclude that AL18A belongs to T-CMS, and its mitochondria is from T. timopheevi.
3.2. The Male Sterile Gene of AL18A Is orf279
Early studies suggested that the candidate gene of T-CMS was orf256. The protein encoded by orf256 existed in T-CMS line, and the expression of orf256 changed in different nuclear backgrounds [16,26]. We also tried to verify the function of orf256 in transgenic Arabidopsis and found that ORF256 had no role in sterility (Figure 6. However, orf279 from the mitochondrial genome of AL18A led to male sterility in Arabidopsis, with longer petiole, more prominent calyx, delayed floral degeneration, shorter pod, lower pollen number, and germination rate. Recently, Australian scientists found that two fertility restoring genes Rf1 and Rf3 of T-CMS can bind to the mRNA of orf279 in vitro and cleave to restore fertility. In contrast, the mRNA of orf256 is not affected [19]. Therefore, orf256 is not a CMS gene of T-CMS, while orf279 might be the CMS gene of T-CMS.
3.3. Fertility Restoring Genes in 99AR144-1
The fertility restoring genes Rf1 (Chr1A) and Rf3 (Chr1B) bind to the mRNA of orf279 and degrade it [19]. However, the expression of orf279 in the F1 of AL18A × 99AR144-1 indicated that the restorer line 99AR144-1 harbored a different restorer gene. Liu (2010) reported that in 99AR144-1, fertility restoration was controlled by two major genes residing on Chr2A and Chr1B [27]. In contrast, the restorer gene Rf1 and Rf3 are on Chr1A and Chr1B, respectively, indicating a different restorer gene in 99AR144-1.
3.4. Tapetal PCD and Male Sterility
The timely PCD of tapetum is very important for pollen development [28]. Luo (2013) reported that the abortion of WA-CMS in rice was caused by the advance of PCD in tapetum. The male-sterile protein WA352 inhibits the scavenging effect of COX11 on reactive oxygen species, resulting in the explosion of ROS in mitochondria and the release of cytochrome C. The cytochrome C eventually led to the advanced programmed cell death in tapetum, resulting in the abnormal nutrient absorption of pollen grains and its abortion [3]. In this study, we found that the earliest abnormal period of AL18A anther development compared with AL18B was the uni-nucleate stage, which showed delayed cell collapse in tapetum, indicating a delayed PCD in the tapetum. Further research is needed to understand the relationship between delayed PCD and ROS level and the effect of ROS in tapetum through a specific mechanism.
3.5. The Importance of Mitochondrial Signal Peptide in Functional Verification of CMS Gene
In this study, the first 315 and 105 bp of Rf1b from rice were used as mitochondrial targeting signal peptides. The transgenic Arabidopsis of orf279 with 105 bp of signal peptide showed evident sterility. Rf1b is a PPR restorer gene that has 506 amino acids. The first 315 bp of Rf1b, encoding the first 23 amino acids as the putative mitochondrial signal peptide, the first PPR repeat (53–81 amino acids), and part of the second PPR repeat (92–105 amino acids), may affect the function of ORF279 protein. However, the first 105 bp of Rf1b only encodes the putative signal peptide sequence and does not contain the PPR repeat sequence, so it may target the mitochondria without affecting the function of ORF279.
4. Materials and Methods
4.1. Plant Materials
Wheat (Triticum aestivum L.) cytoplasmic male sterile line AL18A, maintainer line AL18B, and a restorer line 99AR144-1 were kindly provided by professor Xiaoming Tian of the Xinjiang Academy of Agricultural Reclamation Sciences. Other wheat cultivars (KN199, Zhongmai 895, Taishan 23, and Liangxing 99) and Arabidopsis thaliana (Col-0) were provided by the State Key Laboratory of Plant Cell and Chromosomal Engineering.
4.2. Scanning of Wheat Anthers Using a Scanning Electron Microscope
Anther and pollen samples of AL18A and AL18B were prepared according to Nguyen and Harbison (2017) and scanned with a scanning electron microscope (Hitachi S-3000N & Quorum PP3000T) [29].
4.3. Extraction of Plant Mitochondrial DNA
Two-weeks-old, etiolated seedlings of AL18A and AL18B were used to isolate the mitochondria following the published protocol [20,30]. Mitochondrial fractions were collected by differential centrifugation and incubated with DNase I for one hour in ice to eliminate the linear DNA. The mitochondrial samples further purified by discontinuous sucrose density gradient centrifugation (1.2 M/1.6 M/2.0 M) were carefully collected from the 1.6 M/1.2 M interface and washed with 0.4 M sucrose solution. The fraction was finally lysed in 2% Sarkosyl for mitochondrial DNA (mtDNA) extraction, followed by phenol-chloroform extraction and ethanol precipitation.
4.4. Mitochondrial Genome Sequencing Analysis
The mtDNA of AL18A and AL18B (accession number MW846284 and MW846283, respectively) were sequenced at Mega genomics Co. LTD, and the sequenced reads were assembled using the software package SOAPdenovo (v2.04)/SPAdes-3.10.1 on a PC/UNIX platform. The mitochondrial sequences were annotated with AUGUSTUS (http://bioinf.uni-greifswald.de/augustus/, accessed on 22 May 2021) and tRNA genes and their secondary structures were identified using RNAmmer-1.2 and tRNAscan-SEv1.3.1. The Pairwise BLAST program on our local server was used for comparison between AL18A mtDNA and AL18B mtDNA and the mitochondrial genome of Triticum timopheevii, with an E-value cutoff at 0.001. A database search was executed using the nucleotide BLAST network service (https://blast.ncbi.nlm.nih.gov/Blast.cgi?PROGRAM=blastn&PAGE_TYPE=BlastSearch&LINK_LOC=blasthome, accessed on 22 May 2021) with default parameters. Alignments were obtained using MultiPipMaker, a web-based tool for genomic sequence alignments (http://bio.cse.psu.edu/pipmaker, accessed on 22 May 2021) [31,32]. The annotated AL18A mtDNA genomic sequence was used as a reference genome and compared with mtDNA sequences from AL18B (T. aestivum).
4.5. Vector Construction and Genetic Transformation of Arabidopsis thaliana
The PCR primers with a restriction site overhang were designed from the conserved domain region of the target genes. The PCR products were transformed into E. coli after being ligated into pCambia1300-121 vector by double restriction enzyme digestion and the positive clones were screened on Kanamycin selectable LB plates. The positive constructs were transformed in Arabidopsis (Col-0) using the floral dip method [33]. T0 seeds were screened on a selectable (Hygromycin) ½ MS media. After two weeks, the transgenic seedlings were shifted in soil medium (1:1) and grown at 23 °C, 16:8 h photoperiod until maturity.
4.6. Pollen Germination Experiment of Arabidopsis thaliana
The pollen germination of Arabidopsis thaliana was studied according to Hirsche et al. (2017) [34].
Supplementary Materials
The following are available online at https://www.mdpi.com/article/10.3390/ijms22126388/s1, Figure S1: Seeds setting of AL18A, AL18B and F1 (AL18A × AL18B), Figure S2: Pollen germination rate of WT, transgenic plants of orf256 and orf279, respectively.
Author Contributions
Material, M.H., J.S., X.L. and D.L.; methodology, M.H. and L.S.; formal analysis, M.H. and W.L.; writing—original draft preparation, W.Y. and M.H.; writing—review and editing, W.Y., M.S. and A.Z.; supervision, W.Y., and A.Z.; funding acquisition, W.Y. All authors have read and agreed to the published version of the manuscript.
Funding
This work was supported by the National Key R and D Program of China (2016YFD0100804).
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.
Acknowledgments
The authors are grateful to all lab members for their useful suggestions, support, and encouragement. We thank Xiaoming Tian and Yingbin Nie for their providing the seeds of AL18A, AL18B and 99AR144-1.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Chen, L.; Liu, Y.-G. Male Sterility and Fertility Restoration in Crops. Annu. Rev. Plant Biol. 2014, 65, 579–606. [Google Scholar] [CrossRef]
- Ivanov, M.K.; Dymshits, G.M. Cytoplasmic male sterility and restoration of pollen fertility in higher plants. Russ. J. Genet. 2007, 43, 354–368. [Google Scholar] [CrossRef]
- Luo, D.; Xu, H.; Liu, Z.; Guo, J.; Li, H.; Chen, L.; Fang, C.; Zhang, Q.; Bai, M.; Yao, N.; et al. A detrimental mitochondrial-nuclear interaction causes cytoplasmic male sterility in rice. Nat. Genet. 2013, 45, 573–577. [Google Scholar] [CrossRef] [PubMed]
- Schnable, P.S.; Wise, R.P. The molecular basis of cytoplasmic male sterility and fertility restoration. Trends Plant Sci. 1998, 3, 175–180. [Google Scholar] [CrossRef]
- Hanson, M.R.; Bentolila, S. Interactions of mitochondrial and nuclear genes that affect male gametophyte development. Plant Cell 2004, 16, S154–S169. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- L’Homme, Y.; Stahl, R.J.; Li, X.-Q.; Hameed, A.; Brown, G.G. Brassica nap cytoplasmic male sterility is associated with expression of a mtDNA region containing a chimeric gene similar to the pol CMS-associated orf224 gene. Curr. Genet. 1997, 31, 325–335. [Google Scholar] [CrossRef] [PubMed]
- Nivison, H.T.; Sutton, C.A.; Wilson, R.K.; Hanson, M.R. Sequencing, processing, and localization of the petunia CMS-associated mitochondrial protein. Plant J. 1994, 5, 613–623. [Google Scholar] [CrossRef]
- Wang, Z.; Zou, Y.; Li, X.; Zhang, Q.; Chen, L.; Wu, H.; Su, D.; Chen, Y.; Guo, J.; Luo, D.; et al. Cytoplasmic Male Sterility of Rice with Boro II Cytoplasm Is Caused by a Cytotoxic Peptide and Is Restored by Two Related PPR Motif Genes via Distinct Modes of mRNA Silencing. Plant Cell 2006, 18, 676–687. [Google Scholar] [CrossRef] [Green Version]
- Wise, R.P.; Fliss, A.E.; Pring, D.R.; Gengenbach, B.G. urf13-T of T cytoplasm maize mitochondria encodes a 13 kD polypeptide. Plant Mol. Biol. 1987, 9, 121–126. [Google Scholar] [CrossRef] [PubMed]
- Wise, R.P.; Dill, C.L.; Schnable, P. Mutator-Induced Mutations of the Rf1 Nuclear Fertility Restorer of T-Cytoplasm Maize Alter the Accumulation of T-Urf13 Mitochondrial Transcripts. Genetics 1996, 143, 1383–1394. [Google Scholar] [CrossRef]
- Wolf-Litman, O.; Soferman, O.; Tabib, Y.; Izhar, S. Interaction of the mitochondrial S-Pcf locus for cytoplasmic male sterility in Petunia with multiple fertility-restoration genes in somatic hybrid plants. Theor. Appl. Genet. 1992, 84, 829–834. [Google Scholar] [CrossRef] [PubMed]
- Wang, K.; Gao, F.; Ji, Y.; Liu, Y.; Dan, Z.; Yang, P.; Zhu, Y.; Li, S. ORFH79 impairs mitochondrial function via interaction with a subunit of electron transport chain complex III in Honglian cytoplasmic male sterile rice. New Phytol. 2013, 198, 408–418. [Google Scholar] [CrossRef] [PubMed]
- Xiao, S.; Zang, J.; Pei, Y.; Liu, J.; Liu, J.; Song, W.; Shi, Z.; Su, A.; Zhao, J.; Chen, H. Activation of Mitochondrial orf355 Gene Expression by a Nuclear-Encoded DREB Transcription Factor Causes Cytoplasmic Male Sterility in Maize. Mol. Plant 2020, 13, 1270–1283. [Google Scholar] [CrossRef] [PubMed]
- Bentolila, S.; Alfonso, A.A.; HansonM, R. A pentatricopep tide repeat containing gene restores fertility to cytoplasmic male sterile plants. Proc. Natl. Acad. Sci. USA 2002, 99, 10887–10892. [Google Scholar] [CrossRef] [Green Version]
- Sun, L.; Yao, F.; Li, C.; Li, L.; Liu, B.; Gao, Q. RAPD analysing of CMS-T, K, V mtDNAs and cloning of mtDNA fragments associated with CMS-K in wheat. Acta Agron. Sin. 2001, 27, 144–148. [Google Scholar]
- Song, J.; Hedgcoth, C. A chimeric gene (orf256) is expressed as protein only in cytoplasmic male-sterile lines of wheat. Plant Mol. Biol. 1994, 26, 535–539. [Google Scholar] [CrossRef]
- Hedgcoth, C.; El-Shehawi, A.M.; Wei, P.; Clarkson, M.; Tamalis, D. A chimeric open reading frame associated with cytoplasmic male sterility in alloplasmic wheat with Triticum timopheevi mitochondria is present in several Triticum and Aegilops species, barley, and rye. Curr. Genet. 2002, 41, 357–366. [Google Scholar] [CrossRef]
- Gupta, P.K.; Balyan, H.S.; Gahlaut, V.; Saripalli, G.; Pal, B.; Basnet, B.R.; Joshi, A.K. Hybrid wheat: Past, present and future. Theor. Appl. Genet. 2019, 132, 2463–2483. [Google Scholar] [CrossRef]
- Melonek, J.; Duarte, J.; Martin, J.; Beuf, L.; Murigneux, A.; Varenne, P.; Comadran, J.; Specel, S.; Levadoux, S.; Bernath-Levin, K.; et al. The genetic basis of cytoplasmic male sterility and fertility restoration in wheat. Nat. Commun. 2021, 12, 1–14. [Google Scholar] [CrossRef]
- Liu, H.; Cui, P.; Zhan, K.; Lin, Q.; Zhuo, G.; Guoyin, Z.; Ding, F.; Yang, W.; Liu, D.; Hu, S.; et al. Comparative analysis of mitochondrial genomes between a wheat K-type cytoplasmic male sterility (CMS) line and its maintainer line. BMC Genom. 2011, 12, 163. [Google Scholar] [CrossRef] [Green Version]
- Gui, A.; Nie, Y.; Ma, L.; Xu, H.; Li, R.; Liu, X.; Kong, D.; Zhang, X.; Mu, P. Mapping QTLs of fertility restoring genes for AL-type male sterility line AL18A in wheat. J. Triticeae Crop. 2017, 37, 1–6. [Google Scholar]
- Nie, Y.; Kong, D.; Cui, F.; Sang, W.; Mu, P.; Xu, H.; Tian, X. Study on the outcross rate of wheat AL type cytoplasmic male sterile lines. J. N. Am. Agric. 2018, 46, 1–6. [Google Scholar]
- Nie, Y.; Tian, X.; Han, X.; Xu, H.; Mu, P.; Sang, W.; Cui, F.; Xiang, J.; Zhou, B. New hybrid wheat variety with high yield and good quality, Xindong 43. J. Triticeae Crop. 2014, 34, 1450. [Google Scholar]
- Wang, S.; Zhang, L.; Wang, Q.; Hang, X.; Kang, M. Scanning electronic microscope observations on pollens of AL- and other type male-sterile lines of wheat. J. South China Agric. Univ. 1992, S1, 43–45. [Google Scholar]
- Jiang, H. Comparison of restoring and maintaining characteristic among Q-, AL- and T-type wheat male sterile lines. J. Sichuan Agric. Univ. 2002, 20, 198–199. [Google Scholar]
- Song, J.; Hedgcoth, C. Influence of nuclear background on transcription of a chimeric gene (orf256) and coxI in fertile and cytoplasmic male sterile wheats. Genome 1994, 37, 203–209. [Google Scholar] [CrossRef]
- Liu, X. Genetic Analysis and Molecular Markers of the Fertility Restoration Gene on AL-Type Cytoplasmic Male-Sterility in Wheat. Master’s Thesis, Xinjiang Shihezi, Shihezi University, Xinjiang, China, 1 June 2010. [Google Scholar]
- Yu, J.; Zhang, D. Molecular Control of Redox Homoeostasis in Specifying the Cell Identity of Tapetal and Microsporocyte Cells in Rice. Rice 2019, 12, 1–9. [Google Scholar] [CrossRef]
- Nguyen, J.N.T.; Harbison, A.M. Scanning Electron Microscopy Sample Preparation and Imaging. In Breast Cancer; Espina, V., Ed.; Humana Press: New York, NY, USA, 2017; Volume 1606. [Google Scholar]
- Sugiyama, Y.; Watase, Y.; Nagase, M.; Makita, N.; Yagura, S.; Hirai, A.; Sugiura, M. The complete nucleotide sequence and multipartite organization of the tobacco mitochondrial genome: Comparative analysis of mitochondrial genomes in higher plants. Mol. Genet. Genom. 2004, 272, 603–615. [Google Scholar] [CrossRef]
- Schwartz, S.; Zhang, Z.; Frazer, K.A.; Smit, A.; Riemer, C.; Bouck, J.; Gibbs, R.; Hardison, R.; Miller, W. PipMaker: A web server for aligning two genomic DNA sequences. Genome Res. 2000, 10, 577–586. [Google Scholar] [CrossRef] [Green Version]
- Schwartz, S.; Elnitski, L.; Li, M.; Weirauch, M.; Riemer, C.; Smit, A.; Program, N.C.S.; Green, E.D.; Hardison, R.C.; Miller, W. MultiPipMaker and supporting tools: Alignments and analysis of multiple genomic DNA sequences. Nucleic Acids Res. 2003, 31, 3518–3524. [Google Scholar] [CrossRef] [Green Version]
- Clough, S.J.; Bent, A.F. Floral dip: A simplified method forAgrobacterium-mediated transformation of Arabidopsis thaliana. Plant J. 1998, 16, 735–743. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Hirsche, J.; García Fernández, J.M.; Stabentheiner, E.; Großkinsky, D.K.; Roitsch, T. Differential Effects of Carbohydrates on Arabidopsis Pollen Germination. Plant Cell Physiol. 2017, 58, 691–701. [Google Scholar] [CrossRef] [PubMed]
Figure 1.
Comparison of anther and pollen grains of AL18B and AL18A. (A), (a,d) Mature pollen grains of AL18B and AL18A stained with I2-KI (Scale bar: 200 μm); (b,e) Mature pollen grains of AL18B and AL18A (Scale bar: 300 μm); (c,f) Tapetal cell surface-localized orbicule (Or) structures of AL18B and AL18A (Scale bars: 10 µm). (B), (h,i,j) Paraffin sections of early-uninucleate, later-uninucleate, and binucleate stage of AL18B. (k,l,m) Paraffin sections of early-uninucleate, later-uninucleate, and binucleate stage of AL18A (Scale bars: 10 µm). (C), (o–q) Carmine acetate dyeing of pollen in uninucleate, early-binucleate, and later- binucleate stage of AL18B. (r–t) Carmine acetate dyeing of pollen in uninucleate, early-binucleate, and later- binucleate stage of AL18A, red arrows indicate nucleus. (Scale bars: 30 µm).
Figure 1.
Comparison of anther and pollen grains of AL18B and AL18A. (A), (a,d) Mature pollen grains of AL18B and AL18A stained with I2-KI (Scale bar: 200 μm); (b,e) Mature pollen grains of AL18B and AL18A (Scale bar: 300 μm); (c,f) Tapetal cell surface-localized orbicule (Or) structures of AL18B and AL18A (Scale bars: 10 µm). (B), (h,i,j) Paraffin sections of early-uninucleate, later-uninucleate, and binucleate stage of AL18B. (k,l,m) Paraffin sections of early-uninucleate, later-uninucleate, and binucleate stage of AL18A (Scale bars: 10 µm). (C), (o–q) Carmine acetate dyeing of pollen in uninucleate, early-binucleate, and later- binucleate stage of AL18B. (r–t) Carmine acetate dyeing of pollen in uninucleate, early-binucleate, and later- binucleate stage of AL18A, red arrows indicate nucleus. (Scale bars: 30 µm).

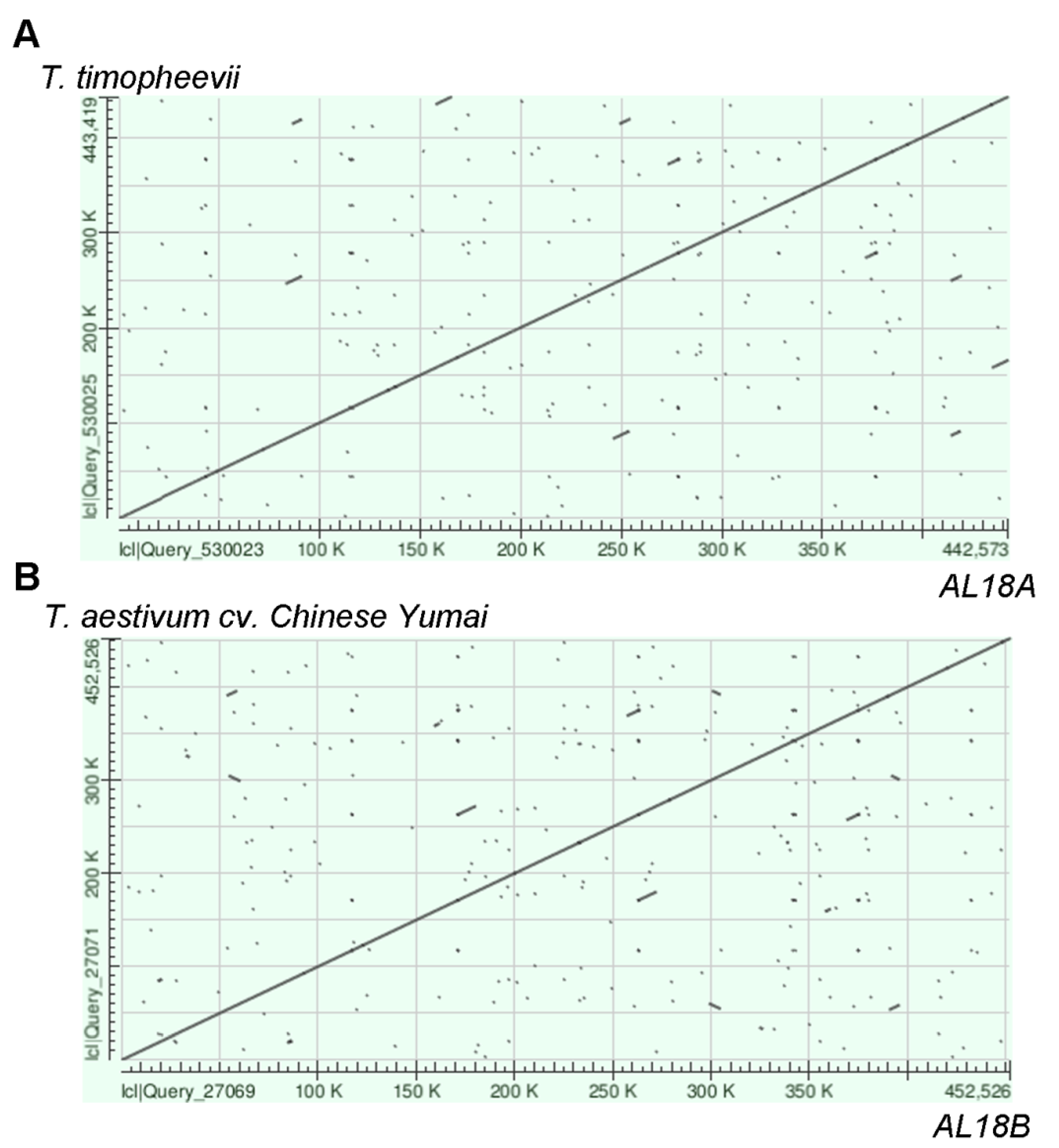

Figure 2.
Comparison of mitochondrial DNA between AL18A and Triticum timopheevii (A), AL18B and Chinese Yumai (B). (A) The abscissa represents the mitochondrial DNA sequence of AL18A, and the ordinate represents the mitochondrial DNA sequence of Triticum timopheevii. (B) The abscissa represents the mitochondrial DNA sequence of AL18B, and the ordinate represents the mitochondrial DNA sequence of Chinese Yumai.
Figure 2.
Comparison of mitochondrial DNA between AL18A and Triticum timopheevii (A), AL18B and Chinese Yumai (B). (A) The abscissa represents the mitochondrial DNA sequence of AL18A, and the ordinate represents the mitochondrial DNA sequence of Triticum timopheevii. (B) The abscissa represents the mitochondrial DNA sequence of AL18B, and the ordinate represents the mitochondrial DNA sequence of Chinese Yumai.

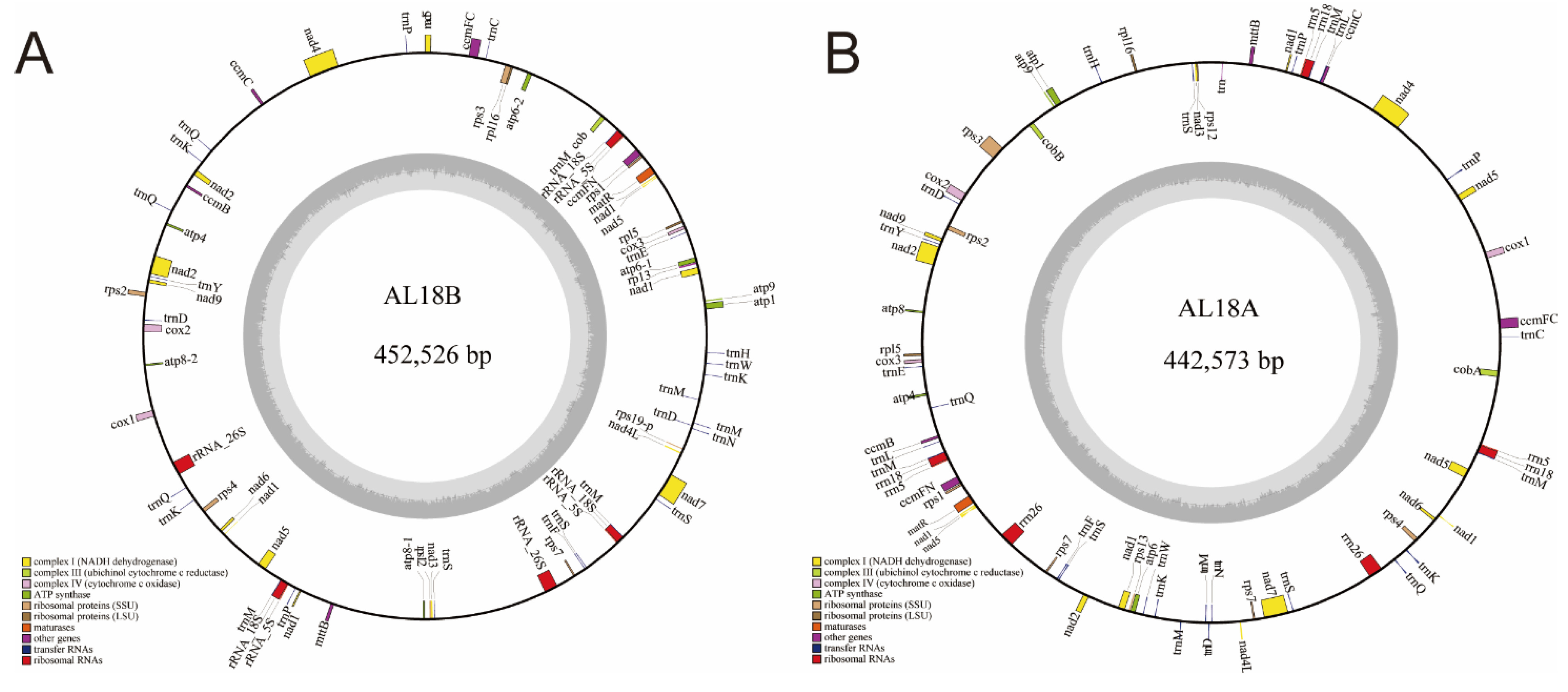

Figure 3.
Circle map of AL18B (A) and AL18A (B) mitochondrial genome. Genes on the forward and reverse strands are presented on the outside and inside of the circle, respectively. The two gray layers represent the GC content in the mitochondrial genome.
Figure 3.
Circle map of AL18B (A) and AL18A (B) mitochondrial genome. Genes on the forward and reverse strands are presented on the outside and inside of the circle, respectively. The two gray layers represent the GC content in the mitochondrial genome.

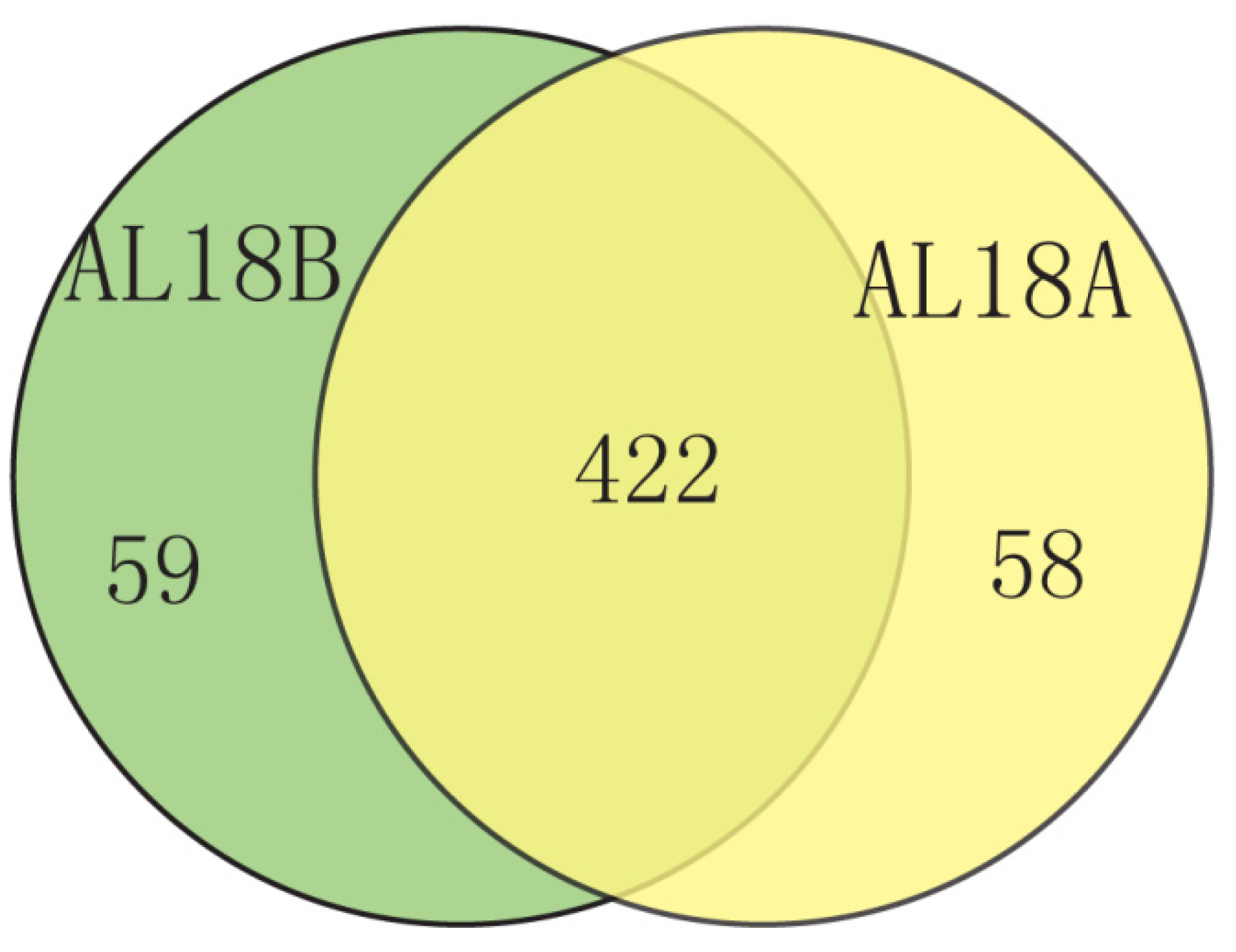

Figure 4.
Venn diagram showing the mutual overlaps of orfs in the AL18B and AL18A.

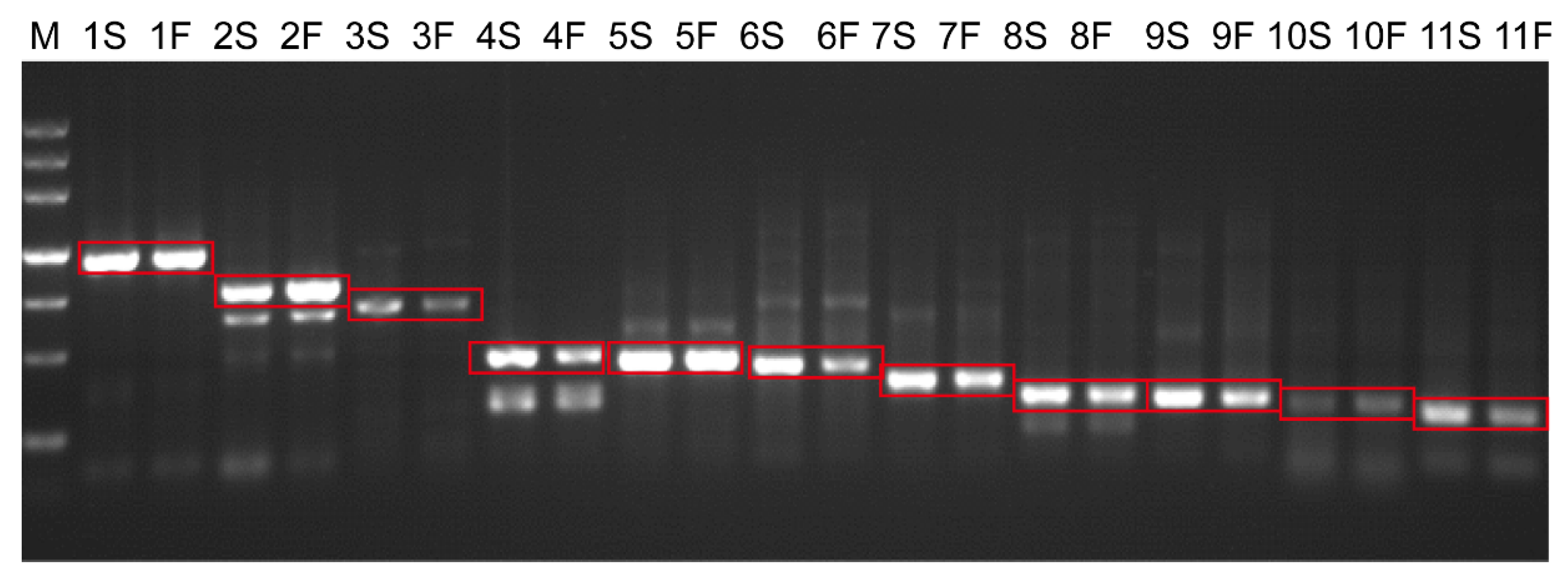

Figure 5.
Transcription detection of 11 candidate orfs in AL18A and F1. M, molecular marker, from bottom to the upper, 200, 500, 800, 1200, 2000, 3000, 4500 bp, respectively; 1–11 represented 11 candidate orfs (orf376, orf279, orf232, orf139, orf129, orf124, orf103, orf85, orf83, orf74, and orf66) in AL18A and F1 (AL18A × 99AR144-1), S represents AL18A, and F represents F1 (AL18A × 99AR144-1).
Figure 5.
Transcription detection of 11 candidate orfs in AL18A and F1. M, molecular marker, from bottom to the upper, 200, 500, 800, 1200, 2000, 3000, 4500 bp, respectively; 1–11 represented 11 candidate orfs (orf376, orf279, orf232, orf139, orf129, orf124, orf103, orf85, orf83, orf74, and orf66) in AL18A and F1 (AL18A × 99AR144-1), S represents AL18A, and F represents F1 (AL18A × 99AR144-1).
Figure 6.
Phenotype of wild-type, orf256 and orf279 transgenic plants. (A) Transgenic plants; (B) siliques; (C) pollen germination rate, scale bar is 200 μm.
Figure 6.
Phenotype of wild-type, orf256 and orf279 transgenic plants. (A) Transgenic plants; (B) siliques; (C) pollen germination rate, scale bar is 200 μm.

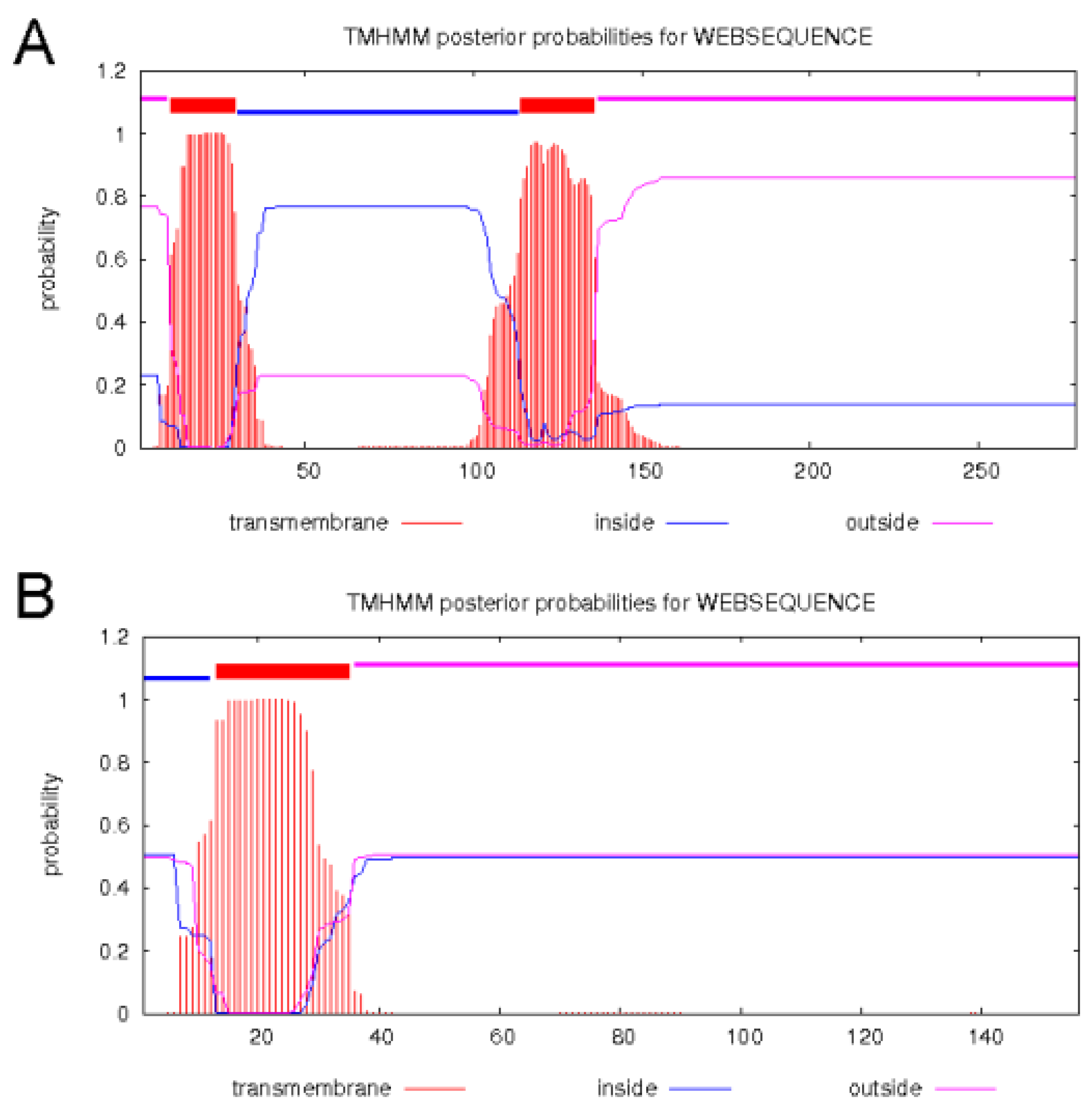

Figure 7.
Transmembrane domain prediction of orf279 (A) and atp8 (B).
Table 1.
Illumina PE sequencing data statistics of AL18A and AL18B.
| Sample ID | Insert Size (bp) | Raw Data (Mb) | Clean Data (Mb) | Reads Length (bp) | Clean Data GC (%) | Clean Data Q20 (%) | Clean Data Q30 (%) |
|---|---|---|---|---|---|---|---|
| AL18A | 450 | 4325 | 4116 | (150:150) | 48.15 | 97.75 | 93.22 |
| AL18B | 430 | 5806 | 5469 | (150:150) | 45.82 | 98.59 | 95.45 |
Table 2.
PacBio sequencing data statistics of AL18A and AL18B.
| Sample ID | Subreads Number | Subreads Bases (bp) | Subreads Largest Length (bp) | Subreads N50 Length (bp) | Subreads N90 Length (bp) | Subreads Average Length (bp) |
|---|---|---|---|---|---|---|
| AL18A | 10,307 | 82,044,853 | 21,253 | 9924 | 5003 | 7960 |
| AL18B | 44,802 | 134,889,953 | 21,302 | 7467 | 909 | 3011 |
Table 3.
Comparison of coding genes in different mitochondrial genomes.
| Functional Category | AL18A | Triticum timopheevii | AL18B | Functional Category | AL18A | Triticum timopheevii | AL18B |
|---|---|---|---|---|---|---|---|
| Complex V | atp1 | atp1 | atp1 | Complex I | nad1 | nad1 | nad1 |
| atp4 | atp4 | atp4 | nad2 | nad2 | nad2 | ||
| atp6 | atp6 | atp6-1 | nad3 | nad3 | nad3 | ||
| atp6-2 | nad4 | nad4 | nad4 | ||||
| atp8 | atp8-1 | atp8-1 | nad4L | nad4L | nad4L | ||
| atp8-p | atp8-p | atp8-2 | nad5 | nad5 | nad5 | ||
| atp9 | atp9 | atp9 | nad6 | nad6 | nad6 | ||
| Cytochtome c biogenesis | ccmB | ccmB | ccmB | nad7 | nad7 | nad7 | |
| ccmC-1 | ccmC-1 | ccmC | nad9 | nad9 | nad9 | ||
| ccmC-p | ccmC-p | Ribosomal proteins | rpl16 | rpl16 | rpl16 | ||
| ccmFC | ccmFC | ccmFC | rpl16-p | rpl16-p | |||
| ccmFN | ccmFN | ccmFN | rpl2-p | rpl2-p | |||
| Complex III & IV | cobA | cobA | rpl5 | rpl5 | rpl5 | ||
| cobB | cobB | cobB | rps1 | rps1 | rps1 | ||
| cox1 | cox1 | cox1 | rps12 | rps12 | rps12 | ||
| cox2 | cox2 | cox2 | rps13 | rps13 | rp13 | ||
| cox2a-p | cox2a-p | rps19-p | rps19-p | rps19-p | |||
| cox3 | cox3 | cox3 | rps2 | rps2 | rps2 | ||
| others | matR | matR | matR | rps3 | rps3 | rps3 | |
| mttB | mttB | mttB | rps4 | rps4 | rps4 | ||
| rps7 | rps7 | rps7 |
Table 4.
Comparison of noncoding genes in different mitochondrial genomes.
| Functional Category | AL18A | Triticum timopheevii | AL18B | Functional Category | AL18A | Triticum timopheevii | AL18B |
|---|---|---|---|---|---|---|---|
| rRNAs | rrn18-1 | rrn18-1 | rrn18-1 | tRNA (amino acid) | Asn | Asn | Asn |
| rrn18-2 | rrn18-2 | rrn18-2 | Met | Met | Met | ||
| rrn18-3 | rrn18-3 | rrn18-3 | Trp | Trp | Trp | ||
| rrn26-1 | rrn26-1 | rrn26-1 | Met | Met | Met | ||
| rrn26-2 | rrn26-2 | rrn26-2 | Asp | Asp | Asp | ||
| rrn26-p | Met | Met | Met | ||||
| rrn5-1 | rrn5-1 | rrn5-1 | Ser | Ser | Ser | ||
| rrn5-2 | rrn5-2 | rrn5-2 | Phe | Phe | Phe | ||
| rrn5-3 | rrn5-3 | rrn5-3 | Ser | Ser | Ser | ||
| tRNAs (amino acid) | Cys | Cys | Cys | Asp | Asp | Asp | |
| Pro | Pro | Pro | Tyr | Tyr | Tyr | ||
| Gln | Gln | Gln | His | His | His | ||
| Lys | Lys | Lys | Met | Met | |||
| Gln | Gln | Gln | Lys | ||||
| Glu | Glu | Glu | Gln | ||||
| Lys | Lys | Lys | Leu | Leu | |||
| Met | Met | Met | Leu | Leu | |||
| Pro | Pro | Pro | Ala | ||||
| Ser | Ser | Ser | Ile | Ile |
Table 5.
Description of eleven orfs containing transmembrane domains in AL18A.
| Number | orf | Start | End | Direction | Size (bp) | Description |
|---|---|---|---|---|---|---|
| 1 | orf376 | 170,465 | 171,595 | + | 1131 | Ribosomal protein S2 |
| 2 | orf279 | 111,818 | 112,657 | − | 840 | ATP synthase subunit 8 |
| 3 | orf232 | 296,072 | 296,770 | − | 699 | |
| 4 | orf139 | 295,683 | 296,102 | − | 420 | Hypothetical protein |
| 5 | orf129 | 112,174 | 112,563 | − | 390 | orf143 (mitochondrion) |
| 6 | orf124 | 156,900 | 157,274 | − | 375 | |
| 7 | orf103 | 207,567 | 207,878 | + | 312 | |
| 8 | orf85 | 156,879 | 157,136 | + | 258 | |
| 9 | orf83 | 296,477 | 296,728 | + | 252 | |
| 10 | orf74 | 25,285 | 25,509 | + | 225 | |
| 11 | orf66 | 23,773 | 23,973 | + | 201 |
Table 6.
Phenotypic study of transgenic Arabidopsis thaliana containing 315 bp mitochondrial signal peptide of Rf1b.
Table 6.
Phenotypic study of transgenic Arabidopsis thaliana containing 315 bp mitochondrial signal peptide of Rf1b.
| Candidate orfs | Number of T1 Plants | Seed Setting Rate of T1 Plant (%) | |||
|---|---|---|---|---|---|
| >90 | 51–90 | 11–50 | 1–10 | ||
| CK-Rf1b | 9 | 9 (100%) | |||
| orf66 | 32 | 26 (81%) | 4 (13%) | 2 (6%) | |
| orf74 | 28 | 8 (29%) | 6 (21%) | 7 (25%) | 7 (25%) |
| orf85 | 26 | 24 (92%) | 1 (4%) | 1 (4%) | |
| orf103 | 51 | 39 (76%) | 2 (4%) | 5 (10%) | 5 (10%) |
| orf279 | 49 | 39 (80%) | 2 (4%) | 6 (12%) | 2 (4%) |
| orf129 | 38 | 37 (97%) | 1 (3%) | ||
| orf139 | 37 | 32 (87%) | 2 (5%) | 3 (8%) | |
| orf83 | 36 | 33 (92%) | 3 (8%) | ||
| orf232 | 14 | 14 (100%) | |||
| orf124 | 16 | 13 (82%) | 1 (6%) | 2 (12%) | |
| orf376 | 67 | 64 (96%) | 2 (3%) | 1 (1%) | |
| orf256 | 57 | 55 (96%) | 2 (4%) | ||
Table 7.
Phenotypic study of transgenic Arabidopsis thaliana containing 105 bp mitochondrial signal peptide of Rf1b.
Table 7.
Phenotypic study of transgenic Arabidopsis thaliana containing 105 bp mitochondrial signal peptide of Rf1b.
| Candidate orfs | Number of T1 Plants | Seed Setting Rate of T1 Plant (%) | ||
|---|---|---|---|---|
| 1–50 | 51–90 | >90 | ||
| orf279 | 61 | 26 (43%) | 20 (33%) | 15 (24%) |
| orf74 | 36 | 1 (3%) | 2 (6%) | 33 (91%) |
| orf83 | 36 | 36 (100%) | ||
| orf256 | 57 | 3 (5%) | 54 (95%) | |
| orf376 | 53 | 3 (6%) | 3 (6%) | 47 (88%) |
| orf139 | 28 | 28 (100%) | ||
| orf124 | 36 | 36 (100%) | ||
| orf66 | 53 | 1 (2%) | 2 (4%) | 50 (94%) |
| orf103 | 60 | 1 (2%) | 1 (2%) | 58 (96%) |
| orf232 | 23 | 1 (4%) | 2 (9%) | 20 (87%) |
| orf129 | 19 | 1 (5%) | 18 (95%) | |
| orf85 | 32 | 2 (6%) | 30 (94%) | |
Table 8.
Pollen germination rate of transgenic plants.
| Candidate orfs | Flower Number of T1 Plants | Pollen Germination Rate (%) | ||
|---|---|---|---|---|
| <30 | 30–60 | >60 | ||
| orf279 | 122 | 50 (41%) | 38 (31%) | 34 (28%) |
| orf74 | 72 | 2 (3%) | 4 (6%) | 66 (91%) |
| orf83 | 72 | 2 (3%) | 70 (97%) | |
| orf256 | 114 | 6 (5%) | 2 (2%) | 106 (93%) |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Hao, M.; Yang, W.; Lu, W.; Sun, L.; Shoaib, M.; Sun, J.; Liu, D.; Li, X.; Zhang, A. Characterization of the Mitochondrial Genome of a Wheat AL-Type Male Sterility Line and the Candidate CMS Gene. Int. J. Mol. Sci. 2021, 22, 6388. https://doi.org/10.3390/ijms22126388
AMA Style
Hao M, Yang W, Lu W, Sun L, Shoaib M, Sun J, Liu D, Li X, Zhang A. Characterization of the Mitochondrial Genome of a Wheat AL-Type Male Sterility Line and the Candidate CMS Gene. International Journal of Molecular Sciences. 2021; 22(12):6388. https://doi.org/10.3390/ijms22126388
Chicago/Turabian StyleHao, Miaomiao, Wenlong Yang, Weiwen Lu, Linhe Sun, Muhammad Shoaib, Jiazhu Sun, Dongcheng Liu, Xin Li, and Aimin Zhang. 2021. "Characterization of the Mitochondrial Genome of a Wheat AL-Type Male Sterility Line and the Candidate CMS Gene" International Journal of Molecular Sciences 22, no. 12: 6388. https://doi.org/10.3390/ijms22126388
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
