Antiradical Properties of N-Oxide Surfactants—Two in One

by
Agnieszka Lewińska
1,*,
Julita Kulbacka
2,
Marta Domżał-Kędzia
3 and
Maciej Witwicki
1,*
1
Faculty of Chemistry, University of Wrocław, Joliot-Curie 14, 50-383 Wroclaw, Poland
2
Department of Molecular and Cellular Biology, Faculty of Pharmacy, Wroclaw Medical University, Borowska 211A, 50-367 Wroclaw, Poland
3
Department of Biotransformation, Faculty of Biotechnology, University of Wroclaw, Joliot-Curie 14a, 50-383 Wroclaw, Poland
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2021, 22(15), 8040; https://doi.org/10.3390/ijms22158040
Submission received: 30 June 2021 / Revised: 14 July 2021 / Accepted: 22 July 2021 / Published: 27 July 2021
(This article belongs to the Special Issue Molecular Nano-Architectures: Chemistry and Physics)
Browse Figures
Versions Notes

Abstract

:
Surfactants are molecules that lower surface or interfacial tension, and thus they are broadly used as detergents, wetting agents, emulsifiers, foaming agents, or dispersants. However, for modern applications, substances that can perform more than one function are desired. In this study we evaluated antioxidant properties of two homological series of N-oxide surfactants: monocephalic 3-(alkanoylamino)propyldimethylamine-N-oxides and dicephalic N,N-bis[3,3′-(dimethylamino)propyl]alkylamide di-N-oxides. Their antiradical properties were tested against stable radicals using electron paramagnetic resonance (EPR) and UV-vis spectroscopy. The experimental investigation was supported by theoretical density functional theory (DFT) and ab initio modeling of the X–H bonds dissociation enthalpies, ionization potentials, and Gibbs free energies for radical scavenging reactions. The evaluation was supplemented with a study of biological activity. We found that the mono- and di-N-oxides are capable of scavenging reactive radicals; however, the dicephalic surfactants are more efficient than their linear analogues.

1. Introduction

All living organisms are continuously exposed to a variety of harmful factors such as UV irradiation or environmental pollutants [1,2]. As an effect of these factors, the concentration of reactive radicals arises. To regain stability, the reactive radicals tend to undergo reduction, causing oxidative damage to biomolecules in the surroundings. Antioxidants prevent this process in biological systems and enable living cells to repair and renew. Providing natural antioxidants, e.g., from the group of curcuminoids or polyphenols, additionally with other antioxidant compounds, can significantly support patients during therapy in the case of various diseases, such as neurodegenerative or cancerous diseases [3,4,5,6]. The search for effective antioxidants has become one of the priorities of research in many scientific centers in the world because the efficacy of antioxidant compounds varies with structural factors and action mechanisms [7,8,9].
The external application of antioxidants plays an important role in pharmaceutical and cosmetic formulations. Modern cosmetic and pharmaceutical formulations are based on carriers of active substances in which the main role is played by compounds lowering the surface tension at the interface between two phases. Surfactants are amphipathic compounds with hydrophilic and hydrophobic fragments [10]. They are used as emulsifying substances in the production of creams and lotions. They also have foaming and wetting properties, which is why they are widely used in the production of detergents such as dishwashing liquid, soaps, or washing powders. Surfactants also increase the solubility of poorly soluble compounds and increase the penetration of active compounds, e.g., contained in skin cosmetics [11,12]. New applications of surfactants also include their use in carriers, e.g., in the form of nanoemulsions [13]. This approach allows not only for the delivery of active substances deep into a specific target site to increase the solubility of hydrophobic compounds but also for protecting them against the often harmful influence of external factors [14].
For modern applications, substances that can perform more than one function are desired. Hence, surfactants, which will not only reduce surface tension but will also have other properties, e.g., anti-microbial, antioxidant, or other, are sought. Non-ionic N-oxide surfactants exhibit very low toxicity and are biodegradable [15]. For these reasons, they are used in pharmaceuticals, cosmetics, and food products. In addition to their aggregation and emulsifying features that we reported previously [16], they also have antimicrobial and immunomodulatory properties [15], and they have been demonstrated to enhance antioxidant properties of (+)-usnic acid-loaded liposomes [15]. However, the antioxidant properties of N-oxide surfactants remain unexamined, and thus we attempted to characterize the antiradical properties of synthesized single head-single tail 3-(alkanoylamino)propyldimethylamine-N-oxides (CnPDA) and two head-single tail N,N-bis[3,3′-(dimethylamino)propyl]alkylamide di-N-oxides (Cn(DAPANO)2) (structures are shown in Table 1).
To accomplish this aim, the radical scavenging activity of the N-oxides was evaluated using electron paramagnetic resonance (EPR) spectroscopy against two stable radicals: galvinoxyl (GO•) and 1,1-diphenyl-2-picrylhydrazyl (DPPH•). In the next step, the kinetics of the radical scavenging was monitored by UV-vis absorption spectroscopy. The EPR and UV-vis experiments were supplemented with the theoretical calculations at the density functional theory (DFT) and domain based local pair natural orbital coupled-cluster singles and doubles with perturbative inclusion of triples [DLPNO-CCSD(T)] theory levels. The biological examination of the N-oxide surfactants’ cytotoxicity and antioxidant properties on cell cultures of normal human cells was performed. The use of keratinocytes and fibroblasts allowed for the determination of surfactant interactions with skin and mucosa cells.

2. Results and Discussion

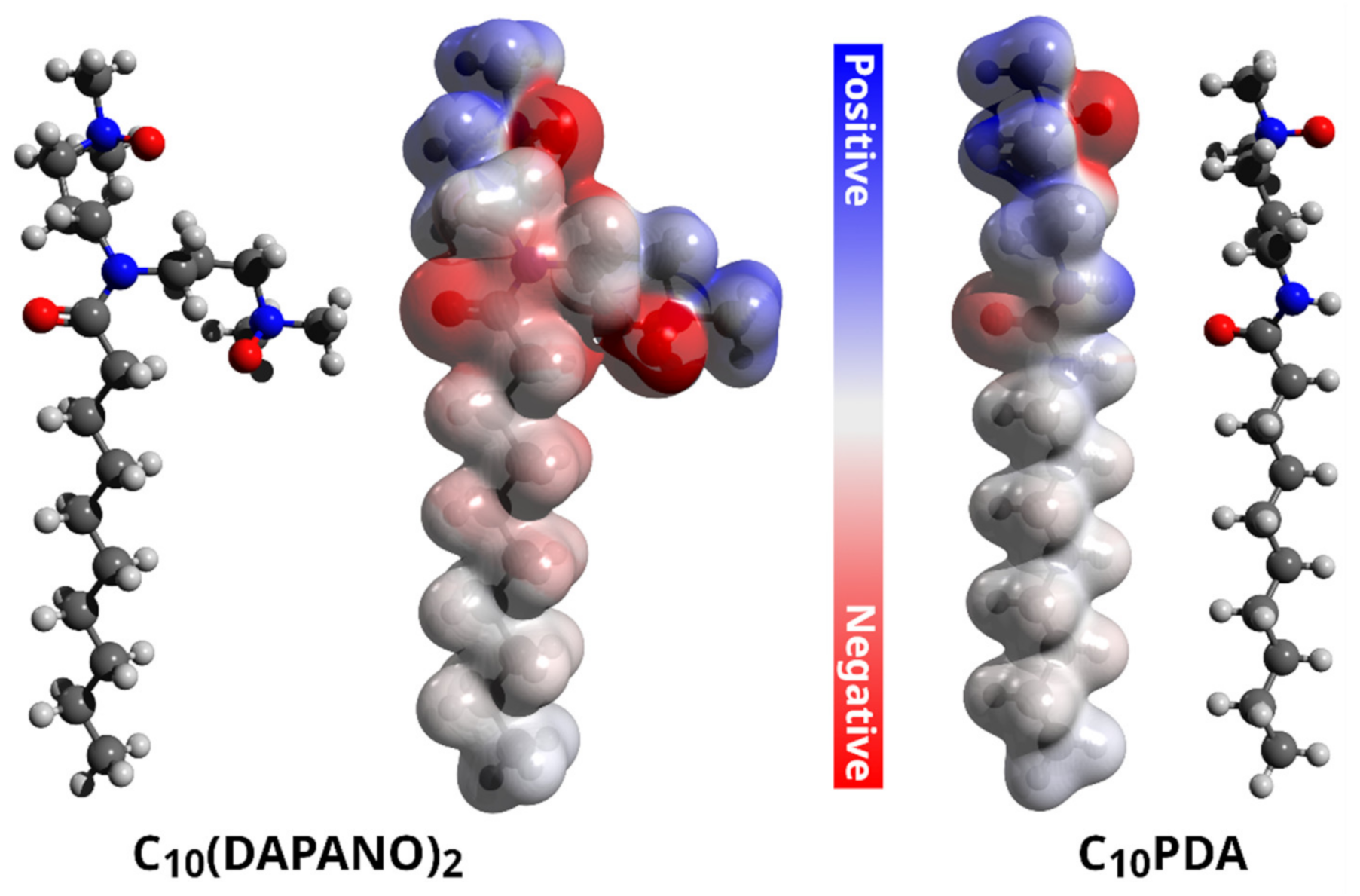

The studied bifunctional N,N-bis[3,3′-(dimethylamino)propyl]alkylamide di-N-oxide surfactants [Cn(DAPANO)2; n = 10, 12, 14, 16], whose structure and properties are summarized in Table 1, were prepared in a straightforward procedure from readily available, inexpensive bio-reagents under mild conditions [18]. Other synthesized surfactants—CnPDA—were prepared using a procedure adapted from Piasecki et al. [19]. Hence, the synthetic procedure applied to obtain Cn(DAPANO)2 and CnPDA regards an important principle of green chemistry.
Previously, we showed that the studied N-oxide surfactants have a profound tendency to form micelles in water, and according to our potentiometric titrations, they can be considered as nonionic at a pH close to 7, which is a physiological condition [17]. As shown by DFT calculations, such nonionic Cn(DAPANO)2 and CnPDA surfactants feature locally negative and positive charge zones in the N-oxide heads and on the carbonyl group (Figure 1). The positive and negative charge is strongly localized on nitrogen and oxygen atoms, respectively. As discussed by Durán-Álvarez et al. [20], such a strong charge localization reflects a hard electrostatic nature of atoms being the charge carriers in Cn(DAPANO)2 and CnPDA. There is, however, an important difference in charge distribution between Cn(DAPANO)2 and CnPDA. As exemplified by C10(DAPANO)2, for the di-N-oxide surfactants, the negative charge diffuses onto the first five carbon atoms of the hydrophobic tail. This negative charge diffusion is not observed for the mono-N-oxides, and thus they should have increased lipophilicity in comparison with their dicephalic counterparts. The COSMO-RS calculated partition coefficients P in a biphasic system of n-octanol and water (given in Table 1 as logP) amply corroborate this conclusion as the logP values for the homologs of the Cn(DAPANO)2 series are significantly smaller than for CnPDA.

2.1. Radical Scavenging by EPR

A reliable approach to evaluate radical scavenging activity (or antiradical properties) is using a stable radical, whose concentration gradually decreases because of the reduction by an antiradical compound. This approach is based on the logical assumption that if a compound can react with the stable radical, it is certainly capable of reacting with much more aggressive radicals, such as •OH. The amount of stable radical reduced/remaining in the sample depends on the power (kind) of the antiradical compound (antioxidant) [7,21].

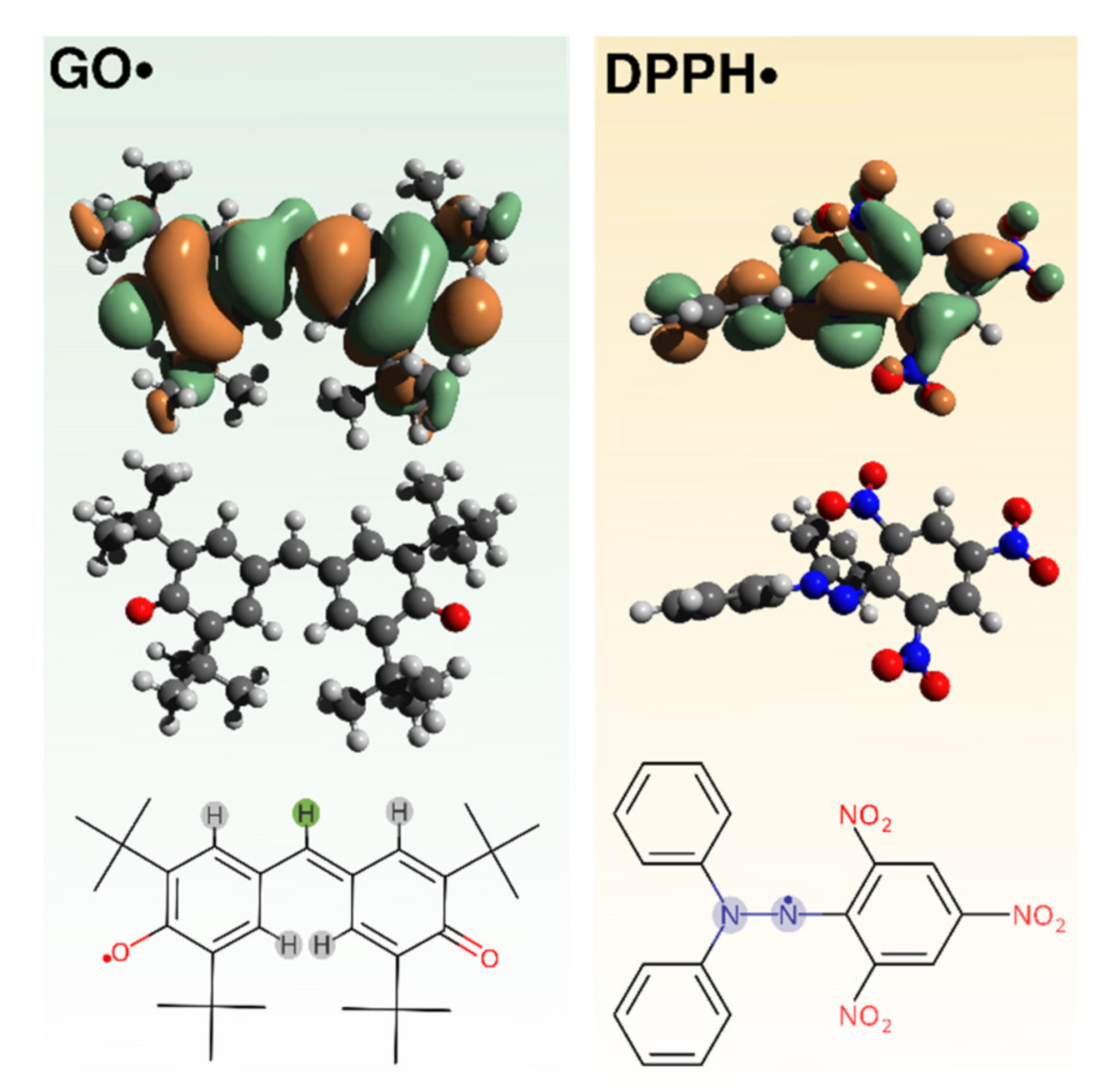

To test the scavenging activity of Cn(DAPANO)2 and CnPDA, we used galvinoxyl (GO•) and 2,2-diphenyl-1-picrylhydrazyl (DPPH•) radicals. Their structures, along with singly occupied molecular orbitals (SOMOs), are shown in Figure 2. The SOMOs show that the unpaired electron in DPPH• and GO• is highly delocalized and this delocalization increases the stability of these two radicals. The electronic structures of GO• and DPPH• were previously discussed in detail [8,9,22,23,24].
We began with an attempt to determine if the N-oxide surfactants can participate in the radical scavenging process when micelles are well-formed. Thus, the reaction mixtures containing a surfactant at C/CMC = 100, which is a typical concentration found in formulations, and GO• or DPPH• at 2 mM were prepared along with the control samples and monitored over time (solutions of DPPH• and GO• without surfactants).
As the antiradical activity of the N-oxide surfactants could have been low, the decay of GO• and DPPH• in the presence of the di- and mono-N-oxide surfactants was monitored with electron paramagnetic resonance (EPR) spectroscopy, which is an extremely sensitive technique for the radical systems [25,26,27]. DPPH• and GO• have well-defined EPR spectra, and a clear decrease in their intensity was observed for the N-oxide surfactants as exemplified by C12(DAPANO)2 in Figure 3. An intensity decline was not observed for the control samples. Hence, the EPR experiments revealed the antiradical activity of Cn(DAPANO)2 and CnPDA surfactants.
The scavenging capacity of the surfactants was judged quantitatively by measuring the percentage of remaining GO• and DPPH• after a fixed reaction time. The relative concentration of GO• and DPPH• was calculated from Equation (1):
r e m a i n i n g   r a d i c a l % = I t I 0 × 100 %
where I 0 and I t correspond to the EPR signal integral intensity of a radical in the absence and presence of the N-oxide surfactants after a fixed time, respectively.

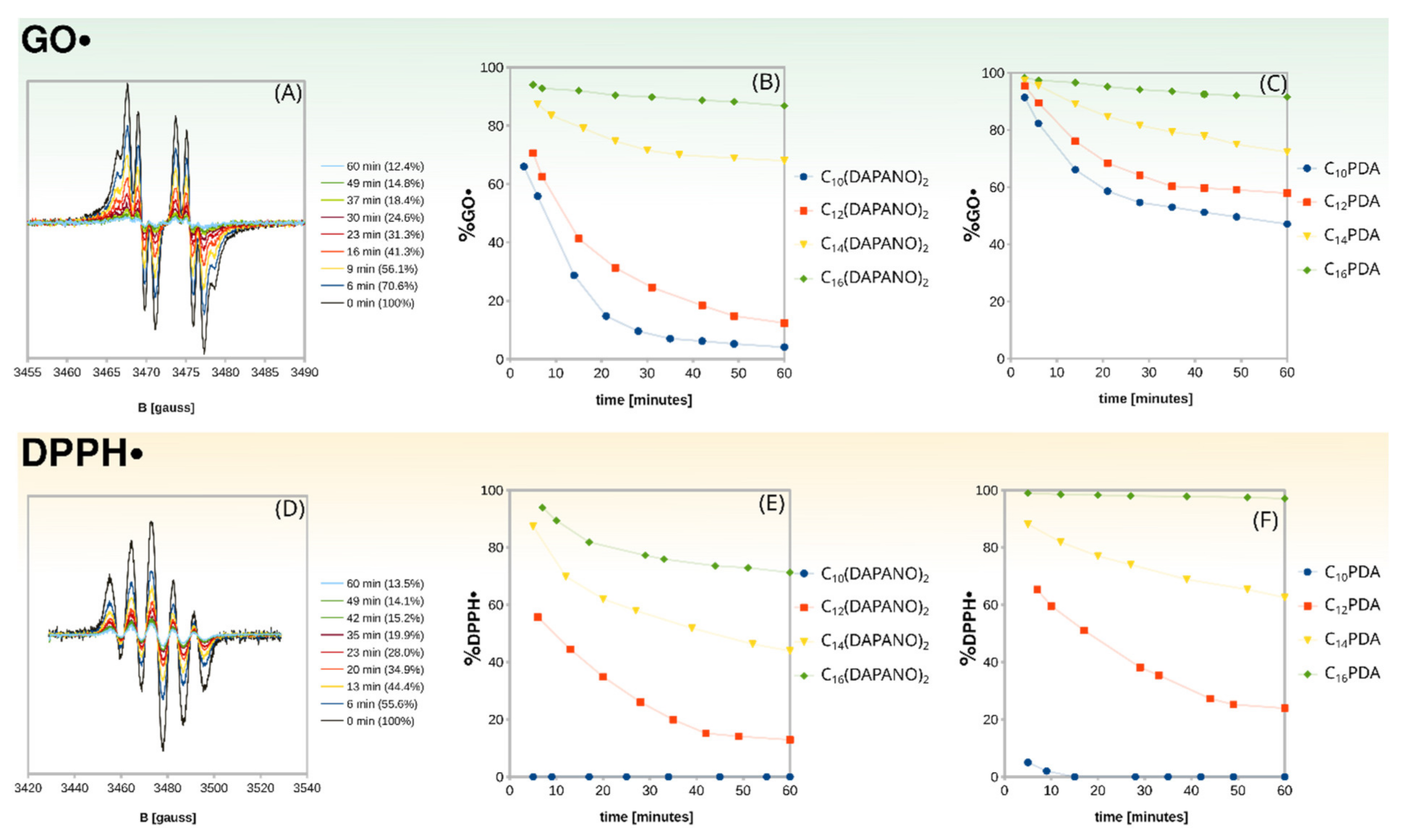

These results are given as plots in Figure 3. The concentration of DPPH• and GO• underwent a decrease for both homologous series, but the reduction of radicals was less efficient with the increasing length of the surfactant alkyl chain. What stands out in Figure 3 is that the dicephalic surfactants scavenged DPPH• and GO• significantly faster than their linear counterparts. This is evident in the case of C12(DAPANO)2 and C12PDA. After 60 min of reaction, the former reduced the number of GO• by 88% and DPPH• by 86%, while the latter by 59% and 24%, respectively. From Figure 3, we can see that both di- and mono-N-oxides scavenge DPPH• more actively, and therefore DPPH• was used in our further studies as it seems to better mimic more reactive radicals such as •OH. Moreover, DPPH• is reliably used in similar studies [8,21,28].

2.2. Radical Scavenging by UV-Vis

The EPR studies for C/CMC = 100 imply that the rate of radical scavenging is higher for Cn(DAPANO)2 than for their linear analogues. To verify this, the reaction of DPPH• with each di-N-oxide surfactant was monitored using pseudo-first-order kinetics. In this part of our work, we used UV-vis absorption spectroscopy since such experiments are quicker to set up in comparison with EPR, which requires careful tuning of the spectrometer after the sample is placed in the resonator, and thus the beginning of the reaction is difficult to monitor with EPR.
In contrast to EPR spectroscopy, however, in which only signals due to DPPH• and GO• were observed, to evaluate antiradical activity by UV-vis measurements meaningfully, the used stable radical is required to have absorption maxima outside the surfactant’s absorption range. As demonstrated by Figure 4, this is the case of the DPPH• selected to investigate the antiradical properties of the Cn(DAPANO)2 and CnPDA surfactants series. To fully understand the absorption of DPPH• and the surfactants in the UV-vis range, the time-dependent density-functional theory (TD-DFT) calculations were carried out. Their results are summarized in Figure 4 and Figure 5. The use of the B3LYP functional led to a highly satisfactory agreement between the theoretical and experimental spectra, and henceforth the results of the TD-DFT B3LYP/def2-TZVP calculations are given in the text and Figure 5.

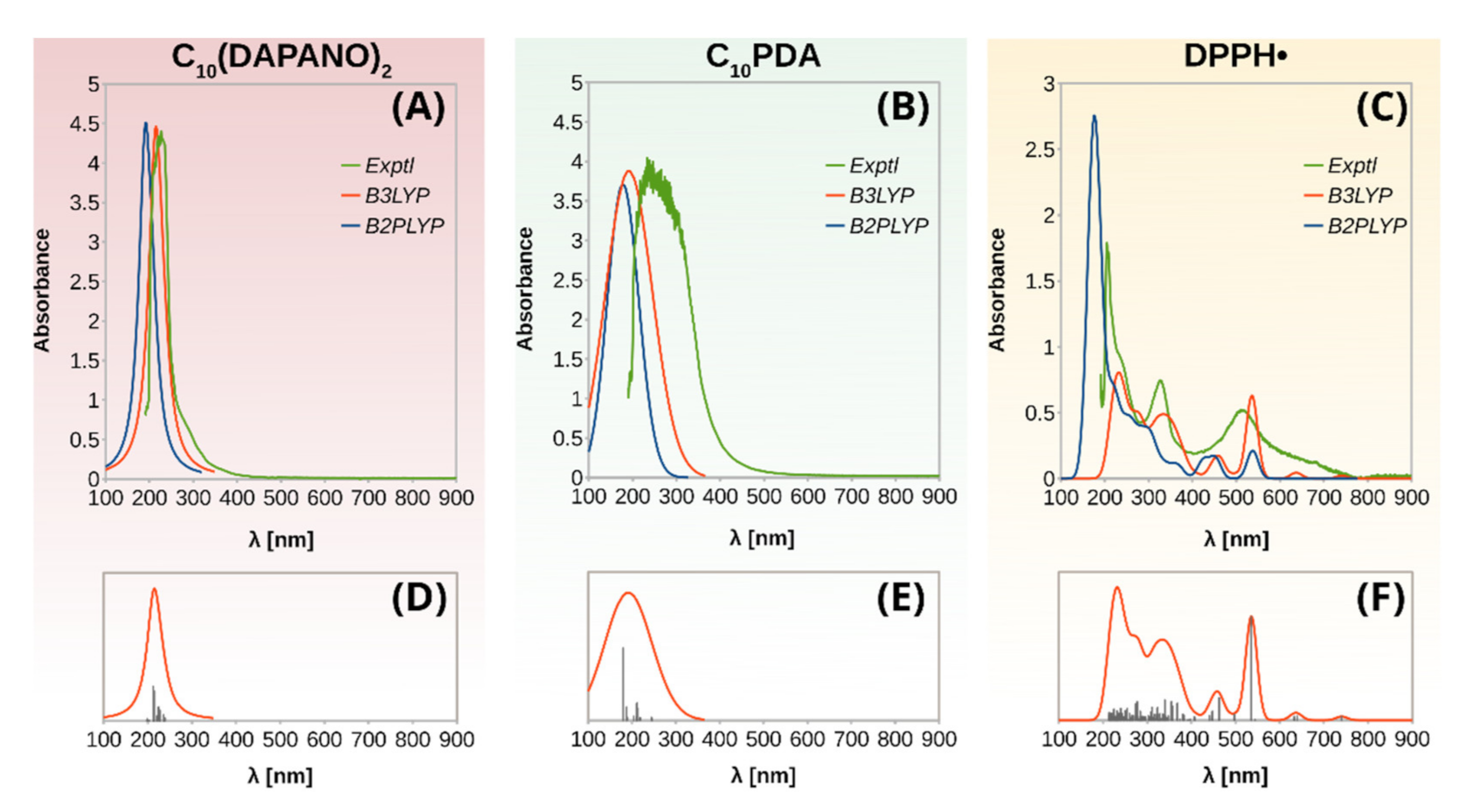

As exemplified by C10(DAPANO)2 and C10PDA, the di- and mono-N-oxide surfactants show strong absorption at the range of 190–420 nm with a maximum at approximately 205 nm (Figure 4). As illustrated by the natural transition orbitals (NTOs) [29] from TD-DFT computations, the heads of the surfactants play the role of chromophores. The observed absorption results from the excitation of the oxygen p-type lone pairs to the π* and σ* orbitals (Figure 5).
The presence of a delocalized electron in DPPH• gives rise to the deep violet color. The decrease in the DPPH• absorption at 517 nm is associated with the undergoing scavenging of this radical by an antioxidant. As Figure 4 demonstrates, this absorption maximum is clearly outside the Cn(DAPANO)2 and CnPDA absorption range, and thus it can be used to evaluate radical scavenging properties of the N-oxide surfactants. The energy of the electronic transition responsible for this absorption band was underestimated by the time-dependent B3LYP computations by less than 0.1 eV (expt: 2.40 eV; cald: 2.31 eV), which is a highly satisfactory agreement [30,31]. The analysis of NTOs reveals that two individual pairs of molecular orbitals contribute strongly to this excitation. The first pair with the contribution of 38.1% is the transition of an electron from a π-type doubly occupied molecular orbital to the SOMO, and the second pair defines the dominant transition from the SOMO to a π-type unoccupied orbital (contribution of 58.7%).

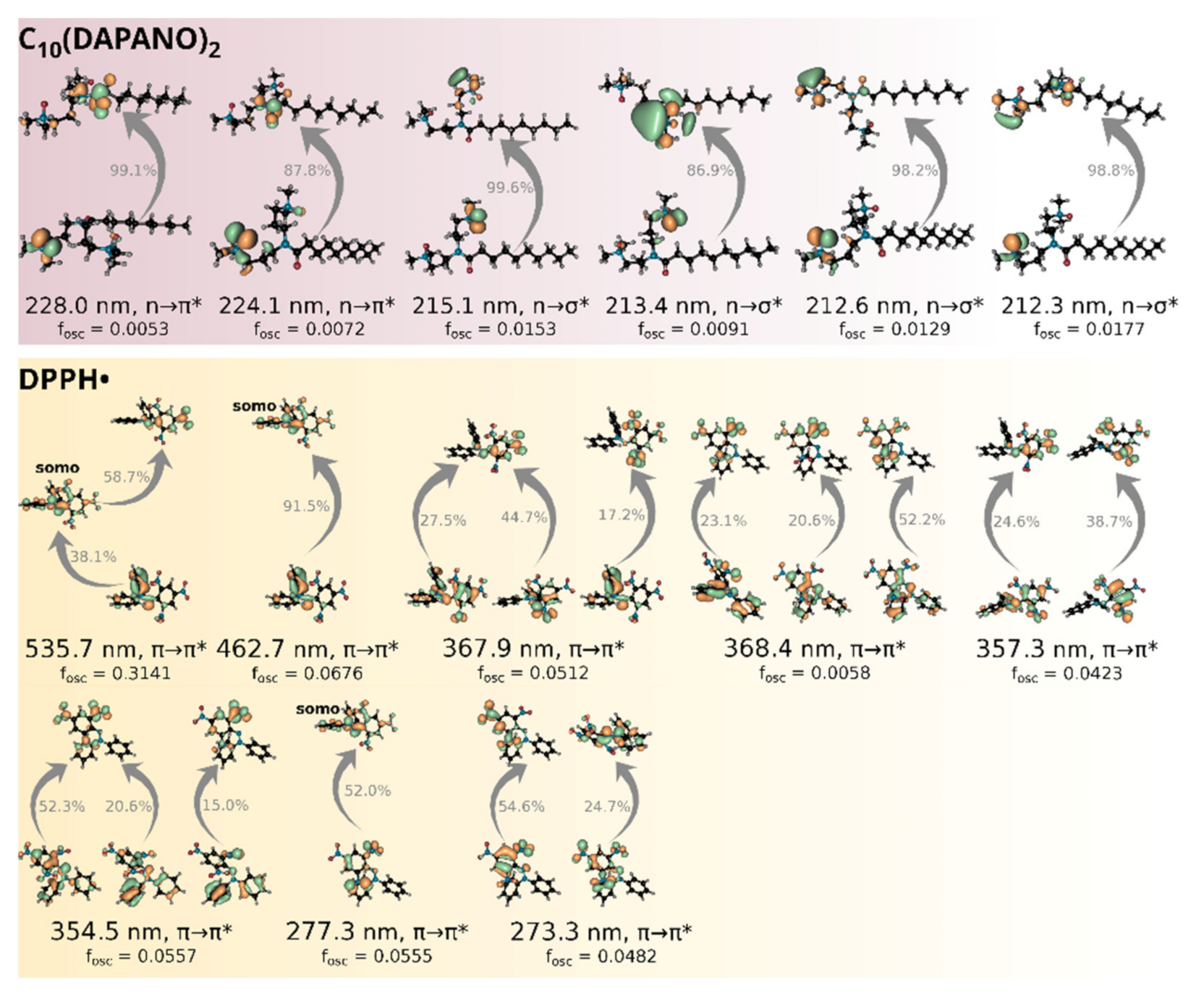

Although not well resolved in the experimental spectrum, another absorption band is present for DPPH• at approximately 463 nm and dominated by the promotion of the β-type electron to the SOMO. From about 400 nm towards shorter wavelengths, the excited states are increasingly numerous, and a detailed characterization of these among those which have more significant intensity is given in Figure 5.
After confirming that the absorption maximum at 517 nm of DPPH• is outside the surfactant’s absorption range, the rate of the DPPH•-scavenging reaction of the N-oxides was measured by monitoring the decrease in absorbance of this maximum. To ensure that the decay of DPPH• obeyed pseudo-first-order kinetics, the concentration of surfactants was at least a 54-fold excess of the DPPH• concentration. As explained in SI, the calculated pseudo-first-order rate constants, kobs, increased linearly with the concentration of Cn(DAPANO)2 and CnPDA (shown in SI). The second-order rate constants k2 for the reaction between the N-oxides and DPPH• were determined from the slopes of the linear plots of kobs vs. the concentration of the surfactants and are given in Figure 6.
In comparison with CnPDA, the values of k2 for the dicephalic homologs were 11% 19%, 16%, and 10% higher for C10(DAPANO)2, C12(DAPANO)2, C14(DAPANO)2, and C16(DAPANO)2, respectively. The observed difference between the values of k2 strongly suggests that the chemical structure of Cn(DAPANO)2 and CnPDA has an important effect on radical scavenging. This was explored using computational techniques and is discussed below.
The changes in the values of k2 demonstrate a faster reduction of DPPH• by the di-N-oxide surfactants, and this finding stays in line with our EPR measurements (Figure 3). In contrast to the EPR findings, however, the determined values of k2 show that the ability of the N-oxide surfactants to scavenge radicals increases with the length of the aliphatic chain. In the EPR tests of antiradical activity, the C/CMC = 100 conditions were applied. This allowed us to test this property at concentration characteristic of cosmetic formulations and for the surfactant systems with the same state of the formation of the micelles. However, there are drawbacks associated with the use of C/CMC = 100: the molar concentrations of the surfactants are higher for the surfactants with a larger CMC, that is, the ones with shorter alkyl chains. In the EPR measurements, we thus observed that the increased concentrations prevailed upon the greater antiradical activity of the surfactants with a lengthening hydrocarbon chain. The mentioned drawback of the EPR tests was overcoming the kinetic UV-vis experiments conducted under the pseudo-first-order condition.

2.3. Theoretical Calculations

To obtain a deeper insight into the antiradical properties, the thermodynamics of these processes for C10(DAPANO)2 and C10PDA was evaluated using the DFT approach (B3LYP, B2PLYP, and M06-2X) and the ab initio coupled cluster-type method [DLPNO-CCSD(T)]). The DLPNO-CCSD(T) method has been reported to reproduce results of the “golden standard” canonical CCSD(T) while remaining computationally feasible for real chemical systems [32,33,34,35,36,37]. Moreover, the excellent performance of the DLPNO-CCSD(T) method has been confirmed for the determination of the energetics of the hydrogen atom transfer reaction [38].
Two different mechanisms were considered. One of them, shown in Equation (2), assumes that a radical (R•) removes a hydrogen atom from the surfactant (surf−H) that itself transforms into a radical (H atom transfer, HAT):
R• + surf−H → R−H + surf•
The one-electron transfer (Equation (3)) was the second mechanism under theoretical investigation. In this mechanism the surfactant was assumed to contribute an electron to a radical, becoming itself a radical cation in the process:
R• + surf−H → R− + surf−H•+
The two mechanisms were previously considered in the context of the antiradical activity of phenolic compounds and radical activity of insecticides in the soil environment [32,39,40,41,42,43,44].
In the hydrogen atom transfer, the X−H bond dissociation enthalpy (BDE) should be considered a crucial parameter [32,39,40,43], as the more weakly bonded H atoms would be more active in the scavenging reaction given in equation 2. BDE was calculated at 298 K as the enthalpy difference for the reaction [40,41,43,45]:
surf−H → surf• + •H
Before proceeding with a detailed analysis, it is reasonable to compare the performance of the computational models. Table S1 in Supplementary Materials shows that all the employed methods gave a consistent outcome. The maximum difference between the values of BDE calculated with various methods was found to be 4%, and thus the conclusion is expected to be method-independent. In the further discussion of BDE, the values from the DLPNO-CCSD(T) calculations are used. For the sake of discussion clarity, all atoms forming bonds with hydrogen were labeled as shown in Figure 7, which also shows the values of BDE for these bonds predicted at the DLPNO-CCSD(T) theory level.
The highest value of BDE (105.6 kcal/mol) was found for the N−H bond in the C10PDA molecule, and thus this hydrogen atom should be the least active in the HAT mechanism. For this mono-N-oxide surfactant, the BDE values predicted for the hydrogen atoms bonded to the carbon atoms are in the range of 90.0–102.3 kcal/mol. The values from the upper limit of this range were predicted for the terminal carbon atom of the hydrophobic tail (C13), and carbon atoms bonded to the nitrogen atoms of the N-oxide moieties (C1 and C1’). The lowest BDE was found for the C4−H and C5−H bonds, that is 94.1 and 94.0 kcal/mol, respectively, showing that these hydrogen atoms should be the most active in the H-abstraction mechanism in the case of the mono-N-oxide surfactants.
C10(DAPANO)2 differs in structure from and C10PDA by an additional 3,3′-(dimethylamino)propyl substituent at the nitrogen atom of the amide group. Based on our EPR and UV-vis measurements, this structural alteration is expected to bring about dissimilar reactivity and it manifests in the values of BDE. As shown in Figure 7, the values of BDE calculated for the terminal carbon atom of the hydrophobic tail (C13) and carbon atoms bonded to the nitrogen atoms of the N-oxide group (C1a, C1a’, C1b and C1b’) very closely resemble their C10PDA counterparts. These values for the C4a−H and C4b−H bond are 93.9 and 92.5 kcal/mol, respectively, and do not differ from the C4−H bond dissociation enthalpy for C10PDA. However, the homolytic breaking of C5−H in C10(DAPANO)2 requires only 89.3 kcal/mol. This is significantly less than the energy necessary to enforce this process for the C5−H bond in the C10PDA molecule (94.0 kcal/mol) and correlates with the higher rates of reactions between the di-N-oxide surfactants and DPPH•. Moreover, according to our DLPNO-CCSD(T) calculations, the analogical process for O−H in phenol requires 87.8 kcal/mol, which is comparable to the BDE for C5−H in C10(DAPANO)2.
To compare the capacity of the mono- and di-N-oxide surfactants to donate an electron to a radical (one-electron transfer), ionization potentials (IP) were computed for C10PDA and C10(DAPANO)2 as the enthalpy difference between the surfactants and their radical cations (surf−H•+). This approach has been proven successful in the case of phenolic compounds and carbamates [40,41,43,44]. All the calculated values of IP are listed in Table S2 in Supplementary Materials. It is important to note that the ones obtained at the DLPNO-CCSD(T) theory level for C10PDA and C10(DAPANO)2 are up to 6 kcal/mol higher in comparison with the results of DFT methods. Considering that the DFT performance in the IP calculations can be unsatisfactory [46,47], the values obtained with the ab initio DLPNO-CCSD(T) method should be considered more accurate. They show that the IP of C10(DAPANO)2 is only about 1.1 kcal/mol lower than that of C10PDA (147.8 and 148.9 kcal/mol, respectively).
Computational techniques were also used to compare the energetic effect of the two mechanisms. The Gibbs free energies (ΔG) were calculated for the reactions given in Equation (2) (H atom abstraction) and Equation (3) (one-electron transfer) at 298 K. Two different radical substrates were considered, DPPH• and •OH. The results are summarized in Table S3 in Supplementary Materials.
Regardless of the radical substrate and the used method in the one-electron transfer, the ΔG values are positive. The DLPNO-CCSD(T) method shows that ΔG for the one-electron transfer between the two surfactants and the two radicals is moderately high. To illustrate, for C10(DAPANO)2, ΔG is 45.6 and 46.6 kcal/mol for the electron transfer to •OH and DPPH•, respectively. For C10PDA these values become slightly higher, that is, 47.7 and 48.7 kcal/mol, respectively.
In contrast to one-electron transfer, the ΔG values predicted for H atom abstraction are noticeably less positive for DPPH• and clearly negative for •OH. For example, the ΔG predicted for C10(DAPANO)2 at the DLPNO-CCSD(T) level is −29.2 and 11.8 kcal/mol for •OH and DPPH•, respectively, and for C10PDA, −19.9 and 21.1 kcal/mol, respectively. Although in the case of DPPH the reaction is not spontaneous, it was proven by the UV−vis spectroscopy experiments that the input of energy at 298 K suffices to sustain the radical scavenging process. It is also notable that the predicted ΔG values for the H atom abstraction closely correlate with different activity of the N-oxide surfactants. In comparison with C10PDA, the ΔG values predicted for more reactive C10(DAPANO)2 are noticeably less positive for DPPH• and more negative for •OH. All in all, our calculations distinctively suggest that for the N-oxide surfactants, the occurrence of the H atom transfer is thermodynamically more probable.

2.4. Biological Activity

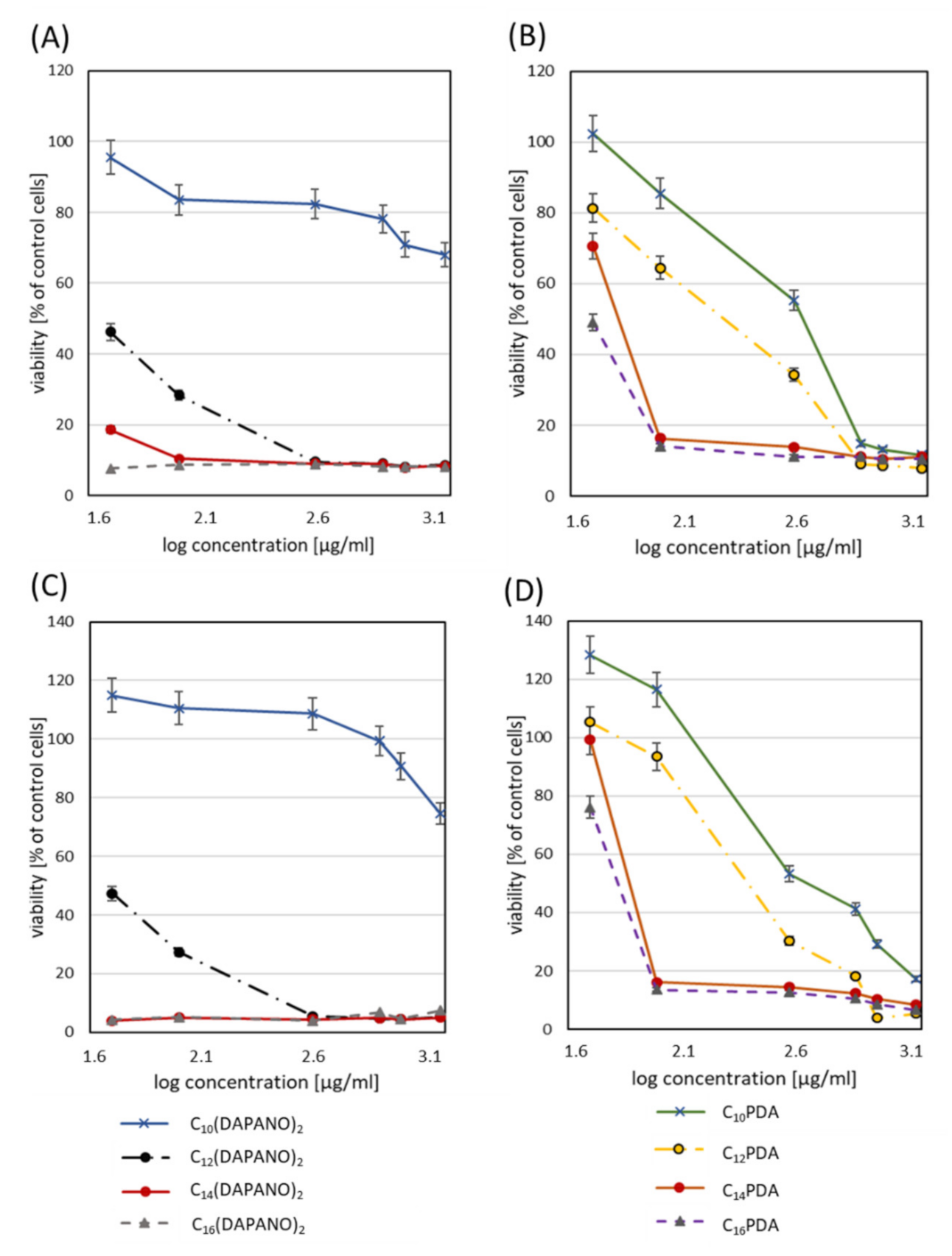

In this part of our work, a human normal cell model was used. Keratinocytes and fibroblasts were selected for experiments because they allow for the determination of surfactant interactions with skin and mucosa cells. HaCaT and HGFs cells are thus an interesting model to predict surfactant toxicity after superficial skin or mucosal application. IC50 is presented in Table 2, calculated after 24 and 48 h incubation. Cell viability percentage is plotted as a function of surfactant concentration (semi-log plot) (Figure 8 and Figure 9). In all cases, decreased cell proliferation was observed with the longer incubation time with surfactants. Less cytotoxicity occurred in PDA surfactants. In human keratinocytes, IC50 for 24 h resulted in concentrations higher than 0.03 g/L, and for 48 h, 50% of the cytotoxic effect was observed for 0.0415 g/L (C10-PDA). The proliferation studies proved the decreased toxicity for C10(DAPANO)2 in the case of normal keratinocytes (IC5024 h = 0.098 g/L and IC5048 h = 0.097 g/L). In the case of human fibroblasts, a low cytotoxicity level was observed by the selected surfactants: C14(DAPANO)2 (IC5024 h = 0.0685 g/L), C10PDA (IC5024 h = 0.0779 g/L and IC5048 h = 0.0387 g/L), and C14PDA (IC5024 h = 0.0699 g/L). Table 2 shows the viability of both cell lines evaluated for CMC after 24 and 48 h. We can found that our experiments showed in most cases cytotoxicity near the CMC or below what refers to the good ability of micelle formation. Our study indicates that the CnPDA surfactants are safe in CMC concentration in bath-treated cell lines. However, Cn(DAPANO)2 type surfactants induce less cytotoxicity below CMC, which can suggest a better potential for application in emulsion form. Other studies are mainly focused on anticancer activity and cytostatic delivery in the tumor cells; however, some authors have applied cytotoxicity studies. They have indicated that there is no connection between CMC and cytotoxicity in the case of surfactants tested by the authors [48]. It seems that a low CMC with a high IC50 value will be optimal for micelle solubilization and surfactant safety in biological systems. Kyadarkunte et al. evaluated the effects of the fatty acid chain length of acylglutamate (amino acid-based surfactant) on HaCaT cells. The authors observed low cytotoxicity and that the shorter the fatty acid chain length of the acylglutamate surfactants, the less the cytotoxic effect was induced on the HaCaT cell line [49]. In our study, we can indicate the dependence on the carbon numbers. Our intention was the overall objective of developing a biologically safe system mainly for normal but also pathological cells. The dicephalic surfactants presented here are intended to also be safe for skin and mucosa cells and natural microbial flora. Most of the available data are mainly involved in drug delivery in tumor cells with nanocarrier-based surfactants [50].
The ROS evaluation results are presented in Figure 10. As we can observe, the DHTTP solution provoked a high and significant increase of radicals in normal keratinocytes and fibroblasts. After surfactant addition in CMC concentration, we could observe a decrease in the radical level. However, the effect is synergistically caused by natural blanking fluorescence signals and by the antioxidative properties of applied surfactants. The most significant decrease of fluorescence level was induced by C14PDA (linear analog of C14(DAPANO)2); then, a similar decrease was observed in the case of C16PDA and C10(DAPANO)2 in both treated cell lines. Surfactants C14(DAPANO)2 and C16(DAPANO)2 also induced a not significant decrease in radical level. Some authors indicate a strong peroxidative effect of surfactants [51], which can be excluded for applications in carriers for drug delivery. Some reports have demonstrated that low concentrations of cationic surfactants can induce apoptosis in different mammalian cell types [52,53]. Antiradical properties can be the most significant feature in surfactant selection in future biological applications.

3. Conclusions

In this investigation, the aim was to assess the antiradical activity of monocephalic 3-alkanoylamino)propyldimethylamine-N-oxides (CnPDA) and dicephalic N,N-bis[3,3′-(dimethylamino)propyl]alkylamide di-N-oxides [Cn(DAPANO)2]. This was tested against two stable radicals, namely DPPH• and GO•, using electron paramagnetic resonance (EPR) and UV-vis spectroscopy. We showed that both CnPDA and Cn(DAPANO)2 surfactants scavenge radicals and thus can protect biological systems as well as cosmetic and pharmaceutical formulations. The determination of the second-order rate constants k2 revealed that the two head-single tail Cn(DAPANO)2 surfactants neutralize radicals faster than their linear counterparts. We also found that the ability of the N-oxide surfactants to scavenge radicals increases with the length of the aliphatic chain. The computational findings reported here shed light on the mechanism of antiradical action. By the inspection of the predicted bond dissociation enthalpies, ionization potentials, and Gibbs free energies, we identified hydrogen atom transfer (HAT) as the most probable mechanism. In in vitro studies, longer incubation time with surfactants leads to decreased cell proliferation. CnPDA surfactants occurred as less cytotoxic against tested cell lines. In most cases, cytotoxicity was near the CMC or below. In ROS evaluation, after adding the surfactants in CMC concentration, the level of radicals decreased. The best results were obtained after using C14PDA and similar in the case of C16PDA and C10(DAPANO)2 in both treated cell lines.
All in all, this study provides strong empirical confirmation that the N-oxide surfactants have antiradical activity. In combination with their antimicrobial and immunomodulatory properties and a broad range of profound aggregation behavior, this makes them a multipurpose tool for biomedical uses.

4. Materials and Methods

4.1. Materials

Cn(DAPANO)2 were synthesized as described in the patent [18]. Elemental analyses (Vario EL III CHNS analyzer) and 1H NMR spectrum (CDCl3, 500 MHz) were carried out for Cn(DAPANO)2 series and are presented as follows:
C10(DAPANO)2 M 373.65: Anal. Calc. (%) for C20H43N3O3, C, 64.28; H, 11.60; N 11.25. Found: C, 64.26; H, 11.55; N 11.25; 1H NMR (CDCl3, 500 MHz): 0.82 (t, 3H, 3JHH = 6.6 Hz, CH3(CH2)6CH2CH2CON-); 1.22 (m, 12H, CH3(CH2)6CH2CH2CON-); 1.57 (k, 2H CH3(CH2)6CH2CH2CON-); 1.60–1.68 (k, 4H-N[(CH2CH2CH2N(CH3)2)2]); 2.18–2.20 (s, 12H, -N[(CH2CH2CH2N(CH3)2)2]); 2.21 (t, 2H, -CH3(CH2)6CH2CH2CON-); 2.24–2.28 (t, 4H, -N[(CH2CH2CH2N(CH3)2)2]); 3.22–3.30 (t, 4H -N[(CH2CH2CH2N(CH3)2)2]);
C12(DAPANO)2 M 401.19: Anal. Calc. (%) for C22H47N3O3, C, 65.86; H, 11.81; N 10.47. Found: C, 65.78; H, 11.85; N 10.45; 1H NMR (CDCl3, 500 MHz): 0.86 (t, 3H, 3JHH = 6.6 Hz, CH3(CH2)8CH2CH2CON-); 1.25 (m, 16H, CH3(CH2)8CH2CH2CON-); 1.62–1.71 (k, 4H, -N[(CH2CH2CH2N(CH3)2)2]); 1.64 (k, 2H, CH3(CH2)8CH2CH2CON-); 2.17–2.21 (s, 12H, -N[(CH2CH2CH2N(CH3)2)2]); 2.25 (t, 2H, CH3(CH2)8CH2CH2CON-); 2.25–2.30 (t, 4H, -N[(CH2CH2CH2N(CH3)2)2]); 3.27–3.33 (t, 4H, -N[(CH2CH2CH2N(CH3)2)2]);
C14(DAPANO)2 M 429.21: Anal. Calc. (%) for C24H51N3O3, C, 67.16; H, 11.98; N 9.79. Found: C, 67.13; H, 11.86; N 9.75; 1H NMR (CDCl3, 500 MHz): 0.85 (t, 3H, 3JHH = 6.6 Hz, CH3(CH2)10CH2CH2CON-); 1.24 (m, 20H, CH3(CH2)10CH2CH2CON-); 1.62 (k, 2H, CH3(CH2)10CH2CH2CON-); 1.62–1.70 (k, 4H, -N[(CH2CH2CH2N(CH3)2)2]); 2.18–2.21 (s, 12H, -N[(CH2CH2CH2N(CH3)2)2]); 2.24 (t, 2H, CH3(CH2)10CH2CH2CON-); 2.24–2.30 (t, 4H, -N[(CH2CH2CH2N(CH3)2)2]); 3.28–3.33 (t, 4H, -N[(CH2CH2CH2N(CH3)2)2]);
C16(DAPANO)2 M 457.23: Anal. Calc. (%) for C26H55N3O3, C, 68.26; H, 12.12; N 9.19. Found: C, 68.20; H, 12.06; N 9.05; 1H NMR (CDCl3, 500 MHz): 0.86 (t, 3H, 3JHH = 6.6 Hz, CH3(CH2)12CH2CH2CON-); 1.25 (m, 24H, CH3(CH2)12CH2CH2CON-); 1.59 (k, 2H, CH3(CH2)12CH2CH2CON-); 1.64–1.71 (k, 4H -N[(CH2CH2CH2N(CH3)2)2]); 2.17–2.20 (s, 12H, -N[(CH2CH2CH2N(CH3)2)2]); 2.21–2.30 (t, 4H-N[(CH2CH2CH2N(CH3)2)2]); 2.25 (t, 2H, CH3(CH2)12CH2CH2CON-), 3.27–3.32 (t, 4H-N[(CH2CH2CH2N(CH3)2)2]);
CnPDA were synthesized as described in [19]. Elemental analyses (Vario EL III CHNS analyzer) and 1H NMR spectrum (CDCl3, 500 MHz) were carried out for CnPDA series and are presented as follows:
C10PDA M 272.15: Anal. Calc. (%) for C15H32N2O2, C, 66.13; H, 11.84; N, 10.28; CH3(CH2)6CH2CH2- 0.84 (t, 3H, 3JHH = 6.51 Hz), CH3(CH2)6CH2CH2- 1.22 (m, 12H), CH3(CH2)6CH2CH2- 1.58 (m, 2H),CH3(CH2)6CH2CH2- 2.16 (m, 2H), -CONH 8.54 (bd, 1H), -CONHCH2CH2 CH2N 3.95 (t, 2H), -CONHCH2CH2 CH2N 2.27 (t, 2H), -CONHCH2 CH2CH2 N 3.39 (m, 2H), -N(CH3)2 3.54 (s, 6H);
C12PDA M 300.48: Anal. Calc. (%) for C17H36N2O2, C, 67.95; H, 12.08; N, 9.32; CH3(CH2)8CH2CH2- 0.85 (t, 3H, 3JHH = 6.51 Hz), CH3(CH2)8CH2CH2- 1.24 (m, 16H), CH3(CH2)8 CH2CH2- 1.50 (m, 2H), CH3(CH2)8CH2CH2- 2.18 (m, 2H),-CONH 8.52 (bd, 1H), -CONHCH2CH2 CH2N 3.75 (t, 2H), -CONHCH2CH2 CH2N 2.27 (t, 2H), -CONHCH2 CH2CH2 N 3.45 (m, 2H), -N(CH3)2 3.52 (s, 6H);
C14PDA M 328.53: Anal. Calc. (%) for C19H40N2O2, C, 69.46; H, 12.27; N, 8.53; CH3(CH2)10CH2CH2- 0.84 (t, 3H, 3JHH = 6.52 Hz), CH3(CH2)10CH2CH2- 1.34 (m, 20H), CH3(CH2)10 CH2CH2- 1.57 (m, 2H), CH3(CH2)10CH2CH2- 2.15 (m, 2H), -CONH 8.43 (bd, 1H), -CONHCH2CH2 CH2N 3.74 (t, 2H), -CONHCH2CH2 CH2N 2.31 (t, 2H), -CONHCH2 CH2CH2 N 3.49 (m, 2H), -N(CH3)2 3.32 (s, 6H);
C16PDA M 356.19: Anal. Calc. (%) for C21H44N2O2, C, 70.73; H, 12.44; N, 7.86; CH3(CH2)12CH2CH2- 0.86 (t, 3H, 3JHH = 6.51 Hz), CH3(CH2)12CH2CH2- 1,31 (m, 24H), CH3(CH2)12 CH2CH2- 1.58 (m, 2H), CH3(CH2)12CH2CH2- 2.22 (m, 2H),-CONH 8.50 (bd, 1H), -CONHCH2CH2 CH2N 3.92 (t, 2H), -CONHCH2CH2 CH2N 2.41 (t, 2H), -CONHCH2 CH2CH2 N 3.41 (m, 2H), -N(CH3)2 3.54 (s, 6H).
Organic solvents used in the synthesis of surfactants were reagent grade and were used without further purification. Water used in experiments was doubly distilled and purified using a Millipore Milli-Q purification system (Bedford, MA, USA). Ethanol for spectroscopic experiments was purchased from J.T. Baker (99.5%); 2,2-diphenyl-1-picrylhydrazyl (DPPH•) and galvinoxyl (GO•) radicals were purchased from Sigma-Aldrich (St. Louis, MO, USA).

4.2. Tension Measurements

Equilibrium surface tension measurements for CnPDA were performed using a Krüss K12 microprocessor tensiometer (Krüss, Hamburg, Germany) equipped with a du Nouy Pt−Ir ring (resolution ± 0.01 mN/m). The surface tension was obtained as the arithmetic means of the values received from two independent runs; the data were reproducible within ±0.2 mN m−1. Sets of experiments were taken at intervals until no significant change in the surface tension occurred. All of the surface tension measurements were performed at 295 ± 0.1 K. The absence of a minimum in the isotherm curves near CMC was evidence of the purity of the studied surfactants.

4.3. Dynamic Light Scattering (DLS)

The hydrodynamic diameter for CnPDA was determined by the DLS method. The measurements were performed using a Nano Series Zetasizer from Malvern Instruments (UK) with a detection angle of 173°, equipped with a He−Ne laser (632.8 nm) and an ALV 5000 multibit multitau autocorrelator. Before the measurements, the samples were filtered through a filter (with a pore size of 0.2 μm) directly into the optical cell to remove any impurities. All of the DLS measurements were performed at 298 ± 0.1 K and at a surfactant concentration a hundred times higher than the critical micelle concentration (CMC). Each value was obtained as the average of three runs with at least 10 measurements. The DTS software (Nano) was used to evaluate the data.

4.4. Electron Paramagnetic Resonance (EPR) Spectroscopy

The antiradical properties were studied by EPR using a Bruker ELEXYS E500 spectrometer equipped with an NMR gaussmeter and frequency counter. A microwave power of 10 mW, a modulation frequency of 100 kHz, a modulation amplitude of 1 G, a time constant of 82 ms, and a conversion time of 164 ms were adopted. The antiradical properties were evaluated against two model radicals: 2,2-diphenyl-1-picrylhydrazyl (DPPH•) and galvinoxyl (GO•). The measurements were done at 298 K in ethanol solutions containing DPPH• (C = 2.0 mM) or GO• (2.0 mM) and CnPDA (C = 100 CMC) or Cn(DAPANO)2 (C = 100 CMC). The reference samples contained only the model radicals. The samples were sealed in capillary tubes and placed inside a standard EPR quartz tube for measurements.

4.5. UV−Vis Measurements

The measurements were done under deaerated conditions at 298 K in ethanol solutions (2 mL in a 10 mm quartz cuvette) containing DPPH• (C = 2.2 × 10−4 M) and a surfactant at each of five different concentrations, namely C1 = 0.12 M, C2 = 0.09 M, C3 = 0.06 M, C4 = 0.03 M, and C5 = 0.012 M. UV−vis spectral changes associated with the undergoing reaction were monitored at 516 nm, using a Varian Cary 50Conc UV−visible Spectrophotometer. The following equations of the calibration curve were used to calculate DPPH• concentrations in the reaction system: Abs = 4.0189 × C[mM] + 0.00813 (R2 = 0.9998). The rate of DPPH• scavenging reaction was determined using pseudo-first-order kinetics [54,55] (the concentration of CnPDA or Cn(DAPANO)2 was maintained at more than 54-fold excess of the radical concentration); further details are given as Supporting Information.

4.6. Theoretical Calculations

Unless otherwise noted, the theoretical calculations were conducted with the ORCA 4.1/4.2 suite of programs [56,57] and are summarized in Table S4. The geometry optimizations were carried out at the DFT level using the gradient-corrected BP86 functional [58,59], which provides accurate molecular structures [60,61]. Each of the stationary points was fully characterized as a true minimum through a vibrational analysis. On these molecular structures, single-point calculations were carried out at the DFT level with the hybrid B3LYP [62,63,64] and M06-2X [65] and double hybrid B2PLYP [66] approximations as well as at the ab initio level with the DLPNO-CCSD(T) method, which was designed to make the coupled-cluster (CC) theory broadly applicable [67,68,69]. The open-shell DLPNO-CCSD calculations were carried out using the reference determinants build from quasi-restricted orbitals (QROs) from the unrestricted Hartree–Fock (UHF) calculations [70]. QROs should closely resemble the restricted open-shell Hartree–Fock (ROHF) orbitals [71]. The perturbative triples correction was computed using the iterative approach to the triples amplitudes [72]. The validity of the DLPNO-CCSD(T) results was assessed using the T1 diagnostic parameter. The observed values of T1 were always noticeably lower than 0.02. The bond dissociation enthalpies (BDE), ionization potentials (IP), and Gibbs free energies (ΔG) were calculated at 298 K with all these theoretical methods but using the zero point, thermal (vibrational, rotational, and translational) and entropy corrections computed at the BP86 level. In all these calculations the conductor-like polarizable continuum model (CPCM) [73] was used to cover the solvent effects (for DLPNO-CCSD(T) only in the reference determinants). In the DFT calculations, the resolution of the identity approximation [74,75,76] was used, and the dispersion correction was added; double-hybrid functionals already account for parts of the dispersion interaction; hence, for B2PLYP, the parameter S6 = 0.64 was used [77,78]. In all the DFT calculations, the def2-TZVP basis set was employed with an appropriate auxiliary basis set (def2/J) [79,80,81]. The DLPNO-CCSD(T) calculations were conducted in concert with the cc-pVTZ basis set combined with an appropriate auxiliary basis set for correlation calculations (cc-pVTZ/C) [82,83].
The time-dependent DFT (TD-DFT) computations were carried out with the functional B3LYP and B2PLYP along with the def2-TZVP basis set. To analyze these results, the natural transition orbitals (NTOs) were used [29].
The values of LogP were predicted at the DFT level using the Amsterdam Density Functional (ADF) program [84] using the COSMO-RS module [85]. These calculations were carried out at the BP86/TZP theory level.

4.7. Antioxidative Properties—ROS Evaluation

Antioxidative properties of the tested surfactant were evaluated. To induce ROS production, a DPPH solution was prepared (C = 2.55 × 10−3 mol/dm3). Normal fibroblasts and keratinocytes were seeded on flat bottom 96-well tissue culture plates at a density of 104 cells/well and allowed to grow in a CO2 incubator at 37°C overnight. Then, culture medium was removed and 200 µL of DPPH solution in DMEM was added to the plate and left for 1 h in a CO2 incubator at 37 °C. After incubation, DPPH solution was removed and ROS production was determined using DCF assay (Life Technologies, Warsaw, Poland). The DCF assay was conducted with 6-carboxy-2′,7′-dichlorodihydrofluorescein diacetate 2′,7′-dichlorofluorescein (carboxy-H2DCFDA). After deacetylation of H2DCFDA to H2DCF or carboxy-H2DCFDA to carboxy-H2DCF, cellular ROS oxidize H2DCF and carboxy-H2DCF to 2′,7′-dichlorofluorescein (DCF) and 2′,7′-carboxydichlorofluorescein (carboxy-DCF), respectively. The carboxy-H2DCFDA was dissolved in sterile DMSO to generate a stock solution of 50 µg/mL. For experiments, the stock solution of carboxy-H2DCFDA was brought to room temperature in the dark and then diluted in a cell culture medium without FBS. After washout of the incubation medium from cells with PBS, the reagent was added to cell culture to a final concentration of 10 µM and for 30 min was incubated at 37 °C in darkness. After incubation, excitation wavelength of 495 nm and emission wavelength of 530 nm were used by a multiwell scanning spectrophotometer (EnSpire Perkin Elmer, Krakow, Poland). In the next stage, surfactant solutions in CMC concentrations were added into cells after 1 h incubation with DHTTP solution. Cells were incubated, and ROS were detected 30 min by a multiwell scanning spectrophotometer (EnSpire Perkin Elmer, Poland).

4.8. Cell Culture

HaCaT (immortalized human keratinocytes from histologically normal skin) cell line was obtained from the CLS Cell Lines Service GmbH (Eppelheim, Germany). HGFs (human gingival fibroblasts) derive from primary cell culture. The cells were isolated according to the procedure described by Saczko et al. [86] and patented by Saczko et al. [87]. Cells were grown in plastic cell culture flasks in Dulbecco’s Modified Eagle’s Medium, supplemented with fetal bovine serum (FBS, Lonza, Morrisville, NC, USA), with 100 IU/mL penicillin, 50 mg streptomycin, and 125 μg amphotericin B (Sigma). The cells were maintained in a humidified atmosphere at 37 °C and 5% CO2. The cells were regularly maintained by systematic passaging. For experimental purposes, the cells were removed by trypsinization (0.25% Trypsin-EDTA, Sigma).

4.9. MTT Cell Viability Assay

MTT (Sigma) test was used to determine the viability of HaCaT and HGFs cells. The MTT assay was used to test mitochondrial metabolic functioning. Cells were seeded on flat bottom 96-well tissue culture plates at a density of 104 cells/well and allowed to grow in a CO2 incubator at 37 °C overnight. In the case of these studies, the culture medium was removed, surfactant solutions were added, and the cells were exposed for 24 and 48 h to compounds at doses ranging from 50 to 2000 μg/mL. After incubation, MTT assay was applied according to the manufacturer protocol. The absorbance was measured at 570 nm using a multiwell plate reader (EnSpire Multimode Reader, Perkin Elmer). Each experiment was performed in a few independent repetitions. Mean values and standard deviations of all results were calculated. The final results were expressed as the percentage of mitochondrial function relative to untreated control cells.

4.10. Statistical Analysis

Unless otherwise indicated, all the data are mean values ± SD calculated from at least three independent experiments. The Student’s t test was used to check the significant level between independent variables. The level of significance was set to p < 0.05.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ijms22158040/s1.

Author Contributions

Conceptualization, A.L. and M.W.; methodology, A.L., M.W., and J.K.; investigation, A.L., M.W., and J.K.; resources, A.L. and M.W.; data curation, A.L., M.W., and M.D.-K.; writing—original draft preparation, M.W., A.L., and J.K.; writing—review and editing, M.W., A.L., and M.D.-K.; visualization, M.W. and M.D.-K.; supervision, M.W. and A.L.; project administration, A.L.; funding acquisition, A.L. and M.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by POIR.01.01.01-00-0729/19 and partially by a statutory activity subsidy from the Polish Ministry of Education and Science (MEiN) for the Faculty of Chemistry of Wrocław University. The publication was partially funded from the IDUB program (Inicjatywa Doskonałości—Uczelnia Badawcza). The computations were performed using computers and software licenses of the Wrocław Centre for Networking and Supercomputing (Grant No. 47).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.
