Transcriptomic Characterization of Nitrate-Enhanced Stevioside Glycoside Synthesis in Stevia (Stevia rebaudiana) Bertoni

by
Yuming Sun
1,2,
Ting Zhang
1,2,
Xiaoyang Xu
1,2,
Yongheng Yang
1,2,
Haiying Tong
1,2,
Luis Alejandro Jose Mur
3 and
Haiyan Yuan
1,2,*
1
Jiangsu Key Laboratory for the Research and Utilization of Plant Resources, Institute of Botany, Jiangsu Province and Chinese Academy of Sciences, No. 1 Qianhuhoucun Village, Zhongshan Gate, Nanjing 210014, China
2
The Jiangsu Provincial Platform for Conservation and Utilization of Agricultural Germplasm, Nanjing 210014, China
3
Institute of Biological, Environmental and Rural Sciences, Aberystwyth University, Aberystwyth SY23 3DA, UK
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2021, 22(16), 8549; https://doi.org/10.3390/ijms22168549
Submission received: 13 July 2021 / Revised: 2 August 2021 / Accepted: 6 August 2021 / Published: 9 August 2021
(This article belongs to the Special Issue Transcriptomic Basis and Nutrient Dependent Signaling Pathways in Plant Development 2.0)
Browse Figures
Versions Notes

Abstract

:
Nitrogen forms (nitrate (NO3−) or ammonium (NH4+)) are vital to plant growth and metabolism. In stevia (Stevia rebaudiana), it is important to assess whether nitrogen forms can influence the synthesis of the high-value terpene metabolites-steviol glycosides (SGs), together with the underlying mechanisms. Field and pot experiments were performed where stevia plants were fertilized with either NO3− or NH4+ nutrition to the same level of nitrogen. Physiological measurements suggested that nitrogen forms had no significant impact on biomass and the total nitrogen content of stevia leaves, but NO3−-enhanced leaf SGs contents. Transcriptomic analysis identified 397 genes that were differentially expressed (DEGs) between NO3− and NH4+ treatments. Assessment of the DEGs highlighted the responses in secondary metabolism, particularly in terpenoid metabolism, to nitrogen forms. Further examinations of the expression patterns of SGs synthesis-related genes and potential transcription factors suggested that GGPPS and CPS genes, as well as the WRKY and MYB transcription factors, could be driving N form-regulated SG synthesis. We concluded that NO3−, rather than NH4+, can promote leaf SG synthesis via the NO3−-MYB/WRKY-GGPPS/CPS module. Our study suggests that insights into the molecular mechanism of how SG synthesis can be affected by nitrogen forms.

1. Introduction

As the global standard of living improves, people are aiming to pursue a healthier lifestyle. The excessive intake of sugars has increased the risk of dental caries, diabetes, obesity and hyperlipidemia, so that the alternative new sugar crop, stevia (Stevia rebaudiana Bertoni), has received increasing attention and acceptance [1,2]. Stevia plants are rich in steviol glycosides (SGs), a class of tetracyclic diterpenoid compounds, especially in leaf tissue [3]. Stevioside (STV) and rebaudiosides A (Reb A) are the most abundant SGs and can account for about 4–20% of the dry leaf weight. Other less abundant SGs, such as Reb C, Reb F and Dulcoside A, may be important in providing taste to SG mixtures [4]. SGs can be used as food additives and are sweeter than cane sugar and beet sugar, but have a lesser calorific value. These properties have greatly increased worldwide demand for SGs and resulted in increased commercial cultivation of stevia plants [5,6]. Given this, improving the SG levels in stevia plants through agricultural practices is of vital importance for the development of the stevia industry.
SG metabolism in stevia plants may be influenced by multiple agricultural factors such as planting density, water management, arbuscular mycorrhiza infections and nutrition [7,8,9]. Amongst these, nitrogen (N) nutrition is one of the most important factors that influence stevia productivity, as N is deeply implicated in plant development as well as metabolic processes [10,11]. Previous studies, including ours, have shown that N fertilization can enhance leaf photosynthesis rate and aboveground biomass, but, if improperly used, may inhibit SG synthesis and accumulation [12,13,14,15]. Thus, we found that SG levels can be increased to a certain extent through optimizing N topdressing strategies [16]. However, there was a negative correlation between SG synthesis and leaf N content, as well as the leaf biomass under different N fertilization rates and topdressing strategies. Recently published transcriptome work attributed the N-inhibited SG metabolism to either shift in the balance of commitment to plant growth versus differentiation or transcriptionally repressive events after adding N [17]. This work highlights the need for a subtle implementation of N fertilization rates or timing to promote biomass but limit negative effects on the levels of SGs.
The major forms of mineral N, ammonium (NH4+) and nitrate (NO3−) are differently absorbed, assimilated, and they also have differential impacts on plant metabolism. The assimilatory costs of NH4+ are lower than NO3− because it can be directly assimilated in root tissue, whilst NO3− needs to be transported to the leaves for further reduction to NH4+ [18,19]. The differential effects of NO3− have been linked to leaf photorespiration and the tricarboxylic acid cycle to affect other central metabolic pathways [20,21]. Further, an association between NH4+ assimilation and phosphoenolpyruvate carboxylase activity involves altered carbon (C) and energetics metabolism [22,23]. Crucially, the form of N affects the terpenoid metabolism of plant. A higher NO3−/NH4+ ratio has been shown to significantly promote terpenoid synthesis in terpenoid-rich plants such as Brassica species [24] and Prunella vulgaris [25]. However, opposite results have also been documented in Andrographis paniculata [26], Capsicum annuum [27] and Occimum basilicum [28]. Thus, N forms can reshape plant terpenoid metabolism, but the exact action may differ between plant species. It is therefore important to investigate the relationship between N forms and SGs metabolism in stevia leaves, as well as define the underlying mechanisms.
In the current study, we combined pot and field experiments to demonstrate that NO3− rather than NH4+ fertilization can significantly increase leaf SG contents without influencing leaf biomass formation. Via further transcriptomic analysis, we found that such effects are likely due to the upregulation of the terpenoid synthesis pathway by NO3− treatment. This NO3−-induced change could be attributed to the transcription factors belonging to MYB and/or WRKY families. Our results have implications for how SGs synthesis can be maximized in the field-grown stevia.

2. Results

2.1. Effects of Nitrogen Forms on the Biomass, Carbon–Nitrogen Status and SGs Content in the Leaves of Stevia Plants Grown under Pot and Field Conditions

Different forms of N fertilization ((NH4+) vs. (NO3−)) did not significantly affect the biomass of stevia leaves. This was reflected in the similarities in TN, TC and C/N ratio between NH4+- and NO3−-fed stevia plants (Table 1). However, whilst leaf NH4+ content was not significantly changed by N forms, NO3− content was significantly increased in NO3− treatments, under both pot and field conditions.
N application forms significantly altered the contents of leaf SGs. The major SG in stevia plants, Reb-A, was considerably increased by NO3− by 50.79% and 15.14% under pot and field conditions, respectively, compared to NH4+ treatment (Figure 1A). The leaf contents of STV and Reb-C were also increased by NO3− rather than NH4+ treatment (Figure 1B,C). However, total SGs (TSGs) contents were significantly greater in NO3−-fed compared to NH4+-fed plants (Figure 1D). When examining the effects of the “experimental cultures” used, a higher leaf STV content but lower Reb-A and Reb-C contents were observed in stevia plants grown in pot than field culture. No significant interaction effect was exhibited in the content of either a single SG or TSGs.

2.2. Global Analysis of RNA-Seq Data

Stevia leaves treated by different N forms were sampled and sequenced for transcriptome analysis. Approximately 21,444,479 and 25,727,058 clean reads were obtained from NH4+-and NO3−-treated samples, which corresponded to 6.41 GB and 7.70 GB of data (Supplemental Table S1), respectively. In addition, the frequency of >30 Phred quality score (Q30) was higher than 94.27% and the guanine–cytosine (GC) content was higher than 45.42% for all the samples, indicating that the sequence data were of high quality. Then, 60.45–76.30% of the clean reads were mapped to the reference genome of stevia plants (https://doi.org/10.6084/m9.figshare.14169491.v1 (accessed on 5 March 2021)) [29], and 48.83–62.55% of the clean reads were uniquely mapped onto the stevia genome. In total, 35,424 and 36,063 genes were expressed (FPKM > 0) in the A-N and N-N treatments, respectively (Supplemental Table S1).

2.3. Identification of DEGs Responsive to N Forms

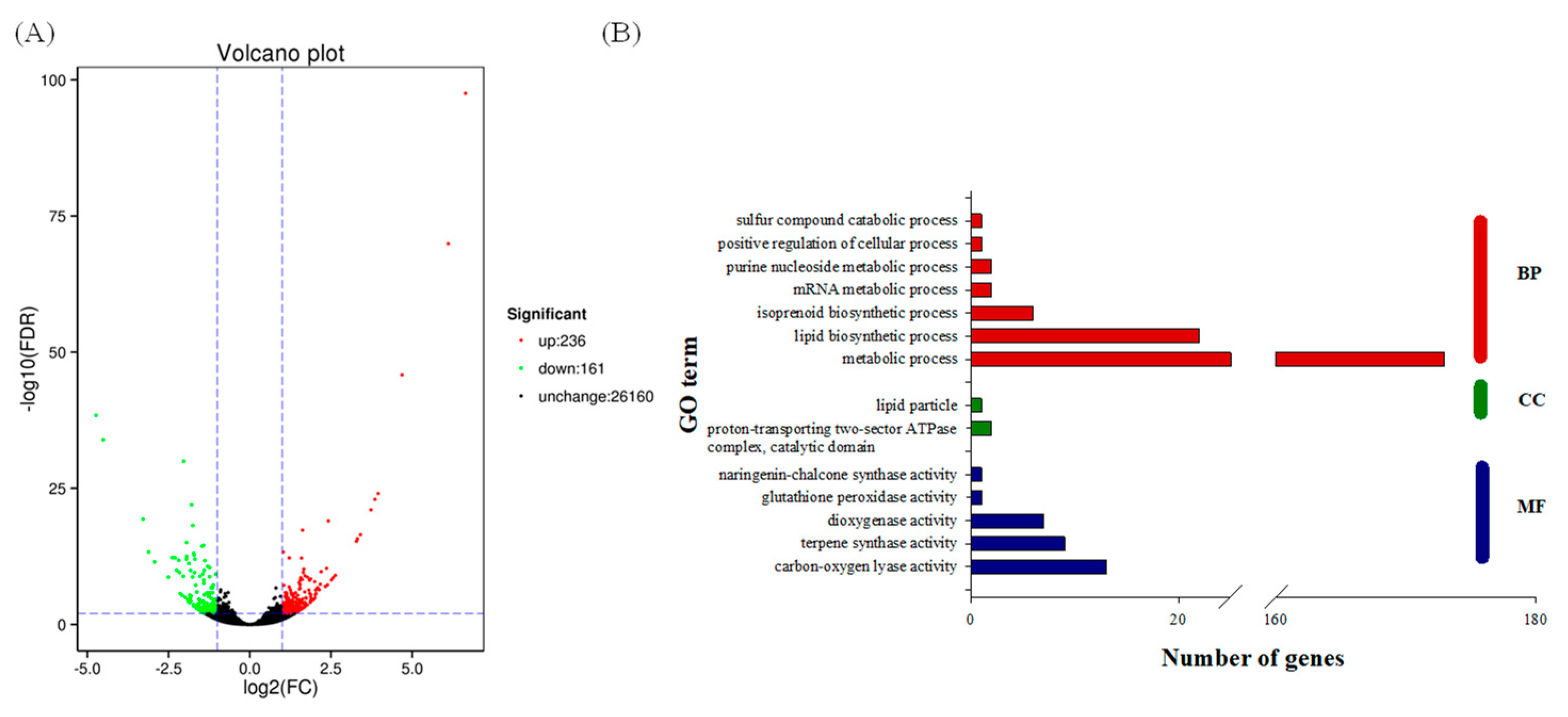

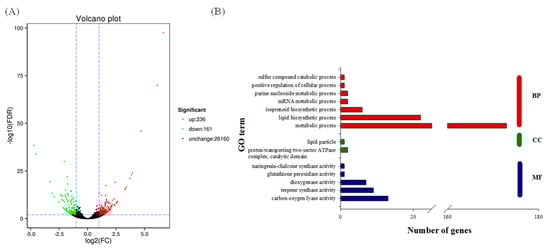

To identify the DEGs’ specific response to N forms, the calculations were based on FPKM outputs where a fold change ≥ 2 and false discovery rate (FDR) < 0.01 were used as thresholds to be passed. A total of 397 DEGs were identified, with 236 upregulated genes and 161 downregulated genes (Figure 2A). To explore the functions of these genes, the DEG sets were assigned to 36 functional groups by gene ontology (GO) annotation analysis, including “biological process” (BP, 14 subcategories), “cellular component” (CC, 11 subcategories) and “molecular function” (MF, 11 subcategories) (Supplemental Figure S1). In the BP group, the majority of GO terms were linked to metabolic process, cellular process and single-organism process. For the CC group, the top five subcategories were membrane, cell, cell part, membrane part and organelle. Catalytic activity and binding were the dominant subcategories in the MF group.
GO enrichment analysis was performed to characterize the main biological functions of DEGs. This indicated that metabolic process (GO: 0008152), lipid biosynthesis process (GO: 0008610) and isoprenoid biosynthetic process (GO: 0008299) were the most significant enrichment terms in the BP category, whilst the carbon–oxygen lyase activity (GO: 0016835) and terpene synthase activity (GO: 0010333) were enriched in the MF category (Figure 2B).

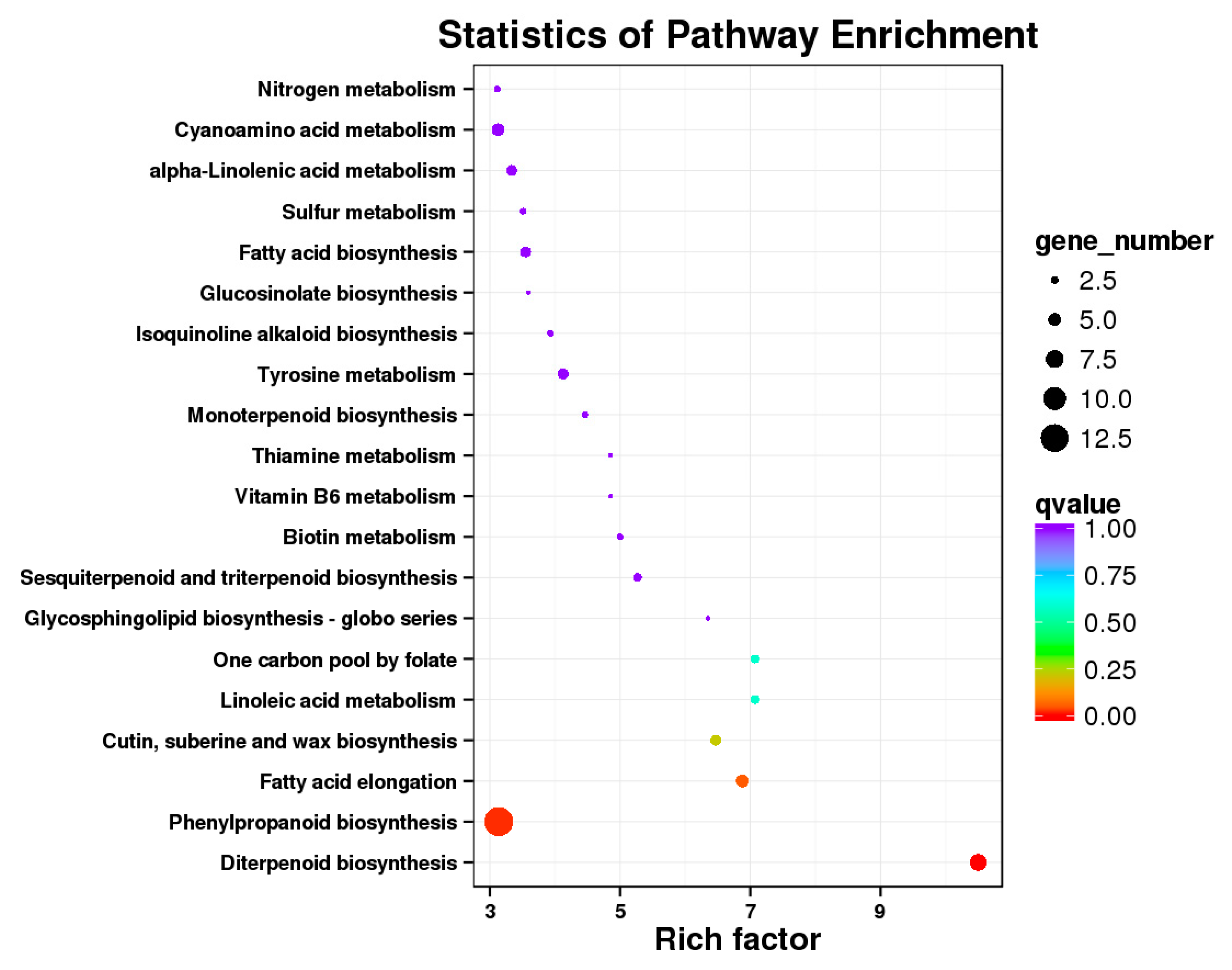

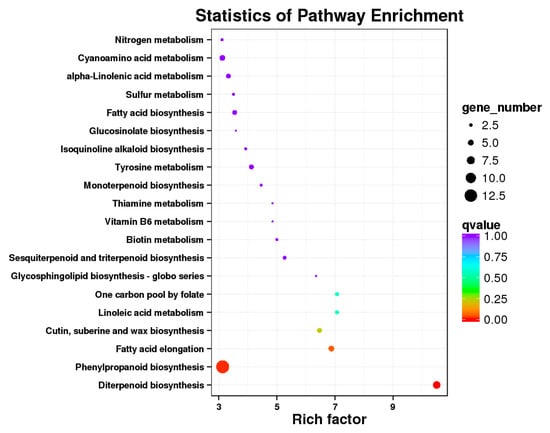

KEGG enrichment analysis was then conducted to assign the DEGs to cellular pathways. Interestingly, these DEGs were enriched in pathways including “diterpenoid biosynthesis”, “phenylpropanoid biosynthesis”, “fatty acid elongation” and “cutin, suberine and wax biosynthesis”, following NO3− rather than NH4+ treatment (Figure 3, Supplemental Figure S2A). When considering those DEGs downregulated by NO3−, the “carbon metabolism” together with “amino acid metabolism” was prominent (Supplemental Figure S2B).

2.4. MapMan Analysis

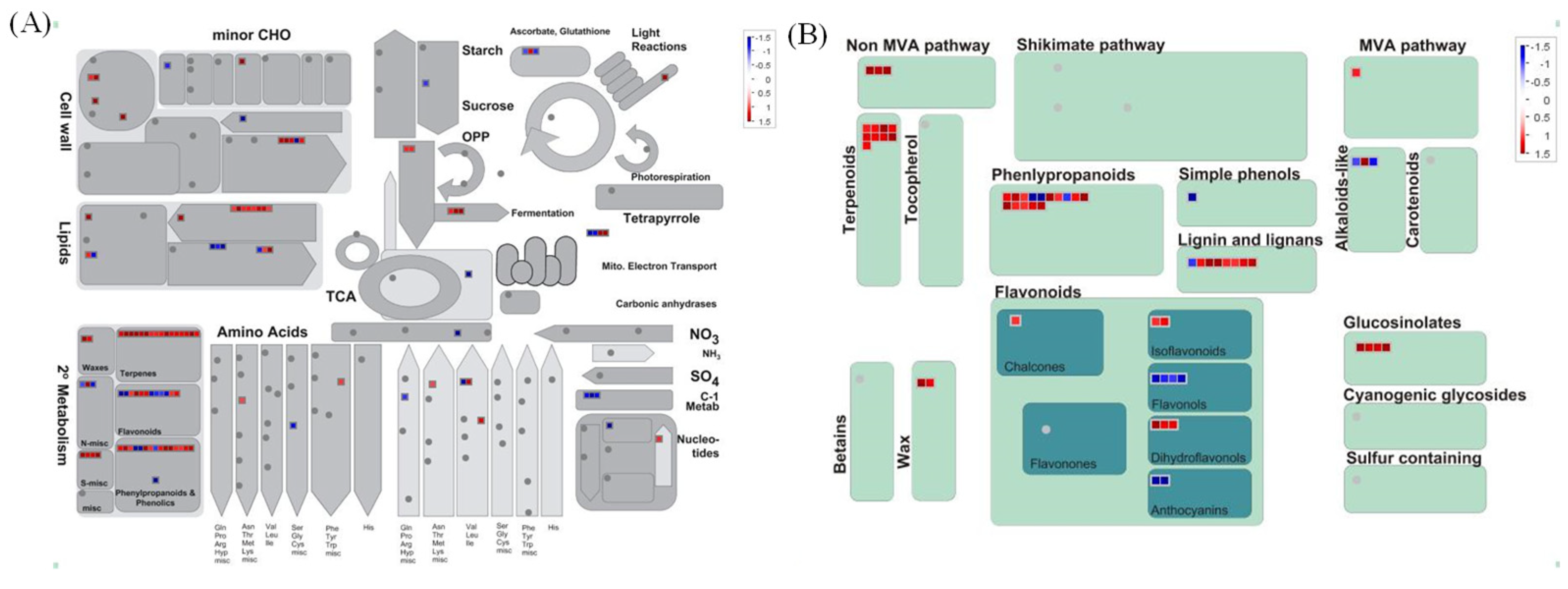

To investigate the metabolic pathways implicated in the response to N forms from a global perspective, we analyzed 397 DEGs using MapMan analysis. Most of the DEGs were assigned to four different metabolic pathways, including “cell wall”, “lipids”, “secondary metabolism” and “amino acids” (Figure 4A). Then, we specifically analyzed the response of secondary metabolism, which is closely related to SGs’ synthesis. Interestingly, genes involved in terpenoid synthesis and phenylpropanoids and lignin and lignans’ metabolism were significantly enhanced by NO3− nutrition when compared with NH4+ nutrition (Figure 4B). SGs biosynthesis mainly contains four modules after the glycolysis processes, which are methylerythritol 4-phosphate (MEP) module, terpene synthesis module, cytochrome P450 module and glycosylation module (Supplemental Figure S3) [5]. In our MapMan assessment, we observed significantly enhanced expressions of genes involved in the MEP pathway.

2.5. Effect of Nitrogen Forms on the Expression of Genes-Encoding SG Synthesis in Stevia Leaves

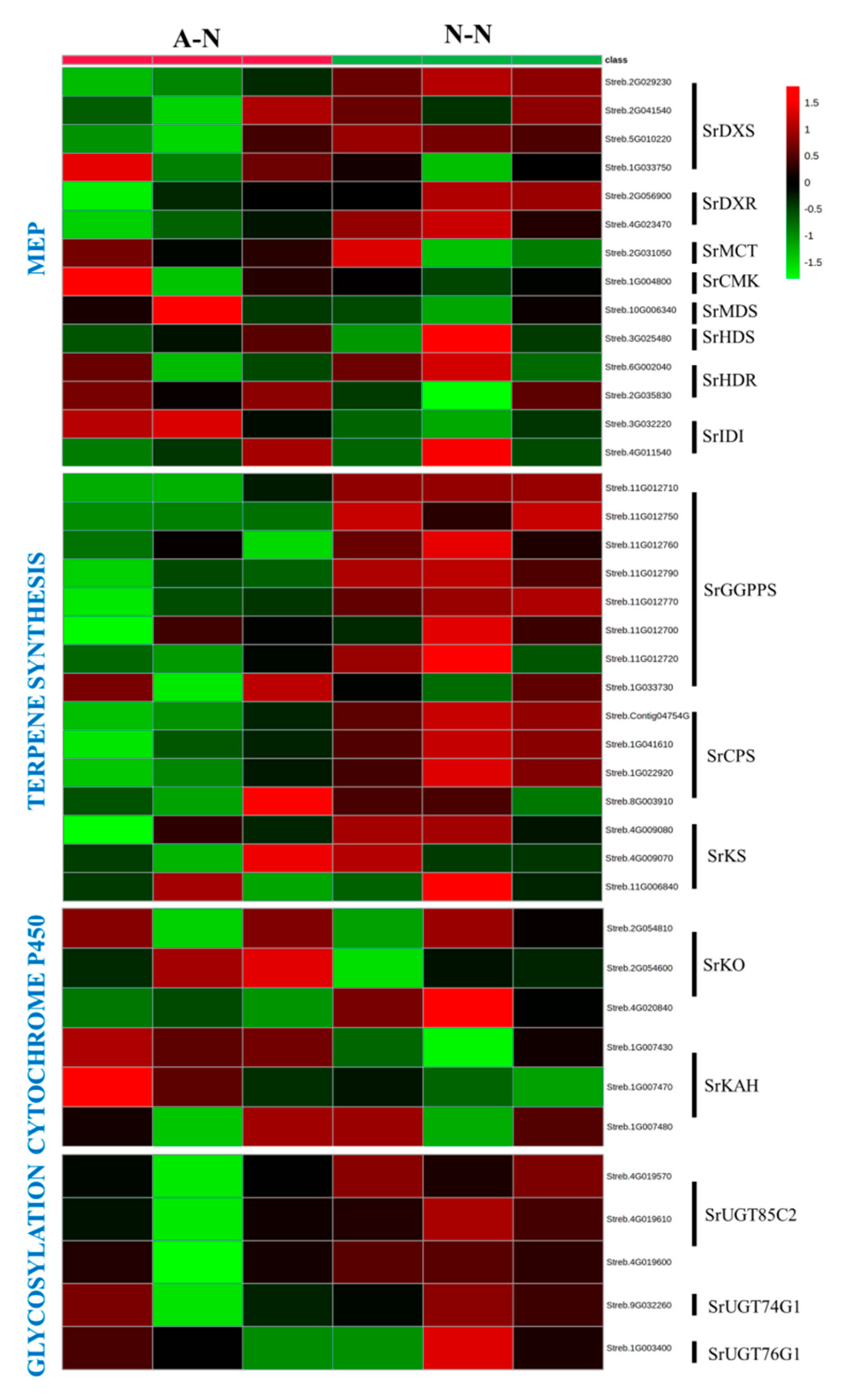

We next focused on the expression of specific genes in the MEP module (Supplemental Figure S3). The expression of genes encoding 1-deoxy-D-xylulose-5-phosphate synthase (DXS) and 1-deoxy-D-xylulose 5-phosphate reductoisomerase (DXR) were higher under NO3− nutrition than NH4+ nutrition (Figure 5). However, the expressions of other genes involved in the MEP module did not significantly differ between NH4+- and NO3−-fed plants. Genes encoding geranylgeranyl pyrophosphate synthase (GGPPS) and ent-copalylpyrophosphate synthase (CPS) in the terpene synthesis module, as well as the genes encoding UDP-glycosyltransferase 85C2 (UGT85C2) in the glycosylation module, were upregulated by NO3− treatments compared to NH4+. In contrast, those encoding ent-copalyl diphosphate synthase (KS), UDP-glycosyltransferase 74G1 (UGT74G1) and UDP-glycosyltransferase 76G1 (UGT76G1) were not changed by N forms (Figure 5). No significant difference was observed for the genes encoding cytochrome P450 enzymes, ent-kaurene oxidase (KO) and kaurenoic acid hydroxylase (KAH) when comparing the two treatments.

2.6. Analysis of Transcription Factors (TFs) Responses to N Forms

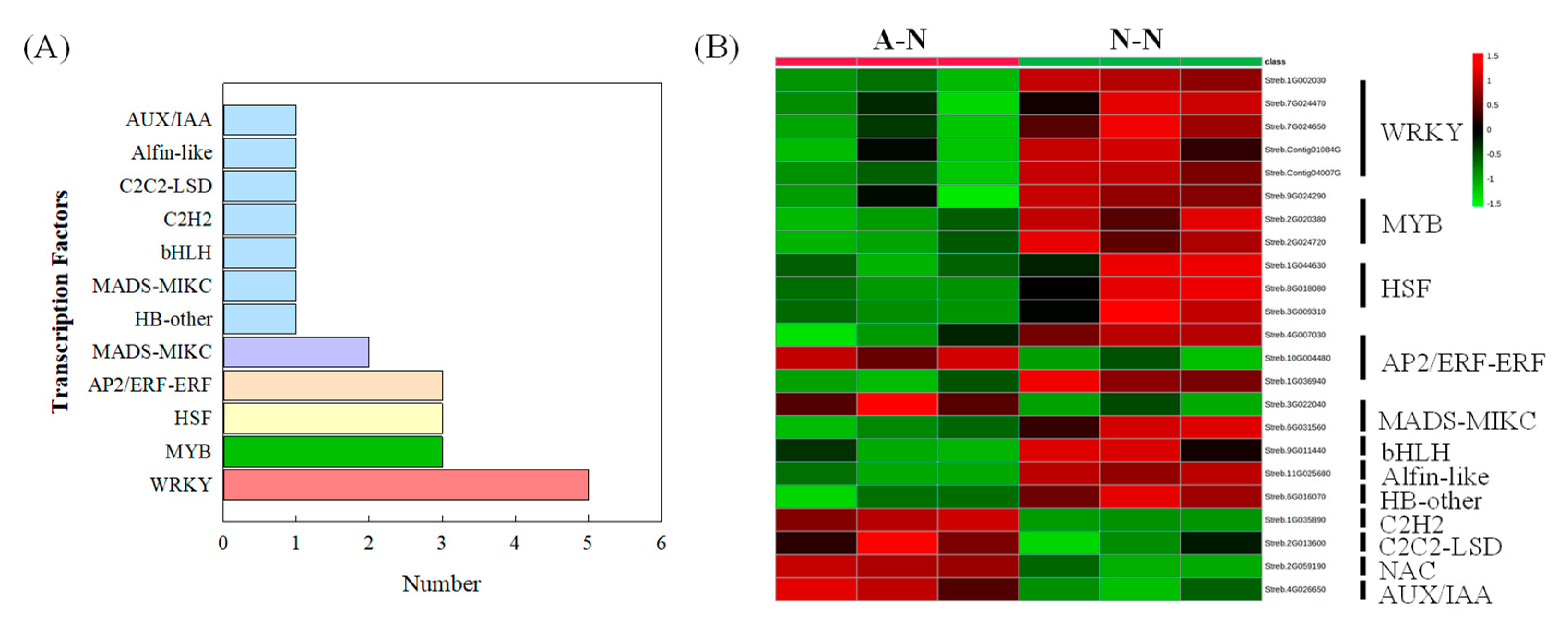

We next analyzed the expression of TFs to fully understand the mechanism of NO3−-affected terpenoid biosynthesis. A total of 23 differentially expressed TFs were identified by comparative analysis between NH4+- and NO3−-fed plants. Among these TFs, WRKY (5), MYB (3), HSF (3) and AP2/ERF-ERF (3) were most prominent (Figure 6). NO3− treatment positively regulated the expression of genes relating to the WRKY, MYB and HSF families, while opposite results were observed for AP2/ERF-ERF family genes.

2.7. Validation of Gene Expression Patterns

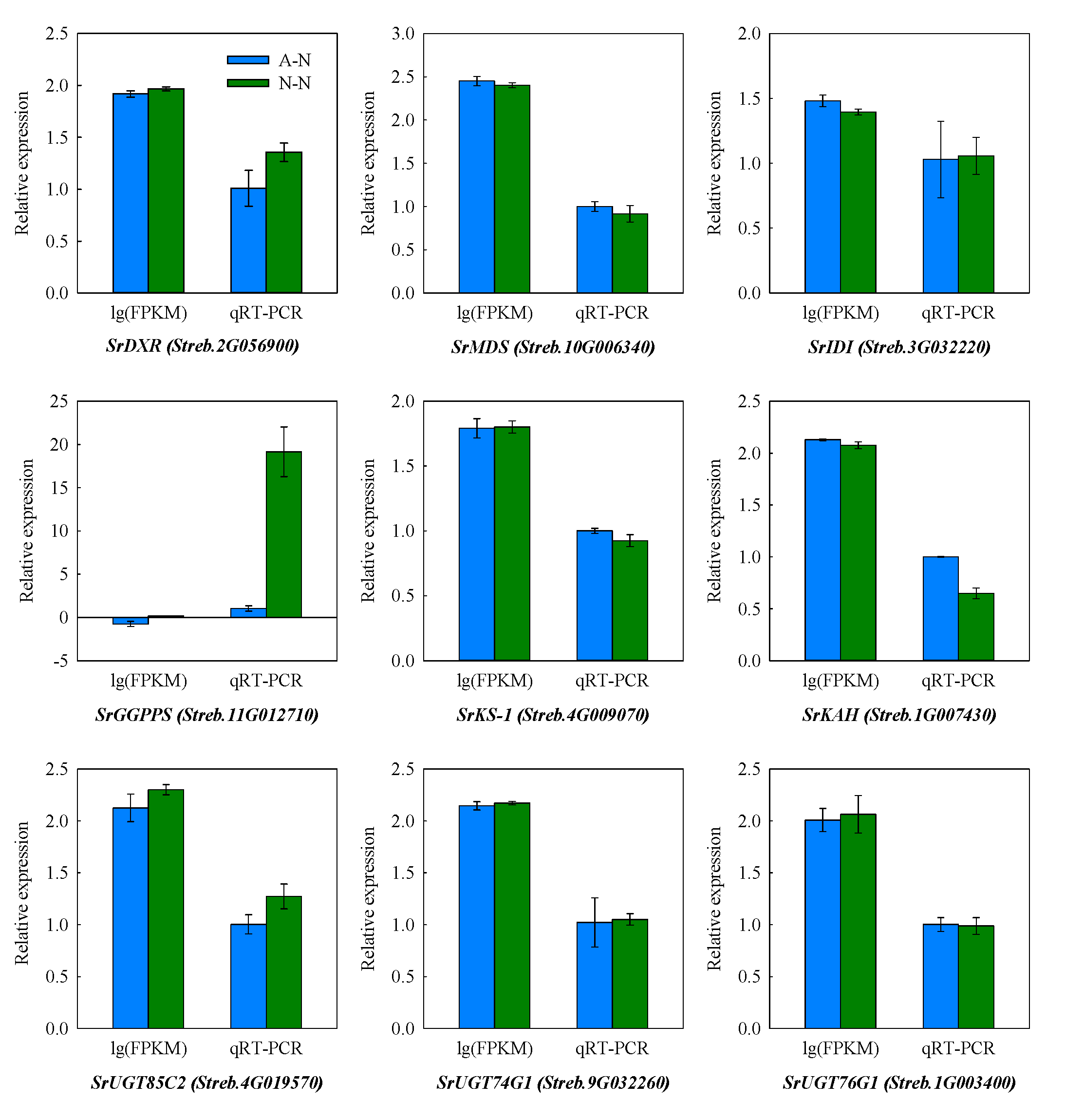

To validate some key observations from the RNA-seq data, the expression of nine genes involving in the SG biosynthesis was analyzed by qRT-PCR. Both the RNA-Seq and qRT-PCR results showed that NO3− nutrition significantly increased the expression levels of SrDXR (Streb.2G056900), GGPPS (Streb.11G012710) and UGT85C2 (Streb.4G019570), while the expressions of SrMDS (Streb.10G006340) and SrKAH (Streb.1G007430) were reduced by NO3− treatment compared to NH4+ (Figure 7). No significant difference was observed in other genes in either of the two methods. Taken together, the comparative analysis of the expression patterns of these genes from RNA-Seq and qRT-PCR results showed a good match, which suggested the reliability of the RNA-Seq results used in this study.

3. Discussion

The absorption of N by plants is critical for plant growth but incorporates preferences for different forms of N to influence metabolic programming. Thus, supply of different N forms will alter plant N assimilation process, C fixation efficiency and subsequently the formation of biomass [30,31]. More specifically, the metabolism of specific plant compounds, including terpenoids, can be influenced by N forms. For instance, the production of andrographolide in Andrographis paniculata [26] and taxol in Taxus yunnanensis [32] could be enhanced by NH4+ nutrition when compared to NO3−. In contrast, NO3− nutrition, rather than NH4+, increased the synthesis of periplocin in Periploca sepium [33], ginseng saponin in Panax quinquefolium [34] and essential oil in Anethum graveolens [35]. This was in line with our data, whereby NO3− was linked to a higher leaf SGs contents that could be linked to elevated expression of SGs synthesis genes (Figure 1 and Figure 5). However, Qin, et al. [36] found that the relationship between NH4+/NO3− ratios and triterpenoid accumulation in Cyclocarya paliurus was influenced by sampling time or the organs being tested [36]. This was also implied in a recent study based on stevia, where different N form-induced effects on SGs were observed when supplied with different plant growth regulators [37]. Taking all of these observations together, although N form-regulated terpenoid metabolism can be influenced by species and the organ being tested, there appears to be a positive role of NO3− nutrition in SGs synthesis.
We have previously demonstrated that application of N as urea boosted biomass but this effectively “diluted” SGs content [15]. However, in this present work, different forms of N did not result in a significant difference in either leaf N content or biomass (Table 1), but there was higher SGs content in NO3−-treated plants (Figure 1). Crucially, this could reduce any dilution effect of growth on the levels of SGs. To further elucidate the underlying mechanism for this, transcriptomic analysis was performed. Further, we validated the RNA-seq data through qRT-PCR detection, as also used in many other studies [38,39,40,41]. Accordingly, the similar expression patterns of specific SG synthesis-related genes from RNA-Seq and qRT-PCR results confirmed the validity of our transcriptome analysis results (Figure 7). These transcriptomic analyses suggested the key genes, TFs and pathways in regulating specific metabolism, most of which have been previously reported in terpenoid-enriched plants including Finger Citron [42], Ferula assafoetida [43], Dendrobium officinale [44], as well as stevia [17,45]. The KEGG results clearly indicated that NO3− mostly upregulates the pathways relating to secondary metabolism, with “diterpenoid biosynthesis” being the most significant for SGs. Other important pathways were “phenylpropanoid biosynthesis” and “wax biosynthesis”, both of which were also supported by the MapMan analysis (Figure 3 and Figure 4). Such results imply that N forms play a definite regulatory role in metabolic reprogramming, which has been documented in poplar [46] and tea [47]. NH4+ upregulates the primary amino acid metabolism as well as the secondary alkaloids metabolism, which would correspondingly reduce the metabolic flow to terpenoids [48,49]. This aligned with our results that amino acid synthesis-related pathways prominent in NO3− downregulated DEGs (Supplemental Figure S2).
Interestingly, different modules of SG biosynthesis responded differently to N forms (Figure 5). For instance, the expressions of genes in the P450 and glycosylation modules were not significantly affected by N form, which suggest that these genes were not driving the increases in NO3−-mediated SGs synthesis, although they play vital roles in either terpenoid skeleton modification or glycosylation [50]. In contrast, the SrDXS and SrDXR families were upregulated by NO3−, suggesting that these genes contributed to increased SGs synthesis, with their function in mediating metabolic flow into the MEP pathway. This aligns with MEP being the main pathway in providing the 5-carbon isoprenoid unit for SG biosynthesis [29,51]. Even more striking was the upregulation of genes encoding GGPPS and CPS, by NO3− feeding. This was an important observation as these are the key catalytic enzymes responsible for ent-diterpenoid synthesis and are highly conserved in all terpenoid-synthesizing organisms [52]. Thus, enhanced diterpene synthesis and accumulation have been achieved by overexpressing the CPS or GGPPS gene in Salvia species [52,53] and tobacco [54]. Similarly, Jassbi et al. [55] demonstrated that the silencing of GGPPS disrupted the synthesis of 17-hydroxygeranyllinalool diterpenoid glycosides, together with the increased susceptibility to tobacco hornworm. Overall, the above findings indicated that the NO3−-mediated SG biosynthesis was related to the upregulated terpenoid biosynthetic genes, especially GGPPS and CPS.
Beyond demonstrating some upregulated terpenoid biosynthetic gene expression, we sought to suggest some key NO3− responsive regulatory components. In defining these, TFs were the obvious targets as these are key factors determining plant secondary metabolism in response to environmental changes (including N forms) and activating the promoters of specific genes [56,57]. In this study, 23 TFs were screened and WRKY and MYB TFs were the most enriched and positively responded to NO3− (Figure 6). Notably, it seemed that all previously documented WRKY TFs play positive functions in endogenous terpenoid biosynthesis (Supplemental Table S2). This aligns with reports that WRKY TFs regulate plant defence via secondary metabolism regulation [58,59]. Moreover, studies in Salvia miltiorrhiza, Panax ginseng and Withania somnifera all show that WRKY TFs can positively direct terpenoid biosynthesis, by binding to the W-box sequences in promoters of specific genes, such as CPS [60], squalene epoxidase [59,61] and DXR [62]. Interestingly, Sun et al. [63] demonstrated that the PqWRKY1 in Panax quinquefolius, that associated with the increased production of ginsenosides, can also upregulate triterpene biosynthetic genes in Arabidopsis, indicating the conserved functions of WRKY across different plant species. In short, the above findings support a positive role of WRKY TFs in the synthesis of terpenoids, including SGs in stevia plants. Considering MYB TFs, they have been reported to play key roles in plant growth, defence, as well as secondary metabolism. Although MYB TFs may regulate terpenoid biosynthesis as either activators or repressors (Supplemental Table S3), it seems that they have a positive regulatory effect in NO3−-mediated SGs synthesis, which was also confirmed in our more recent work [17]. Terpenoid-relevant MYB targeted promoters include those encoding GGPPS [64], dammarenediol synthase [65], CPS [66] and other TPS genes [67,68]. Other TFs such as AP2/ERF-ERF and bHLH have also been reported to play regulatory roles in terpenoid synthesis [69,70], but we could find no evidence of these being significant factors mediating N form-mediated metabolic reprogramming. Further, although HSF TFs were upregulated by NO3− rather than NH4+, rather than affecting plant secondary metabolism, they seem to be mainly regulated plant biotic/abiotic stress responses through various signalling pathways such as calcium, reactive oxygen species and abscisic acid [71,72]. Taking all of these observations into account, we suggest that WRKY and MYB TFs were the key factors responding to N forms and mediating the synthesis of terpenoid compounds, including SGs in our study.

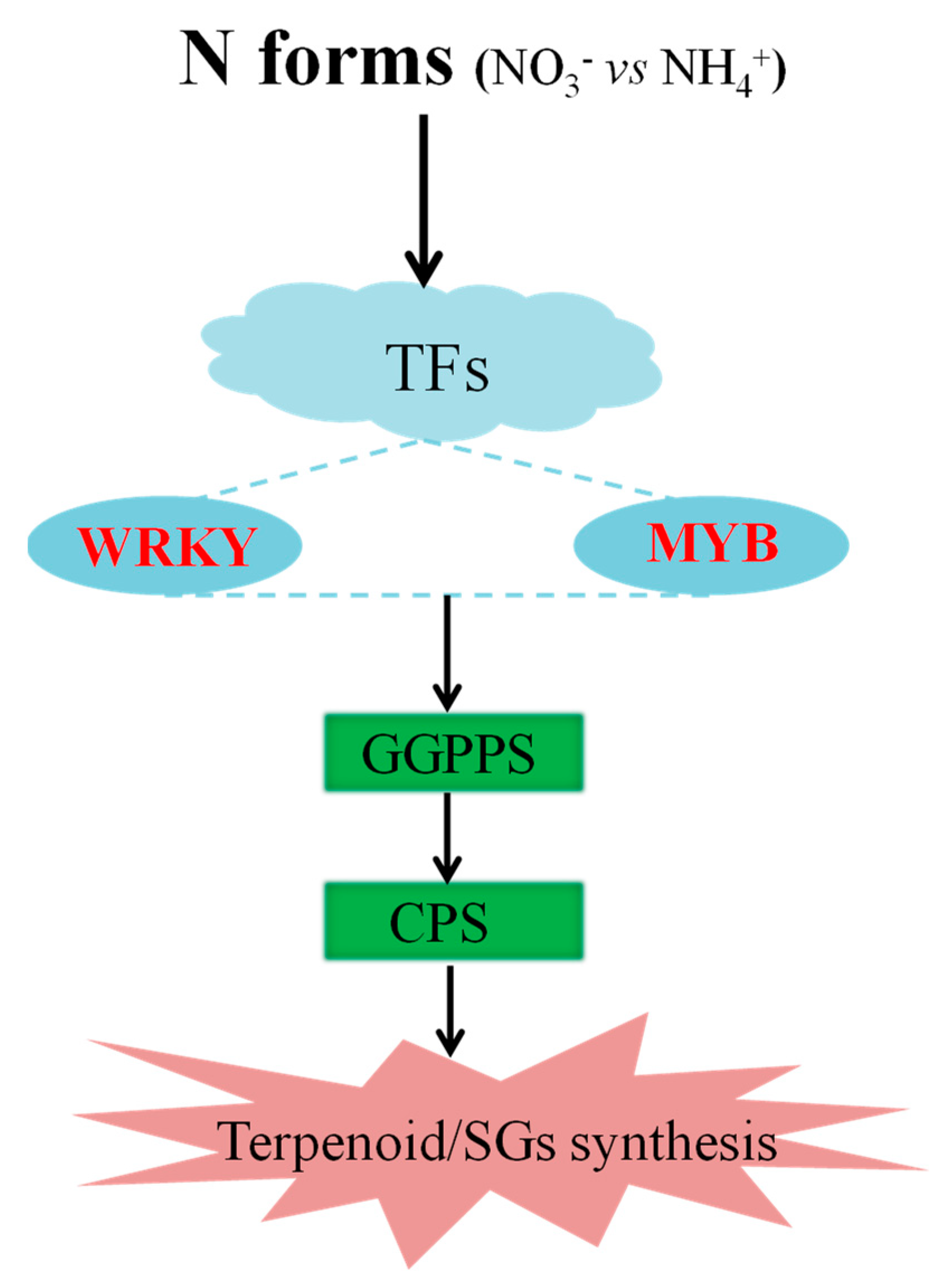

To summarize, we have derived a schematic model to show that NO3− promoted the synthesis of SGs in stevia leaves by regulating the expression of SGs-related genes combining by key TFs, especially MYB and WRKY (Figure 8).

4. Materials and Methods

4.1. Plant Material and Experimental Conditions

Field and pot experiments were simultaneously conducted at the Institute of Botany, Jiangsu Province, and the Chinese Academy of Sciences in 2019, from June to September. In the experiments, the similarly sized seedlings of stevia (Stevia rebaudiana Bertoni) cultivar Zhongshan No. 8′ were used. The basic properties of the experimental soil used here have been previously described [17], and the total N, Olsen-phosphorus and NH4OAc-potassium contents are 2.41 mg g−1, 60.91 mg kg−1 and 283.22 mg kg−1, respectively.
Both field and pot experiments contained two N fertilization regimes of (1) ammonium N (NH4+) fertilization (in the form of ammonium sulfate) and (2) nitrate N (NO3−) fertilization (in the form of calcium nitrate). These two treatments only differed in the N fertilizer forms with N fertilization rate and topdressing strategies being identical. The fertilization rates of N, phosphorus and potassium for the field experiment were 300 kg ha−1, 75 kg ha−1 and 90 kg ha−1, respectively. N fertilizers were applied three times, at a ratio of 50%, 30%, 20% separately before transplanting, at the fast-growing stage and late-branching stage, as described previously [16]. Phosphate fertilizers were all applied before transplanting in the form of calcium superphosphate, while potassium fertilizers were applied twice in equal amounts, respectively, before transplanting and at the fast-growing stage. For the pot experiment, all fertilization rates and strategies were consistent with the field experiment, with the specific fertilizer amounts calculated according to the relationship between the pot soil weight and the field soil weight of the cultivated layer (15 cm). In the field experiment, the plots with different fertilization regimes were arranged at intervals to reduce the discrete influence of environmental factors, but this was not done in the pot experiment due to the stable greenhouse conditions.

4.2. Sampling and Processing

Plants in field and pot experiments were harvested at the flower bud stage that is defined as the harvest stage in stevia cultivation. Six biological replicates were taken for each treatment. Half of these plants in one treatment (three replicates) were harvested as dry samples, while the rest of the plants were collected as fresh samples. Specifically, three of the replications were cut alongside the stem base and then divided into stems and leaves in the lab after washing with distilled water. Then, all these samples were separately dried at 105 °C for 30 min and then at 70 °C to constant weight, prior to being ground and mixed. Simultaneously, the fresh leaves of the remaining replicates were ground in liquid nitrogen, and then stored in a −80 °C freezer for further analysis. The dried samples were used for the measurements of total N (TN), total carbon (TC), and SG content. The fresh samples were used for the measurements of leaf ammonium and nitrate content, as well as for RNA-seq work.

4.3. Measurement of TN, NO3− Content, NH4+ Content in Stevia Leaves

The leaf total N content was measured following the H2SO4–H2O2 digestion method of Kjeldahl [73]. The extraction and measurement of NO3− followed the method of Cataldo et al. [74], while the measurement of NH4+ used the method of Lin and Kao [75].

4.4. Extraction and Analysis of Leaf Steviol Glycosides (SGs) Content

The detection of leaf SGs content was conducted according to the method of Sun et al. [15], with a slight modification. Briefly, the leaf samples were ground with 80% ethanol and then placed in a boiling water bath for 1 h before centrifugation at 12,000× g for 10 min. The supernatants would be then rotary-evaporated and redissolved in distilled water for further high-performance liquid chromatography (HPLC) detection. The HPLC working conditions were kept the same as previously reported, and the contents of different SG components were calculated according to standard curves of Reb A, STV, and Reb C (99.99% pure, ChromaDex, Irvine, CA, USA).

4.5. Transcriptome Analysis of Stevia Leaves

The RNA isolation and transcriptome analysis procedures were performed by staff at Beijing BioMarker Technology (Beijing, China), as previously reported [17]. Briefly, total RNA was isolated using RNAiso Plus (Takara Bio Inc., Shiga, Japan). The RNA degradation, purity and integrity were then assessed according to the manufacturer’s instructions. Library preparation for RNA-Seq was generated using the NEBNext® Ultra™ RNA Library Prep Kit for Illumina® (NEB, San Diego, CA, USA), and the library preparations were sequenced using an Illumina HiSeq X-ten platform.
The high-quality clean-read data were obtained by removing reads containing adapter contamination and eliminating the low-quality reads. HISAT 2 program and StringTie were used for the reads mapping and assembly [76,77], with the genome data of stevia referenced for further annotation [29]. Functional annotation of all identified genes was performed through NCBI nonredundant protein sequences, nonredundant nucleotide sequences, SwissProt, Gene Ontology (GO), Clusters of Orthologous Groups of proteins (KOG/COG) and the Kyoto Encyclopedia of Genes and Genomes (KEGG).

4.6. Differentially Expressed Genes (DEGs) and Enrichment Analysis

Gene expression levels were represented by the FPKM (fragments per kilobase of exon per million fragments mapped reads) value using RNA-seq data. The DESeq2 was used to calculate the differences in the expression between NH4+ and NO3− treatments. We used a false discovery rate (FDR) of 0.01 and a fold-change of 2 as the threshold for DEGs identification. The subsequently GO and KEGG enrichment analyses were performed based on all of these DEGs, implemented by the GOseq R package-based Wallenius noncentral hypergeometric distribution and KOBAS (2.0) software (center for bioinformatics of Peking University, Beijing, China) [78].

4.7. MapMan Analysis

For metabolic pathway analysis, stevia transcripts were annotated and classified into MapMan BINs using plaBi dataBase (https://www.plabipd.de/portal/mercator-sequence-annotation (accessed on 5 March 2021)), and the functional category analysis of DEGs was performed by MapMan version 3.6.0 (http://mapman.gabipd.org/web/guest (accessed on 5 March 2021), Max Planck Institute for Molecular Plant Physiology, Golm, Potsdam, Germany).

4.8. Quantitative Real-Time PCR (qRT-PCR) Validation of DEGs

In this study, nine genes involved in SGs synthesis were selected for the verification of the DEG results. As shown in Supplemental Table S4, Actin was used as endogenous control and the primers were designed using Primer 3.0 program. qRT-PCR reactions were conducted on an ABI 7500 real-time PCR system using SYBR Green master mix (TaKaRa, Dalian, China) and the relative expression of target genes was calculated by the 2−ΔΔCt method [79].

4.9. Data Availability

Data sets of this bio-project (PRJNA745392) are available at the NCBI Sequence Read Archive (SRA) with the accession of SUB9990898. SAMN20165632, SAMN20165633 and SAMN20165634 are the bio-sample names of the control group (A-N), while SAMN20165635, SAMN20165636, and SAMN20165637are those for the treatment group (N-N).

4.10. Statistical Analysis

One-way analysis of variance (ANOVA) and two-way ANOVA were respectively used to assess differences for each parameter among treatments and the interaction between treatments and experimental cultures, using the SPSS 16.0 (IBM, Armonk, NYC, USA) statistical software package. Means and calculated standard deviations were reported. Significance was tested at the 5% level.

5. Conclusions

Our results showed that NO3−, rather than NH4+, can significantly promote SGs synthesis in stevia leaves, without losing leaf biomass. Through transcriptomic analysis, we found that N forms can induce metabolic reprogramming including NO3−-enhanced terpenoid synthesis. Such influence may be dependent on the activation of the MYB/WRKY TFs on the expressions of key enzymes of terpene synthesis. These represent potential targets to increase SGs via plant breeding via even transgenic or gene-editing approaches. More immediately, the proper use of NO3− fertilization seems likely to be an immediate and cost-effective manner to boost SG yield from stevia.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ijms22168549/s1.

Author Contributions

Conceptualization, Y.S. and H.Y.; formal analysis, Y.S., T.Z., Y.Y. and H.T.; investigation, Y.S. and X.X.; methodology, Y.S.; project administration, Y.S. and T.Z.; writing—original draft, Y.S.; writing—review and editing, L.A.J.M. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Natural Science Foundation of Jiangsu Province (BK20180312, BK20201243) and the National Natural Science Foundation of China (31901597). Luis Alejandro Jose Mur.’s contribution is aided by the Biotechnology and Biological Sciences Research Council (BBSRC, UK) “A China-UK joint phenomics consortium to dissect the basis of crop stress resistance in the face of climate change” (grant No. BB/R02118X/1), exchange grant.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support the findings of this study are openly available in the NCBI Sequence Read Archive (SRA) under projects PRJNA745392.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Edwards, C.H.; Rossi, M.; Corpe, C.P.; Butterworth, P.J.; Ellis, P.R. The role of sugars and sweeteners in food, diet and health: Alternatives for the future. Trends Food Sci. Technol. 2016, 56, 158–166. [Google Scholar] [CrossRef]
  2. Bray, G.A.; Popkin, B.M. Dietary sugar and body weight: Have we reached a crisis in the epidemic of obesity and diabetes?: Health be damned! Pour on the sugar. Diabetes Care 2014, 37, 950–956. [Google Scholar] [CrossRef] [Green Version]
  3. Yadav, S.K.; Guleria, P. Steviol glycosides from Stevia: Biosynthesis pathway review and their application in foods and medicine. Crit. Rev. Food Sci. 2012, 52, 988–998. [Google Scholar] [CrossRef]
  4. Gardana, C.; Scaglianti, M.; Simonetti, P. Evaluation of steviol and its glycosides in Stevia rebaudiana leaves and commercial sweetener by ultra-high-performance liquid chromatography-mass spectrometry. J. Chromatogr. A 2010, 1217, 1463–1470. [Google Scholar] [CrossRef]
  5. Wang, J.; Li, S.; Xiong, Z.; Wang, Y. Pathway mining-based integration of critical enzyme parts for de novo biosynthesis of steviolglycosides sweetener in Escherichia coli. Cell Res. 2016, 26, 258–261. [Google Scholar] [CrossRef] [Green Version]
  6. Kim, M.J.; Zheng, J.; Liao, M.H.; Jang, I.C. Overexpression of SrUGT76G1 in Stevia alters major steviol glycosides composition towards improved quality. Plant Biotechnol. J. 2018, 17, 1037–1047. [Google Scholar] [CrossRef] [PubMed]
  7. Yang, Y.; Huang, S.; Han, Y.; Yuan, H.; Gu, C.; Wang, Z. Environmental cues induce changes of steviol glycosides contents and transcription of corresponding biosynthetic genes in Stevia rebaudiana. Plant Physiol. Biochem. 2015, 86, 174–180. [Google Scholar] [CrossRef]
  8. Mandal, S.; Evelin, H.; Giri, B.; Singh, V.P.; Kapoor, R. Arbuscular mycorrhiza enhances the production of stevioside and rebaudioside-A in Stevia rebaudiana via nutritional and non-nutritional mechanisms. Appl. Soil Ecol. 2013, 72, 187–194. [Google Scholar] [CrossRef]
  9. Kumar, R.; Sood, S.; Sharma, S.; Kasana, R.C.; Pathania, V.L.; Singh, B.; Singh, R.D. Effect of plant spacing and organic mulch on growth, yield and quality of natural sweetener plant Stevia and soil fertility in western Himalayas. Int. J. Plant Prod. 2014, 8, 311–334. [Google Scholar]
  10. Scheible, W.R.; Morcuende, R.; Czechowski, T.; Fritz, C.; Osuna, D.; Palacios-Rojas, N.; Schindelasch, D.; Thimm, O.; Udvardi, M.K.; Stitt, M. Genome-wide reprogramming of primary and secondary metabolism, protein synthesis, cellular growth processes, and the regulatory infrastructure of Arabidopsis in response to nitrogen. Plant Physiol. 2004, 136, 2483–2499. [Google Scholar] [CrossRef] [Green Version]
  11. Msanne, J.; Xu, D.; Konda, A.R.; Casas-Mollano, J.A.; Awada, T.; Cahoon, E.B.; Cerutti, H. Metabolic and gene expression changes triggered by nitrogen deprivation in the photoautotrophically grown microalgae Chlamydomonas reinhardtii and Coccomyxa sp. C-169. Phytochemistry 2012, 75, 50–59. [Google Scholar] [CrossRef] [Green Version]
  12. Tavarini, S.; Sgherri, C.; Ranieri, A.M.; Angelini, L.G. Effect of nitrogen fertilization and harvest time on steviol glycosides, flavonoid composition, and antioxidant properties in Stevia rebaudiana Bertoni. J. Agric. Food Chem. 2015, 63, 7041–7050. [Google Scholar] [CrossRef]
  13. Rodrigues, M.Â.; Afonso, S.; Ferreira, I.Q.; Arrobas, M. Response of stevia to nitrogen fertilization and harvesting regime in Northeastern Portugal. Arch. Agron. Soil Sci. 2017, 63, 626–637. [Google Scholar] [CrossRef]
  14. Pal, P.K.; Kumar, R.; Guleria, V.; Mahajan, M.; Prasad, R.; Pathania, V.; Gill, B.S.; Singh, D.; Chand, G.; Singh, B.; et al. Crop-ecology and nutritional variability influence growth and secondary metabolites of Stevia rebaudiana Bertoni. BMC Plant Biol. 2015, 15, 67. [Google Scholar] [CrossRef] [Green Version]
  15. Sun, Y.; Hou, M.; Mur, L.A.J.; Yang, Y.; Zhang, T.; Xu, X.; Huang, S.; Tong, H. Nitrogen drives plant growth to the detriment of leaf sugar and steviol glycosides metabolisms in Stevia (Stevia rebaudiana Bertoni). Plant Physiol. Biochem. 2019, 141, 240–249. [Google Scholar] [CrossRef]
  16. Sun, Y.; Yang, Y.; Hou, M.; Huang, X.; Zhang, T.; Huang, S.; Xu, X.; Yuan, H. Optimized nitrogen topdressing strategies enhance steviol glycoside productivity in stevia (Stevia rebaudiana Bertoni) plants. J. Soil Sci. Plant Nutr. 2020, 20, 1133–1143. [Google Scholar] [CrossRef]
  17. Sun, Y.; Xu, X.; Zhang, T.; Yang, Y.; Tong, H.; Yuan, H. Comparative transcriptome analysis provides insights into steviol glycoside synthesis in stevia (Stevia rebaudiana Bertoni) leaves under nitrogen deficiency. Plant Cell Rep. 2021. [Google Scholar] [CrossRef]
  18. Miflin, B.J.; Habash, D.Z. The role of glutamine synthetase and glutamate dehydrogenase in nitrogen assimilation and possibilities for improvement in the nitrogen utilization of crops. J. Exp. Bot. 2002, 53, 979–987. [Google Scholar] [CrossRef] [Green Version]
  19. Masclaux-Daubresse, C.; Reisdorf-Cren, M.; Pageau, K.; Lelandais, M.; Grandjean, O.; Kronenberger, J.; Valadier, M.H.; Feraud, M.; Jouglet, T.; Suzuki, A. Glutamine synthetase-glutamate synthase pathway and glutamate dehydrogenase play distinct roles in the sink-source nitrogen cycle in tobacco. Plant Physiol. 2006, 140, 444–456. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Bloom, A.J. Photorespiration and nitrate assimilation: A major intersection between plant carbon and nitrogen. Photosynth. Res. 2015, 123, 117–128. [Google Scholar] [CrossRef] [Green Version]
  21. Sun, Y.; Li, Y.; Wang, B.; Li, Y.; Ding, L.; Wang, M.; Luis, A.J.M.; Fan, X.; Shen, Q.; Guo, S. Leaf nitrate accumulation influences the photorespiration of rice (Oryza sativa L.) seedlings. Plant Soil 2020, 456, 323–338. [Google Scholar] [CrossRef]
  22. Masumoto, C.; Miyazawa, S.; Ohkawa, H.; Fukuda, T.; Taniguchi, Y.; Murayama, S.; Kusano, M.; Saito, K.; Fukayama, H.; Miyao, M. Phosphoenolpyruvate carboxylase intrinsically located in the chloroplast of rice plays a crucial role in ammonium assimilation. Proc. Natl. Acad. Sci. USA 2010, 107, 5226–5231. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Setien, I.; Vega-Mas, I.; Celestino, N.; Calleja-Cervantes, M.E.; Gonzalez-Murua, C.; Estavillo, J.M.; Gonzalez-Moro, M.B. Root phosphoenolpyruvate carboxylase and NAD-malic enzymes activity increase the ammonium-assimilating capacity in tomato. J. Plant Physiol. 2014, 171, 49–63. [Google Scholar] [CrossRef]
  24. Fallovo, C.; Schreiner, M.; Schwarz, D.; Colla, G.; Krumbein, A. Phytochemical changes induced by different nitrogen supply forms and radiation levels in two leafy Brassica species. J. Agric. Food Chem. 2011, 59, 4198–4207. [Google Scholar] [CrossRef] [PubMed]
  25. Zhu, Z.; Yu, M.; Chen, Y.; Guo, Q.; Zhang, L.; Shi, H.; Liu, L. Effects of ammonium to nitrate ratio on growth, nitrogen metabolism, photosynthetic efficiency and bioactive phytochemical production of Prunella vulgaris. Pharm. Biol. 2014, 52, 1518–1525. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Zhong, C.; Jian, S.F.; Chen, D.L.; Huang, X.J.; Miao, J.H. Organic nitrogen sources promote andrographolide biosynthesis by reducing nitrogen metabolism and increasing carbon accumulation in Andrographis paniculata. Plant Physiol. Biochem. 2021, 164, 82–91. [Google Scholar] [CrossRef]
  27. Zhang, J.; Lv, J.; Xie, J.; Gan, Y.; Coulter, J.A.; Yu, J.; Li, J.; Wang, J.; Zhang, X. Nitrogen source affects the composition of metabolites in pepper (Capsicum annuum L.) and regulates the synthesis of Capsaicinoids through the GOGAT-GS pathway. Foods 2020, 9, 150. [Google Scholar] [CrossRef] [Green Version]
  28. Aghaye Noroozlo, Y.; Souri, M.K.; Delshad, M. Effects of soil application of amino acids, ammonium, and nitrate on nutrient accumulation and growth characteristics of Sweet Basil. Commun. Soil Sci. Plant Anal. 2019, 50, 2864–2872. [Google Scholar] [CrossRef]
  29. Xu, X.; Yuan, H.; Yu, X.; Huang, S.; Sun, Y.; Zhang, T.; Liu, Q.; Tong, H.; Zhang, Y.; Wang, Y.; et al. The chromosome-level Stevia genome provides insights into steviol glycoside biosynthesis. Hortic. Res. 2021, 8, 129. [Google Scholar] [CrossRef] [PubMed]
  30. Guo, S.; Zhou, Y.; Gao, Y.; Li, Y.; Shen, Q. New insights into the nitrogen form effect on photosynthesis and photorespiration. Pedosphere 2007, 17, 601–610. [Google Scholar] [CrossRef]
  31. Guo, S.; Zhou, Y.; Shen, Q.; Zhang, F. Effect of ammonium and nitrate nutrition on some physiological processes in higher plants-growth, photosynthesis, photorespiration, and water relations. Plant Biol. 2007, 9, 21–29. [Google Scholar] [CrossRef]
  32. Chen, Y.; Fei, Y.; Cai, M.; Luo, J. Effects of amino acids, nitrate, and ammonium on the growth and taxol production in cell cultures of Taxus yunnanensis. Plant Growth Regul. 2003, 41, 265–268. [Google Scholar] [CrossRef]
  33. Zhang, J.; Gao, W.; Wang, J.; Li, X.; Xiao, P. Improvement of growth and periplocin yield of Periploca sepium adventitious root cultures by altering nitrogen source supply. Chin. Herb. Med. 2011, 3, 226–231. [Google Scholar]
  34. Zhong, J.; Wang, S. Effects of nitrogen source on the production of ginseng saponin and polysaccharide by cell cultures of Panax quinquefolium. Process Biochem. 1998, 33, 671–675. [Google Scholar] [CrossRef]
  35. Shekofteh, H.; Salari, N. Influence of hydrogel polymer and NO3−: NH4+ ratios on dill (Anethum graveolens L.) seed essential oil composition and yield. Desert 2016, 21, 91–101. [Google Scholar]
  36. Qin, J.; Yue, X.; Shang, X.; Fang, S. Nitrogen forms alter triterpenoid accumulation and related gene expression in Cyclocarya paliurus (Batalin) Iljinsk. seedlings. Forests 2020, 11, 631. [Google Scholar] [CrossRef]
  37. Hasanaklou, H.T.; Ghadim, A.E.K.; Moradi, F.; Ghodehkahriz, S.J.; Gholipouri, A. The effects of NH4+ and NO3− and plant growth regulators on the accumulation of nutrients, carbohydrates and secondary metabolites of Stevia rebaudiana Bertoni. Sugar Tech 2020, 23, 65–76. [Google Scholar] [CrossRef]
  38. Liu, H.; Gu, J.; Lu, Q.; Li, H.; Hong, Y.; Chen, X.; Ren, L.; Deng, L.; Liang, X. Transcriptomic analysis reveals the high-oleic acid feedback regulating the homologous gene expression of Stearoyl-ACP Desaturase 2 (SAD2) in peanuts. Int. J. Mol. Sci. 2019, 20, 3091. [Google Scholar] [CrossRef] [Green Version]
  39. Guan, L.; Haider, M.S.; Khan, N.; Nasim, M.; Jiu, S.; Fiaz, M.; Zhu, X.; Zhang, K.; Fang, J. Transcriptome sequence analysis elaborates a complex defensive mechanism of grapevine (Vitis vinifera L.) in response to salt stress. Int. J. Mol. Sci. 2018, 19, 4019. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Deng, N.; Hou, C.; He, B.; Ma, F.; Song, Q.; Shi, S.; Liu, C.; Tian, Y. A full-length transcriptome and gene expression analysis reveal genes and molecular elements expressed during seed development in Gnetum luofuense. BMC Plant Biol. 2020, 20, 531. [Google Scholar] [CrossRef]
  41. Miao, L.; Di, Q.; Sun, T.; Li, Y.; Duan, Y.; Wang, J.; Yan, Y.; He, C.; Wang, C.; Yu, X. Integrated metabolome and transcriptome analysis provide insights into the effects of grafting on fruit flavor of cucumber with different rootstocks. Int. J. Mol. Sci. 2019, 20, 3592. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Xu, Y.; Zhu, C.; Xu, C.; Sun, J.; Grierson, D.; Zhang, B.; Chen, K. Integration of metabolite profiling and transcriptome analysis reveals genes related to volatile terpenoid metabolism in Finger Citron (C. medica var. sarcodactylis). Molecules 2019, 24, 2564. [Google Scholar] [CrossRef] [Green Version]
  43. Amini, H.; Naghavi, M.R.; Shen, T.; Wang, Y.; Nasiri, J.; Khan, I.A.; Fiehn, O.; Zerbe, P.; Maloof, J.N. Tissue-specific transcriptome analysis reveals candidate genes for terpenoid and phenylpropanoid metabolism in the medicinal plant Ferula assafoetida. Genes Genom. Genet. 2019, 9, 807–816. [Google Scholar] [CrossRef] [Green Version]
  44. Li, N.; Dong, Y.; Lv, M.; Qian, L.; Sun, X.; Liu, L.; Cai, Y.; Fan, H. Combined analysis of volatile terpenoid metabolism and transcriptome reveals transcription factors related to terpene synthase in two cultivars of Dendrobium officinale Flowers. Front. Genet. 2021, 12, 661296. [Google Scholar] [CrossRef]
  45. Singh, G.; Pal, P.; Masand, M.; Seth, R.; Kumar, A.; Singh, S.; Sharma, R.K. Comparative transcriptome analysis revealed gamma-irradiation mediated disruption of floral integrator gene(s) leading to prolonged vegetative phase in Stevia rebaudiana Bertoni. Plant Physiol. Biochem. 2020, 148, 90–102. [Google Scholar] [CrossRef]
  46. Poovaiah, C.R.; Phalen, C.; Sniffen, G.T.; Coleman, H.D. Growth and transcriptional changes in poplar under different nitrogen sources. Plant Mol. Biol. Rep. 2019, 37, 291–302. [Google Scholar] [CrossRef]
  47. Yang, Y.; Wang, F.; Wan, Q.; Ruan, J. Transcriptome analysis using RNA-Seq revealed the effects of nitrogen form on major secondary metabolite biosynthesis in tea (Camellia sinensis) plants. Acta Physiol. Plant. 2018, 40, 1–17. [Google Scholar] [CrossRef]
  48. Guo, X.; Zu, Y.; Tang, Z. Physiological responses of Catharanthus roseus to different nitrogen forms. Acta Physiol. Plant. 2011, 34, 589–598. [Google Scholar] [CrossRef]
  49. Wang, M.; Gu, Z.; Wang, R.; Guo, J.; Ling, N.; Firbank, L.G.; Guo, S. Plant primary metabolism regulated by nitrogen contributes to plant-pathogen interactions. Plant Cell Physiol. 2019, 60, 329–342. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  50. Zheng, X.; Li, P.; Lu, X. Research advances in cytochrome P450-catalysed pharmaceutical terpenoid biosynthesis in plants. J. Exp. Bot. 2019, 70, 4619–4630. [Google Scholar] [CrossRef]
  51. Volke, D.C.; Rohwer, J.; Fischer, R.; Jennewein, S. Investigation of the methylerythritol 4-phosphate pathway for microbial terpenoid production through metabolic control analysis. Microb. Cell Fact. 2019, 18, 192. [Google Scholar] [CrossRef] [Green Version]
  52. Vaccaro, M.C.; Alfieri, M.; De Tommasi, N.; Moses, T.; Goossens, A.; Leone, A. Boosting the synthesis of pharmaceutically active abietane diterpenes in S. sclarea hairy roots by engineering the GGPPS and CPPS Genes. Front. Plant Sci. 2020, 11, 924. [Google Scholar] [CrossRef]
  53. Shi, M.; Luo, X.; Ju, G.; Li, L.; Huang, S.; Zhang, T.; Wang, H.; Kai, G. Enhanced diterpene tanshinone accumulation and bioactivity of transgenic Salvia miltiorrhiza hairy roots by pathway engineering. J. Agric. Food Chem. 2016, 64, 2523–2530. [Google Scholar] [CrossRef] [PubMed]
  54. Yin, J.L.; Wong, W.S.; Jang, I.C.; Chua, N.H. Co-expression of peppermint geranyl diphosphate synthase small subunit enhances monoterpene production in transgenic tobacco plants. New Phytol. 2017, 213, 1133–1144. [Google Scholar] [CrossRef] [Green Version]
  55. Jassbi, A.R.; Gase, K.; Hettenhausen, C.; Schmidt, A.; Baldwin, I.T. Silencing geranylgeranyl diphosphate synthase in Nicotiana attenuata dramatically impairs resistance to tobacco hornworm. Plant Physiol. 2008, 146, 974–986. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Obertello, M.; Shrivastava, S.; Katari, M.S.; Coruzzi, G.M. Cross-species network analysis uncovers conserved nitrogen-regulated network modules in rice. Plant Physiol. 2015, 168, 1830–1843. [Google Scholar] [CrossRef] [Green Version]
  57. Broun, P.; Liu, Y.; Queen, E.; Schwarz, Y.; Abenes, M.L.; Leibman, M. Importance of transcription factors in the regulation of plant secondary metabolism and their relevance to the control of terpenoid accumulation. Phytochem. Rev. 2006, 5, 27–38. [Google Scholar] [CrossRef]
  58. Meraj, T.A.; Fu, J.; Raza, M.A.; Zhu, C.; Shen, Q.; Xu, D.; Wang, Q. Transcriptional factors regulate plant stress responses through mediating secondary metabolism. Genes 2020, 11, 346. [Google Scholar] [CrossRef] [Green Version]
  59. Singh, A.K.; Kumar, S.R.; Dwivedi, V.; Rai, A.; Pal, S.; Shasany, A.K.; Nagegowda, D.A. A WRKY transcription factor from Withania somnifera regulates triterpenoid withanolide accumulation and biotic stress tolerance through modulation of phytosterol and defense pathways. New Phytol. 2017, 215, 1115–1131. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  60. Deng, C.; Hao, X.; Shi, M.; Fu, R.; Wang, Y.; Zhang, Y.; Zhou, W.; Feng, Y.; Makunga, N.P.; Kai, G. Tanshinone production could be increased by the expression of SmWRKY2 in Salvia miltiorrhiza hairy roots. Plant Sci. 2019, 284, 1–8. [Google Scholar] [CrossRef]
  61. Yao, L.; Wang, J.; Sun, J.; He, J.; Paek, K.; Park, S.; Huang, L.; Gao, W. A WRKY transcription factor, PgWRKY4X, positively regulates ginsenoside biosynthesis by activating squalene epoxidase transcription in Panax ginseng. Ind. Crops Prod. 2020, 154, 112671. [Google Scholar] [CrossRef]
  62. Cao, W.; Wang, Y.; Shi, M.; Hao, X.; Zhao, W.; Wang, Y.; Ren, J.; Kai, G. Transcription factor SmWRKY1 positively promotes the biosynthesis of tanshinones in Salvia miltiorrhiza. Front. Plant Sci. 2018, 9, 554. [Google Scholar] [CrossRef] [Green Version]
  63. Sun, Y.; Niu, Y.; Xu, J.; Li, Y.; Luo, H.; Zhu, Y.; Liu, M.; Wu, Q.; Song, J.; Sun, C.; et al. Discovery of WRKY transcription factors through transcriptome analysis and characterization of a novel methyl jasmonate-inducible PqWRKY1 gene from Panax quinquefolius. Plant Cell Tissue Organ Cult. 2013, 114, 269–277. [Google Scholar] [CrossRef]
  64. Hao, X.; Pu, Z.; Cao, G.; You, D.; Zhou, Y.; Deng, C.; Shi, M.; Nile, S.H.; Wang, Y.; Zhou, W.; et al. Tanshinone and salvianolic acid biosynthesis are regulated by SmMYB98 in Salvia miltiorrhiza hairy roots. J. Adv. Res. 2020, 23, 1–12. [Google Scholar] [CrossRef]
  65. Liu, T.; Luo, T.; Guo, X.; Zou, X.; Zhou, D.; Afrin, S.; Li, G.; Zhang, Y.; Zhang, R.; Luo, Z. PgMYB2, a MeJA-responsive transcription factor, positively regulates the dammarenediol synthase gene expression in Panax Ginseng. Int. J. Mol. Sci. 2019, 20, 2219. [Google Scholar] [CrossRef] [Green Version]
  66. Reddy, V.A.; Wang, Q.; Dhar, N.; Kumar, N.; Venkatesh, P.N.; Rajan, C.; Panicker, D.; Sridhar, V.; Mao, H.Z.; Sarojam, R. Spearmint R2R3-MYB transcription factor MsMYB negatively regulates monoterpene production and suppresses the expression of geranyl diphosphate synthase large subunit (MsGPPS.LSU). Plant Biotechnol. J. 2017, 15, 1105–1119. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Yang, Z.; Li, Y.; Gao, F.; Jin, W.; Li, S.; Kimani, S.; Yang, S.; Bao, T.; Gao, X.; Wang, L. MYB21 interacts with MYC2 to control the expression of terpene synthase genes in flowers of Freesia hybrida and Arabidopsis thaliana. J. Exp. Bot. 2020, 71, 4140–4158. [Google Scholar] [CrossRef]
  68. Gong, Z.; Luo, Y.; Zhang, W.; Jian, W.; Zhang, L.; Gao, X.; Hu, X.; Yuan, Y.; Wu, M.; Xu, X.; et al. A SlMYB75-centred transcriptional cascade regulates trichome formation and sesquiterpene accumulation in tomato. J. Exp. Bot. 2021, 72, 3806–3820. [Google Scholar] [CrossRef] [PubMed]
  69. Yang, C.Q.; Fang, X.; Wu, X.M.; Mao, Y.B.; Wang, L.J.; Chen, X.Y. Transcriptional regulation of plant secondary metabolism. J. Integr. Plant Biol. 2012, 54, 703–712. [Google Scholar] [CrossRef] [PubMed]
  70. Lu, S. Biosynthesis and regulatory mechanisms of bioactive compounds in Salvia miltiorrhiza, a model system for medicinal plant biology. Crit. Rev. Plant Sci. 2021, 40, 243–283. [Google Scholar] [CrossRef]
  71. Jacob, P.; Hirt, H.; Bendahmane, A. The heat-shock protein/chaperone network and multiple stress resistance. Plant Biotechnol. J. 2017, 15, 405–414. [Google Scholar] [CrossRef]
  72. Guo, M.; Liu, J.H.; Ma, X.; Luo, D.X.; Gong, Z.H.; Lu, M.H. The plant heat stress transcription factors (HSFs): Structure, regulation, and function in response to abiotic stresses. Front. Plant Sci. 2016, 7, 114. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  73. Nelson, D.; Sommers, L. A simple digestion procedure for estimation of ammonium in Kjeldahl soils. J. Environ. Qual. 1972, 1, 423–425. [Google Scholar] [CrossRef]
  74. Cataldo, D.A.; Maroon, M.; Schrader, L.E.; Youngs, V.L. Rapid colorimetric determination of nitrate in plant tissue by nitration of salicylic acid. Commun. Soil Sci. Plant Anal. 1975, 6, 71–80. [Google Scholar] [CrossRef]
  75. Lin, C.C.; Kao, C.H. Disturbed ammonium assimilation is associated with growth inhibition of roots in rice seedlings caused by NaCl. Plant Growth Regul. 1996, 18, 233–238. [Google Scholar] [CrossRef]
  76. Pertea, M.; Pertea, G.M.; Antonescu, C.M.; Chang, T.C.; Mendell, J.T.; Salzberg, S.L. StringTie enables improved reconstruction of a transcriptome from RNA-seq reads. Nat. Biotechnol. 2015, 33, 290–295. [Google Scholar] [CrossRef] [Green Version]
  77. Kim, D.; Langmead, B.; Salzberg, S.L. HISAT: A fast spliced aligner with low memory requirements. Nat. Methods 2015, 12, 357–360. [Google Scholar] [CrossRef] [Green Version]
  78. Yu, R.; Li, D.; Du, X.; Xia, S.; Liu, C.; Shi, G. Comparative transcriptome analysis reveals key cadmium transport-related genes in roots of two pak choi (Brassica rapa L. ssp. chinensis) cultivars. BMC Genom. 2017, 18, 587. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  79. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta C(T)) Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
Ijms 22 08549 g001 550

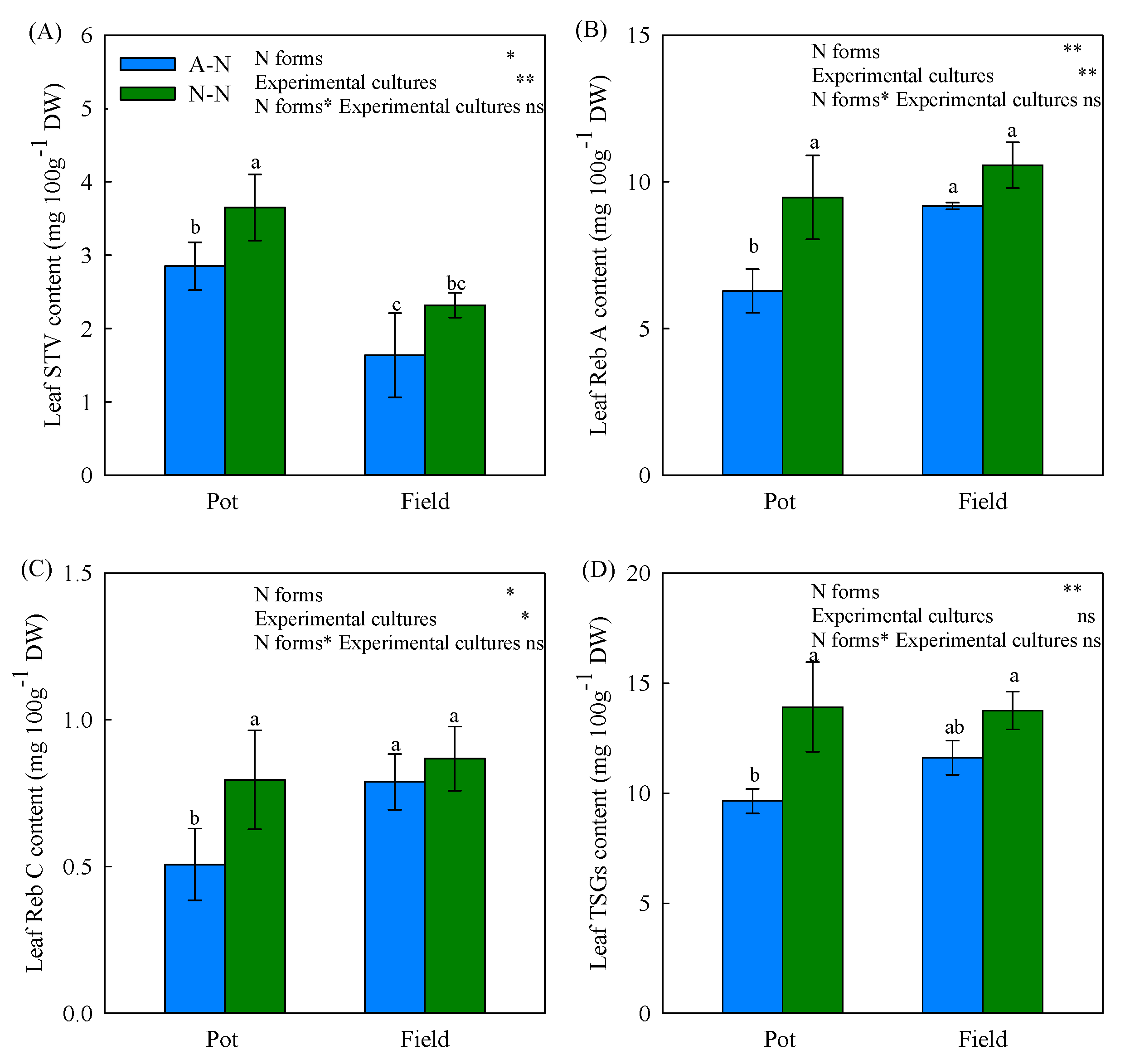

Figure 1. Effect of nitrogen forms on the leaf contents of stevioside (STV, A), rebaudioside A (Reb A, B), rebaudioside C (Reb C, C) and total steviol glycosides (TSGs, D) of stevia plant growing in pot and field conditions (“experimental cultures”). Stevia plants growth under pot or field conditions were fed with ammonium–nitrogen (A-N) or nitrate–nitrogen (N-N) to the same N level. Values represent the means ± SD of three biological replicates. ANOVA results are indicated; different letters indicate significant differences in the same indicator, *, ** and ns indicate significant difference at 0.05, 0.01 probability levels and nonsignificant difference, respectively.
Figure 1. Effect of nitrogen forms on the leaf contents of stevioside (STV, A), rebaudioside A (Reb A, B), rebaudioside C (Reb C, C) and total steviol glycosides (TSGs, D) of stevia plant growing in pot and field conditions (“experimental cultures”). Stevia plants growth under pot or field conditions were fed with ammonium–nitrogen (A-N) or nitrate–nitrogen (N-N) to the same N level. Values represent the means ± SD of three biological replicates. ANOVA results are indicated; different letters indicate significant differences in the same indicator, *, ** and ns indicate significant difference at 0.05, 0.01 probability levels and nonsignificant difference, respectively.
Ijms 22 08549 g001
Ijms 22 08549 g002 550
Figure 2. Volcano plot (A) and gene ontology (GO, B) analysis of differentially expressed genes (DEGs) between ammonium (A-N)- and nitrate (N-N)- treated stevia leaves. In (A), the red dots represent the upregulated DEGs, while the green dots represent the downregulated DEGs, with a minimum fold-change threshold of 2 and a significant level of 0.05. In (B), the y-axis represents different GO terms that belong to BP (biological processes), CC (cell component) or MF (molecular functions) subcategories, while the value on the x-axis shows the number of genes in the corresponding GO term.
Figure 2. Volcano plot (A) and gene ontology (GO, B) analysis of differentially expressed genes (DEGs) between ammonium (A-N)- and nitrate (N-N)- treated stevia leaves. In (A), the red dots represent the upregulated DEGs, while the green dots represent the downregulated DEGs, with a minimum fold-change threshold of 2 and a significant level of 0.05. In (B), the y-axis represents different GO terms that belong to BP (biological processes), CC (cell component) or MF (molecular functions) subcategories, while the value on the x-axis shows the number of genes in the corresponding GO term.
Ijms 22 08549 g002
Ijms 22 08549 g003 550
Figure 3. KEGG (Kyoto encyclopedia of genes and genomes, C) pathway enrichment analysis of differentially expressed genes (DEGs) between the two groups (ammonium (A-N) vs. nitrate (N-N)). The x-axis indicates the enrichment factor, while the color of each circle relates to the enriched Q-value and the size is equivalent to the gene numbers mapped to the pathway.
Figure 3. KEGG (Kyoto encyclopedia of genes and genomes, C) pathway enrichment analysis of differentially expressed genes (DEGs) between the two groups (ammonium (A-N) vs. nitrate (N-N)). The x-axis indicates the enrichment factor, while the color of each circle relates to the enriched Q-value and the size is equivalent to the gene numbers mapped to the pathway.
Ijms 22 08549 g003
Ijms 22 08549 g004 550
Figure 4. Mapping genes on overview map (A) and a secondary metabolism map (B) that were differentially expressed in nitrate (N-N)-treated in comparison to ammonium (A-N)-treated stevia leaves.
Figure 4. Mapping genes on overview map (A) and a secondary metabolism map (B) that were differentially expressed in nitrate (N-N)-treated in comparison to ammonium (A-N)-treated stevia leaves.
Ijms 22 08549 g004
Ijms 22 08549 g005 550
Figure 5. Heatmap showing the expression profiles of the genes involved in steviol glycosides synthesis in ammonium (A-N)- and nitrate (N-N)-treated stevia leaves.
Figure 5. Heatmap showing the expression profiles of the genes involved in steviol glycosides synthesis in ammonium (A-N)- and nitrate (N-N)-treated stevia leaves.
Ijms 22 08549 g005
Ijms 22 08549 g006 550
Figure 6. Transcription factors identified from the DEGs between ammonium (A-N)- and nitrate (N-N)-treated stevia (A) and a heatmap showing their expression profiles (B).
Figure 6. Transcription factors identified from the DEGs between ammonium (A-N)- and nitrate (N-N)-treated stevia (A) and a heatmap showing their expression profiles (B).
Ijms 22 08549 g006
Ijms 22 08549 g007 550
Figure 7. Quantitative real-time PCR (qRT-PCR) assessments of 9 genes encoding the key enzymes involving in steviol glycosides synthesis. Stevia plants were fed with either the ammonium form of nitrogen (A-N) or the nitrate form of nitrogen (N-N). Values represent the mean ± SD of three biological replicates.
Figure 7. Quantitative real-time PCR (qRT-PCR) assessments of 9 genes encoding the key enzymes involving in steviol glycosides synthesis. Stevia plants were fed with either the ammonium form of nitrogen (A-N) or the nitrate form of nitrogen (N-N). Values represent the mean ± SD of three biological replicates.
Ijms 22 08549 g007
Ijms 22 08549 g008 550
Figure 8. A schematic model showing the regulation of steviol glycosides synthesis by N forms-MYB/WRKY-GGPPS/CPS in stevia leaves. When feeding with nitrate nitrogen (N-N) rather than ammonium nitrogen (A-N), specific transcription factors in stevia leaves, especially those belonging to MYB and WRKY families, are activated. Theses TFs can regulate the expressions of terpene synthesis-related genes such as GGPPS and CPS, thereby promoting the production of steviol glycosides.
Figure 8. A schematic model showing the regulation of steviol glycosides synthesis by N forms-MYB/WRKY-GGPPS/CPS in stevia leaves. When feeding with nitrate nitrogen (N-N) rather than ammonium nitrogen (A-N), specific transcription factors in stevia leaves, especially those belonging to MYB and WRKY families, are activated. Theses TFs can regulate the expressions of terpene synthesis-related genes such as GGPPS and CPS, thereby promoting the production of steviol glycosides.
Ijms 22 08549 g008
Table
Table 1. Effect of different nitrogen forms on the biomass (g plant−1), total nitrogen (TN, mg g−1 DW) content, total carbon (TC, mg g−1 DW) content, carbon–nitrogen ratio (C/N), ammonium nitrogen (A-N, mg g−1 FW) content and nitrate nitrogen (N-N, mg g−1 FW) content in stevia leaves.
Table 1. Effect of different nitrogen forms on the biomass (g plant−1), total nitrogen (TN, mg g−1 DW) content, total carbon (TC, mg g−1 DW) content, carbon–nitrogen ratio (C/N), ammonium nitrogen (A-N, mg g−1 FW) content and nitrate nitrogen (N-N, mg g−1 FW) content in stevia leaves.
Experimental ConditionTreatmentLeaf BiomassTNTCC/NA-NN-N
PotA-N2.90 ± 0.18 b32.43 ± 3.61 b461.37 ± 13.84 bc14.36 ± 1.79 b0.13 ± 0.00 a0.32 ± 0.02 c
N-N2.65 ± 0.12 b30.14 ± 0.88 b450.38 ± 15.08 c14.96 ± 0.94 b0.12 ± 0.02 a0.44 ± 0.05 ab
FieldA-N5.74 ± 0.97 a25.11 ± 0.75 a491.04 ± 13.38 a19.57 ± 0.71 a0.12 ± 0.00 a0.34 ± 0.03 bc
N-N4.99 ± 1.18 a24.44 ± 0.44 a482.86 ± 4.69 ab19.76 ± 0.30 a0.12 ± 0.01 a0.49 ± 0.09 a
N formsnsnsnsnsns**
Experimental cultures**********ns
N forms * Experimental culturesnsnsnsnsnsns
Stevia plants growth under pot or field condition were supplied with ammonium-nitrogen (A-N) or nitrate-nitrogen (N-N) at the same N levels. Values represent the means ± SD of three biological replicates. ANOVA results are indicated; different letters indicate significant differences in the same indicator, * and ** indicate significant difference at 0.05 and 0.01 probability levels, respectively; ns means nonsignificant difference. DW: dry weight, FW: fresh weight.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Sun, Y.; Zhang, T.; Xu, X.; Yang, Y.; Tong, H.; Mur, L.A.J.; Yuan, H. Transcriptomic Characterization of Nitrate-Enhanced Stevioside Glycoside Synthesis in Stevia (Stevia rebaudiana) Bertoni. Int. J. Mol. Sci. 2021, 22, 8549. https://doi.org/10.3390/ijms22168549

AMA Style

Sun Y, Zhang T, Xu X, Yang Y, Tong H, Mur LAJ, Yuan H. Transcriptomic Characterization of Nitrate-Enhanced Stevioside Glycoside Synthesis in Stevia (Stevia rebaudiana) Bertoni. International Journal of Molecular Sciences. 2021; 22(16):8549. https://doi.org/10.3390/ijms22168549

Chicago/Turabian Style

Sun, Yuming, Ting Zhang, Xiaoyang Xu, Yongheng Yang, Haiying Tong, Luis Alejandro Jose Mur, and Haiyan Yuan. 2021. "Transcriptomic Characterization of Nitrate-Enhanced Stevioside Glycoside Synthesis in Stevia (Stevia rebaudiana) Bertoni" International Journal of Molecular Sciences 22, no. 16: 8549. https://doi.org/10.3390/ijms22168549

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
