Roles of the Functional Interaction between Brain Cholinergic and Dopaminergic Systems in the Pathogenesis and Treatment of Schizophrenia and Parkinson’s Disease

Abstract

Most physiologic processes in the brain and related diseases involve more than one neurotransmitter system. Thus, elucidation of the interaction between different neurotransmitter systems could allow for better therapeutic approaches to the treatments of related diseases. Dopaminergic (DAergic) and cholinergic neurotransmitter system regulate various brain functions that include cognition, movement, emotion, etc. This review focuses on the interaction between the brain DAergic and cholinergic systems with respect to the pathogenesis and treatment of schizophrenia and Parkinson’s disease (PD). We first discussed the selection of motor plans at the level of basal ganglia, the major DAergic and cholinergic pathways in the brain, and the receptor subtypes involved in the interaction between the two signaling systems. Next, the roles of each signaling system were discussed in the context of the negative symptoms of schizophrenia, with a focus on the α7 nicotinic cholinergic receptor and the dopamine D₁ receptor in the prefrontal cortex. In addition, the roles of the nicotinic and dopamine receptors were discussed in the context of regulation of striatal cholinergic interneurons, which play crucial roles in the degeneration of nigrostriatal DAergic neurons and the development of L-DOPA-induced dyskinesia in PD patients. Finally, we discussed the general mechanisms of nicotine-induced protection of DAergic neurons.

1. Introduction

Owing to the roles of the brain dopaminergic (DAergic) system in addiction, interactions between the nicotinic cholinergic and DAergic systems have been extensively studied with respect to nicotine addiction [1,2]. Application of nicotinic drugs or stimulation of cholinergic projections into the ventral tegmental area (VTA) induces dopamine (DA) release in the nucleus accumbens (NAc), which contributes to the addictive properties of cigarette smoking [2]. Among the multiple subtypes of nicotinic cholinergic receptors (nAChRs), α4β2* and α6β2* are the major subtypes involved in the attention-enhancing and pathophysiology of nicotine addiction [3,4].

Involvement of specific DA receptor subtypes has also been reported in drug addiction. For example, early nicotine exposure is accompanied by an increase in DA D₃ receptor (D₃R) expression [5], and D₃R antagonists have been reported to be effective for the treatment of nicotine dependence [5,6]. In support of these observations, a recent study has shown the functional interaction between α4β2 nAChR and D₃R [7].

In addition to their roles in nicotine addiction, the brain DAergic and nicotinic cholinergic systems are known to play important roles in the pathogenesis and management of the symptoms related to schizophrenia and Parkinson’s disease (PD). For example, dopamine and nicotinic receptors expressed in the prefrontal cortex are involved in the regulation of the negative symptoms of schizophrenia. In addition, L-DOPA-induced dyskinesiasn (LID), which is evoked through persistent stimulation of dopamine receptors, can be managed through activation of nicotinic receptors. This review focused on the interaction between the two neurotransmitter systems with respect to the pathogenesis and treatments of schizophrenia and PD.

1.1. DAergic Regulation of Motor Planning via Basal Ganglia

Control of motor function involves an intricate interplay between various brain regions, including the dorsolateral prefrontal cortex (DL-PFC), secondary motor cortex, primary motor cortex, and basal ganglia. The basal ganglia determine motor plans based on glutamatergic commands from the secondary motor cortex and DAergic input from the substantia nigra (SN).

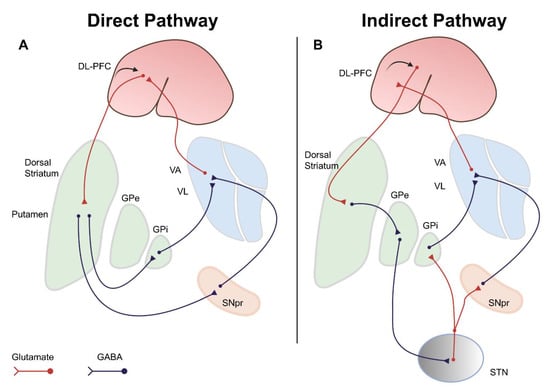

As shown in Figure 1, the secondary motor cortex sends glutamatergic projections to basal ganglia. Basal ganglia use direct and indirect pathways that employ GABAergic medium spiny neurons (GABA-MSNs). GABA-MSNs originate from the putamen and regulate specific regions of the thalamus that return excitatory feedback to the cortex via glutamatergic neurons [8,9].

In the direct pathway (Figure 1A), the putamen gives rise to GABA-MSNs that project to the globus pallidus internus (GPi) and SN pars reticulata (SNpr). These inhibitory neurons, in turn, inhibit GABAergic neurons, which project from the GPi/SNpr to the ventral anterior (VA) and ventrolateral (VL) nucleus of the thalamus. These successive GABA neuronal connections functionally lead to disinhibition, resulting in the activation of specific regions in the VA/VL of the thalamus. Regions of the thalamus that are stimulated through the direct pathway project glutamatergic neurons to the specific regions of the supplementary motor area (SMA) to give permission for the motor plans prepared by the DL-PFC and SMA.

In the indirect pathway (Figure 1B), the putamen projects GABA-MSNs to the globus pallidus externus (GPe), and the GPe projects GABAergic neurons to the subthalamic nucleus (STN), resulting in the disinhibition of the STN. The STN projects glutamatergic neurons to GPi/SNpr, which, in turn, project GABAergic neurons to the VA/VL of the thalamus. Thus, the overall outcome of the indirect pathway is inhibitory. These GABAergic neurons from the GPi/SNpr innervate regions of the VA/VL that are not stimulated by the direct pathway, resulting in the selective activation of those regions that are responsible for transmitting the motor plans prepared by the cortex. Finally, the thalamic regions inhibited by the indirect pathway send attenuated glutamatergic signals to specific regions of the secondary motor cortex. This enables the so-called ‘double confirmation’, in which certain areas of the secondary motor cortex are selectively activated while nearby areas are suppressed. Thus, the medium spiny neurons (MSNs) in the direct pathway are considered the driving factor for movement facilitation under normal physiological conditions. In contrast, the MSNs of the indirect pathway are thought to be inhibited during performing purposeful movement but are more active during lack of normal movement.

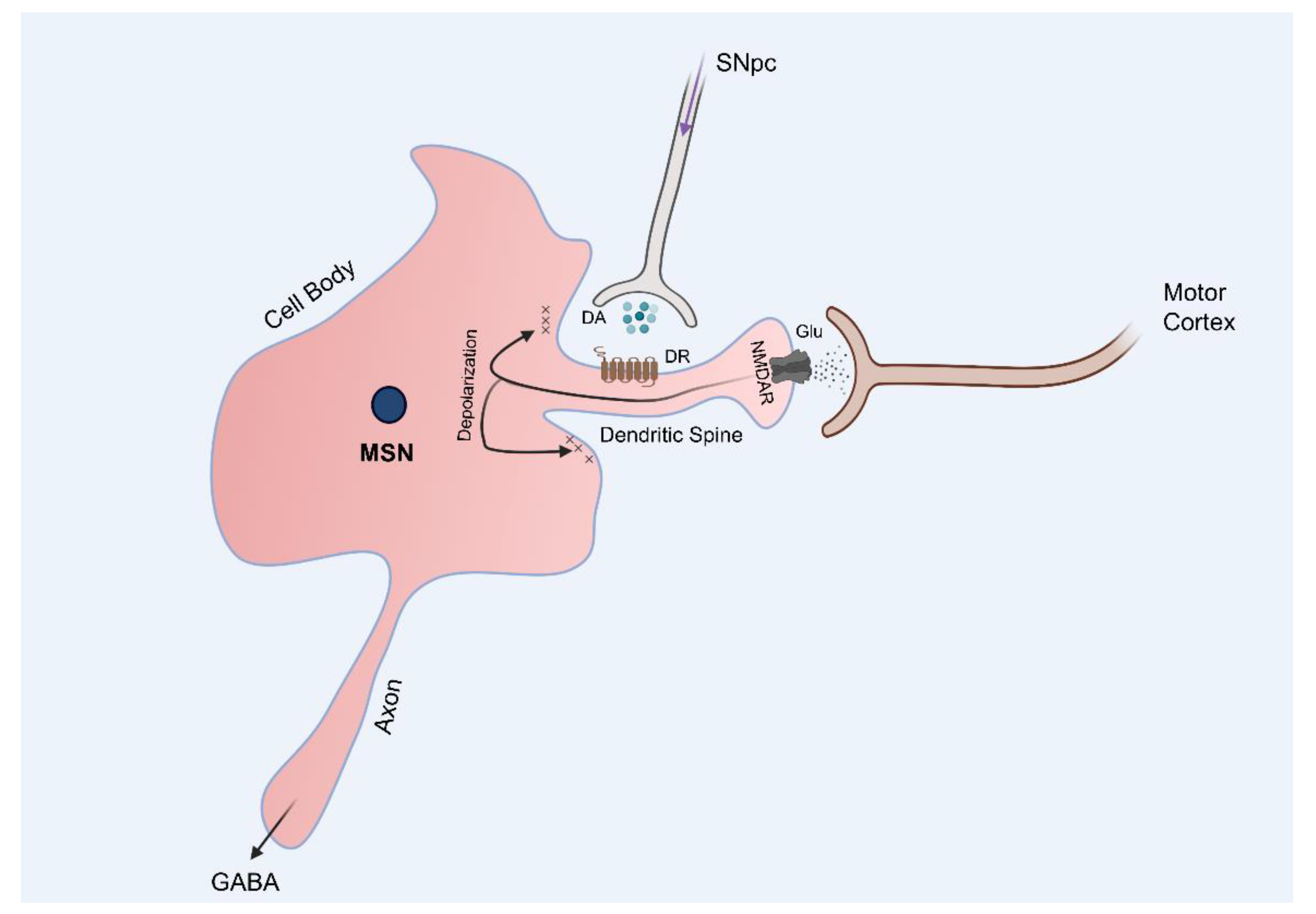

GABA-MSNs synapse with striatal interneurons, as well as a number of incoming neurons, including corticostriatal glutamatergic and nigrostriatal DAergic neurons. The glutamatergic neurons projecting from the cortex synapse onto the dendritic spines of GABA-MSNs on which glutamate receptors are expressed. DA receptors are expressed on the neck of the synaptic buttons on which glutamate receptors are expressed. Nigrostriatal DA input to MSNs either increases or decreases glutamatergic signaling by acting on the D₁ receptors (D₁R) or D₂ receptors (D₂R) located on the direct and indirect GABA-MSNs, respectively (Figure 2) [8,10]. Overall, the direct pathway is stimulated but while the indirect pathway is inhibited, resulting in the facilitation of motor functions.

Cholinergic interneurons, another group of neurons that interact with GABA-MSNs, inhibit the direct pathway mainly through M4 receptors and stimulate the indirect pathway through M1 receptors. In PD, DAergic input to the putamen is decreased, and both the direct and indirect pathways are inhibited. This largely results in inhibition of intended movement and increased unintended movement at rest through the unopposed effects of cholinergic neurons [11]. As the balance between the direct and indirect pathways is required for the fine control of motor functions, degeneration of the DAergic nigrostriatal pathway results in abnormalities of movement, such as bradykinesia and resting tremors.

1.2. Brain DAergic System and DA Receptors

Four major DAergic pathways are found in the brain [12]. First is the mesolimbic tract pathway that projects from the VTA of the midbrain to the limbic system, including the NAc. Hyperactivity of this pathway is related to addiction and the positive symptoms of schizophrenia [13], and the antagonism of D₂R in the mesolimbic pathway has been used to treat positive psychotic symptoms [14]. Second is the mesocortical tract that connects the VTA to the prefrontal cortex. Projections to the DL-PFC and ventromedial prefrontal cortex regulate cognition/executive functioning and emotions/affect, respectively [15]. A decrease in DAergic activity in the mesocortical projections to the DL-PFC is postulated to be responsible for the negative symptoms of schizophrenia [16]. In agreement with this, nicotine, which evokes DA release in the mesocortical pathway, is known to alleviate the negative symptoms. The third is the nigrostriatal tract, which connects the SN pars compacta (SNpc) and dorsal striatum, and is part of the extrapyramidal system and important in motor movement control. This pathway plays central roles in the pathogenesis of PD [17] and is also responsible for the extrapyramidal symptoms caused by typical antipsychotic drugs that antagonize D₂Rs. Finally, the tuberoinfundibular pathway refers to the DAergic neurons that project from the hypothalamus to the anterior pituitary (infundibular region). DA released from the pituitary blocks the secretion of prolactin [18]; thus, blockade of D₂Rs in this pathway can lead to hyperprolactinemia, which clinically manifests as amenorrhea, galactorrhea, and sexual dysfunction.

Based on their pharmacological and functional characteristics, DA receptors are largely classified into D1- and D2-like receptors [19,20], which positively and negatively regulate adenylyl cyclase, respectively. When they are classified according to the genes encoding them, the D1-like receptors are subdivided into the D₁Rs and D₅ receptors (D₅R) [21,22], whereas the D₂, D₃, and D₄ receptors constitute the D2-like receptors (D₂R, D₃R, D₄R) [23,24,25].

DA receptors have different affinities to DA; D₃R has the highest, followed by D₅R, D₄R, D₂R, and D₁R [26]. Thus, it is possible that DA activates different subtypes of DA receptors depending on its concentration in the biophase [27]. In addition to their affinity to DA, the DA receptor expression levels within particular brain circuits or regions play key roles in determining their physiological functions [28].

DA receptors in the prefrontal cortex, striatal GABAergic MSNs and cholinergic interneurons, and nucleus accumbens are closely related to schizophrenia, drug addiction, and PD. DAergic neurons in the VTA and SN [29], which provide DAergic inputs to the striatum and prefrontal cortex, are spontaneously active with firing patterns that range from tonic to phasic [30,31]. Because of their differences in affinity to DA, tonic and phasic patterns of DA release differently influence the activities of certain neuronal pathways in which more than one DA receptor subtype is expressed. For example, when large amounts of DA are released during phasic firing, D₁Rs can be activated [32], but D₂Rs respond to a broader range of stimuli [33].

The D₁R, which is highly expressed on dendritic spines in layer 3 of the DL-PFC [34,35], has been implicated in the control of working memory [36,37], and working memory dysfunction is a prominent feature of schizophrenia [38]. Expression of D₁R is reduced in the prefrontal cortex of schizophrenics, and this reduction is related to the severity of negative symptoms, such as emotional withdrawal [39,40].

1.3. Brain Cholinergic System and Nicotinic Receptors

Brain cholinergic projections belong to one of two systems depending on where the cell bodies are located: the magnocellular basal forebrain cholinergic system or the brain stem cholinergic system [41,42].

Cell bodies are located in the medial septal nucleus, diagonal band of Broca, and nucleus basalis of Meynert in the basal forebrain cholinergic system, and they send cholinergic axons to the neocortex, as well as limbic cortices [41]. The basal forebrain cholinergic system plays critical roles in several aspects of cognition, including attention, cognition, working memory, spatial learning, and associative learning [43].

The brainstem cholinergic system sends projections from the pedunculopontine tegmental nucleus and laterodorsal pontine tegmentum to various brain regions that include the basal ganglia, midbrain, cerebellum, and thalamus [41,44,45]. Studies show these cholinergic systems to be involved in controlling the sleep-wake cycle and positive reinforcement [46,47].

nAChRs are members of the superfamily of Cys-loop ligand-gated ion channels [48]. All nAChRs are composed of pentameric subunits arranged around a central ion pore through which cations pass. nAChRs are classified into different subfamilies based on several criteria that include subunit composition, sensitivity to different ligands, and regulatory properties, such as desensitization. Members of subfamilies I (α9-α10) and IV (muscle nAChR subunits), and one member of subfamily II, α8, are not expressed in mammalian brain [49,50]. Thus, in this review, we discussed the roles of brain nicotinic receptors focusing on subfamily III (α2-α6, β2-β4) and α7 nAChRs.

Different nAChR subtypes show different kinetics of activation and desensitization. α7* nAChRs, which have a lower affinity to nicotine, are rapidly activated and desensitized by high doses of nicotine [51,52]. At physiological concentrations, however, only a small proportion of the α7* nAChR population is occupied by nicotine and desensitized. Owing to their rapid kinetics, α7* nAChRs rapidly recover from desensitization when nicotine unbinds. Consequently, only a very small portion of the α7 population is desensitized under physiological conditions and the majority of the receptors are available for activation. In contrast, β2* subtypes—the predominant nAChR subtype on midbrain DAergic and GABAergic neurons—have a higher affinity for nicotine and undergo strong desensitization [53]. It has been reported that α4β2 nAChRs containing α5 subunits recover more rapidly from desensitization [54].

Molecular biological manipulation, such as gene knockout, has helped us to understand the functional roles of specific nAChR subtypes. For example, β2 gene knockout has revealed the essential roles of 4β2- and α6β2-containing receptors for nicotine reward and addiction [55,56,57]. In contrast, α7 nAChRs are known to have opposite roles in tobacco dependence [58]. Thus, inhibition of α6β2* nAChRs and stimulation of α7 nAChRs, in connection with the supportive roles of PPARα, has been suggested as a strategy for tobacco cessation [59,60].

1.4. Functional Interaction between the Cholinergic and DAergic Systems

It has been reported that systemic administration of nicotine causes DA release in the NAc [61] by acting on the specific nAChR subtypes expressed on the cell body and terminals of the DA neurons that project from the VTA to the NAc [62,63]. Among a number of nAChR subtypes, those containing β2 and/or α6 subunits are known to play critical roles in regulating DA-mediated neurotransmission in the mesolimbic pathway. Many of the studies on nicotine addiction/dependence have focused on the α4β2 receptor subtype, which is ubiquitously expressed throughout the brain. More recently, α6β3 receptors—the more selectively expressed in DAergic neurons [64,65]—have been shown to be the primary receptors on DAergic neuronal terminals that stimulate DA release [66,67].

In addition to stimulating DA release, nicotine is also known to promote the survival of nigrostriatal DA neurons, supporting the beneficial effects of smoking on PD development [57,68]. In agreement with these results, nicotine is known to be involved in the morphological remodeling of DAergic neurons and regulates various genes that regulate neuronal morphogenesis [69,70].

Some of nAChR subtypes colocalize with D2-like receptors in DAergic nerve terminals and it has been reported that DA receptors are needed for nicotine to exert its actions on DAergic neurons [67,71]. For example, α4β2 nAChRs colocalize with D₃Rs in the somatodendritic area of DAergic neurons [72], and nicotine increases D₃R expression in the shell of the nucleus accumbens [73]. In addition, nicotine increases dendritic arborization of cultured DAergic neurons, and this effect is either blocked by D₃R antagonists or disappears in D₃R knockout mice [70].

2. Roles of the DAergic and Nicotinic Cholinergic Systems in the Pathogenesis of Schizophrenia

Approximately 1% of the general population is schizophrenic, showing an approximately 50% concordance rate. Symptoms of schizophrenia can be categorized into three groups: positive, negative, and cognitive [74]. Positive symptoms are characterized by hallucinations and delusion. Patients lose their sense of reality and often create their own reality. Negative/deficit symptoms accompany motional flattening, anhedonia, withdrawal from social interaction, loss of motivation, poverty in speech and thought, and patients lose their normal emotional and behavioral capacities. Cognitive/disorganization symptoms are believed to occur when the patient’s memory and sometimes movement are hampered. Symptoms include working memory and execution problems, disorganized speech, loosening of associations, neologisms, blocking, and clanging [75].

2.1. Roles of the DAergic System in Schizophrenia

The pathogenesis of schizophrenia has previously been most commonly explained by the ‘DA hypothesis’. This hypothesis was reverse postulated based on the observation that DA-increasing drugs, such as amphetamines and cocaine, can cause psychotic symptoms, while antipsychotic drugs that antagonize D₂Rs reduce psychotic symptoms [76,77]. However, subsequent studies have shown that multiple neurotransmitter systems other than the DAergic system are also involved in the pathogenesis of schizophrenia. Decreased rather than increased DAergic activity in the prefrontal cortex is responsible for some of the cognitive and negative symptoms of schizophrenia (Figure 3), and the newer class of ‘atypical antipsychotics’ are less potent antagonists of D₂Rs compared to the first generation of typical antipsychotics, in that they act on other targets, such as the 5-HT_2A receptor [78].

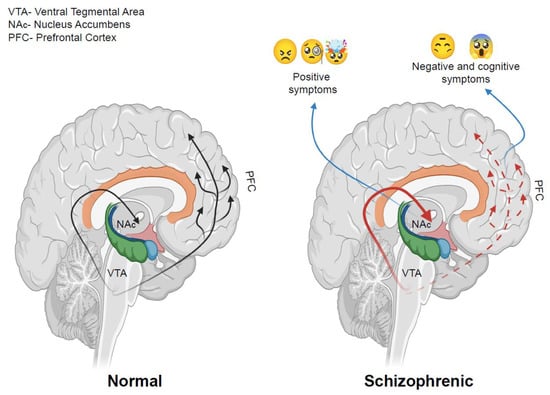

The relationship between the hyperactive mesolimbic DAergic pathway and the positive symptoms of schizophrenia is relatively well established. In contrast, the negative symptoms are more difficult to understand and might be explained in part by the so-called ‘hypoactive mesocortical’ pathway. For example, many of these cognitive deficits are explained by dysfunction of the DL-PFC [34]. Accordingly, the brains of schizophrenic patients show evidence of dendritic atrophy of pyramidal cells in the DL-PFC, reductions in cortical DA content, and possible rebound increases in D₁Rs [40].

2.2. Functional Interaction between the DAergic and Nicotinic Cholinergic Systems in the Pathogenesis and Treatment of Schizophrenia

As discussed above, the positive and negative symptoms of schizophrenia have been explained by hyperactive mesolimbic and hypoactive mesocortical DAergic pathways, respectively, and the blockade of mesolimbic D₂Rs and enhancement of mesocortical D₁Rs have beneficiary effects on positive and negative symptoms [79,80]. This so-called, ‘DA hypothesis’ of schizophrenia can be further refined when the roles of brain nAChRs, NMDA receptors (NMDAR), and GABA receptors are also considered [81].

Nicotine is known to activate DAergic neurons to release DA both in the VTA and cortex [53,82], suggesting that nicotine could affect both positive and negative symptoms [83,84]. Post-mortem studies from schizophrenic patients have revealed a disturbance in nAChR expression, in particular, α7 and α4β2 subunits [85,86]. It is believed that the positive symptoms of schizophrenia are related to D₂R and β* (α4β2 and α6β2) nAChRs, but D₁R and α7 nAChR are related to the negative symptoms [87,88,89].

In addition to the roles of the DAergic and nicotinic cholinergic systems in the pathogenesis of schizophrenia, a glutamate hypothesis has been also proposed [90] based on the observations that NMDAR antagonists induce symptoms similar to those of schizophrenia [91,92]. According to this hypothesis, the hypofunctioning of NMDARs on parvalbumin-positive GABA interneurons within the prefrontal cortex is important in the pathogenesis of schizophrenia, resulting in impairment of lateral inhibitions of pyramidal cells in the DL-PFC [93,94]. Further, post-mortem studies of schizophrenic patients have shown reduction or alterations in the expression levels and trafficking of NMDARs [95,96].

Indeed, the DA hypothesis of schizophrenia can better explain both the positive and negative symptoms when the roles of NMDARs are considered in the neuronal circuitry involved in schizophrenia [81,97]. For instance, the positive and negative symptoms of schizophrenia can be explained by the Glu-GABA-Glu-DA and Glu-GABA-Glu-GABA-DA neuronal circuitry that leads to DAergic projection to the NAc and prefrontal cortex, respectively [81] (Figure 4).

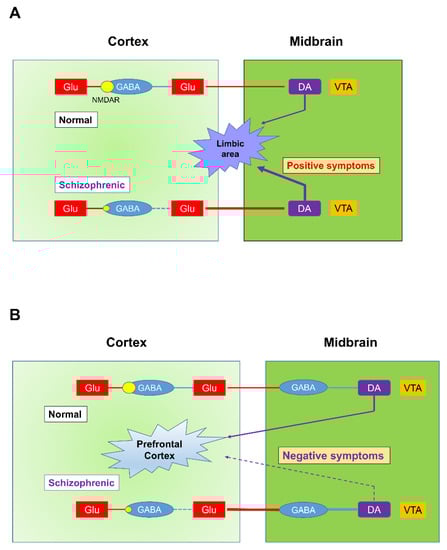

In the cortex-VTA-NAc circuit that is related to the positive symptoms of schizophrenia, glutamatergic neurons project axons to the GABAergic interneurons in the cortex, which, in turn, synapse on the secondary cortical pyramidal glutamatergic neurons that project to DAergic neurons in the VTA. DAergic neurons, therefore, project to the nucleus accumbens, completing the ‘Glu-GABA-Glu-DA’ circuitry. When this circuit is disturbed by the hypofunctioning of NMDARs on the GABAergic neurons, secondary glutamatergic neurons will be overly stimulated, leading to the hyperactivation of DAergic neurons that project to the NAc [98].

In the cortical-VTA-cortical circuit that is related to the negative symptoms of schizophrenia, secondary GABAergic midbrain interneurons are additionally inserted into the middle of the circuit. In this circuit, the secondary glutamatergic neurons synapse on the GABAergic interneurons in the midbrain, which, in turn, synapse on the VTA-DAergic neurons that project back to the frontal cortex (Glu-GABA-Glu-GABA-DA). The hypofunctioning of the NMDARs on the primary GABAergic neurons results in hypoactivity of the mesocortical DAergic pathway and inadequate supply of DAergic inputs to the prefrontal cortex, causing negative symptoms.

Unlike positive symptoms wherein the mesolimbic DAergic pathway plays a key role, various brain regions and multiple receptors are likely to be involved in the development of negative symptoms. For example, the prefrontal cortex, thalamus D₁Rs, NMDARs, and α7 nAChRs are known to be involved in the development of negative symptoms. This supports the previous notion that cognitive deficits in schizophrenia might be associated with reduced DAergic input to the PFC [99,100].

The thalamic mediodorsal (MD) nucleus plays a key role in the communication between distinct associative cortical areas [101]. Axons derived from the thalamic MD nucleus synapse onto the dendrites of the DL-PFC pyramidal neurons that are responsible for executive control and working memory. In schizophrenia, neurons of the thalamic MD are known to degenerate, reducing the size of this area [102]. The use of dendrites located in the DL-PFC reduces with the decreasing number of nerves entering from the MD nucleus, leading to selective atrophy of the pyramidal cell microcircuits in deep layer III of the DL-PFC, as well as compensatory weakening of related GABAergic interneurons.

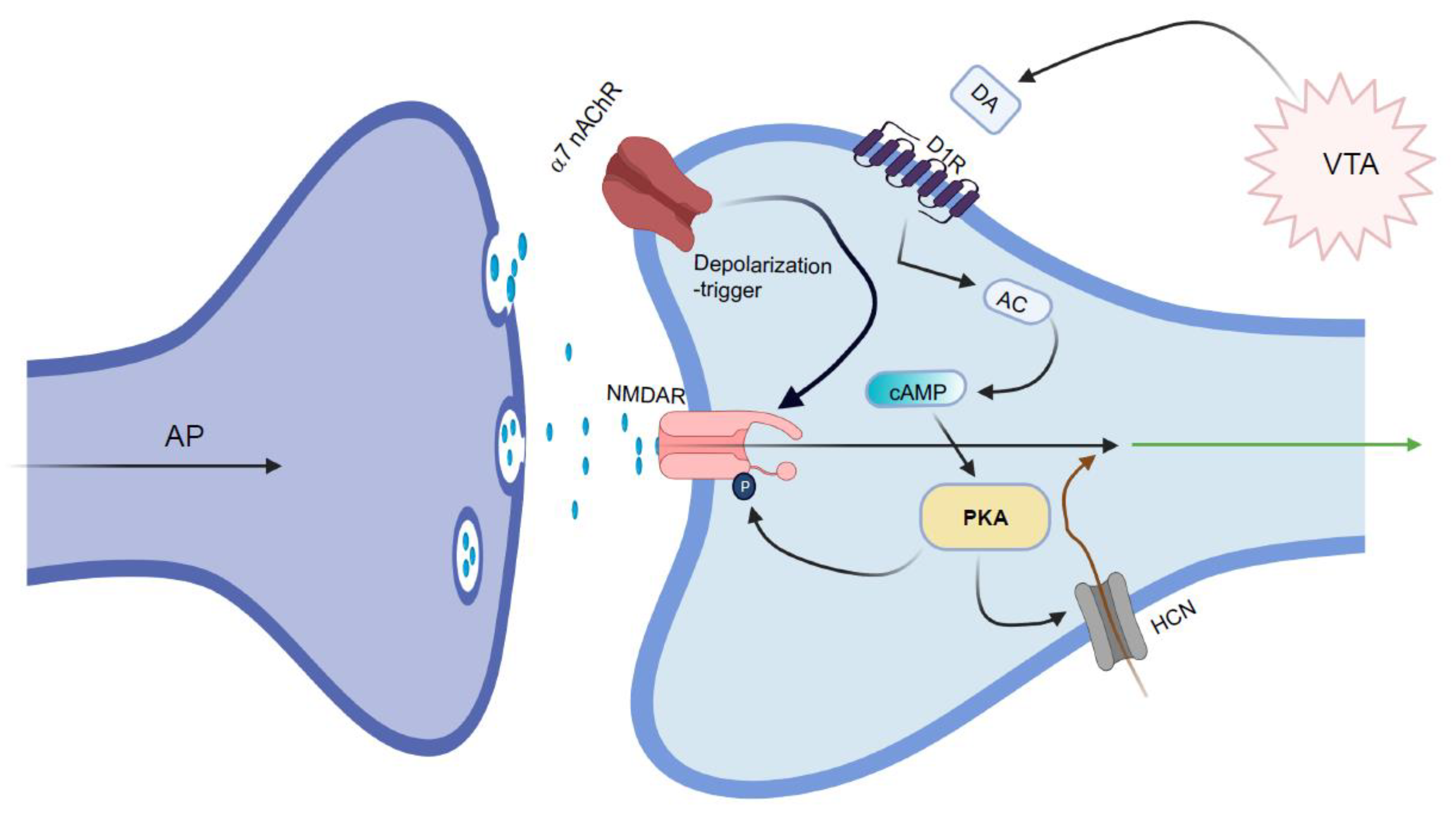

Glutamatergic pyramidal cells form synapses between axon terminals and dendritic spines in layer III of the DL-PFC. NMDARs and α7 nAChRs are co-expressed in the postsynaptic membrane of the layer III spines where D₁Rs are concentrated. Moderate levels of D₁R stimulation in the DL-PFC are known to be essential for optimal working memory function [103]. D₁Rs are often co-localized with hyperpolarization-activated cyclic nucleotide gated 1 (HCN1) channels on spines [40], and D₁R-mediated increases in cAMP are expected to open HCN channels. Because HCN channels mediate rhythmic depolarization of the membrane potential when cells are hyperpolarized [104], activation of D₁Rs is expected to raise the membrane potential near to threshold, evoking more frequent action potentials. Therefore, it is believed that HCN channels are responsible for filtering out low-frequency inputs, thereby improving the selectivity for synchronous synaptic inputs [105,106]. Synchronization between inputs from glutamate axons and the activation of HCN channels though D₁Rs could, thus, be an important functional device for optimal synaptic transmission between pyramidal cells on the DL-PFC. To this end, DA that elevates intracellular cAMP by acting on D₁Rs has an inverted U influence on the firing of the delay cells and cognitive performance, where moderate levels are essential for functioning, but excessive stimulation suppresses neuronal firing and impairs cognitive abilities [107].

Overall, NMDARs, α7 nAChRs, and D₁Rs play critical roles in synaptic transmission between glutamatergic axonal terminals and dendritic spines on layer III pyramidal cells. This synaptic transmission allows the mutual excitation of glutamatergic neurons (Figure 5). Unlike conventional glutamate synapses, where AMPA receptors trigger NMDAR channel opening, the glutamate synapses between pyramidal cells use cholinergic stimulation of α7 nAChRs to provide the depolarization required to open NMDARs [108]. Indeed, defects in both NMDARs and α7 nAChRs are known to be linked to schizophrenia.

Based on these promising experimental results, the α7 nAChR has been proposed as a potential target for managing schizophrenia [85,109], and α7-selective agonists and allosteric modulators have been tested in small-scale trials for the treatment of schizophrenia [110,111]. 3-(2,4-dimethoxybenzylidene)-anabaseine (DMXB-A) is one example of these [112], and several more compounds have shown promising results in early clinical studies [109].

3. Roles of the Interaction between the DAergic and Nicotinic Cholinergic Systems in the Pathogenesis and Treatment of PD

PD is characterized by movement disabilities, including tremors, rigidity, bradykinesia/hypokinesia, and postural instability, as well as numerous other deficits affecting cognition, sleep, and autonomic nervous system function [113,114]. PD is associated with a generalized loss of neurons throughout the brain, with the most prominent feature being the degeneration of nigrostriatal DAergic neurons.

PD is the second most common neurodegenerative disease after Alzheimer’s disease, affecting approximately 1–2% of the population in the USA. Although most cases of PD occur sporadically, approximately 5–10% are inherited (familial PD). Recent genomic analyses using samples obtained from patients with familial PD have mapped many PD-related (PARK) loci and identified several putative genes, including leucine-rich repeat kinase 2 (LRRK-2), PARK2 (parkin), DJ-1, and PTEN-induced kinase 1 (PINK1).

Mutations in LRRK2 have various effects, including disruption of the endosome and lysosome degradation pathways, leading to increased concentrations of α-synuclein that facilitate its aggregation, resulting in the formation of Lewy bodies (LB). Mutations in LRRK2 also alter specific signaling pathways, such as the Ras and MAPK pathways that support vesicular transport along axons and DA release, and increase the tau protein phosphorylation and accumulation [115] to cause an abundance of neurofibrillary tangles. These three effects together result in DAergic neuronal death [116,117]. Mutations in PARK2, which encodes an E3 ubiquitin ligase [118], inhibit proteasomal degradation of α-synuclein, resulting in LB formation and DAergic neuronal cell death [119,120]. Further, DJ-1, a redox-sensitive chaperone and sensor for oxidative stress, inhibits the aggregation of α-synuclein, and DJ-1 mutations lead to the inhibition of proteins related to anti-oxidation and mitochondrial functions, resulting in an increase in reactive oxygen species (ROS) and mitochondrial dysfunction, and destruction of DAergic neurons [121,122]. PINK1, a mitochondrial serine/threonine-protein kinase, is closely associated with mitochondrial quality control by identifying damaged mitochondria and targeting them for degradation [123,124]. Mutations in PINK1 exert similar effects as those reported in DJ-1 mutations, and tau protein phosphorylation is increased.

Various genetic and environmental factors converge into four fundamental mechanisms; oxidative stress, mitochondrial complex I dysfunction, impairment of the ubiquitin-protease pathway, and accumulation and aggregation of misfolded or unfolded proteins.

3.1. PD and the DAergic System

A number of studies have shown the involvement of DA receptor subtypes in PD. Studies in D₁R knockout mice have shown that D₁R and D₂R are segregated on striatal projection neurons, with D₁R regulating the direct striatal output pathway. D₁R knockout mice mostly show increased locomotor hyperactivity or a decrease in spontaneous exploratory activities, as determined by a decrease in rearing behavior [125,126]. Overall, these studies suggest that D₁Rs regulate the neurochemical architecture of the striatum and are critical for the expression of normal motor activity [125].

Studies using knockout mice have shown that the D2-like receptor family (mainly D₂R) plays a more direct role in PD. A long isoform of an alternatively spliced variant of D₂R, D_2LR, acts mainly at postsynaptic sites and is suggested to be related to the extrapyramidal side effects of typical antipsychotics [127,128]. In addition, it has been suggested that the SNpc of D₂R knockout mice contain more LB-like cytoplasmic inclusions containing α-synuclein, compared to wild-type mice [129].

The severity of PD is reportedly related to a decrease in D₃Rs in the brain [130] and these receptors could be potential biomarkers for PD [131]. In addition, D₃R agonists can decrease cellular accumulation of α-synuclein, enhance BDNF secretion, decrease neuroinflammation, and improve motivational deficits [132,133].

D₄R knockout mice show significantly less exploratory behavior and rearing activity than wild-type mice [134,135], and increased avoidance behavior to unconditioned stimuli [136]. These results indicate that D₄R could also play a vital role in impulse control disorder, which is one of the major symptoms in PD [137].

Overall, D2-like receptors appear to play major roles in PD, although D1-like receptors probably have indirect roles.

3.2. Roles of the Cholinergic System in PD

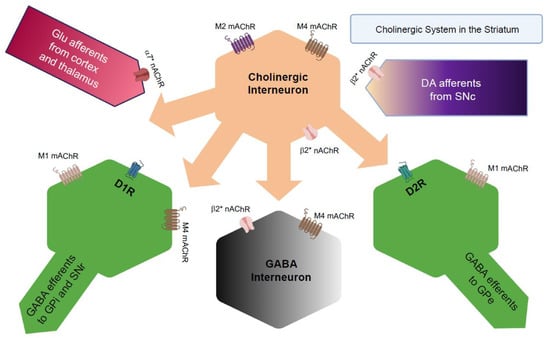

The balance between the DAergic and cholinergic systems in the striatum is critical for the proper regulation of motor functions. The striatum contains several neuronal types that include projecting GABA-MSNs (~95%), medium-size striatal GABAergic interneurons, and large aspiny cholinergic interneurons (CINs) [138,139]. Most striatal cholinergic innervations are provided by CINs [140], which comprise less than 3% of the cells in the striatum. Morphologically, CINs can be easily distinguished from other striatal neurons as they are significantly larger than other neurons (approximately 20–50 μm in diameter) and possess extensive axonal and dendritic arborizations [141,142].

Owing to their morphological features, CINs make widespread synaptic connections with other neurons, including nigrostriatal DAergic and corticostriatal glutamatergic afferents, serotonergic afferents from the dorsal raphe, and GABAergic efferent and interneurons [143] (Figure 6). ACh release from CINs is controlled by various neurotransmitters that act on a multitude of receptors expressed on CINs, for example, GABA_A receptors, metabotropic glutamate receptors, ionotropic glutamate receptors, and DA receptors [144,145,146,147,148].

CINs are tonically active and continuously release ACh in a pulsatile manner. The ACh released from CINs subsequently acts on ACh receptors located on neuronal terminals and/or cell bodies in the striatum to modulate neurotransmitter release from DAergic and cortical glutamatergic neurons [138,149].

The neuronal terminals of nigrostriatal DAergic projections heavily overlap with CINs in the striatum [139,150] and mutually regulate the release of DA and ACh from each neurons. For example, DA released from nigrostriatal neurons exerts stimulatory and inhibitory influences on ACh release by acting on D₁Rs and D₂Rs, respectively [147,148], allowing for the fine-tuning of DA receptor-mediated regulation of locomotor activity [151].

ACh released from striatal CINs also regulates DA release from the striatum by acting on the nAChR subtypes expressed on different neuronal terminals. ACh stimulates DA release by directly acting on α4β2* and α6β2* (α4β2, α4α5β2, α6β2β3, α4α6β2β3) subtypes expressed on DAergic neurons [152,153]. The majority of nAChR subtypes on DAergic neurons (β2*) are activated by nicotine and then desensitized, allowing the excitation of DAergic neurons for a short period of time before they are desensitized. Striatal α7 nAChRs located on corticostriatal glutamatergic efferents indirectly regulate DA release by modulating striatal glutamate release [154]. In contrast to most of the β2* nAChR subtypes, α7 nAChRs are not significantly desensitized by the concentrations of nicotine obtained from smoking.

3.3. Functional Interaction between DAergic and Nicotinic Cholinergic Systems in the Pathogenesis and Treatment of PD

Nicotine is known to reduce nigrostriatal-damaging processes [155,156], and a number of epidemiological studies have shown that the incidence of PD is reduced by approximately 50% in smokers [157,158]. Nicotine is also known to reduce LID [155], one of the most serious side effects caused by the chronic use of L-DOPA. As suggested in a recent review [159], the connection between the reduced incidence of PD and tobacco use is probable because the protective effects occur in a dose- and time-dependent manner, and has also been confirmed in twin studies [160].

The nicotinic and DAergic systems are closely associated in normal physiology and the pathogenesis of PD, which could be due to the extensive overlap between the two systems. For example, both striatal nAChR and DA receptor subtypes decrease with striatal DAergic degeneration [161], which is the most prominent feature of PD. Loss of nAChR subtypes occurs in the order of α6α4β2β3 > α6β2β3 > α4β2 [69,152]. α7 nAChRs are not affected by nigrostriatal damage probably because they are not expressed on DAergic terminals [72,162]. DA release and the stimulation of D₁Rs and D₂Rs on GABA-MSNs are also reduced, leading to an overall decline in movement facilitation mediated by the direct pathway. This results in the bradykinesia, rigidity, freezing, and other motor deficits observed in PD.

L-DOPA is one of the most effective therapies for PD; however, chronic use of L-DOPA results in various adverse effects, such as neuropsychiatric problems and the development of abnormal involuntary hyperkinetic movements (dyskinesias). Currently, amantadine [163], levetiracetam, an antiepileptic [164], and nicotine [155,165] have been shown to improve LID.

The nigrostriatal DAergic system has been shown to be a key player in the development of LID [166,167]. Administration of L-DOPA is thought to lead to unregulated DA release and excessive activation of the striatal GABA-MSNs expressing D₁Rs (direct pathway). The GABA-MSNs expressing D₂Rs (indirect pathway) also become overactive via D₂R-mediated inhibition of the inherent inhibitory nature of the indirect pathway, which leads to the overall enhanced motor activity, a characteristic of dyskinesias [168,169].

As expected from their roles in the regulation of the nigrostriatal DAergic system, striatal CINs and nAChRs have also been indicated in the pathogenesis of LID. For example, studies in nAChR null mutant mice showed that the β2* and α7 subtypes are related to LID [170,171,172]. In addition, ablation or long-term stimulation of CINs, which results in nAChR desensitization and a consequent functional receptor blockade [173,174], effectively prevent LID without affecting the therapeutic efficacy of L-DOPA [175,176].

Receptor desensitization may subsequently lead to further molecular changes that mediate overall functional changes. Nicotine is known to modulate neurotoxicity by enhancing phosphatidylinositol 3-kinase and altering levels of phosphorylated Akt, as well as Src, B-cell lymphoma (Bcl) 2, and Bcl-x [177,178]. The MAPK/ERK and JAK2/STAT3 pathways have also been implicated in nAChR-mediated neuroprotection [179,180]. In addition, other downstream mechanisms, including alterations in phospholipase C [181], nerve growth factor [182], proinflammatory cytokines [183], caspases, and reactive oxygen species [184], could be involved.

Overall, these results demonstrate that striatal CINs play a critical role in LID by modulating the nigrostriatal DAergic pathway. Nicotine and nAChR drugs targeting β2* and α7 nAChRs could be useful strategies to counteract LID.

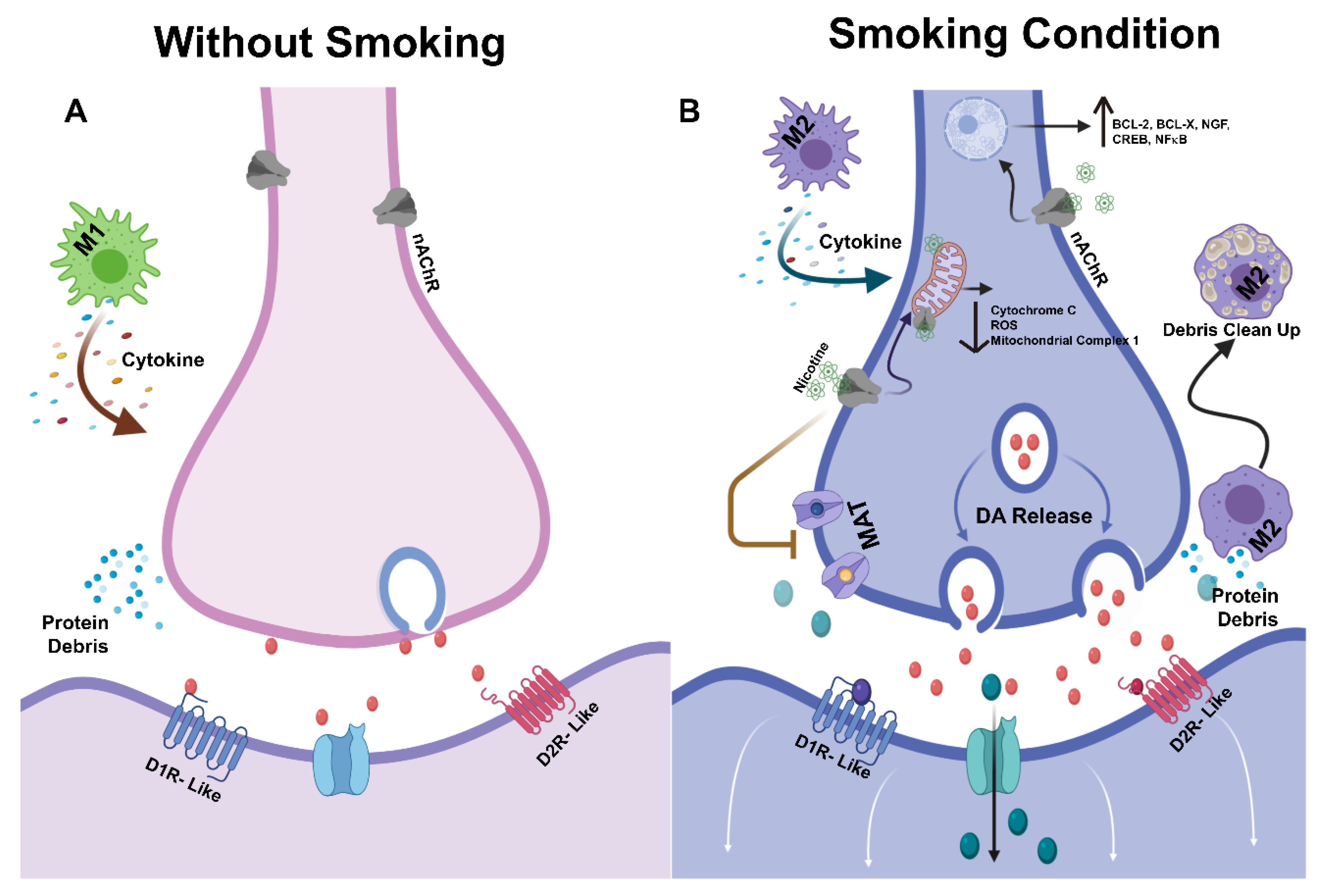

4. General Mechanism of Nicotine-Induced Neuronal Protection

4.1. Nicotine-Induced Changes in the Microenvironment of DAergic Neurons

Macrophages, represented by microglial cells in the brain, are innate immune cells that serve as the first line of defense against invading pathogens. Under normal conditions, they maintain the M0 phenotype, which can be activated and converted into two different phenotypes: M1, a pro-inflammatory macrophage, and M2, an anti-inflammatory macrophage [185,186].

In the case of neurodegenerative diseases, such as PD, macrophages are usually converted into the M1 phenotype and cause local inflammation (Figure 7A), as well as neuronal death [187,188]. In contrast, nicotine is known to convert the M0 phenotype into the M2 phenotype, which prevents neuronal inflammation, as well as cell death (Figure 7B) [189,190].

Cytokine storm is one of the leading causes of neuronal cell death. Pro-inflammatory cytokines are usually released by M1 macrophages that predominate in neurodegenerative conditions (Figure 7A) [191,192]. Nicotine, by converting macrophages into the M2 phenotype that release anti-inflammatory cytokines, prevents inflammatory tissue injury and DAergic neuronal death [191,193]. In addition, the M2 phenotype is known to prevent DAergic neuronal death by cleaning up the accumulated toxic cellular debris (Figure 7B) [194].

4.2. Direct Effect of Nicotine on DAergic Neuronal Cell Survival

In addition to improving microenvironments, nicotine is known to have a beneficial effect on the survival of DAergic neurons, for example, by upregulating proteins responsible for neuronal survival, decreasing endogenous DA metabolism, and protecting mitochondria.

First, stimulation of the nAChRs expressed on DAergic neurons is known to upregulate the expression of several anti-apoptotic proteins, such as BCL-2, BCL-X, CREB, BDNF, NFκB, and NGF. These proteins play important roles both in neuronal survival and proliferation (Figure 7B) [195,196,197].

Second, 2, 3, 6-trimethyl-1, 4-napthoquinone (TMN), one of the components of cigarettes, is renowned for monoamine oxidase inhibitor. Thus, as a result of cigarette consumption, cellular levels of DA are increased along with a decrease in oxidative stress, which are beneficial for PD patients [198,199]. In addition, nicotine, the major component of cigarettes, improves the symptoms of PD patients by increasing DA release from DAergic neurons (Figure 7B) [66,151].

Third, damage to mitochondria is one of the major causes of DAergic neuronal death [200,201]. Unlike ACh, which is too hydrophilic to cross the cell membrane, nicotine can easily cross the cell membrane. Thus, it is possible that nicotine activates the nAChRs attached to internal organoid membranes, such as those of mitochondria [202,203]. By acting on mitochondrial nAChRs, nicotine produces antioxidant effects by modulating generation of ROS. In addition, nicotine prevents mitochondrial swelling and cytochrome c release independent of nAChRs, and reduces leakage of electrons during transport (Figure 7B) [198,204,205,206].

5. Conclusions

The DAergic and nicotinic systems of the brain play critical roles in nicotine addiction, schizophrenia, and PD. In considering the two systems together, it is possible to hypothesize mechanisms for these diseases that have not been previously considered. In particular, the interaction between these two systems allows for novel therapeutic approaches to treatments for related diseases, with fewer side effects. For example, understanding the regulatory roles of α7 nAChRs on pyramidal cells in the DL-PFC could support a mechanistic approach to treating the negative symptoms of schizophrenia and provide new therapeutic directions. Furthermore, elucidation of the critical role that α7 nAChRs play in the treatment of LID is enabling the introduction of novel therapeutic agents. Finally, in order to have more fundamental understanding behind various roles of nAChRs, it may be necessary to reconsider the nature and characteristics of nAChRs. For example, a recent study [207] has shown that α4β2 nAChR employs a metabotropic signaling pathway similar to those of GPCRs.
