Transcriptomic Analyses Reveal Long Non-Coding RNA in Peripheral Blood Mononuclear Cells as a Novel Biomarker for Diagnosis and Prognosis of Hepatocellular Carcinoma

by
Pattapon Kunadirek
1,
Nutcha Pinjaroen
2,
Intawat Nookaew
3,
Pisit Tangkijvanich
1,* and
Natthaya Chuaypen
1,*
1
Center of Excellence in Hepatitis and Liver Cancer, Department of Biochemistry, Faculty of Medicine, Chulalongkorn University, Bangkok 10330, Thailand
2
Department of Radiology, Faculty of Medicine, Chulalongkorn University, Bangkok 10330, Thailand
3
Department of Biomedical Informatics, College of Medicine, University of Arkansas for Medical Sciences, Little Rock, AR 72205, USA
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(14), 7882; https://doi.org/10.3390/ijms23147882
Submission received: 29 June 2022 / Revised: 15 July 2022 / Accepted: 15 July 2022 / Published: 17 July 2022
(This article belongs to the Special Issue Chronic Liver Disease: Latest Research in Pathogenesis, Detection and Treatment)
Browse Figures
Versions Notes

Abstract

:
Novel biomarkers are highly required for the diagnosis and predicting prognosis of hepatocellular carcinoma (HCC). In this study, we investigated the profiles of long non-coding RNAs (lncRNAs) obtained from the peripheral blood mononuclear cells (PBMCs) of patients with HCC and PBMCs from a co-culture model using transcriptomic analysis. The differentially expressed lncRNAs (DElncRNAs) were then characterized and integrated as cancer-induced lncRNAs. Among them, three up-regulating DElncRNAs including MIR4435-2HG, SNHG9 and lnc-LCP2-1 and one down-regulating, lnc-POLD3-2, were identified. The functional analysis showed that these enriched lncRNAs were mainly associated with carcinogenesis and immune responses. Following further validation in PBMCs samples (100 HBV-related HCC, 100 chronic hepatitis B and 100 healthy controls), MIR4435-2HG, lnc-POLD3-2 and their combination were revealed to be sensitive biomarkers in discriminating HCC from non-HCC (AUROC = 0.78, 0.80, and 0.87, respectively), particularly among individuals with normal serum alpha-fetoprotein levels. Additionally, high circulating SNHG9 expression was shown to be an independent prognostic factor of overall survival in patients with HCC. These results indicate that determining these lncRNAs in PBMCs could serve as novel diagnostic and prognostic biomarkers for HBV-related HCC.

1. Introduction

Hepatocellular carcinoma (HCC) is the sixth common cancer type with approximately 250,000 estimated new cases for each year and is the third leading cause of cancer-related motility worldwide [1]. Chronic hepatitis B virus (HBV) infection is considered as the common risk factor of HCC worldwide, especially in East and Southeast Asia [2]. Most of HCC patients are usually diagnosed at the intermediate or advanced stage, for which the curative treatments are limited [2]. It is urgently important to access the HCC at the initial stage for improving the HCC surveillance. Although serum alpha-fetoprotein (AFP) has been widely used as a biomarker for HCC screening, the sensitivity of AFP (58–68%) in detecting early-stage of HCC is still not satisfactory [3]. In addition, the elevation of serum AFP may be found in patients with non-malignant chronic liver disease, such as chronic hepatitis infection and cirrhosis [3]. Therefore, identifying novel biomarkers for early diagnosis and prognosis are highly required to improve the health care outcomes and survival in HCC patients. Recently, we demonstrated that the alteration of mRNAs in HCC-induced peripheral blood mononuclear cells (PBMCs) in a co-culture model represented cancer-induced genes that could be used as a novel diagnostic and prognostic marker for HCC [4]. However, the regulation of lncRNAs in PBMCs has not been elucidated in HCC.
Long non-coding RNAs (lncRNAs) are a subtype of ncRNA molecules, which are defined as having a length longer than 200 nucleotides and are not translated into protein [5]. They have functioned as regulatory molecules in many biological processes, such as cell proliferation, apoptosis, and invasion due to their ability to act as signals, guides, scaffolds, or decoys of other RNA molecules [5]. Several studies suggested that the aberrant expression of lncRNAs is linked to tumor development and metastasis in many types of cancers, including HCC [6,7]. For instance, the overexpression of HOTAIR negatively regulated miR-1 and promoted HCC progression [8]. The alteration of lncRNAs is also involved in immune response in cancers, including the regulation of immune checkpoint expression and tumor microenvironment composition [9]. Regarding HCC, it was shown that an up-regulated lncRNAs signature was associated with increased immune infiltration and worse overall survival [10].
In this study, the differentially expressed long non-coding RNAs (DElncRNAs) obtained from the co-culture model and PBMCs of patients with HCC were identified using RNA-sequencing and bioinformatic analysis tools. The lncRNA–miRNA–mRNA regulatory network was also constructed according to competing endogenous RNA (ceRNA) networks [11]. Finally, the intersect lncRNAs were characterized as putative novel biomarkers and were further validated in PBMCs from patients with HBV-related HCC.

2. Results

2.1. Identification of lncRNA Candidate Biomarkers in PBMCs

We performed a comparative analysis of lncRNA expression profiles from eight patients with HCC and four healthy controls to identify the lncRNA candidate biomarkers. The baseline characteristics of patients with HCC and healthy controls are presented in Supplementary Table S1. The differentially expressed lncRNAs (DElncRNAs) between PBMCs of patients with HCC and PBMCs of healthy controls were identified by cutting off at a log2fold-change of ≤−1 or ≥1, and p < 0.05 for each lncRNA, which included 298 up-regulated lncRNAs and 159 down-regulated lncRNAs (Figure 1A). To investigate the DElncRNAs of cancer-induced PBMCs, the data sets from PBMCs of three healthy controls co-cultured with HCC cells (Huh7) and without HCC cells were compared and analyzed. We found 114 up-regulated lncRNAs and 69 down-regulated in this co-culture model using the same mentioned cut-off (Figure 1B). The clustering of DElncRNAs was shown in heatmap plots. The expression profile showed a clear separation pattern between HCC and healthy controls (Figure S1A) as well as in co-culture model with HCC cells and without HCC cells (Figure S1B).
To identify whether cancer-induced lncRNAs from PBMCs could be biomarkers for HCC, the lncRNA profile of PBMCs from HCC was integrated with PBMCs from co-culture with HCC cells. The Venn diagram based on the intersection of DElncRNAs between the PBMCs from HCC and a co-cultured model is shown in Figure 1C. The lists of intersecting and individual profiles of DElncRNAs are present in Supplementary Table S2. In overlapping DElncRNAs of two profiles, we found three up-regulated lncRNAs, including MIR4435-2HG, SNHG9 and lnc-LCP2-1, and one down-regulated lncRNAs including lnc-POLD3-2. The expression of these four DElncRNAs is shown in Figure 1D. To investigate the discrimination between patients with HCC and healthy controls based on these four lncRNAs, the expression of these lncRNAs was further analyzed by hierarchical clustering and is presented as a heatmap analysis, as shown in Figure S1C. This result demonstrated that these four lncRNAs clearly discriminated between HCC and healthy controls. Moreover, these four DElncRNAs in PBMCs were considered to be cancer-induced lncRNAs because of their alteration after inducing with HCC in the co-culture and also detected in the PBMCs of patients with HCC.

2.2. Prediction of Regulatory Network and Function Analysis of lncRNAs

To investigate the possible regulation role of lncRNAs and their targets via competing endogenous RNAs (ceRNAs) including miRNAs and mRNAs, the identified four cancer-induced lncRNAs were applied to predict miRNAs of lncRNA target based on shared miRNA recognition elements. Then, the 24 DEmRNAs of PBMCs were also used to predict miRNA–mRNA interaction. Together, the ceRNAs network was constructed by overlapping miRNA between lncRNA–miRNA and miRNA–mRNA interaction (Figure S2A). Finally, there were 139 interactions in the ceRNAs network, which included 4 lncRNAs, 62 miRNAs, and 23 mRNAs (Supplementary Table S3). This result demonstrated that these cancer-induced lncRNAs could play a role in mRNA regulation as miRNA sponges in PBMCs of HCC.
The functional enrichment analysis of the lncRNA target list was performed by TAM 2.0 to investigate the characteristics annotation of predicted lncRNA targets, including disease, functional annotation, and transcription factor (Figure S2B). The result of TAM2.0 is shown in Supplementary Table S4. The top 10 significantly enriched diseases were several types of cancers, which included HCC in the second of this term. Most of the significantly enriched functions were involved in cancer progression and immune response. In addition, we found that these lncRNA targets were related to the many transcription factors, which were associated with cancer and the immune response pathway, including TP53, MYC, and TGFβ. Together, these data represented that the regulation of four cancer-induced lncRNAs in PBMCs may be related to cancer and the immune system in HCC.

2.3. Validation of Candidate lncRNAs in Clinical Samples

From the above analyses, the four candidate lncRNAs (MIR4435-2HG, SNHG9, lnc-LCP2-1, and lnc-POLD3-2, green-labeled in Figure 1A,B) were selected to further investigate whether they might be novel diagnostic biomarkers for HCC at the cohort level. To this end, the expression of these lncRNAs was validated by the qRT-PCR method in PBMCs obtained from 100 patients with HBV-related HCC, 100 patients with chronic hepatitis B (CHB), and 100 healthy controls. The validated cohort was age- and gender-matched among the studied groups. The baseline characteristics of the patients in this validated cohort are shown in Table 1. It was shown that there were significant differences between the HCC and non-HCC groups in terms of biochemical parameters, including platelet count, serum albumin, aspartate aminotransferase (AST), alkaline phosphatase and AFP. Moreover, a higher proportion of cirrhosis was observed in the HCC group compared with the non-HCC group.
In this validation set, we found that the expressions of MIR4435-2HG, SNHG9, lnc-LCP2-1, and lnc-POLD3-2 in the HCC group significantly differed from those of the other groups (Figure 2). Specifically, the relative expression of MIR4435-2HG was significantly higher in patients in the HCC group (2.63 ± 1.58) than in the non-HCC group (1.25 ± 0.69, p < 0.001) and healthy control group (1.30 ± 0.68, p < 0.001) (Figure 2A). The expression of SNHG9 in patients with HCC (2.12 ± 1.68) was also significantly higher than that in the non-HCC group (1.24 ± 1.04, p < 0.001) and healthy control group (1.29 ± 0.61, p = 0.015) (Figure 2B). For lnc-LCP2-1, its level was significantly higher in patients with HCC (2.86 ± 6.12) than in the non-HCC group (2.48 ± 1.88, p = 0.006), but it did not significantly differ from healthy controls (1.45 ± 1.02, p = 0.716) (Figure 2C). In contrast, lnc-POLD3-2 expression was significantly decreased in patients with HCC (−2.54 ± 3.75) than healthy controls (0.00 ± 6.39, p < 0.001), but it exhibited significantly higher expression when compared with the non-HCC group (−7.27 ± 4.98, p < 0.001) (Figure 2D).

2.4. Association of lncRNA Expressions with Clinical Parameters of HCC

To further investigate the association of lncRNAs with clinical parameters in patients with HCC, we demonstrated that the expressions of MIR4435-2HG and SNHG9 were significantly lower in patients with early stages (BCLC 0-A) than in those with intermediate and advanced stages (BCLC B-C, p < 0.001) (Figure 2E). Similarly, MIR4435-2HG and SNHG9 expressions were found to be significantly higher in patients with larger tumor size (≥5 cm) in comparison with smaller tumor size (<5 cm) (p = 0.005 and p < 0.001, respectively) (Figure 2F). Additionally, the expression of SNHG9 was associated with AST (p < 0.001) and alanine transaminases (ALT, p = 0.048) (Figure S3). There was no significant correlation between the expression of lncRNAs and other clinical parameters.

2.5. The Expressions of lncRNAs as Diagnostic Markers for HCC

The receiver operating characteristic (ROC) was performed to investigate the diagnostic performance biomarkers for discriminating the HCC group from the non-HCC group (Figure 3). In this context, the area under ROC curve (AUROC) was 0.80 (95% confidence interval (CI); 0.74–0.87, p < 0.001) for MIR4435-2HG, 0.68 (95% CI 0.60–0.76, p < 0.001) for SNHG9, 0.61 (95% CI 0.71–0.85, p = 0.007) for lnc-LCP2-1, 0.78 (95% CI 0.30–0.46, p < 0.001) for lnc-POLD3-2, and 0.81 (95% CI 0.75–0.87, p < 0.001) for AFP.
Based on the ROC analysis, the optimal cut-off points of MIR4435-2HG, SNHG9, lnc-LCP2-1, and lnc-POLD3-2 were 1.58, 1.36, 1.51 and −4.77, respectively. Details of the diagnostic performance of each lncRNA as well as AFP (cut-off 20 ng/mL) are shown in Table 2. Among them, MIR4435-2HG and lnc-POLD3-2 exhibited better performance than SNHG9 and lnc-LCP2-1. Additionally, the combined use of lncRNAs as diagnostic biomarkers was further evaluated (Supplementary Table S5). Again, the combination of MI4435-2HG and lnc-POLD3-2 improved the sensitivity for detecting HCC without compromising their specificity as the AUROC reached 0.87.
The diagnostic role of MI4435-2HG and lnc-POLD3-2, as well as their combination, in patients with AFP-negative HCC (AFP < 20 ng/mL) and early-stage HCC was further investigated. In this study, there were 51 (51%) and 49 (49%) patients with AFP-negative and AFP-positive, respectively (Figure S4). Among the AFP-negative group, 74.5% (38/51) of patients had an elevated MIR4435-2HG level (≥1.8) and 75.5% (39/51) of patients had a high lnc-POLD3-2 level (≥−4.8). For the AFP-positive group, high levels of MIR4435-2HG and lnc-POLD3-2 were detected in 79.5% (39/49) and 73.5% (36/49), respectively. The combination of MIR4435-2HG and lnc-POLD3-2 increased the detection of HCC to 88.2% (45/51) and 97.9% (48/49) in the AFP-negative and AFP-positive groups, respectively.
Among early HCC (stages 0-A), we found that 28.5% (10/35) of patients had elevated AFP concentration, while 62.9% (22/35) and 80.0% (28/35) of patients had elevated levels of MIR4435-2HG and lnc-POLD3-2, respectively (Figure S5). Moreover, the combination of MIR4435-2HG and lnc-POLD3-2 increased the detection of early HCC to 85% (30/35). These data indicated that MIR4435-2HG, lnc-POLD3-2 and their combination could be used as the potential biomarkers for detecting AFP-negative HCC and small HCC.

2.6. Prognostic Role of lncRNAs of Patients with HCC

To investigate whether the expression of lncRNAs might be useful for predicting the overall survival of patients with HCC, the Kaplan–Meier analysis of each lncRNA using their median values as the cut-off points was performed. As shown in Figure 4A, a high expression of MI4435-2HG (≥2.4) was significantly associated with shorter overall survival compared with those of low expression (<2.4) (15 vs. 20 months, p = 0.033 by log-rank test). Similarly, a high expression of SNHG9 (≥1.9) was significantly associated with shorter overall survival compared with patients with low expression (<1.9) (20 vs. 38 months, p = 0.001) (Figure 4B). However, the other lncRNAs were not associated with overall survival (Figure 4C,D). Regarding AFP, a high serum level (≥100 ng/mL) was significantly associated with poor prognostic compared to those with low serum level (<100 ng/mL) (24 vs. 42 months, p = 0.045) (Figure 4E).
All lncRNAs were further applied for Cox regression analysis together with other clinical parameters. In multivariate analysis, the presence of cirrhosis, advanced BCLC stages and elevated SNHG9 expression were selected as independent predictive factors of overall survival (Table 3).

3. Discussion

Numerous studies support that lncRNAs are involved in many pathological processes, especially in cancer development [12]. The alteration of lncRNAs has been extensively investigated in hepatocarcinogenesis regarding the modulation of tumor proliferation and metastasis [13,14]. Interestingly, some cancer-related lncRNAs are expressed in body fluids, which opens up the possibility of using them as liquid biopsy for HCC diagnosis and prognosis [15]. The early diagnosis of HCC is extremely important, as it leads to an improved prognosis with the 5-year survival rates of 60–80% after curative treatments [2]. To date, the surveillance of HCC commonly relies on imaging findings and serum biomarkers. In a recent meta-analysis, the detection of early-stage HCC using ultrasound together with serum AFP has sensitivity of 60–70% [16]. However, the sensitivity of serum AFP alone in detecting early-stage HCC is approximately 50% [17], which was higher than our study (only 30%). The limitations of serum AFP emphasize the urgent need for identifying novel biomarkers to improve the early diagnosis of HCC.
There is increasing evidence that suggests that the alteration of lncRNAs in PBMCs could be used as a biomarker for diagnosis and disease monitoring in many chronic disorders [18,19,20]. Moreover, the transcriptomic analyses in PBMCs have revealed differential expression patterns between cancerous and non-cancerous samples in several types of malignant tumors, including HCC [21,22,23]. In this study, we demonstrated that DElncRNAs in PBMCs in the co-culture model could differentiate between HCC and non-HCC. Specifically, four DElncRNAs with three up-regulated and one down-regulated lncRNA were identified in HCC, including MIR4435-2HG, SNHG9, lnc-LCP2-1, and lnc-POLD3-2. It was previously revealed that the features of gene expression profiles in PBMCs significantly differed between patients with or without HCC and might be a surrogate marker representing tumor-infiltrating inflammatory cells in the liver [24]. Similarly, the profiling of PBMCs from a co-culture model with HCC cells was shown to be useful for predicting the risk of drug-induced liver injury, particularly among immune-related genes [25]. Recently, the concordance of transcriptomic profiles between PBMCs and tumor tissue-derived samples was also demonstrated in colorectal cancer [26]. These data suggest that the alteration of lncRNAs in PBMCs could be a readily accessible biomarker for tumor microenvironment in HCC.
The interaction between RNA molecules in HCC tissues was reported in many studies including miRNA–mRNA [27], lncRNA–mRNA [13], and miRNA–lncRNA [28] interaction. However, the regulatory complex of ceRNAs has not been investigated in PBMCs of HCC. Here, we constructed a ceRNAs network in PBMCs of patients with HCC that might explore a new role of lncRNAs in hepatocarcinogenesis. The ceRNAs network showed that MIR4435-2HG could play an essential role in HCC development by regulating the immune response gene via negative regulating of numerous miRNAs such as the MIR4435-2HG/hsa-miR-1-3p/CXCL2 axis. Similar to our findings, a previous report demonstrated that the MIR4435-2HG/hsa-miR-1-3p axis was closely linked to immune cell infiltration in HCC [29]. Likewise, the interaction of hsa-miR-1-3p/CXCL2 was associated with the immune mechanism of HCC development [30]. However, the actual mechanism by which these lncRNAs regulating hepatic carcinogenesis requires further validation in additional studies.
The functional analysis of cancer-induced lncRNAs targets was further elucidated. Our result showed that cancer-induced lncRNAs targets were involved with the numerous types of cancer including HCC. The enriched functions of lncRNAs targets consisted of cell proliferation, cell cycle, cell death, cell apoptosis, and immune response, which are directly related to the progression of cancers [31]. For instance, the dysregulation of lncRNAs can promote HCC growth, metastasis, and drug resistance via sponging other RNAs and interacting with proteins [32]. Regarding the regulation of lncRNAs in immune response, many lncRNAs are involved in immune checkpoint regulation and immunotherapy resistance [9]. Moreover, lncRNAs have been shown to be related to transcription factors such as TP53 and TGF-β, which involve the transcription of many downstream genes and regulate the development of cancers [33,34].
Based on the ROC analysis, we subsequently found that only MIR4435-2HG and lnc-POLD3-2 expression in PBMCs might be potential biomarkers for HCC. LncRNA MIR4435-2HG, located in human chromosome 2q13, was originally discovered as a GC-associated lncRNA [35]. It was reported that altered MIR4435-2HG influenced various biological processes including epithelial–mesenchymal transition (EMT), proliferation, apoptosis, migration and invasion [36]. In breast cancer cells, for example, recent evidence indicated that decreased MIR4435-2HG promoted apoptosis and suppressed cell proliferation and metastasis via inhibiting Wnt/β-catenin signaling [37]. Previously, the overexpression of MIR4435-2HG was correlated with the development of lung cancer, and the activity of β-catenin was up-regulated by the interaction between MIR4435-2HG and β-catenin [38]. Moreover, MIR4435-2HG was also recognized as a miRNA sponge of TGF-β1 that accelerated the activation of TGF-β signaling [39]. In prostate cancer, the up-regulating MIR4435-2HG was correlated with elevated circulating TGF-β1 and was associated with poor clinical and pathological features [40]. Together, these data indicate that MIR4435-2HG participates in Wnt/β-catenin and TGF-β pathways, which are well-established signaling that are involved in the pathogenesis of several cancers, including HCC [41].
Regarding HCC, many studies have reported that MIR4435-2HG was up-regulated in liver tissue and was associated with poor prognosis of patients with HCC [29,42,43]. Additionally, it was demonstrated that MIR4435-2HG played important roles in regulating miRNAs that led to the activation of several biological processes of HCC [42,43]. For instance, the overexpression of MIR4435-2HG induced HCC proliferation via the up-regulation of miRNA-487a [42]. In addition, it was shown in HCC cell lines that MIR4435-2HG facilitated tumor proliferation and metastasis by modulating miR-22-3p/YWHAZ signaling [43]. Unlike previous data obtained from liver tissue specimens, our study demonstrated that the up-regulated level of MIR4435-2HG in PBMCs was predictive of worse overall survival. Taken together, these data indicate that the up-regulated expression of MIR4435-2HG in liver tissue or PBMCs might be associated with the poor prognosis of patients with HCC.
In this study, we also demonstrated that circulating lnc-POLD3-2 could be a novel diagnostic biomarker for discriminating HCC from non-HCC. As being demonstrated in our results, this lncRNA exhibited similar AUROC to that of AFP and MIR4435-2HG. Although the role of lnc-POLD3-2 in hepatocarcinogenesis remains to be explored, the combination of this lncRNA and MIR4435-2HG was able to improve the performance for detecting early HCC. Additionally, circulating MIR4435-2HG and lnc-POLD3-2 could be used to diagnose AFP-negative HCC. These results suggest the potential use of MIR4435-2HG and lnc-POLD3-2 as novel sensitive biomarkers for early HCC detection as well as complementary tests in patients with HBV-related HCC who had low or normal levels of serum AFP.
Regarding the prognostic role of cancer-induced lncRNAs, the Kaplan–Meier analysis demonstrated that a high expression of circulating MIR4435-2HG and SNHG9 was significantly associated with shorter overall survival in patients with HCC. These results might reflect the positive correlation of these lncRNAs expression with increased tumor size and advanced BCLC stage. However, the Cox regression analysis showed that only SNHG9 was selected as an independent predictor of overall survival, while other blood-based biomarkers did not reach the significance in multivariate analysis. This finding suggests that circulating SNHG9 could be a novel prognostic marker for HBV-related HCC. SNHG9 (Small nucleolar RNA host gene 9) has been reported as a promising oncogenic lncRNA in various cancers [44]. A previous study demonstrated that up-regulating SNHG9 was associated with poor prognosis in glioblastoma, as this lncRNA promoted tumor cell proliferation via regulating Wnt2 and miR-199a-5p [45]. In lung cancer, SNHG9 played a role in cisplatin resistance by promoting the CAPRIN1 gene [46], and the knockdown of SNHG9 decreased cell proliferation and invasion [47]. With regard to liver cancers, it was shown that SNHG9 promoted hepatoblastoma tumorigenesis via miR-23a-5p/Wnt3a axis [48]. Moreover, decreasing SNHG9 reduced methylation of the GSTP1 gene and inhibited liver cancer cell proliferation, migration and invasion [49].
This study has certain limitations, as the number of clinical samples was relatively small. Moreover, our study focused on patients with chronic HBV infection; thus, the results might not be directly applicable to other etiological causes of HCC, such as chronic HCV infection and fatty liver disease. Additionally, we used only the Huh7 cell line in the co-culture experiments. Thus, it would be interesting to investigate the alteration of lncRNAs in HBV-related cell lines such as Hep3B and PLC/PRF/5 in further studies. To our knowledge, this is the first study of transcriptomic analysis in PBMCs and a co-culture model of HCC, which might possibly reflect cancer-induced lncRNAs in PBMCs. In summary, our data demonstrated that circulating MIR4435-2HG and lnc-POLD3-2 either alone or in combination could be used as sensitive biomarkers of HCC detection in patients with chronic HBV infection. Apart from the diagnostic role, elevated SNHG9 expression was shown to be an independent prognosis factor for patients with HCC. Considering these data, lncRNAs in PBMCs could potentially serve as novel biomarkers for HCC diagnosis and prognosis. Further studies are worthwhile to confirm our observations as well as to elucidate the mechanisms and clinical significance of these lncRNAs in patients with HCC.

4. Materials and Methods

4.1. Specimen Collection

Blood specimens were collected in an EDTA tube from patients with HBV–HCC before treatment with Transarterial Chemoembolization (TACE). Patients were diagnosed and treated at King Chulalongkorn Memorial Hospital, Bangkok, Thailand between 2018 and 2020. The imaging studies results of dynamic computed tomography (CT) or magnetic resonance imaging (MRI) were used for HCC diagnostic according to the American Association for the Study of Liver Diseases (AASLD) guideline. The demographic and clinical characteristics including gender, age, liver function tests, serum AFP level and HCC staging classified by the Barcelona Clinic Liver Cancer (BCLC) system of patients were obtained. The blood specimens were also collected from healthy controls and chronic HBV-infected patients without evidence of HCC as control groups in this study.

4.2. PBMCs Preparation

PBMCs were isolated from 6 mL of fresh EDTA blood specimens of patients with HCC prior to treatment using Percoll PLUS density gradient media according to the manufacturer’s specifications (GE Healthcare). Briefly, PBMCs were isolated at 2800 rpm for 20 min at room temperature and were then washed 2 times with PBS. Isolated PBMCs were suspended in 10% DMSO and fetal–bovine serum (FBS) and stored at −80 °C until further experiment.

4.3. Cell Culture

Liver cancer cells (Huh7, JCRB0403) were purchased by the National Institutes of Biomedical Innovation, Health, and Nutrition JCRB Cell Bank (Osaka, Japan). Huh7 cells were maintained in DMEM medium (Gibco) and supplemented with 10% FBS at 37 °C 5% CO2. The cells with 80% confluence were dissociated using 0.05% Trypsin with 0.5 mM EDTA and were then washed by using phosphate buffer saline (PBS). Three healthy individual PBMCs were co-cultured with Huh7 cells in Transwell culture six-well plates with 0.4 μm pore size (Costar) for the analysis of the cancer-induced lncRNAs in PBMCs by liver cancer cells. Briefly, Huh7 cells (106 cells) were seeded into a lower chamber with DMEM and were then incubated overnight at 37 °C and 5% CO2. PBMCs from 3 healthy individuals (2 × 106 cells) were individually plated into an upper chamber and incubated for 4 h at 37 °C and 5% CO2. Then, cancer-induced PBMCs were collected and performed RNA extraction.

4.4. RNA Preparation and RNA-Sequencing

The total RNA was extracted from PBMCs using TRIzol reagent (Gibco) according to the manufacturer’s instructions. Before RNA sequencing, the quality of RNA was accessed including a concentration of total RNA samples using a Qubit RNA assay kit (Invitrogen) and RNA integrity using RNA Electrophoresis with the 2100 Bioanalyzer System (Agilent). Then, library preparation and the sequencing of RNA samples of good quality (total RNA > 1 μg and RNA integrity > 7) were performed by Vishuo Biomedical (Vishuo Biomedical, Singapore). Briefly, library preparation was performed using a NEBNext Ultra RNA Library Prep Kit (NEB) according to Illumina RNA library preparation protocol. RNA was captured and isolated by the NEBNext RNA Magnetic Isolation Module (NEB). Double-strand cDNA was synthesized using random primer, ProtoScript II Reverse Transcriptase and Second-strand synthesis Enzyme mix. Then, both ends of cDNA were repaired and received a poly A-tail, which were followed by a T-A ligation to adding adaptors at both ends of cDNA. Each cDNA was amplified by PCR for 11 cycles using universal P5 and P7 primers. The product length and PCR were performed by a 2100 Bioanalyzer and evaluated by Qubit 2.0 Fluorometer. Library reads were then multiplexed and loaded on an Illumina HiSeq sequencer (Illumina). Sequencing data of 2 × 150 bp paired end was carried out. Ultimately, we obtained an average of 25 million read pairs per sample, which ranged from 20 to 37 million reads. The proportion of quality read above Q30 was more than 90% of the total reads for each sample.

4.5. Data Processing and Analysis

The sequencing quality control was conducted by FasTQC version 0.11.9 to check the overall quality [50]. The paired-end raw reads were trimmed by Fastp version 0.21.1 to remove the sequencing adaptor and filter out the low-quality sequences (less than Q30) [51]. The trimmed reads were mapped with the long non-coding RNA transcript sequences (GENCODE version 40) of Homo sapiens reference genome (GRCh38) using HISAT2 version 2.2.1 [52]. Mapped reads were assembled into transcripts by StringTie version 2.1.6 for the lncRNA assembly and quantification [53]. The information of mapped reads analysis is presented in Supplementary Table S6. Then, the differential expression of lncRNAs was performed by DESeq2 version 1.34 to compare lncRNA expression between PBMCs from patients with HCC and healthy controls as well as PBMCs from co-culture with HCC and without HCC [54]. Long non-coding RNAs with a read count ≥ 20 reads in ≥5 samples were retained for further analysis. The up-regulated and down-regulated lncRNAs were identified by setting a cut-off at log2fold change ≥1 or ≤−1 and p-value ≤ 0.05 as DElncRNAs [55].
Intersected DElncRNAs from PBMCs and the co-culture model were used to predict lncRNA–miRNA interaction using mirNET version 2.0 and lncBase version 3 with the default setting [56,57]. The DEGs from our previous study were also used for predicting miRNA–mRNA interaction using mirNET. Using the previous prediction, the regulatory network was built by the overlapping of miRNAs between lncRNA–miRNA prediction and miRNA–mRNA prediction in accordance with the ceRNAs hypothesis. This ceRNAs network was visualized using the Cytoscape version 3.9.1 [58]. Then, the lncRNA–target miRNAs enrichment analysis was applied using TAM2.0 to explore the main function and associated disease [59].

4.6. Quantification RT-PCR for lncRNAs Validation

The DElncRNAs were validated in PBMCs of patients with HBV-related HCC and non-HCC individuals by qRT-PCR. In this, MIR4435-2HG, SNHG9, lnc-LCP2-1, and lnc-POLD3-2 were selected for validation by overlapping DElncRNAs from PBMCs of patients and PBMCs of co-culture with HCC cells. The total RNA was extracted from PBMCs of 100 patients with HBV-related HCC, 100 patients with chronic hepatitis B and 100 healthy controls using TRIzol reagent (Thermo Scientific, Carlsbad, CA, USA) and was then treated with DNase I (Thermo Scientific, Carlsbad, CA, USA) to digest DNA in extracted RNA. After that, cDNA was synthesized using RevertAid First Strand cDNA Synthesis (Thermo Scientific, Carlsbad, CA, USA). The qRT-PCR reaction included 6.25 µL of QPCR Green Master Mix HRox 2 × (Biotechrabbit, Berlin, Germany0.25 μL of primers and 1 μL of cDNA and nuclease-free water in a total volume of 12.5 μL. The reactions were carried out on a QuantStudio 5 Real-Time PCR System (Applied Biosystems, Carlsbad, CA, USA). Primers and thermal cycle information are shown in Supplementary Table S7. The analysis of qRT-PCR was performed by a duplicate of each sample with positive controls for each target gene and negative controls for interpretation. The expression of target lncRNAs was normalized by GAPDH endogenous reference gene. The expression data are shown in log2fold change format.

4.7. Statistical Analysis

Statistical analysis was performed using the Statistical Package for the Social Sciences (SPSS) version 23 (https://www.ibm.com/analytics/spss-statistics-software, accessed on 13 March 2022) and GraphPad prism version 9 for Windows (https://www.graphpad.com/scientific-software/prism, accessed on 13 March 2022). Comparisons between groups were analyzed by Chi’s square or Fisher’s exact test for categorical variables and by Student’s t-test or one-way ANOVA for continuous variables. Spearman’s rank test was used for correlations between parameters. Kaplan–Meier analysis and a log-rank test were used for survival analysis. The Cox regression analysis was conducted to identify independent factors associated with the overall survival of patients with HCC. A p-value < 0.05 was considered statistically significant. The adjusted p-value for the multiple hypothesis testing was not performed in this study due to the small number of samples. However, we further validate the results with a highly sensitive method using qPCR in the independent cohort.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms23147882/s1.

Author Contributions

Conceptualization, P.K., P.T. and N.C.; methodology, P.K.; validation, P.K., N.P., I.N., P.T. and N.C.; formal analysis, P.K. and N.C.; investigation, P.K.; resources, N.P.; data curation, P.K.; writing—original draft preparation, P.K.; writing—review and editing, P.K., I.N., P.T. and N.C.; visualization, P.K.; supervision, P.T. and N.C.; project administration, P.K. and N.C.; funding acquisition, P.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Thailand Research Fund (RTA6280004), the Second Century Fund (C2F), Chulalongkorn University, National Institute of General Medical Sciences of the National Institutes of Health [P20GM125503 to I.N.], and Center of Excellence in Hepatitis and Liver Cancer, Faculty of Medicine, Chulalongkorn University. The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Institutional Review Board Statement

This study was performed in concordance with the Declaration of Helsinki for the participation of human individuals. The written inform consents were obtained from all patients and all health controls involved in the study. The protocols in this study have been approved by the Institute Ethics Committee of Faculty of Medicine, Chulalongkorn University (IRB No. 196/64).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

All sequencing data generated in this study are available at NCBI SRA database under Bioproject number PRJNA717231.

Acknowledgments

We would like to thank all of members in the Center of Excellence in Hepatitis and Liver Cancer, Faculty of Medicine, Chulalongkorn University for their efforts in conducting the experiments.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ferlay, J.; Colombet, M.; Soerjomataram, I.; Mathers, C.; Parkin, D.M.; Piñeros, M.; Znaor, A.; Bray, F. Estimating the global cancer incidence and mortality in 2018: GLOBOCAN sources and methods. Int. J. Cancer 2019, 144, 1941–1953. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Kulik, L.; El-Serag, H.B. Epidemiology and management of hepatocellular carcinoma. Gastroenterology 2019, 156, 477–491. [Google Scholar] [CrossRef] [PubMed]
  3. Galle, P.R.; Foerster, F.; Kudo, M.; Chan, S.L.; Llovet, J.M.; Qin, S.; Schelman, W.R.; Chintharlapalli, S.; Abada, P.B.; Sherman, M. Biology and significance of alpha-fetoprotein in hepatocellular carcinoma. Liver Int. 2019, 39, 2214–2229. [Google Scholar] [CrossRef] [Green Version]
  4. Kunadirek, P.; Ariyachet, C.; Sriphoosanaphan, S.; Pinjaroen, N.; Sirichindakul, P.; Nookaew, I.; Chuaypen, N.; Tangkijvanich, P. Identification of BHLHE40 expression in peripheral blood mononuclear cells as a novel biomarker for diagnosis and prognosis of hepatocellular carcinoma. Sci. Rep. 2021, 11, 11201. [Google Scholar] [CrossRef] [PubMed]
  5. Ulitsky, I.; Bartel, D.P. lincRNAs: Genomics, evolution, and mechanisms. Cell 2013, 154, 26–46. [Google Scholar] [CrossRef] [Green Version]
  6. Jiang, M.-C.; Ni, J.-J.; Cui, W.-Y.; Wang, B.-Y.; Zhuo, W. Emerging roles of lncRNA in cancer and therapeutic opportunities. Am. J. Cancer Res. 2019, 9, 1354. [Google Scholar]
  7. Anastasiadou, E.; Jacob, L.S.; Slack, F.J. Non-coding RNA networks in cancer. Nat. Cancer 2018, 18, 5–18. [Google Scholar] [CrossRef]
  8. Su, D.N.; Wu, S.P.; Chen, H.T.; He, J.H. HOTAIR, a long non-coding RNA driver of malignancy whose expression is activated by FOXC1, negatively regulates miRNA-1 in hepatocellular carcinoma. Oncol. Lett. 2016, 12, 4061–4067. [Google Scholar] [CrossRef] [Green Version]
  9. Di Martino, M.T.; Riillo, C.; Scionti, F.; Grillone, K.; Polerà, N.; Caracciolo, D.; Arbitrio, M.; Tagliaferri, P.; Tassone, P. miRNAs and lncRNAs as novel therapeutic targets to improve cancer immunotherapy. Cancers 2021, 13, 1587. [Google Scholar] [CrossRef]
  10. Li, X.; Zhang, Z.; Liu, M.; Fu, X.; Chen, G.; Wu, S.; Dong, J. Establishment of a lncRNA-Based Prognostic Gene Signature Associated With Altered Immune Responses in HCC. Front. Immunol. 2022, 13, 880288. [Google Scholar] [CrossRef]
  11. Qi, X.; Zhang, D.-H.; Wu, N.; Xiao, J.-H.; Wang, X.; Ma, W. ceRNA in cancer: Possible functions and clinical implications. J. Med. Genet. 2015, 52, 710–718. [Google Scholar] [CrossRef] [PubMed]
  12. Rosenbloom, K.R.; Dreszer, T.R.; Long, J.C.; Malladi, V.S.; Sloan, C.A.; Raney, B.J.; Cline, M.S.; Karolchik, D.; Barber, G.P.; Clawson, H. ENCODE whole-genome data in the UCSC Genome Browser: Update 2012. Nucleic Acids Res. 2012, 40, D912–D917. [Google Scholar] [CrossRef] [PubMed]
  13. Yang, Y.; Chen, L.; Gu, J.; Zhang, H.; Yuan, J.; Lian, Q.; Lv, G.; Wang, S.; Wu, Y.; Yang, Y.-C.T. Recurrently deregulated lncRNAs in hepatocellular carcinoma. Nat. Commun. 2017, 8, 14421. [Google Scholar] [CrossRef] [Green Version]
  14. Panzitt, K.; Tschernatsch, M.M.; Guelly, C.; Moustafa, T.; Stradner, M.; Strohmaier, H.M.; Buck, C.R.; Denk, H.; Schroeder, R.; Trauner, M. Characterization of HULC, a novel gene with striking up-regulation in hepatocellular carcinoma, as noncoding RNA. Gastroenterology 2007, 132, 330–342. [Google Scholar] [CrossRef] [PubMed]
  15. Kamel, M.M.; Matboli, M.; Sallam, M.; Montasser, I.F.; Saad, A.S.; El-Tawdi, A.H. Investigation of long noncoding RNAs expression profile as potential serum biomarkers in patients with hepatocellular carcinoma. Transl. Res. 2016, 168, 134–145. [Google Scholar] [CrossRef] [PubMed]
  16. Tzartzeva, K.; Obi, J.; Rich, N.E.; Parikh, N.D.; Marrero, J.A.; Yopp, A.; Waljee, A.K.; Singal, A.G. Surveillance imaging and alpha fetoprotein for early detection of hepatocellular carcinoma in patients with cirrhosis: A meta-analysis. Gastroenterology 2018, 154, 1706–1718. [Google Scholar] [CrossRef] [Green Version]
  17. Chang, T.-S.; Wu, Y.-C.; Tung, S.-Y.; Wei, K.-L.; Hsieh, Y.-Y.; Huang, H.-C.; Chen, W.-M.; Shen, C.-H.; Lu, C.-H.; Wu, C.-S. Alpha-fetoprotein measurement benefits hepatocellular carcinoma surveillance in patients with cirrhosis. Off. J. Am. Coll. Gastroenterol. ACG 2015, 110, 836–844. [Google Scholar] [CrossRef]
  18. Li, L.; Wang, L.; Li, H.; Han, X.; Chen, S.; Yang, B.; Hu, Z.; Zhu, H.; Cai, C.; Chen, J. Characterization of LncRNA expression profile and identification of novel LncRNA biomarkers to diagnose coronary artery disease. Atherosclerosis 2018, 275, 359–367. [Google Scholar] [CrossRef]
  19. Long, Y.; Liu, J.; Jiang, H.; Xin, L.; Wan, L.; Sun, Y.; Zhang, P.; Wen, J.; Huang, D.; Sun, Y. Network analysis and transcriptome profiling in peripheral blood mononuclear cells of patients with rheumatoid arthritis. Exp. Ther. Med. 2021, 21, 170. [Google Scholar] [CrossRef]
  20. You, Y.; Zhao, X.; Wu, Y.; Mao, J.; Ge, L.; Guo, J.; Zhao, C.; Chen, D.; Song, Z. Integrated transcriptome profiling revealed that elevated long non-coding RNA-AC007278. 2 expression repressed CCR7 transcription in systemic lupus erythematosus. Front. Immunol. 2021, 12, 1595. [Google Scholar] [CrossRef]
  21. Čelešnik, H.; Potočnik, U. Peripheral Blood Transcriptome in Breast Cancer Patients as a Source of Less Invasive Immune Biomarkers for Personalized Medicine, and Implications for Triple Negative Breast Cancer. Cancers 2022, 14, 591. [Google Scholar] [CrossRef] [PubMed]
  22. Twine, N.C.; Stover, J.A.; Marshall, B.; Dukart, G.; Hidalgo, M.; Stadler, W.; Logan, T.; Dutcher, J.; Hudes, G.; Dorner, A.J. Disease-associated expression profiles in peripheral blood mononuclear cells from patients with advanced renal cell carcinoma. Cancer Res. 2003, 63, 6069–6075. [Google Scholar] [PubMed]
  23. Han, Z.; Feng, W.; Hu, R.; Ge, Q.; Ma, W.; Zhang, W.; Xu, S.; Zhan, B.; Zhang, L.; Sun, X. RNA-seq profiling reveals PBMC RNA as a potential biomarker for hepatocellular carcinoma. Sci. Rep. 2021, 11, 17797. [Google Scholar] [CrossRef] [PubMed]
  24. Sakai, Y.; Honda, M.; Fujinaga, H.; Tatsumi, I.; Mizukoshi, E.; Nakamoto, Y.; Kaneko, S. Common transcriptional signature of tumor-infiltrating mononuclear inflammatory cells and peripheral blood mononuclear cells in hepatocellular carcinoma patients. Cancer Res. 2008, 68, 10267–10279. [Google Scholar] [CrossRef] [Green Version]
  25. Oda, S.; Uchida, Y.; Aleo, M.D.; Koza-Taylor, P.H.; Matsui, Y.; Hizue, M.; Marroquin, L.D.; Whritenour, J.; Uchida, E.; Yokoi, T. An in vitro coculture system of human peripheral blood mononuclear cells with hepatocellular carcinoma-derived cells for predicting drug-induced liver injury. Arch. Toxicol. 2021, 95, 149–168. [Google Scholar] [CrossRef]
  26. Shaath, H.; Toor, S.; Nair, V.S.; Elkord, E.; Alajez, N.M. Transcriptomic analyses revealed systemic alterations in gene expression in circulation and tumor microenvironment of colorectal cancer patients. Cancers 2019, 11, 1994. [Google Scholar] [CrossRef] [Green Version]
  27. Wei, L.; Lian, B.; Zhang, Y.; Li, W.; Gu, J.; He, X.; Xie, L. Application of microRNA and mRNA expression profiling on prognostic biomarker discovery for hepatocellular carcinoma. BMC Genom. 2014, 15, S13. [Google Scholar] [CrossRef] [Green Version]
  28. Braconi, C.; Kogure, T.; Valeri, N.; Huang, N.; Nuovo, G.; Costinean, S.; Negrini, M.; Miotto, E.; Croce, C.; Patel, T. microRNA-29 can regulate expression of the long non-coding RNA gene MEG3 in hepatocellular cancer. Oncogene 2011, 30, 4750–4756. [Google Scholar] [CrossRef] [Green Version]
  29. Zhang, L.; Hu, S.; Chen, J.; Ma, S.; Liu, F.; Liu, C.; Gao, Y. Comprehensive analysis of the MIR4435-2HG/miR-1-3p/MMP9/miR-29-3p/DUXAP8 ceRNA network axis in hepatocellular carcinoma. Discov. Oncol. 2021, 12, 38. [Google Scholar] [CrossRef]
  30. Nguyen, T.B.; Do, D.N.; Nguyen, T.T.; Nguyen, T.L.; Nguyen-Thanh, T.; Nguyen, H.T. Immune–related biomarkers shared by inflammatory bowel disease and liver cancer. PLoS ONE 2022, 17, e0267358. [Google Scholar] [CrossRef]
  31. Hanahan, D.; Weinberg, R.A. Hallmarks of cancer: The next generation. Cell 2011, 144, 646–674. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Huang, Z.; Zhou, J.-K.; Peng, Y.; He, W.; Huang, C. The role of long noncoding RNAs in hepatocellular carcinoma. Mol. Cancer 2020, 19, 77. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Lin, T.; Hou, P.-F.; Meng, S.; Chen, F.; Jiang, T.; Li, M.-L.; Liu, J.-J.; Zheng, J.-N.; Bai, J. Emerging roles of p53 related lncRNAs in cancer progression: A systematic review. Int. J. Biol. Sci. 2019, 15, 1287. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Papoutsoglou, P.; Moustakas, A. Long non-coding RNAs and TGF-β signaling in cancer. Cancer Sci. 2020, 111, 2672–2681. [Google Scholar] [CrossRef]
  35. Ke, D.; Li, H.; Zhang, Y.; An, Y.; Fu, H.; Fang, X.; Zheng, X. The combination of circulating long noncoding RNAs AK001058, INHBA-AS1, MIR4435-2HG, and CEBPA-AS1 fragments in plasma serve as diagnostic markers for gastric cancer. Oncotarget 2017, 8, 21516. [Google Scholar] [CrossRef] [Green Version]
  36. Zhang, M.; Yu, X.; Zhang, Q.; Sun, Z.; He, Y.; Guo, W. MIR4435-2HG: A newly proposed lncRNA in human cancer. Biomed. Pharmacother. 2022, 150, 112971. [Google Scholar] [CrossRef]
  37. Chen, D.; Tang, P.; Wang, Y.; Wan, F.; Long, J.; Zhou, J.; Zhuang, M.; Chen, X. Downregulation of long non-coding RNA MR4435-2HG suppresses breast cancer progression via the Wnt/β-catenin signaling pathway. Oncol. Lett. 2021, 21, 373. [Google Scholar] [CrossRef]
  38. Qian, H.; Chen, L.; Huang, J.; Wang, X.; Ma, S.; Cui, F.; Luo, L.; Ling, L.; Luo, K.; Zheng, G. The lncRNA MIR4435-2HG promotes lung cancer progression by activating β-catenin signalling. J. Mol. Med. 2018, 96, 753–764. [Google Scholar] [CrossRef]
  39. Yang, M.; He, X.; Huang, X.; Wang, J.; He, Y.; Wei, L. LncRNA MIR4435-2HG-mediated upregulation of TGF-β1 promotes migration and proliferation of nonsmall cell lung cancer cells. Environ. Toxicol. 2020, 35, 582–590. [Google Scholar] [CrossRef]
  40. Zhang, H.; Meng, H.; Huang, X.; Tong, W.; Liang, X.; Li, J.; Zhang, C.; Chen, M. lncRNA MIR4435-2HG promotes cancer cell migration and invasion in prostate carcinoma by upregulating TGF-β1. Oncol. Lett. 2019, 18, 4016–4021. [Google Scholar] [CrossRef] [Green Version]
  41. Farzaneh, Z.; Vosough, M.; Agarwal, T.; Farzaneh, M. Critical signaling pathways governing hepatocellular carcinoma behavior; small molecule-based approaches. Cancer Cell Int. 2021, 21, 208. [Google Scholar] [CrossRef] [PubMed]
  42. Kong, Q.; Liang, C.; Jin, Y.; Pan, Y.; Tong, D.; Kong, Q.; Zhou, J. The lncRNA MIR4435-2HG is upregulated in hepatocellular carcinoma and promotes cancer cell proliferation by upregulating miRNA-487a. Cell. Mol. Biol. Lett. 2019, 24, 26. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Shen, X.; Ding, Y.; Lu, F.; Yuan, H.; Luan, W. Long noncoding RNA MIR4435-2HG promotes hepatocellular carcinoma proliferation and metastasis through the miR-22-3p/YWHAZ axis. Am. J. Transl. Res. 2020, 12, 6381. [Google Scholar]
  44. Li, C.; Hu, J.; Hu, X.; Zhao, C.; Mo, M.; Zu, X.; Li, Y. LncRNA SNHG9 is a prognostic biomarker and correlated with immune infiltrates in prostate cancer. Transl. Androl. Urol. 2021, 10, 215. [Google Scholar] [CrossRef]
  45. Zhang, H.; Qin, D.; Jiang, Z.; Zhang, J. SNHG9/miR-199a-5p/Wnt2 axis regulates cell growth and aerobic glycolysis in glioblastoma. J. Neuropathol. Exp. Neurol. 2019, 78, 939–948. [Google Scholar] [CrossRef]
  46. Wang, R.; Chen, C.; Kang, W.; Meng, G. SNHG9 was upregulated in NSCLC and associated with DDP-resistance and poor prognosis of NSCLC patients. Am. J. Transl. Res. 2020, 12, 4456. [Google Scholar]
  47. Lin, Y.; Holden, V.; Dhilipkannah, P.; Deepak, J.; Todd, N.W.; Jiang, F. A non-coding RNA landscape of bronchial epitheliums of lung cancer patients. Biomedicines 2020, 8, 88. [Google Scholar] [CrossRef] [PubMed]
  48. Feng, S.G.; Bhandari, R.; Ya, L.; Zhixuan, B.; Qiuhui, P.; Jiabei, Z. SNHG9 promotes Hepatoblastoma Tumorigenesis via miR-23a-5p/Wnt3a Axis. J. Cancer 2021, 12, 6031. [Google Scholar] [CrossRef] [PubMed]
  49. Ye, S.; Ni, Y. lncRNA SNHG9 Promotes Cell Proliferation, Migration, and Invasion in Human Hepatocellular Carcinoma Cells by Increasing GSTP1 Methylation, as Revealed by CRISPR-dCas9. Front. Mol. Biosci. 2021, 8, 209. [Google Scholar] [CrossRef]
  50. Andrews, S. FastQC: A Quality Control Tool for High Throughput Sequence Data; Babraham Bioinformatics, Babraham Institute: Cambridge, UK, 2010. [Google Scholar]
  51. Chen, S.; Zhou, Y.; Chen, Y.; Gu, J. Fastp: An ultra-fast all-in-one FASTQ preprocessor. Bioinformatics 2018, 34, i884–i890. [Google Scholar] [CrossRef] [PubMed]
  52. Kim, D.; Paggi, J.M.; Park, C.; Bennett, C.; Salzberg, S.L. Graph-based genome alignment and genotyping with HISAT2 and HISAT-genotype. Nat. Biotechnol. 2019, 37, 907–915. [Google Scholar] [CrossRef] [PubMed]
  53. Pertea, M.; Pertea, G.M.; Antonescu, C.M.; Chang, T.-C.; Mendell, J.T.; Salzberg, S.L. StringTie enables improved reconstruction of a transcriptome from RNA-seq reads. Nat. Biotechnol. 2015, 33, 290–295. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Love, M.I.; Huber, W.; Anders, S. Moderated estimation of fold change and dispersion for RNA-seq data with DESeq2. Genome Biol. 2014, 15, 550. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Koduru, S.V.; Leberfinger, A.N.; Kawasawa, Y.I.; Mahajan, M.; Gusani, N.J.; Sanyal, A.J.; Ravnic, D.J. Non-coding RNAs in various stages of liver disease leading to hepatocellular carcinoma: Differential expression of miRNAs, piRNAs, lncRNAs, circRNAs, and sno/mt-RNAs. Sci. Rep. 2018, 8, 7967. [Google Scholar] [CrossRef]
  56. Chang, L.; Zhou, G.; Soufan, O.; Xia, J. miRNet 2.0: Network-based visual analytics for miRNA functional analysis and systems biology. Nucleic Acids Res. 2020, 48, W244–W251. [Google Scholar] [CrossRef]
  57. Karagkouni, D.; Paraskevopoulou, M.D.; Tastsoglou, S.; Skoufos, G.; Karavangeli, A.; Pierros, V.; Zacharopoulou, E.; Hatzigeorgiou, A.G. DIANA-LncBase v3: Indexing experimentally supported miRNA targets on non-coding transcripts. Nucleic Acids Res. 2020, 48, D101–D110. [Google Scholar] [CrossRef]
  58. Smoot, M.E.; Ono, K.; Ruscheinski, J.; Wang, P.-L.; Ideker, T. Cytoscape 2.8: New features for data integration and network visualization. Bioinformatics 2011, 27, 431–432. [Google Scholar] [CrossRef] [Green Version]
  59. Li, J.; Han, X.; Wan, Y.; Zhang, S.; Zhao, Y.; Fan, R.; Cui, Q.; Zhou, Y. TAM 2.0: Tool for MicroRNA set analysis. Nucleic Acids Res. 2018, 46, W180–W185. [Google Scholar] [CrossRef] [Green Version]
Ijms 23 07882 g001 550

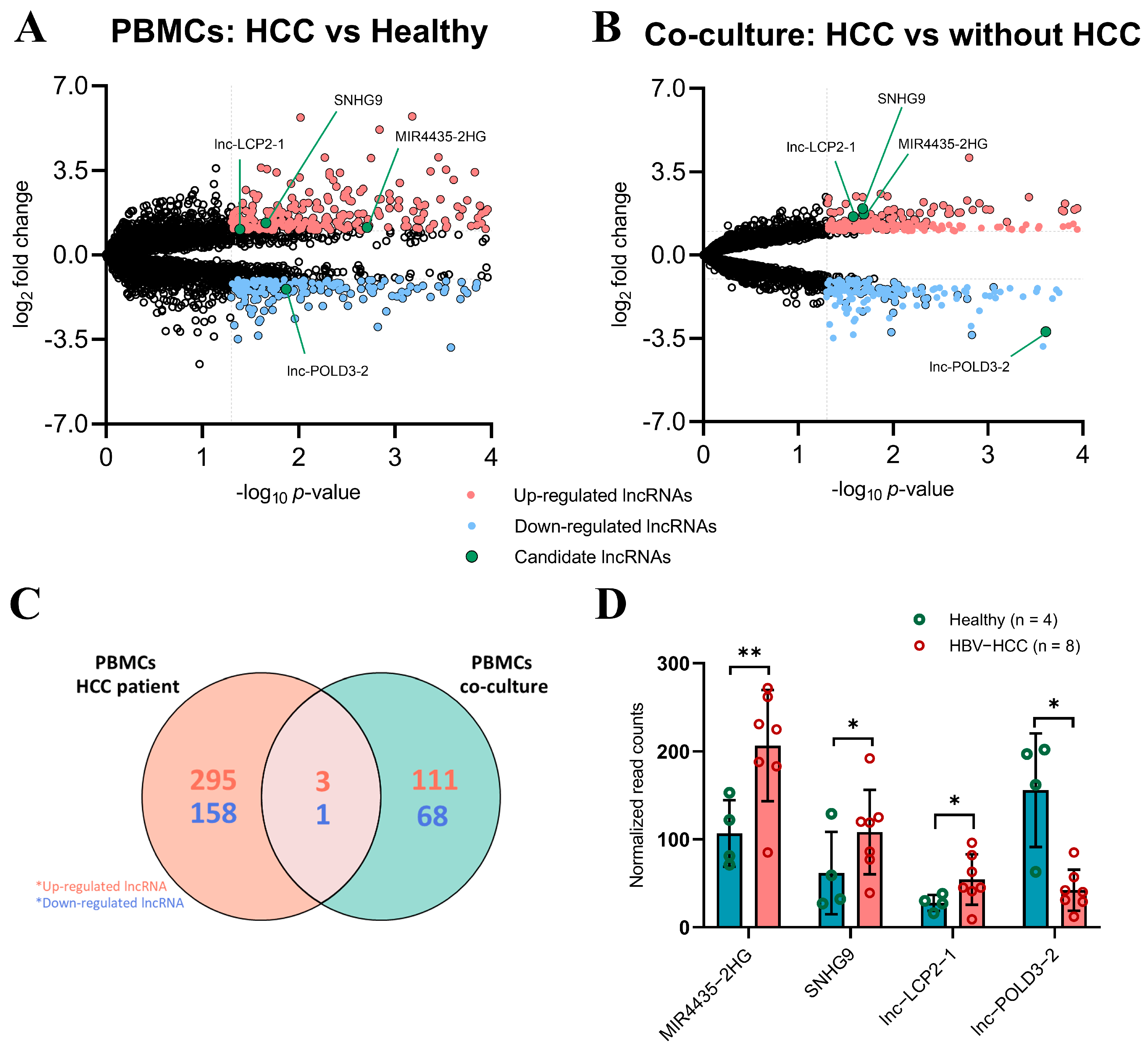

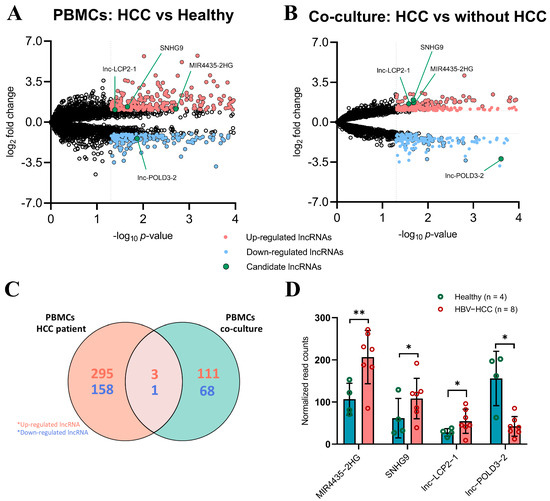

Figure 1. Transcriptomic profile of cancer-induced lncRNAs and integration transcription profiles of PBMCs. (A) Volcano plot based on differentially expressed lncRNAs in PBMCs compared with healthy controls. (B) Volcano plot based on differentially expressed lncRNAs in PBMCs of co-culture compared with control. Volcano plot shows −log10 p-values on the y-axis and fold change expressed as log2 on the x-axis. Red scatter dots represent up-regulated lncRNAs with p ≤ 0.05 and log2fold change ≥ 1. Blue scatter dots represent down-regulated lncRNAs with p ≤ 0.05 and log2fold change ≤ −1. Green scatter dots represent a candidate of cancer-induced lncRNAs for validation in PBMCs. (C) The Venn diagram represents intersect genes between two transcription profiles of PBMCs including PBMCs from patients with HCC and PBMCs from a co-culture model. (D) Comparison of cancer-induced lncRNAs expression in PBMCs of patients with HCC and healthy controls. * p < 0.05, ** p < 0.01.
Figure 1. Transcriptomic profile of cancer-induced lncRNAs and integration transcription profiles of PBMCs. (A) Volcano plot based on differentially expressed lncRNAs in PBMCs compared with healthy controls. (B) Volcano plot based on differentially expressed lncRNAs in PBMCs of co-culture compared with control. Volcano plot shows −log10 p-values on the y-axis and fold change expressed as log2 on the x-axis. Red scatter dots represent up-regulated lncRNAs with p ≤ 0.05 and log2fold change ≥ 1. Blue scatter dots represent down-regulated lncRNAs with p ≤ 0.05 and log2fold change ≤ −1. Green scatter dots represent a candidate of cancer-induced lncRNAs for validation in PBMCs. (C) The Venn diagram represents intersect genes between two transcription profiles of PBMCs including PBMCs from patients with HCC and PBMCs from a co-culture model. (D) Comparison of cancer-induced lncRNAs expression in PBMCs of patients with HCC and healthy controls. * p < 0.05, ** p < 0.01.
Ijms 23 07882 g001
Ijms 23 07882 g002 550

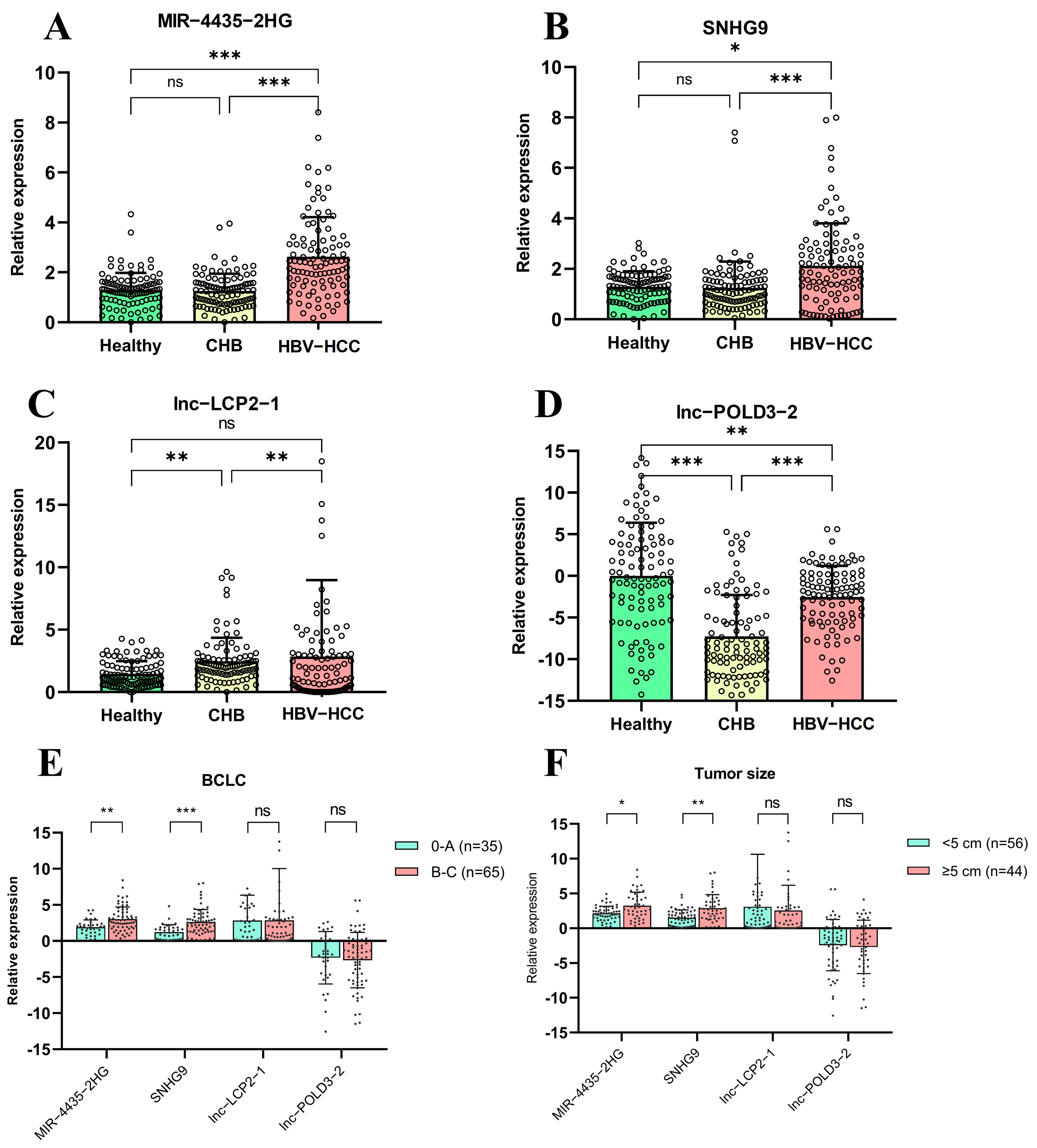

Figure 2. Relative expression of lncRNAs in PBMCs of healthy controls, patients with CHB and patients with HBV-HCC (A) MIR4435-2HG, (B) SNHG9, (C) lnc-LCP2-1, (D) lnc-POLD3-2, (E) Association of lncRNAs with BCLC stage (0-A vs. B-C) in patients with HCC, (F) Association of lncRNAs with tumor size (<5 cm vs. ≥5 cm.) in patients with HCC. * p < 0.05, ** p < 0.01, *** p < 0.001.
Figure 2. Relative expression of lncRNAs in PBMCs of healthy controls, patients with CHB and patients with HBV-HCC (A) MIR4435-2HG, (B) SNHG9, (C) lnc-LCP2-1, (D) lnc-POLD3-2, (E) Association of lncRNAs with BCLC stage (0-A vs. B-C) in patients with HCC, (F) Association of lncRNAs with tumor size (<5 cm vs. ≥5 cm.) in patients with HCC. * p < 0.05, ** p < 0.01, *** p < 0.001.
Ijms 23 07882 g002
Ijms 23 07882 g003 550

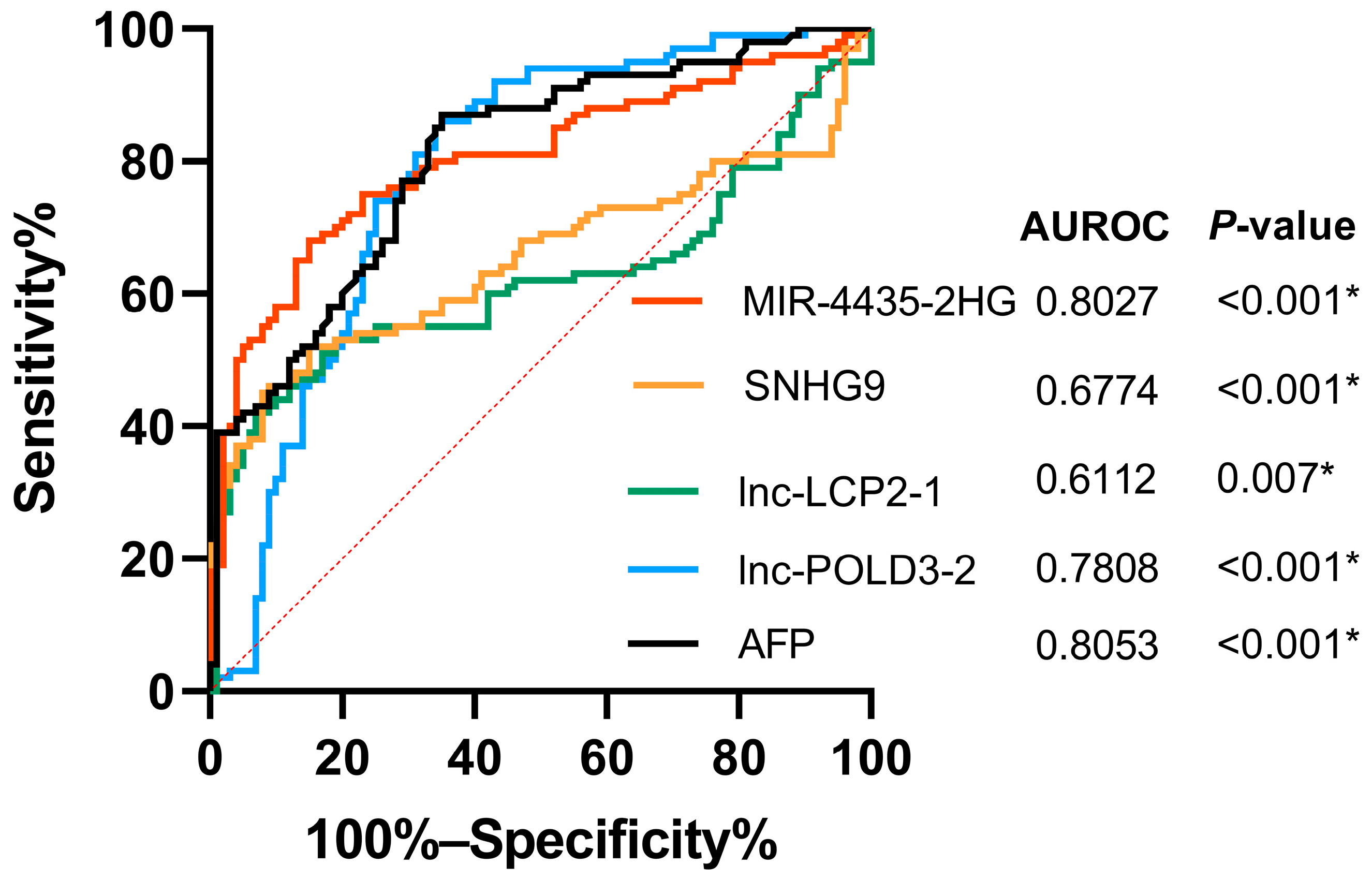

Figure 3. Area under receiver operating characteristic curves (AUROCs) of lncRNAs and AFP for differentiating the HCC group from the non-HCC group.
Figure 3. Area under receiver operating characteristic curves (AUROCs) of lncRNAs and AFP for differentiating the HCC group from the non-HCC group.
Ijms 23 07882 g003
Ijms 23 07882 g004 550

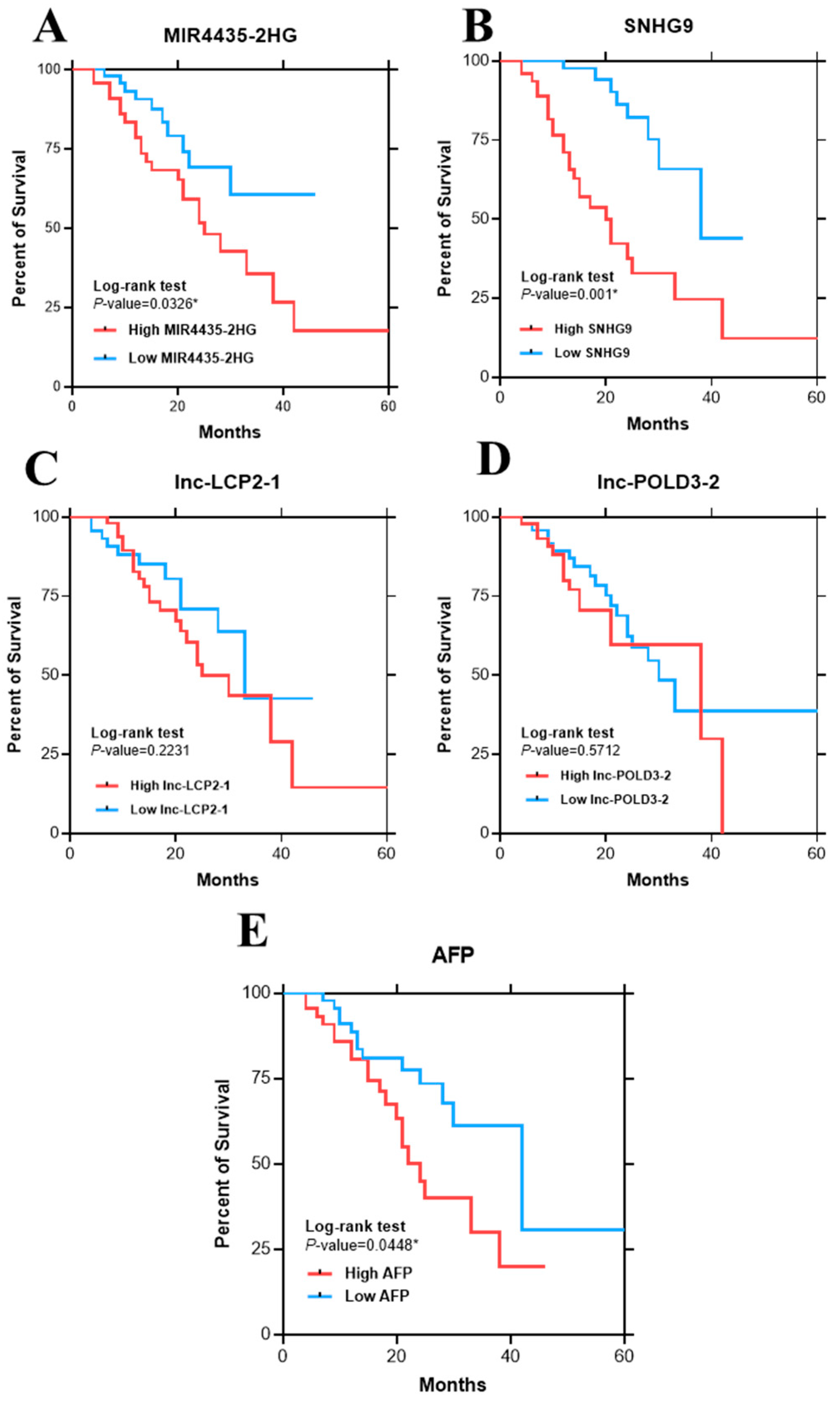

Figure 4. Kaplan–Meier survival curves for overall survival analysis of patients with HCC (A) MIR4435-2HG (B) SNHG9 (C) lnc-LCP2-1 (D) lnc-POLD3-2 (E) AFP.
Figure 4. Kaplan–Meier survival curves for overall survival analysis of patients with HCC (A) MIR4435-2HG (B) SNHG9 (C) lnc-LCP2-1 (D) lnc-POLD3-2 (E) AFP.
Ijms 23 07882 g004
Table
Table 1. Baseline characteristic of patients in the validated cohort.
Table 1. Baseline characteristic of patients in the validated cohort.
Baseline CharacteristicsHealthy Controls Patients without HCCPatients with HCCp
(n = 100)(n = 100)(n = 100)
Age (years)56.3 ± 3.456.7 ± 8.457.7 ± 8.60.053
Gender (Male)80 (80.0)85 (85.0)85 (85.0)0.549
Total bilirubin (mg/dL) 0.9 ± 0.71.0 ± 0.70.729
Serum albumin (g/dL) 4.1 ± 0.63.6 ± 0.5<0.001 *
Aspartate aminotransferase (IU/L) 36.6 ± 30.264.5 ± 53.5<0.001 *
Alanine aminotransferase (IU/L) 42.9 ± 42.344.8 ± 25.80.709
Alkaline phosphatase (IU/L) 77.3 ± 50.6125.3 ± 70.8<0.001 *
Platelet count (109/L) 223.2 ± 74.6176.0 ± 93.90.002 *
Alpha fetoprotein (ng/mL) 8.5 ± 13.96928.1 ± 28,444.20.016 *
Presence of cirrhosis 11 (11.0)80 (80.0)<0.001 *
BCLC stage (0-A/B/C) -35 (35.0)/49 (49.0)/15 (15.0)-
Data expressed as mean ± SD, BCLC; Barcelona Clinic Liver Cancer, * p-value < 0.05.
Table
Table 2. Summary of diagnostic performance of lncRNAs.
Table 2. Summary of diagnostic performance of lncRNAs.
MarkerAUROCSensitivity (%)Specificity (%)PPV (%)NPV (%)Accuracy (%)Cut-Off95% CIp
MIR-4435-2HG0.8075.0075.0075.0075.0075.001.57810.74–0.87<0.001 *
SNHG90.6866.0067.0066.6766.3466.501.35790.60–0.76<0.001 *
lnc-LCP2-10.6164.2942.6437.8268.7550.251.51050.71–0.850.007 *
lnc-POLD3-20.7874.0075.0074.7574.2674.50−4.76870.30–0.46<0.001 *
AFP (ng/mL)0.8148.0088.0080.3362.8668.1620.00000.75–0.87<0.001 *
PPV = Positive predictive value, NPV = Negative predictive value, CI = Confidence interval, * p-value < 0.05.
Table
Table 3. Variables associated with overall survival in patients with HCC.
Table 3. Variables associated with overall survival in patients with HCC.
VariablesCategoryOverall Survival
Univariate AnalysisMultivariate Analysis
OR (95% CI)pOR (95% CI)p
Age (years)<60 vs. ≥600.967 (0.49–1.92)0.925
GenderMale vs. Female1.69 (0.69–4.14)0.250
Total bilirubin (mg/dL)<1.2 vs. ≥1.21.27 (0.61–2.68)0.523
Serum albumin (g/dL)<3.5 vs. ≥3.50.45 (0.22–0.93)0.031 *1.31 (0.48–3.59)0.598
Aspartate aminotransferase (IU/L) <60 vs. ≥602.86 (1.44–5.68)0.003 *2.04 (0.77–5.44)0.154
Alanine aminotransferase (IU/L)<50 vs. ≥501.95 (0.94–4.06)0.071
Platelet count (109/L)≥100 vs. <1001.41 (0.58–3.42)0.446
Presence of cirrhosisNo vs. Yes0.34 (0.19–0.77)0.008 *0.25 (0.84–0.73)0.011 *
Alpha fetoprotein (ng/mL)<100 vs. ≥1002.76 (1.34–5.67)0.006 *2.13 (0.78–5.82)0.140
Tumor size (cm)<5.0 vs. ≥5.03.32 (1.57–7.01)0.020 *0.64 (0.19–2.21)0.481
BCLC stage0-A vs. B-C4.30 (2.47–7.47)0.001 *5.54 (1.66–46.16)0.015 *
MIR4435-2HG<2.4 vs. ≥2.42.20 (1.04–4.66)0.039 *0.75 (0.29–1.97)0.560
SNHG9<1.9 vs. ≥1.94.81 (2.16–10.71)0.001 *3.25 (1.40–7.53)0.006 *
lnc-LCP2-1<1.1 vs. ≥1.11.56 (0.75–3.22)0.231
lnc-POLD3-2<2.0 vs. ≥2.01.22 (0.61–2.44)0.575
* p-value < 0.05.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kunadirek, P.; Pinjaroen, N.; Nookaew, I.; Tangkijvanich, P.; Chuaypen, N. Transcriptomic Analyses Reveal Long Non-Coding RNA in Peripheral Blood Mononuclear Cells as a Novel Biomarker for Diagnosis and Prognosis of Hepatocellular Carcinoma. Int. J. Mol. Sci. 2022, 23, 7882. https://doi.org/10.3390/ijms23147882

AMA Style

Kunadirek P, Pinjaroen N, Nookaew I, Tangkijvanich P, Chuaypen N. Transcriptomic Analyses Reveal Long Non-Coding RNA in Peripheral Blood Mononuclear Cells as a Novel Biomarker for Diagnosis and Prognosis of Hepatocellular Carcinoma. International Journal of Molecular Sciences. 2022; 23(14):7882. https://doi.org/10.3390/ijms23147882

Chicago/Turabian Style

Kunadirek, Pattapon, Nutcha Pinjaroen, Intawat Nookaew, Pisit Tangkijvanich, and Natthaya Chuaypen. 2022. "Transcriptomic Analyses Reveal Long Non-Coding RNA in Peripheral Blood Mononuclear Cells as a Novel Biomarker for Diagnosis and Prognosis of Hepatocellular Carcinoma" International Journal of Molecular Sciences 23, no. 14: 7882. https://doi.org/10.3390/ijms23147882

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
