Article

DFT Quantum-Chemical Calculation of Thermodynamic Parameters and DSC Measurement of Thermostability of Novel Benzofuroxan Derivatives Containing Triazidoisobutyl Fragments

by
Elena Chugunova
1,*,
Timur Shaekhov
2,
Ayrat Khamatgalimov
1,
Vladimir Gorshkov
3 and
Alexander Burilov
1
1
Arbuzov Institute of Organic and Physical Chemistry, FRC Kazan Scientific Center, Russian Academy of Sciences, Akad. Arbuzov str. 8, 420088 Kazan, Russia
2
State Research Institute of Chemical Products Federal State Enterprise, Svetlaya str. 1, 420033 Kazan, Russia
3
Laboratory of Plant Infectious Diseases, FRC Kazan Scientific Center, Russian Academy of Sciences, Lobachevskogo str. 2/31, 420111 Kazan, Russia
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(3), 1471; https://doi.org/10.3390/ijms23031471
Submission received: 3 December 2021 / Revised: 25 January 2022 / Accepted: 26 January 2022 / Published: 27 January 2022
(This article belongs to the Special Issue Simple Substances of Non-metals: Molecular Structures Modeling with Using DFT and More Advanced Methods of Quantum Chemistry)
Browse Figures
Versions Notes

Abstract

New derivatives of benzofuroxan containing triazidoisobutyl fragments, opening the way for the creation of highly effective compositions with an increased value of energy characteristics, were synthesized for the first time. Such compounds are also an excellent platform for further modification and for the preparation of new biologically-active compounds containing tetrazole and triazole fragments. Calculations of heats of formation performed with the DFT (density functional theory) method showed that the studied compounds are high-energetic density ones, the enthalpies of formation of which are comparable to the enthalpies of formation of similar benzofuroxan derivatives and exceeds experimental enthalpy of formation of CL-14 (5,7-diamino-4,6-dinitrobenzofuroxan). The analysis of DSC indicates a sufficiently high thermal stability of the synthesized azidobenzofuroxans, which are acceptable for their use as components in the creation of highly efficient compositions with an increased value of energy characteristics.

1. Introduction

Currently, there is a significant increase in the interest of compounds that can be used as so-called “dual-use goods” for both civilian and military purposes. Examples of such compounds that are successfully used both in medicine and as explosives are: nitroglycerin—widely used in the manufacture of gunpowder and as a vasodilator for the treatment of diseases such as angina pectoris; pentaerythritol nitrate—which is used both in medicine for chronic coronary insufficiency and angina pectoris, and for the manufacture of capsule detonators and a (detonating) fuse-cord, etc. There are many examples of such dual-use goods.
Compounds containing the furoxan ring are dual-use compounds, exhibiting not only a wide range of different types of biological activity, such as anti-tuberculosis [1], anti-tumor [2], anti-inflammatory [3], anti-aggregant [4], etc. but can also be used as high-energy-density materials [5,6].
High enthalpy and increased density provide nitro derivatives of benzofuroxan with good energy characteristics [7]. Among the benzofuroxan compounds, a number of substances with high power characteristics were obtained, allowing them to be used as individual explosives, as well as components of explosives and propellants. Currently, among the industrially-developed benzofuroxans, there is only benzotrifuroxan (hexanitrosobenzene, benzotris(1,2,5-oxadiazole-2-oxide), BTF, 1a), which is used in some types of detonators in mixtures with other explosives (for example, with HMX and 1,3,5-triamino-2,4,6-trinitrobenzene (TATB)) and with plasticizers, as well as in some solid rocket fuels [8,9,10,11]. The rest of the compounds are being actively studied and developed on a pilot and semi-industrial scale.
Nitrobenzofuroxans are of particular interest; they combine a sufficiently low sensitivity to impact, friction, spark with increased power and thermal stability, allowing them to be used as individual explosives, as well as components of high-energy condensed systems.
Aminonitrobenzodifuroxan (CL-18, 1b, Figure 1) [12], 7-amino-4,6-dinitrobenzofuroxan (ADNBF, 1c) [13,14], 7-amino-4,5,6-trinitrobenzofuroxan (1d) [15], 5,7-diamino-4,6-dinitrobenzofuroxan (CL-14, DADNBF, 1e) [16,17,18] have the highest density in the series of dinitrobenzofuroxan structures. The main disadvantages of all the described compounds are insufficiently high energy parameters.
A further increase in the energy characteristics of 5,7-diamino-4,6-dinitrobenzofuroxan can be achieved by introducing azide groups into dinitrobenzofuroxan molecules. From this point of view, tert-substituted derivatives of triazidoisobutane are promising fragments for introduction into benzofuroxan molecules, since the introduction of only one triazidoisobutyl fragment into the structure of the molecule will lead to an increase in the enthalpy of formation by 225.2 kcal/mol; the value is obtained as a result of the calculation for group contributions using Equation (1) [19] as follows:
−C(CH2N3)3 = C[+3.5] + (CH2)3[3 × (−6.1)] + (N3)3[3 × 80.0)] = 225.2 kcal/mol × 4.18 = 1080.96 kJ/mol
The introduction of azide fragments is accompanied not only by high energy characteristics but also by a high combustion rate, which makes it possible to regulate the combustion rate of compositions based on them in a wide range. Currently, there are no works in the scientific and technical literature on the synthesis of azide-containing dinitrobenzofuroxans. To obtain such compounds, we selected 5,7-dichloro-4,6-dinitro- and 7-chloro-4,6-dinitrobenzofuroxans containing one or two chlorine atoms in their structures, which can be easily replaced by triazidoisobutyl fragments. 5,7-dichloro-4,6-dinitro- and 7-chloro-4,6-dinitrobenzofuroxans are convenient platforms for their further modification in order to obtain new derivatives containing various functional groups [20,21,22,23,24,25]. In this paper, we discovered new benzofuroxan derivatives containing triazidoisobutyl fragments, studies of temperature characteristics, assessment of compatibility with cellulose nitrates and quantum-chemical calculations of the thermodynamic and explosive characteristics of the obtained compounds. At the same time, the presence of azide groups in these compounds opens the way for the creation of biologically active tetrazoles and triazoles on their basis [26,27,28,29,30].

2. Results and Discussion

2.1. Synthesis of Azidobenzofuroxans

Key compounds were obtained via aromatic nucleophilic substitution reaction of 7-chloro-4,6-dinitrobenzofuroxan 2a and 5,7-dichloro-4,6-dinitrobenzofuroxan 2b with 1,3-diazido-2-(azidomethyl)propan-2-amine 3 as a nucleophile (Scheme 1). A second equivalent of the amine was used to bind the liberated hydrogen chloride. Compounds were fully characterized through 1H and 13C NMR spectroscopy and elemental analysis.
It should be noted that the synthesized compounds 4a,b dissolve well in ethyl acetate, alcohol–ether solvent, and diethylene glycol monoethyl ether (ethylcarbitol), which undoubtedly gives them unique properties and simplifies their introduction into spherical propellants, as well as into propellants obtained as in standard alcohol–ether technology, and technology using a hardly volatile solvent—ethylcarbitol. The lack of water solubility makes them technologically advanced in the formation of powder masses using various technologies [31,32].

2.2. Heats of Formation

Calculations were performed with the Gaussian16 (Revision B.01) suite of programs [33]. The molecular structures of the investigated compounds were fully optimized using B3LYP hybrid functional [34,35] with 6-311++G(d,p) basis set with polarization and diffuse functions. Previously, this method was successfully used to describe the high energy density compounds [36,37,38]. The optimized structures of compounds 4a,b are presented in Figure 2. As we can see from the figure, the increase in triazidoisobutyl fragments does not lead to a significant change in the structure of the benzofuroxan framework itself. As is the case with one triazidoisobutyl fragment, the addition of another one leads to the formation of a hydrogen bond with the neighboring NO2-group.
The gas-phase enthalpies of formation were calculated using the method of isodesmic reactions. The enthalpy of reaction is obtained by combining the DFT energy difference for the reaction. The gas-phase enthalpies of formation of reactants are calculated by using general Equation (2) for most nitroaromatic and benzofuroxan-based energetic compounds with general formula CaHbNcOd [39].
ΔHfθ(c) = 32.76a − 33.96b + 69.12c − 116.32d + 124.8nNO₂ − 65.10nAr-NH − 93.64nOH − 202.3nCOOH + 13.56(nAr − 1) + 121.4n-N=N- + 223.2ncyclo-N-O-N,
The solid-state enthalpy of formation for neutral compounds can be estimated by subtracting the heats of sublimation from gas-phase heats of formation [37,38,40]. The heat of sublimation can be estimated with Trouton’s rule [41] according to Equation (3), where T represents either the melting point or the decomposition temperature when no melting occurs prior to decomposition [37,40]:
ΔHsub ≈ 188 × Tm/[molar mass], kJ/kg,
Table 1 presents the data of quantum-chemical calculations for compounds 4a,b.
The obtained values of the heats of formation of the investigated compounds turned out to be close for those calculated by the method of isodesmic reactions and by the general Equation (2) [39]. The results of quantum-chemical calculations showed that the studied compounds have increased values of the enthalpy of formation comparable to the enthalpies of formation of similar benzofuroxan derivatives (see, for example, [37]), and in the case of 5,7-bis(1,3-diazido-2-(azidomethyl)propan-2-ylamino)-4,6-dinitrobenzofuroxan 4b, they are almost two times higher, which is associated with an increase in the number of triazidoisobutyl fragments. For example, the 5,7-diamino-4,6-dinitrobenzofuroxan 1e used today has an experimental enthalpy of formation equal to 337.05 kJ/kg, which is significantly lower than the benzofuroxan derivatives synthesized in this work.

2.3. Thermostability of Obtained Compound: TG/DSC Measurement

The temperature characteristics of azidobenzofuroxans were determined by differential scanning calorimetry (DSC) together with thermogravimetry (TG) (Table 2).
Figure 3 and Figure 4 show the TG/DSC curves of azidobenzofuroxans. The investigated azidobenzofuroxans exhibit a similar character of mass loss; there are mass loss steps corresponding to their decomposition only. However, for 4a, the mass loss occurs in one step (at 205.8 °C with a loss of 38.1%), while for 4b, the mass loss occurs in two steps (at 162.8 and 216.7 °C with a loss of 17.9% and 35.9%, respectively) (see inset in Figure 3 and Figure 4). The analysis of the graphs indicates a sufficiently high thermal stability of the synthesized azidobenzofuroxans, which are acceptable for their use as components in the creation of highly efficient compositions with an increased value of energy characteristics. A comparison of the temperature characteristics of azidobenzofuroxans 4a,b was performed with ADNBF (1c) and CL-14 (1e). It was found that the introduction of a triazidoisobutyl fragment into the structure of 7-amino-4,6-dinitrobenzofuroxan (ADNBF, 1c) significantly shifts the decomposition temperature from 279.6 °C to 205.4 °C (Figure 3). This agrees well with temperatures of decomposition on the TG curve and the first derivative of TG (inset in Figure 3).
In addition, on the DSC curve, we observe an endo-peak at 104.3 °C, corresponding to the melting point and glass transition temperature at −54.8 °C. The introduction of two triazidoisobutyl fragments into the CL-14 structure further lowers the decomposition temperature from 289.0 °C to 162.9 °C (Figure 4). Similarly to compound 4a, a second-order phase transition is observed on the DSC curve of the disubstituted azido derivative 4b at a temperature of −57.9 °C, corresponding to the glass transition temperature. When compound 4b is heated from −70 °C, the second-order phase transition begins at a temperature of −45.3 °C (devitrification temperature). The DSC curves of azidobenzofuroxans 4a,b (Figure 3 and Figure 4) show exo-peaks in the region of 228–250 °C, which probably indicate the formation of secondary structures associated with the Boulton–Katritsky rearrangement or destruction of the azide group. Table 2 shows the temperature characteristics of compounds 4a,b, ADNBF and CL-14.

2.4. Thermodynamic Parameters Calculation Using REAL Version 3.0

In order to assess the possibility of using azidobenzofuroxans 4a,b in powder compositions, their main thermodynamic characteristics (specific energy (force), potential, temperature of the combustion gases, covolume) were calculated. The calculation of the thermodynamic characteristics of benzofuroxan derivatives 4a,b was carried out using the REAL version 3.0 computer program at a pressure of 280 MPa [44]. A comparison of the thermodynamic characteristics of azidobenzofuroxans was carried out with the currently used 5,7-diamino-4,6-dinitrobenzofuroxan 1e. Table 3 shows the main thermodynamic characteristics of compounds 4a,b and 5,7-diamino-4,6-dinitrobenzofuroxan 1e.
Table 3 shows that due to the lower average molecular weight of combustion products, the adiabatic index (k = Cp/Cv) decreases in the series CL-14 > 4a > 4b, which, in turn, increases the potential (PP) of the compound, while the temperature of the combustion products remains at the level of 3000 K, which, in turn, indicate a low acceleration–erosion effect.
Table 4 shows the gas composition of combustion products calculated using the program REAL version 3.0. Based on the calculation, the combustion products of components CL-14 and azidobenzofuroxans 4a,b contain 90% of nitrogen, hydrogen and carbon monoxide. Azidobenzofuroxans 4a,b, due to the presence of triazidoisobutyl fragments in the structure, generate a large volume of gas (N2), which has a positive effect on the performance of the propellant and the temperature of combustion products, in comparison with carbon monoxide (II). In the analysis of combustion products, the content of hydrogen molecules also plays an important role, which has more than an order of magnitude higher specific heat values compared to nitrogen and carbon monoxide. The content of hydrogen molecules in the compared components increases in the series CL-14 < 4a < 4b.
Thus, the raising of the potential (PP) of the compounds 4a and 4b calculated using REAL is in agreement with the results of quantum-chemical calculations and DSC measurement showing the increase in the enthalpies of formation and decomposition, respectively, of these energy-saturated products.

2.5. Explosive Characteristics Calculation

The calculated values of the explosive characteristics of azidobenzofuroxans 4a,b exceed the currently used Cl-14 (Table 5).

3. Materials and Methods

General: The IR spectra were recorded on a Bruker Fourier spectrometer ALPHA (Bruker GmbH, Bremen, Germany) in the range 400–4000 cm−1. The 1H- and 13C-NMR spectra were recorded on a Bruker AVANCE 400 spectrometer (Bruker BioSpin, Rheinstetten, Germany) operating at 400 MHz (for 1H NMR) and 101 MHz (for 13C NMR). Chemical shifts were measured in δ (ppm) with reference to the solvent (δ = 2.06 ppm and 28.94 ppm for (CD3)2CO for 1H and 13C NMR, respectively). Elemental analysis was performed on a CHNS-O Elemental Analyser EuroEA3028-HT-OM (EuroVector S.p.A., Milan, Italy) with an accuracy of ±0.4%. The melting points were determined in glass capillaries on a Stuart SMP 10 instrument (Keison Products, Chelmsford, UK). Differential scanning calorimetry was performed on a NETZSCH DSC 204 F1 device (NETZSCH-Gerätebau GmbH, Selb, Germany) with a heating rate of 7 °C/min.

3.1. 7-(1,3-Diazido-2-(azidomethyl)propan-2-ylamino)-4,6-dinitrobenzofuroxan (4a)

To a solution of 7-chloro-4,6-dinitrobenzofuroxan 2a (1.3 g, 0.005 mol) in CHCl3 (10 mL) at room temperature was added a 1,3-diazido-2-(azidomethyl)propan-2-amine 3 (1.96 g, 0.01 mol). The reaction was carried out at room temperature and under magnetic stirring, and the conversion was monitored through TLC analysis (eluent: toluene/ethyl acetate, 2/1). After 24 h the crude mixture was precipitated in hexane (20 mL), the obtained solid was filtered off, washed with cold water (100 mL), diethyl ether (20 mL) and dried under vacuum (0.06 mm Hg) at 40 °C temperature to constant weight. Yield 1.51 g (72%). Orange powder, m.p. = 104−105 °C. IR spectrum, ν, cm−1: 1550 (NO2), 1633 (furoxan ring), 2102 (N3), 3081 (Hbf). 1H NMR (400 MHz, [D6]acetone, 25 °C) spectrum, δ, ppm: 10.76 (s, 1H, NH), 8.89 (s, 1H, H bf), 4.29 (s, 6H, 3CH2). 13C NMR ([D6]acetone) spectrum, δ, ppm: 148.15, 143.18, 126.89, 126.49, 123.32, 107.01, 64.01, 52.77. Anal. calcd (%) for C10H8N14O6. C 28.58; H 1.92; N 46.66. Found: 28.62; H 1.98; N 46.64.

3.2. 5,7-Bis(1,3-diazido-2-(azidomethyl)propan-2-ylamino)-4,6-dinitrobenzofuroxan (4b)

Was prepared analogously to compound 4a from 0.005 mol of 4,6-dinitro-5,7-dichlorobenzofuroxan and 0.02 mol of 1,3-diazido-2-(azidomethyl)propan-2-amine. Yield 80%. Orange oil. IR spectrum, ν, cm−1: 1548 (NO2 asymm.), 1635 (furoxan ring), 2096 (N3). 1H NMR (400 MHz, [D6]acetone, 25 °C) spectrum, δ, ppm: 9.47 (2H, s, 2NH), 4.21 (12H, s, 6CH2). 13C NMR ([D6]acetone) spectrum, δ, ppm: 147.21, 143.09, 139.70, 132.06, 128.05, 106.76, 63.64, 52.66. Anal. calcd (%) for C14H14N24O6: C 27.37; H 2.30; N 54.71; Found: C 27.33; H 2.34; N 54.75.

3.3. Quantum Chemical Calculations

Calculations were performed with the Gaussian16 (Revision B.01) suite of programs [33]. The molecular structures of the investigated compounds were fully optimized using B3LYP hybrid functional [34,35] with 6-311++G (d,p) basis set with polarization and diffuse functions. The researched molecules were treated like molecules with closed electron shells, so the quantum-chemical calculations were carried out in singlet configuration. For all researched compounds, geometry optimization of structures was performed without symmetry constraints. The standard keywords in the Gaussian package were used in optimization processes. The tests of the stability of wave functions were carried out. To ensure the calculated structures of reagents and products were indeed minima, vibrational analyses were performed using the same methods and were proved by all positive eigenvalues of Hessian matrix.

3.4. TG/DSC Analysis

The thermogravimetry/differential scanning calorimetry analysis is performed using a NETZSCH STA449-F3 TG/DSC instrument. All researched samples (~1.6–7.4 mg) were placed in Al crucible with a perforated lid and heated from −75 to 350 °C together with an empty crucible as the reference. The measurements were carried out at a heating rate of 7 K/min in an argon flow of 50 mL/min.

4. Conclusions

New derivatives of benzofuroxan containing one or two triazidoisobutyl fragments were synthesized for the first time. A simple method was developed for their preparation with good yields under mild conditions. The obtained calculated data showed that the claimed azidobenzofuroxans in many thermodynamic parameters, such as potential, heat of combustion, as well as the enthalpy of formation, are superior to the compound CL-14: the potential is higher by 682 kJ/kg for 4a and by 960 kJ/kg for 4b, the value of heat combustion exceeds the specified indicator of CL-14 by 1025 kJ/kg for 4a and 1209 kJ/kg for 4b, the enthalpy of formation of the claimed compounds is 8–10 times higher than CL-14, which makes them promising components for obtaining high-energy compounds of a new generation. The raising of the potential (PP) of the compounds 4a and 4b calculated using REAL is in agreement with the results of quantum-chemical calculations and DSC measurement showing the increase of the enthalpies of formation and decomposition, respectively, of these energy-saturated products.

Author Contributions

E.C.—investigation (chemistry), writing—original draft preparation, supervision (chemistry), T.S.—software, investigation (calculations with program REAL version 3.0), A.K.—software, investigation (quantum-chemical computations), V.G.—investigation (chemistry), funding acquisition, A.B.—project administration. All authors have read and agreed to the published version of the manuscript.

Funding

Quantum-chemical computations were carried out by E.C., A.B., A.K., V.G. and were funded by the government assignment for the FRC Kazan Scientific Center of RAS. The synthetic part was carried out at the Laboratory of Plant Infectious Diseases and was supported by the Ministry of Science and Higher Education of the Russian Federation (grant no. 075-15-2019-1881).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are contained within the article or are available upon request from the corresponding author Elena Chugunova.

Acknowledgments

The authors are grateful to the Assigned Spectral-Analytical Center of FRC Kazan Scientific Center of RAS for technical assistance in research.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dos Santos Fernandes, G.F.; de Souza, P.C.; Marino, L.B.; Chegaev, K.; Guglielmo, S.; Lazzarato, L.; Fruttero, R.; Chung, M.C.; Pavan, F.R.; dos Santos, J.L. Synthesis and biological activity of furoxan derivatives against Mycobacterium tuberculosis. Eur. J. Med. Chem. 2016, 123, 523–531. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  2. Zhang, Z.; Bai, Z.-W.; Ling, Y.; He, L.-Q.; Huang, P.; Gu, H.-X.; Hu, R.-F. Design, synthesis and biological evaluation of novel furoxan-based coumarin derivatives as antitumor agents. Med. Chem. Res. 2018, 27, 1198–1205. [Google Scholar] [CrossRef] [Scilit]
  3. Abdelall, E.K.A. Synthesis and biological evaluations of novel isoxazoles and furoxan derivative as anti-inflammatory agents. Bioorg. Chem. 2020, 94, 103441. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  4. Ustyuzhanina, N.E.; Fershtat, L.L.; Gening, M.L.; Nifantiev, N.E.; Makhova, N.N. New insight into the antiaggregant activity of furoxans. Mendeleev Commun. 2016, 26, 513–515. [Google Scholar] [CrossRef] [Scilit]
  5. Fershtat, L.L.; Ovchinnikov, I.V.; Epishina, M.A.; Romanova, A.A.; Lempert, D.B.; Muravyev, N.V.; Makhova, N.N. Assembly of Nitrofurazan and Nitrofuroxan Frameworks for High-Performance Energetic Materials. Chempluschem 2017, 82, 1315–1319. [Google Scholar] [CrossRef] [Scilit]
  6. Fershtat, L.L.; Makhova, N.N. 1,2,5-Oxadiazole-Based High-Energy-Density Materials: Synthesis and Performance. Chempluschem 2020, 85, 13–42. [Google Scholar] [CrossRef] [Scilit]
  7. Sarlauskas, J.; Anusevicius, Z.; Misiūnas, A. Benzofuroxan (Benzo[1,2-c]1,2,5-oxadiazole N-oxide) Derivatives as Potential Energetic Materials: Studies on Their Synthesis and Properties. Cent. Eur. J. Energ. Mater. 2012, 9, 365–385. [Google Scholar]
  8. Urbanski, T. Chemistry and Technology of Explosives; Pergamon Press: Oxford, UK, 1964; Volume 1, p. 603. [Google Scholar]
  9. Fedoroff, B.T.; Sheffield, O.E. Encyclopedia of Explosives and Related Items; Piccatiny Arsenal: Dover, NJ, USA, 1962; Volume 2, p. B45. [Google Scholar]
  10. Dobratz, B.M. LLNL Explosives Handbook Properties of Chemical Explosives and Explosive Simulants; LLNL University of California: Livermore, CA, USA, 1985. [Google Scholar]
  11. Quinlin, W.T.; Hayes, D.V. Synthesis of Benzotrifuroxane; (BTF) LLNL: Livermore, CA, USA, 1971. [Google Scholar]
  12. Christian, S.L.; Chafin, A.P.; Nielsen, A.T.; Atkins, R.L.; Norris, W.P.; Hollins, R.A. Synthesis of Aminonitrobenzodifuroxan. U.S. Patent US5149818A, 22 September 1992. [Google Scholar]
  13. Norris, W.P. Synthesis of 7-Amino-4,6-Dinitrobenzofuroxan. U.S. Patent USH476H, 22 April 1985. [Google Scholar]
  14. Weber, J.F. Synthesis of 7-Amino-4,6-Dinitrobenzofuroxan. European Patent EP0467033A1, 22 January 1992. [Google Scholar]
  15. Boezer, G.; Lewis, L.K.; Walker, R.F. Handbook of Energetic Materials for Weapons Systems Including Ballistic and Cruise Missiles; Institute for Defense Analyzes: Alexandria, Virginia, 1995. [Google Scholar]
  16. Norris, W.P. Insensitive High Density Explosive. U.S. Patent US5039812A, 13 August 1991. [Google Scholar]
  17. Norris, W.P.; Vanderah, D.J.; Kramer, M.P. Synthesis of 5,7-Diamino-4,6-Dinitrobenzofuroxan. U.S. Patent USH1078H, 7 July 1992. [Google Scholar]
  18. Norris, W.P.; Vanderah, D.J.; Kramer, M.P. Syntesis of 5,7-Diamino-4,6-Dinitrobenzofuroxan. U.S. Patent USH1304, 5 April 1994. [Google Scholar]
  19. Sharnin, G.P.; Falyakhov, I.F.; Yusupova, L.M.; Larionova, O.A. Chemistry of Energy-Intensive Compounds. Book 2. N-, O-Nitro Compounds, Furoxans, Furazans, Azides, Diazo Compounds: Text Edition; Ministry of Education and Science of Russia: Moscow, Russia; National Research Technological University: Kazan, Russia, 2011. [Google Scholar]
  20. Chugunova, E.A.; Voloshina, A.D.; Mukhamatdinova, R.E.; Serkov, I.V.; Proshin, A.N.; Gibadullina, E.M.; Burilov, A.R.; Kulik, N.V.; Zobov, V.V.; Krivolapov, D.B.; et al. The Study of the Biological Activity of Amino-Substituted Benzofuroxans. Lett. Drug Des. Discov. 2014, 11, 502–512. [Google Scholar] [CrossRef] [Scilit]
  21. Serkov, I.V.V.; Chugunova, E.A.A.; Burilov, A.R.R.; Bachurin, S.O.O. Synthesis of amino acid derivatives of benzofuroxan. Dokl. Chem. 2013, 450, 149–151. [Google Scholar] [CrossRef] [Scilit]
  22. Chugunova, E.A.; Sazykina, M.A.; Gibadullina, E.M.; Burilov, A.R.; Sazykin, I.S.; Chistyakov, V.A.; Timasheva, R.E.; Krivolapov, D.B.; Goumont, R. Synthesis, genotoxicity and UV-protective activity of new benzofuroxans substituted by aromatic amines. Lett. Drug Des. Discov. 2013, 10, 145–154. [Google Scholar] [CrossRef]
  23. Gibadullina, E.M.M.; Chugunova, E.A.A.; Mironova, E.V.V.; Krivolapov, D.B.B.; Burilov, A.R.R.; Yusupova, L.M.M.; Pudovik, M.A.A. Reaction of 4,6-Dichloro-5-nitrobenzofuroxan with aromatic amines and nitrogen-containing heterocycles. Chem. Heterocycl. Compd. 2012, 48, 1228–1234. [Google Scholar] [CrossRef] [Scilit]
  24. Chugunova, E.; Gazizov, A.; Sazykina, M.; Akylbekov, N.; Gildebrant, A.; Sazykin, I.; Burilov, A.; Appazov, N.; Karchava, S.; Klimova, M.; et al. Design of Novel 4-Aminobenzofuroxans and Evaluation of Their Antimicrobial and Anticancer Activity. Int. J. Mol. Sci. 2020, 21, 8292. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  25. Chugunova, E.; Micheletti, G.; Telese, D.; Boga, C.; Islamov, D.; Usachev, K.; Burilov, A.; Tulesinova, A.; Voloshina, A.; Lyubina, A.; et al. Novel Hybrid Compounds Containing Benzofuroxan and Aminothiazole Scaffolds: Synthesis and Evaluation of Their Anticancer Activity. Int. J. Mol. Sci. 2021, 22, 7497. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  26. Joo, Y.-H.; Shreeve, J.M. 1,3-Diazido-2-(azidomethyl)-2-propylammonium Salts. Inorg. Chem. 2009, 48, 8431–8438. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  27. Zill, A.T.; Licha, K.; Haag, R.; Zimmerman, S.C. Synthesis and properties of fluorescent dyes conjugated to hyperbranched polyglycerols. New J. Chem. 2012, 36, 419–427. [Google Scholar] [CrossRef] [Scilit]
  28. Chabre, Y.M.; Giguère, D.; Blanchard, B.; Rodrigue, J.; Rocheleau, S.; Neault, M.; Rauthu, S.; Papadopoulos, A.; Arnold, A.A.; Imberty, A.; et al. Combining Glycomimetic and Multivalent Strategies toward Designing Potent Bacterial Lectin Inhibitors. Chem. Eur. J. 2011, 17, 6545–6562. [Google Scholar] [CrossRef] [Scilit]
  29. Díaz, D.D.; Punna, S.; Holzer, P.; McPherson, A.K.; Sharpless, K.B.; Fokin, V.V.; Finn, M.G. Click chemistry in materials synthesis. 1. Adhesive polymers from copper-catalyzed azide-alkyne cycloaddition. J. Polym. Sci. Part A Polym. Chem. 2004, 42, 4392–4403. [Google Scholar] [CrossRef] [Scilit]
  30. Bräse, S.; Gil, C.; Knepper, K.; Zimmermann, V. Organic azides: An exploding diversity of a unique class of compounds. Angew. Chem. Int. Ed. Engl. 2005, 44, 5188–5240. [Google Scholar] [CrossRef] [Scilit]
  31. Sharnin, G.P.; Falyakhov, I.F. Introduction to the Technology of Energy-Rich Materials: Text Edition; Kazan State Technological University: Kazan, Russia, 2005; 392p. [Google Scholar]
  32. Mikhajlov, Y.M.; Gatina, R.F.; Korobkova, E.F.; Arutyunyan, A.S.; Kolganov, V.I.; Lyapin, N.M.; Konovalov, V.I.; Rkiev, R.R.; Nikoshina, K.K.; Khajrutdinova, A.F. High-Energy Pyroxylin Powder for Propelling Charges of Tank Artillery. Russian Patent RU2711143C1, 15 January 2020. [Google Scholar]
  33. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 16, Revision B.01; Gaussian Inc.: Wallingford, UK, 2016. [Google Scholar]
  34. Becke, A.D. Density Functional Thermochemistry III the Role of Exact Exchange. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar] [CrossRef] [Scilit]
  35. Lee, C.; Yang, W.; Parr, R.G. Development of the Colle-Salvetti correlation-energy formula into a functional of the electron density. Phys. Rev. B 1988, 37, 785–789. [Google Scholar] [CrossRef] [Scilit]
  36. Zhang, Y.; Parrish, D.A.; Shreeve, J.M. Derivatives of 5-nitro-1,2,3-2H-triazole—High performance energetic materials. J. Mater. Chem. A 2013, 1, 585–593. [Google Scholar] [CrossRef] [Scilit]
  37. Zhang, J.; Shreeve, J.M. 3,3′-Dinitroamino-4,4′-azoxyfurazan and Its Derivatives: An Assembly of Diverse N–O Building Blocks for High-Performance Energetic Materials. J. Am. Chem. Soc. 2014, 136, 4437–4445. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  38. Liu, Y.; Zhang, J.; Wang, K.; Li, J.; Zhang, Q.; Shreeve, J.M. Bis(4-nitraminofurazanyl-3-azoxy)azofurazan and Derivatives: 1,2,5-Oxadiazole Structures and High-Performance Energetic Materials. Angew. Chemie Int. Ed. 2016, 55, 11548–11551. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  39. Keshavarz, M.H.; Klapötke, T.M. The Properties of Energetic Materials: Sensitivity, Physical and Thermodynamic Properties; De Gruyter; Walter de Gruyter GmbH & Co KG: Berlin, Germany; Boston, MA, USA, 2017; ISBN 9783110521887. [Google Scholar]
  40. Westwell, M.S.; Searle, M.S.; Wales, D.J.; Williams, D.H. Empirical Correlations between Thermodynamic Properties and Intermolecular Forces. J. Am. Chem. Soc. 1995, 117, 5013–5015. [Google Scholar] [CrossRef] [Scilit]
  41. Trouton, F. IV On molecular latent heat. Lond. Edinb. Dublin Philos. Mag. J. Sci. 1884, 18, 54–57. [Google Scholar] [CrossRef] [Scilit]
  42. Cheng, J.; Liu, Z.; Li, Z.; Dong, Y.; Zheng, Y.; Sun, R.; Wang, L. A New Family of Energetic Complexes Constructed From Alkali Metals (K, Rb and Cs) and 7-Amino-4,6-dinitrobenzofuroxan: Crystal Structures, Thermal Decomposition Behaviors, Sensitivity and Catalytic Properties. J. Chem. Soc. Pakistan 2018, 40, 311–318. [Google Scholar]
  43. Agrawal, J.P.; Hodgson, R.D. Organic Chemistry of Explosives; Agrawal, J.P., Hodgson, R.D., Eds.; John Wiley and Sons, Ltd: Chichester, UK, 2007. [Google Scholar]
  44. Belov, G.V. Thermodynamic Analysis of Combustion Products at High Temperature and Pressure. Propellants Explos. Pyrotech. 1998, 23, 86–89. [Google Scholar] [CrossRef] [Scilit]
  45. Doherty, R.M.; Simpson, R.L. A Comparative Evaluation of Several Insensitive High Explosives. In Proceedings of the 28th International Annual Conference of ICT, Pfinztal, Germany, 24–27 June 1997; pp. 24–27. [Google Scholar]
  46. Agrawal, J.P. Recent trends in high-energy materials. Prog. Energy Combust. Sci. 1998, 24, 1–30. [Google Scholar] [CrossRef] [Scilit]
  47. Avakyan, G.A.; Dzerzhinsky, F.E. Calculation of Energy and Explosive Characteristics of Explosives: Work-Book; Military Engineering Academy: Moscow, Russia, 1964; 106p. [Google Scholar]
  48. Sugak, N.Y.; Mochalov, S.V. Calculation of Explosive Characteristics of Explosives; Tutorial; BTI AltGTU: Biysk, Russia, 2013. [Google Scholar]
Ijms 23 01471 g001

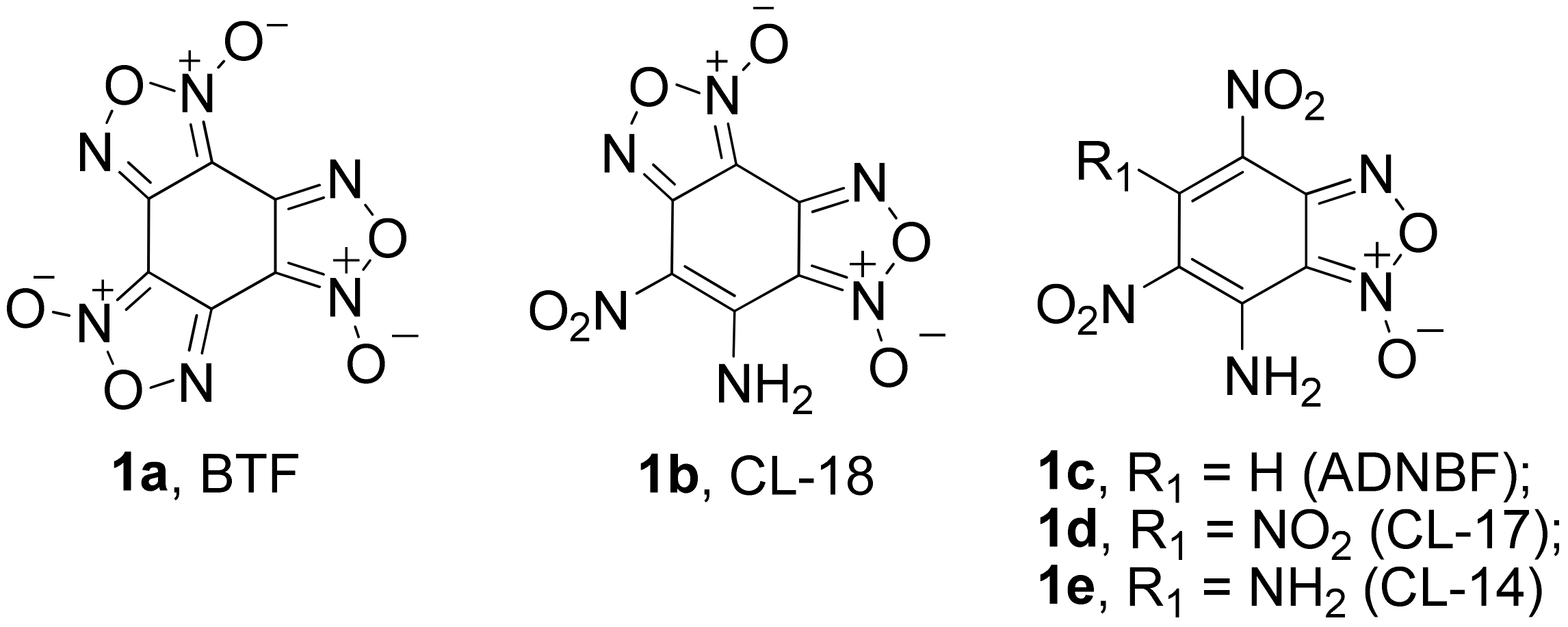

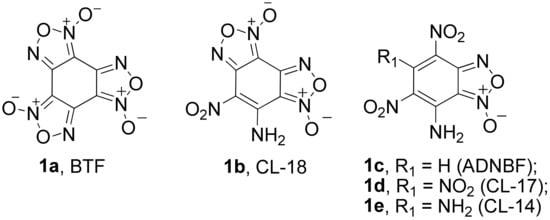

Figure 1. Reduced sensitivity explosives on the base of benzofuroxan.
Figure 1. Reduced sensitivity explosives on the base of benzofuroxan.
Ijms 23 01471 g001
Ijms 23 01471 sch001

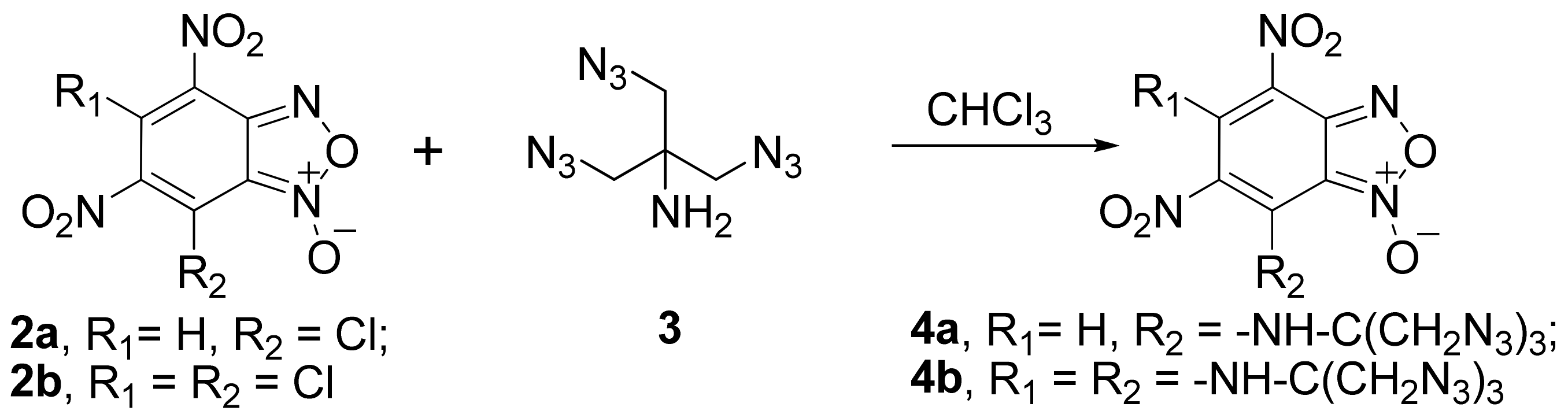

Scheme 1. Synthesis of azidobenzofuroxans 4a,b.
Scheme 1. Synthesis of azidobenzofuroxans 4a,b.
Ijms 23 01471 sch001
Ijms 23 01471 g002

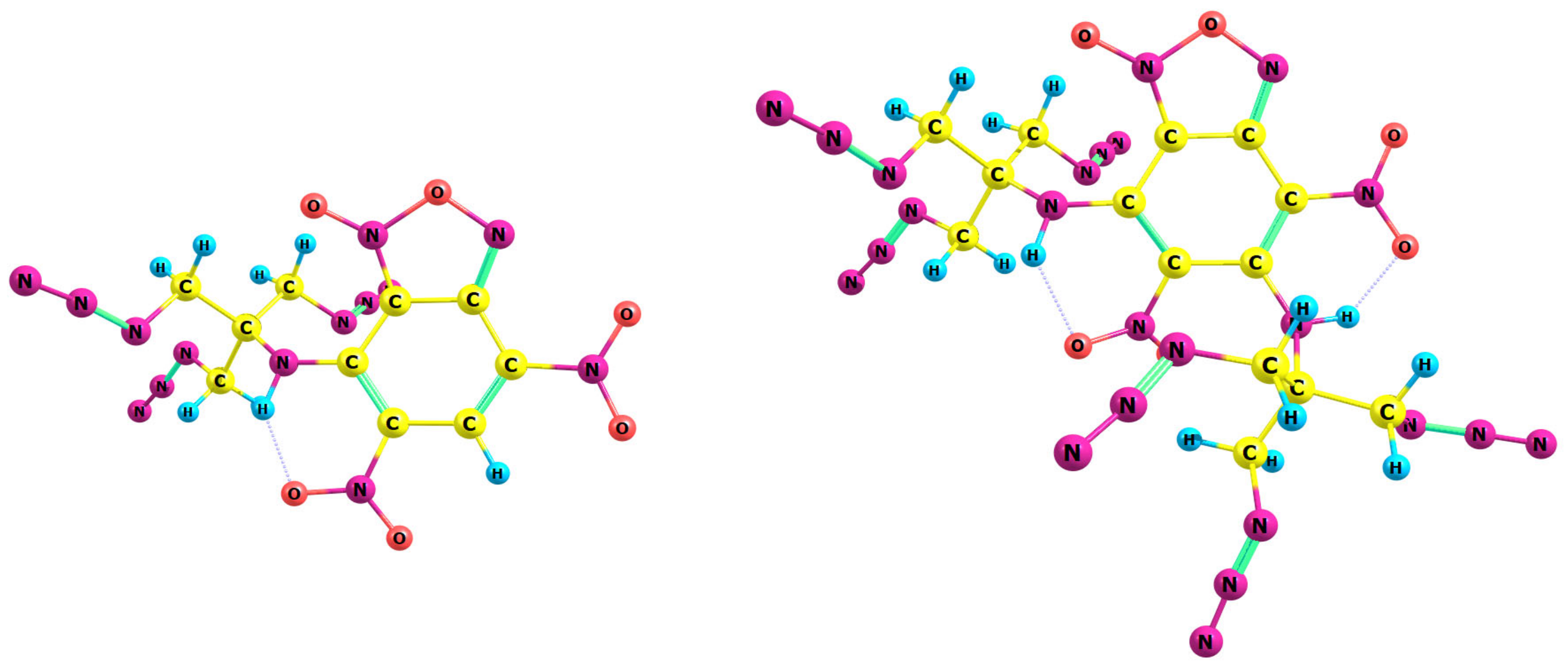

Figure 2. Optimized structures of compounds 4a,b.
Figure 2. Optimized structures of compounds 4a,b.
Ijms 23 01471 g002
Ijms 23 01471 g003

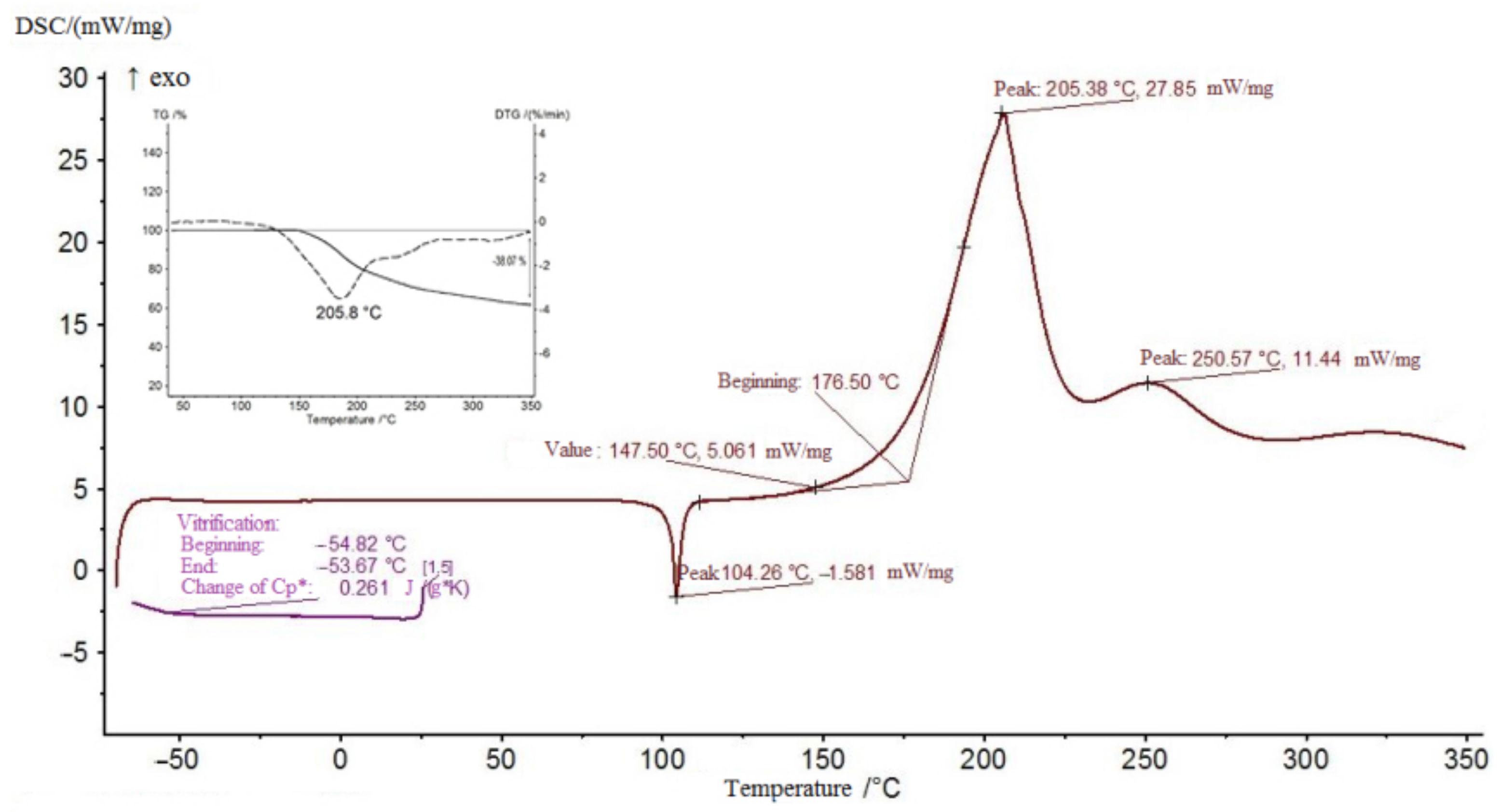

Figure 3. DSC curve with TG (inset) of compound 4a.
Figure 3. DSC curve with TG (inset) of compound 4a.
Ijms 23 01471 g003
Ijms 23 01471 g004

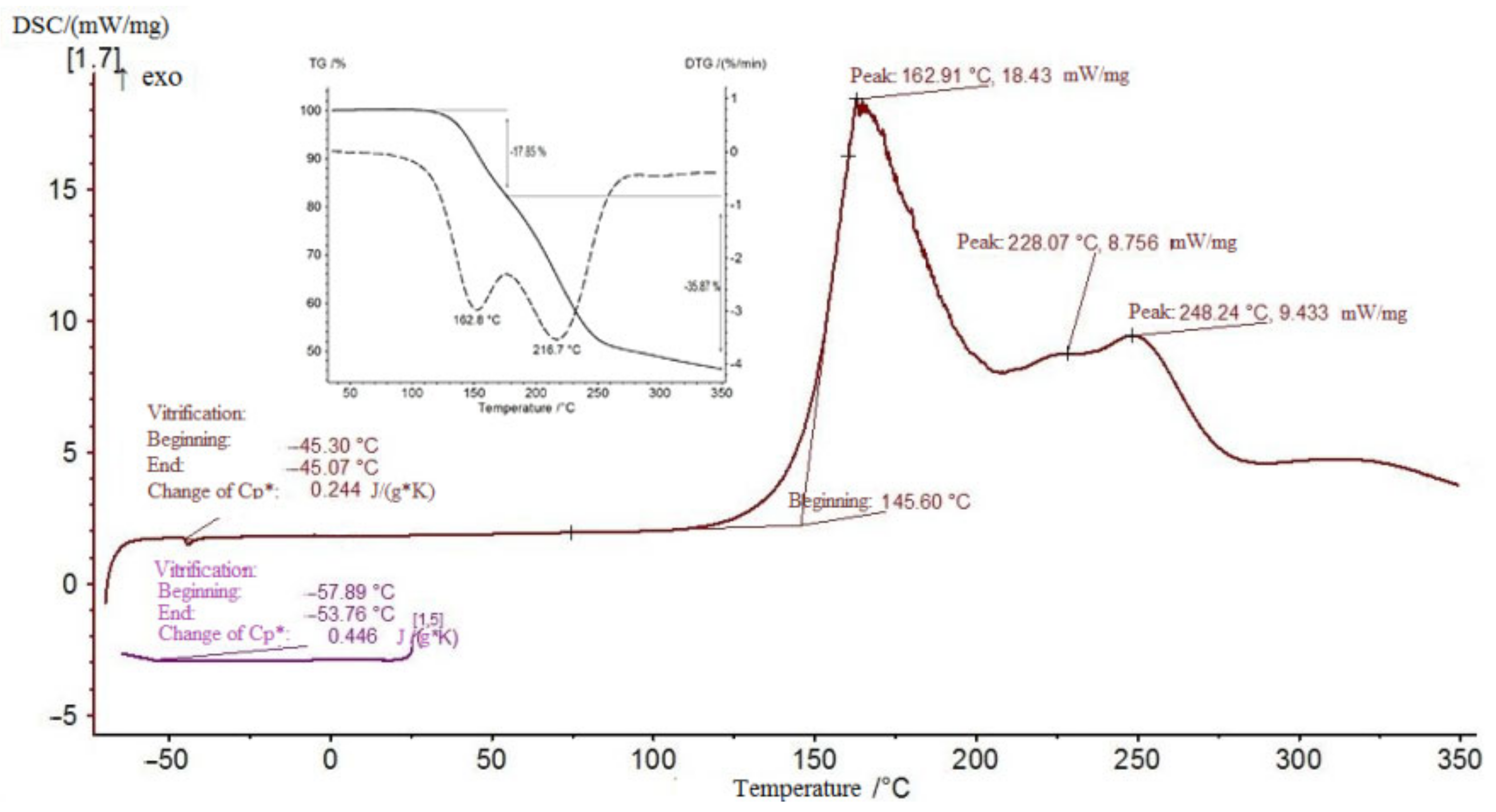

Figure 4. DSC curve with TG (inset) of compound 4b.
