Paying Comprehensive Attention to the Temperature-Dependent Dual-Channel Excited-State Intramolecular Proton Transfer Mechanism of Fluorescence Ratio Probe BZ-DAM

by
Jiaan Gao
,
Yifu Zhang
,
Hongyan Mu
,
Min Yang
,
Xiaotong Guan
,
Guangyong Jin
* and
Hui Li
*
Jilin Key Laboratory of Solid-State Laser Technology and Application, School of Physics, Changchun University of Science and Technology, Changchun 130022, China
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(18), 13899; https://doi.org/10.3390/ijms241813899
Submission received: 22 July 2023 / Revised: 29 August 2023 / Accepted: 4 September 2023 / Published: 9 September 2023
(This article belongs to the Section Biochemistry)
Browse Figures
Review Reports Versions Notes

Abstract

:
The mechanism of fluorescence detection of diethyl chlorophosphate (DCP) based on 2-substituted benzothiazole (BZ-DAM) was studied by a theoretical calculation method. It should not be ignored that both the BZ-DAM and the detection product BZ-CHO have two excited-state intramolecular proton transfer (ESIPT) channels. Density functional theory (DFT) and time-dependent DFT (TDDFT) theory were used to study the photophysical mechanism of two compounds in two channels in (acetonitrile) ACN solvent, and the temperature dependence of the two channels was given. Channel 1 is more likely to exist at low temperatures and channel 2 is more likely to exist at high temperatures. By theoretical analysis of the constructed potential energy curve, the hydrogen bond energy and electron-hole analysis, we confirmed that both molecules undergo ESIPT and intramolecular charge transfer (ICT) processes in channel 1 and ESIPT and twisted intramolecular charge transfer (TICT) coupling processes in channel 2. The formation of product BZ-CHO molecules led to a significant fluorescence blue-shift phenomenon and inhibited the ICT process, which confirmed that BZ-DAM could be used as a fluorescence probe for fluorescence detection. We sincerely hope that this work will not only help to clarify the excited-state dynamics behavior of the BZ-DAM probe but also provide a new idea for designing and optimizing a new chemical dosimeter.

1. Introduction

Fluorescent probes find widespread application in detection and labeling techniques, including the determination of biomolecular content, metal ions, pesticide residues as well as the tracing of molecules [1,2,3,4,5,6,7,8,9,10]. Fluorescence probes based on excited-state intramolecular proton transfer (ESIPT) have been developed and designed [11,12,13,14,15]. ESIPT is an ultrafast process with dual fluorescence and large stokes shift properties [16,17,18,19,20]. Fluorescent probe molecules with ESIPT characteristics can be categorized into three types. We have illustrated these three classes of probes with examples and listed them in Table S1. The first type is the “turn-off” fluorescent probe. The fluorescent probe molecules undergo ESIPT prior to the reaction, while the resulting product molecules do not exhibit ESIPT properties. The PBAS, L, 2, oPSDAN and HLm were typical “turn-off” fluorescent probes. This type of fluorescent probe is employed for the sensitive and selective detection of various analytes. For instance, for the quantitative and qualitative detection of Cu2+, probe L was synthesized by Zhang et al. [21]. They demonstrated that the presence of Cu2+ significantly reduced the fluorescence intensity. A color fluorescence sensor oPSDAN was studied by Mehta et al. [22]. They verified that the sensor showed fluorescence quenching for Al3+. The second type is the “turn-on” fluorescent probe. The fluorescent probe molecules can be described more intuitively as follows: only the product molecules undergo ESIPT after the reaction occurs. The CPI, MZC-AC, BT-ITC, HBT-BChE, SNCN-AE and SNC-AE were typical “turn-on” fluorescent probes. This type of fluorescent probe is useful for monitoring reaction progress or identifying specific reaction products in complex mixtures. For example, the sensing mechanism of the probe BT-ITC was investigated by Kim et al. [23]. They confirmed the advantage of the probe in detecting H2S by its fluorescence “turn-on” response through ESIPT. The fluorescent probe HBT-BChE for bio-detection and imaging was developed by Pei et al. [24]. They found that the hydrolysis of HBT-BChE triggered a strong orange fluorescence signal through ESIPT, enabling fluorescence “turn-on”.
In particular, there is a class of probes in which both reactant and product molecules undergo the ESIPT process. As shown in Table S1, such probe molecules generally have large stokes shifts. The Naph-1, HBT-Hg, BTMSP and BIN were typical ratio fluorescent probes. For instance, the BTMSP has been employed for detecting HCLO by Shen et al. [25]. They showed a fast response to HCLO, with a large stokes shift of 130 nm. Recently, Manas Kumar Das et al. synthesized benzothiazole-based fluorescence chemical dosimeter (BZ-DAM) molecules by the ESIPT process, and they can be successfully used to detect sarin in living cells [26]. Sarin is widely believed to be a nerve agent often used in terrorist attacks. Diethyl chlorophosphate (DCP) was used as a model compound for sarin due to its similar reactivity and lack of high toxicity. Based on the investigation of absorption and fluorescence spectra, they found that BZ-DAM showed a fluorescence-enhanced response to DCP at 540 nm in ACN solvent. It should not be ignored that there are double receptors (N1 and N2) in BZ-DAM and double receptors (N1 and O2) in BZ-CHO, which directly lead to the formation of two different conformations. Therefore, a thorough theoretical investigation is urgently needed to offer more insights into the ESIPT mechanism of BZ-DAM and BZ-CHO.
In this study, BZ-DAM was selected as the reactant and BZ-CHO as the product after adding DCP. Combined with the theoretical simulation results of DFT/TDDFT, the photophysical properties of BZ-DAM and BZ-CHO in (acetonitrile) ACN solvent under different electronic states in two channels were investigated. We obtained absorption spectra and fluorescence spectra, which provided the contribution of frontier molecular orbitals and major orbital transitions to electronic states. We formally described the ESIPT mechanism of DCP detection in two channels by Scheme 1 and confirmed the occurrence of ESIPT by analyzing the potential energy curves of the S0 state and S1 state of BZ-DAM and BZ-CHO in ACN solvent and the time scale of the S1 state. Finally, two ESIPT processes at different temperatures are elucidated.

2. Results and Discussion

2.1. Optimized Geometric Structure and Infrared (IR) Vibration Spectra

The optimized structures of the different channels of BZ-DAM and BZ-CHO molecules in the different electronic states in (acetonitrile) ACN solvent are shown in Figure 1 and Figure 2. The corresponding changes in bond lengths, bond angles, and dihedral angles are listed in Table 1. The optimized percentage of BZ-DAM and BZ-CHO molecules at different temperatures is listed in Table 2 [27]. The presence of a double receptor (N1, N2) in BZ-DAM and the presence of a double receptor (N1, O2) in BZ-CHO led to the formation of two different conformers, as shown in Scheme 1. As H1 approaches N1 of the two molecules, we define it as channel 1. When H2 tends to move to N2 and O2, we define it as channel 2.
Interestingly, when the temperature is low, the proportion of channel 1 in the two molecules (98.09% and 88.38%, respectively) is larger than that of channel 2 (1.91% and 11.62%, respectively). Both compounds are more likely to be present in channel 1 at low temperatures. In the first channel, the BZ-DAM molecule, the bond length of O1-H1 is elongated from 1.001 Å in the S0 state to 1.030 Å in the S1 state, while that of N1…H1 is shrunken from 1.641 Å (S0) to 1.536 Å (S1) with an enlargement of the bond angle σ (O1-H1…N1) from 150.06° to 151.75° after the photo-absorption process. The results confirm that the IHB (O1-H1…N1) is strengthened in the S1 state, which is conducive to the occurrence of the ESIPT pathway. Similarly, we have obtained the S1′ structure with an energy lower than that of the S1 structure and formed a new IHB (N1-H1…O1) whose length is 1.781 Å. For the BZ-CHO molecule, the bond length of N1…H1 is shrunken from 1.650 Å (S0) to 1.460 Å (S1) with an enlargement of the bond angle σ (O1-H1…N1) from 149.67° to 153.14°. The results confirm that the IHB is strengthened in the S1. In the S1′ structure, a new IHB (N1-H1…O1) was formed whose length is 1.822 Å, and the energy is lower than that of the S1 structure. These results indicate that the BZ-DAM and BZ-CHO molecules in the first channel probably undergo an effective ESIPT process in the ACN solvent. The stronger IHB of BZ-DAM in the S1′ structure compared to BZ-CHO proved that the BZ-CHO molecule is more stable after the addition of intracellular diethyl chlorophosphate (DCP).
However, at high temperatures (above 700 K), the proportion of channel 2 in the two molecules was larger (99.30% and 88.95%) than that of channel 1 (0.70% and 11.05%, respectively). It is shown that these two compounds are more likely to occur in the conformation of channel 2. Unlike channel 1, only the keto* structure exists in channel 2 for both molecules. In the BZ-DAM molecule, the IHB (O1-H2…N2) length of 1.658 Å in the S0 state. After photo-excitation, a new IHB (N2-H2…O1) is formed with a length of 1.670 Å in the S1 state. And, for the BZ-CHO molecule, the length of IHB (O1-H2…O2) in the S0 state is 1.658 Å. After photo-excitation, a new IHB (O2-H2…O1) is formed, which is 1.509 Å in the S1 state. The most noteworthy point is that the dihedral angle σ(C1-C2-C3-N1) of BZ-DAM changes by 43.3° (from −34.78° in the S0 state to 8.48° in the S1 state). And the dihedral angle σ(C1-C2-C3-N1) of BZ-CHO changes from 35.83° to −3.68° (a change of 39.5°). Therefore, we determined that the BZ-DAM and BZ-CHO in channel 2 probably undergo a coupling process of ESIPT and TICT in ACN. However, the geometric structures corresponding to the BZ-DAM and BZ-CHO in channel 1 both have good planarity. On the whole, the occurrence of TICT may lead to competition between radiative and non-radiative transition processes.
We simulated the IR spectra of the BZ-DAM and BZ-CHO compounds in the two channels, as shown in Figure 3. In the first channel, the vibration peaks of the BZ-DAM and BZ-CHO were changed from 3078 cm−1 and 3091 cm−1 (in the S0 state) to 2533 cm−1 and 2013 cm−1 (in the S1 state), and they were red-shifted 545 cm−1 and 1078 cm−1, respectively. This red-shift phenomenon indicates that the excited-state IHB is enhanced under light excitation. It is noteworthy that with the breaking of the old bond (O1-H1) and the formation of the new bond (N1-H1), it is confirmed that the ESIPT process of BZ-DAM and BZ-CHO occurred in the excited state. Analysis showed that IHB was enhanced after photo-excitation, which was conducive to the occurrence of the ESIPT reaction. The red-shift of BZ-CHO is greater than that of BZ-DAM, indicating that the addition of DCP can more significantly enhance the intensity of IHB in the excited state. In the second channel, the breaking of the old bonds (N2-H2 for BZ-DAM and O2-H2 for BZ-CHO) and the formation of the new bond (BZ-DAM and BZ-CHO: O1-H2) confirmed that the ESIPT process occurs in BZ-DAM and BZ-CHO.

2.2. Absorption and Fluorescence Spectra

In order to understand the optical and physical properties of BZ-DAM after adding DCP, the absorption and fluorescence spectra of BZ-DAM and BZ-CHO in the two channels are simulated by using the MPW1PW91/6-31G (d, p) theoretical level as shown in Figure 4.
The calculated maximum absorption peaks of BZ-DAM in the two channels are located at 397 nm and 400 nm, respectively, which is in good agreement with the experimental value (400 nm). Thus, we determined that there could indeed be two distinct pathways to induce the ESIPT process. The maximum absorption peak of BZ-CHO in both channels was 346 nm. Compared with BZ-DAM, the absorption peak of BZ-CHO showed a blue-shift of 50 nm. In channel 1, in the S1 state of BZ-DAM and BZ-CHO correspond to short emission peaks of 455 nm and 406 nm, respectively. And the long fluorescence peaks of BZ-DAM and BZ-CHO correspond to the proton transfer S1′ states at 586 nm and 495 nm, respectively. The stokes shifts of the BZ-DAM and BZ-CHO molecules are 189 nm and 149 nm. It is noteworthy that BZ-DAM and BZ-CHO have only one fluorescence peak in channel 2, which is attributed to the proton transfer states. The fluorescence peaks of BZ-DAM and BZ-CHO are 626 nm and 545 nm, respectively, accompanied by stokes shifts of 226 nm and 199 nm. Therefore, the BZ-DAM molecule of the two channels has larger stokes shifts. The fluorescence peaks of the two compounds observed in the experiment are 595 nm and 540 nm, respectively. Compared with BZ-DAM, the fluorescence peak of BZ-CHO showed a blue-shift of 91 nm and 81 nm due to the occurrence of the ESIPT process in the two channels, which confirmed that BZ-DAM could be used as a fluorescence probe for fluorescence detection. Compared with channel 1, the fluorescence intensity decreased due to the TICT process in channel 2.
In addition, in order to study the fluorescence properties of the two compounds in the two channels, the fluorescence lifetime and fluorescence rate of the two forms of the S1 state and the S1′ state were calculated according to the formulas in the literature [28], which are listed in Table 3. Similarly, the longer the fluorescence lifetime, the lower the fluorescence rate. It is obvious that BZ-DAM-S1′ in channel 1 and BZ-DAM-S1 in channel 2 have longer fluorescence lifetimes and lower fluorescence rates. The BZ-DAM molecule has good optical properties because of the large stokes shift.

2.3. FMOs and Hole-Electron Analysis

It is worth commenting on the appearance of double absorption peaks: the maximum absorption peak is almost entirely from the first singlet transition (S0 → S1), corresponding to the highest occupied molecular orbitals (HOMOs) to the lowest unoccupied molecular orbitals (LUMOs), as expected, and the lower intensity absorption peak is mainly from the S0 → S4 transition (see Table S2). The transition percentages (S0 → S1) are 64.20%, 69.33%, 66.28% and 69.37% in BZ-DAM, BZ-CHO, BZ-DAM-1 and BZ-CHO-1, respectively. In order to analyze the redistribution trend of electrons in the structure, we divided BZ-DAM and BZ-CHO into fragment 1 and fragment 2. As shown in Figure 5, the Hirshfeld method was used to calculate the electron density. The relevant electron densities are listed in Table 4.
In channel 1, for fragment 1, the electron densities of the two compounds decrease from 95.88% and 65.87% of HOMO to 92.63% and 59.96% of LUMO, respectively. In fragment 2, the electron density increases from 4.12% and 34.13% of HOMO to 7.37% and 40.04% of LUMO. In channel 2, the electron densities of the two compounds increase from 92.85% and 60.70% of HOMO to 97.81% and 75.08% of LUMO, respectively, in fragment 1. In fragment 2, the electron density decrease from 7.15% and 39.30% of HOMO to 2.19% and 24.92% of LUMO. At the same time, since the HOMO difference between Fragment 1 and Fragment 2 of BZ-DAM is the largest, we believe that the BZ-DAM molecules have more obvious ICT characteristics, which may be more conducive to the occurrence of the ESIPT process.
In addition, in channel 1, the electron density of the O1 atom decreases from 6.40% to 0.54% and that of the N1 atom increases from 0.37% to 1.39% after photo-excitation in BZ-DAM. The electron density of the O1 atom decreases from 11.79% to 0.22% and that of the N2 atom increases from 4.47% to 8.52% after photo-excitation of BZ-CHO. Likewise, the two molecules also have the same change trend in channel 2. In the excited states, the electron density of the donor atom decreases while that of the acceptor atom increases, which promotes the ESIPT process of the H1 atom transfer from the O1 atom to the N1 atom and provides the driving force for proton transfer.

2.4. Reduced Density Gradient (RDG) and HB Strength

In order to verify the variation of the IHBs intensity during proton transfer, RDG is also calculated [29,30], as shown in Figure 6, Figure 7 and Figure S1. HB interactions, van der Waals interactions and the steric crowding effect correspond to blue, green and red colors, respectively. In channel 1, the spikes of BZ-DAM and BZ-CHO are located at −0.060 a. u. and −0.055 a. u. in the S0 state, which shifts to the more negative −0.085 a. u. and −0.055 a. u. region in the S1 state. The spike peak is assigned to N1…H1-O1. This means that the IHBs of BZ-DAM and BZ-CHO are enhanced under light excitation, which will promote the ESIPT reaction. In the S1′ state, the spikes of BZ-DAM and BZ-CHO are located at −0.043 and −0.040 a. u., respectively. The spike peak is assigned to O1…H1-N1. In channel 2, the spikes of BZ-DAM and BZ-CHO are located at −0.055 and −0.055 a. u. in the S0 state. The spike peak is assigned to N2…H2-O1 and O2…H2-O1, respectively. However, the spikes of BZ-DAM and BZ-CHO are located at −0.060 and −0.080 a. u. in the S1 state. The spike peak is assigned to O1-H2…N2 and O1-H2…O2, respectively. The formation of new IHB confirms that the ESIPT process occurs in both compounds under both channels.
In order to further clarify the difference in the IHBs interaction between BZ-DAM and BZ-CHO in ACN solvent, we also predicted the value of the hydrogen bond energy (EHB) by simulating the bond critical point (BCP) [31], which is listed in Table 5. Based on previous similar conclusions, we reasoned that the enhanced behavior of HB induced by photo-excitation largely reflects the developing trend of the ESIPT response. Generally speaking, the larger the |EHB| value, the stronger the corresponding HB. As can be seen from Table 6, in channel 1, the S0 state |EHB| of the two compounds is in the range from 2.5 kcal/mol to 14.0 kcal/mol; at this time, the electrostatic action plays a dominant role. The S1 state |EHB| of the two compounds is greater than 15.0 kcal/mol, indicating that the main characteristics of the HB interaction are electrostatic and induction, and dispersion only has a supplementary role. The results showed that the IHB force of both compounds in channel 1 was enhanced under the action of photo-excitation. In channel 2, for BZ-DAM-1, the |EHB| in the S0 state is less than 2.5 kcal/mol when electrostatic and dispersion are dominant. The |EHB| of BZ-DAM-1 in the S1 state ranges from 2.5 to 14.0 kcal/mol. BZ-CHO-1 shows the exact opposite trend. The above analysis of EHB is consistent with that of RDG.
The ICT properties corresponding to the S1 → S0 transition were further quantitatively calculated by electron-hole analysis and charge density difference (CDD) (see Figure 8) [32,33]. The relevant data are listed in Table S3. The red arrows correspond to the distance from the center of mass of the electron to the hole (denoted by the D value). t-index > 0 implies that charge transfer (CT) excitation results in a sufficient hole and electron separation. Combined with Table S3, it is found that the D index of BZ-DAM-keto in channel 1 is the largest, which is 1.507 Å. In channel 2, the D index of BZ-DAM-1-keto is the largest, which is 3.960 Å and t-index > 0. The separation of BZ-DAM-1-keto was confirmed to be the most sufficient. These data indicate that BZ-DAM has the stronger ICT effect.

2.5. Excited-State Proton Transfer Mechanism and Dynamic Simulation

In order to further study the ESIPT process of the BZ-DAM and BZ-CHO compounds in the two channels, we also studied the molecular potential energy curve (PECs), as shown in Figure 9. The S0 state was accompanied by an impassable barrier and a high barrier of 7.366 kcal/mol. However, in the S1 state, there was no barrier or a 0.710 kcal/mol low barrier between the two compounds in the two channels. It proves that the ESIPT process is more likely to occur in the excited state than in the ground state. Similarly, the high barrier of the reverse proton transfer (RPT) process between the two compounds in both channels confirms that RPT cannot occur. Therefore, we have verified that the ESIPT process is irreversible. This property of the BZ-DAM molecule has great advantages for DCP detection.
In addition, we investigated the time scales of the two compounds in both conformations using Bonn–Oppenheimer molecular dynamics (BOMD), as shown in Figure 10. We give the time of proton transfer between the two molecules. In channel 1, the ESIPT process of the BZ-DAM molecules occurred at 131.7 fs, while that of the BZ-CHO molecules occurred at 152.7 fs. In channel 2, in BZ-DAM and BZ-CHO, the ESIPT process is experienced at 215.2 fs and 33.5 fs, respectively. In contrast, the BZ-CHO molecule of channel 2 has the fastest ESIPT process.
The detection mechanism at different temperatures can be illustrated in Figure 11, which will help to synthesize more efficient fluorescent probes in the future. Channel 1 is more likely to undergo an ESIPT + ICT process at low temperatures. Channel 2 is more likely to undergo an ESIPT + TICT coupling process at high temperatures. The formation of the product BZ-CHO molecule led to a significant fluorescence blue-shift phenomenon, which confirmed that BZ-DAM could be used as a fluorescence probe for detection.

3. Materials and Methods

All calculations are performed using Gaussian programs in this work [34]. We calculated the absorption peak of BZ-DAM in ACN solvent using six different functionals and the 6-31G (d, p) basis set in Table 5. The absorption peaks of BZ-DAM obtained by the MPW1PW91 functional are separately located at 310 nm and 397 nm, which coincided well with the experimental data (311 nm and 400 nm). The accuracy of theoretical data is confirmed. Therefore, we use the MPW1PW91/6-31G (d, p) [35]. The configuration optimization of BZ-DAM and BZ-CHO molecules in different electronic states by the DFT [36,37,38] and TD-DFT [28,39,40,41,42] methods in the two channels was carried out without any constraints. All the vibration analysis results have no virtual frequency, which proves that all the optimized structures are local minima. Moreover, we used the solvent effect of ACN and considered utilizing the polarizable continuum model (PCM) by applying the integral equation formalism variant (IEFPCM). For the study of excited-state hydrogen bonding dynamics in two compounds, the classical trajectory calculation (Bonn-Oppenheimer molecular dynamics (BOMD)) is implemented in the S1 state [43,44]. In addition, Multiwfn software [45] is used to analyze the frontier molecular orbitals (FMOs), reduced density gradient (RDG) [46] and electron-hole analysis. VMD software is used for visualization [47].

4. Conclusions

In conclusion, this work investigates the photo-physical mechanism of two compounds in ACN solvent by DFT/TDDFT theory and gives the likelihood of temperature dependence in the two channels. Channel 1 is more likely to exist at low temperatures (less than 700 K), and channel 2 is more likely to exist at high temperatures (above 700 K). By theoretical analysis of the constructed PECs, EHB and electron-hole analysis, we confirm that an ESIPT + ICT process occurs in channel 1, and an ESIPT + TICT coupling process occurs in channel 2. Moreover, we give the time scale of proton transfer between the two molecules. In channel 1, the ESIPT process occurred at 131.7 fs and 152.7 fs. In channel 2, the ESIPT process occurred at 215.2 fs and 33.5 fs in BZ-DAM and BZ-CHO, respectively. Furthermore, the formation of the BZ-CHO molecule led to a significant fluorescence blue-shift phenomenon and inhibited the ICT process, which confirmed that BZ-DAM could be used as a fluorescence chemical dosimeter probe for detecting DCP. This work elucidates the ESIPT mechanism of BZ-DAM at different temperatures. The results show that BZ-DAM is a reliable and useful tool for the selective detection of DCP. Our work can effectively contribute to the optimization and design of more efficient chemical dosimeters with ESIPT characteristics, thereby prompting the development of fluorescent materials for diverse applications in the future.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms241813899/s1.

Author Contributions

Formal analysis, J.G.; data curation, Y.Z., H.M., M.Y. and X.G.; writing—original draft preparation, J.G.; writing—review and editing, H.L.; supervision, H.L. and G.J. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (No.12004051) and Jilin Province Science and Technology Association Project (QT202110).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare that they have no known competing financial interest.

References

  1. Kavitha, V.; Viswanathamurthi, P.; Haribabu, J.; Echeverria, C. An aqueous mediated ultrasensitive facile probe incorporated with acrylate moiety to monitor cysteine in food samples and live cells. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2023, 293, 122447. [Google Scholar] [CrossRef]
  2. Guo, W.; Ji, T.; Ma, Y.; Song, H.; Liu, J.; Dong, W. An amino-appended asymmetry salamo-type ratiometric fluorescent probe for efficient relay detection of B4O72−/HCHO in real samples. J. Mol. Struct. 2023, 1285, 135545. [Google Scholar] [CrossRef]
  3. Sagar, P.; Srivastava, M.; Tiwari, R.K.; Kumar, A.; Srivastava, A.; Pandey, G.; Srivastava, S. In-situ One-Pot Novel Synthesis of Molybdenum di-Telluride@Carbon Nano-Dots for Sensitive and Selective Detection of Hydrogen Peroxide Molecules via Turn-off Fluorescence Mechanism. Microchem. J. 2022, 183, 108134. [Google Scholar] [CrossRef]
  4. Wu, X.; Zhuang, H.; Yang, Y.; Guo, Q.; Shi, W. Insight into the probe BTFMB responses to hydrogen peroxide switching on ESIPT reaction. Chem. Phys. Lett. 2022, 807, 140067. [Google Scholar] [CrossRef]
  5. Qu, W.; Guo, T.; Yang, B.; Tian, R.; Qiu, S.; Chen, X.; Geng, Z.; Wang, Z. Tracking HOCl by an incredibly simple fluorescent probe with AIE plus ESIPT in vitro and in vivo. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2022, 281, 121649. [Google Scholar] [CrossRef] [PubMed]
  6. Ahamed, S.; Mahato, M.; Tohora, N.; Sultana, T.; Sahoo, R.; Ghanta, S.; Das, S.K. A PET and ESIPT-communicated ratiometric, turn-on chromo-fluorogenic sensor for rapid and sensitive detection of sarin gas mimic, diethylchlorophosphate. Talanta 2023, 258, 124448. [Google Scholar] [CrossRef]
  7. Tohora, N.; Mahato, M.; Sultana, T.; Ahamed, S.; Das, S.K. A benzoxazole-based turn-on fluorosensor for rapid and sensitive detection of sarin surrogate, diethylchlorophosphate. Anal. Chim. Acta 2023, 1255, 341111. [Google Scholar] [CrossRef]
  8. Feng, B.; Wang, K.; Yang, Y.; Wang, G.; Zhang, H.; Liu, Y.; Jiang, K. Ultrasensitive recognition of AP sites in DNA at the single-cell level: One molecular rotor sequentially self-regulated to form multiple different stable conformations. Chem. Sci. 2019, 10, 10373–10380. [Google Scholar] [CrossRef]
  9. Liu, H.; Ma, C.; Wang, J.; Wang, K.; Wu, K. A turn-on fluorescent method for determination of the activity of alkaline phosphatase based on dsDNA-templated copper nanoparticles and exonuclease based amplification. Microchim. Acta 2017, 184, 2483–2488. [Google Scholar] [CrossRef]
  10. Zhu, D.; Rajalakshmi, K.; Wang, R.; Wu, H.; Kannan, P.; Song, J.-W.; Lee, H.-J.; Muthusamy, S. A coumarin derivative-based turn-on fluorescent probe for real-time applications of hydrazine detection in environment and bioimaging. Dye. Pigment. 2023, 216, 111370. [Google Scholar] [CrossRef]
  11. Tomczyk, M.M.; Przypis, Ł.; Shiraki, T.; Kusz, J.; Książek, M.; Janas, D.; Kuźnik, N. Surprising Solid-State ESIPT Emission from Apparently Ordinary Salicyliden Glycinates Schiff Bases. Int. J. Mol. Sci. 2022, 23, 14955. [Google Scholar] [CrossRef] [PubMed]
  12. Baranowska, K.; Mońka, M.; Bojarski, P.; Józefowicz, M. Insight into Molecular Interactions of Two Methyl Benzoate Derivatives with Bovine Serum Albumin. Int. J. Mol. Sci. 2021, 22, 11705. [Google Scholar] [CrossRef] [PubMed]
  13. Xie, J.H.; Wang, Z.Y.; Zhu, R.X.; Jiang, J.M.; Weng, T.-C.; Ren, Y.; Han, S.H.; Huang, Y.F.; Liu, W.M. Investigation of Excited-State Intramolecular Proton Transfer and Structural Dynamics in Bis-Benzimidazole Derivative (BBM). Int. J. Mol. Sci. 2023, 24, 9438. [Google Scholar] [CrossRef] [PubMed]
  14. Fan, K.W.; Luk, H.L.; Phillips, D.L. Anti-Kasha Behavior of 3-Hydroxyflflavone and Its Derivatives. Int. J. Mol. Sci. 2021, 22, 11103. [Google Scholar] [CrossRef]
  15. Ghosh, S.; Paul, S.; Halder, S.; Shit, M.; Karmakar, A.; Nandi, J.B.; Jana, K.; Sinha, C. Trace level CN− measurement by ‘turn-on’ emission using Coumarinyl-Benzothiazolyl Schiff base probe in living and non-living environment. J. Indian Chem. Soc. 2023, 100, 100957. [Google Scholar] [CrossRef]
  16. Wang, Q.; Li, X.; Song, L.; Zhao, J.; Tang, Z. Theoretical study on ESIPT mechanism and negative solvatochromism effect of 3-(4,5-Diphenyl-1H-imidazol-2-yl)-9-phenyl-9H-carbazol-4-ol compound in different solvents. J. Mol. Liq. 2023, 382, 122000. [Google Scholar] [CrossRef]
  17. Li, Y.; Sun, C.; Han, J.; Zhou, Q.; Cao, B.; Yin, H.; Shi, Y. Theoretical investigation of intermolecular hydrogen bond induces fluorescence quenching phenomenon for Coumarin-1. J. Lumin. 2020, 221, 117110. [Google Scholar] [CrossRef]
  18. Sun, C.; Zhang, X.; Diao, L.; Cao, B.; Yin, H.; Shi, Y. How the atomic electron-accepting ability affect the double ESIPT process of 2,5-bis(benzoxazol-2-yl)thiophene-3,4-diol? J. Lumin. 2020, 225, 117329. [Google Scholar] [CrossRef]
  19. Zhao, J.; Song, P.; Feng, L.; Wang, X.; Tang, Z. Theoretical insights into atomic-electronegativity-regulated ESIPT behavior for B-bph-fla-OH fluorophore. J. Mol. Liq. 2023, 380, 121763. [Google Scholar] [CrossRef]
  20. Zhao, J.; Dong, H.; Zheng, Y. Elaborating the excited state multiple proton transfer mechanism for 9H-pyrido[3,4-b]indole. J. Lumin. 2018, 195, 228–233. [Google Scholar] [CrossRef]
  21. Zhang, X.; Shen, L.-Y.; Zhang, Q.-L.; Yang, X.-J.; Huang, Y.-L.; Redshaw, C.; Xu, H. A Simple Turn-off Schiff Base Fluorescent Sensor for Copper (II) Ion and Its Application in Water Analysis. Molecules 2021, 26, 1233. [Google Scholar] [CrossRef] [PubMed]
  22. Mehta, R.; Kumar, S. ESIPT-based dual-emissive perimidine derivative as a rapid and sensitive sensor for Cu2+ and Al3+: Construction of memory device, 2-to-1 encoder and 1-to-2 decoder. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2023, 293, 122471. [Google Scholar] [CrossRef] [PubMed]
  23. Kim, J.K.; Bong, S.Y.; Park, R.; Park, J.; Jang, D.O. An ESIPT-based fluorescent turn-on probe with isothiocyanate for detecting hydrogen sulfide in environmental and biological systems. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2022, 278, 121333. [Google Scholar] [CrossRef] [PubMed]
  24. Pei, X.; Fang, Y.; Gu, H.; Zheng, S.; Bin, X.; Wang, F.; He, M.; Lu, S.; Chen, X. A turn-on fluorescent probe based on ESIPT and AIEE mechanisms for the detection of butyrylcholinesterase activity in living cells and in non-alcoholic fatty liver of zebrafish. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2023, 287, 122044. [Google Scholar] [CrossRef]
  25. Shen, Y.; Liu, X.; Zhang, X.; Zhang, Y.; Gu, B. Employing an ICT-ESIPT strategy for ratiometric tracking of HClO based on sulfide oxidation reaction. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2020, 239, 118515. [Google Scholar] [CrossRef]
  26. Das, M.K.; Mishra, T.; Guria, S.; Das, D.; Sadhukhan, J.; Sarker, S.; Dutta, K.; Adhikary, A.; Chattopadhyay, D.; Adhikari, S.S. Fluorometric detection of a chemical warfare agent mimic (DCP) using a simple hydroxybenzothiazole–diaminomaleonitrile based chemodosimeter. New J. Chem. 2023, 47, 250–257. [Google Scholar] [CrossRef]
  27. Zhao, J.; Jin, B.; Tang, Z. Solvent-polarity-dependent conformation and ESIPT behaviors for 2-(benzimidazol-2-yl)-3-hydroxychromone: A novel dynamical mechanism. Phys. Chem. Chem. Phys. 2022, 24, 27660–27669. [Google Scholar] [CrossRef]
  28. Shang, C.; Cao, Y.; Sun, C.; Li, Y. Tuning fluorescence behavior and ESIPT reaction of 2-(2-Hydroxy-phenyl)-4(3H)-quinazolinone by introducing different groups. J. Lumin. 2021, 235, 118059. [Google Scholar] [CrossRef]
  29. Zhang, Q.; Yang, Y.; Liu, Y. Theoretical insights into luminescence mechanism of Naphthyridine-based thermally activated delayed fluorescence emitter with aggregation-induced emission. Chem. Phys. Lett. 2023, 817, 140407. [Google Scholar] [CrossRef]
  30. Cao, Y.; Yu, X.; Sun, C.; Cui, J. Theoretical Investigation on the ESIPT Process and Detection Mechanism for Dual-Proton Type Fluorescent Probe. Int. J. Mol. Sci. 2022, 23, 2132. [Google Scholar] [CrossRef]
  31. Stasyuk, A.J.; Cyrański, M.K.; Gryko, D.T.; Solà, M. Acidic C–H bond as a proton donor in excited state intramolecular proton transfer reactions. J. Chem. Theory Comput. 2015, 11, 1046–1054. [Google Scholar] [CrossRef]
  32. Yang, Y.; Liu, Y.; Feng, B.; Zhang, H.; Qin, C.; Yu, K.; Jiang, K.; Liu, Y. Discerning the multi-color fluorescence in donor-π-acceptor molecules by femtosecond transient absorption spectroscopy. J. Lumin. 2022, 242, 118591. [Google Scholar] [CrossRef]
  33. Zhao, J.; Zhang, H.; Fan, L.; Li, F.; Song, P. Unveiling and regulating the solvent-polarity-associated excited state intramolecular double proton transfer behavior for 1-bis(benzothiazolyl)naphthalene-diol fluorophore. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2023, 299, 122831. [Google Scholar] [CrossRef]
  34. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H. Gaussian 16; Gaussian, Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  35. Li, M.; Li, X.; Feng, L.; Zhao, J.; Jin, B. Insights into photo-induced excited state behaviors for 2-[4-(Di-tert-butyl-amino)-phenyl]-5-(5-fluoro-benzooxazol-2-yl)-benzofuran-6-ol: Solvent effects. Chem. Phys. Lett. 2023, 825, 140607. [Google Scholar] [CrossRef]
  36. Haroon, M.; Janjua, M.R.S.A. Exploring the effect of end-capped modifications of carbazole-based fullerene-free acceptor molecules for high-performance indoor organic solar cell applications. J. Comput. Electron. 2022, 21, 40–51. [Google Scholar] [CrossRef]
  37. Zhao, J.; Jin, B. Solvent polarity dependent excited state hydrogen bond effects and intramolecular double proton transfer mechanism for 2-hydroxyphenyl-substituted benzo[1,2-d:4,5-d’]bisimidazole system. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2021, 250, 119394. [Google Scholar] [CrossRef] [PubMed]
  38. Jia, X.; Yang, Y.; Zhai, H.; Zhang, Q.; He, Y.; Liu, Y.; Liu, Y. The mechanisms of a bifunctional fluorescent probe for detecting fluoride and sulfite based on excited-state intramolecular proton transfer and intramolecular charge transfer. Struct. Dyn. 2021, 8, 034103. [Google Scholar] [CrossRef]
  39. Liu, S.; Qin, M.; Lu, Q.; Lin, L.; Wang, C.-K.; Fan, J.; Song, Y. Sensing mechanism of fluorescent sensor to Cu2+ based on inhibiting ultra-fast intramolecular proton transfer process. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2021, 254, 119685. [Google Scholar] [CrossRef] [PubMed]
  40. Lan, X.; Yang, D.; Sui, X.; Wang, D. Time-dependent density functional theory (TD-DFT) study on the excited-state intramolecular proton transfer (ESIPT) in 2-hydroxybenzoyl compounds: Significance of the intramolecular hydrogen bonding. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2012, 102, 281–285. [Google Scholar] [CrossRef] [PubMed]
  41. Li, C.; Li, D.; Ma, C.; Liu, Y. DFT-TDDFT investigation of excited-state intramolecular proton transfer in 2-(2′-hydroxyphenyl)benzimidazole derivatives: Effects of electron acceptor and donor groups. J. Mol. Liq. 2016, 224, 83–88. [Google Scholar] [CrossRef]
  42. Sun, C.; Su, X.; Zhou, Q.; Shi, Y. Regular tuning of the ESIPT reaction of 3-hydroxychromone-based derivatives by substitution of functional groups. Org. Chem. Front. 2019, 6, 3093–3100. [Google Scholar] [CrossRef]
  43. Nguyen, P.D.; Ding, F.; Fischer, S.A.; Liang, W.; Li, X. Solvated First-Principles Excited-State Charge-Transfer Dynamics with Time-Dependent Polarizable Continuum Model and Solvent Dielectric Relaxation. J. Phys. Chem. Lett. 2012, 3, 2898–2904. [Google Scholar] [CrossRef]
  44. Yin, H.; Li, B.; Zhao, X.; Liu, Y.; Shi, Y.; Ding, D. Restriction of intramolecular torsion induces abnormal blue-shifted fluorescence in the aggregate state. Dye. Pigment. 2022, 201, 110192. [Google Scholar] [CrossRef]
  45. Lu, T.; Chen, F. Multiwfn: A multifunctional wavefunction analyzer. J. Comput. Chem. 2012, 33, 580–592. [Google Scholar] [CrossRef]
  46. Johnson, E.R.; Keinan, S.; Mori-Sánchez, P.; Contreras-García, J.; Cohen, A.J.; Yang, W. Revealing Noncovalent Interactions. J. Am. Chem. Soc. 2010, 132, 6498–6506. [Google Scholar] [CrossRef]
  47. Humphrey, W.; Dalke, A.; Schulten, K. VMD: Visual molecular dynamics. J. Mol. Graph. 1996, 14, 33–38. [Google Scholar] [CrossRef]
Ijms 24 13899 sch001

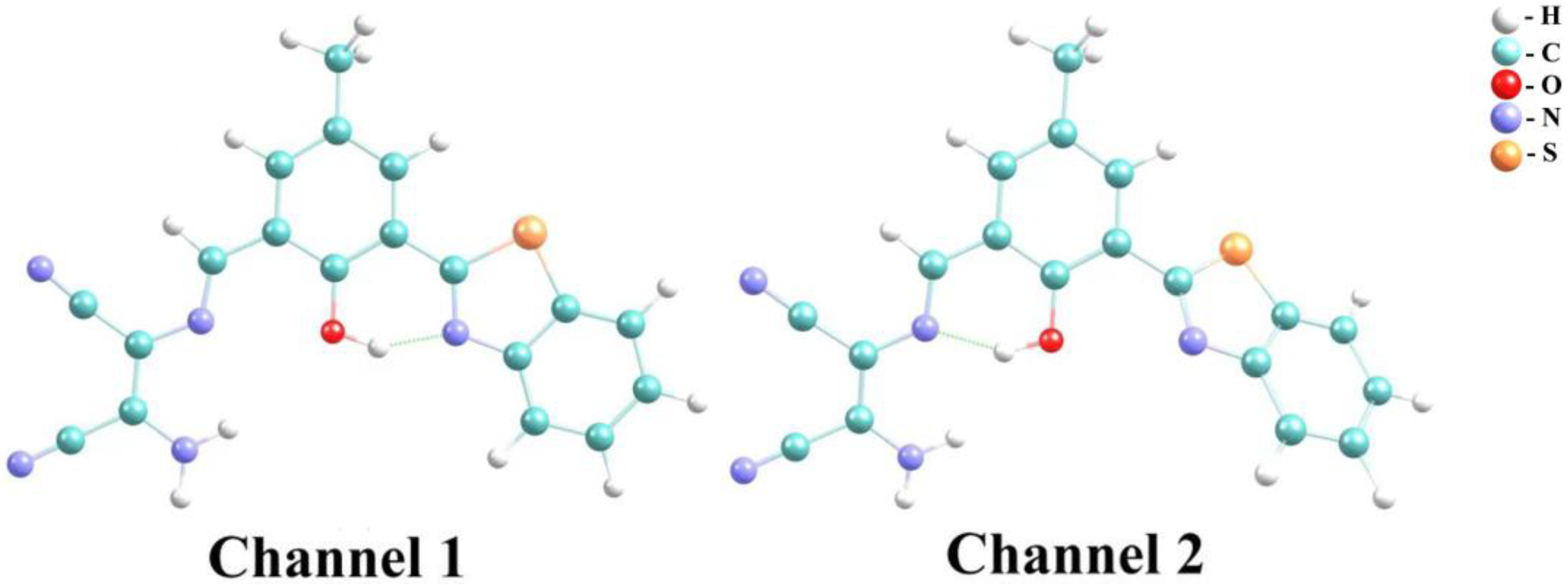

Scheme 1. Two different channels of BZ-DAM. (The dashed lines represent intramolecular hydrogen bonds).
Scheme 1. Two different channels of BZ-DAM. (The dashed lines represent intramolecular hydrogen bonds).
Ijms 24 13899 sch001
Ijms 24 13899 g001

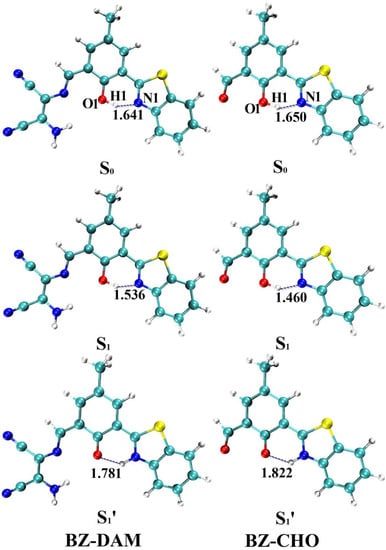

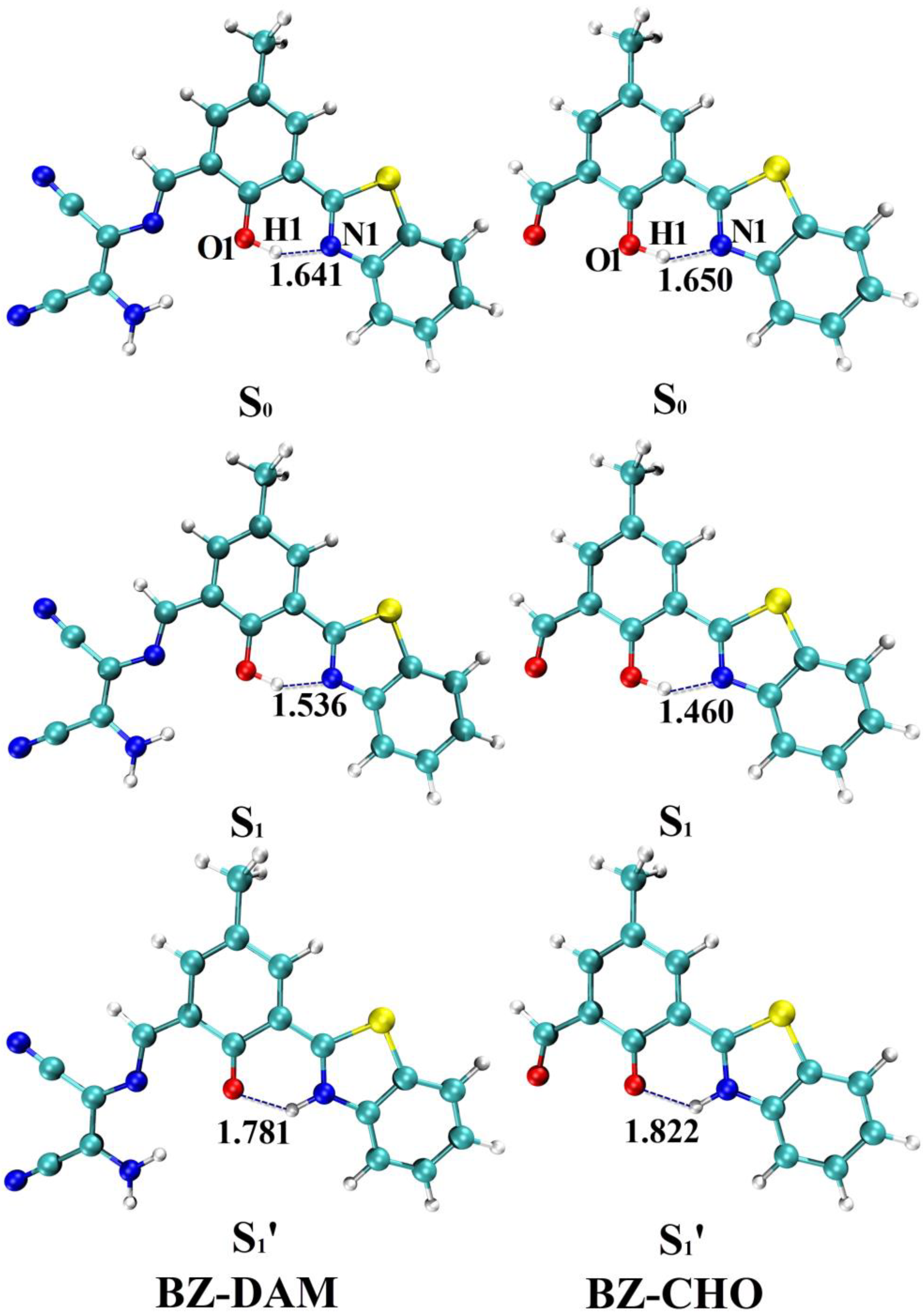

Figure 1. Optimized S0, S1 and S1′ configurations of BZ-DAM and BZ-CHO in channel 1 in ACN solvent.
Figure 1. Optimized S0, S1 and S1′ configurations of BZ-DAM and BZ-CHO in channel 1 in ACN solvent.
Ijms 24 13899 g001
Ijms 24 13899 g002

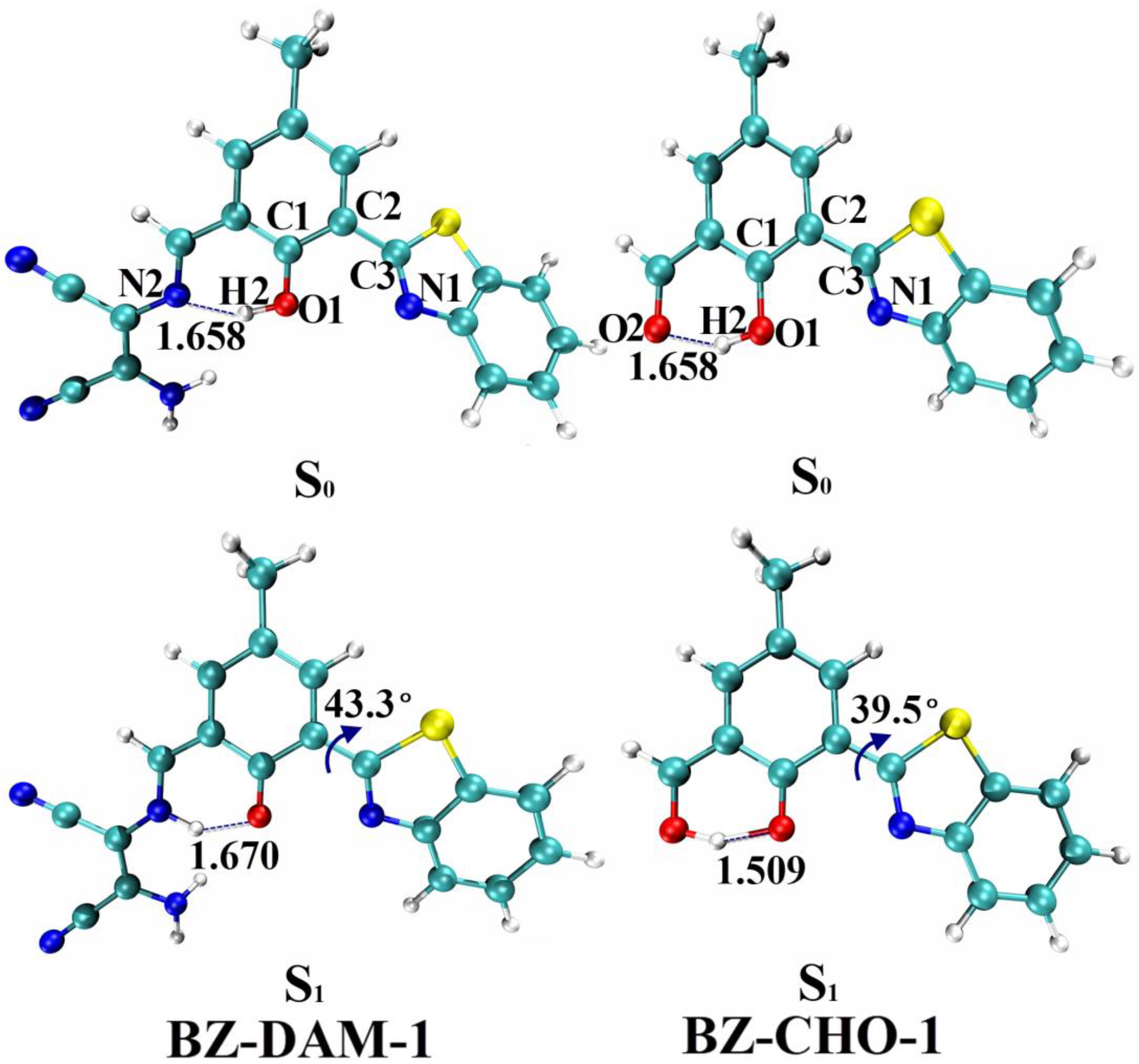

Figure 2. Optimized S0 and S1 configurations of BZ-DAM and BZ-CHO in channel 2 in ACN solvent.
Figure 2. Optimized S0 and S1 configurations of BZ-DAM and BZ-CHO in channel 2 in ACN solvent.
Ijms 24 13899 g002
Ijms 24 13899 g003

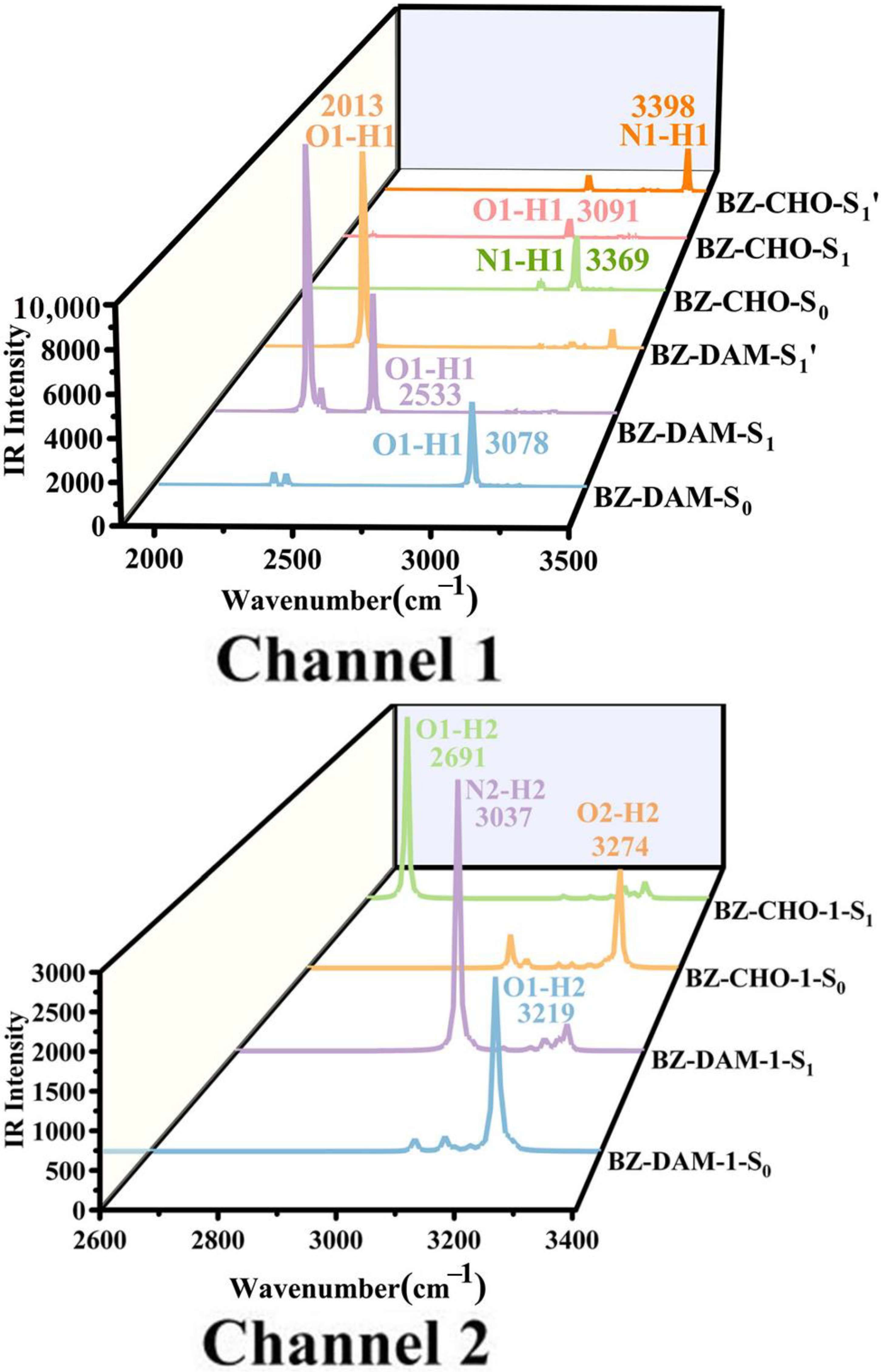

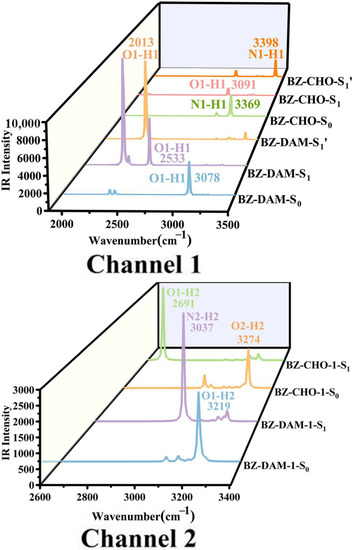

Figure 3. The calculated IR vibration spectra of BZ-DAM and BZ-CHO in the different channels.
Figure 3. The calculated IR vibration spectra of BZ-DAM and BZ-CHO in the different channels.
Ijms 24 13899 g003
Ijms 24 13899 g004

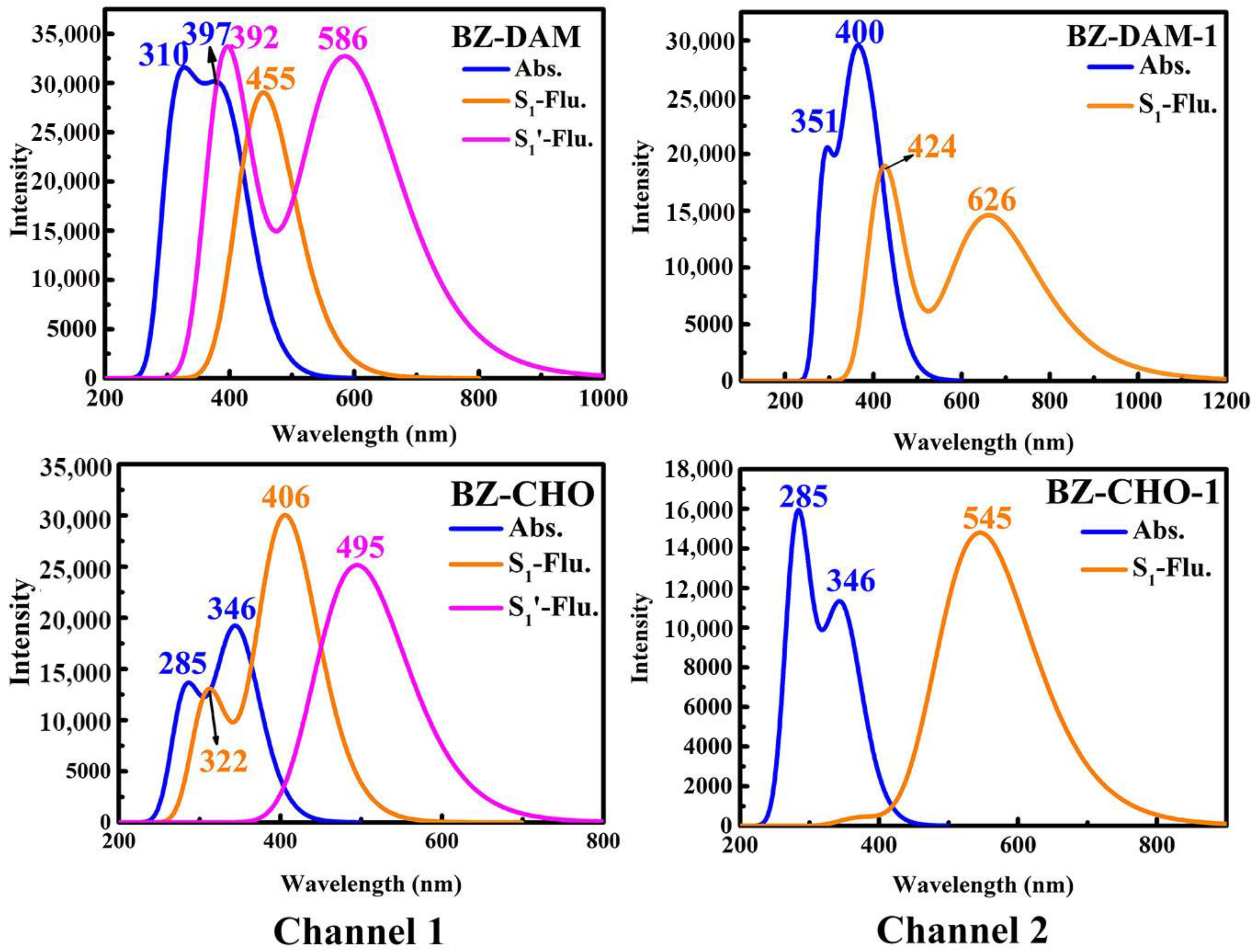

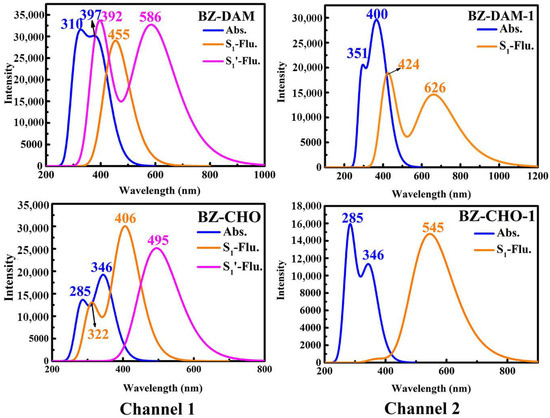

Figure 4. Absorption and fluorescence spectra of BZ-DAM and BZ-CHO in two channels.
Figure 4. Absorption and fluorescence spectra of BZ-DAM and BZ-CHO in two channels.
Ijms 24 13899 g004
Ijms 24 13899 g005

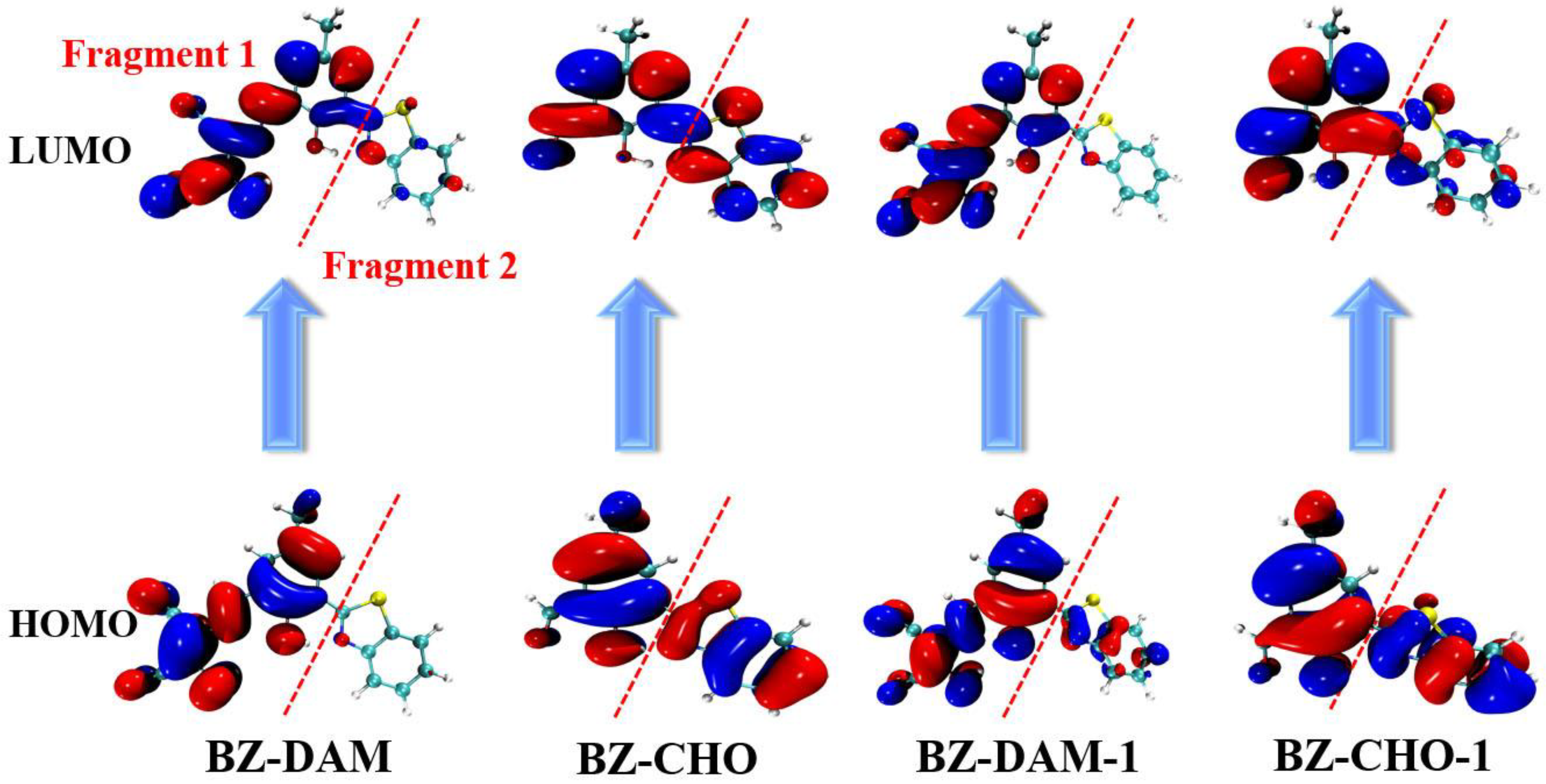

Figure 5. Calculated electron density component of Fragment 1 and Fragment 2 in HOMO and LUMO based on the Hirshfeld method.
Figure 5. Calculated electron density component of Fragment 1 and Fragment 2 in HOMO and LUMO based on the Hirshfeld method.
Ijms 24 13899 g005
Ijms 24 13899 g006

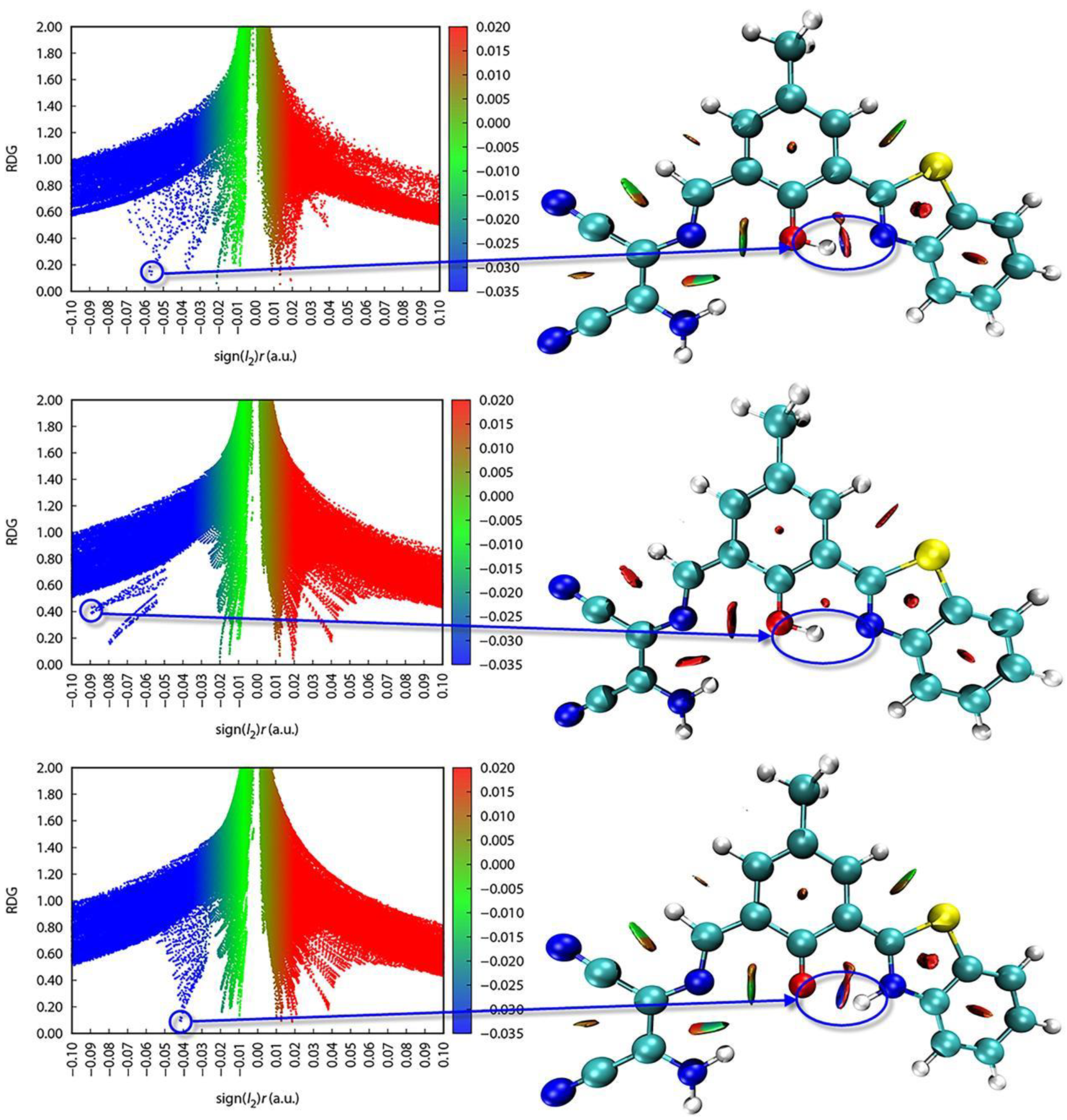

Figure 6. RDG versus Sign(λ2) ρ(r) scatter plots of BZ-DAM in channel 1 in the S0, S1, and S1′ states.
Figure 6. RDG versus Sign(λ2) ρ(r) scatter plots of BZ-DAM in channel 1 in the S0, S1, and S1′ states.
Ijms 24 13899 g006
Ijms 24 13899 g007

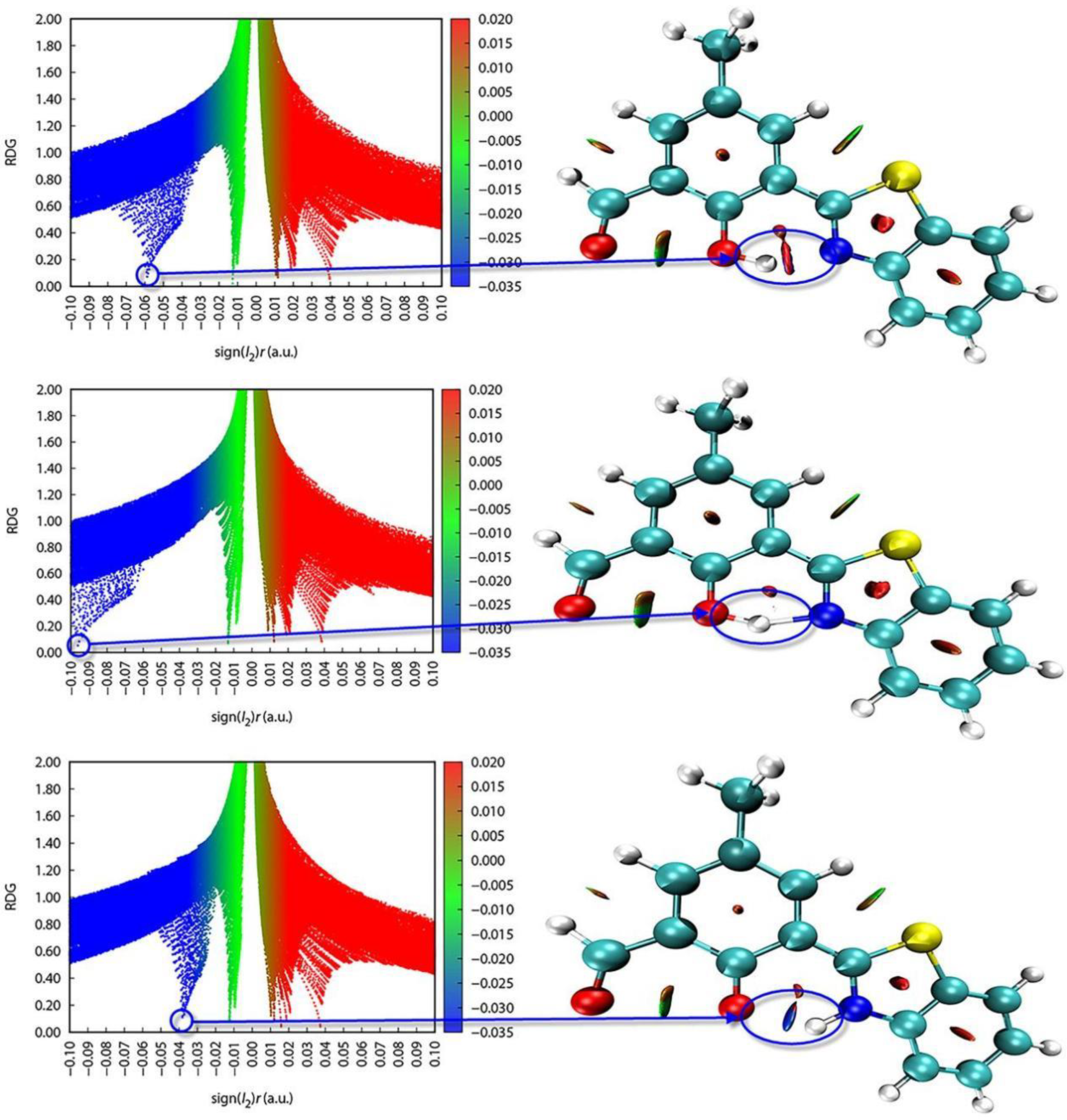

Figure 7. RDG versus Sign(λ2) ρ(r) scatter plots of BZ-CHO in channel 1 in the S0, S1 and S1′ states.
Figure 7. RDG versus Sign(λ2) ρ(r) scatter plots of BZ-CHO in channel 1 in the S0, S1 and S1′ states.
Ijms 24 13899 g007
Ijms 24 13899 g008

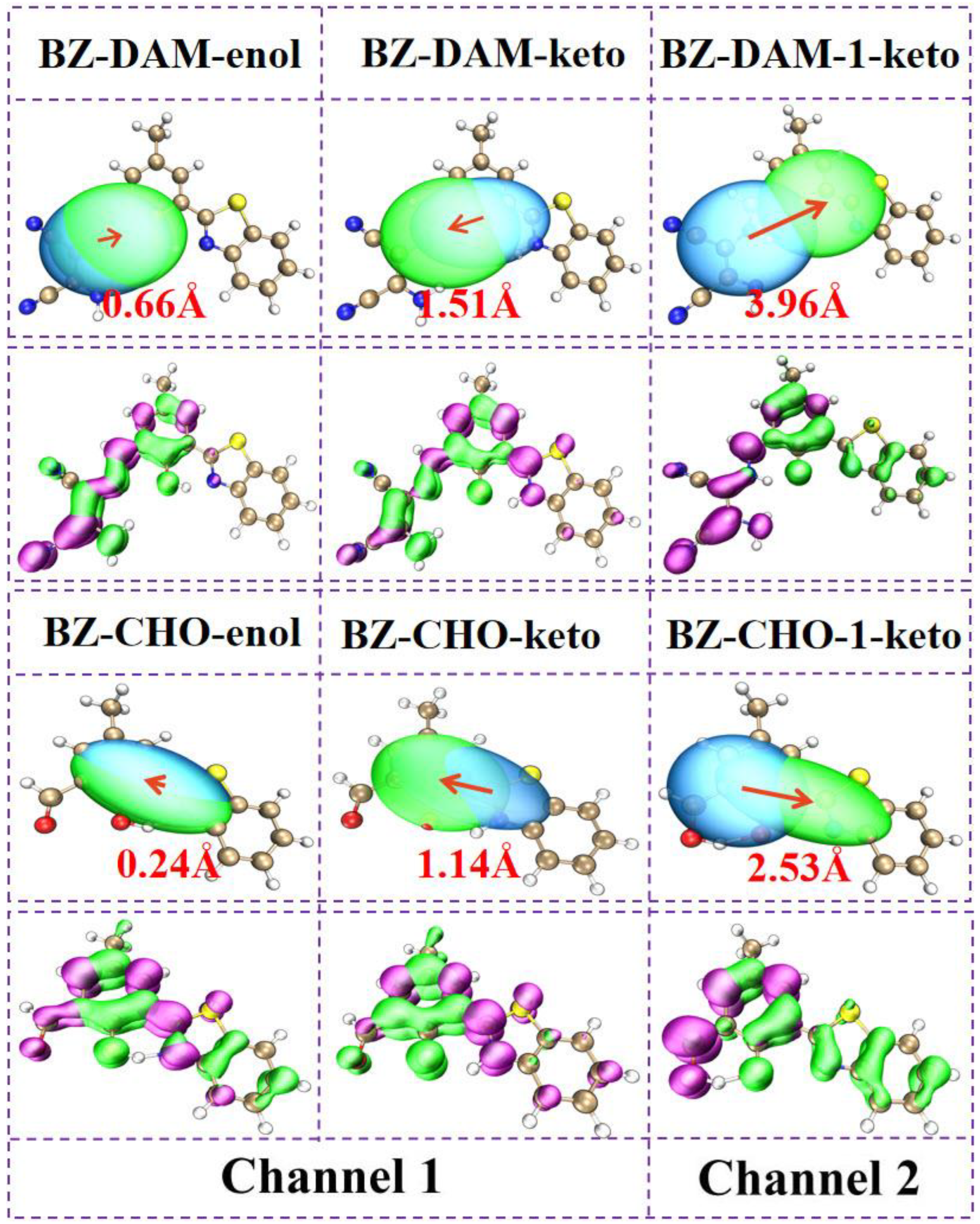

Figure 8. The Cele(r) (green) and Chole(r) (blue) functions iso-surfaces as well as the hole-electron distribution (hole: purple, electron: green) for BZ-DAM and BZ-CHO.
Figure 8. The Cele(r) (green) and Chole(r) (blue) functions iso-surfaces as well as the hole-electron distribution (hole: purple, electron: green) for BZ-DAM and BZ-CHO.
Ijms 24 13899 g008
Ijms 24 13899 g009

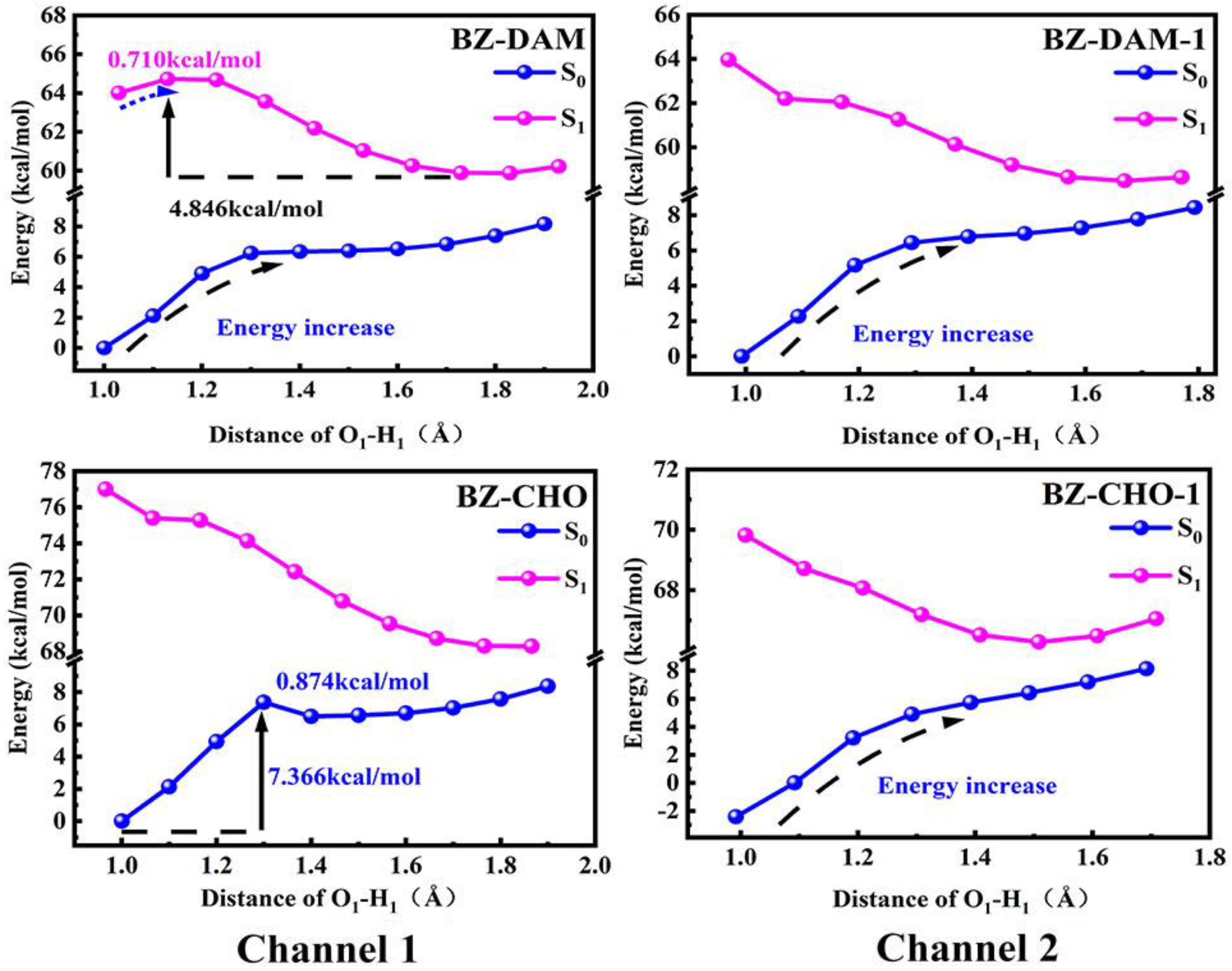

Figure 9. The PECs of BZ-DAM and BZ-CHO in the S0 and S1 states.
Figure 9. The PECs of BZ-DAM and BZ-CHO in the S0 and S1 states.
Ijms 24 13899 g009
Ijms 24 13899 g010

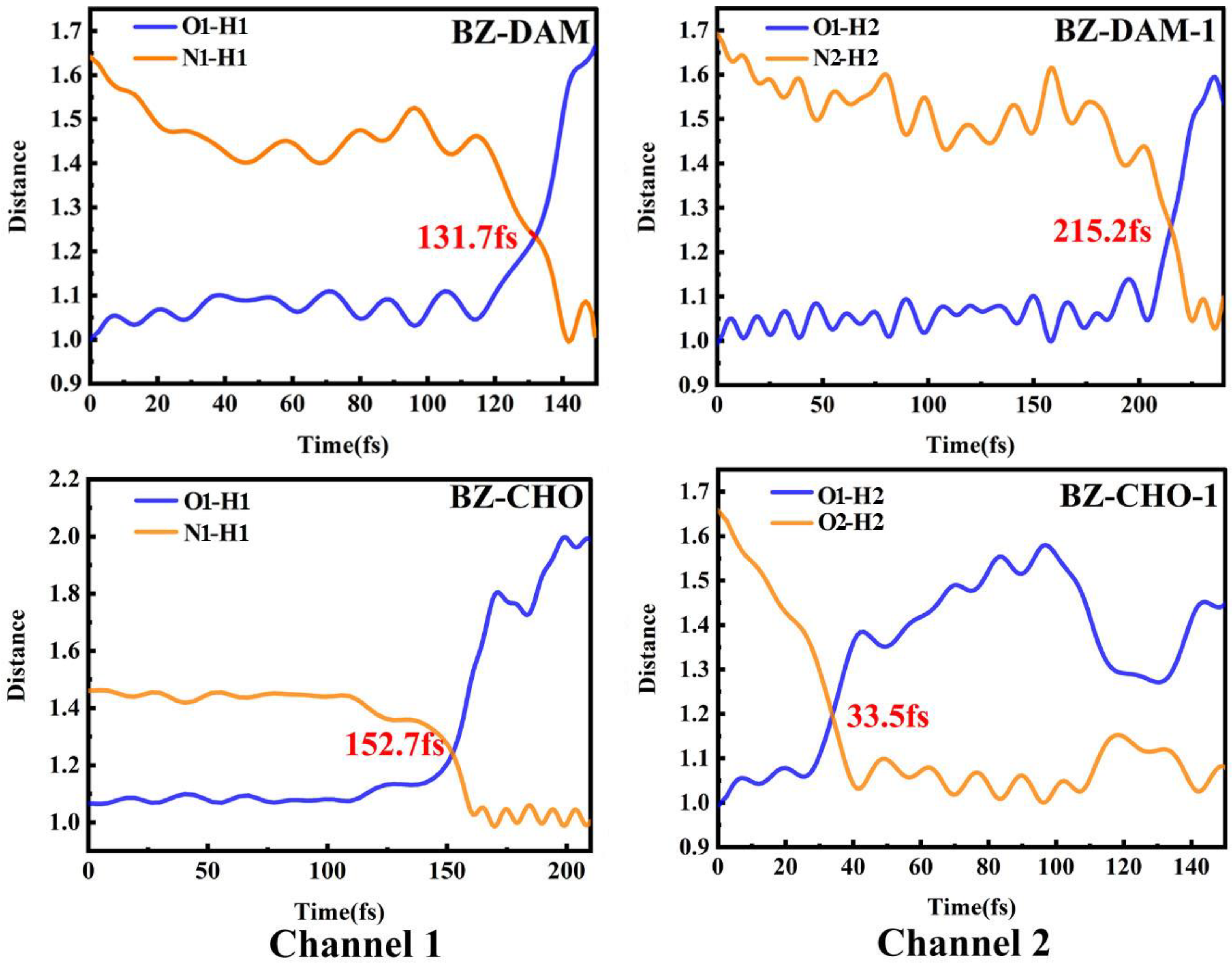

Figure 10. The important bond lengths with time evolution in 300 K.
Figure 10. The important bond lengths with time evolution in 300 K.
Ijms 24 13899 g010
Ijms 24 13899 g011

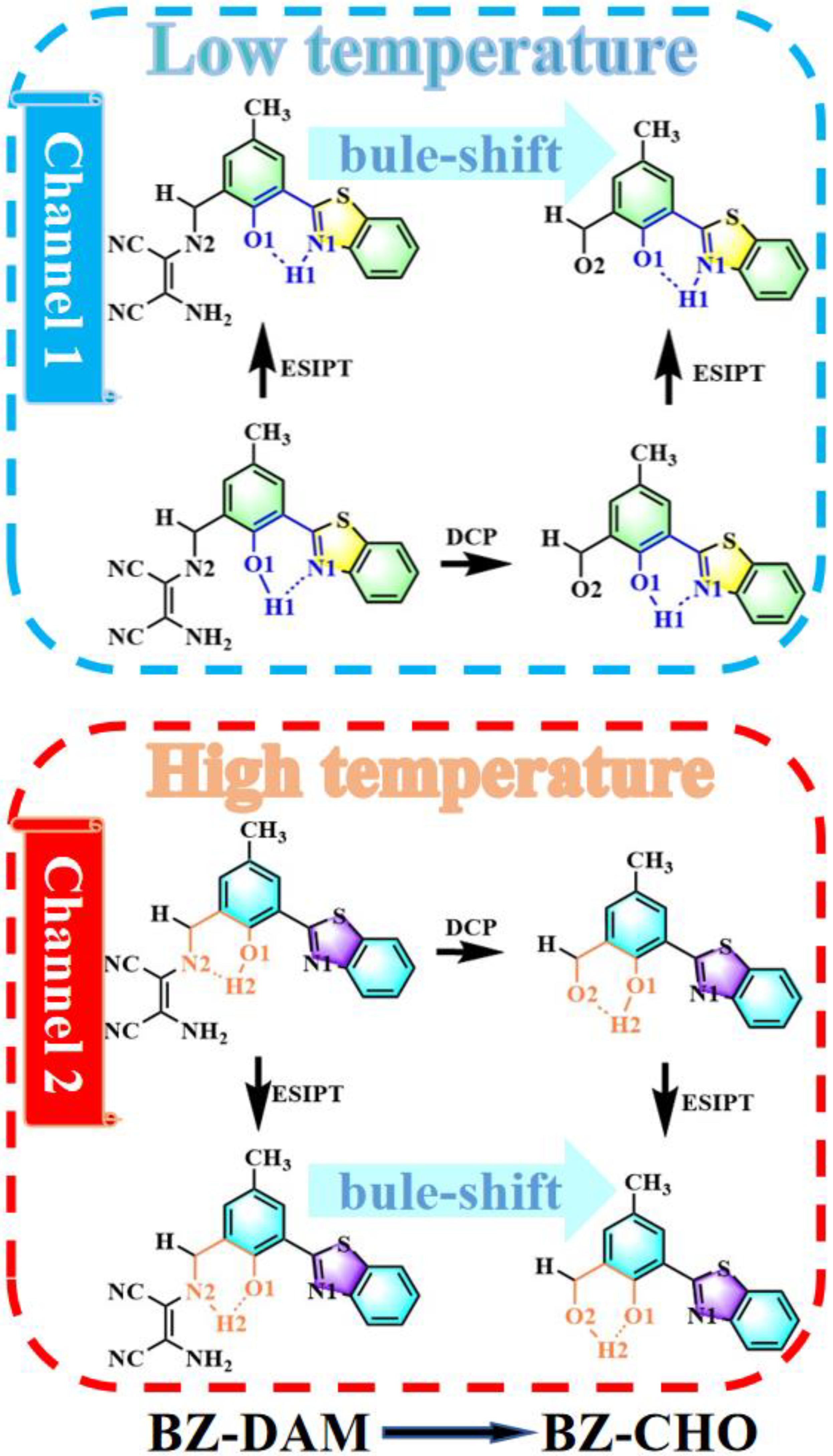

Figure 11. Detection mechanism diagram of BZ-DAM and BZ-CHO.
Figure 11. Detection mechanism diagram of BZ-DAM and BZ-CHO.
Ijms 24 13899 g011
Table 1. Calculated bond lengths (Å) and bond angles (°) of BZ-DAM and BZ-CHO in the different electronic states.
Table 1. Calculated bond lengths (Å) and bond angles (°) of BZ-DAM and BZ-CHO in the different electronic states.
BZ-DAMBZ-CHO
S0   S1   S1′S0   S1   S1′
O1-H11.001  1.030  1.7811.000  1.066  1.822
N1-H1 1.641  1.536  1.0261.650  1.460  1.025
σ(O1-H1-N1)150.06   151.75   132.25149.67   153.14   131.12
σ(C1-C2-C3-N1)0.01   0.00   −0.020.02   0.01   0.09
BZ-DAM-1BZ-CHO-1
S0   S1S0   S1
N2-H21.658  1.047-   -
O1-H20.992  1.6700.992  1.509
O2-H2-   -1.658  1.028
σ(O1-H2-O2)150.37   141.03150.37   153.69
σ(C1-C2-C3-N1)−34.78  8.4835.83  −3.68
Table 2. The optimized percentage of BZ-DAM and BZ-CHO molecules at different temperatures in the S0 state in ACN solvent based on the Boltzmann distribution.
Table 2. The optimized percentage of BZ-DAM and BZ-CHO molecules at different temperatures in the S0 state in ACN solvent based on the Boltzmann distribution.
BZ-DAMBZ-DAM-1BZ-CHOBZ-CHO-1
300 K98.09%1.91%88.38%11.62%
400 K90.26%9.74%76.78%23.22%
500 K75.84%24.16%66.43%33.57%
600 K59.15%40.85%57.90%42.10%
700 K44.54%55.46%51.06%48.94%
800 K33.44%66.56%45.61%54.39%
900 K25.39%74.61%41.22%58.78%
1000 K19.75%80.25%37.64%62.36%
2000 K4.02%95.98%21.26%75.74%
3000 K1.78%98.22%15.72%84.28%
4000 K1.04%98.96%12.40%87.60%
5000 K0.70%99.30%11.05%88.95%
Table 3. Calculated fluorescence peaks, oscillator strength (f), lifetimes and rates of BZ-DAM and BZ-CHO in ACN.
Table 3. Calculated fluorescence peaks, oscillator strength (f), lifetimes and rates of BZ-DAM and BZ-CHO in ACN.
Stateλflu (nm)fLifetime (ns)Rate (s−1)
channel 1BZ-DAMS1454.520.71664.322.31 × 108
BZ-DAMS1′585.870.80406.401.56 × 108
BZ-CHOS1406.260.74003.342.99 × 108
BZ-CHOS1′309.680.44933.203.13 × 108
channel 2BZ-DAM-1S1662.120.360018.255.48 × 107
BZ-CHO-1S1545.260.365212.238.18 × 107
Table 4. The contributions of fragment 1 and fragment 2 to FMOs.
Table 4. The contributions of fragment 1 and fragment 2 to FMOs.
Fragment 1Fragment 2ΔO1N1O2N2
BZ-DAMHOMO95.884.1291.766.400.37--
LUMO92.637.37-0.541.39--
BZ-CHOHOMO65.8734.1331.7411.794.47--
LUMO59.9640.04-0.228.52--
BZ-DAM-1HOMO92.857.1585.709.23--6.19
LUMO97.812.19-1.48--6.86
BZ-CHO-1HOMO60.7039.3021.4010.48-0.77-
LUMO75.0824.92-1.55-14.85-
Table 5. Calculated absorption peak (nm) of BZ-DAM utilizing five different functionals. (Exp. is the experimental value).
Table 5. Calculated absorption peak (nm) of BZ-DAM utilizing five different functionals. (Exp. is the experimental value).
B3LYPCAM-B3LYPM06-2XMPW1PW91MN15PBEExp.
λabs323,414308,352306,350310,397322,369419,520311,400
Table 6. Calculated electron density at the bond critical point ρ(r) and hydrogen bond binding energy EHB (kcal/mol) of BZ-DAM and BZ-CHO. ρ(r): Density of all electrons. V(r): Potential energy density. G(r): Lagrangian kinetic energy. K(r): Hamiltonian kinetic energy. EHB: Hydrogen bonding energy based on EHB = −223.08*ρ(r) + 0.7423.
Table 6. Calculated electron density at the bond critical point ρ(r) and hydrogen bond binding energy EHB (kcal/mol) of BZ-DAM and BZ-CHO. ρ(r): Density of all electrons. V(r): Potential energy density. G(r): Lagrangian kinetic energy. K(r): Hamiltonian kinetic energy. EHB: Hydrogen bonding energy based on EHB = −223.08*ρ(r) + 0.7423.
ρ(r)V(r)G(r)K(r)EHB
BZ-DAM0.06040−0.050270.041520.00875−12.732
BZ-DAM0.07882−0.075330.052800.02253−16.841
BZ-DAM0.04169−0.033080.031900.00118−8.558
BZ-CHO0.05920−0.048720.040610.00812−12.464
BZ-CHO0.09611−0.102870.060950.04193−20.698
BZ-CHO0.03832−0.030150.029030.00112−7.806
BZ-DAM-10.01180−0.008980.00974−0.00076−1.890
BZ-DAM-10.05359−0.043430.039880.03550−11.213
BZ-CHO-10.05278−0.043910.040650.00326−11.032
BZ-CHO-10.01438−0.010880.01135−0.00047−2.466
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Gao, J.; Zhang, Y.; Mu, H.; Yang, M.; Guan, X.; Jin, G.; Li, H. Paying Comprehensive Attention to the Temperature-Dependent Dual-Channel Excited-State Intramolecular Proton Transfer Mechanism of Fluorescence Ratio Probe BZ-DAM. Int. J. Mol. Sci. 2023, 24, 13899. https://doi.org/10.3390/ijms241813899

AMA Style

Gao J, Zhang Y, Mu H, Yang M, Guan X, Jin G, Li H. Paying Comprehensive Attention to the Temperature-Dependent Dual-Channel Excited-State Intramolecular Proton Transfer Mechanism of Fluorescence Ratio Probe BZ-DAM. International Journal of Molecular Sciences. 2023; 24(18):13899. https://doi.org/10.3390/ijms241813899

Chicago/Turabian Style

Gao, Jiaan, Yifu Zhang, Hongyan Mu, Min Yang, Xiaotong Guan, Guangyong Jin, and Hui Li. 2023. "Paying Comprehensive Attention to the Temperature-Dependent Dual-Channel Excited-State Intramolecular Proton Transfer Mechanism of Fluorescence Ratio Probe BZ-DAM" International Journal of Molecular Sciences 24, no. 18: 13899. https://doi.org/10.3390/ijms241813899

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
