Retrovirus-Derived RTL9 Plays an Important Role in Innate Antifungal Immunity in the Eutherian Brain

by
Fumitoshi Ishino
1,*,†,
Johbu Itoh
2,‡,
Masahito Irie
1,3,§,
Ayumi Matsuzawa
1,4,
Mie Naruse
1,
Toru Suzuki
5,
Yuichi Hiraoka
5,6 and
Tomoko Kaneko-Ishino
3,*
1
Department of Epigenetics, Medical Research Institute (MRI), Tokyo Medical and Dental University (TMDU), Tokyo 113-8510, Japan
2
Department of Pathology, School of Medicine, Tokai University, Isehara 259-1193, Japan
3
Faculty of Nursing, School of Medicine, Tokai University, Isehara 259-1193, Japan
4
Department of Genomic Function and Diversity, Medical Research Institute (MRI), Tokyo Medical and Dental University (TMDU), Tokyo 113-8510, Japan
5
Laboratory of Genome Editing for Biomedical Research, Medical Research Institute (MRI), Tokyo Medical and Dental University (TMDU), Tokyo 113-8510, Japan
6
Laboratory of Molecular Neuroscience, Medical Research Institute (MRI), Tokyo Medical and Dental University (TMDU), Tokyo 113-8510, Japan
*
Authors to whom correspondence should be addressed.
†
Current address: Institute of Research, Tokyo Medical and Dental University (TMDU), Tokyo 113-8510, Japan.
‡
Current address: Department of Neurology, School of Medicine, Tokai University, Isehara 259-1193, Japan.
§
Current address: Nonprofit Organization Gene Information Bank, Fukuoka 810-0041, Japan.
Int. J. Mol. Sci. 2023, 24(19), 14884; https://doi.org/10.3390/ijms241914884
Submission received: 16 August 2023 / Revised: 25 September 2023 / Accepted: 26 September 2023 / Published: 4 October 2023
(This article belongs to the Special Issue Molecular Research on Human Retrovirus Infection)
Browse Figures
Review Reports Versions Notes

Abstract

:
Retrotransposon Gag-like (RTL) genes play a variety of essential and important roles in the eutherian placenta and brain. It has recently been demonstrated that RTL5 and RTL6 (also known as sushi-ichi retrotransposon homolog 8 (SIRH8) and SIRH3) are microglial genes that play important roles in the brain’s innate immunity against viruses and bacteria through their removal of double-stranded RNA and lipopolysaccharide, respectively. In this work, we addressed the function of RTL9 (also known as SIRH10). Using knock-in mice that produce RTL9-mCherry fusion protein, we examined RTL9 expression in the brain and its reaction to fungal zymosan. Here, we demonstrate that RTL9 plays an important role, degrading zymosan in the brain. The RTL9 protein is localized in the microglial lysosomes where incorporated zymosan is digested. Furthermore, in Rtl9 knockout mice expressing RTL9ΔC protein lacking the C-terminus retroviral GAG-like region, the zymosan degrading activity was lost. Thus, RTL9 is essentially engaged in this reaction, presumably via its GAG-like region. Together with our previous study, this result highlights the importance of three retrovirus-derived microglial RTL genes as eutherian-specific constituents of the current brain innate immune system: RTL9, RTL5 and RTL6, responding to fungi, viruses and bacteria, respectively.

1. Introduction

Retrotransposon Gag-like (RTL, also known as sushi-ichi retrotransposon homolog (SIRH)) genes are eutherian-specific except for therian-specific Paternally expressed 10 (PEG10) [1,2,3,4,5]; comparative genome analyses have provided convincing evidence that PEG10 emerged in a therian common ancestor while others are conserved exclusively in eutherians [5,6,7], indicating that they are presumably derived from an extinct retrovirus similar to the sushi-ichi retrotransposon. This view is supported by the evidence that the gypsy retrotransposon to which the sushi-ichi retrotransposon belongs is an infectious retrovirus of Drosophila melanogaster, possessing an ENV-like gene in addition to GAG and POL [8,9].
Among the 11 RTL genes, PEG10 [1,2], RTL1 (also known as PEG11) [10,11] and Leucine zipper down-regulated in cancer 1 (LDOC1, also known as SIRH7 and RTL7) [12,13,14] play essential but different roles in the placenta while RTL4 (also known as SIRH11 and Zinc finger CCHC domain-containing 16 (ZCCHC16)) plays an important role in controlling impulsivity in the brain [14,15] and is recognized as a causative gene in autism spectrum disorders [16]. Moreover, RTL1 plays important roles in the muscle and brain and is considered to be one of the major genes responsible for Kagami–Ogata and Temple syndromes [11,14,17,18,19,20].
We have recently demonstrated that RTL5 (also known as SIRH8) and RTL6 (also known as SIRH3) are microglial genes playing important roles in the brain’s innate immunity against viruses and bacteria by their removal of double-stranded (ds)RNA and lipopolysaccharide (LPS), respectively [14,21]. Microglia are the primary immune cells in the brain, playing a central role in the innate immune responses to various pathogens via a variety of Toll-like receptors (TLRs) that induce inflammation via regulation of cytokine and interferon expression [22,23]. It is well known that the TLR system is widely conserved in the animal kingdom from worms to mammals [24], while RTL5 and RTL6 are apparently novel constituents of the eutherian innate immune system [14,21].
Innate antifungal immunity is another important survival mechanism of organisms in addition to those against bacteria and viruses. Over the past few decades, the incidence of invasive opportunistic fungal infections has increased substantially, and antifungal drug resistance has also increased [25,26,27,28,29]. Fungal diseases are associated with increased morbidity and mortality, particularly in immunocompromised individuals. Therefore, research focused on understanding the molecular and cellular basis of antifungal immunity has expanded dramatically in recent years [25,26,27,28,29,30,31]. Zymosan is frequently used to experimentally induce an inflammatory reaction, as it mimics fungal infection. It is a component of the yeast cell wall that consists of protein–carbohydrate complexes, such as glucans, mannans, proteins, chitins and glycolipids. It is recognized by several cell surface receptors, such as TLR2, TLR6 and Dectin-1, becomes incorporated into phagosomes and is ultimately degraded in the phagolysosomes present in macrophages/microglia [30,31,32,33].
Phagocytes, including macrophages/microglia, play a central role in antifungal immunity using a variety of oxidative and non-oxidative mechanisms that work synergistically to kill extracellular and internalized fungi by producing reactive oxygen intermediates and/or hydrogen peroxide, such as hypochlorous acid and hypoiodous acid in the former activity and antibacterial peptides and hydrolases in the latter [30,31]. Lysosomes are organelles in animal cells that act as degradation centers for a variety of biomolecules, including carbohydrates, proteins, lipids and nucleotides, with various hydrolytic enzymes functioning in an acidic environment (pH 4.5–5.0) [34,35].
RTL9 (also known as SIRH10 or Retrotransposon GAG domain containing 1 (RGAG1)) is another RTL gene that is highly conserved in eutherians, but the biological function of which has remained undetermined. In this report, we show that the RTL9 protein localizes in microglial lysosomes and plays an essential role in the degradation of fungal zymosan. Thus, it turns out that eutherians came to possess at least three eutherian-specific pathways against fungi, viruses and bacteria as a result of the respective acquisition of RTL9, RTL5 and RTL6 in the innate immune system of the brain.

2. Results

2.1. RTL9 Is Conserved in Eutherians

RTL9 encodes a large protein comprising 1347 amino acids (aa) and is evolutionarily conserved in eutherians (dN/dS < 1) (Table 1 and Figure S1), suggesting it confers certain evolutionary advantage(s).
Like the other RTL genes, RTL9 exhibits homology to the sushi-ichi retrotransposon GAG, but is unique in that it further exhibits homology to two herpes virus-like sequences, the outer envelope glycoprotein BLLF1 (super family member pfam05109, the gray box in the figure corresponding to 280–594 aa) and the large tegument protein UL36 (super family member pha03247, the orange box corresponding to 787–1141 aa) (Figure 1a, Figures S1 and S2). The BLLF1 and UL36 proteins have several functional motifs and domains, but there are no such functional sequences present in RTL9 (Figures S3 and S4, see also the Section 3). More detailed homology analysis has indicated that sushi-ichi GAG in fact exhibits a high degree of homology with a widespread region, including the capsid domain (the blue box corresponding to 1169–1250 aa) (Figure 1a). One such region is the one corresponding to 1148–1367 aa, from just before the capsid region to the end of RTL9 (the minimal GAG-like region, the red dashed box in Figure 1a, identity 25.5%, similarity 43.1%) (Figure S5) with another being the region from 927 to 1367 aa (the maximal GAG-like region indicated by the red double-headed arrow in Figure 1a, identity 21.8%, similarity 35.7%) corresponding to the entire GAG sequence (Figure S6). Thus, it remains ambiguous whether the 927–1148 aa portion originated from UL36 or GAG. In any event, information from the protein sequence alone is not sufficient to infer the biological function of the RTL9 protein.
Rtl9 mRNA expression was very weak, detected only in the brain, lung, skeletal muscle and uterus after 32 PCR cycles, and was almost absent from most tissues and organs at 19 weeks (19 w) in adult mice (Figure 1b). Similar results were reported for human RTL9 (GTEx Portal site, searched as RGAG1): low expression in the brain, heart and ovary in addition to a relatively higher expression in the testis (Figure S7). Therefore, for the in vivo detection of RTL9, we generated an Rtl9-mCherry knock-in (KI) mouse that expresses the RTL9-mCherry (RTL9CmC) protein fused with a fluorescent mCherry protein after the C-terminus of endogenous RTL9 (Figure 1c, top and Figure S8). We also generated an Rtl9ΔC mouse (hereafter called the Rtl9 KO mouse) that produces RTL9 with a truncated C-terminus (922–1367 aa, the maximal GAG-like region, Figure 1a and Figure S9) to elucidate the function of RTL9, especially of its C-terminal GAG-like region and potentially including the last portion of the UL36-like region (927–1145 aa).

2.2. RTL9 Localizes in Microglial Lysosomes

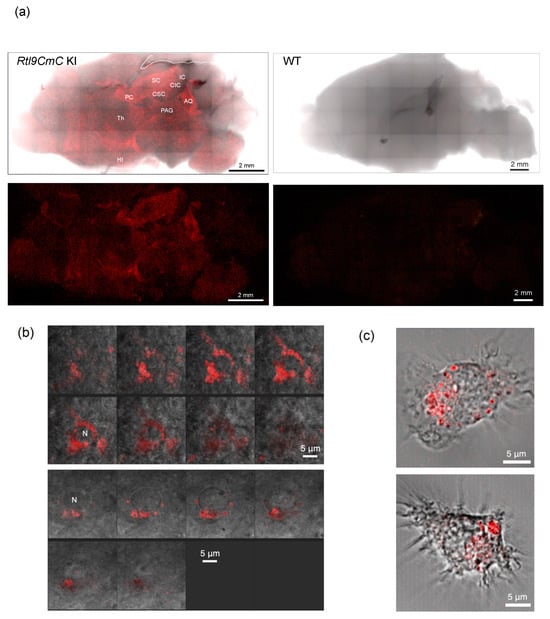

The RTL9CmC protein is highly expressed in microglial lysosomes in the neonatal brain. Using Rtl9-CmCherry KI mice, we detected the mCherry signal in the midbrain and around the thalamus in postnatal day 0–15 (P0–15) neonates in regions such as the superior colliculus (SC), cerebral aqueduct (AQ), periaqueductal gray (PAG) matter, posterior commissure (PC) and the commissures of the superior and inferior colliculus (CSC and CIC) (Figure 2a, left). The mCherry signal was specific to the Rtl9-CmCherry in the KI brain and almost negligible in the control WT brain (Figure 2a, right), confirming that the mCherry signal correctly reflects the localization of the RTL9CmC protein. Its expression profile remained almost the same until 3~4 weeks of age when the signal strength progressively diminished, and this trend continued up to the adult period.

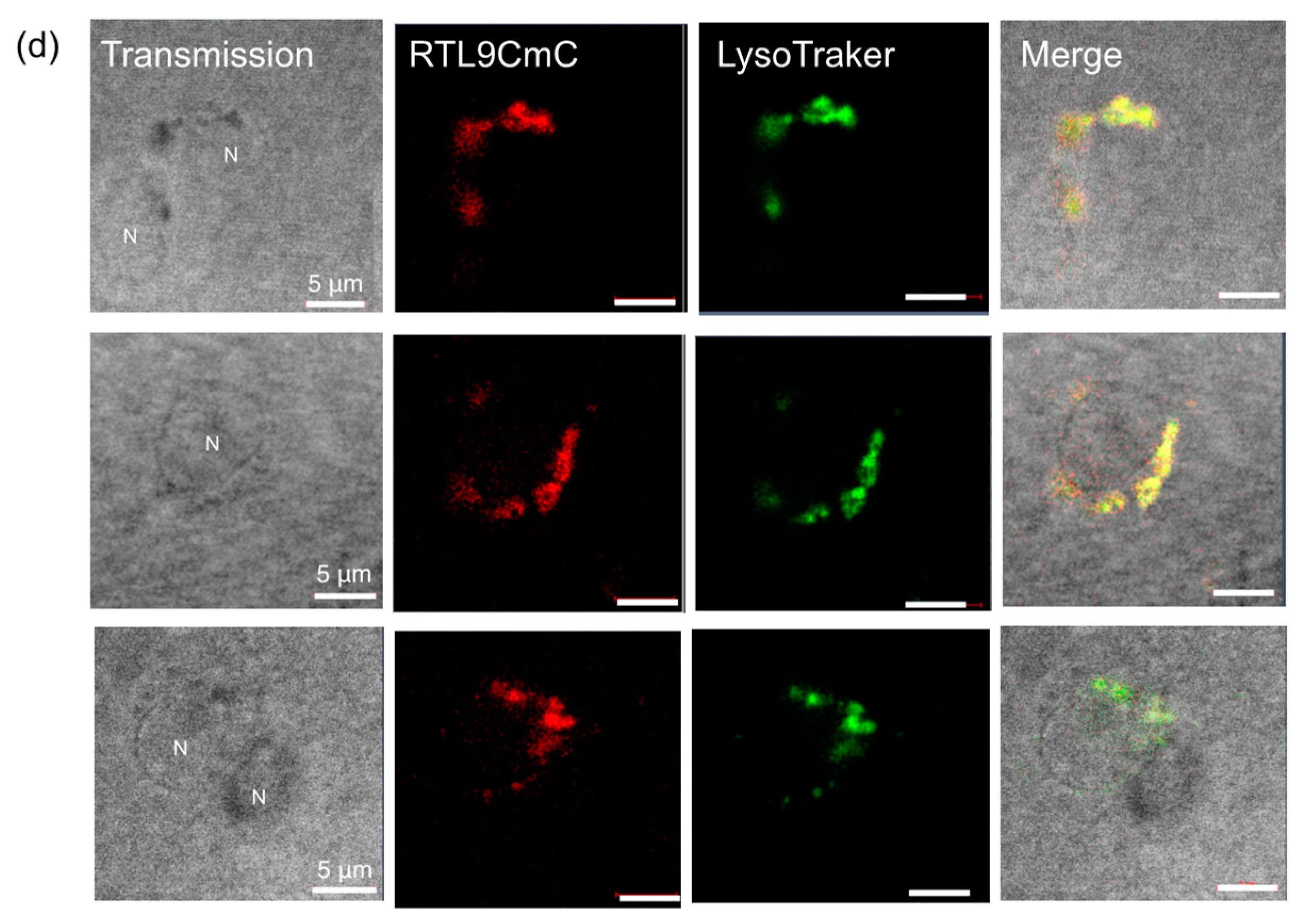

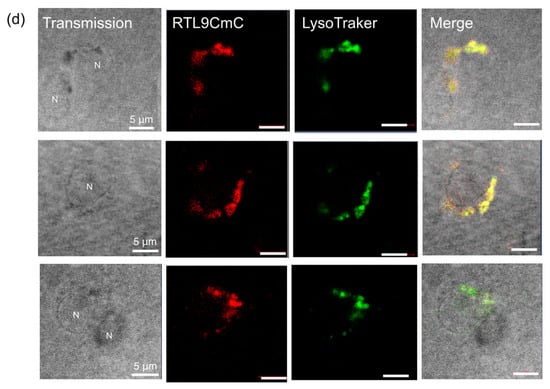

On higher magnification, the signals were detected in a number of small granules (approximately 1 μm diameter or less) that accumulated near the nucleus in round cells (Figure 2b). We confirmed that these RTL9-expressing cells are microglia because the RTL9CmC protein was detected in similar granules in the isolated microglia cells cultured from P0 neonates (Figure 2c and Figure S10) [36]. In addition, we identified the RTL9-expressing lysosome granules using the lysosome-specific marker, LysoTracker Red NDN99 (Figure 2d). Thus, it turned out that the RTL9CmC protein localizes in the microglial lysosomes in the brain.

2.3. Involvement of RTL9 in Brain Innate Immunity against Fungi

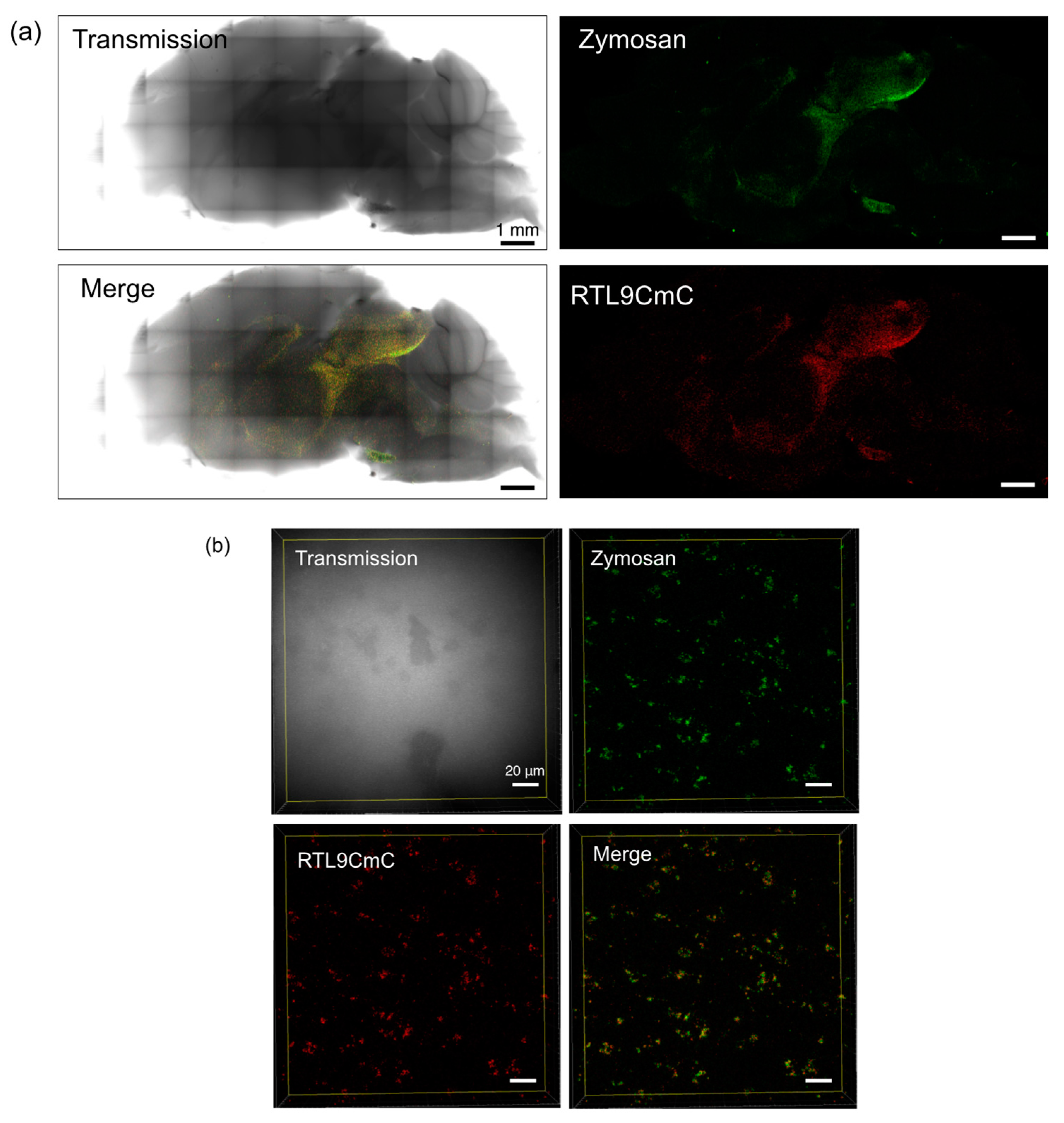

Upon fungal zymosan injection to the brain, RTL9 colocalizes with the incorporated zymosan in microglial lysosomes and promotes its degradation. We reasoned that RTL9 must be functional in brain innate immunity like RTL5 and RTL6 because it also exhibits microglial expression. The RTL5 and RTL6 proteins in the secretory granules of microglia are secreted into the extracellular space and there await their targets, such as dsRNA and LPS, while RTL9 is specific to microglial lysosomes and does not exit into the extracellular space, implying that RTL9 reacts to pathogens that are removed via different mechanisms. We analyzed the response of RTL9 to fungal zymosan because previous reports have shown that zymosan is promptly incorporated into lysosomes [32]. Zymosan is initially recognized by cell surface receptors, such as the TLR2/TLR6 heterodimer and/or other components, then trapped in phagosomes in an LC3-dependent manner and finally degraded in phagolysosomes by fusion with lysosomes [30,37,38].
Zymosan is a complex biomolecule containing protein–carbohydrate complex elements such as glucan, mannan, chitin and protein in addition to glycolipid, and therefore exhibits specific autofluorescence patterns (shown in artificial green in Figure 3) that can be distinguished from other autofluorescence patterns in the brain using the LSM880 Automatic Component Extraction (ACE) function (Figure S11), as described in our previous report [21]. Large aggregates of zymosan are also evident in the transmission image (arrows in Figure S12), so the reliability of its autofluorescence pattern may be verified.

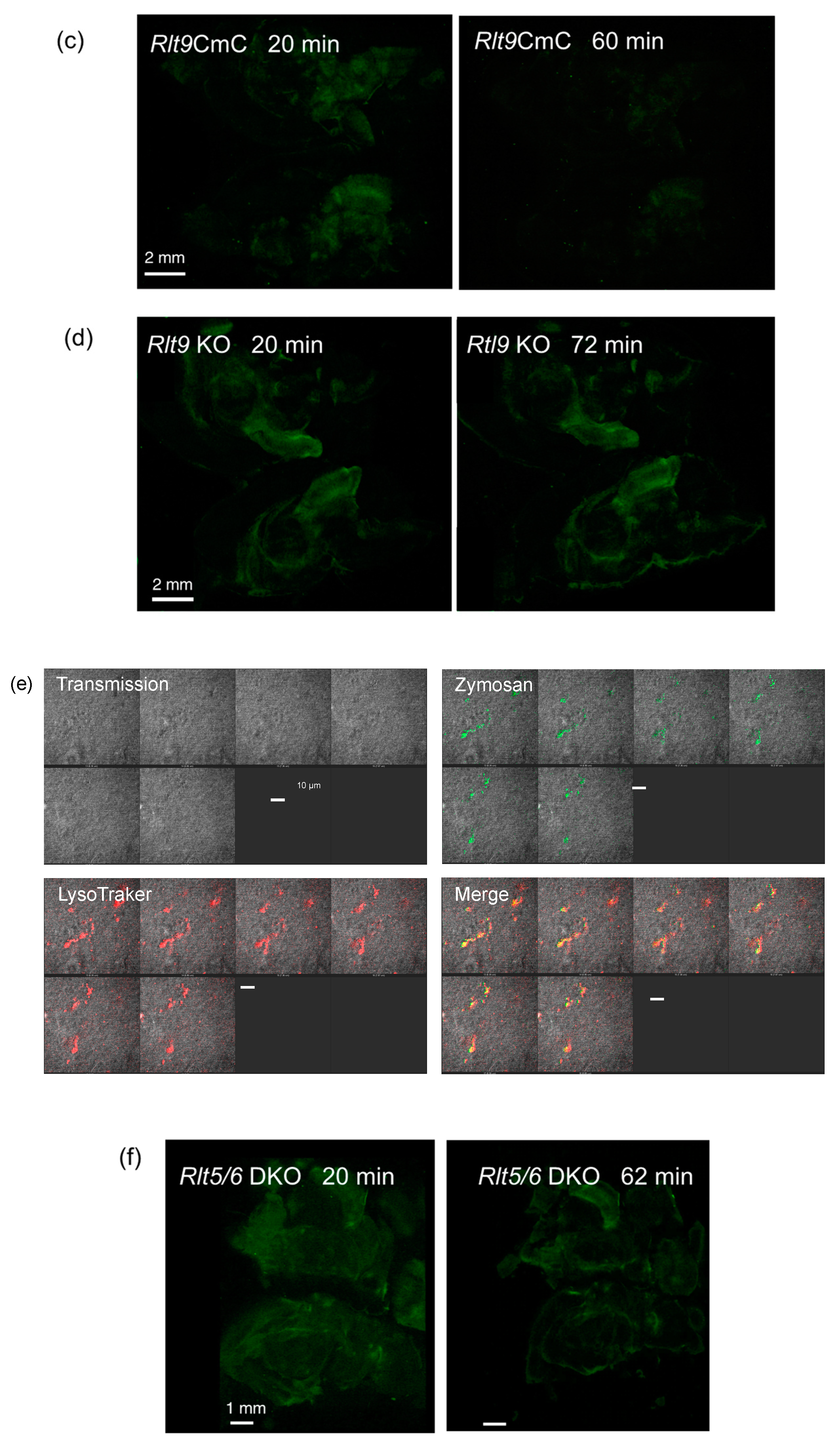

At 20 to 30 min after the zymosan injection into the brain, we confirmed that zymosan had colocalized with RTL9CmC (Figure 3a,b). The signal from zymosan was greatly reduced 60 min after the injection, indicating that zymosan had been degraded in the lysosomes (Figure 3c). We then examined the reaction in the Rtl9 KO brain and found that the signal intensity remained unchanged even after 72 min (Figure 3d). This clearly demonstrates that RTL9 is essential for the zymosan degradation reaction in the microglial lysosomes, although it remains unknown how RTL9 is involved and/or what the precise role of RTL9 is in this reaction. We also found that zymosan was normally incorporated into the lysosomes even in the Rtl9 KO brain (Figure 3e), suggesting that RTL9 may not be necessary for the fusion between the zymosan-containing phagosomes and lysosomes. We also confirmed that zymosan was normally degraded in the Rtl5 and Rtl6 DKO brain [25], indicating that the zymosan degradation activity is specific to Rtl9 (Figure 3f).

3. Discussion

As most fungi are ubiquitous in the environment, human and animal immune systems have co-evolved and adapted to their presence over millions of years [27]. Fungal infections are typically rare yet uniquely dangerous because they are difficult to diagnose and treat. Fungal diseases cause significant morbidity and mortality, particularly in immunocompromised individuals; certain fungi can cause cutaneous lesions, acute self-limiting pulmonary manifestations, inflammatory diseases and severe life-threating infections [25,26,27,28,29,30,31]. This is particularly the case when the fungus invades the brain and central nervous system (CNS), such as fungal meningitis in humans. Many fungi in our environment can cause meningitis, including Aspergillus, Blastomyces, Candida, Cladophialophora, Coccidioides, Cryptococcus and Histoplasma. CNS fungal infections in small animals, such as cats and dogs, also cause multifocal meningoencephalomyelitis, intracranial lesions that accompany sinonasal lesions, ventriculitis, or a solitary brain or spinal cord granuloma [39]. Therefore, innate antifungal immunity is as much an important survival mechanism of organisms as those against bacteria and viruses. RTL9 is a promising antifungal therapy target as a newly identified member of innate antifungal immunity in eutherians. Furthermore, fungal infections in patients with Alzheimer’s disease (AD) have been reported [40,41,42], suggesting that fungal infection may also be involved in the etiology of AD and/or other neurodegenerative diseases and non-infectious autoimmune diseases, such as multiple sclerosis, neuromyelitis optica, amyotropic lateral sclerosis and Parkinson’s disease [40,41,42,43,44,45,46,47]. Recent studies on innate and adaptive immunity have reported that phagocytic cells are essential players in protecting against fungal diseases and that defects in these cells compromise the host’s ability to resist fungal infection [30,31].
In this investigation, we have demonstrated that retrovirus-derived Rtl9 is another microglial gene playing an important role in anti-fungal protection via its ability to degrade zymosan in lysosomes. The Rtl9 mRNA level is quite low and requires 32 cycles of PCR for its detection even in the brain (Figure 1b); therefore, KI mice expressing the RTL9-CmCherry fusion protein from an endogenous locus (Figure 1c and Figure S8) were essential for the detection of the RTL9 protein in vivo, the determination of its location in the microglial lysosomes, and its involvement in the zymosan reaction (Figure 2 and Figure 3a,b). Finally, in Rtl9 KO mice it was demonstrated that RTL9 is essential for zymosan degradation in the microglial lysosomes (Figure 3c,d). We also confirmed that the zymosan degradation activity is specific to RTL9 and not RTL5 or RTL6, other microglial proteins for the removal of dsRNA and LPS, respectively [21] (Figure 3f). It is likely that this is the reason why RTL9 is so robustly well conserved across all eutherian species (dN/dS < 1, Table 1), because protection against fungal infection in the brain provides an evident evolutionary advantage to go along with the protection afforded against viral and bacterial infection by RTL5 and RTL6, respectively [21]. Considering that RTL9 is in charge of the eutherian-specific zymosan degradation mechanism, it may well be that RTL9 is involved in the defense against fungal diseases in the brain.
In contrast to the widely conserved TLR system in the animal kingdom [24], that regulates cytokine and interferon production against various pathogens in a pathogen-dependent manner via each differentiated TLR protein [26,27], RTL9, RTL5 and RTL6 are apparently novel constituents in the brain’s innate immune system in eutherians [14,21]. Together with the previous study, this work demonstrates that at least three RTL genes are domesticated (exapted) in the current eutherian brain innate immune system and play important roles in the prompt removal of bacteria, viruses and fungi in a pathogen-dependent manner. However, the removal of such pathogens is a common activity of microglia/macrophages and is not specific to eutherians, suggesting the existence of alternative and/or redundant pathways in non-eutherian organisms and eutherians as well. Therefore, it is also of interest that other retrovirus-derived genes have also been exapted in non-eutherian organisms.
What is the relationship between the TLR system and RTL genes? In the case of zymosan, it is known that the TLR2/TLR6 heterodimer first recognizes zymosan on the cytoplasmic membrane, incorporates it into phagosomes associated with CD14 and then, together with alternative pathways, sends the signal downstream for gene regulation in the course of these processes [32,33]. As RTL9 apparently reacts to zymosan subsequent to fusion of the zymosan-containing phagocytes and lysosomes where RTL9 is localized, it is reasonable to think that the TLR2/TLR6 system is able to function independently of RTL9 and regulate inflammation via cytokine and interferon induction on its own. It was recently suggested that the TLR2/TLR5 heterodimer also induces inflammation when stimulated with zymosan, although TLR5 is known to primarily react to bacterial flagellin [48]. Our preliminary experiments confirmed the upregulation of Tnfa, Il6 and Il8 mRNA [49,50] in the Rtl9 KO microglia in the same manner as control WT microglia, supporting this idea (Figure S13). It is possible that Rtl9 itself exhibits upregulation upon zymosan administration, due to the presence of a feedback mechanism. Therefore, more detailed analysis is required to properly elucidate the relationship between the TLR system and RTL9, as well as the RTL9 self-regulation mechanism.
What is the role of RTL9 in the zymosan degrading activity? Does it act as an enzyme, or a modulator? Lysosomes have a variety of hydrolytic enzymes, including more than 50 glucosidases [51]. Is RTL9 another lysosomal enzyme? Unfortunately, at present it is not possible to determine whether it has such enzymatic activity due to the lack of adequate information.
The retrotransposon/retroviral GAG protein is comprised of three parts, the matrix, the capsid and the nucleocapsid, and each part is generated by the POL proteases. They are structural proteins for virus formation, and therefore have no intrinsic enzymatic activities. Recently, certain GAG-derived genes, such as ARC, PEG10 and RTL1, as well as other RTL and Paraneoplastic Ma antigen (PNMA) genes, have attracted attention because they form virus-like particles that are able to mediate cell–cell communication by sending mRNA/siRNAs, and PEG10 in particular instances, as a delivery vehicle for specific mRNAs [52]. RTL5 and RTL6 are secreted proteins that trap dsRNA and LPS, respectively, in the brain [21], implying that they play a role as structural proteins. Therefore, we reason that the GAG-like region of RTL9 forms a complex with zymosan to promote (or modulate) the degradation of this complex by an oxidative mechanism. This is because that zymosan is easily solubilized to a high molecular weight polysaccharide via the activity of the hypochlorous acid generated by the heme protein myeloperoxidase (MPO), suggesting that oxidative degradation is the main metabolic pathway of particulate (zymosan) β-glucans [53].
BLLF1 comprises 907 aa and is a type 1 membrane protein also known as glycoprotein 350 (gp350). The large N-terminal segment (1–860 aa) extends outside the viral membrane, followed by the transmembrane/cytoplasmic tail regions (861–907 aa) [54]. It is known that its extreme N-terminus portion (1–470 aa, domains I, II and III) can bind to CR2, the receptor of Epstein–Barr virus, but it is not essential for this binding reaction because of the presence of alternative proteins that fulfill the same function [55]. It is structurally well-defined [56], but the RTL9 homologous portion (473–780 aa) just after it is functionally and structurally undetermined [54] (Figure S3).
UL36 consists of 3,164 aa and possesses two leucine-zipper motifs, a proline-glutamine (PQ) repeat, and several ATP-binding sites [57]. Its RTL9 homologous portion (787–1141 aa) corresponds to the PQ repeat region, but there are no apparent PQ repeats in RTL9 (Figure S4). Although there are several PQ motifs throughout the entire RTL9 protein, no PQ motifs are conserved in ten of the eutherian species (six PQ motifs are conserved in at least eight species) (Figure S1, green dashed boxes). It is reported that the PQ motif on a loop in the cystinosin protein, the lysosomal cystine transporter, is critical for cystinosin transport to lysosomes [58,59]. It is therefore possible that certain PQ motif(s) play a role in RTL9 transport to lysosomes. Unfortunately, there is no RTL9 3D structure prediction afforded by Alphafold 2, except the GAG-like region. Therefore, further studies are obviously required to elucidate the biochemical role of RTL9 in the zymosan degradation reaction in detail.
In this study, the importance of the RTL9 C-terminal part in zymosan degradation has been demonstrated. This activity potentially arises out of the entire sushi-ichi GAG (the maximal GAG-like region) or possibly comprises the latter half of UL36-like region and the minimal GAG-like region (Figure 1a and Figures S1 and S4–S6). However, it is also possible that the remaining large regions contribute to the enzymatic zymosan degrading activity in combination with the C-terminal region. We confirmed that the incorporated zymosan ultimately reached the microglial lysosomes even in Rtl9 KO mice, meaning that the C-terminal portion is not essential for either zymosan incorporation into phagosomes or the phagolysosome fusion process (Figure 3d). However, it is also possible that the other regions may be required for these processes. Zymosan degradation is unique because it is carried out via LC3-mediated phagocytosis in association with several autophagy components [30,37,38]. Further studies are required to elucidate the entire function(s) of the RTL9 protein during these processes, including both the fusion of the zymosan-incorporated phagosomes with lysosomes and zymosan degradation by generating other KO mice in which the entire RTL9 sequence is deleted.
Gould and his colleague proposed “the concept of exaptation”, that is, gaining new function(s) for specific purposes during the course of evolution, and predicted it as one of the central mechanisms in biological evolution [60,61]. Among the 11 RTL genes, PEG10, RTL1 (aka PEG11) and LDOC1 (aka SIRH7 and RTL7) play essential but different roles in the placenta [2,12,13,15,18,62], while RTL5, RTL6 [21] and RTL9 (this study) play important but different roles in microglia. Thus, the retrovirus-derived RTL genes are very good examples of exaptation. Microglia originate in early development from the yolk sac and not from the bone marrow, as do most macrophages [63,64]. Therefore, RTL9 provides considerable support for a central hypothesis in our work, which is that extraembryonic tissues, such as the yolk sac and placenta, have served as incubation sites for the birth of newly acquired genes from retrotransposons/retroviruses in the course of eutherian evolution [14,21].

4. Materials and Methods

4.1. Mice

All animal experiments using Rtl9-mCherry KI and Rtl9 KO mice were reviewed and approved by the Institutional Animal Care and Use Committee of Tokai University (Isehara-234011) and Tokyo Medical and Dental University (TMDU) (A2022-057A) and were performed in accordance with the Guideline for the Care and Use of Laboratory Animals of Tokai University and TMDU.

4.2. Comparative Genome Analysis

The sushi-ichi GAG (AAC33525.1) and mouse RTL9 (NP_001035524.2) protein sequences were obtained from NCBI (accessed on 18 April 2023) [65], while the amino acid identity and similarity were calculated using the EMBOSS water program [66] and EMBOSS needle program (accessed on 18 April 2023) [67] in the default mode. The orthologues of RTL9 were identified by a search of the NCBI Gene database [65] using RTL9 (and RGAG1) as the query terms. The RTL9 coding sequences used for the pairwise dN/dS analysis (Table 1) and the amino acid alignment (Figure S1) were as follows: Mouse (Mus musculus): NM_001040434.2; Rat (Rattus norvegicus): XM_003752123.5; Human (Homo sapiens): NM_001385449.1; Chimpanzee (Pan troglodytes): XM_016942939.3; Dog (Canis lupus familiaris): XM_038449037.1; Horse (Equus caballus): XM_005614417.3; Elephant (Loxodonta Africana): XM_003414859.3; Manatee (Trichechus manatus latirostris): XM_023734430.1; Armadillo (Dasypus novemcinctus): XM_023582615.1; Sloth (Choloepus didactylus): XM_037822012.1. The RTL9 coding sequences were translated to protein sequences using the EMBOSS Transeq (accessed on 18 April 2023) [68] program. The amino acid alignment in the ten eutherian species was constructed using the Clustal Omega program (accessed on 18 April 2023) [69] in the default mode. The conserved domains in RTL9 were identified by means of the NCBI Conserved Domains Database (CDD) (accessed on 25 October 2022) [70].

4.3. Estimation of the Pairwise dN/dS Ratio

The nonsynonymous/synonymous substitution rate ratio (dN/dS) was estimated with CodeML (runmode: −2) in PAML [71]. An amino acid sequence phylogenic tree was constructed with MEGA7 [72] using the Maximum Likelihood method with the JTT matrix-based model. The codon alignment of cDNA was created with the PAL2NAL program [73]. The RTL9 coding sequences used for the pairwise dN/dS ratio analysis (Table 1) are described above.

4.4. RT-PCR

Total RNA samples were prepared from adult tissues (11 w) using ISOGEN (Nippon Gene, Chiyoda, Japan). The cDNA was synthesized from 1 μg of total RNA using Superscript III reverse transcriptase (Invitrogen, Carlsbad, CA, USA) with an oligo-dT primer. For RT-PCR, 10 ng cDNA in a 25 μL reaction mixture containing 1× ExTaq buffer (TaKaRa, Kusatsu, Japan), 200 μM each of NTP and 800 nM of primers along with 0.625 units ExTaq HS (TaKaRa) were subjected to 32 cycles at 96 °C for 15 s, 65 °C for 30 s and 72 °C for 30 s in a GeneAmp PCR System 2400 (Perkin-Elmer, Waltham, MA, USA). The primer sequences used were as follows: β-actin-forward 5’-AAGTGTGACGTTGACATCC-3’ and β-actin-reverse 5’-GATCCAACTCTGCTGGAAGG-3’; Rtl9-forward 5’-TCACCTACATGCCTGTGACC-3’ and Rtl9-reverse 5’-CAACAACACCACATTGTTACGG-3’.

4.5. Generation of the Rtl9-mCherry Knock-in Mice

Rtl9-mCherry knock-in mice were generated by pronuclear microinjection of the CRISPR/Cas system (see Figure 1c), essentially as described in a previous report [74], using a plasmid targeting vector. The crRNA was designed and synthesized with the target sequence: 5’-TACAAACAAGTAGTACTCCT-3’ (Fasmac, Atsugi, Japan). The plasmid for mCherry insertion was constructed with 1.5 kb long 5’ and 3’ arms amplified from the C57BL/6N genome using PrimeSTAR GXL DNA Polymerase (TaKaRa). The 5’ arm is the genomic sequence upstream of the stop codon of Rtl9 and the 3’ arm is downstream of the predictive Cas9 cut site. The C-terminus of Rtl9 was fused to a 4× GGS linker (ggaggatcaggaggatcaggaggatcaggaggatca)-attached mCherry by means of a cloning enzyme (In-Fusion® HD Cloning Kit, Takara Bio, Kusatsu, Japan). The purified targeting vector was assessed for its quality using Sanger sequencing and injected into mouse pronuclei at the final concentration of 10 ng/μL. Just before injection, the targeting vector was mixed with other CRISPR/Cas system components, including the Cas9 protein (a final concentration of 30 ng/μL), crRNA (8.7 ng/μL), tracrRNA (14.3 ng/μL) and injected into the pronuclei of mouse zygotes produced through in vitro fertilization using C57BL/6N mice. Zygotes that survived the microinjection procedure were cultured in KSOM at 37 °C under 5% CO2 in air and transferred into the ampulla of the oviduct of pseudopregnant ICR females. Genomic modification of the mutant mice was confirmed using 3 sets of PCR primers (5’- GGAATGATGTCCACGCCACTA-3’ and 5’- CTTCAGCTTCAGCCTCTGCT-3’, 5’-CCTGTCCCCTCAGTTCATGT-3’ and 5’-CCTAGACTATTGGACCAGAGG-3’, and 5’-GGAATGATGTCCACGCCACTA-3’ and 5’-CCTAGACTATTGGACCAGAGG-3’).

4.6. Generation of the Rtl9 Knock-Out Mice

Rtl9 knock-out mice were generated using a pair of crRNAs and a single-stranded oligo donor DNA (ssODN). To cut off the C-terminal genomic region of Rtl9, a pair of crRNAs targeting 5’-TCATAGCTGCAAATTGTGCA-3’ and 5’-AGAAATCACATAAGATTCCA-3’ were synthesized (Fasmac). The 162-base ssODN was composed of a 3x stop codon (3× stop) and 5’ and 3’ homology arms having 75 bases each (Hokkaido System Science, Sapporo, Japan). Just before injection, CRISPR/Cas system components including the Cas9 protein (a final concentration of 30 ng/μL), a pair of crRNAs (8.7 ng/μL), tracrRNA (14.3 ng/μL) and ssODN (15 ng/μL) were mixed and injected into the pronuclei of mouse zygotes produced through in vitro fertilization using C57BL/6N mice. The zygotes that survived the microinjection procedure were cultured in KSOM at 37 °C under 5% CO2 in air and transferred into the ampulla of the oviduct of pseudopregnant ICR females. Genomic modification of the mutant mice was confirmed using a set of PCR primers (5’-GAGAACACCAGCTTCTAGAGC-3’ and 5’-GGGAGTTCAGAACCTCATACAC-3’).

4.7. Imaging Using Confocal Laser Scanning Fluorescence Microscopy

Fresh brain hemispheres from Rtl9-mCherry KI mice were used for analysis with a ZEISS LSM880 (ZEISS, Jena, Germany) without fixation. The samples were covered with 10% glycerol solution for protection from drying. The samples were observed using a Plan-Apochromat lens (10×, numerical aperture = 0.45, M27, ZEISS) and a C-Apochromat lens (63× numerical aperture =1.2 Water, ZEISS). The tiling with lambda-mode images was obtained using the following settings: pixel dwell: 1.54 μs; average: line 4; master gain: ChS: 1250, ChD: 542; pinhole size: 33 µm; filter 500–696 nm; beam splitter: MBS 458/514; lasers: 514 nm (Argon 514), 0.90%. For the tiling-scan observations, the tiling images were captured as tiles: 84, overlap in percentage: 10.0, tiling mode: rectangular grid, in size: x; 15,442.39 µm, y; 9065.95 µm. The spectral unmixing and processing of the obtained images were conducted using the ZEN imaging software (version 2.3 SP1, Carl Zeiss Microscopy, Jena, Germany). The spectrum from the mCherry protein (maximum peak emission fluorescence wavelength: 610 nm) detected in Rtl9-mCherry KI brain was distinguished from Af610 nm using the peak shape, such as the width and/or co-existence of a second peak. The relative intensity of RTL9-mCherry (red), zymosan autofluorescence (green) and LysoTracker Red NDN99 (red in Figure 3e or green in Figure 2d) signals along the x-axis of the brain (from the olfactory bulb to the cerebellum region) was calculated from 3D scanning data. The total intensity of each signal on and above each y-axis was summed, divided by the transmission signal and presented as the relative signal intensity on the y-axis in this figure.

4.8. Zymosan Injection to the Brain

Rtl9-mCherry KI, Rtl9 KO and Rtl5 and Rtl6 double KO mice [25] (P5 to 3 w of age) were used for the injection experiments after being anesthetized with isoflurane. Ten µL of 10 ng/mL solution of zymosan (NOVUS BIOLOGICALS, Centennial, CO, USA, NPB2-26233, 1/5000 dilution) was injected using 1 mL insulin syringes and a 26 G needle. Then, 1 min after the injection, the needle was pulled out and kept out for 5 min; then, the fresh brain was dissected out in cold PBS solution. The inner surface of the brain hemispheres was analyzed with a ZEISS LSM880 (ZEISS, Jena, Germany).

4.9. Lysosome Staining with LysoTracker

A 1/50 dilution of LysoTrackerTM Red DND-99 (ThermoFisher Scientific, Waltham, MA, USA, L7528, 1 mM) was used for the lysosome staining of the fresh brains. A 100 µL solution was placed beneath the brain hemispheres and reacted for 30 min at RT. The LysoTracker signal (emission peak at 590 nm) was separated from various kinds of autofluorescence (Af) in the brain using the LSM880 ACE function.

5. Conclusions

We have demonstrated that eutherian-specific RTL9 has functions in the innate antifungal immunity in the brain because Rtl9 KO mice lost zymosan degradation activity. Fungi are one of the most dangerous infectious pathogens, along with viruses, bacteria and protozoa. This work provides compelling evidence that RTL9, along with RTL5 and RTL6, plays an important role in the brain’s innate immunity, suggesting that certain retrovirus-derived genes contributed to the evolution of the brain’s innate immunity in a eutherian-specific manner. Phagocytic cells, such as microglia/macrophages, are essential for the defense against fungal infection. As defects in these cells reduce host resistance to fungal infection, RTL9 is a novel target for antifungal therapy as well as neurodegenerative diseases as a newly identified member of innate antifungal immunity in eutherians.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms241914884/s1.

Author Contributions

F.I., J.I., M.I., A.M., M.N. and T.K.-I. performed the experiments and analyzed the data. A.M., T.S. and Y.H. generated Rtl9-mCherry KI and Rtl9 KO mice. F.I. and T.K.-I. designed the study and wrote the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the funding program for Next Generation World-Leading Researchers (NEXT Program LS112) and Grants-in-Aid for Scientific Research (C) (17K07243 and 21K06127) from the Japan Society for the Promotion of Science (JSPS) (T.K.-I); Grants-in-Aid for Scientific Research (S) (23221010) and (A) (16H02478 and 19H00978) and for Challenging Research (Pioneering) (20K20584) from JSPS (F.I.); and the Nanken Kyoten Program, Medical Research Institute, Tokyo Medical and Dental University (TMDU) (T.K.-I. and F.I.). The funders had no role in the study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data can be made available upon request from the corresponding author.

Acknowledgments

The authors thank Takako Usami (TMDU) for technical assistance in the embryo transfer experiment to generate Rtl9-mCherry KI and Rtl9 KO mice, and Naoko Takayasu at Tokai University and Tokai University Support Center for Medical Research and Education for qPCR experiments and breeding the mice.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

BLLF1: super family member pfam05109, CCHC: cysteine-cysteine-histidine-cysteine, CNS: central nervous system, dN/dS: nonsynonymous/synonymous rate ratio, dsRNA: double-stranded RNA, ENV: envelop, GAG: group specific antigen, LC3: microtubule-associated protein 1A/1B-light chain 3, LPS: lipopolysaccharide, KI: knock-in, KO: knockout, PEG: paternally expressed gene, PQ: proline-glutamine, RTL: retrotransposon Gag-like, SIRH: sushi-ichi retrotransposon homologues, TLRs: Toll-like receptors, UL36: super family member pha03247.

References

  1. Ono, R.; Kobayashi, S.; Wagatsuma, H.; Aisaka, K.; Kohda, T.; Kaneko-Ishino, T.; Ishino, F. A retrotransposon-derived gene, PEG10, is a novel imprinted gene located on human chromosome 7q21. Genomics 2001, 73, 232–237. [Google Scholar] [CrossRef]
  2. Ono, R.; Nakamura, K.; Inoue, K.; Naruse, M.; Usami, T.; Wakisaka-Saito, N.; Hino, T.; Suzuki-Migishima, R.; Ogonuki, N.; Miki, H.; et al. Deletion of Peg10, an imprinted gene acquired from a retrotransposon, causes early embryonic lethality. Nat. Genet. 2006, 38, 101–106. [Google Scholar] [CrossRef]
  3. Brandt, J.; Schrauth, S.; Veith, A.-M.; Froschauer, A.; Haneke, T.; Schultheis, C.; Gessler, M.; Leimeister, C.; Volff, J.-N. Transposable elements as a source of genetic innovation: Expression and evolution of a family of retrotransposon-derived neogenes in mammals. Gene 2005, 345, 101–111. [Google Scholar] [CrossRef]
  4. Youngson, N.A.; Kocialkowski, S.; Peel, N.; Ferguson-Smith, A.C. A small family of sushi-class retrotransposon-derived genes in mammals and their relation to genomic imprinting. J. Mol. Evol. 2005, 61, 481–490. [Google Scholar] [CrossRef]
  5. Kaneko-Ishino, T.; Ishino, F. The role of genes domesticated from LTR retrotransposons and retroviruses in mammals. Front. Microbiol. 2012, 3, 262. [Google Scholar] [CrossRef]
  6. Suzuki, S.; Ono, R.; Narita, T.; Pask, A.J.; Shaw, G.; Wang, C.; Kohda, T.; Alsop, A.E.; Graves, M.J.A.; Kohara, Y.; et al. Retrotransposon silencing by DNA methylation can drive mammalian genomic imprinting. PLoS Genet. 2007, 3, e55. [Google Scholar] [CrossRef]
  7. Edwards, C.A.; Mungall, A.J.; Matthews, L.; Ryder, E.; Gray, D.J.; Pask, A.J.; Shaw, G.; Graves, J.A.; Rogers, J.; SAVOIR consortium; et al. The evolution of the DLK1-DIO3 imprinted domain in mammals. PLoS Biol. 2008, 6, e135. [Google Scholar] [CrossRef]
  8. Kim, A.; Terzian, C.; Santamaria, P.; Pélisson, A.; Purd’homme, N.; Bucheton, A. Retroviruses in invertebrates: The gypsy retrotransposon is apparently an infectious retrovirus of Drosophila melanogaster. Proc. Natl. Acad. Sci. USA 1994, 91, 1285–1289. [Google Scholar] [CrossRef] [PubMed]
  9. Song, S.U.; Gerasimova, T.; Kurkulos, M.; Boeke, J.D.; Corces, V.G. An env-like protein encoded by a Drosophila retroelement: Evidence that gypsy is an infectious retrovirus. Genes Dev. 1994, 8, 2046–2057. [Google Scholar] [CrossRef] [PubMed]
  10. Charlier, C.; Segers, K.; Wagenaar, D.; Karim, L.; Berghmans, S.; Jaillon, O.; Shay, T.; Weissenbach, J.; Cockett, N.; Gyapay, G.; et al. Human-ovine comparative sequencing of a 250-kb imprinted domain encompassing the callipyge (clpg) locus and identification of six imprinted transcripts: DLK1, DAT, GTL2, PEG11, antiPEG11, and MEG8. Genome Res. 2001, 11, 850–862. [Google Scholar] [CrossRef] [PubMed]
  11. Sekita, Y.; Wagatsuma, H.; Nakamura, K.; Ono, R.; Kagami, M.; Wakisaka, N.; Hino, T.; Suzuki-Migishima, R.; Kohda, T.; Ogura, A.; et al. Role of retrotransposon-derived imprinted gene, Rtl1, in the feto-maternal interface of mouse placenta. Nat. Genet. 2008, 40, 243–248. [Google Scholar] [CrossRef] [PubMed]
  12. Nagasaki, K.; Manabe, T.; Hanzawa, H.; Maass, N.; Tsukada, T.; Yamaguchi, K. Identification of a novel gene, LDOC1, down-regulated in cancer cell lines. Cancer Lett. 1999, 140, 227–234. [Google Scholar] [CrossRef] [PubMed]
  13. Naruse, M.; Ono, R.; Irie, M.; Nakamura, K.; Furuse, T.; Hino, T.; Oda, K.; Kashimura, M.; Yamada, I.; Wakana, S.; et al. Sirh7/Ldoc1 knockout mice exhibit placental P4 overproduction and delayed parturition. Development 2014, 141, 4763–4771. [Google Scholar] [CrossRef] [PubMed]
  14. Kaneko-Ishino, T.; Ishino, F. Retrovirus-Derived RTL/SIRH Genes: Their Diverse Roles in the Current Eutherian Developmental System and Contribution to Eutherian Evolution. Biomolecules 2023, 13, 1436. [Google Scholar] [CrossRef]
  15. Irie, M.; Yoshikawa, M.; Ono, R.; Iwafune, H.; Furuse, T.; Yamada, I.; Wakana, S.; Yamashita, Y.; Abe, T.; Ishino, F.; et al. Cognitive function related to the Sirh11/Zcchc16 gene acquired from an LTR retrotransposon in eutherians. PLoS Genet. 2015, 11, e1005521. [Google Scholar] [CrossRef]
  16. Lim, E.T.; Raychaudhuri, S.; Sanders, S.J.; Stevens, C.; Sabo, A.; MacArthur, D.G.; Neale, B.M.; Kirby, A.; Ruderfer, D.M.; Fromer, M.; et al. Rare complete knockouts in humans: Population distribution and significant role in autism spectrum disorders. Neuron 2013, 77, 235–242. [Google Scholar] [CrossRef]
  17. Ioannides, Y.; Lokulo-Sodipe, K.; Mackay, D.J.G.; Davies, J.H.; Temple, I.K. Temple syndrome: Improving the recognition of an underdiagnosed chromosome 14 imprinting disorder: An analysis of 51 published cases. J. Med. Genet. 2014, 51, 495–501. [Google Scholar] [CrossRef]
  18. Kitazawa, M.; Hayashi, S.; Imamura, M.; Takeda, S.; Oishi, Y.; Kaneko-Ishino, T.; Ishino, F. Deficiency and overexpression of Rtl1 in the mouse cause distinct muscle abnormalities related to Temple and Kagami-Ogata syndromes. Development 2020, 147, dev185918. [Google Scholar] [CrossRef]
  19. Kitazawa, M.; Sutani, A.; Kaneko-Ishino, T.; Ishino, F. The role of eutherian-specific RTL1 in the nervous system and its implications for the Kagami-Ogata and Temple syndromes. Genes Cells 2021, 26, 165–179. [Google Scholar] [CrossRef]
  20. Chou, M.-Y.; Hu, M.-C.; Chen, R.-Y.; Hsu, C.-L.; Lin, T.-Y.; Tan, M.-J.; Lee, C.-Y.; Kuo, M.-F.; Huang, P.-H.; Wu, V.-C.; et al. RTL1/PEG11 imprinted in human and mouse brain mediates anxiety-like and social behaviors and regulates neuronal excitability in the locus coeruleus. Hum. Mol. Genet. 2022, 31, 3161–3180. [Google Scholar] [CrossRef]
  21. Irie, M.; Itoh, J.; Matsuzawa, A.; Ikawa, M.; Kiyonari, H.; Kihara, M.; Suzuki, T.; Hiraoka, Y.; Ishino, F.; Kaneko-Ishino, T. Retrovirus-derived RTL5 and RTL6 genes are novel constituents of the innate immune system in the eutherian brain. Development 2022, 149, dev200976. [Google Scholar] [CrossRef] [PubMed]
  22. Hanisch, U.-K.; Kettenmann, H. Microglia: Active sensor and versatile effector cells in the normal and pathologic brain. Nat. Neurosci. 2007, 10, 1387–1394. [Google Scholar] [CrossRef]
  23. Norris, G.T.; Kipnis, J. Immune cells and CNS physiology: Microglia and beyond. J. Exp. Med. 2018, 216, 60–70. [Google Scholar] [CrossRef]
  24. Akira, S.; Uematsu, S.; Takeuchi, O. Pathogen Recognition and Innate Immunity. Cell 2006, 124, 783–801. [Google Scholar] [CrossRef]
  25. Scully, E.P.; Baden, L.R.; Katz, J.T. Fungal brain infections. Curr. Opin. Neurol. 2008, 21, 347–352. [Google Scholar] [CrossRef]
  26. Koutsouras, G.W.; Ramos, R.L.; Martinez, L.R. Role of microglia in fungal infections of the central nervous system. Virulence 2017, 8, 705–718. [Google Scholar] [CrossRef]
  27. Salazar, F.; Brown, G.D. Antifungal Innate Immunity: A Perspective from the Last 10 Years. J. Innate Immun. 2018, 10, 373–397. [Google Scholar] [CrossRef]
  28. Góralska, K.; Blaszkowska, J.; Dzikowiec, M. Neuroinfections caused by fungi. Infection 2018, 46, 443–459. [Google Scholar] [CrossRef]
  29. Drummond, R.A. What fungal CNS infections can teach us about neuroimmunology and CNS-specific immunity. Semin. Immunol. 2023, 67, 101751. [Google Scholar] [CrossRef] [PubMed]
  30. Feldman, M.B.; Vyas, J.M.; Mansour, M.K. It takes a village: Phagocytes play a central role in fungal immunity. Semin. Cell Dev. Biol. 2019, 89, 16–23. [Google Scholar] [CrossRef] [PubMed]
  31. Brown, G.D. Innate Antifungal Immunity: The Key Role of Phagocytes. Annu. Rev. Immunol. 2011, 29, 1–21. [Google Scholar] [CrossRef]
  32. Underhill, D.M.; Ozinsky, A.; Hajjar, A.M.; Stevens, A.; Wilson, C.B.; Bassetti, M.; Aderem, A. The Toll-like receptor 2 is recruited to macrophage phagosomes and discriminates between pathogens. Nature 1999, 401, 811–815. [Google Scholar] [CrossRef]
  33. Underhill, D.M. Macrophage recognition of zymosan particles. J. Endotoxin Res. 2003, 9, 176–180. [Google Scholar] [CrossRef]
  34. Luzio, J.P.; Pryor, P.R.; Bright, N.A. Lysosomes: Fusion and function. Nat. Rev. Mol. Cell Biol. 2007, 8, 623–632. [Google Scholar] [CrossRef] [PubMed]
  35. Xu, H.; Ren, D. Lysosomal Physiology. Annu. Rev. Physiol. 2015, 77, 57–80. [Google Scholar] [CrossRef]
  36. Lian, H.; Roy, E.; Zheng, H. Protocol for primary microglial culture preparation. Bio-Protocol. 2016, 6, e1989. [Google Scholar] [CrossRef] [PubMed]
  37. Sanjuan, M.A.; Dillon, C.P.; Tait, S.W.G.; Moshiach, S.; Dorsey, F.; Connell, S.; Komatsu, M.; Tanaka, K.; Cleveland, J.L.; Withoff, S.; et al. Toll-like receptor signalling in macrophages links the autophagy pathway to phagocytosis. Nature 2007, 450, 1253–1257. [Google Scholar] [CrossRef] [PubMed]
  38. Martinez, J.; Malireddi, R.K.; Lu, Q.; Cunha, L.D.; Pelletier, S.; Gingras, S.; Orchard, R.; Guan, J.-L.; Tan, H.; Peng, J.; et al. Molecular characterization of LC3-associated phagocytosis reveals distinct roles for Rubicon, NOX2 and autophagy proteins. Nat. Cell. Biol. 2015, 17, 893–906. [Google Scholar] [CrossRef] [PubMed]
  39. Bentley, R.T.; Taylor, A.R.; Thomovsky, S.A. Fungal Infections of the Central Nervous System in Small Animals: Clinical Features, Diagnosis, and Management. Vet. Clin. N. Am. Small Anim. Pract. 2018, 48, 63–83. [Google Scholar] [CrossRef] [PubMed]
  40. Vigasova, D.; Nemergut, M.; Liskova, B.; Damborsky, J. Multi-pathogen infections and Alzheimer’s disease. Microb. Cell Fact. 2011, 20, 25. [Google Scholar] [CrossRef]
  41. Pisa, D.; Alonso, R.; Rábano, A.; Rodal, I.; Carrasco, L. Different Brain Regions are Infected with Fungi in Alzheimer’s Disease. Sci. Rep. 2015, 5, 15015. [Google Scholar] [CrossRef]
  42. Alonso, R.; Pisa, D.; Fernández-Fernández, A.M.; Carrasco, L. Infection of Fungi and Bacteria in Brain Tissue From Elderly Persons and Patients With Alzheimer’s Disease. Front. Aging Neurosci. 2018, 10, 159. [Google Scholar] [CrossRef]
  43. Wu, C.; Jiang, M.L.; Jiang, R.; Pang, T.; Zhang, C.J. The roles of fungus in CNS autoimmune and neurodegeneration disorders. Front. Immunol. 2023, 13, 1077335. [Google Scholar] [CrossRef]
  44. Benito-León, J.; Laurence, M. The Role of Fungi in the Etiology of Multiple Sclerosis. Front. Neurol. 2017, 8, 535. [Google Scholar] [CrossRef] [PubMed]
  45. Enomoto, S.; Shigemi, H.; Kitazaki, Y.; Ikawa, M.; Yamamura, O.; Hamano, T.; Tai, K.; Iwasaki, H.; Koizumi, H.; Hasegawa, M.; et al. Cladophialophora bantiana infection mimicking neuromyelitis optica. J. Neurol. Sci. 2019, 399, 169–171. [Google Scholar] [CrossRef]
  46. French, P.W.; Ludowyke, R.; Guillemin, G.J. Fungal Neurotoxins and Sporadic Amyotrophic Lateral Sclerosis. Neurotox. Res. 2019, 5, 969–980. [Google Scholar] [CrossRef]
  47. Cannon, T.; Gruenheid, S. Microbes and Parkinson’s disease: From associations to mechanisms. Trends Microbiol. 2022, 30, 749–760. [Google Scholar] [CrossRef] [PubMed]
  48. Reuter, S.; Herold, K.; Domrös, J.; Mrowka, R. Toll-like receptor 5 as a novel receptor for fungal zymosan. bioRxiv 2021. [Google Scholar] [CrossRef]
  49. Friedland, J.S.; Constantin, D.; Shaw, T.C.; Stylianou, E. Regulation of interleukin-8 gene expression after phagocytosis of zymosan by human monocytic cells. J. Leuko. Biol. 2001, 70, 447–454. [Google Scholar] [CrossRef]
  50. Bernath, A.K.; Murray, T.E.; Yang, S.; Gibon, J.; Klegeris, A. Microglia secrete distinct sets of neurotoxins in a stimulus-dependent manner. Brain Res. 2023, 1807, 148315. [Google Scholar] [CrossRef]
  51. Bio-Techne. R&D System. Lysosomal Enzymes. Available online: https://www.rndsystems.com/research-area/lysosomal-enzymes (accessed on 15 June 2023).
  52. Segel, M.; Lash, B.; Song, J.; Ladha, A.; Liu, C.C.; Jin, X.; Mekhedov, S.L.; Macrae, R.K.; Koonin, E.V.; Zhang, F. Mammalian retrovirus-like protein PEG10 packages its own mRNA and can be pseudotyped for mRNA delivery. Science 2021, 373, 882–889. [Google Scholar] [CrossRef] [PubMed]
  53. Miura, N.N.; Ohno, N.; Adachi, Y.; Yadome, T. Characterization of Sodium Hypochlorite Degradation of β-Glucan in Relation to Its Metabolism in Vivo. Chem. Pharm. Bull. 1996, 44, 2137–2141. [Google Scholar] [CrossRef]
  54. Kanekiyo, M.; Bu, W.; Joyce, M.G.; Meng, G.; Whittle, J.R.R.; Baxa, U.; Yamamoto, T.; Narpala, S.; Todd, J.-P.; Rao, S.S.; et al. Rational Design of an Epstein-Barr Virus Vaccine Targeting the Receptor-Binding Site. Cell 2015, 162, 1090–1100. [Google Scholar] [CrossRef] [PubMed]
  55. Janz, A.; Oezel, M.; Kurzeder, C.; Mautner, J.; Pich, D.; Kost, M.; Hammerschmidt, W.; Delecluse, H.J. Infectious Epstein-Barr virus lacking major glycoprotein BLLF1 (gp350/220) demonstrates the existence of additional viral ligands. J. Virol. 2000, 74, 10142–10152. [Google Scholar] [CrossRef]
  56. Szakonyi, G.; Klein, M.; Hannan, J.; Young, K.A.; Ma, R.Z.; Asokan, R.; Holers, V.M.; Chen, X.S. Structure of the Epstein-Barr virus major envelope glycoprotein. Nat. Struct. Mol. Biol. 2006, 13, 996–1001. [Google Scholar] [CrossRef]
  57. McNabb, D.S.; Courtney, R.J. Analysis of the UL 36 Open Reading Fame Encoding the Large Tegument Protein (ICP1/2) of Herpes Simplex Virus Type I. J. Virol. 1992, 66, 7581–7584. [Google Scholar] [CrossRef]
  58. Cherqui, S.; Kalatzis, V.; Trugnan, G.; Antignac, C. The targeting of cystinosin to the lysosomal membrane requires a tyrosine-based signal and a novel sorting motif. J. Biol. Chem. 2001, 276, 13314–13321. [Google Scholar] [CrossRef] [PubMed]
  59. Ponting, C.P.; Mott, R.; Bork, P.; Copley, R.R. Novel protein domains and repeats in Drosophila melanogaster: Insights into structure, function, and evolution. Genome Res. 2001, 11, 1996–2008. [Google Scholar] [CrossRef] [PubMed]
  60. Gould, S.; Vrba, E. Exaptation—A Missing Term in the Science of Form. Paleobiology 1982, 8, 4–15. [Google Scholar] [CrossRef]
  61. Brosius, J.; Gould, S.J. On “genomenclature”: A comprehensive (and respectful) taxonomy for pseudogenes and other “junk DNA”. Proc. Natl. Acad. Sci. USA 1992, 89, 10706–10710. [Google Scholar] [CrossRef]
  62. Shiura, H.; Ono, R.; Tachibana, S.; Kohda, T.; Kaneko-Ishino, T.; Ishino, F. PEG10 viral aspartic protease domain is essential for the maintenance of fetal capillary structure in the mouse placenta. Development 2021, 148, dev199564. [Google Scholar] [CrossRef]
  63. Ginhoux, F.; Greter, M.; Leboeuf, M.; Nandi, S.; See, P.; Gokhan, S.; Mehler, M.F.; Conway, S.J.; Ng, L.G.; Stanley, E.R.; et al. Fate mapping analysis reveals that adult migroglia derive from primitive macrophages. Science 2010, 330, 841–845. [Google Scholar] [CrossRef]
  64. Ginhoux, F.; Lim, S.; Hoeffel, G.; Low, D.; Huber, T. Origin and differentiation of microglia. Front. Cell. Neurosci. 2013, 7, 45. [Google Scholar] [CrossRef] [PubMed]
  65. National Library of Medicine. Available online: https://www.ncbi.nlm.nih.gov/gene/ (accessed on 18 April 2023).
  66. EMBOSS Water. Available online: https://www.ebi.ac.uk/Tools/psa/emboss_water/ (accessed on 18 April 2023).
  67. EMBOSS Needle. Available online: https://www.ebi.ac.uk/Tools/psa/emboss_needle/ (accessed on 18 April 2023).
  68. EMBOSS Transeq. Available online: https://www.ebi.ac.uk/Tools/st/emboss_transeq/ (accessed on 18 April 2023).
  69. Clustal Omega. Available online: https://www.ebi.ac.uk/Tools/msa/clustalo/ (accessed on 18 April 2023).
  70. NCBI Search for Conserved Domains within a Protein or Coding Nucleotide Sequence. Available online: https://www.ncbi.nlm.nih.gov/Structure/cdd/wrpsb.cgi (accessed on 25 October 2022).
  71. Xu, B.; Yang, Z. PAMLX: A graphical user interface for PAML. Mol. Biol. Evol. 2013, 30, 2723–2724. [Google Scholar] [CrossRef] [PubMed]
  72. Kumar, S.; Stecher, G.; Tamura, K. MEGA7: Molecular Evolutionary Genetics Analysis Version 7.0 for Bigger Datasets. Mol. Biol. Evol. 2016, 33, 1870–1874. [Google Scholar] [CrossRef] [PubMed]
  73. Suyama, M.; Torrents, D.; Bork, P. PAL2NAL: Robust conversion of protein sequence alignments into the corresponding codon alignments. Nucl. Acids Res. 2006, 34, W609–W612. [Google Scholar] [CrossRef] [PubMed]
  74. Aida, T.; Chiyo, K.; Usami, T.; Ishikubo, H.; Imahashi, R.; Wada, Y.; Tanaka, K.F.; Sakuma, T.; Yamamoto, T.; Tanaka, K. Cloning-free CRISPR/Cas system facilitates functional cassette knock-in in mice. Genome Biol. 2015, 16, 87. [Google Scholar] [CrossRef] [PubMed]
Ijms 24 14884 g001

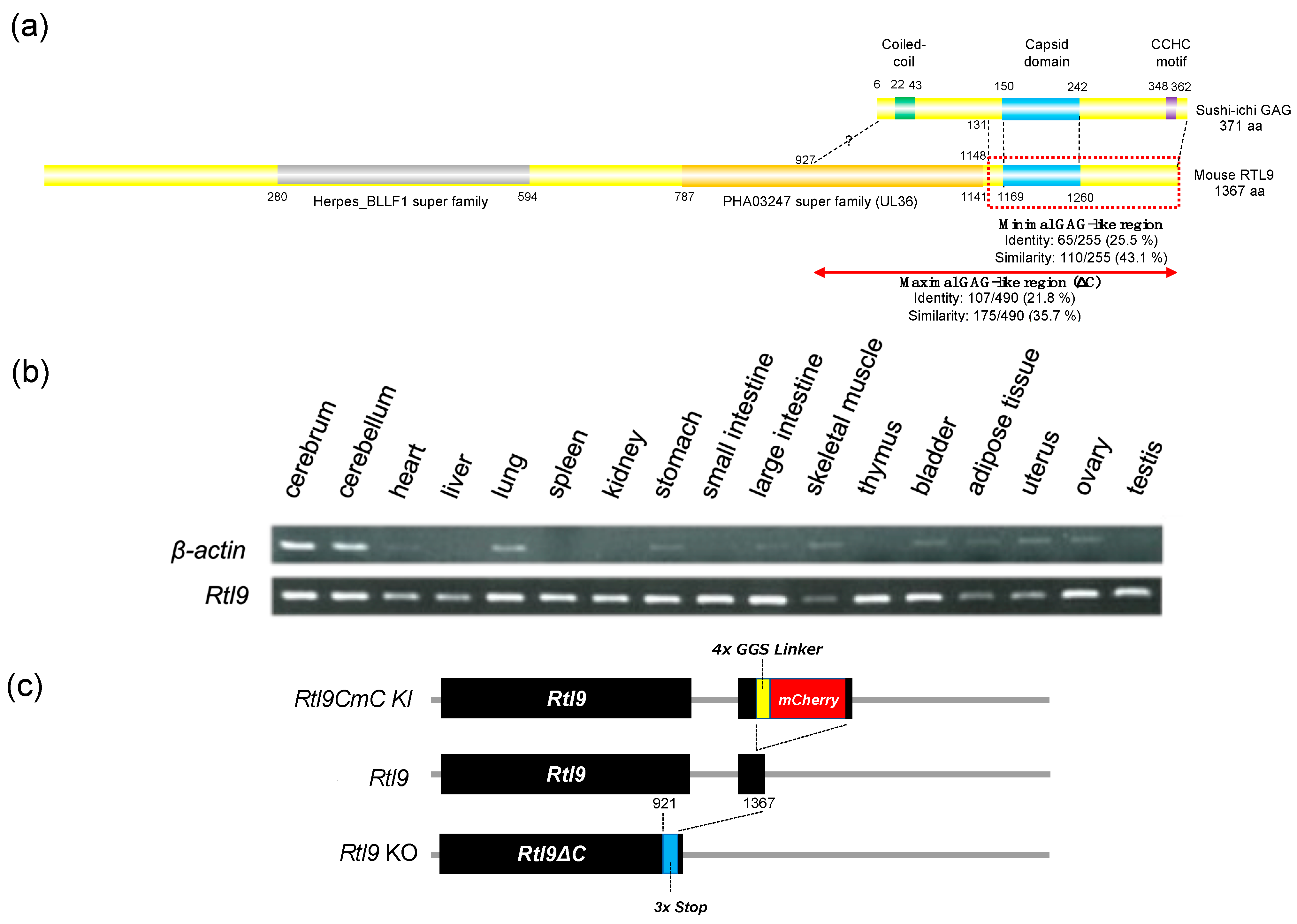

Figure 1. Features of the RTL9 protein, mRNA expression, and gene structures of KI, normal and KO mice. (a) Alignment of the sushi-ichi GAG and mouse RTL9 protein. Coiled-coil motifs in the N-terminus, a capsid domain in the middle and a zinc finger CCHC domain in the C-terminus are represented as green, blue and purple boxes, respectively. The Herpes BLLF1 super family and PHA03247 super family (UL36) motifs are depicted with a gray and orange box, respectively, and the capsid domain of the sushi-ichi retrotransposon is presented as a blue box. Minimal and maximal Gag-like regions are presented with a red dashed line and indicated by a red double-headed arrow, respectively. (b) Mouse Rtl9 mRNA expression in the adult tissues and organs at 19 weeks. The RT-PCR products use total RNA (10 μg, 32 cycles for Rtl9 and 26 cycles for β-actin as a control). (c) The generation of the Rtl9CmC KI and Rtl9 KO mice. Top: the open frame of the mCherry protein (red) is fused with the C-terminus of RTL9 via a 4 x GGS linker (yellow). Middle: mouse Rtl9.
Figure 1. Features of the RTL9 protein, mRNA expression, and gene structures of KI, normal and KO mice. (a) Alignment of the sushi-ichi GAG and mouse RTL9 protein. Coiled-coil motifs in the N-terminus, a capsid domain in the middle and a zinc finger CCHC domain in the C-terminus are represented as green, blue and purple boxes, respectively. The Herpes BLLF1 super family and PHA03247 super family (UL36) motifs are depicted with a gray and orange box, respectively, and the capsid domain of the sushi-ichi retrotransposon is presented as a blue box. Minimal and maximal Gag-like regions are presented with a red dashed line and indicated by a red double-headed arrow, respectively. (b) Mouse Rtl9 mRNA expression in the adult tissues and organs at 19 weeks. The RT-PCR products use total RNA (10 μg, 32 cycles for Rtl9 and 26 cycles for β-actin as a control). (c) The generation of the Rtl9CmC KI and Rtl9 KO mice. Top: the open frame of the mCherry protein (red) is fused with the C-terminus of RTL9 via a 4 x GGS linker (yellow). Middle: mouse Rtl9.
Ijms 24 14884 g001
Ijms 24 14884 g002aIjms 24 14884 g002b
Figure 2. Expression of the RTL9CmC protein in the brain and isolated microglia. (a) A high expression of RTL9-CmC (red) was detected in the cerebral aqueduct (AQ), commissure of the superior and inferior colliculus (CSC and CIC), periaqueductal gray (PAG), posterior commissure (PC) and superior colliculus (SC), but not in the inferior colliculus (IC), hypothalamus (Ht) or thalamus (Th). The mCherry signals were almost negligible in the WT control. Left: Rtl9CmC KI brain (P15). Right: WT control brain (P18). n > 8. (b) Two sequences of photographs at a 0.5 μm interval indicated that the RTL9CmC protein accumulated in small granules around nuclei in the round cells in the brain (P5). n = 5. (c) The RTL9CmC protein was detected in both small and large granules in isolated microglia cultured from the P0 brain. n = 2. (d) The RTL9CmC protein (red) was colocalized with LysoTracker (artificial green), a specific lysosome marker, in the P9 brain. n = 3. N: nuclei.
Figure 2. Expression of the RTL9CmC protein in the brain and isolated microglia. (a) A high expression of RTL9-CmC (red) was detected in the cerebral aqueduct (AQ), commissure of the superior and inferior colliculus (CSC and CIC), periaqueductal gray (PAG), posterior commissure (PC) and superior colliculus (SC), but not in the inferior colliculus (IC), hypothalamus (Ht) or thalamus (Th). The mCherry signals were almost negligible in the WT control. Left: Rtl9CmC KI brain (P15). Right: WT control brain (P18). n > 8. (b) Two sequences of photographs at a 0.5 μm interval indicated that the RTL9CmC protein accumulated in small granules around nuclei in the round cells in the brain (P5). n = 5. (c) The RTL9CmC protein was detected in both small and large granules in isolated microglia cultured from the P0 brain. n = 2. (d) The RTL9CmC protein (red) was colocalized with LysoTracker (artificial green), a specific lysosome marker, in the P9 brain. n = 3. N: nuclei.
Ijms 24 14884 g002aIjms 24 14884 g002b
Ijms 24 14884 g003aIjms 24 14884 g003b
Figure 3. Reaction between the RTL9CmC protein and zymosan. (a) Colocalization of RTL9CmC (red) and zymosan (green) in the brain. n = 5. (b) A higher magnification image of the midbrain region. n = 3. (c,d) Time course of zymosan degradation in Rtl9CmC KI ((c) 20 and 60 min) and Rtl9 KO brain ((d) 20 and 72 min), respectively. n = 2. (e) Lysosomal localization of injected zymosan in Rtl9 KO brain: 90 min after injection, Lysotracker was added and reacted for 30 min at RT, then a fluorescent image was obtained. n = 3. (f) Normal zymosan degrading activity in Rtl5/Rtl6 DKO brain. n = 3.
Figure 3. Reaction between the RTL9CmC protein and zymosan. (a) Colocalization of RTL9CmC (red) and zymosan (green) in the brain. n = 5. (b) A higher magnification image of the midbrain region. n = 3. (c,d) Time course of zymosan degradation in Rtl9CmC KI ((c) 20 and 60 min) and Rtl9 KO brain ((d) 20 and 72 min), respectively. n = 2. (e) Lysosomal localization of injected zymosan in Rtl9 KO brain: 90 min after injection, Lysotracker was added and reacted for 30 min at RT, then a fluorescent image was obtained. n = 3. (f) Normal zymosan degrading activity in Rtl5/Rtl6 DKO brain. n = 3.
Ijms 24 14884 g003aIjms 24 14884 g003b
Table 1. Conservation of RTL9 in eutherian species. Pairwise dN/dS ratio of RTL9 in 10 representative eutherian species was shown. The human, chimpanzee, mouse, rat (Euarchontoglires), dog and horse (Laurasiatheria), manatee and elephant (Afrotheria), and armadillo and sloth (Xenarthra) species represent all four major groups of eutherians.
Table 1. Conservation of RTL9 in eutherian species. Pairwise dN/dS ratio of RTL9 in 10 representative eutherian species was shown. The human, chimpanzee, mouse, rat (Euarchontoglires), dog and horse (Laurasiatheria), manatee and elephant (Afrotheria), and armadillo and sloth (Xenarthra) species represent all four major groups of eutherians.
dN/dSHumanChimpanzeeMouseRatDogHorseManateeElephantArmadillo
Chimpanzee0.7009
Mouse0.45440.4529
Rat0.40220.40890.3364
Dog0.42720.44080.42360.3936
Horse0.61160.61530.46870.41530.4181
Manatee0.52640.53340.41700.40600.41480.5173
Elephant0.54090.54880.41810.41780.47510.59730.4284
Armadillo0.55520.56380.50750.45420.47940.55880.52270.5334
Sloth0.66190.68030.57260.54930.50140.64320.61540.63650.7614
Mouse: house mouse, rat: Norway rat, manatee: Florida manatee, elephant: African savanna elephant, armadillo: nine-banded armadillo, sloth: Hoffmann’s two-fingered sloth.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ishino, F.; Itoh, J.; Irie, M.; Matsuzawa, A.; Naruse, M.; Suzuki, T.; Hiraoka, Y.; Kaneko-Ishino, T. Retrovirus-Derived RTL9 Plays an Important Role in Innate Antifungal Immunity in the Eutherian Brain. Int. J. Mol. Sci. 2023, 24, 14884. https://doi.org/10.3390/ijms241914884

AMA Style

Ishino F, Itoh J, Irie M, Matsuzawa A, Naruse M, Suzuki T, Hiraoka Y, Kaneko-Ishino T. Retrovirus-Derived RTL9 Plays an Important Role in Innate Antifungal Immunity in the Eutherian Brain. International Journal of Molecular Sciences. 2023; 24(19):14884. https://doi.org/10.3390/ijms241914884

Chicago/Turabian Style

Ishino, Fumitoshi, Johbu Itoh, Masahito Irie, Ayumi Matsuzawa, Mie Naruse, Toru Suzuki, Yuichi Hiraoka, and Tomoko Kaneko-Ishino. 2023. "Retrovirus-Derived RTL9 Plays an Important Role in Innate Antifungal Immunity in the Eutherian Brain" International Journal of Molecular Sciences 24, no. 19: 14884. https://doi.org/10.3390/ijms241914884

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
