CRISPR/Cas9 Editing Sites Identification and Multi-Elements Association Analysis in Camellia sinensis

by
Haozhen Li
†,
Kangkang Song
†,
Bin Li
,
Xiaohua Zhang
,
Di Wang
,
Shaolin Dong
and
Long Yang
*
College of Plant Protection and Agricultural Big-Data Research Center, Shandong Agricultural University, Tai’an 271018, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2023, 24(20), 15317; https://doi.org/10.3390/ijms242015317
Submission received: 31 August 2023 / Revised: 2 October 2023 / Accepted: 17 October 2023 / Published: 18 October 2023
(This article belongs to the Special Issue Advances in Tea Tree Genetics and Breeding)
Browse Figures
Versions Notes

Abstract

:
CRISPR/Cas9 is an efficient genome-editing tool, and the identification of editing sites and potential influences in the Camellia sinensis genome have not been investigated. In this study, bioinformatics methods were used to characterise the Camellia sinensis genome including editing sites, simple sequence repeats (SSRs), G-quadruplexes (GQ), gene density, and their relationships. A total of 248,134,838 potential editing sites were identified in the genome, and five PAM types, AGG, TGG, CGG, GGG, and NGG, were observed, of which 66,665,912 were found to be specific, and they were present in all structural elements of the genes. The characteristic region of high GC content, GQ density, and PAM density in contrast to low gene density and SSR density was identified in the chromosomes in the joint analysis, and it was associated with secondary metabolites and amino acid biosynthesis pathways. CRISPR/Cas9, as a technology to drive crop improvement, with the identified editing sites and effector elements, provides valuable tools for functional studies and molecular breeding in Camellia sinensis.

1. Introduction

Camellia sinensis is an important perennial cash crop and one of the most widely consumed non-alcoholic beverages in the world, with health benefits [1]. Camellia sinensis enriched with secondary metabolites that provide aroma, freshness, and astringent flavour are key determination factors contributing to its quality hence, it is particularly important to explore their influencing factors. Current emerging gene editing could regulate plant traits and improve crops through selection of target loci. The study of CRISPR/Cas9, with included simple sequence repeats (SSR) and G-quadruplex affected elements, is expected to provide an opportunity for Camellia sinensis breeding improvement through the perspective of gene editing.
A variety of target gene-editing technologies, including zinc-finger nucleases, transcription activator-like effector nucleases, and the CRISPR/Cas system, are currently available [2]. The clustered regularly interspaced short palindromic repeat (CRISP)/CRISPR-associated protein (cas) gene is a fiery and accurate genome editing tool, and it has a bacterial adaptive immune system that recognizes and silences foreign nucleic acids, including viruses and plasmids, through small RNA [3]. Genome-editing technology has been widespread in humans [4], animals [5], bacteria [6], and plants [7], and has enabled targeted modification of most crops to accelerate crop improvement. The systems include three types, I, II, and III, which maintain high specificity by guiding the RNA to the target site through base pairing. The Type II CRISPR/Cas9 system from Streptococcus pyogenes has been the most commonly utilised gene-editing method to date [8]. PAM is typically a short sequence of 3–5 nucleotides located downstream of the target sequence [9]. Cas endonuclease could cleave invasive DNA with the same original spacer sequence of PAM, resulting in silencing of the exogenous DNA expression and acting as a targeted interfering agent [10]. In addition, Cas9 nuclease could be converted to a nickase that promotes homology-directed repair and undergoes mutagenic activity [11]. The CRISPR/Cas9 system has been applied in many plants, including model crops Arabidopsis thaliana [12], rice [13], wheat [14], maize [15], and tobacco [16] to improve abiotic and biotic stress resistance, or to modify vital traits through gene knockout and knock-in. However, Camellia sinensis is highly heterozygous due to its self-incompatibility, and its gene-editing transformation system has not yet been established, and gene-editing loci have not yet been tapped.
The selection of gene-editing sites has played a crucial role in improving crop traits. SSR molecular markers, commonly used in crop improvement [17], along with G-quadruplexes, important regulatory elements in gene expression [18,19,20], could potentially influence the type, distribution, and number of gene-editing sites. Among the most effective methods for integrating superior crop traits in one package are molecular breeding and gene editing [21]. SSRs, as the most frequently used molecular markers, are widely distributed in eukaryotic and prokaryotic genomes [22,23,24], with co-dominant inheritance, high polymorphism, repetitiveness, and genome coverage [25,26]. SSR markers have been extensively utilized in germplasm innovation and quality improvement, particularly for screening quality-related markers [17]. Notably, rice, maize, grape, potato, and other crops have witnessed a widespread use of SSR markers [27,28,29,30]. Their characteristic properties and distribution might have an impact on gene-editing loci. G-quadruplexes are nucleic acid secondary structures in DNA and RNA formed by folding of nucleotide sequences rich in guanine bases [18]. The genomic distribution and biological functions of G-quadruplexes have been initially explored in several model plants and important crops, including in Arabidopsis thaliana, rice, and wheat [19,20,31,32,33]. G-quadruplexes are extensively distributed in genomic repeat regions such as SSR, ILP, and telomeres [34,35,36], and have been associated with genomic instability as a nucleic acid secondary structure [37] and could affect the efficiency of gene editing mediated by the CRISPR system [38,39,40].
A genome-wide CRISPR screen has greatly promoted the study of the biological function of genes [41]. In recent years, CRISPR screening technology has been applied to plant research, showing great application potential [42]. However, at present, the comprehensive research on CRISPR/Cas9-editing sites in the Camellia sinensis genome is still missing. The publication of a high-quality Camellia sinensis genome provides conditions for CRISPR/Cas9-editing sites and multi-element association analyses of the genome [43]. In this study, we identified CRISPR/Cas9-editing sites with associated elements at the genome-wide level. Comprehensive analysis of the editing sites and other elements aided in the discovery of specific regions associated with secondary metabolite pathways in Camellia sinensis. This study aimed to promote the application of CRISPR/Cas9 technology in Camellia sinensis and to provide a reference for the selection of editing loci.

2. Results

2.1. Frequency and Distribution of CRISPR Loci in the Camellia sinensis Genome

A total of 248,134,838 PAMs were identified in the Camellia sinensis genome. These PAMs were predominantly composed of 72,324,043 AGGs, 87,738,084 TGGs, 32,985,030 CGGs, and 55,087,172 GGGs, which accounted for 29.15%, 35.36%, 13.29%, and 22.20% of the whole genome, respectively. Additionally, 509 NGGs were also observed. In particular, 66,665,912 specific PAMs/proto-spacer sequences were present in the genome, including 19,779,444 AGGs, 24,324,960 TGGs, 7,814,091 CGGs, and 14,747,417 GGGs (Table 1). The proportion of TGG was the highest throughout the genome, followed by AGG. The identification of PAM types in the genome and their distribution in chromosomes was consistent with the entire genome, with TGG also exhibiting the highest values in each chromosome (Table 2).

2.2. Identification and Characterisation of SSRs in the Camellia sinensis Genome

In this study, 2,938,757,831 bp sequences were examined in the whole genome of Camellia sinensis, and a total of 1,352,688 SSR motifs were identified. The results showed that the total length of SSR sequences in the Camellia sinensis genome was 39,748,371 bp, which accounted for 1.35% of the total genome length, and the total density and total frequency were 460.29 SSR/Mb versus 13,525.57 bp/Mb, respectively (Table 3). The SSR motifs were classified into eight groups based on the size of the repetitive units, which were mono-nucleotide repeats (MNRs), di-nucleotide repeats (DNRs), tri-nucleotide repeats (TNRs), tetra-nucleotide repeats (TTRs), penta-nucleotide repeats (PNRs), hexa-nucleotide repeats (HNRs), compound (c), and compound* (c*).
Characterisation of the types of repeat units of all identified SSRs revealed that single nucleotide repeats dominated, accounting for more than 50% of the total, followed by dinucleotide, trinucleotide, tetranucleotide, pentanucleotide, hexanucleotide, c, and c* which accounted for 23.28%, 5.10%, 1.46%, 0.38%, 0.33%, 18.15%, and 0.98%, respectively (Figure 1A). With the increase in size of the SSR repeat unit type, the frequency corresponding to the SSRs also appeared to decrease along with it. In addition, SSR motifs identified from the genome sequences were classified according to their location in the genome, and a total of 79.17% of the motifs were found to be located in intergenic regions, and about 20% of the motifs were found to be located in gene regions (Table 4).
Assigning the identified SSR motifs to the corresponding chromosomes revealed a positive correlation between the number of SSRs per chromosome and its length (Figure 1B) (Supplementary Figures S1–S9), with a well-defined linear relationship. It was further divided according to the size of the repeat unit type in each chromosome throughout the genome (Figure 1C) (Table S1). The results indicated that the distribution of single nucleotide repeats per chromosome was similar to the pattern of the whole genome. The percentage of single nucleotide repeats per chromosome was highest, and the number of SSRs per chromosome decreased as the size of the repeating unit increased. The frequency of occurrence of the repeating unit types was delineated (Figure 1D) and was observed to show a similar pattern in each chromosome, with single-base repeats exhibiting the highest frequency. To visualise more clearly the number of repetitive unit sequences in different segments of each chromosome in the Camellia sinensis genome, a circle diagram consisting of a heatmap was drawn. The higher the number of repetitive unit sequences, the redder the colour presented in each of its squares, and vice versa, the greener it was (Figure 2). In addition, different types of SSR repeat motifs in the genome were identified. (T/A)n, (AT/TA)n, (AAT/TTA)n, (AAAT/TTTA)n, (AAAAT/TTTTA)n, and (AAAAAT/TTTTTA)n were the most abundant repeat sequence types in each category, respectively (Table S2).

2.3. Joint Analysis of CRISPR/Cas9 and Effector Elements

The densities of characteristic regions and specificity of CRISPR and SSRs were counted for the whole genome, and the total densities of characteristic regions including gene, intergenic, exon, intron, 5′UTR, and 3′UTR SSRs were 4568.83 and 305,399.26, respectively. The densities of specific CRISPR and SSRs were 125,001.61 and 340.93, which accounted for 40.93% and 7.46% of the characterised regions, respectively. Specific CRISPR accounted for 18.59% in the intergenic region and 36.13% in the untranslated region, with smaller differences relative to SSR (Figure 3). Specific SSRs were only 2.89% in the intergenic region and up to 76.79% in the untranslated region.
In addition, GC content, gene density, GQ density, SSR density, and PAM density were identified in the genome, and mainly SSR and PAM densities were relatively high in the genome. Notably, in the fifth chromosome, it was observed that the GC content, GQ density, and PAM density in these five elements within the 12–13 Mbp range showed opposite trends compared to the gene density and SSR density. The latter two displayed a decrease when the former three densities were high, and this difference was quite significant (Figure 4). The GO and KEGG enrichment analyses were conducted for the specific pattern found in this region (Table 5). The GO enrichment analysis revealed that this region is associated with molecular functions and biological processes. Specifically, terpene biosynthesis processes, genetic regulation of expression, and methylation were found to be significantly enriched as part of the biological processes. The KEGG enrichment analysis indicated that this special region was linked to secondary metabolite biosynthesis and amino acid biosynthesis pathways in the Camellia sinensis (Figure 5).

3. Discussion

With the development of sequencing technology and the reduction in sequencing costs, a large number of plant genomes have been developed for genetic studies. In recent years, several high-quality genomes have emerged in Camellia sinensis, as reference, and the resources of genomes provided data support for the development of gene-editing sites and simple sequence repeats in Camellia sinensis [44].
The Camellia sinensis genome contained a large number of protospacers and PAMs, which was consistent with the trend that the larger the genome, the more CRISPR/Cas-editing sites would be present in it, compared to Zea mays (246,261,552) and Oryza sativa (38,923,015) [45]. The identified protospacer regions and PAMs were evenly distributed across the chromosomes. Moreover, the specific PAMs exhibited the same distribution, which suggests a potential for editing Camellia sinensis genome regions using the CRISPR/Cas9 system. Across the five PAM types, TGG was the most abundant and CGG was the lowest in number, which followed the same pattern as presented in the chilli and grape genomes [46,47]. NGGs represented a special type of NGG due to the fact that it contained indeterminate base pairs, and these NGGs were mainly found in regions of the genome where the sequence was of low quality. In contrast, gene editing with NGG types was not allowed in the application. Gene-editing systems are becoming increasingly efficient and accurate for targeted gene modification. However, there are still several technical challenges and ethical issues that need to be addressed. Unlike medical and clinical research, plant genome editing does not involve ethical concerns, making it more suitable for applied research [10]. One of the major challenges in this field is applying gene-editing techniques to species that currently lack transformation methods [48]. Additionally, the key genes controlling important agronomic traits are still unknown, posing significant difficulties for genetic improvement through molecular methods [49]. Another important consideration is how to achieve precise gene editing in plants. It is anticipated that with technological advancements, gene-editing systems will eventually be developed for Camellia sinensis.
As enriched markers for various studies, whole genome analyses of simple sequence repeats could deepen the knowledge of the genetics and potential functions and have been applied to population structure, varietal identification, construction of genetic maps, and studies of origins, evolution, or domestication history. The SSR density was 460.29 SSR/Mb within the Camellia sinensis genome and interestingly, the genome was negatively correlated with SSR density compared to other species [50], unlike the woody plants, where no significant difference was observed in SSR density [51]. The larger number of SSRs will contribute to locating the precise QTLs, excavating the key genes of the traits, and promoting genetic improvement. It is worth noting that CRISPR/Cas9-mediated genome editing may lead to genomic alterations and genomic instability, such as SSR instability [52]. The frequency analysis of SSR motifs in Camellia sinensis revealed a negative correlation between the number of repetitions of different SSR motifs and their frequency of occurrence. This finding aligns with the common pattern observed in different species [53,54,55]. Among them, a total of eight different types of motifs were identified in Camellia sinensis, and mono- and di-nucleotides were the most abundant SSRs, accounting for 73.58% of the identified whole genome, while the percentage of tri-, tetra-, penta-, hexa-, and composite SSRs was relatively lower, totalling 26.41%. With the increasing number of repetitive units, the proportion of them in the whole genome became lower. The frequency and distribution of SSRs could be explained by the main mechanism of SSR formation. Unique sequences are believed to arise spontaneously through substitutions or insertions, which are then further extended or expanded through the action of transposable elements.
The AT/TA motif was the most prevalent dinucleotide repeat sequence in the Camellia sinensis genome. Similarly, T/A, AT/TA, AAT/TTA, AAAT/TTTA, AAAAT/TTTTA, and AAAAAT/TTTTTA were the most frequently occurring motifs in mono-, tri-, tetra-, penta-, and hexa-, respectively. This also means that the most frequent motif in the whole genome might depend on the fact that C or G were less likely to mutate. For instance, AT/TA was the motif with the most dinucleotide repeats in castor [56], wheat was AG/CT [57], tartary buckwheat was AT/TA [58], and potato was AA/TT [30]. Different species might carry their own representative motifs. In addition, the frequency of motifs in non-coding regions was much larger than that in coding regions in the Camellia sinensis genome, which might lead to the motifs with more repetitions being richer and more polymorphic than those with comparatively fewer repetitions [59,60]. SSR loci with high polymorphism could be used to evaluate the plant strains and genetic background developed by CRISPR/Cas9 editing. In rice, the CRISPR/Cas9 system (0.8%) resulted in a lower differential SSR ratio between the lines and its recipient, compared to Marker-assisted backcrossing (23.5%) [61]. SSRs located in coding regions, on the other hand, might have implications for genetic studies such as gene regulation. The distribution and frequency of different SSR motifs in different chromosomes indicated that the frequency of SSRs was positively correlated with the size of Camellia sinensis chromosomes. The different types of SSR motifs exhibited the same trend in the 15 chromosomes, with their number becoming less and less as the size of the repetitive units increased. Furthermore, the presence of a lower density of SSR motifs in the centromeric region was found in most of the chromosomes in Camellia sinensis. This phenomenon might be attributed to the presence of a mitotic region in close proximity to the centromeric region. The mitotic region contained a significant number of transposable factors and highly repetitive sequences, resulting in a lower density of SSRs near the centromeric region of the chromosome [62,63].
GC content, Gene density, GQ density, SSR density, and PAM density were placed together in 15 chromosomes to reveal the relationship between them. For example, in chromosome 5, a sequence was found to be present, and this particular region was always present with high GC content, GQ density, and PAM density and low gene density and SSR density. This might be due to the proximity of this sequence to the mitotic region. The enrichment analysis revealed that this region was related to the biosynthesis of secondary metabolites and amino acids in Camellia sinensis. The secondary metabolites and amino acids were essential for the quality and yield of Camellia sinensis. Gene editing was closely related to crop breeding as it enabled the elimination of gene loci that did not contribute to desirable crop traits. These changes in gene loci had the potential to enhance yield, quality, and resistance to abiotic stress [64,65]. Gene-editing breeding for target traits using editing loci was expected to produce Camellia sinensis varieties with excellent traits that satisfy people’s requirements. In addition, gene editing could also affect gene regulation, for example, by modulating cis-regulatory elements that control transcription, mRNA processing, and translation, and the current techniques to alter gene regulation are focused on promoter regions [66,67]. SSRs, as commonly available molecular markers for crop breeding, could be used for crop improvement by screening for markers associated with traits [68], and the development of SSR markers for special regions could contribute to Camellia sinensis’ quality. Previous studies have shown that G-quadruplexes might have a dual effect on the efficiency of Camellia sinensis genome editing [39,40]. The study of the relationship between SSR sites, PAM sites, and GQ sites will facilitate the future application of G-quadruplexes in the field of Camellia sinensis, for instance, in facilitating the development of gene-editing platforms and heavy metal analyses for food safety.

4. Materials and Methods

4.1. Identification and Analysis of CRISPR/Cas9-Editing Sites in Camellia sinensis Genome

The CRISPR/Cas9-editing sites in the Camellia sinensis genome were identified using the lab’s publicly available perl script (Supplementary Materials crispr_detect.pl), including protospacer, protospacer adjacent motif (PAM), position, and strand. The PAM type was set to NGG and the aimed length of the protospacer was set to 20. The identified PAMs included five types: AGG, TGG, CGG, GGG, and NGG. Considering that some ambiguous nucleotides within the genome are denoted by N, NGG sequences were also recognized.
Specific CRISPR/Cas9-editing sites were defined as CRISPR locus where the protospacer appeared only once in the genome. The PAM in specific CRISPR/Cas9-editing sites were defined as specific PAM. The presence of these sites was analysed using the shell command line.

4.2. Identification and Analysis of SSRs in Camellia sinensis Genome

The Camellia sinensis genome data and annotation file were downloaded from the Camellia sinensis Information Archive database (http://tpia.teaplants.cn/ (accessed on 8 August 2023)) [69]. SSRs in the Camellia sinensis genome were identified using MISA, and the parameters were set as definition (unit_size, min_repeats): 1–10 2–6 3–5 4–5 5–5 6–5; interruptions (max_difference_between_2_SSRs): 100; GFF: true [70]. For compound SSR, the interval between two repeats motifs < 100 nt. For compound* SSR, the interval between two repeats motifs < 100 nt, where any two repetitive sequences were unspaced. The correlation between the number of SSRs and each chromosome length was analyzed. The circos diagram of SSR distribution in the genome was created using the Advanced Circos function module of Tbtools v1.108 [71].
For the specific SSR, perl script was processed for the genome annotation file, and the 60 bp sequences before and after exon were intercepted for primer design after removing the CDS column. The primers were screened to remove non-120 bp sequences, primer design was carried out using primer3 [72], the designed primers were screened using perl, the designed primers were subjected to e-PCR, and, finally, the primers verified by e-PCR were screened using the perl script.

4.3. Genome-Wide Identification of G-Quadruplexes

The 15 chromosome sequences of the Camellia sinensis genome were extracted using the FastaMergeandSplit function module of Tbtools. G-quadruplexes in chromosome were identified by G4Hunter, with window set to 25 and threshold set to 1.2 (https://bioinformatics.ibp.cz/#/analyse/quadruplex (accessed on 5 June 2023)) [73].

4.4. Distribution Analysis of Various Sites in Genome Feature Regions

SSR sites were represented by the positions of central bases. The CRISPR-editing sites were represented by the third base of PAM sequences upstream, because the editing sites were located between the third base and the fourth base. Annotation information of feature regions was obtained from genome annotation files, including gene, intergenic, exon, 5′UTR, and 3′UTR. The number and density of all SSRs, specific SSRs, all CRISPR-editing sites and specific CRISPR-editing sites were calculated in the genome feature regions using bedtools [74].

4.5. General Landscape and Correlation Analysis of Genome Characteristics

The circos diagram of Camellia sinensis genome characteristics was created using the Advanced Circos function module of TBtools, including GC content, gene density, G-quadruplex density, SSR density, and PAM density. The genome characteristic information of the 120–130 Mbp of chromosome 5 was extracted and standardized.

4.6. GO and KEGG Analysis

The genome characteristic information of 15 chromosome segments was calculated. Protein function annotation of Camellia sinensis was carried out by efficient and accurate eggNOGmapper (http://eggnog-mapper.embl.de/ (accessed on 15 August 2023)) [75]. The annotation result was cleaned using the eggNOG-mapper Helper function module of TBtools. The genes in 15 chromosome segments were focused on as a collection of prospective genes. ClusterProfiler [76] and ggplot2 [77] R packages were used for GO and KEGG enrichment analysis and visualization.

5. Conclusions

In the study, we identified 248,134,838 potential editing sites from the Camellia sinensis genome and observed five PAM types, of which 66,665,912 were found to be specific and they were present in all structural elements of the gene. Additionally, 1,352,688 SSR motifs were identified in the Camellia sinensis genome, and the distribution and frequency of different motifs and repetitive sequences varied across chromosomes. The analysis of editing loci and multiple elements revealed the presence of specific regions in chromosomes associated with secondary metabolites and amino acid biosynthesis pathways. Meanwhile, the editing loci were expected to provide an opportunity for a gene-editing system in Camellia sinensis.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms242015317/s1.

Author Contributions

Conceptualization, L.Y.; methodology, L.Y.; software, H.L.; validation, H.L., K.S. and B.L.; formal analysis, H.L.; investigation, K.S.; resources, X.Z.; data curation, D.W.; writing—original draft preparation, H.L.; writing—review and editing, H.L.; visualization, S.D.; supervision, K.S.; project administration, L.Y.; funding acquisition, L.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by The Foundation of Innovation Team Project for Modern Agricultural Industrious Technology System of Shandong Province (SDAIT-25-01) and Special Funds for Local Scientific and Technological Development Guided by the Central Government (YDZX2022123). And we thank the Supercomputing Center in Shandong Agricultural University for technical support.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article or Supplementary Materials.

Acknowledgments

Thanks are due to Hui hui Zhao in Ri Zhao Cha Cang Tea Co., Ltd., Ri’zhao 276800, China for valuable discussion.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Samanta, S. Potential Bioactive Components and Health Promotional Benefits of Tea (Camellia sinensis). J. Am. Nutr. Assoc. 2022, 41, 65–93. [Google Scholar] [CrossRef]
  2. Gaj, T.; Gersbach, C.A.; Barbas, C.F., III. ZFN, TALEN, and CRISPR/Cas-based methods for genome engineering. Trends Biotechnol. 2013, 31, 397–405. [Google Scholar] [CrossRef] [PubMed]
  3. Wiedenheft, B.; Sternberg, S.H.; Doudna, J.A. RNA-guided genetic silencing systems in bacteria and archaea. Nature 2012, 482, 331–338. [Google Scholar] [CrossRef]
  4. Mali, P.; Yang, L.; Esvelt, K.M.; Aach, J.; Guell, M.; DiCarlo, J.E.; Norville, J.E.; Church, G.M. RNA-Guided Human Genome Engineering via Cas9. Science 2013, 339, 823–826. [Google Scholar] [CrossRef]
  5. Cong, L.; Ran, F.A.; Cox, D.; Lin, S.; Barretto, R.; Habib, N.; Hsu, P.D.; Wu, X.; Jiang, W.; Marraffini, L.A.; et al. Multiplex Genome Engineering Using CRISPR/Cas Systems. Science 2013, 339, 819–823. [Google Scholar] [CrossRef]
  6. Gasiunas, G.; Barrangou, R.; Horvath, P.; Siksnys, V. Cas9-crRNA ribonucleoprotein complex mediates specific DNA cleavage for adaptive immunity in bacteria. Proc. Natl. Acad. Sci. USA 2012, 109, E2579–E2586. [Google Scholar] [CrossRef] [PubMed]
  7. Vidya, N.; Arun, M. Updates and Applications of CRISPR/Cas Technology in Plants. J. Plant Biol. 2023, 1–12. [Google Scholar] [CrossRef]
  8. Jinek, M.; Chylinski, K.; Fonfara, I.; Hauer, M.; Doudna, J.A.; Charpentier, E. A Programmable dual-RNA-guided DNA endonuclease in adaptive bacterial immunity. Science 2012, 337, 816–821. [Google Scholar] [CrossRef]
  9. Leenay, R.T.; Maksimchuk, K.R.; Slotkowski, R.A.; Agrawal, R.N.; Gomaa, A.A.; Briner, A.E.; Barrangou, R.; Beisel, C.L. Identifying and Visualizing Functional PAM Diversity across CRISPR-Cas Systems. Mol. Cell 2016, 62, 137–147. [Google Scholar] [CrossRef]
  10. Ma, X.; Zhu, Q.; Chen, Y.; Liu, Y.-G. CRISPR/Cas9 Platforms for Genome Editing in Plants: Developments and Applications. Mol. Plant 2016, 9, 961–974. [Google Scholar] [CrossRef] [PubMed]
  11. Mali, P.; Esvelt, K.M.; Church, G.M. Cas9 as a versatile tool for engineering biology. Nat. Methods 2013, 10, 957–963. [Google Scholar] [CrossRef]
  12. Gao, Y.; Zhao, Y. Specific and heritable gene editing in Arabidopsis. Proc. Natl. Acad. Sci. USA 2014, 111, 4357–4358. [Google Scholar] [CrossRef] [PubMed]
  13. Zegeye, W.A.; Tsegaw, M.; Zhang, Y.; Cao, L. CRISPR-Based Genome Editing: Advancements and Opportunities for Rice Improvement. Int. J. Mol. Sci. 2022, 23, 4454. [Google Scholar] [CrossRef]
  14. Awan, M.J.A.; Pervaiz, K.; Rasheed, A.; Amin, I.; Saeed, N.A.; Dhugga, K.S.; Mansoor, S. Genome edited wheat- current advances for the second green revolution. Biotechnol. Adv. 2022, 60, 108006. [Google Scholar] [CrossRef]
  15. Wang, Y.; Tang, Q.; Pu, L.; Zhang, H.; Li, X. CRISPR-Cas technology opens a new era for the creation of novel maize germplasms. Front. Plant Sci. 2022, 13, 1049803. [Google Scholar] [CrossRef]
  16. Gao, J.; Wang, G.; Ma, S.; Xie, X.; Wu, X.; Zhang, X.; Wu, Y.; Zhao, P.; Xia, Q. CRISPR/Cas9-mediated targeted mutagenesis in Nicotiana tabacum. Plant Mol. Biol. 2014, 87, 99–110. [Google Scholar] [CrossRef] [PubMed]
  17. Liao, G.; Li, Z.; Huang, C.; Zhong, M.; Tao, J.; Qu, X.; Chen, L.; Xu, X. Genetic diversity of inner quality and SSR association analysis of wild kiwifruit (Actinidia eriantha). Sci. Hortic. 2019, 248, 241–247. [Google Scholar] [CrossRef]
  18. Varshney, D.; Spiegel, J.; Zyner, K.; Tannahill, D.; Balasubramanian, S. The regulation and functions of DNA and RNA G-quadruplexes. Nat. Rev. Mol. Cell Biol. 2020, 21, 459–474. [Google Scholar] [CrossRef] [PubMed]
  19. Mullen, M.A.; Olson, K.J.; Dallaire, P.; Major, F.; Assmann, S.M.; Bevilacqua, P.C. RNA G-Quadruplexes in the model plant species Arabidopsis thaliana: Prevalence and possible functional roles. Nucleic Acids Res. 2010, 38, 8149–8163. [Google Scholar] [CrossRef]
  20. Pečinka, P.; Bohálová, N.; Volná, A.; Kundrátová, K.; Brázda, V.; Bartas, M. Analysis of G-Quadruplex-Forming Sequences in Drought Stress-Responsive Genes, and Synthesis Genes of Phenolic Compounds in Arabidopsis thaliana. Life 2023, 13, 199. [Google Scholar] [CrossRef]
  21. Khew, C.Y.; Koh, C.M.M.; Chen, Y.S.; Sim, S.L.; Mercer, Z.J.A. The current knowledge of black pepper breeding in Malaysia for future crop improvement. Sci. Hortic. 2022, 300, 111074. [Google Scholar] [CrossRef]
  22. Singh, P.; Nath, R.; Venkatesh, V. Comparative Genome-Wide Characterization of Microsatellites in Candida albicans and Candida dubliniensis Leading to the Development of Species-Specific Marker. Public Health Genom. 2021, 24, 1–13. [Google Scholar] [CrossRef] [PubMed]
  23. Campomayor, N.B.; Waminal, N.E.; Kang, B.Y.; Nguyen, T.H.; Lee, S.-S.; Huh, J.H.; Kim, H.H. Subgenome Discrimination in Brassica and Raphanus Allopolyploids Using Microsatellites. Cells 2021, 10, 2358. [Google Scholar] [CrossRef] [PubMed]
  24. Sunde, J.; Yıldırım, Y.; Tibblin, P.; Forsman, A. Comparing the Performance of Microsatellites and RADseq in Population Genetic Studies: Analysis of Data for Pike (Esox lucius) and a Synthesis of Previous Studies. Front. Genet. 2020, 11, 218. [Google Scholar] [CrossRef] [PubMed]
  25. Varshney, R.K.; Graner, A.; Sorrells, M.E. Genic microsatellite markers in plants: Features and applications. Trends Biotechnol. 2005, 23, 48–55. [Google Scholar] [CrossRef]
  26. Kalia, R.K.; Rai, M.K.; Kalia, S.; Singh, R.; Dhawan, A.K. Microsatellite markers: An overview of the recent progress in plants. Euphytica 2010, 177, 309–334. [Google Scholar] [CrossRef]
  27. Kaur, S.; Panesar, P.S.; Bera, M.B.; Kaur, V. Simple sequence repeat markers in genetic divergence and marker-assisted selection of rice cultivars: A review. Crit. Rev. Food Sci. Nutr. 2015, 55, 41–49. [Google Scholar] [CrossRef]
  28. Zhao, M.; Shu, G.; Hu, Y.; Cao, G.; Wang, Y. Pattern and variation in simple sequence repeat (SSR) at different genomic regions and its implications to maize evolution and breeding. BMC Genom. 2023, 24, 136. [Google Scholar] [CrossRef]
  29. Zhong, H.; Zhang, F.; Zhou, X.; Pan, M.; Xu, J.; Hao, J.; Han, S.; Mei, C.; Xian, H.; Wang, M.; et al. Genome-Wide Identification of Sequence Variations and SSR Marker Development in the Munake Grape Cultivar. Front. Ecol. Evol. 2021, 9, 664835. [Google Scholar] [CrossRef]
  30. Jian, Y.; Yan, W.; Xu, J.; Duan, S.; Li, G.; Jin, L. Genome-wide simple sequence repeat markers in potato: Abundance, distribution, composition, and polymorphism. DNA Res. 2021, 28, dsab020. [Google Scholar] [CrossRef]
  31. Feng, Y.; Tao, S.; Zhang, P.; Sperti, F.R.; Liu, G.; Cheng, X.; Zhang, T.; Yu, H.; Wang, X.-E.; Chen, C.; et al. Epigenomic features of DNA G-quadruplexes and their roles in regulating rice gene transcription. Plant Physiol. 2022, 188, 1632–1648. [Google Scholar] [CrossRef]
  32. Feng, Y.; Luo, Z.; Huang, R.; Yang, X.; Cheng, X.; Zhang, W. Epigenomic Features and Potential Functions of K+ and Na+ Favorable DNA G-Quadruplexes in Rice. Int. J. Mol. Sci. 2022, 23, 8404. [Google Scholar] [CrossRef]
  33. Cagirici, H.B.; Sen, T.Z. Genome-Wide Discovery of G-Quadruplexes in Wheat: Distribution and Putative Functional Roles. G3 Genes Genomes Genet. 2020, 10, 2021–2032. [Google Scholar] [CrossRef] [PubMed]
  34. Teng, Y.; Zhu, M.; Qiu, Z. G-Quadruplexes in Repeat Expansion Disorders. Int. J. Mol. Sci. 2023, 24, 2375. [Google Scholar] [CrossRef]
  35. Tokan, V.; Puterova, J.; Lexa, M.; Kejnovsky, E. Quadruplex DNA in long terminal repeats in maize LTR retrotransposons inhibits the expression of a reporter gene in yeast. BMC Genom. 2018, 19, 184. [Google Scholar] [CrossRef] [PubMed]
  36. Hoyt, S.J.; Storer, J.M.; Hartley, G.A.; Grady, P.G.S.; Gershman, A.; de Lima, L.G.; Limouse, C.; Halabian, R.; Wojenski, L.; Rodriguez, M.; et al. From telomere to telomere: The transcriptional and epigenetic state of human repeat elements. Science 2022, 376, eabk3112. [Google Scholar] [CrossRef] [PubMed]
  37. Makova, K.D.; Weissensteiner, M.H. Noncanonical DNA structures are drivers of genome evolution. Trends Genet. 2023, 39, 109–124. [Google Scholar] [CrossRef]
  38. Nahar, S.; Sehgal, P.; Azhar, M.; Rai, M.; Singh, A.; Sivasubbu, S.; Chakraborty, D.; Maiti, S. A G-quadruplex motif at the 3′ end of sgRNAs improves CRISPR–Cas9 based genome editing efficiency. Chem. Commun. 2018, 54, 2377–2380. [Google Scholar] [CrossRef] [PubMed]
  39. Liu, X.; Cui, S.; Qi, Q.; Lei, H.; Zhang, Y.; Shen, W.; Fu, F.; Tian, T.; Zhou, X. G-quadruplex-guided RNA engineering to modulate CRISPR-based genomic regulation. Nucleic Acids Res. 2022, 50, 11387–11400. [Google Scholar] [CrossRef]
  40. Yu, Y.; Li, W.; Gu, X.; Yang, X.; Han, Y.; Ma, Y.; Wang, Z.; Zhang, J. Inhibition of CRISPR-Cas12a trans-cleavage by lead (II)-induced G-quadruplex and its analytical application. Food Chem. 2021, 378, 131802. [Google Scholar] [CrossRef]
  41. Wang, J.-Y.; Doudna, J.A. CRISPR technology: A decade of genome editing is only the beginning. Science 2023, 379. [Google Scholar] [CrossRef]
  42. Liu, T.; Zhang, X.; Li, K.; Yao, Q.; Zhong, D.; Deng, Q.; Lu, Y. Large-scale genome editing in plants: Approaches, applications, and future perspectives. Curr. Opin. Biotechnol. 2023, 79, 102875. [Google Scholar] [CrossRef]
  43. Zhang, Q.-J.; Li, W.; Li, K.; Nan, H.; Shi, C.; Zhang, Y.; Dai, Z.-Y.; Lin, Y.-L.; Yang, X.-L.; Tong, Y.; et al. The Chromosome-Level Reference Genome of Tea Tree Unveils Recent Bursts of Non-autonomous LTR Retrotransposons in Driving Genome Size Evolution. Mol. Plant 2020, 13, 935–938. [Google Scholar] [CrossRef]
  44. Taheri, S.; Abdullah, T.L.; Yusop, M.R.; Hanafi, M.M.; Sahebi, M.; Azizi, P.; Shamshiri, R.R. Mining and Development of Novel SSR Markers Using Next Generation Sequencing (NGS) Data in Plants. Molecules 2018, 23, 399. [Google Scholar] [CrossRef]
  45. Xie, K.; Zhang, J.; Yang, Y. Genome-Wide Prediction of Highly Specific Guide RNA Spacers for CRISPR–Cas9-Mediated Genome Editing in Model Plants and Major Crops. Mol. Plant 2014, 7, 923–926. [Google Scholar] [CrossRef]
  46. Wang, Y.; Liu, X.; Ren, C.; Zhong, G.-Y.; Yang, L.; Li, S.; Liang, Z. Identification of genomic sites for CRISPR/Cas9-based genome editing in the Vitis vinifera genome. BMC Plant Biol. 2016, 16, 96. [Google Scholar] [CrossRef] [PubMed]
  47. Li, G.; Zhou, Z.; Liang, L.; Song, Z.; Hu, Y.; Cui, J.; Chen, W.; Hu, K.; Cheng, J. Genome-wide identification and analysis of highly specific CRISPR/Cas9 editing sites in pepper (Capsicum annuum L.). PLoS ONE 2020, 15, e0244515. [Google Scholar] [CrossRef]
  48. Hua, K.; Zhang, J.; Botella, J.R.; Ma, C.; Kong, F.; Liu, B.; Zhu, J.-K. Perspectives on the Application of Genome-Editing Technologies in Crop Breeding. Mol. Plant 2019, 12, 1047–1059. [Google Scholar] [CrossRef] [PubMed]
  49. Mao, Y.; Botella, J.R.; Liu, Y.; Zhu, J.-K. Gene editing in plants: Progress and challenges. Natl. Sci. Rev. 2019, 6, 421–437. [Google Scholar] [CrossRef] [PubMed]
  50. Liu, S.-R.; Li, W.-Y.; Long, D.; Hu, C.-G.; Zhang, J.-Z. Development and Characterization of Genomic and Expressed SSRs in Citrus by Genome-Wide Analysis. PLoS ONE 2013, 8, e75149. [Google Scholar] [CrossRef] [PubMed]
  51. Itoo, H.; Shah, R.A.; Qurat, S.; Jeelani, A.; Khursheed, S.; Bhat, Z.A.; Mir, M.A.; Rather, G.H.; Zargar, S.M.; Shah, M.D.; et al. Genome-wide characterization and development of SSR markers for genetic diversity analysis in northwestern Himalayas Walnut (Juglans regia L.). 3 Biotech 2023, 13, 136. [Google Scholar] [CrossRef] [PubMed]
  52. Huo, X.; Du, Y.; Lu, J.; Guo, M.; Li, Z.; Zhang, S.; Li, X.; Chen, Z.; Du, X. Analysis of microsatellite instability in CRISPR/Cas9 editing mice. Mutat. Res. Mol. Mech. Mutagen. 2017, 797–799, 1–6. [Google Scholar] [CrossRef]
  53. Topçu, H.; Ikhsan, A.S.; Sütyemez, M.; Çoban, N.; Güney, M.; Kafkas, S. Development of 185 polymorphic simple sequence repeat (SSR) markers from walnut (Juglans regia L.). Sci. Hortic. 2015, 194, 160–167. [Google Scholar] [CrossRef]
  54. Xu, J.; Liu, L.; Xu, Y.; Chen, C.; Rong, T.; Ali, F.; Zhou, S.; Wu, F.; Liu, Y.; Wang, J.; et al. Development and Characterization of Simple Sequence Repeat Markers Providing Genome-Wide Coverage and High Resolution in Maize. DNA Res. 2013, 20, 497–509. [Google Scholar] [CrossRef]
  55. Wang, X.; Yang, S.; Chen, Y.; Zhang, S.; Zhao, Q.; Li, M.; Gao, Y.; Yang, L.; Bennetzen, J.L. Comparative genome-wide characterization leading to simple sequence repeat marker development for Nicotiana. BMC Genom. 2018, 19, 500. [Google Scholar] [CrossRef]
  56. Dharajiya, D.T.; Shah, A.; Galvadiya, B.P.; Patel, M.P.; Srivastava, R.; Pagi, N.K.; Solanki, S.D.; Parida, S.K.; Tiwari, K.K. Genome-wide microsatellite markers in castor (Ricinus communis L.): Identification, development, characterization, and transferability in Euphorbiaceae. Ind. Crops Prod. 2020, 151, 112461. [Google Scholar] [CrossRef]
  57. Deng, P.; Wang, M.; Feng, K.; Cui, L.; Tong, W.; Song, W.; Nie, X. Genome-wide characterization of microsatellites in Triticeae species: Abundance, distribution and evolution. Sci. Rep. 2016, 6, 32224. [Google Scholar] [CrossRef]
  58. Hou, S.; Ren, X.; Yang, Y.; Wang, D.; Du, W.; Wang, X.; Li, H.; Han, Y.; Liu, L.; Sun, Z. Genome-Wide Development of Polymorphic Microsatellite Markers and Association Analysis of Major Agronomic Traits in Core Germplasm Resources of Tartary Buckwheat. Front. Plant Sci. 2022, 13, 819008. [Google Scholar] [CrossRef] [PubMed]
  59. Weber, J.L. Informativeness of human (dC-dA)n. (dG-dT)n polymorphisms. Genomics 1990, 7, 524–530. [Google Scholar] [CrossRef]
  60. Li, Y.-C.; Korol, A.B.; Fahima, T.; Beiles, A.; Nevo, E. Microsatellites: Genomic distribution, putative functions and mutational mechanisms: A review. Mol. Ecol. 2002, 11, 2453–2465. [Google Scholar] [CrossRef]
  61. Li, T.; Fang, Z.; Peng, H.; Zhou, J.; Liu, P.; Wang, Y.; Zhu, W.; Li, L.; Zhang, Q.; Chen, L.; et al. Application of high-throughput amplicon sequencing-based SSR genotyping in genetic background screening. BMC Genom. 2019, 20, 444. [Google Scholar] [CrossRef]
  62. Zhu, H.; Guo, L.; Song, P.; Luan, F.; Hu, J.; Sun, X.; Yang, L. Development of genome-wide SSR markers in melon with their cross-species transferability analysis and utilization in genetic diversity study. Mol. Breed. 2016, 36, 153. [Google Scholar] [CrossRef]
  63. Hu, Q.; Wang, H.; Jiang, B.; Zhu, H.; He, X.; Song, P.; Song, J.; Yang, S.; Shen, J.; Li, Z.; et al. Genome wide simple sequence repeats development and their application in genetic diversity analysis in wax gourd (Benincasa hispida). Plant Breed. 2022, 141, 108–118. [Google Scholar] [CrossRef]
  64. Chen, K.; Wang, Y.; Zhang, R.; Zhang, H.; Gao, C. CRISPR/Cas Genome Editing and Precision Plant Breeding in Agriculture. Annu. Rev. Plant Biol. 2019, 70, 667–697. [Google Scholar] [CrossRef] [PubMed]
  65. Min, T.; Hwarari, D.; Li, D.; Movahedi, A.; Yang, L. CRISPR-Based Genome Editing and Its Applications in Woody Plants. Int. J. Mol. Sci. 2022, 23, 10175. [Google Scholar] [CrossRef] [PubMed]
  66. Peng, A.; Chen, S.; Lei, T.; Xu, L.; He, Y.; Wu, L.; Yao, L.; Zou, X. Engineering canker-resistant plants through CRISPR/Cas9-targeted editing of the susceptibility gene CsLOB1 promoter in citrus. Plant Biotechnol. J. 2017, 15, 1509–1519. [Google Scholar] [CrossRef]
  67. Piatek, A.; Ali, Z.; Baazim, H.; Li, L.; Abulfaraj, A.; Al-Shareef, S.; Aouida, M.; Mahfouz, M.M. RNA-guided transcriptional regulation in planta via synthetic dCas9-based transcription factors. Plant Biotechnol. J. 2014, 13, 578–589. [Google Scholar] [CrossRef]
  68. Luan, M.-B.; Liu, C.-C.; Wang, X.-F.; Xu, Y.; Sun, Z.-M.; Chen, J.-H. SSR markers associated with fiber yield traits in ramie (Boehmeria nivea L. Gaudich). Ind. Crops Prod. 2017, 107, 439–445. [Google Scholar] [CrossRef]
  69. Xia, E.-H.; Li, F.-D.; Tong, W.; Li, P.-H.; Wu, Q.; Zhao, H.-J.; Ge, R.-H.; Li, R.-P.; Li, Y.-Y.; Zhang, Z.-Z.; et al. Tea Plant Information Archive: A comprehensive genomics and bioinformatics platform for tea plant. Plant Biotechnol. J. 2019, 17, 1938–1953. [Google Scholar] [CrossRef]
  70. Beier, S.; Thiel, T.; Münch, T.; Scholz, U.; Mascher, M. MISA-web: A web server for microsatellite prediction. Bioinformatics 2017, 33, 2583–2585. [Google Scholar] [CrossRef]
  71. Chen, C.J.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.H.; Xia, R. TBtools: An Integrative Toolkit Developed for Interactive Analyses of Big Biological Data. Mol. Plant 2020, 13, 1194–1202. [Google Scholar] [CrossRef] [PubMed]
  72. Untergasser, A.; Cutcutache, I.; Koressaar, T.; Ye, J.; Faircloth, B.C.; Remm, M.; Rozen, S.G. Primer3—New capabilities and interfaces. Nucleic Acids Res. 2012, 40, e115. [Google Scholar] [CrossRef] [PubMed]
  73. Brázda, V.; Kolomazník, J.; LÝSek, J.; Bartas, M.; Fojta, M.; ŠťAstnÝ, J.; Mergny, J.-L. G4Hunter web application: A web server for G-quadruplex prediction. Bioinformatics 2019, 35, 3493–3495. [Google Scholar] [CrossRef] [PubMed]
  74. Quinlan, A.R.; Hall, I.M. BEDTools: A flexible suite of utilities for comparing genomic features. Bioinformatics 2010, 26, 841–842. [Google Scholar] [CrossRef]
  75. Cantalapiedra, C.P.; Hernández-Plaza, A.; Letunic, I.; Bork, P.; Huerta-Cepas, J. eggNOG-mapper v2: Functional Annotation, Orthology Assignments, and Domain Prediction at the Metagenomic Scale. Mol. Biol. Evol. 2021, 38, 5825–5829. [Google Scholar] [CrossRef]
  76. Yu, G.; Wang, L.-G.; Han, Y.; He, Q.-Y. clusterProfiler: An R Package for Comparing Biological Themes among Gene Clusters. OMICS J. Integr. Biol. 2012, 16, 284–287. [Google Scholar] [CrossRef]
  77. Tyner, S.; Briatte, F.; Hofmann, H. Network Visualization with ggplot2. R J. 2017, 9, 27–59. [Google Scholar] [CrossRef]
Ijms 24 15317 g001

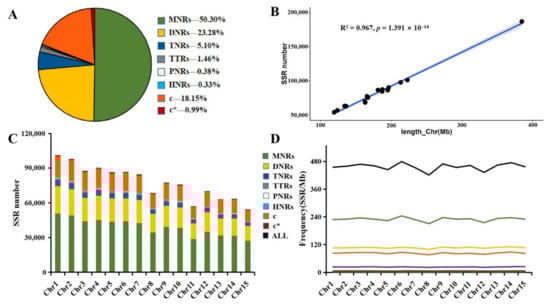

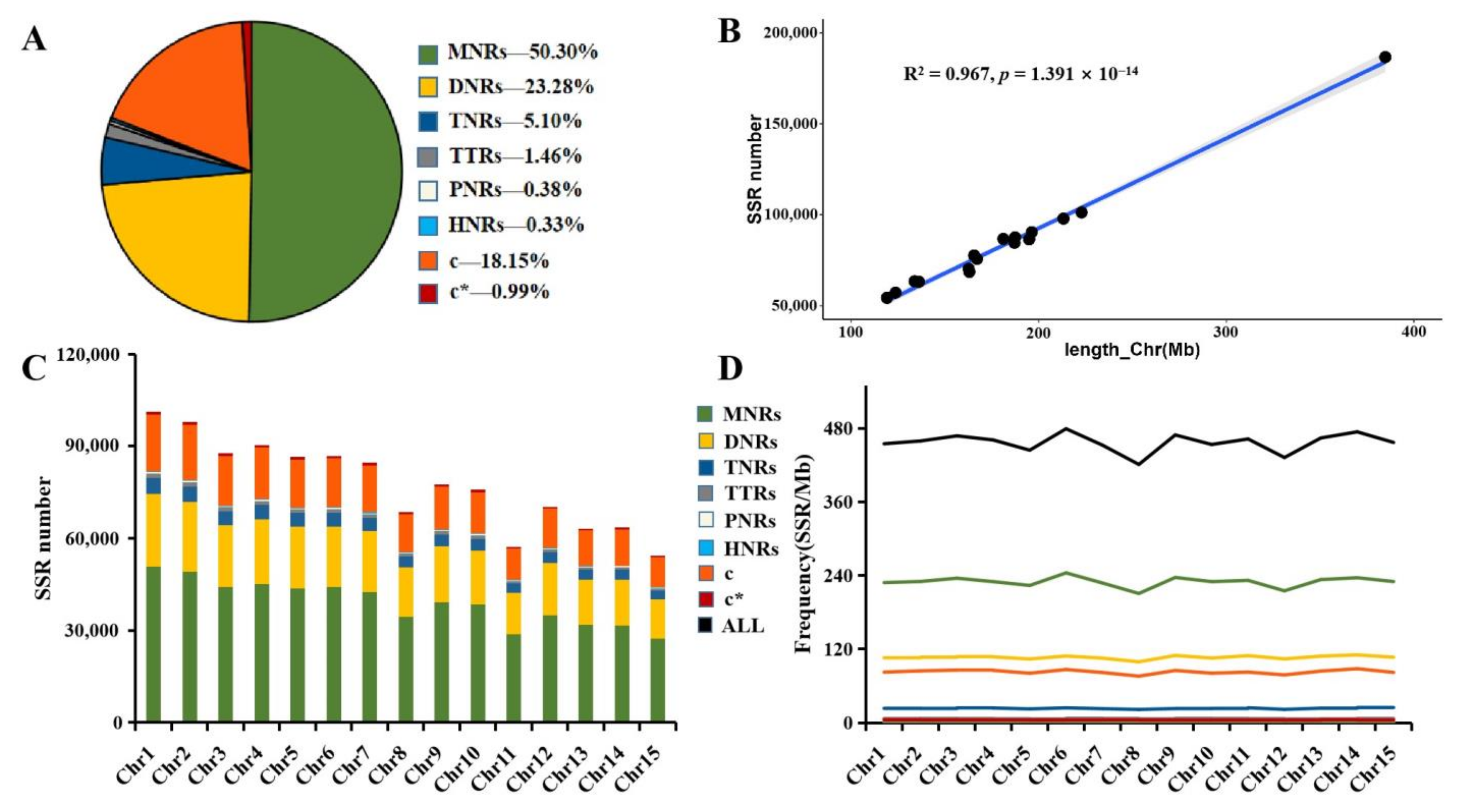

Figure 1. The type, number, and frequency of SSRs in the Camellia sinensis genome. (A) Types and proportions of SSRs. (B) Correlation analysis between chromosome length and the number of SSRs. (C) The number of various SSR types in 15 chromosomes. (D) The frequency of various SSR types in 15 chromosomes.
Figure 1. The type, number, and frequency of SSRs in the Camellia sinensis genome. (A) Types and proportions of SSRs. (B) Correlation analysis between chromosome length and the number of SSRs. (C) The number of various SSR types in 15 chromosomes. (D) The frequency of various SSR types in 15 chromosomes.
Ijms 24 15317 g001
Ijms 24 15317 g002

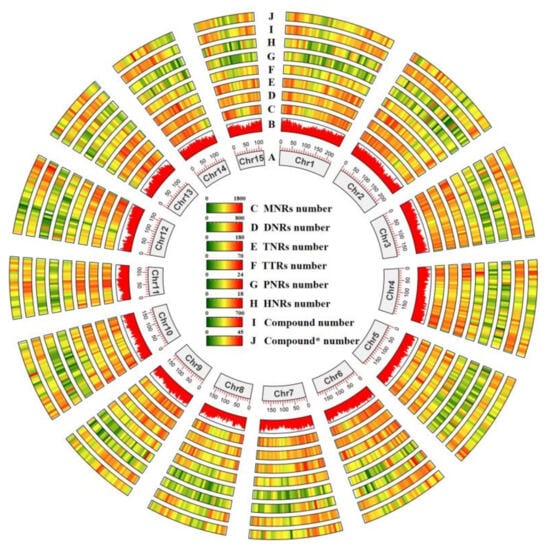

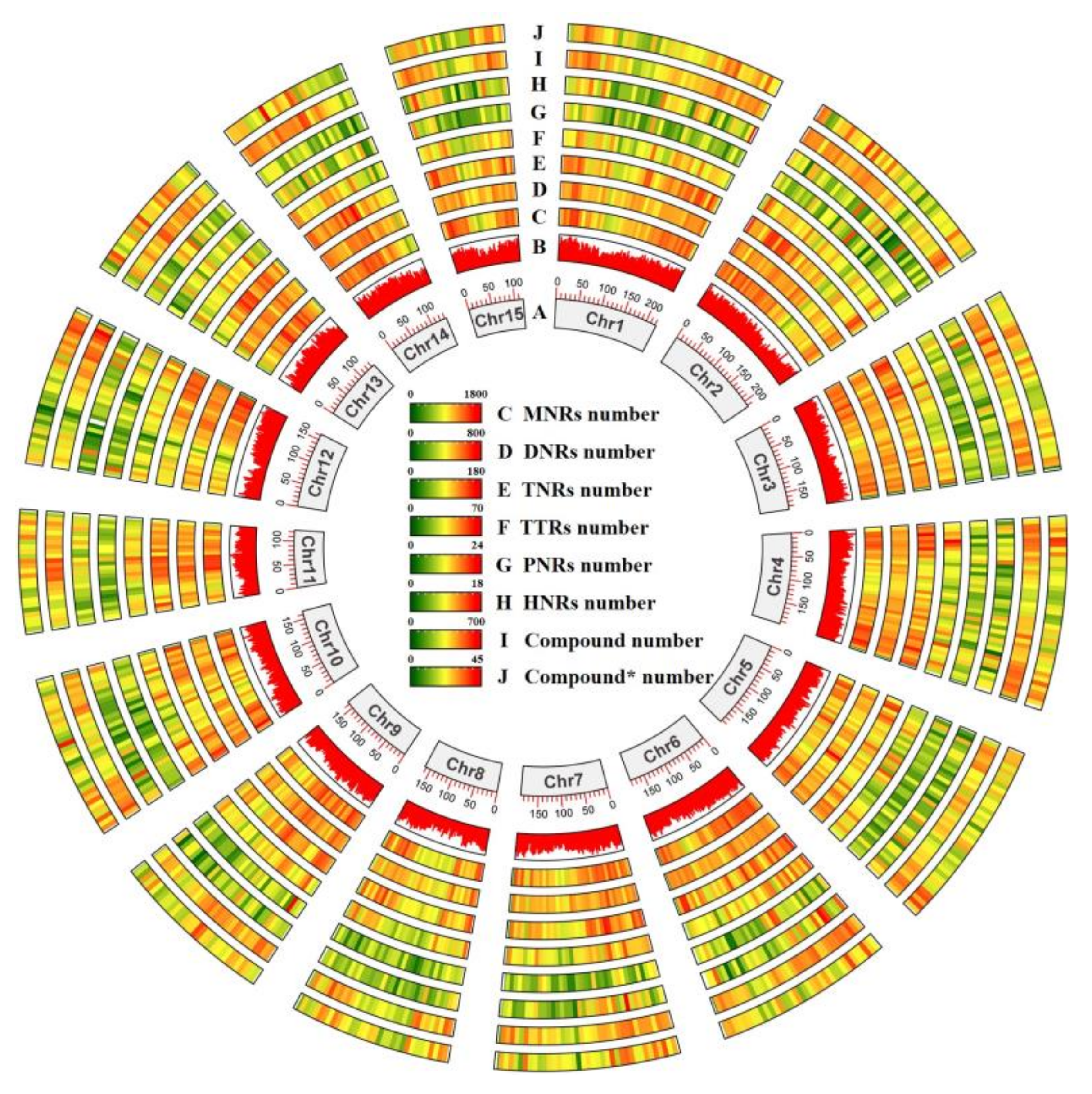

Figure 2. Circos diagram of the density of various SSR types in Camellia sinensis genome. (A) Chromosome of the Camellia sinensis genome. (B) Density histogram of SSR occurrences per chromosome. (C–J) Density heatmap of various SSR types per chromosome. C, MNRs; D, DNRs; E, TNRs; F, TTRs; G, PNRs; H, HNRs; I, Compound; J, Compound *.
Figure 2. Circos diagram of the density of various SSR types in Camellia sinensis genome. (A) Chromosome of the Camellia sinensis genome. (B) Density histogram of SSR occurrences per chromosome. (C–J) Density heatmap of various SSR types per chromosome. C, MNRs; D, DNRs; E, TNRs; F, TTRs; G, PNRs; H, HNRs; I, Compound; J, Compound *.
Ijms 24 15317 g002
Ijms 24 15317 g003

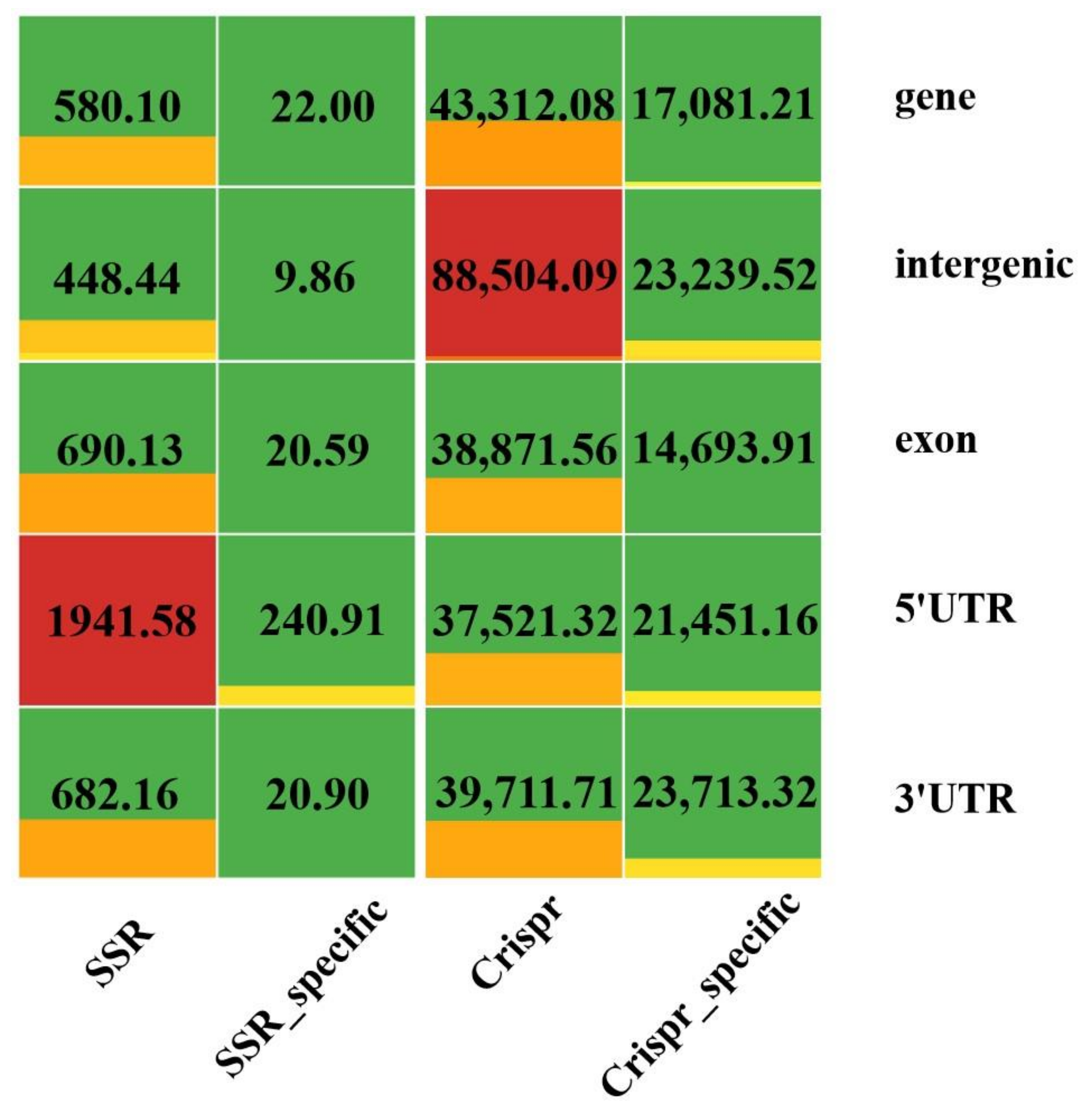

Figure 3. The density (/Mb) of SSRs and CRISPR sites in various feature regions. Green is the background, from light yellow to orange to red represents low to high density, and CRISPR sites uses a larger unit color scale than SSRs.
Figure 3. The density (/Mb) of SSRs and CRISPR sites in various feature regions. Green is the background, from light yellow to orange to red represents low to high density, and CRISPR sites uses a larger unit color scale than SSRs.
Ijms 24 15317 g003
Ijms 24 15317 g004

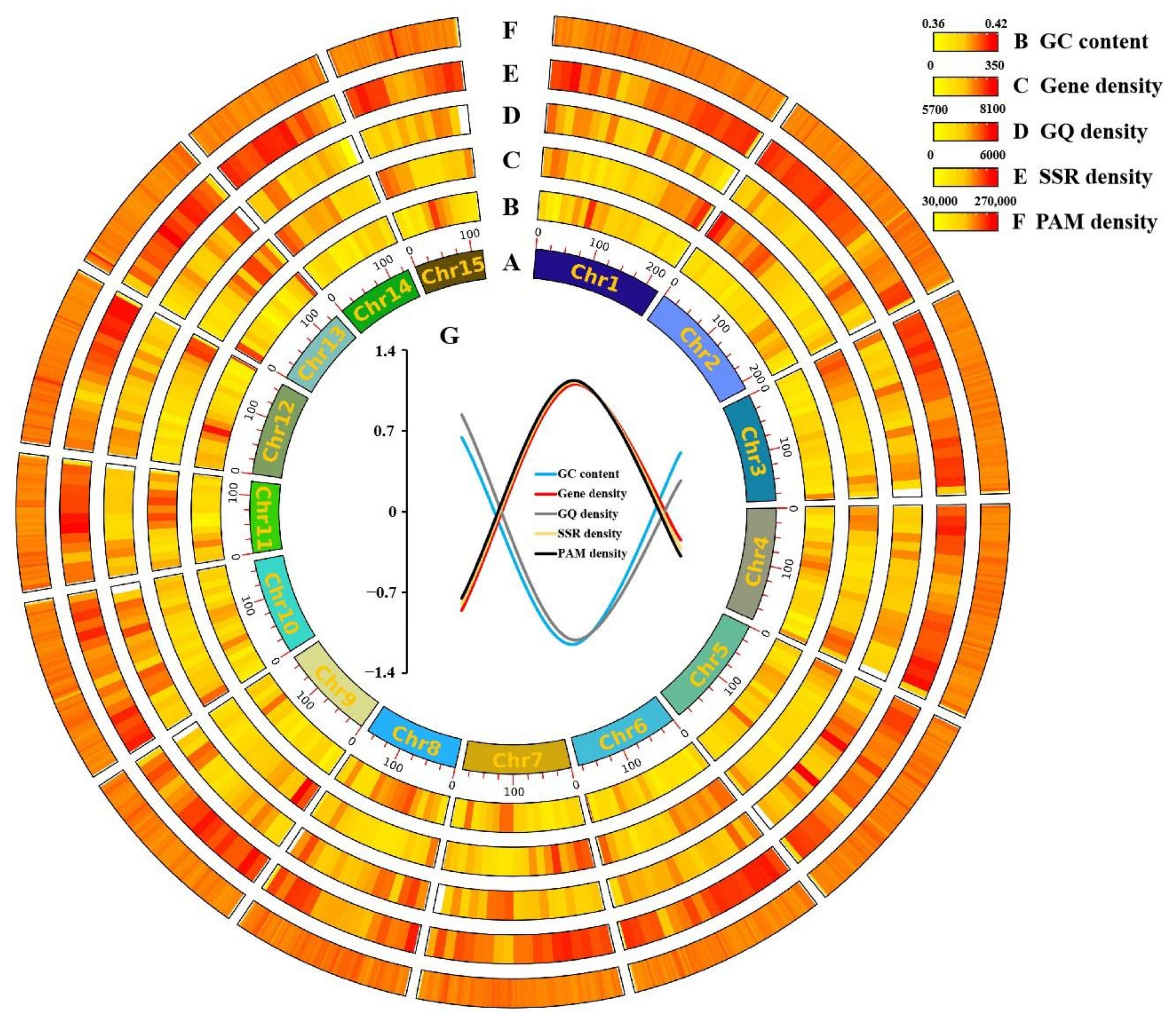

Figure 4. Distribution and analysis of editing sites and multi-elements in Camellia sinensis. (A) Chromosome of the Camellia sinensis genome. (B–F) Density heatmap of the different element. (B) GC content; (C) Gene density; (D) GQ density; (E) SSR density; (F) PAM density; (G) Standardised fold plot of correlation of various elements in the 120–130 Mbp interval of chromosome 5.
Figure 4. Distribution and analysis of editing sites and multi-elements in Camellia sinensis. (A) Chromosome of the Camellia sinensis genome. (B–F) Density heatmap of the different element. (B) GC content; (C) Gene density; (D) GQ density; (E) SSR density; (F) PAM density; (G) Standardised fold plot of correlation of various elements in the 120–130 Mbp interval of chromosome 5.
Ijms 24 15317 g004
Ijms 24 15317 g005

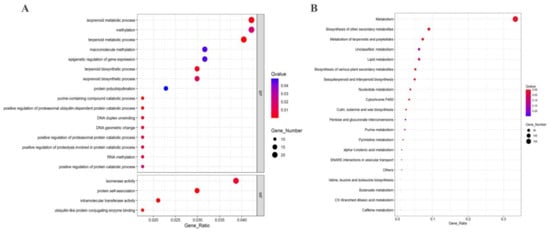

Figure 5. Functional analysis of genes in specific CRISPR-edited regions in 15 chromosomes. (A) GO enrichment. (B) KEGG enrichment.
Figure 5. Functional analysis of genes in specific CRISPR-edited regions in 15 chromosomes. (A) GO enrichment. (B) KEGG enrichment.
Ijms 24 15317 g005
Table 1. The type and number of PAMs identified in the Camellia sinensis genome.
Table 1. The type and number of PAMs identified in the Camellia sinensis genome.
TypeAGGTGGCGGGGGNGG
All72,324,04387,738,08432,985,03055,087,172509
29.15%35.36%13.29%22.20%0.0002%
Specific19,779,44424,324,9607,814,09114,747,4170
7.97%9.80%3.15%5.94%0
Table 2. The number of PAMs in the 15 chromosomes of the genome.
Table 2. The number of PAMs in the 15 chromosomes of the genome.
ChrNGG AGG TGG CGG GGG
AllSpecificAllSpecificAllSpecificAllSpecificAllSpecific
Chr14105,514,0341,595,1396,667,5111,954,1822,514,745624,4094,187,6621,182,185
Chr24605,236,8321,481,7746,335,1121,816,6782,367,578574,4303,974,6261,096,684
Chr33804,576,0121,261,9895,563,0851,556,7142,040,089490,2753,469,647938,850
Chr42604,843,9661,366,0355,854,1941,676,6792,241,392548,3503,690,1691,015,841
Chr55204,843,9361,290,8065,856,3161,585,6972,233,443516,7963,717,723966,643
Chr63604,420,8791,204,9415,379,1501,492,2812,026,175471,2213,367,926897,928
Chr74104,628,5981,264,5385,600,9571,554,1482,126,672506,7323,532,054945,866
Chr83004,126,5441,174,8714,951,6771,435,6351,935,252468,6053,173,432874,193
Chr93004,051,8441,183,5924,927,7931,461,7221,827,664460,6583,068,809879,000
Chr103504,124,4041,111,3484,982,0461,363,7411,891,552439,1313,164,318831,893
Chr112103,046,581903,7853,696,1951,111,8511,383,057346,5892,304,178664,355
Chr123604,051,3191,084,7344,902,4431,325,0131,870,259438,9323,089,787810,772
Chr132803,335,794932,7914,066,8011,152,3041,505,913364,9322,537,034695,714
Chr142503,251,920943,5203,969,4371,167,8001,459,025362,8742,468,483701,432
Chr152402,945,568804,5493,581,977986,5191,342,645319,9052,238,552599,543
Contig2409,325,8122,175,03211,403,3902,683,9964,219,569880,2527,102,7721,646,518
Table 3. Summary information of SSRs identified in the Camellia sinensis genome.
Table 3. Summary information of SSRs identified in the Camellia sinensis genome.
SSR TypeSSR
Number		Total
Length (bp)		Average
Length (bp)		Frequency
(SSR/Mb)		Density
(bp/Mb)
MNRs680,3778,815,50412.96231.522999.74
DNRs314,9696,035,46019.16107.182053.75
TNRs69,0201,440,69320.8723.49490.24
TTRs19,775430,08021.756.73146.35
PNRs5166138,14026.741.7647.01
HNRs4495148,55433.051.5350.55
c245,54821,744,93188.5683.567399.36
c*13,338995,00974.604.54338.58
All1,352,68839,748,37129.38460.2913,525.57
Table 4. The number and percentage of SSRs in genome feature regions.
Table 4. The number and percentage of SSRs in genome feature regions.
Genome Region NumberPercentage (%)
GenicGene153,48811.35
Exon14,3041.03
5′UTR53030.39
3′UTR38180.28
Intergenic 1,199,20088.68
Table 5. Segments of Camellia sinensis chromosomes with opposite trends in GC content, GQ density, and PAM density to gene density and SSR density.
Table 5. Segments of Camellia sinensis chromosomes with opposite trends in GC content, GQ density, and PAM density to gene density and SSR density.
ChrPositionGC ContentGene NumberGQ NumberSSR NumberCRISPR Number
Chr170–80 Mbp0.40888246873082762920,629
Chr2150–160 Mbp0.39550527571793742885,913
Chr390–100 Mbp0.389835810868193693862,636
Chr450–60 Mbp0.39340819472733975878,368
Chr5120–130 Mbp0.40132799079903241908,802
Chr6130–140 Mbp0.39434128269773063877,899
Chr7100–110 Mbp0.40081747375233143896,467
Chr8140–150 Mbp0.396067315075914171891,675
Chr9120–130 Mbp0.40063318173373284898,739
Chr1050–60 Mbp0.39722347673373636885,137
Chr1120–30 Mbp0.39777637372783206893,461
Chr1250–60 Mbp0.41131965070852039932,652
Chr1380–90 Mbp0.383309714867464664846,041
Chr1430–40 Mbp0.383357517873614825851,661
Chr1560–70 Mbp0.397384610671193537886,570
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Li, H.; Song, K.; Li, B.; Zhang, X.; Wang, D.; Dong, S.; Yang, L. CRISPR/Cas9 Editing Sites Identification and Multi-Elements Association Analysis in Camellia sinensis. Int. J. Mol. Sci. 2023, 24, 15317. https://doi.org/10.3390/ijms242015317

AMA Style

Li H, Song K, Li B, Zhang X, Wang D, Dong S, Yang L. CRISPR/Cas9 Editing Sites Identification and Multi-Elements Association Analysis in Camellia sinensis. International Journal of Molecular Sciences. 2023; 24(20):15317. https://doi.org/10.3390/ijms242015317

Chicago/Turabian Style

Li, Haozhen, Kangkang Song, Bin Li, Xiaohua Zhang, Di Wang, Shaolin Dong, and Long Yang. 2023. "CRISPR/Cas9 Editing Sites Identification and Multi-Elements Association Analysis in Camellia sinensis" International Journal of Molecular Sciences 24, no. 20: 15317. https://doi.org/10.3390/ijms242015317

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
