Article

DNA Nanomachine (DNM) Biplex Assay for Differentiating Bacillus cereus Species

by
Muhannad Ateiah
1,
Erik R. Gandalipov
1,
Aleksandr A. Rubel
2,
Maria S. Rubel
1 and
Dmitry M. Kolpashchikov
1,3,4,*
1
Laboratory of Solution Chemistry of Advanced Materials and Technologies, ITMO University, Lomonosova St. 9, St. Petersburg 191002, Russia
2
Laboratory of Amyloid Biology, St. Petersburg State University, Universitetskaya enb. 7-9, St. Petersburg 199034, Russia
3
Chemistry Department, University of Central Florida, 4000 Central Florida Boulevard, Orlando, FL 32816-2366, USA
4
Burnett School of Biomedical Sciences, University of Central Florida, Orlando, FL 32816, USA
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(5), 4473; https://doi.org/10.3390/ijms24054473
Submission received: 31 January 2023 / Revised: 16 February 2023 / Accepted: 21 February 2023 / Published: 24 February 2023
(This article belongs to the Special Issue Molecular Biology of RNA: Recent Progress)
Browse Figures
Versions Notes

Abstract

:
Conventional methods for the detection and differentiation of Bacillus cereus group species have drawbacks mostly due to the complexity of genetic discrimination between the Bacillus cereus species. Here, we describe a simple and straightforward assay based on the detected unamplified bacterial 16S rRNA by DNA nanomachine (DNM). The assay uses a universal fluorescent reporter and four all-DNA binding fragments, three of which are responsible for “opening up” the folded rRNA while the fourth stand is responsible for detecting single nucleotide variation (SNV) with high selectivity. Binding of the DNM to 16S rRNA results in the formation of the 10–23 deoxyribozyme catalytic core that cleaves the fluorescent reporter and produces a signal, which is amplified over time due to catalytic turnover. This developed biplex assay enables the detection of B. thuringiensis 16S rRNA at fluorescein and B. mycoides at Cy5 channels with a limit of detection of 30 × 103 and 35 × 103 CFU/mL, respectively, after 1.5 h with a hands-on time of ~10 min. The new assay may simplify the analysis of biological RNA samples and might be useful for environmental monitoring as a simple and inexpensive alternative to amplification-based nucleic acid analysis. The DNM proposed here may become an advantageous tool for detecting SNV in clinically significant DNA or RNA samples and can easily differentiate SNV under broadly variable experimental conditions and without prior amplification.

1. Introduction

Among many bacteria, the Bacillus cereus group stands out for its diversity and ubiquitous spread along the biosphere. Certain species are pathogenic with foodborne and infectious potential [1,2,3]. For instance, Bacillus cereus (B. cereus) is a well-recognized pathogen that causes two different forms of food poisoning, including emesis and diarrhea [4]. In contrast to B. cereus, Bacillus thuringiensis (B. thuringiensis) is categorized as non-harmful for humans and exploited as a pesticide targeting insects [5,6,7]. Nonetheless, B. thuringiensis has also been reported in the context of foodborne outbreaks [8]. B. cereus, B. thuringiensis, Bacillus anthracis, and Bacillus mycoides (B. mycoides) are classified collectively as members of the B. cereus group based on their close similarity. The actual frequency of B. thuringiensis in foodborne outbreaks is still unknown due to the complexity of the genetic discrimination between the Bacillus cereus species. Genomes of B. cereus, B. thuringiensis, and B. mycoides are especially infused with each other [9,10,11].
The main method of B. thuringiensis discrimination uses cry genes [6,12]. However, this approach is hampered by a high number of polymorphisms [13,14,15], both by some B. cereus strains containing cry-like genes [16] and by the discovery of some cry genes in different Bacillus species or even in other genera [17,18]. The two species exhibit high resemblance in biochemical results [19] and genetic properties [20,21]. Furthermore, Pfrunder et al. [22] demonstrated that standard biotyping cannot be used to accurately identify species of the B. cereus group. To achieve effective discrimination, some complex and elaborate techniques were developed including two-step LAMP [23], as well as sensitive detection of the pathogens via aptamers in association with magnetic and upconversion nanoparticles [24] or to xMAP technology [25]. These techniques require specific conditions and equipment often lacking in medical facilities. Because of this, biochemical tests might not be sufficient for differentiation [22]. To date, there is no well-established approach in routine diagnostics to discriminate pathogen origin and so the International Organization for Standardization (ISO) guidelines presume all the B. cereus group outbreaks to be of B. cereus origin (ISO 7932:2004). The problem of Bacillus cereus species group determination requires new tools for rapid, easy-to-use, cheap, and, at the same time, SNV-sensitive detection that can be applied later to other subjects.
Nucleic acid amplification–based tests are the golden standard of molecular diagnostics [26,27,28]. Isothermal amplification techniques are point-of-care (POC) compatible, since they do not require the expensive thermocyclers that are needed for the most reputable polymerase chain reaction (PCR)–based diagnostics [29,30]. Often, hybridization probes are used to report the presence of a specific nucleic acid [31,32,33]. However, the formation of a complex between a probe and a long single stranded (ss) DNA or RNA analyte is complicated by the analyte’s secondary and tertiary structures, which are especially stable in the case of RNA [34,35]. A traditional approach to overcome the problem is to target opened RNA fragments, which are not involved in structures predicted by the folding software [36]. However, the search for accessible RNA fragments requires labor-intensive trial-and-error experiments since computational prediction of RNA folding is still under development [37]. Other approaches to addressing this challenge include using a structure-free DNA with pseudo-complementary properties [38], or LNA- and PNA-containing oligonucleotides that form thermodynamically more stable complexes than natural nucleic acids and thus can invade the natural hybrids [39,40]. However, LNA and PNA are expensive and demonstrate low selectivity in binding complementary nucleic acids [41].
Protein-free assays that utilizes all-DNA RNA-cleaving deoxyribozymes (Dz) for signal amplification have been developed [42,43,44]. For diagnostic purposes, a Dz can be split into two fragments to form a binary Dz (BiDz) sensor (Figure 1) [42,43]. BiDza and BDzb hybridize to a complementary fragment in nucleic acid analyte and form a catalytically active Dz core, which can cleave a specifically designed fluorophore and quencher labeled reporter substrate (F-sub or Cy-sub in Figure 1), thus producing a fluorescent output. The signal is accumulated over time due to the catalytic turnover. BiDz sensors demonstrate improved sensitivity over other hybridization probes (e.g., molecular beacon and adjacent probes) due to the catalytic amplification. It was shown that under optimized assay conditions, BiDz based of 10–23 has kcat 80 min−1 [43], thus providing the upper limit for an amplification factor of 4800 in one hour under the condition of 100% complex formation with the analyte, fast F-sub delivery. Another BiDz advantage is its excellent selectivity in differentiating single-base substitutions, which is attributed to its split design [45].
Our continuing efforts [46,47,48,49] in perfecting BiDz for the detection of nucleic acids led to the BiDz-base nanostructure, the so-called “DNA nanomachine” (DNM) [34]. The DNM is equipped with two more analyte-binding arms attached to the common dsDNA scaffold [34,50]. Such a structure was proven to enhance the sensitivity of the conventional BiDz and helped unwind the target nucleic acid due to the improved binding affinity of the arms [45,51,52] and through displacing the complementary strand of dsDNA or fragments of the complex secondary structure of RNA. Unwinding of the target nucleic acid facilitated the formation of a signal-producing complex in an increased concentration, thus reducing the time of the assay and enhancing the fluorescent signal.
In this study, we demonstrate the general applicability of the DNM approach in targeting and SNV discrimination in another scoop of nucleic acids, natural 16S rRNA without prior amplification. We demonstrate the ability of the DNM approach to outcompete the intramolecular base pairing of the RNA target and to “open up” the targeted fragment. We developed six variations of DNA nanosensors with a different number of DNA-binding arms for the detection and differentiation of B. thuringiensis and B. mycoides. For each strain, three DNA nanosensors were developed: BiDz sensor (Figure 1), three-armed DNA nanomachine (B. thuringiensis-specific DNM3 and B. mycoides-specific DNM3, in Figure 2A,B, top), and four-armed DNA nanomachine (B. thuringiensis-specific DNM4 and B. mycoides-specific DNM4, in Figure 2A,B, bottom), attributable to one or two additional unwinding arms in comparison to the BiDz sensor, respectively. Two variants of the reporter substrate were used: F-sub was used for detecting B. thuringiensis and Cy-sub was used for B. mycoides (see Table S1 for sequences).

2. Results

2.1. Design of DNA-Nanosensors and Preliminary Efficiency Tests

Initially, BiDz sensors based on 10–23 deoxyribozyme were used, an analogue to that used earlier for detection of E. coli cells [45], quantification of mutant ribosomal RNA [48], and analysis of Mycobacterium tuberculosis RNA [53]. The sequences of Dza, Dzb, and the reporter substrates used in this study are listed in Table S1. Two BiDz sensors targeting B. thuringiensis (Figure 2) and B. mycoides 16S rRNA were designed. The sequences of 16S rRNA were obtained from the work of Ash et al. [54] and aligned (Figure S1). The sensor B. thuringiensis–specific BiDz was complementary to B. thuringiensis 16S rRNA (position 172–203). The sensor B. mycoides–specific BiDz was complementary to B. mycoides 16S rRNA (position 169–206). The design of the sensors differs in the targeted SNV and the reporter that was used. Strands B. thuringiensis–specific Dza and B. mycoides–specific Dza were complementary to a fragment of 16S rRNA containing two SNVs (192 and 197), which are shown in bold sequence in Table 1.
SNV 197 was used to differentiate between B. thuringiensis and B. mycoides, whereas SNS 192 was used to differentiate between two strains from B. cereus and Bacillus anthracis. The analyte-binding arm of the Dza strand was designed to be short enough to form a stable hybrid only with the specific target, thus enabling the high selectivity of 16S rRNA recognition, according to the fundamental principles of the binary probe design [45]. The sensors were tested using the total RNA extracted from B. thuringiensis and B. mycoides (Figure S1) and did not show any response above the background signal, both after 1 h (Figure in Section 2.4) and after 3 h of incubation (Figures S2 and S3). This can be attributed to the fact that the RNA region complementary to B. thuringiensis–specific BiDz and B. mycoides–specific BiDz is involved in a stable stem-loop structure (Figure S4).
To access the SNV site within the tight 16S rRNA structure, we designed the three- and four-armed DNM3 and DNM4, respectively. The B. thuringiensis–specific DNM4 is a four-armed machine, complementary to B. thuringiensis 16S rRNA (position 143–232) and B. thuringiensis–specific DNM3-thu, a three-armed machine for the same region. The B. mycoides–specific DNM4 is a four-armed nanomachine, complementary to B. mycoides 16S rRNA (position 143–232) and B. mycoides–specific DNM3, a three-armed machine complementary for the same region.

2.2. Characterization of BiDzs and DNMs

Initially, the DNA nanosensors were characterized using two 92 nt synthetic DNA oligonucleotides corresponding to 138–237 nt fragment of both B. thuringiensis and B. mycoides 16S rRNA (Table S1). The B. thuringiensis synthetic analyte folded into a stable secondary structure (∆G = −8.77 kcal/mol) (Figure S5A) while the B. mycoides synthetic analyte folded into a more stable secondary structure (∆G = −9.35 kcal/mol) (Figure S5B) under the assay conditions. The correct assembly of DNM3 and DNM4 were confirmed by electrophoresis in PAGE gel (Figure 2C). It was demonstrated that all DNA nanosensors responded to the presence of the specific synthetic DNA analyte in a concentration-dependent manner (Figure 3). The limit of detection (LOD) for the DNA nanosensors was found to be in the range of 20–110 pM as shown in Table 2 (Figures S2 and S3).
These data indicate that the LOD for synthetic DNA analyte was only slightly improved by increasing the number of analyte-binding arms. The fluorescence signal at the background level was observed for all the DNA nanosensors targeting B. thuringiensis 16S rRNA in the presence of nonspecific B. mycoides synthetic analyte and vice versa. This is consistent with the high selectivity of the sensors reported earlier.

2.3. Selectivity of the DNA-Nanosensors

The sequence of the targeted 16S rRNAs of the Bacillus cereus group species shows a similarity of >99% [54]. In fact, the 16S rRNA sequences of B. thuringiensis and B. mycoides differ from each other and from the sequences of B. cereus and B. anthracis by only four to nine nucleotides [54]. Since the mutations are scattered throughout the 16S rRNA sequence, the sensor should have single nucleotide selectivity. Splitting the functional roles between several components of the sensor allows for the fine tuning of the sensor’s characteristics, including selectivity [35]. For example, to make the sensors more selective, it was necessary to shorten the analyte-binding arm of the Dza strand from 19 to 14 nucleotides (nt) for the sensors targeting B. thuringiensis 16S rRNA and from 20 to 15 nt for the sensors targeting B. mycoides 16S rRNA, since the sensors with long analyte-binding arms could not reliably discriminate the perfectly complementary analyte from the analyte containing a single mismatch.
The selectivity of the truncated sensors was tested and adjusted using synthetic DNA oligonucleotide analytes mimicking the targeted fragment of 16S rRNAs (positions 138–237). It was shown that for all the sensors, the high fluorescent signal was observed only in the presence of the fully complementary analyte, while the analyte forming a single-base mismatch with the sensor triggered the signal close to the background (Figure 4), even when it was tested at saturation levels. These data are in agreement with the high selectivity of binary probes reported earlier [45]. The DNMs successfully detected the corresponding total RNA extracted from B. thuringiensis, B. mycoides, and B. cereus cultures. B. thuringiensis–specific DNM4 emits a signal only in the presence of B. thuringiensis RNA, and B. mycoides–specific DNM4 in the presence of B. mycoides RNA. Neither B. thuringiensis–specific nor B. mycoides–specific DNM4 detected the B. cereus RNA (Figure 4).

2.4. Detection of the Bacterial 16S rRNAs Using the DNA-Nanosensors

The performance of B. thuringiensis– and B. mycoides–specific DNA nanosensors was evaluated in the presence of 10 ng of total RNA isolated from B. mycoides, B. thuringiensis, or B. cereus (Figure S3). It was found that the BiDz sensors showed a signal as low as the background with the three different totals of RNA even after 3 h of incubation.
A 1.5-fold increase in the fluorescence was observed for the DNM3 but only after 3 h of incubation (Figures S6 and S7), whereas the DNM4 showed a 1.5-fold increase in the fluorescence in the presence of the target RNA after 1 h of incubation. The B. mycoides– and B. thuringiensis–specific DNA nanosensors showed fluorescence at the background level in the presence of non-target RNA (B. cereus) (Figure 5). The LOD of the DNM4 was calculated since it showed the best performance out of the three variants. It was found to be in the range of 1–1.5 ng, which corresponds to ~5 × 108 of 16S rRNA molecules of the target 16S rRNA after 1 h of incubation (Figure S8).

2.5. Detection of the 16S rRNAs Using the B. thuringiensis and B. mycoides in Crude Cell Lysates

Relying on the high selectivity of the DNM4 sensor, we used it with crude cell lysates without isolating target RNAs. We tested serial dilutions of a B. thuringiensis and B. mycoides cell culture (OD600 of 1–1.2) to demonstrate the performance of the DNM4 sensor in comparison with the BiDz sensor (Figure 6). The sensors detected 2 × 104 cells with S/B of ~3, which is good enough for distinguishing a true signal from the noise in fluorescent assays as was discussed earlier [43].
The fluorescence response of the sensor’s DNM4 increased with increased cell numbers, reaching saturation when 8 × 108 cells per reaction volume or more were used. At the same time, the BiDz sensor showed a response as low as the background (Figure 6, light grey bars). The response of B. thuringiensis–specific DNM4 to nonspecific B. mycoides and B. cereus cells were close to the background (Figure 4A), which also verifies the excellent selectivity of DNM. The response of B. mycoides–specific DNM4 to nonspecific B. thuringiensis and B. cereus cells was close to the background (Figure 4B). The LOD of the DNM4 sensor was found to be 30 × 103 CFU/mL for B. thuringiensis and 35 × 103 CFU/mL for B. mycoides (Figures S9 and S10).
To demonstrate the applicability of the DNM sensors in cell culture with a mixture of B. thuringiensis, B. mycoides, and B. cereus rRNA, we prepared samples of B. thuringiensis cells containing different fractions of B. mycoides and B. cereus cells and samples of B. mycoides cells containing different fractions of B. thuringiensis cells and B. cereus cells. The samples were analyzed using the DNM4 and BiDz sensors. The fluorescent response of BiDzs was close to the background. As expected, the fluorescence intensity of DNMs increased with increasing percentage of the bacterial cells with maximum fluorescence triggered by the sample containing 100% of the cells (Figure 7).

3. Discussion

BiDz technology was introduced in 2007 as a protein-free signal amplification technique with a potential for amplification-free detection of nucleic acids [42]. The major advantage of this technology was the unprecedented high selectivity of SNV detection due to the split design [45]. Since then, achieving the lowest possible LOD for BiDz has been an important goal in developing the technology [53]. With the discovery of 10–23 BiDz by Mokany et at. [43], the technology received attention due to achieving an impressive 5 pM LOD after 3 h of incubation at 55 °C with short synthetic DNA analytes. This LOD was reduced to 2 pM within a 2 h timeframe by the Dz cascade for signal amplification [55]. BiDz equipped with a DNA antenna tile for F-sub delivery enabled a LOD of ~5 pM after only 1 h of incubation [56]. BiDz probe has been demonstrated to be efficient in detecting short DNA analytes [57,58,59], but the performance is less in case of long biological RNA. Being the most sensitive probe among protein enzyme-free approaches, BiDz is not sensitive enough to detect a majority of biological DNA or RNA analytes without amplification, including the mRNA responsible for bacteria drug resistance. Indeed, while the PCR-based method can detect down to 1–10 analytes due to exponential amplification, DNM4 detected only ~5 × 108 of 16S rRNA molecules (Figure S8) in this study due to just linear signal amplification. One important exception for this limitation is the detection of 16S rRNA, which is present in thousands of copies in a single bacteria cell. We believe that developing an amplification-free technique for detecting bacteria based on 16S rRNA-specific BiDz is feasible.
However, analysis of such a long biologically folded RNA as 16S rRNA by traditional hybridization probes has always been a major challenge [60]. The main problem is that the targeted fragments are involved in an intramolecular base paring and, therefore, they are hardly accessible. Secondary structure in analytes has been found to significantly reduce probe-target duplex formation and slow hybridization kinetics [61,62,63]. Amplification of such RNA samples requires a PCR instrument and specialized diagnostic laboratory, which makes the analysis procedure costly and time consuming. To enable amplification-free detection of 16S rRNA, we equipped BiDz with additional RNA-binding arms. This modification resulted in a thermodynamically favorable RNA/DNM complex, which led to the unfolding of the RNA secondary structure, thus reducing the time of the assay and achieving the lowest possible LOD. The strategy reported here can be further adapted from biplex to multiplex system targeting more than two analytes, since the adaptation would require only a new fluorogenic substrate and modification of the substrate-binding arms.
The use of the 16S rRNA sequence as a reliable marker for the discrimination of B. cereus group members has failed in previous studies [54,64] due to the high nucleotide conservation in the sequence among the species of this group. Detection and differentiation of B. cereus group species in routine diagnostics can be difficult and time- and reagent-consuming since current species’ designations are linked to the specific phenotypic characteristic or the presence of species-specific genes. To the best of our knowledge, this is the first attempt to differentiate B. cereus species with an amplification-free approach. The DNM approach uses inexpensive reagents and equipment; it does not require perishable reagents (e.g., protein enzymes) and provides impressive selectivity towards SNV. Therefore, DNM technology promises to be less expensive and more deliverable to point-of-care settings than current gold diagnostic standard qPCR and new generation sequencing (NGS).
DNM4 detected ~1.5 ng of total RNA (Figure S6), which corresponds to ~5×108 16S rRNA molecules. The same sensor detected ~30,000 colony-forming units in crude cell extract (Figures S9 and S10). Wei el al. [65] reported a RT-qPCR-based method for the detection of B. thuringiensis with an LOD that can reach down to 103 CFU/g of B. thuringiensis in spiked food samples. There is no well-established infectious dose of B. thuringiensis or B. cereus partly due to the large differences in the amount of enterotoxin produced by different strains [66]. However, counts ranging from 200 to 109 g−1 (or mL−1) B. cereus have been reported in affected food after food poisoning. Thus, the total infective dose seems to vary between 105–108 viable cells or spores [67]. Despite this, further improvement in DNM sensitivity is needed. It can include using multiple DNMs for binding the same RNA molecule or adapting the antenna tile design for facilitated substrate delivery to the activated Dz core [56] or adding more analyte-binding arms. The DNMs proposed here can become an advantageous tool for detecting SNV in clinically significant DNA or RNA samples and can easily differentiate SNV under broadly variable experimental conditions [68,69].

4. Materials and Methods

4.1. Materials

The fluorescence susbstrates were purchased in DNA-synthesis, Moscow, Russia. Other oligonucleotides were purchased in Evrogen, Moscow, Russia. DNAse/RNAse free water was purchased from Qiagen, Hilden, Germany. Salts, including MgCl2, NaCl, KCl, HEPES, and DEPC were purchased from CarlROTH, Carlsruhe, Germany. Acrylamide was purchased from Applichem, Illinois, USA. Other materials for electrophoresis, including agarose, tris, boric acid, EDTA, bisacrylamide, APS, TEMED, ethidium bromide, and SDS were purchased from Helicon, Moscow, Russia. Ladders and gel loading dyes were purchased from Evrogen, Moscow, Russia. Consumables for bacteria growth, including agar, tripton and yeast extract, were purchased in Dia-M, Moscow, Russia. Glass beads of technical grade was a gift from a technical department. Sodium acetate, phenol, and chlorophorm were purchased from Lenreactiv, Saint-Petersburg, Russia.

4.2. Assembling of DNMs

Stock solutions of DNM1_thu, DNM1-1_thu, DNM1_myc, and DNM1-1_myc were prepared by annealing 10 nM of (T1_thu and T2_thu), (T1_thu and T2′_thu), (T1_myc and T2_myc), and (T1_myc and T2′_myc) in the reaction buffer (200 mM MgCl2, 150 mM KCl, 15 mM NaCl, and 50 mM HEPES, pH 7.4). For all the experiments, we used 20 nM of DNM1_thu and DNM1-1_thu containing 20 nM of Dza_thu strand and 15 nM of DNM1_myc and DNM1-1_myc containing 20 nM of Dza_myc strand. These concentrations of DNMs and DZas were found to be optimal in terms of the analyte-specific dependent response over the background.

4.3. General Fluorescence Assay for Measuring the Limit of Detection (LOD)

Each sample was prepared in 150 µL of reaction buffer (200 mM MgCl2, 150 mM KCl, 15 mM NaCl, and 50 mM HEPES, pH 7.4) containing 200 nM F-sub or Cy-sub, 20 nM DNM_thu and 20 nM DZa_thu or 15 nM DNM_myc and 20 nM DZa_myc, and specific synthetic analyte in concentrations ranged from 0 pM to 800 pM. When the assay was performed with either B. thuringiensis, B. mycoides, or B. cereus total RNA, the concentration ranged from 0.1 ng to 20 ng. When the assay was performed with cell lysates, the cells were first pelleted by centrifugation and resuspended in the reaction buffer containing DNM and DZa. The samples were heated for 5 min at 95 °C to enable cell lysis and centrifuged to pellet the cell debris, and the supernatant was transferred to a clean tube before adding the reporter to minimize the background. All samples were incubated at 55 °C for 60 or 180 min followed by fluorescent measurement. This measurement was performed at Spark, Tecan, Switzerland fluorimeter at wavelengths (ex/em) 480 nm/525 nm for F-sub and 617/662 nm for Cy-sub.

4.4. Preparation and Analysis of Total RNA

Total RNA was isolated from Bacillus cereus ATCC 14579, Bacillus thuringiensis ATCC 10792, and Bacillus mycoides ATCC 6462 according to the method developed by Oh and So [70] (Figure S1). Namely, the cells of B. thuringiensis and B. cereus were grown in 3 mL LB at 37 °C for 16 h while the cells of B. mycodies were grown in 3 mL LB at 30 °C. Then the cells were harvested by centrifugation at 10,000× g for 3 min. The cell pellets were resuspended in a lysis solution of 800 µL (sodium acetate 2.7 g, SDS 5 g, EDTA 0.34 g per liter of deionized water, pH 5.5). Unless otherwise specified, all procedures were conducted at room temperature. The acid pre-treated glass beads (0.8 g, 425–600 um in diameter) were added in the cell suspensions and the samples were vortexed for 2–3 min at 2000 rpm to break the cell wall. The samples were centrifuged at 10,000× g for 3 min and the supernatants (500 µL) were transferred to fresh 1.5 mL microtubes. The supernatants were mixed with 500 µL of saturated phenol (pH 5.5) and incubated at 68 °C for 5 min with periodic mixing. Samples were then centrifuged at 10,000× g for 3 min. The aqueous layer (450 µL) was transferred to a 1.5 mL fresh microtube and mixed with chloroform (450 µL) before being centrifuged at 10,000× g for 3 min. The aqueous layer (400 µL) was transferred to a 1.5 mL fresh microtube and mixed with 100% ethanol (800 µL) and 3 M sodium acetate (1/10 volume). Then RNA pellets obtained by centrifugation at 10,000× g for 10 min, were washed with ice-cold 70% ethanol, and dried in a speed vacuum. Dried RNA samples were resuspended in 45 µL of nuclease-free water. The samples were visualized by electrophoresis in 1% agarose at 100 V during 30 min followed by staining in Ethidium Bromide Stain for 15 min.

4.5. Preparation and Analysis of the Whole Bacterial Cells

B. thuringiensis was inoculated with 200 mL of Lysogeny broth (LB broth) and cultivated overnight at 37 °C. The cells were diluted to reach OD600 of ~1.1. To perform the calibration up to higher OD, 1 mL of the culture was centrifuged, the supernatant was removed, and another 1 mL culture was added. The sample was centrifuged again, the supernatant was removed, and 1 mL saline was added, and the cells were re-suspended. This B. thuringiensis stock solution reached an OD600 of 2.2 AU. Serial dilutions were made from the stock solution. The serial dilutions were further diluted by a factor of 80,000 (4 times 10×, followed by a final 8× dilution). A total of 50 µL of the diluted B. thuringiensis serial dilutions were plated onto Petri dishes and were incubated overnight at 37 °C and the colony forming units were counted. Only plates between 30 and 300 CFU were used for the calculation of the cell numbers. The cell number as CFU/mL was calculated by multiplication of the counted CFU on the Petri dish with the dilution factor of 80,000 and multiplication of 20 to correct for the CFU per mL. The same procedure was repeated to calculate the number of B. mycoides cells.
For the assay, the serial dilutions were prepared in 1 mL per sample and the cells were collected by centrifugation at 900× g for 5 min. The supernatant was discarded, and the cell pellet was resuspended in 150 µL of the reaction buffer containing either B. thuringiensis–specific or B. mycoides–specific DNM1 and BiDz. To ensure the cell lysis and liberation of the RNA from the cells and to anneal it with the deoxyribozyme strands, the mixture was heated at 95 °C for 5 min, left to cool down at room temperature for 5 min, and then centrifuged at 900× g for 3 min. The supernatant (~140 µL) was transferred into a clean tube before adding 1 µL of RNase inhibitor and the reporter to minimize the background. All samples were incubated at 55 °C for 60 or 180 min followed by fluorescent measurement.

4.6. Preperation and Analysis of Cell Mixtures

To prepare the samples of cell mixtures, B. thuringiensis cells, B. mycoides cells, and B. cereus cells were grown separately to OD600 of ~1 and then all cell cultures were diluted 50-fold with medium. Two series of diluted cultures were prepared. The first series of diluted cultures were mixed in 0:0:10, 1:1:8, 2:2:6, 3:3:4, 4:4:2, or 5:5:0 ratio to obtain samples of B. thuringiensis cultures containing 100%, 80%, 60%, 40%, 20%, or 0% of the B. thuringiensis cells, respectively. The second series of diluted cultures were mixed in 0:0:10, 1:1:8, 2:2:6, 3:3:4, 4:4:2, or 5:5:0 ratio to obtain samples of B. mycoides cultures containing 100%, 80%, 60%, 40%, 20%, or 0% of the B. mycoides cells, respectively. The samples were analyzed using the DNMs and BiDzs.

4.7. Statistical Analysis

A t-test was used to compare the differences between the B. cereus, B. mycoides, and B. thuringiensis. An ANOVA of variance followed by post hoc tests (Bonferroni) was used to compare differences between different groups. All values are presented as mean ± SD. A p-value < 0.05 was considered statistically significant.

5. Conclusions

DNA machines for fluorescence analysis of biologically folded RNA were designed and tested. The multi-armed DNM approach enabled the amplification-free detection and discrimination of B. thuringiensis and B. mycoides. The multi-armed approach does not require long analyte-binding fragments and so allows for the detection of targets with complex secondary and SNVs at the same time. The assay enabled expedite quantification of rRNA content in cell cultures starting from whole cells with LOD down to 30,000 bacterial cells. The method requires 1.5 h with a hands-on time of ~10 min, which outperforms other commercially available tests. The approach is sensitive to SNVs. Further development of the technology should lower the LOD and shorten the assay time to 15–30 min, which could make it competitive with state-of-the-art detection techniques. The same approach is not limited to the Bacillus cereus species and can be later expanded to apply to other difficult-to-discriminate targets.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms24054473/s1. References [71,72] are cited in the Supplementary Materials.

Author Contributions

Conceptualization, M.S.R. and D.M.K.; validation, M.A. and E.R.G.; investigation, M.A.; resources, A.A.R. and M.S.R.; data curation, D.M.K.; writing—original draft preparation, M.A.; writing—review and editing, A.A.R., M.S.R. and D.M.K. All authors have read and agreed to the published version of the manuscript.

Funding

M.A. and M.S.R. were funded by the ITMO University Priority 2030 program and a FSER-2022-0009 grant of the Ministry of Education of Russian Federation. A.A.R. was funded by St. Petersburg State University (project #94031363).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors would like to thank Nairouz Deeb for the microbiology techniques support. The authors would like to acknowledge I. A. Boubnov and N.D. Pastoukhova participation in the early stages of the project. The authors would like to thank SCAMT bioblock for administrative support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tewari, A.; Abdullah, S. Bacillus cereus food poisoning: International and Indian perspective. J. Food Sci. Technol. 2015, 52, 2500–2511. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Holmes, J.R.; Plunkett, T.; Pate, P.; Roper, W.L.; Alexander, W.J. Emetic food poisoning caused by Bacillus cereus. Arch. Intern. Med. 1981, 141, 766–767. [Google Scholar] [CrossRef] [PubMed]
  3. Fritze, D. Taxonomy of the genus bacillus and related genera: The aerobic endospore-forming bacteria. Phytopathology 2004, 94, 1245–8124. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Jessberger, N.; Dietrich, R.; Granum, P.E.; Märtlbauer, E. The Bacillus cereus Food Infection as Multifactorial Process. Toxins 2020, 12, 701. [Google Scholar] [CrossRef] [PubMed]
  5. Bravo, A.; Likitvivatanavong, S.; Gill, S.S.; Soberón, M. Bacillus thuringiensis: A story of a successful bioinsecticide. Insect Biochem. Mol. Biol. 2011, 41, 423–431. [Google Scholar] [CrossRef] [Green Version]
  6. Schnepf, E.; Crickmore, N.; Van Rie, J.; Lereclus, D.; Baum, J.; Feitelson, J.; Zeigler, D.R.; Dean, D.H. Bacillus thuringiensis and its pesticidal crystal proteins. Microbiol. Mol. Biol. Rev. 1998, 62, 775–806. [Google Scholar] [CrossRef] [Green Version]
  7. Melo, A.L.; Soccol, V.T.; Soccol, C.R. Bacillus thuringiensis: Mechanism of action, resistance, and new applications: A review. Crit. Rev. Biotechnol. 2016, 36, 317–326. [Google Scholar] [CrossRef]
  8. Johler, S.; Kalbhenn, E.M.; Heini, N.; Brodmann, P.; Gautsch, S.; Bağcioğlu, M.; Contzen, M.; Stephan, R.; Ehling-Schulz, M. Enterotoxin Production of Bacillus thuringiensis Isolates From Biopesticides, Foods, and Outbreaks. Front. Microbiol. 2018, 9, 1915. [Google Scholar] [CrossRef] [Green Version]
  9. Liu, Y.; Lai, Q.; Göker, M.; Meier-Kolthoff, J.P.; Wang, M.; Sun, Y.; Wang, L.; Shao, Z. Genomic insights into the taxonomic status of the Bacillus cereus group. Sci. Rep. 2015, 5, 14082. [Google Scholar] [CrossRef] [Green Version]
  10. Ehling-Schulz, M.; Lereclus, D.; Koehler, T.M. The Bacillus cereus Group: Bacillus Species with Pathogenic Potential. Microbiol. Spectr. 2019, 7. [Google Scholar] [CrossRef]
  11. Bourque, S.N.; Valero, J.R.; Lavoie, M.C.; Levesque, R.C. Comparative analysis of the 16S to 23S ribosomal intergenic spacer sequences of Bacillus thuringiensis strains and subspecies and of closely related species. Appl. Environ. Microbiol. 1995, 61, 1623–1626. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Frederiksen, K.; Rosenquist, H.; Jørgensen, K.; Wilcks, A. Occurrence of natural Bacillus thuringiensis contaminants and residues of Bacillus thuringiensis-based insecticides on fresh fruits and vegetables. Appl. Environ. Microbiol. 2006, 72, 3435–3440. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Reyes-Ramírez, A.; Ibarra, J.E. Plasmid patterns of Bacillus thuringiensis type strains. Appl. Environ. Microbiol. 2008, 74, 125–129. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Zheng, J.; Peng, D.; Ruan, L.; Sun, M. Evolution and dynamics of megaplasmids with genome sizes larger than 100 kb in the Bacillus cereus group. BMC Evol. Biol. 2013, 13, 262. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Porcar, M.; Juárez-Pérez, V. PCR-based identification of Bacillus thuringiensis pesticidal crystal genes. FEMS Microbiol. Rev. 2003, 26, 419–432. [Google Scholar] [CrossRef] [Green Version]
  16. Francisco Castillo-Esparza, J.; Luévano-Borroel, J.; Ibarra, J.E. Identification and characterization of a new cry-like gene found in a Bacillus cereus strain. Antonie Van Leeuwenhoek 2021, 114, 1759–1770. [Google Scholar] [CrossRef]
  17. Barloy, F.; Delécluse, A.; Nicolas, L.; Lecadet, M.M. Cloning and expression of the first anaerobic toxin gene from Clostridium bifermentans subsp. malaysia, encoding a new mosquitocidal protein with homologies to Bacillus thuringiensis delta-endotoxins. J. Bacteriol. 1996, 178, 3099–3105. [Google Scholar] [CrossRef] [Green Version]
  18. Yokoyama, T.; Tanaka, M.; Hasegawa, M. Novel cry gene from Paenibacillus lentimorbus strain Semadara inhibits ingestion and promotes insecticidal activity in Anomala cuprea larvae. J. Invertebr. Pathol. 2004, 85, 25–32. [Google Scholar] [CrossRef]
  19. Böhm, M.E.; Huptas, C.; Krey, V.M.; Scherer, S. Massive horizontal gene transfer, strictly vertical inheritance and ancient duplications differentially shape the evolution of Bacillus cereus enterotoxin operons hbl, cytK and nhe. BMC Evol.Biol. 2015, 15, 246. [Google Scholar] [CrossRef] [Green Version]
  20. Osman, G.; Already, R.; Assaeedi, A.; Organji, S.; El-Ghareeb, D.; Abulreesh, H.; Althubiani, A.S. Bioinsecticide Bacillus thuringiensis a comprehensive review. Egypt. J. Biol. Pest Control 2015, 25, 271–288. [Google Scholar]
  21. Cho, S.H.; Kang, S.H.; Lee, Y.E.; Kim, S.J.; Yoo, Y.B.; Bak, Y.S.; Kim, J.B. Distribution of Toxin Genes and Enterotoxins in Bacillus thuringiensis Isolated from Microbial Insecticide Products. J. Microbiol. Biotechnol. 2015, 25, 2043–2048. [Google Scholar] [CrossRef] [PubMed]
  22. Pfrunder, S.; Grossmann, J.; Hunziker, P.; Brunisholz, R.; Gekenidis, M.T.; Drissner, D. Bacillus cereus Group-Type Strain-Specific Diagnostic Peptides. J. Proteome Res. 2016, 15, 3098–3107. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Busch, A.; Schotte, U.; Jeßberger, N.; Frentzel, H.; Plötz, M.; Abdulmawjood, A. Establishment and validation of a two-step LAMP assay for detection of Bacillus cereus-group isolates in food and their possibility of non-haemolytic enterotoxin production. Front. Microbiol. 2022, 13, 930648. [Google Scholar] [CrossRef] [PubMed]
  24. Zheng, H.; Sheng, R.; Li, H.; Chen, Q. Rapid and selective detection of Bacillus cereus in food using cDNA-based up-conversion fluorescence spectrum copy and aptamer modified magnetic separation. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2022, 267, 120618. [Google Scholar] [CrossRef]
  25. Moteshareie, H.; Hassen, W.M.; Dirieh, Y.; Groulx, E.; Dubowski, J.J.; Tayabali, A.F. Rapid, Sensitive, and Selective Quantification of Bacillus cereus Spores Using xMAP Technology. Microorganisms 2022, 10, 1408. [Google Scholar] [CrossRef]
  26. Trinh, T.N.D.; Lee, N.Y. Nucleic acid amplification-based microfluidic approaches for antimicrobial susceptibility testing. Analyst 2021, 146, 3101–3113. [Google Scholar] [CrossRef]
  27. Zheng, C.; Wang, K.; Zheng, W.; Cheng, Y.; Li, T.; Cao, B.; Jin, Q.; Cui, D. Rapid developments in lateral flow immunoassay for nucleic acid detection. Analyst 2021, 146, 1514–1528. [Google Scholar] [CrossRef]
  28. Wu, Q.; Suo, C.; Brown, T.; Wang, T.; Teichmann, S.A.; Bassett, A.R. INSIGHT: A population-scale COVID-19 testing strategy combining point-of-care diagnosis with centralized high-throughput sequencing. Sci. Adv. 2021, 7, 5054. [Google Scholar] [CrossRef]
  29. Kang, T.; Lu, J.; Yu, T.; Long, Y.; Liu, G. Advances in nucleic acid amplification techniques (NAATs): COVID-19 point-of-care diagnostics as an example. Biosens. Bioelectron. 2022, 206, 114109. [Google Scholar] [CrossRef]
  30. Li, J.; Macdonald, J. Advances in isothermal amplification: Novel strategies inspired by biological processes. Biosens. Bioelectron. 2015, 64, 196–211. [Google Scholar] [CrossRef]
  31. Veselinyová, D.; Mašlanková, J.; Kalinová, K.; Mičková, H.; Mareková, M.; Rabajdová, M. Selected In Situ Hybridization Methods: Principles and Application. Molecules 2021, 26, 3874. [Google Scholar] [CrossRef] [PubMed]
  32. Buh Gasparic, M.; Tengs, T.; La Paz, J.L.; Holst-Jensen, A.; Pla, M.; Esteve, T.; Zel, J.; Gruden, K. Comparison of nine different real-time PCR chemistries for qualitative and quantitative applications in GMO detection. Anal. Bioanal. Chem. 2010, 396, 2023–2029. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Kolpashchikov, D.M. Evolution of Hybridization Probes to DNA Machines and Robots. Acc. Chem. Res. 2019, 52, 1949–1956. [Google Scholar] [CrossRef] [PubMed]
  34. Nguyen, C.; Grimes, J.; Gerasimova, Y.V.; Kolpashchikov, D.M. Molecular-beacon-based tricomponent probe for SNP analysis in folded nucleic acids. Chemistry 2011, 17, 13052–13058. [Google Scholar] [CrossRef] [Green Version]
  35. Sun, S.C.; Dou, H.Y.; Chuang, M.C.; Kolpashchikov, D.M. Multi-labeled electrochemical sensor for cost-efficient detection of single nucleotide substitutions in folded nucleic acids. Sens. Actuators B Chem. 2019, 287, 569–575. [Google Scholar] [CrossRef]
  36. Herschlag, D.; Bonilla, S.; Bisaria, N. The Story of RNA Folding, as Told in Epochs. Cold Spring Harb. Perspect. Biol. 2018, 10, a032433. [Google Scholar] [CrossRef] [Green Version]
  37. Fallmann, J.; Will, S.; Engelhardt, J.; Grüning, B.; Backofen, R.; Stadler, P.F. Recent advances in RNA folding. J. Biotechnol. 2017, 261, 97–104. [Google Scholar] [CrossRef]
  38. Lahoud, G.; Timoshchuk, V.; Lebedev, A.; de Vega, M.; Salas, M.; Arar, K.; Hou, Y.M.; Gamper, H. Enzymatic synthesis of structure-free DNA with pseudo-complementary properties. Nucleic Acids Res. 2008, 36, 3409–34319. [Google Scholar] [CrossRef]
  39. Sau, S.P.; Kumar, T.S.; Hrdlicka, P.J. Invader LNA: Efficient targeting of short double stranded DNA. Org. Biomol. Chem. 2010, 8, 2028–2036. [Google Scholar] [CrossRef] [Green Version]
  40. Gupta, A.; Mishra, A.; Puri, N. Peptide nucleic acids: Advanced tools for biomedical applications. J. Biotechnol. 2017, 259, 148–159. [Google Scholar] [CrossRef]
  41. Nedorezova, D.D.; Dubovichenko, M.V.; Belyaeva, E.P.; Grigorieva, E.D.; Peresadina, A.V.; Kolpashchikov, D.M. Specificity of oligonucleotide gene therapy (OGT) agents. Theranostics 2022, 12, 7132–7157. [Google Scholar] [CrossRef] [PubMed]
  42. Kolpashchikov, D.M. A binary deoxyribozyme for nucleic acid analysis. ChemBioChem 2007, 8, 2039–2042. [Google Scholar] [CrossRef] [PubMed]
  43. Mokany, E.; Bone, S.M.; Young, P.E.; Doan, T.B.; Todd, A.V. MNAzymes, a versatile new class of nucleic acid enzymes that can function as biosensors and molecular switches. J. Am. Chem. Soc. 2010, 132, 1051–1059. [Google Scholar] [CrossRef] [PubMed]
  44. Tian, B.; Han, Y.; Wetterskog, E.; Donolato, M.; Hansen, M.F.; Svedlindh, P.; Strömberg, M. MicroRNA Detection through DNAzyme-Mediated Disintegration of Magnetic Nanoparticle Assemblies. ACS Sens. 2018, 3, 1884–1891. [Google Scholar] [CrossRef] [PubMed]
  45. Kolpashchikov, D.M. Binary probes for nucleic acid analysis. Chem. Rev. 2010, 110, 4709–4723. [Google Scholar] [CrossRef]
  46. Gerasimova, Y.V.; Kolpashchikov, D.M. Folding 16S RNA in a signal-producing structure for detection of bacteria. Angew. Chem., Int. Ed. 2013, 52, 10586–10588. [Google Scholar] [CrossRef] [Green Version]
  47. Cox, A.J.; Bengtson, H.N.; Rohde, K.H.; Kolpashchikov, D.M. DNA Nanotechnology for Nucleic Acid Analysis: Multifunctional Molecular DNA Machine for RNA Detection. Chem. Commun. 2016, 52, 14318–14321. [Google Scholar] [CrossRef] [Green Version]
  48. Gerasimova, Y.V.; Yakovchuk, P.; Dedkova, L.M.; Hecht, S.M.; Kolpashchikov, D.M. Expedited quantification of mutant ribosomal RNA by binary deoxyribozyme (BiDz) sensors. RNA 2015, 21, 1834–1843. [Google Scholar] [CrossRef] [Green Version]
  49. Lyalina, T.A.; Goncharova, E.A.; Prokofeva, N.Y.; Voroshilina, E.S.; Kolpashchikov, D.M. A DNA minimachine for selective and sensitive detection of DNA. Analyst 2019, 144, 416–420. [Google Scholar] [CrossRef]
  50. Akhmetova, M.M.; Rubel, M.S.; Afanasenko, O.S.; Kolpashchikov, D.M. Barley haplotyping using biplex deoxyribozyme nanomachine. Sens. Actuators Rep. 2022, 4, 100132. [Google Scholar] [CrossRef]
  51. El-Deeb, A.A.; Zablotskaya, S.S.; Rubel, M.S.; Nour, M.A.Y.; Kozlovskaya, L.I.; Shtro, A.A.; Komissarov, A.B.; Kolpashchikov, D.M. Toward a Home Test for COVID-19 Diagnosis: DNA Machine for Amplification-Free SARS-CoV-2 Detection in Clinical Samples. ChemMedChem 2022, 17, e202200382. [Google Scholar] [CrossRef] [PubMed]
  52. Gorbenko, D.A.; Shkodenko, L.A.; Rubel, M.S.; Slita, A.V.; Nikitina, E.V.; Martens, E.A.; Kolpashchikov, D.M. DNA nanomachine for visual detection of structured RNA and double stranded DNA. Chem. Commun. 2022, 58, 5395–5398. [Google Scholar] [CrossRef] [PubMed]
  53. Gerasimova, Y.V.; Cornett, E.M.; Edwards, E.; Su, X.; Rohde, K.H.; Kolpashchikov, D.M. Deoxyribozyme cascade for visual detection of bacterial RNA. Chembiochem 2013, 14, 2087–2090. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Ash, C.; Farrow, J.A.; Dorsch, M.; Stackebrandt, E.; Collins, M.D. Comparative analysis of Bacillus anthracis, Bacillus cereus, and related species on the basis of reverse transcriptase sequencing of 16S rRNA. Int. J. Syst. Bacteriol. 1991, 41, 343–346. [Google Scholar] [CrossRef]
  55. Bone, S.M.; Hasick, N.J.; Lima, N.E.; Erskine, S.M.; Mokany, E.; Todd, A.V. DNA-only cascade: A universal tool for signal amplification, enhancing the detection of target analytes. Anal. Chem. 2014, 86, 9106–9113. [Google Scholar] [CrossRef]
  56. Cox, A.J.; Bengtson, H.N.; Gerasimova, Y.V.; Rohde, K.H.; Kolpashchikov, D.M. DNA Antenna Tile-Associated Deoxyribozyme Sensor with Improved Sensitivity. Chembiochem 2016, 17, 2038–2041. [Google Scholar] [CrossRef] [Green Version]
  57. Gerasimova, Y.V.; Hayson, A.; Ballantyne, J.; Kolpashchikov, D.M. A single molecular beacon probe is sufficient for the analysis of multiple nucleic acid sequences. Chembiochem 2010, 11, 1762–1768. [Google Scholar] [CrossRef] [Green Version]
  58. Gerasimova, Y.V.; Kolpashchikov, D.M. Nucleic acid detection using MNAzymes. Chem. Biol. 2010, 17, 104–106. [Google Scholar] [CrossRef] [Green Version]
  59. Hasick, N.; Lawrence, A.; Ramadas, R.; Todd, A. Sensitive Detection of Nucleic Acids Using Subzyme Feedback Cascades. Molecules 2020, 25, 1755. [Google Scholar] [CrossRef]
  60. Mahmoud, K.K.; McNeely, D.; Elwood, C.; Koval, S.F. Design and performance of a 16S rRNA-targeted oligonucleotide probe for detection of members of the genus Bdellovibrio by fluorescence in situ hybridization. Appl. Environ. Microbiol. 2007, 73, 7488–7493. [Google Scholar] [CrossRef] [Green Version]
  61. Sekar, M.M.; Bloch, W.; St John, P.M. Comparative study of sequence-dependent hybridization kinetics in solution and on microspheres. Nucleic Acids Res. 2005, 33, 366–375. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Kushon, S.A.; Jordan, J.P.; Seifert, J.L.; Nielsen, H.; Nielsen, P.E.; Armitage, B.A. Effect of secondary structure on the thermodynamics and kinetics of PNA hybridization to DNA hairpins. J. Am. Chem. Soc. 2001, 123, 10805–10813. [Google Scholar] [CrossRef] [PubMed]
  63. Armitage, B.A. The impact of nucleic acid secondary structure on PNA hybridization. Drug Discov. Today 2003, 8, 222–228. [Google Scholar] [CrossRef] [PubMed]
  64. Chen, M.L.; Tsen, H.Y. Discrimination of Bacillus cereus and Bacillus thuringiensis with 16S rRNA and gyrB gene-based PCR primers and sequencing of their annealing sites. J. Appl. Microbiol. 2002, 92, 912–919. [Google Scholar] [CrossRef] [PubMed]
  65. Wei, S.; Chelliah, R.; Park, B.J.; Kim, S.H.; Forghani, F.; Cho, M.S.; Park, D.S.; Jin, Y.G.; Oh, D.H. Differentiation of Bacillus thuringiensis From Bacilluscereus Group Using a Unique Marker Based on Real-Time PCR. Front. Microbiol. 2019, 10, 883. [Google Scholar] [CrossRef]
  66. Granum, P.E. Bacillus cereus. In Fundamentals in Food Microbiology; Doyle, M., Beuchat, L., Montville, T., Eds.; ASM Press: Washington, DC, USA, 1997; pp. 327–336. [Google Scholar]
  67. Granum, P.E.; Lund, T. Bacillus cereus and its food poisoning toxins. FEMS Microbiol. Lett. 1997, 157, 223–228. [Google Scholar] [CrossRef]
  68. Smith, A.L.; Kolpashchikov, D.M. Divide and Control: Comparison of Split and Switch Hybridization Sensors. ChemistrySelect 2017, 2, 5427–5431. [Google Scholar] [CrossRef]
  69. Reed, A.J.; Sapia, R.J.; Dowis, C.; Solarez, S.; Gerasimova, Y.V. Interrogation of highly structured RNA with multicomponent deoxyribozyme probes at ambient temperatures. RNA 2020, 26, 1882–1890. [Google Scholar] [CrossRef]
  70. Oh, E.T.; So, J.S. A rapid method for RNA preparation from Gram-positive bacteria. J. Microbiol. Methods 2003, 52, 395–398. [Google Scholar] [CrossRef]
  71. Available online: https://github.com/RNAcentral/r2dt (accessed on 30 January 2023).
  72. MacDougall, D.; Crummett, W.B. Guidelines for data acquisition and data quality evaluation in environmental chemistry. Anal. Chem. 1980, 52, 2242–2249. [Google Scholar] [CrossRef]
Ijms 24 04473 g001 550

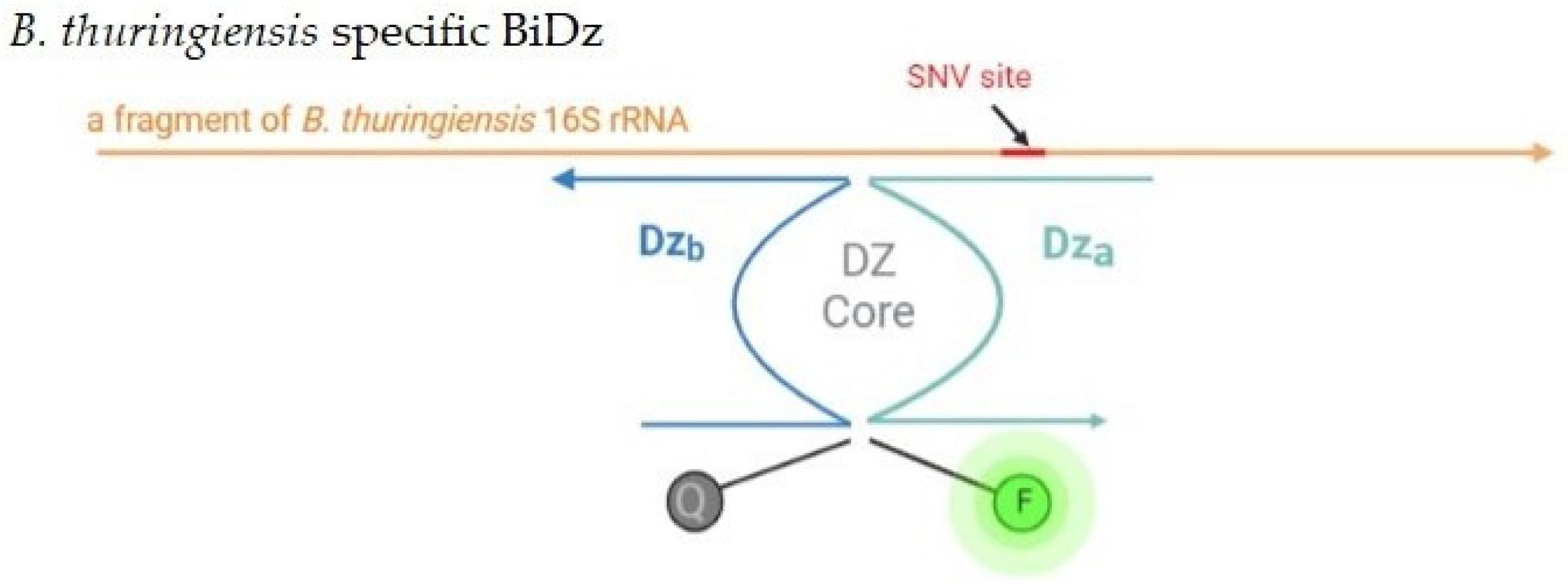

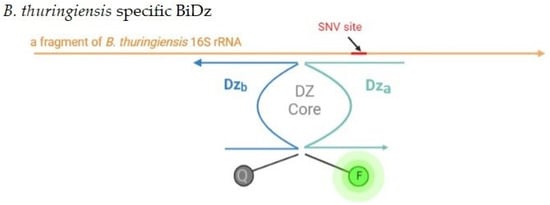

Figure 1. Design of BiDz probes used in this study. Design of B. thuringiensis–specific BiDz probe. DNA strand Dza and Dzb bind RNA analyte and form a catalytic core that cleaves fluorophore and quencher labelled F-sub. The design of B. mycoides–specific BiDz probe differs from the design of B. thuringiensis–specific BiDz probe in the reporter substrate used. The Cy-sub reporter substrate was used with the B. mycoides–specific BiDz probe. The difference between F-sub and Cy-sub sequence is shown in Table S1.
Figure 1. Design of BiDz probes used in this study. Design of B. thuringiensis–specific BiDz probe. DNA strand Dza and Dzb bind RNA analyte and form a catalytic core that cleaves fluorophore and quencher labelled F-sub. The design of B. mycoides–specific BiDz probe differs from the design of B. thuringiensis–specific BiDz probe in the reporter substrate used. The Cy-sub reporter substrate was used with the B. mycoides–specific BiDz probe. The difference between F-sub and Cy-sub sequence is shown in Table S1.
Ijms 24 04473 g001
Ijms 24 04473 g002a 550Ijms 24 04473 g002b 550

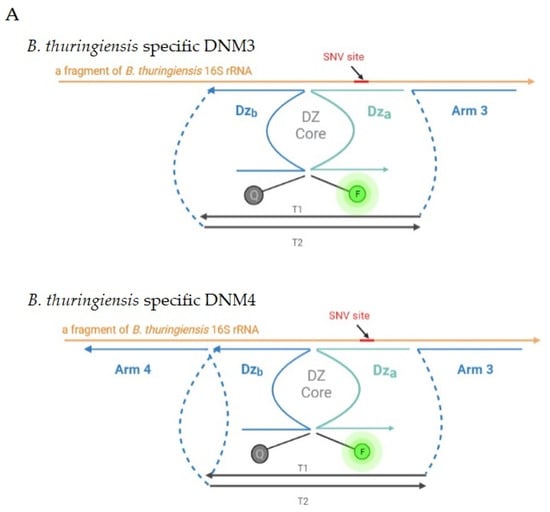

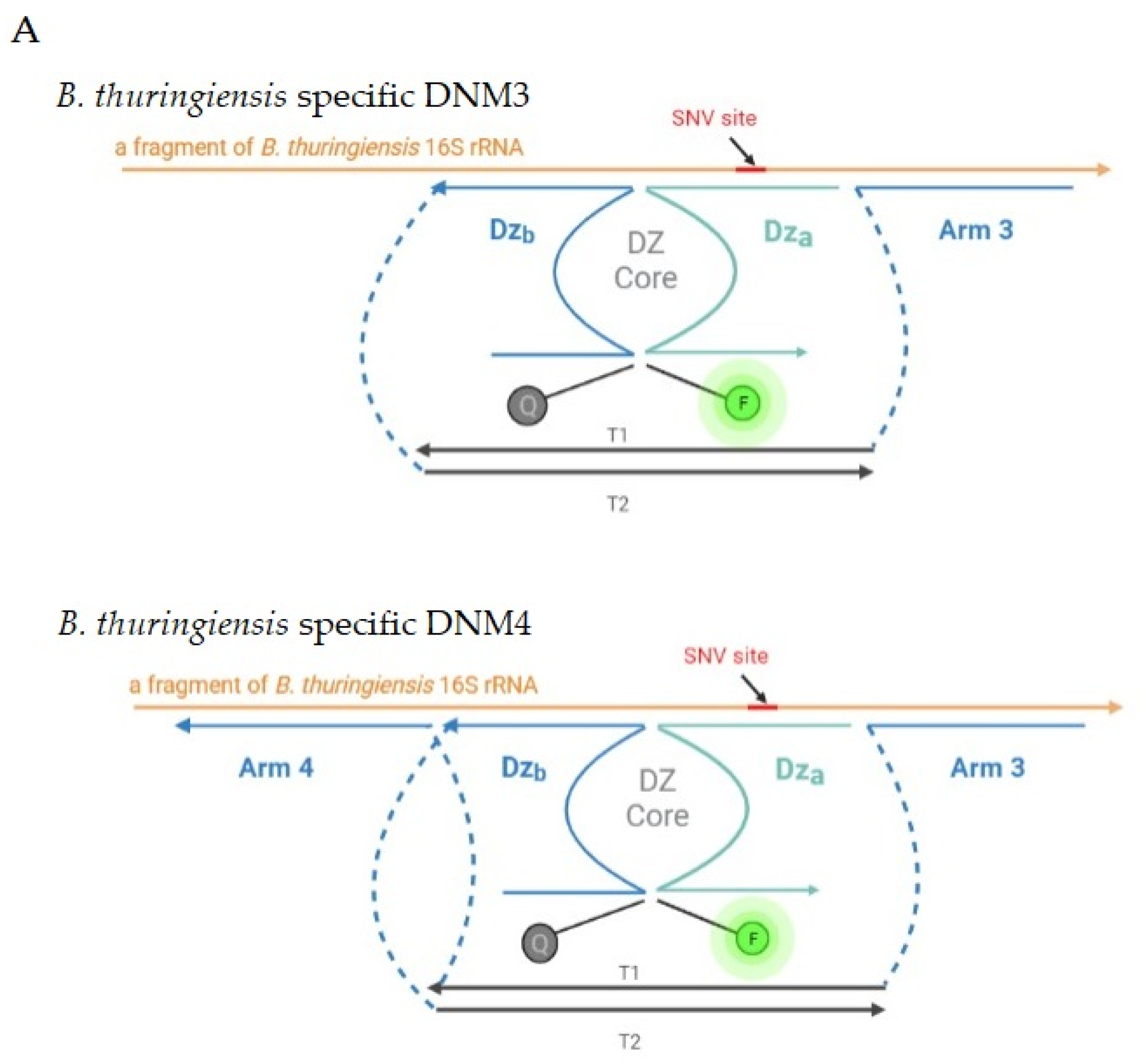

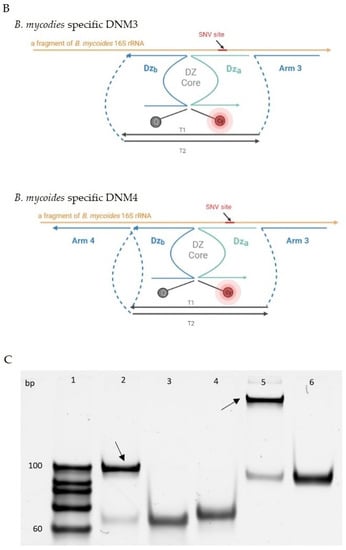

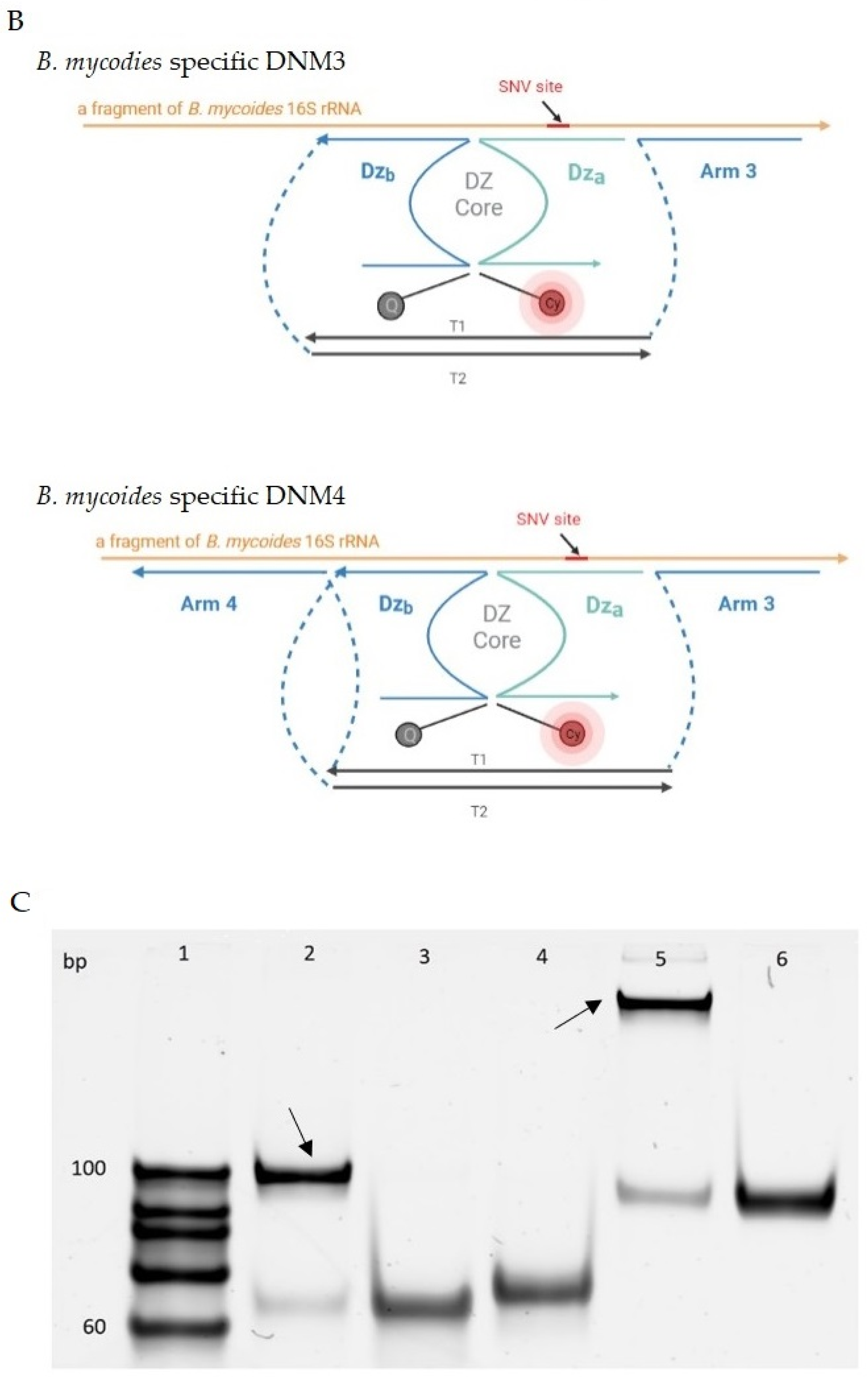

Figure 2. Design of DNM3 and DNM4 used in the study. (A) Design of B. thuringiensis–specific DNM3 and DNM4. DNM3 has a separate arm (Dza) and two arms (Dza and Arm 3) attached to the dsDNA scaffold (T1 and T2). DNM4 has a separate arm (Dza) and three arms (Dza, Arm 3 and Arm 4) attached to the dsDNA scaffold. Arms 3 and 4 were designed to tightly bind 16S rRNA, thereby unfolding its secondary structure. DNM3 and 4 cleaved F-sub, producing fluorescent output at 525 nm. (B) Design of B. mycoides–specific DNM3 and DNM4 was accomplished similar to that of DNMs for B. thuringiensis, but it cleaved Cy-Sub, producing fluorescent output at 617 nm. (C) Analysis of DNMs’ associations in PAGE gel: 1—Ladder; 2—DNM3 (T1, T2 strands annealed); 3—Tile strand T1; 4—T2 strand; 5—DNM4 (T1, T2′ stands annealed); 6—Tile T2′ strand (see Table S1 for sequences). The correct assembly of DNM3 and DNM4 are indicated by the arrows.
Figure 2. Design of DNM3 and DNM4 used in the study. (A) Design of B. thuringiensis–specific DNM3 and DNM4. DNM3 has a separate arm (Dza) and two arms (Dza and Arm 3) attached to the dsDNA scaffold (T1 and T2). DNM4 has a separate arm (Dza) and three arms (Dza, Arm 3 and Arm 4) attached to the dsDNA scaffold. Arms 3 and 4 were designed to tightly bind 16S rRNA, thereby unfolding its secondary structure. DNM3 and 4 cleaved F-sub, producing fluorescent output at 525 nm. (B) Design of B. mycoides–specific DNM3 and DNM4 was accomplished similar to that of DNMs for B. thuringiensis, but it cleaved Cy-Sub, producing fluorescent output at 617 nm. (C) Analysis of DNMs’ associations in PAGE gel: 1—Ladder; 2—DNM3 (T1, T2 strands annealed); 3—Tile strand T1; 4—T2 strand; 5—DNM4 (T1, T2′ stands annealed); 6—Tile T2′ strand (see Table S1 for sequences). The correct assembly of DNM3 and DNM4 are indicated by the arrows.
Ijms 24 04473 g002aIjms 24 04473 g002b
Ijms 24 04473 g003 550

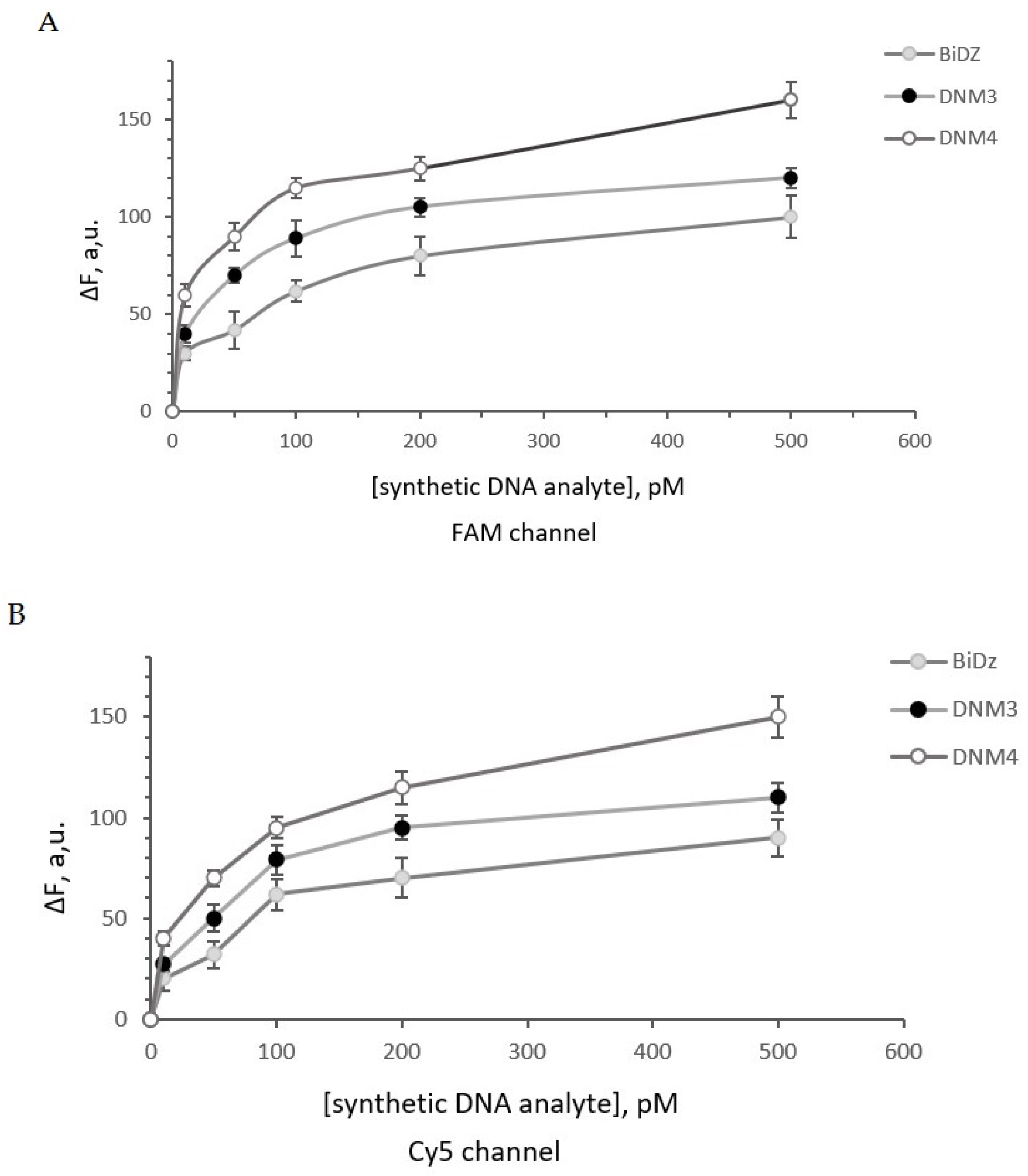

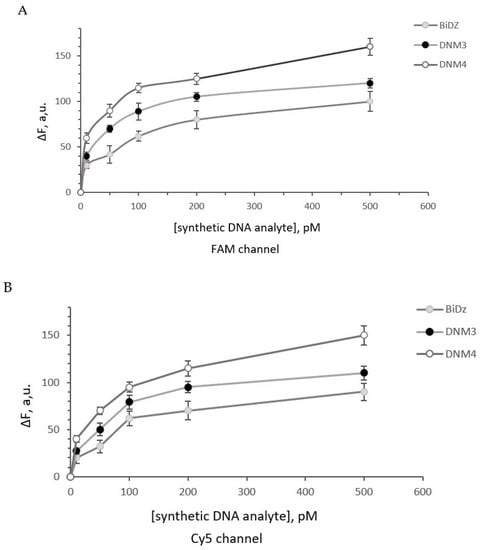

Figure 3. Fluorescence response of the sensors in the presence of different concentrations (0–500 pM) of the synthetic analytes (Analyte-thu and Analyte-myc, Table S1) after 1 h of incubation at 55 °C. (A) Response of B. thuringiensis–specific DNA nanosensors in the FAM channel. (B) Response of B. mycoides–specific DNA nanosensors in the Cy5 channel. Average values of three independent measurements are presented with one standard deviation. Tables S2 and S3 contain data correspond to Figure 3A and Figure 3B, respectively.
Figure 3. Fluorescence response of the sensors in the presence of different concentrations (0–500 pM) of the synthetic analytes (Analyte-thu and Analyte-myc, Table S1) after 1 h of incubation at 55 °C. (A) Response of B. thuringiensis–specific DNA nanosensors in the FAM channel. (B) Response of B. mycoides–specific DNA nanosensors in the Cy5 channel. Average values of three independent measurements are presented with one standard deviation. Tables S2 and S3 contain data correspond to Figure 3A and Figure 3B, respectively.
Ijms 24 04473 g003

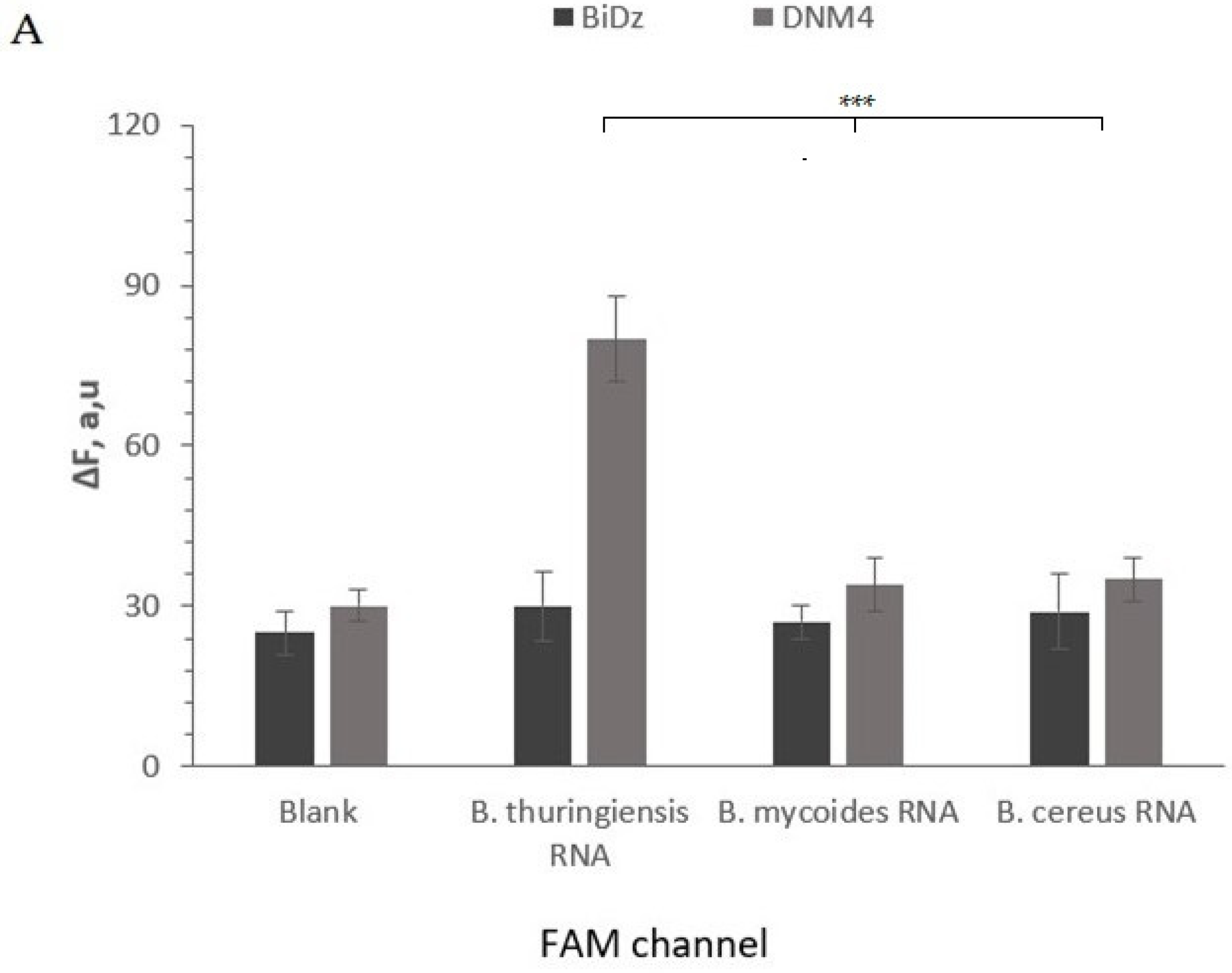

Ijms 24 04473 g004a 550Ijms 24 04473 g004b 550

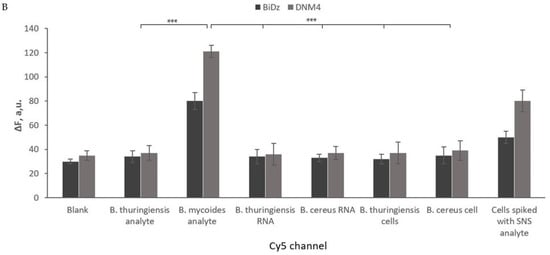

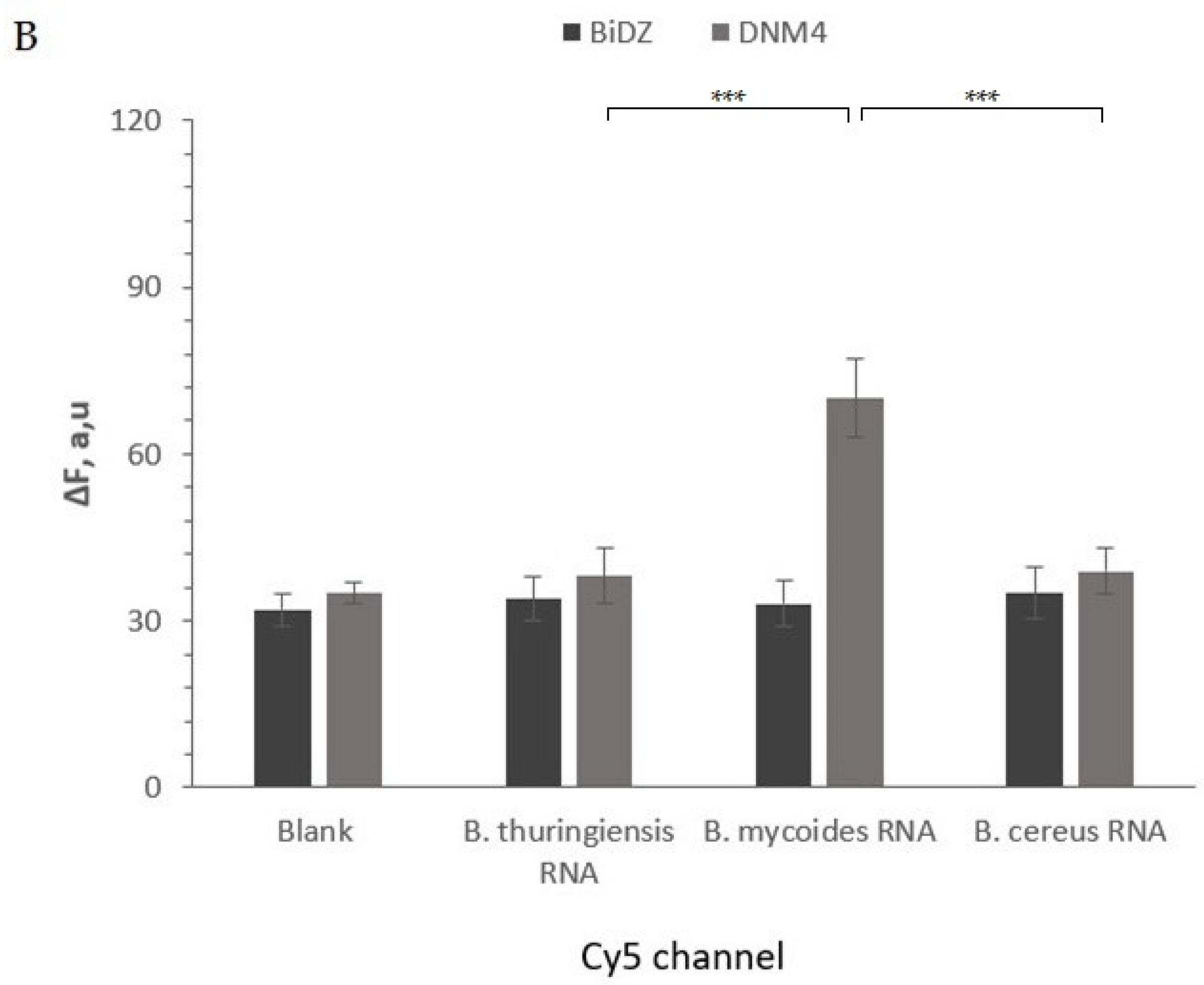

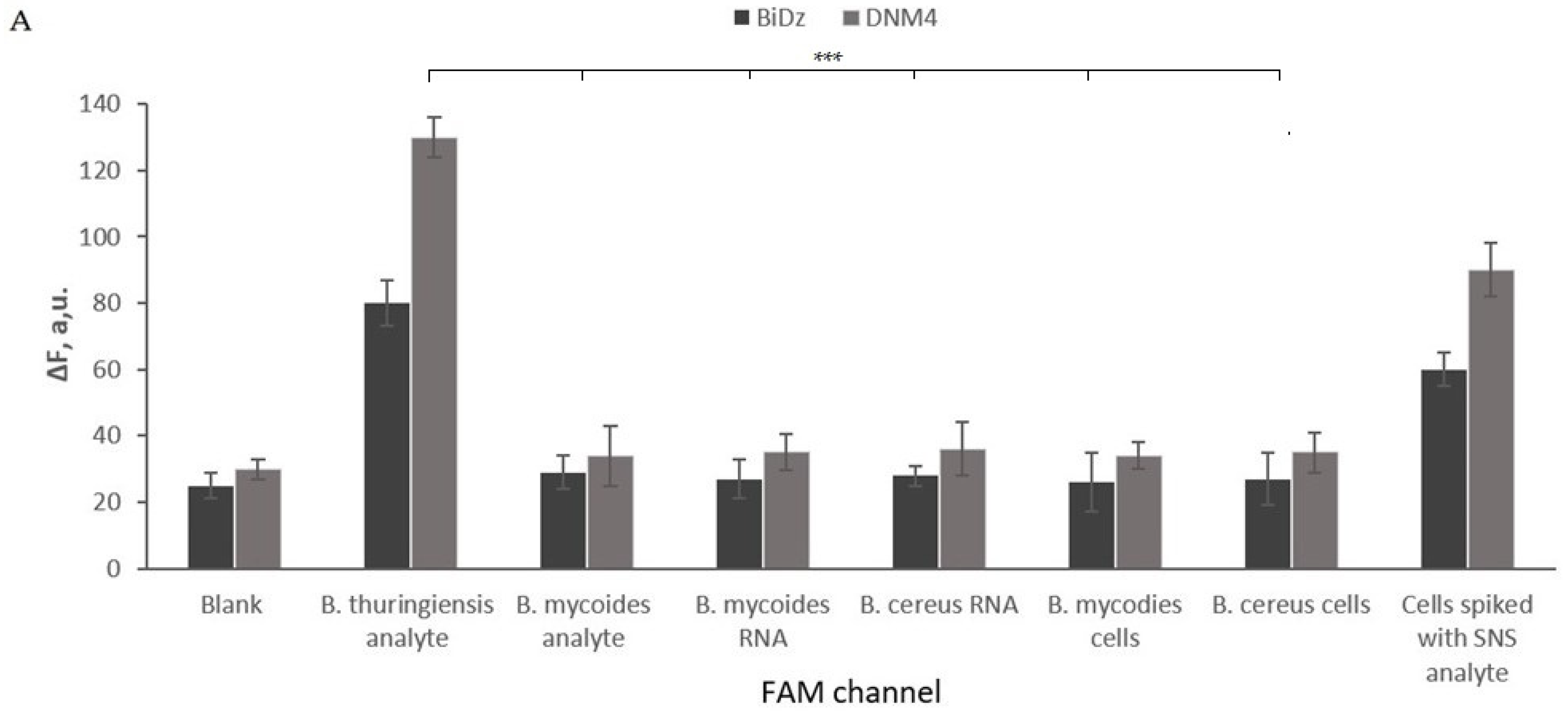

Figure 4. Selectivity of the BiDz and DNM1 sensors. (A) Selectivity of B. thuringiensis–specific BiDz (dark gray bars) and DNM4 (light gray bars) in the presence of either synthetic oligonucleotides analyte (B. thuringiensis or B. mycoides analyte) (200 pM), total RNA from either B. mycoides or B. cereus (2 ng, 1.5–1.6 million of genome equivalents (GE) of B. cereus and B. mycoides, respectively), B. mycoides or B. cereus cell and B. mycoides cells spiked with B. thuringiensis analyte (200 pM after 1 h of incubation at 55 °C in the FAM channel). Blank sample contained no analyte. (B) Same as in panel A, but for B. mycoides –specific BiDz and DNM4. The samples contained 2 ng (1.4 million GE) of B. mycoides total RNA corresponds. The signal was read at Cy5 channel. Average values of three independent measurements are presented with one standard deviation. ***: p value < 0.001. Tables S4 and S5 contain data correspond to Figure 4A and Figure 4B, respectively.
Figure 4. Selectivity of the BiDz and DNM1 sensors. (A) Selectivity of B. thuringiensis–specific BiDz (dark gray bars) and DNM4 (light gray bars) in the presence of either synthetic oligonucleotides analyte (B. thuringiensis or B. mycoides analyte) (200 pM), total RNA from either B. mycoides or B. cereus (2 ng, 1.5–1.6 million of genome equivalents (GE) of B. cereus and B. mycoides, respectively), B. mycoides or B. cereus cell and B. mycoides cells spiked with B. thuringiensis analyte (200 pM after 1 h of incubation at 55 °C in the FAM channel). Blank sample contained no analyte. (B) Same as in panel A, but for B. mycoides –specific BiDz and DNM4. The samples contained 2 ng (1.4 million GE) of B. mycoides total RNA corresponds. The signal was read at Cy5 channel. Average values of three independent measurements are presented with one standard deviation. ***: p value < 0.001. Tables S4 and S5 contain data correspond to Figure 4A and Figure 4B, respectively.
Ijms 24 04473 g004aIjms 24 04473 g004b
Ijms 24 04473 g005a 550Ijms 24 04473 g005b 550
Figure 5. Analysis of the total bacterial RNA using BiDz and DNM4. (A) Fluorescence intensities of B. thuringiensis–specific BiDz (dark gray bars) and DNM4 (light gray bars) in the absence or the presence of 2 ng of B. thuringiensis RNA, B. mycoides RNA, and B. cereus RNA after 1 h of incubation at 55 °C in the FAM channel. (B) Fluorescence intensities of B. mycoides–specific BiDz (dark gray bars) and DNM4 (light gray bars) in the absence or the presence of 2 ng of B. thuringiensis RNA, B. mycoides RNA, and B. cereus RNA after 1 h of incubation at 55 °C in the Cy5 channel. Average values of three independent measurements are presented with one standard deviation. ***: p value < 0.001. Tables S6 and S7 contain data correspond to Figure 5A and Figure 5B, respectively.
Figure 5. Analysis of the total bacterial RNA using BiDz and DNM4. (A) Fluorescence intensities of B. thuringiensis–specific BiDz (dark gray bars) and DNM4 (light gray bars) in the absence or the presence of 2 ng of B. thuringiensis RNA, B. mycoides RNA, and B. cereus RNA after 1 h of incubation at 55 °C in the FAM channel. (B) Fluorescence intensities of B. mycoides–specific BiDz (dark gray bars) and DNM4 (light gray bars) in the absence or the presence of 2 ng of B. thuringiensis RNA, B. mycoides RNA, and B. cereus RNA after 1 h of incubation at 55 °C in the Cy5 channel. Average values of three independent measurements are presented with one standard deviation. ***: p value < 0.001. Tables S6 and S7 contain data correspond to Figure 5A and Figure 5B, respectively.
Ijms 24 04473 g005aIjms 24 04473 g005b
Ijms 24 04473 g006 550

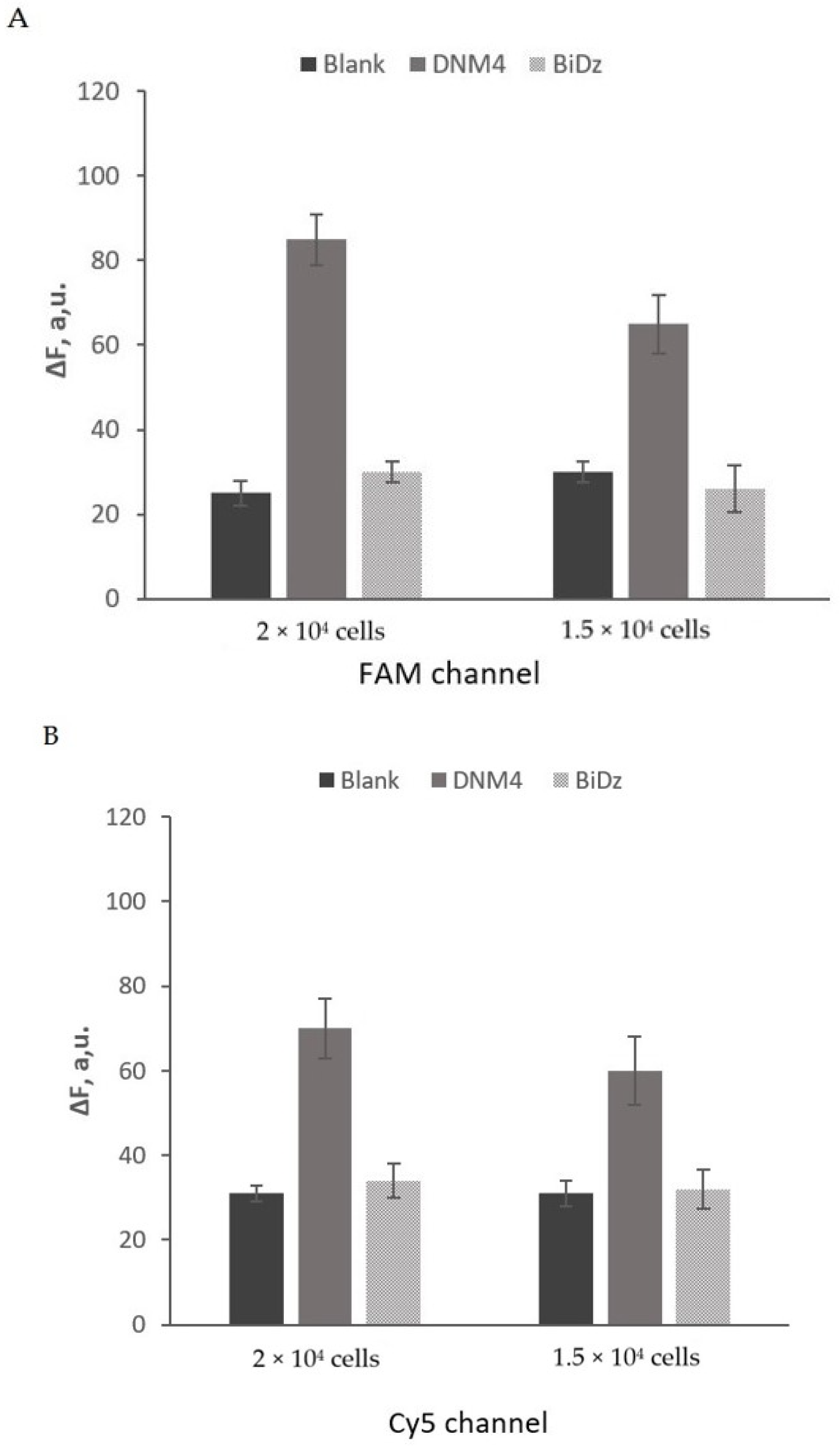

Figure 6. Response of DNM4 and BiDz to cell lysate. (A) Fluorescent intensity of Blank (no analyte) (dark gray bars), B. thuringiensis–specific DNM4 (light gray bars), or BiDz (striped bars) in the presence of B. thuringiensis cells (2 × 104 or 1.5 × 104 cells per reaction volume) in the FAM channel after 1 h of incubation at 55 °C. (B) Fluorescent intensity of Blank (dark gray bars), B. mycoides–specific DNM4 (light gray bars), or BiDz (light grey bars) in the presence of B. mycoides cells (2 × 104 or 1.5 × 104 cells per reaction volume) in the Cy5 channel after 1 h of incubation at 55 °C. Average values of three independent measurements are presented with one standard deviation. Tables S8 and S9 contain data correspond to Figure 6A and Figure 6B, respectively.
Figure 6. Response of DNM4 and BiDz to cell lysate. (A) Fluorescent intensity of Blank (no analyte) (dark gray bars), B. thuringiensis–specific DNM4 (light gray bars), or BiDz (striped bars) in the presence of B. thuringiensis cells (2 × 104 or 1.5 × 104 cells per reaction volume) in the FAM channel after 1 h of incubation at 55 °C. (B) Fluorescent intensity of Blank (dark gray bars), B. mycoides–specific DNM4 (light gray bars), or BiDz (light grey bars) in the presence of B. mycoides cells (2 × 104 or 1.5 × 104 cells per reaction volume) in the Cy5 channel after 1 h of incubation at 55 °C. Average values of three independent measurements are presented with one standard deviation. Tables S8 and S9 contain data correspond to Figure 6A and Figure 6B, respectively.
Ijms 24 04473 g006
Ijms 24 04473 g007 550

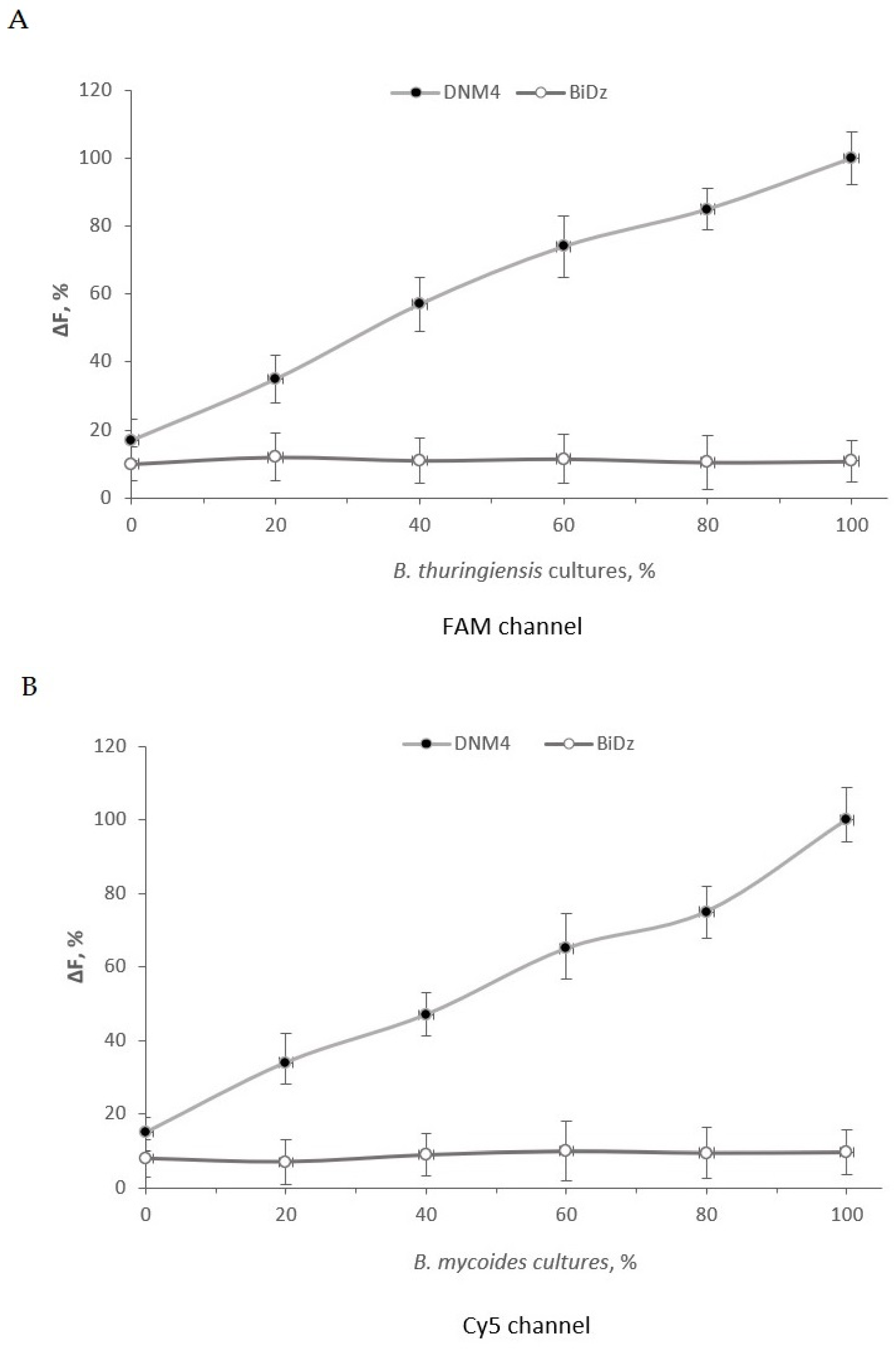

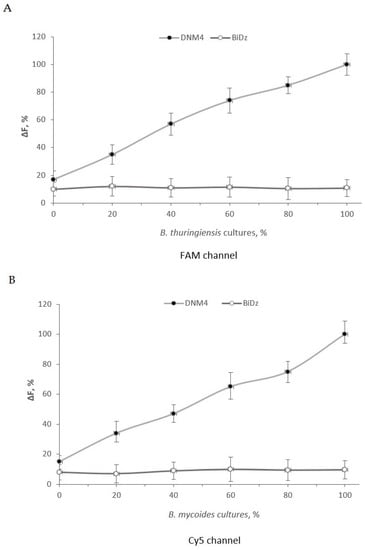

Figure 7. Unlike BiDz, DNM4 can detect specific bacteria in a mixture of cell lysates. (A) Normalized fluorescence intensity of either B. thuringiensis–specific BiDz (open circles) or DNM4 (filled circles) sensor in the presence of mixtures of B. thuringiensis cells containing a different amount of B. mycoides and B. cereus cells in the FAM channel after 1 h of incubation at 55 °C. The fluorescence values were normalized by either the averaged fluorescence for all samples (for BiDz) or maximum fluorescence (for DNM4) achieved in the presence of 100% of B. thuringiensis cells (3 × 105 CFU). (B) Normalized fluorescence intensity of either B. mycoides–specific BiDz (open circles) or DNM4 (filled circles) sensor in the presence of mixtures of B. mycoides cells containing a different amount of B. thuringiensis and B. cereus cells in the Cy5 channel after 1 h of incubation at 55 °C. The fluorescence values were normalized by either the averaged fluorescence for all samples (for BiDz) or maximum fluorescence (for DNM4) achieved in the presence of 100% of B. mycoides cells (3 × 105 CFU). Average values of three independent measurements are presented with one standard deviation.
Figure 7. Unlike BiDz, DNM4 can detect specific bacteria in a mixture of cell lysates. (A) Normalized fluorescence intensity of either B. thuringiensis–specific BiDz (open circles) or DNM4 (filled circles) sensor in the presence of mixtures of B. thuringiensis cells containing a different amount of B. mycoides and B. cereus cells in the FAM channel after 1 h of incubation at 55 °C. The fluorescence values were normalized by either the averaged fluorescence for all samples (for BiDz) or maximum fluorescence (for DNM4) achieved in the presence of 100% of B. thuringiensis cells (3 × 105 CFU). (B) Normalized fluorescence intensity of either B. mycoides–specific BiDz (open circles) or DNM4 (filled circles) sensor in the presence of mixtures of B. mycoides cells containing a different amount of B. thuringiensis and B. cereus cells in the Cy5 channel after 1 h of incubation at 55 °C. The fluorescence values were normalized by either the averaged fluorescence for all samples (for BiDz) or maximum fluorescence (for DNM4) achieved in the presence of 100% of B. mycoides cells (3 × 105 CFU). Average values of three independent measurements are presented with one standard deviation.
Ijms 24 04473 g007
Table
Table 1. Comparison between the 16S rRNA SNV-containing fragments of B. thuringiensis, B. mycoides, and B. cereus.
Table 1. Comparison between the 16S rRNA SNV-containing fragments of B. thuringiensis, B. mycoides, and B. cereus.
SpeciesSequence
Bacillus thuringiensisACAUUUUGAACUGCAUGG
Bacillus mycoidesAUAUUUUGAACUGCAUAG
Bacillus cereusACAUUUUGAACCGCAUGG
SNV 192 that was subject to differentiation is shown in bold blue color. SNV 197 is shown in bold red color. SNV 182 is shown in bold green color [54].
Table
Table 2. Limit of detection for all the DNA nanosensors for the synthetic analyte.
Table 2. Limit of detection for all the DNA nanosensors for the synthetic analyte.
SensorAnalyteLOD, pM
Incubation Time
60 min180 min
BiDzB. thuringiensis DNA10055
B. mycoides DNA11080
DNM3B. thuringiensis DNA6535
B. mycoides DNA7550
DNM4B. thuringiensis DNA4020
B. mycoides DNA5025
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ateiah, M.; Gandalipov, E.R.; Rubel, A.A.; Rubel, M.S.; Kolpashchikov, D.M. DNA Nanomachine (DNM) Biplex Assay for Differentiating Bacillus cereus Species. Int. J. Mol. Sci. 2023, 24, 4473. https://doi.org/10.3390/ijms24054473

AMA Style

Ateiah M, Gandalipov ER, Rubel AA, Rubel MS, Kolpashchikov DM. DNA Nanomachine (DNM) Biplex Assay for Differentiating Bacillus cereus Species. International Journal of Molecular Sciences. 2023; 24(5):4473. https://doi.org/10.3390/ijms24054473

Chicago/Turabian Style

Ateiah, Muhannad, Erik R. Gandalipov, Aleksandr A. Rubel, Maria S. Rubel, and Dmitry M. Kolpashchikov. 2023. "DNA Nanomachine (DNM) Biplex Assay for Differentiating Bacillus cereus Species" International Journal of Molecular Sciences 24, no. 5: 4473. https://doi.org/10.3390/ijms24054473

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
