Article

An Efficient Lagrangean Relaxation-based Object Tracking Algorithm in Wireless Sensor Networks

Department of Information Management, National Taiwan University, No. 1, Sec. 4, Roosevelt Rd., Taipei City 106, Taiwan
*
Author to whom correspondence should be addressed.
Sensors 2010, 10(9), 8101-8118; https://doi.org/10.3390/s100908101
Submission received: 17 June 2010 / Revised: 12 August 2010 / Accepted: 18 August 2010 / Published: 27 August 2010
(This article belongs to the Section Chemical Sensors)

Abstract

:
In this paper we propose an energy-efficient object tracking algorithm in wireless sensor networks (WSNs). Such sensor networks have to be designed to achieve energy-efficient object tracking for any given arbitrary topology. We consider in particular the bi-directional moving objects with given frequencies for each pair of sensor nodes and link transmission cost. This problem is formulated as a 0/1 integer-programming problem. A Lagrangean relaxation-based (LR-based) heuristic algorithm is proposed for solving the optimization problem. Experimental results showed that the proposed algorithm achieves near optimization in energy-efficient object tracking. Furthermore, the algorithm is very efficient and scalable in terms of the solution time.

Graphical Abstract

1. Introduction

The rapid growth in sensor technology and wireless communication has resulted in the development of wireless sensor networks (WSNs). Their main features are low cost and wireless communication capability. They consist of several sensors, sink nodes, and back-end systems. These sensors work in coordination to collect physical information from the sensor field, and they can process and forward the information to the sink nodes. Finally, the back-ends can obtain global views according to the information provided by the sink nodes [1,2].
Object tracking is a key application issue of WSNs which is widely deployed for military and wildlife animal tracking purposes. Object tracking wireless sensor networks have two critical operations [35]. One is monitoring. Sensor nodes are required to detect and track the moving states of mobile object. The other is reporting. The nodes sensing the object need to report their discoveries to the sink. These two operations are interleaved during the entire object tracking process. We assume that the moving frequencies of the sensor field are not uniformly distributed. For example, the moving frequencies of wild animals in a wildlife protective zone are not uniform, because animals usually move in their customary paths.
Our focus in prior studies [68], has been on developing strategies for reducing the energy consumption in reporting operations. In [6], Kung, et al. proposed a scalable tracking method for sensor tracking systems using network sensors called STUNs. The tracking system is a scalable tracking architecture that employs a hierarchical structure to allow the system to handle a large number of tracked objects. Furthermore, authors proposed a drain-and-balance (DAB) method to construct a STUN’s hierarchical structure based on expected properties of the object movement patterns such as the frequency of object movements over a monitoring region. In [7,8], Lin, et al. proposed two message-pruning tree structures called DAT and Z-DAT for object tracking. The two methods are used to construct an object tracking tree for reducing the communication cost of location updating. The Z-DAT approach tries to divide the sensing area into square-like zones and recursively combine these zones into a tree.
This study is an extension of the work in [68]. The prior studies are expanded to encompass energy-efficient object tracking in wireless sensor networks. We focus on the problem of constructing an energy-efficient wireless sensor network for object tracking services using the object tracking tree. This tree proposes a data aggregation model for object tracking [912]. Therefore, we were motivated to propose a heuristic strategy to cope with the problem. With a given arbitrary sensor network topology, we consider in particular the case of bi-directional moving objects with given frequencies for each pair of sensor nodes and link transmission cost. The total communication cost can be computed and minimized by the object tracking tree.
In this paper, we formulate the problem as a 0/1 integer-programming problem where the objective function is to minimize the total communication cost subject to routing, tree, and variable-transformation constraints. The object tracking tree is a weighted spanning graph of given sensor and communication nodes. The tree is used to minimize total communication cost. Therefore, constructing the object tracking tree is an NP-complete problem [13]. A method called Lagrangean relaxation has been successfully adopted to solve many famous NP-complete problems [14,15]. To fulfill the timing and the quality requirements of the optimal decisions, the Lagrangean relaxation method is used. We use the LR-based heuristic algorithm to solve the problem and obtain a primal feasible solution. In the further experiments, the proposed object tracking algorithm is expected to be efficient and effective in dealing with the complicated optimization problem.
Compared to [68], this study differs from the prior works on two points. First, we consider the case of bi-directional moving objects with given frequencies for each pair of sensor nodes and link transmission cost. Second, we present a LR mathematical model to describe the optimization problem and propose LR-based heuristic algorithm to solve the problem.
The rest of this paper is organized as follows. The problem and mathematical model are described in Sections 2 and 3, respectively. Additionally, the solution approach is presented in Section 4. Furthermore, the computational results are discussed in Section 5. Finally, our conclusions is presented in Section 6.

2. Problem Description

Our approach uses a hierarchical object tracking tree to record information about presence of the object and keep this information up to date [6]. The leaves of the tree are sensor nodes, and they are required to detect and track the moving states of mobile objects. The other nodes are communication nodes, and the information about presence of the detected objects is stored at these communication nodes. Each communication node stores in particular the set of objects that was detected jointly by its descendants. The set is called the detected set. For example, the detected set of a sensor at a leaf node consists of the objects within the detection range of sensor while the detected set of sink node contains all objects presented in the sensor field.
Figure 1 illustrates an object tracking scenario. Sensor u will detect the object and deliver the object’s location information to the sink node when the object enters the sensor field, and sensor v will only forward the new location information to communication node c when object moves from sensor u to sensor v. This scenario can be performed through the entire sensor field. Finally, sensor z will forward the leaving information to sink node when object leaves sensor field from sensor z. The problem is solved in the planning stage.
The problem of energy-efficient object tracking in WSNs is modeled as a graph, G(V,L), where V is a set of communication nodes and sensor nodes random deployed in a 2D sensor field, and L is a set of links connect a pair of adjacent communication nodes or between a pair of a sensor node and a communication node.
For example, Figure 2 illustrates a routing sub-graph of a 2D sensor field with each edge connecting a pair of adjacent communication nodes or between a pair of a sensor node and a communication node. Each link weight represents a link transmission cost. In [16], Cartigny, et al. defined the energy consumption model of transmitting data which is measured as rα+ c, where r is Euclidean distance between any two nodes, α is a signal attenuation constant, and c is a positive constant that represents signal processing. Table 1 presents the power model for the MICAz hardware platform. As the table shows, transmission power and received power are different. To be more generic, we redefine the link transmission cost as the power consumption of transmission power and received power, which is measured as rα+ x + c, where x is received power.
The sensor sub-graph in Figure 3 illustrates a 2D sensor field with each edge connecting a pair of adjacent sensors. We use (i,j) to represent the weight of link which is the moving object frequency of a sensor node i and a senor node j. The link weight of artificial node is the moving frequency of object between sensor field and outside the sensor field.
Figure 4 illustrates an object tracking tree of a 2D sensor field with each edge connecting a pair of adjacent nodes. Each link weight represents the link transmission cost between a pair of adjacent communication nodes, or between a pair of a sensor node and a communication node. The root is a sink node.
In this paper, we consider a given arbitrary topology of sensor networks, bi-directional moving objects with given frequencies for each pair of sensor nodes, and link transmission cost. The sensor field consists of sensor nodes and communication nodes. We deploy hierarchical network topology architecture. All sensor nodes send data to upper layer communication nodes. Eventually, the sensing information is sent to the sink node. We assume that G is connected. The location model is a sensor cell model constructed by voronoi diagram. For example, an object moves from sensor x to sensor y means that the object moves from voronoi cell of sensor x to voronoi cell of sensor y as shown in Figure 5.
A good tracking method is characterized by a low total communication cost [6]. Given a sensor graph, we can compute the total communication cost. This communication cost calculation is different from that of prior studies [68]. First, we consider bi-directional moving objects with given frequencies for each pair of sensor nodes because the round-trip traffic cost of each pair of sensor nodes is different. Second, we consider the link transmission cost since each link transmission cost is also different. Figure 6 illustrates an example of communication cost calculation. The weight of each solid link represents link transmission cost between a pair of adjacent communication nodes or between a pair of a sensor nodes and a communication node. The weight of each dashed link represents the frequency of moving objects between a pair of adjacent sensors. When an object moves from sensor x to sensor y, sensor y needs to deliver the tracking information upward to the nearest common ancestor p via the tree links. We call the tree links as the tracking links [6]. For example, the link between communication node p and sensor node y is a tracking link.
We define the communication cost of an object tracking tree T as the sum of the individual contributions of all pairs of sensors adjacent in G. Since the adjacent tree nodes may be physically in a distance, we define the costs of tree links used in the path to be Euclidean distances. Thus, the communication cost reflects the power consumption degree of required radio.
The communication cost of inside the network, defined as:
( G , T ) inside = ( i , j ) L ( 1 z ( i , j ) x )     z ( i , j ) y r xy a ( i , j )                     x , y S .
The communication cost of entering the sensor field, defined as:
( G , T ) enter = ( i , j ) L z ( i , j ) s r os a ( i , j )                         s S .
The communication cost of leaving the sensor field, defined as:
( G , T ) leave = ( i , j ) L z ( i , j ) s r s o a ( i , j )                     s S .
where S is the set of all sensor nodes and L is the set of all links. a(i,j) is the transmission cost associated with link (i,j). rxy is the frequency of moving object from x to y, ros is the frequency while object enters sensor field, rso is the frequency when object leaves sensor field, and the tree links, z ( i , j ) s, are the links of object tracking tree. The decision variable z ( i , j ) s = 1 if the sensor node s uses the tree link (i,j) to reach the sink node, and 0 otherwise.
For example, in Figure 6, communication cost is 5 × 8 = 40 when the object moves from sensor x to sensor y, and communication cost is (3 + 2) × 6 = 30 when it moves from sensor y to sensor x. Therefore, the total communication cost for tree T as the sum of counting the number of events transmitted in G:
Total Communication Cost  ( G , T ) = x S y S ( i , j ) L ( 1 z ( i , j ) x ) z ( i , j ) y r x y a ( i , j ) + s S ( i , j ) L z ( i , j ) s ( r os + r so ) a ( i , j )

3. Problem Formulation

The notations used to model the problem are listed in Tables 24 as follow:
Problem (IP1):
Objective function:
Z IP = min x S y S ( i , j ) L ( 1 z ( i , j ) x ) z ( i , j ) y r xy a ( i , j ) + s S ( i , j ) L z ( i , j ) s ( r os + r so ) a ( i , j )
subject to:
p P s x s p = 1                                                                                 s S
j C z ( i , j ) s = 1                                                                                 s S ,  i S C { sink } , i j
p P s x sp δ p ( i , j ) z ( i , j ) s                                                                                 s S ,      ( i , j ) L ,      i j
( i , j ) L ( 1 z ( i , j ) x ) z ( i , j ) y 1                                                                                 x , y S ,     x y     and     i j
x sp = 0     or  1                                                                             s S ,  p P s
z ( i , j ) s = 0     or  1                                                                             s S ,     ( i , j ) L ,  and     i j .
The objective function (IP1) of this problem is to minimize the total communication cost subject to:
  • Constraint (1.1): Routing constraint which uses one path from sensor node s to sink node only.
  • Constraint (1.2): Tree constraint of avoiding cycles. Any outgoing link of a node to communication node is equal to 1 on the object tracking tree.
  • Constraint (1.3): Routing constraint. Once the path, xsp, is selected and the tree link (i, j) is on the path, the decision variable, z ( i , j ) s, must set to be 1.
  • Constraint (1.4): Sensor y must use one or more tree links (i,j) to report location of object when object moves from sensor x to sensor y. Therefore, ( i , j ) L ( 1 z ( i , j ) x ) z ( i , j ) y must be greater than or equal to 1.
  • Constraints (1.5–1.6): Decision variables xsp and z ( i , j ) s equal to 0 or 1.
Problem (IP1) is hard to solve, since original objective function,
min x S y S ( i , j ) L ( 1 z ( i , j ) x ) z ( i , j ) y r xy a ( i , j ) + s S ( i , j ) L z ( i , j ) s ( r os + r so ) a ( i , j )
and constraint (1.4) are nonlinear.
An auxiliary variable t ( i , j ) xy is introduced. Tracking links, t ( i , j ) xy, are the links when object moves from sensor x to sensor y, and then sensor y delivers tracking information upward to the nearest common ancestor via the tracking links, where t ( i , j ) xy = ( 1 z ( i , j ) x ) z ( i , j ) y. Table 5 shows the truth table for variables z ( i , j ) x, z ( i , j ) y, and t ( i , j ) xy.
We also add variable-transformation constraints (2.4 and 2.5) to fulfill the truth table. If z ( i , j ) x = 0 z ( i , j ) y = 1, t ( i , j ) xy must set to be 1, and 0 otherwise.
The constraints can transform nonlinear original objective function to a linear objective function, min x S y S ( i , j ) L t ( i , j ) xy r xy a ( i , j ) + s S ( i , j ) L z ( i , j ) s ( r os + r so ) a ( i , j ), and linear constraint (2.6).
Therefore, we add the new decision variable, t ( i , j ) xy, to reformulate the problem as follows.
Problem (IP2):
Objective function:
Z IP = min x S y S ( i , j ) L t ( i , j ) xy r xy a ( i , j ) + s S ( i , j ) L z ( i , j ) s ( r os + r so ) a ( i , j )
subject to:
p P s x sp = 1                                                                             s S
j C z ( i , j ) s = 1                                                                             s S ,  i S C { sink } , i j
p P s x sp δ p ( i , j ) z ( i , j ) s                                                                             s S ,  ( i , j ) L ,  i j
2 t ( i , j ) xy z ( i , j ) y z ( i , j ) x + 1                                 x , y S ,  ( i , j ) L ,  i j
z ( i , j ) y z ( i , j ) x + 1 t ( i , j ) xy + 1                                                                         x , y S ,  ( i , j ) L ,  x y     and    i j
( i , j ) L t ( i , j ) xy 1                                                                                             x , y S ,  x y     and    i j
x sp = 0     or     1                                                                                         s S ,  p P s
z ( i , j ) s = 0     or     1                                                                                 s S ,  ( i , j ) L ,      and     i j
t ( i , j ) xy =     0     or     1                                                                                 x , y S ,  ( i , j ) L ,  x y     and     i j
The objective function (IP2) of this problem is to minimize the total communication cost subject to:
  • Constraint (2.1): Routing constraint which uses one path from sensor node s to sink node only.
  • Constraint (2.2): Tree constraint of avoiding cycles. Any outgoing link of node to communication node is equal to 1 on the object tracking tree.
  • Constraint (2.3): Routing constraint. Once the path, xsp, is selected and the tree link (i, j) is on the path, the decision variable, z ( i , j ) s, must set to be 1.
  • Constraints (2.4–2.5): There are variable-transformation constraints. If z ( i , j ) x = 0 z ( i , j ) y = 1, reporting location of object will use the tracking link (i, j) when object moves from sensor x to sensor y, t ( i , j ) xy must set to be 1, and 0 otherwise.
  • Constraint (2.6): Sensor y must use one or more tracking link (i,j) to report object’s location when object moves from sensor x to sensor y. Therefore, ( i , j ) L t ( i , j ) xy must be greater than or equal to 1.
  • Constraints (2.7–2.9): Decision variables xsp, z ( i , j ) s, and t ( i , j ) xy equal to 0 or 1.

4. Solution Approach

4.1. Lagrangean Relaxation

Using the Lagrangean relaxation method, successfully adopted to solve many famous NP-complete problems [14,15], the overall procedure to solve the network planning problem is shown in Figure 7. The relaxation of the primal problem is developed first, which provides a lower bound (LB) on the optimal solutions. Since we relax three constraints of the problem (IP2), the boundary is used to design a heuristic approach to reach a primal feasible solution. To solve the original problem near-optimally and minimize the gap between the primal problem and the Lagrangean dual problem, we improve the LB by solving the four sub-problems optimally and use the subgradient method to adjust the multipliers per iteration. Then, subgradient optimization procedure is used for further improving these solutions by updating the Lagrangean multipliers.
We can transform the primal problem (IP2) into the following Lagrangean relaxation problem (LR) where constraints (2.3), (2.4), and (2.5) are relaxed. For a vector of non-negative Lagrangean multipliers, a Lagrangean relaxation problem of (IP2) is given by:
Problem (LR):
Objective function:
Z LR ( u s ( i , j ) 1 , u xy ( i , j ) 2 , u xy ( i , j ) 3 ) = min { x S y S ( i , j ) L t ( i , j ) x y r xy a ( i , j ) + s S ( i , j ) L z ( i , j ) s ( r os + r so ) a ( i , j ) + s S ( i , j ) L p P s u s ( i , j ) 1 x p δ p ( i , j ) s S ( i , j ) L u s ( i , j ) 1 z ( i , j ) s + x S y S ( i , j ) L u xy ( i , j ) 2 2 t ( i , j ) xy x S y S ( i , j ) L u xy ( i , j ) 2 ( z ( i , j ) y z ( i , j ) x + 1 ) + x S y S ( i , j ) L u xy ( i , j ) 3 ( z ( i , j ) y z ( i , j ) x + 1 ) x S y S ( i , j ) L u xy ( i , j ) 3 ( t ( i , j ) xy + 1 ) }
subject to: (2.1), (2.2), (2.6), (2.7), (2.8), and (2.9).
Where u s ( i , j ) 1, u xy ( i , j ) 2, and u xy ( i , j ) 3 are Lagrangean multipliers and u s ( i , j ) 1, u xy ( i , j ) 2, and u xy ( i , j ) 3 0. To solve (LR), we can decompose (LR) into the following four independent and easily solvable optimization sub-problems.
Z LR = Z sub 1 + Z sub 2 + Z sub 3 + Z sub 4
Sub-problem 1: (related to the decision variables t ( i , j ) xy)
Objective function:
Z sub 1 ( u xy ( i , j ) 2 , u xy ( i , j ) 3 ) = min x S y S ( i , j ) L t ( i , j ) xy ( r xy a ( i , j ) + 2 u xy ( i , j ) 2 u xy ( i , j ) 3 )
subject to: (2.6) and (2.9).
Sub-problem 1 is related to decision variable t ( i , j ) xy, which can be further decomposed into |S|2 |L| sub-problems.
Two cases are listed below to determine the value of t ( i , j ) xy.
Let θxy(i,j) denote the weight of the object while moving from sensor x to sensor y using the tracking link (i, j), we get
θ xy ( i , j ) = ( r xy a ( i , j ) + 2 u xy ( i , j ) 2 u xy ( i , j ) 3 )
Case 1: If θxy(i,j)< 0, then assign t ( i , j ) xy = 1
Case 2: If θxy(i,j) ≥ 0, then assign t ( i , j ) xy = 0.
If the sum of each pair of node t ( i , j ) xy is zero, we enforce to select the minimum positive objective value θxy(i,j) and set t ( i , j ) xy = 1 to fulfill the constraint (6). The time complexity of the sub-problem is O(|S|2|L|).
Sub-problem 2: (related to the decision variables xsp)
Objective function:
Z sub 2 ( u s ( i , j ) 1 ) = min s S ( i , j ) L ( u s ( i , j ) 1 p P x sp δ p ( i , j ) )
subject to: (2.1) and (2.7).
Sub-problem 2 can be further decomposed into |S| independent shortest path problems with nonnegative arc weight whose value is u s ( i , j ) 1. The value of xsp can be determined by the link cost, u s ( i , j ) 1. This sub-problem is related to the decision variables xsp, which can use the Dijkstra’s algorithm to solve the single source shortest path problem. The time complexity of Dijkstra’s algorithm is O(|S|2). The time complexity of the sub-problem is O(|S|3).
Sub-problem 3: (related to the decision variables z ( i , j ) s)
Objective function:
Z sub 3 ( u s ( i , j ) 1 , u xy ( i , j ) 2 , u xy ( i , j ) 3 ) = min s S ( i , j ) L [ ( r os + r so ) a ( i , j ) u s ( i , j ) 1 + x S ( u xs ( i , j ) 3 u xs ( i , j ) 2 ) y S ( u sy ( i , j ) 3 u s y ( i , j ) 2 ) ] z ( i , j ) s
subject to: (2.2) and (2.8).
Sub-problem 3 is related to the decision variables z ( i , j ) s which can be further decomposed into |S| sub-problems.
Let ψs(i, j) denote the weight of the sensor nodes s using the tree link (i, j), we get
ψ s ( i , j ) = ( r os + r so ) a ( i , j ) u s ( i , j ) 1 + x S ( u xs ( i , j ) 3 u xs ( i , j ) 2 ) y S ( u sy ( i , j ) 3 u sy ( i , j ) 2 )
z ( i , j ) s must be enforced to 1 when choosing the minimum of ψs(i, j) for each s and i_to fulfill the constraint (2.2). The time complexity of this sub-problem is O(|S|2|L|).
Sub-problem 4: (Constant Part)
Objective function:
Z sub 4 ( u xy ( i , j ) 2 ) = x S y S ( i , j ) L u xy ( i , j ) 2
Sub-problem 4 is a constant part. The time complexity of the sub-problem is O(|S|2|L|).
According to the weak Lagrangean duality theorem [14,15], Z D ( u s ( i , j ) 1 , u xy ( i , j ) 2 , u xy ( i , j ) 3 ) is a lower bound (LB) on ZIP when u s ( i , j ) 1, u xy ( i , j ) 2, and u xy ( i , j ) 3 0. The following dual problem (D) is then constructed to calculate the tightest lower bound.
Dual Problem (D):
Objective function:
Z D = max Z LR ( u s ( i , j ) 1 , u x y ( i , j ) 2 , u xy ( i , j ) 3 )
subject to:
u s ( i , j ) 1 , u xy ( i , j ) 2 ,     and     u xy ( i , j ) 3 > 0
There are several methods for solving the dual-mode problem (D). One of the most popular approaches is the subgradient method.

4.2. Getting Primal Feasible Solutions

After optimally solving the Lagrangean dual problem, we obtain a set of decision variables and develop a LR-based heuristic algorithm to tune these decision variables. A set of feasible solutions of the primal problem (IP2) can therefore be obtained. The primal feasible solution is an upper bound (UB) of the primal problem (IP2), and the Lagrangean dual problem solution guarantees the lower bound (LB) of the primal problem (IP2). Iteratively, by solving primal feasible solution and Lagrangean dual problem, we get UB and LB, respectively. A LR-based primal heuristic object tracking tree algorithm is listed in Figure 8.
In the algorithm, from Steps 2–4 are setting the initialize value, Step 5 is finding the initial primal value. Steps 8–11 solve the sub-problems 1–4. Steps 12–16 and 20–22 update the parameters and multipliers. Steps 17–19 are used to get primal feasible solution.

5. Computational Experiments

To evaluate the performance of the proposed algorithm, we conducted an experiment. The performance is assessed in terms of the total communication cost.

5.1. Experiments Environment

The proposed algorithm is coded in C++ under a Microsoft Visual C++ 6.0 development environment. All the experiments are performed on a Core 2 Duo-2.2 GHz PC with 4GB memory running Microsoft Windows VISTA. The algorithm is tested on a 2D sensor field. We distribute 12, 23, 36, 50, and 105 sensor and communication nodes, respectively, in a 2D sensor field. The parameters listed in Table 7 are used for the all cases of experiments.

5.2. Experimental Results

In order to evaluate the proposed LR-based algorithm, we compare the algorithm with another heuristic algorithm, the shortest path tree (SPT) algorithm. We also compare the proposed LR-based algorithm with the lower bound (LB) of the dual mode problem. Figure 9 shows an example of the LR-based object tracking tree.
Table 8 shows the total communication cost calculated by different algorithms under the scenarios of number of nodes = 12, 23, 36, 50, and 105, respectively. We can see that the LR-based heuristic algorithm outperforms the SPT algorithm. We denote the dual solution as “Zdu” (LB), and LR-based heuristic solution as “ZIP2” (UB). The gap between UB and LB is computed by |(UB − LB)/LB| × 100% which illustrates the optimality of problem solution.
Figure 10 shows an example of the trend line for getting the primal problem solution values (UB) and dual mode problem values (LB). The UB curve tends to decrease to reach the minimum feasible solution. In contrast, the LB curve tends to increase and converge rapidly to reach the optimal solution. The LR-based method ensures the optimization results between UB and LB so that we can keep the duality gap as small as possible in order to improve the quality of the solution and achieve near optimization.
Table 9 shows that the time complexity of the LR-based solution is dominated by the Lagrangean dual problem. The Lagrangean dual problem has been solved by the above four sub-problems with the maximum number of iteration I.

6. Conclusions

This study proposes an object tracking algorithm for wireless sensor networks. To our best knowledge, the proposed algorithm is truly novel and it has not been discussed in previous research. This study first formulates the problem as a 0/1 integer programming problem, and then proposes a Lagrangean relaxation-based heuristic algorithm to solve the optimization problem. The experimental results show that the algorithm is better than the shortest path tree algorithm, and the gap is also small. In other words, when compared with the shortest path tree algorithm, the proposed heuristic algorithm can improve the percentage of energy consumption from 8% to 44%. It also achieves the near optimal solution since the gaps are only from 8% to 18%. Therefore, the results show that the proposed Lagrangean relaxation-based algorithm can achieve energy-efficient object tracking. Furthermore, the algorithm is very efficient and scalable in terms of the solution time. We are planning to further investigate a response time model based on object tracking application requirements and heuristic algorithms in the near future. In addition, we are looking into the tradeoff between total communication cost and various other system issues, such as response time, report frequency, and number of sinks, etc.

References

  1. Akyildiz, IF; Sankarasubramaniam, WSY; Cayirci, E. Wireless Sensor Networks: A Survey. Elsevier J. Comput. Netw 2002, 38, 393–422. [Google Scholar]
  2. Akyildiz, IF; Sankarasubramaniam, WSY; Cayirci, E. A Survey on Sensor Networks. IEEE Commun. Mag 2002, 40, 102–114. [Google Scholar]
  3. Xu, Y; Lee, WC. On Localized Prediction for Power Efficient Object Tracking in Sensor Networks. Proceedings of the 23rd International Conference on Distributed Computing Systems Workshops, Providence, RI, USA, May 19–22, 2003; pp. 434–439.
  4. Xu, Y; Winter, J; Lee, WC. Prediction-based Strategies for Energy Saving in Object Tracking Sensor Networks. IEEE International Conference on Mobile Data Management, Berkeley, CA, USA, January 19–22, 2004; pp. 346–357.
  5. Xu, Y; Winter, J; Lee, WC. Dual Prediction-based Reporting for Object Tracking Sensor Networks. Proceedings of The First Annual International Conference on Mobile and Ubiquitous Systems: Networking and Services, Boston, MA, USA, August 22–26, 2004; pp. 154–163.
  6. Kung, HT; Vlah, D. Efficient Location Tracking Using Sensor Networks. Proceedings of IEEE Wireless Communications and Networking Conference, New Orleans, LA, USA, March 16–20, 2003; pp. 1954–1961.
  7. Lin, CY; Tseng, YC. Structures for In-network Moving Object Tracking in Wireless Sensor Networks. Proceedings of IEEE First International Conference on Broadband Networks, San Jose, CA, USA, October 25–29, 2004; pp. 718–727.
  8. Lin, CY; Peng, WC; Tseng, YC. Efficient In-Network Moving Object Tracking in Wireless Sensor Networks. IEEE Trans. Mob. Comput 2006, 5, 1044–1056. [Google Scholar]
  9. Bhatti, S; Jie, X. Survey of Target Tracking Protocols Using Wireless Sensor Network. Proceedings of Fifth International Conference on Wireless and Mobile Communications, Cannes, French Riviera, France, August 23–29, 2009; pp. 110–115.
  10. Lin, FYS; Yen, HH; Lin, SP. A Novel Energy-Efficient MAC Aware Data Aggregation Routing in Wireless Sensor Networks. Sensors 2009, 9, 1295–2147. [Google Scholar]
  11. Lin, FYS; Yen, HH; Lin, SP. Delay QoS and MAC Aware Energy-Efficient Data-Aggregation Routing in Wireless Sensor Networks. Sensors 2009, 9, 7711–7732. [Google Scholar]
  12. Wen, YF; Lin, FYS; Kuo, WC. A Tree-based Energy-efficient Algorithm for Data-Centric Wireless Sensor Networks. Proceedings of 21st International Conference on Advanced Networking and Applications, Niagara Falls, Ontario, Canada, May 21–23, 2007; pp. 202–209.
  13. Liu, BH; Ke, WC; Tsai, CH; Tsai, MJ. Constructing a Message-Pruning Tree with Minimum Cost for Tracking Moving Objects in Wireless Sensor Networks is NP-Complete and an Enhanced Data Aggregation Structure. IEEE Trans. Comput 2008, 57, 849–863. [Google Scholar]
  14. Fisher, ML. The Lagrangean Relaxation Method for Solving Integer Programming Problem. Manage. Sci 1981, 27, 1–18. [Google Scholar]
  15. Fisher, ML. An Applications Oriented Guide to Lagrangian Relaxation. Interfaces 1985, 15, 10–21. [Google Scholar]
  16. Cartigny, J; Simplot, D; Stojmenovic, I. Localized Minimum-energy Broadcasting in ad hoc Networks. Proceedings of IEEE INFOCOM, San Francisco, CA, USA, March 30–April 3, 2003; pp. 2210–2217.

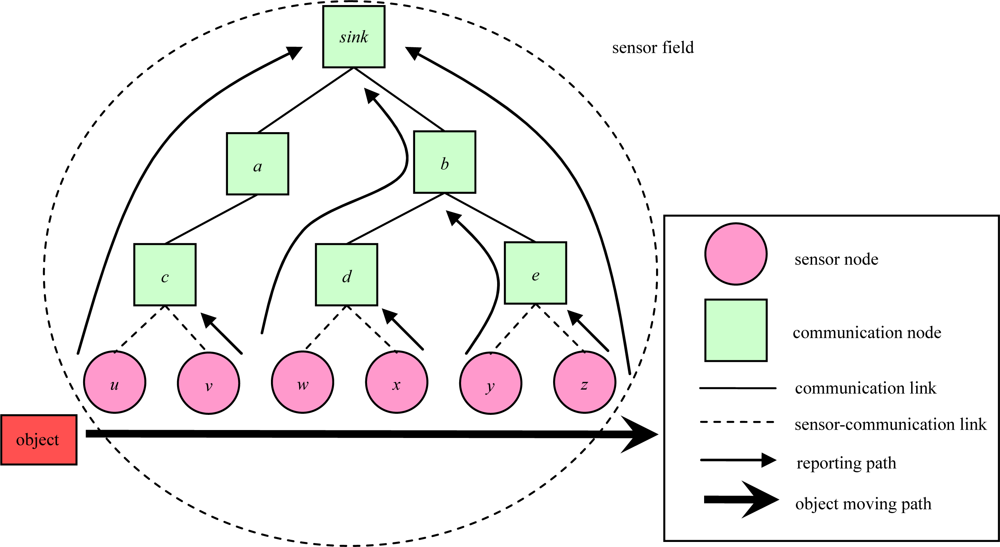

Figure 1. An example of object tracking.
Figure 1. An example of object tracking.
Sensors 10 08101f1

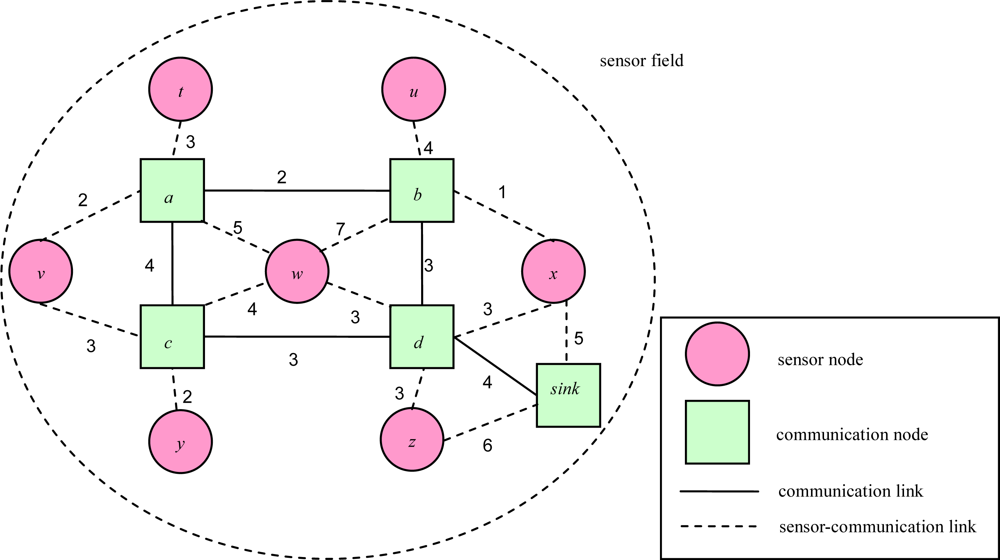

Figure 2. An example of a 2D routing sub-graph.
Figure 2. An example of a 2D routing sub-graph.
Sensors 10 08101f2

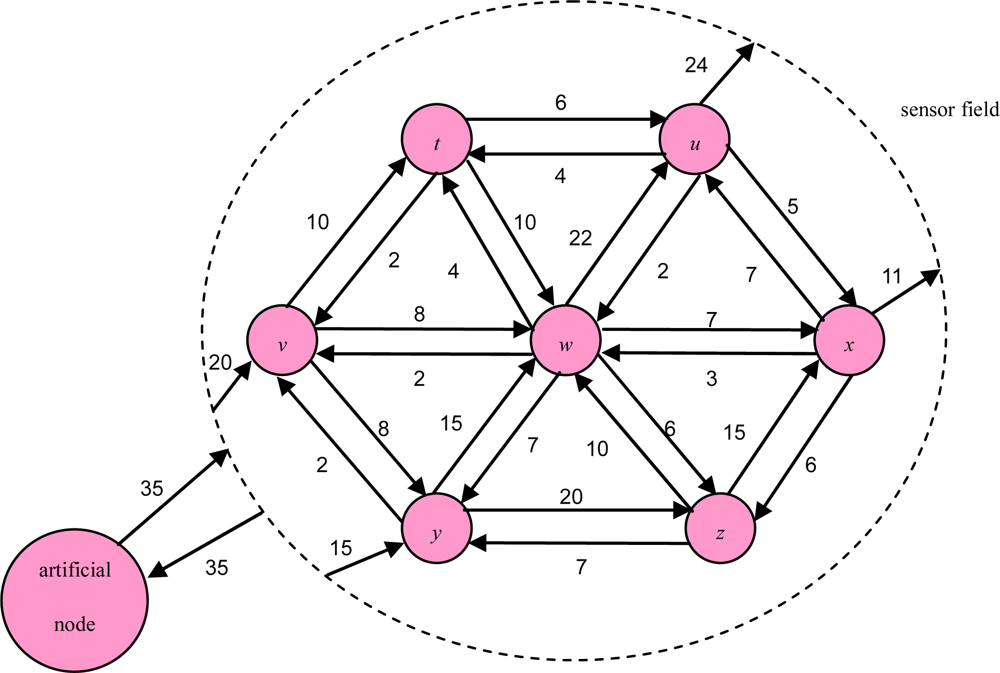

Figure 3. An example of a 2D sensor sub-graph.
Figure 3. An example of a 2D sensor sub-graph.
Sensors 10 08101f3

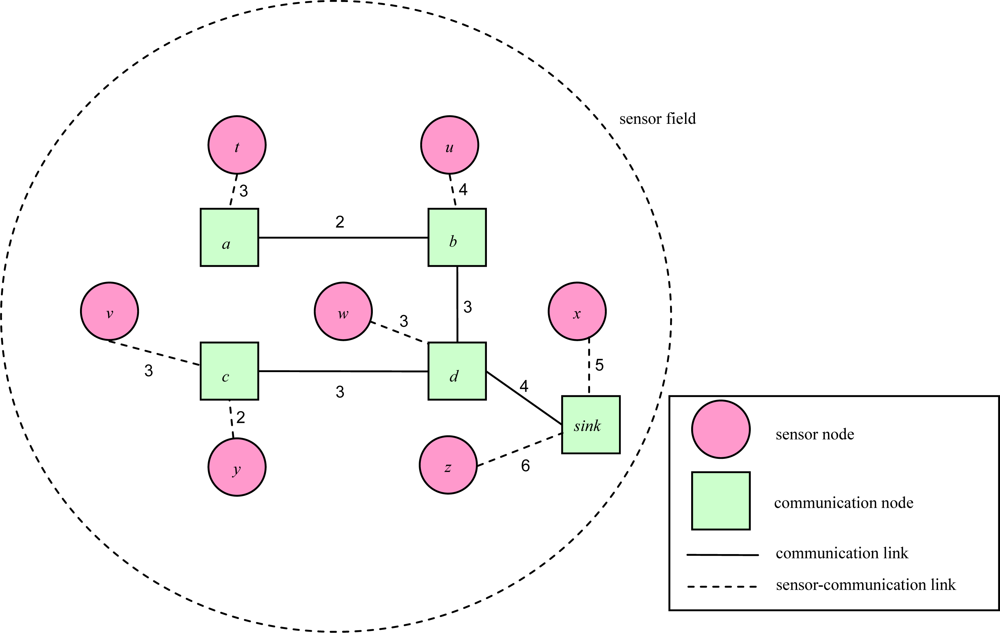

Figure 4. An example of a 2D object tracking tree.
Figure 4. An example of a 2D object tracking tree.
Sensors 10 08101f4

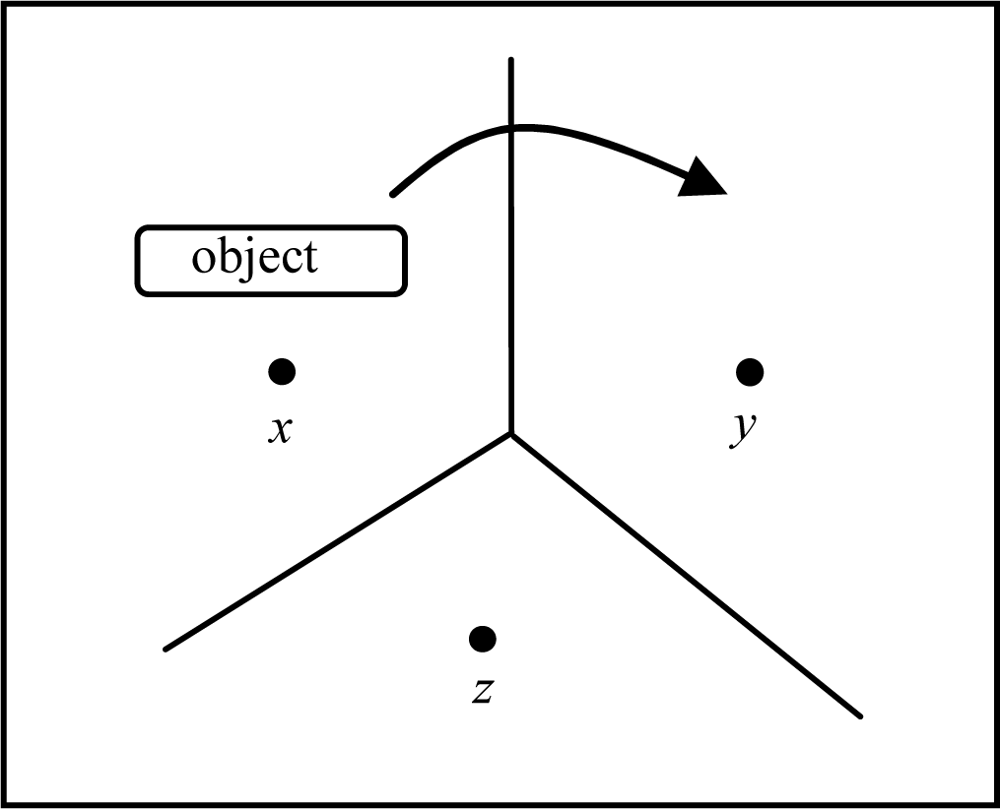

Figure 5. An example of an object moves from voronoi cell x to voronoi cell y.
Figure 5. An example of an object moves from voronoi cell x to voronoi cell y.
Sensors 10 08101f5

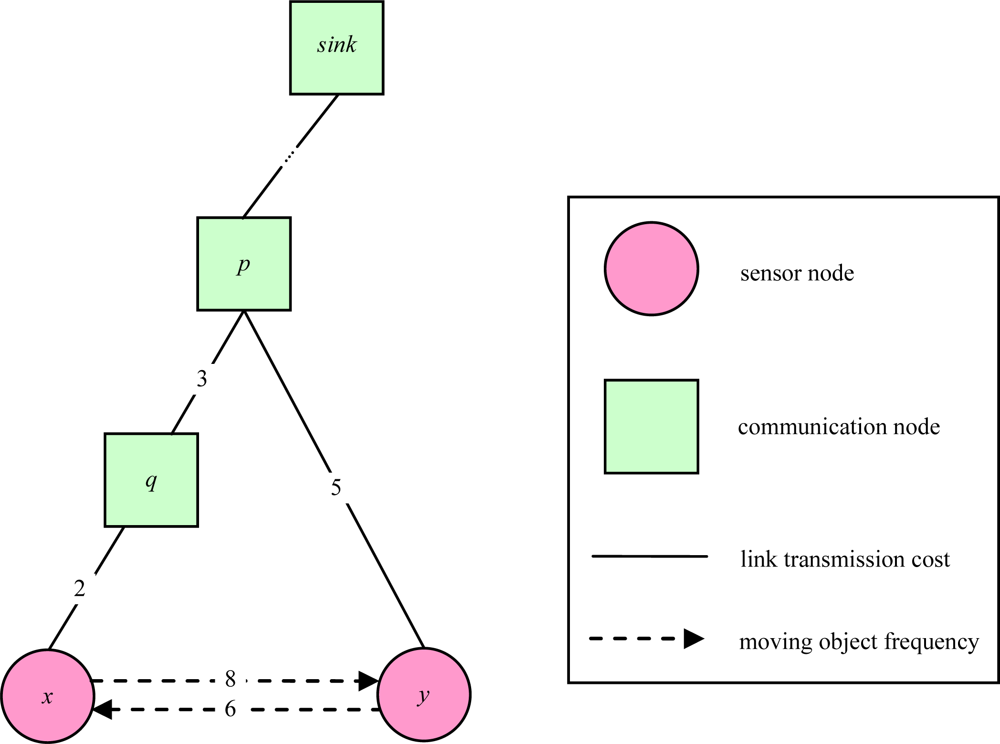

Figure 6. An example of calculating communication cost.
Figure 6. An example of calculating communication cost.
Sensors 10 08101f6

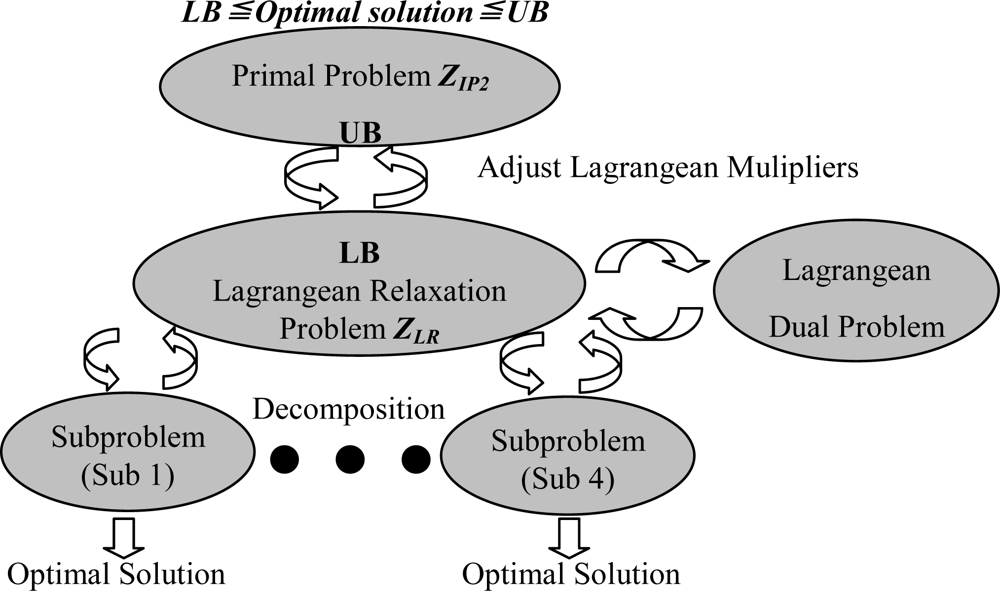

Figure 7. Lagrangean relaxation procedures.
Figure 7. Lagrangean relaxation procedures.
Sensors 10 08101f7

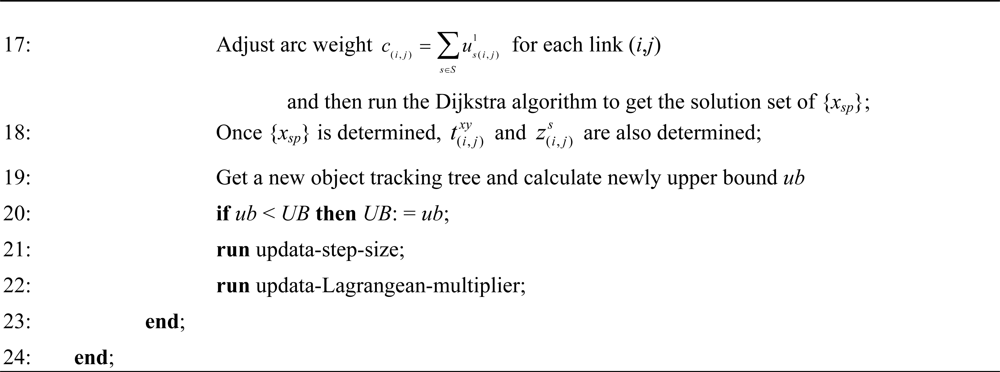

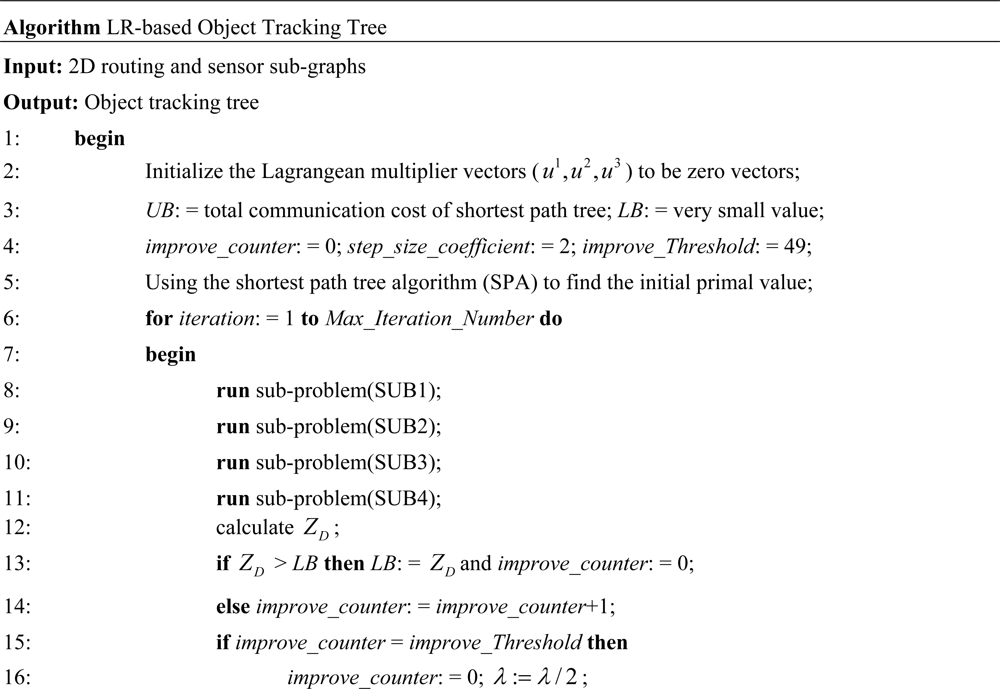

Figure 8. The LR-based object tracking tree algorithm.
Figure 8. The LR-based object tracking tree algorithm.
Sensors 10 08101f8aSensors 10 08101f8b

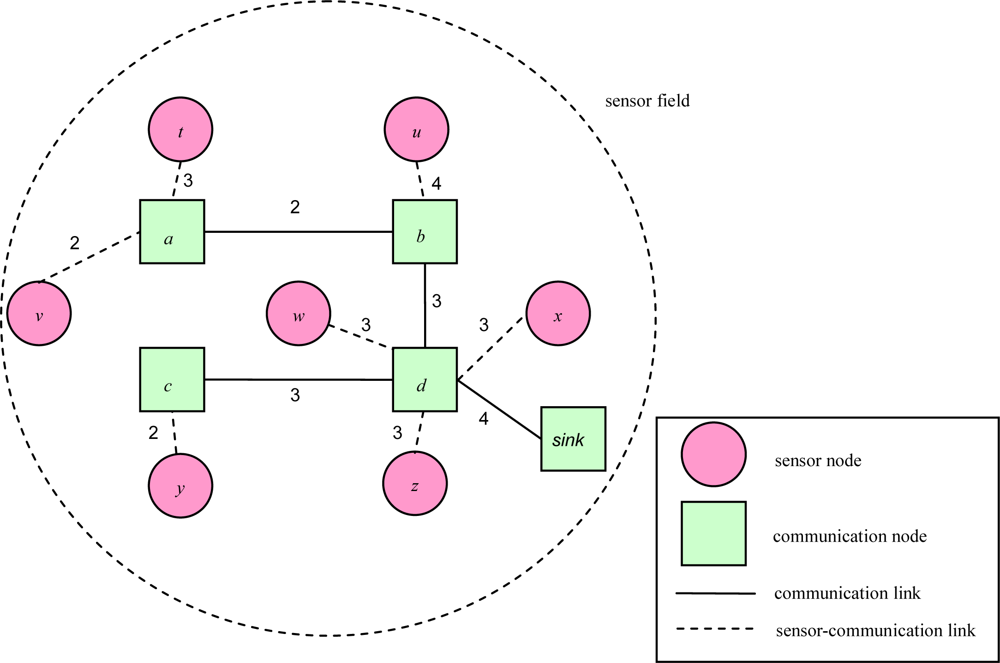

Figure 9. Example of an LR-based object tracking tree.
Figure 9. Example of an LR-based object tracking tree.
Sensors 10 08101f9

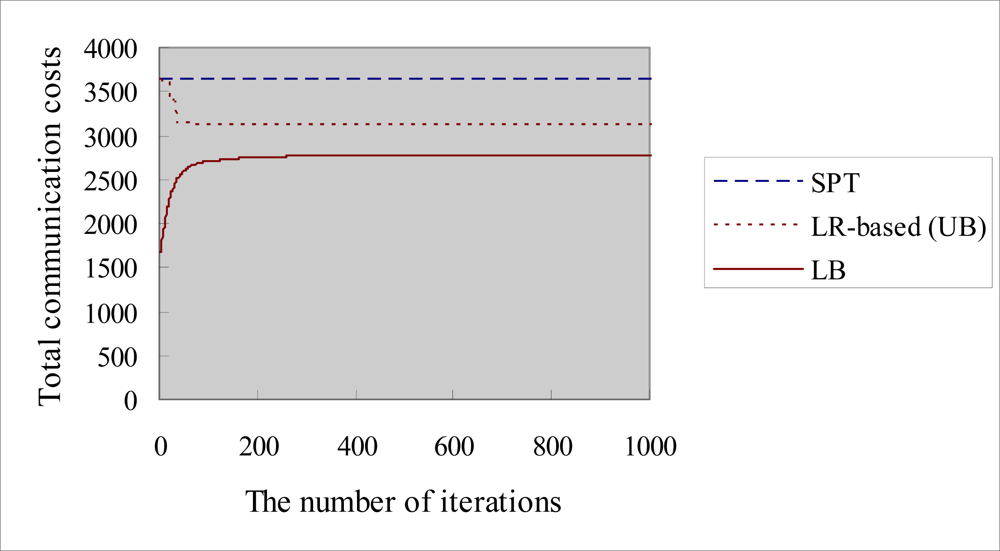

Figure 10. The execution results of LR-based algorithm with 12 nodes in test problem 1.
Figure 10. The execution results of LR-based algorithm with 12 nodes in test problem 1.
Sensors 10 08101f10
Table 1. Power model of the MICAz.
Table 1. Power model of the MICAz.
ModeCurrent
RadioRx19.7 mA
Tx(−10 dBm)11 mA
Tx(−5 dBm)14 mA
Tx(0 dBm)17.4 mA
Table 2. Notations for the given parameters.
Table 2. Notations for the given parameters.
Given Parameters
NotationDescription
SThe set of all sensor nodes.
CThe set of all communication nodes, including sink node.
oArtificial node outside the sensor field.
RThe set of the object moving frequency from x to y, ∀x, yS ∪ {o}, xy.
LThe set of all links, (i, j)∈ L, ij.
AThe set of transmission costs a(i,j) associated with link (i, j).
PsThe set of all candidate paths p between a pair of nodes, s and sink, ∀sS.
Table 3. Notation for the indicate parameter.
Table 3. Notation for the indicate parameter.
Indicate Parameter
NotationDescription
δp(i,j)The value of indicator function is 1 if link (i, j) is on path p, and 0 otherwise.
Table 4. Notations for the decision variables.
Table 4. Notations for the decision variables.
Decision Variables
NotationDescription
xsp1 if the sensor node s uses the path p to reach the sink node, and 0 otherwise.
z ( i , j ) s1 if the sensor node s uses the link (i, j) to reach the sink node, and 0 otherwise.
Table 5. The truth table of variables z ( i , j ) x, z ( i , j ) y, and t ( i , j ) xy.
Table 5. The truth table of variables z ( i , j ) x, z ( i , j ) y, and t ( i , j ) xy.
z ( i , j ) x z ( i , j ) y t ( i , j ) xy
000
011
100
110
Table 6. Notations for the decision variable t ( i , j ) xy.
Table 6. Notations for the decision variable t ( i , j ) xy.
Decision Variables
NotationDescription
t ( i , j ) xy1 if z ( i , j ) x = 0 z ( i , j ) y = 1 (reporting object’s location uses the link (i,j) when object moves from sensor x to sensor y), and 0 otherwise, xy.
Table 7. Parameter of Lagrangean relaxation-based algorithm.
Table 7. Parameter of Lagrangean relaxation-based algorithm.
ParameterValue

Number of nodes12–105 (depend on each case)
Number of iterations5,000
Improvement counter threshold49
Initial upper bound1010
Initial lower bound−1010
Initial scalar of step size2
Initial multiplier0
Table 8. Evaluation of the gap and improvement ratio with different number of nodes.
Table 8. Evaluation of the gap and improvement ratio with different number of nodes.
Number of nodesZduZIP2GapSPTImprovement Ratio to SPT
12Problem 1
Problem 2
2,774
3,416
3,127
3,906
0.13
0.14
3,630
4,460
0.16
0.14
23Problem 1
Problem 2
17,850
17,385
20,725
20,282
0.16
0.17
22,491
21,839
0.09
0.08
36Problem 1
Problem 2
42,410
42,775
49,970
50,411
0.18
0.18
57,553
57,787
0.15
0.15
50Problem 1
Problem 2
89,824
77,905
78,807
88,195
0.14
0.13
99,639
102,796
0.11
0.17
105Problem 1
Problem 2
326,529
328,911
371,438
355,546
0.14
0.08
508,314
511,402
0.37
0.44
Table 9. The time complexity of LR-based object tracking tree algorithm.
Table 9. The time complexity of LR-based object tracking tree algorithm.
ProblemTime Complexity

Sub-problem (SUB1)O(|S|2|L|)
Sub-problem (SUB2)O(|S|3)
Sub-problem (SUB3)O(|S|2|L|)
Sub-problem (SUB4)O(|S|2|L|)
Getting primal feasible solutionsO(|S|2)
Lagrangean dual problemO(I|S|2|L|)*
*Parameter I means the maximum number of iterations

Share and Cite

MDPI and ACS Style

Lin, F.Y.-S.; Lee, C.-T. An Efficient Lagrangean Relaxation-based Object Tracking Algorithm in Wireless Sensor Networks. Sensors 2010, 10, 8101-8118. https://doi.org/10.3390/s100908101

AMA Style

Lin FY-S, Lee C-T. An Efficient Lagrangean Relaxation-based Object Tracking Algorithm in Wireless Sensor Networks. Sensors. 2010; 10(9):8101-8118. https://doi.org/10.3390/s100908101

Chicago/Turabian Style

Lin, Frank Yeong-Sung, and Cheng-Ta Lee. 2010. "An Efficient Lagrangean Relaxation-based Object Tracking Algorithm in Wireless Sensor Networks" Sensors 10, no. 9: 8101-8118. https://doi.org/10.3390/s100908101

APA Style

Lin, F. Y. -S., & Lee, C. -T. (2010). An Efficient Lagrangean Relaxation-based Object Tracking Algorithm in Wireless Sensor Networks. Sensors, 10(9), 8101-8118. https://doi.org/10.3390/s100908101

Article Metrics

Back to TopTop
