1. Introduction
Currently, three-dimensional (3D) mapping techniques fall into two categories: active or passive mapping techniques. Active mapping techniques, such as laser scanning, directly and quickly acquire an enormous point cloud dataset with high spatial precision. Coupled with visible images, a 3D model with true color information can then be reconstructed. Passive mapping techniques, such as image-based modeling (IBM) [
1,
2], use image datasets with multiple fields of view (FOV) to reconstruct 3D models, so these techniques usually require certain imaging conditions, including high spatial resolution, a high percentage of imaging lap, accurate camera calibration, and precise camera positioning [
3].
Laser scanning can directly provide an enormous point cloud dataset to reconstruct precise 3D models, but requires a high degree of training and is very costly. A light detection and ranging (LiDAR) instrument coupled with a thermal camera has also been applied to 3D thermal model reconstruction [
4]. Despite the spatial data acquired by LiDAR instruments having high spatial precision, a LiDAR-based 3D thermal model reconstruction method is still impractical due to its prohibitively high instrument cost. Unlike laser scanning and LiDAR, IBM adopts an indirect method to derive a dataset of transfer parameters, as well as equations for 3D model reconstruction. Furthermore, IBM needs no knowledge about the interior orientation elements of cameras before 3D model reconstruction, and is a low-cost spatial information acquisition technique. With IBM, an effective extraction of conjugate features from adjacent images is necessary. Lowe (2004) [
5] indicated that scale-invariant feature transform (SIFT) has invariance to image rotation and scale, and is robust across a substantial range of affine distortion, the addition of noise and change in illumination; thus, it would be useful in key point feature selection. Based on the conjugate features, structure from motion (SFM) can derive the interior orientation elements of a camera in order to reconstruct the 3D model without preprocessing camera calibration [
6]. However, the procedure from SIFT to SFM usually requires a central processing unit (CPU) with powerful computation efficiency. In order to address this issue, Wu (2013) [
7] ran bundler reconstructions on a PC with an Intel Xenon 5680 3.33 Ghz CPU (24 cores), 12GB RAM, and an nVidia GTX 480 Graphics Processing Unit (GPU). Jancosek and Pajdla (2014) [
8] noted that SFM and multiview-stereo (MVS) have become the most popular methods for obtaining input points with visibility information in 3D model reconstruction.
A thermal camera can detect the spectral radiances of objects under a certain temperature, based on the blackbody radiation theory. The detected spectral radiances are usually displayed as digital numbers (DN) obtained by a conversion of radiation level to electric signal. Thus, a thermal image usually consists of numerous DN values, and records temperature information in the two dimensions of rows and columns. Temperature information can be directly extracted from the thermal image, but geometric information, such as edges, feature points and others, cannot; this hampers the understanding of geometric entities consisting of temperature information. Therefore, fusion of visible images with thermal images is helpful for 3D thermal model reconstruction.
Recently, integrations of multisource remote sensing data have been widely applied to environmental monitoring [
9,
10,
11], building inspection [
12,
13,
14,
15], heritage preservation [
16,
17], and non-destructive testing [
17,
18,
19,
20,
21,
22,
23]. A 3D thermal model cannot be successfully reconstructed without considering the geometric information in thermal images, thus limiting the above applications. IBM is a computer vision technique for effectively integrating multisource image data into a unique 3D model. Lagüela et al., 2012 [
24] used image fusion and image matching techniques to combine thermographic and metric information to obtain 3D thermal models. Several studies also presented the fusion systems for multiple sensors—including 3D laser scanner, RGB camera, and thermal camera—to generate 3D thermal models [
17,
25,
26,
27,
28]. Therefore, image fusion is an important pre-processing for multiple sensors-based 3D thermal model reconstruction.
With the popularization of smart mobile devices, carried nonmetric sensors have been widely applied in the collection of spatial data due to their convenience, low-cost, and availability [
29,
30,
31]. This study aims to reconstruct 3D thermal models by fusing visible images with thermal images, in which geometric and corresponding temperature information are involved, for the scenes of different scales. The reconstructed 3D thermal models will better display stereo-temperature information compared to conventional thermal images. Building envelop inspection of green buildings, for instance, used 3D thermal models to test the insulation of energy [
32,
33,
34] and to assess the failure of external wall tiles [
35]. In this paper, a cost-effective sensor on smart phones for 3D thermal model reconstruction based on IBM is proposed, and the performances, including model quality and computational time, of the 3D thermal model reconstruction are discussed.
5. Conclusions

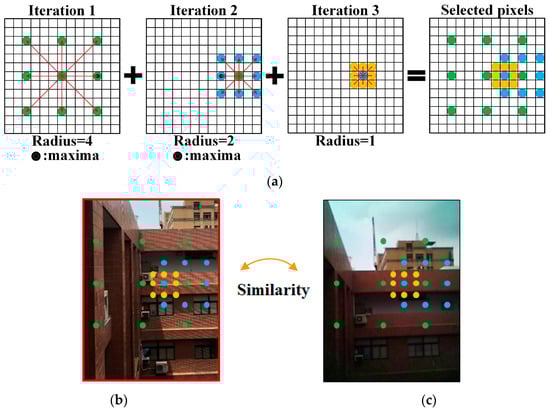

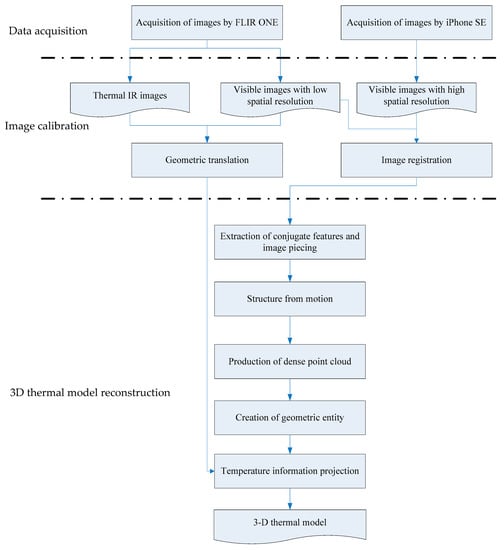

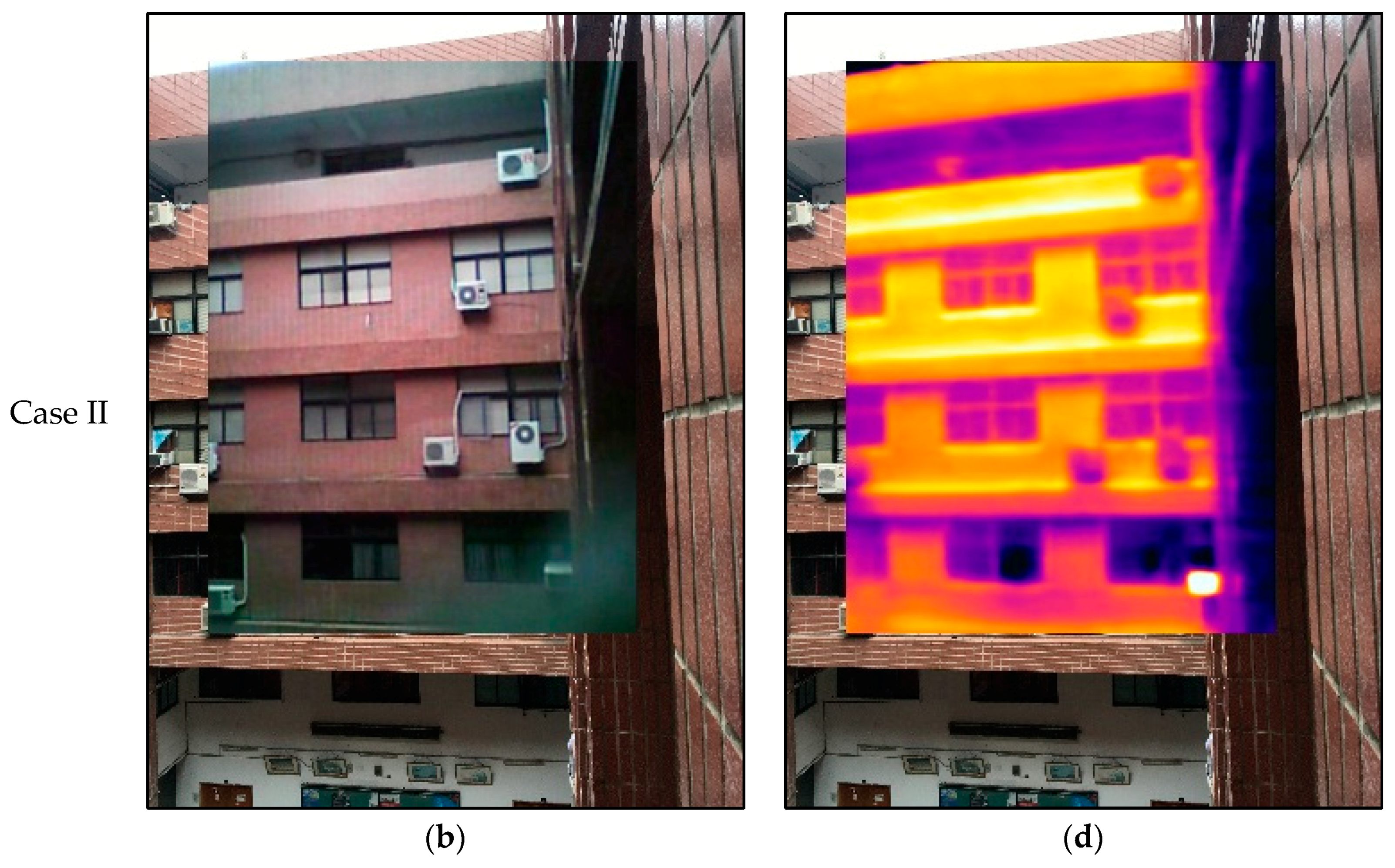

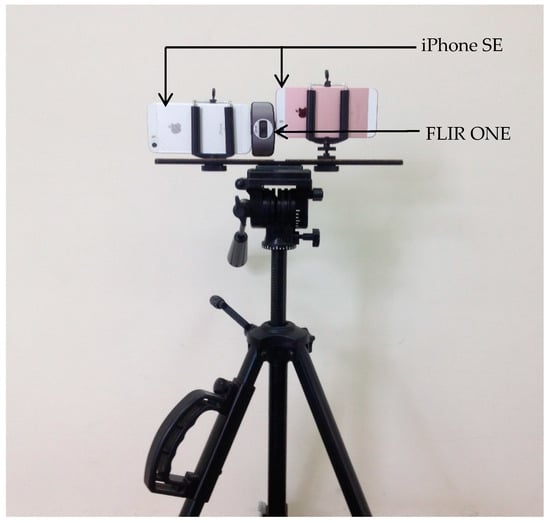

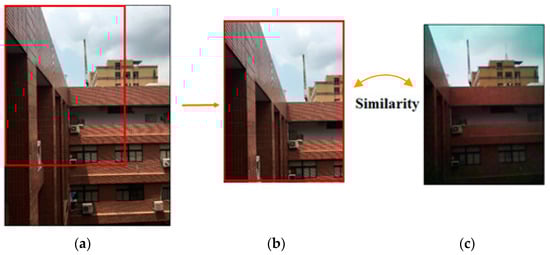

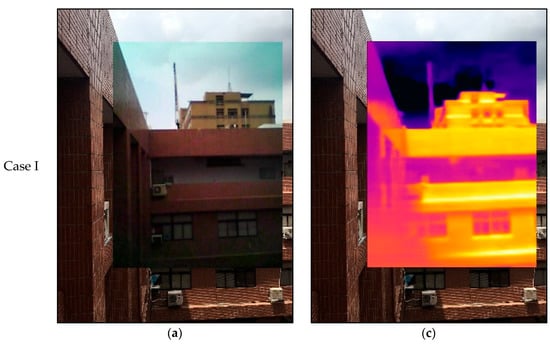

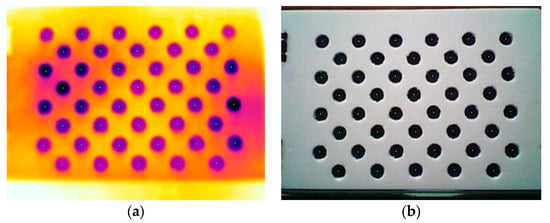

This paper presents an IBM-based method for 3D thermal model reconstruction; two smart phones and a low-cost thermal camera were employed to acquire visible images and thermal images, respectively, that was fused for constructing 3D thermal models. In the IBM-based method, image calibration, which includes geometric translation and image registration, is an important pre-processing for 3D thermal model reconstruction. It was demonstrated that TSS can effectively assist NCC in reducing the computational time required for image registration, and that the optimal percentage for down-sampling the smartphone image size to that of the thermal camera is 9.24%.

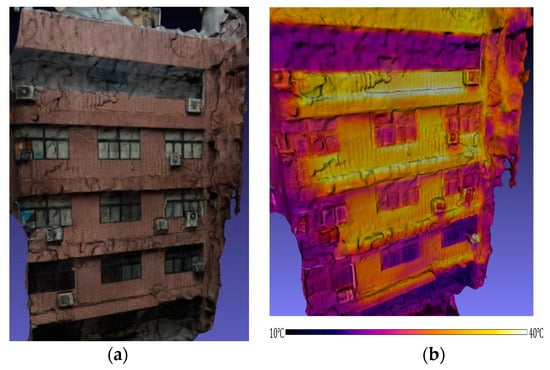

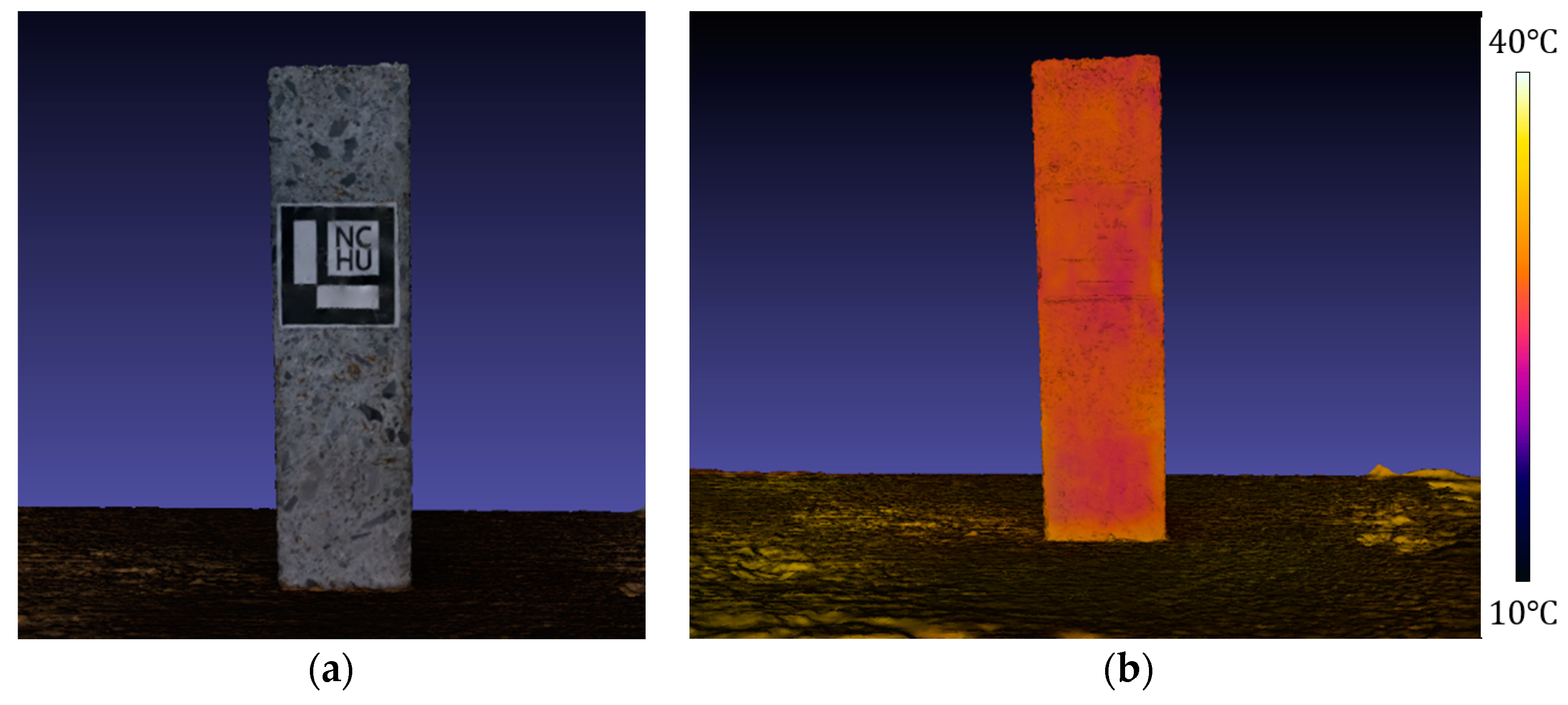

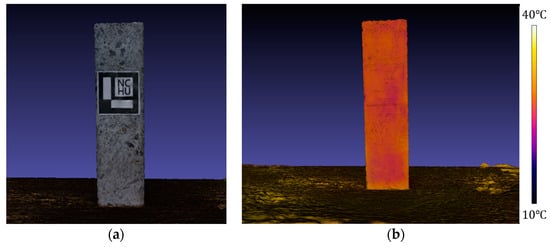

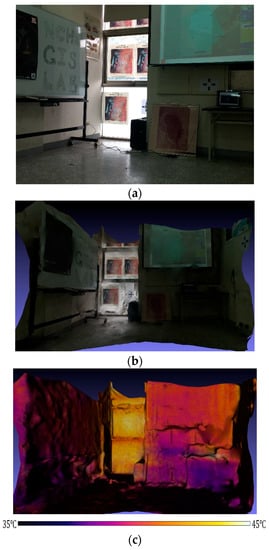

A small scene, i.e., concrete sample, was tested to reconstruct its 3D thermal model, and the obtained volume error of the 3D thermal model is 7.04%. A classroom within the departmental building and an exterior wall of the departmental building were tested to reconstruct their 3D thermal models. The normalized sensed temperatures of several feature points were compared with their corresponding thermograms in situ and show a temperature precision of 2 °C in the 3D thermal models.
According to the required computational time of 3D thermal model reconstruction, the creation of a geometric entity, one of the steps of 3D thermal model reconstruction, is the critical step. Moreover, the production of superfluous points in the point cloud increases the computational time, reducing the efficiency of 3D thermal model reconstruction. At present, it has been demonstrated that the proposed method is approximately cost-effective in 3D thermal model reconstruction. If the appropriate number of dense points required for the creation of a geometric entity can be determined in advance, the computational time of 3D thermal model reconstruction can be significantly reduced. Future work, such as removing redundant points from dense point cloud by the method of Whelan et al., 2015 [
50], will continue to improve the method in order to further reduce computational time and to offer better model quality and in-time monitoring. Moreover, a metric scale associated with the detected objects should also be considered in the further development of 3D thermal model reconstruction.
