Design of Ultra-Narrow Band Graphene Refractive Index Sensor

by
Qianyi Shangguan
1,†,
Zihao Chen
2,†,
Hua Yang
3,
Shubo Cheng
1,*,
Wenxing Yang
1,
Zao Yi
4,
Xianwen Wu
5,
Shifa Wang
6,
Yougen Yi
7 and
Pinghui Wu
8
1
School of Physics and Optoelectronic Engineering, Yangtze University, Jingzhou 434023, China
2
State Key Laboratory of Electronic Thin Film and Integrated Devices, School of Electronic Science and Engineering, University of Electronic Science and Technology of China, Chengdu 610054, China
3
State Key Laboratory of Advanced Processing and Recycling of Non-Ferrous Metals, Lanzhou University of Technology, Lanzhou 730050, China
4
Joint Laboratory for Extreme Conditions Matter Properties, Southwest University of Science and Technology, Mianyang 621010, China
5
School of Chemistry and Chemical Engineering, Jishou University, Jishou 416000, China
6
School of Electronic and Information Engineering, Chongqing Three Gorges University, Chongqing 404000, China
7
College of Physics and Electronics, Central South University, Changsha 410083, China
8
Fujian Provincial Key Laboratory for Advanced Micro-Nano Photonics Technology and Devices, Quanzhou Normal University, Quanzhou 362000, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Sensors 2022, 22(17), 6483; https://doi.org/10.3390/s22176483
Submission received: 6 July 2022 / Revised: 23 August 2022 / Accepted: 26 August 2022 / Published: 28 August 2022
(This article belongs to the Section Chemical Sensors)
Browse Figures
Versions Notes

Abstract

:
The paper proposes an ultra-narrow band graphene refractive index sensor, consisting of a patterned graphene layer on the top, a dielectric layer of SiO2 in the middle, and a bottom Au layer. The absorption sensor achieves the absorption efficiency of 99.41% and 99.22% at 5.664 THz and 8.062 THz, with the absorption bandwidths 0.0171 THz and 0.0152 THz, respectively. Compared with noble metal absorbers, our graphene absorber can achieve tunability by adjusting the Fermi level and relaxation time of the graphene layer with the geometry of the absorber unchanged, which greatly saves the manufacturing cost. The results show that the sensor has the properties of polarization-independence and large-angle insensitivity due to the symmetric structure. In addition, the practical application of testing the content of hemoglobin biomolecules was conducted, the frequency of first resonance mode shows a shift of 0.017 THz, and the second resonance mode has a shift of 0.016 THz, demonstrating the good frequency sensitivity of our sensor. The S (sensitivities) of the sensor were calculated at 875 GHz/RIU and 775 GHz/RIU, and quality factors FOM (Figure of Merit) are 26.51 and 18.90, respectively; and the minimum limit of detection is 0.04. By comparing with previous similar sensors, our sensor has better sensing performance, which can be applied to photon detection in the terahertz band, biochemical sensing, and other fields.

1. Introduction

Surface plasmons (SPs) are two-dimensional plane waves propagating along the interface between metal and dielectric, which can confine subwavelength of the electric field in the direction perpendicular to the dielectric for the purpose of controlling light [1,2]. Surface plasmon resonance (SPR), as an embranchment of SPs, is excited by the coupling of photon-electron resonance when the wave vector of the incident light matches that of the surface plasmon wave [3]. The resonance frequency can be tuned by changing the geometric parameters and material of the metal layer, etc [4]. SPR-based biosensors are popular research topics in recent years and have been playing an important role in biological diagnosis and environmental detection on account of its high sensitivity and real-time response [5,6,7,8]. For example, one of the most common applications of SPR sensors is the detection and characterization of different biochemicals, including antibodies and other proteins [9,10]. The conventional SPR sensor is a three-layer dielectric structure proposed by Kretschmann, where a metal film is usually attached to the beveled edge of the prism to adsorb biological or chemical molecules [11]. Since the resonant frequencies of metals must be in the visible spectral range, gold or silver is generally chosen as the material for metal thin films. However, both materials have some defects that cannot be improved (for example, silver is easily oxidized, reducing performance and life of devices; the absorption capacity of biomolecules on gold is poor, and the sensitivity and performance of sensors is limited), thus limiting the effective use of the sensing performance of the devices [12,13]. Therefore, it is essential to find a new material to enhance the sensing performance.
Electromagnetic metamaterial is a new type of artificially designed composite material with a structural size smaller than the wavelength of external incidence, which has peculiar optical properties such as a negative refractive index and a negative magnetic permeability. In addition, the desired metamaterial properties can be achieved by designing subwavelength structures [14,15]. Currently, one of the most promising types of metamaterials for application is graphene, which is a lattice material composed of hexagonal carbon atoms. Graphene has excellent optical characteristic such as high optical transparency, strong electrical conductivity, and strong biosorption due to its special electronic structure [16,17,18,19,20]. It has been found that the optical characteristics of graphene change significantly on the SPR curve, and the graphene increases the sensitivity of the device to changes in the refractive index compared to conventional metallic materials [21]. On the other hand, similar to metals, graphene can support the propagation of surface plasma waves in the mid-infrared and terahertz bands [22]. However, unlike conventional metal SPR, the plasma of graphene is tunable and exhibits dynamic tunability with the method of adjusting the Fermi level and relaxation time of graphene by electrostatic or doping [23,24,25,26]. Using the feature, the actual manufacturing cost of the device is greatly saved, and the device performance can be tuned more easily and quickly.
Based on the advantages of the above properties of graphene materials, it is possible to achieve optimization of sensor performance. In real life, optical sensors of graphene-based SPR can be used for bio-detection such as single cells, antigen antibodies, proteins and so on [27,28,29]. In recent years, a wide variety of graphene absorption sensors with different properties have been proposed. However, most of these absorbers are single-frequency absorbers with complex fabrication steps and poor performance in sensing detection [30,31,32,33]. Therefore, the emergence of a sensor with a simple configuration, dual-frequency absorption and high refractive index sensitivity is an inevitable trend.
Terahertz waves lie between 0.1 and 10 THz, and are mainly excited by intramolecular and intermolecular vibrations [34,35]. Although the terahertz wave band has not yet been fully explored in the electromagnetic spectrum, it has now shown great potential for applications in communication, security, medical, and military, and is of great research value [36,37,38,39]. Actually, there has been some research progress in the combination of graphene absorption sensors and terahertz waves in recent years, but the majority of these works are only one resonance mode or do not achieve perfect absorption [40,41,42], hindering the expansion of application ranges of devices. Based on this, a novel ultra-narrow band graphene THz absorption sensor structure is designed in this paper. The absorption efficiency of the absorber is first calculated by simulation, and its intrinsic electric field distribution and impedance matching principle are analyzed. Then the effects of the Fermi level, relaxation time, polarization angle, and incident angle on absorption are discussed separately. Next, the sensing performance is analyzed and compared with similar ultra-narrowband absorber structures. Finally, the sensor capability is investigated for the detection of biomolecules in the biomedical field. The results show that the designed sensor has dynamic tunability, polarization-independence, large-angle insensitivity, and good sensing characteristics.

2. Model Structure

Our proposed ultra-narrowband absorber structure consists of a patterned graphene layer on the top, a dielectric layer of SiO2 in the middle, and a bottom metal layer, as shown in Figure 1. The chosen dielectric SiO2 has a relative permittivity of εd = 1.4 and a thickness of ts = 28 µm. The structural period of the basic cell is P = Px = Py = 15 µm. The bottom metal layer adopts lossy Au with conductivity σ = 4.09 × 107 S/m and the ply ta = 0.5 µm, which can block the transmission of terahertz waves efficiently [43,44]. The inner ring radii r1 and r2 of the top patterned graphene are 1 µm and 3.5 µm, respectively, and the outer ring radii r3 and r4 are 5 µm and 7 µm, respectively. Based on this structure, the simulation was conducted by using FDTD (Finite difference time domain) solutions software [45]. During the process, in x- and y-directions, periodic boundary conditions are used. In the z- direction, perfect matching layer (PML) 24 layers is applied. The simulation temperature in our work is set to 300 K. In the simulations of this paper, the thickness of the monolayer graphene is set to 1 nm. By modulating the material parameters of the graphene layer, it was found that the optimal absorption efficiency of this absorber in the terahertz band was achieved when EF = 0.7 eV and τ = 0.7 Ps.
The total conductivity of graphene we used can be obtained from σg = σintra + σinter, with σintra represents intra-band conductivity, σinter is inter-band conductivity. According to Kubo formula, the conductivity of graphene can be described by [46,47]:
σ intra = ie 2 k B T π ℏ 2 ( w + i τ − 1 ) { E F K B T + 2 ln [ exp ( − E F K B T ) + 1 ] }
σ inter = ie 2 4 π ℏ 2 ln [ 2 | E F | − ℏ ( w + i τ − 1 ) 2 | E F | + ℏ ( w + i τ − 1 ) ]
where the charge of electron e = 1.6 × 10−19 C, KB refers to the Boltzmann constant, ħ represents the approximate Planck constant, T, ω refers to the ambient temperature and angular frequency of the incident wave, respectively. EF and τ refer to the Fermi level and relaxation time of the graphene layer, respectively. The σinter of graphene is negligible since EF >> ħω in the terahertz band, and the surface conductivity of graphene depends mainly on intra-band contribution. Therefore, the total conductivity of graphene can be simplified as Drude formula [48]:
σ ( ω ) = i e 2 | E F | π ℏ 2 ( ω + i τ − 1 )
From the above equation, it is clear that the graphene optoelectronic devices can achieve active adjustability by means of regulating the Fermi level and relaxation time. The property simplifies the design of optoelectronic devices and increases the flexibility in different cases.

3. Results and Analysis

As displayed in Figure 2, the patterned graphene absorber achieves ultra-narrow band perfect absorption in the incident frequency ranges of 5~9 THz, and absorption efficiency of 99.41% and 99.22% are achieved at 5.664 THz and 8.062 THz, respectively. And these results were calculated and simulated by 3D-finite difference time domain method in FDTD software. The Q-factors of two resonant frequencies, defined as Q = f0/Δf [49], are 171.64 and 196.63, respectively.
To calibrate the bandwidth level of the absorber, the parameter relative absorption bandwidth Bw is used, which is expressed as the ratio of total bandwidth to center frequency, and defined as [50]:
B w = 2 × ( f max − f min ) ( f max + f min ) × 100 %
where fmax and fmin are the highest and lowest frequencies, respectively. If Bw is less than 1%, it is considered narrowband. If Bw is in the range of 1~25%, it is considered wideband, and if Bw is greater than 25%, it is considered ultra-wide band. In our work, the absorption bandwidths of the two resonant frequencies where the absorption efficiency remains above 80% are 0.0171 (5.6552~5.6723 THz) and 0.0152 (8.0551~8.0703 THz), respectively. Therefore, according to equation (4), the relative absorption bandwidths Bw at the two resonant frequencies were calculated to be 0.0301% and 0.0188%, respectively. Bw is much less than 1%, so the absorber is ultra-narrow band absorption. The total absorption bandwidths are 0.033 THz and 0.041 THz, respectively.
To investigate the intrinsic mechanism of perfect absorption of the absorber, we set separate frequency-domain field monitors at 5.664 THz and 8.062 THz respectively in x-y plane first, then observed and plotted the cross-sectional electric field distribution diagram, as demonstrated in Figure 3. It is worth noting that the electric field we calculated was normalized, different colors represented different intensities of electric field, and the electric field became stronger and stronger from blue to red. The intensity values of electric field corresponding to different colors is presented in the color bar of the electric field. Obviously, the electric field distribution patterns at the two perfect absorption bands were different. For the electric field at 5.664 THz, it was mainly distributed at the upper and lower sides of the outer ring. And at 8.062 THz, not only the graphene SPR of outer ring excited an electric field, but also the inner ring contributed the electric field component. It can be attributed to the coupling of the vibrational frequency of the patterned graphene layer with the terahertz waves in these two frequency bands and providing electric dipole resonance, forming different resonance modes that greatly consumed the energy of the incident light, and the ultra-narrow graphene absorber achieved a perfect match with the free-space impedance in the two resonance frequency bands, finally realizing the perfect absorption of the absorber.
The impedance matching principle is a significant theoretical basis to achieve perfect absorption of the absorber. The equivalent impedance Z can be calculated by the Equation (5) [51]:
Z = ( 1 + S 11 ) 2 − S 21 2 ( 1 − S 11 ) 2 − S 21 2
Here, S11 and S21 were the scattering parameters related to the reflectance and transmittance, respectively. Derived from the effective impedance matching theory, we could obtain the equivalent impedance Z of the absorber from the simulation results, as suggested in Figure 4. When the effective impedance Z of the absorber matched with the free space, i.e., the real part (Re(Z)) of the effective impedance Z of the system had a value close to 1, and the imaginary part (Im(Z)) was close to 0, so the reflection (S11 = 0) could be greatly decreased, for which a perfect absorption was acquired. According to Figure 4 and combined with the absorption spectra, it could be found that the absorber achieved a perfect match with the free-space impedance at the resonance wavelengths of 5.664 THz and 8.062 THz, and obtained 99.41% and 99.22% perfect absorption, respectively. The values of real parts of impedance at the two absorption peaks were 0.042 and 0.087, the values of the imaginary part of impedance were 2.16 and −0.096. The resonance around 8.5 THz in the absorption response was because that the impedance we discussed was effective impedance, which was different from impedance. When the Re(Z) and Im(Z) of the effective impedance Z deviated from 1 and 0, respectively, the absorption efficiency decreased sharply. It proved that the proposed graphene SPR ultra-narrow perfect absorption was due to the impedance matching at the frequencies of 5.664 THz and 8.062 THz.
Based on the tunability of graphene materials, the changes of absorption spectra of the absorbers were next investigated by regulating the Fermi level and relaxation time of the graphene layers, respectively, as shown in Figure 5. The equation for the external voltage regulation of graphene Fermi level EF is as follows [52,53]:
E F = V F π ε 0 ε r V g / e 0 t s
where Vg, e0, VF and ts is external voltage, electron charge, Fermi velocity and the ply of SiO2 layer, respectively. Among them, Vg can be modulated by adjusting the external voltage or chemical doping. Besides, ε0 and εr denotes the vacuum permittivity and relative permittivity, respectively. Figure 5a demonstrates the blue shift of both absorption peaks of the absorber as the Fermi level incremented from 0.50 eV to 0.9 eV, and the modulation ranges of the resonant frequencies are 5.389~5.951 THz and 7.680~8.474 THz with modulation depths of 0.562 THz and 0.794 THz, respectively. The optimal absorption efficiency is achieved as EF = 0.7 eV.
The electron relaxation time τ of the patterned graphene layer was calculated by [48]:
τ = E F v / ( e v F 2 )
where EF, ν is the Fermi level, carrier mobility of graphene, respectively. e is the electronic charge, and VF = 106 m/s. The absorption spectra of the absorber illustrated in Figure 5b as relaxation time τ increased from 0.7 Ps to 5 Ps. The results showed that the absorption efficiency changed gradually and the resonance frequency remained unchanged. Another interesting phenomenon that appears in Figure 5b is the significant fluctuations around the two absorption peaks, which can be attributed to the variation of relaxation time of graphene. The carrier’s plasmonic oscillations can be enhanced with the increases of τ, and the strong plasmonic oscillations will interact with the surrounding medium, resulting in fluctuations around the two absorption peaks. The modulation ranges of the absorption efficiency were 87.83% to 99.41% and 95.45% to 99.22%, and the modulation depths were 11.58% and 3.77%, respectively. Therefore, graphene absorbers could achieve the tunability of the absorption spectrum by regulating the Fermi level and relaxation time of the graphene layer with the geometry of absorber unchanged, which had a higher value than conventional metal absorbers in more actual fields.
In real life, vertical incidence plane wave was just one of these cases. The real situation was more complicated and volatile. Therefore, the studies on the insensitivity to oblique incidence of absorber were necessary [54,55,56,57]. Based on this, the variation of the sweep spectra of the absorber under TE (Transverse Electric) polarization and TM (Transverse Magnetic) polarization by changing the incident angle from 0° to 70° were investigated. The TM polarization and TE polarization were defined in terms of whether the electric or magnetic field only had a transverse component. The electromagnetic waves were propagating along the z- axis, when the electric field only had a horizontal component in the x-y plane, it was called TE waves. When the magnetic field only had a horizontal component in the x-y plane, it was called TM waves [58]. Figure 6a is the sweep spectra of the absorber under TE and TM polarization with the incident angle of the source increasing from 0° to 70°. The results revealed that when the incident angle was in the range of 0°−70°, the absorption of TE polarization and TM polarization was the same, i.e., the absorber has the polarization-independent property, and a similar conclusion can also be obtained from the fitted spectrograms of TE and TM in Figure 6b. In addition, the phenomena in Figure 6a also manifest that the ultra-narrow absorber was insensitive to the incidence angle in the ranges of 0° to 70°.
The sensor capability is explored in Figure 7. The curves in Figure 7a suggest that the frequency bands of the two resonance modes were blue-shifted and the absorption efficiency decreased as n increased, which, indicating the resonance modes, were sensitive to the refractive index. We then measured the sensor capability quantitatively by calculating the parameters of S (Sensitivity) and FOM (Figure of Merit). According to the sensitivity Formula (8) [59,60]:
S = Δ f / Δ n
where ∆f and ∆n are the changes in resonance frequency and ambient refractive index, respectively. Figure 7b fits the sensitivity calculated for the two resonance frequencies of this absorber, and the sensitivity at mode A (at 5.664 THz) and mode B (at 8.062 THz) were 875 GHz/RIU and 775 GHz/RIU, respectively. Then, the FOM of our sensor was obtained from Formula (9) [61,62,63]:
F O M = S / F W H M
where S (Sensitivity) had been given above, and FWHM (Full Width at Half Maximum) was the full width of the half-peak at the resonance frequency. The value of FWHM represents the peaks’ width in the position of the half of absorption efficiency, and can be calculated according to the simulation data. Figure 7c,d calculate FWHM and FOM at the two resonance frequencies, respectively, and these results show that the maximum FOM of mode A = 26.51 and the maximum FOM of mode B = 18.90. In addition, the detection factor
P = F W H M / S
is introduced to assess the sensing performance of our sensor quantitatively since the limit of detection (LOD) is proportional to FWHM/S [64]. And according to formula (10), the calculated detection factors P of the two resonance modes were 0.04, 0.05, respectively. The smaller detection factor exhibited a higher refractive index sensitivity and better sensing characteristics of our sensor. After comparing with the works of those who came before us, our absorption sensor had the advantages of dual-band absorption, dynamic tunability, high refractive index sensitivity, and good sensing performance, as shown in Table 1 [65,66,67,68]. The results demonstrated that the absorber had better sensing performance and broader application prospects. The results demonstrated that the absorber had better sensing performance and broader application prospects.
Finally, we investigated the sensing performance of our absorption sensor applied in real time. Figure 8 suggests the changing curves when the sensor was designed to measure the content of hemoglobin molecules in organisms [69]. The functionalization of the sensing surface was adsorption. Meanwhile, the problem of nonspecific adsorption was considered. When detecting hemoglobin molecules with our sensor, modifying the sensor with anti-protein nonspecific adsorption material was very significant. The material could effectively prevent nonspecific adsorption of protein on the surface of the device, so as to improve the compatibility of our sensors. Commonly used anti-protein nonspecific adsorption materials are PEG, PEG derivative, and polysaccharide, etc [70]. The shift of frequency is a sign of refractive index changes. And when our sensor detected materials, a different content of hemoglobin molecules can cause different frequency offset, showing the different refractive index of materials. Then, we can find the corresponding content of the hemoglobin molecule by consulting the refractive index libraries of substance. Thus, different content of hemoglobin molecules can be determined. When the content of hemoglobin biomolecules increases successively from 10 g/L (n = 1.34), 20 g/L (n = 1.36), 30 g/L (n = 1.39) to 40 g/L (n = 1.43), the two resonance modes both show a blue shift. The resonance frequencies of first resonance mode shifts from 5.604 THz to 5.587 THz, and the resonance frequencies of second resonance mode shifts from 8.009 THz to 7.993 THz. Compared with the former works, for example, Pang et al. experimentally designed a sensing strategy for specific recognition of hemoglobin with the limit of detection (LOD) as low as 2 [71]. Our sensor achieved the minimum limit of detection of 0.04. These phenomena prove that the sensing system we developed had good sensing performance in specific applications, and it is expected to be applied in more practical fields.

4. Conclusions

In this paper, ultra-narrow perfect absorbers in the 5–9 THz band were obtained based on the single-layer graphene SPR structure. By designing the structure, perfect absorption was obtained at 5.664 THz and 8.062 THz with absorption efficiencies of 99.41% and 99.22% and absorption bandwidths of 0.0171 THz and 0.0152 THz, respectively. The relative absorption bandwidths Bw at the two resonant frequencies were calculated to be 0.0301% and 0.0188%, and the Q-factors were 171.64 and 196.63, respectively. Associating with the dynamic tunability of graphene, the resonant frequency bands can be modulated efficiently by adjusting the Fermi level and relaxation time of the top graphene. The polarization-independence and wide-angle insensitivity characteristics of the absorber were studied by changing the polarization mode and incidence angle of the incident light. Finally, the sensing characteristics of the absorption sensor were investigated. The calculated sensitivities of the sensor were 875 GHz/RIU and 775 GHz/RIU, quality factors FOM (Figure of Merit) were 26.51 and 18.90, and the minimum limit of detection was 0.04. In addition, the practical application of testing the content of hemoglobin biomolecules was conducted, and the results show that our sensor had good sensing performance, which can be expected to be applied in optical detection, medical imaging, biosensing, and other fields.

Author Contributions

Conceptualization, Q.S., Z.C. and H.Y.; data curation, Q.S., Z.Y. and W.Y.; formal analysis, Q.S. and H.Y.; methodology, S.C., H.Y., W.Y., X.W., P.W., Z.Y. and S.W.; resources, Y.Y.; software, Q.S., Z.C., X.W., Z.Y. and P.W.; data curation, Q.S.; writing-original draft preparation, Q.S.; writing-review and editing, Q.S., H.Y., X.W., S.W. and P.W. All authors have read and agreed to the published version of the manuscript.

Funding

The authors are grateful to the support by National Natural Science Foundation of China (No. 51606158, 11604311, 61705204, 21506257); the Funded by the Scientific Research Fund of Si Chuan Provincial Science and Technology Department (2020YJ0137; 2020YFG0467; 2021JDRC0019); the Funded by the Open Fund of The Key Laboratory for Metallurgical Equipment and Control Technology of Ministry of Education in Wuhan University of Science and Technology (No. MECOF2020B02); the Funded by the Undergraduate Innovation Fund Project Precision Funding by Southwest University of Science and Technology (No. JZ20-025); the College Students’ innovation and entrepreneurship training program (S202110619073; S202110619069; S202110619100); the Postgraduate Innovation Fund Project by Southwest University of Science and Technology (No. 18ycx034); the Funded by Southwest University of Science and Technology Students Innovation Fund project (No. CX20-031).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Publicly available datasets were analyzed in this study. This data can be found here: [https://www.lumerical.com/] (accessed on 1 January 2020).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zheng, Z.; Luo, Y.; Yang, H.; Yi, Z.; Zhang, J.; Song, Q.; Yang, W.; Liu, C.; Wu, X.; Wu, P. Thermal tuning of terahertz metamaterial properties based on phase change material vanadium dioxide. Phys. Chem. Chem. Phys. 2022, 24, 8846–8853. [Google Scholar] [CrossRef] [PubMed]
  2. Chen, J.; Nie, H.; Tang, C.; Cui, Y.; Yan, B.; Zhang, Z.; Kong, Y.; Xu, Z.; Cai, P. Highly sensitive refractive-index sensor based on strong magnetic resonance in metamaterials. Appl. Phys. Express 2019, 12, 052015. [Google Scholar] [CrossRef]
  3. Zhao, F.; Lin, J.; Lei, Z.; Yi, Z.; Qin, F.; Zhang, J.; Liu, L.; Wu, X.; Yang, W.; Wu, P. Realization of 18.97% theoretical efficiency of 0.9 μm thick c-Si/ZnO heterojunction ultrathin-film solar cells via surface plasmon resonance enhancement. Phys. Chem. Chem. Phys. 2022, 24, 4871–4880. [Google Scholar] [CrossRef] [PubMed]
  4. Gu, Y.F.; Guo, B.B.; Yi, Z.; Wu, X.W.; Zhang, J.; Yang, H. Synthesis of a Self-assembled Dual Morphologies Ag-NPs/SrMoO4 Photocatalyst with LSPR Effect for the Degradation of Methylene Blue Dye. ChemistrySelect 2022, 7, e202201274. [Google Scholar] [CrossRef]
  5. Cai, L.; Zhang, Z.; Xiao, H.; Chen, S.; Fu, J. An eco-friendly imprinted polymer based on graphene quantum dots for fluorescent detection of p-nitroaniline. RSC Adv. 2019, 9, 41383–41391. [Google Scholar] [CrossRef]
  6. Lv, P.; Xie, D.; Zhang, Z. Magnetic carbon dots based molecularly imprinted polymers for fluorescent detection of bovine hemoglobin. Talanta 2018, 188, 145–151. [Google Scholar] [CrossRef]
  7. Liu, Y.; Bo, M.; Yang, X.; Zhang, P.; Sun, C.Q.; Huang, Y. Size modulation electronic and optical properties of phosphorene nanoribbons: DFT–BOLS approximation. Phys. Chem. Chem. Phys. 2017, 19, 5304–5309. [Google Scholar] [CrossRef]
  8. Li, J.; Jiang, J.; Xu, Z.; Liu, M.; Tang, S.; Yang, C.; Qian, D. Facile synthesis of Ag@Cu2O heterogeneous nanocrystals decorated N-doped reduced graphene oxide with enhanced electrocatalytic activity for ultrasensitive detection of H2O2. Sens. Actuators B Chem. 2018, 260, 529–540. [Google Scholar] [CrossRef]
  9. Ertürk, G.; Uzun, L.; Tumer, M.A.; Say, R.; Denizli, A. Fab fragments imprinted SPR biosensor for real-time human immunoglobulin G detection. Biosens. Bioelectron. 2011, 28, 97–104. [Google Scholar] [CrossRef]
  10. Luo, W.H.; Cao, W.X.; Bruijnincx, P.C.A.; Lin, L.; Wang, A.Q.; Zhang, T. Zeolite-supported metal catalysts for selective hydrodeoxygenation of biomass-derived platform molecules. Green Chem. 2019, 21, 3744–3768. [Google Scholar] [CrossRef]
  11. Han, L.; Xu, C.Y.; Huang, T.Y.; Dang, X.Y. Improved particle swarm optimization algorithm for high performance SPR sensor design. Appl. Opt. 2021, 60, 1753–1760. [Google Scholar] [CrossRef] [PubMed]
  12. Wang, D.Y.; Yi, Z.; Ma, G.L.; Dai, B.; Yang, J.B.; Zhang, J.F.; Yu, Y.; Liu, C.; Wu, X.W.; Bian, Q. Two channels photonic crystal fiber based on surface plasmon resonance for magnetic field and temperature dual-parameter sensing. Phys. Chem. Chem. Phys. 2022. [Google Scholar] [CrossRef]
  13. Wu, X.; Zheng, Y.; Luo, Y.; Zhang, J.; Yi, Z.; Wu, X.; Cheng, S.; Yang, W.; Yu, Y.; Wu, P. A four-band and polarization-independent BDS-based tunable absorber with high refractive index sensitivity. Phys. Chem. Chem. Phys. 2021, 23, 26864–26873. [Google Scholar] [CrossRef] [PubMed]
  14. Zheng, Z.; Zheng, Y.; Luo, Y.; Yi, Z.; Zhang, J.; Liu, Z.; Yang, W.; Yu, Y.; Wu, X.; Wu, P. A switchable terahertz device combining ultra-wideband absorption and ultra-wideband complete reflection. Phys. Chem. Chem. Phys. 2022, 24, 2527–2533. [Google Scholar] [CrossRef]
  15. Zhou, F.; Qin, F.; Yi, Z.; Yao, W.-T.; Liu, Z.; Wu, X.; Wu, P. Ultra-wideband and wide-angle perfect solar energy absorber based on Ti nanorings surface plasmon resonance. Phys. Chem. Chem. Phys. 2021, 23, 17041–17048. [Google Scholar] [CrossRef]
  16. Tang, N.; Li, Y.; Chen, F.; Han, Z. In situ fabrication of a direct Z-scheme photocatalyst by immobilizing CdS quantum dots in the channels of graphene-hybridized and supported mesoporous titanium nanocrystals for high photocatalytic performance under visible light. RSC Adv. 2018, 8, 42233–42245. [Google Scholar] [CrossRef]
  17. Lin, X.; Li, Y.J.; Chen, F.T.; Xu, P.; Li, M. Facile synthesis of mesoporous titanium dioxide doped by Ag-coated graphene with enhanced visible-light photocatalytic performance for methylene blue degradation. RSC Adv. 2017, 7, 25314–25324. [Google Scholar] [CrossRef]
  18. Cheng, Z.; Liao, J.; He, B.; Zhang, F.; Zhang, F.; Huang, X.; Zhou, L. One-Step Fabrication of Graphene Oxide Enhanced Magnetic Composite Gel for Highly Efficient Dye Adsorption and Catalysis. ACS Sustain. Chem. Eng. 2015, 3, 1677–1685. [Google Scholar] [CrossRef]
  19. Li, J.; Jiang, J.; Zhao, D.; Xu, Z.; Liu, M.; Liu, X.; Tong, H.; Qian, D. Novel hierarchical sea urchin-like Prussian blue@palladium core–shell heterostructures supported on nitrogen-doped reduced graphene oxide: Facile synthesis and excellent guanine sensing performance. Electrochim. Acta 2020, 330, 135196. [Google Scholar] [CrossRef]
  20. Yang, X.; Zhang, F.; Hu, Y.J.; Chen, D.Z.; He, Z.Q.; Xiong, L.Z. Gold nanoparticals doping graphene sheets nanocomposites sensitized screen-printed carbon electrode as a disposable platform for voltammetric determination of guaiacol in bamboo juice. Int. J. Electrochem. Sci. 2014, 9, 5061–5072. [Google Scholar]
  21. Cai, R.; Rao, W.; Zhang, Z.; Long, F.; Yin, Y. An imprinted electrochemical sensor for bisphenol A determination based on electrodeposition of a graphene and Ag nanoparticle modified carbon electrode. Anal. Methods 2014, 6, 1590–1597. [Google Scholar] [CrossRef]
  22. Sang, T.; Dereshgi, S.A.; Hadibrata, W.; Tanriover, I.; Aydin, K. Highly efficient light absorption of monolayer graphene by quasi-bound state in the continuum. Nanomaterials 2021, 11, 484. [Google Scholar] [CrossRef] [PubMed]
  23. Parmar, J.; Patel, S.K.; Ladumor, M.; Sorathiya, V.; Katrodiya, D. Graphene-silicon hybrid chirped-superstructure bragg gratings for far infrared frequency. Mater. Res. Express 2019, 6, 065606. [Google Scholar] [CrossRef]
  24. Zaky, Z.A.; Ahmed, A.M.; Shalaby, A.S.; Aly, A.H. Refractive index gas sensor based on the tamm state in a one-dimensional photonic crystal: Theoretical optimization. Sci. Rep. 2020, 10, 9736. [Google Scholar] [CrossRef] [PubMed]
  25. Zhang, Z.; Cai, R.; Long, F.; Wang, J. Development and application of tetrabromobisphenol A imprinted electrochemical sensor based on graphene/carbon nanotubes three-dimensional nanocomposites modified carbon electrode. Talanta 2015, 134, 435–442. [Google Scholar] [CrossRef] [PubMed]
  26. Chen, H.; Chen, Z.; Yang, H.; Wen, L.; Yi, Z.; Zhou, Z.; Dai, B.; Zhang, J.; Wu, X.; Wu, P. Multi-mode surface plasmon resonance absorber based on dart-type single-layer graphene. RSC Adv. 2022, 12, 7821–7829. [Google Scholar] [CrossRef] [PubMed]
  27. Patel, S.K.; Parmar, J.; Kosta, Y.P.; Charola, S.; Zakaria, R.B.; Nguyen, T.K.; Dhasarathan, V. Graphene-based highly sensitive refractive index biosensors using C-Shaped metasurface. IEEE Sens. J. 2020, 20, 6359–6365. [Google Scholar] [CrossRef]
  28. Li, R.; Zheng, Y.; Luo, Y.; Zhang, J.; Yi, Z.; Liu, L.; Song, Q.; Wu, P.; Yu, Y.; Zhang, J. Multi-peak narrow-band perfect absorber based on two-dimensional graphene array. Diam. Relat. Mater. 2021, 120, 108666. [Google Scholar] [CrossRef]
  29. Long, F.; Zhang, Z.H.; Wang, J.; Yan, L.; Lu, P.P.; Yang, Z.X. Magnetic graphene modified imprinted electrochemical sensor for detection of 4-Octylphenol. Chin. J. Anal. Chem. 2016, 44, 908–914. [Google Scholar]
  30. Yan, Z.; Lu, X.; Du, W.; Lv, Z.; Tang, C.; Cai, P.; Gu, P.; Chen, J.; Yu, Z. Ultraviolet graphene ultranarrow absorption engineered by lattice plasmon resonance. Nanotechnology 2021, 32, 465202. [Google Scholar] [CrossRef]
  31. Long, F.; Zhang, Z.; Wang, J.; Yan, L.; Zhou, B. Cobalt-nickel bimetallic nanoparticles decorated graphene sensitized imprinted electrochemical sensor for determination of octylphenol. Electrochim. Acta 2015, 168, 337–345. [Google Scholar] [CrossRef]
  32. Chen, J.; Chen, S.Y.; Gu, P.; Yan, Z.D.; Tang, C.J.; Xu, Z.J.; Liu, B.; Liu, Z.Q. Electrically modulating and switching infrared absorption of monolayer graphene in metamaterials. Carbon 2020, 162, 187–194. [Google Scholar] [CrossRef]
  33. Cen, C.L.; Lin, H.; Huang, J.; Liang, C.P.; Chen, X.F.; Tang, Y.J.; Yi, Z.; Ye, X.; Liu, J.W.; Yi, Y.G.; et al. A tunable plasmonic refractive index sensor with nanoring-strip graphene arrays. Sensors 2018, 18, 4489. [Google Scholar] [CrossRef] [PubMed]
  34. Deng, Y.; Cao, G.; Wu, Y.; Zhou, X.; Liao, W. Theoretical Description of Dynamic Transmission Characteristics in MDM Waveguide Aperture-Side-Coupled with Ring Cavity. Plasmonics 2015, 10, 1537–1543. [Google Scholar] [CrossRef]
  35. Liu, J.L.; Li, X.; Jiang, R.R.; Yang, K.Q.; Zhao, J.; Khan, S.A.; He, J.C.; Liu, P.Z.; Zhu, J.F.; Zeng, B.Q. Recent progress in the development of graphene detector for terahertz detection. Sensors 2021, 21, 4987. [Google Scholar] [CrossRef] [PubMed]
  36. Song, H.J.; Nagatsuma, T. Present and future of terahertz communications. IEEE Trans. Terahertz Sci. Technol. 2011, 1, 256–263. [Google Scholar] [CrossRef]
  37. Gu, Y.F.; Guo, B.B.; Yi, Z.; Wu, X.W.; Zhang, J.; Yang, H. Morphology modulation of hollow-shell ZnSn(OH)6 for enhanced photodegradation of methylene blue. Colloids Surf. A Physicochem. Eng. Asp. 2022, 653, 129908. [Google Scholar] [CrossRef]
  38. Li, L.; Sun, X.; Xian, T.; Gao, H.; Wang, S.; Yi, Z.; Wu, X.; Yang, H. Template-free synthesis of Bi2O2CO3 hierarchical nanotubes self-assembled from ordered nanoplates for promising photocatalytic applications. Phys. Chem. Chem. Phys. 2022, 24, 8279–8295. [Google Scholar] [CrossRef]
  39. Tantiwanichapan, K.; Durmaz, H. Herbicide/pesticide sensing with metamaterial absorber in THz regime. Sens. Actuators A Phys. 2021, 331, 112960. [Google Scholar] [CrossRef]
  40. Cai, Y.; Guo, Y.; Zhou, Y.; Huang, X.; Yang, G.; Zhu, J. Tunable dual-band terahertz absorber with all-dielectric configuration based on graphene. Opt. Express 2020, 28, 31524–31534. [Google Scholar] [CrossRef]
  41. Wang, J.; Hu, C.; Tian, Q.; Yu, W.; Tian, H.; Li, L.; Liu, J.; Zhou, Z. Ultrahigh-Q and polarization-independent terahertz metamaterial perfect absorber. Plasmonics 2020, 15, 1943–1947. [Google Scholar] [CrossRef]
  42. Nickpay, M.R.; Danaie, M.; Shahzadi, A. Highly sensitive THz refractive index sensor based on folded split-ring metamaterial graphene resonators. Plasmonics 2022, 17, 237–248. [Google Scholar] [CrossRef]
  43. Li, J.; Cheng, Y.Z.; Li, X.C. Terahertz transmission-type metasurface for the linear and circular polarization wavefront manipulation. Adv. Theory Simul. 2022, 1, 2200151. [Google Scholar] [CrossRef]
  44. Cheng, T.; Gao, H.; Liu, G.; Pu, Z.; Wang, S.; Yi, Z.; Wu, X.; Yang, H. Preparation of core-shell heterojunction photocatalysts by coating CdS nanoparticles onto Bi4Ti3O12 hierarchical microspheres and their photocatalytic removal of organic pollutants and Cr(VI) ions. Colloids Surf. A Physicochem. Eng. Asp. 2021, 633, 127918. [Google Scholar] [CrossRef]
  45. Deng, Y.; Cao, G.; Yang, H.; Zhou, X.; Wu, Y. Dynamic Control of Double Plasmon-Induced Transparencies in Aperture-Coupled Waveguide-Cavity System. Plasmonics 2018, 13, 345–352. [Google Scholar] [CrossRef]
  46. Zhu, X.Z.; Cheng, Y.Z.; Fan, J.P.; Chen, F.; Luo, H.; Wu, L. Switchable efficiency terahertz anomalous refraction and focusing based on graphene metasurface. Diam. Relat. Mater. 2022, 121, 108743. [Google Scholar] [CrossRef]
  47. Lin, X.; Li, M.; Li, Y.J.; Chen, W. Enhancement of the catalytic activity of ordered mesoporous TiO2 by using carbon fiber support and appropriate evaluation of synergy between surface adsorption and photocatalysis by Langmuir-Hinshelwood (L-H) integration equation. RSC Adv. 2015, 5, 105227–105238. [Google Scholar] [CrossRef]
  48. Cheng, Y.Z.; Zhu, X.Z.; Li, J.; Chen, F.; Luo, H.; Wu, L. Terahertz broadband tunable reflctive cross-polarization convertor based on complementary cross-shaped graphene metasurface. Phys. E 2021, 134, 114893. [Google Scholar] [CrossRef]
  49. Sandberg, R.; Mølhave, K.; Boisen, A.; Svendsen, W. Effect of gold coating on the Q-factor of a resonant cantilever. J. Micromech. Microeng. 2005, 15, 2249–2253. [Google Scholar] [CrossRef]
  50. Zhu, J.; Wu, C.; Ren, Y. Broadband terahertz metamaterial absorber based on graphene resonators with perfect absorption. Results Phys. 2021, 26, 104466. [Google Scholar] [CrossRef]
  51. Cao, G.; Li, H.; Deng, Y.; Zhan, S.; He, Z.; Li, B. Systematic Theoretical Analysis of Selective-Mode Plasmonic Filter Based on Aperture-Side-Coupled Slot Cavity. Plasmonics 2014, 9, 1163–1169. [Google Scholar] [CrossRef]
  52. Chen, P.; Liu, F.; Ding, H.; Chen, S.; Chen, L.; Li, Y.-J.; Au, C.-T.; Yin, S.-F. Porous double-shell CdS@C3N4 octahedron derived by in situ supramolecular self-assembly for enhanced photocatalytic activity. Appl. Catal. B Environ. 2019, 252, 33–40. [Google Scholar] [CrossRef]
  53. Li, Y.; Li, M.; Xu, P.; Tang, S.; Liu, C. Efficient photocatalytic degradation of acid orange 7 over N-doped ordered mesoporous titania on carbon fibers under visible-light irradiation based on three synergistic effects. Appl. Catal. A Gen. 2016, 524, 163–172. [Google Scholar] [CrossRef]
  54. Xiao, L.; Zhang, Q.I.; Chen, P.; Chen, L.; Ding, F.; Tang, J.; Li, Y.J.; Au, C.T.; Yin, S.F. Copper-mediated metal-organic framework as efficient photocatalyst for the partial oxidation of aromatic alcohols under visible-light irradiation: Synergism of plasmonic effect and schottky junction. Appl. Catal. B-Environ. 2019, 248, 380–387. [Google Scholar] [CrossRef]
  55. Zhang, C.; Yi, Y.; Yang, H.; Yi, Z.; Chen, X.; Zhou, Z.; Yi, Y.; Li, H.; Chen, J.; Liu, C. Wide spectrum solar energy absorption based on germanium plated ZnO nanorod arrays: Energy band regulation, Finite element simulation, Super hydrophilicity, Photothermal conversion. Appl. Mater. Today 2022, 28, 101531. [Google Scholar] [CrossRef]
  56. Li, L.; Gao, H.; Liu, G.; Wang, S.; Yi, Z.; Wu, X.; Yang, H. Synthesis of carnation flower-like Bi2O2CO3 photocatalyst and its promising application for photoreduction of Cr(VI). Adv. Powder Technol. 2022, 33, 103481. [Google Scholar] [CrossRef]
  57. Zheng, Y.; Wu, P.; Yang, H.; Yi, Z.; Luo, Y.; Liu, L.; Song, Q.; Pan, M.; Zhang, J.; Cai, P. High efficiency Titanium oxides and nitrides ultra-broadband solar energy absorber and thermal emitter from 200 nm to 2600 nm. Opt. Laser Technol. 2022, 150, 108002. [Google Scholar] [CrossRef]
  58. Dong, G.Y.; Shi, Y.S.; Wang, Y.L. Discrimination of TE/TM polarization mode in transmission systems. J. Univ. Chin. Acad. Sci. 2016, 33, 347–353. [Google Scholar] [CrossRef]
  59. Li, L.; Gao, H.; Yi, Z.; Wang, S.; Wu, X.; Li, R.; Yang, H. Comparative investigation on synthesis, morphological tailoring and photocatalytic activities of Bi2O2CO3 nanostructures. Colloids Surf. A Physicochem. Eng. Asp. 2022, 644, 128758. [Google Scholar] [CrossRef]
  60. Cao, W.X.; Lin, L.; Qi, H.F.; He, Q.; Wu, Z.J.; Wang, A.Q.; Luo, W.H.; Zhang, T. In-situ synthesis of single-atom Ir by utilizing metal-organic frameworks: An acid-resistant catalyst for hydrogenation of levulinic acid to gamma-valerolactone. J. Catal. 2019, 373, 161–172. [Google Scholar] [CrossRef]
  61. Lin, X.; Du, S.W.; Li, C.H.; Li, G.J.; Li, Y.J.; Chen, F.T.; Fang, P.F. Consciously constructing the robust NiS/g-C3N4 hybrids for enhanced photocatalytic hydrogen evolution. Catal. Lett. 2020, 150, 1898–1908. [Google Scholar] [CrossRef]
  62. Long, F.; Wang, J.; Zhang, Z.; Yan, L. Magnetic imprinted electrochemical sensor combined with magnetic imprinted solid-phase extraction for rapid and sensitive detection of tetrabromobisphenol S. J. Electroanal. Chem. 2016, 777, 58–66. [Google Scholar] [CrossRef]
  63. Liu, H.; Wang, Q.; Zhang, F. Preparation of Fe3O4@SiO2@ P(AANa-co-AM) Composites and Their Adsorption for Pb(II). ACS Omega 2020, 5, 8816–8824. [Google Scholar] [CrossRef] [PubMed]
  64. Chao, C.Y.; Guo, L.J. Design and optimization of microring resonators in biochemical sensing applications. J. Lightwave Technol. 2006, 24, 1395–1402. [Google Scholar] [CrossRef]
  65. Wang, Y.; Cheng, W.; Qin, J.; Han, Z. Terahertz refractive index sensor based on the guided resonance in a photonic crystal slab. Opt. Commun. 2019, 434, 163–166. [Google Scholar] [CrossRef]
  66. Pan, W.; Yan, Y.; Ma, Y.; Shen, D. A terahertz metamaterial based on electromagnetically induced transparency effect and its sensing performance. Opt. Commun. 2019, 431, 115–119. [Google Scholar] [CrossRef]
  67. Li, Z.Y.; Yi, Z.; Liu, T.T.; Liu, L.; Chen, X.F.; Zheng, F.S.; Zhang, J.G.; Li, H.L.; Wu, P.H.; Yan, P.G. Three-band perfect absorber with high refractive index sensing based on an active tunable Dirac semimetal. Phys. Chem. Chem. Phys. 2021, 32, 17374–17381. [Google Scholar] [CrossRef]
  68. Huang, H.L.; Xia, H.; Guo, Z.B.; Li, H.J.; Xie, D. Polarization-insensitive and tunable plasmon induced transparency in a graphene-based terahertz metamaterial. Opt. Commun. 2018, 424, 163–169. [Google Scholar] [CrossRef]
  69. Parmar, J.; Patel, S.K. Tunable and highly sensitive graphene-based biosensor with circle/split ring resonator metasurface for sensing hemoglobin/urine biomolecules. Phys. B Phys. Condens. Matter 2022, 624, 413399. [Google Scholar] [CrossRef]
  70. Chapman, A.P. PEGylated antibodies and antibody fragments for improved therapy: A review. Adv. Drug Deliv. Rev. 2002, 54, 531–545. [Google Scholar] [CrossRef]
  71. Pang, S.; Liu, S.; Su, X. A novel fluorescence assay for the detection of hemoglobin based on the G-quadruplex/hemin complex. Talanta 2014, 18, 118–122. [Google Scholar] [CrossRef] [PubMed]
Sensors 22 06483 g001 550

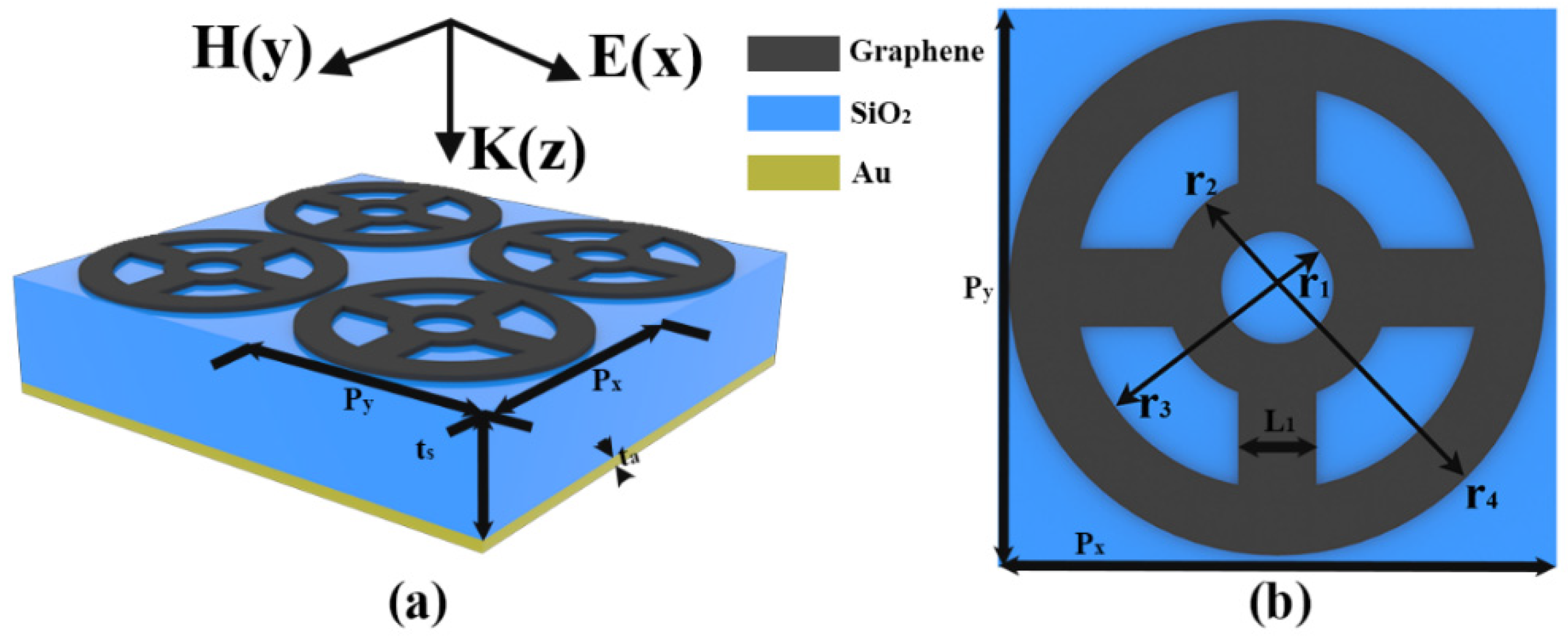

Figure 1. (a) Three-dimensional view of the ultra-narrowband graphene SPR absorber array (b) Platform of the absorber.
Figure 1. (a) Three-dimensional view of the ultra-narrowband graphene SPR absorber array (b) Platform of the absorber.
Sensors 22 06483 g001
Sensors 22 06483 g002 550

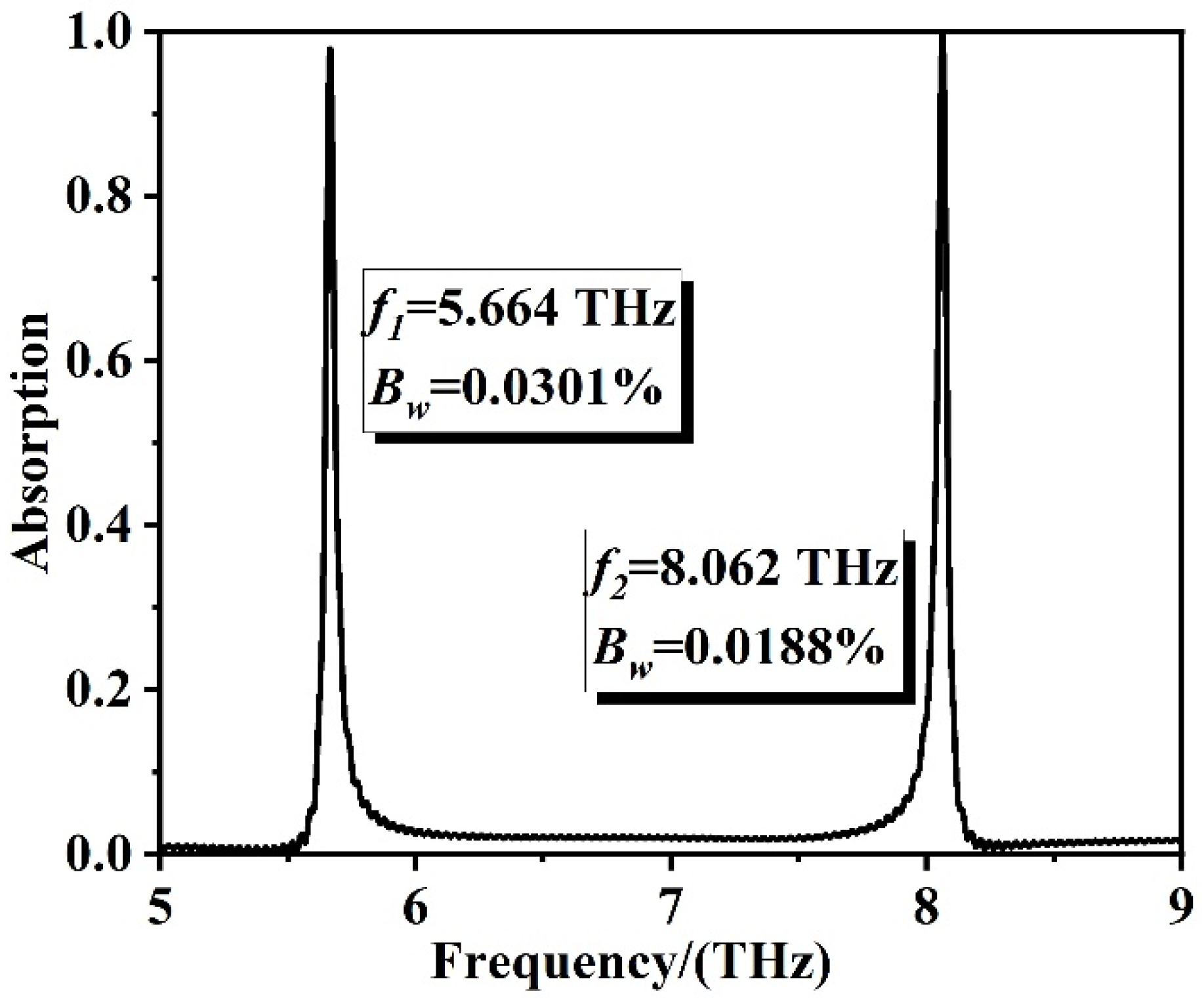

Figure 2. Absorption spectra of ultra-narrow graphene absorber in the range of 5~9 THz with resonance frequency f and absorption bandwidth Bw marked on the graph.
Figure 2. Absorption spectra of ultra-narrow graphene absorber in the range of 5~9 THz with resonance frequency f and absorption bandwidth Bw marked on the graph.
Sensors 22 06483 g002
Sensors 22 06483 g003 550

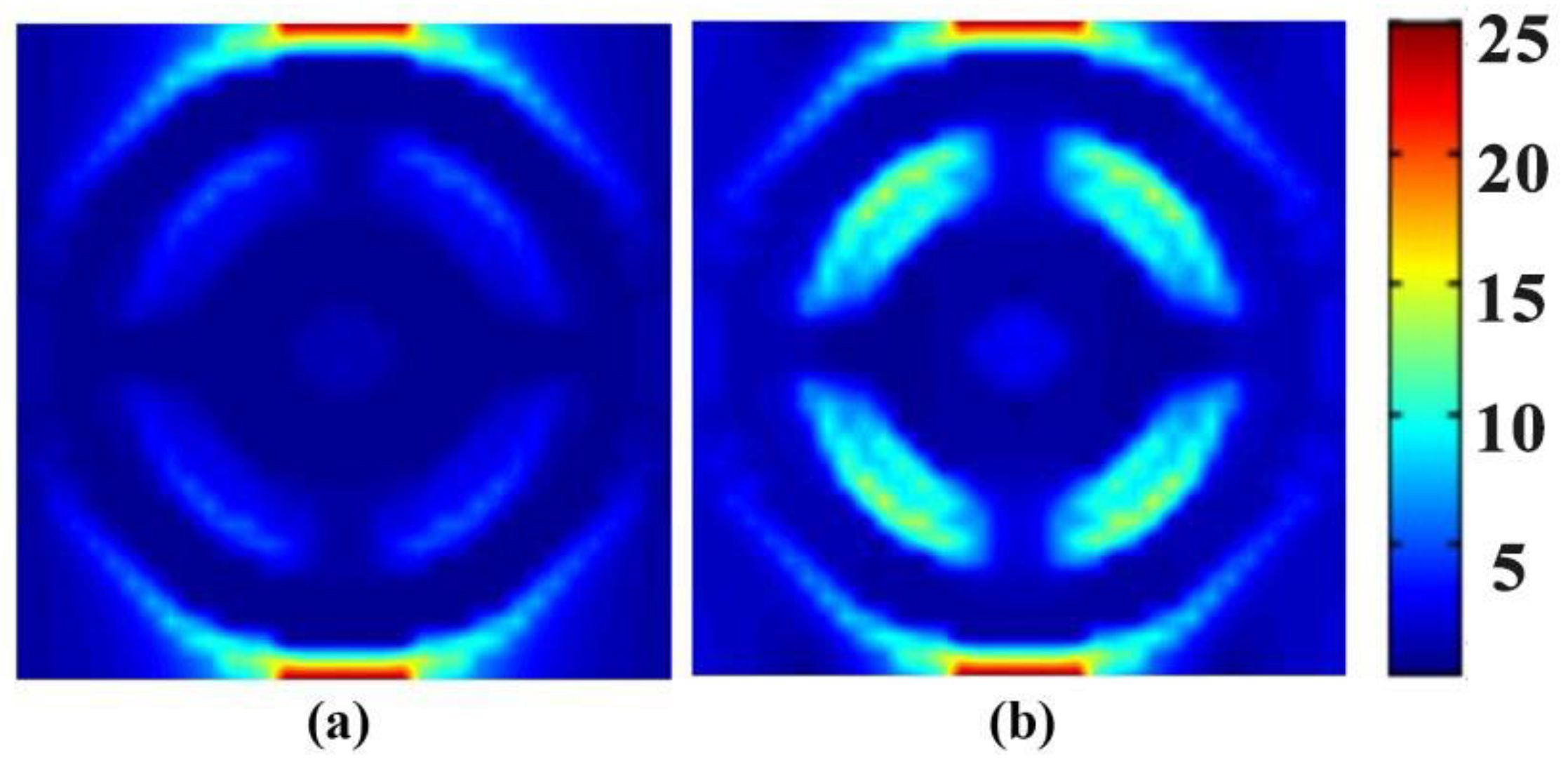

Figure 3. The cross-sectional electric field distribution on the absorber surface in the x-y direction when the incident light frequency is (a) 5.664 THz and (b) 8.062 THz, respectively.
Figure 3. The cross-sectional electric field distribution on the absorber surface in the x-y direction when the incident light frequency is (a) 5.664 THz and (b) 8.062 THz, respectively.
Sensors 22 06483 g003
Sensors 22 06483 g004 550

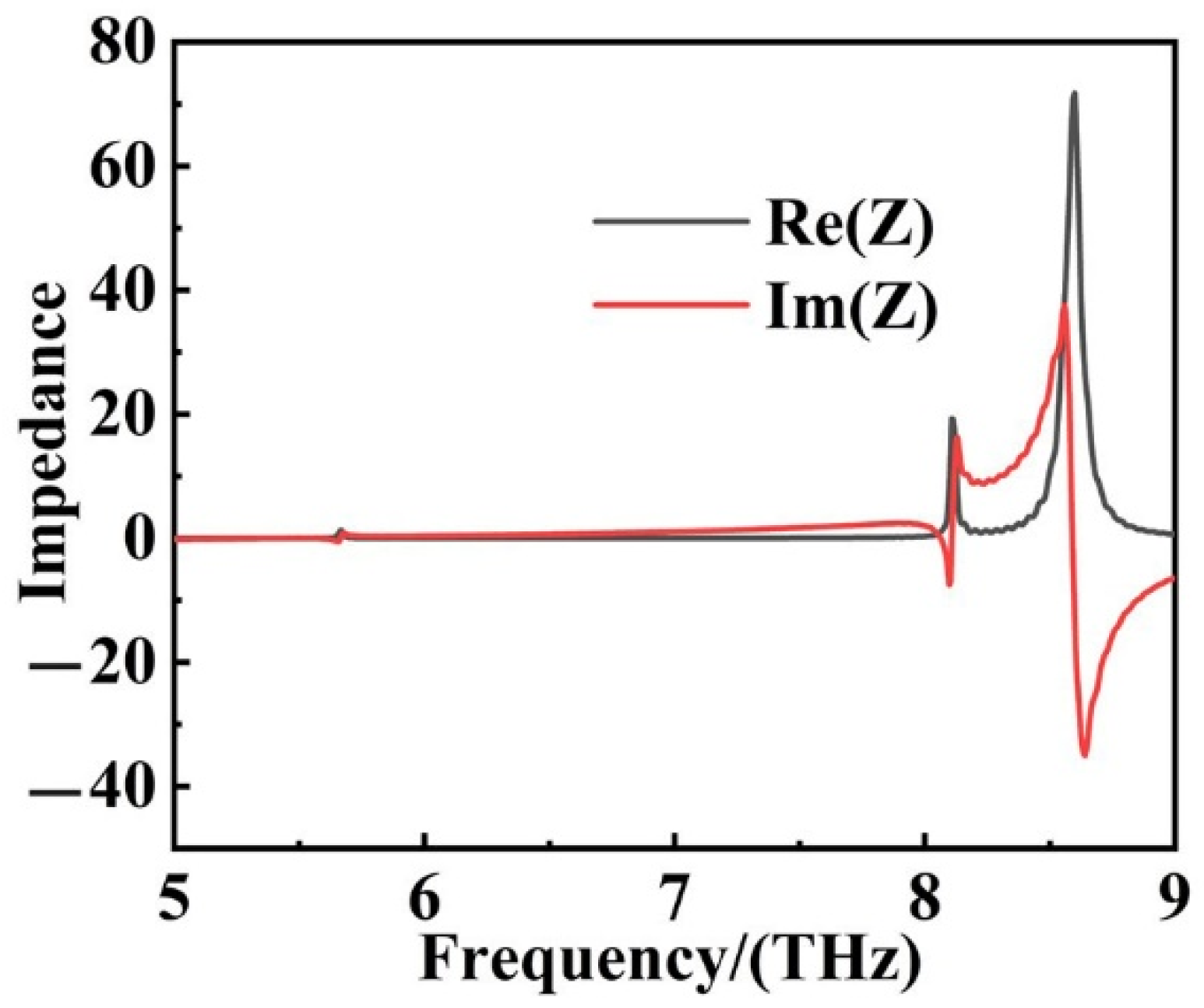

Figure 4. The real part Re(Z) and the imaginary part Im(Z) of the effective impedance Z of the ultra-narrow SPR absorber.
Figure 4. The real part Re(Z) and the imaginary part Im(Z) of the effective impedance Z of the ultra-narrow SPR absorber.
Sensors 22 06483 g004
Sensors 22 06483 g005 550

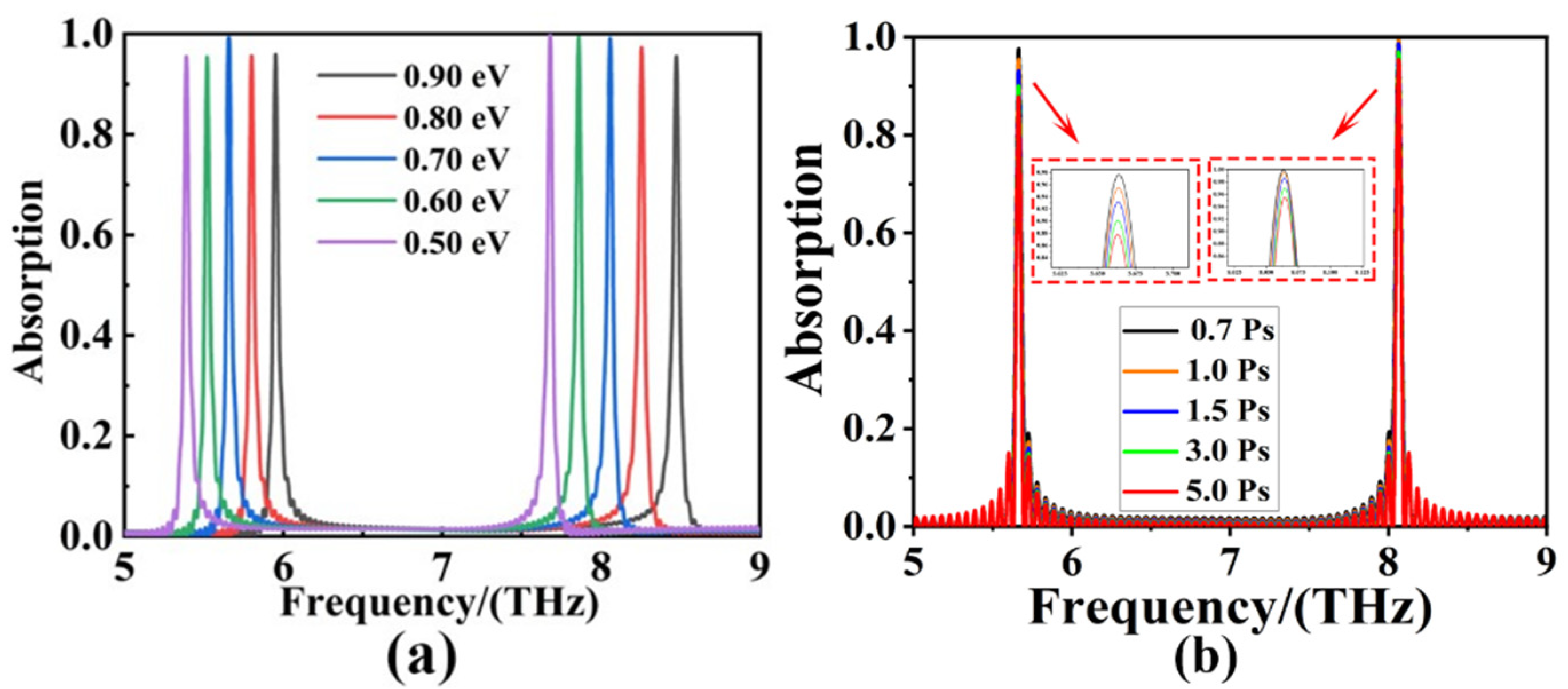

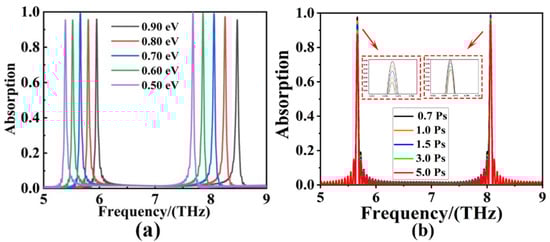

Figure 5. (a) Absorption changing spectra with the Fermi level of graphene increased from 0.50 eV to 0.90 eV. (b) Absorption spectra obtained by increasing the relaxation time of graphene from 0.70 Ps to 5.0 Ps.
Figure 5. (a) Absorption changing spectra with the Fermi level of graphene increased from 0.50 eV to 0.90 eV. (b) Absorption spectra obtained by increasing the relaxation time of graphene from 0.70 Ps to 5.0 Ps.
Sensors 22 06483 g005
Sensors 22 06483 g006 550

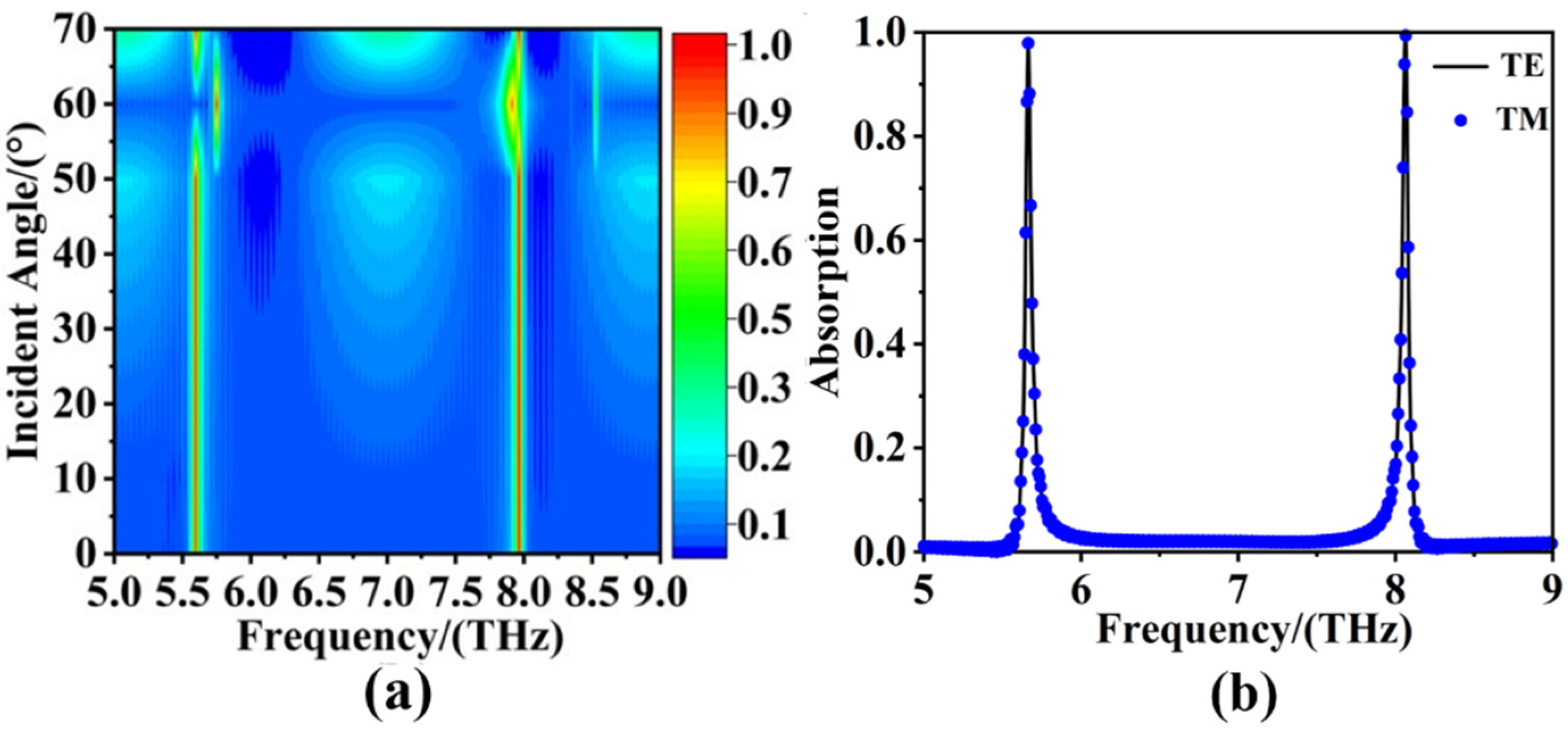

Figure 6. With the incident angle of the source increasing from 0° to 70°, (a) the sweep spectra of the absorber under TE and TM polarization. (b) the fitted spectrograms of TE and TM polarization.
Figure 6. With the incident angle of the source increasing from 0° to 70°, (a) the sweep spectra of the absorber under TE and TM polarization. (b) the fitted spectrograms of TE and TM polarization.
Sensors 22 06483 g006
Sensors 22 06483 g007 550

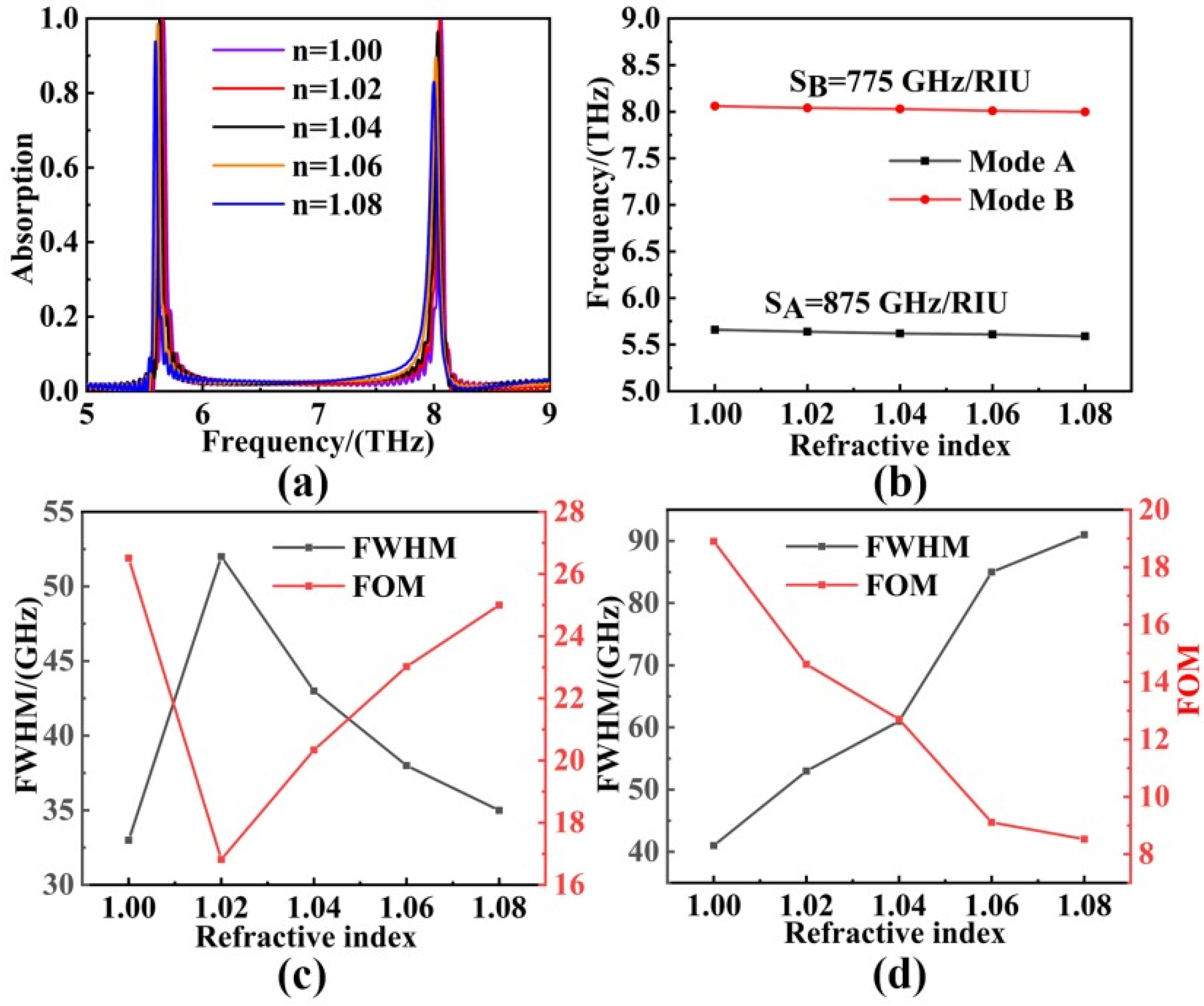

Figure 7. With the surrounding refractive index n increasing from 1.00 to 1.08, (a) the absorption changing curves of our absorber; (b) the n-f line chart of two modes; (c) The FWHM and FOM are calculated for the first resonant frequency; (d) The FWHM and FOM are calculated for the second resonant frequency.
Figure 7. With the surrounding refractive index n increasing from 1.00 to 1.08, (a) the absorption changing curves of our absorber; (b) the n-f line chart of two modes; (c) The FWHM and FOM are calculated for the first resonant frequency; (d) The FWHM and FOM are calculated for the second resonant frequency.
Sensors 22 06483 g007
Sensors 22 06483 g008 550

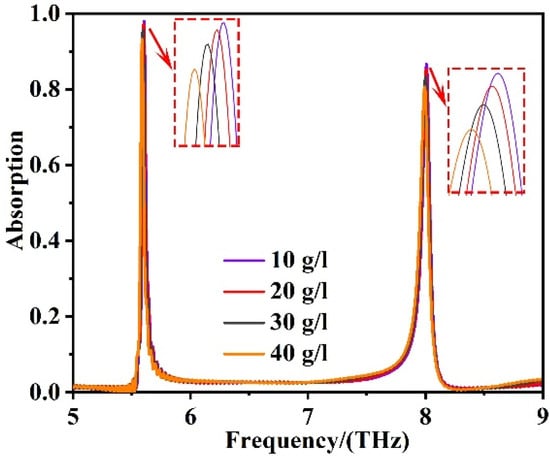

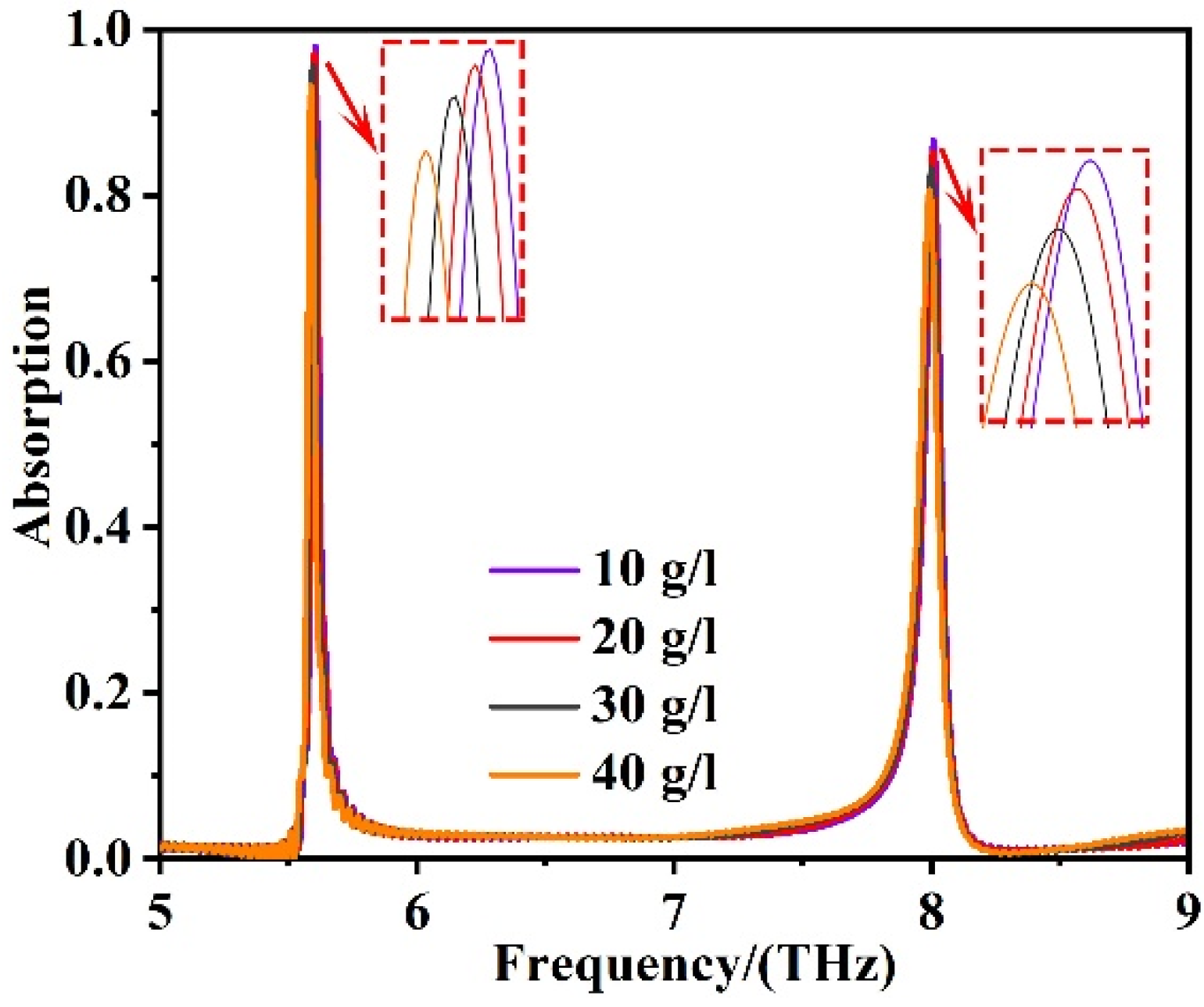

Figure 8. The wavelength changed at the two resonance frequencies when the hemoglobin molecular content increased successively from 10 g/L (n = 1.34), 20 g/L (n = 1.36), 30 g/L (n = 1.39) to 40 g/L (n = 1.43).
Figure 8. The wavelength changed at the two resonance frequencies when the hemoglobin molecular content increased successively from 10 g/L (n = 1.34), 20 g/L (n = 1.36), 30 g/L (n = 1.39) to 40 g/L (n = 1.43).
Sensors 22 06483 g008
Table
Table 1. Comparison of various performance of similar absorption sensors.
Table 1. Comparison of various performance of similar absorption sensors.
References[65][66][67][68]Presented
Resonance modeOneTwoThreeTwoTwo
Wave band0.508 THz0.4–0.8 THz1–2.4 THz23–36 THz5–9 THz
Couple modeGuided ResonanceEIT-likePlasmonPITPlasmon
TunabilityNoNoYesYesYes
Sensitivity (GHz/RIU)23.0896.2152.526.6875
FOM(1/RIU)~7.84.26~26.51
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Shangguan, Q.; Chen, Z.; Yang, H.; Cheng, S.; Yang, W.; Yi, Z.; Wu, X.; Wang, S.; Yi, Y.; Wu, P. Design of Ultra-Narrow Band Graphene Refractive Index Sensor. Sensors 2022, 22, 6483. https://doi.org/10.3390/s22176483

AMA Style

Shangguan Q, Chen Z, Yang H, Cheng S, Yang W, Yi Z, Wu X, Wang S, Yi Y, Wu P. Design of Ultra-Narrow Band Graphene Refractive Index Sensor. Sensors. 2022; 22(17):6483. https://doi.org/10.3390/s22176483

Chicago/Turabian Style

Shangguan, Qianyi, Zihao Chen, Hua Yang, Shubo Cheng, Wenxing Yang, Zao Yi, Xianwen Wu, Shifa Wang, Yougen Yi, and Pinghui Wu. 2022. "Design of Ultra-Narrow Band Graphene Refractive Index Sensor" Sensors 22, no. 17: 6483. https://doi.org/10.3390/s22176483

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
