Article

A Machine Learning Architecture Replacing Heavy Instrumented Laboratory Tests: In Application to the Pullout Capacity of Geosynthetic Reinforced Soils

by
Tabish Ali
1,
Waseem Haider
2,
Nazakat Ali
3,* and
Muhammad Aslam
4,*
1
Department of Civil, Architectural and Environmental System Engineering, Sungkyunkwan University, Suwon 16419, Korea
2
Department of Electrical and Computer Engineering, Sungkyunkwan University, Suwon 16419, Korea
3
School of Innovation, Design and Engineering, Malardalen University, 722 20 Vasteras, Sweden
4
Department of Artificial Intelligence, Sejong University, Seoul 05006, Korea
*
Authors to whom correspondence should be addressed.
Sensors 2022, 22(22), 8699; https://doi.org/10.3390/s22228699
Submission received: 3 October 2022 / Revised: 7 November 2022 / Accepted: 7 November 2022 / Published: 10 November 2022
(This article belongs to the Special Issue Sensing Technologies for Fault Diagnostics and Prognosis)
Browse Figures
Versions Notes

Abstract

:
For economical and sustainable benefits, conventional retaining walls are being replaced by geosynthetic reinforced soil (GRS). However, for safety and quality assurance purposes, prior tests of pullout capacities of these materials need to be performed. Conventionally, these tests are conducted in a laboratory with heavy instruments. These tests are time-consuming, require hard labor, are prone to error, and are expensive as a special pullout machine is required to perform the tests and acquire the data by using a lot of sensors and data loggers. This paper proposes a data-driven machine learning architecture (MLA) to predict the pullout capacity of GRS in a diverse environment. The results from MLA are compared with actual laboratory pullout capacity tests. Various input variables are considered for training and testing the neural network. These input parameters include the soil physical conditions based on water content and external loading applied. The soil used is a locally available weathered granite soil. The input data included normal stress, soil saturation, displacement, and soil unit weight whereas the output data contains information about the pullout strength. The data used was obtained from an actual pullout capacity test performed in the laboratory. The laboratory test is performed according to American Society for Testing and Materials (ASTM) standard D 6706-01 with little modification. This research shows that by using machine learning, the same pullout resistance of a geosynthetic reinforced soil can be achieved as in laboratory testing, thus saving a lot of time, effort, and money. Feedforward backpropagation neural networks with a different number of neurons, algorithms, and hidden layers have been examined. The comparison of the Bayesian regularization learning algorithm with two hidden layers and 12 neurons each showed the minimum mean square error (MSE) of 3.02 × 10−5 for both training and testing. The maximum coefficient of regression (R) for the testing set is 0.999 and the training set is 0.999 for the prediction interval of 99%.

1. Introduction

With the emergence of United Nations Sustainable Goals (UN SDGs), the need for sustainable, environmentally friendly, and economical structures and products is increasing. This also requires a huge transformation of geotechnical engineering, a field in which conventional and uneconomical methods are practiced. One such example is the replacement of the conventional retaining walls with geosynthetic reinforced soils (GRSs) in the construction sector [1,2,3,4,5]. Geosynthetic reinforced soil (GRS) is widely used to increase the shear strength of the soil and avoid the failure of slopes and GRS soil slopes, also known as mechanically stabilized earth (MSE) walls. The geosynthetic material helps in redistributing the stress on the soil and adds to the stability of the structure [6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22]. The soil used in the GRS does not need to be of high quality; instead, any locally available cheap soil is utilized as a filling material. The utilization of local materials for filling is highly economical and reduces the project costs by up to 60% [23,24,25,26,27,28]. However, soil reinforcement interaction studies need to be performed to fully understand the behavior of the GRS. For this purpose, pullout or direct shear tests are performed. Pullout capacity, also known as pullout strength or pullout resistance, is a very important phenomenon in GRS, in which the soil (slope) is strengthened with polymer materials, as it helps them to prevent a collapse, is measured with the help of a laboratory pullout capacity test [29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47]. There is already a lot of comprehensive studies on the GRS soil and former researchers performed scaled modelling and tests as well as numerical analysis on the behavior of granular soils reinforced with geosynthetics [48,49,50,51,52,53,54,55,56,57,58,59,60] and cohesive soils in detail [61,62,63,64,65,66]. For instance, Goodhue et al. [48] showed that for foundry sands the drained and compacted friction angles were the same. They also proposed ranges of interface friction angles. Moraci et al. [50] proposed a stress transfer model to predict the pullout resistance for extruded geogrids considering granular soils. Yamamoto et al. [58] proposed a numerical method to investigate the bearing capacity and failure mechanism of reinforced soils. Bergado et al. [61] worked on the modelling of reinforced slopes on soft soils. Shi and Wang [65] found that the interface characteristics are influenced by soil density, vertical load, and displacement rate. Most of the investigations are performed on sand and clay. However, weathered granite soil (WGS), which is abundant in Japan, Hong Kong, Singapore, and Korea, has a different behavior from both sands and clays [67]. In addition, for a safe design of a GRS, it is important to consider the effect of environmental changes on the GRS. For example, during heavy rainfall excessive pore water pressures are developed in GRS, especially in a weathered granite soil, which decreases the pullout capacity of the GRS. The pullout capacity of a GRS decreases with the increase in moisture content [68,69,70]. Thus, the characteristics of WGS must be studied separately to understand its behavior in the GRS.
The well-established laboratory pullout capacity test—American Society for Testing and Materials (ASTM) standard D 6706-01—is time consuming, hard to perform, expensive, and labor extensive, as a lot of sensors and data loggers are needed to store the obtained data. However, the emergence of soft computing techniques based on data-driven modelling has revolutionized the approach of researchers and engineers in handling such complex problems. This study is motivated from the application of machine learning architecture (MLA) in geotechnical engineering [71,72,73,74,75,76]. Details of MLA can be studied from the work of former researchers [77,78]. MLA is a self-learning smart database system that can give reliable predictions. MLA models have been used by several researchers in the past to predict the geotechnical properties like pile skin friction, bearing capacity, slope stability, friction angle, elastic modulus of rock mass, and soil permeability, etc. [79,80,81,82,83,84,85]. Among the ML techniques, regression-based methods and classifier-based methods are very well known. The regression-based models can predict the structural response and reduce the computing time and cost of experimentation [86,87,88]. Classifier-based techniques are used to detect damage or failure of a structure [88,89,90]. Moreover, the prediction of peak shear stress along the cohesive soil geosynthetic interface using ANN has been studied by [91]. However, to the best of the authors’ knowledge, there is currently no research in the present literature that investigates the pullout capacity of geo-synthetic reinforced weathered granite soil by using the application of soft computing techniques. Moreover, the displacement of the geosynthetic in the pullout machine is an important factor to determine the strength which is not included in the studies that performed similar ML applications, and most of them have small databases. Thus, the authors have addressed these issues as well and the details are discussed in the study. So far, MLA is the future of geotechnical problems. Likewise, it has been proven in this study to predict the pullout capacity in an easy and economical way.
ANN is a well-known, established, and widely accepted ML technique used for framing any system’s nonlinear response [92] and the most important phase in the data-driven techniques is the creation of the database, which is obtained from actual laboratory tests performed by the authors, in this case. The ANN model has three parts consisting of the input layer, hidden layer(s), and the output layer. In this study, the inputs contain the most significant parameters for a GRS in practice. The pullout capacity of a GRS depends on various factors including the soil density, soil saturation, the force applied along the interface of geosynthetic and soil, mechanical properties of soil like the shape, size, grain distribution, etc., of the soil, as well as the shape and geometry of the geosynthetic.
Thus, summing up the above analysis and research studies, the objective of the paper is to study the pullout behavior of WGS in GRS both in laboratory and then show the application of ANN to predict the same as an alternative method to save time, cost, and hard labor. Thus, the authors first performed tests in the laboratory and then used the experimental dataset in the ANN. Furthermore, unlike previous similar studies, this study is carried out with a considerable amount of dataset, and it includes the displacement of the geosynthetic in the pullout machine, which is an important factor to determine the strength. A feedforward backpropagation artificial neural network (ANN) model with different neurons, hidden layers, and algorithms is used to predict the pullout capacity. A comparison is performed between the results of one hidden layer and two hidden layers with various nodes and algorithms and the precise and accurate one is selected for comparing the experimental and MLA-based pullout capacities. Thus, the remainder of this paper is organized as follows. Section 2 discusses the experimental setup, and Section 3 illustrates the machine learning architecture development. Section 4 presents results and discussions. Finally, Section 5 concludes this paper.

2. Experimental Setup

The pullout machine used consisted of an open rigid box divided into three parts. The middle part has an open section for a geosynthetic (geogrid in this case) to be placed and held by a clamp. The upper box has an inflated air bag to apply the pressure. The box is 60 cm long, 40 cm wide and 50 cm deep. The conceptual model and the sensors installed are shown in Figure 1. Weathered granite soil is used to prepare the model ground. According to the Unified Soil Classification System USCS and American Society for Testing and Materials (ASTM) 2487-90-1992, the soil was classified as SM. By using a hand compactor, the soil is compacted to achieve approximately 80% of its unit weight of 17.30 kN/m3, as determined by the standard Proctor test according to ASTM D698-12e2, which is about 13.88 kN/m3. The model ground is prepared by putting the soil in layers to ensure a satisfactory level of compaction. The soil and geogrid (wide width test) properties are shown in Table 1. A polyethylene biaxial geogrid with dimensions of 70 cm in length and 30 cm in width is used for all tests. The aperture size of the geogrid is 5 cm by 5 cm. With the help of tighteners, nuts, and bolts, the geogrid is attached to the clamp of the pullout machine. A linear variable differential transducer (LVDT) is also built in with the clamp. The experiments are heavily instrumented to monitor the test and analyze the data to derive conclusions. The displacement of the geogrid is monitored with three TLH-0300 potentiometric transducers attached to the extremes and middle of the geogrid in a diagonal pattern. Pore pressure and earth pressure sensors were used about 10 cm away from the top and bottom. In addition, 5TE sensors were installed at different positions to check the temperature and the saturation of the model soil. The pressure cell shown is the figure measures the applied vertical load. All data measured from the sensors was recorded with the help of a tabular data logger TDS-303.

3. Proposed Methodology—The Machine Learning Model

3.1. Making the Databaes for ANN

In this section, the database used for the ANN is discussed. The database consists of 61,775 data points obtained from the experiment, which is normalized for the output as shown in Figure 2; 85% of data is used for training and 15% is used for testing. Normalization of the input and output values has been done to cater for the different measurement units of the variables. The normalized values ranged between 0 and 1. The ANN model is performed in the MATLAB R2020a environment with a neural network toolbox. The statistical properties of the input and output data are shown in Table 2. Normal stress (σ), unit weight (γ), saturation (S), and displacement (δ) are taken as inputs. The output consisted of the pullout capacity (Pr). Various researchers have already used similar input and output variables [93,94,95,96]. Figure 3 shows the architecture of the ANN.

3.2. Evaluating the Performance of ANN Models

A three-layered feedforward backpropagation neural network with one hidden layer was suggested by previous researchers [97,98], but in this case, the performance of both one hidden layer and two hidden layers is checked. The number of neurons is determined by using a heuristic model as suggested by [98]. The heuristic model is shown in Table 3, in which Ni is the number of inputs and No is the number of outputs. The model shows that the hidden neurons may vary from 1 to 12. Figure 4a,b shows the relationship between the numbers of neurons against mean square error (MSE) during the training with one and two hidden layers with the three algorithms, namely Levenberg–Marquardt backpropagation (TrainLM), Bayesian regularization backpropagation (TrainBR), and scaled conjugate gradient backpropagation (TrainSCG). It is observed from the figure that TrainBR gives the optimum architecture of the ANN model based on the minimum value of MSE of the training dataset. Further comparison of the hidden layers in Figure 5 shows that two hidden layers with 12 nodes gives better results with MSE value of 3.02 × 10−5 and maximum coefficient of regression (R) value of 0.999 as compared to one hidden layer architecture. Hence, the database is trained with different algorithms, number of neurons, and number of layers and functions. The Bayesian regularization learning algorithm with two hidden layers and 12 neurons each showed the minimum MSE and maximum R for the testing and training sets, which is the best result obtained, as shown in Table 4. Based on the Bayesian statistical approach [99], the Bayesian backpropagation was introduced by [100,101]. The Bayesian regularization learning algorithm constraints the number of parameters used in the network with a regularized that penalizes the weights to make it more general. In other words, a penalty unit is applied to the sum squared error (SSE) and provides a distributed probability over the predicted value, instead of giving just one optimum value. Thus, it reduces errors generated by noisy data.
The training and test R values for both one hidden layer (1HL) and two hidden layers (2HL) are shown in Figure 6 and Figure 7. It should also be noted that the predicted pullout capacity values obtained from MLA needs to be validated with the experimental values. For this purpose, a 99% prediction interval was plotted. The 99% prediction interval is defined as an interval within which 99% of Y values for a certain X value will lie near the linear regression line. The upper and lower bound prediction interval values used in this study are obtained by using an established equation [102]. Figure 8 and Figure 9 are the plots for the 99% prediction interval for both one hidden layer and two hidden layer MLAs after demoralizing and showing the actual values to be compared with the experiment. Again, it is evident that the two hidden-layer ANN predicts better than one hidden layer as all data lie within the 99% interval band. This also validates the proposed MLA model. It is clear that MLA model with TrainBR learning algorithm with two hidden layers and 12 nodes gives the most accurate predictions that fall within the 99% prediction interval.

3.3. Sensitivity Analysis

Sensitivity analysis (SA) is a major concern for selecting the important input variables. Different methods have been used to select the significant input variables. However, methods such as Garson’s algorithm and the connection weight approach have been successfully used by some researchers for assessing the variable contribution in geotechnical engineering problems [79,82]. The results of the SA are tabulated in Table 5. The rankings show that the displacement has the most influence on the pullout capacity followed by normal stress, unit weight, and saturation according to Garson’s modified equation.
I j = ∑ m = 1 m = N h ( ( | w j m i h | ∑ k = 1 k = N i | w k m i h | ) × | w m n h o | ) ∑ k = 1 k = N i { ∑ m = 1 m = N h ( | w k m i h | ∑ k = 1 k = N i | w k m i h | ) × | w m n h o | }
Here, Ij is the relative importance of the variable of the jth input on the output variable, Ni and Nh are the input and hidden number of nodes, respectively, and w is connection weight, the superscripts i, h, and o show the input, hidden, and output layers, respectively, and the subscripts k, m, and n refer to input, hidden, and output nodes, respectively [103].

4. Results and Discussion

In this section, the results on the application of MLA and the comparison of its predicted values with those of the experimental (field) results are discussed and analyzed. The plots for pullout capacity of the geogrid versus the displacement for 20, 60, and 100 kPa normal stresses and displacements with different saturation levels are shown in Figure 10, Figure 11 and Figure 12. The results of ANN are perfectly matched to the experimental values. It is also evident from these figures that the pullout capacity increases to an ultimate point and then starts decreasing. Comparing these figures, it is seen that the pullout has increased with the increase in the normal strength. It is due to the fact that the increased loading increases the friction of the soil particles by interlocking and compacting them. On the other hand, it decreases with the increase in moisture content or saturation, which is due to the decrease in the interparticle friction between the soil and the geogrid and the grip between them is weakened. The pullout capacity for 20 kPa, 60 kPa, and 100 kPa for 45% saturation is approximately 48 kN/m, 120 kN/m, and 160 kN/m, respectively, whereas for 90% saturation it is 27 kN/m, 65 kN/m, and 122 kN/m, respectively, as seen in Figure 13, which compares the maximum pullout capacity and the normal stresses for different saturations. In the end, the interface friction angle (IFA) for different saturations for both the field data and the MLA data is calculated from the slope of maximum pullout capacity vs. normal stress graph. IFA is an indicator of the strength between the soil and the geosynthetic material. It also backs the previous results by showing an increased IFA for the lowest saturation and highest normal stress value in case of both experiment and MLA, as can be seen in Figure 14. This means that with low moisture content the density of soil is higher, and the particles cannot slip easily because of more contact. The actual pullout experiment with a pullout machine takes at least 2 h for testing and adding preparation and post cleaning time makes it about 6 h based on the capacity of machine. However, by using ANN, a lot of time, money, and hard labor is saved. By using ANN, on average, a single experiment on the dataset can be computed in less than a minute, thus saving a lot of time. Thus, this study shows the use of MLA as a replacement of heavily instrumented and costly experiments.
The ANN relating the input to the output is expressed in mathematical form as mentioned by
Y o = f s i g { b o + ∑ t = 1 h [ w t × f s i g ( b h t + ∑ i = 1 m w i t X i ) ] }
where Yo is the normalized output value, b0 is the bias at the output layer, wt is the connection weight between tth node of hidden layer and the single output node, bht is the bias at the tth node of hidden layer, h is the number of nodes in the hidden layer, wit is the connection weight between ith input variable and tth node of hidden layer, and Xi is the normalized input variable i and fsig is the sigmoid transfer function.

5. Conclusions

Conventional retaining walls are being replaced by GRSs, for economical and sustainable benefits. To ensure safety and sustainability, prior tests of the pullout capacity is essential. Conventionally, these tests are carried out in laboratories with heavy instruments that require a great deal of time for experimentation, entail huge costs, and require heavy labor. To overcome these challenges, this study stresses the application of machine learning in the field of engineering generally and geotechnical engineering specifically by showing the capability of MLA to predict the properties of geosynthetic reinforced soil without performing costly pullout experiments that contain a lot of sensors. Thus, this study compares the pullout capacity results of GRS from both MLA and experiment to validate the proposed idea.
The pullout capacity and interface friction angle are accurately predicted by the proposed MLA. As far as the MLA is concerned, out of three learning algorithms, the Bayesian regularization backpropagation learning algorithm with two hidden layers and 12 neurons each is used for its better generalization to the training and testing data and lowest statistical error as discussed before. This study concludes that normal stress plays an important role in the behavior of GRS in case of pullout force. In general, the pullout resistance increases with increasing the normal stress. It is seen that the value of relative soil-reinforcement displacement corresponding to the total mobilization of friction increases and the IFA decreases, which means the GRS strength is lessened by the increase in moisture.
As far as MLA is concerned, the ANN model with Bayesian regularization backpropagation training algorithm outperforms other algorithms (TrainLM and TrainSCG) in predicting the pullout capacity of geogrids. Based on sensitivity analysis, namely Garson’s algorithm, ranked displacement is the most important parameter influencing pullout capacity prediction followed by normal stress, density, and saturation. The MLA showed the classical behavior of the load displacement relationship in which the displacement and load are linear up to a certain point and then become nonlinear. The results of MLA also show that the pullout capacity is increased as the normal stress (vertical pressure) is increased, and the trend is linear. The MLA results also confirm that low moisture content increased the interface friction angle between the soil and geogrid which strengthens the pullout capacity and interaction between these two materials. Thus, GRS performs better. By using ANN, a lot of time, money, and hard labor is saved as a laboratory pullout experiment can take 2 to 6 h. The present study can predict pullout capacity of the GRS subjected to different degree of saturation, normal stress, and unit weight of soil like a real laboratory pullout test due to applied tensile force for any displacement value.

Author Contributions

Conceptualization, T.A. and M.A.; methodology, T.A. and N.A.; software, T.A., W.H., and N.A.; validation, T.A., W.H., and N.A.; formal analysis, T.A.; investigation, T.A.; resources, M.A.; data curation, T.A. and W.H.; writing—original draft preparation, T.A.; writing—review and editing, M.A.; visualization, M.A.; supervision, M.A. and N.A.; project administration, M.A. and N.A.; funding acquisition, N.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Miura, N.; Sakai, A.; Taesiri, Y.; Yamanouchi, T.; Yasuhara, K. Polymer Grid Reinforced Pavement on Soft Clay Grounds. Geotext. Geomembr. 1990, 9, 99–123. [Google Scholar] [CrossRef]
  2. Perkins, S.W. Mechanical Response of Geosynthetic-Reinforced Flexible Pavements. Geosynth. Int. 1999, 6, 347–382. [Google Scholar] [CrossRef]
  3. Abu-Farsakh, M.; Hanandeh, S.; Mohammad, L.; Chen, Q. Performance of Geosynthetic Reinforced/Stabilized Paved Roads Built over Soft Soil under Cyclic Plate Loads. Geotext. Geomembr. 2016, 44, 845–853. [Google Scholar] [CrossRef]
  4. Chen, Q.; Hanandeh, S.; Abu-Farsakh, M.; Mohammad, L. Performance Evaluation of Full-Scale Geosynthetic Reinforced Flexible Pavement. Geosynth. Int. 2018, 25, 26–36. [Google Scholar] [CrossRef]
  5. Singh, M.; Trivedi, A.; Shukla, S.K. Strength Enhancement of the Subgrade Soil of Unpaved Road with Geosynthetic Reinforcement Layers. Transp. Geotech. 2019, 19, 54–60. [Google Scholar] [CrossRef]
  6. Abdelouhab, A.; Dias, D.; Freitag, N. Physical and Analytical Modelling of Geosynthetic Strip Pull-out Behaviour. Geotext. Geomembr. 2010, 28, 44–53. [Google Scholar] [CrossRef]
  7. Abdi, M.R.; Zandieh, A.R.; Mirzaeifar, H.; Arjomand, M.A. Influence of Geogrid Type and Coarse Grain Size on Pull out Behaviour of Clays Reinforced with Geogrids Embedded in Thin Granular Layers. Eur. J. Environ. Civ. Eng. 2021, 25, 2161–2180. [Google Scholar] [CrossRef]
  8. Beyranvand, A.; Lajevardi, S.H.; Ghazavi, M.; Mirhosseini, S.M. Laboratory Investigation of Pullout Behavior of Strengthened Geogrid with Concrete Pieces in Fine Sand. Innov. Infrastruct. Solut. 2021, 6, 1–11. [Google Scholar] [CrossRef]
  9. Cardile, G.; Pisano, M.; Moraci, N. The Influence of a Cyclic Loading History on Soil-Geogrid Interaction under Pullout Condition. Geotext. Geomembr. 2019, 47, 552–565. [Google Scholar] [CrossRef]
  10. Cardile, G.; Pisano, M.; Recalcati, P.; Moraci, N. A New Apparatus for the Study of Pullout Behaviour of Soil-Geosynthetic Interfaces under Sustained Load over Time. Geotext. Geomembr. 2021, 49, 1519–1528. [Google Scholar] [CrossRef]
  11. Cardile, G.; Gioffrè, D.; Moraci, N.; Calvarano, L.S. Modelling Interference between the Geogrid Bearing Members under Pullout Loading Conditions. Geotext. Geomembr. 2017, 45, 169–177. [Google Scholar] [CrossRef]
  12. Chao, Z.; Fowmes, G. Modified Stress and Temperature-Controlled Direct Shear Apparatus on Soil-Geosynthetics Interfaces. Geotext. Geomembr. 2021, 49, 825–841. [Google Scholar] [CrossRef]
  13. Derksen, J.; Ziegler, M.; Fuentes, R. Geogrid-Soil Interaction: A New Conceptual Model and Testing Apparatus. Geotext. Geomembr. 2021, 49, 1393–1406. [Google Scholar] [CrossRef]
  14. Fakharian, K.; Pilban, A. Pullout Tests on Diagonally Enhanced Geocells Embedded in Sand to Improve Load-Deformation Response Subjected to Significant Planar Tensile Loads. Geotext. Geomembr. 2021, 49, 1229–1244. [Google Scholar] [CrossRef]
  15. Hussein, M.G.; Meguid, M.A. Improved Understanding of Geogrid Response to Pullout Loading: Insights from Three-Dimensional Finite-Element Analysis. Can. Geotech. J. 2019, 57, 277–293. [Google Scholar] [CrossRef]
  16. Karnamprabhakara, B.K.; Balunaini, U. Modified Axial Pullout Resistance Factors of Geogrids Embedded in Pond Ash. Geotext. Geomembr. 2021, 49, 1245–1255. [Google Scholar] [CrossRef]
  17. Lashkari, A.; Jamali, V. Global and Local Sand–Geosynthetic Interface Behaviour. Géotechnique 2021, 71, 346–367. [Google Scholar] [CrossRef]
  18. Liu, F.Y.; Zhu, C.; Yuan, G.H.; Wang, J.; Gao, Z.Y.; Ni, J.F. Behaviour Evaluation of a Gravelly Soil–Geogrid Interface under Normal Cyclic Loading. Geosynth. Int. 2021, 28, 508–520. [Google Scholar] [CrossRef]
  19. Morsy, A.M.; Zornberg, J.G. Soil-Reinforcement Interaction: Stress Regime Evolution in Geosynthetic-Reinforced Soils. Geotext. Geomembr. 2021, 49, 323–342. [Google Scholar] [CrossRef]
  20. Peng, X.; Zornberg, J.G. Evaluation of Soil-Geogrid Interaction Using Transparent Soil with Laser Illumination. Geosynth. Int. 2019, 26, 206–221. [Google Scholar] [CrossRef]
  21. Söylemez, M.; Arslan, S. Experimental Investigation of Influence of Clay in Soil on Interface Friction between Geotextile and Clayey Soil. Arab. J. Geosci. 2020, 13, 1–8. [Google Scholar] [CrossRef]
  22. Xu, D.-S.; Yan, J.-M.; Liu, Q. Behavior of Discrete Fiber-Reinforced Sandy Soil in Large-Scale Simple Shear Tests. Geosynth. Int. 2021, 28, 598–608. [Google Scholar] [CrossRef]
  23. Ferreira, F.B.; Vieira, C.S.; Lopes, M.L.; Ferreira, P.G. HDPE Geogrid-Residual Soil Interaction under Monotonic and Cyclic Pullout Loading. Geosynth. Int. 2020, 27, 79–96. [Google Scholar] [CrossRef]
  24. Mamaghanian, J.; Viswanadham, B.V.S.; Razeghi, H.R. Centrifuge Model Studies on Geocomposite Reinforced Soil Walls Subjected to Seepage. Geosynth. Int. 2019, 26, 371–387. [Google Scholar] [CrossRef]
  25. Mitchell, J.K.; Zornberg, J.G. Reinforced Soil Structures with Poorly Draining Backfills Part II: Case Histories and Applications. Geosynth. Int. 1995, 2, 265–307. [Google Scholar] [CrossRef]
  26. Tokhi, H.; Ren, G.; Li, J. Laboratory Pullout Resistance of a New Screw Soil Nail in Residual Soil. Can. Geotech. J. 2018, 55, 609–619. [Google Scholar] [CrossRef] [Green Version]
  27. Zornberg, J.G.; Kang, Y. Pullout of Geosynthetic Reinforcement with In-Plane Drainage Capability. In Proceedings of the Eighteenth Geosynthetic Research Institute Conference (GRI-18), Austin, TX, USA, 24–26 January 2005. [Google Scholar]
  28. Abu-Farsakh, M.Y.; Almohd, I.; Farrag, K. Comparison of Field and Laboratory Pullout Tests on Geosynthetics in Marginal Soils. Transp. Res. Rec. 2006, 1975, 124–136. [Google Scholar] [CrossRef]
  29. Afzali-Nejad, A.; Lashkari, A.; Martinez, A. Stress-Displacement Response of Sand–Geosynthetic Interfaces under Different Volume Change Boundary Conditions. J. Geotech. Geoenviron. Eng. 2021, 147, 04021062. [Google Scholar] [CrossRef]
  30. Bhowmik, R.; Shahu, J.T.; Datta, M. Experimental Investigations on Inclined Pullout Behaviour of Geogrids Anchored in Trenches. Geosynth. Int. 2019, 26, 515–524. [Google Scholar] [CrossRef]
  31. Cardile, G.; Moraci, N.; Calvarano, L.S. Geogrid Pullout Behaviour According to the Experimental Evaluation of the Active Length. Geosynth. Int. 2016, 23, 194–205. [Google Scholar] [CrossRef]
  32. Ghaaowd, I.; McCartney, J.S. Pullout of Geogrids from Tire-Derived Aggregate Having Large Particle Size. Geosynth. Int. 2020, 27, 671–684. [Google Scholar] [CrossRef] [Green Version]
  33. Han, F.; Ganju, E.; Salgado, R.; Prezzi, M. Effects of Interface Roughness, Particle Geometry, and Gradation on the Sand–Steel Interface Friction Angle. J. Geotech. Geoenviron. Eng. 2018, 144, 04018096. [Google Scholar] [CrossRef]
  34. Isik, A.; Gurbuz, A. Pullout Behavior of Geocell Reinforcement in Cohesionless Soils. Geotext. Geomembr. 2020, 48, 71–81. [Google Scholar] [CrossRef]
  35. Jia, M.; Zhu, W.; Xu, C. Performance of a 33m High Geogrid Reinforced Soil Embankment without Concrete Panel. Geotext. Geomembr. 2021, 49, 122–129. [Google Scholar] [CrossRef]
  36. Liu, F.; Ying, M.; Yuan, G.; Wang, J.; Gao, Z.; Ni, J. Particle Shape Effects on the Cyclic Shear Behaviour of the Soil–Geogrid Interface. Geotext. Geomembr. 2021, 49, 991–1003. [Google Scholar] [CrossRef]
  37. Maleki, A.; Lajevardi, S.H.; Briançon, L.; Nayeri, A.; Saba, H. Experimental Study on the L-Shaped Anchorage Capacity of the Geogrid by the Pullout Test. Geotext. Geomembr. 2021, 49, 1046–1057. [Google Scholar] [CrossRef]
  38. Moraci, N.; Cardile, G. Influence of Cyclic Tensile Loading on Pullout Resistance of Geogrids Embedded in a Compacted Granular Soil. Geotext. Geomembr. 2009, 27, 475–487. [Google Scholar] [CrossRef]
  39. Pant, A.; Ramana, G.V. Novel Application of Machine Learning for Estimation of Pullout Coefficient of Geogrid. Geosynth. Int. 2022, 1–14. [Google Scholar] [CrossRef]
  40. Perkins, S.W.; Haselton, H.N. Resilient Response of Geosynthetics from Cyclic and Sustained In-Air Tensile Loading. Geosynth. Int. 2019, 26, 428–435. [Google Scholar] [CrossRef]
  41. Suksiripattanapong, C.; Horpibulsuk, S.; Udomchai, A.; Arulrajah, A.; Tangsutthinon, T. Pullout Resistance Mechanism of Bearing Reinforcement Embedded in Coarse-Grained Soils: Laboratory and Field Investigations. Transp. Geotech. 2020, 22, 100297. [Google Scholar] [CrossRef]
  42. Vieira, C.S.; Pereira, P.; Ferreira, F.; Lopes, M.D.L. Pullout Behaviour of Geogrids Embedded in a Recycled Construction and Demolition Material. Effects of Specimen Size and Displacement Rate. Sustainability 2020, 12, 3825. [Google Scholar] [CrossRef]
  43. Xu, C.; Liang, C.; Shen, P.; Chai, F. Experimental and Numerical Studies on the Reinforcing Mechanisms of Geosynthetic-Reinforced Granular Soil under a Plane Strain Condition. Soils Found. 2020, 60, 466–477. [Google Scholar] [CrossRef]
  44. Ren, F.; Liu, Q.; Wang, G.; Zhao, Q.; Xu, C. An Analytical Method for Predicting the Pullout Behavior of Embedded Planar Reinforcements with the Consideration of the Residual Interfacial Shear Strength. Int. J. Geosynth. Ground Eng. 2020, 6, 1–11. [Google Scholar] [CrossRef]
  45. Chen, J.; Guo, X.; Sun, R.; Rajesh, S.; Jiang, S.; Xue, J. Physical and Numerical Modelling of Strip Footing on Geogrid Reinforced Transparent Sand. Geotext. Geomembr. 2021, 49, 399–412. [Google Scholar] [CrossRef]
  46. Cui, X.; Wang, Y.; Liu, K.; Wang, X.; Jin, Q.; Zhao, M.; Cui, S. A Simplified Model for Evaluating the Hardening Behaviour of Sensor-Enabled Geobelts during Pullout Tests. Geotext. Geomembr. 2019, 47, 377–388. [Google Scholar] [CrossRef]
  47. Gao, Y.; Hang, L.; He, J.; Zhang, F.; van Paassen, L. Pullout Behavior of Geosynthetic Reinforcement in Biocemented Soils. Geotext. Geomembr. 2021, 49, 646–656. [Google Scholar] [CrossRef]
  48. Goodhue, M.J.; Edil, T.B.; Benson, C.H. Interaction of Foundry Sands with Geosynthetics. J. Geotech. Geoenviron. Eng. 2001, 127, 353–362. [Google Scholar] [CrossRef]
  49. Sugimoto, M.; Alagiyawanna, A.M.N. Pullout Behavior of Geogrid by Test and Numerical Analysis. J. Geotech. Geoenviron. Eng. 2003, 129, 361–371. [Google Scholar] [CrossRef]
  50. Moraci, N.; Gioffrè, D. A Simple Method to Evaluate the Pullout Resistance of Extruded Geogrids Embedded in a Compacted Granular Soil. Geotext. Geomembr. 2006, 24, 116–128. [Google Scholar] [CrossRef]
  51. Handy, R.L. Discussion: Prediction of Field Behavior of Reinforced Soil Wall Using Advanced Constitutive Model. J. Geotech. Geoenviron. Eng. 2007, 133, 121–123. [Google Scholar] [CrossRef]
  52. Andrawes, K.Z.; McGown, A.; Wilson-Fahmy, R.F.; Mashhour, M.M. The Finite Element Method of Analysis Applied to Soil-Geotextile Systems. In Proceedings of the 2nd International Conference on Geotextiles, Las Vegas, NV, USA, 1–6 August 1982; Volume 101, pp. 695–700. [Google Scholar]
  53. Love, J.P.; Burd, H.J.; Milligan, G.W.E.; Houlsby, G.T. Analytical and Model Studies of Reinforcement of a Layer of Granular Fill on a Soft Clay Subgrade. Can. Geotech. J. 1987, 24, 611–622. [Google Scholar] [CrossRef]
  54. Alonso, E.; Carol, I.; Gens, A. An Interface Element for the Analysis of Soil Reinforcement Interaction. Comput. Geotech. 1989, 7, 133–151. [Google Scholar] [CrossRef]
  55. Poran, C.J. Finite Element Analysis of Footings on Geogrid-Reinforced Soil. Proc. Geosynth. 1989, 1, 231–242. [Google Scholar]
  56. Burd, H.J.; Brocklehurst, C.J. Finite Element Studies of the Mechanics of Reinforced Unpaved Roads. In Proceedings of the 4 th International Conference on Geotextiles, Geomembranes and Related Products, The Hague, The Netherlands, 28 May–1 June 1990; pp. 217–221. [Google Scholar]
  57. Wilson-Fahmy, R.F.; Koerner, R.M. Finite Element Modelling of Soil-Geogrid Interaction with Application to the Behavior of Geogrids in a Pullout Loading Condition. Geotext. Geomembr. 1993, 12, 479–501. [Google Scholar] [CrossRef]
  58. Yamamoto, K.; Otani, J. Bearing Capacity and Failure Mechanism of Reinforced Foundations Based on Rigid-Plastic Finite Element Formulation. Geotext. Geomembr. 2002, 20, 367–393. [Google Scholar] [CrossRef]
  59. Poulos, H.G.; Davis, E.H. Elastic Solutions for Soil and Rock Mechanics. Textbook. Figs, Tabls, Refs: John Wiley and Sons Inc. 1974, 411P. In Proceedings of the International Journal of Rock Mechanics and Mining Sciences & Geomechanics Abstracts; Pergamon, Elsevier: Oxford, UK, 1974; Volume 11, p. A159. [Google Scholar]
  60. Basudhar, P.K.; Dixit, P.M.; Gharpure, A.; Deb, K. Finite Element Analysis of Geotextile-Reinforced Sand-Bed Subjected to Strip Loading. Geotext. Geomembr. 2008, 26, 91–99. [Google Scholar] [CrossRef]
  61. Bergado, D.T.; Teerawattanasuk, C. 2D and 3D Numerical Simulations of Reinforced Embankments on Soft Ground. Geotext. Geomembr. 2008, 26, 39–55. [Google Scholar] [CrossRef]
  62. Keller, G.R. Experiences with Mechanically Stabilized Structures and Native Soil Backfill. Transportation Research Record. 1995, 1474, 30–38. [Google Scholar]
  63. Almohd, I.; Abu-Farsakh, M.; Khalid, F. Geosynthetic Reinforcement-Cohesive Soil Interface during Pullout. In Proceedings of the 13th Great Lakes Geotechnical and Geoenvironmental Conference, Milwaukee, WI, USA, 13 May 2005; Hani, H., Ed.; Hani Hasan Titi, University of Wisconsin: Milwaukee, WI, USA, 2006; pp. 40–49. [Google Scholar]
  64. Abdi, M.R.; Arjomand, M.A. Pullout Tests Conducted on Clay Reinforced with Geogrid Encapsulated in Thin Layers of Sand. Geotext. Geomembr. 2011, 29, 588–595. [Google Scholar] [CrossRef]
  65. Shi, D.; Wang, F. Pull-out Test Studies on the Interface Characteristics between Geogrids and Soils. EJGE 2013, 18, 5405–5417. [Google Scholar]
  66. Joanna, G.; Tankéré, M.; Delmas, P.; Barral, C.; Weber, S.; Weber, S. Determination of Pull-out Strength and Interface Friction of Geo-Synthetic Reinforcement Embedded in Expanded Clay LWA. In Proceedings of the 17th Nordic Geotechnical Meeting, Reykjavík, Iceland, 25–28 May 2016; pp. 205–214. [Google Scholar]
  67. Kim, T.-H.; Kim, B.-K.; Lee, K.-H.; Lee, I.-M. Soil Conditioning of Weathered Granite Soil Used for EPB Shield TBM: A Laboratory Scale Study. KSCE J. Civ. Eng. 2019, 23, 1829–1838. [Google Scholar] [CrossRef]
  68. Farrag, K.; Morvant, M. Evaluation of Interaction Properties of Geosynthetics in Cohesive Soils: Lab and Field Pullout Tests; Louisiana Transportation Research Center: Baton Rouge, LA, USA, 2004. [Google Scholar]
  69. Farrag, K.; Morvant, M. Evaluation of Interaction Properties of Geosynthetics in Cohesive Soils: LTRC Reinforced-Soil Test Wall; Louisiana Transportation Research Center: Baton Rouge, LA, USA, 2004. [Google Scholar]
  70. Abu-Farsakh, M.; Coronel, J.; Tao, M. Effect of Soil Moisture Content and Dry Density on Cohesive Soil–Geosynthetic Interactions Using Large Direct Shear Tests. J. Mater. Civ. Eng. 2007, 19, 540–549. [Google Scholar] [CrossRef]
  71. Nazemi, M.; Heidaripanah, A. Support Vector Machine to Predict the Indirect Tensile Strength of Foamed Bitumen-Stabilised Base Course Materials. Road Mater. Pavement Des. 2016, 17, 768–778. [Google Scholar] [CrossRef]
  72. Daneshvar, D.; Behnood, A. Estimation of the Dynamic Modulus of Asphalt Concretes Using Random Forests Algorithm. Int. J. Pavement Eng. 2022, 23, 250–260. [Google Scholar] [CrossRef]
  73. Mondal, P.G.; Kuna, K. An Automated Technique for Characterising Foamed Bitumen Using Ultrasonic Sensor System. Int. J. Pavement Eng. 2022, 23, 2242–2254. [Google Scholar] [CrossRef]
  74. Han, C.; Ma, T.; Xu, G.; Chen, S.; Huang, R. Intelligent Decision Model of Road Maintenance Based on Improved Weight Random Forest Algorithm. Int. J. Pavement Eng. 2022, 23, 985–997. [Google Scholar] [CrossRef]
  75. Olowosulu, A.T.; Kaura, J.M.; Murana, A.A.; Adeke, P.T. Investigating Surface Condition Classification of Flexible Road Pavement Using Data Mining Techniques. Int. J. Pavement Eng. 2022, 23, 2148–2159. [Google Scholar] [CrossRef]
  76. Ghorbani, B.; Arulrajah, A.; Narsilio, G.; Horpibulsuk, S.; Bo, M.W. Shakedown Analysis of PET Blends with Demolition Waste as Pavement Base/Subbase Materials Using Experimental and Neural Network Methods. Transp. Geotech. 2021, 27, 100481. [Google Scholar] [CrossRef]
  77. Lippmann, R. An Introduction to Computing with Neural Nets. IEEE Assp. Mag. 1987, 4, 4–22. [Google Scholar] [CrossRef]
  78. Caudill, M.; Butler, C. Understanding Neural Networks; Computer Explorations; MIT Press: Cambridge, MA, USA, 1992; ISBN 0262530996. [Google Scholar]
  79. Goh, A.T.C. Empirical Design in Geotechnics Using Neural Networks. Geotechnique 1995, 45, 709–714. [Google Scholar] [CrossRef]
  80. Lee, I.-M.; Lee, J.-H. Prediction of Pile Bearing Capacity Using Artificial Neural Networks. Comput. Geotech. 1996, 18, 189–200. [Google Scholar] [CrossRef]
  81. Sakellariou, M.G.; Ferentinou, M.D. A Study of Slope Stability Prediction Using Neural Networks. Geotech. Geol. Eng. 2005, 23, 419–445. [Google Scholar] [CrossRef]
  82. Das, S.K.; Basudhar, P.K. Undrained Lateral Load Capacity of Piles in Clay Using Artificial Neural Network. Comput. Geotech. 2006, 33, 454–459. [Google Scholar] [CrossRef]
  83. Maji, V.B.; Sitharam, T.G. Prediction of Elastic Modulus of Jointed Rock Mass Using Artificial Neural Networks. Geotech. Geol. Eng. 2008, 26, 443–452. [Google Scholar] [CrossRef]
  84. Sinha, S.K.; Wang, M.C. Artificial Neural Network Prediction Models for Soil Compaction and Permeability. Geotech. Geol. Eng. 2008, 26, 47–64. [Google Scholar] [CrossRef]
  85. Kanayama, M.; Rohe, A.; van Paassen, L.A. Using and Improving Neural Network Models for Ground Settlement Prediction. Geotech. Geol. Eng. 2014, 32, 687–697. [Google Scholar] [CrossRef]
  86. Mirhosseini, R.T. Seismic Response of Soil-Structure Interaction Using the Support Vector Regression. Struct. Eng. Mech. Int. J. 2017, 63, 115–124. [Google Scholar]
  87. Oh, B.K.; Glisic, B.; Park, S.W.; Park, H.S. Neural Network-Based Seismic Response Prediction Model for Building Structures Using Artificial Earthquakes. J. Sound Vib. 2020, 468, 115109. [Google Scholar] [CrossRef]
  88. Ali, T.; Lee, J.; Kim, R.E. Machine Learning Tool to Assess the Earthquake Structural Safety of Systems Designed for Wind: In Application of Noise Barriers. Earthq. Struct. 2022, 23, 315–328. [Google Scholar] [CrossRef]
  89. Mangalathu, S.; Jeon, J.-S. Classification of Failure Mode and Prediction of Shear Strength for Reinforced Concrete Beam-Column Joints Using Machine Learning Techniques. Eng. Struct. 2018, 160, 85–94. [Google Scholar] [CrossRef]
  90. Siam, A.; Ezzeldin, M.; El-Dakhakhni, W. Machine Learning Algorithms for Structural Performance Classifications and Predictions: Application to Reinforced Masonry Shear Walls. In Proceedings of the Structures; Elsevier: Amsterdam, The Netherlands, 2019; Volume 22, pp. 252–265. [Google Scholar]
  91. Debnath, P.; Dey, A.K. Prediction of Laboratory Peak Shear Stress along the Cohesive Soil–Geosynthetic Interface Using Artificial Neural Network. Geotech. Geol. Eng. 2017, 35, 445–461. [Google Scholar] [CrossRef]
  92. Moayedi, H.; Hayati, S. Applicability of a CPT-Based Neural Network Solution in Predicting Load-Settlement Responses of Bored Pile. Int. J. Geomech. 2018, 18, 06018009. [Google Scholar] [CrossRef]
  93. Monjezi, M.; Singh, T.N.; Khandelwal, M.; Sinha, S.; Singh, V.; Hosseini, I. Prediction and Analysis of Blast Parameters Using Artificial Neural Network. Noise Vib. Worldw. 2006, 37, 8–16. [Google Scholar] [CrossRef]
  94. Sarkar, K.; Tiwary, A.; Singh, T.N. Estimation of Strength Parameters of Rock Using Artificial Neural Networks. Bull. Eng. Geol. Environ. 2010, 69, 599–606. [Google Scholar] [CrossRef]
  95. Sobhani, J.; Najimi, M.; Pourkhorshidi, A.R.; Parhizkar, T. Prediction of the Compressive Strength of No-Slump Concrete: A Comparative Study of Regression, Neural Network and ANFIS Models. Constr. Build Mater. 2010, 24, 709–718. [Google Scholar] [CrossRef]
  96. Yaprak, H.; Karacı, A.; Demir, I. Prediction of the Effect of Varying Cure Conditions and w/c Ratio on the Compressive Strength of Concrete Using Artificial Neural Networks. Neural Comput. Appl. 2013, 22, 133–141. [Google Scholar] [CrossRef]
  97. Rumelhart, D.E.; Hinton, G.E.; Williams, R. 1., Leaming Intemal Representations by Error Propagation. Parallel Distrib. Process. 1986, 1, 318–362. [Google Scholar]
  98. Sonmez, H.; Gokceoglu, C.; Nefeslioglu, H.A.; Kayabasi, A. Estimation of Rock Modulus: For Intact Rocks with an Artificial Neural Network and for Rock Masses with a New Empirical Equation. Int. J. Rock Mech. Min. Sci. 2006, 43, 224–235. [Google Scholar] [CrossRef]
  99. Gep, B.; Tiao, G.C. Bayesian Inference in Statistical Analysis; Read. Addison-Wesley: Boston, MA, USA, 1973. [Google Scholar]
  100. Mackay, D.J.C. Bayesian Methods for Adaptive Models; California Institute of Technology: Pasadena, CA, USA, 1992; ISBN 9798207890692. [Google Scholar]
  101. Neal, R.M. Bayesian Training of Backpropagation Networks by the Hybrid Monte Carlo Method; Citeseer: Princeton, NJ, USA, 1992. [Google Scholar]
  102. Verschuuren, G. Excel 2007 for Scientists and Engineers; Tickling Keys, Inc.: Uniontown, OH, USA, 2008; ISBN 1615473068. [Google Scholar]
  103. Elmolla, E.S.; Chaudhuri, M.; Eltoukhy, M.M. The Use of Artificial Neural Network (ANN) for Modeling of COD Removal from Antibiotic Aqueous Solution by the Fenton Process. J. Hazard Mater. 2010, 179, 127–134. [Google Scholar] [CrossRef]
Sensors 22 08699 g001 550
Figure 1. Actual and conceptual model of the test setup of a pullout machine and sensors installed. Vertical stresses of around 25 kPa, 60 kPa, and 100 kPa are applied with a degree of saturation of about 90%, 80%, 70%, and 45%. The controller of the machine has the capability to regulate the loading rate which is set to 1.0 mm/min (ASTM standard D: 5321). (a) The laboratory experimental setup. (b) Sensors installed inside and outside of the pullout box.
Figure 1. Actual and conceptual model of the test setup of a pullout machine and sensors installed. Vertical stresses of around 25 kPa, 60 kPa, and 100 kPa are applied with a degree of saturation of about 90%, 80%, 70%, and 45%. The controller of the machine has the capability to regulate the loading rate which is set to 1.0 mm/min (ASTM standard D: 5321). (a) The laboratory experimental setup. (b) Sensors installed inside and outside of the pullout box.
Sensors 22 08699 g001
Sensors 22 08699 g002 550
Figure 2. Histogram of normalized pullout resistance values used in the MLA.
Figure 2. Histogram of normalized pullout resistance values used in the MLA.
Sensors 22 08699 g002
Sensors 22 08699 g003 550
Figure 3. The machine learning architecture database consists of 61,775 measurements.
Figure 3. The machine learning architecture database consists of 61,775 measurements.
Sensors 22 08699 g003
Sensors 22 08699 g004 550
Figure 4. Comparison of 3 ANN backpropagation algorithms. (a) MSE of three different architectures with one hidden layer. (b) MSE of 3 ANN architectures with two hidden layers.
Figure 4. Comparison of 3 ANN backpropagation algorithms. (a) MSE of three different architectures with one hidden layer. (b) MSE of 3 ANN architectures with two hidden layers.
Sensors 22 08699 g004
Sensors 22 08699 g005 550
Figure 5. Accuracy test in terms of MSE of one hidden layer and two hidden layers MLA.
Figure 5. Accuracy test in terms of MSE of one hidden layer and two hidden layers MLA.
Sensors 22 08699 g005
Sensors 22 08699 g006 550
Figure 6. Training and test R values for one hidden layer MLA.
Figure 6. Training and test R values for one hidden layer MLA.
Sensors 22 08699 g006
Sensors 22 08699 g007 550
Figure 7. Training and test R values for two hidden layer MLA.
Figure 7. Training and test R values for two hidden layer MLA.
Sensors 22 08699 g007
Sensors 22 08699 g008 550
Figure 8. The 99% prediction interval with upper and lower limits for the MLA with one hidden layer. (a) Training data (b) Testing data.
Figure 8. The 99% prediction interval with upper and lower limits for the MLA with one hidden layer. (a) Training data (b) Testing data.
Sensors 22 08699 g008
Sensors 22 08699 g009 550
Figure 9. The 99% prediction interval with upper and lower limits for the MLA with two hidden layers. (a) Training data (b) Testing data.
Figure 9. The 99% prediction interval with upper and lower limits for the MLA with two hidden layers. (a) Training data (b) Testing data.
Sensors 22 08699 g009
Sensors 22 08699 g010 550

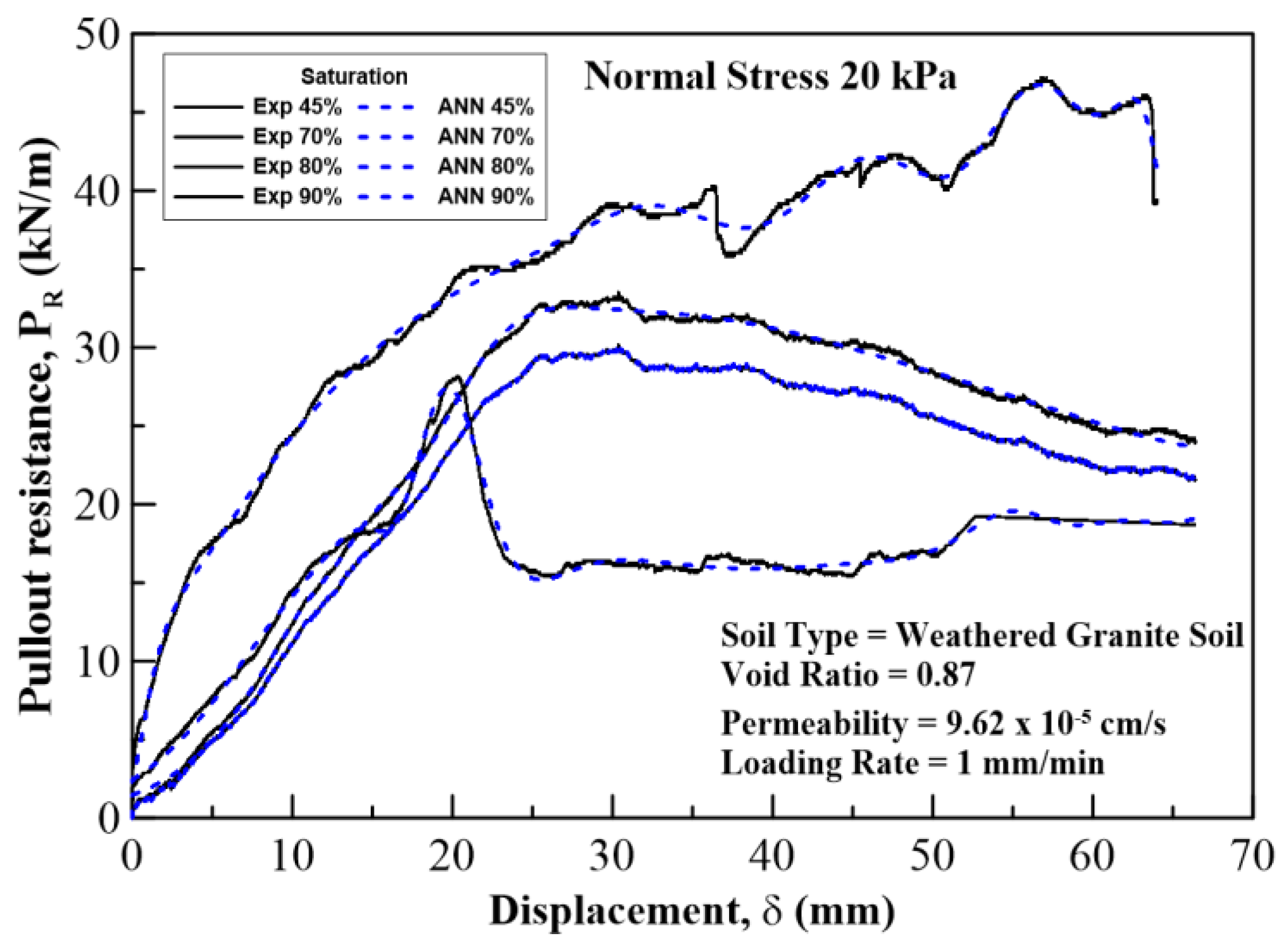

Figure 10. Pullout resistance vs. displacement curves plotted for a normal stress of 20 kPa at 45%, 70%, 80%, and 90% degree of saturation of the soil. Solid lines show experimental results, and the dotted lines show ANN results.
Figure 10. Pullout resistance vs. displacement curves plotted for a normal stress of 20 kPa at 45%, 70%, 80%, and 90% degree of saturation of the soil. Solid lines show experimental results, and the dotted lines show ANN results.
Sensors 22 08699 g010
Sensors 22 08699 g011 550
Figure 11. Pullout resistance vs. displacement curves plotted for a normal stress of 60 kPa at 45%, 70%, 80%, and 90% degree of saturation of the soil. Solid lines show experimental results, and the dotted lines show ANN results.
Figure 11. Pullout resistance vs. displacement curves plotted for a normal stress of 60 kPa at 45%, 70%, 80%, and 90% degree of saturation of the soil. Solid lines show experimental results, and the dotted lines show ANN results.
Sensors 22 08699 g011
Sensors 22 08699 g012 550
Figure 12. Pullout resistance vs. displacement curves plotted for a normal stress of 100 kPa at 45%, 70%, 80%, and 90% degree of saturation of the soil. Solid lines show experimental results, and the dotted lines show ANN results.
Figure 12. Pullout resistance vs. displacement curves plotted for a normal stress of 100 kPa at 45%, 70%, 80%, and 90% degree of saturation of the soil. Solid lines show experimental results, and the dotted lines show ANN results.
Sensors 22 08699 g012
Sensors 22 08699 g013 550
Figure 13. Maximum pullout resistance vs. normal stress relationship for 45%, 70%, 80%, and 90% degree of saturation of the soil. Solid lines show experimental results, and the dotted lines show ANN results.
Figure 13. Maximum pullout resistance vs. normal stress relationship for 45%, 70%, 80%, and 90% degree of saturation of the soil. Solid lines show experimental results, and the dotted lines show ANN results.
Sensors 22 08699 g013
Sensors 22 08699 g014 550

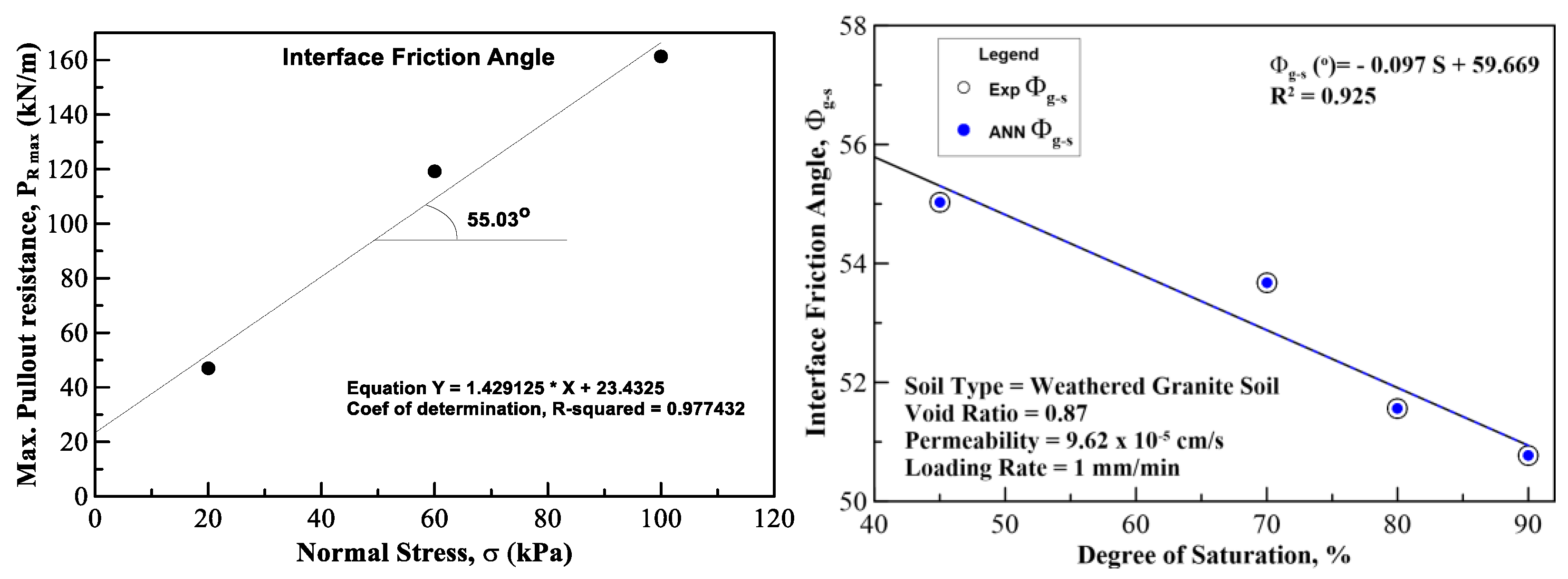

Figure 14. An example showing the calculation of IFA at 45% degree of saturation of the soil. Field vs. ANN results of IFA at different degree of saturation of the soil.
Figure 14. An example showing the calculation of IFA at 45% degree of saturation of the soil. Field vs. ANN results of IFA at different degree of saturation of the soil.
Sensors 22 08699 g014
Table
Table 1. Geotechnical properties of soil and geogrid.
Table 1. Geotechnical properties of soil and geogrid.
ParametersValues
Specific gravity2.65
D 10 0.26 mm
Coefficient of uniformity C u 6.3
Coefficient of curvature C u 1.25
Soil classification USCSSM
Field max. dry unit weight 17.30 kN/m3
Data OMC 15.5%
Permeability9.65 × 10−5 m/s
Cohesion c′3 kPa
Internal friction angle ϕ′ 30°
Georgrid dimensions70 cm × 30 cm
Individual grid size5 cm × 5 cm
Ultimate tensile load Tult 21 kN/m
Ultimate tensile strain ε3.5%
Table
Table 2. The statistical properties of the data.
Table 2. The statistical properties of the data.
ParametersStandard DeviationMeanMaxMinCorrelation
(Inputs vs. Output Pr)
TrainingTestTrainingTestTrainingTestTrainingTestTrainingTest
σ (kPa)32.3132.5458.2558.3510010020200.670.66
S (%)16.3316.4871.8971.8190904545−0.18−0.17
δ (mm)18.6018.6331.4831.2166.3866.38000.410.41
γ (kN/m3)0.900.9110.7410.7513.3713.3710.3010.30−0.33−0.32
Pr (kN/m)39.3739.3359.2558.85147.65147.650011
Table
Table 3. The heuristic function to determine number of neurons (functions adopted from [39]).
Table 3. The heuristic function to determine number of neurons (functions adopted from [39]).
Serial No.Heuristic FunctionNumber of Neurons
1 ≤ 2 × N i + 1 9
2 3 × N i 12
3 2 + ( N o × N i ) + ( 0.5 × N o ) × ( N o 2 + N i ) − 3 N i + N o 1
4 ( 2 × N i ) ÷ 3 2.6 ≈ 3
5 2 × N i 8
6 ( N i + N o ) ÷ 2 2.5 ≈ 3
7 ( N i + N o ) 2.24 ≈ 3
Table
Table 4. The performance of various MLA with different parameters.
Table 4. The performance of various MLA with different parameters.
AlgorithmHidden LayersMSER
9 Neurons12 Neurons9 Neurons12 Neurons
Train LM10.0003603430.0002350.9970.998
20.00008520.0001590.9990.998
Train BR10.0002653970.0002110.9980.998
20.00008260.00003020.9990.999
Train SCG10.0004089980.0004510.9960.996
20.000270.00020.9970.998
Table
Table 5. Sensitivity analysis of input parameters using Garson’s algorithm.
Table 5. Sensitivity analysis of input parameters using Garson’s algorithm.
Serial No. Input ParametersRanking
1N Stress (kPa)2
2Saturation (%)4
3Deplacement (mm)1
4Soil Unit Weight (kN/m3)3
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ali, T.; Haider, W.; Ali, N.; Aslam, M. A Machine Learning Architecture Replacing Heavy Instrumented Laboratory Tests: In Application to the Pullout Capacity of Geosynthetic Reinforced Soils. Sensors 2022, 22, 8699. https://doi.org/10.3390/s22228699

AMA Style

Ali T, Haider W, Ali N, Aslam M. A Machine Learning Architecture Replacing Heavy Instrumented Laboratory Tests: In Application to the Pullout Capacity of Geosynthetic Reinforced Soils. Sensors. 2022; 22(22):8699. https://doi.org/10.3390/s22228699

Chicago/Turabian Style

Ali, Tabish, Waseem Haider, Nazakat Ali, and Muhammad Aslam. 2022. "A Machine Learning Architecture Replacing Heavy Instrumented Laboratory Tests: In Application to the Pullout Capacity of Geosynthetic Reinforced Soils" Sensors 22, no. 22: 8699. https://doi.org/10.3390/s22228699

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
