Dopamine Measurement Using Engineered CNT–CQD–Polymer Coatings on Pt Microelectrodes

by
Mahdieh Darroudi
,
Kevin A. White
,
Matthew A. Crocker
and
Brian N. Kim
*
Department of Bioengineering, Erik Johnsson School of Engineering & Computer Science, University of Texas at Dallas, Richardson, TX 75080, USA
*
Author to whom correspondence should be addressed.
Sensors 2024, 24(6), 1893; https://doi.org/10.3390/s24061893
Submission received: 19 February 2024 / Revised: 6 March 2024 / Accepted: 8 March 2024 / Published: 15 March 2024
(This article belongs to the Special Issue Nanomaterials-Based Sensors for Biomedical Monitoring)
Browse Figures
Review Reports Versions Notes

Abstract

:
This study aims to develop a microelectrode array-based neural probe that can record dopamine activity with high stability and sensitivity. To mimic the high stability of the gold standard method (carbon fiber electrodes), the microfabricated platinum microelectrode is coated with carbon-based nanomaterials. Carboxyl-functionalized multi-walled carbon nanotubes (COOH-MWCNTs) and carbon quantum dots (CQDs) were selected for this purpose, while a conductive polymer like poly (3-4-ethylene dioxythiophene) (PEDOT) or polypyrrole (PPy) serves as a stable interface between the platinum of the electrode and the carbon-based nanomaterials through a co-electrodeposition process. Based on our comparison between different conducting polymers and the addition of CQD, the CNT–CQD–PPy modified microelectrode outperforms its counterparts: CNT–CQD–PEDOT, CNT–PPy, CNT–PEDOT, and bare Pt microelectrode. The CNT–CQD–PPy modified microelectrode has a higher conductivity, stability, and sensitivity while achieving a remarkable limit of detection (LOD) of 35.20 ± 0.77 nM. Using fast-scan cyclic voltammetry (FSCV), these modified electrodes successfully measured dopamine’s redox peaks while exhibiting consistent and reliable responses over extensive use. This electrode modification not only paves the way for real-time, precise dopamine sensing using microfabricated electrodes but also offers a novel electrochemical sensor for in vivo studies of neural network dynamics and neurological disorders.

1. Introduction

Monitoring dopamine in the brain has played a critical role in studying dopaminergic neural circuits and neurological dysfunctions associated with the regulation of neurotransmitters [1,2,3]. Acquiring in vivo dopamine measurements requires methodologies that deliver real-time data with improved sensitivity and selectivity because of dopamine’s low extracellular concentration and potential measurement interference from other substances in the brain [4,5,6]. Conventional dopamine detection techniques such as microdialysis often struggle to provide real-time data due to slower response times [2,7,8]. Among various electrochemical methods of neurotransmitter detection, fast-scan cyclic voltammetry (FSCV) has priority due to its synergistic integration of high sensitivity, selectivity, and temporal acuity [1,9]. Through the redox mechanism, electroactive molecules such as dopamine can give electrons (oxidation) to or gain electrons (reduction) from the electrochemical sensing electrode at various voltage potentials using FSCV. The current signal detected by the electrode is directly proportional to both the concentration of analyte at the electrode as well as the number of electrons involved in the redox process. Additionally, electroactive molecules exhibit distinct voltammograms due to the differing potentials at which the molecules undergo oxidation or reduction. Through these mechanisms, the concentration of an electroactive molecule can be quantified based on the magnitude of current recorded. Also, the specific molecule undergoing the redox process can be identified based on its distinct voltammogram generated using FSCV [4,10]. Furthermore, FSCV has been a prominent electroanalytical technique offering remarkable temporal resolution in tracking rapid neurotransmitter changes in vivo [1,4,5]. Pioneered by Miller in the 1980s and subsequently popularized by Wightman, FSCV has evolved significantly over the years [11,12,13]. Background-subtracted FSCV has been a basis technique for differentiating and characterizing readily oxidizable biological compounds, notably dopamine [14,15]. Tuning the scan rate of the triangular waveform used in FSCV can optimize our differentiation of the electroactive species’ irreversible and quasi-reversible reaction peak potentials, allowing enhanced discrimination between interfering substances and mitigation of issues at the switching potential [4,10].
In FSCV, carbon-fiber microelectrodes (CFMEs) are the gold standard due to their high precision, minimal tissue disruption, as well as their excellent spatial resolution and sensitivity [16,17,18]. However, CFMEs are limited in their scalability. As such, integration into complex microelectrode arrays to provide spatial resolution is particularly challenging [19,20]. Multielectrode arrays through microfabrication engineering offer the advantage of high yields, batch production, and spatial accuracy. These arrays are instrumental in recording neurophysiological signals across various brain regions with exceptional clarity. Typically, microfabricated multielectrode arrays are constructed using metals like gold (Au) and platinum (Pt) on rigid silicon bases. Gold and platinum are commonly used due to their favorable microfabrication compatibility and robust electrochemical properties [21,22]. In microfabrication systems, microelectrodes can be engineered with precise geometry to optimize the detection of neurotransmitters, enable the monitoring of several analytes simultaneously, or allow for multiplexed detection in complex biological environments. Additionally, the ease of surface modification makes them ideal for spatially resolved measurements. However, metal electrodes exhibit inadequate sensitivity for dopamine, rendering them unsuitable for direct dopamine detection. Additionally, they demonstrate a propensity for performance degradation under the rigorous electrochemical conditions demanded by FSCV [19,20]. Persistent exposure to FSCV’s aggressive potential sweeps can lead to physical and chemical alterations of these metal surfaces, culminating in decreased sensor functionality. Consequently, the limitation underscores the need for advanced electrode materials that can withstand the rigorous conditions of FSCV without compromising the integrity and longevity of the neurochemical sensors.
Carbon is a desirable material for fabricating a dopamine sensor, so there is a pressing need to develop a scalable microfabrication technique to mass-produce carbon electrode arrays, whereby multiple devices can be patterned on a single wafer [22]. Recent advancements in neurochemical detection have markedly enhanced electrode technology for in vivo neurotransmitter monitoring. It was also demonstrated that arrays consisting of glassy carbon microelectrodes coated by CNT–PEDOT enables concurrent, multisite monitoring, which is crucial for electrophysiological studies [23,24]. Carbon nanomaterials are known for their inertness and sensitivity, providing a unique opportunity for research in electrochemistry [25]. The ideal scenario envisions using structured carbon materials such as aligned graphene sheets or carbon nanotubes (CNTs) with oriented edge planes for dopamine measurements [26,27]. Specifically, electrodes based on CNTs are employed in electrochemical biosensors owing to their high conductivity and rapid electron transfer [28]. These attributes make them highly suitable for in vivo applications, particularly for detecting rapid changes in the level of extracellular neurotransmitters, as they contain catalytic sites crucial for the oxidation of electroactive species [29,30]. Moreover, carbon quantum dots (CQDs) have recently gained prominence due to their remarkable properties, including low toxicity, biocompatibility, solubility, and applicability to a wide range of applications [31,32]. CQDs are becoming ubiquitous in sensor fabrication owing to their superior physiochemical and photoelectric characteristics, which stem from their unique structural properties, making them an excellent material for electrochemical sensing [33].
While carbon-based nanomaterials are not inherently compatible with traditional microfabrication techniques, electrode deposition of such nanomaterials onto gold or platinum can be used to produce a carbon-based microelectrode array. However, carbon nanomaterials cannot be electrodeposited. A novel approach must be developed to enable the microscopic patterning of carbon nanomaterials. Here, conducting polymers like poly(3-4-ethylene dioxythiophene) (PEDOT) or polypyrrole (PPy) play a pivotal role in providing an interface between CNTs and microelectrode surfaces [34]. They enhance both the adhesion and stability of CNTs and augment electron transfer efficiency [35], thereby improving the electrodes’ sensitivity and durability in biological contexts. By combining them with carbon nanomaterials, a hybrid nanocomposite with superior stability can be achieved [36].
Our study delves into the electrodeposition of carbon-based nanomaterials interlaced with conductive polymer matrixes onto platinum microelectrodes (100 × 30 μm), in order to enhance their stability and sensitivity, focusing on FSCV-based neurochemical sensing (Figure 1). This investigation is crucial for advancing our understanding of the electrochemical properties of platinum microelectrodes modified with CNT and their applicability in neurobiological contexts, potentially making an advancement in neurotransmitter dynamic analysis with improved spatial resolution. The novelty of our study lies in the unique integration of CNT–CQDs within conductive polymer matrices directly onto microelectrode arrays using electrodeposition, an approach not extensively studied for acute resolution applicability. This method aims to produce stable high-density carbon-based microelectrode arrays for in vivo neural applications. We aim to establish a reliable and efficient method to produce these arrays, potentially impacting the field of neural engineering.

2. Materials and Methods

2.1. Solution and Chemicals

Dopamine hydrochloride, EDOT, citric acid (Analytical Reagent grade, ≥99.5%), PBS (10×) pH 7.4, and Py were procured from Fisher Scientific (Fisher Scientific, Hampton, NH, USA). A stock solution of 1 mM of dopamine was prepared in PBS (1×, pH~7.4) and diluted subsequently to 10 μM with PBS (pH adjusted to 7.4). Dopamine concentrations used for electrochemical experiments are within the range of 100.0 nM to 1.0 μM, and the pH was carefully adjusted to 7.4.

2.2. Preparation of Carbonized Nanocomposite Modified Microelectrodes

For CQD synthesis, 2 g of citric acid was heated for approximately 3 h, maintained at a temperature of 220 °C, during which time it gradually changed color, becoming a homogeneous orange liquid [37]. Subsequently, an aqueous sodium hydroxide solution (10 mg/mL) was added to the liquid dropwise and stirred vigorously until the pH reached 6.5. The CQD solution was stored at 4 °C until use.
The probe containing Pt microelectrodes was constructed using microfabrication. First, a 4-inch silicon wafer with a 300-nm silicon nitride layer was purchased (UniversityWafer, Inc., South Boston, MA, USA). A Pt layer was patterned using photolithography and a lift-off process. Subsequently, a 200-nm layer of silicon oxide was deposited to serve as an insulation layer. This was followed by photolithography and plasma etching to create electrode openings (30 × 100 μm) (Figure 1). The electrodes then underwent low-pressure oxygen plasma treatment utilizing a Plasma-Flow PDC-32G (Harrick Plasma Inc., Ithaca, NY, USA) to remove residual organic contaminants and initiate surface hydroxylation, facilitating subsequent surface modifications. After plasma cleaning, the electrodes were rinsed with deionized (DI) water and dried with nitrogen.

2.3. Preparation of CNT–PEDOT and CNT–CQD–PEDOT Modified Microelectrodes

The Pt microelectrodes were exposed to a low-pressure plasma cleaner for 5 to 8 min, rinsed with DI, and dried over nitrogen. The fabrication of electropolymerized CNT–PEDOT and CNT–CQD–PEDOT modified Pt microelectrodes were carried out using an electrodeposition process. Initially, the COOH-MWCNTs were dispersed in PBS (pH = 7.4) and sonicated for 30 min to create a 1.5 mg/mL solution. As a next step, EDOT (0.02 M) or EDOT (0.02 M)–CQD (0.05 mM) was added into the CNT solution and then sonicated for another 30 min to ensure even dispersal. The Pt microelectrode (30 × 100 μm) was used as the working electrode. A silver/silver chloride (Ag|AgCl) wire was used as the counter and reference electrodes. Through constant current deposition, the CNT–CQD–PEDOT and CNT–PEDOT layers were fabricated on the electrode surface at a current of 2 nA/μm2 (vs. Ag|AgCl reference) with a deposition time of 1500 s and 1200 s, respectively (Figure 2d,f). Lastly, the carbonized microelectrodes were cleaned several times with DI water to remove residual EDOT and CQDs.

2.4. Preparation of CNT–PPy and CNT–CQD–PPy Modified Microelectrodes

The Pt microelectrodes were exposed to a low-pressure plasma cleaner for 5 to 8 min, rinsed with DI, and dried over nitrogen. Then, electrodeposition techniques were used to fabricate CNT–PPy and CNT–CQD–PPy on Pt microelectrode surfaces. Initially, COOH-MWCNT was dispersed in KCl (0.1 M) and sonicated for 30 min to create a 1.3 mg/mL solution. As a next step, pyrrole (0.02 M) or pyrrole (0.02 M)–CQD (0.05 mM) was added into the CNT solution and sonicated for another 30 min to ensure even dispersal. During the experiment, a Pt microelectrode (30 × 100 μm) served as the working electrode, with a silver/silver chloride (Ag|AgCl) wire as reference and counter electrodes. Using cyclic voltammetry (CV), a triangular potential was swept from −0.4 V to 1.4 V (vs. Ag|AgCl reference) at a scan rate of 50 mV/s for ten cycles, and the CNT–CQD–PPy and CNT–PPy layers were deposited on the Pt microelectrode surface. Lastly, the carbonized microelectrodes were cleaned several times with DI to remove residual PPy and CQDs (Figure 2c,e). It was found that increasing the number of cycles to 20 or beyond when CNTs were present resulted in higher resistivity, likely due to the formation of a thick CNT–PPy coating.

2.5. Electrochemical Analysis

FSCV and CV profiles of the bare microelectrodes and modified microelectrodes were obtained using a PalmSens4 (PalmSens, Utrecht, The Netherlands). Data collection and analysis were performed using PsTrace software (version 5.9.4515) and custom data acquisition hardware. A triangular waveform was applied to the electrode with a scanning potential from −0.5 to 1.4 V at a sweep rate of 300 V/s for FSCV of the electrodes with a silver/silver chloride wire serving as the reference electrode. Testing was conducted using a flow injection apparatus, utilizing a 4-port HPLC loop injector on a two-position air actuator. A PBS (1×) buffer and dopamine solution were conveyed through the flow cell at a 2 mL/min rate via a syringe pump. The response to the fast concentration changes were determined through background subtraction. Measurements were conducted before and after electrode modification to ensure proper process control.

3. Results

This study explores enhancing dopamine detection via FSCV using CNT and CNT–CQD coatings on Pt microelectrodes. Two distinct conductive polymers in conjunction with CNT, with or without the incorporation of CQDs, were produced (Figure 2) and characterized using a SEM (Figure 3), with the sensitivity and stability of the CNT–CQD–PPy and CNT–CQD–PEDOT modified Pt microelectrodes (further referred to as the CQD–Pt microelectrodes) examined by FSCV (Figure 4 and Figure 5).

3.1. Surface Characterization

The CQD–Pt microelectrodes were characterized using SEM (Figure 3). SEM images were acquired on a Zeiss ULTRA-55 FEG SEM microscope with a secondary electron detector operating at an accelerating voltage of 15 kV. All data is presented as mean ± the standard error of the mean. Due to the surface functionalization and ultrasound treatment, nanoparticles are not aggregated significantly (Figure 3c,g). SEM analysis is utilized to assess the structure and morphology of CNT–CQD–PEDOT and CNT–CQD–PPy. The SEM image– of the CNT–CQD–PEDOT layer indicate highly structured MWCNTs in the mesoporous structure of the polymer with uniform granular morphology. The porosity of the nanocomposites can be attributed to gas evolution during electropolymerization (Figure 3f,g) [38]. The surface morphology of CNT–CQD–PPy shows that the nanocomposite contains MWCNTs with a size below 50 nm. The nanocomposite contains non-agglomerated MWCNTs, confirming good dispersion of MWCNTs in PPy and the formation of a conductive network (Figure 3b,c). The porosity of the nanocomposite allows greater electrolyte access to the electroactive species due to increased surface area [9]. An EDAX analysis of CNT–CQD–PPy and CNT–CQD–PEDOT confirms successful coating of nanocomposite by elementary analysis of carbon (C), oxygen (O), sulfur (S), and nitrogen (N) (Figure 3d,h). The SEM and EDAX analyses confirm the successful fabrication of CNT–CQD–PEDOT and CNT–CQD–PPy layers.

3.2. Electrochemical Characterization

The inherent catalytic abilities of CNTs provide a strong foundation for facilitating the electrochemical reaction of dopamine. However, the integration of CQDs within these nanocomposites plays a significant role in augmenting the catalytic effect. The surface modification of the nanocomposites (CNT–CQD–PPy, CNT–CQD–PEDOT, CNT–PEDOT, and CNT–PPy) are characterized using CV in a solution of 10 mM [Fe(CN)6]3−/[Fe(CN)6]4− (Figure 4a). This observation aligns with the CV data in which the bare electrode fails to display noticeable peaks, signifying that electrochemical oxidation and reduction of ferricyanide and ferrocyanide are not spontaneously initiated on the bare Pt microelectrode (Figure 4a). In the CVs of the modified microelectrode, current increases are attributed to surface modification with various carbonized nanocomposites. Specifically, the current values for CNT–CQD–PEDOT, CNT–CQD–PPy, CNT–PEDOT, CNT–PPy, and the Pt microelectrode are 75.06 ± 0.41 µA, 34.63 ± 0.56 µA, 19.79 ± 0.53 µA, 13.14 ± 0.37 µA, and 6.9 ± 0.24 µA, respectively. Therefore, the CV profiles of the CNT–PEDOT, CNT–CQD–PEDOT, CNT–PPy, and CNT–CQD–PPy modified microelectrodes show notably enhanced peak currents, indicating enhanced electron transfer kinetics.
Furthermore, the potential-peak separations between the Eanodic peaks and Ecathodic peaks of CNT–CQD–PEDOT (83 mV) and CNT–CQD–PPy (105 mV) are much smaller than those for CNT–PPy (230 mV), CNT–PEDOT (185 mV), and bare Pt microelectrodes (350 mv). The observed increase in peak current and decrease in peak separation in the electrochemical characterization of the CNT–CQD–PEDOT and CNT–CQD–PPy nanocomposites demonstrate the enhancement of catalytic properties of the dopamine redox reaction [39]. Figure 4a indicates improved ionic interchange between the electrolyte and the reactive substances due to surface modification, with the CNTs and CQDs contributing to the amplification of the electrochemical redox reaction. This analysis confirms that the CNT–CQD–PPy and CNT–CQD–PEDOT microelectrodes exhibit superior conductivity compared to their uncoated counterpart and nanocomposite layers without CQDs (Figure 4a).
FSCV was conducted in PBS (1×) with a pH of 7.4 for each modified microelectrode, as depicted in Figure 4b,c. The nanocomposites incorporating CQDs display a significant enhancement of their background currents compared with their non-CQD counterparts, suggesting that the addition of CQDs sharply alters the electrochemical profile of the microelectrodes.
FSCV remains the standard method for real-time neurotransmitter quantification. This study utilizes FSCV to assess the dopamine detection capabilities of various nanoelectrodes: CNT–PEDOT, CNT–PPy, CNT–CQD–PEDOT, CNT–CQD–PPy, and bare Pt. Our objective is to determine the impact of the nano-coated layers on the background current. Figure 4b,c display the FSCV data and background charging current for the bare electrode, and the coating layers of CNT–CQD–PEDOT and CNT–CQD–PPy. Notably, the CNT–PPy and CNT–PEDOT coated layers moderately elevate the background current compared to the bare Pt microelectrode. After integrating CQDs, there is a further increase in the background charging current.
Given that the background current is proportional to the surface area, it can be assumed that the CQDs, possessing small dimensions and a high surface area, significantly increase the overall surface area of the nanocomposite [40]. The increased surface area due to incorporating CQDs is evident in the recorded background current signals shown in Figure 4b,c. Thus, because a large surface area also increases the sensors’ sensitivity to electroactive neurochemicals for electrochemical detection using FSCV [4], we will focus on the performance of CNT–CQD–PEDOT and CNT–CQD–PPy for further analysis in Section 3.3 and Section 3.4.

3.3. Electrochemical Recordings of Dopamine

The background–subtracted FSCV of the microelectrodes coated with the PEDOT and PPy conductive polymers combined with CNTs and CQDs in 1-µM dopamine is shown in Figure 5a. The dopamine undergoes oxidation to dopamine-o-quinone at approximately 0.7 V, with reduction occurring at about −0.2 V. The average increase in background current signal of CNT–CQD–PEDOT and CNT–CQD–PPy modified Pt microelectrodes are shown in Figure 5b and demonstrate the layers’ significant effect on background current. The background current signal of the CNT–CQD–PPy layer is higher than that of the CNT–CQD–PEDOT layer; both the CNT–CQD–PEDOT and CNT–CQD–PPy modified Pt microelectrodes exhibit a profile higher than that of the bare Pt microelectrode. The CNT–CQD–PPy layer on the Pt microelectrode leads to an approximately 5-fold increase in background current, while the CNT–CQD–PEDOT increases roughly 4-fold (Figure 5b). When the CNT–CQD–PPy Pt microelectrode is used, the dopamine peak current experiences an approximately 1.5-fold increase, while the reduction peak current is enhanced approximately 1.4-fold relative to CNT–CQD–PEDOT (Figure 5c).
The conducting polymers affect both anodic and cathodic peaks (Figure 5c). The magnitude of the oxidation peaks is greater than that of the reduction peaks of CNT–CQD–PPy and CNT–CQD–PEDOT; this is attributed to dopamine’s more robust adsorption compared with dopamine-o-quinone. Incorporating CNTs and CQDs into PEDOT enhanced the oxidation peak current by roughly 2-fold, while CNT–CQD–PPy amplified the dopamine peak by 3-fold compared to CFMEs (if adjusted for the electrode area) [41]. Conversely, the reduction peaks of CNT–CQD–PPy and CNT–CQD–PEDOT experience a roughly 3-fold enhancement compared to the bare CFME microelectrode (Figure 5c) [41]. The CNT–CQD–PPy modified Pt microelectrode shows enhanced oxidation and reduction peak levels compared to a standard CFME and its PEDOT counterpart.
The correlation between scan rate (100–500 V/s) and anodic peak current for both the CNT–CQD–PPy and CNT–CQD–PEDOT have been investigated (Figure 5d,e). A linear relationship is observed between scan rate and anodic peak current. This relationship shows a slope of 0.8097 (R² = 0.9814) for CNT–CQD–PPy and 0.7566 (R2 = 0.9888) for CNT–CQD–PEDOT. In both the CNT–CQD–PPy and CNT–CQD–PEDOT layers, the anodic peak current is proportional to the scan rate, approaching a value close to 1, suggesting that the dopamine redox reaction is controlled by adsorption (Figure 5d,e) [4].

3.4. Dopamine Sensitivity

The dopamine sensitivity of carbon-based microelectrodes was tested using background-subtracted FSCV to measure the oxidative peak current against various dopamine concentrations for both the CNT–CQD–PPy and CNT–CQD–PEDOT layers (Figure 6). To assess the linear detection range, the modified microelectrodes were tested against various dopamine concentrations (0.1–1.0 μM) and were shown to exhibit linear responses (CNT–CQD–PPy with R2 = 0.9985 and CNT–CQD–PEDOT with R2 = 0.9718) (Figure 6). The sensitivity of CNT–CQD–PPy is 154 nA/μM, making it appropriate for measuring low concentrations of dopamine in the brain, while the sensitivity of CNT–CQD–PEDOT is 112 nA/μM.
The dopamine peak is distinctly visible for CNT–CQD–PPy at a concentration of 100 nM (Figure 6a). The calculated limit of detection (LOD) (S/N = 3) from the 100 nM data are 35.20 ± 0.77 nM for CNT–CQD–PPy and 40.06 ± 0.39 nM for CNT–CQD–PEDOT layers.

3.5. Stability of Engineered Microelectrodes

In FSCV, the electrode is continually scanned to ascertain its stability until a constant, drift-free response is observed. The stability analysis of the CNT–CQD–PPy and CNT–CQD–PEDOT layers using FSCV are displayed in Figure 7a,b. We intended to apply the FSCV waveform for a period of four hours using a flow cell instrument. During the four-hour test of the CNT–CQD–PPy layer, no significant change occurred in its background current (Figure 7a). In contrast, the background current of the CNT–CQD–PEDOT layer demonstrated a drifting pattern after the first hour. When observed with an optical microscope, it was apparent that the CNT–CQD–PEDOT layer was no longer adhered to the microelectrode surface, so the experiment was concluded at that time (Figure 7d). The CNT–CQD–PPy layer remained adhered to the microelectrode’s surface by the conclusion of the four-hour experiment period (Figure 7c).
An FSCV recording of dopamine was taken to ensure that the layers would not degrade and would maintain their reliability over time. The subtracted background results were compared with subsequent recordings after seven and fourteen days. The background-subtracted current for the CNT–CQD–PPy layer remained mostly unchanged, confirming the stability for a standard study (Figure 7e). Meanwhile, the CNT–CQD–PEDOT layer experienced both drift and a decrease in redox peaks (Figure 7f).

4. Discussion

The advantages of the FSCV technique over other electrochemical methods for real-time dopamine detection have been exhibited in Table 1. Although Differential Potential Voltammetry (DPV) methods using a microfabricated system provide high sensitivity, they cannot meet the high temporal resolution required for neurotransmitter measurements [39,42,43]. CNT–PEDOT modified glassy carbon multi-electrode arrays enable integrated multichannel measurements using Square Wave Voltammetry (SWV) for dopamine detection. However, the temporal resolution of this method is lacking [23]. The FSCV technique is the golden standard due to its high temporal resolution, selectivity, and sensitivity when studying neurotransmitter dynamics for in vivo studies. However, most studies on neurotransmitter measurement based on FSCV have extensively used CFMEs [3,44,45]. Providing spatial resolution without complex microelectrode arrays is particularly challenging for CFME. Designing electronics for microelectrode arrays that can be used for FSCV is demanding. Microfabrication engineering enables high yields and scalability for multielectrode arrays, which can accurately detect and record the neurotransmitters of neurophysiological signals.
While this is the first study involving direct coating of CNT–CQDs within a conductive polymer scaffold (PPy and PEDOT) stabilized on Pt microelectrodes (30 × 100 μm), previous studies have demonstrated that conductive polymers infused with MWCNTs enhance the electrochemical performance of microsensors and increase sensitivity when deposited on Pt electrodes [39,49].
SEM images and electrochemical data give insights into the carbonized layers and their impact on electrochemical signals. As depicted in Figure 2, both nanocomposites covered the whole microelectrode surface. While CNT–CQD–PEDOT forms a consistent layer exhibiting significant electrochemical properties, CNT–CQD–PPy displays greater sensitivity to dopamine, which is attributed to its influence on the faradaic current. The CNT–CQD–PEDOT layer and the CNT–CQD–PPy layer showed, respectively, an increase of four and five times the background charging current of a bare Pt microelectrode. This result implies that the surface modification of the electrodes influences their surface area, directly increasing their sensitivity [23,24]. The CNT–CQD–PEDOT electrode’s oxidation peak was two-fold larger while that of the CNT–CQD–PPy electrode was three-fold larger compared that of a similarly sized CFME [41]. Conversely, both nanocomposites underwent a three-fold increase in their reduction peak.
In the case of CNT–CQDs, it is suggested that oxygen functional groups amplify dopamine adsorption [3]. Techniques like oxygen plasma cleaning and laser treatment can provide more active sites on the edge plane to enhance sensitivity further. However, maintaining a balance in the amount of oxygen functionalized into the carbonized layer is essential to ensure both adsorption and conductivity. Integrating CNT–CQDs into PEDOT and PPy synergistically improves the electrical conductivities and charge transfer mechanisms.
However, after approximately one hour of repetitive FSCV cycling, the CNT–CQD–PEDOT layer experienced a significant degradation in its structural stability. This raises concerns about the nanocomposite’s long-term durability and reliability in practical applications. In comparison, the CNT–CQD–PPy layer remained in good condition after a period four times longer than the CNT–CQD–PEDOT survived.
These nanocomposites possess antifouling characteristics, which can be attributed to the zwitterionic properties of the negatively charged acid functionalized CNTs and CQDs. This aligns with findings reported in prior studies on various carbon-based nanomaterials; similar antifouling effects have been demonstrated for CNTs [24,50], Yarn CNTs [51], carbon nano horns [52], and graphene [53]. These studies exhibited that the negative charge on the COOH-CNTs and CQDs contributes to repelling biofouling agents, thereby enhancing the stability and durability of the electrode interface in biological environments [24]. Future research will explore further carbon nanocomposites in microelectrode arrays, improvements in sensitivity, and multisite as well as multi-neurotransmitter detection capabilities using FSCV, with the purpose of providing neurochemical insights and furthering the understanding of the brain’s electrochemical landscape.

5. Conclusions

We evaluated different nanocomposite layers with uniform carbonization on Pt microelectrodes for their sensitivity and stability. The electrodeposition of CNT–CQD–PPy emerged as the superior nanocomposite, resulting in a 3-fold increase in both anodic and cathodic peak currents compared to a CFME, while achieving an LOD of 35.20 ± 0. 77 nM. The CNT–CQD–PEDOT nanocomposite revealed approximately the same signal enhancement as CNT–CQD–PPy but showed relatively poor stability. In contrast, the CNT–CQD–PPy nanocomposite consistently demonstrated remarkable stability on the electrode surface. Because in vivo recording sessions typically last a few hours or longer, the added stability of CNT–CQD–PPy coated microelectrodes can help the wide use of microelectrode array-based neural probes in neurochemical detections. Overall, this study pioneers the direct application of CQDs alongside CNTs in polymer matrixes on the surface of Pt microelectrodes and highlights the effectiveness of this approach for FSCV dopamine measurement.

Author Contributions

Conceptualization, M.D., K.A.W. and B.N.K.; methodology, M.D., K.A.W., M.A.C. and B.N.K.; software, M.D., K.A.W. and B.N.K.; validation, M.D., K.A.W. and B.N.K.; formal analysis, M.D. and B.N.K.; investigation, M.D., K.A.W. and B.N.K.; resources, B.N.K.; data curation, M.D., K.A.W. and B.N.K.; writing—original draft preparation, M.D. and B.N.K.; writing—review and editing, M.D., K.A.W., M.A.C. and B.N.K.; visualization, M.D., K.A.W. and B.N.K.; supervision, B.N.K.; project administration, B.N.K.; funding acquisition, B.N.K. All authors have read and agreed to the published version of the manuscript.

Funding

This material is based upon work supported by the National Science Foundation under Grant Nos. 2411567 and 2143140. Any opinions, findings, and conclusions or recommendations expressed in this material are those of the author(s) and do not necessarily reflect the views of the National Science Foundation.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data are contained within the article.

Conflicts of Interest

Authors declare no conflict of interest.

References

  1. Robinson, D.L.; Hermans, A.; Seipel, A.T.; Wightman, R.M. Monitoring Rapid Chemical Communication in the Brain. Chem. Rev. 2008, 108, 2554–2584. [Google Scholar] [CrossRef]
  2. Ganesana, M.; Lee, S.T.; Wang, Y.; Venton, B.J. Analytical Techniques in Neuroscience: Recent Advances in Imaging, Separation, and Electrochemical Methods. Anal. Chem. 2017, 89, 314–341. [Google Scholar] [CrossRef] [PubMed]
  3. Chang, Y.; Venton, B.J. Optimization of Graphene Oxide-Modified Carbon-Fiber Microelectrode for Dopamine Detection. Anal. Methods 2020, 12, 2893–2902. [Google Scholar] [CrossRef] [PubMed]
  4. Puthongkham, P.; Venton, B.J. Recent Advances in Fast-Scan Cyclic Voltammetry. Analyst 2020, 145, 1087–1102. [Google Scholar] [CrossRef] [PubMed]
  5. Roberts, J.G.; Sombers, L.A. Fast-Scan Cyclic Voltammetry: Chemical Sensing in the Brain and Beyond. Anal. Chem. 2018, 90, 490–504. [Google Scholar] [CrossRef] [PubMed]
  6. Bucher, E.S.; Wightman, R.M. Electrochemical Analysis of Neurotransmitters. Annu. Rev. Anal. Chem. 2015, 8, 239–261. [Google Scholar] [CrossRef] [PubMed]
  7. Wilson, L.R.; Panda, S.; Schmidt, A.C.; Sombers, L.A. Selective and Mechanically Robust Sensors for Electrochemical Measurements of Real-Time Hydrogen Peroxide Dynamics In Vivo. Anal. Chem. 2018, 90, 888–895. [Google Scholar] [CrossRef] [PubMed]
  8. Wightman, R.M. (Invited) Exploring Brain Chemistry with Microelectrodes. ECS Meet. Abstr. 2017, MA2017-02, 2302. [Google Scholar] [CrossRef]
  9. Yang, C.; Denno, M.E.; Pyakurel, P.; Venton, B.J. Recent Trends in Carbon Nanomaterial-Based Electrochemical Sensors for Biomolecules: A Review. Anal. Chim. Acta 2015, 887, 17–37. [Google Scholar] [CrossRef]
  10. Bard, A.J.; Faulkner, L.R.; Wiley, J. Electrochemical Methods Fundamentals and Applications; John Wiley & Sons: Hoboken, NJ, USA, 2001. [Google Scholar]
  11. Armstrong-James, M.; Millar, J. Carbon Fibre Microelectrodes. J. Neurosci. Methods 1979, 1, 279–287. [Google Scholar] [CrossRef]
  12. Armstrong-James, M.; Millar, J.; Kruk, Z.L. Quantification of Noradrenaline Iontophoresis. Nature 1980, 288, 181–183. [Google Scholar] [CrossRef] [PubMed]
  13. Baur, J.E.; Kristensen, E.W.; May, L.J.; Wiedemann, D.J.; Mark Wightman, R. Fast-Scan Voltammetry of Biogenic Amines. Anal. Chem. 1988, 60, 1268–1272. [Google Scholar] [CrossRef] [PubMed]
  14. White, K.A.; Darroudi, M.; Park, J.; Kim, B.N. A 128-Ch Area-Efficient Neurochemical-Sensing Front-End for FSCV Recordings of Dopamine. IEEE Sens. J. 2024, 1. [Google Scholar] [CrossRef]
  15. White, K.A.; Kim, B.N. Quantifying Neurotransmitter Secretion at Single-Vesicle Resolution Using High-Density Complementary Metal–Oxide–Semiconductor Electrode Array. Nat. Commun. 2021, 12, 431. [Google Scholar] [CrossRef] [PubMed]
  16. Venton, B.J.; Cao, Q. Fundamentals of Fast-Scan Cyclic Voltammetry for Dopamine Detection. Analyst 2020, 145, 1158–1168. [Google Scholar] [CrossRef]
  17. Johnson, J.A.; Hobbs, C.N.; Wightman, R.M. Removal of Differential Capacitive Interferences in Fast-Scan Cyclic Voltammetry. Anal. Chem. 2017, 89, 6166–6174. [Google Scholar] [CrossRef]
  18. Johnson, J.A.; Wightman, R.M. Cyclic Voltammetric Measurements of Neurotransmitters. Electrochem. Soc. Interface 2017, 26, 53–57. [Google Scholar] [CrossRef]
  19. Cho, Y.W.; Park, J.H.; Lee, K.H.; Lee, T.; Luo, Z.; Kim, T.H. Recent Advances in Nanomaterial-Modified Electrical Platforms for the Detection of Dopamine in Living Cells. Nano Converg. 2020, 7, 40. [Google Scholar] [CrossRef]
  20. Walton, L.R.; Verber, M.; Lee, S.-H.; Chao, T.-H.H.; Wightman, R.M.; Shih, Y.-Y.I. Simultaneous FMRI and Fast-Scan Cyclic Voltammetry Bridges Evoked Oxygen and Neurotransmitter Dynamics across Spatiotemporal Scales. Neuroimage 2021, 244, 118634. [Google Scholar] [CrossRef]
  21. Zachek, M.K.; Hermans, A.; Wightman, R.M.; McCarty, G.S. Electrochemical Dopamine Detection: Comparing Gold and Carbon Fiber Microelectrodes Using Background Subtracted Fast Scan Cyclic Voltammetry. J. Electroanal. Chem. 2008, 614, 113. [Google Scholar] [CrossRef]
  22. Berberian, K.; Kisler, K.; Qinghua, F.; Lindau, M. Improved Surface Patterned Platinum Microelectrodes for the Study of Exocytotic Events. Anal. Chem. 2009, 81, 8734. [Google Scholar] [CrossRef]
  23. Castagnola, E.; Thongpang, S.; Hirabayashi, M.; Nava, G.; Nimbalkar, S.; Nguyen, T.; Lara, S.; Oyawale, A.; Bunnell, J.; Moritz, C.; et al. Glassy Carbon Microelectrode Arrays Enable Voltage-Peak Separated Simultaneous Detection of Dopamine and Serotonin Using Fast Scan Cyclic Voltammetry. Analyst 2021, 146, 3955–3970. [Google Scholar] [CrossRef]
  24. Castagnola, E.; Robbins, E.M.; Wu, B.; Pwint, M.Y.; Garg, R.; Cohen-Karni, T.; Cui, X.T. Flexible Glassy Carbon Multielectrode Array for In Vivo Multisite Detection of Tonic and Phasic Dopamine Concentrations. Biosensors 2022, 12, 540. [Google Scholar] [CrossRef]
  25. Pokrajac, L.; Abbas, A.; Chrzanowski, W.; Dias, G.M.; Eggleton, B.J.; Maguire, S.; Maine, E.; Malloy, T.; Nathwani, J.; Nazar, L.; et al. Nanotechnology for a Sustainable Future: Addressing Global Challenges with the International Network4Sustainable Nanotechnology. ACS Nano 2021, 15, 18608–18623. [Google Scholar] [CrossRef] [PubMed]
  26. Cao, Q.; Shin, M.; Lavrik, N.V.; Venton, B.J. 3D-Printed Carbon Nanoelectrodes for In Vivo Neurotransmitter Sensing. Nano Lett. 2020, 20, 6831–6836. [Google Scholar] [CrossRef] [PubMed]
  27. Khan, M.E. State-of-the-Art Developments in Carbon-Based Metal Nanocomposites as a Catalyst: Photocatalysis. Nanoscale Adv. 2021, 3, 1887–1900. [Google Scholar] [CrossRef] [PubMed]
  28. Maehashi, K.; Matsumoto, K. Label-Free Electrical Detection Using Carbon Nanotube-Based Biosensors. Sensors 2009, 9, 5368–5378. [Google Scholar] [CrossRef] [PubMed]
  29. Shin, M.; Wang, Y.; Borgus, J.R.; Venton, B.J. Electrochemistry at the Synapse. Annu. Rev. Anal. Chem. 2019, 12, 297–321. [Google Scholar] [CrossRef]
  30. Shin, M.; Copeland, J.M.; Venton, B.J. Real-Time Measurement of Stimulated Dopamine Release in Compartments of the Adult Drosophila Melanogaster Mushroom Body. Anal. Chem. 2020, 92, 14398–14407. [Google Scholar] [CrossRef] [PubMed]
  31. Liu, J.; Geng, Y.; Li, D.; Yao, H.; Huo, Z.; Li, Y.; Zhang, K.; Zhu, S.; Wei, H.; Xu, W.; et al. Deep Red Emissive Carbonized Polymer Dots with Unprecedented Narrow Full Width at Half Maximum. Adv. Mater. 2020, 32, 1906641. [Google Scholar] [CrossRef] [PubMed]
  32. Liu, J.; Li, R.; Yang, B. Carbon Dots: A New Type of Carbon-Based Nanomaterial with Wide Applications. ACS Cent. Sci. 2020, 6, 2179–2195. [Google Scholar] [CrossRef]
  33. Xu, J.; Tao, J.; Su, L.; Wang, J.; Jiao, T. A Critical Review of Carbon Quantum Dots: From Synthesis toward Applications in Electrochemical Biosensors for the Determination of a Depression-Related Neurotransmitter. Materials 2021, 14, 3987. [Google Scholar] [CrossRef]
  34. Wonnenberg, P.M.; Zestos, A.G. Polymer-Modified Carbon Fiber Microelectrodes for Neurochemical Detection of Dopamine and Metabolites. ECS Trans. 2020, 97, 901–927. [Google Scholar] [CrossRef]
  35. Ping, Z.; Junjie, L.; Yunchun, L. Optimization of the Electrodeposition Process of a Polypyrrole/Multi-Walled Carbon Nanotube Fiber Electrode for a Flexible Supercapacitor. RSC Adv. 2022, 12, 18134–18143. [Google Scholar] [CrossRef]
  36. Peng, S.; Yu, Y.; Wu, S.; Wang, C.-H. Conductive Polymer Nanocomposites for Stretchable Electronics: Material Selection, Design, and Applications. ACS Appl. Mater. Interfaces 2021, 13, 43831–43854. [Google Scholar] [CrossRef]
  37. Adampourezare, M.; Saadati, A.; Hasanzadeh, M.; Dehghan, G.; Feizi, M.A.H. Reliable Recognition of DNA Methylation Using Bioanalysis of Hybridization on the Surface of Ag/GQD Nanocomposite Stabilized on Poly (β-Cyclodextrin): A New Platform for DNA Damage Studies Using Genosensor Technology. J. Mol. Recognit. 2022, 35, e2945. [Google Scholar] [CrossRef]
  38. Xu, G.; Li, B.; Luo, X. Carbon Nanotube Doped Poly(3,4-Ethylenedioxythiophene) for the Electrocatalytic Oxidation and Detection of Hydroquinone. Sens. Actuators B Chem. 2013, 176, 69–74. [Google Scholar] [CrossRef]
  39. Xu, G.; Li, B.; Cui, X.T.; Ling, L.; Luo, X. Electrodeposited Conducting Polymer PEDOT Doped with Pure Carbon Nanotubes for the Detection of Dopamine in the Presence of Ascorbic Acid. Sens. Actuators B Chem. 2013, 188, 405–410. [Google Scholar] [CrossRef]
  40. Speranza, G. Carbon Nanomaterials: Synthesis, Functionalization and Sensing Applications. Nanomaterials 2021, 11, 967. [Google Scholar] [CrossRef] [PubMed]
  41. Millar, J.; Stamford, J.A.; Kruk, Z.L.; Wightman, R.M. Electrochemical, Pharmacological and Electrophysiological Evidence of Rapid Dopamine Release and Removal in the Rat Caudate Nucleus Following Electrical Stimulation of the Median Forebrain Bundle. Eur. J. Pharmacol. 1985, 109, 341–348. [Google Scholar] [CrossRef] [PubMed]
  42. Eom, G.; Oh, C.; Moon, J.; Kim, H.; Kim, M.K.; Kim, K.; Seo, J.W.; Kang, T.; Lee, H.J. Highly Sensitive and Selective Detection of Dopamine Using Overoxidized Polypyrrole/Sodium Dodecyl Sulfate-Modified Carbon Nanotube Electrodes. J. Electroanal. Chem. 2019, 848, 113295. [Google Scholar] [CrossRef]
  43. Ko, S.H.; Kim, S.W.; Lee, Y.J. Flexible Sensor with Electrophoretic Polymerized Graphene Oxide/PEDOT:PSS Composite for Voltammetric Determination of Dopamine Concentration. Sci. Rep. 2021, 11, 21101. [Google Scholar] [CrossRef]
  44. Peairs, M.J.; Ross, A.E.; Venton, B.J. Comparison of Nafion- and Overoxidized Polypyrrole—Carbon Nanotube Electrodes for Neurotransmitter Detection. Anal. Methods 2011, 3, 2379–2386. [Google Scholar] [CrossRef]
  45. Jacobs, C.B.; Ivanov, I.N.; Nguyen, M.D.; Zestos, A.G.; Venton, B.J. High Temporal Resolution Measurements of Dopamine with Carbon Nanotube Yarn Microelectrodes. Anal. Chem. 2014, 86, 5721–5727. [Google Scholar] [CrossRef]
  46. Taylor, I.M.; Patel, N.A.; Freedman, N.C.; Castagnola, E.; Cui, X.T. Direct in Vivo Electrochemical Detection of Resting Dopamine Using Poly(3,4-Ethylenedioxythiophene)/Carbon Nanotube Functionalized Microelectrodes. Anal. Chem. 2019, 91, 12917–12927. [Google Scholar] [CrossRef]
  47. Ko, S.H.; Kim, S.W.; Lee, S.H.; Lee, Y.J. Electrodeposited Reduced Graphene Oxide-PEDOT:PSS/Nafion Hybrid Interface for the Simultaneous Determination of Dopamine and Serotonin. Sci. Rep. 2023, 13, 20274. [Google Scholar] [CrossRef] [PubMed]
  48. Xiao, N.; Venton, B.J. Rapid, Sensitive Detection of Neurotransmitters at Microelectrodes Modified with Self-Assembled SWCNT Forests. Anal. Chem. 2012, 84, 7816–7822. [Google Scholar] [CrossRef] [PubMed]
  49. Gerwig, R.; Fuchsberger, K.; Schroeppel, B.; Link, G.S.; Heusel, G.; Kraushaar, U.; Schuhmann, W.; Stett, A.; Stelzle, M.; Giugliano, M.; et al. Neuroengineering PEDOT-CNT Composite Microelectrodes for Recording and Electrostimulation Applications: Fabrication, Morphology, and Electrical Properties. Front. Neuroeng. 2012, 5, 8. [Google Scholar] [CrossRef] [PubMed]
  50. McCreery, R.L. Advanced Carbon Electrode Materials for Molecular Electrochemistry. Chem. Rev. 2008, 108, 2646–2687. [Google Scholar] [CrossRef] [PubMed]
  51. Yang, C.; Trikantzopoulos, E.; Jacobs, C.B.; Venton, B.J. Evaluation of Carbon Nanotube Fiber Microelectrodes for Neurotransmitter Detection: Correlation of Electrochemical Performance and Surface Properties. Anal. Chim. Acta 2017, 965, 1–8. [Google Scholar] [CrossRef] [PubMed]
  52. Puthongkham, P.; Yang, C.; Venton, B.J. Carbon Nanohorn-Modified Carbon Fiber Microelectrodes for Dopamine Detection. Electroanalysis 2018, 30, 1073–1081. [Google Scholar] [CrossRef] [PubMed]
  53. Castagnola, E.; Garg, R.; Rastogi, S.K.; Cohen-Karni, T.; Cui, X.T. 3D Fuzzy Graphene Microelectrode Array for Dopamine Sensing at Sub-Cellular Spatial Resolution. Biosens. Bioelectron. 2021, 191, 113440. [Google Scholar] [CrossRef] [PubMed]
Sensors 24 01893 g001

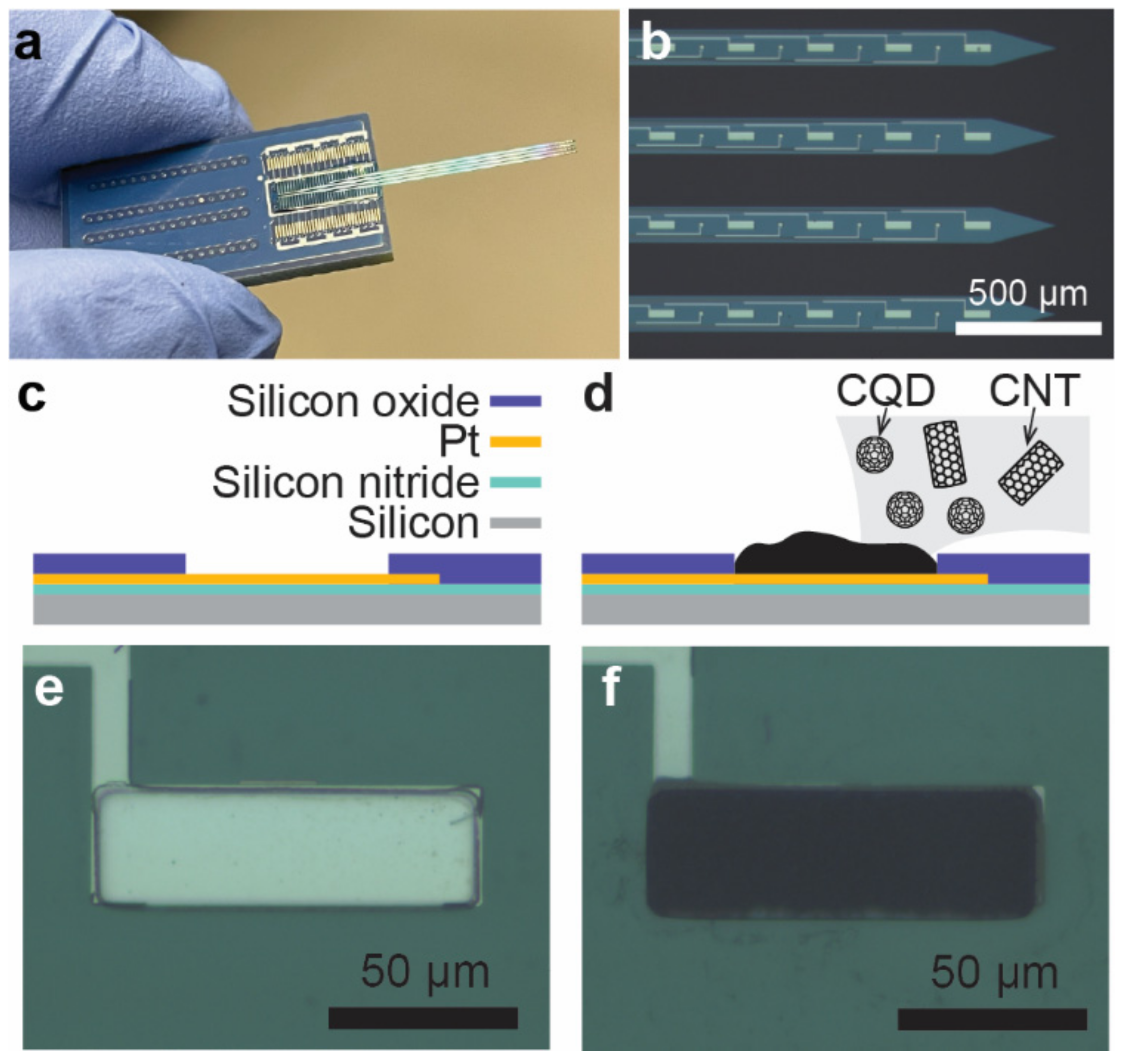

Figure 1. Carbonized Pt microelectrode fabrication for FSCV-based dopamine detection. Photographs of (a) the probe and (b) tip of the probe taken using a Zeiss Examiner; schematic views of (c) the microfabricated Pt microelectrode and (d) the carbonized Pt microelectrode, 30 × 100 μm; and micrographs of (e) the bare Pt microelectrode and (f) carbonized Pt microelectrode, 30 × 100 μm.
Figure 1. Carbonized Pt microelectrode fabrication for FSCV-based dopamine detection. Photographs of (a) the probe and (b) tip of the probe taken using a Zeiss Examiner; schematic views of (c) the microfabricated Pt microelectrode and (d) the carbonized Pt microelectrode, 30 × 100 μm; and micrographs of (e) the bare Pt microelectrode and (f) carbonized Pt microelectrode, 30 × 100 μm.
Sensors 24 01893 g001
Sensors 24 01893 g002

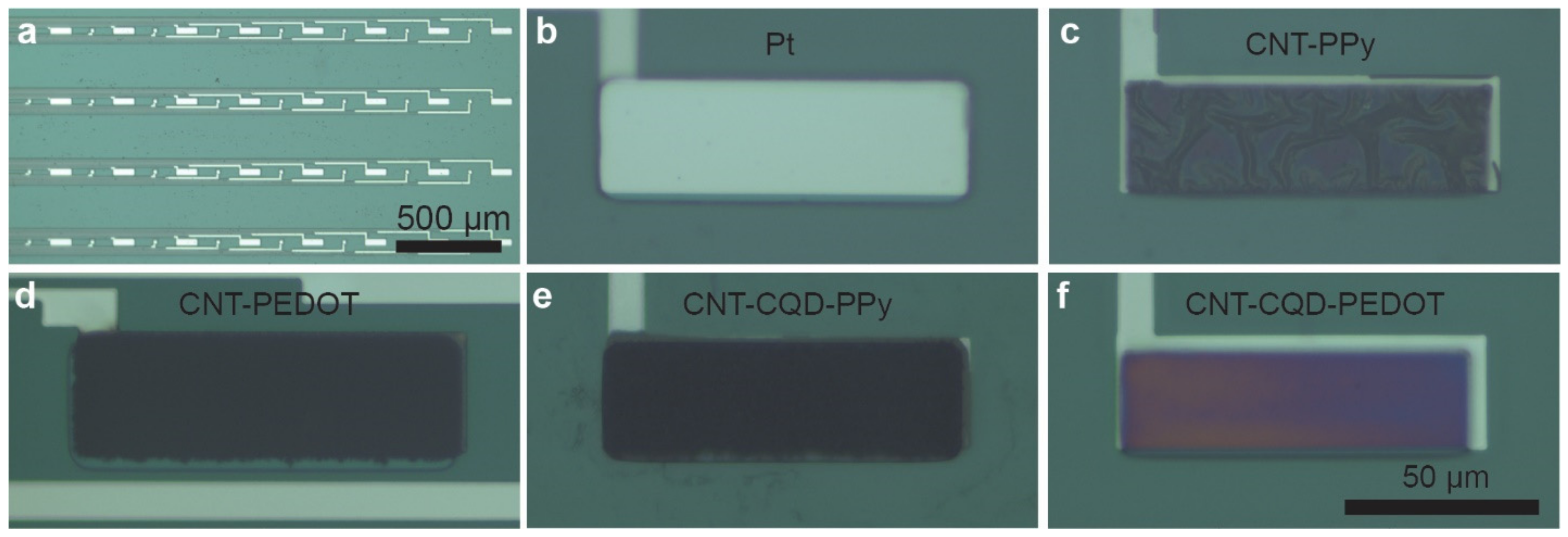

Figure 2. Electrodeposition of carbon-based nanomaterials on Pt microelectrodes. Photographs of the (a) entire microelectrode assembly (5×); (b) bare Pt microelectrode (100 × 30 μm) before nanocomposite deposition (50×); and (c) CNT–PPy, (d) CNT–PEDOT, (e) CNT–CQD–PPy, and (f) CNT–CQDs–PEDOT layers uniformly deposited on the Pt microelectrode (50×). These images were taken using a Zeiss Examiner.
Figure 2. Electrodeposition of carbon-based nanomaterials on Pt microelectrodes. Photographs of the (a) entire microelectrode assembly (5×); (b) bare Pt microelectrode (100 × 30 μm) before nanocomposite deposition (50×); and (c) CNT–PPy, (d) CNT–PEDOT, (e) CNT–CQD–PPy, and (f) CNT–CQDs–PEDOT layers uniformly deposited on the Pt microelectrode (50×). These images were taken using a Zeiss Examiner.
Sensors 24 01893 g002
Sensors 24 01893 g003

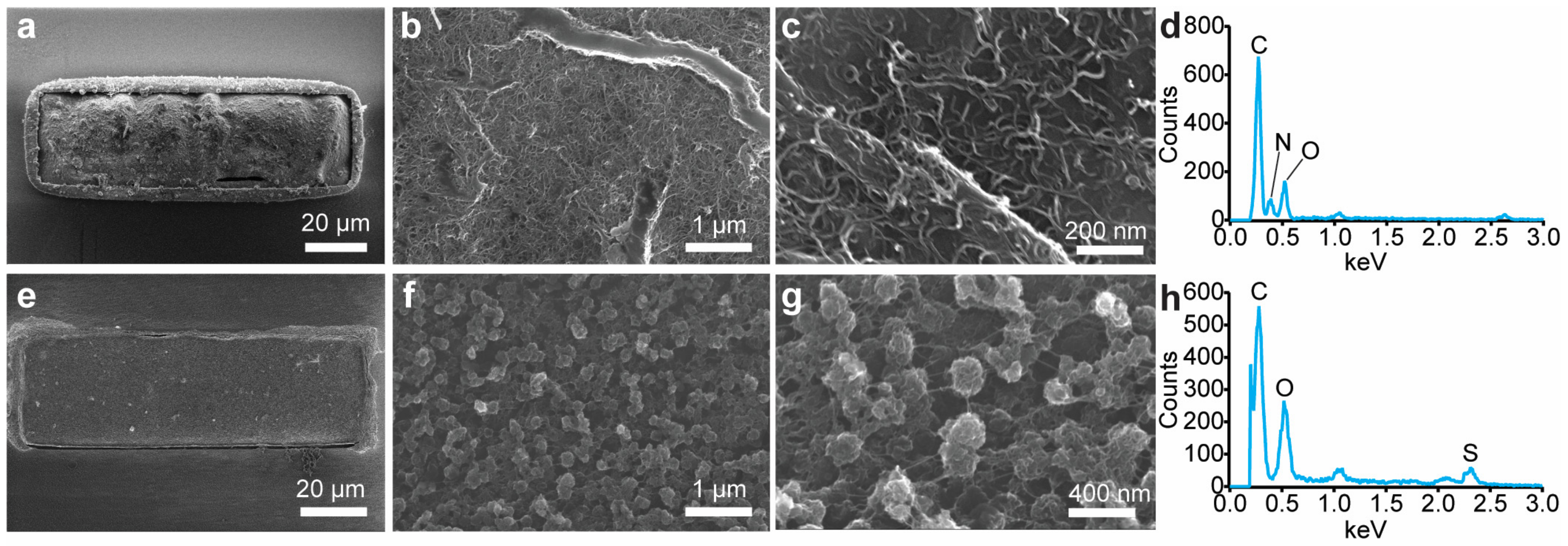

Figure 3. SEM images of CNT–CQD–PPy coated onto a Pt microelectrode (the scales are (a) 20 µm, (b) 1 µm, and (c) 200 nm) and (d) their EDAX analysis. SEM images of CNT–CQD–PEDOT coated onto a Pt microelectrode (the scales are (e) 20 µm, (f) 1 µm, and (g) 400 nm), and (h) their EDAX analysis.
Figure 3. SEM images of CNT–CQD–PPy coated onto a Pt microelectrode (the scales are (a) 20 µm, (b) 1 µm, and (c) 200 nm) and (d) their EDAX analysis. SEM images of CNT–CQD–PEDOT coated onto a Pt microelectrode (the scales are (e) 20 µm, (f) 1 µm, and (g) 400 nm), and (h) their EDAX analysis.
Sensors 24 01893 g003
Sensors 24 01893 g004

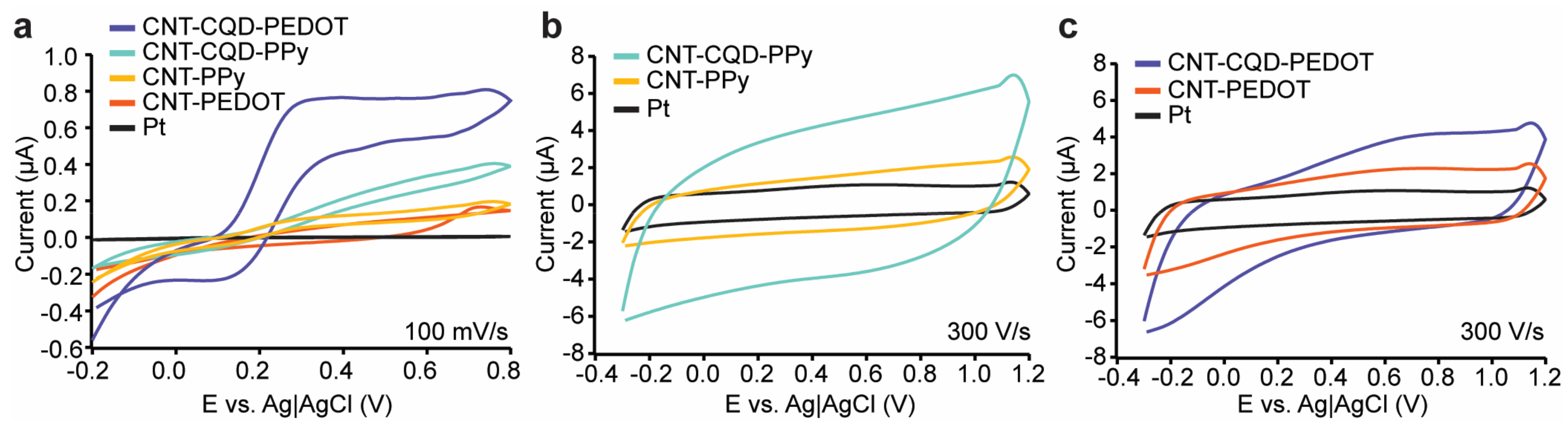

Figure 4. Electrochemical analysis of nanocomposite-coated Pt microelectrodes: (a) CV diagrams at a scan rate of 100 mV/s; (b) FSCV of CNT–PPy, CNT–CQD–PPy, and Pt bare microelectrodes at a scan rate of 300 V/s; (c) FSCV of CNT–PEDOT, CNT–CQD–PEDOT, and Pt bare microelectrodes at a scan rate of 300 V/s.
Figure 4. Electrochemical analysis of nanocomposite-coated Pt microelectrodes: (a) CV diagrams at a scan rate of 100 mV/s; (b) FSCV of CNT–PPy, CNT–CQD–PPy, and Pt bare microelectrodes at a scan rate of 300 V/s; (c) FSCV of CNT–PEDOT, CNT–CQD–PEDOT, and Pt bare microelectrodes at a scan rate of 300 V/s.
Sensors 24 01893 g004
Sensors 24 01893 g005

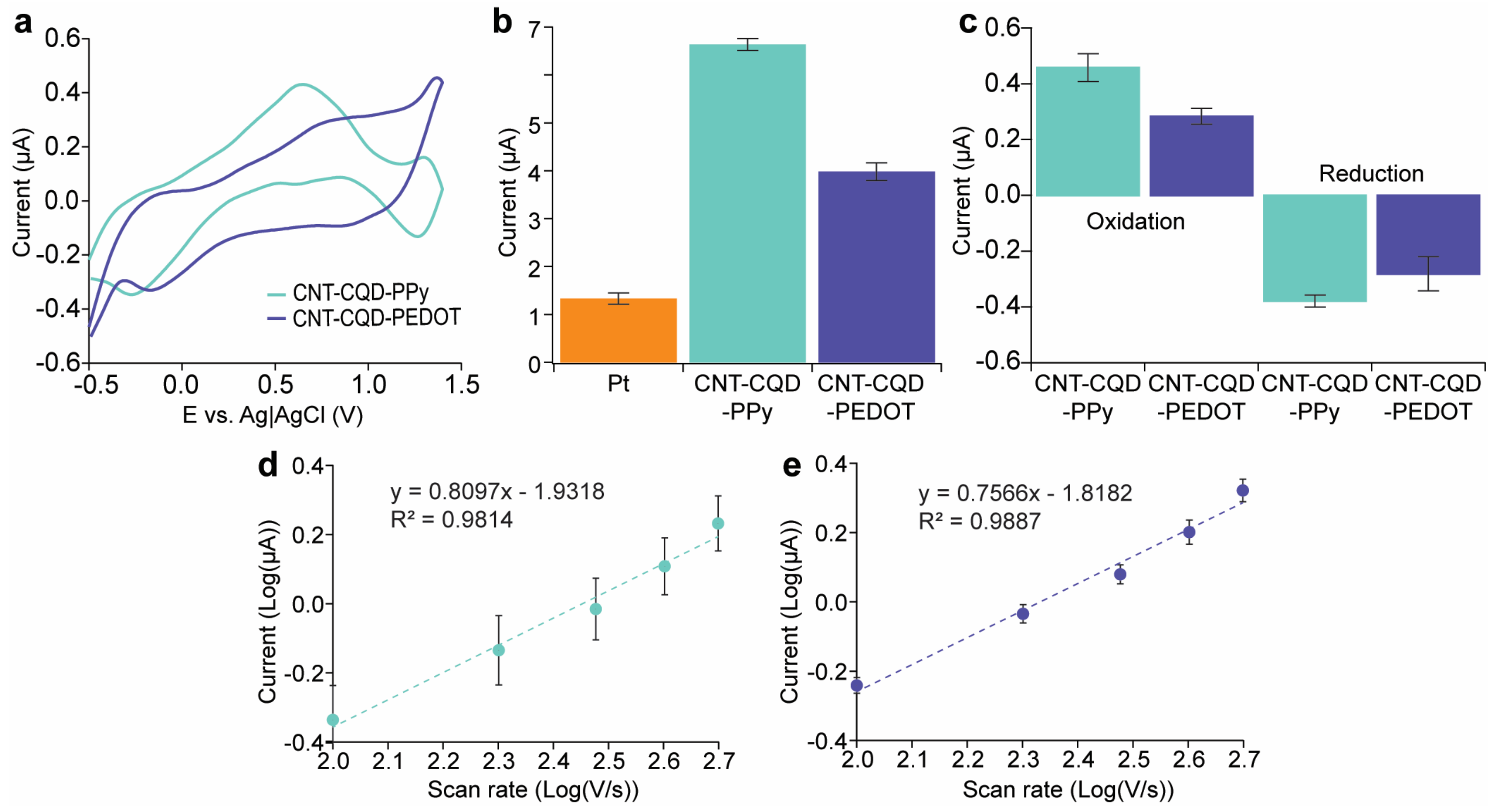

Figure 5. Comparative Analysis of the CNT–CQD–PPy and CNT–CQD–PEDOT layers on Pt microelectrodes: (a) background-subtracted FSCVs with 1 μM dopamine, (b) background charging current (average background charging current (n = 3)), (c) mean anodic and cathodic peak currents with 1 μM dopamine (n = 3), and the experimental scan rate performance for (d) CNT–CQD–PPy (n = 3) and (e) CNT–CQD–PEDOT (n = 3) at a scan rate of 300 V/s.
Figure 5. Comparative Analysis of the CNT–CQD–PPy and CNT–CQD–PEDOT layers on Pt microelectrodes: (a) background-subtracted FSCVs with 1 μM dopamine, (b) background charging current (average background charging current (n = 3)), (c) mean anodic and cathodic peak currents with 1 μM dopamine (n = 3), and the experimental scan rate performance for (d) CNT–CQD–PPy (n = 3) and (e) CNT–CQD–PEDOT (n = 3) at a scan rate of 300 V/s.
Sensors 24 01893 g005
Sensors 24 01893 g006

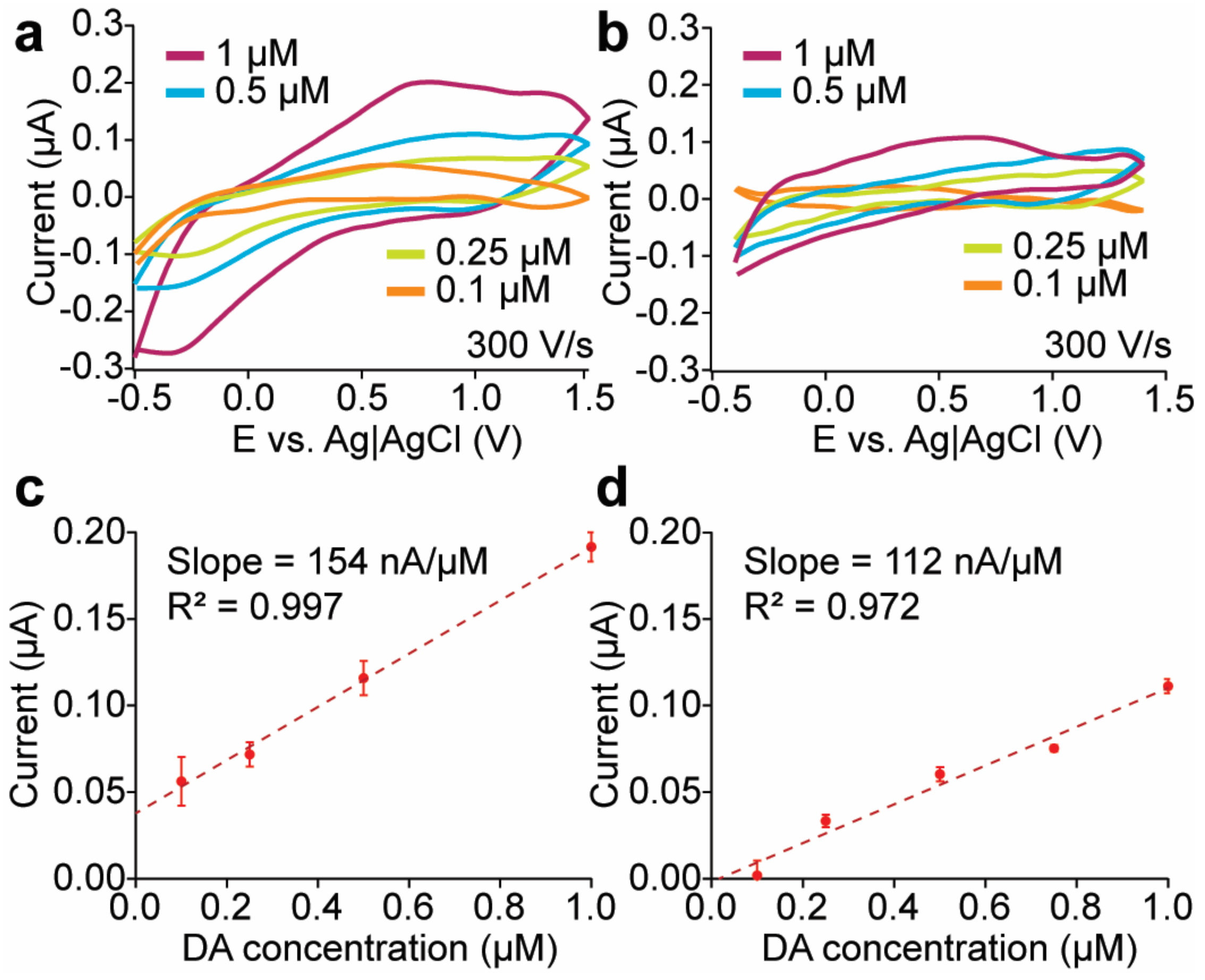

Figure 6. Concentration dependence analysis. The dopamine sensitivity for (a) the CNT–CQD–PPy layer and (b) the CNT–CQD–PEDOT layer. The relationship between the anodic peak current and dopamine concentration for (c) the CNT–CQD–PPy layer and (d) the CNT–CQD–PEDOT layer. Both plots demonstrate a linear response within the 100 nM to 1 μM dopamine concentration range (n = 3) at a scan rate of 300 V/s.
Figure 6. Concentration dependence analysis. The dopamine sensitivity for (a) the CNT–CQD–PPy layer and (b) the CNT–CQD–PEDOT layer. The relationship between the anodic peak current and dopamine concentration for (c) the CNT–CQD–PPy layer and (d) the CNT–CQD–PEDOT layer. Both plots demonstrate a linear response within the 100 nM to 1 μM dopamine concentration range (n = 3) at a scan rate of 300 V/s.
Sensors 24 01893 g006
Sensors 24 01893 g007

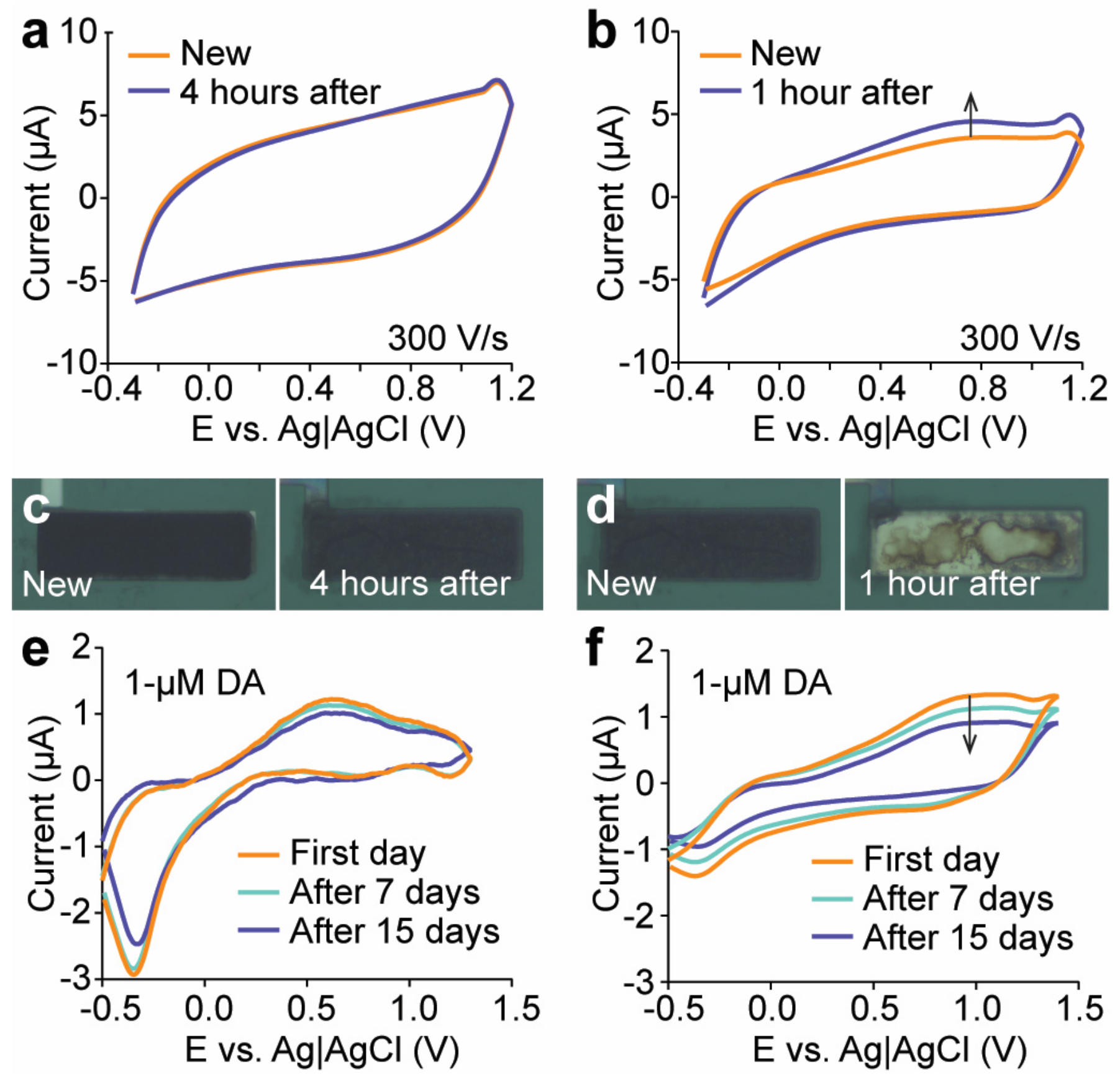

Figure 7. Evaluation of electrode stability. Stability testing in PBS (1X) for (a) CNT–CQD–PPy (over a four-hour period, n = 3) and (b) CNT–CQD–PEDOT (over a one-hour period, n = 3). Continuous waveform application and measurements were performed within potential windows of −0.3 to 1.2 V at a scan rate of 300 V/s. Every 30 min, the microelectrodes were observed using an optical microscope. Microscopic images of the electrode before and after the stability test for (c) CNT–CQD–PPy and (d) CNT–CQD–PEDOT. Weekly repeated background-subtracted FSCV stability tests for (e) CNT–CQD–PPy and (f) CNT–CQD–PEDOT. Measurements were obtained at 7-day intervals within potential windows of −0.5 to 1.5 V at a scan rate of 300 V/s (n = 3). The arrows indicate the direction of drift during the stability test.
Figure 7. Evaluation of electrode stability. Stability testing in PBS (1X) for (a) CNT–CQD–PPy (over a four-hour period, n = 3) and (b) CNT–CQD–PEDOT (over a one-hour period, n = 3). Continuous waveform application and measurements were performed within potential windows of −0.3 to 1.2 V at a scan rate of 300 V/s. Every 30 min, the microelectrodes were observed using an optical microscope. Microscopic images of the electrode before and after the stability test for (c) CNT–CQD–PPy and (d) CNT–CQD–PEDOT. Weekly repeated background-subtracted FSCV stability tests for (e) CNT–CQD–PPy and (f) CNT–CQD–PEDOT. Measurements were obtained at 7-day intervals within potential windows of −0.5 to 1.5 V at a scan rate of 300 V/s (n = 3). The arrows indicate the direction of drift during the stability test.
Sensors 24 01893 g007
Table 1. Comparison of major electrochemical techniques using carbonized electrodes for dopamine detection both in this work and with similarly reported sensors.
Table 1. Comparison of major electrochemical techniques using carbonized electrodes for dopamine detection both in this work and with similarly reported sensors.
Ref.CompositeElectrodeMethodLinear Range (µM)LOD (nM)Surface Area (µm2)Sensitivity (nA/µM)
[42]CNT–PPyAu electrode (MEA)DPV0.005–100.14-0.5
[43]GO–PEDOTAu electrode0.01–100812560.87
[39]CNT–PEDOTCarbon paste electrode0.1–20201.25 × 10744
[46]CNT–PEDOTSilicon-based Microelectrode Arrays (MEA)SWV0.1–1821200108.3
[24]GO–PEDOTGlassy carbon (MEA)0.01–156.2125640.0
[38]CNT–PEDOTCarbon paste electrodeAmperometry1.1–1253001.25 × 1070.25
[47]rGO–PEDOT/NafionAu electrode0.05–7517012569.9
[44]CNT–PPyCFMEFSCV0.05–53.3127811
[3]GO0.025–111223841
[48]CNT–Nafion0.05–1000.812781840
[45]CNT–yarn0.05–2510.842402.5
[24]GO–PEDOTGlassy carbon0.1–1-1256400
This workCNT–CQD–PEDOTPt electrode0.1–1403000154
CNT–CQD–PPy0.1–1353000112
