Emission Characteristics and Factors of Selected Odorous Compounds at a Wastewater Treatment Plant

1
Department of Earth & Environmental Sciences, Sejong University, 98 Gunja-Dong, Gwangjin-Gu, Seoul, 143-747, South Korea
2
Department of Environment and Health, Kosin University, 149-1, Dong Sam Dong, Young Do Gu, Busan, 606-701, South Korea
*
Author to whom correspondence should be addressed.
Sensors 2009, 9(1), 311-326; https://doi.org/10.3390/s90100311
Submission received: 20 October 2008 / Revised: 25 December 2008 / Accepted: 26 December 2008 / Published: 8 January 2009
(This article belongs to the Section Chemical Sensors)

Abstract

:
This study was initiated to explore the emission characteristics of Reduced Sulfur Compounds (RSCs: hydrogen sulfide, methyl mercaptan, dimethyl sulfide, dimethyl disulfide), ammonia and trimethylamine from a Wastewater Treatment Plant (WWTP) located at Sun-Cheon, Chonlanam-Do in South Korea. The study also evaluates flux profiles of the six selected odorous compounds and their flux rates (μg/m2/min) and compares their emission characteristics. A Dynamic Flux Chamber DFC was used to measure fluxes of pollutants from the treatment plant. Quality control of odor samples using a non-reactive sulfur dioxide gas determined the time taken for DFC concentration to reach equilibrium. The reduced sulfur compounds were analyzed by interfacing gas chromatography with a Pulsed Flame Photometric Detector (PFPD). Air samples were collected in the morning and afternoon on one day during summer (August) and two days in winter (December and January). Their emission rates were determined and it was observed that during summer relatively higher amounts of the selected odorous compounds were emitted compared to winter. Air samples from primary settling basin, aeration basin, and final settling basin were tested and the total amount of selected odorous compounds emitted per wastewater ton was found to be 1344 μg/m3 from the selected treatment processes. It was also observed that, in this study, the dominant odor intensity contribution was caused by dimethyl disulfide (69.1%).

1. Introduction

Odors are sensations resulting from the reception of a stimulus by the olfactory sensory system [1]. Humans are sensitive to a variety of odorous chemical compounds. The intensity, detectability, concentration and character of the chemical influence the human perception of an odor [2].
Most odor-producing substances found in domestic wastewater result from the anaerobic decomposition of organic matter containing sulfur and nitrogen. Inorganic gases produced from domestic wastewater decomposition commonly include hydrogen sulfide, ammonia, carbon dioxide and methane. Of these gases, only hydrogen sulfide and ammonia are malodorous. Often odor-producing substances include organic vapors such as indoles, skatoles, mercaptans and nitrogen-bearing organics [3].
Analytical and olfactometric approaches are the two ways that are used to measure odors. Characterization via chemical analysis as sensort or olfactometric characterization have advantages and drawbacks [4]. Complex mixtures, such as environmental air samples, contain many odorous compounds, generally at very low concentrations [5-8]. Analytical methods can identify each odorous compound from a complex mixture of odorants. With this method the concentration of each odorous compound can also be measured. Based on the characteristics of a certain type of odorous compounds, the sensitivity of the analytical method can even exceed the sensitivity of the human sense of smell.
Obnoxious odors from Wastewater Treatment Plants (WWTPs) have been of concern for many years. Recently there has been a greater social focus on odor related problems due to strict air quality regulations and increasing public concern with health and environmental deterioration [9]. Generally, odor emissions from WWTPs are from both point and area sources and are characterized by low concentrations and high air volumes over large areas. To determine the odor emission rate, knowledge of the flow rate and corresponding odor concentration are required. Usually large open area sources are significant contributors to overall odor emissions at WWTPs [10]. When measuring emissions from area sources, an enclosure device (flux chamber) is commonly employed to sample gaseous emissions from a defined surface area of the source. This involves determining the concentration of volatile compounds under a special cover in which aerodynamics and flow rates are controlled. The emission rate is expressed as the product of this concentration and flow rate.
Various types of reduced sulfur and nitrogen compounds behave as the key components of odor (and nuisance) [2, 9, 11]. Therefore, a precise description of the gas composition from Wastewater Treatment Plants (WWTPs) can be highly valuable in assessing the environmental impact of malodor issues in both the WWTPs and its surrounding areas [12-14]. This study has been initiated to explore the emission characteristics of Reduced Sulfur Compounds - hydrogen sulfide (H2S), methyl mercaptan (CH3SH), dimethyl sulfide ((CH3)2S), dimethyl disulfide ((CH3)2S2) - ammonia (NH3), and trimethyl amine ((CH3)3N) from a typical medium-sized Wastewater Treatment Plant (WWTP) in Korea. Table 1 presents the selected odorous compounds and their corresponding odor threshold values associated with domestic wastewater.
The odor threshold refers to the minimum concentration required for an individual to perceive the odor, although the exact type of odor may not be identifiable [2]. A Wastewater Treatment Plant (WWTP), located at Sun-Cheon, Chonlanam-Do was chosen as the test facility (Figure 1). It was chosen as it represents a typical medium sized WWTPs in Korea. It employs the activated sludge treatment process, which is the most common treatment process for the Korean wastewater treatment plant.
In this study, emission characteristics of six selected odorous compounds from a WWTPs were investigated. Also, this study evaluated flux profiles of the six selected odorous compounds emitted from the water surface of the WWTP using a Dynamic Flux Chamber (DFC) which is found to be a suitable sampling device for area sources such as wastewater treatment plants. The paper provides various odorous compounds flux rates (μg /m2/min) based on the treatment processes at the WWTP. The results of this paper can be used as a background for possible contribution to the national and international study on emission characteristics and factors at WWTPs. Comparisons of odorous compounds emission characteristics based on various factors are also made.

2. Materials and Methods

2.1. Sun-Cheon Wastewater Treatment Plant as a Sampling Site

The emission characteristics of Reduced Sulfur Compounds (hydrogen sulfide, methyl mercaptan, dimethyl sulfide, dimethyl disulfide) and ammonia and trimethylamine were investigated as the major odorous compounds from WWTPs. As mentioned previously, a WWTP located at Sun-Cheon, Chonlanam-Do was chosen as the test facility. Primary settling basin, aeration basin, and final settling basin were selected as sampling sites for odor compounds at the WWTP. The test WWTP treats 130,000 tons of wastewater per day. Air samples were collected in the morning and afternoon on one day during summer (August) and two days in winter (December and January). Three days used to gather the samples will only give a rough estimate of the results. More samples will produce more accurate results taking into consideration the different weather conditions that may arise. Data was gathered in the three days because of the restrictions at that time. We were allowed to get samples only thrice.
The ambient air and sewage temperature during the summer season fell between 29.5∼32.4, (Average 31.3 °C) and 22.0∼24.2 (average 24.2 °C).The Winter's average temperatures were 9.6 °C and 12.4 °C for both the ambient air and sewage respectively. Table 2 shows the temperature and pressure of ambient air, DFC, and sewage surface during sampling.

2.2. Manufacturing the Dynamic Flux Chamber (DFC) for sample collection

The DFC method can be used to measure pollutant fluxes from land or liquid surfaces. In the former case, the chamber is installed directly on the land surface, while a floating tube is inserted into the bottom of the chamber for the latter case [18-19]. As we intended to measure fluxes from a sewage treatment plant, a DFC system with floating tube was used to measure all flux values. Figure 2 shows a schematic diagram of the DFC that was used.
It was built with an acrylic wall and a dome shape on the top side. The wall of the acrylic chamber was covered with a polytetrafluoroethylene (PTFE) film to reduce sampling artifacts (e.g., reactions between the inner wall and odorous materials). The DFC system was operated by supplying clean air into the chamber inlet to estimate the flux. The flow rates of air entering and exiting the chamber were set to be only slightly different at 5 and 3 L/min, respectively. In order to maintain constant air flow in the DFC, a Teflon stirrer was operated at fixed rotating rates at all times. A vent hole was made on the top of the DFC to balance the pressure difference between the inlet and outlet of the chamber. A K-type thermocouple was also inserted through the top of the DFC to monitor temperature changes inside the chamber. A decompression union (made of a stainless steel material with a 1/4″ bulkhead union [Swagelok, USA]) was installed to maintain the inner pressure of the DFC similar to air pressure. All connection lines of the DFC system were made of 1/4″ Teflon tubing.

2.3. Quality control for odor samples with DFC

An experiment was performed to determine the DFC concentration equilibrium time. Sulfur dioxide, which is a non-reactive gas, was used for this experiment. A Teledyne/API-100A SO2 Analyzer (USA), was used to measure sulfur dioxide. The amount of gas for the DFC inlet and outlet was set at 5 L/min and 3 L/min, based on previous research [19]. It was found that the most stable sampling condition was with a DFC stirring speed of 120 rpm, and sampling 60 minutes after setting the chamber (Figure 3).

2.4. Collection of odor samples

A lung sampling method was devised by building up an internal vacuum. This allows collection of an air sample without contacting the vacuum pump line. The lung sampler can be used to reduce possible sources of sample contamination. This sampling system was useful for collecting samples of sulfur compounds and trimethylamine. Initially, an empty Tedlar bag (5 or 10 L) was placed inside the lung sampler and connected to the sample inlet port. Then a vacuum was created inside the lung sampler by a vacuum pump. The valve was opened to pull an air sample stream into the Tedlar sampling bag. This vacuum sampling was operated to pull at a flow rate of 3 L/min measured at the DFC outflow. Cleaning of Tedlar bags involved flushing them with nitrogen gas for a period of about twenty-four hours. All Tedlar bags used for sampling were pre-conditioned more than once by the same sample gas prior to the actual sampling. Strongly absorbent odors can be partially absorbed on the inside wall of the DFC or sampling tube, or can react with other odorous compounds. Accordingly, the inside wall of the DFC was painted with Teflon to minimize ammonia sample loss.

2.5. Analysis of reduced sulfur compounds

To measure Reduced Sulfur Compounds (RSCs), a gas chromatography (GC, Model DS 6200, Donam Instruments, Korea) was interfaced with a pulsed flame photometric detector (PFPD, Model 5380, O.I. Co.) using a loop injection system. A thermal desorption unit (TDU, UNITY, Markes, Ltd., UK) could concentrate the gas samples using a cold trap and then transfer it to GC/PFPD system. To determine the optimum resolution between different RSCs, we used a DB-VRX column (60m × 0.32, 1.8 mm ID) with each cycle running at 20 min intervals. The sample volume was modified at each analysis depending on the sulfur contents of samples. The GC conditions for gas detecting system were set as shown in table 3.
A primary standard contained in a cylinder containing equimolar concentrations (10 ppm with 5% accuracy) of Reduced Sulfur Compounds (H2S, CH3SH, DMS, and DMDS) was initially purchased (Ri Gas, Corp., Korea). These primary standards were then used after dilution using a 10 mL gas-tight syringe. To facilitate the calibration of RSC, the system was operated in the forced linear mode with the square root function on. More details of the Reduced Sulfur Compounds analysis are given in Table 2.

2.6. Analysis of Ammonia

The colorimetric indophenol blue technique was used to analyze the air samples for their gaseous ammonia content. The indophenol method for determining ammonia in air and aerosol samples is based on the formation of an indophenol blue pigment during the reaction of phenol and hypochlorite in the presence of ammonia. The absorbing reagent (10 mL) was placed in the impinger and the sampling train was assembled in the following manner: inverted funnel, pre-filter (pre-washed Whatman No. 41), impinger, moisture trap (U-tube with silica gel), rotameter and pump. Air samples were passed through at a flow rate of 5L/min. The level of the sampling reagent in the impinger before sampling was marked and it was made up to the mark with water after sampling to compensate for the loss due to evaporation.

2.7. Analysis of Trimethylamine

Analysis of trimethylamine was performed with a Solid Phase Microextration (SPME) fiber [1], accompanied with a GC/NPD (Nitrogen Phosphorous Detector). Sixty five micrometer diameter PDMS-divinylbenzene was used as SPME fiber for adsorption of trimethylamine. The SPME adsorption process was performed at a constant temperature with the help of an incubator. The trimethylamine analysis instrument was a GC-NPD (SHIMADU 17A, Japan). The column for GC was crompack volamine (60 m × 0.32 mm × 0.45 μm, Varian). Oven temperature was maintained at 60 °C for 20 min and then increased to 250 °C at a rate of 20 °C/min. It was maintained at 250 °C for 3 min.
Air and hydrogen gas flows to the GC were 80 and 30 mL/min each. The temperature for the NPD was 250 °C and the current was set at 80 pA. Helium (99.999%) was used as the carrier gas. Flow pressure at the column was set at 60 kPa for 20 min and was increased to 135 kPa at a rate of 10 kPa/min. It was maintained at 135 kPa for 5 min. Ninety five ppm of CRM (Certified Reference Material) from the Korean Research Institute of Standards and Science (KRISS) was used as the standard gas for trimethylamine. Dilution for standard gas was performed based on volume ratio with a Tedlar bag (polyvinyl fluoride bag, SKC. Inc, USA).

3. Results and Discussion

Table 4 shows the summer time measurement results of the selected odorous compounds at the Wastewater Treatment Plant. At the primary settling basin, generally higher concentrations of the odorous compounds (except hydrogen sulfide) were measured. Ammonia recorded the highest concentration (506 ppb), followed by dimethyl disulfide (207 ppb). Dimethyl disulfide had the biggest concentration fluctuation.
Table 5 shows the measurements of the selected odorous compounds during winter. During winter, relatively higher concentrations of hydrogen sulfide and ammonia were detected at the primary settling basin. In the case of the other odorous compounds, higher concentrations were detected at the aeration basin.
Aneja et al. found out that the average flux rate for ammonia from six anaerobic waste water storage and treatment lagoons (primary, secondary and tertiary) was in the range of 40.7 – 120.3 μg/m2/min [20]. Our study shows an average flux rate for ammonia in the range of 97 – 870 μg/m2/min. Byler et al. [21] in their study on odor emission rates from phototropic lagoons estimated the emission rates of hydrogen sulfide to be 6 – 114 μg/m2/min. Catalan et al. [22] found that the average flux rate from the surfaces of primary and secondary wastewater clarifiers were in the 0.066 – 23.4 μg/m2/min range for hydrogen sulfide, 0.066 – 11.4 for methyl mercaptan, 0.00144 – 10.2 μg/m2/min for dimethyl sulfide and 0.0336 – 49.8 μg/m2/min for dimethyl disulfide. This is slightly different from the results of our study which reveals average flux rates between the ranges of 0.08 – 22.05 μg/m2/min for hydrogen sulfide, 0.08 – 5.84 for methyl mercaptan, 0.41 – 4.32 for dimethyl sulfide and 0.35 – 105.47 μg/m2/min for dimethyl disulfide.
The Dynamic Flux Chamber (DFC) gave estimates of emission fluxes of the odorous compounds (μg/m2/min). The odorous compounds fluxes were calculated by considering the mass balance of odors in the DFC [20]. The fluxes were estimated by using the following equation (1):
J = V A ( L A C V + Q V ) C
where:
  • J : Odor compound fluxes expressed as mass per area per time (μg/m2/min)
  • V : Volume of DFC (m3)
  • A : Water surface area covered by DFC (m2)
  • L : The loss rate from the chamber wall per unit area as first order in concentration (m/min)
  • AC : Surface area of the inner walls of DFC (m2)
  • Q : Flow rate within the DFC (m3/min)
  • C : Concentrations of odor compounds in the DFC (μg/m3)
Loss rate is the loss that occurs due to the reaction with the inner surfaces of the chamber. Roelle et al. [23] and Aneja et al. [24-25] estimated the ammonia sampling loss rate of the DFC to be 0.02760 m/min and 0.01723 m/min respectively. In order to account for possible loss from the chamber system, we used the average loss rate of these two values in our study, assuming that they hold true for our experiment as well, since the same chamber system was used. Table 6 shows the averaged emission flux (μg/m2/min) from the WWTP for each selected odorous compound.
At the WWTP, the surface area of the primary settling basin is 1872 m2, the area of the aeration basin is 5,760 m2, and the area of the final settling basin is 5,024 m2. Surface areas of the treatment processes at the Wastewater Treatment Plant were used for estimation of emission flux Figure 4 illustrates how the annual total odorous compounds emission flux per unit area is highest at the primary settling basin (28.72 μg/m2/min). Odorous compounds emission fluxes for the aeration basin and final settling basin were 7.71 and 4.62 μg/m2/min each.
However, as the surface areas for the aeration basin (5760 m2) and the final settling basin (5024 m2) are larger than that of the primary settling basin (1872 m2), the total amount of the selected odorous compounds emission for the treatment processes are similar with each other. The total amount of the selected odorous compounds emissions per year for the primary settling basin, aeration basin, and final settling basin were 28.3, 23.3 and 12.2 kg/year respectively.
Table 7 shows the amount of the odorous compounds emitted per treated wastewater ton from each treatment process.
The total amount of the selected odorous compounds emitted per wastewater cubic meter was 1,334 μg/m3 from each treatment processes. From the primary settling basin, 595 μg of odorous compounds were emitted per cubic meter of wastewater and from the aeration basin and the final settling basin, 492 and 257 μg each was emitted. Figure 5 illustrates the amount of annual average odorous compounds per treated wastewater cubic meter (μg/m3) for each treatment process.
Table 8 shows the selected odorous compounds' composition flux ratio from each treatment process.
Out of all the selected odorous compounds, ammonia occupied the biggest portion. However, the emission flux composition ratio increased from the primary settling basin (66.0%) to the final settling basin (88.9%). To observe the odor intensity contribution ratio from each odorous compound, the measured concentration was divided by its own threshold value. Odor intensity contribution ratios are dramatically different when compared to emission flux composition ratio. Figure 6 and Table 8 show the odor intensity contribution ratio for each odor compound.
Even though the composition ratio for ammonia is dominant at all the treatment processes, the dominant odor intensity contribution was caused by dimethyl disulfide (69.1%). During summer, relatively higher amounts of the selected odorous compounds were emitted compared to that of winter. This may have been caused by higher temperatures during summer.

4. Conclusions

Emission characteristics of six odorous compounds from a wastewater treatment plant at Sun-Cheon, Korea were investigated. To evaluate their emission fluxes from the WWTP, a Dynamic Flux Chamber (DFC) was used. The targeted odorous compounds selected were hydrogen sulfide, methyl mercaptan, dimethyl sulfide, dimethyl disulfide, ammonia, and trimethylamine. Higher concentrations of the odorous compounds (except hydrogen sulfide) were detected at the primary settling basin. During winter, relatively higher concentrations of hydrogen sulfide and ammonia were detected at the primary settling basin. In the case of the other odorous compounds, higher concentrations were detected at the aeration basin.
Annual total of selected odorous compound emission flux per unit area of the primary settling basin was 28.72 μg/m2/min. Odorous compounds emission fluxes for the aeration basin and the final settling basin were 7.71 and 4.62 μg/m2/min each. Total amount of selected odorous compounds emission per year for the primary settling basin, aeration basin, and final settling basin were 28.3, 23.3 and 12.2 kg/year respectively. During summer, relatively higher amounts of the odorous compounds were emitted compared to winter. This may have been caused by higher temperatures during summer.
An average flux rate for ammonia was in the range of 97 – 870 μg/m2/min. In the case of hydrogen sulfide, it was measured between the range of 0.08 – 22.05 μg/m2/min and it was 0.08 – 5.84 for methyl mercaptan, 0.41 – 4.32 for dimethyl sulfide, 0.35 – 105.47 μg/m2/min for dimethyl disulfide each.
Five hundred ninety five μg of selected odorous compounds were emitted per treated wastewater cubic meter from the primary settling basin, while from the aeration basin and final settling basin, 492 and 257 μg/m3 were emitted each. In the case of ammonia, the emission flux composition ratio increased from the primary settling basin (66.0%) to the final settling basin (88.9%). Even though the composition ratio for ammonia is dominant at all the treatment processes, the dominant odor intensity contribution was caused by dimethyl disulfide (69.1%).

References

  1. Davoli, E.; Gangai, M.L.; Morselli, L.; Tonelli, D. Characterisation of Odorants Emissions from Landfills by SPME and GC/MS. Chemosphere 2003, 51, 357–368. [Google Scholar]
  2. Muezzinoglu, A. A Study of Volatile Organic Sulfur Emissions Causing Urban Odors. Chemosphere 2003, 51, 245–252. [Google Scholar]
  3. Bowker, R.P.G.; Smith, J.M.; Webster, N.A. Odor and Corrosion Control in Sanitary Sewerage Systems and Treatment Plants; Taylor & Francis: Philadelphia, PA, 1989. [Google Scholar]
  4. Gostelow, P.; Longhurst, P.J.; Parsons, S.A.; Stuetz, R.M. Sampling for Measurement of Odours; IWA Publishing: London UK, 2003. [Google Scholar]
  5. Gostelow, P.; Parsons, S.A.; Stuetz, R.M. Odour Measurements for Sewage Treatment Works. Water Research 2001, 35(3), 579–597. [Google Scholar]
  6. Schiffman, S.S.; Bennett, J.L.; Raymer, J.H. Quantification of odors and odorants from swine operations in North Carolina. Agr. Forest Meteorol 2001, 108, 213–240. [Google Scholar]
  7. Parker, T.; Dottridge, J.; Kelly, S. Investigation of the Composition and Emissions of Trace Components in Landfill Gas, Environment Agency, England and Wales. R&D Technical Report 2002. P1-438/TR. [Google Scholar]
  8. Filipy, J.; Rumburg, B.; Mount, G.; Westberg, H.; Lamb, B. Identification and quantification of volatile Organic Compounds from a Dairy. Atmos. Environ. 2006, 40, 1480–1494. [Google Scholar]
  9. Kim, K.H.; Jeon, E.C.; Koo, Y.S.; Im, M.S.; Youn, Y.H. An On-line Analysis of Reduced Sulfur Gases in the Ambient Air Surrounding a Large Industrial Complex. Atmos. Environ. 2007, 41, 3829–3840. [Google Scholar]
  10. Leyris, C.; Guillot, J.M.; Fanlo, J.L; Pourtier, L. Comparison and Development of Dynamic Flux Chambers to Determine Odorous Compound Emission Rates from Area Sources. Chemosphere 2005, 59, 415–421. [Google Scholar]
  11. Shon, Z.H.; Kim, K.H.; Jeon, E.C.; Kim, M.Y.; Kim, Y.K; Song, S.K. Photochemistry of Reduced Sulfur Compounds in a Landfill Environment. Atmos. Environ. 2005, 39, 4803–4814. [Google Scholar]
  12. Kim, K.H. Some Insights into the Gas Chromatographic Determination of Reduced Sulfur Compounds (RSCs) in Air. Environ. Sci. Technol. 2005, 39, 6765–6769. [Google Scholar]
  13. Choi, Y.J.; Kim, K.H.; Jeon, E.C. Odorous Pollutant Concentration Levels in the Ban-wall Industrial Area and its Surrounding Regions. J. Kor. Earth Sci. Soc. 2006, 27, 209–220. [Google Scholar]
  14. Kim, K.H.; Choi, Y.J.; Jeon, E.C; Sunwoo, Y. Characterization of Malodorous Sulfur Compounds in Landfill Gas. Atmos. Environ. 2005, 39, 1103–1112. [Google Scholar]
  15. Water Environment Federation & American Society of Civil Engineers. Odor Control in Wastewater Treatment Plants. WEF Manual of Practice No. 22 ASCE Manuals and Reports on Engineering Practice No. 82.
  16. US, EPA. Guide to Field Storage of Biosolids and Other Organic By-Products Used in Agriculture and for Soil Resource Management.; EPA/832-B-00-007; EPA Office of Wastewater Management: Washington, D.C., July 2000. [Google Scholar]
  17. Annual Reports of Japan Environment Sanitation Center 1990, 17, 77–89.
  18. Butnor, J.R; Johnsen, K.H. Calibrating Soil Respiration Measures with a Dynamic Flux Apparatus using Artificial Soil Media of Varying Porosity. Eur. J. Soil Sci. 2004, 55, 639–647. [Google Scholar]
  19. US EPA. Measurement of Gaseous Emission Rates from Land Surfaces using an Emission Isolation Flux Chamber User's Guide.; 1986; EPA contract No. 68-02-3889. [Google Scholar]
  20. Aneja, V.P.; Bunton, B.; Walker, J.T.; Malik, B.P. Measurement and Analysis of Atmospheric Ammonia Emissions from Anaerobic Lagoons. Atmos. Environ. 2001, 35, 1949–1958. [Google Scholar]
  21. Byler, J.; Schulte, D.D.; Koelsch, K.K. Odor, H2S and NH3 Emissions from Phototrophic and Non-Phototrophic Anaerobic Swine Lagoons. ASAE 2004. Paper No. 044159. [Google Scholar]
  22. Catalan, L.; Liang, V.; Johnson, A.; Jia, C.; O'Connor, B.; Walton, C. Emission of Reduced Sulphur Compounds from the Surface of Primary and Secondary Wastewater Clarifiers at a Kraft Mill. Environ. Monit. Asses. 2008. [Google Scholar] [CrossRef]
  23. Roelle, P.A.; Aneja, V.P.; Gay, B.; Geron, C; Pierce, T. Biogenic Nitric Oxide Emissions from Cropland Soils. Atmos. Environ. 2001, 35, 115–124. [Google Scholar]
  24. Aneja, V.P.; Malik, B.P.; Tong, Q.; Kang, D; Overton, J.H. Measurement and Modeling of Ammonia Emissions at Waste Treatment Lagoon-atmospheric Interface. Water Air Soil Pollut. Focus 2001, 1, 177–188. [Google Scholar]
  25. Aneja, V.P.; Kim, D.S.; Arya, S. P.; Robarge, W.; Westerman, P.; Williams, M.; Dickey, D.; Arkinson, H.; Semunegus, H; Blunden, J. An Integrated Study of the Emissions of Ammonia, Odor and Odorants, and Pathogens and Related Contaminants from Potential Environmentally Superior Technologies for Swine Facilities-Program OPEN (Odors, Pathogens, and Emissions of Nitrogen). Proceedings of the International Symposium on Gaseous and Odors Emissions from Animal Production Facilities, Horsens, Denmark, June 1-4, 2003; pp. 478–484.
Figure 1. Location of Sun-Cheon Wastewater Treatment Plant.
Figure 1. Location of Sun-Cheon Wastewater Treatment Plant.
Sensors 09 00311f1

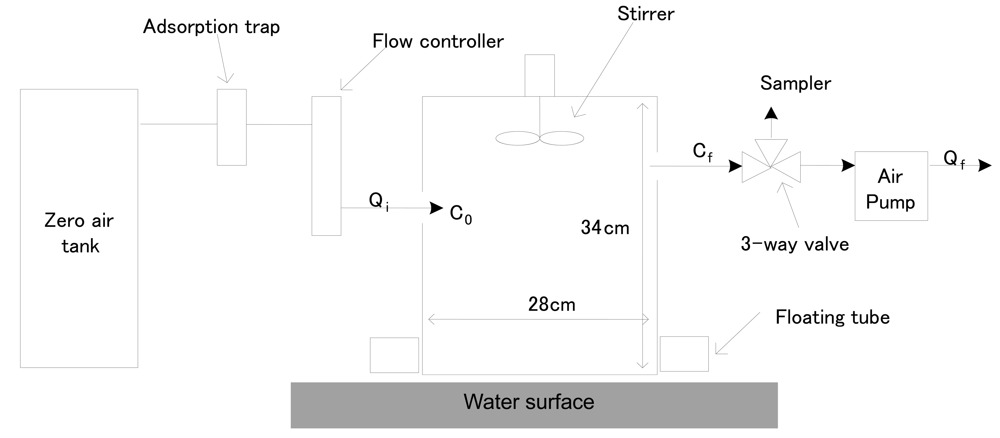

Figure 2. A Schematic Diagram of Dynamic Flux Chamber (DFC).
Figure 2. A Schematic Diagram of Dynamic Flux Chamber (DFC).
Sensors 09 00311f2

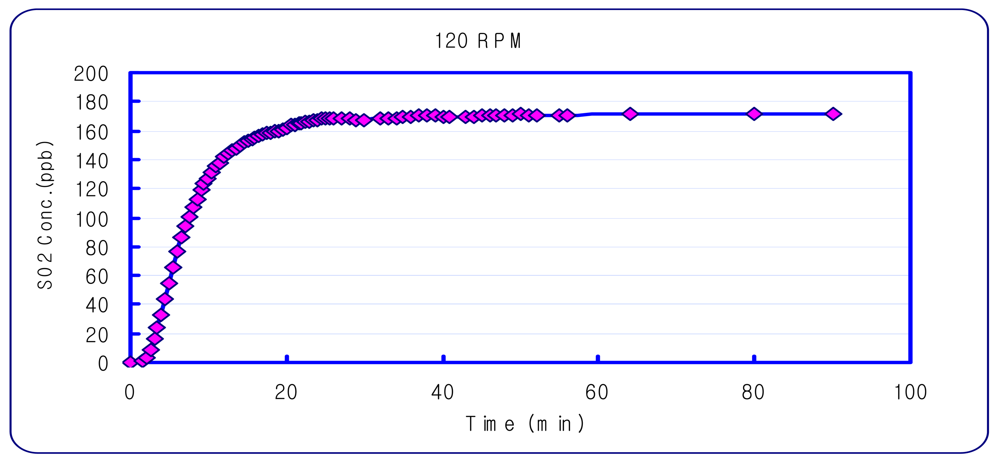

Figure 3. Concentration Variation inside the DFC with a 120 rpm stirrer.
Figure 3. Concentration Variation inside the DFC with a 120 rpm stirrer.
Sensors 09 00311f3

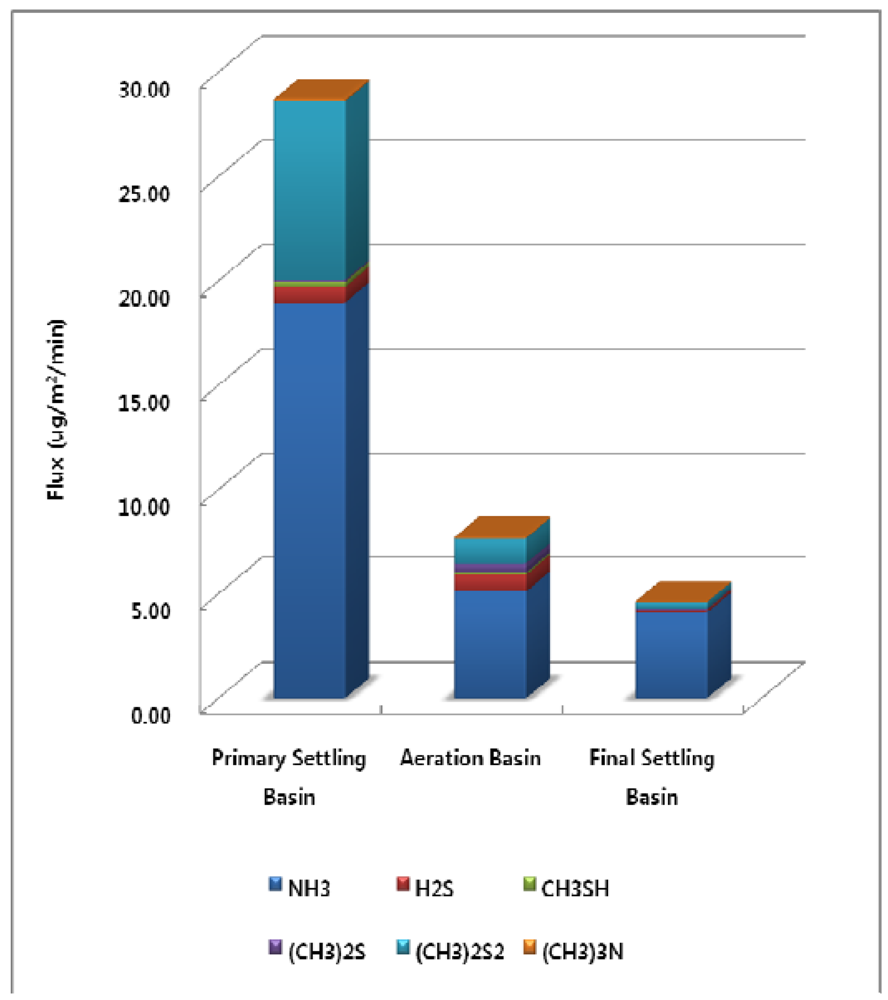

Figure 4. Annual Odorous Compounds Emission Flux from each Treatment Process.
Figure 4. Annual Odorous Compounds Emission Flux from each Treatment Process.
Sensors 09 00311f4

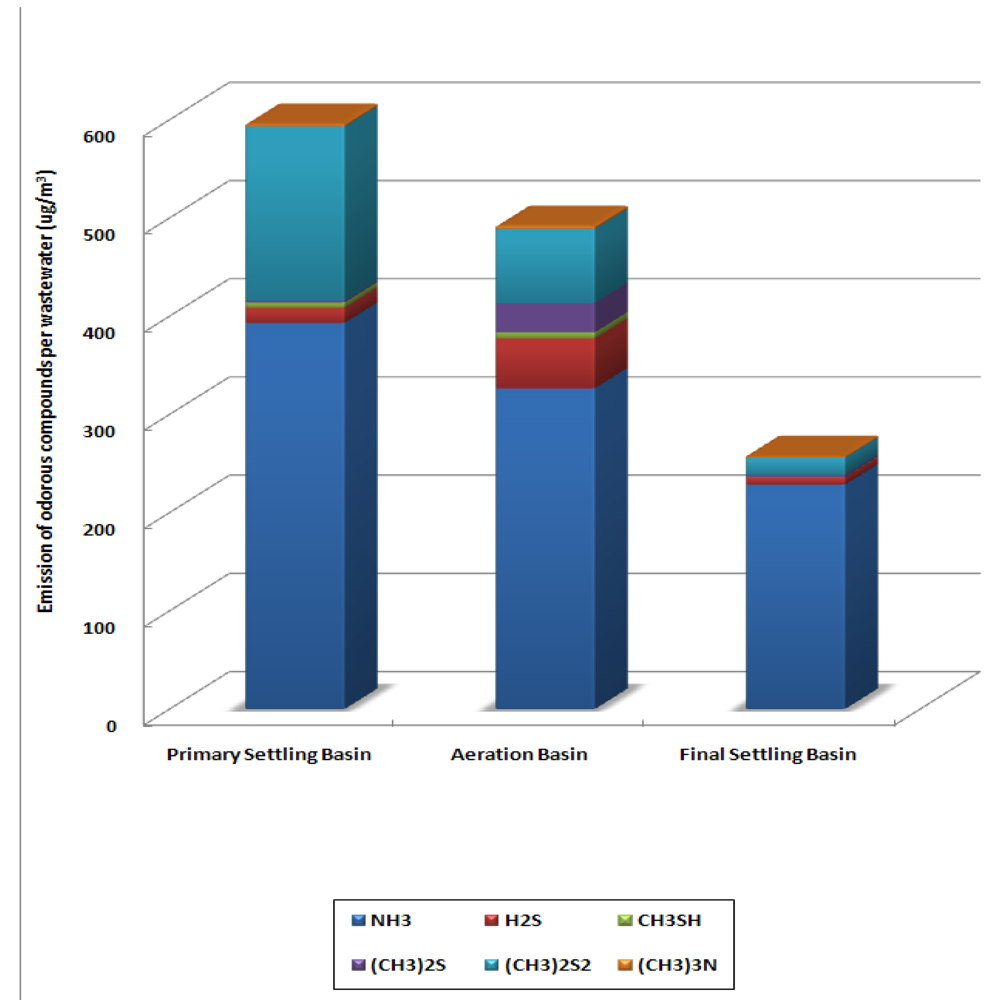

Figure 5. Amount of the Selected Odorous Compounds Emitted per Treated Wastewater (μg/m3) from Each Treatment Process.
Figure 5. Amount of the Selected Odorous Compounds Emitted per Treated Wastewater (μg/m3) from Each Treatment Process.
Sensors 09 00311f5

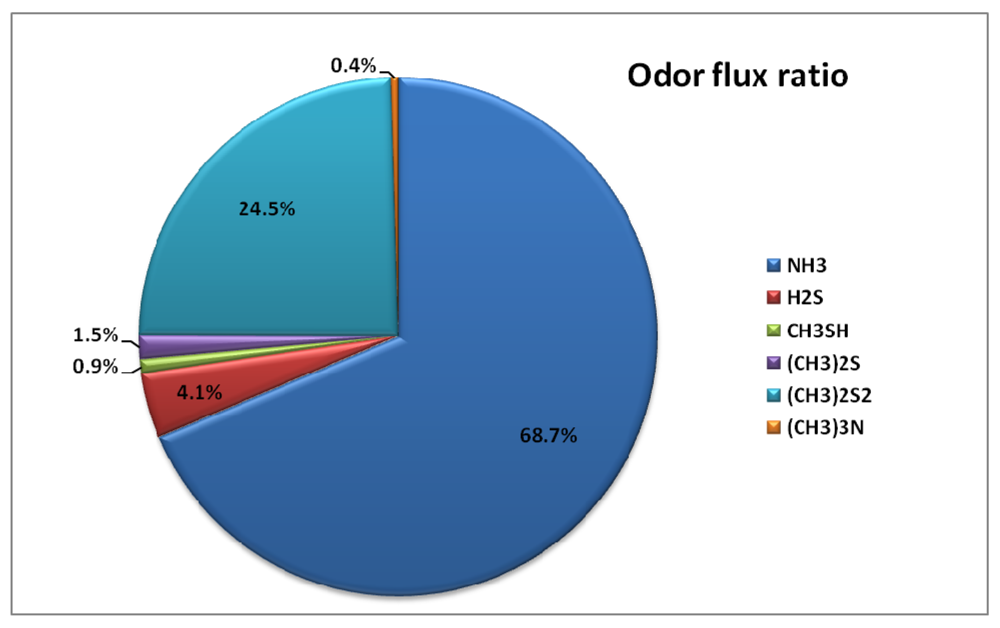

Figure 6. Annual Emission of odorous compounds Flux Composition Ratio and Odor Intensity Contribution Ratio.

Figure 6. Annual Emission of odorous compounds Flux Composition Ratio and Odor Intensity Contribution Ratio.
Sensors 09 00311f6
Table 1. Selected Odorous Compounds from Wastewater Treatment Plant and their Corresponding Odor Threshold values.
Table 1. Selected Odorous Compounds from Wastewater Treatment Plant and their Corresponding Odor Threshold values.
CompoundOdor Threshold (ppm)Characteristic Odor
Hydrogen sulfide (H2S)0.0005aRotten eggs
Methyl mercaptan (CH3SH)0.0016bDecayed cabbage
Dimethyl sulfide ((CH3)2S)0.001aDecayed vegetables
Dimethyl disulfide ((CH3)2S2)0.003cVegetable sulfide
Ammonia (NH3)5.2bPungent, irritating
Triemethylamine ((CH3)3N)0.0004aAmmonical, fishy
aWEF Manual of Practice No. 22 ASCE Manuals and Reports on Engineering Practice No. 82 [15].
bGuide to Field Storage of Biosolids – Odor Characterization, Assessment and Sampling [16].
cAnnual Reports of 1990 – Japan Environment Sanitation Center [17].
Table 2. Temperature and Pressure of Ambient Air, DFC and Sewage Surface during Sampling.
Table 2. Temperature and Pressure of Ambient Air, DFC and Sewage Surface during Sampling.
Sampling date and pointsTemperature (°C)Ambient pressure(mmHg)
Date(season)Sampling PointsAmbientDFCSewage
SummerA.MPrimary settling basin31.529.322.0751.5
Aeration basin31.026.827.9
Final settling basin29.527.923.0
P.MPrimary settling basin31.930.422.9
Aeration basin32.428.626.1
Final settling basin31.432.123.5
WinterA.MPrimary settling basin11.212.614.1756.5
Aeration basin9.816.411.6
Final settling basin10.112.913.2
P.MPrimary settling basin9.118.214.0
Aeration basin10.611.713.0
Final settling basin10.514.612.7
WinterA.MPrimary settling basin9.59.512.2754.6
Aeration basin7.88.911.5
Final settling basin8.414.711.7
P.MPrimary settling basin9.423.312.1
Aeration basin9.218.711.7
Final settling basin9.420.411.4
Table 3. Operational Condition of TDU-GC/PFPD for Reduced Sulfur Compounds.
Table 3. Operational Condition of TDU-GC/PFPD for Reduced Sulfur Compounds.
TDUGC/PFPD
Cold trap packingCarbopack B+Silica GelCarrier gasN2
flowColumn20 psi
Air (1)10 mL/min
Air (2)10 mL/min
H211.5 mL/min
Adsorption flow5∼10 mL/minGC ColumnBP-1 (60 m × 0.32 mm, 5.0 um)
Cold trap high temp.300 °C
Cold trap low temp.-15 °COven Temp.40 °C (10min) − 5 °C/min
Hold time5.0 min
Outlet split5.0 mL/min(5:1 split ratio)- 200 °C (5min)
Flow path temp.80 °C
Table 4. Measurements of the Selected Odorous Compounds during Summer Time.
Table 4. Measurements of the Selected Odorous Compounds during Summer Time.
Treatment ProcessUnit: ppbNH3H2SCH3SH(CH3)2S(CH3)2S2(CH3)3N
Primary settling basinMorning50623.867.34No detection207.902.84
Afternoon34020.234.34No detection3.031.33
Mean42322.055.84105.472.09
SD1172.572.12144.861.07
Aeration basinMorning12026.79No detectionNo detection2.20No detection
Afternoon27026.62No detectionNo detection1.75No detection
Mean19526.711.98
SD1060.120.32
Final settling basinMorning1814.35No detectionNo detection3.56No detection
Afternoon
Mean1814.353.56
SD
Low Detection Limit7.500.140.170.150.170.22
Table 5. Measurements of the Selected Odorous Compounds during Winter Time.
Table 5. Measurements of the Selected Odorous Compounds during Winter Time.
Treatment ProcessUnit: ppbNH3H2SCH3SH(CH3)2S(CH3)2S2(CH3)3N
Primary settling basin1st Measur.Morning7801.680.351.116.12No detection
Afternoon7839.850.430.802.440.17
2nd Measur.Morning1,0470.080.010.740.05No detection
Afternoon9442.270.050.530.15No detection
Mean8703.470.210.802.190.04
SD1534.350.210.242.84
Aeration basin1st Measur.Morning1050.131.092.8723.510.13
Afternoon2750.110.863.6123.48
2nd Measur.Morning490.031.747.162.71
Afternoon1700.050.873.641.320.72
Mean1500.081.144.3212.750.43
SD970.050.411.9312.410.41
Final settling basin1st Measur.Morning1640.060.040.330.540.32
Afternoon1630.070.030.390.530.17
2nd Measur.Morning520.150.140.420.110.16
Afternoon100.020.090.510.200.23
Mean970.080.080.410.350.22
SD790.050.050.070.220.07
Table 6. Odorous Compounds Emission Flux (μg/m2/min) from the Wastewater Treatment Plant.
Table 6. Odorous Compounds Emission Flux (μg/m2/min) from the Wastewater Treatment Plant.
SeasonTreatment ProcessEach Odorous Compound Flux(μg/m2/min)
NH3H2SCH3SH(CH3)2S(CH3)2S2(CH3)3N
Annual AveragePrimary Settling Basin18.960.750.250.098.560.12
Aeration Basin5.120.800.100.471.180.04
Final Settling Basin4.110.130.010.040.310.02
SummerPrimary Settling Basin12.411.300.49Not detected16.760.21
Aeration Basin5.791.59Not detectedNot detected0.32Not detected
Final Settling Basin5.340.26Not detectedNot detected0.57Not detected
WinterPrimary Settling Basin25.520.200.020.090.350.02
Aeration Basin4.450.010.100.472.050.04
Final Settling Basin2.870.000.010.040.060.02
Table 7. Amount of Emitted Odorous Compounds per Treated Wastewater (μg/m3).
Table 7. Amount of Emitted Odorous Compounds per Treated Wastewater (μg/m3).
Treatment ProcessOdor Compound emission per treated wastewater (μg/ m3)Total Emi. (μg/m3)
NH3H2SCH3SH(CH3)2S(CH3)2S2(CH3)3N

Primary Settling Basin39316521772595

Aeration Basin32751630763492

Final Settling Basin229702171257

Total94874123427061344
Table 8. Odorous Compounds Emission Flux Composition Ratio and their Intensity Contribution Ratio with respect to the Six Selected Odorous Compounds in WWTP.
Table 8. Odorous Compounds Emission Flux Composition Ratio and their Intensity Contribution Ratio with respect to the Six Selected Odorous Compounds in WWTP.
RatioTreatment ProcessEach Odorous Compound Ratio (%)
NH3H2SCH3SH(CH3)2S(CH3)2S2(CH3)3N

Emission Flux RatioPrimary Settling Basin66.0%2.6%0.9%0.3%29.8%0.4%

Aeration Basin66.4%10.3%1.2%6.1%15.4%0.6%

Final Settling Basin88.9%2.8%0.1%1.0%6.8%0.5%

Total68.7%4.1%0.9%1.5%24.5%0.4%

Odor Intensity RatioPrimary Settling Basin0.0%4.3%4.2%1.3%88.4%1.7%

Aeration Basin0.0%17.2%6.1%27.8%46.4%2.5%

Final Settling Basin0.1%14.6%2.0%13.5%63.3%6.5%

Total0.0%10.4%4.9%13.2%69.1%2.4%
