1. Introduction
Tooth abscesses or periapical infections usually occur because of tooth decay, trauma, or failed treatment of the root canal [
1]. Infections left untreated not only cause excruciating pain, but also carry the significant danger of spreading to the throat or the brain. Abscessed tooth identification and treatment not only alleviate symptoms, but also prevent dangerous repercussions [
1,
2]. By destroying the tooth’s protective enamel, oropharyngeal bacteria can enter the tooth’s (pulp) cavity and cause local infection [
3,
4]. As inflammation accompanies the infection that grows in the pulp cavity within the confined cavity of the tooth, it presses against the lining of the dentin, causing severe pain. Another factor that predisposes to tooth abscess is a partially injured tooth, most frequently a wisdom tooth, where bacteria are trapped between the soft tissue and the crown, causing inflammation [
5,
6]. Treatment includes draining the abscess, administering antibiotics, controlling pain, and removing the infection source within the tooth. Oral antibiotics with a timely consultation with a dentist are often sufficient for dental treatment in patients [
7].
E. faecalis is one example of a pathogen that is hard to eradicate in dentistry and is one of the most known causes of recurrent failures of root canal treatment [
8]. Its positive reactant is Gram’s stain, as a non-spore-forming bacterium that normally occurs in the human oral cavity [
9]. Different antiseptics, aside from antibiotics, are used for bacterial elimination inside the canal, either through calcium hydroxide or antibiotic pastes, to enhance bacterial control and seal the root canal, but
E. faecalis is known for its high resistance to various antimicrobial agents, which develop through both innate and acquired mechanisms. It is resistant to almost all cephalosporins, clindamycin, and trimethoprim–sulfamethoxazole aminoglycosides [
10,
11]. Owing to evolving resistance, most over-the-counter antibiotics are ineffective against
E. faecalis infections, so it is urgent for global health that alternative antibacterial agents be evaluated.
Phage treatment is more effective than antibiotics in eliminating MDR microorganisms for several reasons [
12], including the remarkable specificity of phages to the host without disrupting the normal microbiota [
13]. Additionally, phages tend to replicate until the host bacteria’s population density is reduced and remain infectious under very harsh environmental conditions [
14]. Furthermore, phages are not toxic to mammals or humans and can be used for patients with antibiotic allergies [
15]. Additionally, compared with the cost of producing novel antibiotics, generating phage preparations is inexpensive, it is easy to isolate new phages from a wide range of sources [
16,
17], and phages have the efficacy to penetrate and destroy bacterial biofilms [
18]. Phage therapy has been evaluated with multi-drug resistant oral bacteria during animal and human studies and has been found to be safe [
19].
Our study aims to isolate, purify, propagate, and characterize the lytic E. faecalis phage to eliminate dental abscess-causative multi-drug resistant E. faecalis.
2. Materials and Methods
2.1. Chemicals Used
The chemicals and reagents, chloroform, elution buffer, wash buffer, agarose gel, SM buffer, NaOH, HCl, NaCl, polyethylene glycol 8000 (PEG 8000), λ buffer, DMSO, brain heart infusion broth medium, bile esculin agar, nutrient agar, MuellerHinton agar, Luria Bertani (LB) broth, and TSA medium were of AR grade and procured from Sigma-Aldrich, Cairo, Egypt. All biological syntheses in the current study were achieved using distilled water (dis. H2O).
2.2. Isolation of Enterococci
Twenty-five sterile cotton swabs were collected from patients (15 females and 10 males) ranging in age from 20 to 45 years over a period of 7 months from five outpatient clinics of Menoufia Hospitals. The swabs were distributed as 14 from abscesses, 8 from caries, and 3 from gingivitis. The clinical specimens were immediately transported to the laboratory of the Medical Microbiology and Immunology Department, Faculty of Medicine, Menoufia University, using brain heart infusion broth medium for bacteriological analysis [
20]. All samples were streaked on bile esculin agar as a selective medium for
Enterococcus isolates and on blood agar plates to identify their blood hemolysis type [
21].
2.3. Ethical Approval and Consent Form
After 24 h of incubation, 25 bacterial isolates were grown on nutrient agar plates; according to the Gram reaction, they were divided into 15 Gram-positive and 10 Gram-negative samples for selecting Enterococci, and a specific and selective medium bile esculin agar was chosen to cultivate fifteen Gram-positive isolates. Out of the fifteen Gram-positive isolates, ten with colonial characteristics of Enterococci were inoculated in slants and stored at 4 °C for further work. The study was approved by the Ethical Committee of Human Rights of Research at Menoufia University (IRB approval number and date 12/2023MICR4-1), in accordance with the Declaration of Helsinki. A written informed consent form was signed by each participant included in this study after informing them about the study. All data have been kept and preserved.
2.4. Identification of Enterococcus spp.
The Gram-positive samples were sub-cultured three times in succession on bile esculin medium for the selection and purification of Enterococci. Enterococcus colonial morphology, Gram staining, and other traditional biochemical assays were used to identify isolates. (Clinical isolates were also detected utilizing the VITEK®2 system BioMérieux (Version 8.01).
2.5. Antibiotic Susceptibility Test
The Kirby–Bauer technique was used to test the antibiotic susceptibility of Gram-positive
Enterococci grown on bile esculin [
22]. Ten antibiotic discs were used in this assay as follows: aztreonam (30 μg), nalidixic acid (30 μg), bacitracin (0.04 μg), clindamycin (2 μg), imipenem (10 μg), fusidic acid (10 μg), norfloxacin (10 μg), streptomycin (10 μg), B. ofloxacin (5 μg), and vancomycin (30 μg). After inoculating the bacteria via a sterile swab onto Mueller–Hinton agar, the antibiotic disc was then placed on the inoculated agar plate with forceps. The plate was turned upside down and left in a 37 °C incubator for 18–24 h. The findings were validated using the Clinical and Laboratory Standards Institute’s recommendations [
23].

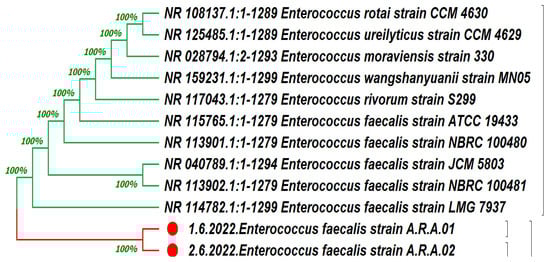

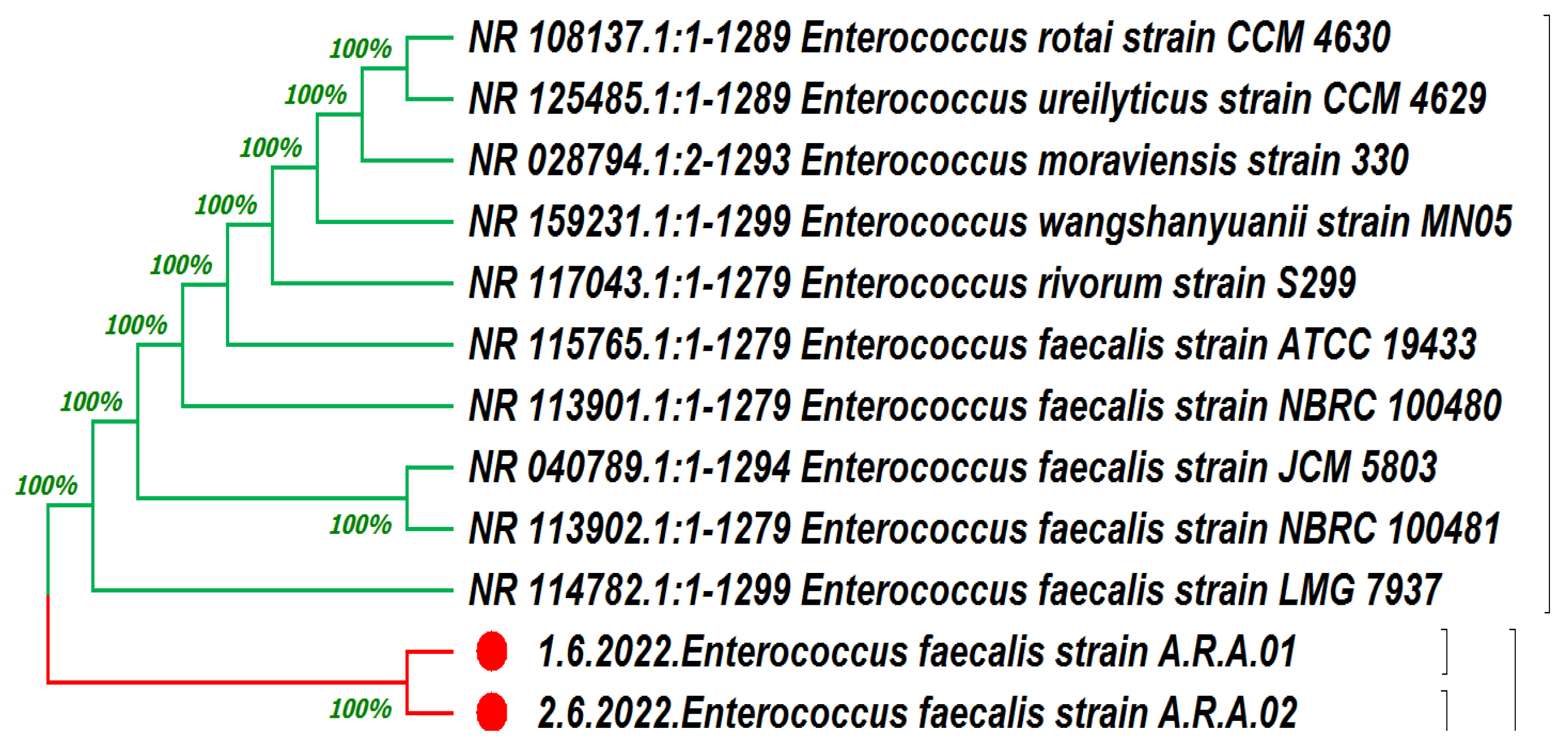

2.6. Bacterial Genomic Identification through 16S rRNA Sequencing
The most extensive antibiotic-resistant
Enterococci were cultivated overnight in Luria Bertani (LB) broth according to the methodology by Alsamman et al. [
24] for genomic DNA extraction. The following universal bacterial primers were used: 5′-AGA GTT TGA TCC TGG CTC AG-3′ alongside another reverse primer 5′-GGT TAC CTT GTT ACG ACT T-3 [
25], synthesized by Sigma Scientific Services Co., 6 October City, Egypt, targeting 16S rRNA gene amplification via PCR. The PCR reaction mixture was composed of 25 µL Master Mix, which was Hot Start PCR Master Mix, 2X, with 20 µmol of each primer in a reaction volume of 50 µL. The PCR reaction was carried out under the following conditions: the first cycle denaturation step was at 95 °C for 10 min, followed by 35 cycles of 95 °C for 30 s, 65 °C for 1 min, 72 °C for 1 min, and finally the last cycle with extension at 72 °C for 10 min.
Purification and Analysis of the PCR Product
Amplicons of DNA were purified via the GeneJET PCR Purification Kit (Thermo, CA, USA), as follows: 45 µL of binding buffer was thoroughly mixed with the PCR product mixture; the mixture was transferred to a GeneJET™ Purification Column, centrifuged at 14,000× g for 1 min, and the flow-through was discarded. One-hundred microliters of wash buffer were added to the GeneJET TM Purification Column, then centrifuged for 1 min, and the flow-through was discarded. Finally, the purified PCR products were eluted using 25 µL of elution buffer, centrifuged at 14,000 rpm for 1 min, and the eluted DNA was stored at −20 °C until use. Purified DNA products were sequenced using capillary electrophoresis with an ABI 3730xl DNA sequencer (GATC, Irvine, CA, USA). Raw sequence data analysis was performed using sequencing analysis software.
2.7. Bacteriophage Isolation
Isolation and propagation of
E. faecalis phages were performed through cultivation on two
Enterococci clinical isolates selected as extensive MDR,
E. faecalis A.R.A.01 and
E. faecalis A.R.A.02, as specific hosts. The enrichment process was used to isolate
E. faecalis phages from several sewage water samples collected in Giza, Egypt. Chloroform was used to treat the sewage samples; then, they were centrifuged at 10,000 rpm for 15 min. After particle removal using filter paper, 50 mL of the filtrate was added to 100 mL of TSB medium, and 1 mL of overnight culture of
E. faecalis was cultured for 24 h at 37 °C in a shaking incubator at 120 rpm. The culture was treated with chloroform, then centrifuged at 10,000 rpm for 15 min to isolate the possible phages. Bacterial lawns of

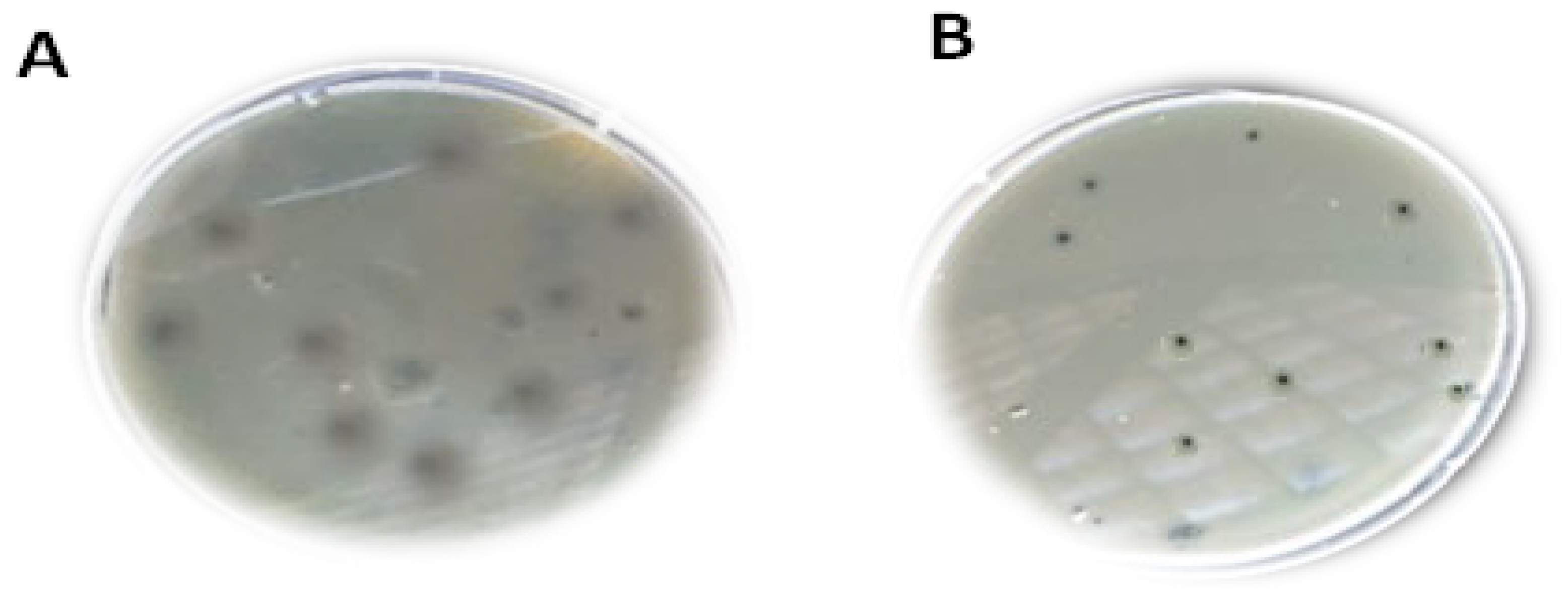

E. faecalis were added to the surface of TSA plates through the double agar overlay technique, as described by Thung et al. [
26] with some modifications. In brief, 100 µL of bacterial culture was mixed with 5 mL of semi-solid TSB and poured over solid TSA agar plates. After drying, 15 µL of a pre-prepared putative phage source was spotted on the lawns. The plates were incubated at 37 °C for 24 h, then examined for plaque formation.
2.7.1. Purification of Phages
According to Thung et al. [
26], phages were isolated and cultured subsequently from plaque isolates, and these plaques were inoculated in 1 mL of nutrient broth, which included 100 µL of two host bacterial isolates, and then incubated at 37 °C with a speed of 120 rpm on an incubator shaker. After incubation, chloroform was added, and the mixture was centrifuged again at 10,000 rpm for 15 min. The supernatants containing our phages were purified via filtration through a 0.22 μm Millipore filter membrane (Minisart, Sartorius, Songdo, Republic of Korea) and then stored as bacteriophage stock at a low temperature (4 °C). Then, 0.5 mL of supernatant was mixed with 1 mL of bacteria and incubated at 37 °C for 30 min. Then, the mixture was added to 3 mL of semi-solid TSB and poured over solid TSA agar plates. The plates were kept at 37 °C for one day, then examined for lysis zone formation.
2.7.2. Characterization of E. faecalis Phage
Transmission Electron Microscopy (TEM)
Morphological characterization of isolated phages was performed via a Hitachi transmission electron microscope H-9500 (Tokyo, Japan) at the Faculty of Science, Al-Azhar University, Cairo, Egypt. The phage samples were prepared and examined by TEM [
27].

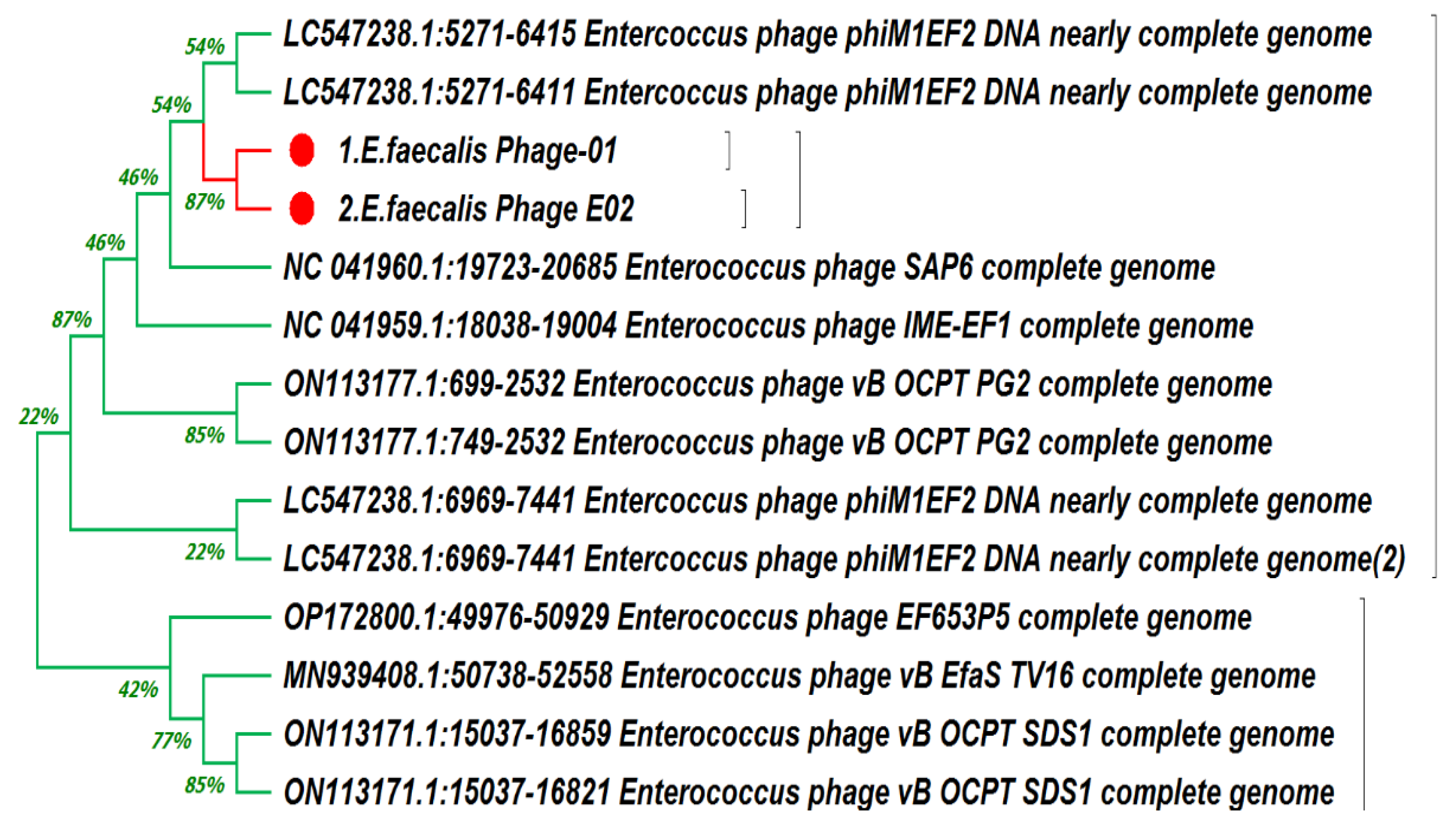

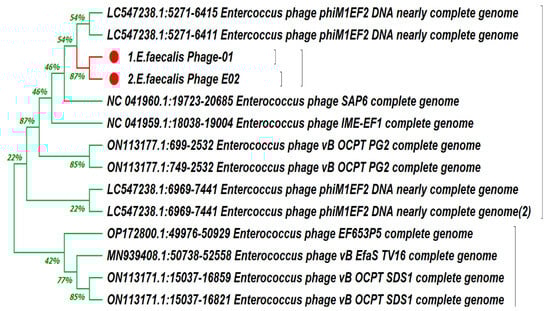

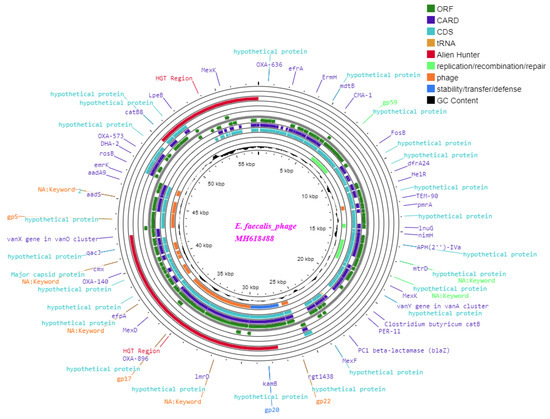

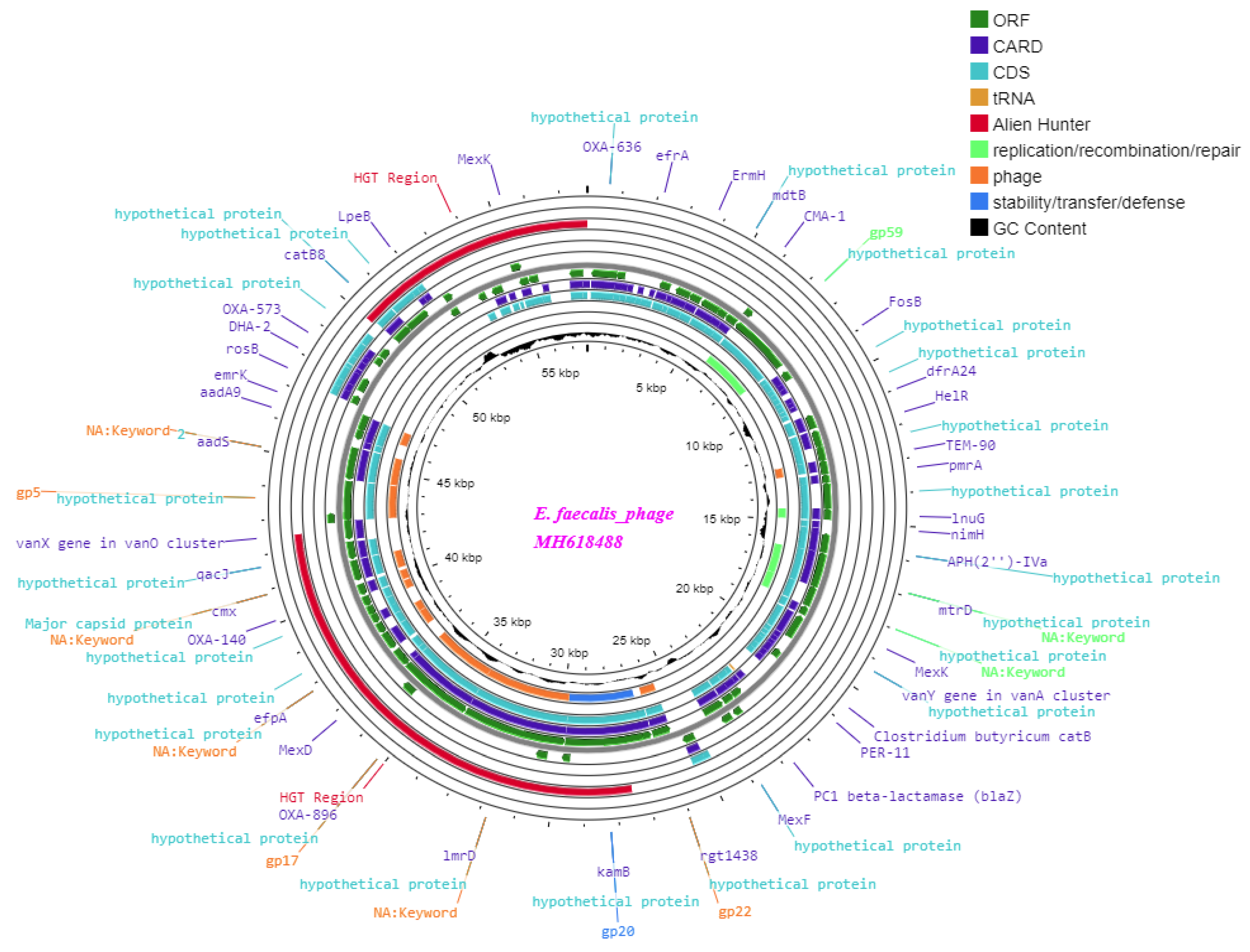

2.7.3. Genomic Identification of Phages
PCR Conditions
The total genomic viral DNA was isolated from the selected phages using the Wizard Genomic DNA Kit (Promega, Madison, WI, USA). The methodology was in accordance with the instructions of the manufacturer. Four primers were designed through NCBI primer BLAST based on the gene (vBEfaSHEf13_001) of
Enterococcus phage vB_EfaS_HEf13 with accession number (AYH92657.1), as shown in
Table 1. The PCR conditions were: 32 cycles, including a denaturation stage at 94 °C/30 s, annealing at 58.3 °C/60 s, extension at 72 °C/90 s, and a final extension at 72 °C/180 s.
DNA amplicons were visualized using 1% agarose gel, 10 µL aliquots were electrophoresed, and the correct molecular weight of PCR amplicons (about 1800 base pair fragments) was confirmed. Gels were analyzed and captured on camera using UV [
28]. QI Quick spin columns were used to purify the PCR products (Qiagen Inc., Chatsworth, CA, USA). According to a previous study [
28], purified PCR amplicons were examined utilizing a Perkin Elmer 377 DNA sequencer, and the Dye Deoxy Terminator Cycle Sequencing Kit (Perkin Elmer, Foster City, CA, USA) was used for sequencing. The BLAST tool of GenBank was used to identify phage species with comparable gene sequences. A phylogenetic tree was constructed for each phage BLAST result against the top 10 similar sequences identified in the NCBI database and the relative similarities among the isolated virus and other viruses identified in the BLAST result were determined [
29].
2.7.4. Phage Optimization

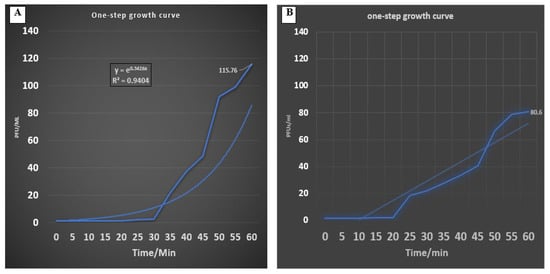

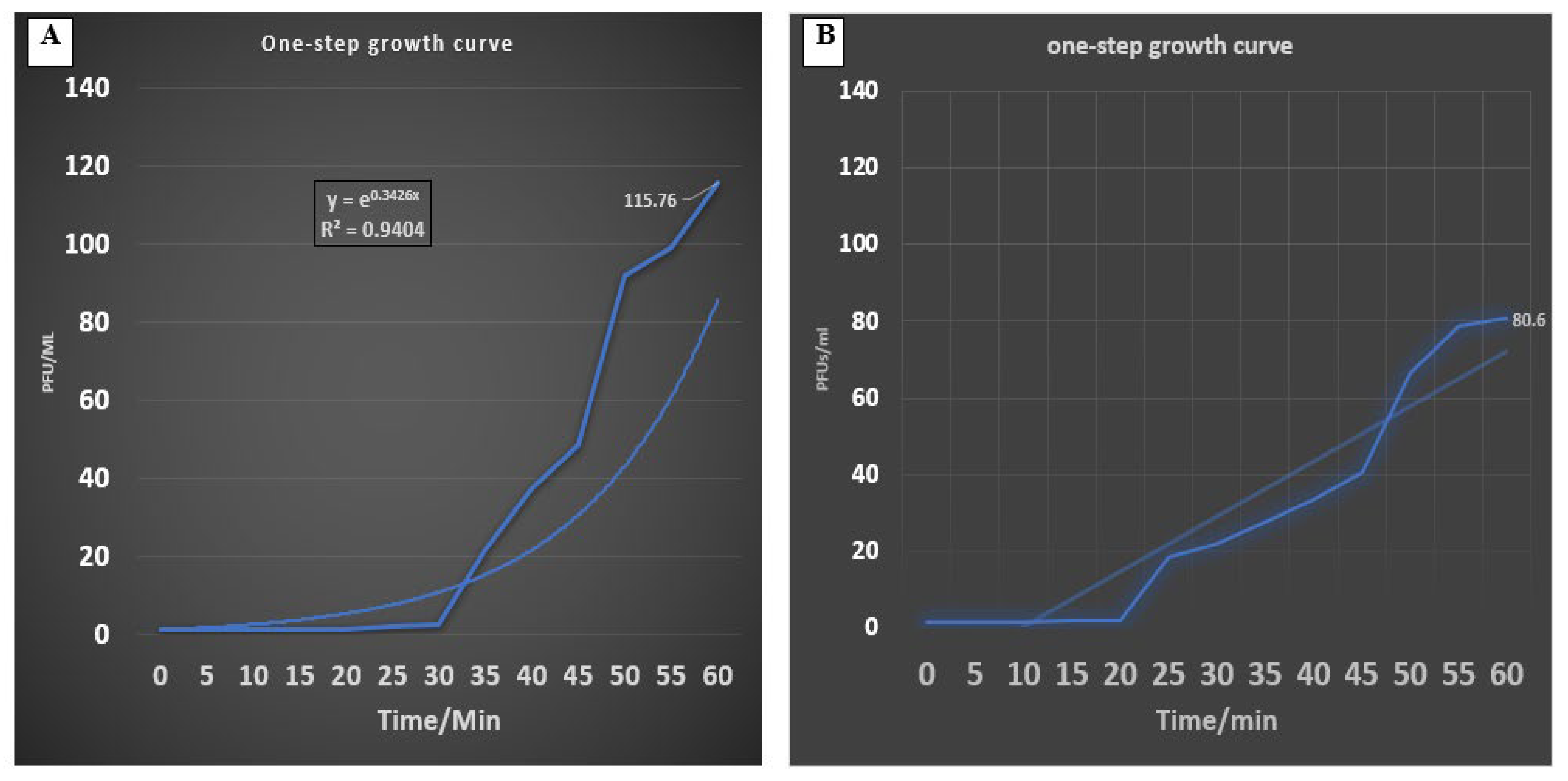

One-Step Growth Curve
The latent period of phages and burst size were estimated as described by Kropinski et al. [
32]. A known number of log-phase culture (1 × 10
7 CFU/mL) of each bacterial host were separately added to each distinct phage (1 × 10
5 PFU/mL) to achieve MOI = 0.01 and incubated at room temperature for 5 min for adsorption. The mixture of bacterial and phage suspensions was diluted (10
2, 10
3, and 10
4 dilutions) and incubated at 37 °C. After 7 min, suspensions were diluted and then plated by mixing 100 μL of suspension with 4 mL of overlay medium, which included 10
8 cfu/mL of bacterial isolates, and pouring the mixture onto TSA plates. The number of plaques was determined after 24 h of incubation at 37 °C. Relative burst sizes were determined using the following equation:
The relative burst size at different times was plotted against time to determine the latent period and burst size.
Phage Host Range
We assessed phage activity against various bacterial species. Suitable media-containing double-layer agar plates were inoculated with individual doses of
Enterococcus faecium,
Pseudomonas aeruginosa,
Streptococcus mutans,
Staphylococcus aureus, and
E. coli. As previously mentioned, on TSA plates, 10 µL of each phage suspension was spotted on the lawns. After 24 h at 37 °C, the plaques on the plates were analyzed [
33].

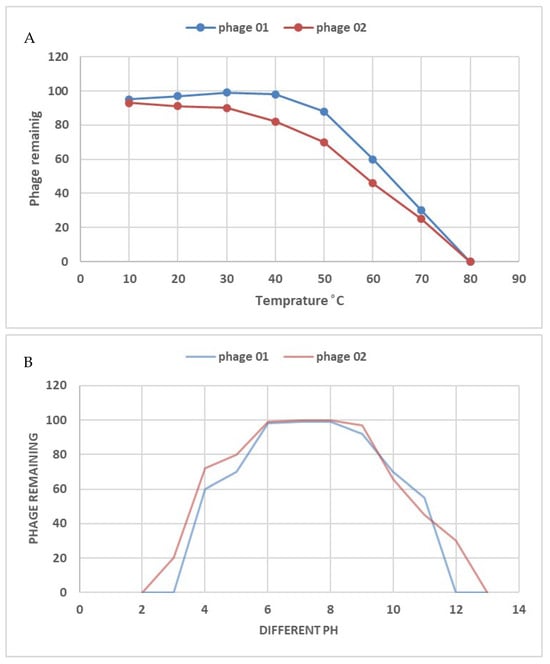

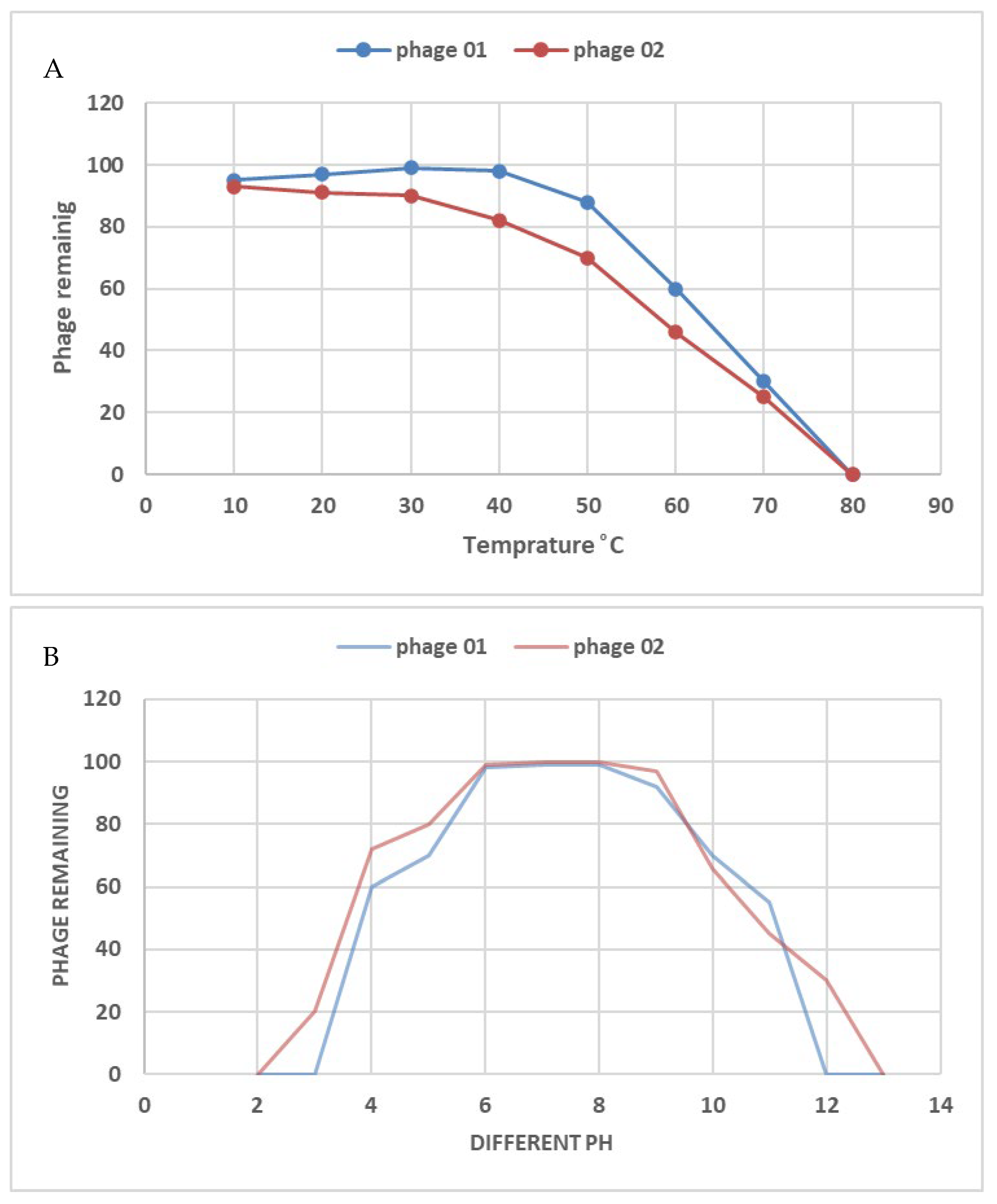

Phage Thermal and pH Stability
Phage thermal stability was measured by adding 100 µL of phage lysate to prewarmed 0.22 m filter-sterilized SM buffer. For a period of one hour, the tubes were incubated at different temperatures ranging from 10 °C to 80 °C. Aliquots were obtained and phage titers were calculated after 60 min of incubation. To test pH stability, sterile SM buffer with pH values ranging from 2 to 13 that had been altered with NaOH and HCl was added to 100 µL of phage lysates. Sixty minutes were spent incubating the tubes at 37 °C. The two-layer agar method was used to detect the phage titers in bacterial hosts after the phage solution had been serially diluted [
33]. The median of the triplicate counts was obtained for each temperature, besides the pH treatment that was carried out in triplicate. Phage heat/pH stability (%) = initial phage titer before treatment × 100% × (phage titer regained after treatment).
Production of Concentrated Purified Phage
Using the agar overlay technique [
26], crude lysates were counted and viability was determined prior to use. Each crude lysate was treated with NaCl to obtain a final concentration of 1 M and stored at −20 °C for 1 h, followed by centrifugation at 11,000×
g and 4 °C for 10 min. Following centrifugation, the supernatant was treated with 10% (
w/
v) polyethylene glycol 8000 (PEG 8000) and stored at 4 °C for 18 h. The suspensions were centrifuged at 11,000×
g for 10 min at 4 °C, the supernatant was discarded, and the pellet was resuspended in 1 mL of chloroform and 11 mL of λ buffer. Centrifugation at 3000×
g and 4 °C for 15 min separated the organic and aqueous phases. The organic phase was removed after centrifugation at 3000×
g/15 min and 4 °C, and the aqueous phase was made up to 50 mL with buffer λ, then filtered twice through 0.45 μm filters. Purified phage preparations were diluted in λ buffer to achieve an active solution with a concentration of 8 × 10
9 PFU/mL and quantified using the agar overlay method as previously described [
26]. Buffer was stored in a sterile glass container at 2–8 °C. Before being used in cytotoxicity experiments, phages were diluted in buffer λ to yield 2 × 109.2 × 10
8 and 2 × 10
7 pfu/mL and then weighed by suspension at ordinary temperature.

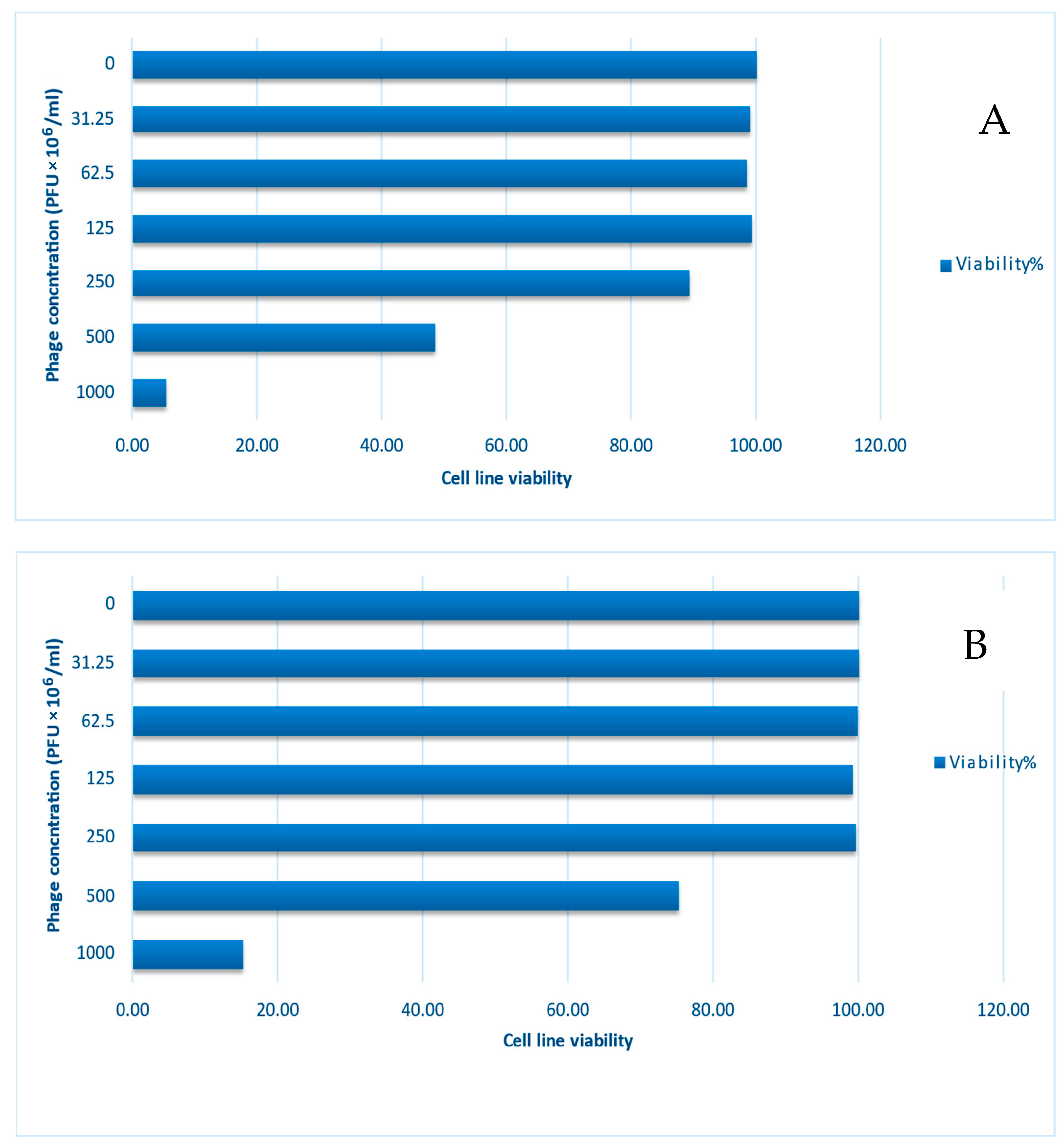

Determination of Phage Cytotoxicity on Cells (MTT Assay)
Our procedure was followed as described previously by Mekky et al. [
34]. The cell monolayer was washed twice with wash media and partial or complete loss of the monolayer, rounding, shrinkage, or cell granulation were determined. Twenty microliters of MTT solution were added to each well and placed on a shaking table (150 rpm for 5 min) to thoroughly mix the MTT into the media. The plate was incubated for 4 h at 37 °C under 5% CO
2 to allow the MTT to be metabolized. In 200 µL of DMSO, Formazan (MTT metabolic product) was resuspended, and the plate was shaken for 5 min at 150 rpm to fully mix the formazan into the solvent. The optical density should be proportional to the number of cells.
2.8. Statistical Analysis
The data collected in the present study are presented as the means of three independent replicates and subjected to statistical analysis; standard deviation and standard error statistics were calculated via ANOVA, a one-way factor incorporated into Microsoft Excel 2016.
4. Discussion
The treatment of intraarticular infections is an important component of dental therapy. A frequent opportunistic pathogen that may infect the human oral cavity is
Enterococcus faecalis [
35]. According to Wong et al. [
36], in every root canal that was examined,
Enterococcus faecalis was found. Several studies have demonstrated the importance of using bacteriophages against
E. faecalis for the treatment of dental problems [
33,
34,
37,
38]. In the work by Nasr-Eldin et al. [
39], the isolated potential bacteria were identified biochemically, microscopically described using traditional techniques, and validated using the Vitek2 system. Over the past 30 years, antibiotic-resistant
Enterococcus strains have become increasingly related to nosocomial infections, with increasingly high levels of antibiotic resistance and multidrug resistance [
40]. These days, most bacteria can improve their resistance to numerous types of antibiotics. The development of alternative strategies, such as therapy with phages, can play a fundamental role in combating antibiotic-resistant
Enterococcai infections [
41]. In dentistry, bacteriophages appear to be a novel and promising approach to combating resistant intraarticular bacteria, like
E. faecalis. Phage reduction of the
E. faecalis biofilm in dental ex vivo models has been demonstrated in several studies. Phage reduction may be paired with standard endodontics, like sodium hypochlorite and EDTA [
42]. Furthermore, phage therapy was found to be more effective than antibiotic treatment in models of intraperitoneal and periapical rat infections, as evidenced by the higher survival rates and normal anatomical findings [
43].
Our results for the isolation of bacteria showed that 5 isolates among 25 were
Enterococcus sp. as they had grown on bile esculin. These isolates showed remarkable alpha blood hemolysis. Currently, for bacterial infections, lytic bacteriophages are used to remove multidrug-resistant
E. faecalis strains and associated biofilms [
42,
44]. These pathogens were isolated from root canal infections and tested for antibiotic susceptibility by El-Telbany et al. [
42]. The two isolated and purified phages in this study,
E. faecalis_phage-01 and
E. faecalis_phage-02, were related to the families
Siphoviridae and
Myoviridae, respectively. Their genome sequences are compatible with this classification and resemble other phages that have recently been identified [
45].
Phage resistance has also been documented in human phage treatment [
46], which might pose a challenge to the use of phage therapy. In this way, our research offers important information on how susceptible phage-resistant mutants are to various phages [
47]. Some studies suggest that the phage resistance of
E. faecalis results from mutations in phage receptors, such as the enterococcal polysaccharide antigen (Epa) [
48] or the membrane protein PIP [
49]. A potential tactic to lower antibiotic dosage and prevent antibiotic resistance during therapy is the combination of phages with antibiotics. Prior research [
12,
50,
51] has demonstrated that administering the antibiotic and phage in turn produced greater results than administering them simultaneously.
The efficacy of phage treatments is determined by the bacterial host range of the phage. It is preferable to limit the host range to a single species, since this minimizes collateral harm and maintains the integrity of the host microbiota [
52]. The characterization of phages is made possible by sequencing parts of the genome, which enables their classification as therapeutically helpful. The toxin, virulence, and lysogeny-related genes should be kept out of phages that show promise for phage therapy [
53]. A substantial characterization of phages is needed, including complete genomic information, the absence of genes that raise safety concerns, a low risk of lysogenic lifestyle, and stability in reproduction in the production environment [
54]. Only a small percentage of all phages have the potential to be used in phage therapy. Only 50% of phages recovered from the environment are thought to be beneficial for therapeutic purposes, according to a recent estimation [
55].
Phage therapy has many advantages over conventional therapy through antibiotics. Our two
E. faecalis phages grew at temperatures ranging from 10 to 60 °C and were resistant to a wide pH range (4–11). Previous research has shown that phages are effective against
E. faecalis under ranges of 10–50 °C and pH 3–12 [
56,
57]. Bacteriophages have been used in earlier research to prevent or treat oral infections [
58]. Phage isolation is rapid, relatively straightforward, and inexpensive [
59]. Phage resistance develops approximately 10-fold slower than antibiotic resistance [
59]. Additionally, phages tend to remain effective even under very harsh environmental conditions and have the ability to continue to multiply until the host bacterial population density is greatly reduced [
60]. These properties suggest that, unlike conventional chemical antibiotics, phage therapy may require less or more limited dosing while performing as well as or better than conventional therapies. Additionally, most of the phages isolated so far have relatively high host specificity. This advantage of phages diminishes the damaging risk to the human body’s natural microbiota, in addition to eliminating chemical antibiotic side effects [
61].
