Harmonic Analysis of Single-Phase Neutral-Point-Clamped Cascaded Inverter in Advanced Traction Power Supply System Based on the Big Triangular Carrier Equivalence Method

Abstract

An advanced traction power supply system based on a single phase neutral-point-clamped (NPC) cascaded inverter is studied. The big triangular carrier equivalence method in double coordinate system is proposed, which can reduce one coordinate system, thus simplifying the calculation. Based on the big triangular carrier equivalence method, the harmonic characteristics of a single phase NPC cascaded inverter are calculated by double Fourier transform and voltage harmonics expressions of 5-level, 9-level and 13-level output waveforms are derived. Finally, the performance and calculated results of the proposed method were verified by simulations and experiments. The result provides a theoretical basis for further studies on traction network resonance.

1. Introduction

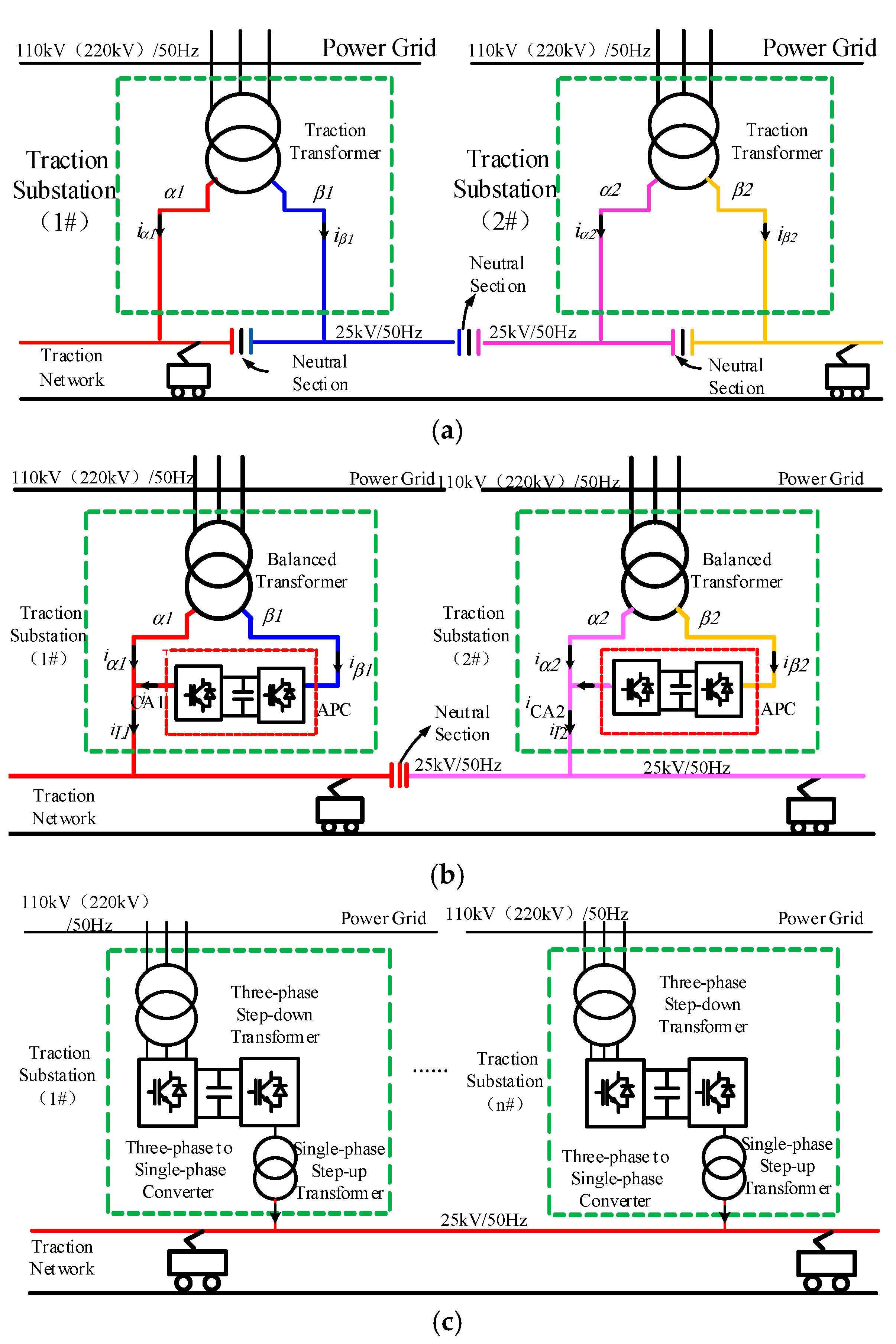

Harmonics have been an important factor affecting the safe operation of railways [1,2,3,4,5]. In recent years, high-speed railways have developed rapidly in China and safety is the lifeline of railway transportation. The traction power supply system is the power source of railway transportation and it is important to keep the traction power supply system stable. At present, the traction power supply system of high-speed railways in China is based on single-phase 27.5 kV/50 Hz AC feeding circuits, shown in Figure 1a. Due to the low output power quality and the existence of neutral sections in the traditional traction power supply system, the development of high-speed railway is limited. The co-phase traction power supply system has been proposed [1]. By using this system, power quality can be improved, but neutral sections between two substations still exist. To cancel the neutral sections completely, as shown in Figure 1b, the advanced traction power supply system based on power electronics converter has been proposed [2]. However, since the maximum voltage rating of existing IGBT is 6.5 kV, it cannot be used directly for 27.5 kV traction substations. In order to promote engineering applications, the second generation advanced traction power supply system (APTSS-II) based on a single phase neutral-point-clamped (NPC) cascaded inverter is studied in this paper [3,4,5]. The output voltage contains high order harmonics which will cause traction network resonance. Therefore, it is necessary to study the harmonic characteristics of ATPSS-II, which will provide the reference to avoid the traction network resonance.

The harmonic characteristics of traditional traction substations have been studied by a wide range of scholars [6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33]. The power electronic converter is non-linear, and the mathematical model is difficult to establish. The Fourier theory of jumps is analyzed in [9] and it has been applied in power electronics, though the actual equations for the jumps in the algorithms are not derived. Besides, the comparison between theoretical results and simulation or practical results is not given [10]. By contrast, the Fast Fourier Transform is a computed numerical approach method which searches the result of PWM waveform spectrum. Nevertheless, this is typically inaccurate for non-integer ratios of the carrier and modulating signal frequencies [11]. A 3-D Fourier integral has been proposed in [12,13,14] for output to input voltage ratio limited to 0.5, but the construction of 3-D unit cell and mentions the limits of the Fourier integral for higher ratios are unclear. Ref. [15,16,17] studied the harmonic characteristic of three-phase to single-phase rectifier. However, they are not suitable for the single-phase inverter. In the case of multilevel inverter, analytical expression for multilevel PWM spectrum has been derived in [18]. However, the derivation is complicated, and the analytical solution is hard to apply. Although some scholars have been studying the harmonic characteristics of multi-level converter, research on the harmonic characteristic of single phase neutral-point-clamped cascaded inverter [19] could hardly be found, so it is necessary to study an efficient, simple and accurate harmonics analysis method in advanced traction power supply systems based on single phase NPC cascaded inverters.

In this paper, the advanced traction supply system based on a single phase NPC cascaded inverter is studied. According to the characteristics of the single phase NPC cascaded inverter, the big triangular carrier equivalence method in double coordinate system is proposed, which can reduce one coordinate system, thus simplifying the calculations. On the basis of the big triangular carrier equivalence method, the harmonic characteristics of a single phase NPC cascaded inverter are calculated by a double Fourier series. The performances and calculated results of the proposed method were verified with simulations and experiments.

2. Configuration

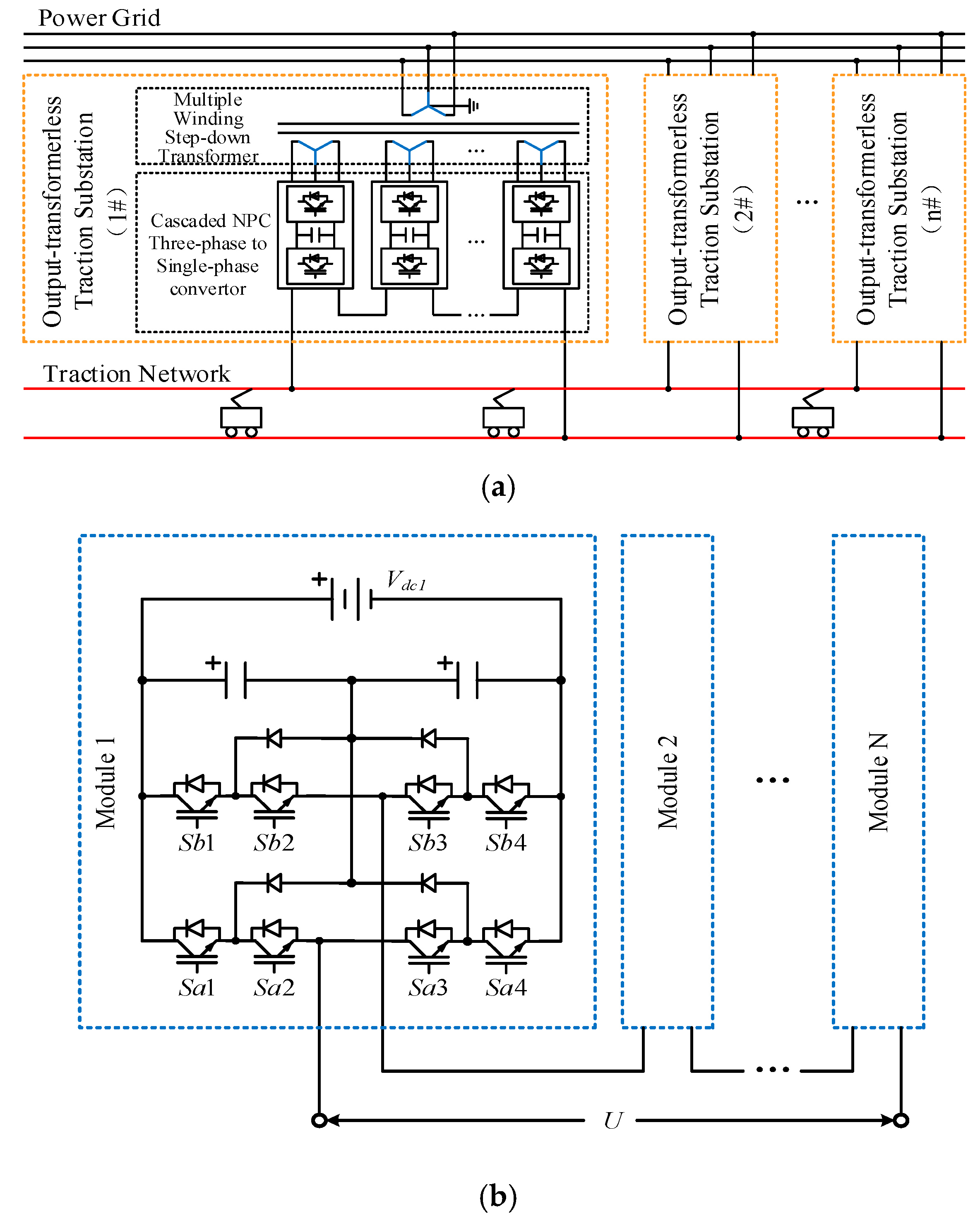

The configuration of ATPSS-II is shown in Figure 2. The industrial IGBT has a maximum voltage rating of 6.5 kV, while the power supply system of high-speed railways in China is based on single-phase 27.5 kV/50 Hz AC power supply circuits. In traditional H-bridge topology, each IGBT should have the ability to endure half of the total input voltage. Thus, the utilization of traditional H-bridge converters in high voltage applications is rather limited. To solve this problem, multiple H-bridge converters are connected in cascading construction to share the total input voltage. However, in high voltage applications, too much cascaded converters will add to the control complexity. In this case, cascaded NPC topology will be a better choice since each IGBT in one NPC module only needs to withstand a quarter of the input voltage, which means the number of cascaded modules will be reduced by half compared to the cascaded H-bridge topology.

The topology of a single-phase NPC-CI is shown in Figure 2b. One NPC inverter module consists of two bridge legs, while each bridge leg is composed by four IGBTs. Five voltage levels (±V_dc, ±0.5 V_dc, 0) could be generated by nine valid switching mode combinations as listed in

Table 1. Voltage level and switch mode.

Level	Sa1	Sa2	Sa3	Sa4	Sb1	Sb2	Sb3	Sb4
Vdc	1	1	0	0	0	0	1	1
0.5Vdc	1	1	0	0	0	1	1	0
	0	1	1	0	0	0	1	1
0	1	1	0	0	1	1	0	0
	0	0	1	1	0	0	1	1
	0	1	1	0	0	1	1	0
−0.5Vdc	0	0	1	1	0	1	1	0
	0	1	1	0	1	1	0	0
−Vdc	0	0	1	1	1	1	0	0

, where ‘1’ stands for on state while ‘0’ stands for off state. Under the combination effect of N cascaded modules, the NPC-CI could synthesis a staircase waveform with 4N + 1 voltage levels, which will contribute to a better sinusoidal output voltage.

3. Big Triangular Carrier Equivalence Method and Modulation of NPC Cascaded Inverter

3.1. Big Triangular Carrier Equivalence Method

Because of the output uncertainty states when S_a1 and S_a4 are turned on simultaneously, the carrier phase shifted SPWM cannot be directly applied to single-phase NPC with load. Therefore, phase opposition disposition SPWM is applied to one leg of a NPC module. For example, phase opposition disposition SPWM can be realized in Leg a of NPC module 1 as shown in Figure 3a, in which C₁ and C₂ are triangular carriers and ua1 represents a modulation wave. The phase difference between upper carrier C₁ and lower carrier C₂ is 180°. Figure 3b shows the carrier phase shifted with phase opposition disposition SPWM for NPC topology. The carrier of Leg b can be calculated by reversing the carrier of Leg a. Through the comparison between modulation wave and carrier wave, the output of Leg a and Leg b can be calculated. As shown in Figure 3b, the output 5-level voltage can be added through the above calculation. Figure 3c shows big triangular carrier equivalent modulation for Leg a when it works with no-load. C₃ represents carrier for S_a1 and S_a3, and C₄ is the carrier for S_a2 and S_a4. Phase difference between C₃ and C₄ is 180°. Within a period of a triangle carrier, the intersections of modulation wave and two carriers are expressed as θ₁, θ₂ and θ₁′, θ₂′ in Figure 3c. Output level of Leg a is the sum of PWM1 and PWM2, which is precisely the same with that of phase opposition disposition SPWM waveform shown in Figure 3a.

3.2. Double Coordinate System

When phase opposition disposition SPWM is used, it is cumbersome to deduce the output spectrum with a double coordinate system. Due to the output equivalence of the big triangular carrier equivalent modulation and phase opposition disposition SPWM, the latter can be transformed to the former in the derivation process of switch function, as illustrated in Figure 3a,b.

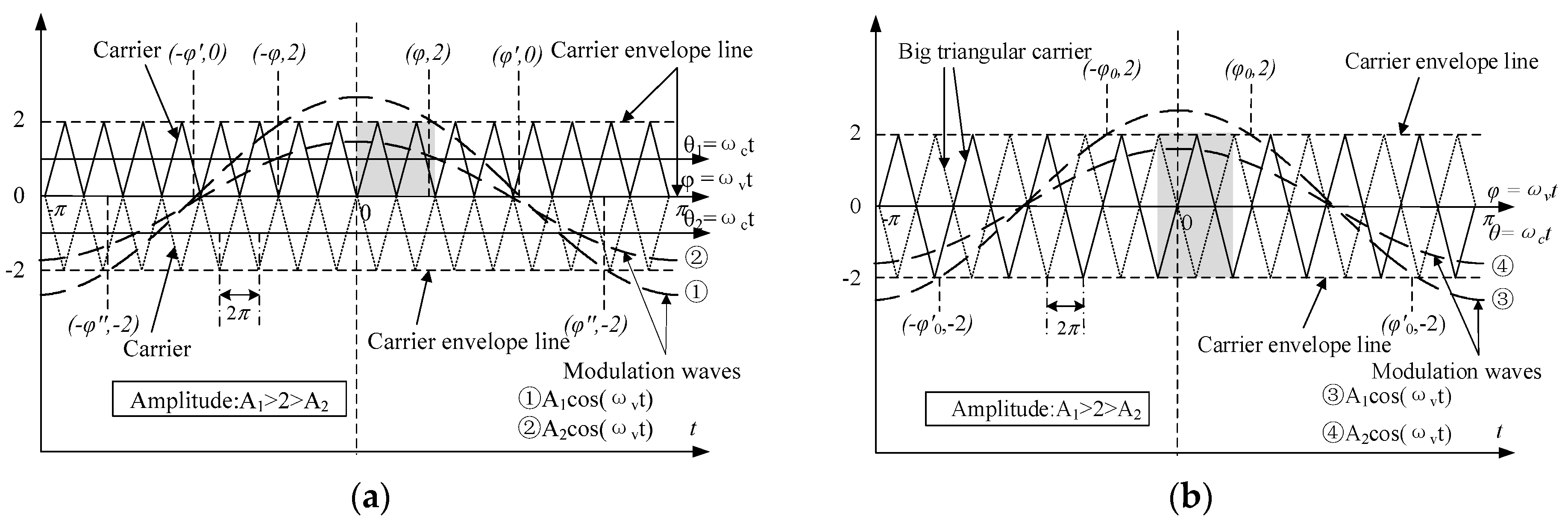

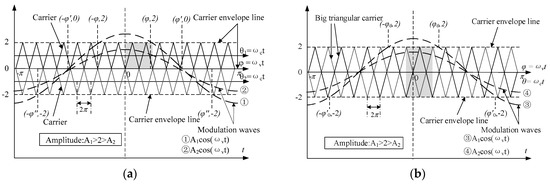

As shown in Figure 4a,c, phase opposition disposition SPWM is taken as an example to describe the establishing process of double coordinate system. In the diagram, φ-axis is time axis. There are two layers of carriers located on both sides of φ-axis, and peak-to-peak value of the carrier is 2. Then φ-axis is moved to the centers of two triangle carriers and redefined as θ₁-axis and θ₂-axis. Apparently, two individual double coordinate systems have to be established for analyzing intersections between modulation wave and two-tiered carriers of each bridge leg. It is cumbersome to deduce output spectrum with two individual double coordinate system.

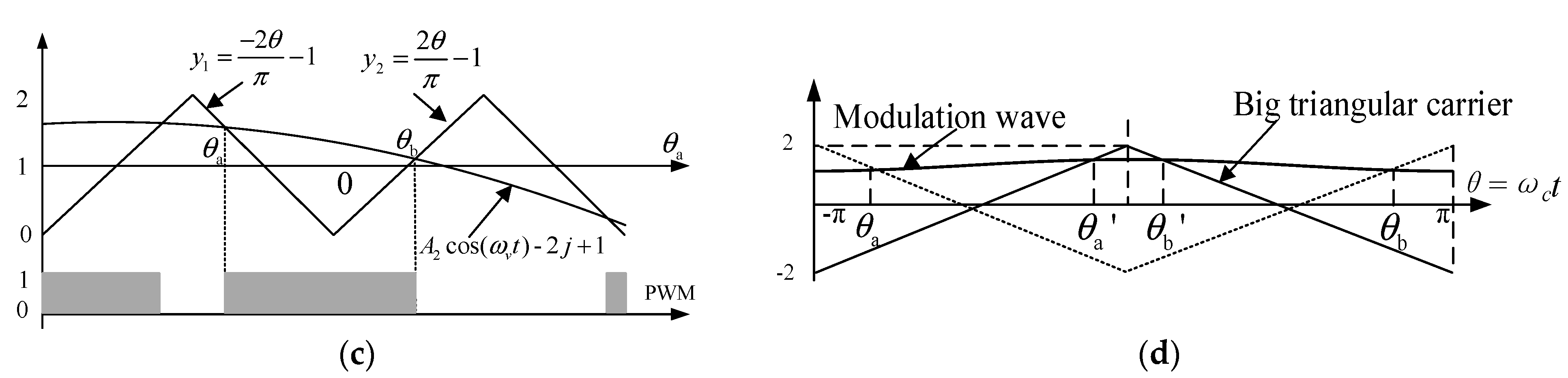

There are two cases of intersections between the carrier and modulation wave, as shown in Figure 4a. In case ①, amplitude of modulation wave (A₁) is greater than 2. φ, φ′, and φ″ are defined as abscissa values of intersections between modulating signal and carrier envelope lines. Vertical ordinate values of the intersection points shown in case ① are 2, 0, −2, then φ = arccos(2/A₁), which is derived from A₁cosφ = 2. Similarly, φ′ = π/2, φ″ = arccos(−2/A₁). In case ②, amplitude of modulation wave (A₂) is less than 2, and φ = 0, φ′ = π/2, φ″ = π.

Intersections between modulation wave and carrier are figured out in θ-axis. Within a period of a triangular wave, there are two line segments y₁(θ) and y₂(θ) shown in Figure 4c. Slope of y₁(θ) is −2θ/π, and slope of y₂(θ) is +2θ/π. There are two equations: $y_1\left(\theta \right)=A_{2}cos\phi +1,y_2\left(\theta \right)=A_{2}cos\phi +1$. Then the abscissa values of two intersection points can be obtained, shown in Figure 4c. Finally, output level is obtained by comparing the amplitudes of carrier and modulation wave.

When this double coordinate system is used to analyze the equivalent carrier phase shifted SPWM strategy, only one layer of carrier exists, and the switching function of each bridge in a cascaded inverter can be deduced in one double coordinate system.

In this case, θ-axis and φ-axis will be completely overlapped. Similarly, φ is defined as the abscissa values of the intersections between the modulating signal and carrier envelope line, and θ is defined as abscissa values of intersections between modulation wave and carrier. However, intersections between modulation wave and carrier should be analyzed within a period of carrier and a period of modulation wave, respectively, as shown in Figure 4b,d.

There are two different cases of intersections between carriers and modulation wave, as shown in Figure 4b. Obviously, if the magnitude of modulation wave is higher than peak value of carriers (modulation depth M > 1), modulation wave and envelopes intersects the envelope line. When M < 1, modulation wave is inside the area surrounded by the two envelopes. Within a period of a triangle carrier, the intersections of modulation wave and two carriers are expressed as θ_a, θ_b and θ_a′, θ_b′, as shown in Figure 4d. Apparently, the method to determine the spectral characteristics of equivalent SPWM can be used to simplify spectrum analysis of phase opposition disposition SPWM.

3.3. Modulation of NPC Cascaded Inverter

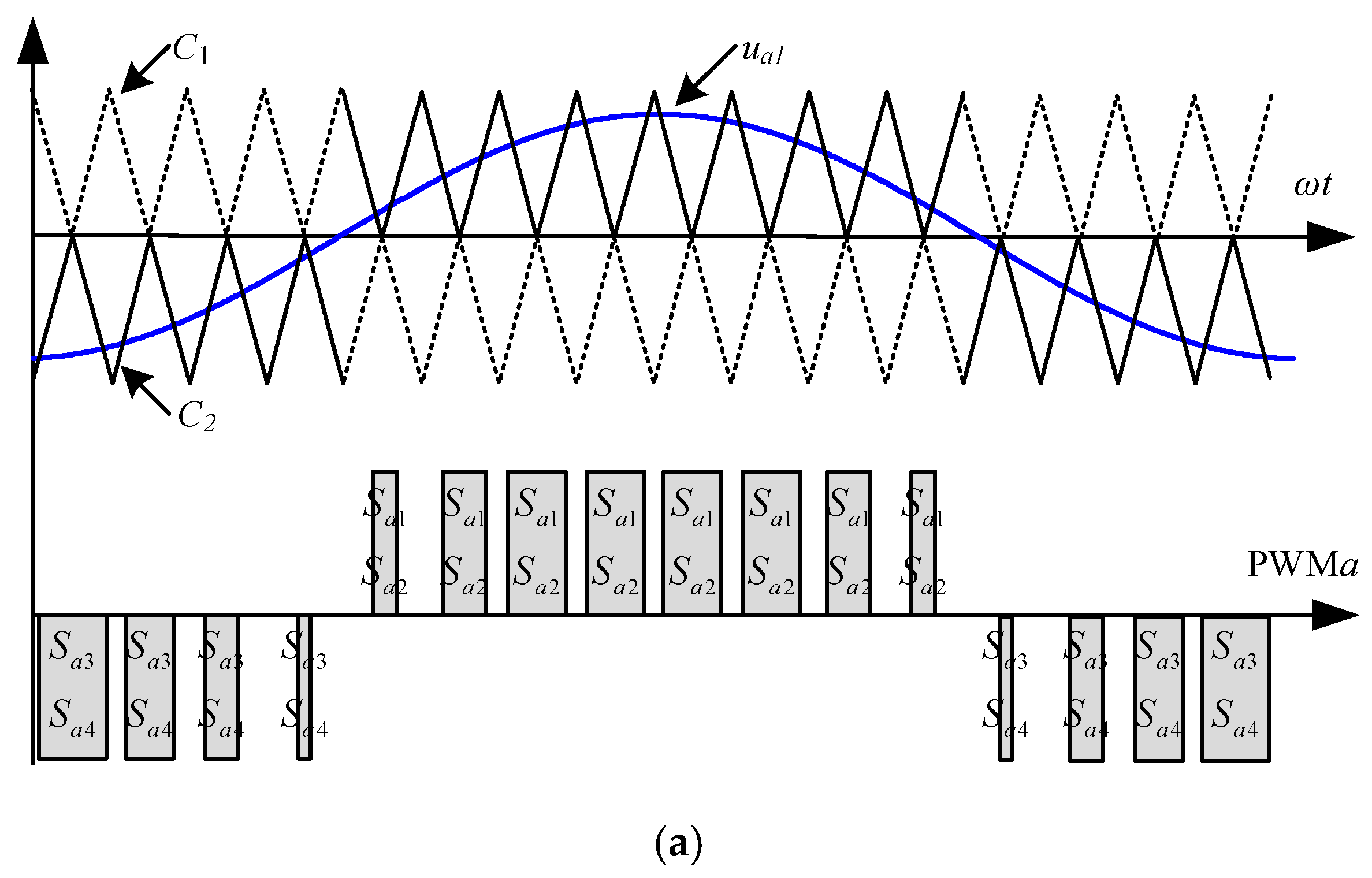

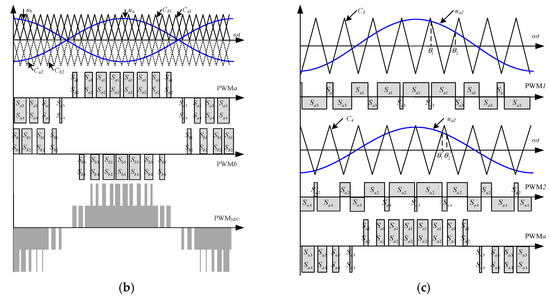

Phase opposition disposition SPWM for one single-phase NPC module can be realized as shown in Figure 3c, in which C_a1, C_a2 are triangular carriers of bridge Leg a and C_b1, C_b2 represent that of bridge Leg b. Modulation strategy for Leg a and Leg b in one module is similar. It should be emphasized that phase difference between modulation waves of two bridge legs is 180°. And that between carriers of two bridge legs is also 180°. Then five-level waveform is obtained, as shown in Figure 3c.

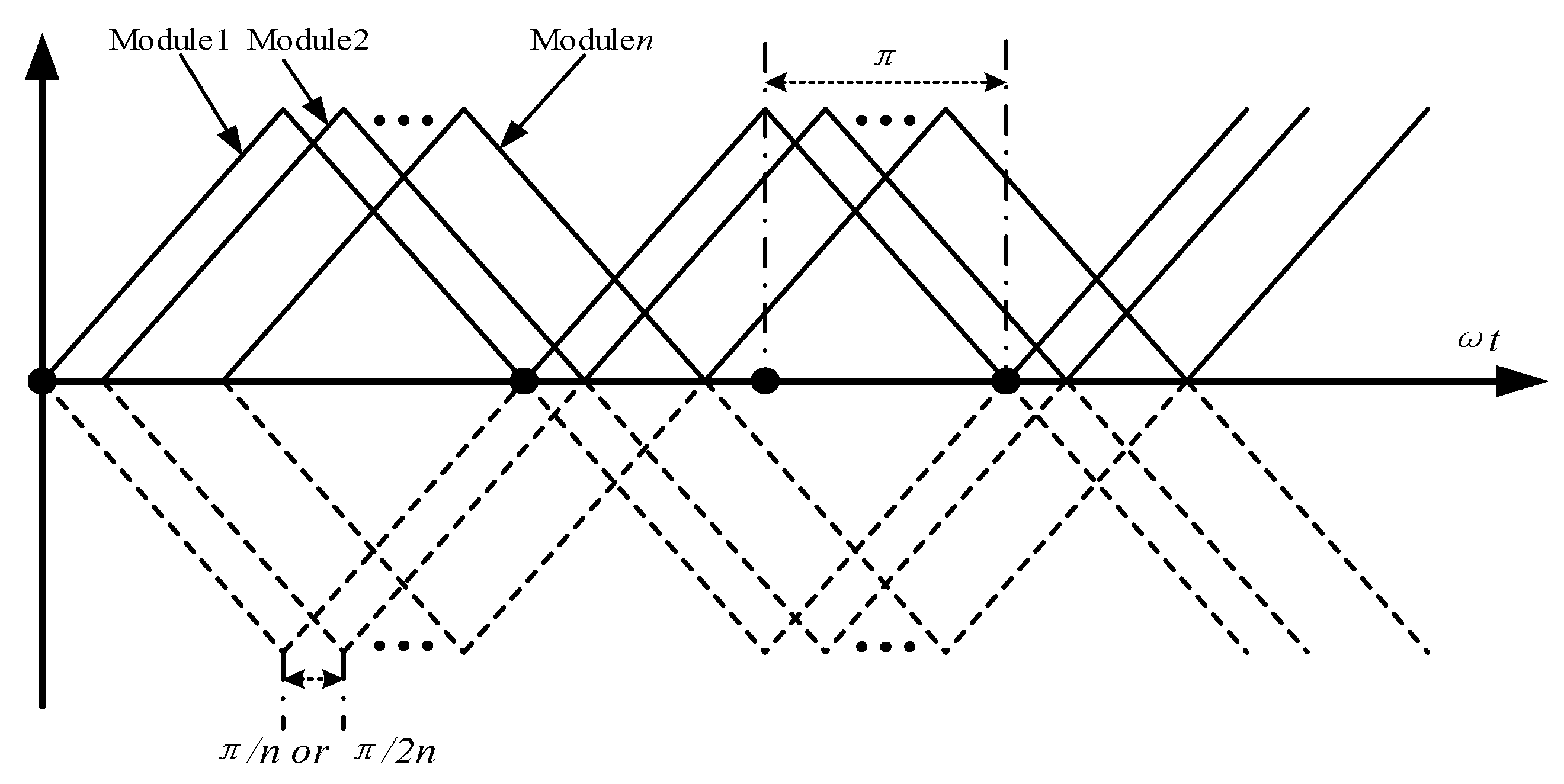

As shown in Figure 5, carrier phase shifted SPWM is adopted for single-phase NPC cascaded inverter because of its performance for cascaded system. Modulation strategy for each single module is almost the same. It is noted that: When N (number of NPC modules) is odd, the triangular carriers sequentially move forward 2π/N. When N is even, the triangular carriers sequentially move backward π/N. Otherwise, output level will decrease and harmonic content will increase. Carrier phase shifted SPWM can split the duty time of the vector to equalize the voltages of separate cascaded modules with higher switching frequency.

4. Output Spectrum of Single-Phase NPC Cascaded Inverter

4.1. Derivation of Switching Function

The output waveform is the function of θ and φ. When modulation depth of one NPC module M > 1, φ₀ is defined as the intersection between modulation wave and upper carrier envelope line, and φ₀′ is defined as intersection between modulation wave and lower carrier envelope line. Moreover, φ₀ + φ₀′ = π. When M ≤ 1, there is no intersection between modulation wave and two carrier envelope lines, which means φ₀ = 0, as shown in Figure 4c,d.

In this paper, the switching function spectrum is deduced when M < 1, and it means the single-phase NPC cascaded inverter works in linear conditions. Within a period of a triangle carrier, the intersections of modulation wave and two carriers, θ₁, θ₂ and θ₁′, θ₂′ in Figure 3b can be expressed as follows:

$$\{\begin{array}{l}{\theta }_1=-\frac{\mathsf{\pi }(A_v\cos \phi +1)}{2}\\ {\theta }_2=\frac{\mathsf{\pi }(A_v\cos \phi +1)}{2}\end{array}$$

(1)

$$\{\begin{array}{l}{\theta }_1{}^{\prime }=\frac{\mathsf{\pi }(A_v\cos \phi -1)}{2}\\ {\theta }_2{}^{\prime }=-\frac{\mathsf{\pi }(A_v\cos \phi -1)}{2}\end{array}$$

(2)

According to Section 3, in a double coordinate system, the values of switching function within a period of carrier and modulation wave are obtained as follows:

$$F(\theta ,\phi )=\{\begin{array}{l}0,-\mathsf{\pi }\le \phi \le -(\mathsf{\pi }-{\phi }_0),-\mathsf{\pi }\le \theta \le \mathsf{\pi }\\ 0,-(\mathsf{\pi }-{\phi }_0)\le \phi \le -{\phi }_0,-\mathsf{\pi }\le \theta \le {\theta }_1\\ 1,-(\mathsf{\pi }-{\phi }_0)\le \phi \le -{\phi }_0,{\theta }_1＜\theta ＜{\theta }_{２}\\ 0,-(\mathsf{\pi }-{\phi }_0)\le \phi \le -{\phi }_0,{\theta }_2＜\theta ＜\mathsf{\pi }\\ 1,-{\phi }_0\le \phi ＜{\phi }_0,-\mathsf{\pi }＜\theta ＜\mathsf{\pi }\\ 0,{\phi }_0\le \phi \le \mathsf{\pi }-{\phi }_0,-\mathsf{\pi }\le \theta <{\theta }_1\\ 1,{\phi }_0\le \phi \le \mathsf{\pi }-{\phi }_0,{\theta }_1\le \theta \le {\theta }_{２}\\ 0,{\phi }_0\le \phi \le \mathsf{\pi }-{\phi }_0,{\theta }_{２}＜\theta \le \mathsf{\pi }\\ 0,\mathsf{\pi }-{\phi }_0\le \phi \le \mathsf{\pi },-\mathsf{\pi }＜\theta ＜\mathsf{\pi }\end{array}$$

(3)

4.2. Derivation of Output Spectrum of CPSPOD-SPWM

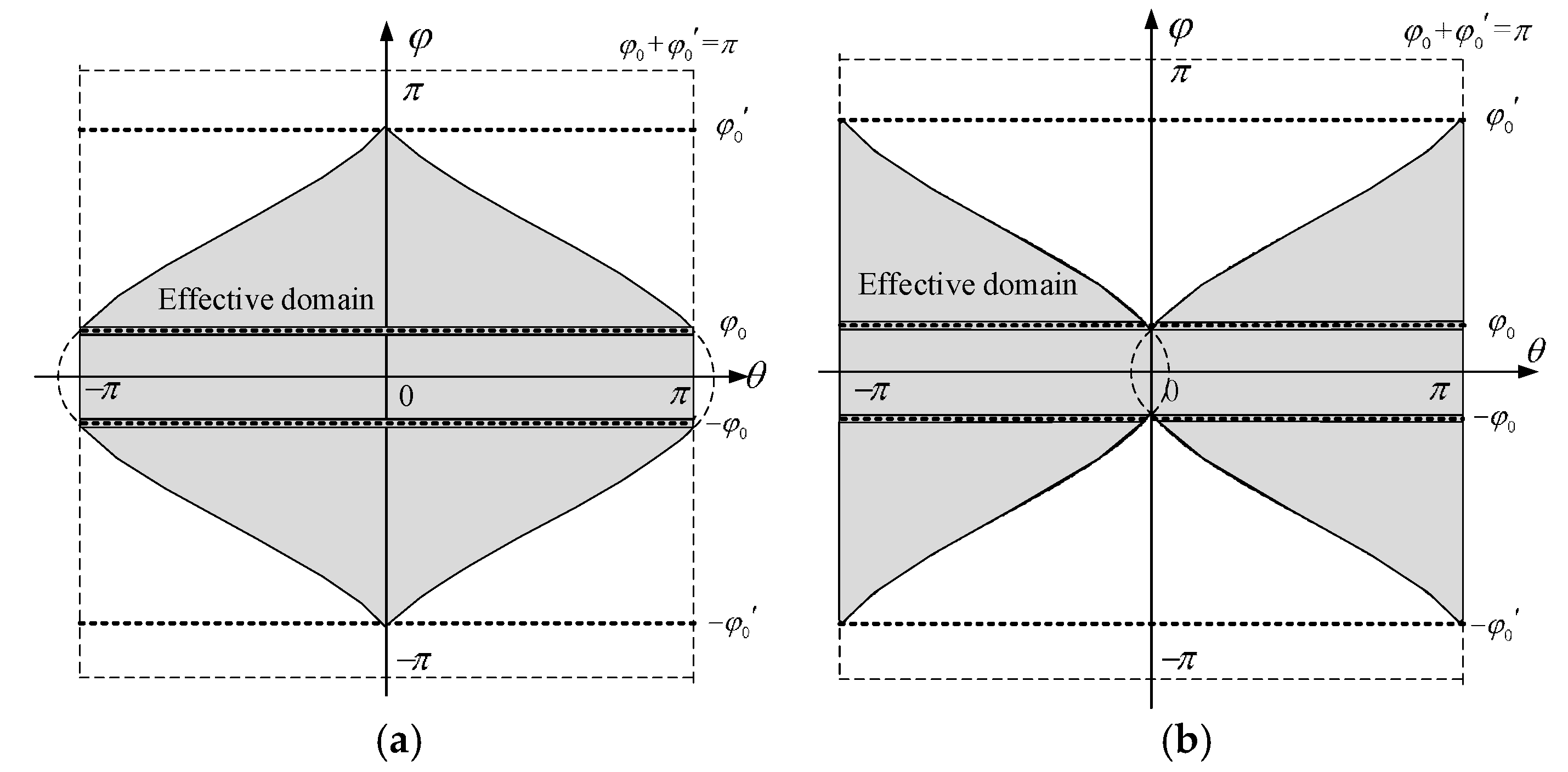

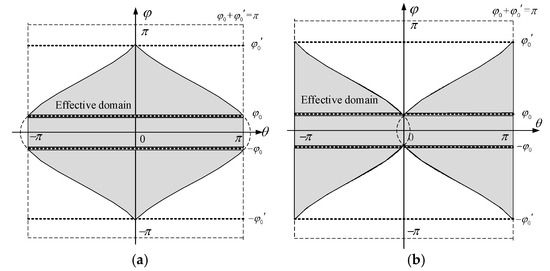

As shown in Figure 6a, the effective domain of integration is drawn according to the value distribution of 0 and 1 of F(θ, φ), and the gray segment represents the area in which value is 1. If the initial angle of carrier α shifts 180°, the effective domain of integration shown in Figure 6b can be obtained.

F(θ, φ) is a periodic function in terms of θ and φ. Therefore, it can be expressed by double Fourier series as follows:

$$\begin{array}{ll}F(\theta ,\phi )=& \frac{1}{2}{A}_{00}+{\displaystyle \sum _{n=1}^{\infty }[A_{0n}}\cos n\phi +B_{0n}\sin n\phi ]\\ & +{\displaystyle \sum _{m=1}^{\infty }{\displaystyle \sum _{n=0}^{\pm \infty }[A_{mn}\cos (m\theta +n\phi )+B_{mn}\sin }}(m\theta +n\phi )]\end{array}$$

(4)

Because the carrier wave and sinusoidal modulation wave are symmetric about θ = 0 and φ = 0, the value of B_mn is 0. Then A_mn (m = 0, 1, 2 …) can be obtained by inverse transformation of double Fourier function. In linear modulation region, two PWM waves of bridge Leg a are expressed by double Fourier series as follows:

$$\begin{array}{l}{F}_{PWM1}({\omega }_{c}t,{\omega }_{v}t)=\frac{M}{4}\cos ({\omega }_{\mathrm{s}}t)+\frac{1}{m\mathsf{\pi }}{\displaystyle \sum _{m=1,3,5,\cdot \cdot \cdot }^{\infty }[J_0(\frac{mM\mathsf{\pi }}{2})\cdot }\\ \sin (\frac{m}{2}\mathsf{\pi })\cos (m{\omega }_{c}t){\mathrm{e}}^{-\mathrm{jm}\alpha }]+\frac{1}{m\mathsf{\pi }}{\displaystyle \sum _{m=1,2,\cdot \cdot \cdot }^{\infty }{\displaystyle \sum _{n=\pm 1,\pm 2,\cdot \cdot \cdot }^{\pm \infty }[J_n(\frac{mM\mathsf{\pi }}{2})\cdot }}\\ \sin (\frac{m+n}{2}\mathsf{\pi }){\mathrm{e}}^{-\mathrm{jm}\alpha }\cos (mF{\omega }_{v}t+n{\omega }_{v}t+n\frac{\mathsf{\pi }}{2})]\end{array}$$

(5)

$$\begin{array}{l}{F}_{PWM2}({\omega }_{c}t,{\omega }_{v}t)=\frac{M}{4}\cos ({\omega }_{v}t)+\frac{1}{m\mathsf{\pi }}{\displaystyle \sum _{m=1,3,5,\cdot \cdot \cdot }^{\infty }[J_0(\frac{mM\mathsf{\pi }}{2})}.\\ \sin (\frac{m}{2}\mathsf{\pi })\cos (m{\omega }_{c}t){\mathrm{e}}^{-\mathrm{jm}(\alpha +\mathsf{\pi })}]+\frac{1}{m\mathsf{\pi }}{\displaystyle \sum _{m=1,2,\cdot \cdot \cdot }^{\infty }{\displaystyle \sum _{n=\pm 1,\pm 2,\cdot \cdot \cdot }^{\pm \infty }[J_n(\frac{mM\mathsf{\pi }}{2})}}\\ \cdot \sin (\frac{m+n}{2}\mathsf{\pi }){\mathrm{e}}^{-\mathrm{jm}(\alpha +\mathsf{\pi })}\cos (mF{\omega }_{v}t+n{\omega }_{v}t+n\frac{\mathsf{\pi }}{2})]\end{array}$$

(6)

where Av is the amplitude of the modulation wave; Ac is the peak value of the triangular carrier; M is the modulation depth, given by the expression M = Av/Ac; ω_v is the angular velocity of the modulation wave; ω_c is the angular velocity of triangular carrier; F is the carrier wave ratio (F = ω_v/ω_c); and J_n$\frac{mM\mathsf{\pi }}{2}$ represents the Bessel function as follows:

$$J_n(\frac{mM\mathsf{\pi }}{2})=\frac{1}{2\mathsf{\pi }}{\displaystyle \underset{-\mathsf{\pi }}{\overset{\mathsf{\pi }}{\int }}{\mathrm{e}}^{-j\frac{mM\mathsf{\pi }}{2}}}\cdot {\mathrm{e}}^{jn\tau }\cdot d\tau$$

(7)

Adding (5) and (6), the output spectrum of one bridge leg is deduced as follows:

$$\begin{array}{l}{F}_a({\omega }_{c}t,{\omega }_{v}t)=F_{PWM1}({\omega }_{c}t,{\omega }_{v}t)+F_{PMW2}({\omega }_{c}t,{\omega }_{v}t)=\\ \frac{M}{2}\cos ({\omega }_{v}t)+{\mathrm{e}}^{-\mathrm{jm}\alpha }(1+{\mathrm{e}}^{-\mathrm{jm}\pi })\frac{1}{m\mathsf{\pi }}{\displaystyle \sum _{m=1,3,5\cdot \cdot \cdot }^{\infty }[J_0(\frac{mM\mathsf{\pi }}{2})\sin (\frac{m}{2}\mathsf{\pi })}\\ \cdot \cos (m{\omega }_{c}t)]+{\mathrm{e}}^{-\mathrm{jm}\alpha }(1+{\mathrm{e}}^{-\mathrm{jm}\mathsf{\pi }})\frac{1}{m\mathsf{\pi }}{\displaystyle \sum _{m=1,2,\cdot \cdot \cdot }^{\infty }{\displaystyle \sum _{n=\pm 1,\pm 2,\cdot \cdot \cdot }^{\pm \infty }[J_n(\frac{mM\mathsf{\pi }}{2})}}\\ \cdot \sin (\frac{m+n}{2}\mathsf{\pi })\cos (mF{\omega }_{v}t+n{\omega }_{v}t+n\frac{\mathsf{\pi }}{2})]\end{array}$$

(8)

When m is an odd number, 1 + e^−jmπ = 0, hence the second term is eliminated. When POD-SPWM strategy is adopted, frequency of triangular carriers is doubled, and carrier wave ratio is also doubled, then F′ = 2F, m′ = m/2. The Equation (8) can be simplified as follows:

$$\begin{array}{ll}{F}_a({\omega }_{c}t,{\omega }_{v}t)=& \frac{M}{2}\cos ({\omega }_{v}t)\pm \frac{1}{m^{\prime }\mathsf{\pi }}{\mathrm{e}}^{-\mathrm{j}\mathrm{m}\prime \alpha }{\displaystyle \sum _{m^{\prime }=1,2,\cdot \cdot \cdot }^{\infty }{\displaystyle \sum _{n=\pm 1,\pm 3,\cdot \cdot \cdot }^{\pm \infty }}}\\ & [J_n(\frac{m^{\prime }M\mathsf{\pi }}{2})\cdot \sin (m^{\prime }{F}^{\prime }{\omega }_{v}t+n{\omega }_{v}t+n\frac{\mathsf{\pi }}{2})]\end{array}$$

(9)

For Leg b, the initial triangular carrier has a 180° phase difference compared with the carrier of Leg a, and modulation wave can be described as −A_vcos(ω_vt). The derivation of output voltage spectrum is similar as the Equations (1)–(9).The expression is shown as follows:

$$\begin{array}{ll}{F}_b({\omega }_{c}t,{\omega }_{v}t)=& -\frac{M}{2}\cos ({\omega }_{v}t)\mp \frac{1}{m^{\prime }\mathsf{\pi }}{\mathrm{e}}^{-\mathrm{j}\mathrm{m}\prime \alpha }{\displaystyle \sum _{m^{\prime }=1,2,\cdot \cdot \cdot }^{\infty }{\displaystyle \sum _{n=\pm 1,\pm 3,\cdot \cdot \cdot }^{\pm \infty }}}\\ & [J_n(\frac{m^{\prime }M\mathsf{\pi }}{2})\cdot \sin (m^{\prime }{F}^{\prime }{\omega }_{v}t+n{\omega }_{v}t+n\frac{\mathsf{\pi }}{2})]\end{array}$$

(10)

Then, the output voltage spectrum of single-phase NPC is expressed as follows:

$$\begin{array}{ll}{F}_{NPC}({\omega }_{c}t,{\omega }_{v}t)& =F_a({\omega }_{c}t,{\omega }_{v}t)-F_b({\omega }_{c}t,{\omega }_{v}t)\\ & =M\cos ({\omega }_{v}t)+{\mathrm{e}}^{-\mathrm{j}\mathrm{m}\prime \alpha }\frac{2}{m^{\prime }\mathsf{\pi }}{\displaystyle \sum _{m^{\prime }=2,4,\cdot \cdot \cdot }^{\infty }{\displaystyle \sum _{n=\pm 1,\pm 3,\cdot \cdot \cdot }^{\pm \infty }}}\\ & [J_n(\frac{m^{\prime }M\mathsf{\pi }}{2})\cdot \sin (m^{\prime }{F}^{\prime }{\omega }_{v}t+n{\omega }_{v}t+n\frac{\mathsf{\pi }}{2})]\end{array}$$

(11)

When an odd number of NPC modules are cascaded, suppose the initial phase angle of triangular carrier of the first NPC module α_{1_1} = 0°, then that angle of module i α_{i_1} = 2π(i − 1)/N. If regard F_NPCi as a function of ω_ct, ω_vt, α_{i_1}, combining the derivation of Equation (11), the output spectrum of module i is obtained:

$$\begin{array}{l}{F}_{NPCi}({\omega }_{c}t,{\omega }_{v}t,{\alpha }_{i\_1})=M\cos ({\omega }_{v}t)+{\mathrm{e}}^{-\mathrm{j}\mathrm{m}\prime {\alpha }_{i\_1}}\frac{2}{m^{\prime }\mathsf{\pi }}.\\ {\displaystyle \sum _{m^{\prime }=2,4,\cdot \cdot \cdot }^{\infty }{\displaystyle \sum _{n=\pm 1,\pm 3,\cdot \cdot \cdot }^{\pm \infty }[J_n(\frac{m^{\prime }M\mathsf{\pi }}{2})}}\cdot \sin (m^{\prime }{F}^{\prime }{\omega }_{v}t+n{\omega }_{v}t+n\frac{\mathsf{\pi }}{2})]\end{array}$$

(12)

Adding N output spectral expressions of single-phase NPC modules, the total output voltage spectrum of cascaded structure is expressed as follows:

$$\begin{array}{l}{F}_{NPC\_Odd}={\displaystyle \sum _{i=1}^N{F}_{NPCi}({\omega }_{c}t,{\omega }_{v}t,{\alpha }_{i\_1})}\\ =NM\cos ({\omega }_{v}t)+(e^{-\mathrm{j}\mathrm{m}\prime {\alpha }_{i\_1}}+e^{-\mathrm{j}\mathrm{m}\prime {\alpha }_{i\_2}}+...+e^{-\mathrm{j}\mathrm{m}\prime {\alpha }_{i\_N}})\frac{2}{m^{\prime }\mathsf{\pi }}.\\ {\displaystyle \sum _{m^{\prime }=2,4,\cdot \cdot \cdot }^{\infty }{\displaystyle \sum _{n=\pm 1,\pm 3,\cdot \cdot \cdot }^{\pm \infty }[J_n(\frac{m^{\prime }M\mathsf{\pi }}{2})}}\cdot \sin (m^{\prime }{F}^{\prime }{\omega }_{v}t+n{\omega }_{v}t+n\frac{\mathsf{\pi }}{2})]\end{array}$$

(13)

Defining G = $e^{-\mathrm{j}\mathrm{m}\prime {\alpha }_{i\_1}}+e^{-\mathrm{j}\mathrm{m}\prime {\alpha }_{i\_2}}+...+e^{-\mathrm{j}\mathrm{m}\prime {\alpha }_{i\_N}}$, the value of G is N when m′ = k·N (k is an arbitrary integer), in other cases, the value is 0. Therefore, the expression of total output voltage can be simplified as follows:

$$\begin{array}{ll}{F}_{NPC\_Odd}=& NM\cos ({\omega }_{v}t)+\frac{2N}{m^{\prime }\mathsf{\pi }}.{\displaystyle \sum _{m^{\prime }=2N,4N,\cdot \cdot \cdot }^{\infty }{\displaystyle \sum _{n=\pm 1,\pm 3,\cdot \cdot \cdot }^{\pm \infty }}}\\ & [J_n(\frac{m^{\prime }M\mathsf{\pi }}{2})\sin (m^{\prime }{F}^{\prime }{\omega }_{v}t+n{\omega }_{v}t+n\frac{\mathsf{\pi }}{2})]\end{array}$$

(14)

For the total output voltage F_NPC-Even (NPC-Even/Odd indicates even/Odd number of NPCs are cascaded), because of the difference π/N among initial phase angles of NPC modules, the value of G is N when m = 2 k·N (k is an arbitrary integer). In other cases, the value is not always 0. Thus, the expression is same as Equation (14).

5. Simulation and Experiment

In order to verify the theoretical analysis, a simulation is performed in the Matlab/Simulink environment. By simulations of a single NPC, two NPC modules and three NPC modules cascaded structures, 5-level, 9-level and 13-level output waveforms are obtained, then the output waveforms are analyzed by fast Fourier transform (FFT). The simulation parameters are listed in

Table 2. Simulation Parameters.

Parameters	Value
DC capacitor C1, C2 C3,C4	20 mF
DC bus voltage	3000 V
Frequency of modulated wave	50 Hz
Modulation depth	0.98
Frequency of carrier (fc)	3000 Hz
Simulation step	1 × 10−6 s
Simulation time	0.05 s

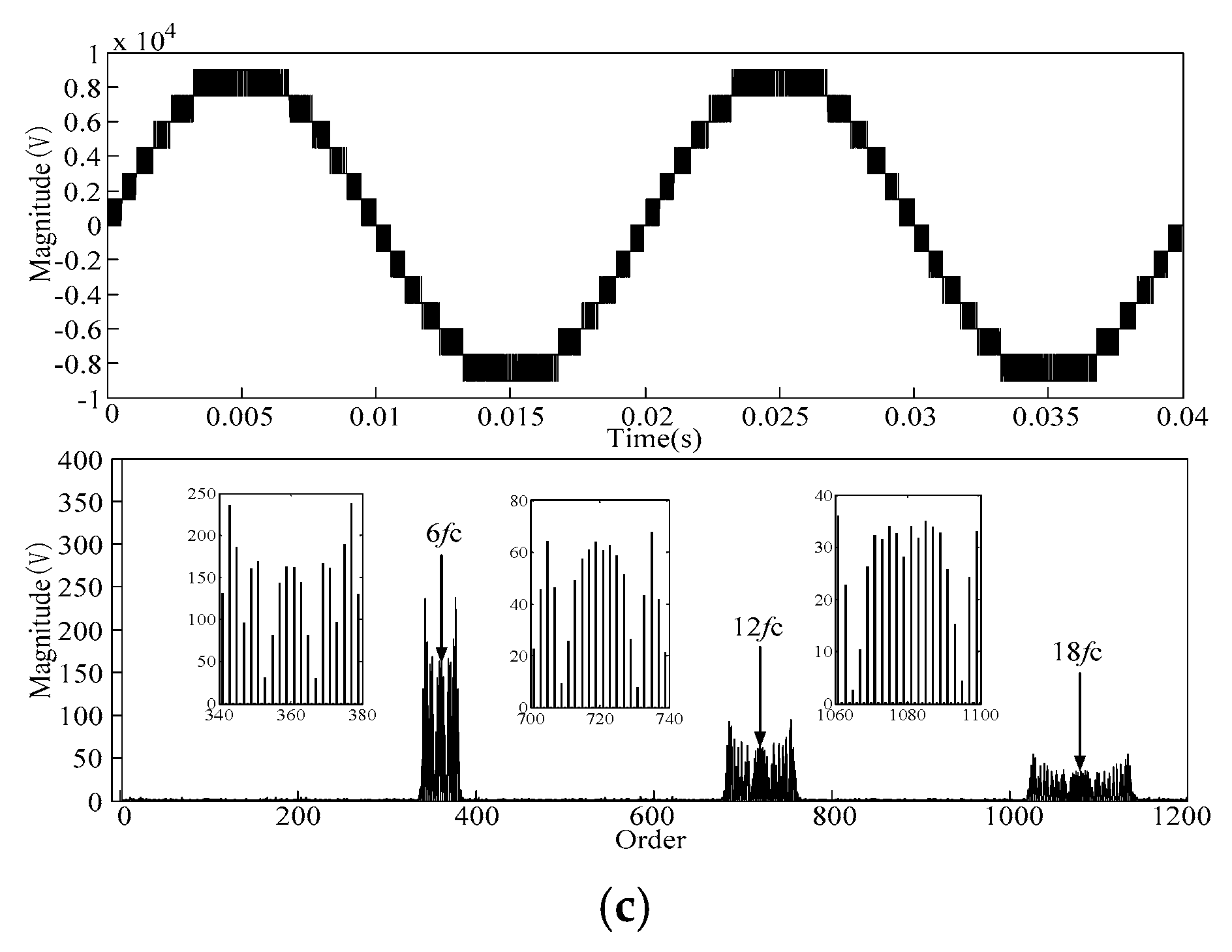

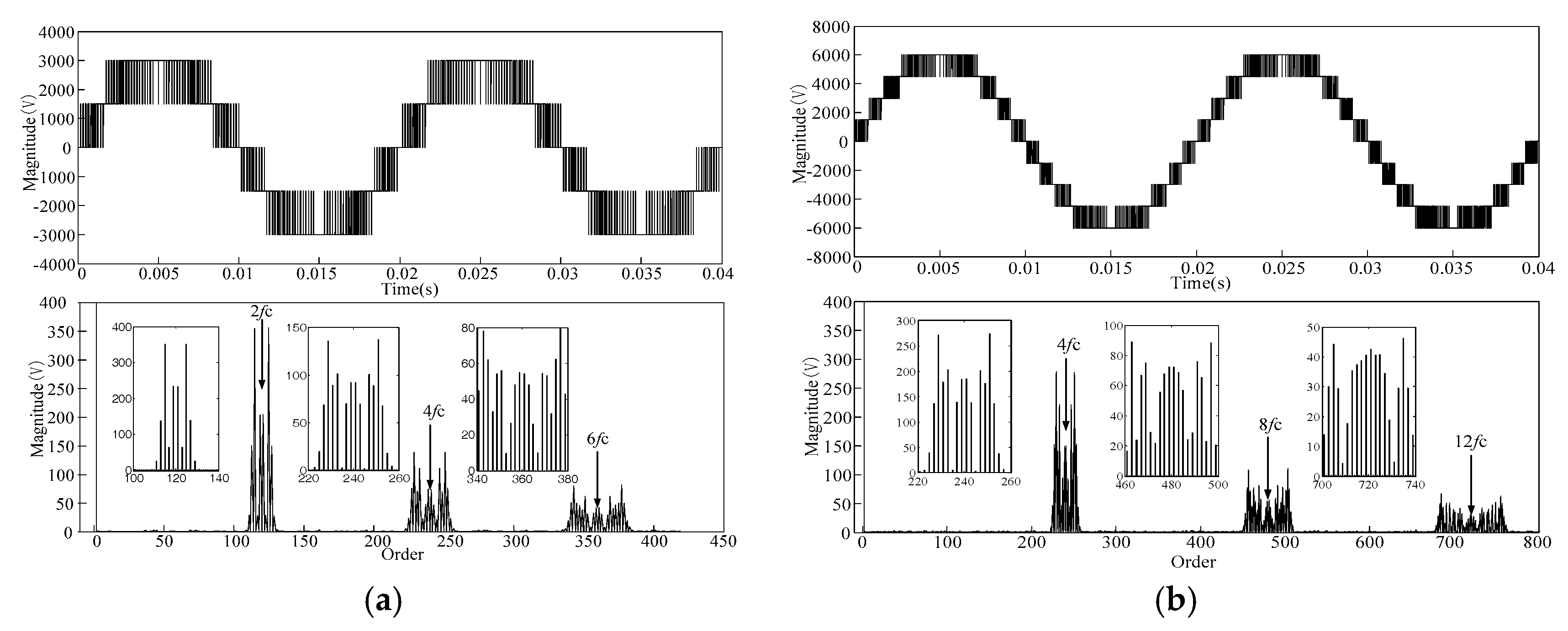

and the results are shown in Figure 7. The simulation parameters are shown in Table 2.

5.1. Simulation

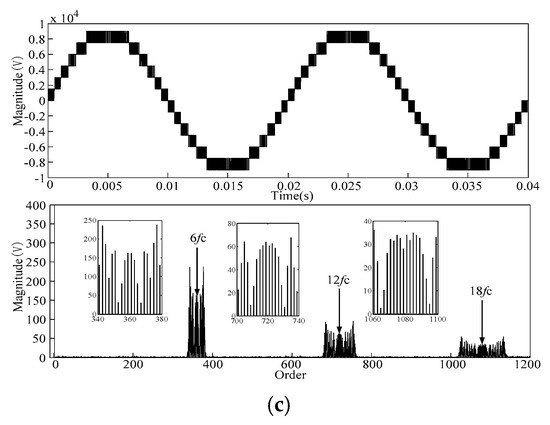

When three modules are cascaded, the total harmonic distortion (THD) of a five-level output waveform is 26.98%, and the fundamental amplitude is 2940 V. When five modules are cascaded, THD of nine-level output waveform is 13.27%, and the fundamental amplitude is 5881 V. When seven modules are cascaded, THD of thirteen-level is 9.89%, the fundamental amplitude is 8821 V. For nine-level output waveform (thirteen-level output waveform), the contents of the odd harmonics in 4f_c, 8f_c, 12f_c (6f_c, 12f_c, 18f_c) side-frequency bands are shown in

Table 3. Output Characteristic Order Harmonics Content of 2 Modules Cascaded Inverter and 3 Modules Cascaded Inverter.

9-level	Order	227	229	231	233	235	237	239	240	241	243	245	247	249	251	253
	Content (%)	2.53	4.63	2.34	3.68	0.06	2.36	3.15	0	3.12	2.37	0.08	3.68	2.31	4.62	2.54
	Order	467	469	471	473	475	477	479	480	481	483	485	487	489	491	493
	Content (%)	0.64	1.35	0.49	0.41	0.97	1.16	1.23	0	1.23	1.15	0.95	0.37	0.49	1.27	0.68
	Order	707	709	711	713	715	717	719	720	721	723	725	727	729	731	733
	Content (%)	0.68	0.54	0.20	0.15	0.30	0.40	0.50	0	0.47	0.45	0.34	0.10	0.23	0.54	0.70
13-level	Order	347	349	351	353	355	357	359	360	361	363	365	367	369	371	373
	Content (%)	1.09	1.81	1.91	0.35	0.92	1.63	1.84	0	1.84	1.63	0.92	0.34	1.88	1.83	1.1
	Order	707	709	711	713	715	717	719	720	721	723	725	727	729	731	733
	Content (%)	0.52	0.11	0.29	0.55	0.65	0.69	0.72	0	0.72	0.69	0.67	0.58	0.3	0.09	0.49
	Order	1067	1069	1071	1073	1075	1077	1079	1080	1081	1083	1085	1087	1089	1091	1093
	Content (%)	0.12	0.3	0.37	0.36	0.39	0.37	0.32	0	0.39	0.36	0.4	0.38	0.37	0.29	0.17

.

The simulation results indicate that odd harmonics mainly exist in side-frequency band of which the frequency is 2N (4N, …) times carrier frequency Compared with single module, the equivalent switching frequency of the NPC-CI is N times higher, while the THD is much smaller. The output spectrum barely contains the harmonic of the carrier frequency or the low orders harmonics.

In actual engineering application, the maximum voltage present commercialized IGBTs can withstand is 6.5 kV. Thus, considering redundant design in cascaded system, the number of cascaded modules is set to 7 + 1. The output waveform and spectrum of an eight modules cascaded single-phase NPC-CI are shown in Figure 8.

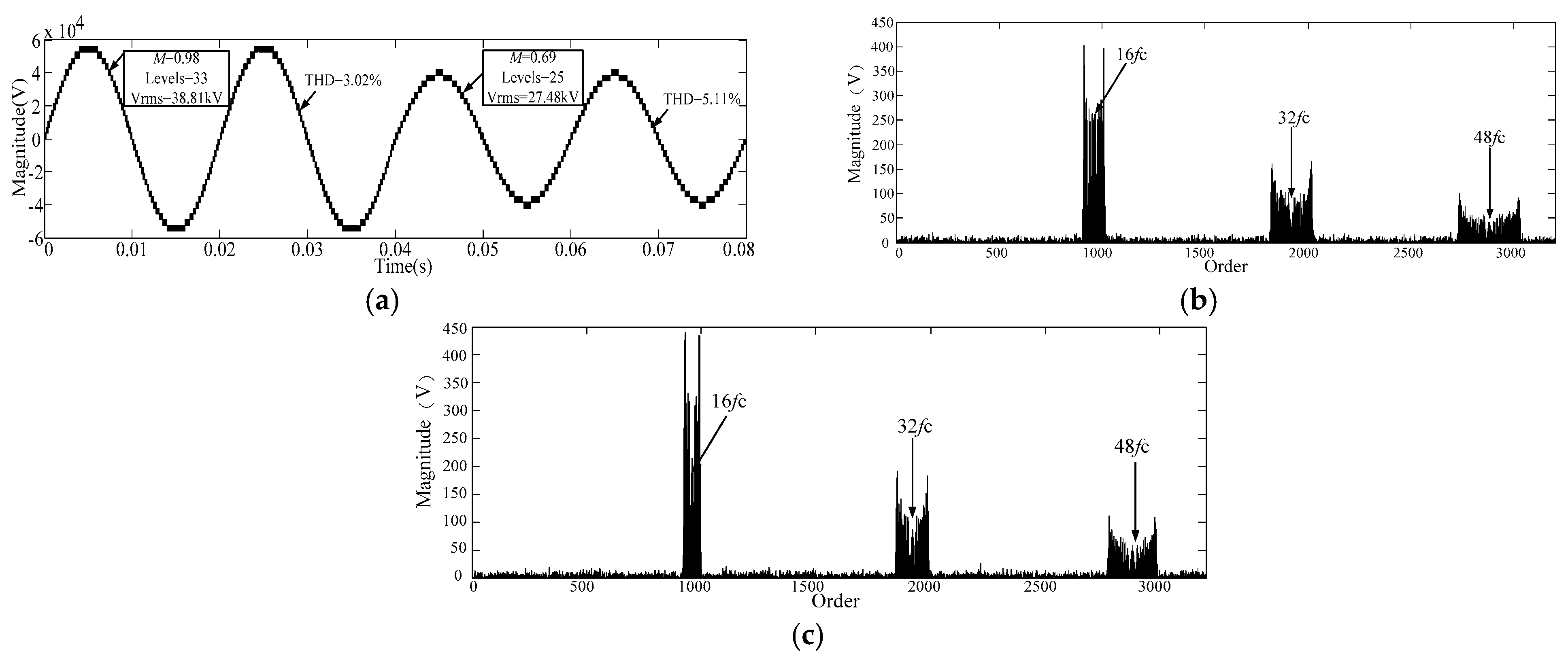

When the modulation depth is 0.98, a 33-level output waveform is achieved, and the theoretical maximum output voltage root mean square (RMS) is obtained in this case. When the modulation depth is reduced to 0.69, the output voltage RMS is nearly 27.5 kV, which is the standard voltage of a traction net. In this case, even though the voltage level number is reduced and THD is increased, the output voltage waveform is still sinusoidal. By analyzing the output spectrum, it is found that decrease of voltage levels has little impact on the harmonic distribution, and harmonics mainly exist in side-frequency band of which frequency is N × 8 × 2f_c (N = 1, 2, 3, …). Thus, switching frequency and switching loss are decreased with increasing output voltage-levels. Meanwhile, filter circuit of cophase power supply system can be cancelled.

The simulation results of an eight modules cascaded inverter with carrier phase shifted phase opposition disposition SPWM is shown in Figure 8. According to Equations (10) and (13), with different values of m and n, the ratio of i-th harmonic amplitude to fundamental amplitude can be calculated, which is represented as HRUi. When output waveforms are of 5-level, 9-level and 13-level, HRUi of first, third and fifth harmonics in side-frequency band of characteristic harmonic are counted in

Table 4. Comparison between Simulation Results and Theoretical Results.

Output Level	Simulation Results				Theoretical Results
	HRUi	n = 1	n = 3	n = 5	n = 1	n = 3	n = 5
5-level	m = 2	7.92	2.17	11.96	7.89	2.18	12.10
	m = 4	3.14	2.39	0.09	3.12	2.36	0.08
9-level	m = 4	3.12	2.37	0.08	3.12	2.36	0.08
	m = 8	1.23	1.15	0.95	1.25	1.17	0.93
13-level	m = 6	1.84	1.63	0.92	1.83	1.61	0.96
	m = 12	0.72	0.69	0.65	0.71	0.70	0.66

. By comparison, simulation results are consistent with theoretical results.

5.2. Low Power Experiment

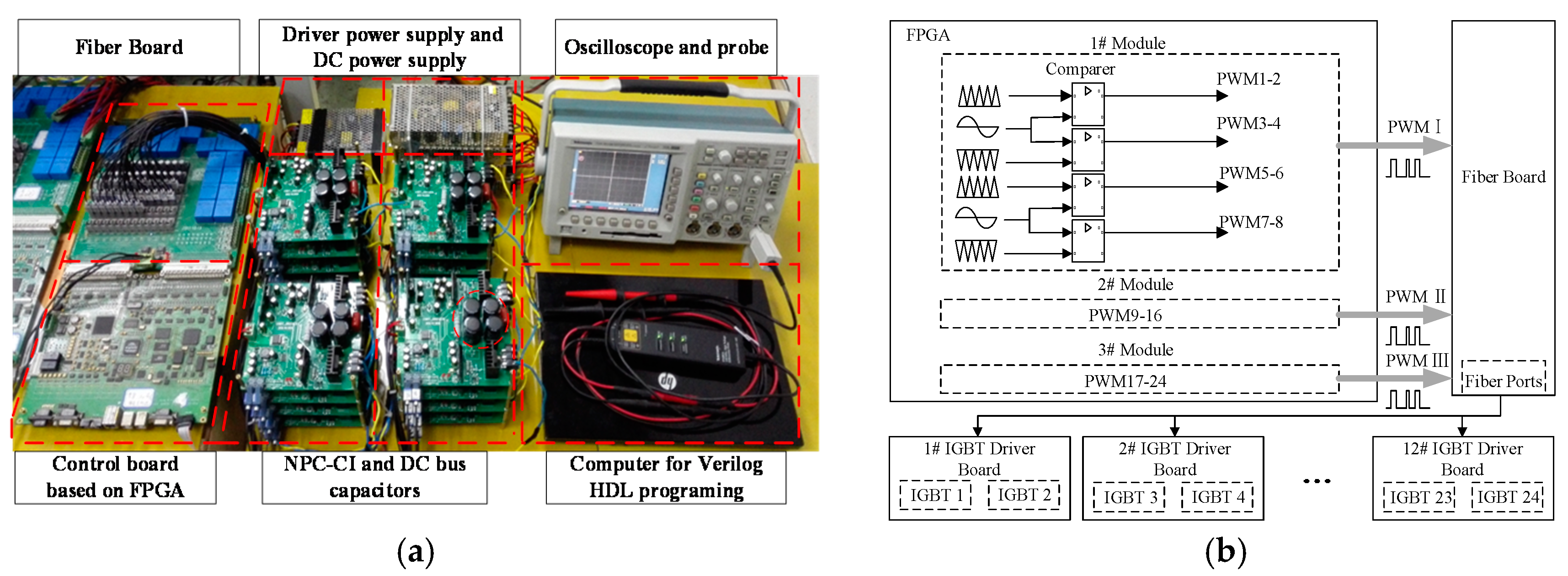

Low power experimental platform is shown in Figure 9a. Basically, it consists of a control board, fiber board and IGBT driver board and DC source, etc. The carrier frequency is 1.4 kHz and modulation wave frequency is 50 Hz. Modulation depth is set to be 0.85.

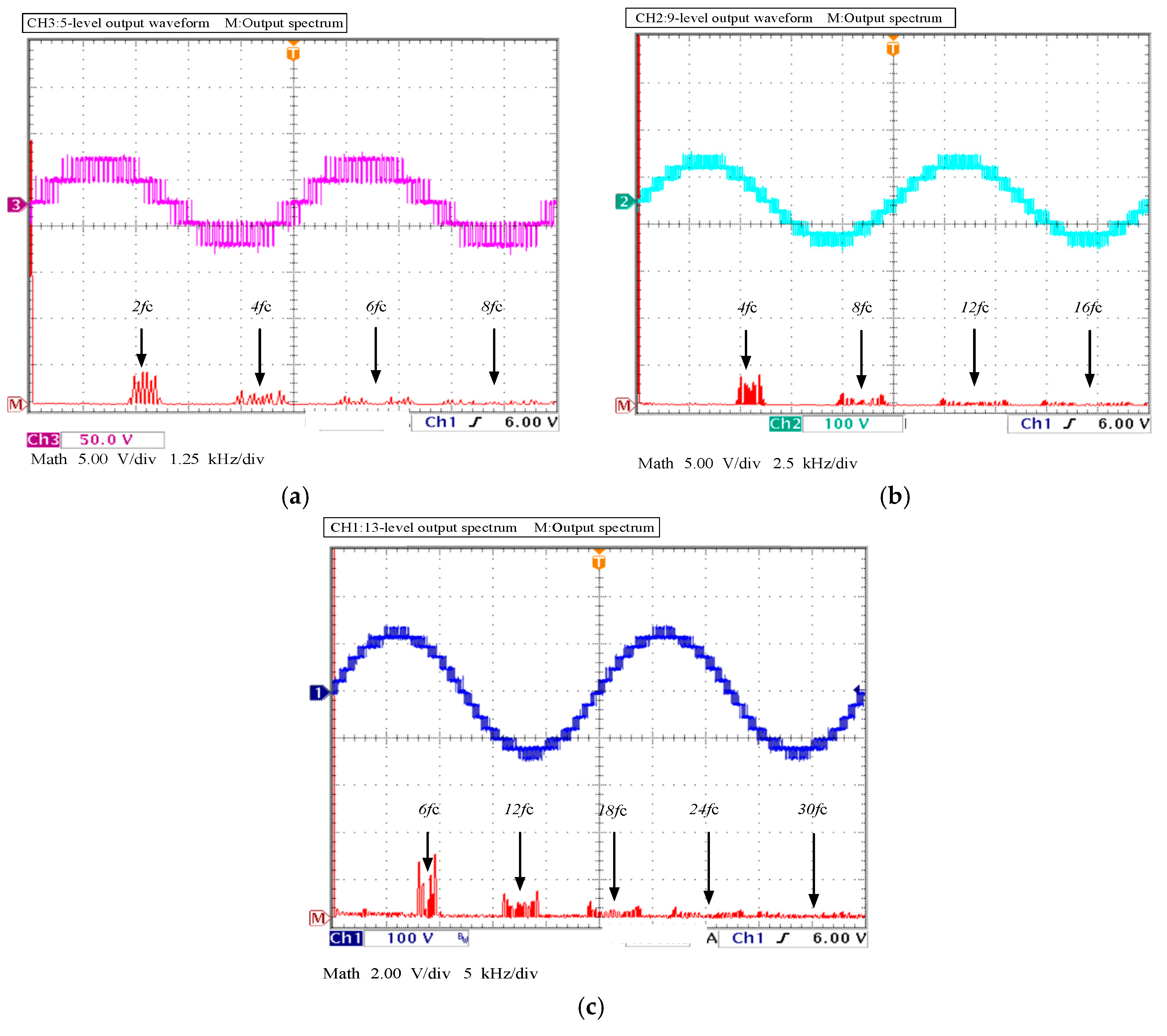

Taking a three-modules prototype for example, the control strategy is shown in Figure 9b. At present, because the number of fiber ports is limited, experimental platforms of one single module, cascaded structures consisted of two modules and three modules are set up to verify the deduction. Expressions of output voltage of single module and cascaded structure are expanded by FFT, as shown in Figure 10. Output characteristic order harmonics content of a two modules cascaded structure and a three modules cascaded structure are counted in Table 3. Experimental results are consistent with our theoretical analysis.

6. Conclusions

An advanced traction power supply system based on a single phase NPC cascaded inverter is studied in this paper. The big triangular carrier equivalence method in double coordinate system is proposed, to simplify the complexity of the calculations. On the basis of the proposed method, the harmonic characteristics of single phase NPC cascaded inverter are calculated by a double Fourier series. The performances and calculation results of the proposed method were verified by simulations and experiments. The conclusions are as follows:

(1)

The equivalent switching frequency of the output voltage increases by adding a certain number of cascaded single-phase NPC module-based cascaded structures, and the frequency of the odd harmonics which exist in the side frequency band of mainly is 2N (4N, …) times higher than the carrier frequency, where N represents the number of NPC modules;

(2)

The output spectrum barely contains the harmonics of the carrier frequency or lower order harmonics. Meanwhile, the output voltage becomes better regulated and the THD becomes much lower with the increasing number of cascaded modules.

(3)

The method proposed in the paper to analyze the harmonic characteristic is proved to be correct by simulations and experiments. The harmonic characteristics of an advanced traction power supply system based on a single phase NPC cascaded inverter analyzed in this paper provides a theoretical way to avoid railway traction network resonance.
