Boosting the Power-Generation Performance of Micro-Sized Al-H₂O₂ Fuel Cells by Using Silver Nanowires as the Cathode

Abstract

Micro-sized fuel cells represent one of the pollution-free devices available to power portable electronics. However, the insufficient power output limits the possibility of micro-sized fuel cells competing with other power sources, including supercapacitors and lithium batteries. In this study, a novel aluminum-hydrogen peroxide fuel cell is fabricated using uniform silver nanowires with diameters of 0.25 µm as the catalyst at the cathode side. The Ag nanowire solution is prepared via a polyol method, and mixed uniformly with Nafion and ethanol to enhance the adhesion of Ag nanowires. We carry out electrochemical tests, including cyclic voltammetry, electrochemical impedance spectroscopy, and Tafel polarization, to characterize the performance of this catalyst in H₂O₂ reduction. The Ag nanowires exhibit a high effectiveness and durability while catalyzing the reduction of H₂O₂ with a low impedance. The micro-sized Al-H₂O₂ fuel cell equipped with Ag nanowires delivers a power density of 43 W·m⁻² under a low concentration of H₂O₂ (0.1 M), which is substantially higher than the previously reported devices.

1. Introduction

The micro power sources based on aluminum–hydrogen peroxide fuel cells (Al-H₂O₂ FCs) have drawn increased attention due to their high theoretical open-circuit potential, high power density, and good durability [1,2,3]. The direct conversion of chemical energy stored in the fuels into electricity, and the H₂O₂ reactant, make Al-H₂O₂ FCs particularly suitable for submarine applications, where oxygen is hardly available [4,5,6]. Furthermore, the Al-H₂O₂ FCs possess other advantages, including environmental friendliness, low costs, and safety [7,8]. These characteristics highlight the great potential of Al-H₂O₂ FCs toward commercialization. The theoretical half-cell and overall chemical reactions pertaining to the Al-H₂O₂ FCs are as follows [9]:

$$\mathrm{Anode}:2\mathrm{Al}\left(\mathrm{s}\right)+8{\mathrm{OH}}^{-}\left(\mathrm{aq}\right)\to 2{\mathrm{AlO}}_2^{-}\left(\mathrm{aq}\right)+4{\mathrm{H}}_2\mathrm{O}\left(\mathrm{l}\right)+6{\mathrm{e}}^{-}\left|\mathrm{E}\right|=2.31\mathrm{V}\left(\mathrm{vs}.\mathrm{SHE}\right)$$

(1)

$$\mathrm{Cathode}:3{\mathrm{HO}}_2^{-}\left(\mathrm{aq}\right)+3{\mathrm{H}}_2\mathrm{O}\left(\mathrm{l}\right)+6{\mathrm{e}}^{-}\to 9{\mathrm{OH}}^{-}\left(\mathrm{aq}\right)\left|\mathrm{E}\right|=0.87\mathrm{V}\left(\mathrm{vs}.\mathrm{SHE}\right)$$

(2)

$$\mathrm{Overall}:2\mathrm{Al}\left(\mathrm{s}\right)+3{\mathrm{HO}}_2^{-}\left(\mathrm{aq}\right)\to 2{\mathrm{AlO}}_2^{-}\left(\mathrm{aq}\right)+{\mathrm{OH}}^{-}\left(\mathrm{aq}\right)+{\mathrm{H}}_2\mathrm{O}\left(\mathrm{l}\right)\left|\mathrm{E}\right|=3.18\mathrm{V}\left(\mathrm{vs}.\mathrm{SHE}\right)$$

(3)

However, the practical energy density of Al-H₂O₂ FCs was still insufficient for powering practical micro-sized devices, due to their limited H₂O₂ catalytic area, poor activity of H₂O₂ catalyzation, self-decomposition reactions of hydrogen peroxide, as well as aluminum corrosion [9]. Among the above limitations, the cathode performance related to the H₂O₂ catalyzation plays a vital role in determining the overall fuel cell performance [10,11,12]. Extensive studies have been carried out in exploring suitable cathode catalysts and architectures for catalyzing H₂O₂ reduction reactions. Patrissi et al. employed a textile flocking technique to fabricate a microfiber carbon electrode coated by a layer of alloy of Pd and Ir as the cathode [13]. Yang et al. synthesized nano-island-shaped silver particles [2]. The cathode material was achieved by electrodepositing the metallic Ag catalyst on a Ni-foam substrate. Even though Al-H₂O₂ fuel cells equipped with these cathodes exhibited high power densities, the techniques and materials demonstrated in these works were typically expensive and time-consuming.

Here, silver nanowires (Ag NWs) were synthesized and utilized for the first time as the hydrogen peroxide reduction reaction catalyst. The morphology and structure of the Ag NWs coated on carbon paper (denoted as Ag NW//CC hereafter) were characterized using scanning electron microscope (SEM) and energy dispersive X-ray spectroscopy (EDS). Electrochemical testing methods, including cyclic voltammetry (CV), electrochemical impedance spectroscopy (EIS), and Tafel polarization curve, were carried out to investigate its catalytic activity and stability. Finally, we designed and fabricated a microfluidic Al-H₂O₂ FC, and characterized its power-generation performance.

2. Results and Discussions

2.1. Characterization of Electrode Surface

The morphologies of Ag NW//CC were firstly characterized by SEM. As shown in Figure 1a, it could be seen that the carbon paper (CC) was made of carbon fibers with diameters of approximately 10 μm. Upon coating with Ag NW, the surface of CC was homogeneously covered with multilayered Ag NWs (Figure 1b). The diameter and the length of the Ag NWs were approximately 0.25 μm and 40 μm, respectively. The Ag NWs coated on CC could increase the specific catalytic surface area, as well as enhance the mass transport kinetics [2].

2.2. Ag NW//CC Electrode Performance Test

2.2.1. Cyclic Voltammetry Performance of the Ag NW//CC Electrode

To determine the catalytic performance of the Ag NW//CC electrode, the CV measurements of Ag NW//CC and CC electrodes were conducted in identical H₂O₂ electrolyte. The areas of both CC and Ag NW//CC were 1 cm × 1 cm, and the weight of Ag NW//CC and CC were 0.007 g and 0.012 g, respectively, indicating the mass loading of the silver nanowires was 5 mg·cm⁻². As shown in Figure 2, the waveforms were consistent with the previous studies reported by Honda et al. [14,15]. The oxidation peak and the reduction peak are of a similar area size, which can be ascribed to the following redox reaction:

$${\mathrm{Ag}}_2\mathrm{O}+{\mathrm{H}}_2\mathrm{O}+2{\mathrm{e}}^{-}\to 2\mathrm{Ag}+2{\mathrm{OH}}^{-}$$

(4)

The small oxidation and corresponding reduction peaks are attributed to the following redox reaction:

$$2\mathrm{AgO}+{\mathrm{H}}_2\mathrm{O}+2{\mathrm{e}}^{-}\to {\mathrm{Ag}}_2\mathrm{O}+2{\mathrm{OH}}^{-}$$

(5)

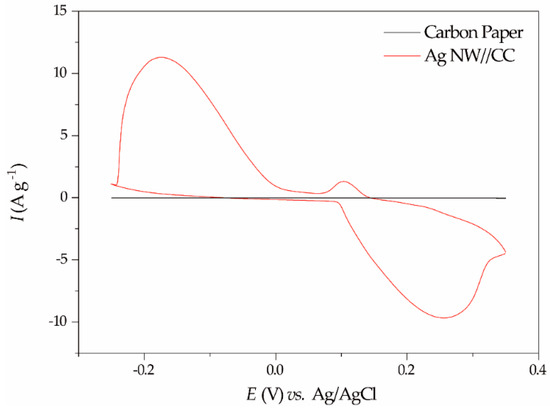

As shown in Figure 2, the CV curve of CC was almost a straight line with marginal enclosed area, indicating there was no reaction occurring at the surface of the pristine CC. Comparably, Ag NW//CC exhibited an obvious oxidation and reduction peaks with the onset potential and current value of approximately −0.25 V and 12 A·g⁻¹, respectively. The positions of the reduction and oxidation peaks were in agreement with the previous reports, which indicated that Ag NW//CC could effectively catalyze the H₂O₂ reduction reaction (Reaction (2)) [14,15].

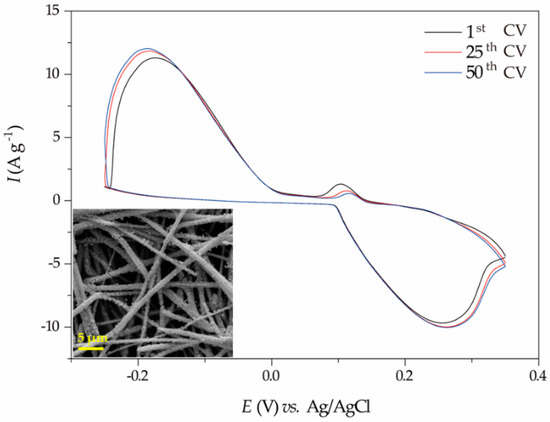

To further determine the long-term catalytic durability of Ag NW//CC, 50 cycles of CV measurements were conducted on the Ag NW//CC electrode. Figure 3 showed the stability performance of Ag NW//CC in H₂O₂ electrolyte. During the cycled test, the peak intensity of CV curves was well retained, but the peak position of Ag NW//CC shifted slightly under different cycles. This observation indicates that the Ag NW//CC electrode underwent certain changes during the long-term stability tests. Based on the EDS analysis (Tables S1 and S2 in the Supplementary Materials), we believe the change was the emergence of Ag₂O particles onto the Ag NWs.

2.2.2. Tafel Polarization of the Ag NW//CC Electrode

The reaction kinetics of the samples were further studied using the Tafel polarization curves (Figure 4). The fluctuation of the CC curve is because of the decomposition of hydrogen peroxide that evolves gas bubbles [16,17,18,19]. In the Tafel plot, the value of exchange current density (j₀) can be obtained from Tafel equation (Equation (6)) according to the intercept of y-axis:

$$\log \left|j\right|=\log j_0+\left(\raisebox{1ex}{$\beta nF$}\!\left/ \!\raisebox{-1ex}{$2.303RT$}\right.\right)\left|\eta \right|$$

(6)

where j is the measured current density, j₀ is exchange current density, β is electron transfer coefficient for reductive reaction, n is number of electrons transferred, F is Faraday’s constant, R is gas constant, T is temperature, and η is overpotential. Exchange current is the current density of working electrode when overpotential is zero. It relates to the electrochemical activity of the electrode at equilibrium state. j₀ was calculated according to the Tafel equation (Equation (6)) using the data in the linear region. As shown in the figure, the j₀ of the Ag NW//CC electrode is considerably boosted compared to the value of the pristine CC electrode. The enhanced current density can be attributed to the effective catalytic activity because of the presence of silver catalysts.

2.2.3. Characterization of Electrode Resistance

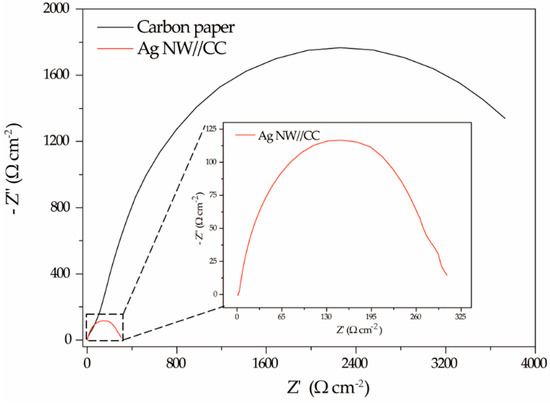

To determine the impedance of the electrode, EIS electrochemical tests were carried out from 100 kHz to 0.1 Hz. As shown in Figure 5, the semicircles in the two cases in the high frequency region were related to the charge transfer process [20]. The value of the diameters of the semicircles on the real axis are usually used to estimate the value of charge transfer resistance (R_ct) [20]. Based on the calculation, R_ct of the electrode was tremendously decreased by more than 10 times after growing Ag NWs on the CC electrode. With respect to the curve in the low frequency region, it could be attributed to the Warburg impedance (R_Ω). The value of R_Ω was typically related to the resistance of ion diffusion in the electrode materials as well as the mass transfer in electrolyte [21]. It can be estimated according to the value of last point in the Nyquist curve [21]. As indicated in Figure 5, the mass transfer resistance of the Ag NW//CC electrode was much lower than the pristine CC electrode. The EIS result is in good agreement with the CV results, indicating our Ag NW//CC electrode has a superior catalytic behavior.

2.3. Cell Performance Test of the Micro-Sized Al-H₂O₂ FC

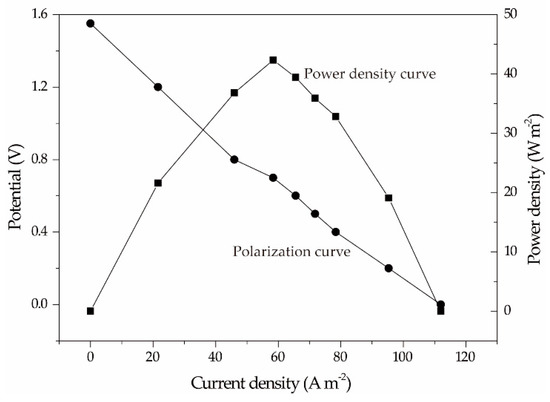

Microfluidic Al-H₂O₂ FC was fabricated using Al as anode and Ag NW//CC as cathode, and its overall performance was tested at room temperature serving the 0.1 M H₂O₂, 1 M NaOH and 20 g·L⁻¹ as electrolyte. As Figure 6 shows, the microfluidic Al-H₂O₂ FC delivered an open circuit potential (OCP) of 1.55 V, which was lower than the theoretical voltage (3.18 V). This may be due to the contact resistance occurred at the electrode/substrate interface, and the mixed potential at the interface resulting from the direct oxidation of H₂O₂ to H₂O and O₂ [22]. The device delivered a maximum power density of 43 W·m⁻² at a voltage of 0.7 V. The cell performance was substantially higher than those of other Al-H₂O₂ FCs employing other materials as cathode, and comparable to other state-of-art microfluidic fuel cells (

Table 1. Performance comparison of this work with selected micro-sized fuel cells reported in the literatures.

Anode Catalyst	Cathode Catalyst	Electrolyte	Imax-areal (A·m−2)	Pmax-areal (W·m−2)	Ref.
aluminum	Ag NW	0.1 M H2O2 & 1 M NaOH & 20 g·L−1 NaCl	112	43	This work
silver	Prussian blue	0.1 M HCl & 0.5 M H2O2	57 a	8 b	[8]
nickel	Prussian blue	0.1 M HCl & 0.5 M H2O2	101 a	15 b	[8]
Ni/carbon nanotube sponge	Pt/C	Anolyte: 3 M urea in 3 M KOH; catholyte: 1.5 M H2SO4	230 b	39 b	[23]
Pt-Ru/C	PtxSey/C (x/y = 5:1)	5 M methanol & 0.5 M H2SO4	409 a	30 a	[24]
aluminum	Prussian blue	0.1 M HCl & 0.5 M H2O2	45 a	10 b	[11]
Pt-Ru on Au COP	Pt/CC (40 wt %)	4 M methanol & 1 M NaOH	155 a	32 a	[25]
Au-Ag/C	Vulcan XC-72	Laccase/glucose	19 a	5 b	[26]
Pt	carbon nitride nanofibers	Anolyte: 2.1 M HCOOH catholyte: 0.144 M KMnO4	97 a	34 a	[27]
Pt	Pt	Anolyte: 2.1 M HCOOH catholyte: 0.144 M KMnO4	61 a	30 a	[27]
Pt	Au	Anolyte: 2.1 M HCOOH catholyte: 0.144 M KMnO4	60 a	27 a	[27]
Pt-Ru	Pt Black	3 M methanol (QN3 designation)	260 b	39 a	[28]

^a values calculated based on the reported data; ^b values estimated from the reported figures.

). Significantly, the cell performance was realized by utilizing the low concentration of reactant (0.1 M), and worked at the room temperature (20 °C).

3. Materials and Methods

All chemicals were reagent grade quality and obtained from the supplier without further purification. All solutions were prepared using deionized (DI) water.

3.1. Synthesis and Purification of Ag NW Solution

Ag NWs were prepared through a modified polyol process [29,30]. Briefly, 100 mL ethylene glycol (EG) containing 0.19 M polyvinylpyrrolidone (PVP, molecular weight = 50 kDa), 0.05 mM NaCl, 0.0014 mM AgNO₃ and 0.017 mM CuCl₂ was added to a round-bottom flask. The flask was preheated at 185 °C in an oil bath for 1 h, while 30 mL EG solution containing 0.12 M AgNO₃ was prepared. The EG solution was sonicated and then added drop-wise into the flask, following the 1 h pre-heating treatment. The injection rate was precisely controlled to 0.5 mL·min⁻¹, and vigorously stirred while injecting. After injection, the whole flask was heated for 20 min before being removed from the oil bath, and then cooled down to room temperature.

Silver nanoparticles were observed as impurities during the polyol synthesis process of Ag NWs [31]. To purify the Ag NWs, the as-prepared solution was first diluted by deionized water to ~500 mL, then left still for 24 h to let NWs settle to the bottom. The supernatant was then carefully removed by a syringe, and deionized water was refilled to the original volume. The mixture was left still again for another sedimentation. When removing supernatant for the second time, we mixed the remaining solution with acetone at a ratio of 1:4, and vortexed the mixture thoroughly. Next, the mixture was centrifuged at the speed of 2000 rpm for 10 min, and the supernatant was decanted carefully and then a small amount of DI water was added. Acetone was added again, and the centrifuging process repeated. The whole purification procedure was repeated for 3–4 times until the silver particles were removed [32,33].

3.2. Electrode Synthesis

The Ag NW//CC electrode was fabricated by a homemade method. Specifically, the as-made Ag NW solution, Nafion solution, and ethanol were mixed at the ratio of 9:4:1, and subject to ultrasonic treatment to make the mixture uniform. The mixture was sprayed onto the CC electrode, and then the synthesized Ag NW//CC electrode was left to dry in air for 2 h to obtain the Ag NW//CC electrode.

3.3. Analysis of Electrode

The surface morphology of CC and Ag NW//CC were characterized by employing VEGA 3 LMU scanning electron microscope. The CV measurements, Tafel polarization, and EIS tests were carried out by employing an electrochemical workstation (CHI 660E, CH Instruments, Inc. Shanghai, China) in a homemade three-electrode electrochemical cell consisting of an Ag NW//CC electrode (geometric area 1 cm × 1 cm) as the working electrode, a platinum wire as a counter electrode, and an Ag/AgCl (in saturated KCl solution) electrode as the reference electrode [34].

The electrolyte was composed of 0.1 M H₂O₂, 1.0 M NaOH, and 20 g·L⁻¹ NaCl solution. The low concentration of H₂O₂ and NaOH was chosen according to previous research to reduce the self-decomposition reaction of H₂O₂ to ensure the safety of the operation [14]. CV measurements were carried out from −0.25 V to 0.35 V at a rate of 10 mV·s⁻¹ at 20 °C. EIS tests were carried out from 10 kHz to 0.1 Hz.

3.4. Fuel Cell Set-Up

The schematic of micro-sized Al-H₂O₂ FC was illustrated in Figure 7. The Al plate with the size of 30 mm × 20 mm × 0.3 mm served both as the electrode and baseplate. A chamber of 10 mm × 10 mm × 5 mm was grooved on the base of poly (methylmethacrylate) (PMMA) by employing a numerically controlled machine, and plated on the surface of Al plate. The inlet and outlet were drilled on the top of chamber with a diameter of 1.0 mm, and then the Ag NW//CC cathode, together with a copper plate, was mounted on the PMMA. The copper plate was employed as a current collector of Ag NW//CC cathode. The whole system was compacted tightly by a parallel-jaw vice and two PMMA plates. The electrolyte was pumped into the fuel cell system at the flow rate of 0.5 mL·min⁻¹.

4. Conclusions

In this work, a novel H₂O₂ reduction reaction catalyst was prepared by anchoring silver nanowires on carbon fibers via a simple approach. The SEM images and EDS analysis of Ag NW//CC demonstrated the multilayers of silver nanowires were grown firmly on CC. CV measurements revealed that Ag NW//CC had an excellent catalytic efficiency and good stability towards the H₂O₂ reduction reaction. The Ag NW//CC had a superior performance in terms of the electrode impedance. The micro-sized Al-H₂O₂ FC delivered a power density of 43 W·m⁻² with a maximum current density of 112 A·m⁻². These features make Ag NW//CC a promising candidate for catalyzing the H₂O₂ reduction reaction, and a suitable electrode for aluminum-hydrogen peroxide fuel cells.
