The Influence of Compaction and Water Conditions on Shear Strength and Friction Resistance between Geotextiles and Ash-Slag Mixture

Abstract

The paper presents the results of tests of the shear strength of the ash–slag mixture taken from the landfill located in Kraków (Poland) and the interfacial friction resistance at the contact between the ash–slag mixture and woven or nonwoven geotextiles. The tests were carried out in a direct shear apparatus on samples with and without water saturation. The samples for testing were formed in the apparatus box at the optimum moisture by compacting them to I_S = 0.90 and 1.00. The test results reveal that the shear strength parameters of the ash-slag mixture were large. It was stated the significant influence of the compaction, the growth of which has resulted in an increase in the angle of internal friction (from 7% to 9%) and cohesion (from 60% to 97%). Whereas the saturation of the samples reduced the shear strength parameters (from 4% to 6%, of the internal friction angle and 30% to 43% of cohesion). The values of the interfacial friction resistance at the contact between the ash–slag mixture and the geotextiles were large as well, but slightly smaller than the values of the shear strength parameters of the mixture itself. The compaction caused an increase in the angle of interfacial friction (from 1% to 5%) and adhesion (from 31% to 127%). The water-saturation of the samples caused a change in the angle of interfacial friction (from −6% to 3%) and decline in the adhesion (from 22% to 69%). Values of the interaction coefficient were about 0.8–1.0 and they tended to rise with increasing the normal stress. Higher values of this parameter were obtained in tests with water saturation and for non-woven geotextiles.

1. Introduction

In earth structures, more and more often, new types of material filling as well as strengthening embankments or retaining walls are being used. Structures of this type are usually made using reinforced soil technology, where a geogrid, a steel mesh or strips, as well as geosynthetics, can be the reinforcement. The use of strengthening requires research on the cooperation of the soil reinforcement system. Improperly selected reinforcement may weaken the shear strength of the soil and lead to a structural failure. The mechanism of interaction between the reinforcement and the surrounding soil has been determined by many researchers, most often in laboratory conditions (e.g., [1,2,3,4]). The phenomenon of interaction takes place in a thin layer of soil close to the reinforcement and depends on a number of complex phenomena in this layer [5,6,7], such as the physical properties of the soil (e.g., angularity of soil particles, relative density and degree of saturation) and geotextiles (e.g., roughness, hardness), as well as the testing conditions (e.g., testing method, dimensions of sample, boundary conditions) [6,7].

Another problem is the proper selection of a backfill material and its compaction. It is usually recommended to use materials with a high shear strength. As a filling, industrial wastes arising, for example, in the production of coal (coal shales), electricity or heat as a result of the coal combustion (ash slag mixtures, fly ash, slag, microsphere, ashes from the fluidized furnace) are also increasingly used. Wastes are generated in the combustion processes because there are large amounts of non-flammable substances, their content in coal ranges from 11% to 17% (hard coal extracted in Poland) and from 3% to 11% (lignite) [8]. The by-products of combustion can be used as artificial aggregates in earth structures [8,9,10,11]. The utilisation of these products in earth structures is of great importance from the economic and ecological points of view. The use of artificial aggregates and geosynthetics for strengthening the soil subgrade also has a significant impact on the protection of natural aggregates. It makes possible constructing the embankments of the selected industrial wastes and limits the scope of soil exchange.

In order to meet current requirements for earthworks, the use of geosynthetics that satisfy the requirements for acceleration and quality of works, as well as the optimization of costs of road pavement construction, have been started [12]. In addition to the versatility of using geosynthetics, their advantages include high material strength [13]. Currently, geosynthetics are the most commonly used materials to strengthen the subgrade and build road embankments, among others in reinforced soil technology [14,15,16]. The reinforcing function is visible in taking over external interactions, as well as in a favourable change in the distribution of stresses, arising in the subgrade and the body of the road [17]. Strengthening with the geosynthetic improves the mechanical properties of the soil due to the persisting tensile force, resulting in a reduction in shear forces, and thus increasing the shear strength of the soil [18]. The purpose of using soil reinforcement is to engage an interaction between the soil and the reinforcement in the plane of contact. This interaction occurs as a result of vertical stress from the weight of the soil that is on top of the reinforcement. Reinforcement with geosynthetics allows the soil to bear a greater load. In the case of embankments on a weak subgrade, burdened mainly with the dead load, reinforcement makes it possible to build them with steeper slopes.

The determination of the parameters of the mutual interaction between the soil and the geosynthetic is performed on the basis of tests in a direct shear apparatus, where the soil layer is moved along the geosynthetic or the geosynthetic is pulled out of two layers of soil (“pull-out test”). The research in the direct shear apparatus is used to describe the mechanisms of interaction between the geosynthetic and the material of the backfill, where the shear strength between the two materials is mobilized. The friction resistance of the geosynthetic interface can also be determined on the basis of tilt table device tests [19,20,21]. However, it should be pointed out that the direct shear apparatus tests are still the most popular method for testing geosynthetics (e.g., [7,22]). In this apparatus, there are also conducted shear strength tests of the soils with other types of geosynthetic reinforcement, such as geogrids, geonets [23,24] as well as with the addition of dispersed reinforcement such as tire shreds [25] or dedicated to concrete reinforcement synthetic fibers [10,26,27,28,29].

In ordinary applications, the reinforced earth structures do not reach the damage condition. Therefore, to analyze the behaviour of the reinforced soil structure at the level of working stress, it is necessary to determine the mobilization of friction resistance and its relationships with the basic properties of the soil and the reinforcement [30]. It should be noted, however, that the interaction between the soil and the reinforcement would also depend on the response of the substrate on which the structure had been built. In the event of excessive ground settlements, too much deformation of the reinforcement may occur, which may result in exceeding the serviceability limit state. It should be noted that in the case of non-cohesive soils, the mechanism of interaction between reinforcement and soil is based on friction, which depends on the type of soil and reinforcement, and mainly on the roughness of its surface. Additionally, in case of sandy soils, there is a favorable mechanism of cooperation—grains interlocking in the structure of some geotextiles. Another form of cooperation is observed in cohesive soils where, in addition to friction, adhesion phenomena are observed on the contact with the reinforcement. The amount of adhesion is affected by the soil grain composition, but also by the roughness of the reinforcement surface and the moisture conditions.

A separate problem is the lack of description of the cooperation between medium-grained ash–slag mixtures and geosynthetics. These mixtures, classified as anthropogenic soils, are characterized by high values of the shear strength parameters—the angle of internal friction and cohesion [11,31,32]. Therefore, the interpretation of the behaviour of the ash–slag mixtures on contact with the geosynthetics should be similar as for cohesive soils. On the other hand, the specific structure of waste grains, which are generated from non-flammable substances in the coal combustion process, should be pointed out. Grains of fly ashes and ash–slag mixtures have irregular shapes, and there are also elongated grains with sharp edges. Coarser fractions of these wastes are usually full inside, but there are also grains which are empty or filled with finer spherical grains [33,34,35].

Colliery wastes, mainly medium-grained, are increasingly used in road construction to build embankments [11,36,37], which are stabilized with hydraulic binders [38]. They are also used as materials to stabilize weak soil [39,40,41,42]. However, there is no literature describing the interaction on the contact between the ash–slag mixture and geosynthetics. Usually, there are tests on the friction resistance between fly ashes (i.e., fine-grained colliery wastes used as sealing layers) and geomembranes [32] or other geosynthetics [43]. While designing the reinforced soil structures using ash–slag mixtures, the same rules which apply when designing structures from mineral soils are adopted. The fact that these wastes are materials that have a complex structural composition (as a result of using various coal combustion processes in power plants and combined heat and power plants) is ignored.

For design purposes, the resistance of the structure to slippage, after its geosynthetic reinforcement, can be taken based on the direct slip ratio [17]:

$${\alpha }_{ds}=\overline{{\alpha }_s}\frac{\tan \delta }{\tan \phi }+\left(1-\overline{a_s}\right)(-)$$

(1)

where δ (°) is the angle of interfacial friction at the contact of the soil and the flat surface of the reinforcement, φ (°) is the angle of internal friction of the soil, and $\overline{a_s}$(-) is the coefficient of the effective surface of the reinforcement in the shear plane.

The second parameter to be determined is the adhesion coefficient, which depends on the surface friction between the reinforcement and the soil:

$${\alpha }_b=\overline{{\alpha }_s}·\frac{\tan \delta }{\tan \phi }+\left(\frac{{\sigma }_b}{{\sigma }_n}\right)·\left(\frac{\overline{a_b}·B}{2S}\right)·\frac{1}{\tan \phi }(-)$$

(2)

where δ, φ, $\overline{{\alpha }_s}$ are as above, $\overline{a_b}$ (-) is the coefficient of the effective surface of the reinforcement in a plane perpendicular to the pull-out direction, B, S (m) are dimensions of the ribs in the case of reinforcement with a net, and $\frac{{\sigma }_b}{{\sigma }_n}$ (-) is the ratio of the soil resistance to the stress acting perpendicularly to the reinforcement surface.

For nonwoven and woven geotextiles, it can be assumed that $\overline{{\alpha }_s}=1$ and $\overline{{\alpha }_b}=0$, so the coefficients of direct slip and adhesion for these materials are equal and most often range from 0.6 to 1.0 [44,45]. As already demonstrated, tests in a direct shear apparatus are appropriate for determining the direct slide coefficient between the soil and any reinforcement. Meanwhile, pull-out tests describe the development of adhesion. However, with regard to geotextiles, the adhesion mechanism is similar to the one that occurs with a direct slip.

As can be seen from Equations (1) and (2), the influence of adhesion is neglected in the calculations. Such an assumption can be regarded as correct due to the fact that the friction resistance plays a fundamental role in transferring tension stresses to the reinforcement and depends on normal stresses. This issue is the subject of many publications in which the use of non-linear Equations describing the frictional characteristics at the contact zone of geosynthetic with bulk material is proposed [46,47,48,49]. Meanwhile, Tanchaisawat et al. [50], after [51], indicated that the effectiveness of strengthening with geosynthetics should be determined due to the friction resistance and cohesion:

$$E_c=\left(\frac{c_a}{c}\right)·100(\%)$$

(3)

$$E_{\phi }=\left(\frac{\tan \delta }{\tan \phi }\right)·100(\%)$$

(4)

where E_c (%) is the effectiveness of strengthening with geosynthetic due to cohesion, E_φ (%) is the effectiveness of strengthening with geosynthetic due to friction resistance, c_a (kPa) is the adhesion between the soil and geosynthetic, c (kPa) is the soil cohesion, δ (°) is the angle of interfacial friction, and φ (°) is the angle of internal friction of the soil.

The comparison of test results of soil shear strength parameters and friction parameters on the interface between soil and geosynthetic [4,6,52,53,54] indicates that the values of the parameters E_φ and E_c are within a wide range (from 0.41 to 1.15 and from 0.45 to 1.41, respectively), but they are generally smaller than the value of 1.0. However, it should be noted that the usefulness of the E_c parameter seems disputable (questionable) in the case when tested soil is non cohesive.

It is also possible to determine the interaction coefficient defined as the shear strength ratio at the contact of the filling material and the geosynthetic to the shear strength of the material itself [50,53]:

$$R_i=\frac{{\tau }_f}{{\tau }_{fa}}=\frac{{\sigma }_n·\tan \delta +c_a}{{\sigma }_n·\tan \phi +c}(-)$$

(5)

where τ_f (kPa) is shear strength, τ_fa (kPa) is interfacial friction resistance, σ_n (kPa) is the normal stresses, δ (°) is the angle of interfacial friction, φ [°] is the angle of internal friction of the soil, c_a (kPa) is the adhesion between the soil and geosynthetic, and c (kPa) is the soil cohesion.

The results of the research of Tanchaisawat et al. [50], Chai and Saito [53], Jotinsankasa and Rurgchaisri [4] show that the values of the interaction coefficient are usually less than 1.0 (0.3–1.1), whereas smaller values are usually obtained for cohesive soils.

The interfacial friction resistance tests should be performed for each type of geosynthetic and backfill material. The effect of soil compaction on its shear strength is well known. On the other hand, the results of friction resistance tests (among others [6,52]) indicate that the impact of compaction is not always clear and depends on the type of backfill and geotextile. Another engineering problem that occurs is related to the exploitation conditions. In the periods of rainfall, the degree of saturation (moisture content) of soil changes, and as a result the interfacial friction resistance between soil and geosynthetic can also change.

The purpose of the work was to determine the influence of compaction and water-saturation on the parameters of the shear strength of the ash–slag mixture taken from the landfill of the Heat and Power Plant located in Kraków (Poland) and the parameters of the friction resistance at the contact between the ash–slag mixture, and a nonwoven and a woven geotextile. The aim of the study arises from the need to search for materials other than mineral soils (the amount of which is limited) that can potentially be used as backfill material in earth-made constructions built with soil reinforced technology. As shown above, in the available literature, there are a number of coefficients that describe the interaction of geosynthetic with soil. Therefore, the study analyses the impact of the obtained values of the shear strength and friction resistance parameters of ash–slag mixture on the values of selected coefficients.

2. Test Methods

Basic physical properties and compactibility parameters of the ash–slag mixture were determined by standard methods. The granulometric composition was determined by the combined method [55]; that is, the sieve method for grains larger than 0.063 mm and the areometric method for smaller particles. The density of solid particles was determined by the method of a volumetric flask [56]. The compactibility parameters were determined in a Proctor’s apparatus, in a cylinder with a volume of 2.2 dm³ at a compaction energy of 0.59 J cm⁻³ [57].

The tests of shear strength and interfacial friction resistance were carried out in the direct shear apparatus [58] in a box with a 100 × 100 mm cross-section and a sample height of 41 mm (shear strength) and 27 mm (interfacial friction resistance) with 5 intermediate frames forming a 10 mm thick shearing zone (Figure 1). The use of intermediate frames makes possible zonal cutting, limiting the effect of grains interlocking and wedging on the value of cohesion (Figure 2a). Samples for testing were compacted directly in the apparatus box at the optimum moisture content until a degree of compaction (I_S) equaled 0.90 or 1.00.

After moulding, the samples were consolidated for 15 min at the vertical load of 50, 75, 100, 150, 200, and 300 kPa, and then sheared at the speed of 0.2 mm·min⁻¹. In the case of the interfacial friction resistance tests, the lower part of the box was filled with a Plexiglas insert, around which a geotextile sample was fixed at the height corresponding to the lower surface of the shearing zone and a sample of the mixture was formed on it (Figure 2b).

The shear strength and interfacial friction resistance tests were also performed on the samples initially saturated by immersing the box in water for 1 h, and then sheared off when the shear zone was water-saturated.

The calculations of shear strength (τ_f) and interfacial friction resistance (τ_fa) parameters were performed using the least squares method [59], based on the linear Coulomb Equation:

$${\tau }_f\left({\tau }_{fa}\right)={\sigma }_n·\tan \varphi \left(\delta \right)+c\left(c_a\right)\left(kPa\right)$$

(6)

where σ_n (kPa) is the normal stress, φ, (δ) (°) is the angle of internal friction (angle of interfacial friction), and c, (c_a) (kPa) is cohesion (adhesion).

The maximum value of the shear stress was assumed as the shear strength criterion. The calculations of tested parameters also included the determination of the values of average standard deviations of tested the parameters.

3. Characteristics of the Tested Materials

According to the geotechnical nomenclature [60], the ash–slag mixture with a grain size less than 10 mm was classified as multifractional silty fine sand (siFSa). The basic properties of the mixture are shown in a

Table 1. Geotechnical characteristics of the ash–slag mixture (own research).

Parameter	Value
Fraction content (%):
▪ gravel, Gr: 63–2 mm	17.9
▪ sand, Sa: 2–0.063 mm	47.8
▪ silt, Si: 0.063–0.002 mm	31.0
▪ clay, Cl: < 0.002 mm	3.3
Name acc. to [60]	Silty fine sand (siFSa)
Uniformity coefficient (-)	16.36
Optimum moisture content (%)	37.80
Maximum dry density (g∙cm−3)	1.14
Dry density of solid particles (g∙cm−3)	2.40

.

The adhesion of geotextiles to the backfill layer or their slide depends on the type of product that was used. The values of coefficients describing adhesion and sliding on a woven or nonwoven geotextile depend on the technology of their production and surface roughness, but also on the granulation of the backfill, the shape of its grains and their roundness. The tests of interfacial friction resistance on the contact of the ash–slag mixture and the geosynthetic were performed with the use of the nonwoven and woven geotextiles (Figure 3). These geotextiles differ in physical and mechanical properties (

Table 2. Technical parameters of geotextiles (own study after product data sheet).

Parameter	Kind of Geotextiles
	Nonwoven	Woven
Kind of raw material	polypropylene	polyester
CBR puncture force (N)	2500	-
Tensile strength (kN∙m−1):
▪ lengthwise	16	150
▪ transversely	16	45
Elongation at break (%):
▪ lengthwise	43	9
▪ transversely	50	20
Surface weight (g∙m−2)	200	300

), which is the result of the type of raw material of which they were made. The differences are particularly visible in tensile strength parameters.

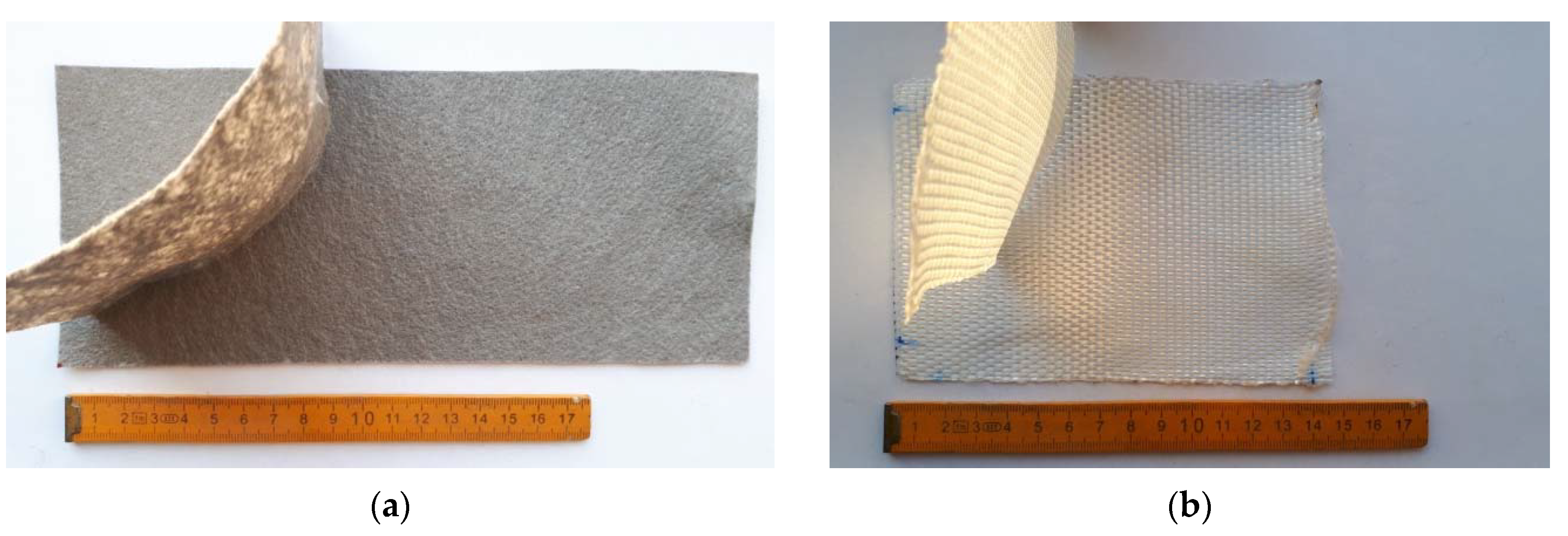

The nonwoven geotextile is made of fleece built of polypropylene staple fibers, obtained by aerodynamic molding, subjected to a mechanical needling and then calendered—as a result, the fibers were pressed (Figure 3a). This process affects the gluing of fibers located on the surface of the fleece and, depending on the pressure, improves the strength and structure of the nonwoven geotextile surface. In the case of the geotextile that was used, the calendering process was carried out using less pressure, which caused the nonwoven fabric to be less welded, and thus softer and more fluffy. The geotextile that was used has isotropic properties, so its strength is the same in both directions. This material is diffusion-open, allowing the free flow of water and air. The nonwoven fabric is used in transportation engineering for strengthening the upper layers of the subgrade of unpaved roads and railway surfaces, and the construction of temporary, forestry, agricultural and hydrotechnical roads as separation layers.

The woven geotextile (Figure 3b) is a woven fabric made of high-strength polyester fibres, which permanently take over tensile loads, already at small elongations. It has visible pores resulting from weaving. Due to the need to maintain the constancy of size and shape of the pores under the influence of external forces, in the case of the analyzed geotextile, a linen weave was used. Woven geotextiles are used in hydrotechnical engineering, as well as for sealing landfills. The material does not decompose in the soil and water environment, it is characterized by a greater resistance to UV radiation, and also retains its properties at negative temperatures.

4. Results of Tests and Calculations

4.1. Shear Strength and Interfacial Friction Resistance

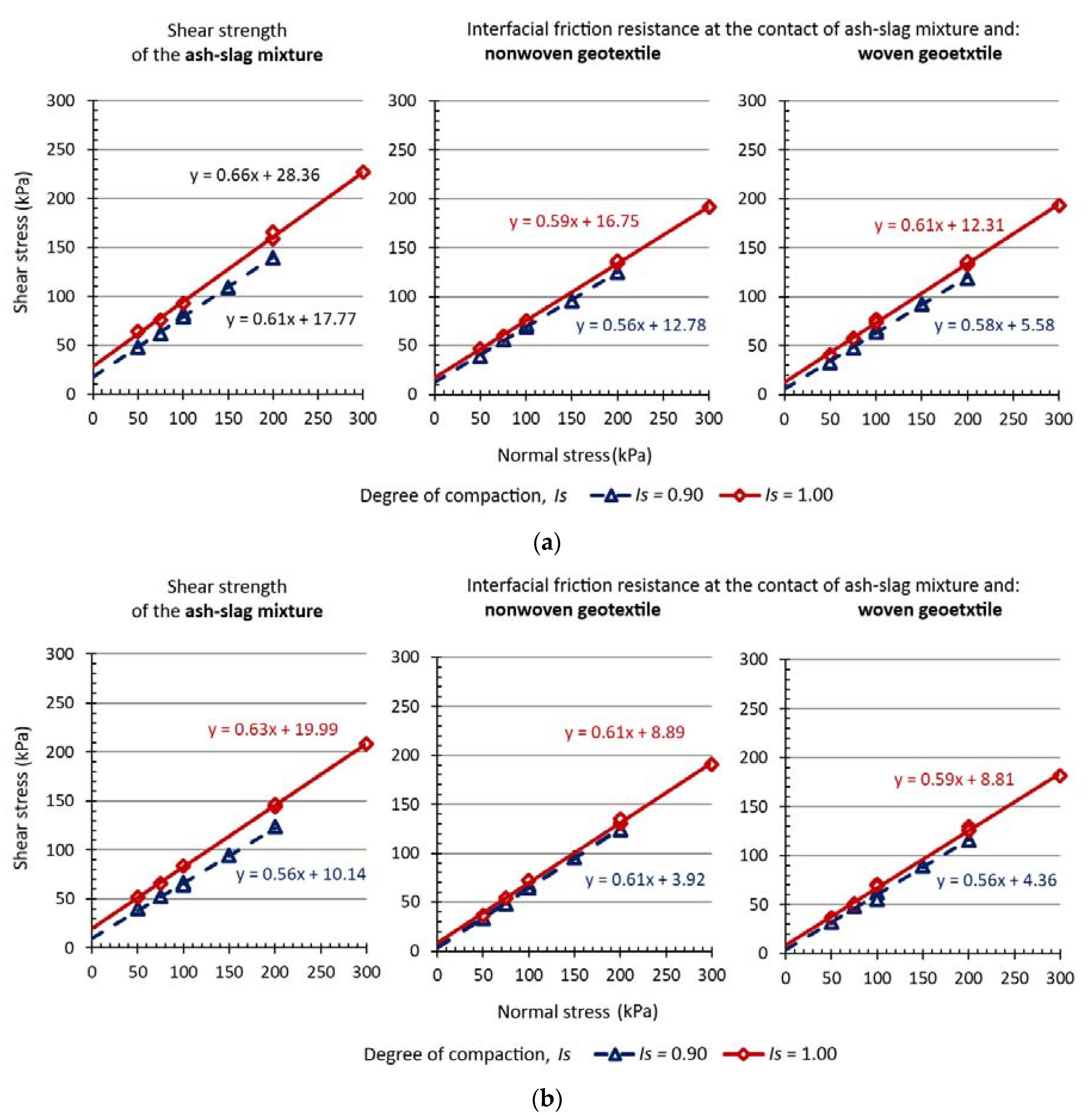

Figure 4 and Figure 5 show the dependence of the shear stresses on the horizontal deformation of the samples at different normal stresses. In the case of testing the ash-slag mixture in conditions without water-saturation of the samples, a brittle cut was observed. The maximum value of the shear stress was obtained at the deformation of the sample ranging from 1% to 3%. In the tests of the water-saturated samples, no maximum shear stress was observed, so the cutting was plastic. In this case, the shear stresses generally increased continuously; however, at some normal stresses, their stabilization could be observed or a slight decrease at the horizontal deformation in the range from 1% to 3%.

In the tests of the interfacial friction resistance, both with and without water-saturation, the shearing of the samples was plastic for both geotextiles. It was also observed that for both types of geotextile, as expected, the deformation of the sample required for mobilisation of the friction resistance increased with the increase in normal stress.

A different relationship was found by Anubhav and Basudhar [23], where the tested nonwovens were characterized by a brittle cut at the contact with the monofractional sand. The results of shear strength and interfacial friction resistance parameters obtained by them make it possible to state that in the case of non-cohesive soils, such dependence can be expected. However, in the case of cohesive soils, the adhesion resistance will result in plastic shearing, with a tendency to stabilisation of the shear stresses in the final phase of shearing. Therefore, it can be concluded that the changes in shear stresses, together with the increase in the horizontal deformation of the samples in the tests of frictional resistance, will depend to a large extent on the material of the backfill.

It is worth noting that in the presented results of interfacial friction resistance tests, the shear stresses in the water-saturated samples were only slightly lower than the corresponding stresses in the unsaturated samples. This small difference may result from the phenomenon of sucking between the geotextiles and the ash–slag mixture, as well as from the geotechnical properties of the ash–slag mixture. A similar behaviour of a nonwoven fabric was noted in the research of Bergado et al. [22], who even obtained a slight increase in shear stresses in the tests with water-saturation.

The increase in compaction from I_S = 0.90 to 1.00 caused an increase, and the water-saturation of the samples caused a decrease, in the shear strength of the ash–slag mixture and in the interfacial friction resistance on the contact of the mixture and the nonwoven and woven geotextiles.

In the case of testing the friction resistance of the unsaturated ash–slag mixture samples, at the contact with the woven geotextile, at the increase in the degree of compaction from I_S = 0.90 to 1.00, the interfacial friction resistance increased by 8 (24%) and 14 kPa (12%) at the normal stresses equal to 50 and 200 kPa, respectively. In the tests of the saturated samples at the normal stresses equal to 50 and 200 kPa, the increase in interfacial friction resistance was 5 (15%) and 10 kPa (9%), respectively.

The water-saturation of the ash–slag mixture resulted in the decrease in the interfacial friction resistance from 1% to 6% at the degree of compaction I_S = 0.90 and from 5% to 12% at the degree of compaction I_S = 1.00.

In the case of the ash–slag mixture tests without water-saturation, at the normal stresses equal to 50 kPa, the shear strength increased by 16 kPa (34%), and, at the stresses 200 kPa, by 19 kPa (14%) (Figure 6). In the case of testing the water-saturated samples, at the normal stresses equal to 50 and 200 kPa, the increase in the shear strength was 12 kPa (29%) and 20 kPa (16%), respectively. The water-saturation of the samples caused the decrease in the shear strength from 8% to 19%, relative at both degrees of compaction.

In the tests of friction resistance at the contact of the ash–slag mixture with the nonwoven geotextile in conditions without water-saturation, the resistance increased by 8 kPa (20% relative) at the normal stresses equal to 50 kPa, and by 9 kPa (7%) at the normal stresses equal to 200 kPa, with the increase in the degree of compaction from I_S = 0.90 to 1.00. Meanwhile, in the tests with water-saturation of the samples at the normal stresses equal to 50 and 200 kPa, the increase in interfacial friction resistance was 4 (11%) and 6 kPa (5%), respectively. Water-saturation of the shearing zone of the samples caused the decrease of the interfacial friction resistance from 14% to 1% at the degree of compaction I_S = 0.90, and from 20% to 1% at the degree of compaction I_S = 1.00, with the increase in normal stresses from 50 to 300 kPa. This relationship is consistent with results presented by Noorzad and Mirmoradi [61], Khoury et al. [62], Cahi and Saito [53] or Jotisankasa and Rurgchaisiri [4] obtained for different soils and geotextiles, and it is consistent with the theory of shear strength of unsaturated soils [63]. Theory and test results indicate that the presence of suction stress within unsaturated soil causes its shear strength to be higher than that of saturated soil. So, the same relationship can be expected when the friction resistance between the unsaturated soil and the geotextile is considered. Vahedifard et al. [64] indicated that suction stress can significantly increase the shear strength at the contact of the soil and reinforcement, as well as can reduce the load mobilized in the geotextile.

The analysis of Figure 4, Figure 5 and Figure 6 shows that the interfacial friction resistance values were lower than the shear strength of the ash–slag mixture. This phenomenon was also found by Vieira et al. [65] and Punetha et al. [6], who indicated that this is most likely the result of loosening the soil over the geotextiles, due to the suppression of soil settlement by it. This relation may also result from the surface roughness of geotextiles and their surface mass. Because of the production process, the geotextile surface is more homogeneous than the soil surface, which consists of particles of various diameters and shape.

4.2. Parameters of Shear Strength and Interfacial Friction

The parameters of the shear strength, i.e., the angle of internal friction and cohesion of the ash–slag mixture, increased with the increase in compaction. In the case of the unsaturated samples, the increase in the angle of internal friction was over 2° (7%) (Figure 7a), and, in cohesion, of around 11 kPa (60%) (Figure 7b); meanwhile, in the case of the water-saturated samples, the angle of internal friction increased by 3° (9%), and cohesion increased by 10 kPa (twice) at the degree of compaction I_S = 0.90 and 1.00, respectively.

With the increase in the degree of compaction from I_S = 0.90 to 1.00, the interfacial friction angle at the contact with the nonwoven geotextile increased by 1° (4%) in the tests without saturation and by 1.5° (5%) in the tests with water-saturation. The adhesion increased with the increase in the compaction by 4 kPa in the tests without saturation and by 5 kPa in the tests with water-saturation—the increase was by 31% and 127%.

With the increase in the degree of compaction from I_S = 0.90 to 1.00, the interfacial friction angle at the contact with the woven geotextile increased by over 1°, which was 5% and 4% in the tests of unsaturated and water-saturated samples, respectively. The adhesion increased at least twice as the compaction increased, i.e., by 7 and 5 kPa, in the tests of unsaturated and water-saturated samples, respectively.

The obtained results indicate that the water-saturation of the ash–slag mixture samples caused a significant decrease in its shear strength. The angle of internal friction decreased by an average of 2° (6% and 4%) and the cohesion by 8 kPa (43% and 23%) at both sample compaction (I_S = 0.90 and 1.00, respectively).

A slightly different relationship was found for friction resistance parameters on contact with nonwoven geotextile. In this case, tests of friction resistance at the contact of the mixture and nonwoven geotextile water-saturation caused a slight increase in the value the interfacial friction angle by 2 and 1° (6% and 4%) and decrease in the adhesion by 9 and 8 kPa (69% and 47%) at the degree of compaction I_S = 0.90 and 1.00 respectively. On the other hand, considering the interaction between the ash–slag mixture and woven geotextile, the water-saturation of the samples decreased the value of the interfacial friction angle by about 1° (2% and 3%), and the adhesion by 1.5 and 3.5 kPa (22% and 28%) respectively at I_S = 0.90 and 1.00.

In the literature, interfacial friction resistance tests have usually been carried out for mineral soils, most often sandy ones. In those studies, it was shown that most often they are brittle cuts, so there are differences between the maximum and the residual interfacial friction resistance (among others [52,66]), which affects the obtained values of the angle of interfacial friction and adhesion. In the presented studies, no such dependence was noticed—the frictional resistance increased with increasing deformation of the sample, which may result from the roughness of the mixture grains and their meshing with the geosynthetic surface.

In Figure 8, the values of the shear strength parameters of the ash–slag mixture and interfacial friction resistance at the contact of the mixture with geotextiles are compared. It was found that the angle of internal friction of the mixture at both compactions was greater than the angle of interfacial friction. Only the angle of interfacial friction on the contact with the nonwoven geotextile in the water-saturated samples was greater than the angle of internal friction. As already noted above, this could have been due to the effect of the suction pressure between the nonwoven fabric and the mixture. Comparing the values of the angle of interfacial friction at the contact of the mixture with the woven geotextile and the nonwoven geotextile, its higher values were found while testing the unsaturated samples.

The values of shear strength parameters of the tested ash–slag mixture were high, which is consistent with the research conducted for fuel waste by [31,32]. It can be noticed that the obtained values of the angle of internal friction are comparable to the values for sandy soils [10,31].

The cohesion of the ash–slag mixture was greater than the adhesion at the contact of the mixture and geotextiles. In contrast, the adhesion at the contact of the mixture with the nonwoven geotextile was greater than the adhesion at the contact of the mixture with the woven geotextile in the unsaturated samples. This results from the different surface structure of both geotextiles. As shown earlier (see Chapter 3), the surface of the nonwoven geotextile is calendered, which makes it more rough compared to the woven geotextile and increases the adhesion. In the tests of the water-saturated samples, the adhesion of the mixture at the contact with both geotextiles was similar. This results from the increased water content and therefore the moisturizing of both geotextiles, which, in the case of the woven geotextile, resulted in a reduction in its fluffiness and thus the value of adhesion.

Similar relations between the angle of internal and interfacial friction, as well as cohesion and adhesion, were obtained by Jotisankasa and Rurgchaisri [4] while testing three cohesive soils and in sand tests by Anubhav i Basudhar [23]. In their research, they showed a significant reduction in the friction resistance parameters on the contact with the woven geotextile compared to the shear strength parameters of the tested soils (Figure 8).

Figure description code: ASM = ash–slag mixture, Sa = sand, SM = silty sand, ML = silt, CH = clay, Nonwoven, Woven = type of geotextiles, CTG, FTG = kind of woven [23], U = unsaturated samples, S = saturated samples.

4.3. Cooperation and Effectiveness of Using a Geotextile

It can be noticed that the effectiveness of the reinforcement resulting from the frictional resistance and cohesion due to the application of geosynthetics calculated by Equations (2) and (3) depended on the compaction and water-saturation of the samples. In the tests without water-saturation, a slightly higher efficiency resulting from the friction resistance was obtained for the woven geotextile, and from the cohesion resistance for the nonwoven geotextile. A reverse dependence was found in the tests of saturated samples (

Table 3. The efficiency of strengthening with geotextiles in relation to the ash–slag mixture.

Degree of Compaction, IS (-)	Nonwoven Geotextile		Woven Geotextile		Nonwoven Geotextile		Woven Geotextile
	Eφ	EC	Eφ	EC	Eφ	EC	Eφ	EC
	(%)
	Unsaturated Samples				Water-Saturated Samples
0.90	92.2	71.9	94.3	31.4	107.7	38.7	99.3	43.0
1.00	88.4	59.1	91.7	43.4	102.3	44.5	93.3	44.1

E_φ—efficiency of strengthening the friction resistance, E_C—efficiency of strengthening cohesion.

), but there were no significant differences in the effectiveness of cohesion between the two geotextiles in this case. Comparing the effectiveness while shearing unsaturated and water-saturated samples, its higher values were found in frictional resistance and significantly lower in cohesion resistance for the nonwoven geotextile. In the case of the woven geotextile, higher efficiency values were obtained due to the frictional resistance and cohesion in the tests of the water-saturated samples, but no large differences were obtained. Meanwhile, in the case of the nonwoven geotextile, higher values of the effectiveness of the increase in the friction resistance were obtained in the tests with water-saturation, and of the cohesion resistance in tests without water-saturation. This indicates that the woven geotextile was characterized by a better interaction with the ash–slag mixture under direct shear conditions, as well as was being less susceptible to changes in these properties due to the water-saturation. On the other hand, the non-woven geotextile exhibits higher values of both efficiency coefficients considering the test results for unsaturated as well as for saturated samples.

The results of calculations of the geotextile strengthening effectiveness in relation to compaction are quite interesting. Regardless of whether the tests were conducted without or with water-saturation of the samples, higher efficiency values resulting from the friction resistance were obtained at a smaller compaction. In the case of cohesion resistance, higher efficiency values were obtained in studies without water-saturation. Increased compaction resulted in increased efficiency resulting from cohesion in the conditions without saturation and its reduction in the tests with water-saturation of the samples. This means that the use of geotextiles in the case of soils with lower shear strength parameters used as a bulk material in retaining structures or foundation of embankments on low-bearing soils should improve the stability of such structures.

The results of the interaction coefficient calculation using the Equation (5) are shown in the

Table 4. Coefficient of interaction of both geotextiles and the ash–slag mixture.

Normal Stresses, σN (kPa)	Nonwoven Geotextile				Woven Geotextile
	Samples
	Unsaturated		Water-Saturated		Unsaturated		Water-Saturated
	Degree of Compaction, IS (-)
	0.90	1.00	0.90	1.00	0.90	1.00	0.90	1.00
	Interaction Coefficient, Ri (-)
50	0.85	0.75	0.89	0.80	0.71	0.69	0.84	0.74
100	0.88	0.80	0.97	0.88	0.80	0.77	0.91	0.81
150	0.89	0.82	1.00	0.92	0.84	0.81	0.93	0.85
200	0.90	0.83	1.02	0.94	0.86	0.83	0.95	0.87
300	0.90	0.85	1.04	0.97	0.89	0.86	0.96	0.89

. It can be stated that the higher values of the R_i were obtained in studies of non-woven geotextile than woven one. The obtained range of values of iteraction coefficient isn’t very wide (from about 0.70 to 1.05, mainly 0.8–1.0) and it fits in the range of results reported by others [4,50,53]. The tests’ results also indicate that the values of this coefficient increased with the increase in normal stresses (Figure 9). Higher values of this coefficient were obtained at the lower compactions and in the tests with water-saturation. A similar influence of soil saturation on the values of soil shear strength and resistance on the contact between the mineral soils and the geotextile was obtained by Jotisankasa and Rurgchaisri [4]. The authors conducted tests on samples of silty sand (SM), silt (ML) and clay (CH) formed, among others, at optimum moisture content, and then sheared in a direct shear apparatus without and with saturation. These studies have shown that the peak shear strength of saturated soil is very close to the value of resistance on the contact of the soil with the nonwoven geotextile. In turn, the peak values of unsaturated soil resistance on the contact with nonwoven geotextile were even three times lower than the shear strength of the soil. Figure 9 shows the values of the interaction factor calculated using Equation (5) for the results by Jotisankasaa and Rurgchaisri [4]. The calculation results for the tested soils are characterized by a similar relation, as in the case of the presented tests for the ash–slag mixture. Values of this coefficient were lower in case of saturated soil tests in relation to tests carried out in non-saturated conditions. Vahedifard et al. [64]’s analysis of geotextile-reinforced earth structures revealed that increase in the degree of soil saturation (decrease in suction stress) affects the increase in active earth pressures and, as a result, the load of reinforcement increases. Such behaviour of the soil can be, to some extent, an explanation as to why higher values of the interaction coefficient were obtained for water-saturated samples than for unsaturated ones.

The influence of moisture content and the compaction of sand on shear strength values was also analyzed in detail by Punetha et al. [6]. While comparing the results of the research on dry sand and partially saturated sand, these authors stated that in unsaturated soil, the friction between grains and reinforcement occurs more often than when the soil is dry. In such soil, the grains slide on the geotextile surface during shearing. They did not notice any clear differences in the value of friction resistance on soil–geotextile contact in an unsaturated and saturated state. On the other hand, the results of tests on soils with different compaction allow to state that this parameter is very important in shear strength tests, and it can be of little importance when the soil–geotextile resistance is tested. Punetha et al. [6] explained that this relation is a result of the influence of the geotextile on limiting the dilatation and thus limiting the effect of compaction. In contrast, tests of Afzali-Nejad et al. [66] and Lashkari and Jamali [67] revealed that the interfacial friction between sand and woven or non-woven geotextiles increases with the density of sand.

5. Conclusions

On the basis of the experimental results obtained from the present investigations of the shear strength of the ash–slag mixture and the interfacial friction resistance at the contact between the ash–slag mixture and woven or nonwoven geotextiles, and the discussion made, the following conclusions can be drawn:

• The parameters of the shear strength of the ash–slag mixture and the friction resistance at the contact of the mixture and the nonwoven or woven geotextiles were large.
• The highest values of the tested parameters were obtained for higher compaction in conditions without water-saturation of the samples.
• The test results confirmed the influence of compaction and water-saturation on the values of the tested parameters.
• The increase in the compaction of the ash–slag mixture caused an increase of 7% to 9% relative angle of internal friction and 60% to 97% cohesion as well as 1% to 5% angle of interfacial friction and 31 to 127% relative adhesion.
• The water-saturation of the samples decreased of 4% to 6% of the internal friction angle and 30% to 43% of cohesion. In contrast, the values of the interfacial friction angle on contact between of the ash–slag mixture and nonwoven geotextile increased from 4% to 6%, on contact with woven geotextile decreased from 2% to 3%. In the case of adhesion, a decrease of its value on contact with both geoetextiles from 22% to 69% was obtained.

The test results show that the values of the friction resistance parameters on the contact of the ash–slag mixture with geotextiles are slightly smaller than the values of the shear strength parameters of the mixture itself. Similar relations are found for sandy soils, which may indicate that the mixtures may be considered as a substitute for mineral soils in some engineering applications. It can be also stated that higher values of the interaction coefficient, indicating the effectiveness of the interaction between the soil and the geotextiles, were obtained for the non-woven geotextile than for woven one.

As demonstrated, friction resistance tests in a direct shear apparatus are easy to perform and the dependence of friction resistance on normal stresses and horizontal deformations of the sample are easy to analyze. However, it should be noted that the boundary conditions connected with geosynthetics anchorage and transverse dimensions of the apparatus box may affect the results of tests on the friction resistance between the backfill and the geosynthetic. Therefore, further research on the suitability of the direct shear apparatus for determining frictional resistance will be extended to include medium-sized apparatus and the influence of geosynthetic anchorage.
