Systematic Study of Separators in Air-Breathing Flat-Plate Microbial Fuel Cells—Part 2: Numerical Modeling

Abstract

The separator plays a key role on the performance of passive air-breathing flat-plate MFCs (FPMFC) as it isolates the anaerobic anode from the air-breathing cathode. The goal of the present work was to study the separator characteristics and its effect on the performance of passive air-breathing FPMFCs. This was performed partially through characterization of structure, properties, and performance correlations of eight separators presented in Part 1. Current work (Part 2) presents a numerical model developed based on the mixed potential theory to investigate the sensitivity of the electrode potentials and the power output to the separator characteristics. According to this numerical model, the decreased peak power results from an increase in the mass transfer coefficients of oxygen and ethanol, but mainly increasing mixed potentials at the anode by oxygen crossover. The model also indicates that the peak power is affected by the proton transport number of the separator, which affects the cathode pH. Anode pH, on the other hand, remains constant due to application of phosphate buffer solution as the electrolyte. Also according to this model, the peak power is not sensitive to the resistivity of the separator because of the overshadowing effect of the oxygen crossover.

1. Introduction

Microbial fuel cells (MFCs) can provide a unique opportunity for renewable energy production while removing organics from wastewater. In a microbial fuel cell, electricity is generated through oxidation of organic matter in wastewater by the biofilm at the anode and reduction of an oxidant (e.g., oxygen) at the cathode. Although MFCs have the potential to turn a waste stream (e.g., municipal wastewater) into a valuable source, efficient energy recovery from this source using MFCs requires substantial technological improvements. MFC research is still facing critical challenges such as the high cost (e.g., Pt-based cathodes, polymeric membranes) [1,2]. In fact, the capital cost of the MFCs constructed in lab-scale is estimated to be in the order of ca. $15 kg⁻¹ chemical oxygen demand (COD) [3], which can hardly compete with the conventional biological wastewater treatment processes such as activated sludge (ca. $0.2 kg⁻¹ COD) and anaerobic digestion (ca. $0.02 kg⁻¹ COD) [4,5].

To decrease the overall capital and operating costs of the MFCs, the passive air-breathing design has become of interest. The application of passive convection and diffusion in the fuel cell design and operation is well known for decreasing the parasitic load for running auxiliary pumps, fans, or compressors, and eliminating the utilization of expensive oxidants in direct methanol fuel cell (DMFCs) [6,7,8,9]. Application of a passive air-breathing cathode could also result in a decreased overall cost, complexity, and volume of the MFC setup [10]. The air-breathing cathodes are also known to be susceptible to oxygen crossover [11,12,13]. The separator, which isolates the anaerobic anode from the air-breathing cathode, therefore, can play an important role on the performance of the passive air-breathing MFCs.

Similar to chemical fuel cells, the initial focus of the MFC research has been mainly on experimental exploration of the technology, with modeling receiving attention mainly in the past few years. Application of modeling in the MFC research can, however, help gain a better understanding of the operation, and facilitate the process design and optimization. Furthermore, it can be beneficial because investigating the performance experimentally can be time consuming and expensive. Models developed so far to simulate MFCs have been categorized to two main groups: comprehensive models, focusing on the overall performance, and specific models, focusing on the specific components [14]. Most of these models fall into the first category, with the main focus on either anode [15,16,17,18,19,20] (assuming that the MFC performance relies solely on the anode performance) or both anode and cathode [21,22,23] (assuming that the performance of both anode and cathode controls the MFC performance).

The modeling of the MFC, however, can also be valuable to elucidate the role that the separator plays in different MFC configurations (e.g., different electrode spacings) on the overall performance. Models targeting the role of the separator can, therefore, provide useful insight into the design of appropriate separators applicable to a specific MFC configuration. Such models can be further used to optimize the power output and the cost of the MFC based on the interactions between the electrode spacing and the separator characteristics (or type). To our knowledge, no such model has been developed to date.

In this paper, a numerical model was developed based on the mixed potential theory to simulate passive air-breathing flat-plate microbial fuel cells (FPMFCs), combining different electrode spacings and separators. The model was used to estimate the kinetic parameters of the bio-electrochemical system, tested in the Part 1 of this work [24], along with the anodic and cathodic mixed potentials. Furthermore, the sensitivity of the power output to the separator characteristics and the electrode spacing was investigated.

2. Results and Discussion

2.1. Parameters Estimation and Model Validation

Table 1 lists the estimated kinetics and mass transfer parameters of the ethanol-air FPMFC. The estimated exchange current densities in the biofilm were 0.36 A·m⁻² and 0.40 A·m⁻² for oxygen reduction and ethanol oxidation, respectively, which were within the range of the values reported in the literature [25,26,27,28,29].

Table 1. Estimated kinetic and mass transfer parameters of the ethanol-air FPMFC.

Parameter	Definition	Value	Unit
${{\mathrm{j}}_{\mathrm{B}}^{\mathrm{o}}}_{{\mathrm{O}}_2}$	Exchange current density of oxygen reduction in the biofilm	0.36	A·m−2
${{\mathrm{j}}_{\mathrm{B}}^{\mathrm{o}}}_{\text{EtOH}}$	Exchange current density of ethanol oxidation in the biofilm	0.40	A·m−2
${\mathrm{K}}_{{\mathrm{O}}_2}^{\mathrm{B}}$	Mass transfer coefficient of oxygen in the biofiom	2.7 × 10−6	m·s−1
${\mathrm{K}}_{\text{EtOH}}^{\mathrm{B}}$	Mass transfer coefficient of ethanol in the biofilm	9.3 × 10−6	m·s−1
${{\mathsf{\alpha }}_{\mathrm{A}}}_{\text{EtOH}}^{\mathrm{A}}$	Anodic charge transfer coefficient of ethanol oxidation	7 × 10−2	-
${{\mathsf{\alpha }}_{\mathrm{C}}}_{{\mathrm{O}}_2}^{\mathrm{A}}$	Anodic charge transfer coefficient of oxygen reduction	0.24	-
${{\mathsf{\alpha }}_{\mathrm{A}}}_{\text{EtOH}}^{\mathrm{C}}$	Cathodic charge transfer coefficient of ethanol oxidation	3 × 10−3	-
${{\mathsf{\alpha }}_{\mathrm{C}}}_{{\mathrm{O}}_2}^{\mathrm{C}}$	Cathodic charge transfer coefficient of oxygen reduction	0.11	-

Table 1. Estimated kinetic and mass transfer parameters of the ethanol-air FPMFC.

Parameter	Definition	Value	Unit
${{\mathrm{j}}_{\mathrm{B}}^{\mathrm{o}}}_{{\mathrm{O}}_2}$	Exchange current density of oxygen reduction in the biofilm	0.36	A·m−2
${{\mathrm{j}}_{\mathrm{B}}^{\mathrm{o}}}_{\text{EtOH}}$	Exchange current density of ethanol oxidation in the biofilm	0.40	A·m−2
${\mathrm{K}}_{{\mathrm{O}}_2}^{\mathrm{B}}$	Mass transfer coefficient of oxygen in the biofiom	2.7 × 10−6	m·s−1
${\mathrm{K}}_{\text{EtOH}}^{\mathrm{B}}$	Mass transfer coefficient of ethanol in the biofilm	9.3 × 10−6	m·s−1
${{\mathsf{\alpha }}_{\mathrm{A}}}_{\text{EtOH}}^{\mathrm{A}}$	Anodic charge transfer coefficient of ethanol oxidation	7 × 10−2	-
${{\mathsf{\alpha }}_{\mathrm{C}}}_{{\mathrm{O}}_2}^{\mathrm{A}}$	Anodic charge transfer coefficient of oxygen reduction	0.24	-
${{\mathsf{\alpha }}_{\mathrm{A}}}_{\text{EtOH}}^{\mathrm{C}}$	Cathodic charge transfer coefficient of ethanol oxidation	3 × 10−3	-
${{\mathsf{\alpha }}_{\mathrm{C}}}_{{\mathrm{O}}_2}^{\mathrm{C}}$	Cathodic charge transfer coefficient of oxygen reduction	0.11	-

The charge transfer coefficients were estimated by assuming the transfer of 2 electrons at the rate-determining step for both ethanol oxidation and oxygen reduction reactions. The estimated exchange current density and mass transfer coefficients in the biofilm suggested that ethanol oxidation within the biofilm was kinetically controlled while oxygen reduction was limited by diffusion of oxygen through the separator towards the anaerobic anode. Oxidation of ethanol and reduction of oxygen in the biofilm were assumed to happen at the biofilm-electrode interface; hence, the mass transfer coefficients of ethanol and oxygen in the biofilm estimated by the model are virtual. This is because both ethanol and oxygen were being consumed within the biofilm. Also, the experimentally measured CE values of lower than 15% indicated that only up to ca. 15% of the ethanol content of wastewater was degraded yielding electrical current, and over 85% of the ethanol was consumed by the communities not using the anode as the final electron acceptor. This ethanol degradation was likely accompanied by oxygen reduction (up to 3 moles of oxygen per mole of ethanol), as the methanogenic activities were inhibited by addition of 2-bromoethanesulfonate.

The model was further validated by solving the equations of the voltage and charge balance using the characteristics of J-cloth. Figure 1 compares the predicted by the model and experimental polarization and power density curves of three FPMFCs using J-cloth. A good agreement was observed between the predicted and the experimental polarization and power densities of all three FPMFCs. The average deviation of the predicted current density by the model from the measured current density values was ca. 0.05 A·m⁻².

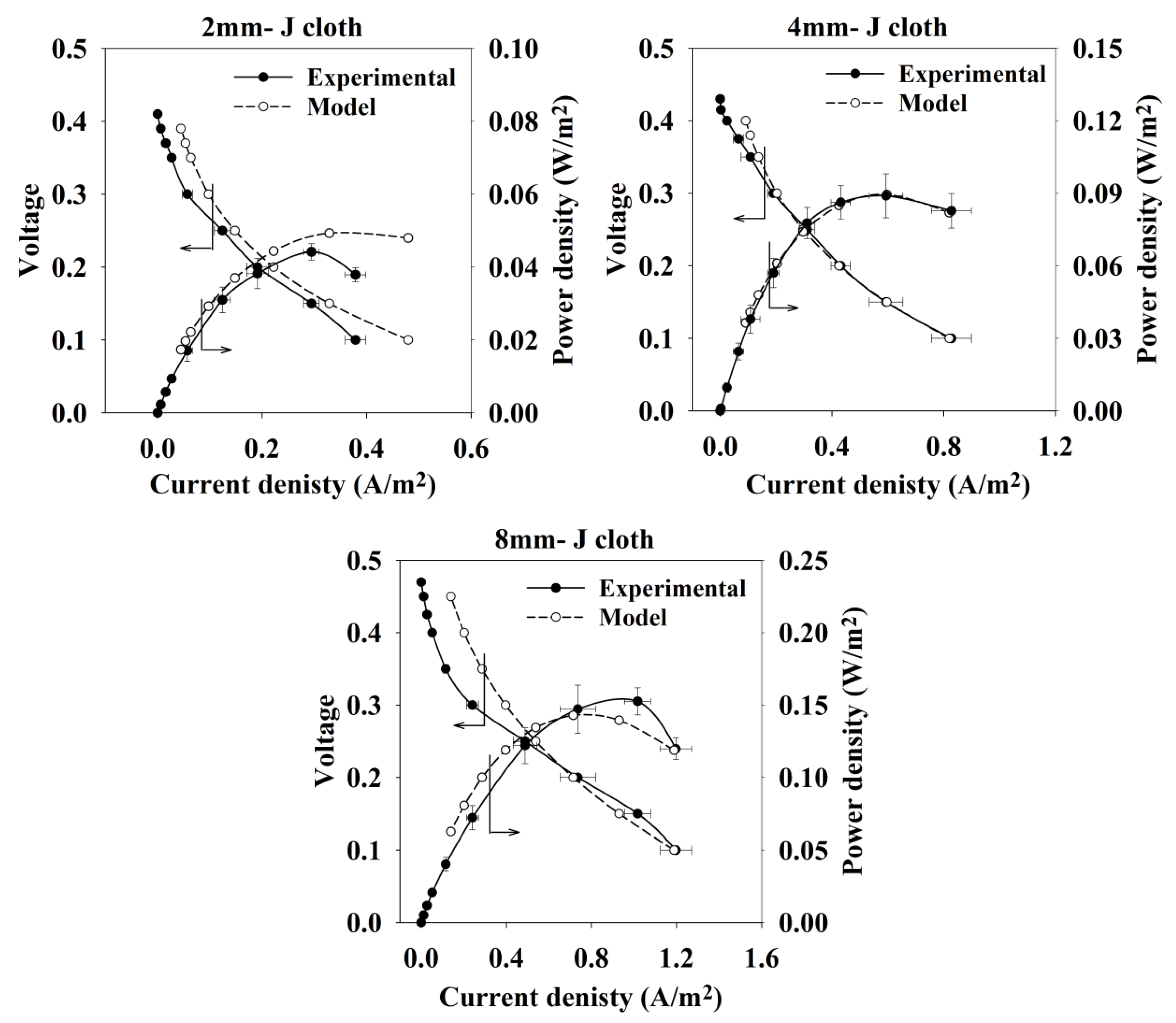

Figure 1. Predicted vs. experimental polarization and power density curves of the FPMFCs using J-cloth as the separator.

Figure 1. Predicted vs. experimental polarization and power density curves of the FPMFCs using J-cloth as the separator.

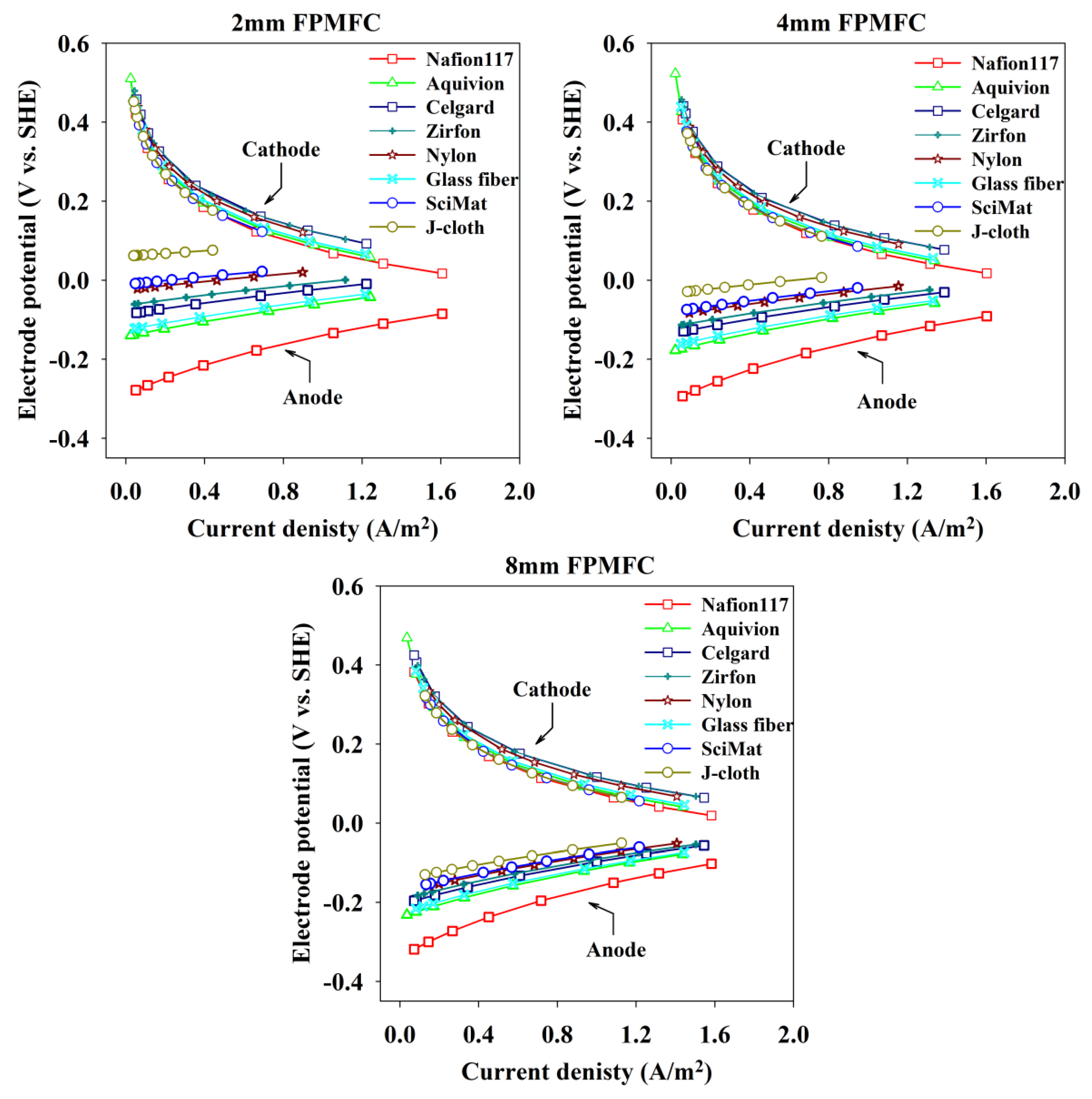

Figure 2 shows the estimated electrode potentials using different separators in the FPMFCs. The electrode potentials estimated by the model showed a critical role of the oxygen crossover on the anodic mixed potentials and the resulted anode depolarization. Oxygen crossover yielded a positive shift in the anode potential when the mass transfer coefficient of oxygen in the separators increased. In the 2 mm FPMFC, the anode depolarization increased more significantly as separators with larger coefficients were used. The effect of oxygen crossover on the anode potential became less significant as the electrode spacing increased (in the 4 mm and 8 mm FPMFCs), due to the lower concentration of oxygen at the anode.

Figure 2. Estimated electrode potentials using different separators in the FPMFCs.

Figure 2. Estimated electrode potentials using different separators in the FPMFCs.

Nafion^®117 gave the lowest anode potential values in all three FPMFCs (ca. −0.3 V vs. standard hydrogen electrode (SHE) at open circuit), similar to the values reported in the MFCs using ferricyanide and ferric iron as the oxidant [30,31], and the passive air-breathing MFCs with electrode spacing of 2 cm and larger [32,33]. The extent of the anode depolarization matched that reported for the passive air-breathing MFCs with larger electrode spacing, as a result of the lower susceptibility of the polymeric Nafion^®117 membrane to oxygen diffusion. At the largest electrode spacing applied (ca. 6.5 mm) in the 8 mm FPMFC, the applied diaphragms and the Aquivion^® membrane indicated relatively similar anode depolarization, showing a similar extent of the mixed potentials at the anode.

The variation of the cathode potential using different separators was ca. 0.04 V in all three FPMFCs, as predicted previously in Part 1, attributed to the variation in the proton transport number of the selected separators. Cathode potential, however, is affected by protons (or OH⁻) transport and fuel crossover at the same time. Therefore, while large pores contribute to a more balanced pH especially at the cathode, they facilitate fuel crossover as well. That could be one reason why mass transfer coefficient of ethanol did not seem to play a significant role on the cathode potential. Ethanol oxidation at the cathode, on the other hand, was most likely limited by its slow kinetics; hence, a possible variation in the extent of ethanol crossover using different separators did not seem to be affecting the cathode activity. In reality, the permeability of the applied diaphragms to the electrolyte can likely improve the proton transport number of the diaphragms in the FPMFC environment, yielding more stable pH values at the cathode. In the long-term, however, it exposes the Pt cathode to the synthetic wastewater as well as the suspended bacterial cells.

The estimated cathode potentials indicated lower values compared to the MFCs using ferricyanide and ferric iron as the oxidant [30,31], as a result of the sluggish kinetics of oxygen reduction on Pt [34,35,36], which can also be observed in Figure 2 in the low current density region. The high mass transfer coefficient of oxygen in the carbon cloth cathode can likely provide sufficient flux of oxygen to the catalyst active sites; however, mass transfer limitations and the resulted local oxygen starvation are still likely to decrease the air-breathing cathode performance.

2.2. Sensitivity Analysis

2.2.1. Performance Sensitivity to Separator Characteristics

A preliminary analysis was performed to investigate the sensitivity of the power output with respect to the separator characteristics, by changing one of the separator characteristics at a time while leaving the remaining unchanged, and solving the voltage and charge balance equations. The sensitivity analysis was performed for Nafion^®117, as an insensitive separator to the electrode spacing and for J-cloth, as one of the most sensitive separators to the electrode spacing. Table 2 and Table 3 present the percentage change in the peak power density of the FPMFCs with one at a time change of the characteristics of Nafion^®117 and J-cloth, respectively.

Table 2. Percentage change in the superficial peak power density of the FPMFCs with one at a time change of the characteristics of Nafion^®117.

Parameter/Value	Change in the Parameter	Change in the Superficial Peak Power Density
		2 mm	4 mm	8 mm
kO = 0.29 × 10−6 m·s−1	−95%	+49%	+45%	+40%
	+100%	−25%	−19%	−13%
	+1000%	−70%	−54%	−34%
nH+ = 0.59	−60%	−7%	−7%	−6%
	+60%	+24%	+23%	+23%

Table 2. Percentage change in the superficial peak power density of the FPMFCs with one at a time change of the characteristics of Nafion^®117.

Parameter/Value	Change in the Parameter	Change in the Superficial Peak Power Density
		2 mm	4 mm	8 mm
kO = 0.29 × 10−6 m·s−1	−95%	+49%	+45%	+40%
	+100%	−25%	−19%	−13%
	+1000%	−70%	−54%	−34%
nH+ = 0.59	−60%	−7%	−7%	−6%
	+60%	+24%	+23%	+23%

Table 3. Percentage change in the superficial peak power density of the FPMFCs with one at a time change of the characteristics of J-cloth.

Parameter/Value	Change in the Parameter	Change in the Superficial Peak Power Density
		2 mm	4 mm	8 mm
kO = 9.5 × 10−6 m·s−1	−95%	+286%	+121%	+48%
	+100%	−10%	−5%	−2%
nH+ = 0.78	−20%	−10%	−9%	−8%
	+20%	+31%	+25%	+20%

Table 3. Percentage change in the superficial peak power density of the FPMFCs with one at a time change of the characteristics of J-cloth.

Parameter/Value	Change in the Parameter	Change in the Superficial Peak Power Density
		2 mm	4 mm	8 mm
kO = 9.5 × 10−6 m·s−1	−95%	+286%	+121%	+48%
	+100%	−10%	−5%	−2%
nH+ = 0.78	−20%	−10%	−9%	−8%
	+20%	+31%	+25%	+20%

The sensitivity analysis results indicated that the power output of the passive air-breathing FPMFCs using Nafion^®117 was more sensitive to the oxygen crossover compared to its other characteristics. Decreasing the oxygen crossover by 95% resulted in an increase by 49%, 45%, and 40% in peak power density of the 2 mm, 4 mm, and 8 mm FPMFCs, respectively. Hence, at a very low extent of oxygen crossover, the superficial peak power density was still relatively insensitive to a change in the electrode spacing. Furthermore, the increased peak power densities due to the decreased oxygen crossover suggested that even using Nafion^®117, which was the least susceptible separator to oxygen, the performance was still being affected by oxygen crossover.

Increasing the oxygen crossover by 100%, on the other hand, affected the peak power less significantly resulting in 25%, 19%, and 13% decrease in the peak power of the 2 mm, 4 mm, and 8 mm FPMFCs, respectively. The sensitivity of the peak power density to the electrode spacing, however, increased. A further increase in the oxygen crossover by 1000% decreased the peak power density by 70%, 54%, and 34% in the 2 mm, 4 mm, and 8 mm FPMFCs, respectively.

The proton transport number of the separators affected the peak power by altering the cathode potential [32,33]. A 60% increase in the proton transport number of Nafion^®117 (from 0.59 to 0.94) was estimated to increase the peak power similarly in all three FPMFCs by 23%–24%. The same percentage of decrease in the proton transport number (from 0.59 to 0.24), on the other hand, slightly decreased the peak power (6%–7%).

The peak power density did not indicate any sensitivity to the variation in neither the mass transfer coefficient of ethanol nor the ionic resistivity within the measured ranges. Ethanol oxidation on the cathode was controlled by its slow kinetics, thus a potential increase in the ethanol crossover did not reflect on the cathodic mixed potentials. Although the experimental results indicated that the performance was hindered when separators with greater ethanol crossover were used, the model showed that this performance drop was due to the increased oxygen crossover that came along with the increased ethanol crossover. The ionic resistivity, on the other hand, was an indicator of the Ohmic resistance of the separator which was small compared to the Ohmic resistance of the cell.

The sensitivity analysis using J-cloth characteristics indicated that the power output of the passive air-breathing FPMFCs were more sensitive to the mass transfer coefficient of oxygen compared to Nafion^®117. The sensitivity of the peak power density decreased as the electrode spacing increased, resulting in an increase of 286%, 121%, and 48% in the peak power density of the 2 mm, 4 mm, and 8 mm FPMFCs, respectively, when decreasing the oxygen crossover by 95%. The increase in the peak power density of the 2 mm FPMFC using J-cloth was ca. 6 times higher than that using Nafion^®117, which was an indicator of the excessive flux of oxygen towards the anaerobic anode using J-cloth. The predicted electrode potentials also showed that all three FPMFCs were suffering from anodic mixed potentials.

The increase of the oxygen crossover by 100% decreased the peak power much less significantly resulting in less than 10% of decrease in the peak power density. The 10% decrease in the peak power density with a 100% increase in the oxygen crossover using J-cloth was an interesting observation, indicating that a separator-free MFC would likely yield a slightly lower peak power density compared to that using J-cloth. This questions functionality of 1 layer of J-cloth beside the physical isolation of anode from cathode in the passive air-breathing FPMFCs.

Similar to Nafion^®117, a variation in the proton transport number of the J-cloth altered the peak power density through affecting the cathode potential [32,33]. For example, a 20% increase in the proton transport number was estimated to increase the peak power density by 31%, 25%, and 20% in the FPMFCs. The same percentage of decrease in the proton transport number slightly decreased the peak power (less than 10%).

The peak power density was not sensitive to the variation in neither the mass transfer coefficient of ethanol nor the ionic resistivity within the measured ranges, due to the kinetically controlled ethanol oxidation at the cathode as well as the overshadowing effect of the oxygen crossover. Ethanol crossover may not affect the peak power significantly, but it could result in cathodic biofilm development in the long-term.

2.2.2. Performance Sensitivity to Electrode Spacing

The electrode spacing was increased in the model to investigate the sensitivity of the superficial peak power density, using different separators. Figure 3 shows the sensitivity of polarization and power density to electrode spacing in the FPMFC using Nafion^®117 and J-cloth. Increasing the electrode spacing up to 2 cm using J-cloth increased the peak power density from 0.05 W·m⁻² to 0.2 W·m⁻², as a result of the decreased oxygen concentration at the anode. The decreased anodic mixed potentials likely alleviated the negative effect of the increased Ohmic loss attributed to the increased electrode spacing. The peak power density decreased at the electrode spacing larger than 2 cm, where the Ohmic loss of the system became critical. The peak power density using Nafion^®117 slightly increased as the electrode spacing increased, and similar to J-cloth, dropped at the electrode spacing over 2 cm.

Figure 3. Sensitivity of polarization and power density curves to the electrode spacing using Nafion^®117 (a) and J-cloth (b).

Figure 3. Sensitivity of polarization and power density curves to the electrode spacing using Nafion^®117 (a) and J-cloth (b).

As the electrode spacing increased, the effect of the oxygen crossover became less significant resulting in a more significant role played by the proton transport number of the separator. At the electrode spacing of 2 cm, Celgard^® and Zirfon^® gave the highest peak power densities (0.24 W·m⁻²), as a result of their higher selectivity towards transferring protons. SciMat^® and J-cloth, on the other hand, produced the lowest peak power densities (0.20 W·m⁻²) showing that the oxygen crossover could still be hindering the performance. Overall, it was concluded that the appropriate characteristics of the separator component for the passive air-breathing MFCs is dependent on the MFC configuration. Hence, while in the configuration with small electrode spacing, the oxygen crossover can be critical for the sustainable power generation, in the configurations with larger electrode spacing, the pH splitting as well as the high Ohmic loss issues play a detrimental role on the performance.

3. Materials and Methods

3.1. Model Development

The proposed model focuses on the voltage and the charge balance, mass and charge transfer limitations on the current generation, and the mixed potentials due to the reactants crossover. A schematic of charge transfer and reactants crossover paths are presented in Figure 4.

Figure 4. Schematic of charge transfer and reactants crossover paths in the passive air breathing FPMFC utilizing ethanol.

Figure 4. Schematic of charge transfer and reactants crossover paths in the passive air breathing FPMFC utilizing ethanol.

The mixed potentials at the anode are shown as the anode depolarization happening mainly due to the oxygen crossing over the cathode, the separator, the electrolyte (wastewater), and the biofilm. The mixed potentials at the cathode are shown as the cathode depolarization happening mainly due to the ethanol crossing over the separator. The following assumptions were made in the FPMFC modeling:

• The MFC system is similar to a chemical fuel cell, hence no terms are added to represent the growth and death rate of the microbial communities, the biomass generation, and the biofilm growth on the cathode, and the separator.
• The anode electrode is assumed to be covered by the bacteria. Hence, the ethanol oxidation and oxygen reduction reactions are catalyzed by the biofilm, and do not take place on the naked electrode.
• Transfer of electrons from the bacteria to the electrode is reversible and fast, therefore, considered as a Nernstian electrode process.
• Flow of ions through the biofilm is not limiting the electro-neutrality of the system, and the Ohmic loss is solely due to the distance between the surface of the anode and the separator.
• Complete ethanol oxidation and the oxygen reduction are the sole anodic and cathodic reactions occurring in the MFC. Hence, no by-products (e.g., acetate) are assumed to be generated, to simplify the model.
• Oxygen reduction by the bacteria is assumed to be an electrochemical reaction.
• The electrolyte is assumed to be stagnant, thus no effect of the electrolyte flow on the concentration profile is considered.
• The fuel (ethanol) is well-distributed within the 3D electrode, thus the concentration profile is neglected and no starvation is happening.
• The temperature variation within the anode chamber is negligible, hence the reactions are isothermal.
• The anode is well-buffered and there is no local pH drop within the biofilm. The temperature is also well-controlled at 303 K in both compartments.
• Due to the electro-activity of the 99% of the thickness of the 3D electrode [37], a uniform current and voltage distribution within the 3D electrode is assumed.

Complete ethanol (EtOH) oxidation at the anode yields a 12-electron transfer reaction:

$${\mathrm{C}}_2{\mathrm{H}}_5\text{OH}+3{\mathrm{H}}_2\mathrm{O}\to 12{\mathrm{e}}^{-}+12{\mathrm{H}}^{+}+2{\text{CO}}_2$$

(1)

The equilibrium potential for this reaction at the anode and the cathode can be calculated as follows:

$${\mathrm{E}}_{\text{EtOH}}^{\mathrm{a}}={\mathrm{E}}_{\text{EtOH}}^0-\frac{\text{RT}}{{\mathrm{n}}_{\text{EtOH}}\mathrm{F}}\text{ln}\left(\frac{{\mathrm{C}}_{\text{EtOH}}^{\mathrm{a}}}{{{\left[{\mathrm{H}}^{+}\right]}_{\mathrm{a}}}^{{\mathrm{n}}_{\text{EtOH}}}}\right)$$

(2)

$${\mathrm{E}}_{\text{EtOH}}^{\mathrm{c}}={\mathrm{E}}_{\text{EtOH}}^0-\frac{\text{RT}}{{\mathrm{n}}_{\text{EtOH}}\mathrm{F}}\text{ln}\left(\frac{{\mathrm{C}}_{\text{EtOH}}^{\mathrm{c}}}{{{\left[{\mathrm{H}}^{+}\right]}_{\mathrm{c}}}^{{\mathrm{n}}_{\text{EtOH}}}}\right)$$

(3)

where ${\mathrm{E}}_{\text{EtOH}}^0$ is the standard half-cell potential of the ethanol oxidation reaction (V vs. SHE), R is the universal gas constant (J·mol⁻¹·K⁻¹), T is the temperature (K), ${\mathrm{n}}_{\text{EtOH}}$ is the number of electrons transferred during the complete ethanol oxidation, F is the Faraday constant (C·mol⁻¹), ${\mathrm{C}}_{\text{EtOH}}^{\mathrm{a}}$ and ${\mathrm{C}}_{\text{EtOH}}^{\mathrm{c}}$ are the concentration of ethanol (M) at the anode and the cathode, respectively, and ${\left[{\mathrm{H}}^{+}\right]}_{\mathrm{a}}$ and ${\left[{\mathrm{H}}^{+}\right]}_{\mathrm{c}}$ are the concentration of protons (M) at the anode and the cathode, respectively. The oxygen reduction reaction is a 4-electron transfer reaction and in neutral and alkaline solutions is represented by:

$${\mathrm{O}}_2+4{\mathrm{e}}^{-}+2{\mathrm{H}}_2\mathrm{O}\to 4{\text{OH}}^{-}$$

(4)

The equilibrium potential for this reaction at the anode and the cathode can be calculated as follows:

$${\mathrm{E}}_{{\mathrm{O}}_2}^{\mathrm{a}}={\mathrm{E}}_{{\mathrm{O}}_2}^0-\frac{\text{RT}}{{\mathrm{n}}_{{\mathrm{O}}_2}\mathrm{F}}\text{ln}(\frac{{{\left[{\text{OH}}^{-}\right]}_{\mathrm{a}}}^{{\mathrm{n}}_{{\mathrm{O}}_2}}}{{\mathrm{C}}_{{\mathrm{O}}_2}^{\mathrm{a}}})$$

(5)

$${\mathrm{E}}_{{\mathrm{O}}_2}^{\mathrm{c}}={\mathrm{E}}_{{\mathrm{O}}_2}^0-\frac{\text{RT}}{{\mathrm{n}}_{{\mathrm{O}}_2}\mathrm{F}}\text{ln}(\frac{{{\left[{\text{OH}}^{-}\right]}_{\mathrm{c}}}^{{\mathrm{n}}_{{\mathrm{O}}_2}}}{{\mathrm{P}}_{{\mathrm{O}}_2}})$$

(6)

where ${\mathrm{E}}_{{\mathrm{O}}_2}^0$ is the standard half-cell potential of the oxygen reduction reaction (V vs. SHE), ${\mathrm{n}}_{{\mathrm{O}}_2}$ is the number of the electrons transferred during the oxygen reduction, ${\mathrm{C}}_{{\mathrm{O}}_2}^{\mathrm{a}}$ and ${\mathrm{P}}_{{\mathrm{O}}_2}$ are the concentration (M) and partial pressure (atm) of oxygen at the anode and the cathode, respectively, and ${\left[{\text{OH}}^{-}\right]}_{\mathrm{a}}$ and ${\left[{\text{OH}}^{-}\right]}_{\mathrm{c}}$ are the concentration of hydroxyl ions (M) at the anode and the cathode, respectively. The overall FPMFC voltage balance can be written as:

$${\mathrm{E}}_{\text{cell}}={\mathrm{E}}_{\mathrm{c}}-{\mathrm{E}}_{\mathrm{a}}-{\mathrm{E}}_{\text{Ohm}}$$

(7)

where ${\mathrm{E}}_{\mathrm{c}}$ and ${\mathrm{E}}_{\mathrm{a}}$ are the cathode and the anode operating potentials, respectively, and ${\mathrm{E}}_{\text{Ohm}}$ is the Ohmic loss of the FPMFC. The anodic and the cathodic overpotentials due to each reaction and the Ohmic loss can be calculated using the following equations:

$${\mathsf{\eta }}_{\text{EtOH}}^{\mathrm{a}}={\mathrm{E}}_{\mathrm{a}}-{\mathrm{E}}_{\text{EtOH}}^{\mathrm{a}}$$

(8)

$${\mathsf{\eta }}_{{\mathrm{O}}_2}^{\mathrm{a}}={\mathrm{E}}_{\mathrm{a}}-{\mathrm{E}}_{{\mathrm{O}}_2}^{\mathrm{a}}$$

(9)

$${\mathsf{\eta }}_{\text{EtOH}}^{\mathrm{c}}={\mathrm{E}}_{\mathrm{c}}-{\mathrm{E}}_{\text{EtOH}}^{\mathrm{c}}$$

(10)

$${\mathsf{\eta }}_{{\mathrm{O}}_2}^{\mathrm{c}}={\mathrm{E}}_{\mathrm{c}}-{\mathrm{E}}_{{\mathrm{O}}_2}^{\mathrm{c}}$$

(11)

$${\mathrm{E}}_{\text{ohm}}=\mathrm{J}\left({\mathrm{R}}_{\mathrm{S}}+\frac{\mathrm{d}}{{\mathsf{\kappa }}_{\mathrm{E}}}\right)$$

(12)

where ${\mathsf{\eta }}_{\text{EtOH}}^{\mathrm{a}}$ and ${\mathsf{\eta }}_{\text{EtOH}}^{\mathrm{c}}$ are the anodic and the cathode overpotentials (V) of the ethanol oxidation reaction, ${\mathsf{\eta }}_{{\mathrm{O}}_2}^{\mathrm{a}}$ and ${\mathsf{\eta }}_{{\mathrm{O}}_2}^{\mathrm{c}}$ are the anodic and the cathodic overpotentials (V) of the oxygen reduction reaction, respectively, ${\mathrm{R}}_{\mathrm{S}}$ is the ionic resistivity of the separator (Ω·m²), d is the electrode spacing of the FPMFC (m), ${\mathsf{\kappa }}_{\mathrm{E}}$ is the ionic conductivity of the electrolyte (S·m⁻¹), and J is the current density (A·m⁻²) which can be calculated as follows:

$$\mathrm{J}={\mathrm{J}}_{\text{EtOH}}^{\mathrm{a}}-{\mathrm{J}}_{{\mathrm{O}}_2}^{\mathrm{a}}={\mathrm{J}}_{{\mathrm{O}}_2}^{\mathrm{c}}-{\mathrm{J}}_{\text{EtOH}}^{\mathrm{c}}$$

(13)

$$\frac{1}{{\mathrm{J}}_{\text{EtOH}}^{\mathrm{a}}}=\frac{1}{{\mathrm{J}}_{\text{EtOH}}^{\text{amt}}}+\frac{1}{{\mathrm{J}}_{\text{EtOH}}^{\text{act}}}$$

(14)

$$\frac{1}{{\mathrm{J}}_{{\mathrm{O}}_2}^{\mathrm{a}}}=\frac{1}{{\mathrm{J}}_{{\mathrm{O}}_2}^{\text{amt}}}+\frac{1}{{\mathrm{J}}_{{\mathrm{O}}_2}^{\text{act}}}$$

(15)

$$\frac{1}{{\mathrm{J}}_{\text{EtOH}}^{\mathrm{c}}}=\frac{1}{{\mathrm{J}}_{\text{EtOH}}^{\text{cmt}}}+\frac{1}{{\mathrm{J}}_{\text{EtOH}}^{\text{cct}}}$$

(16)

$$\frac{1}{{\mathrm{J}}_{{\mathrm{O}}_2}^{\mathrm{c}}}=\frac{1}{{\mathrm{J}}_{{\mathrm{O}}_2}^{\text{cmt}}}+\frac{1}{{\mathrm{J}}_{{\mathrm{O}}_2}^{\text{cct}}}$$

(17)

where amt and cmt refer to the anodic and cathodic mass transfer controlled (limiting) current densities, and act and cct refer to the anodic and cathodic charge transfer (kinetic) controlled current densities, respectively, and ${\mathrm{J}}_{\text{EtOH}}^{\mathrm{a}}$, ${\mathrm{J}}_{{\mathrm{O}}_2}^{\mathrm{a}}$, ${\mathrm{J}}_{\text{EtOH}}^{\mathrm{c}}$, and ${\mathrm{J}}_{{\mathrm{O}}_2}^{\mathrm{c}}$ are the current densities (A·m⁻²) of ethanol oxidation and oxygen reduction at the anode and the cathode, respectively. Equation (13) indicates that anodic and the cathodic current densities must be equal. The mass transfer controlled current densities for ethanol oxidation and oxygen reduction at the anode and the cathode can be calculated using Equation (18) through Equation (21):

$${\mathrm{J}}_{\text{EtOH}}^{\text{amt}}={\mathrm{n}}_{\text{EtOH}}{\text{FK}}_{\text{EtOH}}^{\mathrm{a}}{\mathrm{C}}_{\text{EtOH}}$$

(18)

$${\mathrm{J}}_{\text{EtOH}}^{\text{cmt}}={\mathrm{n}}_{\text{EtOH}}{\text{FK}}_{\text{EtOH}}^{\mathrm{c}}{\mathrm{C}}_{\text{EtOH}}$$

(19)

$${\mathrm{J}}_{{\mathrm{O}}_2}^{\text{amt}}={\mathrm{n}}_{{\mathrm{O}}_2}{\text{FK}}_{{\mathrm{O}}_2}^{\mathrm{a}}{\mathrm{C}}_{{\mathrm{O}}_2}$$

(20)

$${\mathrm{J}}_{{\mathrm{O}}_2}^{\text{cmt}}={\mathrm{n}}_{{\mathrm{O}}_2}{\text{FK}}_{{\mathrm{O}}_2}^{\mathrm{c}}{\mathrm{C}}_{{\mathrm{O}}_2}$$

(21)

where ${\mathrm{K}}_{\text{EtOH}}^{\mathrm{a}}$, ${\mathrm{K}}_{{\mathrm{O}}_2}^{\mathrm{a}}$, ${\mathrm{K}}_{\text{EtOH}}^{\mathrm{c}}$, and ${\mathrm{K}}_{{\mathrm{O}}_2}^{\mathrm{c}}$ are the effective mass transfer coefficients (m·s⁻¹) at the anode side and at the cathode side of ethanol and oxygen, respectively, and can be calculated using Equation (22) through Equation (25):

$$\frac{1}{{\mathrm{K}}_{\text{EtOH}}^{\mathrm{a}}}=\frac{1}{{\mathrm{K}}_{\text{EtOH}}^{\mathrm{B}}}$$

(22)

$$\frac{1}{{\mathrm{K}}_{{\mathrm{O}}_2}^{\mathrm{a}}}=\frac{1}{{\mathrm{K}}_{{\mathrm{O}}_2}^{\mathrm{B}}}+\frac{\mathrm{d}}{{\mathrm{D}}_{{\mathrm{O}}_2}^{\mathrm{E}}}+\frac{\mathrm{Y}}{{\mathrm{D}}_{{\mathrm{O}}_2}}+\frac{1}{{\mathrm{K}}_{{\mathrm{O}}_2}^{\mathrm{C}}}$$

(23)

$$\frac{1}{{\mathrm{K}}_{\text{EtOH}}^{\mathrm{c}}}=\frac{\mathrm{Y}}{{\mathrm{D}}_{\text{EtOH}}}$$

(24)

$$\frac{1}{{\mathrm{K}}_{{\mathrm{O}}_2}^{\mathrm{c}}}=\frac{1}{{\mathrm{K}}_{{\mathrm{O}}_2}^{\mathrm{C}}}$$

(25)

where ${\mathrm{K}}_{\text{EtOH}}^{\mathrm{B}}$ and ${\mathrm{K}}_{{\mathrm{O}}_2}^{\mathrm{B}}$ the mass transfer coefficients (m·s⁻¹) of are ethanol and oxygen in the biofilm, respectively, ${\mathrm{D}}_{{\mathrm{O}}_2}^{\mathrm{E}}$ is the diffusion coefficient (m²·s⁻¹) of oxygen in the electrolyte, ${\mathrm{D}}_{{\mathrm{O}}_2}$ and ${\mathrm{D}}_{\text{EtOH}}$ are the diffusion coefficients (m²·s⁻¹) of oxygen and ethanol in the separator, respectively, ${\mathrm{K}}_{{\mathrm{O}}_2}^{\mathrm{C}}$ is the mass transfer coefficient (m·s⁻¹) of oxygen in the cathode, d is the electrode spacing (m), and Y is the separator thickness (m). The charge transfer (kinetic) controlled current densities for the ethanol oxidation and oxygen reduction reactions at the anode and the cathode are calculated using the Erdey-Gruz-Volmer-Butler equation:

$${\mathrm{J}}_{\text{EtOH}}^{\text{act}}={{\mathrm{j}}_{\mathrm{B}}^0}_{\text{EtOH}}\left[\text{exp}\left[\frac{{{\mathsf{\alpha }}_{\mathrm{A}}}_{\text{EtOH}}^{\mathrm{A}}{\mathrm{n}}_{\text{EtOH}}\mathrm{F}\left({\mathrm{E}}_{\mathrm{a}}-{\mathrm{E}}_{\text{EtOH}}^{\mathrm{a}}\right)}{\text{RT}}\right]-\text{exp}\left[\frac{(1-{{\mathsf{\alpha }}_{\mathrm{A}}}_{\text{EtOH}}^{\mathrm{A}}){\mathrm{n}}_{\text{EtOH}}\mathrm{F}\left({\mathrm{E}}_{\mathrm{a}}-{\mathrm{E}}_{\text{EtOH}}^{\mathrm{a}}\right)}{\text{RT}}\right]\right]$$

(26)

$${\mathrm{J}}_{\text{EtOH}}^{\text{cct}}={\mathrm{j}}_{\text{EtOH}}^0\left[\text{exp}\left[\frac{{{\mathsf{\alpha }}_{\mathrm{A}}}_{\text{EtOH}}^{\mathrm{C}}{\mathrm{n}}_{\text{EtOH}}\mathrm{F}\left({\mathrm{E}}_{\mathrm{c}}-{\mathrm{E}}_{\text{EtOH}}^{\mathrm{c}}\right)}{\text{RT}}\right]-\text{exp}\left[\frac{(1-{{\mathsf{\alpha }}_{\mathrm{A}}}_{\text{EtOH}}^{\mathrm{C}}){\mathrm{n}}_{\text{EtOH}}\mathrm{F}\left({\mathrm{E}}_{\mathrm{c}}-{\mathrm{E}}_{\text{EtOH}}^{\mathrm{c}}\right)}{\text{RT}}\right]\right]$$

(27)

$${\mathrm{J}}_{{\mathrm{O}}_2}^{\text{act}}={{\mathrm{j}}_{\mathrm{B}}^0}_{{\mathrm{O}}_2}\left[\text{exp}\left[\frac{(1-{{\mathsf{\alpha }}_{\mathrm{C}}}_{{\mathrm{O}}_2}^{\mathrm{A}}){\mathrm{n}}_{{\mathrm{O}}_2}\mathrm{F}\left({\mathrm{E}}_{\mathrm{a}}-{\mathrm{E}}_{{\mathrm{O}}_2}^{\mathrm{a}}\right)}{\text{RT}}\right]-\text{exp}\left[\frac{-{{\mathsf{\alpha }}_{\mathrm{C}}}_{{\mathrm{O}}_2}^{\mathrm{A}}{\mathrm{n}}_{\text{EtOH}}\mathrm{F}\left({\mathrm{E}}_{\mathrm{a}}-{\mathrm{E}}_{{\mathrm{O}}_2}^{\mathrm{a}}\right)}{\text{RT}}\right]\right]$$

(28)

$${\mathrm{J}}_{{\mathrm{O}}_2}^{\text{cct}}={\mathrm{j}}_{{\mathrm{O}}_2}^0\left[\text{exp}\left[\frac{(1-{{\mathsf{\alpha }}_{\mathrm{C}}}_{{\mathrm{O}}_2}^{\mathrm{C}}){\mathrm{n}}_{{\mathrm{O}}_2}\mathrm{F}\left({\mathrm{E}}_{\mathrm{c}}-{\mathrm{E}}_{{\mathrm{O}}_2}^{\mathrm{c}}\right)}{\text{RT}}\right]-\text{exp}\left[\frac{-{{\mathsf{\alpha }}_{\mathrm{C}}}_{{\mathrm{O}}_2}^{\mathrm{C}}{\mathrm{n}}_{{\mathrm{O}}_2}\mathrm{F}\left({\mathrm{E}}_{\mathrm{c}}-{\mathrm{E}}_{{\mathrm{O}}_2}^{\mathrm{c}}\right)}{\text{RT}}\right]\right]$$

(29)

where ${{\mathrm{j}}_{\mathrm{B}}^0}_{\text{EtOH}}$ and ${{\mathrm{j}}_{\mathrm{B}}^0}_{{\mathrm{O}}_2}$ are the exchange current densities (A·m⁻²) of ethanol oxidation and oxygen reduction in the biofilm, ${\mathrm{j}}_{\text{EtOH}}^0$ and ${\mathrm{j}}_{{\mathrm{O}}_2}^0$ are the exchange current densities (A·m⁻²) of ethanol oxidation and oxygen reduction at the cathode, ${{\mathsf{\alpha }}_{\mathrm{A}}}_{\text{EtOH}}^{\mathrm{A}}$ and ${{\mathsf{\alpha }}_{\mathrm{C}}}_{{\mathrm{O}}_2}^{\mathrm{A}}$ are the charge transfer coefficients of ethanol oxidation and oxygen reduction at the anode, and ${{\mathsf{\alpha }}_{\mathrm{A}}}_{\text{EtOH}}^{\mathrm{C}}$ and ${{\mathsf{\alpha }}_{\mathrm{C}}}_{{\mathrm{O}}_2}^{\mathrm{C}}$ are the charge transfer coefficients of ethanol oxidation and oxygen reduction at the cathode, respectively. The average ethanol concentration within and alongside the anode electrode is estimated by calculating the logarithmic mean of the inlet and the outlet concentration. The pH of the cathode is estimated taking into account the proton transport number of the separator and calculating the protons concentration at the cathode during the current generation [38].

3.2. Parameter Estimation

Table 4 lists the characteristics of the separators investigated previously in Part 1 of this work. The eight model parameters listed in Table 5 cannot be determined from the experimental data, hence are estimated through an iterative optimization algorithm using a sequential quadratic programming (SQP) method for solving the constrained non-linear optimization problem. These parameters are estimated by minimizing the summation of the square roots of the difference between the measured and the predicted current densities, minimizing an objective function defined as:

$${\mathrm{F}}_{\text{obj}}={\displaystyle \sum _{\mathrm{i}=1}^{\mathrm{N}}}{\displaystyle \sum _{\mathrm{j}=1}^{\mathrm{M}}}{\sum }_{\mathrm{k}=1}^{\mathrm{K}}{({\mathrm{J}}_{\mathrm{i},\mathrm{j},\mathrm{k}}^{\prime }-{\mathrm{J}}_{\mathrm{i},\mathrm{j},\mathrm{k}})}^2$$

(30)

where N, M, and K represent the number of the separators, the data points, and the FPMFCs used for the optimization problem, respectively. The characteristic of Nafion^®117, Aquivion^®, Celgard^®, Zirfon^®, Nylon mesh, Glass fiber filter, and SciMat^® are used to solve the optimization problem. Integration of model equations into the optimization problem is performed in MATLAB (The Mathworks Inc., Natick, MA, USA). The estimated parameters are then used to solve the model equations during the sensitivity analysis and electrode potentials estimation. The characteristics data of J-cloth is used for model validation.

Table 4. Characteristics of the separators investigated in part 1 of this work [24].

Separator	kO (×10−6 m·s−1)	kE (×10−6 m·s−1)	RS (×10−4 Ω·m2)	nH+
Nafion®117	0.29 ± 0.02	0.49 ± 0.01	5.4 ± 0.1	0.59 ± 0.01
Aquivion®	0.77 ± 0.05	0.98 ± 0.01	0.8 ± 0.1	0.72 ± 0.01
Celgard®	1.2 ± 0.1	0.84 ± 0.01	4.4 ± 0.2	0.92 ± 0.01
Zirfon®	1.5 ± 0.1	0.58 ± 0.01	14 ± 0.4	0.92 ± 0.01
Nylon mesh	2.2 ± 0.1	2.2 ± 0.2	1.4 ± 0.1	0.89 ± 0.03
Glass fiber filter	0.87 ± 0.06	1.0 ± 0.1	7.8 ± 0.2	0.62 ± 0.02
SciMat®	2.6 ± 0.1	1.9 ± 0.1	3.1 ± 0.1	0.66 ± 0.03
J-cloth	9.5 ± 0.6	33 ± 3	6.2 ± 0.2	0.78 ± 0.02

Table 4. Characteristics of the separators investigated in part 1 of this work [24].

Separator	kO (×10−6 m·s−1)	kE (×10−6 m·s−1)	RS (×10−4 Ω·m2)	nH+
Nafion®117	0.29 ± 0.02	0.49 ± 0.01	5.4 ± 0.1	0.59 ± 0.01
Aquivion®	0.77 ± 0.05	0.98 ± 0.01	0.8 ± 0.1	0.72 ± 0.01
Celgard®	1.2 ± 0.1	0.84 ± 0.01	4.4 ± 0.2	0.92 ± 0.01
Zirfon®	1.5 ± 0.1	0.58 ± 0.01	14 ± 0.4	0.92 ± 0.01
Nylon mesh	2.2 ± 0.1	2.2 ± 0.2	1.4 ± 0.1	0.89 ± 0.03
Glass fiber filter	0.87 ± 0.06	1.0 ± 0.1	7.8 ± 0.2	0.62 ± 0.02
SciMat®	2.6 ± 0.1	1.9 ± 0.1	3.1 ± 0.1	0.66 ± 0.03
J-cloth	9.5 ± 0.6	33 ± 3	6.2 ± 0.2	0.78 ± 0.02

Table 5 presents the operating conditions, constants, and parameters of the experimental setup for the model system of Equation (1) through Equation (29).

Table 5. Parameters of operation and the constants of the ethanol-air MFC model.

Symbol	Definition	Value	Unit
R	Universal gas constant	8.314	J·mol−1·K−1
T	Temperature	303	K
F	Faraday constant	96485.3	C·mol−1
${\mathrm{n}}_{\text{EtOH}}$	Number of electrons transferred in ethanol full oxidation	12	-
${\mathrm{n}}_{{\mathrm{O}}_2}$	Number of electrons transferred in oxygen full reduction	4	-
${\text{pH}}_{\text{out}}$	Outlet pH	7	-
${\text{pH}}_{\text{in}}$	Inlet pH	8.5	-
${\mathrm{j}}_{{\mathrm{O}}_2}^0$	Exchange current density of oxygen reduction on Pt	0.015	A·m−2
${\mathrm{j}}_{\text{EtOH}}^0$	Exchange current density of ethanol oxidation on Pt	0.003	A·m−2
${\mathrm{K}}_{{\mathrm{O}}_2}^{\mathrm{c}}$	Mass transfer coefficient of oxygen in the air cathode	2.7 × 10−5	m·s−1
${\mathrm{D}}_{{\mathrm{O}}_2}^{\mathrm{E}}$	Diffusion coefficient of oxygen in the electrolyte	2 × 10−9	m2·s−1
${\mathrm{C}}_{\text{in}}$	Ethanol concentration in the inlet stream	0.085	M
${\mathrm{E}}_{\text{EtOH}}^0$	Standard half-cell potential of ethanol oxidation	0.084	V vs. SHE
${\mathrm{E}}_{{\mathrm{O}}_2}^0$	Standard half-cell potential of oxygen reduction	0.401	V vs. SHE
${\mathrm{P}}_{{\mathrm{O}}_2}$	Partial pressure of oxygen in the air	0.21	atm
${\mathrm{C}}_{{\mathrm{O}}_2}$	Oxygen concentration at the cathode	8.3	mol.m−3
${\mathsf{\kappa }}_{\mathrm{E}}$	Ionic conductivity of the synthetic wastewater	0.5	S·m−1

Table 5. Parameters of operation and the constants of the ethanol-air MFC model.

Symbol	Definition	Value	Unit
R	Universal gas constant	8.314	J·mol−1·K−1
T	Temperature	303	K
F	Faraday constant	96485.3	C·mol−1
${\mathrm{n}}_{\text{EtOH}}$	Number of electrons transferred in ethanol full oxidation	12	-
${\mathrm{n}}_{{\mathrm{O}}_2}$	Number of electrons transferred in oxygen full reduction	4	-
${\text{pH}}_{\text{out}}$	Outlet pH	7	-
${\text{pH}}_{\text{in}}$	Inlet pH	8.5	-
${\mathrm{j}}_{{\mathrm{O}}_2}^0$	Exchange current density of oxygen reduction on Pt	0.015	A·m−2
${\mathrm{j}}_{\text{EtOH}}^0$	Exchange current density of ethanol oxidation on Pt	0.003	A·m−2
${\mathrm{K}}_{{\mathrm{O}}_2}^{\mathrm{c}}$	Mass transfer coefficient of oxygen in the air cathode	2.7 × 10−5	m·s−1
${\mathrm{D}}_{{\mathrm{O}}_2}^{\mathrm{E}}$	Diffusion coefficient of oxygen in the electrolyte	2 × 10−9	m2·s−1
${\mathrm{C}}_{\text{in}}$	Ethanol concentration in the inlet stream	0.085	M
${\mathrm{E}}_{\text{EtOH}}^0$	Standard half-cell potential of ethanol oxidation	0.084	V vs. SHE
${\mathrm{E}}_{{\mathrm{O}}_2}^0$	Standard half-cell potential of oxygen reduction	0.401	V vs. SHE
${\mathrm{P}}_{{\mathrm{O}}_2}$	Partial pressure of oxygen in the air	0.21	atm
${\mathrm{C}}_{{\mathrm{O}}_2}$	Oxygen concentration at the cathode	8.3	mol.m−3
${\mathsf{\kappa }}_{\mathrm{E}}$	Ionic conductivity of the synthetic wastewater	0.5	S·m−1

4. Conclusions

A numerical model was developed based on the mixed potential theory to link the separator characteristics investigate in part 1 of this work to the performance of passive air-breathing FPMFC. Development of such model showed that it was possible to simulate an MFC with a stable biofilm similar to a chemical fuel cell. The model was used to estimate the kinetic parameters of the bio-electrochemical system and predict the anodic and cathodic mixed potentials, and polarization and power density curves using different separators.

The exchange current densities in the biofilm were estimated to be 0.36 A·m⁻² and 0.40 A·m⁻² for oxygen reduction and ethanol oxidation, respectively, and were in good agreement with the literature. According to the estimated exchange current density and mass transfer coefficients in the biofilm, ethanol oxidation was kinetically controlled while oxygen reduction was controlled by transfer of oxygen through the separator. In addition to ethanol oxidation at the anode, oxygen reduction at the cathode was predicted to be limited mainly by the sluggish kinetics as well. Mass transfer, therefore, was not indicated to be an issue in the current generation by the principle anodic and cathodic reactions.

It was also indicated that oxygen crossover played a critical role on the anode performance, through creation of mixed potentials especially at small electrode spacing. The significance of the oxygen crossover on the peak power density decreased as the electrode spacing increased, making oxygen diffusion the main limiting factor in the anodic mixed potential. The performance was also affected by the proton transport number of the separator (selectivity towards protons), which affected cathode pH and potential. The cathode potential, in fact, increased as the proton transport number of the separator increased resulting in an increased peak power density.

Ethanol crossover and the separator ionic resistivity did not play detrimental roles on the performance, mainly due to the slow kinetics of the ethanol oxidation reaction at the cathode, the relatively high Ohmic loss of the synthetic wastewater used as the electrolyte, and the oxygen crossover overshadowing the effect of the resistivity. Although the power output was not sensitive to ethanol crossover in the short-term, it could be affected in the long-term, when a biofilm is developed on the cathode. For the present cell configuration, increasing the electrode spacing by the model beyond 2 cm decreased the peak power density, due to the increased Ohmic loss, but below 2 cm it increased the peak power density as a result of the decreased anodic mixed potentials.
