Highly Efficient and Low-Temperature Preparation of Plate-Like ZrB2-SiC Powders by a Molten-Salt and Microwave-Modified Boro/Carbothermal Reduction Method

by
Yuan Zeng
1,
Feng Liang
1,
Jianghao Liu
1,*,
Jun Zhang
1,
Haijun Zhang
1,* and
Shaowei Zhang
2
1
The State Key Laboratory of Refractories and Metallurgy, Wuhan University of Science and Technology, Wuhan 430081, China
2
College of Engineering, Mathematics and Physical Sciences, University of Exeter, Exeter EX4 4QF, UK
*
Authors to whom correspondence should be addressed.
Materials 2018, 11(10), 1811; https://doi.org/10.3390/ma11101811
Submission received: 15 August 2018 / Revised: 19 September 2018 / Accepted: 21 September 2018 / Published: 24 September 2018
(This article belongs to the Section Manufacturing Processes and Systems)
Browse Figures
Versions Notes

Abstract

:
To address the various shortcomings of a high material cost, energy-intensive temperature conditions and ultra-low efficiency of the conventional boro/carbothermal reduction method for the industrial preparation of ZrB2-SiC powders, a novel molten-salt and microwave-modified boro/carbothermal reduction method (MSM-BCTR) was developed to synthesize ZrB2-SiC powders. As a result, phase pure ZrB2-SiC powders can be obtained by firing low-cost zircon (ZrSiO4), amorphous carbon (C), and boron carbide (B4C) at a reduced temperature of 1200 °C for only 20 min. Such processing conditions are remarkably milder than not only that required for conventional boro/carbothermal reduction method to prepare phase pure ZrB2 or ZrB2-SiC powders (firing temperature of above 1500 °C and dwelling time of at least several hours), but also that even with costly active metals (e.g., Mg and Al). More importantly, the as-obtained ZrB2 particles had a single crystalline nature and well-defined plate-like morphology, which is believed to be favorable for enhancing the mechanical properties, especially toughness of their bulk counterpart. The achievement of a highly-efficient preparation of such high-quality ZrB2-SiC powders at a reduced temperature should be mainly attributed to the specific molten-salt and microwave-modified boro/carbothermal reduction method.

1. Introduction

Due to its high melting point and hardness, excellent erosion resistance, good thermal/electrical conductivities, and outstanding oxidation resistance, ZrB2-SiC attracted considerable attention in versatile ultra-high-temperature structural applications, including rocket propulsion, cutting-edge space vehicles, and hypersonic flight [1,2,3,4,5].
In the mass preparation of high-performance ZrB2-SiC ceramics, an energy saving, large-scale, and efficient preparation of high-quality ZrB2-SiC powders is in high demand. Nowadays, the industrial production of ZrB2-SiC powders mainly employs the boro/carbothermal reduction (BCTR) approach, with ZrO2 and SiO2 as Zr and Si as precursors [6,7,8,9]. However, this method suffers from several significant disadvantages, such as the requirement of a high processing temperature (1500–1700 °C) and long soaking time (at least several hours) as well as a high agglomeration degree, low purity, and poor sinterability of powder product. Generally speaking, these shortcomings of the conventional BCTR method are due to the following two reasons: (1) the poor reactivity of commercial ZrO2 and SiO2 raw materials, resulting in the inefficiency of synthetic process; and (2) the intrinsic requirements for strict temperature conditions and a long soaking time, and phase pure ZrB2-SiC powders with a well-defined morphology and textured structure are difficult to prepare by the conventional BCTR method. Therefore, a modification of the conventional method by an advanced synthetic technique, and using high-activity and low-price raw materials to prepare ZrB2-SiC powders at milder temperature conditions, is in high demand.
Zircon (ZrSiO4), a low-cost and high-abundance material, intended to decompose into highly active ZrO2 and SiO2 in situ, has been proved to be favorable for enhancing the synthetic reactions of ZrB2-SiC powders [10,11]. Moreover, the theoretical phase composition of the final product, resulting from ZrSiO4, was ZrB2-26 wt % SiC, which was among the as-reported optimal composition range for the preparation of the bulk counterpart, with promising mechanical properties and oxidation resistance [12,13]. As a result, zircon had been widely adopted in the preparation of ZrB2-SiC powders. For example, Krishnarao [14] prepared ZrB2-SiC powders by firing a mixture of zircon, C and B4C, although a high processing temperature of 1600 °C was required. In our previous work [15], zircon, C, and B2O3 were used to prepare uniformly distributed ZrB2-SiC powders at the relatively lower temperature of 1300 °C for 3 h via a novel microwave-modified BCTR approach. However, it should be emphasized that it is still a challenging task to control the morphology of the ZrB2-SiC powders resulting from the conventional reduction process.
In this respect, several advanced techniques employing microwave and molten salt were utilized to modify the conventional reduction method for synthesizing ZrB2-SiC powder [5,15,16]. On the one hand, molten salt is capable of providing the expected synthetic reactions with a liquid medium, thus facilitating homogeneous mixing, accelerating the diffusion of reactants, and enhancing the synthesis and crystal growth of products to form a well-defined anisotropic morphology [17,18]. On the other hand, microwave heating is capable of uniformly heating the raw materials, thus greatly accelerating the overall synthetic reaction [19,20]. More importantly, it is reported that a microwave is capable of inducing the rapid nucleation of the product, crystallite, so as to accelerate the crystal growth and enhance the crystallization degree, thereby facilitating the control of the crystal size and morphology of the final product [21,22,23,24]. For example, Cho [25] reported that ZnO nano-rods and nano-plates with a high crystallization degree could be obtained using a microwave heating technique, which can be attributed to the control of crystal growth and dissolution rates in specific directions. Liu [26] claimed that the crystallization behavior of NaHSO4 was closely related to microwave heating, which facilitated the crystal growth and finally controlled the crystal size of the product. To sum up, microwave heating and a molten-salt medium were favorable for accelerating the preparation of ZrB2-SiC powder, with a textured morphology at a reduced temperature.
In this work, by using low-cost zircon (ZrSiO4), ZrB2 (plate-like)-SiC powders were prepared in a highly-efficient manner by a molten-salt and microwave-co-modified boro/carbothermal reduction method (MSM-BCTR) at a reduced temperature. The effects of various processing parameters—including firing temperature, microwave heating/molten salt medium, salt/reactant weight ratio, and B4C amounts on the synthesis of textured ZrB2-SiC powders—were systematically investigated. More interestingly, the as-synthesized ZrB2 particles had a well-defined plate-like morphology and single crystalline nature, which is believed to be favorable for enhancing the mechanical properties, especially toughness, of their bulk counterpart.

2. Experimental Procedures

2.1. Raw Materials

Zircon (ZrSiO4, purities > 95.0%, Bodi Chem. Co. Ltd., Tianjin, China), boron carbide (B4C, purity > 95.0%, Mudanjiang Jingangzuan Boron Carbide Co. Ltd., Mudanjiang, China), and amorphous carbon (C, Co. Ltd., Shanghai, China, d50 = 37.0 μm) were used as raw materials. Eutectic salts of NaCl and KCl (purities > 99.9%, Bodi Chem. Co. Ltd., Tianjin, China) were used as a reaction medium. These chemicals were used directly, without further purification.
In present paper, the target reactions of synthesizing ZrB2-SiC powders were presented as follows.
ZrSiO4(s) = ZrO2(s) + SiO2(s)
2ZrO2(s) + B4C(s) + 3C(s) = 2ZrB2(s) + 4CO(g)
SiO2(s) + 3C(s) = SiC(s) + 2CO(g)
2ZrO2(s) + 2SiO2(s) + B4C(s) + 9C(s) = 2ZrB2(s) + 8CO(g) + 2SiC(s)
In order to minimize residual carbon, which may seriously degrade the sinterability of the ZrB2-SiC powder product, an addition amount of carbon was fixed at a stoichiometric ratio, according to the expected Reaction (4). Moreover, various excess amounts of B4C (40–60 mol % excess) were used to compensate for the volatilization loss of the boron source at a high temperature. Salts were mixed with reactants in various weight ratios of 2.0, 1.0, and 0.5, while the weight ratio of NaCl and KCl was fixed at 1.0:1.0. The processing conditions and batch compositions of samples are listed in Table 1.

2.2. Methodologies

In a typical MSM-BCTR process, reactant and salt mediums (as presented in Table 1) were firstly mixed in a corundum crucible by hand and then contained by a columnar saggar. The free space between the corundum and saggar was filled with green SiC particles, owing to their superior microwave absorbability and excellent thermal conductivity. Afterwards, the saggar was positioned in the center of a microwave furnace (HAMiLab-V3000, 3 kW, 2.45 GHz, Changsha Longtech Co. Ltd., China), whose temperature was monitored by an infrared thermometer (Yongtai, Xian, Chian), vertically pointing to the green SiC particles. The schematic diagram of the microwave heating system was shown in Figure 1. Then, samples were heated to 1100–1250 °C, at a constant heating rate of 10 °C/min and held for 0–20 min in flowing argon before naturally cooling to room temperature. Finally, the as-obtained powders were repeatedly washed with hot water (80 °C) and to remove residual salt, before drying overnight at 80 °C in a vacuum oven.
Crystalline phases of the as-obtained powders were identified by X-ray diffraction (Xpertpro, PHILIPS, Hillsboro, The Netherlands), with the spectra ranging from 10° to 90° (2θ), a scanning rate of 2°/min and Cukα radiation (λ = 0.1542 nm). ICDD cards no. 75-0254, 73-1708, 74-1200, and 83-1374 were used to identify ZrB2, SiC, ZrO2, and ZrSiO4. A field-emission scanning electron microscope (FE-SEM, Nova400NanoSEM, PHILIPS, Amsterdam The Netherlands, 15 kV), equipped with an energy dispersive spectrometer (EDS, IET 200, Oxford, UK) and transmission electron microscope (TEM, JEM-2100UHRSTEM, JEOL, Akishima, Tokyo, Japan, 200 kV), was used to characterize the microstructures and morphologies of the as-obtained ZrB2-SiC powders.

3. Results and Discussion

3.1. Effect of Firing Temperature on the Synthesis of ZrB2-SiC Powders

XRD patterns of the samples prepared at different temperatures, with the identical batch composition of reactants (ZrSiO4/C = 1.0/4.5, 60 mol % excess B4C, and weight ratio between salt medium/reactants = 2.0), were presented in Figure 2. For the sample (MB-1) prepared at 1100 °C, all the visible diffraction peaks belonged to ZrSiO4, implying the decomposition of zircon (Reaction (1)) had not yet occurred. Upon increasing the temperature to 1150 °C (MB-2), some peaks indexing to the ZrB2 phase appeared, indicating that the onset temperature of synthesizing ZrB2 was close to 1150 °C, which was dramatically lower than that of the conventional method [27,28]. Besides, neither SiO2 nor ZrO2 was detected in this sample, suggesting that Reaction (2) and Reaction (3) were so efficient that intermediate products (ZrO2 and SiO2) were not detected. On increasing the temperature to 1200 °C (MB-3), the intensities of ZrB2 peaks evidently increased, while those of the ZrSiO4 peaks accordingly decreased, indicating that the increase in firing temperature had a positive effect on facilitating the synthesis of target phases.
Subsequently, with the ambition of improving the purity of the powder products, a series of experiments were carried out over the as-optimized temperature range of 1100–1250 °C, with a slightly extended soaking time of 20 min. As shown in Figure 3, the sample obtained at 1100 °C (MB-4) contained large amounts of unreacted ZrSiO4 and a minor amount of ZrB2, further confirming that the expected reaction that the synthesizing ZrB2 was conducted with a low efficiency at this temperature. Upon increasing the temperature to 1150 °C (MB-5), the intensities of ZrB2 peaks greatly increased, while those of residual ZrSiO4 evidently decreased, suggesting that the expected reactions were effectively accelerated by the rising temperature. Moreover, as the temperature increased to 1200 °C (MB-6), the diffraction peaks indexing to the cubic SiC phase appeared, implying that the onset formation temperature of SiC was close to 1200 °C, which was a bit higher than that of ZrB2 under the present condition. Interestingly, only ZrB2 and SiC phases were detected in this sample, indicating that synthetic reaction of ZrB2-SiC powders had been completed. On further increasing the temperature to 1250 °C (MB-7), no further change in the diffraction peaks of the target phases could be observed, suggesting that further increasing the processing temperature to above 1200 °C was unnecessary in the present work.
It should be emphasized that the preparation conditions (1200 °C/20 min) for phase pure ZrB2-SiC powders was almost the lowest according to Table 2, among that reported for synthesizing ZrB2 or ZrB2-SiC by the methodologies based on thermal-reduction process [5,14,15,27,28,29,30,31,32,33,34,35,36,37,38], not only remarkably milder than that (several hours or more) required for conventional BCTR to prepare phase pure ZrB2 or ZrB2-SiC powders, but also that even with costly active metals (e.g., Mg and Al) [30,39] or boron [29,31,35] as the additional reducing agent. Such great enhancement to the synthetic result of ZrB2-SiC powders should be attributed to the combined effects of microwave heating and molten-salt medium.
The FE-SEM image presented in Figure 4 showed that there existed well-defined micron-sheets in the final product fired at 1250 °C. As confirmed by EDS mapping, the plate-like particles should be ZrB2, which were several micrometers in width and hundreds of nanometers in thickness, and it is believed to be favorable for enhancing the mechanical properties, especially toughness of their bulk counterpart. While those having low crystallinity and amorphous morphology belonged to SiC, it further confirmed that the two phases of ZrB2 and SiC co-existed and were homogeneously distributed with each other in the powder product
TEM and EDS mapping images of as-obtained ZrB2-SiC powders (shown in Figure 5) further confirmed the formation of plate-like ZrB2. The TEM and SAED results (inserted in Figure 6a) verified that the plate-like particle was single-crystal ZrB2, which was fabricated by epitaxial growth along its [001] direction. As shown in the HRTEM image (Figure 6b), specifically in the area marked by the red circle in Figure 6a, the plate-like particles had well-aligned lattice fringes, with a constant interplanar spacing of 0.260 nm, which matched well with that of the (100) interplanar distance of ZrB2 crystal. Thus, it can be concluded that ZrB2 with a single-crystalline nature and anisotropic plate-like morphology was prepared by the present molten-salt and microwave-co-assisted boro/carbothermal reduction method. The TEM image of a SiC particle was not presented in this paper because it had a low crystallinity and no typical morphology. Moreover, as confirmed by Figure 7, the as-formed ZrB2 plate generally had a near-hexagonal-shaped morphology and was distributed uniformly in the final product.

3.2. Effect of a Microwave Heating/Molten-Salt Medium on the Synthesis of ZrB2-SiC Powders

The achievement of a low-temperature rapid synthesis of ZrB2-SiC with a plate-like morphology and single-crystalline nature was closely related to the specific MSM-BCTR conditions, characterized by microwave heating and a molten-salt medium. To further clarify their effects on the synthesis of ZrB2-SiC powders, the subsequent experiments were carried out under the as-optimized MSM-BCTR conditions, without either a microwave or molten-salt medium for comparison. As presented in Figure 8, for the sample (MB-10) prepared by a microwave-assisted BCTR method without molten salt, only raw ZrSiO4 existed, implying no occurrence of Reaction (1), which was consistent with the as-reported results that the decomposition of ZrSiO4 required a temperature as high as 1600 °C [40,41]. On the other hand, in the contrasting case, without microwave heating (MB-11), only ZrO2 peaks existed, indicating that ZrSiO4 had been completely decomposed, and the absence of SiO2 should be attributed to its poor crystallinity. This result verified that the molten-salt medium greatly enhanced the decomposition of ZrSiO4 and thereby accelerated the overall synthetic reactions of ZrB2-SiC powders.

3.3. Effect of B4C Addition Amount on the Synthesis of ZrB2-SiC Powders

B4C played a dual role of boron source and reducing agent in the synthesis of ZrB2-SiC powders. To clarify the effect of additional amounts of B4C on the synthesis of ZrB2-SiC powder, the following experiments were conducted. As shown in Figure 9, phase pure ZrB2-SiC powders were obtained for the sample with 60 mol % excess B4C. On decreasing the excess additional amounts of B4C to 40 mol %, not only unreacted ZrSiO4 appeared, but also the expected SiC disappeared, indicating that certain excess amounts of B4C are necessary to compensate for the volatilization loss of intermediate B2O3 in order to synthesize phase pure plate-like ZrB2-SiC powders.

3.4. Effect of Salt/Reactant Weight Ratio on the Synthesis of ZrB2-SiC Powders

As discussed above, the molten-salt medium played an essential role in accelerating the expected synthetic reactions. To elucidate the influence of the amounts of the molten-salt medium on the synthesis of ZrB2-SiC powders, the following samples were prepared with various salt/reactant weight ratios of 0.5, 1.0, and 2.0. As shown in Figure 10, the intensities of ZrB2 peaks decreased, and the characteristic peaks, indexing to SiC, disappeared, while those of ZrSiO4 peaks accordingly increased as the salt/reactant weight ratio decreased. On further decreasing the ratio to 0.5, a larger amount of unreacted ZrSiO4 existed in the final product. It can be confirmed that the synthetic reactions were greatly enhanced by appropriate amounts of the molten-salt medium, while an insufficient amount of the molten-salt medium would hinder the rapid conduct of the target reactions.
Based on the results presented and discussed above, a possible mechanism of the MSM-BCTR process was proposed and described schematically as follows (Figure 11): (1) ZrSiO4, C, and B4C were partly dissolved and homogeneously mixed in the molten-salt medium at the atomic level [42]. Moreover, B4C was preferentially activated and heated due to its excellent microwave absorption under the microwave condition (Figure 11b). (2) Consequently, ZrSiO4 was rapidly decomposed into SiO2 and ZrO2, in which ZrO2 immediately reacted with B4C and C, forming ZrB2, when fired at 1100 °C, according to Reactions (1) and (2) under the existence of a molten-salt medium (Figure 11c). (3) Upon increasing the temperature to 1200 °C, SiC was formed via Reaction (3), and once the ZrB2 and SiC crystals were oversaturated in molten salt, they started to precipitate from the medium (Figure 11d). The precipitation of ZrB2 and SiC crystals from the oversaturated salt led to the further dissolution of the starting materials and the occurrence of a synthetic reaction. These processes were repeated again and again until the target reactions were completely accomplished and phase pure ZrB2 and SiC were obtained (Figure 11d).
To sum up, the optimal processing conditions for synthesizing ZrB2-SiC powder via the present MSM-BCTR method was 1200 °C/20 min, with 60 mol % excess B4C and a salt/reactant weight ratio of 2.0. The temperature conditions were significant milder than those required by the conventional BCTR approach, and this achievement should mainly be ascribed to the combination effect of the synthesis of microwave heating and a molten-salt medium.

4. Conclusions

Phase-pure ZrB2-SiC powders with a single-crystalline nature and plate-like morphology were prepared through a MSM-BCTR method, using economical zircon, B4C, and amorphous C as starting materials, and NaCl-KCl as a reaction medium. ZrSiO4 was completely converted into ZrB2 and SiC at 1200 °C/20 min using 60 mol % excess B4C, with a weight ratio of molten salt medium/reactant of 2.0. Moreover, as-prepared ZrB2 particles demonstrated a plate-like single-crystal structure, several micrometers in width and hundreds of nanometers in thickness, and it grew along the [100] direction. The efficient synthesis of phase pure ZrB2-SiC powders at such a milder condition than that of the conventional BCTR method was attributed to the synergistic effect of molten-salt and microwave heating.

Author Contributions

Conceptualization, J.L. and H.Z.; Formal Analysis, Y.Z.; Investigation, F.L.; Data Curation, J.Z.; Writing-Original Draft Preparation, Y.Z.; Writing-Review & Editing, Y.Z.; Project Administration, S.Z.

Funding

This work was financially supported by the National Natural Science Foundation of China (51502212, 51272188, and 51502216), Key Program of Natural Science Foundation of Hubei Province, China (2017CFA004), the Program for Innovative Teams of Outstanding Young and Middle-aged Researchers in the Higher Education Institutions of Hubei Province (T201602), and the Hubei Province Natural Science Foundation of China (2018CFB760).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Yin, J.; Chen, J.; Liu, X.; Zhang, H.; Yan, Y.; Huang, Z.; Jiang, D. Co-dispersion behavior of ZrB2-Sic-B4C-C powders with polyethyleneimine. Materials 2013, 6, 4249–4258. [Google Scholar] [CrossRef] [PubMed]
  2. Asl, M.S.; Nayebi, B.; Ahmadi, Z.; Zamharir, M.J.; Shokouhimehr, M. Effects of carbon additives on the properties of ZrB2–based composites: A review. Ceram. Int. 2018, 44, 7334–7348. [Google Scholar] [CrossRef]
  3. Nayebi, B.; Asl, M.S.; Kakroudi, M.G.; Farahbakhsh, I.; Shokouhimehr, M. Interfacial phenomena and formation of nano-particles in porous ZrB2-40 vol% B4C UHTC. Ceram. Int. 2016, 42, 17009–17015. [Google Scholar] [CrossRef]
  4. Shahedi Asl, M.; Nayebi, B.; Ahmadi, Z.; Parvizi, S.; Shokouhimehr, M. A novel ZrB2–VB2–ZrC composite fabricated by reactive spark plasma sintering. Mater. Sci. Eng. A 2018, 731, 131–139. [Google Scholar] [CrossRef]
  5. Cao, Y.; Zhang, H.; Li, F.; Lu, L.; Zhang, S. Preparation and characterization of ultrafine ZrB2–SiC composite powders by a combined sol–gel and microwave boro/carbothermal reduction method. Ceram. Int. 2015, 41, 7823–7829. [Google Scholar] [CrossRef]
  6. Zhao, B.; Zhang, Y.; Li, J.; Yang, B.; Wang, T.; Hu, Y.; Sun, D.; Li, R.; Yin, S.; Feng, Z. Morphology and mechanism study for the synthesis of ZrB2–SiC powders by different methods. J. Solid State Chem. 2013, 207, 1–5. [Google Scholar] [CrossRef]
  7. Zhang, H.; Yan, Y.J.; Huang, Z.R.; Liu, X.J.; Jiang, D.L. Pressureless sintering of ZrB2-SiC ceramics incorporating Sol-Gel synthesized ultra-fine ceramic powders. Key Eng. Mater. 2010, 434–435, 193–196. [Google Scholar] [CrossRef]
  8. Yan, Y.; Huang, Z.; Dong, S.; Jiang, D. Pressureless sintering of high-density ZrB2 and SiC ceramic composites. J. Am. Ceram. Soc. 2010, 89, 3589–3592. [Google Scholar] [CrossRef]
  9. Che, X.P.; Zhu, S.Z.; Yang, L.J.; Xu, Q. Solution-based synthesis of ultra-fine ZrB2 powders and ZrB2-SiC composite powders. Adv. Mater. Res. 2010, 105–106, 213–217. [Google Scholar] [CrossRef]
  10. Krishnarao, R.V.; Sankarasubramanian, R. Thermite assisted synthesis of ZrB2 and ZrB2-SiC through B4C reduction of ZrO2 and ZrSiO4 in air. J. Adv. Ceram. 2017, 6, 139–148. [Google Scholar] [CrossRef]
  11. Kljajević, L.; Matović, B.; Radosavljević-Mihajlović, A.; Rosić, M.; Bosković, S.; Devečerski, A. Preparation of ZrO2 and ZrO2/SiC powders by carbothermal reduction of ZrSiO4. J. Alloy. Compd. 2011, 509, 2203–2215. [Google Scholar] [CrossRef]
  12. Nayebi, B.; Asl, M.S.; Kakroudi, M.G.; Shokouhimehr, M. Temperature dependence of microstructure evolution during hot pressing of ZrB2-30 vol.% SiC composites. Int. J. Refract. Met. Hard Mater. 2016, 54, 7–13. [Google Scholar] [CrossRef]
  13. Shahedi Asl, M.; Nayebi, B.; Shokouhimehr, M. TEM characterization of spark plasma sintered ZrB2–SiC–graphene nanocomposite. Ceram. Int. 2018, 44, 15269–15273. [Google Scholar] [CrossRef]
  14. Krishnarao, R.V. Preparation of ZrB2 and ZrB2-SiC powders in a single step reduction of zircon (ZrSiO4) with B4C. Ceram. Int. 2017, 43, 1205–1209. [Google Scholar] [CrossRef]
  15. Deng, X.; Du, S.; Zhang, H.; Li, F.; Wang, J.; Zhao, W.; Liang, F.; Huang, Z.; Zhang, S. Preparation and characterization of ZrB2–SiC composite powders from zircon via microwave-assisted boro/carbothermal reduction. Ceram. Int. 2015, 41, 14419–14426. [Google Scholar] [CrossRef]
  16. Ding, Z.; Deng, Q.; Shi, D.; Zhou, X.; Li, Y.; Ran, S.; Huang, Q. Synthesis of hexagonal columnar ZrB2 powders through dissolution-recrystallization approach by microwave heating method. J. Am. Ceram. Soc. 2015, 97, 3037–3040. [Google Scholar] [CrossRef]
  17. Tan, C.; Liu, J.; Zhang, H.; Wang, J.; Li, S.; Song, J.; Zhang, Y.; Zhang, S. Low temperature synthesis of 2H-SiC powders via molten-salt-mediated magnesiothermic reduction. Ceram. Int. 2017, 43, 2431–2437. [Google Scholar] [CrossRef]
  18. Cai, Z.; Xing, X.; Li, L.; Xu, Y. Molten salt synthesis of lead lanthanum zirconate titanate ceramic powders. J. Alloy. Compd. 2008, 454, 466–470. [Google Scholar] [CrossRef]
  19. Mahmoud, M.M.; Thumm, M. Crystallization of lithium disilicate glass using high frequency microwave processing. J. Am. Ceram. Soc. 2012, 95, 579–585. [Google Scholar] [CrossRef]
  20. Zawadzki, M. Preparation and characterization of ceria nanoparticles by microwave-assisted solvothermal process. J. Alloy. Compd. 2008, 454, 347–351. [Google Scholar] [CrossRef]
  21. Liu, J.; Huang, Z.; Huo, C.; Li, F.; Zhang, H.; Zhang, S. Low-temperature rapid synthesis of rod-like ZrB2 powders by molten-salt and microwave Co-assisted carbothermal reduction. J. Am. Ceram. Soc. 2016, 99, 2895–2898. [Google Scholar] [CrossRef]
  22. Wu, W.; Cai, J.; Wu, X.; Liao, S.; Wang, K.; Tao, L. Nanocrystalline LaMnO3 preparation and kinetics of crystallization process. Adv. Powder Technol. 2013, 24, 154–159. [Google Scholar]
  23. Gordon, J.; Kazemian, H.; Rohani, S. Rapid and efficient crystallization of MIL-53(Fe) by ultrasound and microwave irradiation. Microporous Mesoporous Mater. 2012, 162, 36–43. [Google Scholar] [CrossRef]
  24. Rizzuti, A.; Leonelli, C. Crystallization of aragonite particles from solution under microwave irradiation. Powder Technol. 2008, 186, 255–262. [Google Scholar] [CrossRef]
  25. Cho, S.; Jung, S.H.; Lee, K.H. Morphology-controlled growth of ZnO Nanostructures using microwave Irradiation: From basic to complex structures. J. Phys. Chem. C 2008, 112, 12769–12776. [Google Scholar] [CrossRef]
  26. Liu, H.; Xiang, K.; Yang, B.; Yang, S.; Li, Q. Microwave intensified synthesis of regular shaped sodium bisulfate crystal. Chem. Eng. Process. Process. Intensif. 2015, 95, 208–213. [Google Scholar] [CrossRef]
  27. Yan, C.; Liu, R.; Zhang, C.; Cao, Y.; Long, X. Synthesis of ZrB2 powders from ZrO2, BN, and C. J. Am. Ceram. Soc. 2016, 99, 16–19. [Google Scholar] [CrossRef]
  28. Jung, E.Y.; Kim, J.H.; Jung, S.H.; Choi, S.C. Synthesis of ZrB2 powders by carbothermal and borothermal reduction. J. Alloy. Compd. 2012, 538, 164–168. [Google Scholar] [CrossRef]
  29. Ran, S.; Biest, O.V.D.; Vleugels, J. ZrB2 powders synthesis by borothermal reduction. J. Am. Ceram. Soc. 2010, 93, 1586–1590. [Google Scholar]
  30. Zhang, S.; Khangkhamano, M.; Zhang, H.; Yeprem, H.A. Novel synthesis of ZrB2 powder via molten-salt-mediated magnesiothermic reduction. J. Am. Ceram. Soc. 2014, 97, 1686–1688. [Google Scholar] [CrossRef]
  31. Guo, W.M.; Tan, D.W.; Zhang, Z.L.; Xie, H.; Wu, L.X.; Lin, H.T. Synthesis of fine ZrB2 powders by new borothermal reduction of coarse ZrO2 powders. Ceram. Int. 2016, 42, 15087–15090. [Google Scholar] [CrossRef]
  32. An, G.S.; Han, J.S.; Hur, J.U.; Choi, S.C. Synthesis of sub-micro sized high purity zirconium diboride powder through carbothermal and borothermal reduction method. Ceram. Int. 2017, 43, 5896–5900. [Google Scholar] [CrossRef]
  33. Liu, H.T.; Qiu, H.Y.; Guo, W.M.; Zou, J.; Zhang, G.J. Synthesis of rod-like ZrB2 powders. Adv. Appl. Ceram. 2015, 114, 418–422. [Google Scholar] [CrossRef]
  34. Qiu, H.Y.; Guo, W.M.; Zou, J.; Zhang, G.J. ZrB2 powders prepared by boro/carbothermal reduction of ZrO2: The effects of carbon source and reaction atmosphere. Powder Technol. 2012, 217, 462–466. [Google Scholar] [CrossRef]
  35. Li, R.X.; Lou, H.J.; Yin, S.; Zhang, Y.; Jiang, Y.S.; Zhao, B.; Li, J.P.; Feng, Z.H.; Sato, T. Nanocarbon-dependent synthesis of ZrB2 in a binary ZrO2 and boron system. J. Alloy. Compd. 2011, 509, 8581–8583. [Google Scholar] [CrossRef]
  36. Guo, W.M.; Zhang, G.J. Reaction processes and characterization of ZrB2 powder prepared by boro/carbothermal reduction of ZrO2 in vacuum. J. Am. Ceram. Soc. 2009, 92, 264–267. [Google Scholar] [CrossRef]
  37. Xie, B.Y.; Yu, J.C.; Ma, L.; Zhang, Y.J.; Gong, H.Y.; Lin, X.; Liu, Y. Effect of SiC addition on the formation of ZrB2 through reaction of ZrO2, boric acid (H3BO3) and carbon black. Ceram. Int. 2017, 43, 16457–16461. [Google Scholar] [CrossRef]
  38. Song, S.; Li, R.; Gao, L.; Sun, C.; Hu, P.; Zhen, Q. Synthesis and growth behavior of micron-sized rod-like ZrB2 powders. Ceram. Int. 2018, 44, 4640–4645. [Google Scholar] [CrossRef]
  39. Velashjerdi, M.; Sarpoolaky, H.; Mirhabibi, A. Novel synthesis of ZrB2 powder by low temperature direct molten salt reaction. Ceram. Int. 2015, 41, 12554–12559. [Google Scholar] [CrossRef]
  40. Kaiser, A.; Lobert, M.; Telle, R. Thermal stability of zircon (ZrSiO4). J. Eur. Ceram. Soc. 2008, 28, 2199–2211. [Google Scholar] [CrossRef]
  41. Puclin, T.; Kaczmarek, W.A.; Ninham, B.W. Dissolution of ZrSiO4 after mechanical milling with Al2O3. Mater. Chem. Phys. 1995, 40, 105–109. [Google Scholar] [CrossRef]
  42. Huang, Z.; Li, F.; Jiao, C.; Liu, J.; Huang, J.; Lu, L.; Zhang, H.; Zhang, S. Molten salt synthesis of La2Zr2O7 ultrafine powders. Ceram. Int. 2016, 42, 6221–6227. [Google Scholar] [CrossRef]
Materials 11 01811 g001 550

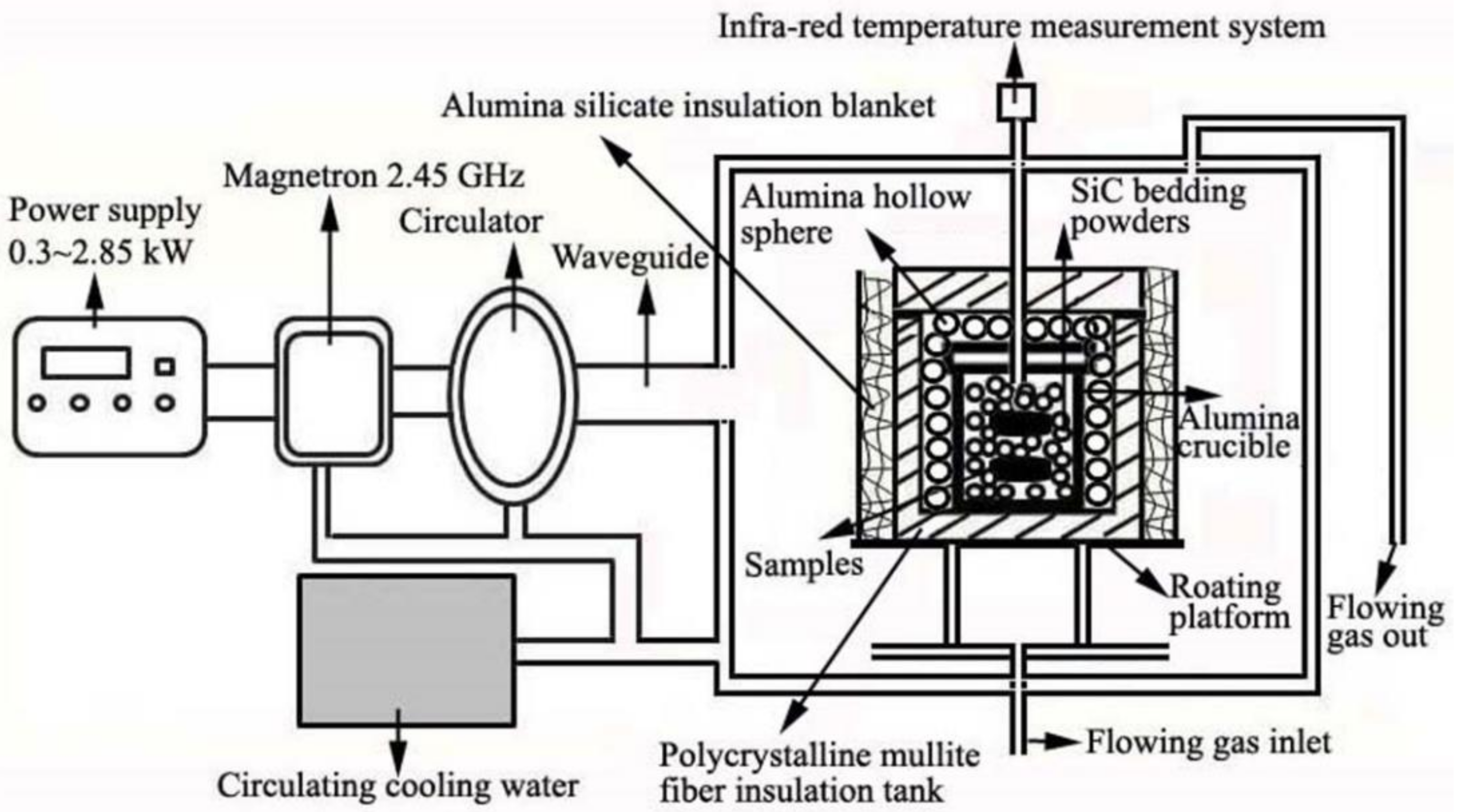

Figure 1. Schematic diagram of the microwave heating furnace.
Figure 1. Schematic diagram of the microwave heating furnace.
Materials 11 01811 g001
Materials 11 01811 g002 550

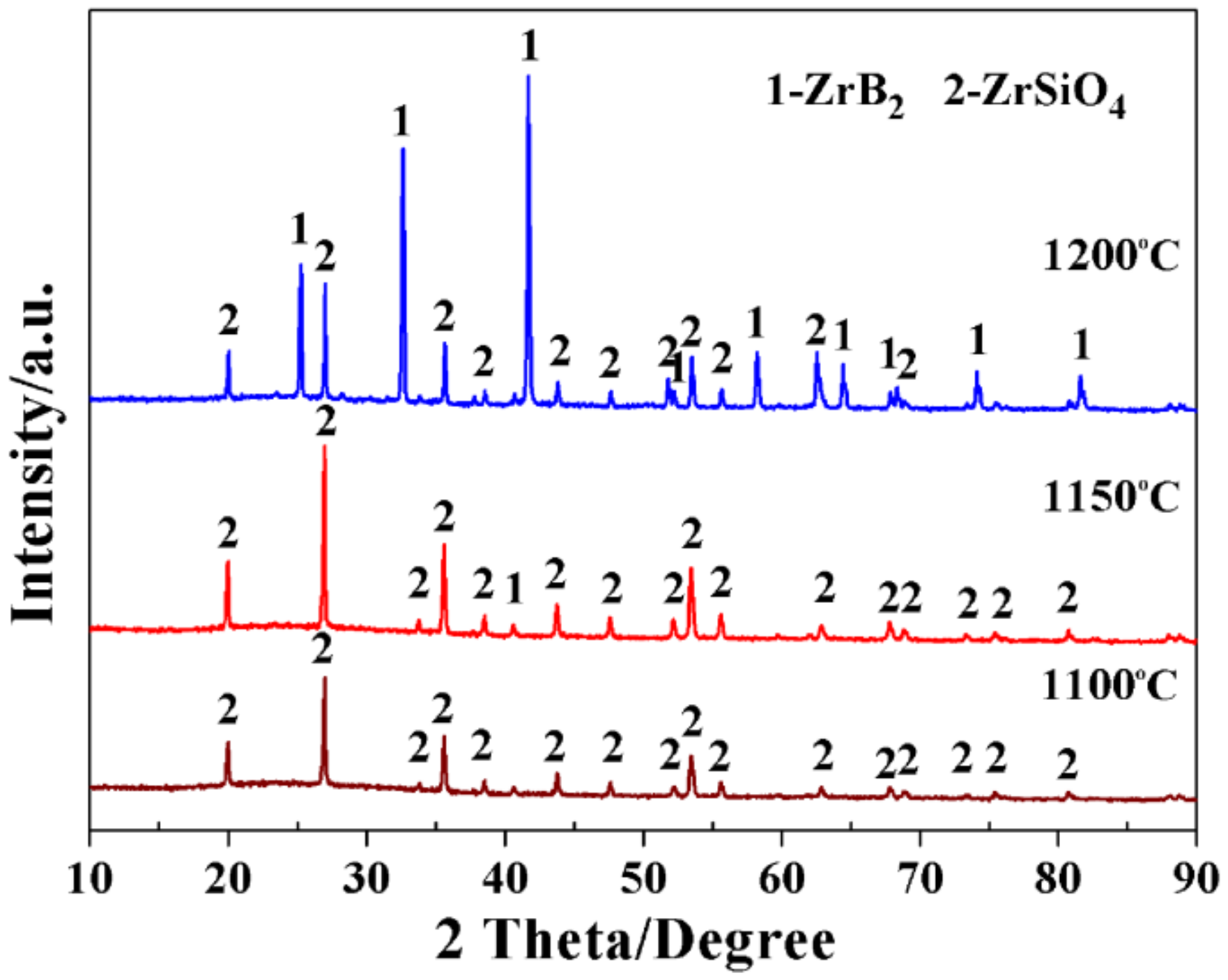

Figure 2. XRD patterns of the samples prepared by the MSM-BCTR method at 1100–1200 °C, without soaking period.
Figure 2. XRD patterns of the samples prepared by the MSM-BCTR method at 1100–1200 °C, without soaking period.
Materials 11 01811 g002
Materials 11 01811 g003 550

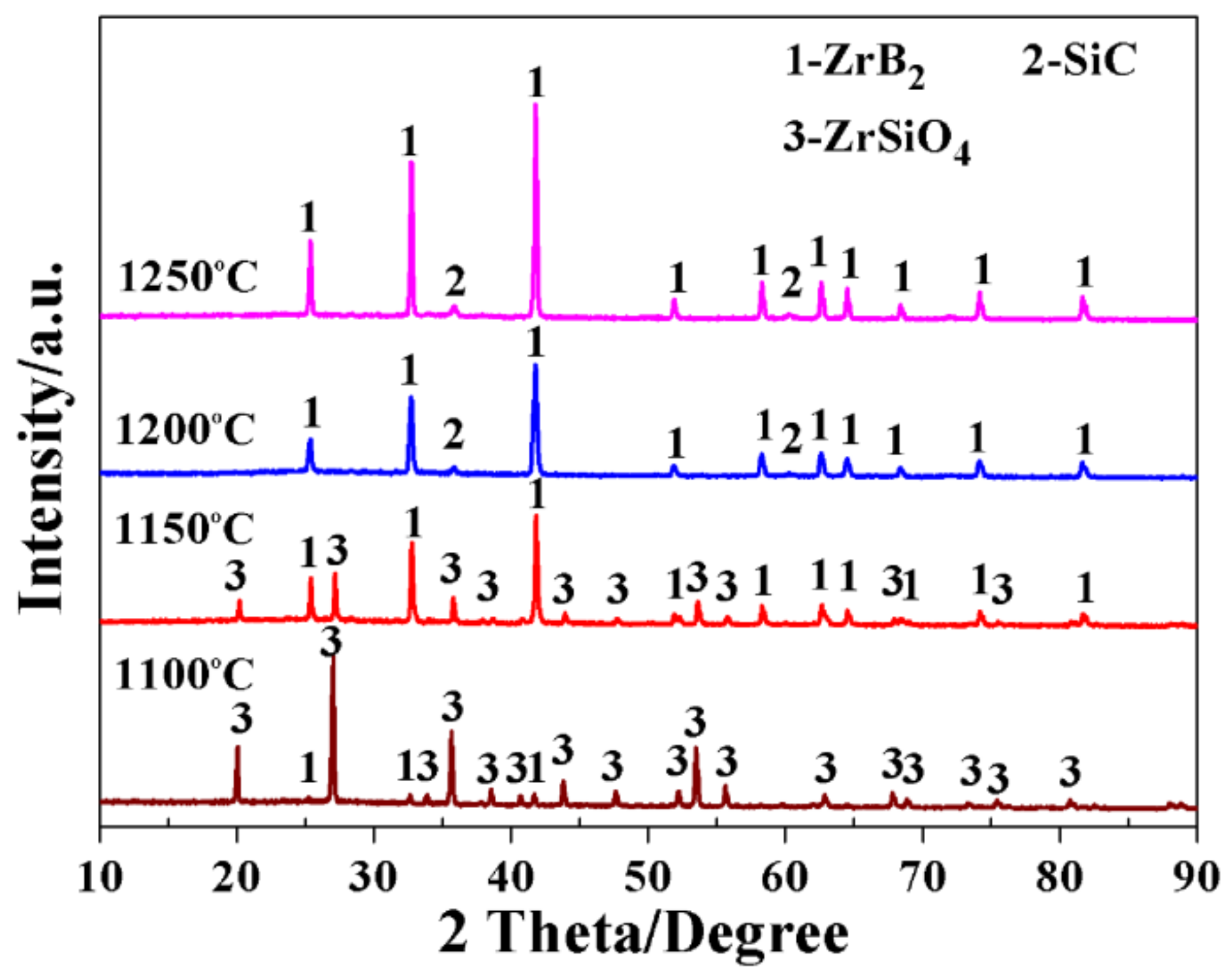

Figure 3. XRD patterns of the samples resulting from the MSM-BCTR method at 1100–1200 °C, with a soaking time of 20 min.
Figure 3. XRD patterns of the samples resulting from the MSM-BCTR method at 1100–1200 °C, with a soaking time of 20 min.
Materials 11 01811 g003
Materials 11 01811 g004 550

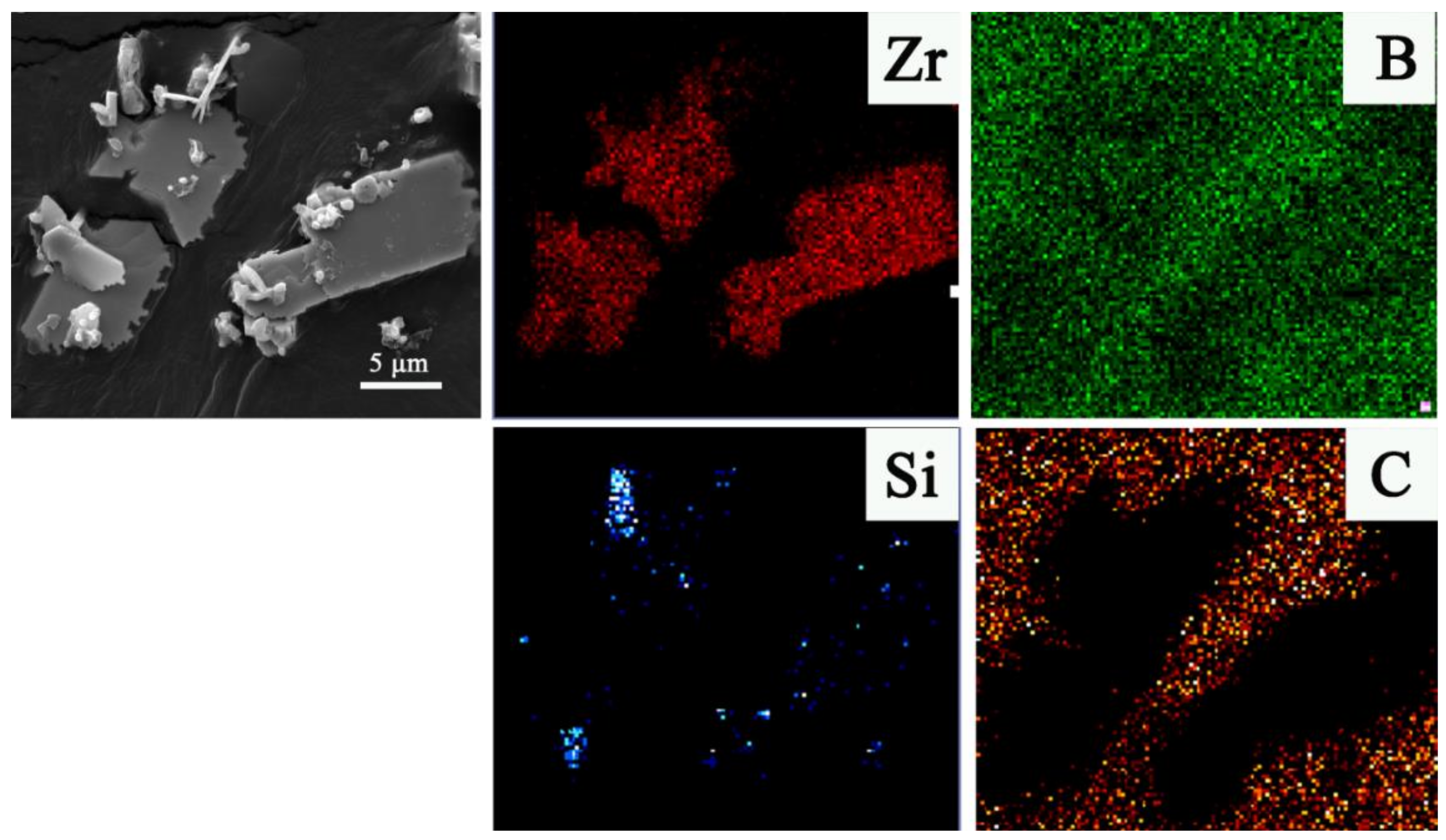

Figure 4. A lower magnification SEM image with EDS mapping of as-prepared ZrB2-SiC powders fired at 1250 °C for 20 min with 60 mol % excess B4C and a salt-medium/reactant weight ratio of 2.0.
Figure 4. A lower magnification SEM image with EDS mapping of as-prepared ZrB2-SiC powders fired at 1250 °C for 20 min with 60 mol % excess B4C and a salt-medium/reactant weight ratio of 2.0.
Materials 11 01811 g004
Materials 11 01811 g005 550

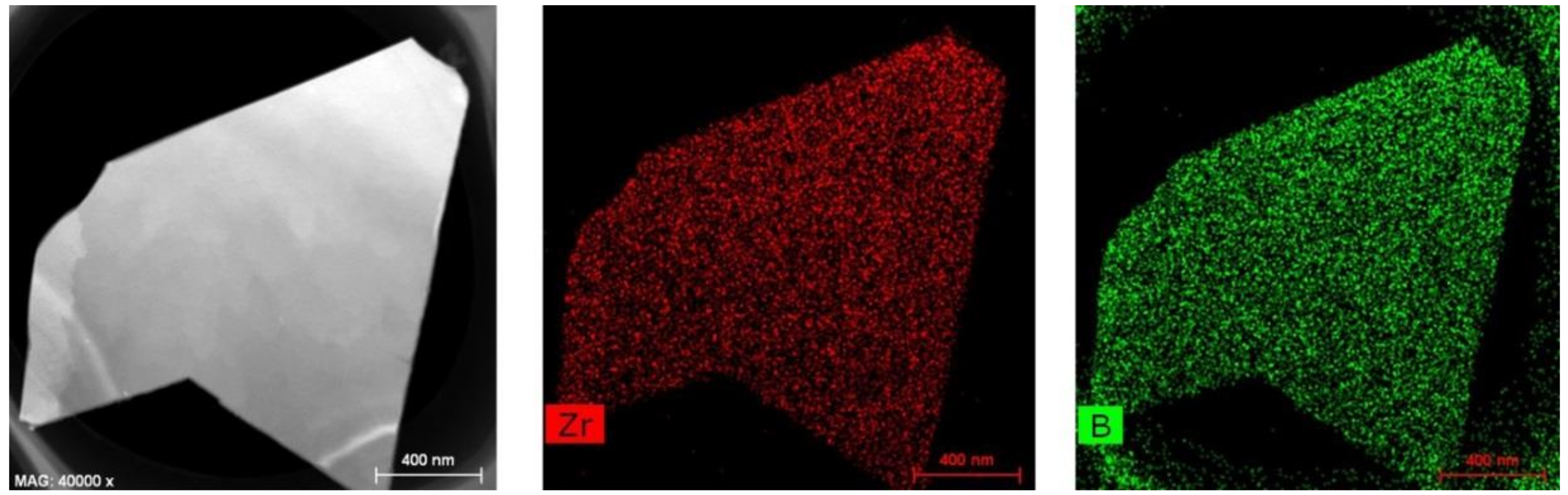

Figure 5. TEM and EDS mapping images of the as-prepared ZrB2-SiC composite powders fired at 1250 °C for 20 min.
Figure 5. TEM and EDS mapping images of the as-prepared ZrB2-SiC composite powders fired at 1250 °C for 20 min.
Materials 11 01811 g005
Materials 11 01811 g006 550

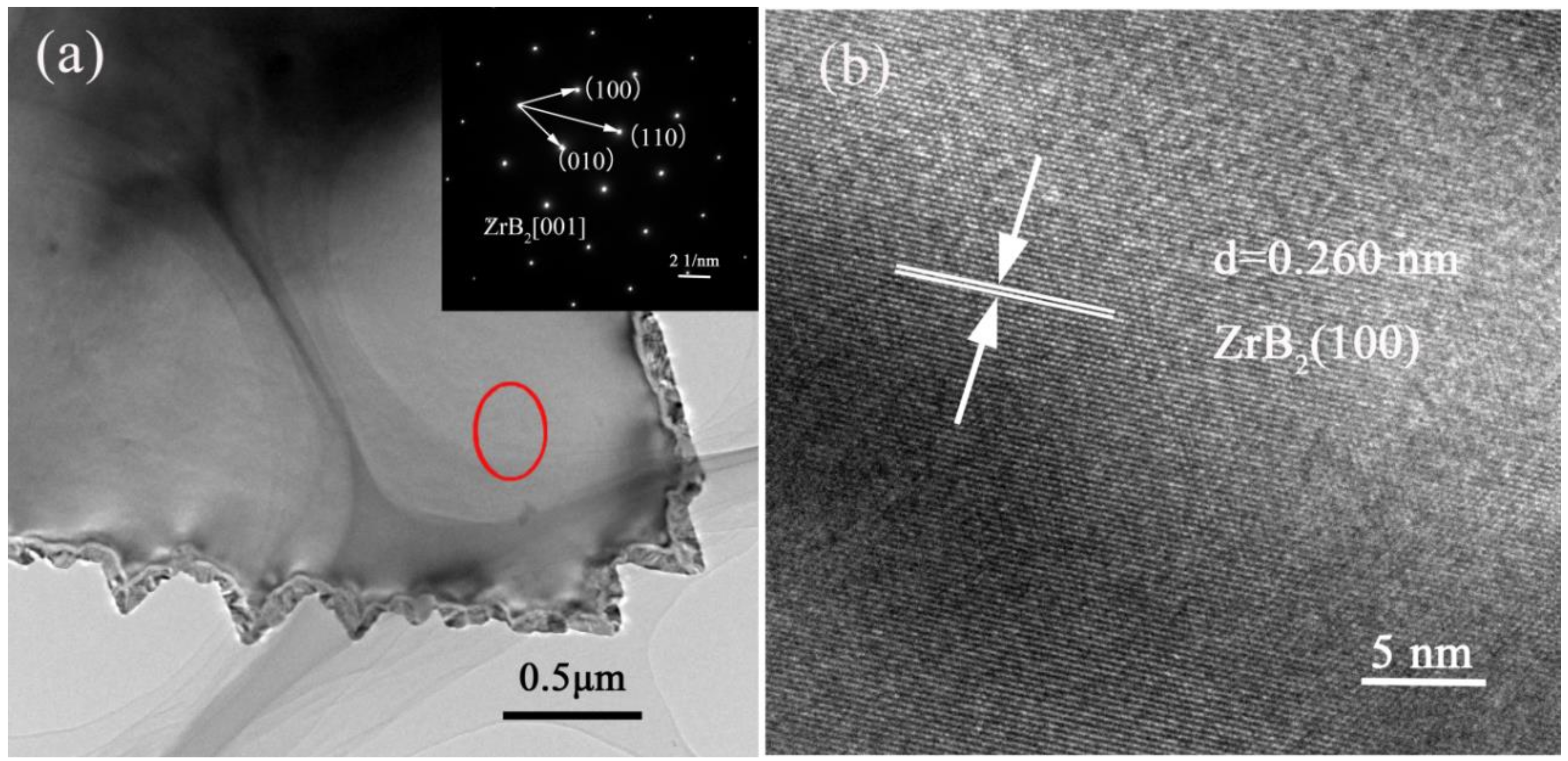

Figure 6. (a) Low-resolution TEM image and SAED (inserted in Figure 4a), and (b) high-resolution TEM image of the as-prepared ZrB2-SiC powders fired at 1250 °C for 20 min.
Figure 6. (a) Low-resolution TEM image and SAED (inserted in Figure 4a), and (b) high-resolution TEM image of the as-prepared ZrB2-SiC powders fired at 1250 °C for 20 min.
Materials 11 01811 g006
Materials 11 01811 g007 550

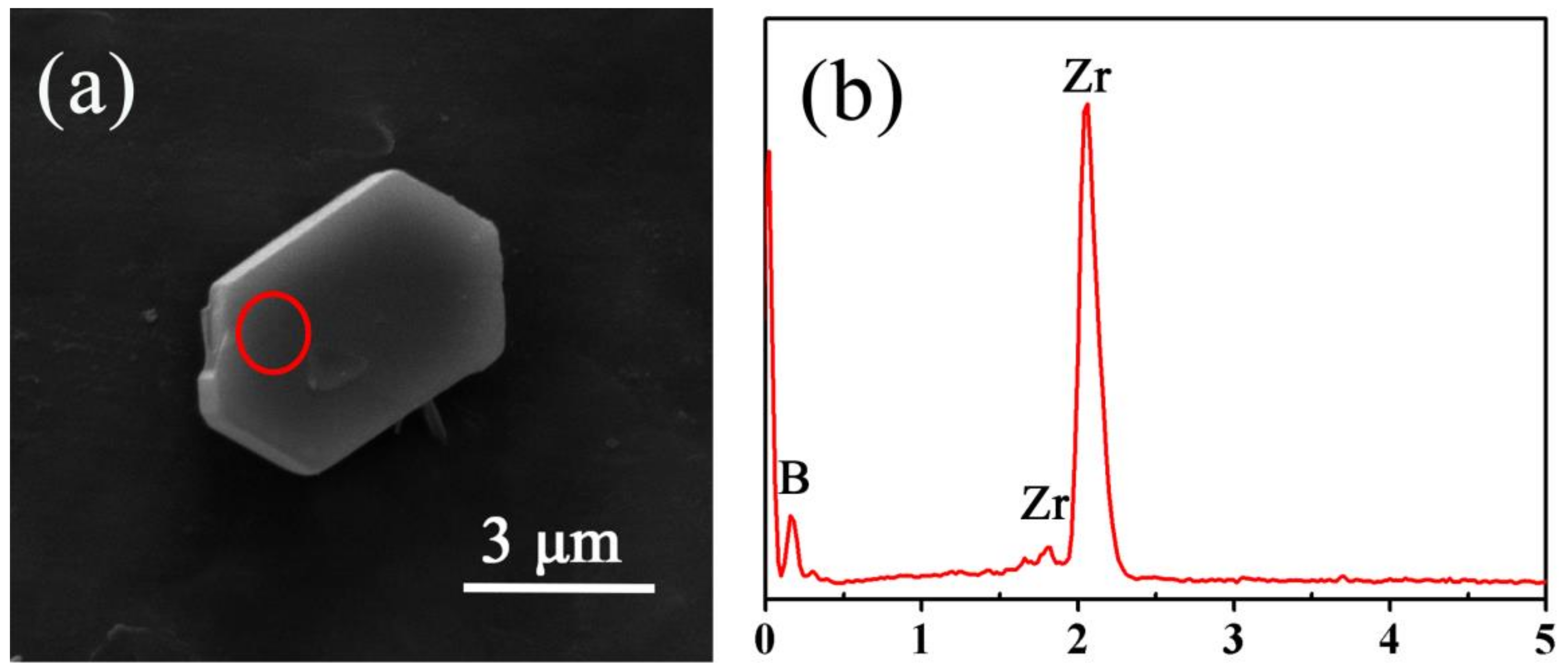

Figure 7. (a) SEM image with EDS with EDS (b) of as-prepared ZrB2-SiC powders fired at 1250 °C for 20 min with 60 mol % excess B4C and a salt-medium/reactant weight ratio of 2.0.
Figure 7. (a) SEM image with EDS with EDS (b) of as-prepared ZrB2-SiC powders fired at 1250 °C for 20 min with 60 mol % excess B4C and a salt-medium/reactant weight ratio of 2.0.
Materials 11 01811 g007
Materials 11 01811 g008 550

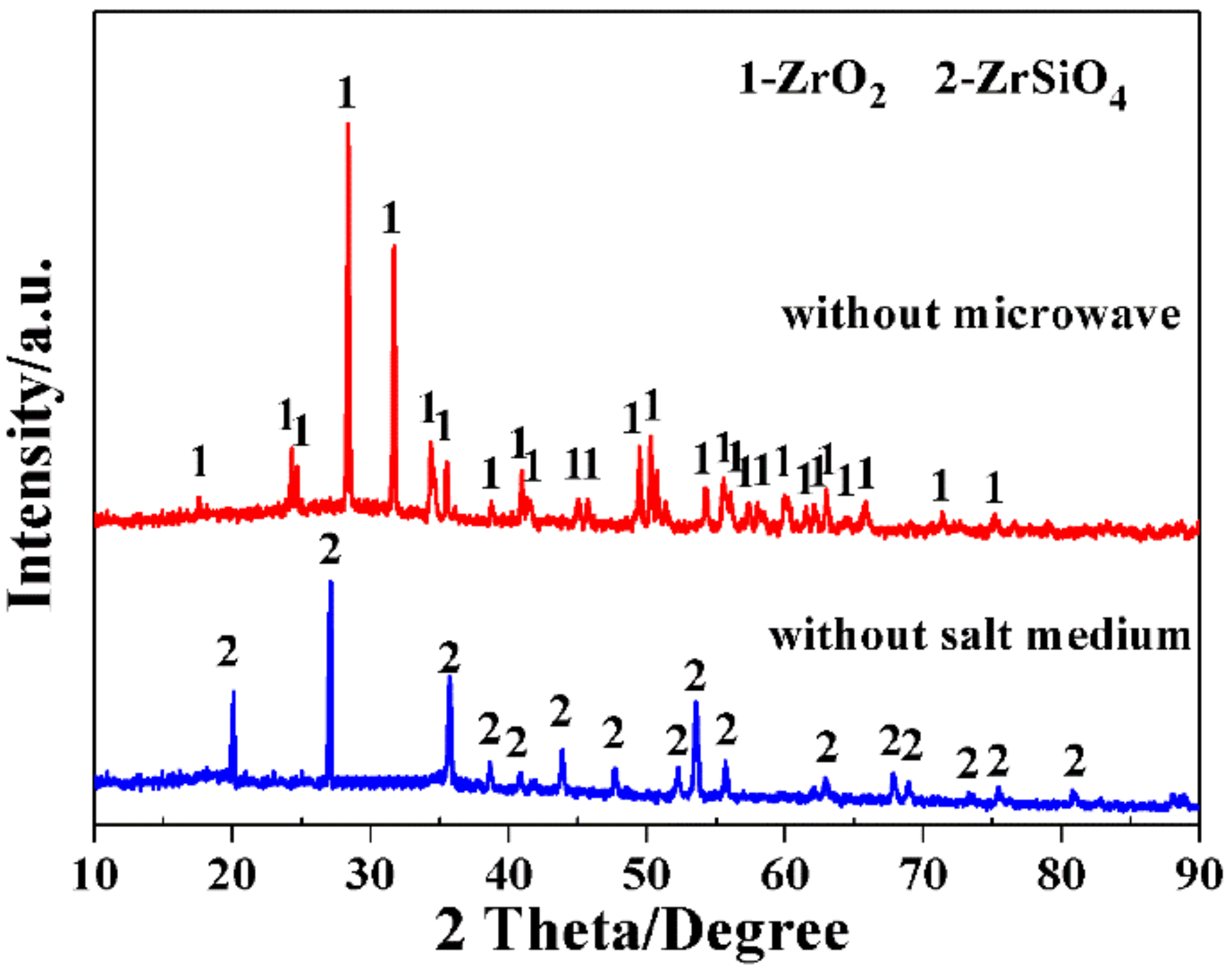

Figure 8. XRD patterns of the samples prepared at 1200 °C/20 min without either microwave heating or a molten-salt medium condition.
Figure 8. XRD patterns of the samples prepared at 1200 °C/20 min without either microwave heating or a molten-salt medium condition.
Materials 11 01811 g008
Materials 11 01811 g009 550

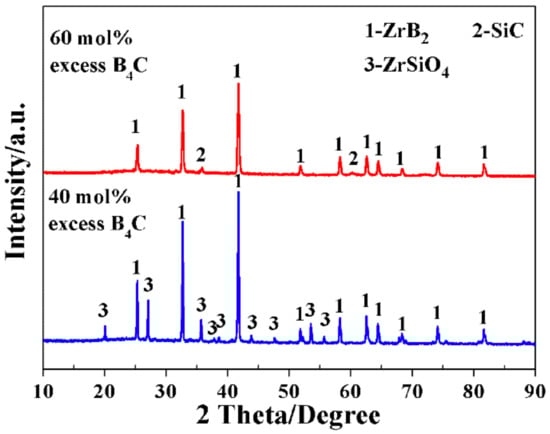

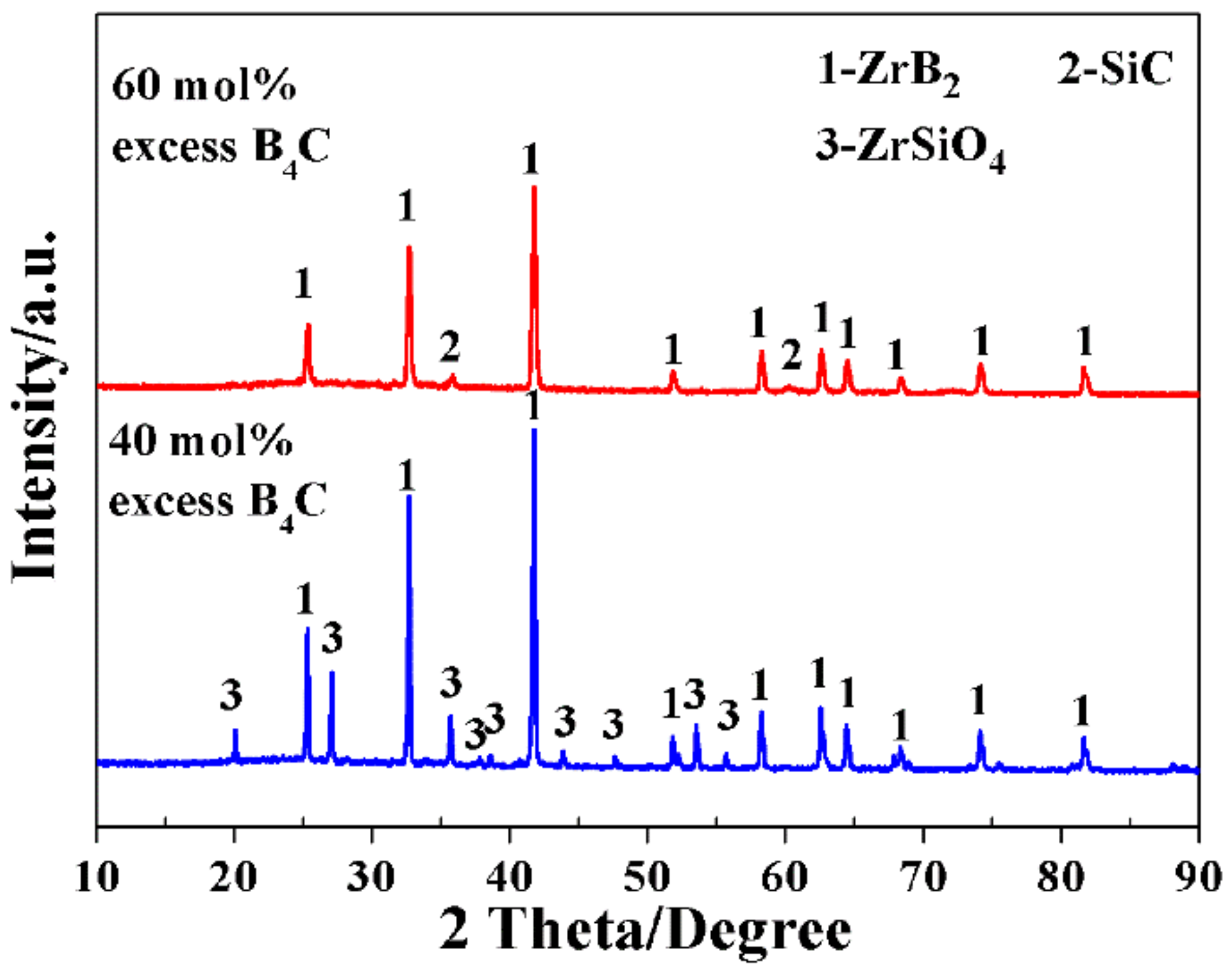

Figure 9. XRD patterns of the samples prepared at 1200 °C/20 min with 40 mol % and 60 mol % excess B4C in raw materials.
Figure 9. XRD patterns of the samples prepared at 1200 °C/20 min with 40 mol % and 60 mol % excess B4C in raw materials.
Materials 11 01811 g009
Materials 11 01811 g010 550

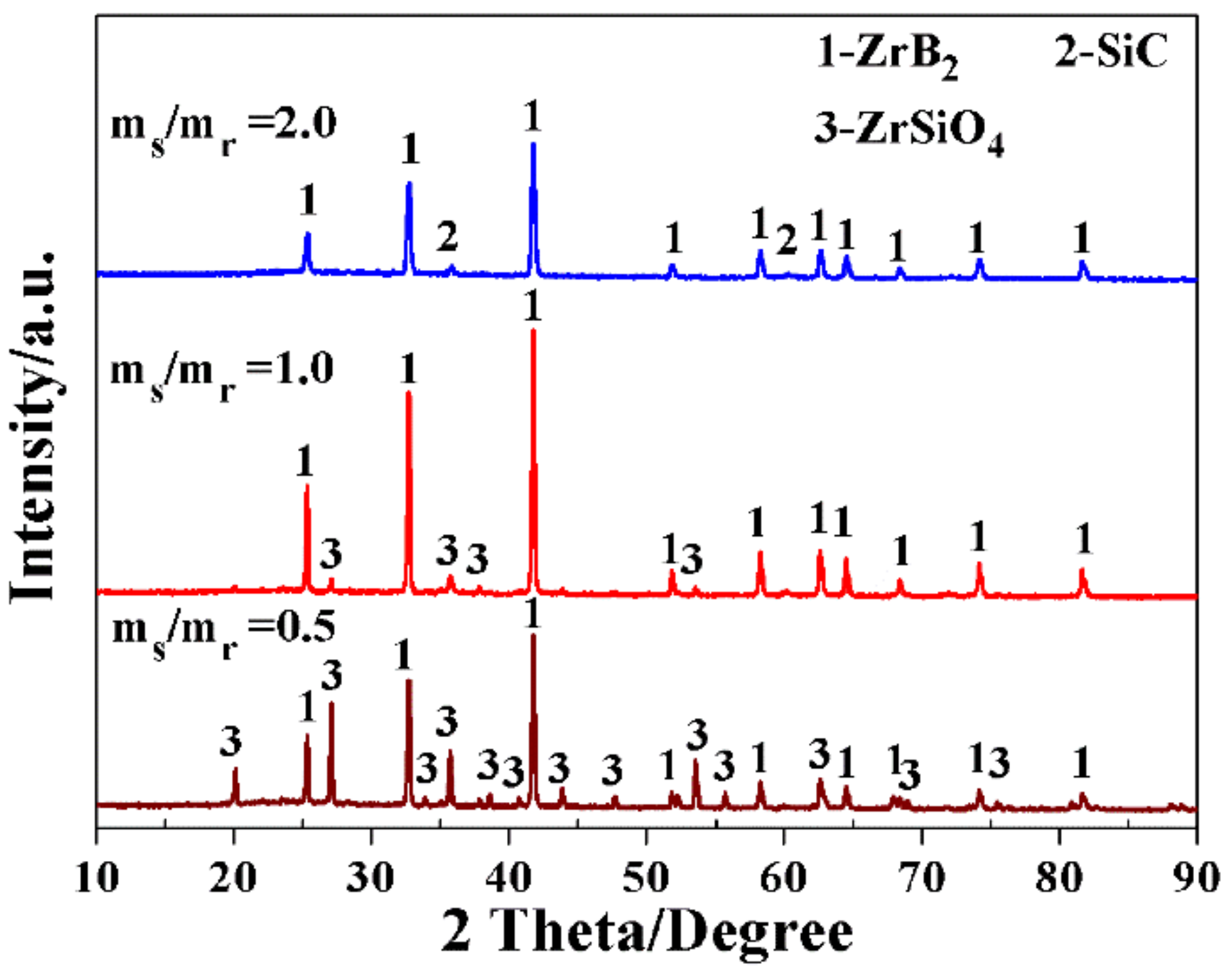

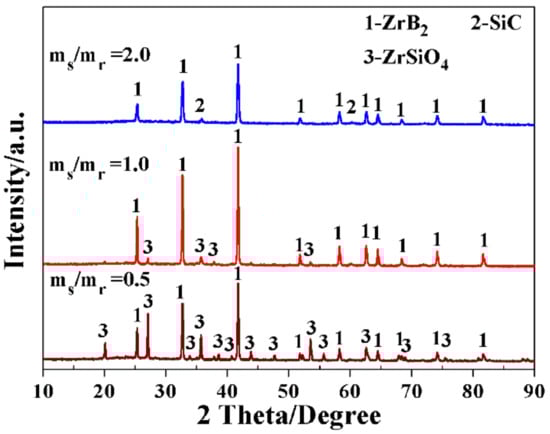

Figure 10. XRD patterns of the samples resulting from the MSM-BCTR method at 1200 °C/20 min, with various salt/reactant weight ratios of 0.5, 1.0, and 2.0, respectively.
Figure 10. XRD patterns of the samples resulting from the MSM-BCTR method at 1200 °C/20 min, with various salt/reactant weight ratios of 0.5, 1.0, and 2.0, respectively.
Materials 11 01811 g010
Materials 11 01811 g011 550

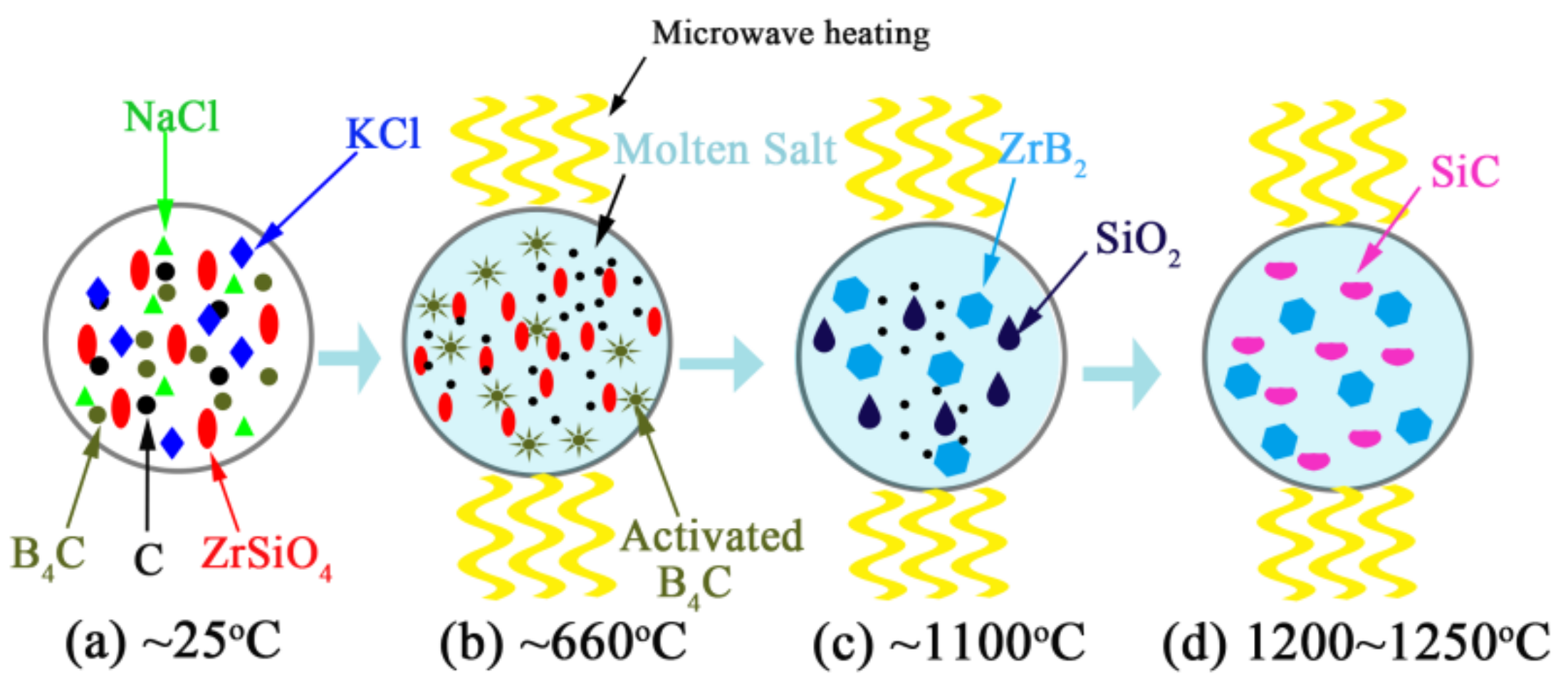

Figure 11. A schematic diagram of the MSM-BCTR process of ZrB2-SiC powders.
Figure 11. A schematic diagram of the MSM-BCTR process of ZrB2-SiC powders.
Materials 11 01811 g011
Table
Table 1. Batch compositions and processing conditions for the preparation of ZrB2-SiC powders
Table 1. Batch compositions and processing conditions for the preparation of ZrB2-SiC powders
Sample NumberMolar RatioHeating ModeTemperature (°C)Soaking Time (min)Salt MediumWeight Ratio of Salt/Reactant
ZrSiO4B4CC
MB-11.000.804.50MWH11000NaCl/KCl2.0
MB-21.000.804.50MWH11500NaCl/KCl2.0
MB-31.000.804.50MWH12000NaCl/KCl2.0
MB-41.000.804.50MWH110020NaCl/KCl2.0
MB-51.000.804.50MWH115020NaCl/KCl2.0
MB-61.000.804.50MWH120020NaCl/KCl2.0
MB-71.000.804.50MWH125020NaCl/KCl2.0
MB-81.000.804.50MWH120020NaCl/KCl0.5
MB-91.000.804.50MWH120020NaCl/KCl1.0
MB-101.000.804.50CH120020NaCl/KCl2.0
MB-111.000.804.50MWH120020—2.0
MB-121.000.704.50MWH120020NaCl/KCl2.0
MWH and CH denote microwave heating and conventional heating process, respectively.
Table
Table 2. Ingredients, modified techniques, processing conditions, and product morphology of previous literatures on the preparation of ZrB2 or ZrB2-SiC powders by thermal-reduction-based methodologies
Table 2. Ingredients, modified techniques, processing conditions, and product morphology of previous literatures on the preparation of ZrB2 or ZrB2-SiC powders by thermal-reduction-based methodologies
Ref. No.ProductRaw MaterialsModified TechniqueTemperature (°C)Soaking Time (min)AtmosphereMorphology of ZrB2
[27]ZrB2ZrO2, BN, C—155090
[31]ZrB2ZrO2, B—160090Vaccum
[32]ZrB2ZrO2, B4C—125060ArBar-like
[33]ZrB2ZrO2, B4C, C—150060VaccumRod-like
[34]ZrB2ZrO2, B4C, C—130060VaccumRod
[28]ZrB2ZrO2, B4C, B2O3, C—1250180ArRod-like
[35]ZrB2Zr(NO3)3, B, C—1550120 Plate-like
[29]ZrB2ZrO2, H3BO3, B—1000120
[36]ZrB2ZrO2, B4C, C—165060VaccumColumnar
[37]ZrB2-SiCZrO2, H3BO3, C, SiC—160090ArColumnar
[14]ZrB2-SiCZrSiO4, B4C, C—160090Ar
[30]ZrB2ZrO2, Na2B4O7, MgMolten-salt1200180Ar
[39]ZrB2KBF4, K2ZrF6, AlMolten-salt800120ArPlate-like
[38]ZrB2ZrOCl2·8H2O, Na2B4O7·10H2O, C12H22O11Molten-salt1400240ArRod-like
[16]ZrB2ZrOCl2-8H2O, H3BO3, Chitosan Glutaraldehyde, raw ZrB2Microwave132060ArColumnar
[5]ZrB2-SiCZrOCl2·8H2O, H3BO3, C6H12O6·H2O, C6H8O7·H2O, C2H6O2Microwave1300180Ar
[15]ZrB2-SiCZrSiO4, B2O3, CMicrowave1300180Ar
This workZrB2-SiCZrO2, B4C, CMicrowave and Molten-salt120020ArRod-like
