TiO2-KH550 Nanoparticle-Reinforced PVA/xylan Composite Films with Multifunctional Properties

by
Xinxin Liu
,
Xiaofeng Chen
,
Junli Ren
and
Chunhui Zhang
*
State Key Laboratory of Pulp and Paper Engineering, School of Light Industry and Engineering, South China University of Technology, Guangzhou 510640, China
*
Author to whom correspondence should be addressed.
Materials 2018, 11(9), 1589; https://doi.org/10.3390/ma11091589
Submission received: 31 July 2018 / Revised: 20 August 2018 / Accepted: 23 August 2018 / Published: 2 September 2018
(This article belongs to the Section Thin Films and Interfaces)
Browse Figures
Versions Notes

Abstract

:
In order to improve the strength of polyvinyl alcohol (PVA)/xylan composite films and endow them with ultraviolet (UV) shielding ability, TiO2-KH550 nanoparticles was synthesized and added into the PVA/xylan matrix. The TiO2-KH550 nanoparticle dispersed well in the 0.04% sodium hexametaphosphate (SHMP) solution under ultrasonic and stirring treatments. Investigations on the properties of the films showed that TiO2-KH550 had the positive impact on improving the strength, moisture, and oxygen barrier properties of the composite films. The maximum tensile strength (27.3 MPa), the minimum water vapor permeability (2.75 × 10−11 g·m−1·s−1·Pa−1), and oxygen permeability (4.013 cm3·m−2·24 h−1·0.1MPa−1) were obtained under the addition of 1.5% TiO2-KH550. The tensile strength of TiO2-KH550 reinforced composite film was increased by 70% than that of the pure PVA/xylan composite film, and the water vapor and oxygen permeability were decreased by 31% and 41%, respectively. Moreover, the UV transmittance of the film at the wavelength of 400 nm was almost zero when adding ≈1.5~2.5% (weight ratio, based on the total weight of PVA and xylan) of TiO2-KH550, which indicated the PVA/xylan composite films were endowed with an excellent UV light shielding ability.

Graphical Abstract

1. Introduction

Polysaccharide based materials with oxygen barrier properties show significant advantages over plastics when used as packaging materials [1]. Among them, xylan as a polar polymer has superior barrier properties to non-polar molecules (oxygen or aroma) [2,3]. Film materials made from xylan have great potential for food packaging [1,4]. The presence of hydroxyl groups of xylan facilitates the hydrogen bonding (intramolecular and intermolecular) during the film formation process, and the reaction of xylan with other polymers. However, hydroxyl groups also make xylan film hydrophilic [5], which leads to poor moisture barrier performance. Xylan has also been used to make composite films with other polymers, such as chitosan, cellulose, lignin, gluten, pectin, and polyvinyl alcohol (PVA).
PVA is a high molecular polymer with a linear structure. The PVA chain contains a large number of hydroxyl groups, resulting in a high hydrophilicity. The side groups -H and -OH of the PVA chain can enter the crystalline regions without producing stress due to the small volume. The higher the crystallinity, the lower the breathability of materials [6]. In addition, PVA also has good mechanical properties, heat resistance, resistance to organic solvents, resistance to organic contamination, and good film-forming properties [7]. Based on the superior properties of PVA, much work has been done on the preparation of composite films from PVA and natural polysaccharides (starch, chitosan, cellulose, hemicellulose, hyaluronic acid, and agar) for packaging applications. Our group has previously studied the effects of different additives (glycerol, urea, citric acid, BTCA, and TiO2 microparticles) on the PVA/xylan composite film properties [8,9,10,11].
Film materials prepared by compositing organic polymers and inorganic particles usually have better properties than those of organic films [12]. Generally, organic film material has high flexibility and low density, while inorganic particles have toughening effects. Introduction of inorganic particles into the organic polymer film can adjust the hydropathy balance of the film and impart the unique properties of inorganic particles to the composite film [13]. Hence, the polymer-inorganic compositing is an effective way to improve the performance of film materials.
Nanoparticles with good interfacial adhesion to polymers have a large specific surface area and high surface energy, and have been added into the polymer matrix to improve the properties [14]. Nano titanium dioxide (Nano-TiO2) has three crystal phase states of brookite, rutile, and anatase [15]. Rutile TiO2 shows excellent shielding performance against ultraviolet light due to its high scattering effect. Nano-TiO2 is widely used in air purification, wastewater treatment, and food packaging applications due to its non-toxicity, low cost, high stability, antibacterial ability, photocatalytic activity, and UV shielding effect [15,16,17,18,19,20,21]. Nano-TiO2 was also used in the PVA composite to increase its application characteristics [22,23,24].
Nanoparticles have a strong tendency to aggregate in water because of the high surface energy [23]. Once aggregated, the nanoparticles will have a much lower efficiency. Therefore, dispersants have to be added to improve the dispersion of nanoparticles in the medium. Inorganic phosphates can reduce the particle aggregation by changing the surface charge distribution like anticoagulants [25,26]. For instance, sodium hexametaphosphate (SHMP), an inorganic anionic surfactant, has been used for nanoparticle dispersion. Chemical modification of nanoparticles to reduce the surface energy is also an effective way to improve the dispersibility. Silane coupling agents are commonly used. They are amphoteric compounds with polar groups at one end of the molecule that can react with the hydroxyl groups of the nanoparticle, and the groups at the other end that can crosslink with organic polymers chemically or physically. They are widely used in the modification of composites, acting as a bridge between inorganic particles and organic polymers. Among them, γ-aminopropyltriethoxysilane (KH550) is often used in the modification of inorganic nanoparticles such as SiO2 and TiO2 [27,28].
The objective of our work was to develop PVA/xylan composite films with high mechanical strength and ultraviolet (UV) shielding ability. The effects of TiO2-KH550 particles on the mechanical properties, moisture and oxygen barrier properties, thermal stability, and UV shielding performance were investigated.

2. Materials and Methods

2.1. Materials

Beech wood xylan (Mw of 130,000 g·mol−1) and polyvinyl alcohol (PVA, Mw of 146,000–186,000 g·mol−1) were purchased from Sigma Aldrich (Karlsruhe, Germany). Nano-titanium dioxide (TiO2, Rutitle types, 98%), sodium hexametaphosphate (SHMP) and γ-aminopropyltriethoxysilane (KH550, 99%) were obtained from Macklin Reagent Company Limited (Shanghai, China). Lithium chloride (LiCl) and potassium nitrate (KNO3) were from Ke Miou reagent Company Limited (Tianjin, China). Deionized water was used for preparation of composite films. All materials were of analytical-reagent grade and used without further purification.

2.2. Synthesis of TiO2-KH550

0.25 g of KH550 was added to deionized water and subjected to pre-hydrolysis under ultrasound treatment. After the pre-hydrolysis, 5 g of nano-TiO2 and 100 mL of ethanol were added and stirred at 80 °C for 5 h. Then, the above mixture was filtered and washed with ethanol and deionized water. Finally, the remaining solids (powder) were vacuum dried to constant weight to obtain the TiO2-KH550 powder [28]. The synthesis route was shown in Figure 1.

2.3. Characterization of TiO2-KH550

The Fourier transform infrared spectroscopy (FT-IR) spectrum of TiO2-KH550 was acquired by a Vertex 33 spectrometer (Bruker, Germany). The powder was dehydrated in an oven at 50 °C before analysis, and then mixed with KBr and pressed into a tablet for the measurement.
Thermogravimetric analysis of TiO2-KH550 was performed using a thermal analyzer (TGA Q500, TA Instruments, New Castle, DE, USA). A total of 10 mg of dried samples were ground into fine powder and heated to 700 °C. The heating rate was kept at 10 °C min−1, and the nitrogen flow was maintained at 20 mL·min−1.
A total of 0.1 g of TiO2-KH550 was added into the SHMP solution (0.04%) and sonicated for 10 min. The dispersion was allowed to stand in a 25 mL colorimetric tube for 24 h. After settling for another 24 h, a new batch of the supernatant was taken [29] and the final volume V (mL) was recorded. The gravity distribution index G of the dispersion is expressed by Equation (1):
G = (25 − V)/25
A total of 0.1 g of TiO2-KH550 was added into SHMP solution (0.04%) and sonicated for 10 min. The dispersion was allowed to stand in a 25 mL colorimetric tube for 24 h. Then, 1 mL of the supernatant was taken and diluted to 50 mL with water, and the maximum absorbance was measured using an ultraviolet spectrometer (S3100, Scinco, Korea).

2.4. Preparation of TiO2-KH550 Reinforced PVA/xylan Composite Films

PVA was dissolved in 50 mL of 0.04% SHMP by heating to 95 °C. After cooling down to 80 °C, xylan and 10% glycerol (weight ratio, based on the total weight of PVA and xylan) were added. The effect of glycerol was to improve the compatibility of PVA/xylan. The weight ratio of PVA to xylan was 3. The 0~2.5% TiO2-KH550 (weight ratio, based on the total weight of PVA and xylan) was dispersed in 50 mL of 0.04% SHMP solution and stirred for 30 min, then sonicated for another 30 min. The TiO2-KH550 nanoparticle dispersion was gradually dropped into the PVA/xylan solution under stirring and the addition speed is five milliliters per minute. After an ultrasonic defoaming treatment, the above mixture was poured onto a polytetrafluoroethylene (PTFE) mould and dried in an oven at 40 °C, and the resulting composite films were obtained. All the films were kept at 23 °C with 50% relative humidity (RH) for at least 48 h prior to measurements. The composite films were named KT0, KT0.5, KT1, KT1.5, KT2, and KT2.5 according to the dosage of TiO2-KH550 nanoparticles (0~2.5%). The synthesis process of the composite films was proposed in Figure 2.

2.5. Characterization of Composite Films

The mechanical properties of PVA/xylan composite films, such as tensile strength (TS) and elongation at break (EAB), were evaluated using a tensile testing machine (Instron 5565, Boston, MA, USA).
The water vapor permeability value was measured according to the method described by Kayserilioglu et al. [30]. The water vapor permeability was calculated by Equation (2):
  WVP = ( Δ m × L   ) / ( A × t × Δ p )
where WVP is water vapor permeability (g·m−1·s−1·Pa−1). Δm/t (g·s−1) is the gain rate of bottle. A (m2) is the exposed area of the films. L (m) is the mean thickness of the film. and Δp (Pa) is the difference in partial water vapor pressure between the two sides of film samples.
The composite films were cut into 25 × 25 mm2 samples and dried to constant weight (m0, g). The dried sample was immersed in 50 mL deionized water at room temperature for 24 h. Then, the swollen film was dried again for 24 h at 50 °C for the final weight m1. The water solubility (WS) was calculated according to Equation (3):
  WS = ( m 0 − m 1   ) / m 0 × 100 %
The oxygen permeability OP (cm3·m−2·24h−1·0.1MPa−1) was measured at 23 °C with RH 50% using a differential pressure gas permeation apparatus (Labthink VAC-V1, Jinan, China). The vacuum degassing was carried out for 8 h prior to the measurement. The oxygen pressure was kept at 0.5 MPa.
The composite films were cut into 25 × 25 mm2 samples and kept in a desiccator (using saturated LiCl solution to maintain a RH of 11%) until reaching a constant weight (m2, g). Then the sample was placed in another desiccator (using saturated KNO3 solution to maintain a RH of 95%) and weighed (mi, g) at intervals. Finally, the sample was dried to a constant weight (mc, g). The moisture absorption W was calculated according to Equations (4) and (5):
  W c = ( m 2 − m c   ) / m c × 100 %
  W i   = ( m i − m c   ) /   m c × 100 %
where Wc is the moisture absorption of the initial sample.
The thermal degradation properties were found using thermogravimetric analysis on a simultaneous thermal analyzer (TGA Q500, TA Instruments, New Castle, DE, USA). The specimen was heated from room temperature to 700 °C. The heating rate was kept at 10 °C·min−1, and the nitrogen flow was maintained at 20 mL· min−1.
The ultraviolet light shielding performance was evaluated using an ultraviolet-visible spectrometer (Shimadzu UV1800, Tokyo, Japan), which was scanned in the range of 200–900 nm.
X-ray diffraction of TiO2-KH550 and PVA/xylan composite films were analyzed using an X-ray diffractometer (Bruker, Karlsruhe, Germany). The angle of diffraction (2θ) was varied from 5–80°. The scan step and scan speed were 0.02° and 0.1 s/step, respectively.
The surface and fracture surface morphology of the composite films were investigated using a scanning electron microscopy (Hitachi S3700, Tokyo, Japan). The test was operated in high vacuum mode at an acceleration voltage of 15 kV.
The surface roughness of the films was measured by atomic force microscopy (AFM, Veeco DI Nanoscope 3a, New York, NY, USA) with tapping mode at room temperature in air.

3. Results and Discussion

3.1. Characterizations of TiO2-KH550

The FTIR spectra of TiO2 and TiO2-KH550 were shown in Figure 3a. In the spectra of TiO2, the characteristic band at ≈480–800 cm−1 was assigned to the stretching vibration of Ti-O bond [31]. The characteristic band at 2930 cm−1 is assigned to the stretching vibration of CH2- [32]. The absorption band of Si–O–Si bond is observed at 1101 cm−1 in the spectra of TiO2-KH550 indicating the successful modification [33]. Furthermore, the intensity of the Ti–O bond and CH2- bond increased, which also implied that KH550 was successfully grafted onto TiO2.
Figure 3b shows the thermal stability of TiO2 and TiO2-KH550. The weight loss of TiO2 particles is mainly due to the moisture content in the sample. Below 200 °C, the weight loss of TiO2-KH550 is lower than that of TiO2. This is because the hydrophobic long chain is introduced onto TiO2, making TiO2-KH550 absorb less water [28]. At ≈320 °C~420 °C, the weight loss of TiO2-KH550 is mainly due to the dehydration of silanol groups, while the weight loss at 550 °C to 700 °C is due to the degradation of silane long chains [34]. The total weight loss of TiO2 and TiO2-KH550 at 700 °C were 1.8% and 0.88%, respectively. The grafting rate of KH550 is about 0.92 wt%.
The TiO2 and TiO2-KH550 nanoparticles were dispersed in water and 0.04% SHMP solution, respectively, and the gravity stability and absorbance were determined as shown in Figure 4 (WT refers to the dispersion of nano-TiO2 in deionized water. WKT and SKT refer to the dispersion of TiO2-KH550 in deionized water and 0.04% SHMP, respectively). The greater the gravity distribution index (G) and absorbance, the better the dispersibility, and the higher the stability. The absorbance of the supernatant of the suspension is proportional to the dispersion of the powder and the stability of the suspension. Therefore, the change in absorbance could reflect the dispersion effect of nanomaterials [35]. When dispersed in water, the value of G and the absorbance of TiO2-KH550 were slightly higher than those of TiO2. When dispersed in 0.04% SHMP solution, the value of G and the absorbance of TiO2-KH550 particles were markedly increased compared to the particles in water. It can be seen from the macro photograph (Figure 4), no precipitation occurred in the three solutions after five minutes of standing. However, precipitation occurred in both solutions of WT and WKT after standing for 12 h, indicating the uneven dispersion. After standing for 24 h, the phenomenon is more obvious. Therefore, TiO2 modified by a KH550 coupling agent was dispersed in 0.04% SHMP solution to obtain a homogeneous dispersion.

3.2. Characterizations of Films

3.2.1. Mechanical Properties

Figure 5 illustrates the effects of TiO2-KH550 dosage on the TS and EAB of the composite films. The addition of TiO2-KH550 led to a significant improvement in TS. The TS increased with the increasing dosage of TiO2-KH550 and then decreased. When the dosage was 1.5%, the TS reached a highest value (27.3 MPa). The high TS of composite films was attributed to the better dispersion of TiO2-KH550 and its interaction with the polymer matrix. However, when further increasing the dosage of TiO2-KH550, the TS decreased. At a high dosage, nanoparticles tended to aggregate to reduce the surface free energy, which led to a decrease in the hydrogen bonding between TiO2-KH550 and the polymers [22,23,24,25,26,27,28,29,30,31,32,33,34,35,36]. It should be noted that a strong interaction between TiO2-KH550 and PVA/xylan matrix affected the mobility of PVA and xylan molecules and decreased the EAB value of the composite film. However, under our experimental conditions, all the composite films had good flexibility and high EAB values (more than 189%).

3.2.2. Water Vapor Permeability, Solubility, and Oxygen Permeability

The water vapor permeability (WVP), water solubility (WS), and oxygen permeability (OP) of KT0~KT2.5 are shown in Table 1. The WVP and WS of TiO2-KH550-reinforced PVA/xylan composite films are lower than those of PVA/xylan films. This was due to the fact that TiO2-KH550 could enter the gap between PVA and xylan matrix and interact with the polymers to form a dense impermeable structure [37]. KT1.5 and KT1 have the lowest WVP and WS, respectively, indicating that TiO2-KH550 could be well dispersed in the polymer matrix at those dosages. Very low dosage (KT0.5) of TiO2-KH550 could possibly result in a high crystallinity, which made it difficult for moisture to enter the film [38,39].
In food packaging materials, a gas barrier is the key factor to prevent food spoilage [1]. As shown in Table 1, the OP of KT0 was higher than those of KT0.5~KT2.5, which indicated that the addition of nanoparticles improved the oxygen barrier properties of the composite films. When the dosage of TiO2-KH550 was at 1.5%, the OP reached the lowest (4.013 cm3·m−2·24h−1·0.1MPa−1).

3.2.3. Moisture Absorption

The moisture absorption of KT0~KT2.5 is shown in Figure 6. All the samples reached a hygroscopic equilibrium state after 60 h. The equilibrium moisture absorption of KT0 was larger than those of KT0.5~KT2.5. The moisture absorption of KT0.5 and KT2.5 were similar to that of the pure PVA/xylan film. It could be concluded that TiO2-KH550 improved the water tightness of the composite films. KT1.5 had the lowest moisture absorption (~40.7%), because TiO2-KH550 nanoparticles were evenly distributed in the film and strongly interacted with the polymers, forming a more compact film [40]. At the same time, under the condition of good dispersion and interaction, the voids inside the composite film were reduced, and the water vapor absorption storage space was small, so that the equilibrium moisture absorption was small. However, further increasing the dosage of TiO2-KH550 decreased the moisture absorption due to the steric hindrance effect of excessive nanoparticles.

3.2.4. Thermal Stability

The thermal stability of KT0, KT0.5, KT1.5, and KT2.5 was illustrated in Figure 7. The weight loss of the composite films was divided into the following four stages: 30~120 °C, 120~220 °C, 220~380 °C, and 380~470 °C. The mass loss below 120 °C was due to the evaporation of water in the film, whereas the degradation of the glycerol small molecule occurred mainly in the range of 120~220 °C. The loss at about 220~380 °C was attributed to the degradation of the side chains of PVA and xylan. The weight loss above 380 °C was owing to the carbonation of the polymers. The temperature of the maximum degradation of KT1.5 and KT2.5 in the third and fourth stages were higher than that of KT0, which indicated that the former two had better thermal stability. This can be explained by the fact that excessive TiO2-KH550 slowed down the small-molecule gas transfer during the degradation process. Moreover, more interaction between TiO2-KH550 and the PVA/xylan matrix means more energy is needed for thermal degradation. Therefore, TiO2-KH550 nanoparticles was conducive to improving the thermal stability of the composite films [41].

3.2.5. Ultraviolet Light Shielding Performance

Figure 8 illustrates the UV transmittance of KT0~KT2.5 films. Compared to the pure PVA/xylan composite film, the UV transmittance of the TiO2-KH550 reinforced composite films was significantly reduced. In particular, the UV transmittance of KT1.5, KT2, and KT2.5 were almost zero at the wavelengths below 400 nm. This is due to the high scattering effect of rutile Nano-TiO2 [42]. Our results were consistent with those of Li, Chiang, and Mallakpour et al [43,44,45]. Thus, the resulting PVA/xylan composite films with good UV shielding performance have great potential for food packaging.

3.2.6. XRD Analysis

Figure 9 exhibits the X-ray diffraction patterns of TiO2-KH550 and KT0.5~KT2.5 films. For TiO2-KH550, the characteristic peaks of rutile TiO2 were observed, indicating that the crystal form of the nano-particles has not changed obviously after modification. For KT0.5~KT2.5, the characteristic diffraction peaks of xylan at a 2θ = 18.8° [46] and of PVA at a 2θ = 19.4° [47] combined into a broad diffraction peak at a 2θ = 19.6° after forming the composite film, indicating that the crystalline area of xylan was changed during the formation of film. New diffraction peaks occurred at 27.6°, 36.1°, 41.2°, and 54.4°, which are the main characteristic peaks of rutile TiO2 particles. With the increase of TiO2-KH550 dosage, the characteristic peak intensities of the nanoparticles became much higher. Thus, the relative intensities of characteristic peaks of PVA and xylan was lowered by TiO2-KH550. Therefore, the crystallinity of the composite film was decreased with the increasing dosage of TiO2-KH550.

3.2.7. SEM Analysis

The SEM micrographs of KT0, KT0.5, KT1.5, and KT2.5 films are shown in Figure 10. The TiO2-KH550 particles distributed in the polymer matrix were observed on the cross section images of KT0.5~KT2.5. No obvious particle separation phenomenon was seen on the cross section images of KT0.5~KT2.5 films, suggesting the good compatibility between the TiO2-KH550 particles and the polymer matrix. The cross-section micrographs could be described with regard to the degree of interactions and miscibility of different components [9], from which more interspace was observed in the KT2.5 film compared to other films. The KT0.5 and KT1.5 films had a better uniform structure owing to the better dispersion of TiO2-KH550.

3.2.8. AFM Analysis

Figure 11 shows the AFM images of KT0, KT0.5, KT1.5, and KT2.5 films. After adding TiO2-KH550, the surface of the composite films become more rough with some protrusions owing to the encapsulation effect of TiO2-KH550 by PVA and xylan [48]. Moreover, with the increase of the TiO2-KH550 dosage, the surface roughness of the composite film was increased. The average surface roughness of KT0, KT0.5, KT1.5, and KT2.5 films were 1.75, 2.74, 4.15, and 12.0 nm, respectively. The composite films changed to become coarse because the nanoparticles (TiO2-KH550) remained adhered to the composite films. As the dosage of TiO2-KH550 increased, the more adhering nanoparticles, the more rough the surface became.

4. Conclusions

In this paper, TiO2 was modified to prepare TiO2-KH550, and the TiO2-KH550 could be well dispersed in the SHMP solution (0.04%) under ultrasonic treatment. In addition, a series of TiO2-KH550-reinforced PVA/xylan composite films were prepared. The composite films had high UV shielding efficiency and excellent mechanical properties under the addition of TiO2-KH550. When the dosage of TiO2-KH550 was 1.5%, the TS (tensile strength) of the composite film reached the highest (27.3 MPa), which was 70% higher than that of a pure PVA/xylan composite film. TiO2-KH550 could be well dispersed in SHMP solution (0.04%) under ultrasonic treatment. And, the composite films had the lowest WVP (2.75 × 10−11 g·m−1·s−1·Pa−1), OP (4.013 cm3·m−2·24 h−1·0.1 MPa−1), and W (40.7%) at the dosage of 1.5% TiO2-KH550. TiO2-KH550 could also improve the thermal stability and UV shielding efficiency of the composite films. In general, when the dosage of TiO2-KH550 was 1.5%, the properties of the composite film is optimal.

Author Contributions

X.L and X.C designed and performed the experiments; X.L analyzed the data and wrote the paper; and the paper was written under the direction and supervision of J.R. and C.Z.

Funding

State Key Laboratory of Pulp and Paper Engineering: 201533

Acknowledgments

This work was supported by the State Key Laboratory of Pulp and Paper Engineering (201533).

Conflicts of Interest

The authors declare no conflict interest.

References

  1. Grondahl, M.; Eriksson, L.; Gatenholm, P. Material properties of plasticized hardwood xylans for potential application as oxygen barrier films. Biomacromolecules 2004, 5, 1528–1535. [Google Scholar] [CrossRef] [PubMed]
  2. Hansen, N.M.L.; Plackett, D. Sustainable films and coatings from hemicelluloses: A review. Biomacromolecules 2008, 9, 1493–1505. [Google Scholar] [CrossRef] [PubMed]
  3. Hartman, J.; Albertsson, A.C.; Lindblad, M.S.; Sjoberg, J. Oxygen barrier materials from renewable sources: Material properties of softwood hemicellulose-based films. J. App. Polym. Sci. 2006, 100, 2985–2991. [Google Scholar] [CrossRef]
  4. Gabrielii, I.; Gatenholm, P.; Glasser, W.G.; Jain, R.K.; Kenne, L. Separation, characterization and hydrogel-formation of hemicellulose from aspen wood. Carbohydr. Polym. 2000, 43, 367–374. [Google Scholar] [CrossRef]
  5. Mikkonen, K.S.; Tenkanen, M. Sustainable food-packaging materials based on future biorefinery products: Xylans and mannans. Trends Food. Sci. Technol. 2012, 28, 90–102. [Google Scholar] [CrossRef]
  6. Priya, B.; Gupta, V.K.; Pathania, D.; Singha, A.S. Synthesis, characterization and antibacterial activity of biodegradable starch/PVA composite films reinforced with cellulosic fiber. Carbohydr. Polym. 2014, 109, 171–179. [Google Scholar] [CrossRef] [PubMed]
  7. Tang, X.Z.; Alavi, S. Recent advances in starch, polyvinyl alcohol based polymer blends, nanocomposites and their biodegradability. Carbohydr. Polym. 2011, 85, 7–16. [Google Scholar] [CrossRef]
  8. Wang, S.Y.; Ren, J.L.; Kong, W.Q.; Gao, C.D.; Liu, C.F.; Peng, F.; Sun, R.C. Influence of urea and glycerol on functional properties of biodegradable PVA/xylan composite films. Cellulose 2014, 21, 495–505. [Google Scholar] [CrossRef]
  9. Ren, J.L.; Wang, S.Y.; Gao, C.D.; Chen, X.F.; Li, W.Y.; Peng, F. TiO2-containing PVA/xylan composite films with enhanced mechanical properties, high hydrophobicity and UV shielding performance. Cellulose 2015, 22, 593–602. [Google Scholar] [CrossRef]
  10. Wang, S.Y.; Ren, J.L.; Li, W.Y.; Sun, R.C.; Liu, S.J. Properties of polyvinyl alcohol/xylan composite films with citric acid. Carbohydr. Polym. 2014, 103, 94–99. [Google Scholar] [CrossRef] [PubMed]
  11. Gao, C.D.; Ren, J.L.; Wang, S.Y.; Sun, R.C.; Zhao, L.H. Preparation of Polyvinyl Alcohol/Xylan Blending Films with 1,2,3,4-Butane Tetracarboxylic Acid as a New Plasticizer. J. Nanomater. 2014, 3, 1–8. [Google Scholar] [CrossRef]
  12. Gomez-Romero, G. Hybrid organic-inorganic materials-In search of synergic activity. Adv. Mater. 2001, 13, 163–174. [Google Scholar] [CrossRef]
  13. Sanchez, C.; Julian, B.; Belleville, P.; Popall, M. Applications of hybrid organic-inorganic nanocomposites. J. Mater. Chem. 2005, 15, 3559–3592. [Google Scholar] [CrossRef]
  14. Kovaevic, V.; Vrsaljko, D.; Blagojevic, S.L.; Leskovac, M. Adhesion parameters at the interface in nanoparticulate filled polymer systems. Polym. Eng. Sci. 2008, 48, 1994–2002. [Google Scholar] [CrossRef]
  15. Chen, X.B.; Mao, S.S. Titanium dioxide nanomaterials: Synthesis, properties, modifications, and applications. Chem. Rev. 2007, 107, 2891–2959. [Google Scholar] [CrossRef] [PubMed]
  16. Kubacka, A.; Serrano, C.; Ferrer, M.; Lunsdorf, H.; Bielecki, P.; Cerrada, M.A.L.; Fernandez-Garcia, M.; Fernandez-Garcia, M. High-performance dual-action polymer-TiO2 nanocomposite films via melting processing. Nano Lett. 2007, 7, 2529–2534. [Google Scholar] [CrossRef] [PubMed]
  17. Ao, C.H.; Lee, S.C.; Yu, J.C. Photocatalyst TiO2 supported on glass fiber for indoor air purification: Effect of NO on the photodegradation of CO and NO2. J. Photoch. Photobiol. A 2003, 156, 171–177. [Google Scholar] [CrossRef]
  18. Ochiai, T.; Fujishima, A. Photoelectrochemical properties of TiO2 photocatalyst and its applications for environmental purification. J. Photoch. Photobiol. C 2012, 13, 247–262. [Google Scholar] [CrossRef]
  19. Byrne, J.A.; Eggins, B.R.; Brown, N.M.D.; Mckinney, B.; Rouse, M. Immobilisation of TiO2 powder for the treatment of polluted water. Appl. Catal. B. Environ. 1998, 17, 25–36. [Google Scholar] [CrossRef]
  20. Cozmuta, A.N.; Peter, A.; Cozmuta, L.M.; Nicula, C.; Crisan, L.; Baia, L.; Turila, A. Active packaging system based on Ag/TiO2 nanocomposite used for extending the shelf life of bread, chemical and microbiological investigations. Packag. Technol. Sci. 2015, 28, 271–284. [Google Scholar] [CrossRef]
  21. Fang, D.L.; Yang, W.J.; Kimatu, B.M.; Mariga, A.M.; Zhao, L.Y.; An, X.X.; Hu, Q.H. Effect of nanocomposite-based packaging on storage stability of mushrooms (Flammulina velutipes). Innov. Food Sci. Emerg. 2016, 33, 489–497. [Google Scholar] [CrossRef]
  22. Sreekumar, P.A.; Al-Harthi, M.A.; De, S.K. Reinforcement of starch/polyvinyl alcohol blend using nano-titanium dioxide. J. Compos. Mater. 2012, 46, 3181–3187. [Google Scholar] [CrossRef]
  23. Lou, Y.H.; Liu, M.H.; Miao, X.W.; Zhang, L.; Wang, X.P. Improvement of the mechanical properties of nano-TiO2/poly(vinyl alcohol) composites by enhanced interaction between nanofiller and matrix. Polym. Compos. 2010, 31, 1184–1193. [Google Scholar] [CrossRef]
  24. Khanna, P.K.; Singh, N.; Charan, S. Synthesis of nano-particles of anatase-TiO2 and preparation of its optically transparent film in PVA. Mater. Lett. 2007, 61, 4725–4730. [Google Scholar] [CrossRef]
  25. Aruna, S.T.; Anandan, C.; Grips, V.K.W. Effect of probe sonication and sodium hexametaphosphate on the microhardness and wear behavior of electrodeposited Ni-SiC composite coating. Appl. Surf. Sci. 2014, 301, 383–390. [Google Scholar] [CrossRef]
  26. Chang, G.; He, L.; Zheng, W.; Pan, A.Z.; Liu, J.; Li, Y.J.; Cao, R.J. Well-defined inorganic/organic nanocomposite by nano silica core-poly(methyl methacrylate/butylacrylate/trifluoroethyl methacrylate) shell. J. Colloid Interface Sci. 2013, 396, 129–137. [Google Scholar] [CrossRef] [PubMed]
  27. Gu, J.W.; Zhang, Q.Y.; Li, H.C.; Tang, Y.S.; Kong, J.; Dang, J. Study on preparation of SiO2/epoxy resin hybrid materials by means of sol-gel. Polym.-Plast. Technol. 2007, 46, 1129–1134. [Google Scholar] [CrossRef]
  28. Li, X.W.; Song, R.G.; Jiang, Y.; Wang, C.; Jiang, D. Surface modification of TiO2 nanoparticles and its effect on the properties of fluoropolymer/TiO2 nanocomposite coatings. Appl. Surf. Sci. 2013, 276, 761–768. [Google Scholar] [CrossRef]
  29. Diebold, U. The surface science of titanium dioxide. Surf. Sci. Rep. 2003, 48, 53–229. [Google Scholar] [CrossRef]
  30. Kayserilioglu, B.S.; Stevels, W.M.; Mulder, W.J.; Akkas, N. Mechanical and biochemical characterisation of wheat gluten films as a function of pH and co-solvent. Starch-Starke 2001, 53, 381–386. [Google Scholar] [CrossRef]
  31. Ivanova, T.; Harizanova, A. Characterization of TiO2 and TiO2-MnO oxides prepared by sol-gel method. Solid State Ionics 2001, 138, 227–232. [Google Scholar] [CrossRef]
  32. Yang, H.; Gao, Q.; Xie, Y.T.; Chen, Q.; Ouyang, C.F.; Xu, Y.M.; Ji, X.T. Effect of SiO2 and TiO2 nanoparticle on the properties of phenyl silicone rubber. J. Appl. Polym. Sci. 2015, 132, 1–9. [Google Scholar] [CrossRef]
  33. Ukaji, E.; Furusawa, T.; Sato, M.; Suzuki, N. The effect of surface modification with silane coupling agent on suppressing the photo-catalytic activity of fine TiO2 particles as inorganic UV filter. Appl. Surf. Sci. 2007, 254, 563–569. [Google Scholar] [CrossRef]
  34. Zhao, J.; Milanova, M.; Warmoeskerken, N.M.G.G.; Dutschk, V. Surface modification of TiO2 nanoparticles with silane coupling agents. Colloids Surf. A 2012, 413, 273–279. [Google Scholar] [CrossRef]
  35. Wang, S.Y. Influence of Additives on Properties of Poly Vinyl Alcohol/Xylan Composite Films; South China University of Technology: Guangzhou, China, 2014; pp. 1–84. [Google Scholar]
  36. Fonseca, C.; Ochoa, A.; Ulloa, M.T.; Alvarez, E.; Canales, D.; Zapata, P.A. Poly(lactic acid)/TiO2 nanocomposites as alternative biocidal and antifungal materials. Mater. Sci. Eng. C-Mater. 2015, 57, 314–320. [Google Scholar] [CrossRef] [PubMed]
  37. Liu, C.; Xiong, H.G.; Chen, X.; Lin, S.; Tu, Y.H. Effects of nano-TiO2 on the performance of high-amylose starch based antibacterial films. J. Appl. Polym. Sci. 2015, 132, 1–7. [Google Scholar] [CrossRef]
  38. Shi, F.M.; Ma, Y.X.; Ma, J.; Wang, P.P.; Sun, W.X. Preparation and characterization of PVDF/TiO2 hybrid membranes with different dosage of nano-TiO2. J. Membr. Sci. 2012, 389, 522–531. [Google Scholar] [CrossRef]
  39. Feng, X.X.; Zhang, L.L.; Chen, J.Y.; Guo, Y.H.; Zhang, H.P.; Jia, C.L. Preparation and characterization of novel nanocomposite films formed from silk fibroin and nano-TiO2. Int. J. Biol. Macromol. 2007, 40, 105–111. [Google Scholar] [CrossRef] [PubMed]
  40. Pourjafar, S.; Rahimpour, A.; Jahanshahi, M. Synthesis and characterization of PVA/PES thin film composite nanofiltration membrane modified with TiO2 nanoparticles for better performance and surface properties. J. Ind. Eng. Chem. 2012, 18, 1398–1405. [Google Scholar] [CrossRef]
  41. Mohanapriya, S.; Mumjitha, M.; Purnasai, K.; Raj, V. Fabrication and characterization of poly (vinyl alcohol)-TiO2 nanocomposite films for orthopedic applications. J. Mech. Behav. Biomed. 2016, 63, 141–156. [Google Scholar] [CrossRef] [PubMed]
  42. Macyk, W.; Szacilowski, K.; Stochel, G.; Buchalska, M.; Kuncewicz, J.; Labuz, P. Titanium(IV) complexes as direct TiO2 photosensitizers. Coord. Chem. Rev. 2010, 254, 2687–2701. [Google Scholar] [CrossRef]
  43. Li, Y.X.; Jiang, Y.F.; Liu, F.; Ren, F.Z.; Zhao, G.H.; Leng, X.J. Fabrication and characterization of TiO2/whey protein isolate nanocomposite film. Food Hydrocolloid 2011, 25, 1098–1104. [Google Scholar] [CrossRef]
  44. Chiang, P.C.; Whang, W.T. The synthesis and morphology characteristic study of BAO-ODPA polyimide/TiO2 nano hybrid films. Polymer 2003, 44, 2249–2254. [Google Scholar] [CrossRef]
  45. Mallakpour, S.; Barati, A. Efficient preparation of hybrid nanocomposite coatings based on poly(vinyl alcohol) and silane coupling agent modified TiO2 nanoparticles. Prog. Org. Coat. 2011, 71, 391–398. [Google Scholar] [CrossRef]
  46. Gao, C.D.; Ren, J.L.; Kong, W.Q.; Sun, R.C.; Chen, Q.F. Comparative study on temperature/pH sensitive xylan-based hydrogels: Their properties and drug controlled release. RSC Adv. 2015, 5, 90671–90681. [Google Scholar] [CrossRef]
  47. Chen, L.; Zheng, K.; Tian, X.Y.; Hu, K.; Wang, R.X.; Liu, C.; Li, Y.; Cui, P. Double glass transitions and interfacial immobilized layer in in-situ-synthesized poly(vinyl alcohol)/silica nanocomposites. Macromolecules 2010, 43, 1076–1082. [Google Scholar] [CrossRef]
  48. Qin, A.W.; Li, X.; Zhao, X.Z.; Liu, D.P.; He, C.J. Engineering a highly hydrophilic PVDF membrane via binding TiO2 nanoparticles and a PVA layer onto a membrane surface. ACS Appl. Mater. Int. 2015, 7, 8427–8436. [Google Scholar] [CrossRef] [PubMed]
Materials 11 01589 g001 550

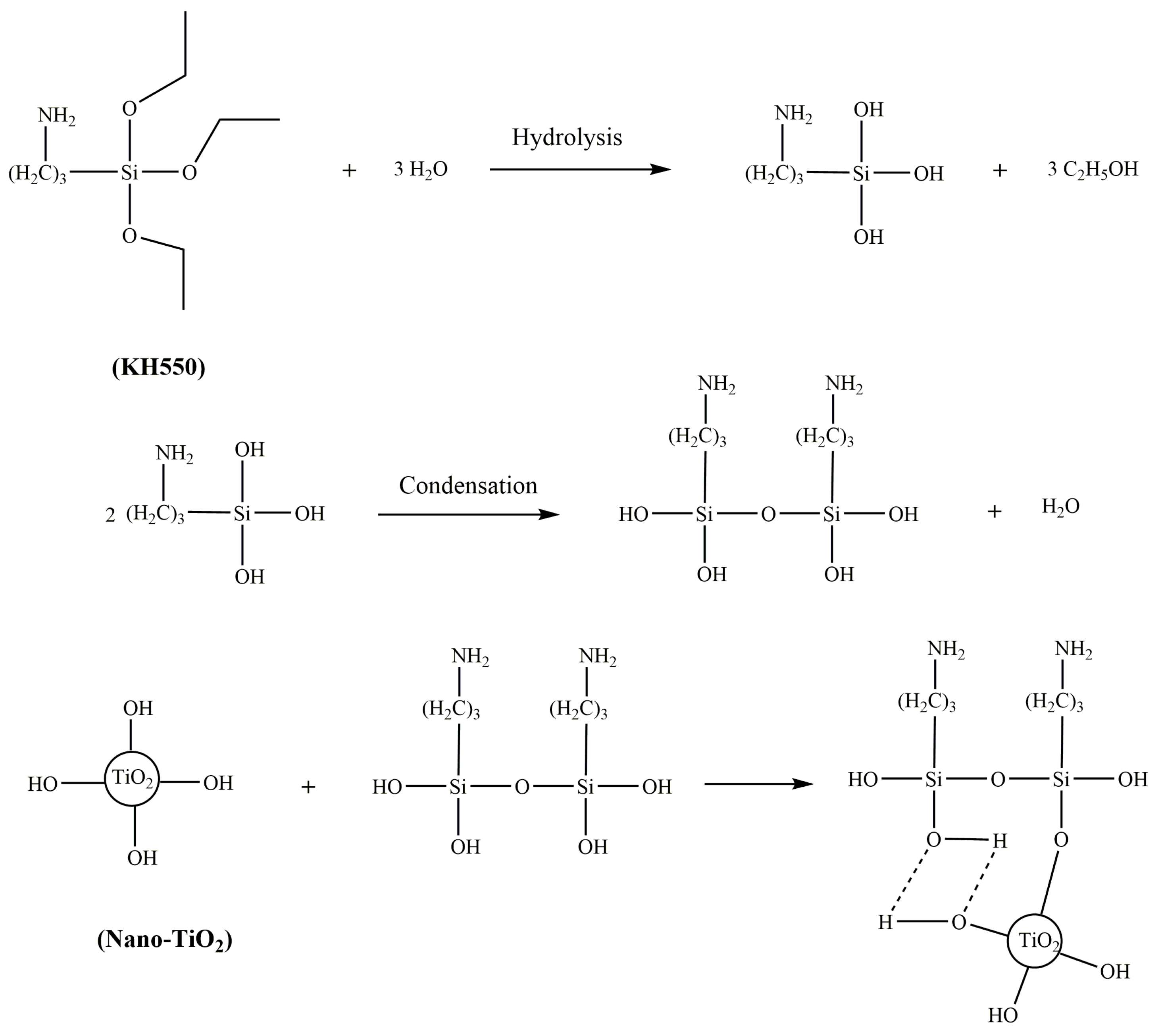

Figure 1. The synthesis of TiO2-KH550.
Figure 1. The synthesis of TiO2-KH550.
Materials 11 01589 g001
Materials 11 01589 g002 550

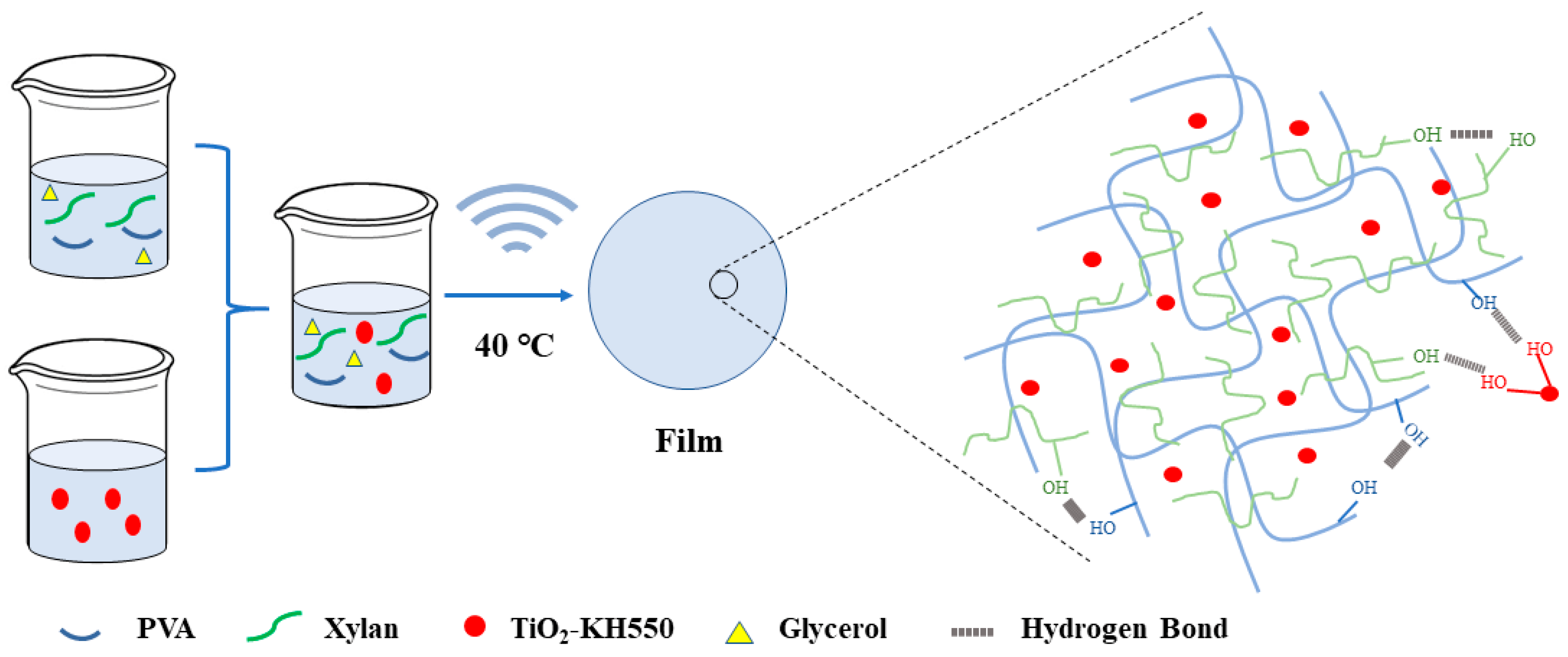

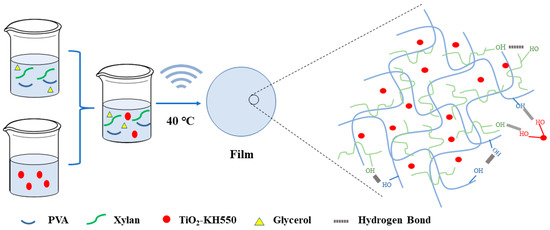

Figure 2. Synthesis process of composite films.
Figure 2. Synthesis process of composite films.
Materials 11 01589 g002
Materials 11 01589 g003 550

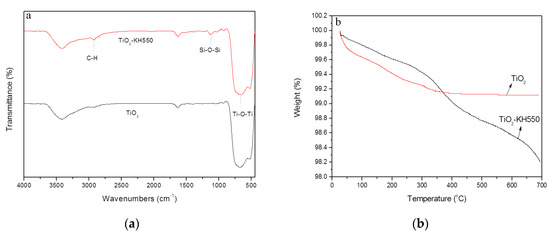

Figure 3. FTIR spectra (a) and TGA (b) of TiO2 and TiO2-KH550.
Figure 3. FTIR spectra (a) and TGA (b) of TiO2 and TiO2-KH550.
Materials 11 01589 g003
Materials 11 01589 g004 550

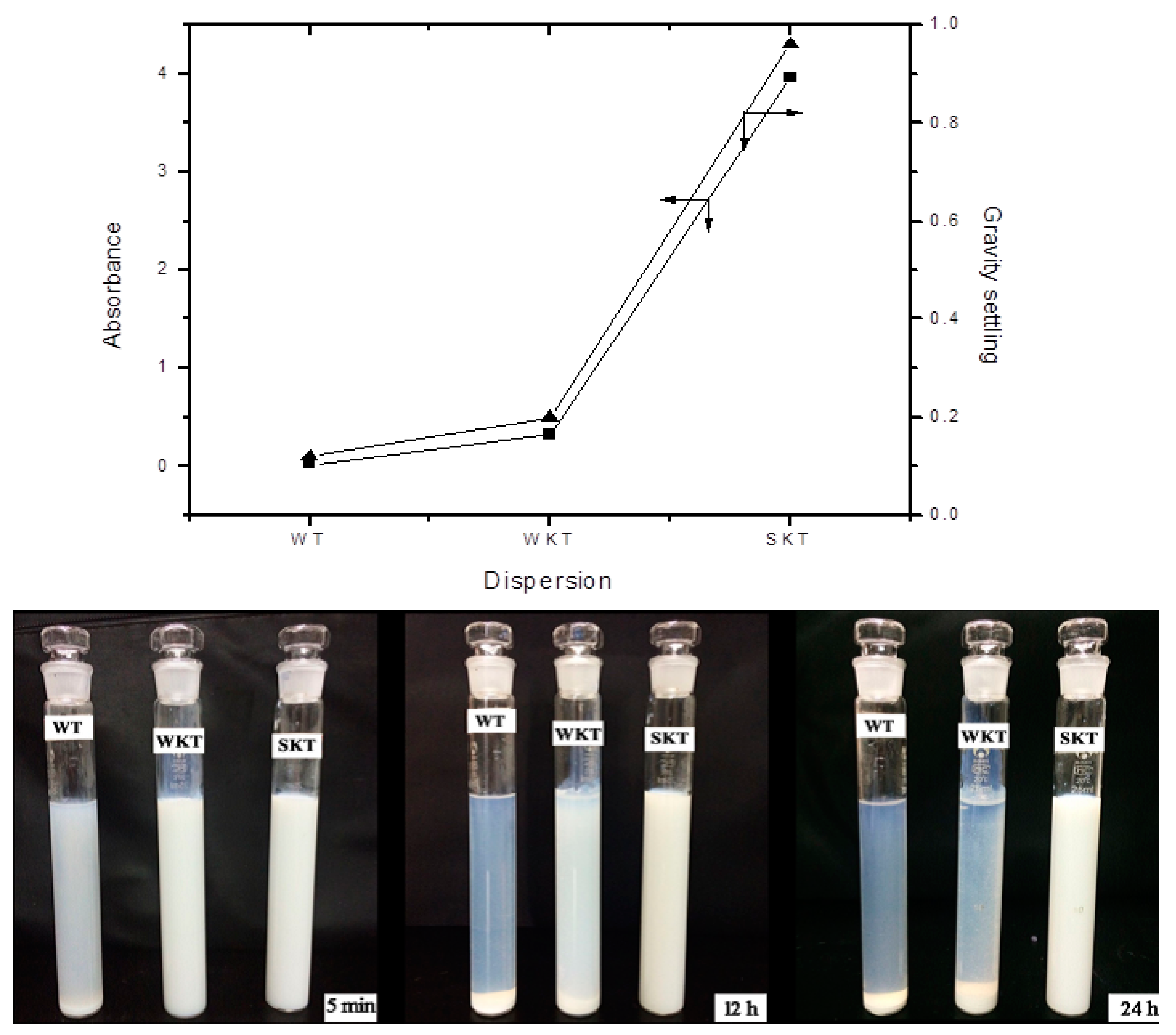

Figure 4. The absorbance and gravity distribution index of TiO2-KH550 dispersion (WT refers to the dispersion of nano-TiO2 in deionized water, and WKT refers to the dispersion of TiO2-KH550 in deionized water; SKT, the dispersion of TiO2-KH550 in 0.04% SHMP).
Figure 4. The absorbance and gravity distribution index of TiO2-KH550 dispersion (WT refers to the dispersion of nano-TiO2 in deionized water, and WKT refers to the dispersion of TiO2-KH550 in deionized water; SKT, the dispersion of TiO2-KH550 in 0.04% SHMP).
Materials 11 01589 g004
Materials 11 01589 g005 550

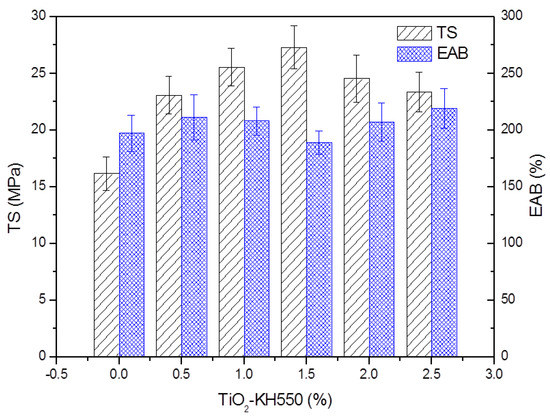

Figure 5. Mechanical properties of the composite films (KT0~KT2.5).
Figure 5. Mechanical properties of the composite films (KT0~KT2.5).
Materials 11 01589 g005
Materials 11 01589 g006 550

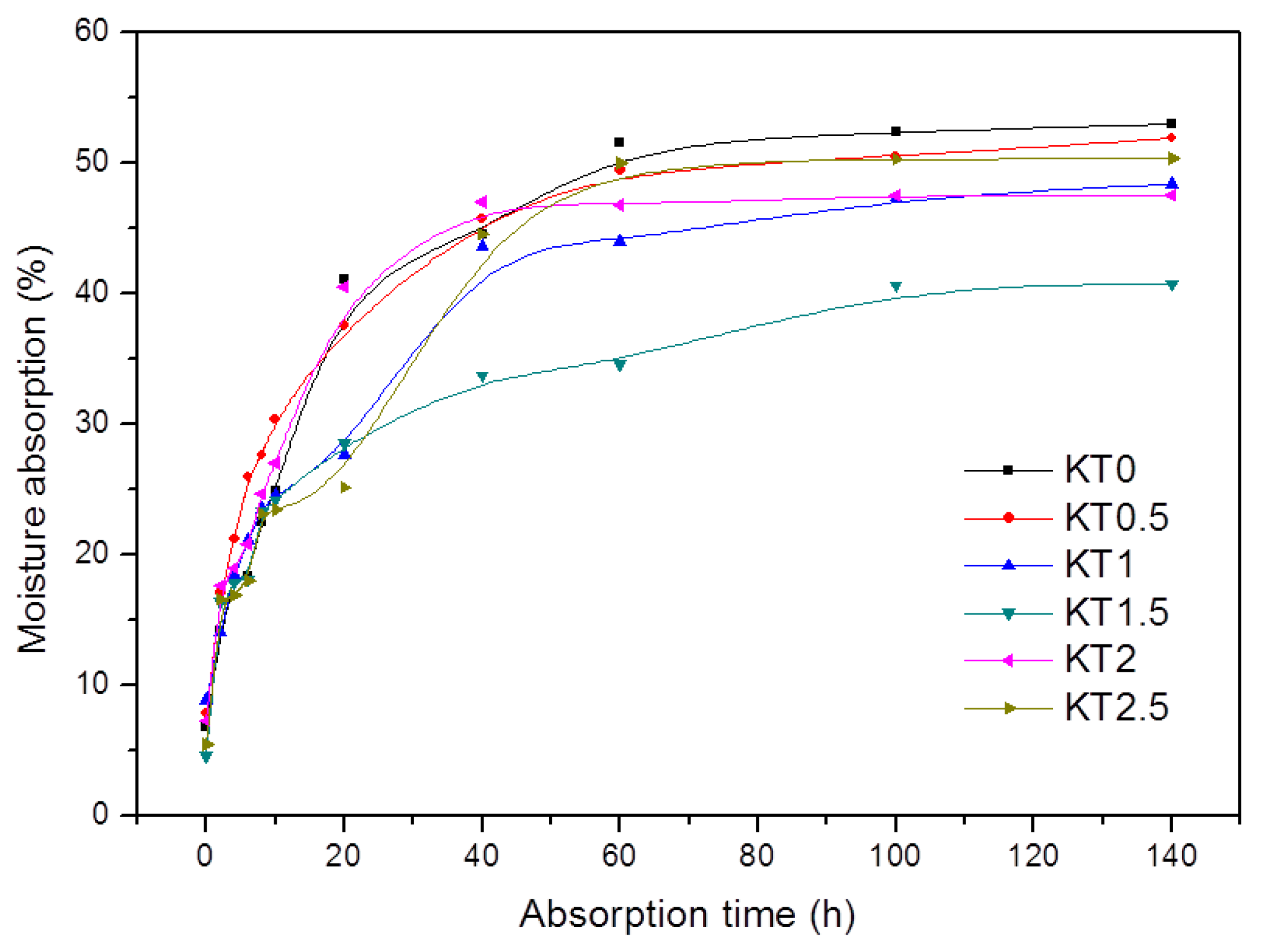

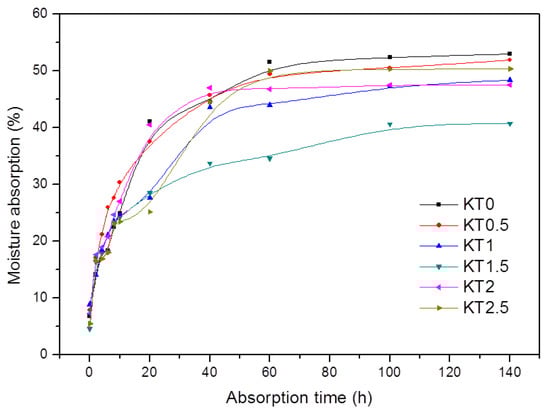

Figure 6. Moisture absorption of the composite films (KT0.5~KT2.5).
Figure 6. Moisture absorption of the composite films (KT0.5~KT2.5).
Materials 11 01589 g006
Materials 11 01589 g007 550

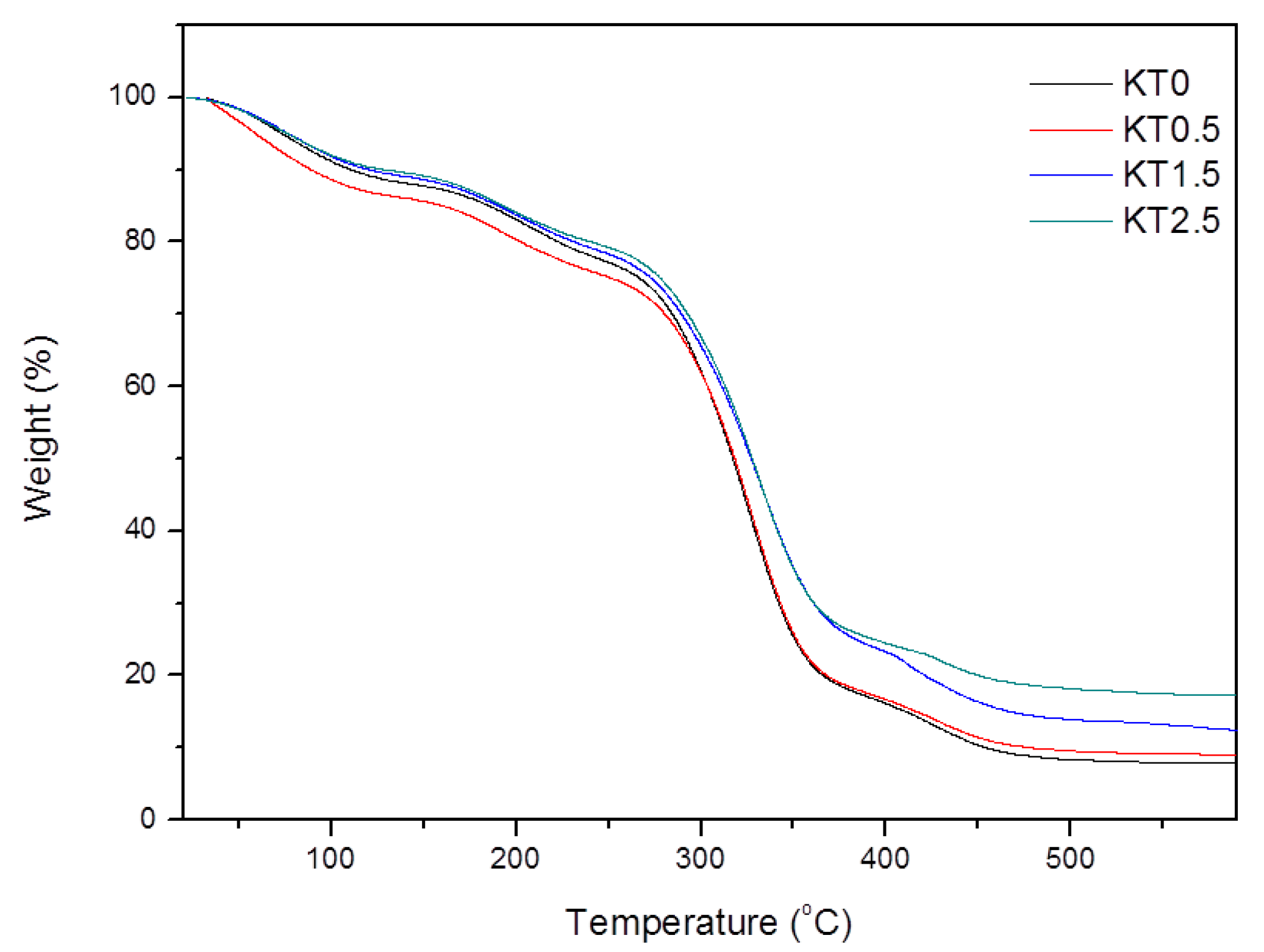

Figure 7. TGA of the composite films (KT0.5~KT2.5).
Figure 7. TGA of the composite films (KT0.5~KT2.5).
Materials 11 01589 g007
Materials 11 01589 g008 550
Figure 8. UV transmittance of the composite films (KT0.5~KT2.5).
Figure 8. UV transmittance of the composite films (KT0.5~KT2.5).
Materials 11 01589 g008
Materials 11 01589 g009 550

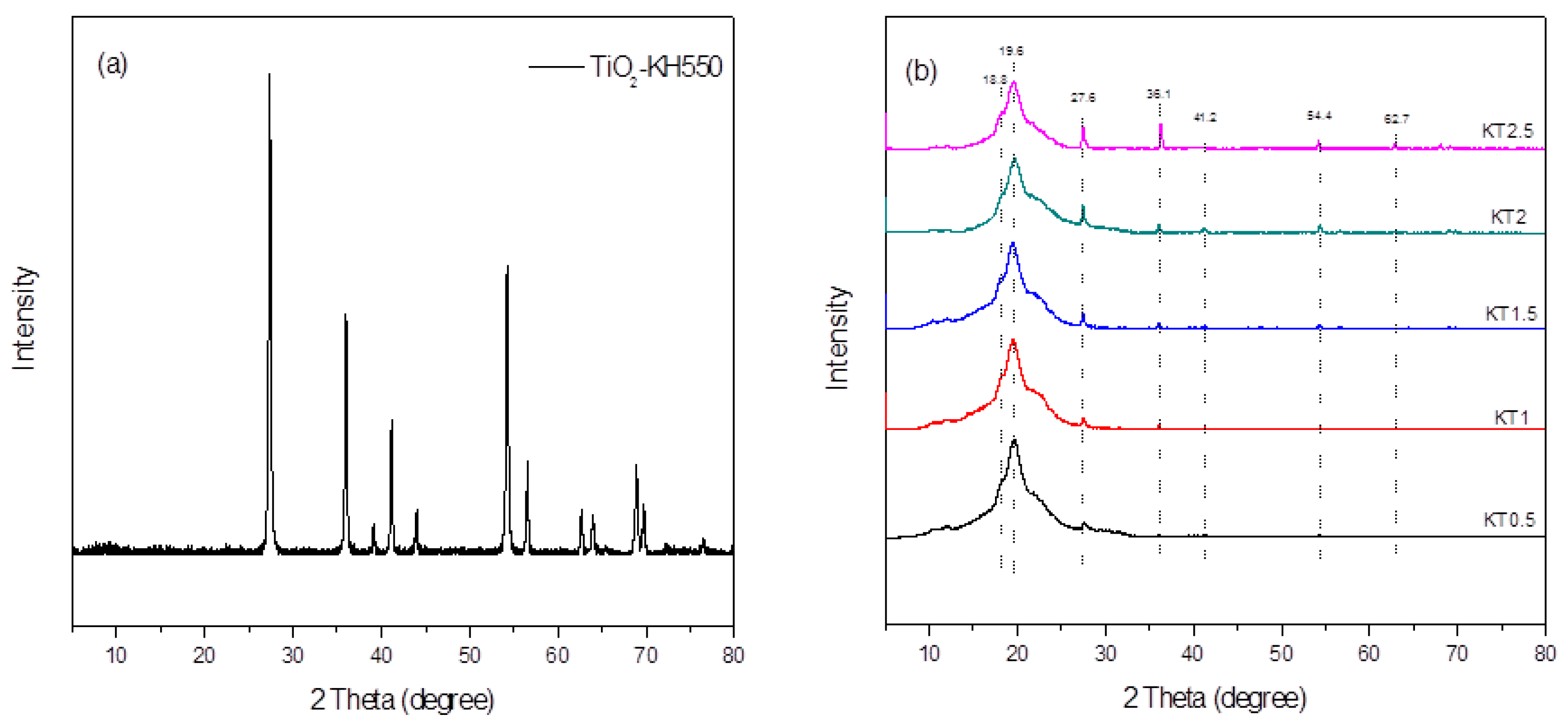

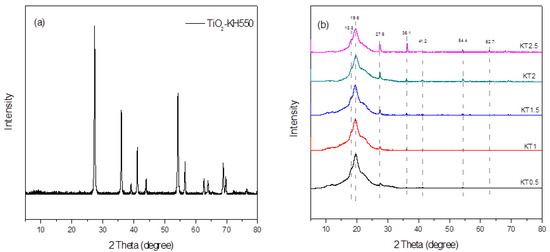

Figure 9. XRD of TiO2-KH550 (a) and the composite films (b).
Figure 9. XRD of TiO2-KH550 (a) and the composite films (b).
Materials 11 01589 g009
Materials 11 01589 g010 550
Figure 10. Cross-sectional SEM images of the composite films (KT0, KT0.5, KT1.5, and KT2.5).
Figure 10. Cross-sectional SEM images of the composite films (KT0, KT0.5, KT1.5, and KT2.5).
Materials 11 01589 g010
Materials 11 01589 g011 550

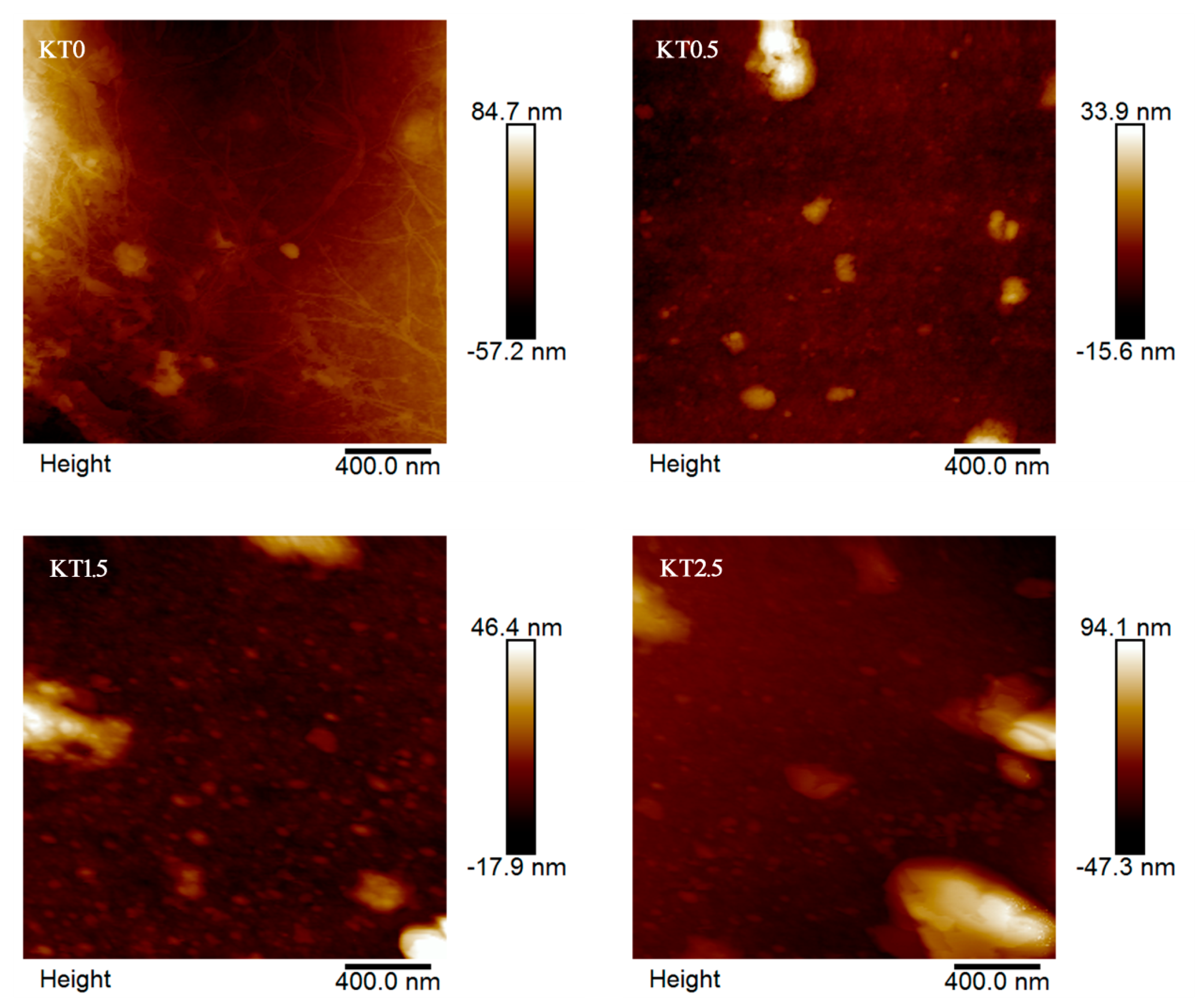

Figure 11. AFM images of the composite films (KT0, KT0.5, KT1.5, and KT2.5).
Figure 11. AFM images of the composite films (KT0, KT0.5, KT1.5, and KT2.5).
Materials 11 01589 g011
Table
Table 1. The water vapor permeability, solubility, and oxygen permeability of the composite films (KT0.5~KT2.5).
Table 1. The water vapor permeability, solubility, and oxygen permeability of the composite films (KT0.5~KT2.5).
SamplesWS (%)WVP (10−11 g·s−1·m−1·Pa−1)OP (cm3·m−2·24 h−1·0.1MPa−1)
KT032.38 ± 2.33.97 ± 0.86.823
KT0.529.93 ± 1.83.25 ± 0.35.372
KT127.72 ± 1.73.57 ± 0.64.092
KT1.528.84 ± 2.32.75 ± 0.34.013
KT229.78 ± 2.13.43 ± 0.56.138
KT2.530.82 ± 2.63.61 ± 0.56.068

Share and Cite

MDPI and ACS Style

Liu, X.; Chen, X.; Ren, J.; Zhang, C. TiO2-KH550 Nanoparticle-Reinforced PVA/xylan Composite Films with Multifunctional Properties. Materials 2018, 11, 1589. https://doi.org/10.3390/ma11091589

AMA Style

Liu X, Chen X, Ren J, Zhang C. TiO2-KH550 Nanoparticle-Reinforced PVA/xylan Composite Films with Multifunctional Properties. Materials. 2018; 11(9):1589. https://doi.org/10.3390/ma11091589

Chicago/Turabian Style

Liu, Xinxin, Xiaofeng Chen, Junli Ren, and Chunhui Zhang. 2018. "TiO2-KH550 Nanoparticle-Reinforced PVA/xylan Composite Films with Multifunctional Properties" Materials 11, no. 9: 1589. https://doi.org/10.3390/ma11091589

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
