ZnO/ZnAl2O4 Nanocomposite with 3D Sphere-Like Hierarchical Structure for Photocatalytic Reduction of Aqueous Cr(VI)

by
Xiaoya Yuan
*,
Xin Cheng
,
Qiuye Jing
,
Jiawei Niu
,
Dong Peng
,
Zijuan Feng
and
Xue Wu
College of Materials Science and Engineering, Chongqing Jiaotong University, Chongqing 400074, China
*
Author to whom correspondence should be addressed.
Materials 2018, 11(9), 1624; https://doi.org/10.3390/ma11091624
Submission received: 30 July 2018 / Revised: 19 August 2018 / Accepted: 3 September 2018 / Published: 5 September 2018
(This article belongs to the Section Catalytic Materials)
Browse Figures
Versions Notes

Abstract

:
Three dimensional (3D) ZnO/ZnAl2O4 nanocomposites (ZnnAl-MMO) were synthesized by a simple urea-assisted hydrothermal process and subsequent high-temperature calcination. The as-prepared samples and their precursors were characterized by X-ray diffraction (XRD), Scanning electron microscopy (SEM), Transmission electron microscopy (TEM), UV-Vis diffuse reflectance spectroscopy (DRS), and Photoluminescence spectra (PL). It was observed that the morphology of ZnnAl-MMO nanocomposites could be tuned from cubic aggregates, hierarchically flower-like spheres to porous microspheres by simply changing the molar ratio of metal cations of the starting reaction mixtures. The photocatalytic performance of ZnO/ZnAl2O4 nanocomposites in the photoreduction of aqueous Cr(VI) indicated that the as-prepared 3D hierarchical sphere-like ZnnAl-MMO nanocomposite showed excellent photocatalytic activity of Cr(VI) reduction under UV light irradiation. The results indicated that the maximum removal percentage of aqueous Cr(VI) was 98% within four hours at 10 mg/L initial concentration of Cr(VI), owing to the effective charge separation and diversion of photogenerated carriers across the heterojunction interface of the composite. Our study put forward a facile method to fabricate hierarchical ZnO/ZnAl2O4 composites with potential applications for wastewater treatment.

1. Introduction

Chromium is common environmental pollutant and it is listed as a priority pollutant by the U.S. Environmental Protection Agency (EPA) [1], which mainly originates from industrial processes, such as leather tanning, metallurgy, electroplating, rubber, and ceramics [2]. Chromium-containing wastewater is currently recognized as one of the most serious environmental hazards, mainly occurring in two common oxidation states of Cr(III) and Cr(VI) in water. The Cr(VI) species are known to be highly toxic and carcinogenic, whose toxicity is one hundred times than that of Cr(III) [3,4]. Therefore, how to dispose of Cr(VI)-containing wastewater prior to its discharge is an important research topic of environmental protection and comprehensive utilization. The removal of Cr(VI) from the aquatic environment has been extensively investigated and it can be achieved by means of many techniques, such as cross flow microfiltration [5], chemical reduction precipitation [6], adsorption [7], ion exchange [8], electrolysis [9], reverse osmosis [10], photocatalysis technology [11], and so on. Among them, photoreduction technology of aqueous Cr(VI) is considered to be a promising method due to its simplicity of operation, high efficiency, and the inexhaustible solar energy.
ZnO as a semiconductor photocatalyst has been widely studied for its advantages, such as high efficiency, non-toxicity, and low cost. Nevertheless, ZnO as a wide band gap (Eg) semiconductor (3.37 eV) sustains an inherent limitation to only utilize UV light about 4% of solar energy for photoexcitation in the photocatalytic process. Adjusting the ZnO band structure to the lower band gap to accommodate light absorption is one of the main strategies. Therefore, the ZnO-based semiconductor composites have attracted tremendous research interests. The nanocomposites composed of N-doped ZnO/g-C3N4 core-shell nanosheets were prepared for the photocatalytic degradation of rhodamine B with visible-light and the results demonstrated that the photocatalytic removal rate of N-doped ZnO/g-C3N4 was more than six times higher than that of pure ZnO and g-C3N4 [12]. Arin et al. [13] used microwave irradiation to prepare ZnO/TiO2 nanocomposites and discussed their photocatalytic degradation of organic dye methylene blue in UV light with very high efficiency.
Moreover, ZnO has a rich nanostructures with differences in shape, size, and arrangement for different properties, including plates, pins, wires, ribbons, rods, balls, and so on [14,15,16,17]. Especially, hierarchical nanostructures have become an attractive class of materials due to their special structure and distinct properties [18,19,20,21]. Three-dimensional (3D) hierarchical structures are assembled from one-dimensional (1D) and two-dimensional (2D) nano-scale building blocks. So far, functional materials in various hierarchical structures can offer more opportunities to explore novel properties and superior device performances [22,23,24]. This structure is usually associated with a loose structure and large surface area, both characteristics of which can provide more active sites, while the hierarchical structure provides advantageous transmission pathways for electrons and holes, respectively, which can result in performances that are superior to congeneric nanomaterials [25,26]. For example, photocatalytic activities can be enhanced in the degradation of organic pollutants by hierarchical structure due to its unique structure [25,27,28].
Zinc aluminate (ZnAl2O4) is also extensively-studied semiconductor and its photocatalytic property has attracted the attention of researchers [29,30]. The ZnO/ZnAl2O4 composite photocatalyst not only has excellent stability, but it also has a much higher photocatalytic activity than a single oxide. Zhang et al. [31] prepared ZnO/ZnAl2O4 composite with hollow microspheres by hydrothermal process and the maximum photocatalytic decoloration rate of methyl orange was 98.7% within 60 min under the photocatalyst concentration of 0.5 g/L. Zhao et al. [32] fabricated a series of ZnO/ZnAl2O4 nanocomposites as plate-like by heated treatment of ZnAl-layered double hydroxide (ZnAl-LDH) precursors with different Zn/Al molar ratios at 800 °C in order to evaluate the photodegradation performance of methyl orange dye under artificial ultraviolet light. According to the survey, there are few studies involving the photocatalytic reduction of aqueous Cr(VI) while using hierarchical-structured ZnO-based photocatalysts are reported.
Herein, we reported a pacific preparation of ZnO/ZnAl2O4 nanocomposites with 3D sphere-like hierarchical structure via urea hydrothermal process and subsequent calcination at 900 °C for 4 h. The morphology of ZnO/ZnAl2O4 nanocomposites was tuned from cubic aggregates, hierarchically flower-like spheres to porous microspheres by simply changing the molar ratio of metal cations of the initial reaction mixtures. The photocatalytic activities of these nanocomposites were further evaluated via the photoreduction of aqueous Cr(VI) under UV light irradiation and it was found that only ZnO/ZnAl2O4 nanocomposites with 3D hierarchical sphere-like structure exhibited perfect photocatalytic activity for Cr(VI) reduction, owing to the effective charge separation and the diversion of photogenerated carriers across the interface of the composite.

2. Experimental Section

2.1. Synthesis of ZnO/ZnAl2O4 Nanocomposite

All the chemicals used in this study were of analytical grade and they could be used without further purification. Deionized (DI) water was used in all experiments.
The ZnnAl precursors were synthesized while using urea hydrothermal method and n value referred to the Zn to Al molar ratio of the starting mixture, which were 5.0, 7.0, and 9.0. A mixture of Zn(NO3)2·6H2O and Al(NO3)3·9H2O in different Zn/Al molar ratios were dissolved in DI water to obtain a solution with a total cationic concentration of 0.04 M, that is, Zn2+ + Al3+ = 0.04 M. While maintaining the molar ratio of (Zn2+ + Al3+)/urea = 1:5, urea was added to the nitrates solution. Then, the clear aqueous solutions were transferred to a 100 mL Teflon-lined reactor and maintained at 150 °C for 24 h. The white precipitates were collected and rinsed three times with DI water until pH = 7 after cooling to room temperature. Finally, the white precipitates were dried in an oven at 80 °C for 12 h. The ZnO/ZnAl2O4 nanocomposites were obtained by calcining the synthesized ZnnAl precursors in air at 900 °C for 4 h and the prepared nanocomposites were denoted as Zn5Al-MMO, Zn7Al-MMO, and Zn9Al-MMO, respectively.

2.2. Characterization

XRD patterns were collected in a PANalytical X’pert Pro powder diffractometer (PANalytical, Almelo, Netherlands) through Cu-Ka radiation (λ = 1.5418 Å) with a scan step of 0.013°. SEM (Hitachi, Tokyo, Chiyoda-ku, Japan) was used to study the morphology of some selected samples through a Hitachi SU8020 scanning electron microscope with acceleration voltage of 20 kV. HRTEM images were obtained by a FEI Tecnai G2 F20 field-emission transmission electron microscopy (FEI Inc., Hillsboro, OR, USA) at an accelerating voltage of 200 kV. Diffuse reflectance spectroscopy (DRS) was performed on a Hitachi U-4100 UV-vis spectrophotometer (Hitachi, Tokyo, Chiyoda-ku, Japan) while using BaSO4 as the reference sample. Room temperature PL measurements were done using a Hitachi F-7000 fluorescence spectrophotometer (Hitachi, Tokyo, Chiyoda-ku, Japan).

2.3. Photocatalytic Performance Tests

The effect of ZnnAl-MMO on the photocatalytic reduction performance of aqueous Cr(VI) was implemented using a 500 W high-pressure Hg lamp (BILON-CHX-V, Shanghai photoreactor, BiLon, Shanghai, China), with a maximum wavelength emission of 365 nm. Stock solution (150 mg/L) of Cr(VI) was prepared by dissolving K2Cr2O7 in distilled water and was diluted to the desired concentration prior to use. In each runs, 200 mg photocatalyst was dispersed in 50 mL of different concentrations of aqueous Cr(VI) solutions. Before irradiation, the mixture solution was magnetically stirred in the dark for 60 min to allow for the adsorption-desorption equilibrium to be established. While keeping magnetic stirring, 4 mL of the reaction product was extracted at regular intervals during the irradiation and the photocatalyst were separated by centrifugation from the solution. Determination of Cr(VI) concentration in the supernatant by UV-1000 spectrophotometer (AOE, Shanghai, China) at 540 nm from 1,5-diphenylcarbazide method [33]. As a comparison, the blank experiment was carried out under UV irradiation to monitor the stability of Cr(VI) and the dark experiments to monitor the physical adsorption capacity of ZnnAl-MMO photocatalyst under the same conditions.

3. Results and Discussion

3.1. Characterization of ZnnAl Precursors and ZnnAl-MMO Nanocomposites

Figure 1 shows the XRD patterns of ZnnAl precursors and ZnnAl-MMO nanocomposites. For ZnnAl precursor, the characteristic reflections at 2θ = 13.4, 24.2, 28.3, 32.7, 54.2, 58.6, and 64.5° were observed, which were attributed to (200), (310), (020), (021), (800), (−622), and (−532) planes of the typical well-crystalized Zn5(CO3)2(OH)6 materials (JCPDS: 19-1458). The remain diffraction peaks donated with “▼” came from Al(OH)3 (JCPDS: 33-0018). The result showed that the precursors mainly consisted of Zn5(CO3)2(OH)6 and Al(OH)3 phases. As shown in Figure 1b, the XRD results indicated that all of the as-prepared powder samples became polycrystalline after the high-temperature calcination of the precursors. The diffraction peaks coincided with the mixed-phases of hexagonal ZnO (JCPDS: 80-0075) matching with standard diffraction data 31.8°(100), 34.4°(002), 36.2°(101), 47.4°(102), 56.5°(110), 62.8°(103), 67.9°(112), and the face-centered cubic spinel-structured ZnAl2O4 (JCPDS: 82-1043) at reflections 31.4°(220), 36.9°(311), 44.8°(400), 49.1°(331), 55.6°(422), and 65.2°(440). Meanwhile, the diffraction reflections of ZnO phase were much sharper and stronger than those of ZnAl2O4, indicating that ZnO phase had high crystallinity and dominance in MMO, which was beneficial to its photocatalytic activity in Cr(VI) photoreduction.
The morphologies of the as-prepared ZnnAl-MMO nanocomposite were investigated by SEM. As shown in Figure 2a,b, Zn5Al-MMO displayed irregular flake-morphology and many cubic aggregates made up of irregular crystallites were visible on their surfaces. Figure 2c presents that these irregular amorphous nanoplates had a relatively rough surface and many pores were also detected, resulting from the release of CO2 during the calcination of Zn5(CO3)2(OH)6 at high temperature. From SEM images of Figure 2d–f, the sample Zn7Al-MMO was found to be consisted of many 3D flower-like spheres with a diameter of around 3–23 μm. These uneven assemblies were composed of dozens of closely impacted irregular nanoplatelets with thickness below 250 nm (Figure 2f). Notably, plenty of nano-scale pores between the oriented inter-connected platelets were also obviously observed, which contributed to provide more pollutant adsorption sites and harvest the solar light. The Zn9Al-MMO sample was prepared under the identical reaction conditions except with higher Zn2+ to Al3+ molar ratio in the starting nitrate mixture. In this case, more monodispersable porous assemblies (Figure 2g) and hierarchically 3D flower-like spheres morphology (Figure 2h) were observed. The diameter of porous microspheres was in the range of 7–14 μm. When compared to that of the Zn7Al-MMO sample, Zn9Al-MMO appeared smaller in diameter and the oriented nanosheets in the microspheres were thicker. Moreover, the assembled-structure of Zn7Al-MMO was much looser than that of Zn9Al-MMO. Thus Zn7Al-MMO was expected to provide more catalytic sites on the surface than Zn9Al-MMO. The SEM results revealed that the morphologies of the prepared ZnnAl-MMO nanocomposites, from cubic aggregates, porous microspheres to hierarchically 3D flower-like spheres, highly relied on the molar ratio of Zn/Al metallic cations of the starting materials. Huo reported that hierarchical ZnO/ZnAl2O4 composite that was synthesized by calcining ZnAl-LDH at 800 °C revealed outstanding photocatalytic activity in degrading methylene blue to bare ZnO phase and they ascribed the hierarchical nanostructure and high specific surface areas of ZnO/ZnAl2O4 composite to the superior photocatalytic performance [34]. It is reasonable to conclude that the hierarchically 3D sphere-like structure of ZnnAl-MMO could be beneficial to photocatalysis based on our high Cr(VI) photoredution activity (see Section 3.2 below).
More details about structural information of the oriented-nanosheets composing ZnnAl-MMO were provided by HRTEM studies (Figure 3). From Figure 3a, some hexagonal nanoplatelets and irregular nanosquares were detected, which was assigned to hexagonal ZnO and cubic ZnAl2O4 with lateral dimensions of 30–100 nm, respectively. Enlarged HRTEM images of Figure 3b revealed that oriented nanoplatelets was highly crystallized, showing two types of lattice fringes. The lattice fringes with an equal spacing of 0.28 nm matched well with the (100) planes of pure wurtzite ZnO phase [35] and 0.24 nm corresponded to the (311) facets of ZnAl2O4 crystal [36], further confirming that the oriented-nanosheets of Zn5Al-MMO aggregates consisted of ZnO and ZnAl2O4 crystal phases. This result was in line with the XRD analysis that is presented in Figure 1. From HREM images of Zn7Al-MMO and Zn9Al-MMO composites, either ZnO or ZnAl2O4 as the building blocks of the nanoplatelets in hierarchically 3D flower-like microspheres were not easily detected (Figure 3c,e), suggesting that strong interaction existed between the inter-connected nanoplatelets because microwave was employed for the HRTEM examination. Two lattice fringes were also observed as those for Zn5Al-MMO, indicating high crystallinity in all of the samples (Figure 3d,f). Additionally, the interface between ZnO and ZnAl2O4 phases in all MMO nanoflakes was easily observed from Figure 3b,d,f, which was formed by the sintering effect of ZnAl2O4 nanoparticles grown on the continuous ZnO phase [32]. Similar heterojunction has been found in lots of semiconductor-based photocatalyst composites [37], and is known to preferably promote photo-generated carriers separation in photocatalytic process [38,39,40].
Figure 4a shows DRS spectra of ZnnAl-MMO composites with different Zn to Al molar ratio. The spectra revealed that there was strong absorption between 200–400 nm (ultraviolet region), while 400–800 nm (visible area) has almost no absorption for these three samples. As Zn2+ to Al3+ molar ratio increased, MMO appeared slightly blue-shifted adsorption edge and the absorption intensity was observed to increased and then decreased. Zn7Al-MMO nanocomposite has the highest adsorption intensity among all the three samples, which could be ascribed to the 3D sphere-like hierarchical and loose structure.
Figure 4b calculated the band gap energy (Eg) by the DRS spectra. The Eg were determined by plotting graphs of (Khν)1/2 versus (hv), with the help of reflectance spectra. The extrapolation of linear region of this plot to (Khν)1/2 = 0 is the direct band gap value. The results showed that the Eg value for the Zn5Al-MMO, Zn7Al-MMO, and Zn9Al-MMO were, respectively, found to be 2.85, 2.89, and 2.87 eV, which was lower than that for pure ZnO (3.37 eV) [41]. The narrowed band gap made it possible to effectively utilize UV light energy and it was expected to improve photocatalytic activity of ZnnAl-MMO photocatalyst.
The PL spectra of ZnnAl-MMO nanocomposites synthesized with different Zn to Al molar ratios are shown in Figure 5. A strong emission peak was observed for all samples at ca. 550 nm and the intensity of the emission peak followed the order: Zn5Al-MMO > Zn9Al-MMO > Zn7Al-MMO. The PL intensity represents the recombination rate of photogenerated electrons-hole pairs. It has been established that the recombination rate of photogenerated electrons-hole pairs is lower and the photogenerated charge carriers have a prolonged lifetime as the PL intensity decreases, which is beneficial to photocatalytic performance [42]. So, it is reasonable to deduce that photocatalytic Cr(VI) reduction activity followed the order: Zn7Al-MMO > Zn9Al-MMO > Zn5Al-MMO.

3.2. Photoreduction of Aqueous Cr(VI) under UV Light

The photocatalytic activities of ZnnAl-MMO nanocomposites were evaluated by the photocatalytic reduction of aqueous Cr(VI) under UV light irradiation. From Figure 6a, when the initial Cr(VI) concentration was 10 mg/L, the aqueous Cr(VI) solution was very stable under UV light in the blank experiment. In the dark adsorption experiments, the removal percentage was 23.3%, 18.5%, and 22.8% within 4 h for Zn5Al-MMO, Zn7Al-MMO, and Zn9Al-MMO, respectively, and the removal ratio value was almost unchanged for these three samples, indicating that the adsorption performance was independent on Zn2+ to Al3+ molar ratio of the original starting composition. Upon UV light irradiation, the Cr(VI) removal percentage was greatly enhanced within the same time intervals using ZnnAl-MMO samples as the photocatalyst. Zn5Al-MMO, Zn7Al-MMO and Zn9Al-MMO photocatalysts exhibited 90.3%, 98%, and 97.6% removal activity for aqueous Cr(VI), indicating that the Cr(VI) removal was predominated by the photocatalytic reduction process and the removal activity of the photocatalysts followed the order: Zn7Al-MMO > Zn9Al-MMO > Zn5Al-MMO. A pseudo first-order linear relationship was further analyzed by the plots of −ln(C/C0) = kt for ZnnAl-MMO, where k was the rate constant (h−1) and t was the irradiation time (h). The determined reaction-rate constants k were 0.69166, 1.26331, and 1.14101 h−1 for Zn5Al-MMO, Zn7Al-MMO, and Zn9Al-MMO, respectively. There was a slight difference of the reaction rates in this photocatalytic system but they were much higher than previous report [41]. During the photocatalytic progresses, the solution color from bright yellow to greenish obviously manifested the reduction of Cr(VI) to Cr(III) [41]. As mentioned in the XRD, ZnnAl-MMO nanocomposites were composed of ZnO and ZnAl2O4 phases, where there was a heterojunction between the interface of the composite. Higher content of Zn element of the starting materials meant more content of ZnO phase in the composites, leading to excessive amount of ZnO, which could not form heterojunction with the ZnAl2O4 counterparts. This phenomenon implied the significance of the heterojunction between ZnO and ZnAl2O4 phases of ZnnAl-MMO nanocomposites toward photoreduction of aqueous Cr(VI). Moreover, our hierarchically flower-like ZnO/ZnAl2O4 composite is a three-dimensional micro- and nanometer assembly with highly porous structure and high specific surface area. Usually, hierarchical architecture contributes to the generation and migration of photo-carrier and provides more sites for pollutant and incident light adsorption. In combination with the structure analysis, it is easy to understand that Zn7Al-MMO with loosely 3D flower-like hierarchical structure exhibited higher photocatalytical activity toward the reduction of aqueous Cr(VI).
Figure 6b shows the effect of initial Cr(VI) concentration on the photocatalytic activity of Zn7Al-MMO photocatalysts. When initial Cr(VI) concentrations were 10 and 30 mg/L, the photocatalytic removal percentage of aqueous Cr(VI) was almost 98% and 63% in three hours of irradiation time, respectively. Increasing the initial Cr(VI) concentration enhanced the amount of Cr(VI) adsorbed on the surface of the catalyst while the photoelectron-hole pairs generated by the photo-excited catalyst didn’t increase due to the unchanged amount of catalyst, so the effective Cr(VI) concentration reduced was relatively decreased. Moreover, increased absorption of UV by the solution occurred since higher Cr(VI) solution could absorb more light in the UV-Vis range, leading to low light absorption of the photocatalyst. Additionally, with the increasing concentration of aqueous Cr(VI), the color of the solution became darker, which was not conducive to the absorption of UV light photons by the catalyst, thus reducing the efficiency of photoreduction of aqueous Cr(VI) [43]. While considering that the Cr(VI) concentration commonly used in the ZnO or TiO2-based photoreduction experiments tended to be low [44,45,46], the photoreduction activity while using as-prepared Zn7Al-MMO photocatalyst was actually quite fast.
The effect of differently initial pH on the photoreduction of Cr(VI) while using Zn7Al-MMO photocatalyst was evaluated with the Cr(VI) concentration of 30 mg/L. The pH of solution is one of the most important influence factors in the photocatalytic process. From Figure 7a, the photoreduction removal percentage of Cr(VI) was increased from 63 to 100% within 3 h’s irradiation with cutting down the initial pH values from 6.01 (the pH of the original solution) to 2, whereas the removal percentage of Cr(VI) was only 79%, 43%, and 24% at pH = 4, 8, and 10 under the same conditions, respectively. The results that the solution in acidic conditions has higher photoreduction efficiency for Cr(VI) than in alkaline conditions was in agreement with the report [47]. In an acidic solution, the surface of the photocatalyst may be highly protonated, resulting in a strong electrostatic attraction to the main species of chromium anions, HCrO4− or Cr2O72−, in a low pH solution [48]. At low pH, the reduction potential of the couple Cr6+/Cr3+ becomes more positive. Additionally, Cr(OH)3 is deposited on the surface of the photocatalyst at high pH to inhibit the reduction of Cr(VI) [49]. Meanwhile, Zn7Al-MMO exhibits different zeta potentials in different pH solutions (Figure 7c). The pH is especially crucial because it affects the surface charge of the adsorbents [50]. From Figure 7c, as the pH of the solution gradually increased from 2 to 10, the surface charge of Zn7Al-MMO decreased, from +39.73 to −22.3. At low pH solution, the surface of photocatalyst was positively charged, attracting HCrO4− and Cr2O72− plasmas, thus promoting the Cr(VI) reduction. Conversely, in high pH solution, the surface of photocatalyst was much negatively charged, repelling chromium ions in the form of CrO42−, thus depressing the reduction rate of Cr(VI).
The re-use of catalysts is very important for practical application. However, according to investigations, there is no research on the long term stability of ZnO/ZnAl2O4 for Cr(VI) photoreduction [34]. Repetitive reduction of Cr(VI) by Zn7Al-MMO nanocomposite under UV light irradiation was conducted to study their long-term stability and the results are shown in Figure 7b. In this experiment, we used an initial Cr(VI) concentration of 10 mg/L. After each cycle, the photocatalyst was separated from the solution by centrifugation and then rinsed with distilled water for next runs. From Figure 7b, it can be observed that the removal percentage of Cr(VI) still reached 90% and the loss of efficiency was only 5% after fourth cycle, which could be ascribed to the loss of catalyst during centrifugation after each cycle. These results suggested that the 3D sphere-like hierarchical ZnO/ZnAl2O4 nanocomposite exhibited long-standing high photoreduction activity in recycles, and thus it could have potential application prospects in the water environmental restoration.
Figure 8 shows the synergistic mechanism between ZnO and ZnAl2O4 phases in high temperature calcined product ZnnAl-MMO for photoreduction of Cr(VI). The ZnO phase and the ZnAl2O4 phase absorb photon energy under UV light irradiation. The valence band (VB) electron is excited to transition to the conduction band (CB) while leaving holes in VB to form photogenerated electron-hole pairs. The VB and CB potential of ZnO are +2.89 eV and −0.31 eV and those of ZnAl2O4 are +2.66 eV and −1.14 eV, respectively. Due to the CB potential of ZnAl2O4 being lower than that of ZnO, the electron at the bottom of CB of ZnAl2O4 is transferred to the surface of ZnO. While the VB potential of ZnO is higher than that of ZnAl2O4, the hole at the top of VB of ZnO is migrated to ZnAl2O4. The well-formed band structure between ZnO and ZnAl2O4 phases facilitates the migration of photogenerated carriers, thereby effectively suppressing the recombination of photogenerated electrons and holes. Since the CB potential of ZnO is more negative than the Cr(VI) standard potential of Eθ(Cr2O72−/Cr3+) = +1.33 V, photogenerated electrons reduce Cr6+ to Cr3+ (Equation (1)). Meanwhile, due to the more positive VB position of ZnAl2O4 than the oxidation potential of Eθ(H2O/O2) = +1.23 V, the holes oxidize H2O to form O2 (Equation (2)). The consumption of the holes greatly reduces the rate of recombination of photogenerated carriers, enhancing the photocatalytic activity of ZnAl-MMO nanocomposite towards Cr(VI) reduction.
Cr2O72− + 14H+ + 6e → 2Cr3+ + 7H2O
2H2O + 4h+ → O2 + 4H+

4. Conclusions

In conclusion, hierarchical ZnO/ZnAl2O4 composites with 3D sphere-like nanostructures synthesized through a simple hydrothermal process and subsequent high-temperature calcination. The molar ratio of the Zn/Al metallic cations in the starting mixture played a key role in the morphological transformation of the resulting products from cubic aggregates, hierarchically flower-like spheres to porous microspheres and all the building blocks of the composites exhibited a heterojunction nanostructure between ZnO and ZnAl2O4 phases. ZnO/ZnAl2O4 composite showed outstanding photocatalytic activity towards aqueous Cr(VI) reduction under UV light irradiation. The excellent photoreduction performance of the ZnO/ZnAl2O4 nanocomposite was attributed to 3D sphere-like hierarchical structure and well-formed heterojunctions within the nanocomposite.

Author Contributions

Conceptualization, X.Y. and X.C.; Methodology, X.Y.; Software, X.C.; Validation, X.Y.; Formal Analysis, X.C. and Q.J.; Investigation, J.N. and D.P.; Resources, X.Y.; Data Curation, X.C. and Z.F.; Writing-Original Draft Preparation, X.C.; Writing-Review & Editing, X.Y., X.C. and X.W.; Funding Acquisition, X.Y.

Funding

The National Natural Science Foundation of China (No. 51402030); The Natural Science Foundation Project of CQ CSTC (cstc2017jcyjB0028).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Andreozzi, R.; Somma, I.D.; Marotta, R.; Pinto, G.; Pollio, A.; Spasiano, D. Oxidation of 2,4-dichlorophenol and 3,4-dichlorophenol by means of Fe(III)-homogeneous photocatalysis and algal toxicity assessment of the treated solutions. Water Res. 2011, 45, 2038–2048. [Google Scholar] [CrossRef] [PubMed]
  2. Gupta, V.K.; Agarwal, S.; Saleh, T.A. Chromium removal by combining the magnetic properties of iron oxide with adsorption properties of carbon nanotubes. Water Res. 2011, 45, 2207–2212. [Google Scholar] [CrossRef] [PubMed]
  3. Benoit, D.A. Toxic effects of hexavalent chromium on brook trout (salvelinus fontinalis) and rainbow trout (salmo gairdneri). Water Res. 1976, 10, 497–500. [Google Scholar] [CrossRef]
  4. Rengaraj, S.; Yeon, K.H.; Moon, S.H. Removal of chromium from water and wastewater by ion exchange resins. J. Hazard. Mater. 2001, 87, 273–287. [Google Scholar] [CrossRef]
  5. Danis, U. Chromate removal from water using red mud and crossflow microfiltration. Desalination 2005, 181, 135–143. [Google Scholar] [CrossRef]
  6. Chang, L.Y. Alternative chromium reduction and heavy metal precipitation methods for industrial wastewater. Environ. Prog. 2004, 22, 174–182. [Google Scholar] [CrossRef]
  7. Nakajima, A.; Baba, Y. Mechanism of hexavalent chromium adsorption by persimmon tannin gel. Water Res. 2004, 38, 2859–2864. [Google Scholar] [CrossRef] [PubMed]
  8. Dabrowski, A.; Hubicki, Z.; Podkościelnya, P.; Robens, E. Selective removal of the heavy metal ions from waters and industrial wastewaters by ion-exchange method. Chemosphere 2004, 56, 91–106. [Google Scholar] [CrossRef] [PubMed]
  9. Rana, P.; Mohan, N.; Rajagopal, C. Electrochemical removal of chromium from wastewater by using carbon aerogel electrodes. Water Res. 2004, 38, 2811–2820. [Google Scholar] [CrossRef] [PubMed]
  10. Das, C.; Patel, P.; De, S.; DasGupta, S. Treatment of tanning effluent using nanofiltration followed by reverse osmosis. Sep. Purif. Technol. 2006, 50, 291–299. [Google Scholar] [CrossRef]
  11. Chenthamarakshan, C.R.; Rajeshwar, K.; Wolfrum, E.J. Heterogeneous photocatalytic reduction of Cr(VI) in UV-irradiated titania suspensions: Effect of protons, ammonium ions, and other interfacial aspects. Langmuir 2000, 16, 2715–2721. [Google Scholar] [CrossRef]
  12. Kumar, S.; Baruah, A.; Tonda, S.; Kumar, B.; Shanker, V.; Sreedhar, B. Cost-effective and eco-friendly synthesis of novel and stable N-doped ZnO/g-C3N4 core-shell nanoplates with excellent visible-light responsive photocatalysis. Nanoscale 2014, 6, 4830–4842. [Google Scholar] [CrossRef] [PubMed]
  13. Arin, J.; Thongtem, S.; Thongtem, T. Single-step synthesis of ZnO/TiO2 nanocomposites by microwave radiation and their photocatalytic activities. Mater. Lett. 2013, 96, 78–81. [Google Scholar] [CrossRef]
  14. Das, S.N.; Choi, J.H.; Kar, J.P.; Myoung, J.M. Tunable and reversible surface wettability transition of vertically aligned ZnO nanorod arrays. Appl. Surf. Sci. 2009, 255, 7319–7322. [Google Scholar] [CrossRef]
  15. Shaik, U.P.; Kshirsagar, S.; Krishna, M.G.; Tewari, S.P.; Dhar Purkayastha, D.; Madhurima, V. Growth of superhydrophobic zinc oxide nanowire thin films. Mater. Lett. 2012, 75, 51–53. [Google Scholar] [CrossRef]
  16. Kwak, G.; Seol, M.; Tak, Y.; Yong, K. Superhydrophobic ZnO nanowire surface: Chemical modification and effects of UV irradiation. J. Phys. Chem. C 2009, 113, 12085–12089. [Google Scholar] [CrossRef]
  17. Karuppiah, C.; Palanisamy, S.; Chen, S.M.; Veeramani, V.; Periakaruppan, P. Direct electrochemistry of glucose oxidase and sensing glucose using a screen-printed carbon electrode modified with graphite nanosheets and zinc oxide nanoparticles. Microchim. Acta 2014, 181, 1843–1850. [Google Scholar] [CrossRef]
  18. Li, Y.; Sasaki, T.; Shimizu, Y.; Koshizaki, N. A hierarchically ordered TiO2 hemispherical particle array with hexagonal-non-close-packed tops: Synthesis and stable superhydrophilicity without UV irradiation. Small 2008, 4, 2286–2291. [Google Scholar] [CrossRef] [PubMed]
  19. Li, Y.; Li, C.; Cho, S.O.; Duan, G.; Cai, W. Silver hierarchical bowl-like array: Synthesis, superhydrophobicity, and optical properties. Langmuir 2007, 23, 9802–9807. [Google Scholar] [CrossRef] [PubMed]
  20. Palanisamy, S.; Chen, S.M.; Sarawathi, R. A novel nonenzymatic hydrogen peroxide sensor based on reduced graphene oxide/ZnO composite modified electrode. Sens. Actuators B Chem. 2012, 166–167, 372–377. [Google Scholar] [CrossRef]
  21. Palanisamy, S.; Vilian, A.T.E.; Chen, S.M. Direct electrochemistry of glucose oxidase at reduced graphene oxide/zinc oxide composite modified electrode for glucose sensor. Int. J. Electrochem. Sci. 2012, 7, 2153–2163. [Google Scholar]
  22. Li, J.; Fan, H.; Jia, X. Multilayered ZnO nanosheets with 3D porous architectures: Synthesis and gas sensing application. J. Phys. Chem. C 2010, 114, 14684–14691. [Google Scholar] [CrossRef]
  23. Wang, W.W.; Zhu, Y.J.; Yang, L.X. ZnO-SnO2 hollow spheres and hierarchical nanosheets: Hydrothermal preparation, formation mechanism, and photocatalytic properties. Adv. Funct. Mater. 2006, 17, 59–64. [Google Scholar] [CrossRef]
  24. Liu, B.; Zeng, H.C. Fabrication of ZnO “dandelions” via a modified kirkendall process. J. Am. Chem. Soc. 2004, 126, 16744–16746. [Google Scholar] [CrossRef] [PubMed]
  25. Xu, L.; Li, Z.; Cai, Q.; Wang, H.; Gao, H.; Lv, W.; Liu, J. Precursor template synthesis of three-dimensional mesoporous ZnO hierarchical structures and their photocatalytic properties. CrystEngComm 2010, 12, 2166–2172. [Google Scholar] [CrossRef]
  26. Lu, H.; Wang, S.; Zhao, L.; Li, J.; Dong, B.; Xu, Z. Hierarchical ZnO microarchitectures assembled by ultrathin nanosheets: Hydrothermal synthesis and enhanced photocatalytic activity. J. Mater. Chem. 2011, 21, 4228–4234. [Google Scholar] [CrossRef]
  27. Li, Y.; Sasaki, T.; Shimizu, Y.; Koshizaki, N. Hexagonal-close-packed, hierarchical amorphous TiO2 nanocolumn arrays: Transferability, enhanced photocatalytic activity, and superamphiphilicity without uv irradiation. J. Am. Chem. Soc. 2008, 130, 14755–14762. [Google Scholar] [CrossRef] [PubMed]
  28. Lu, W.; Gao, S.; Wang, J. One-pot synthesis of Ag/ZnO self-assembled 3D hollow microspheres with enhanced photocatalytic performance. J. Phys. Chem. C 2008, 112, 16792–16800. [Google Scholar] [CrossRef]
  29. Dixit, H.; Tandon, N.; Cottenier, S.; Saniz, R.; Lamoen, D.; Partoens, B.; Speybroeck, V.V.; Waroquier, M. Electronic structure and band gap of zinc spinel oxides beyond LDA: ZnAl2O4, ZnGa2O4 and ZnIn2O4. New J. Phys. 2011, 13, 063002. [Google Scholar] [CrossRef]
  30. Yan, J.H.; Chen, H.; Zhang, L.; Jiang, J.Z. Inactivation of Escherichia coil on immobilized CuO/CoFe2O4-TiO2 thin-film under simulated sunlight irradiation. Chin. J. Chem. 2011, 29, 1133–1138. [Google Scholar] [CrossRef]
  31. Zhang, L.; Yan, J.; Zhou, M.; Yang, Y.; Liu, Y.N. Fabrication and photocatalytic properties of spheres-in-spheres ZnO/ZnAl2O4 composite hollow microspheres. Appl. Surf. Sci. 2013, 268, 237–245. [Google Scholar] [CrossRef]
  32. Zhao, X.; Wang, L.; Xu, X.; Lei, X.; Xu, S.; Zhang, F. Fabrication and photocatalytic properties of novel ZnO/ZnAl2O4 nanocomposite with ZnAl2O4 dispersed inside zno network. AIChE J. 2011, 58, 573–582. [Google Scholar] [CrossRef]
  33. Carriazo, D.; Arco, M.D.; García-López, E.; Marcì, G.; Martín, C.; Palmisano, L.; Rives, V. Zn, Al hydrotalcites calcined at different temperatures: Preparation, characterization and photocatalytic activity in gas-solid regime. J. Mol. Catal. A Chem. 2011, 342, 83–90. [Google Scholar] [CrossRef]
  34. Huo, R.; Kuang, Y.; Zhao, Z.; Zhang, F.; Xu, S. Enhanced photocatalytic performances of hierarchical ZnO/ZnAl2O4 microsphere derived from layered double hydroxide precursor spray-dried microsphere. J. Colloid Interface Sci. 2013, 407, 17–21. [Google Scholar] [CrossRef] [PubMed]
  35. Aznan, N.A.K.; Johan, M.R. Quantum size effect in ZnO nanoparticles via mechanical milling. J. Nanomater. 2012, 2012, 490–494. [Google Scholar] [CrossRef]
  36. Cho, S.; Lee, K.H. Formation of zinc aluminum mixed metal oxide nanostructures. J. Alloys Compd. 2011, 509, 8770–8778. [Google Scholar] [CrossRef]
  37. Rehman, S.; Ullah, R.; Butt, A.M.; Gohar, N.D. Strategies of making TiO2 and ZnO visible light active. J. Hazard. Mater. 2009, 170, 560–569. [Google Scholar] [CrossRef] [PubMed]
  38. Hao, Y.; Zhang, L.; Zhang, Y.; Zhao, L.; Zhang, B. Synthesis of pearl necklace-like ZnO-ZnWO4 heterojunctions with enhanced photocatalytic degradation of Rhodamine B. RSC Adv. 2017, 7, 26179–26184. [Google Scholar] [CrossRef]
  39. Niu, M.; Huang, F.; Cui, L.; Huang, P.; Yu, Y.; Wang, Y. Hydrothermal synthesis, structural characteristics, and enhanced photocatalysis of SnO2/a-Fe2O3 semiconductor nanoheterostructures. ACS Nano 2010, 4, 681–688. [Google Scholar] [CrossRef] [PubMed]
  40. Tak, Y.; Kim, H.; Lee, D.; Yong, K. Type-II CdS nanoparticle-ZnO nanowire heterostructure arrays fabricated by a solution process: Enhanced photocatalytic activity. Chem. Commun. 2008, 4585–4587. [Google Scholar] [CrossRef] [PubMed]
  41. Yuan, X.; Jing, Q.; Chen, J.; Li, L. Photocatalytic Cr(VI) reduction by mixed metal oxide derived from ZnAl layered double hydroxide. Appl. Clay Sci. 2017, 143, 168–174. [Google Scholar] [CrossRef]
  42. Yuan, X.; Zhou, C.; Jin, Y.; Jing, Q.; Yang, Y.; Shen, X.; Tang, Q.; Mu, Y.; Du, A.-K. Facile synthesis of 3D porous thermally exfoliated g-C3N4 nanosheet with enhanced photocatalytic degradation of organic dye. J. Colloid Interface Sci. 2016, 468, 211–219. [Google Scholar] [CrossRef] [PubMed]
  43. Wang, Q.; Shang, J.; Song, H. Factors influencing the photoelectrocatalytic reduction of Cr(VI) over TiO2 nanotube arrays. Chin. J. Catal. 2011, 32, 1525–1530. [Google Scholar] [CrossRef]
  44. Alanis, C.; Natividad, R.; Barrera-Diaz, C.; Martínez-Miranda, V.N.; Prince, J.; Valente, J.S. Photocatalytically enhanced Cr(VI) removal by mixed oxides derived from MeAl (Me: Mg and/or Zn) layered double hydroxides. Appl. Catal. B Environ. 2013, 140–141, 546–551. [Google Scholar] [CrossRef]
  45. Jin, Z.; Zhang, Y.X.; Meng, F.L.; Jia, Y.; Luo, T.; Yu, X.Y.; Wang, J.; Liu, J.H.; Huang, X.J. Facile synthesis of porous single crystalline ZnO nanoplates and their application in photocatalytic reduction of Cr(VI) in the presence of phenol. J. Hazard. Mater. 2014, 276, 400–407. [Google Scholar] [CrossRef] [PubMed]
  46. Yang, Z.; Wang, B.; Zhang, J.; Cui, H.; Pan, Y.; An, H.; Zhai, J. Factors influencing the photocatalytic activity of rutile TiO2 nanorods with different aspect ratios for dye degradation and Cr(VI) photoreduction. Phys. Chem. Chem. Phys. 2015, 17, 18670–18676. [Google Scholar] [CrossRef] [PubMed]
  47. Shirzad-Siboni, M.; Farrokhi, M.; Darvishi Cheshmeh Soltani, R.; Khataee, A.; Tajassosi, S. Photocatalytic reduction of hexavalent chromium over ZnO nanorods immobilized on kaolin. Ind. Eng. Chem. Res. 2014, 53, 1079–1087. [Google Scholar] [CrossRef]
  48. Nanda, B.; Pradhan, A.C.; Parida, K.M. Fabrication of mesoporous CuO/ZrO2-MCM-41 nanocomposites for photocatalytic reduction of Cr(VI). Chem. Eng. J. 2017, 316, 1122–1135. [Google Scholar] [CrossRef]
  49. Wang, Y.; Jiang, L.; Feng, C. Photocatalytic reduction of Cr(VI). Prog. Chem. 2013, 25, 1999–2010. [Google Scholar]
  50. Chen, F.; Zhao, E.; Kim, T.; Wang, J.; Hableel, G.; Reardon, P.J.T.; Ananthakrishna, S.J.; Wang, T.; Arconada-Alvarez, S.; Knowles, J.C.; et al. Organosilica nanoparticles with an intrinsic secondary amine: An efficient and reusable adsorbent for dyes. ACS Appl. Mater. Interfaces 2017, 9, 15566–15576. [Google Scholar] [CrossRef] [PubMed]
Materials 11 01624 g001 550

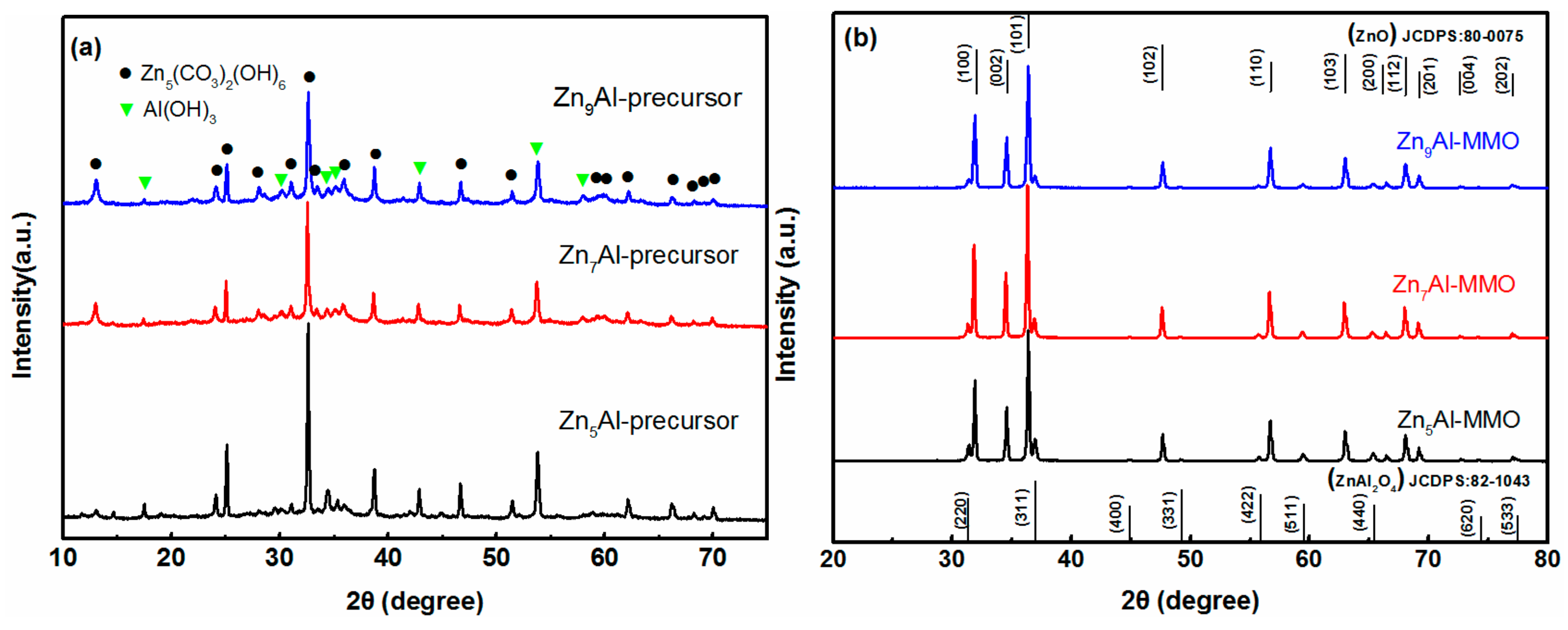

Figure 1. XRD patterns of (a) ZnnAl precursor and (b) Zinc aluminate nanocomposites (ZnnAl-MMO) with different Zn/Al molar ratio.
Figure 1. XRD patterns of (a) ZnnAl precursor and (b) Zinc aluminate nanocomposites (ZnnAl-MMO) with different Zn/Al molar ratio.
Materials 11 01624 g001
Materials 11 01624 g002 550
Figure 2. SEM images for (a–c) Zn5Al-MMO, (d–f) Zn7Al-MMO, and (g–i) Zn9Al-MMO.
Figure 2. SEM images for (a–c) Zn5Al-MMO, (d–f) Zn7Al-MMO, and (g–i) Zn9Al-MMO.
Materials 11 01624 g002
Materials 11 01624 g003 550
Figure 3. HRTEM images of (a,b) Zn5Al-MMO, (c,d) Zn7Al-MMO, and (e,f) Zn9Al-MMO.
Figure 3. HRTEM images of (a,b) Zn5Al-MMO, (c,d) Zn7Al-MMO, and (e,f) Zn9Al-MMO.
Materials 11 01624 g003
Materials 11 01624 g004 550

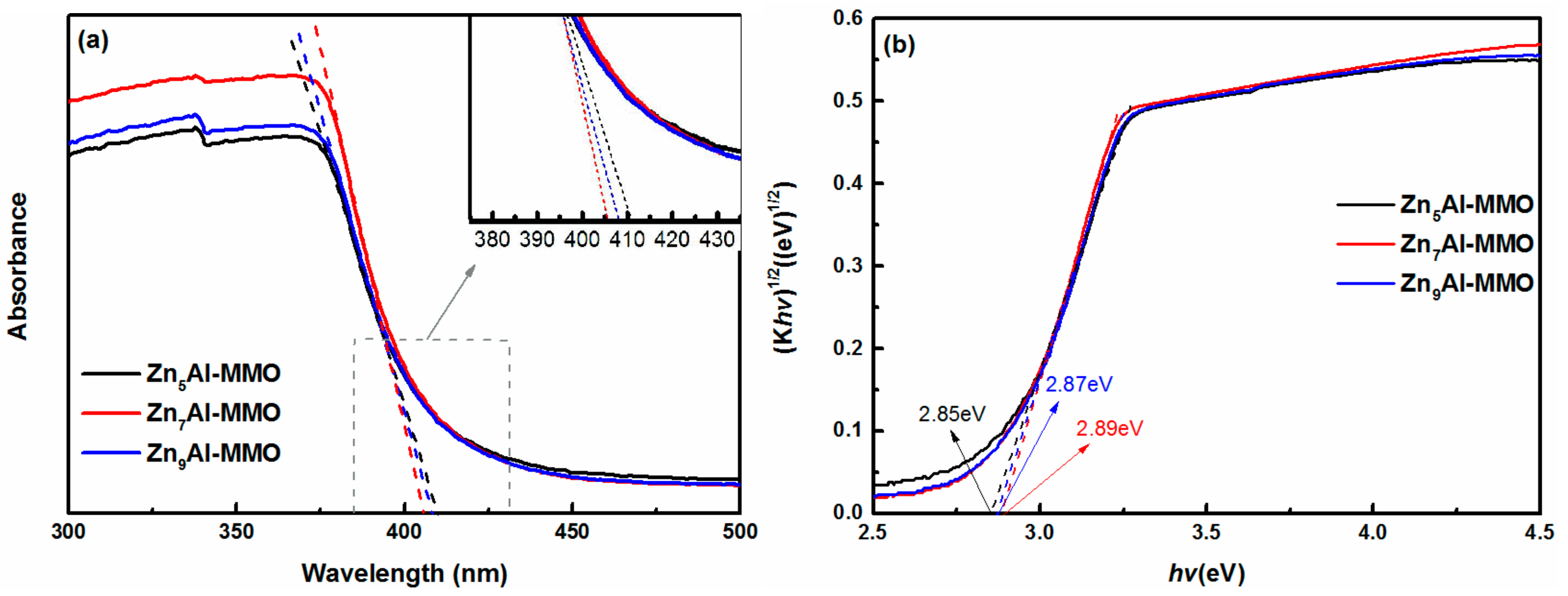

Figure 4. (a) Diffuse reflectance spectroscopy (DRS) spectra and (b) plots of (khv)1/2 versus hv of ZnnAl-MMO composites with different Zn/Al molar ratios.
Figure 4. (a) Diffuse reflectance spectroscopy (DRS) spectra and (b) plots of (khv)1/2 versus hv of ZnnAl-MMO composites with different Zn/Al molar ratios.
Materials 11 01624 g004
Materials 11 01624 g005 550

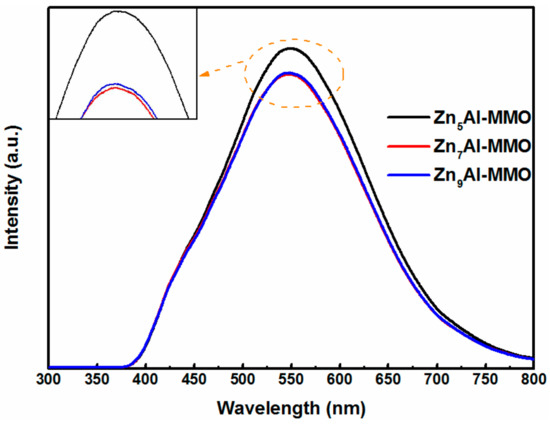

Figure 5. The PL spectra of ZnnAl-MMO composites with different Zn/Al molar ratios.
Figure 5. The PL spectra of ZnnAl-MMO composites with different Zn/Al molar ratios.
Materials 11 01624 g005
Materials 11 01624 g006 550

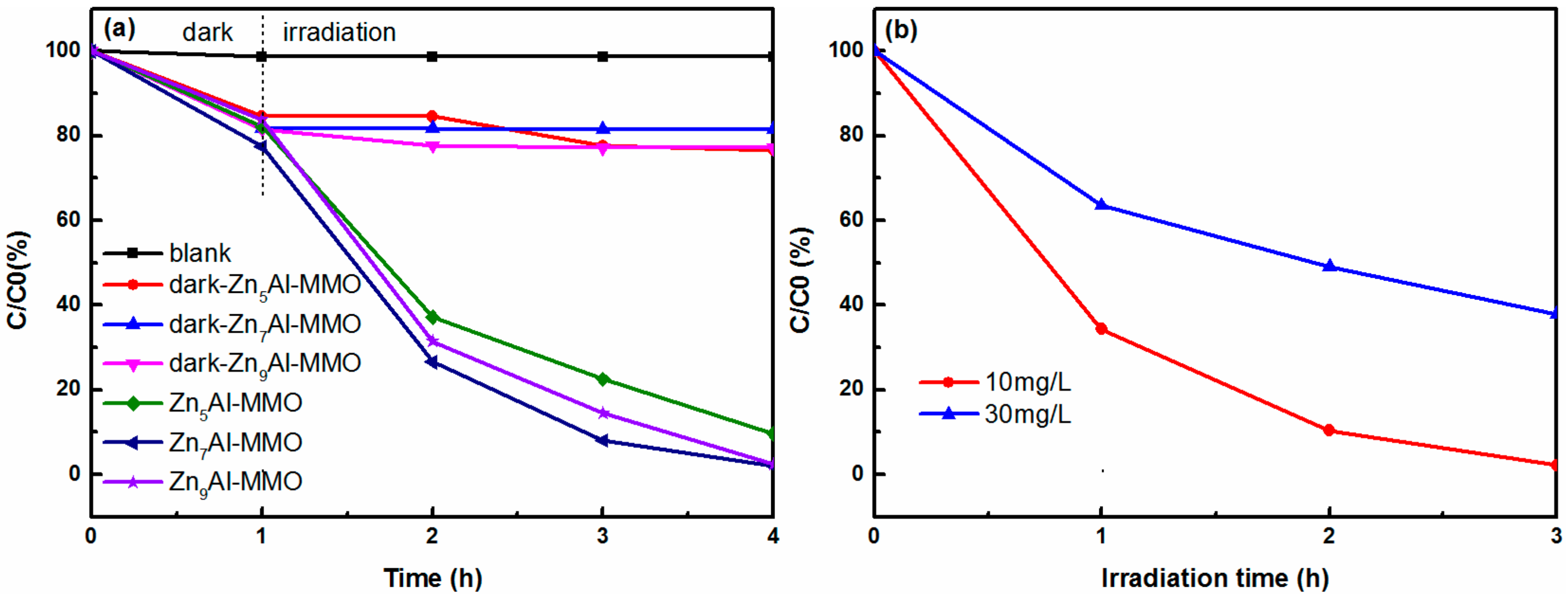

Figure 6. (a) Photoreduction of aqueous Cr(VI) using ZnnAl-MMO photocatalysts under UV light and (b) effect of initial Cr(VI) concentration on the photoreduction activity of Zn7Al-MMO photocatalyst.
Figure 6. (a) Photoreduction of aqueous Cr(VI) using ZnnAl-MMO photocatalysts under UV light and (b) effect of initial Cr(VI) concentration on the photoreduction activity of Zn7Al-MMO photocatalyst.
Materials 11 01624 g006
Materials 11 01624 g007 550

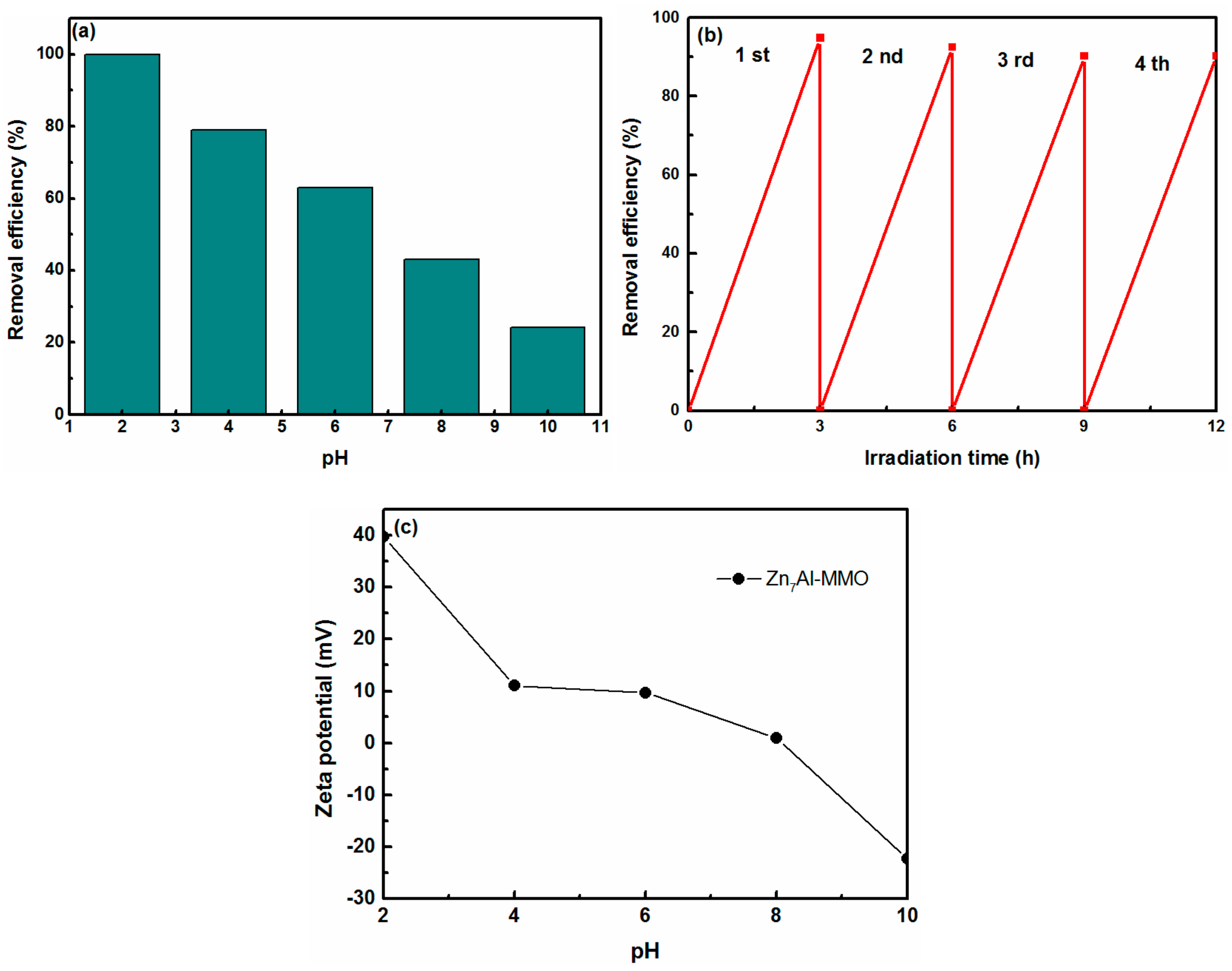

Figure 7. Effect of (a) initial pH and (b) cycling tests of photocatalytic activity of the Zn7Al-MMO for the photoreduction of Cr(VI). (c) Zeta potential of Zn7Al-MMO in different initial pH solution.
Figure 7. Effect of (a) initial pH and (b) cycling tests of photocatalytic activity of the Zn7Al-MMO for the photoreduction of Cr(VI). (c) Zeta potential of Zn7Al-MMO in different initial pH solution.
Materials 11 01624 g007
Materials 11 01624 g008 550

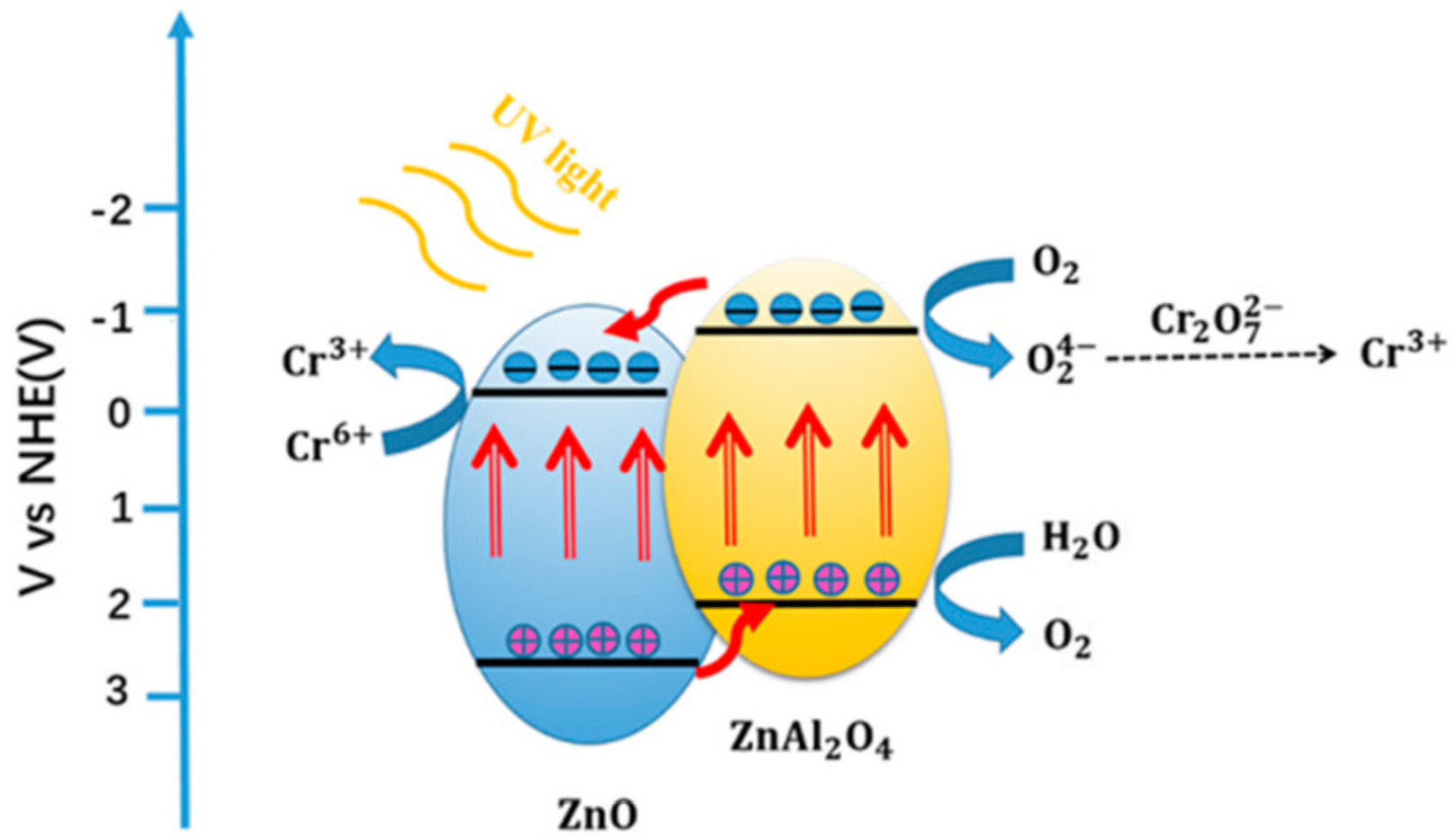

Figure 8. Schematic diagram of electron-hole separation and transport mechanism of photoreduction of Cr(VI) while using ZnAl-MMO photocatalyst under UV light irradiation.
Figure 8. Schematic diagram of electron-hole separation and transport mechanism of photoreduction of Cr(VI) while using ZnAl-MMO photocatalyst under UV light irradiation.
Materials 11 01624 g008
