Effect of CO₂ Partial Pressure on the Corrosion Behavior of J55 Carbon Steel in 30% Crude Oil/Brine Mixture

Abstract

The influence of CO₂ partial pressure on the corrosion properties, including corrosion rate, morphology, chemical composition, and corrosion depth, of J55 carbon steel in 30% crude oil/brine at 65 °C was investigated. A corrosion mechanism was then proposed based on the understanding of the formation of localized corrosion. Results showed that localized corrosion occurred in 30% crude oil/brine with CO₂. The corrosion rate sharply increased as the CO₂ partial pressure (P${\mathrm{co}}_2$) was increased from 0 to 1.5 MPa, decreased from P${\mathrm{co}}_2$ = 1.5 MPa to P${\mathrm{co}}_2$ = 5.0 MPa, increased again at P${\mathrm{co}}_2$ = 5.0 MPa, and then reached a constant value after P${\mathrm{co}}_2$ = 9.0 MPa. The system pH initially decreased, rapidly increased, and then stabilized as CO₂ partial pressure was increased. In the initial period, the surface of J55 carbon steel in the CO₂/30% crude oil/brine mixtures showed intense corrosion. In conclusion, CO₂ partial pressure affects the protection performance of FeCO₃ by changing the formation of corrosion scale and further affecting the corrosion rate.

1. Introduction

In recent years, the carbon dioxide flooding enhanced oil recovery (CO₂-EOR) technology has been widely applied worldwide [1,2,3] and has made a positive contribution to the geological reserves of carbon. However, CO₂-EOR is expected to significantly increase the corrosion failure risk of tubes [4,5]. The acceptable rate of wellbore corrosion in China is less than 0.076 mm·year⁻¹ [6], and the qualitative categorization of carbon steel corrosion rates for oil production systems in the US includes low (<0.025 mm·year⁻¹), moderate (0.025–0.12 mm·year⁻¹), high (0.13–0.25 mm·year⁻¹), and severe (>0.25 mm·year⁻¹) [7]. When water cut is greater than 50%, the corrosion rates of carbon steel (API 5CT L80) and P110 steel are 3.4–34.2 and 0.03–5.0 mm·year⁻¹, respectively [8,9], which are far beyond the acceptable range. Thus, many studies have focused on CO₂ corrosion, especially on the effect of environment on corrosion.

Mass loss during CO₂ corrosion is generally related to environmental conditions, such as temperature, pressure, salt concentration, solution pH, and CO₂ partial pressure. CO₂ partial pressure and protective scale considerably impact corrosion rate. Many studies demonstrated that the CO₂ corrosion rate of carbon steel increases with increasing CO₂ pressure [10,11,12]. The concentration of H₂CO₃ increases as CO₂ partial pressure increases, which accelerates the cathodic reactions and increases the corrosion rate [13,14,15,16]. CO₂ partial pressure affects the protective properties and components of the corrosion product layer by changing the system pH. Other studies [15,16,17,18,19,20,21] indicated that FeCO₃ is the main composition in the corrosion product layer that is formed on corroded carbon steel surface exposed to CO₂ environment. A.H. Mustafa [17] reported that the corrosion product film of X52 steel is inhomogeneous and porous in CO₂/formation water at different CO₂ pressures (10, 40, and 60 bar) and 60 °C, and the corrosion product layer is mainly composed of FeCO₃ and Fe₃C. However, increasing CO₂ partial pressure does not often accelerate corrosion. Yoon-Seok Choi [19] proposed that the corrosion rates of carbon steel measured in CO₂-saturated water show no significant difference (19.5–20.1 mm·year⁻¹) with pressure (4, 6, and 8 MPa) at 50 °C. Preliminary studies mainly focused on the influences of CO₂ partial pressure on corrosion in brine environment and of water cut on corrosion in CO₂/crude oil/brine environment, but few studies focused on the influence of CO₂ partial pressure on corrosion in crude oil/brine environment. Thus, understanding the effect of CO₂ partial pressure on the corrosion behavior of J55 carbon steel in crude oil/brine mixtures is important.

In the present work, the effect of CO₂ partial pressure on the corrosion behavior of J55 carbon steel was compared in CO₂/30% crude oil (v/v, the same below)/brine mixtures. The corrosion rates were determined by weight mass loss, and the maximum corrosion depth was obtained with an optical digital microscope. The morphology and composition of the formed corrosion product film were characterized by scanning electron microscopy (SEM), energy dispersive spectrometry (EDS), and X-Ray diffraction (XRD).

2. Materials and Methods

The material used in this work was J55 carbon steel with a composition (wt.%) of 0.36% C, 0.30% Si, 1.45% Mn, 0.016% P, 0.004% S, 0.051% Cr, 0.009% Ni, 0.07% Cu, and Fe balance. The specimen for weight loss test was machined into 50 mm × 10 mm × 3 mm and a hole of 6 mm with an exposed area of 13.6 cm². The samples were placed in acetone to remove oil on the surface and then immersed in ethanol for 5 min for further degreasing and dehydration. The samples were dried in cold air, packed with filter paper, and then placed in the dryer for 4–7 h. Finally, the size and weight of the samples were measured to within an accuracy of 0.1 mg.

The corrosive medium is a mixture of oil and water, the crude oil is obtained from the C₈ reservoir of a certain block in Changqing oilfield, and the brine is the simulated solution prepared according to the composition of the brine in the reservoir. The compositions of the crude oil and simulated solution are shown in

Table 1. Composition properties of crude oil.

Property	Unit	Value
Kinematic viscosity (65 °C)	mm2·s−1	7.254
Acid value	mg KOH·g−1	0.107
Sulfur content	wt.%	0.08
Wax content	wt.%	12.86
Colloid	wt.%	2.31
Asphaltene	wt.%	0.60

and

Table 2. Properties of simulated brine preparation.

Property	Unit	Value
NaCl	g·L−1	18.5028
CaCl2	g·L−1	13.7338
MgCl2	g·L−1	0.5897
Na2SO4	g·L−1	0.2440
NaHCO3	g·L−1	0.0631
salinity	g·L−1	33.0000

, respectively.

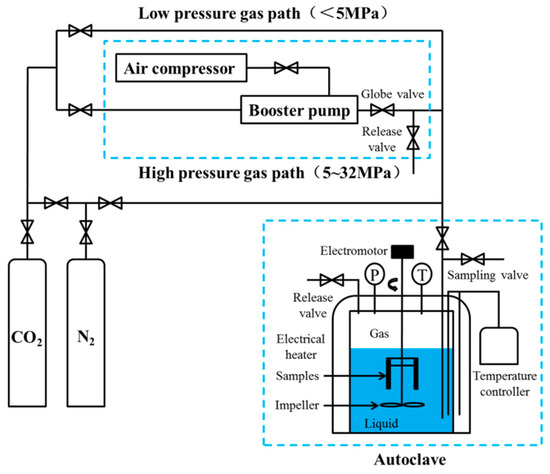

In CO₂-EOR, gas channelling often occurs [22,23], during which the CO₂ partial pressure rises from the bottom hole to no more than 15 MPa in the C₈ reservoir. Corrosion test was carried out in the PARR-4578 autoclave (Parr Instrument Company, Champaign, IL, USA) by using the weight-loss method, and the schematic is shown in Figure 1. A 1 L aliquot of the mixture of 30% crude oil/brine was added to the autoclave, and the dissolved oxygen was purged in the solution with a small amount of nitrogen gas for 4 h under a pressure of 0.5 MPa [13] and a temperature of 65 °C. The autoclave was pressured with pure N₂ gas to the experimental values (total pressure value—CO₂ partial pressure) and with CO₂ gas to a total pressure value of 15 MPa for 2 days at the running speed of 0.5 m·s⁻¹ (200 r·min⁻¹).

After corrosion induction, the three corroded samples were divided into two groups for scanning electron microscope (SEM), energy dispersive spectrometer (EDS), and X-ray diffraction (XRD) analyses of the corrosion scales formed on the steel surface. After these tests, the three corroded samples were subjected to mass loss tests to determine the average corrosion rate.

The corrosion rate of the steel was determined by the mass loss technique in accordance with the ASTM (American Society for Testing Materials) G1-03-Standard practice for preparing, cleaning, and evaluating corrosion [24]. Immediately after corrosion induction, the samples were rinsed with distilled water and the crude oil on the surface was removed with acetone. Corrosion products were removed with an ultrasonic cleaner. Then, the samples were immersed in an acid cleaning solution (500 mL of HCl and 3.5 g of hexamethylenamine diluted with water to 1000 mL) for 10 min, and the corrosion products on the surface were removed. After being immersed, the samples were thoroughly washed with distilled water until the acid cleaning solution on the surface was completely removed. Then, the samples were placed in ethanol for cleaning and dehydration twice. The samples were dried in cold air, packed with filter paper, and then placed in the dryer for 4–7 h. Finally, the samples were weighed to within an accuracy of 0.1 mg. The corrosion rate was calculated as follows:

$$r_{\mathit{corr}}=\frac{8.76\times {10}^4\times (m-m_t)}{S\times t\times \rho }$$

(1)

where r_corr is the average corrosion rate, mm·year⁻¹; m is the weight of the test sheet before the experiment, g; m_t is the weight of the test sheet after the experiment, g; S is the whole surface contacted with solution, cm²; ρ is the density of tested steel, g·cm⁻³, which is 7.86 g·cm⁻³ in the case of carbon steel; and t is the immersion duration, h. The mean corrosion rate error was calculated using three parallel specimens in each test.

The surface microstructure of the corrosion product scales on the surface of corroded samples was analyzed via SEM (FEI Quanta 600F microscope, FEI Corporation, Hillsboro, TX, USA). The elemental compositions of the corrosion product scales were estimated by EDS (OXFORD INCA energy 350, Oxford Instrument, Oxford, UK). The composition of the corroded samples was performed with XRD (Bruker D8 XRD, Bruker Corporation, Karlsruhe, Germany).

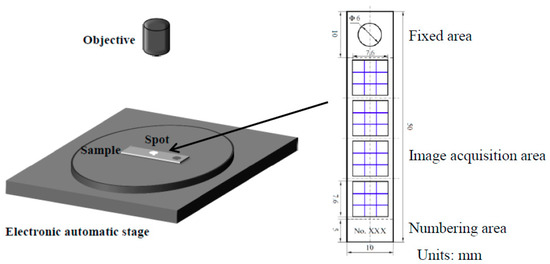

The maximum corrosion depth of the corroded samples was analyzed with an optical digital microscope (OLYMPUS DSX500, Olympus Corporation, Tokyo, Japan) after removal of the corrosion product layers by using the acid cleaning solution. Under bright-field mode, the corroded sample surface was subjected to grand horizon three dimensions (3D) image capture using adjacent visual synthetic diagram mode. The magnification was 100 times, with a 3 × 3 nine-image synthetic diagram and an overlap ratio of 10%. Four points on the front and back surfaces of the samples were collected, as shown in Figure 2. The area of the 3 × 3 nine-image synthetic diagram was 7612 μm × 7612 μm, the total area of image acquisition was 4.63 cm², and 43.27% of the exposed surface area was occupied, which was much larger than that in other studies [15,16,17,18,19,20,21]. The maximum corrosion depth could be acquired by comparing the corrosion depth measured in different areas. Therefore, the method can also accurately reflect the maximum corrosion depth of the corroded samples.

3. Results

3.1. Weight Loss Tests

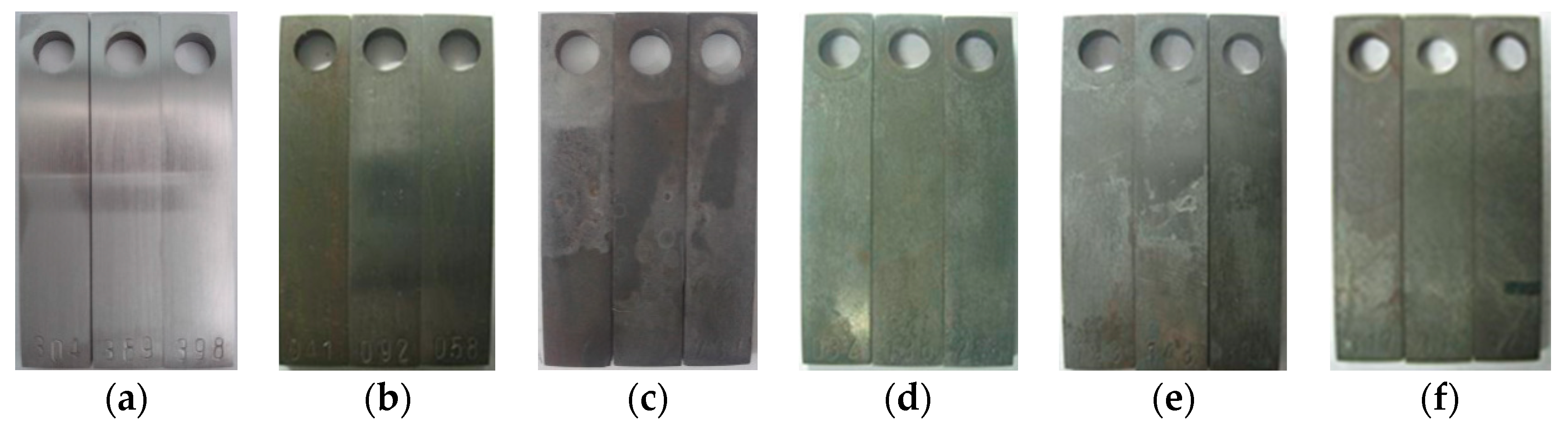

Figure 3 shows the macroscopic morphologies of the J55 carbon steel before corrosion test and after the removal of corrosion scales under different CO₂ partial pressures. Localized corrosion occurred on the surface of the J55 carbon steel. As shown in Figure 4, the average corrosion rate of the J55 carbon steel after immersing in a CO₂/crude oil/brine environment initially increased and then decreased with increasing CO₂ partial pressure before finally stabilizing. When the CO₂ partial pressure was increased from 0 to 1.5 MPa, the corrosion rate of J55 increased sharply. The concentration of H₂CO₃ increased as the partial pressure of CO₂ was increased, which decreased the system pH and therefore increased the corrosion rate [13,14,15,16]. When the CO₂ partial pressure was increased from 1.5 MPa to 5.0 MPa, the corrosion rate of J55 decreased. With the continuous increase in CO₂ partial pressure, a protective layer gradually formed on the surface of the J55 carbon steel. When the CO₂ partial pressure was increased from 5.0 to 9.0 MPa, the corrosion rate of J55 increased. The protective layer formed on the surface of J55 may be dissolved gradually, thereby increasing the corrosion rate [14,15]. When the CO₂ partial pressure was increased from 9.0 MPa to 15.0 MPa, the corrosion rate of J55 was almost constant. A protective layer formed faster on the steel surface as the CO₂ partial pressure was increased [17,18,19]. When CO₂ dissolved in water equilibrium, CO₂ solubility almost no longer increased with increasing CO₂ partial pressure. Thus, the system pH was almost invariable [25], and the protective layer was not dissolved.

3.2. Microstructure and Composition of the Corrosion Scale

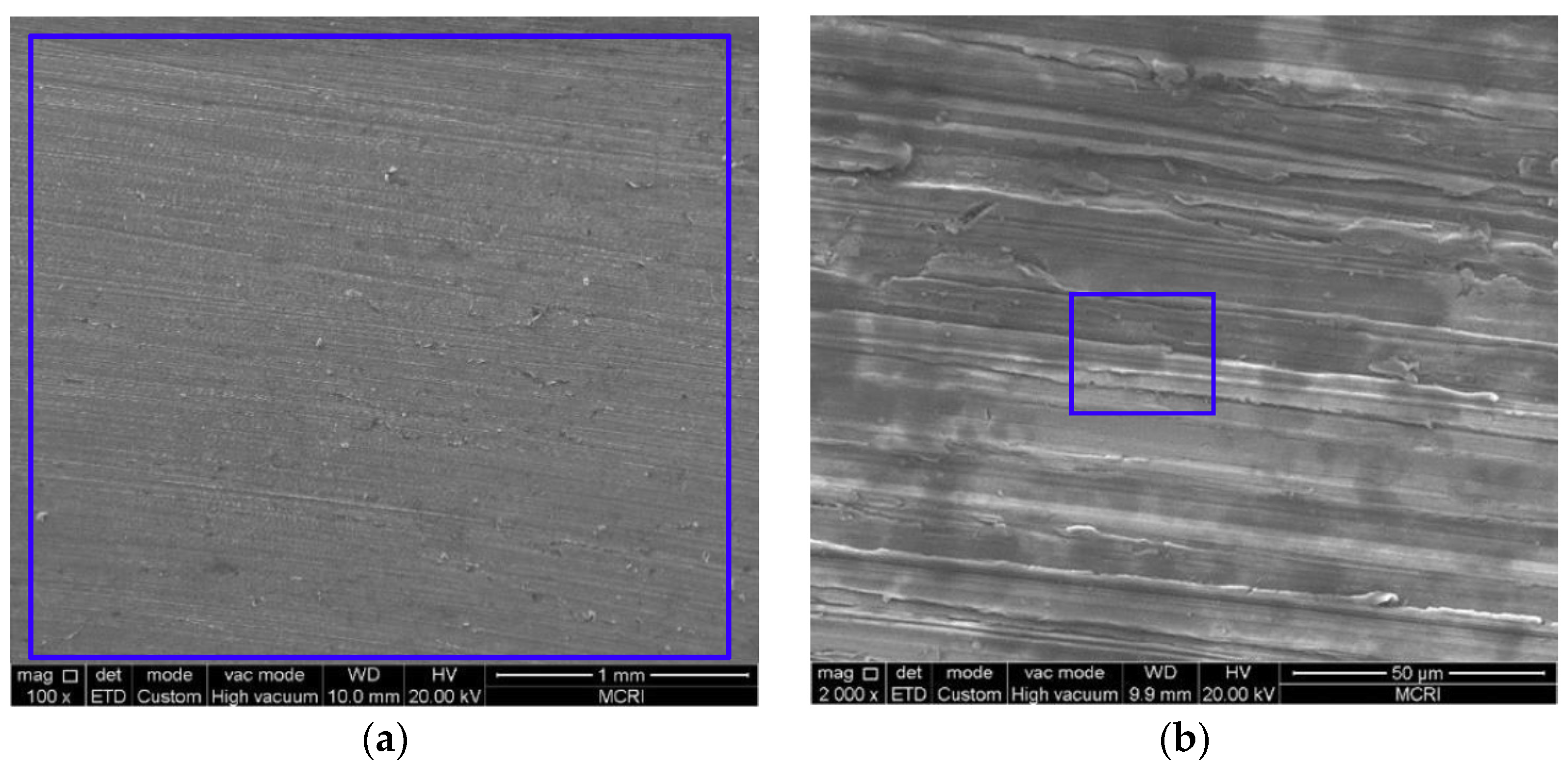

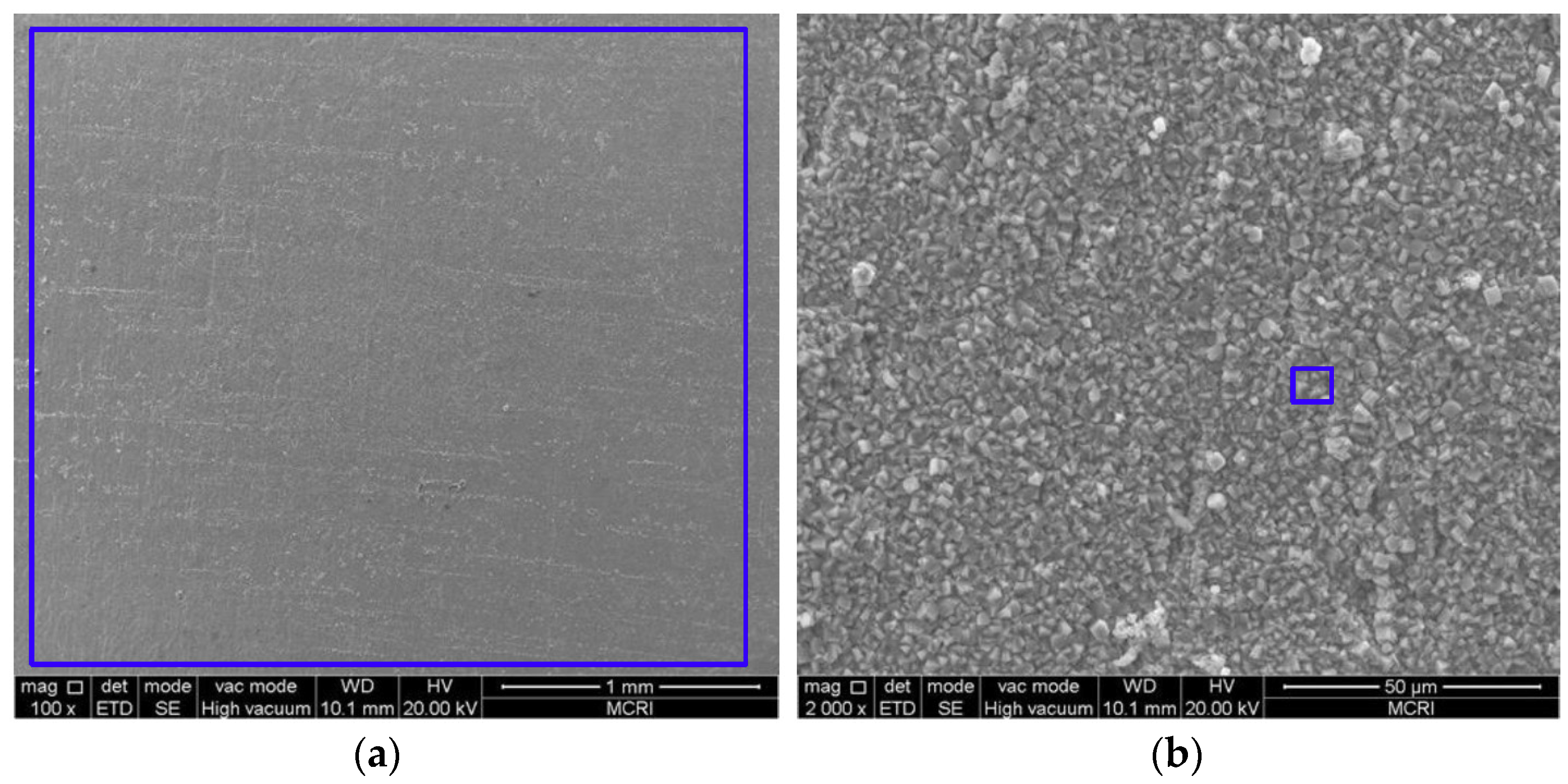

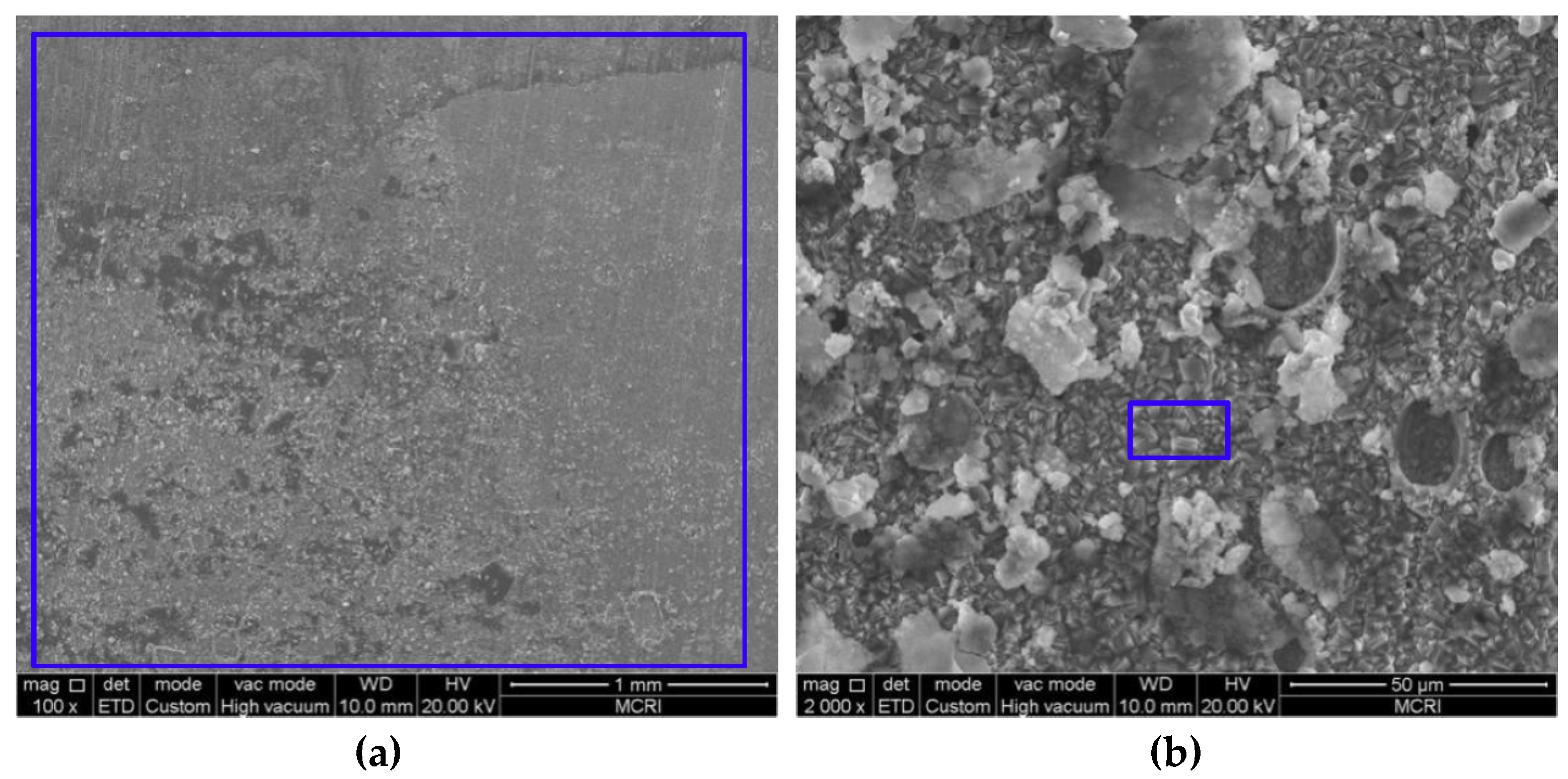

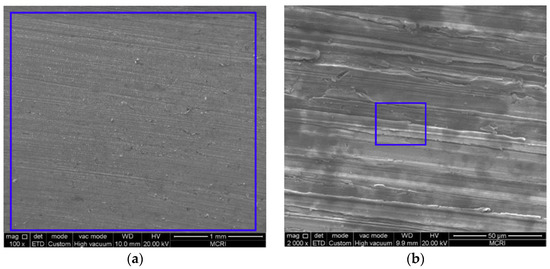

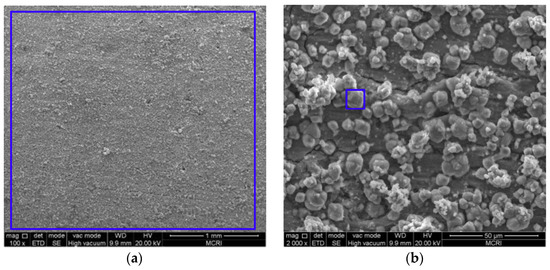

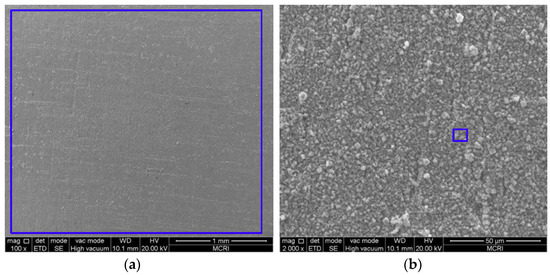

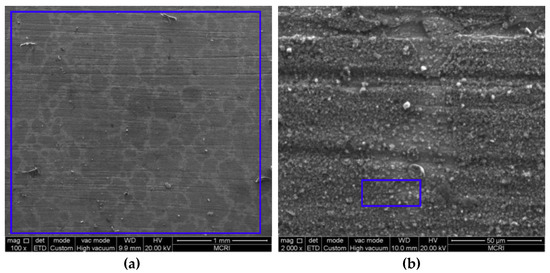

Figure 5, Figure 6, Figure 7, Figure 8 and Figure 9 show the SEM images of the corrosion scales formed on the J55 steel surface as a function of CO₂ partial pressure in 30% crude oil/brine mixtures at the same magnification (×100 or ×2000). EDS was performed on the corrosion product scales of the tested samples.

Table 3. EDS of the corrosion scale of immersion in 30% crude oil/brine mixtures under different CO₂ partial pressures.

Element (At. %)	$\mathbf{P}{\mathbf{co}}_2=0\mathbf{MPa}$		$\mathbf{P}{\mathbf{co}}_2=1.5\mathbf{MPa}$		$\mathbf{P}{\mathbf{co}}_2=5.0\mathbf{MPa}$		$\mathbf{P}{\mathbf{co}}_2=9.0\mathbf{MPa}$		$\mathbf{P}{\mathbf{co}}_2=15.0\mathbf{MPa}$
	Whole	Local	Whole	Local	Whole	Local	Whole	Local	Whole	Local
C K	75.70	76.23	37.34	33.40	50.29	33.25	27.87	18.66	63.00	62.49
O K	0.34	1.50	44.87	55.80	36.73	45.10	46.48	53.98	23.68	25.52
Si K	/	/	/	/	0.21	/	/	/	/	/
Cr K	/	/	0.29	/	/	/	/	/	/	/
Ca K	/	/	3.49	3.17	/	0.20	1.84	2.29	0.44	0.59
Cl K	0.14	/	0.37	0.16	0.30	0.37	/	/	/	/
Mn K	0.40	0.30	0.54	0.35	0.14	0.28	/	/	/	/
Fe K	23.42	21.97	13.10	7.12	12.33	20.80	23.81	25.07	12.88	11.40
total	100.0	100.0	100.0	100.0	100.0	100.0	100.0	100.0	100.0	100.0

shows the EDS spectra of the corrosion scale in the inner surface of the blue line region in Figure 4, Figure 5, Figure 6, Figure 7 and Figure 8, respectively. Figure 5 shows the SEM images of the corrosion scales formed on the J55 steel surface at P${\mathrm{co}}_2$ = 0 MPa and 65 °C. The polishing marks were still visible on the surface of the J55 steel, and no visible signs of corrosion were observed on the sample. The corrosion product mainly consisted of Fe₃C (the content ratio of Fe and C atoms is about 1:3) and minor constituents of alloying elements from the carbon steel matrix. Figure 6 shows the SEM images of the corrosion scales formed on the J55 steel surface at P${\mathrm{co}}_2$ = 1.5 MPa and 65 °C. The surface was severely attacked and showed disperse FeCO₃ and CaCO₃ scales and minor constituents of alloying elements from the carbon steel matrix. Figure 7 shows the SEM images of the corrosion scales formed on the J55 steel surface at P${\mathrm{co}}_2$ = 5.0 MPa and 65 °C. A large part of the surface was attacked and fully covered by FeCO₃ and CaCO₃. Figure 8 and Figure 9 show the SEM images of the corrosion scales formed on the J55 steel surface at P${\mathrm{co}}_2$ = 9.0 and 15 MPa. The surface was almost covered by the protective FeCO₃ layer and few CaCO₃. At P${\mathrm{co}}_2$ = 15.0 MPa, the corrosion product layer was thicker and denser than that at P${\mathrm{co}}_2$ = 9.0 MPa.

The main elements of the corrosion products in the 30% crude oil/brine environment without CO₂ were Fe and C, and the content ratio of iron and carbon atoms was about 1:3, indicating that the corrosion products consisted mainly of FeC₃. The main elements of the corrosion products in the CO₂/30% crude oil/brine environment were O, Fe, and Ca, indicating that the corrosion products consisted mainly of FeC₃ and mixed carbonate (Fe_xCa_1−xCO₃) [26,27]. At P${\mathrm{co}}_2$ = 1.5 and 5.0 MPa, the minor constituents of alloying elements from the carbon steel were detected, indicating that the surface was not fully covered by the corrosion product layer. At P${\mathrm{co}}_2$ = 9.0 and 15.0 MPa, the minor constituents of alloying elements from the carbon steel were not detected, suggesting that the surface was fully covered by the corrosion product layer.

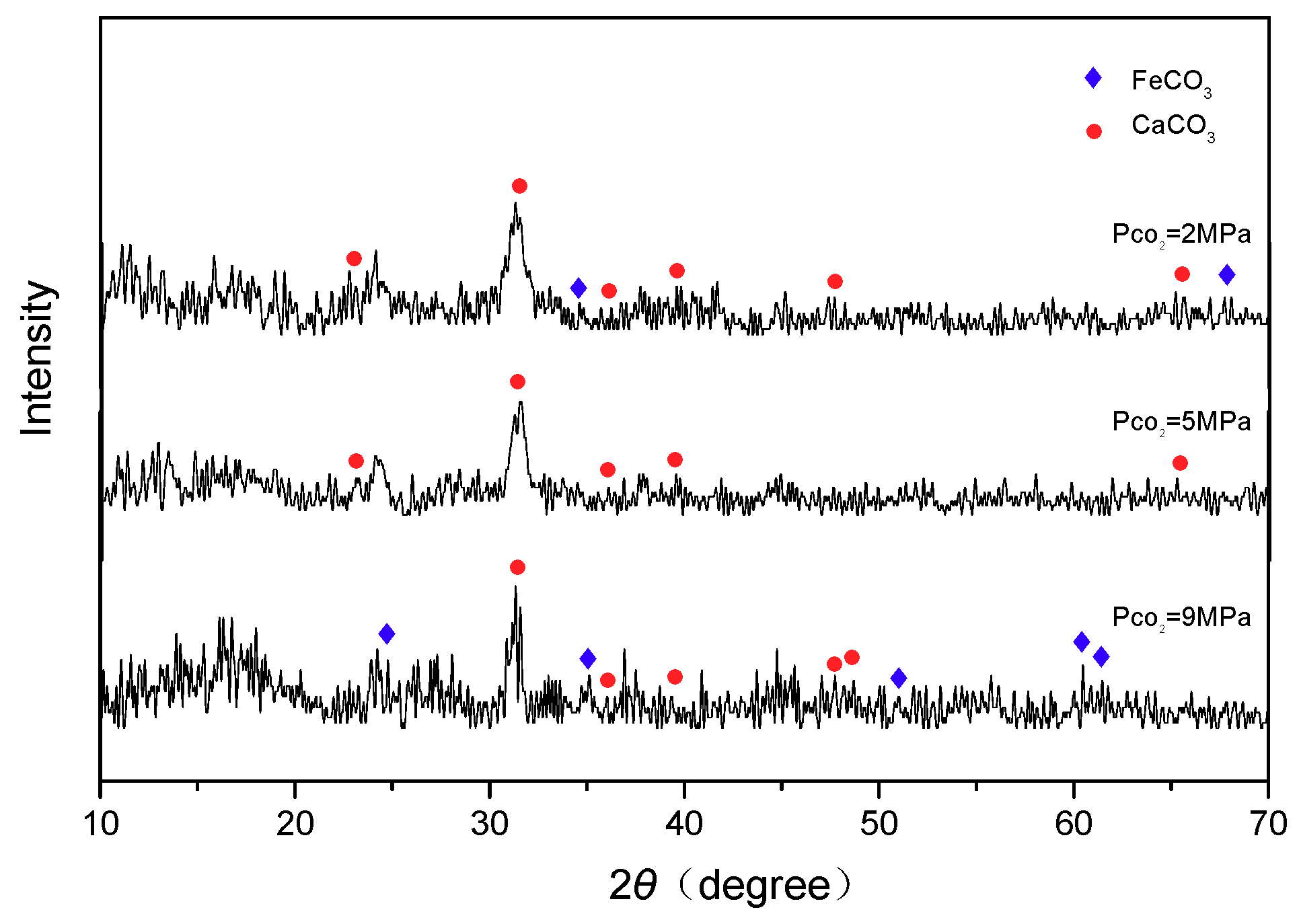

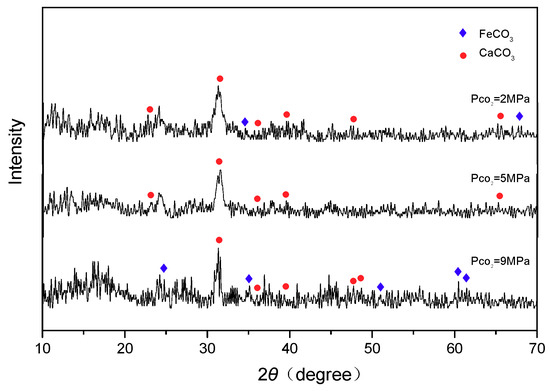

Figure 10 shows the XRD spectra of the surface layer on the corroded samples immersed in CO₂/30% crude oil/brine mixtures. Related research [15,16,17,18,19,20,21] reported that the main CO₂ corrosion product of carbon steel is FeCO₃. The compositions of the corrosion product layer in the CO₂/30% crude oil/brine mixtures were similar and mainly consisted of the complex salt of CaCO₃ and FeCO₃. This result may be attributed to the presence of metal cation isomorphous substitution in CO₂ corrosion [27]. When the [Fe²⁺] × [CO₃²⁻] in the medium exceeds FeCO₃ solubility product K_sp (FeCO₃), that is, when the FeCO₃ supersaturation in the medium is $\mathrm{S}=\left\{\left[{\mathrm{Fe}}^{2+}\right]\times \left[{\mathrm{CO}}_3^{2-}\right]\right\}/\left\{{\mathrm{K}}_{\mathrm{sp}}\left({\mathrm{FeCO}}_3\right)\right\}>1$, the FeCO₃ would be deposited on the metal surface. As shown in the following form [27]:

$${\mathrm{Fe}}^{2+}{+\mathrm{CO}}_3^{2-}\to {\mathrm{FeCO}}_3\left(\mathrm{s}\right)$$

(2)

The Ca²⁺ in the solution to the replacement in FeCO₃ crystal Fe²⁺ and the formation of the Fe (Ca) CO₃ complex can be expressed as

$${\mathrm{Ca}}^{2+}+{\mathrm{FeCO}}_3\left(\mathrm{s}\right)\to {\mathrm{Fe}}^{2+}+{\mathrm{CaCO}}_3\left(\mathrm{s}\right)$$

(3)

3.3. Maximum Corrosion Depth Tests

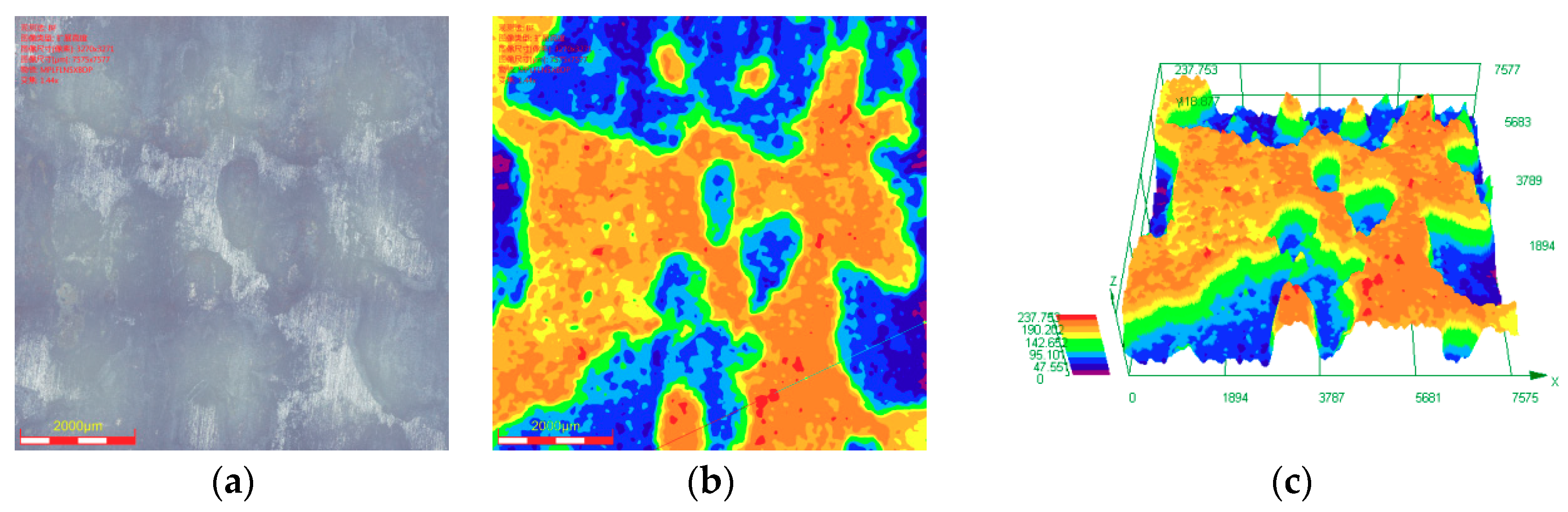

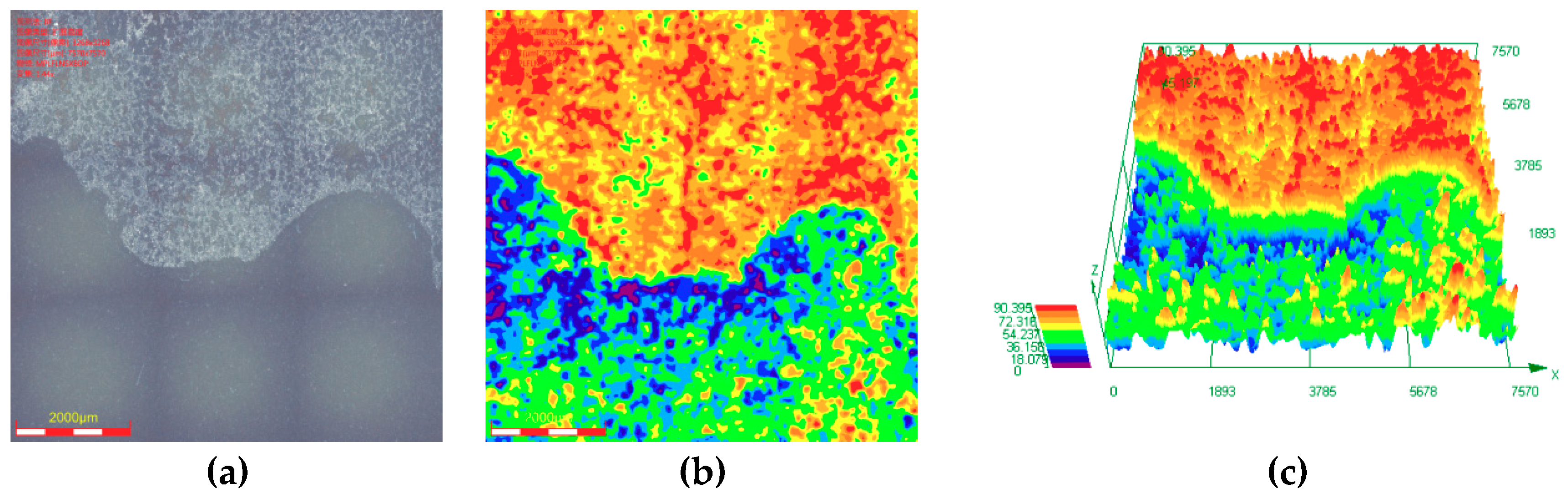

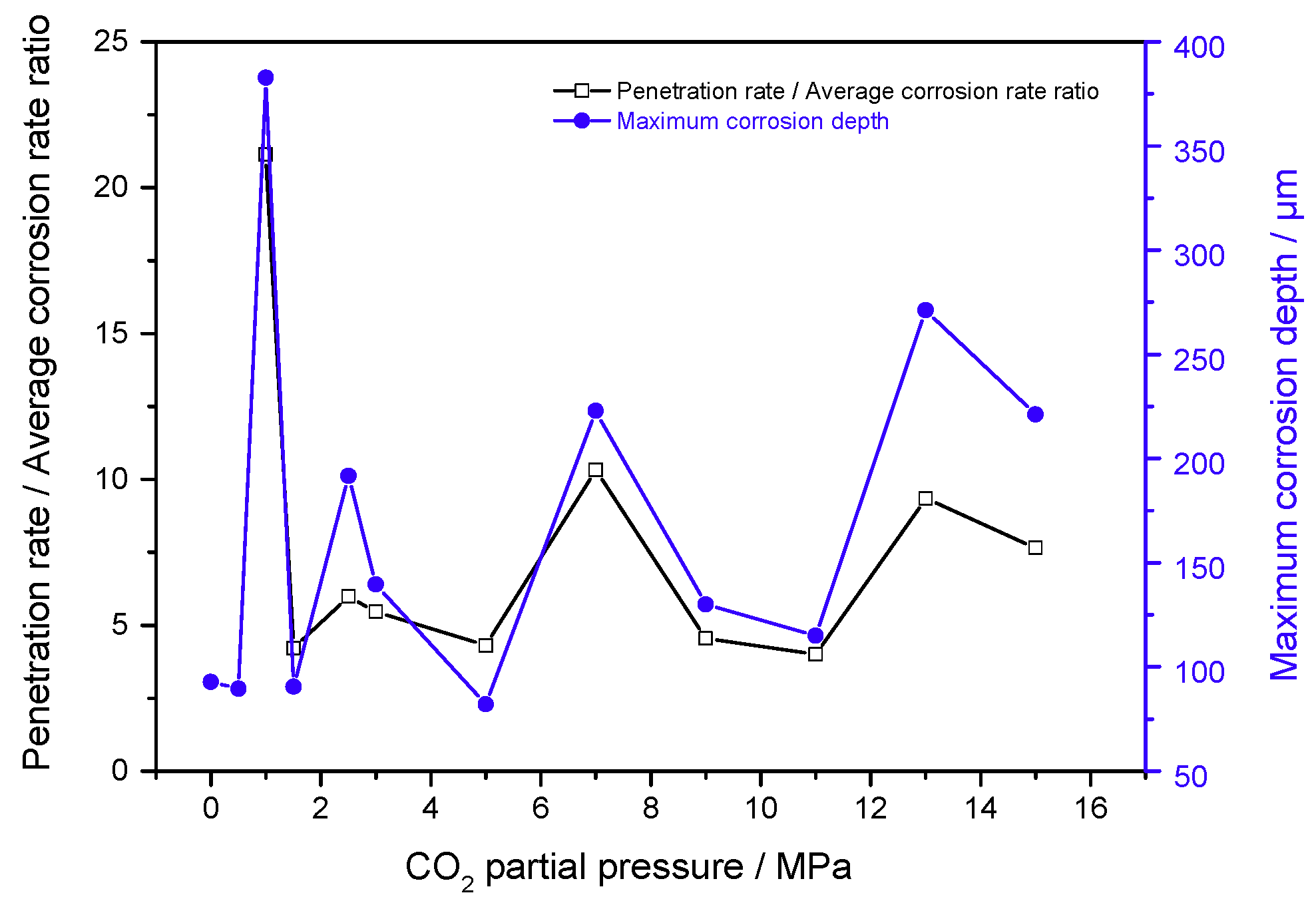

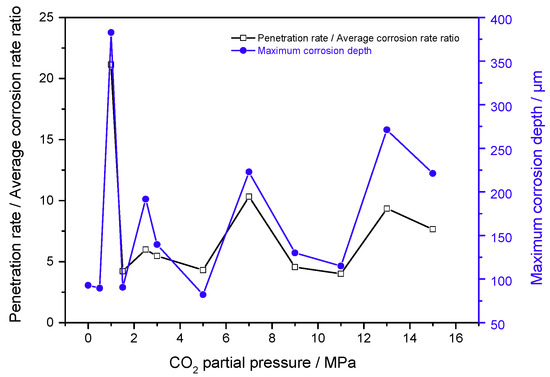

Figure 11 shows that the maximum corrosion depth of the cleaned sample surface exposed to 30% crude oil/brine condition at P${\mathrm{co}}_2$ = 1.0 MPa and 65 °C was 237.753 μm. The maximum corrosion depths measured in the seven other regions were compared, and the maximum corrosion depth of the cleaned sample surface exposed to 30% crude oil/brine condition at P${\mathrm{co}}_2$ = 1.0 MPa and 65 °C was 382.742 μm. As shown in Figure 12, the maximum corrosion depth of the cleaned sample surface exposed to 30% crude oil/brine condition at P${\mathrm{co}}_2$ = 1.5 MPa and 65 °C, where the average corrosion rate was the highest, was 90.395 μm. The type of corrosion damage changed from localized corrosion to mesa corrosion. Figure 13 shows the maximum corrosion depth and penetration rate/average corrosion rate ratio of the J55 carbon steel surface after removal of the corrosion product layers by using acid cleaning solution as a function of CO₂ partial pressure in the 30% crude oil/brine mixtures. The maximum corrosion depth varied with the increase in CO₂ partial pressure possibly because of the protection conferred by the corrosion product layer. The variation trend of the penetration rate/average corrosion rate ratio of the J55 carbon steel surface was the same as that of the maximum corrosion depth as the CO₂ partial pressure was increased. The penetration rate/average corrosion rate ratios were greater than 4, indicating that local corrosion occurred on the surface of the carbon steel [8,18]. At P${\mathrm{co}}_2$ = 1.0 MPa, the corrosion depth was the largest at 382.742 μm, which corresponded to 69.8504 mm/a. This penetration rate was considerably greater than the weight-loss corrosion rate (3.3058 mm·year⁻¹) shown in Figure 3, thereby confirming local attack.

4. Discussion

4.1. Variation of pH with CO₂ Partial Pressure

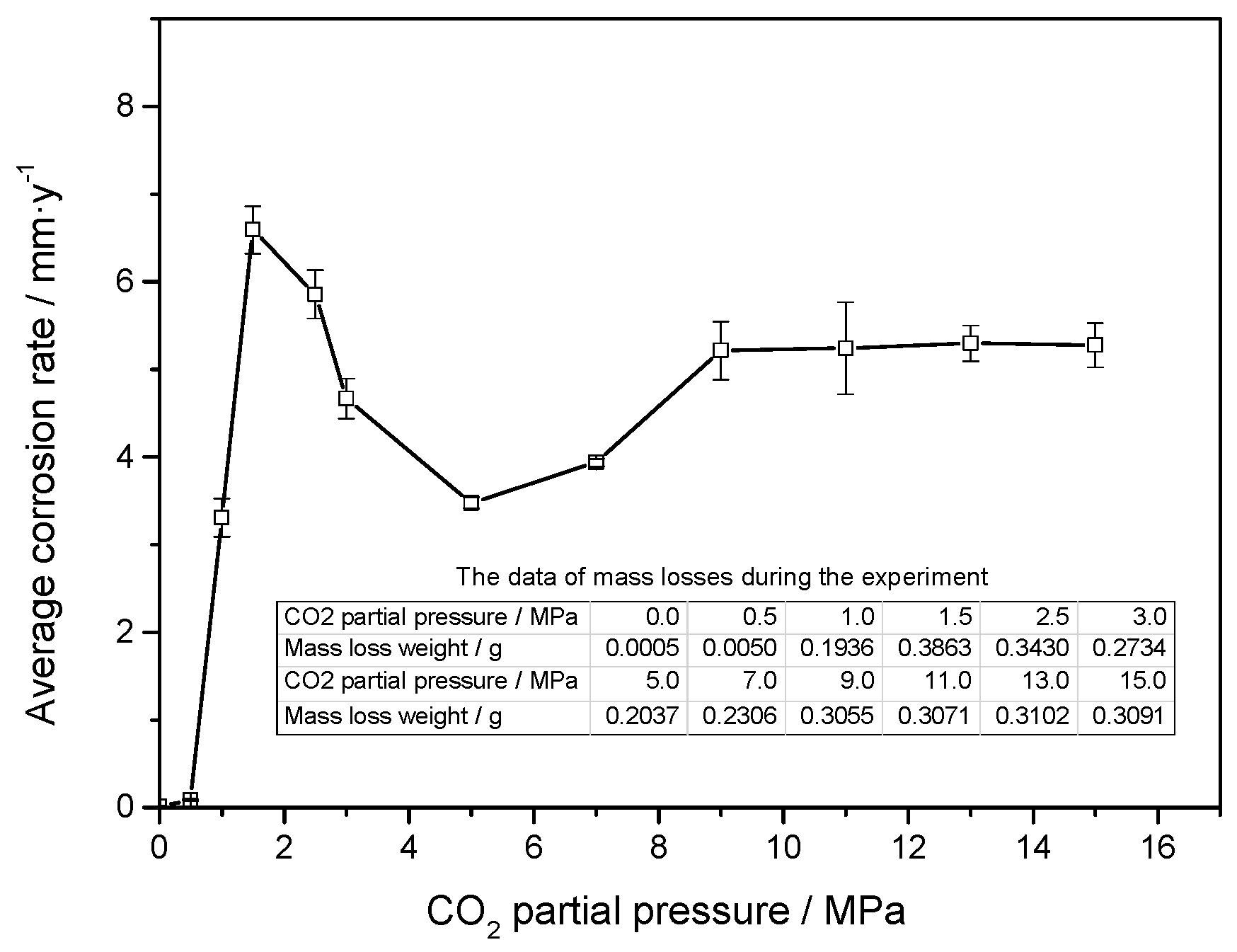

As the CO₂ partial pressure was increased, the corrosion rate of the J55 carbon steel initially increased, decreased, increased again, and then stabilized. This result is different from the report of some scholars that the CO₂ corrosion rate of carbon steel increases with increasing CO₂ pressure [13,15,28]. G.A. Zhang [13] reported the corrosion rate of N80 carbon steel increases from 19.13 mm·year⁻¹ to 23.91 mm·year⁻¹ when the CO₂ partial pressure increases from 5 MPa to 8 MPa. When the samples were immersed in formation water for 96 h at 60 °C and a rotational speed of 2 m·s⁻¹. Zhang Y. The authors of [15] proposed that the corrosion rate of X65 carbon steel increases from 1.64 mm·year⁻¹ to 7.26 mm·year⁻¹ when the samples are immersed in aqueous environment for 168 h at 80 °C and 1–9.5 MPa. M. Seiersten [28] reported that the corrosion rates of X65 carbon steels in aqueous CO₂ conditions range within 1–6 mm·year⁻¹ at 40 °C and 7.5–9 MPa. The corrosion rate in the literature is greater than that in the test. The difference may be attributed to the different tested corrosion media and the obvious corrosion inhibition effect of crude oil that can greatly reduce the corrosion rate of CO₂ [9].

The acid value of crude oil is 0.107 mg KOH·g⁻¹, and crude oil would not substantially change the system pH. The initial system pH is 6.5, and the change in pH is mainly caused by the dissolution of CO₂ in water. CO₂ dissolves in water and forms carbonic acid in situ, and the acidity of the solution increases, thereby decreasing the pH. The equilibrium relationship can be described this process:

$${\mathrm{H}}_2\mathrm{O}\rightleftharpoons {\mathrm{H}}^{+}+{\mathrm{OH}}^{-},K_w$$

(4)

$${\mathrm{CO}}_{2\left(\mathrm{aq}\right)}+{\mathrm{H}}_2\mathrm{O}\rightleftharpoons {\mathrm{H}}^{+}+{\mathrm{HCO}}_3{}^{-},K_{a1}$$

(5)

$${\mathrm{HCO}}_3{}^{-}\rightleftharpoons {\mathrm{H}}^{+}+{\mathrm{CO}}_3{}^{2-},K_{a2}$$

(6)

$$K_w=x_{{\mathrm{H}}^{+}}{x}_{{\mathrm{OH}}^{-}}\left({\gamma }_{{\mathrm{H}}^{+}}{\gamma }_{{\mathrm{OH}}^{-}}\right),$$

(7)

$$K_{a1}=\frac{x_{{\mathrm{H}}^{+}}{x}_{{\mathrm{HCO}}_3{}^{-}}\left({\gamma }_{{\mathrm{H}}^{+}}{\gamma }_{{\mathrm{HCO}}_3{}^{-}}\right)}{x_{{\mathrm{CO}}_{2\left(\mathrm{aq}\right)}}{\gamma }_{{\mathrm{CO}}_{2\left(\mathrm{aq}\right)}}},$$

(8)

$$K_{a2}=\frac{x_{{\mathrm{H}}^{+}}{x}_{{\mathrm{CO}}_3{}^{2-}}\left({\gamma }_{{\mathrm{H}}^{+}}{\gamma }_{{\mathrm{CO}}_3{}^{2-}}\right)}{x_{{\mathrm{HCO}}_3{}^{-}}{\gamma }_{{\mathrm{HCO}}_3{}^{-}}},$$

(9)

where K_w is the ionization constant of water, K_a1 is the first ionization constant of CO₂, K_a2 is the secondary ionization constant of CO₂, x is the concentration of subscript ion, mol·L⁻¹, and γ is the activity coefficient of subscript ion.

Stumm and Morgon [29] calculated the first and secondary ionization equilibrium constant of CO₂ in water, and Morshall and Franch [30] calculated the ionization equilibrium constant of water.

$$\log \left(K_{a1}\right)=\frac{134737.5}{T}-2211.492-0.30004T+785.768\log T-\frac{9036500}{T^2},$$

(10)

$$\log \left(K_{a2}\right)=\frac{24784.1}{T}-452.824-0.078515T+162.47\log T-\frac{1713800}{T^2},$$

(11)

$$\log \left(K_w\right)=-4.098-\frac{3245.2}{T}+\frac{223620}{T^2}-\frac{39840000}{T^3}+(13.956-\frac{1262.3}{T}+\frac{856410}{T^2})\log (\rho ),$$

(12)

where T is the temperature of the system, K; P is the partial pressure of CO₂ in the system, bar; and ρ is the density of the system, g·cm⁻³.

Wiebe et al. [31,32] calculated the solubility of CO₂ in water at 12–100 °C, and assumed that the solubility of CO₂ in water was not related to the concentration of solution and pH value. Ziegler [33] fitted the solubility data of Wiebe to the following empirical formula:

$$S_{{\mathrm{CO}}_2}=4.11-\frac{4329.91}{T}+\frac{9.20\times {10}^5}{T^2}-2.5\times {10}^{-3}P+3.75\frac{P}{T}-951.30\frac{P}{T^2}-1.52\times {10}^{-7}{P}^2+0.34\ln (P)$$

(13)

where $S_{{\mathrm{CO}}_2}$ is the total concentration of CO₂ dissolved in water, mol·kg⁻¹.

The first ionization of the carbonated solution is the main reaction, and K_a1 is much larger than K_w and K_a2. When estimating the pH of the CO₂–H₂O system, the ionization of water and the secondary ionization of carbonic acid can be neglected. Carbonic acid is a weak acid, and its $x_{{\mathrm{CO}}_2}$ is much larger than its $x_{{\mathrm{H}}^{+}}$. In carbonate solution, except for CO_2(aq), the concentration of other ions is negligible. Carbonic acid is a dilute solution with an ionic activity coefficient of about 1. The density of carbonic acid is similar to that of pure water, and the density of pure water slightly varies with temperature, then $x_{{\mathrm{H}}^{+}}$ ≈ $S_{{\mathrm{CO}}_2}$. In this way, $x_{{\mathrm{H}}^{+}}$ and pH are calculated as follows:

$$x_{{\mathrm{H}}^{+}}=\sqrt{K_{a1}\times x_{{\mathrm{CO}}_{2\left(\mathrm{aq}\right)}}}=\sqrt{K_{a1}\times S_{{\mathrm{CO}}_2}},$$

(14)

$$\mathrm{pH}=-\log \left(x_{{\mathrm{H}}^{+}}\times {\gamma }_{{\mathrm{H}}^{+}}\right)=-\log \left(x_{{\mathrm{H}}^{+}}\right)-\log \left({\gamma }_{{\mathrm{H}}^{+}}\right)=-\log \left(x_{{\mathrm{H}}^{+}}\right).$$

(15)

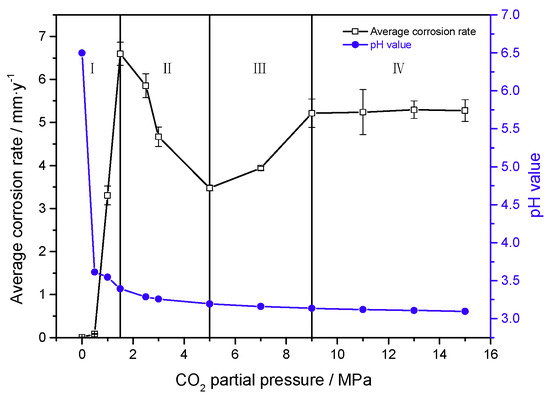

Figure 14 shows the average corrosion rate and estimated pH value as a function of CO₂ partial pressure in 30% crude oil/brine mixtures. The system pH decreased with increasing CO₂ partial pressure. When the CO₂ partial pressure was small, the system pH decreased significantly with increasing CO₂ partial pressure. When the CO₂ partial pressure was high, the pH of the system decreased insignificantly with increasing CO₂ partial pressure. The dissolution of CO₂ in water to achieve equilibrium continued to increase the CO₂ partial pressure but the pH value almost no longer increased [25]. Therefore, the different average corrosion rates in 30% crude oil/brine with CO₂ partial pressure were not only caused by pH changes but by a series of chemical changes.

4.2. Formation Mechanism of Localized Corrosion

With the change in CO₂ partial pressure, the corrosion rate of the J55 carbon steel changed significantly in 30% crude oil/brine mixtures, which indicated that the corrosion mechanism also changed. Figure 13 shows the partition graph of the corrosion rate in CO₂/30% crude oil/brine mixtures as the change in CO₂ partial pressure. Water-in-oil and oil-in-water emulsions coexist in 30% crude oil/brine mixtures, and the ratio of oil-in-water emulsion is large. Crude oil and water can all moisten the metal surface. The crude oil with corrosion inhibition was not evenly adsorbed on the metal surface, causing localized corrosion. As shown in Figure 14, corrosion models were proposed to clarify the influence of CO₂ partial pressure on the mechanism of localized corrosion. The four stages describing the formation of localized corrosion are as follows:

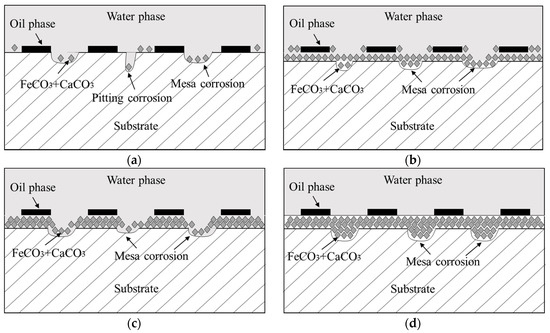

Model I (shown in Figure 15a): At P${\mathrm{co}}_2$ = 0–1.5 MPa, the corrosion rate increased rapidly with the increase in CO₂ partial pressure. When the CO₂ partial pressure was small, the system pH decreased significantly with increasing CO₂ partial pressure, similar to the estimated pH value shown in Figure 14. The concentration of H₂CO₃ increased with increasing CO₂ partial pressure, which accelerated the cathodic reactions, increased the corrosion rate [13,14,15,16], and finally increased the Fe²⁺ content. The corrosion scale precipitated and the scattered corrosion scale appeared on the surface, but the solubility products of FeCO₃ and CaCO₃ increased because the pH decreased, as shown in Figure 6b. Pitting may also occur locally due to the presence of crude oil and Cl⁻ [9].

Model II (shown in Figure 15b): At P${\mathrm{co}}_2$ = 1.5–5.0 MPa, the corrosion rate decreased with increasing CO₂ partial pressure. At the initial stage of the experiment, the metal surface suffered strong localized corrosion. This result is consistent with the conclusions of many researchers [5,13,14,15,16]. The Fe²⁺ concentration increased and acidic concentration decreased rapidly on the steel surface. The nucleation and growth of FeCO₃ typically start on the steel surface where the pH and FeCO₃ saturation values are the highest [34]. The FeCO₃ layer restricted the transport of H⁺ in and Fe²⁺ out; thus, the corrosion rate decreased with the increase in CO₂ partial pressure. The reduction of the system pH value also dissolved the corrosion scale, but the dissolution rate of the corrosion product layer was lower than the precipitation rate as the CO₂ partial pressure was increased.

Model III (shown in Figure 15c): At P${\mathrm{co}}_2$ = 5.0–9.0 MPa CO₂, the corrosion rate increased with increasing CO₂ partial pressure, which is in good agreement with the literature [28]. With the increase in CO₂ partial pressure from 5 to 9.0 MPa, CO₂ phase changed to a supercritical state, and the solubility of CO₂ in crude oil increased rapidly [35]. When the decrease in pH value promoted the dissolution of protective layers, CO₂ possibly transferred from crude oil to the aqueous phase, supplemented with consumed H⁺ dissolving the product layer [36]. Thus, the surface of carbon steel was exposed to corrosive medium, and corrosion reaction was promoted [13,16]. The dissolution rate of the corrosion product layer was greater than the precipitation rate as the CO₂ partial pressure was increased.

Model IV (shown in Figure 15d): At P${\mathrm{co}}_2$ = 9.0~15.0 MPa, the corrosion rate was almost constant with the increase in CO₂ partial pressure. This result can be attributed to the almost-constant system pH value (about 3.10–3.14), as shown in Figure 14. At the initial stage of the experiment, the metal surface suffered strong localized corrosion. The production and dissolution of corrosion scale were carried out simultaneously. Finally, a dense, complete, and protective corrosion product layer formed rapidly on the metal surface. Yoon-Seok Choi et al. [18] also obtained similar results, i.e., the corrosion rates of L80 in 25 wt.% NaCl solution started out high but ended up being very low at 90 °C and 12 MPa CO₂ pressure. Pitting may occur under dense protective layer, as shown in Figure 13.

5. Conclusions

Based on the observed corrosion behavior of J55 carbon steel in different CO₂/30% crude oil/brine mixtures at 65 °C, we conclude the following:

(1) The corrosion rate sharply increased as the CO₂ partial pressure was increased from 0 to 1.5 MPa, decreased from P${\mathrm{co}}_2$ = 1.5 MPa to P${\mathrm{co}}_2$ = 5.0 MPa, increased again at P${\mathrm{co}}_2$ = 5.0 MPa, and then reached a constant value after P${\mathrm{co}}_2$ = 9.0 MPa.

(2) In 30% crude oil/brine mixtures, the surface of J55 carbon steel was covered by FeCO₃ and CaCO₃. The surface of the J55 carbon steel suffered localized corrosion in different CO₂/30% crude oil/brine mixtures at 65 °C.

(3) The system pH initially decreased, rapidly increased, and then stabilized as CO₂ partial pressure was increased. The CO₂ partial pressure changed the system pH and CO₂ solubility in crude oil, which further affected the formation and protection performance of the corrosion product layer.
