Synthesis, X-ray Crystal Structure, and Photochromism of a Sandwich-Type Mono-Aluminum Complex Composed of Two Tri-Lacunary α-Dawson-Type Polyoxotungstates

Abstract

The synthesis and molecular structure of a dimeric, mono-aluminum complex composed of two tri-lacunary α-Dawson polyoxometalates, [H₁₄Al(B-α-P₂W₁₅O₅₆)₂]⁷⁻ (1), is described herein. The tetra-n-butylammonium salt of 1, [(n-C₄H₉)₄N]₇[H₁₄Al(B-α-P₂W₁₅O₅₆)₂] (TBA-1) was prepared by passing an aqueous solution of K₆[B-α-H₃P₂W₁₅O₅₉{Al(OH₂)}₃]⋅14H₂O through an ion-exchange resin column (H⁺-form), followed by addition of tetra-n-butylammonium bromide. Analytically pure and colorless crystals of TBA-1 were obtained via vapor diffusion from acetonitrile/methanol at ~25 °C. Single-crystal X-ray structure analysis revealed that a six-coordinate aluminum ion was sandwiched between two tri-lacunary α-Dawson-type units, resulting in an overall C_2h symmetry. The characterization of TBA-1 was accomplished by elemental analyses, thermogravimetric/differential thermal analyses, Fourier-transform infrared spectroscopy, and solution ³¹P nuclear magnetic resonance spectroscopy. The photochromic properties of TBA-1 were also characterized in methanol under light irradiation (λ = 365 nm and ≥400 nm).

1. Introduction

Aluminum and its derivative alloys, oxides, organometallics, and inorganic compounds have been used in many fields due to their unique properties including high reactivity, acidity, hardness, and electroconductivity [1,2]. Since the properties and activities of aluminum species strongly depend on the aluminum site structures, the synthesis of aluminum compounds with structurally well-defined aluminum sites is important for the development of useful aluminum-based materials. However, even when conditions are carefully controlled during preparation, the construction of well-defined aluminum structure is often difficult [2,3,4].

Polyoxometalates have attracted much attention in the fields of catalytic chemistry, surface science, and materials science because of their controllable shape, size, composition, and structural diversity [5,6,7,8,9]. Although various techniques for functionalization of polyoxometalates have been reported, the synthetic technology of introducing metal ions into vacant sites using lacunary polyoxometalates as inorganic ligands is an effective technique for constructing stable and well-defined active metal centers. In terms of polyoxometalates containing aluminum ions as heteroatoms, various aluminum compounds have been synthesized and structurally characterized [10,11,12,13,14,15,16,17]. Although some aluminum-containing polyoxometalates, e.g., [γ-SiW₁₀O₃₆{Al(OH₂)}₂(μ-OH)₂]⁴⁻ [10], [(A-PW₉O₃₄)₂{W(OH)(OH₂)}{Al(OH)(OH₂)}{Al(μ-OH)(OH₂)₂}₂]⁷⁻ [11], [α-PW₁₁{Al(OH₂)}O₃₉]⁴⁻ [11], and [α₂-P₂W₁₇{Al(OH₂)}O₆₁]⁷⁻ [11], and [Al₄(H₂O)₁₀(β-AsW₉O₃₃H)₂]⁴⁻ [12], have been used as Lewis acids and oxidation catalysts, examples of structurally characterized aluminum complexes with polyoxometalate ligands remain rare, and their properties and activities are unknown.

Herein, we successfully obtained a dimeric, mono-aluminum complex composed of tri-lacunary α-Dawson polyoxometalate units in the form of crystals suitable for the X-ray structure analysis of [(n-C₄H₉)₄N]₇[H₁₄Al(B-α-P₂W₁₅O₅₆)₂] (TBA-1). Polyoxoanion 1 exhibited excellent photochromic properties both in the presence of methanol or ethanol in solutions of acetonitrile and DMSO and in suspension under light irradiation (λ = 365 nm and ≥400 nm). Although the photochromic behavior of polyoxometalate is routinely observed, there are few examples of photoresponsive materials obtained by transformation of polyoxometalate structures without including photoresponsive organic molecules [18,19]. We report the synthesis, X-ray crystal structure, and photochromic properties of TBA-1.

2. Experimental

2.1. Materials and Methods

K₆[B-α-H₃P₂W₁₅O₅₉{Al(OH₂)}₃]⋅14H₂O was prepared as previously described [13]. The number of solvated water molecules was determined by thermogravimetric/differential thermal analyses (TG/DTA). All reagents and solvents were obtained and used as-received from commercial sources. The elemental analyses results of C, H, and N were obtained using Flash EA (Thermo Electron Corporation, Waltham, MA, USA) at Shizuoka University (Shizuoka, Japan). The elemental analyses of P, Al, and K were performed by Mikroanalytisches Labor Pascher (Remagen, Germany). Fourier-transform infrared (FT-IR) spectra were recorded using a Perkin Elmer Spectrum 100 FT-IR spectrometer (Waltham, MA, USA) on KBr disks at ~25 °C. The TG/DTA data were obtained using Rigaku Thermo Plus EVO2 TG/DTA 81205Z instrument (Tokyo, Japan) in air while increasing the temperature from 20 to 500 °C at 4 °C/min. The ³¹P (242.95 MHz) NMR spectrum in solution was recorded in 5 mm outer diameter tubes using a JEOL ECA-600 NMR spectrometer (Akishima, Tokyo) at Shizuoka University. The ³¹P NMR spectra were measured in DMSO-d₆ with reference to an external standard of 85% H₃PO₄ in a sealed capillary. The chemical shifts were reported as negative on the δ scale for resonances upfield of H₃PO₄ (δ 0). For the photochromism experiments, the crystals of TBA-1 were dissolved in a DMSO/methanol (83:17 vol%) solution, and the solution was irradiated in a quartz cell with a 300 W Xe lamp (λ = ≥400 and ≥440 nm) or 6W Hg lamp (λ = 254 and 365 nm). All measurements were performed under ambient conditions. The UV–Vis spectra were recorded using a Perkin–Elmer Spectrum Lambda 650 spectrophotometer. The experiment of coloration–decoloration cycles was carried out as follows: the DMSO/methanol (83:17 vol%) solution of TBA-1 (6.6 × 10⁻⁴ M) was irradiated by light (λ = ≥400 nm) for 30 min in air, and UV–Vis spectrum was immediately observed. After stand for several hours in the dark, the UV–Vis spectrum was observed again. This cycle was repeated several times, and the absorbance at 655 nm was plotted.

2.2. Synthesis of [(n-C₄H₉)₄N]₇[H₁₄Al(B-α-P₂W₁₅O₅₆)₂] (TBA-1)

K₆[B-α-H₃P₂W₁₅O₅₉{Al(OH₂)}₃]⋅14H₂O (5.047 g, 1.15 mmol) was dissolved in 130 mL of water in a water bath at approximately 90 °C. After being cooled to approximately 25 °C, the colorless clear solution was passed through a cation exchange resin column (Amberlite IR120B NA, 163 mL) at a rate of 1 drop / s. Subsequently, 250 mL of water was passed through the column. It was confirmed that the pH of the eluent was the same as that of the water. Solid [(n-C₄H₉)₄N]Br (33.376 g, 0.104 mol) was then added to the aqueous solution. After stirring overnight, white precipitate was collected using a glass flit (17G4) then washed with water (50 mL × 3) and ethanol (50 mL × 3). The crude product was obtained in a 5.330 g yield. For purification, the crude product (2.00 g) was dissolved in 20 mL of acetonitrile, and the insoluble white precipitate was removed using a folded filter paper (Whatman #5). Crystallization was performed by vapor diffusion from methanol at approximately 25 °C. After standing for a few days, colorless crystals were collected by a membrane filter (JG 0.2 µm; note: the crystals of TBA-1 changed from white to blue during crystallization under fluorescent light, but returned to white when contact with methanol vapor was stopped).

The product was obtained in a yield of 0.739 g (the yield calculated based on [mol of TBA-1]/[mol of K₆[B-α-H₃P₂W₁₅O₅₉{Al(OH₂)}₃]⋅14H₂O] × 100 was 18.7%). A single crystal for X-ray structural analysis was prepared by vapor diffusion from methanol using 0.500 g of the obtained product. The elemental analysis results showed C, 14.97; H, 2.84; Al, 0.31; N, 1.25; P, 1.35; K, <0.01%, and calculations for [(n-C₄H₉)₄N]₇[H₁₄Al(B-α-P₂W₁₅O₅₆)₂] (TBA-1) = C₁₁₂H₂₆₆Al₁N₇O₁₁₂P₄W₃₀ (MW 9169.4) showed C, 14.67; H, 2.92; Al, 0.29; N, 1.07; P, 1.35; K, 0%. The TG/DTA data under atmospheric conditions showed a weight loss of 17.5% with exothermic peaks at 320.0 and 465.8 °C from 25.4 to 465.8 °C, whereas calculations showed a 18.5% weight loss for seven tetra-n-butylammonium ions. The IR (KBr disk) results in the 1300 to 400 cm⁻¹ region (polyoxometalate region) showed bands at 1091, 1052, 998, 966, 952, 917, 790, 599, and 532 cm⁻¹. ³¹P NMR: (DMSO-d₆ with a drop of water, 23.8 °C): δ −6.36, −11.80.

2.3. X-ray Crystallography

A colorless block crystal of TBA-1 (0.080 mm × 0.080 mm × 0.050 mm) was mounted on a MicroMount. The measurements were performed using a Rigaku VariMax with an XtaLAB P200 diffractometer (Rigaku Inc., Tokyo, Japan) using multilayer mirror-monochromated Mo Kα radiation (λ = 0.71075 Å) at 153 ± 1 K. The data were collected and processed using CrystalClear (Rigaku Inc., 2008), CrystalClear-SM Expert for Windows (Rigaku Inc., 2008), and structural analysis was performed using CrystalStructure for Windows (Version 4.2.5). The structure was solved using SHELXS-2013 and refined by SHELXL-2016 [20]. For polyoxoanion 1, 30 tungsten atoms, an aluminum atom, four phosphorus atoms, and 112 oxygen atoms were identified. However, the resolution obtained for the structure was limited by the poor quality of the available crystals and considerable disorder of the counter cations, which are common in polyoxometalate crystallography [21,22,23,24,25]. Accordingly, the residual electron density was removed using the SQUEEZE [26] routine in PLATON (Version 1.17, University of Glasgow, Scotland, UK).

2.4. Crystal Data of TBA-1

C₁₁₂H₂₆₆Al₁N₇O₁₁₂P₄W₃₀; MW = 9169.4, orthorhombic, space group: Cmce (#64), a = 25.861(3) Å, b = 17.413(2) Å, c = 52.237(7) Å, V = 23,524(5) ų, Z = 4, D_c = 2.589 g/cm³, μ(Mo Kα) = 147.274 cm⁻¹, R₁ = 0.0816 [I > 2σ(I)], wR₂ = 0.2407 (for all data). GOF = 0.984 (66,740 total reflections and 10,464 unique reflections where I > 2σ(I)). CSD No. 1920906.

3. Results and Discussion

3.1. Synthesis and Characterization of [(n-C₄H₉)₄N]₇[H₁₄Al(B-α-P₂W₁₅O₅₆)₂] (TBA-1)

The tetra-n-butylammonium salt of a mono-aluminum complex with two tri-lacunary α-Dawson-type polyoxotungstes, [(n-C₄H₉)₄N]₇[H₁₄Al(B-α-P₂W₁₅O₅₆)₂] (TBA-1), was prepared by passing the aqueous solution of the monomeric, α-Dawson-type tri-aluminum-substituted polyoxotungstate, K₆[B-α-H₃P₂W₁₅O₅₉{Al(OH₂)}₃]⋅14H₂O, through an ion exchange resin column (H⁺-form), followed by addition of tetra-n-butylammonium bromide. The purification was performed by crystallization via vapor diffusion from acetonitrile/methanol at 25 °C in air. TBA-1 was finally isolated as an analytically pure, colorless crystals in a 18.7% yield.

Here, the molecular structure of α-Dawson-type tri-aluminum-substituted polyoxotungstate used as the starting complex changed as it passed through the ion exchange resin (H⁺-form). In general, ion exchange resins are used to obtain the free-acid type of polyoxometalates by the exchange of counter cations (including alkali metal ions and organic ammonium ions) with protons [27,28]. However, this treatment of α-Dawson-type tri-aluminum-substituted polyoxotungstate with ion exchange resin caused the cation exchange reaction and the molecular structure transformation of a monomeric, α-Dawson-type tri-aluminum-substituted polyoxotungstate to a dimeric, α-Dawson-type mono-aluminum-substituted polyoxotungstate. Although the formation of polyoxoanion 1 was observed by adjusting the pH of K₆[B-α-H₃P₂W₁₅O₅₉{Al(OH₂)}₃]⋅14H₂O aqueous solution to approximately 0.05; TBA-1 with high purity was obtained by passing through the ion-exchange resin column (H⁺-form).

The elemental analyses of C, H, N, Al, and P were in good agreement with the calculated values for the formula without hydrated water molecules for TBA-1 (see the Experimental Section). It should be noted that the K analysis revealed no potassium ion contamination in the precursor. For the TG/DTA measurement performed under atmospheric conditions, a weight loss of 17.5% was observed at 25.4–465.8 °C corresponding to seven tetra-n-butylammonium ions (calcd. 18.5%), as shown in Figure S1.

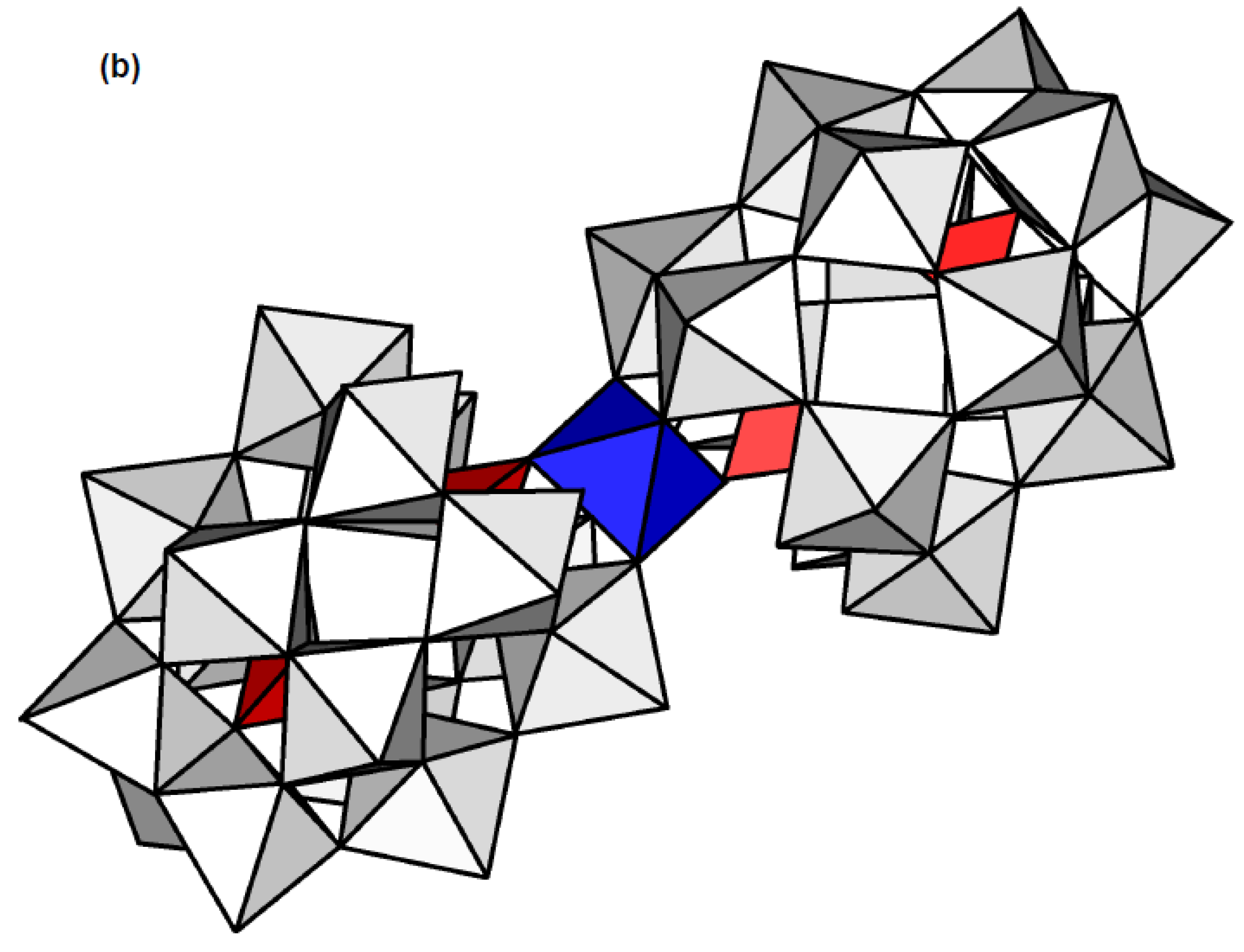

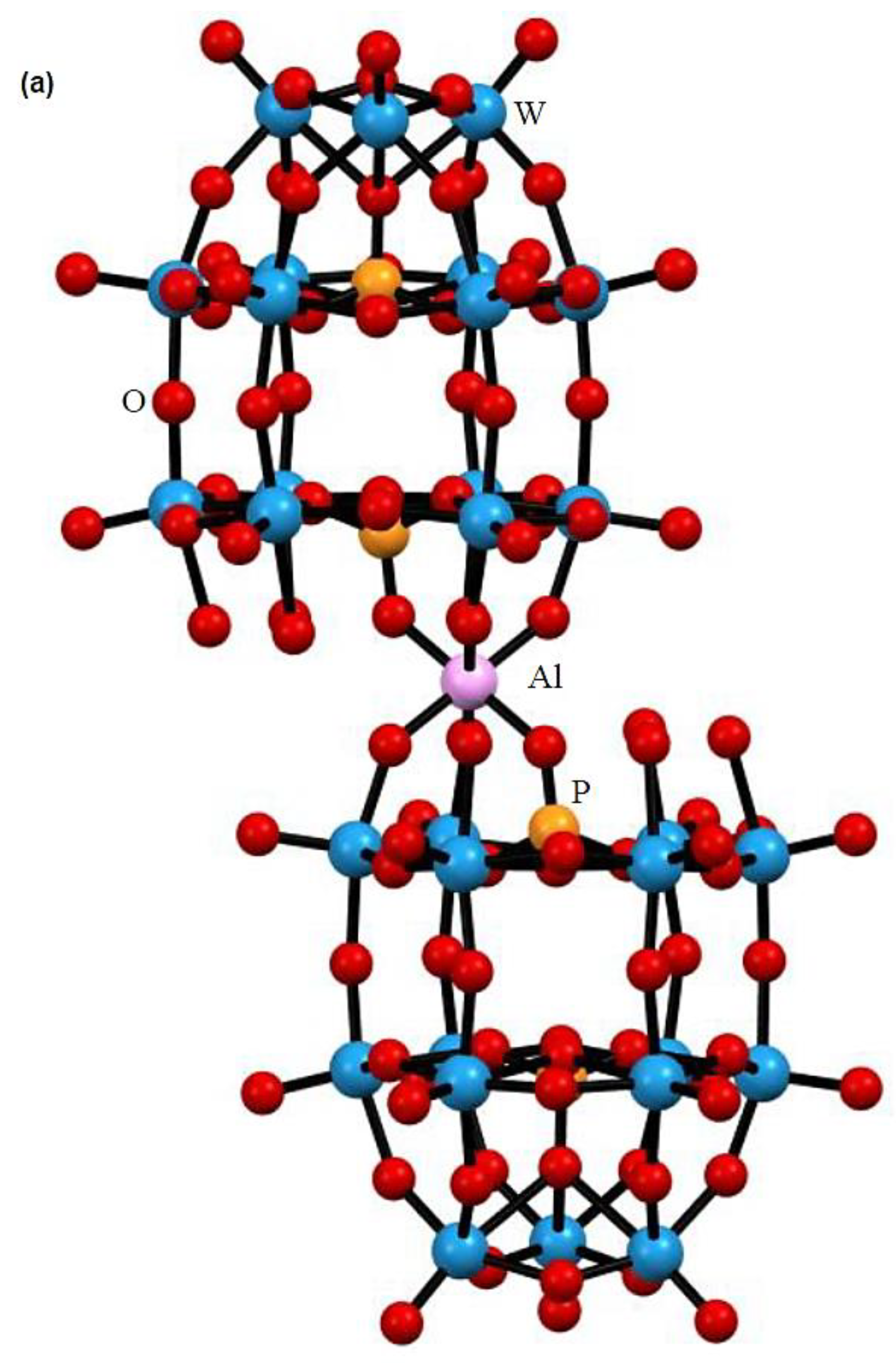

Single crystals of TBA-1 suitable for X-ray crystallography were obtained by crystallization via vapor diffusion from acetonitrile/methanol. The molecular structure of [H₁₄Al(B-α-P₂W₁₅O₅₆)₂]⁷⁻ (1) in TBA-1 and a Dawson unit with atom numbering are shown in Figure 1 and Figure S2, respectively. The bond lengths and angles are listed in Tables S1 and S2. X-ray crystallography of 1 revealed that a 6-coordinate mono-aluminum site was sandwiched by two tri-lacunary α-Dawson polyoxotungstate units, [α-P₂W₁₅O₅₆]¹²⁻, resulting in an overall C_2h symmetry. Similar dimeric structure coexisting with substitution sites and noncoordinating terminal oxo groups between the two {P₂W₁₅} units was previously reported for [(TiO₂W₁₅O₅₅H)₂]¹⁴⁻ [29], [Ti₂{P₂W₁₅O₅₄(OH₂)₂}₂]⁸⁻ [27], and [{P₂W₁₅O₅₄(H₂O)}₂Zr]¹²⁻ [30], but TBA-1 is the first example of a compound containing an aluminum site.

The bond valence sums (BVSs) [31,32,33,34], calculated based on the observed bond lengths for TBA-1, ranged from 5.65 to 6.45 (average of 6.06) for the eight W atoms, 5.2–5.49 (average of 5.36) for the two P atoms, 1.52–2.80 (average of 1.95) for the 31 oxygen atoms (excluding O(9) and O(10)), and 2.88 for the Al atom (Table S3). These values were consistent with the formal valences of W⁶⁺, P⁵⁺, O²⁻, and Al³⁺. In contrast, the calculated BVS values of the terminal oxygen atoms at the vacant sites were 0.54 for O(9) and 0.63 for O(10). These BVS values of the oxygen atoms suggested that one or two protons were bound to each terminal oxygen atoms, as reported for K₆Na[(A-PW₉O₃₄)₂{W(OH)(OH₂)}{Al(OH)(OH₂)}{Al(µ-OH)(OH₂)₂}₂]⋅19H₂O [15] and [(CH₃)₄N]₁₄Na₂[B-α-H₃P₂W₁₅O₅₉{Al(OH)}₂{Al(OH₂)}]₂⋅39H₂O [13]. Thus, the elemental analyses and BVS calculations suggested that 14 protons were present as hydroxyl groups and/or water molecules at the vacant sites.

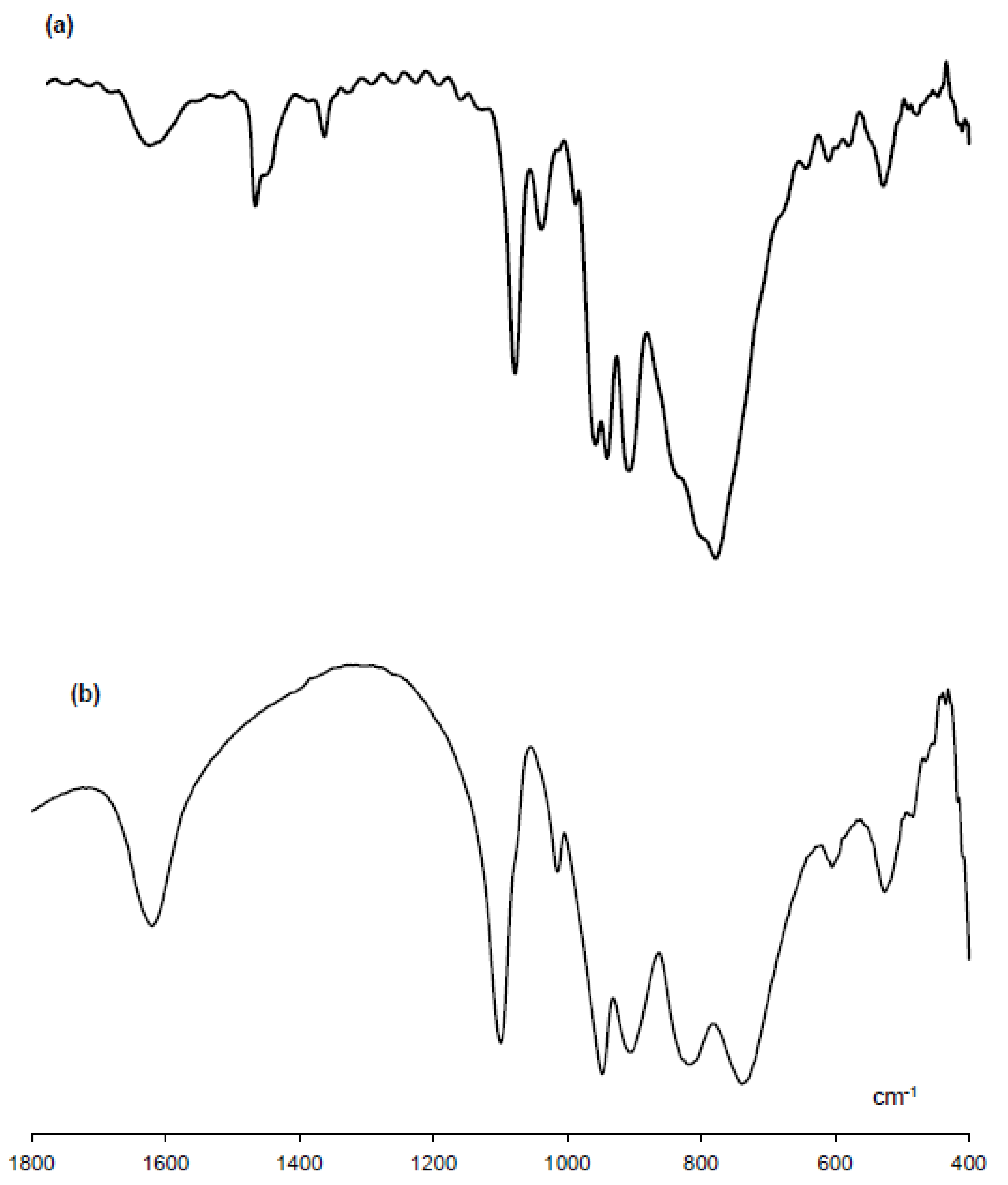

The FT-IR spectrum measured as a KBr disk for TBA-1 is shown in Figure 2. The spectral pattern of TBA-1 (bands at 1091, 1052, 998, 966, 952, 917, 790, 599, and 532 cm⁻¹; Figure 2a) was different from that of the starting material K₆[B-α-H₃P₂W₁₅O₅₉{Al(OH₂)}₃]⋅14H₂O (bands at 1100, 1015, 948, 906, 820, 739, 605, and 526 cm⁻¹; Figure 2b), the α-Dawson-type tri-lacunary polyoxometalate Na₁₂[B-α-P₂W₁₅O₅₆]⋅33H₂O (bands at 1132, 1087, 1009, 978, 937, 915, 876, 826, 744, and 526 cm⁻¹) [13,35], α₂-Dawson-type mono-lacunary polyoxometalate K₁₀[α₂-P₂W₁₇O₆₁]·23H₂O (bands at 1631, 1082, 1050, 1017, 940, 922, 889, 817, 748, and 528 cm⁻¹) [36], and α₂-Dawson-type mono-aluminum-substituted polyoxometalate K₇[α₂-P₂W₁₇{Al(OH₂)}O₆₁]⋅14H₂O (bands at 1090, 1018, 952, 916, 796, and 526 cm⁻¹) [11]. This suggested that the molecular structure of [B-α-H₃P₂W₁₅O₅₉{Al(OH₂)}₃]⁶⁻ changed to a new species as it was passed through the ion exchange resin. The band at 1484 cm⁻¹ arose from the tetra-n-butylammonium ions.

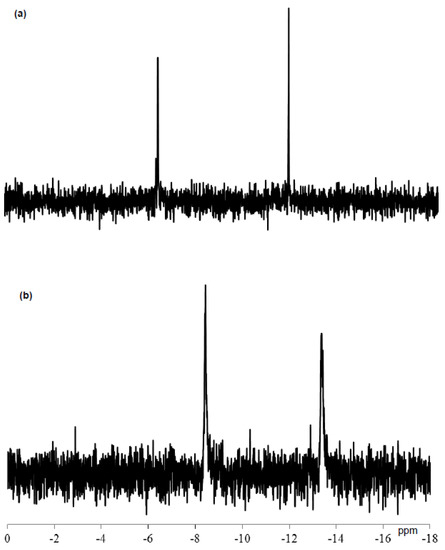

The ³¹P NMR spectrum of TBA-1 in DMSO-d₆ containing a drop of water at 23.8 °C showed two main signals at −6.36 and −11.80 ppm with approximately 1:1 integrated intensities arising from the two internal phosphorus atoms, as shown in Figure 3a. The signals differed from those of K₆[B-α-H₃P₂W₁₅O₅₉{Al(OH₂)}₃]⋅14H₂O (δ −8.43, −13.39) observed in 11:2 (v/v%) DMSO-d₆/water (Figure 3b), suggesting the formation of a novel polyoxometalate-based species.

3.2. Photochromism of TBA-1

During crystallization of TBA-1 from acetonitrile/methanol, we coincidentally observed the photochromic behavior of TBA-1 under light (λ = 365 nm and ≥400 nm) irradiation in the presence of alcohol (methanol or ethanol) in suspension and solution. When solid TBA-1 was suspended in methanol and irradiated by the light for a few minutes, the solid TBA-1 turned from white to blue. When the compound was left for several hours in the dark, it returned to white under an air. In DMSO/methanol solution, TBA-1 also showed similar photochromic properties under light irradiation (λ = 365 nm and ≥400 nm) within a few minutes. Under UV (λ = 254 nm) and visible light (λ = ≥440 nm) irradiation, the coloration was not observed within at least a few hours.

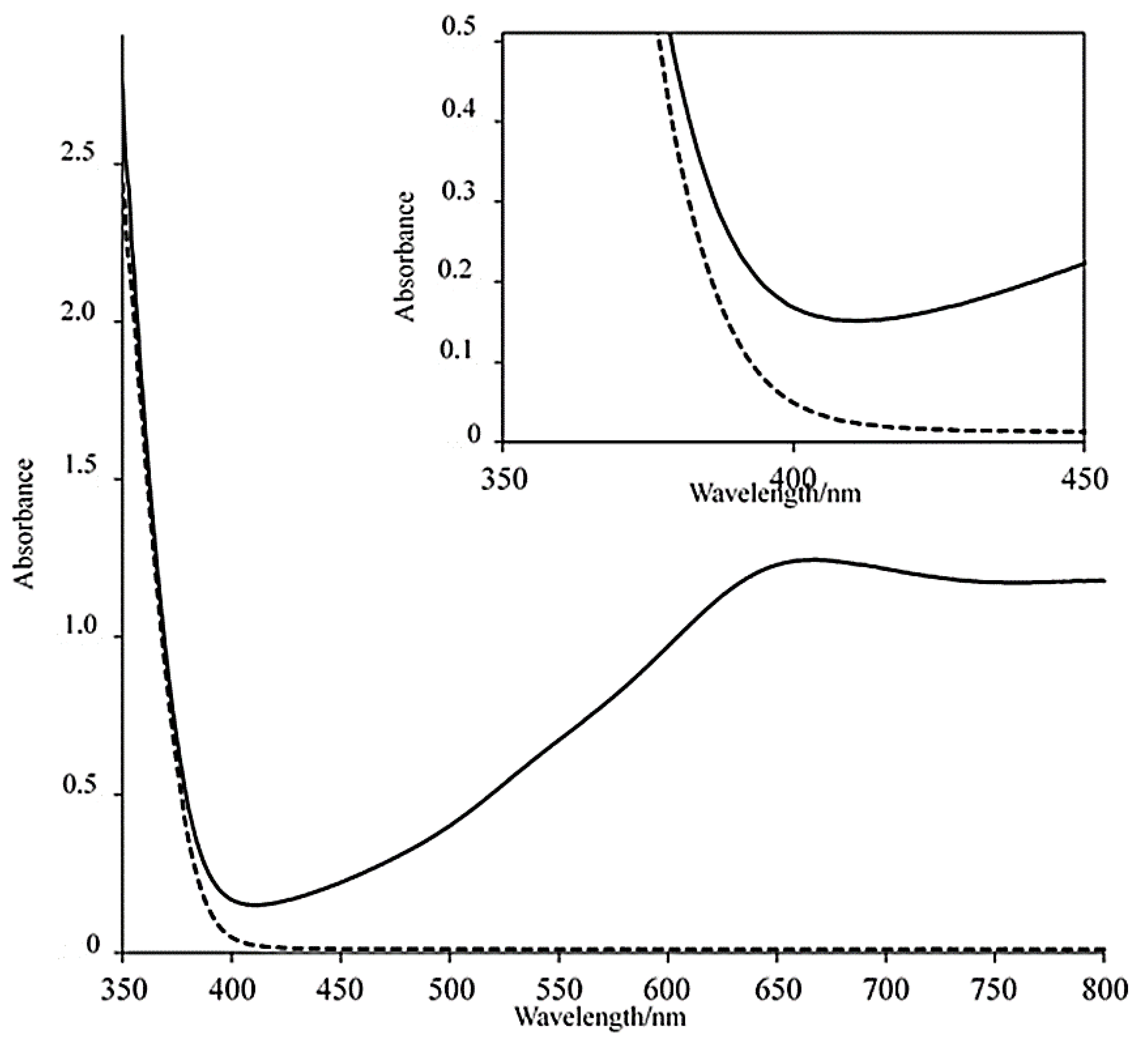

Figure 4 shows the UV–Vis spectra from 350 to 800 nm of TBA-1 in the DMSO/methanol (83:17 vol%) solution before and after 30 min of photoirradiation at ≥400 nm. In the spectrum before light irradiation, an absorption tail was red-shifted to approximately 400 nm as compared to the absorption in the absence of methanol (Figure S3). The red-shift of absorption tail due to the presence of organic molecules was also observed in H₃PMo₁₂O₄₀⋅6DMA⋅CH₃CN⋅0.5H₂O (DMA = N,N-dimethylacetamide), which is highly photosensitive in the near-UV and visible region [37]. Similar behavior was observed for H₃PW₁₂O₄₀ [38] and H₄SiW₁₂O₄₀ [39]. The electronic interactions between TBA-1 and methanol (or ethanol) are essential for the red-shifting of the O→M LMCT band, allowing photochromism to be initiated by visible light (λ = ≥400 nm) irradiation [18]. After irradiation for 30 min, a large absorption with a maximum at approximately 655 nm was observed, suggesting that the tungsten sites in the {P₂W₁₅} units were reduced to heteropolyblue species [5,40]. The adsorption completely disappeared when the solution was shielded from light under an air atmosphere for several hours. With a few minutes of argon purge in an airtight vial, the color did not return from blue to white for at least several days. These results suggested that the heteropolyblue species was reoxidized by oxygen in air.

Despite the presence of 365 nm absorption, TBA-1 did not show any distinct coloration under UV light irradiation (λ = 365 nm) in the absence of methanol (or ethanol). These results suggested that the presence of methanol (or ethanol) was essential for the photoreduction of TBA-1 under UV light (λ = 365 nm) as well as visible light (λ = ≥400 nm) irradiation. When a small portion of water was added to the DMSO/methanol solution of TBA-1, the photochromic properties were no longer expressed, likely because of the inhibition of methanol contact by water. This was also supported the result that the absorption at around 400 nm was blue-shifted by the addition of water to the DMSO/methanol solution, as shown in Figure S4.

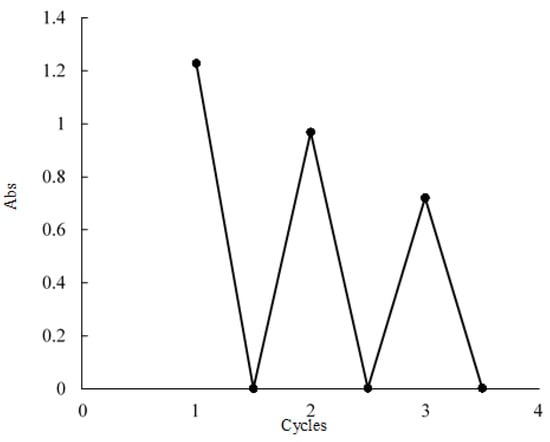

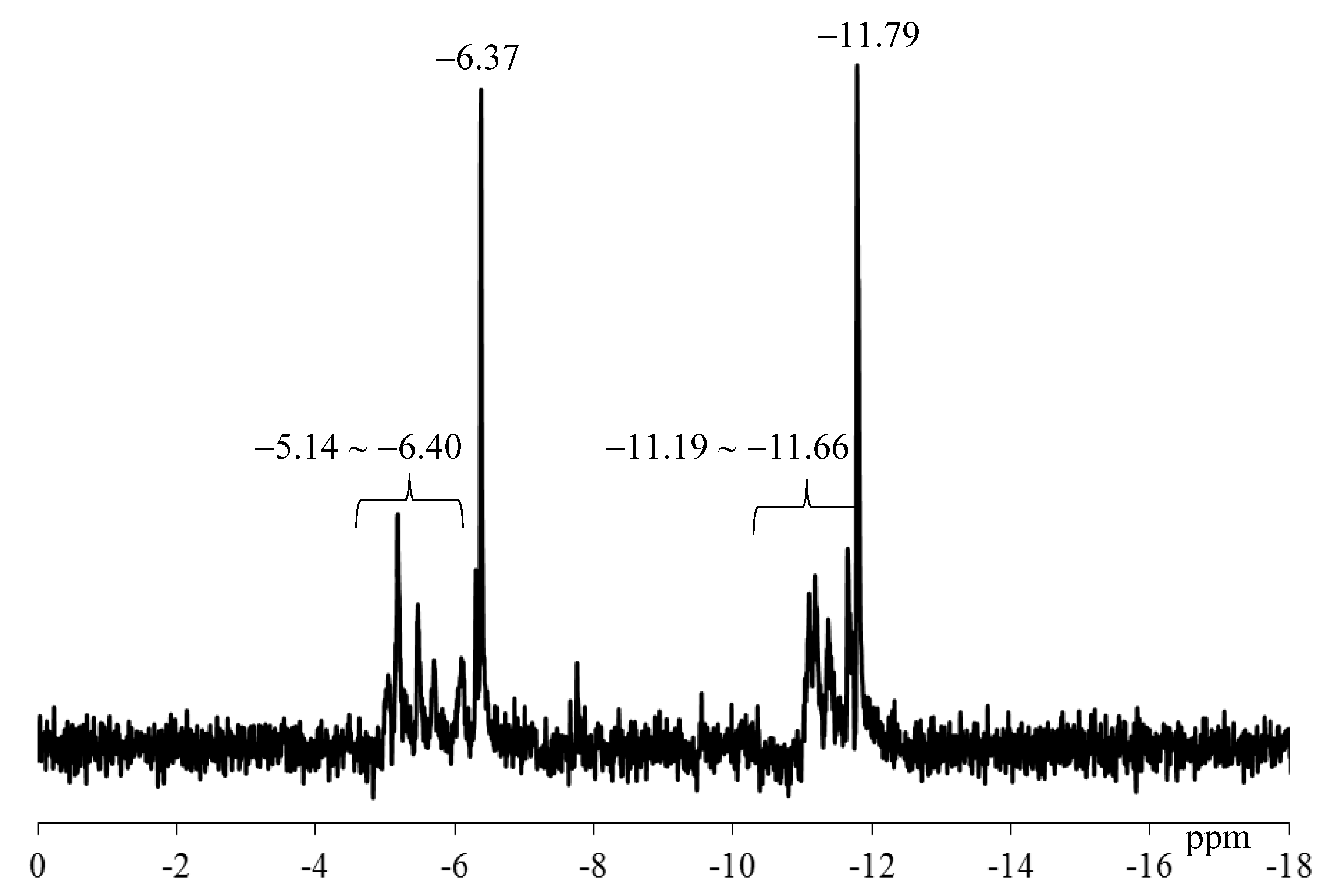

With successive coloration–decoloration cycles, the position of absorption band was largely unchanged and the photochromic reversibility of TBA-1 was confirmed in DMSO/methanol (83:17 vol%). However, the absorbance of the band at 655 nm arising from the reduced species gradually decreased with the number of cycles, as shown in Figure 5. The ³¹P NMR spectrum of TBA-1 after standing for 6 days in DMSO-d₆ at approximately 25 °C is shown in Figure 6. The signals of the as-prepared TBA-1 were retained at −6.37 and −11.79 ppm, but many unassigned signals were also observed. These results suggest that the decreased absorption was due to the decomposition of TBA-1 in the DMSO solution.

Although the stability of TBA-1 in DMSO solution was only moderate, the polyoxometalate compounds exhibiting visible-light coloration are useful materials [18,19]. To the best of our knowledge, TBA-1 is the first example of a photoresponsive aluminum-containing polyoxometalate.

4. Conclusions

Herein, a dimeric aluminum complex composed of tri-lacunary α-Dawson polyoxometalate was prepared. Single crystals of a tetra-n-butylammonium salt [(n-C₄H₉)₄N]₇[H₁₄Al(B-α-P₂W₁₅O₅₆)₂] (TBA-1) were obtained by passing the aqueous solution of monomeric, α-Dawson tri-aluminum-substituted polyoxometalate K₆[B-α-H₃P₂W₁₅O₅₉{Al(OH₂)}₃]⋅14H₂O through an ion exchange resin column (H⁺-form), followed by addition of tetra-n-butylammonium bromide. The characterization of TBA-1 was accomplished by X-ray structure analysis, elemental analyses, TG/DTA, FT-IR, and solution ³¹P NMR spectroscopy. The single-crystal X-ray structure revealed that a six-coordinate aluminum ion was sandwiched between two tri-lacunary α-Dawson-type units, resulting in an overall C_2h symmetry. Surprisingly, TBA-1 exhibited photochromic properties in the presence of alcohol (methanol or ethanol) in solutions of acetonitrile and DMSO and in suspension under UV (λ = 365 nm) and visible light irradiation (λ = ≥400 nm). Although the photochromic behavior of polyoxometalate is routinely observed, TBA-1 is a rare example of photoresponsive materials obtained by transformation of polyoxometalate structures. In future studies, we will investigate the effect of polyoxometalate constituents (e.g., aluminum sites, polyoxometalate structures, and counter cations) on these photochromic properties.
