Visible-Light Activation of Photocatalytic for Reduction of Nitrogen to Ammonia by Introducing Impurity Defect Levels into Nanocrystalline Diamond

by
Rui Su
,
Zhangcheng Liu
,
Haris Naeem Abbasi
,
Jinjia Wei
and
Hongxing Wang
*
Key Lab for Physical Electronics and Devices, Faculty of Electronics and Information Engineering, Xi’an Jiaotong University, Xi’an 710049, China
*
Author to whom correspondence should be addressed.
Materials 2020, 13(20), 4559; https://doi.org/10.3390/ma13204559
Submission received: 12 September 2020 / Revised: 2 October 2020 / Accepted: 12 October 2020 / Published: 14 October 2020
(This article belongs to the Special Issue Advances in Synthetic Diamond Materials)
Browse Figures
Review Reports Versions Notes

Abstract

:
Nitrogen impurity has been introduced in diamond film to produce a nitrogen vacancy center (NV center) toward the solvated electron-initiated reduction of N2 to NH3 in liquids, giving rise to extend the wavelength region beyond the diamond’s band. Scanning electron microscopy and X-ray diffraction demonstrate the formation of the nanocrystalline nitrogen-doped diamond with an average diameter of ten nanometers. Raman spectroscopy and PhotoLuminescence (PL) spectrum show characteristics of the NV0 and NV− charge states. Measurements of photocatalytic activity using supraband (λ < 225 nm) gap and sub-band gap (λ > 225 nm) excitation show the nitrogen-doped diamond significantly enhanced the ability to reduce N2 to NH3 compared to the polycrystalline diamond and single crystal diamond (SCD). Our results suggest an important process of internal photoemission, in which electrons are excited from negative charge states into conduction band edges, presenting remarkable photoinitiated electrons under ultraviolet and visible light. Other factors, including transitions between defect levels and processes of reaction, are also discussed. This approach can be especially advantageous to such as N2 and CO2 that bind only weakly to most surfaces and high energy conditions.

1. Introduction

It has been known that the hydrogen terminated diamond, whose conduction-band edge lies 0.8–1.3 eV above the vacuum level, can emit electrons without any barrier when illuminated by light with bandgap above 5.45 eV [1,2,3,4,5,6]. Recently, boron-doped diamond electrodes have been applied to chemistry due to their exceptional properties. For example, they are very stable when used as a large electrochemical potential window and a control of surface termination [7,8,9]. However, photoemission processes of diamond film require high-energy photons due to its large bandgap. Only the light with wavelength less than 225 nm can excite across the 5.45 eV bandgap. However, it is the ultraviolet light with 300–400 nm from solar radiation that can pass through atmosphere to the surface due to ozone [10,11,12]. This leads to the low efficiency for photocatalyst. Therefore, in order to extend wavelength range and promote applications, our work will focus on the research of nitrogen impurity-doped diamond film in the field of photocatalysis. Since impurities can introduce intermediate levels, especially optical active energy levels, in diamond forbidden band.
Ammonia has been widely utilized as an important energy carrier, fertilizer precursor, and fuel because of its high hydrogen density, low liquefying pressure, and carbon-free emission [13,14,15,16]. Despite its importance, production is still heavily dependent on the energy intensive Haber–Bosch process owing to harsh conditions (typically 300–500 °C and 200–300 atm) [17,18,19]. Compared with the Haber–Bosch method, nitrogen fixation of photocatalyst can be promoted at room temperature and pressure with clean and energy-rich solar energy as the driving force. Water and nitrogen as raw materials have a wide range of sources [20,21,22]. In addition, the electrocatalytic nitrogen reduction to synthesize ammonia requires solar, wind, and tidal energy to be converted into electrical energy first, and then the nitrogen fixation process can be realized through the electrocatalytic process [23,24,25]. Therefore, the photocatalytic nitrogen reduction to produce ammonia has a low cost and provides an alternative new method for ammonia synthesis. However, photocatalytic transformations from N2 to NH3 at semiconductor surfaces are typically limited by adsorption and activation of nitrogen molecules. Owning that the cleavage of strongest bond (N≡N triple bond) is extremely difficult, the critical step on formation of N2 + e− + H+→N2H requires approximately 3 eV of energy [26,27]. Hence, the efficiency of production is still ultralow from N2 by the electrosynthesis process.
Here, we reported a strategy to endow a boosting performance on nitrogen reduction reaction (NRR). Nitrogen-doped diamond with negative electron affinity (NEA)as electron source to reduce N2 to NH3 can be facilitated without any contact between nitrogen and diamond. We also compared performance between nitrogen-doped polycrystalline diamond film (NDD), single crystal diamond (SCD) film, and non-doped polycrystalline diamond (PD) film. The results show that the nitrogen-doped diamond film has a much better performance under sub-band gap illumination, since negative charge state can give rise to photoinitiated electrons, owing that excited states are close to the band edges.

2. Materials and Methods

2.1. The Growth of Nitrogen-Doped and Undoped Polycrystal Diamond

Two inch Si substrates were cleaned by sonication in the acetone, alcohol, and water about 15 min. The performance of diamond nucleation enhancement stage has a deep impact on the quality of the aforementioned applications of nanocrystalline diamond (NCD) films. It is essential to investigate and optimize this stage, aiming at the high adaptability of the films for further application [28]. Therefore, all samples were seeded by sonication in 0.3 g nanodiamond particles (5–8 nm in diameter, Sigma Aldrich, St. Louis, MO, USA) and 20 mL ethanol for 15 min to achieve a high nucleation density. Then, about 3 μm polycrystalline diamond layers were grown on the samples by microwave plasma chemical vapor deposition (MPCVD) in a modified AsTex system (Carat Systems, Boston, MA, USA). The film thickness was calculated by an average growth rate 20 μm/h which was evaluated from weight of numbers of samples under same growth conditions. The conditions of both nucleation and subsequent growth steps were as follows: total gas flow rate of 500 sccm, CH4/H2 ratio of 4%, gas pressure of 100 Torr, growth temperature of 1000 °C, and microwave power of 2000 W. After that, 200 nm nitrogen-doped diamond layer was grown by MPCVD on both nitrogen-doped and undoped polycrystal diamond. The deposition parameters kept consistent with that of polycrystalline diamond besides the 1% N2/H2 ratio.

2.2. Growth of Single Crystalline Diamond Film

High pressure and high temperature Ib-type diamond as substrate was utilized to deposition of undoped single crystal diamond homoepitaxial layer. The thickness of film was 500 nm. Compared with deposition conditions of the polycrystalline diamond, the CH4/H2 ratio, gas pressure, growth temperature, and microwave power were transformed to 5%, 85 Torr, 1000 °C, and 1000 W, respectively. Then, 200 nm nitrogen-doped diamond film was grown on samples. The conditions of subsequent growth steps were identical with that of nitrogen-doped polycrystal diamond films.

2.3. The Characterization of Diamond Film

Scanning electron microscopy (SEM) measurements were executed by using Gemini SEM 500 microscope (Carl Zeiss, Munich, Germany). The Raman spectroscopy were obtained by laser Raman spectrometer with excitation at 632 nm. The PL spectrum was performed using Edinburgh FLS9 (LongRun, Xi’an, China) with excitation at 325 nm. Moreover, the UV-Vis-NIR visible spectrum was measured by PE Lambda950 (Cernet, Beijing, China) at a wavelength of 697.5 nm and experiments were set up by photocatalysis system CEL-SPH2N (AuLight, Beijing, China). The surface resistance was obtained by an Agilent B1505A power device analyzer (Agilent Technologies, Santa Clara, CA, USA).

2.4. Photoinitiated Reduction of N2 to NH3

A 450 W high-pressure Hg/Xe lamp was used for photo-induced ammonia production, which was installed in an Oriel lampshade 12 inches from the sample. Wavelength range was from 200 to 800 nm and the reaction vessel was indicated in Figure 1. N2 was entered into the gas filter in order to make sure purity of the reaction gas without impurities. Experiments are carried out under sealed condition without mixed gas to ensure the accuracy. Then, slowly blow N2 into a container filled with 18.2 MΩ water (Barnsted NanoPure, Thermo Scientific, Waltham, MA, USA) and 0.01 M high purity (Alfa Puratronic, Charlotte, NC, USA, 99.9955%) Na2SO4. The vessel was sealed with a quartz cover and illuminated for different periods of time. The gas exported from vessel was run through the NH3 absorption bottle and finally taken out the system which aimed to detect other generated remaining gas. The ammonia yield from the reaction vessel and NH3 absorption bottle was measured by using the indophenol blue method for specific lengths of time [29,30]. Before experiments, a standard absorption curve was obtained using ammonium chloride solutions with known concentration. After completing experiments, we removed a 2 mL aliquot of the solution from the reaction vessel. Then, dilute 0.100 mL of 0.05 mol/L NaClO with 2 mol/L NaOH and 0.1 mL of 0.4% (by weight) Na [Fe(NO)(CN)5] (sodium nitroferricyanide) aqueous solution. Finally, 0.5 mL solution of 5% salicylic acid, 5% sodium citrate (by weight), and 2 mol/L NaOH were added to the above solution. All of reagents were utilized in their purest form. The accuracy of the method is that when 1.0, 3.0, 5.0, 7.0 µg ammonia yield is added to the sample solution, the average recovery is 100%. The precision of the method is when the ammonia yield in the sample is 1.0, 5.0, 10.0 µg/10 mL, the coefficient of variation is 3.1%, 2.9%, 1.0%. The average relative deviation is 2.5%. Effective measures have been taken to eliminate interferences. For example, multiple cations (Ca2+, Fe3+, Mg2+, Mn2+) have been complexed by salicylic acid. After 1 h, the absorption spectrum was measured using a PE Lambda950 ultraviolet-Vis-NIR spectrophotometer. The formation of indophenol blue was determined using absorbance at a wavelength of 635 nm [31,32].

3. Results

The nitrogen-doped nanocrystalline diamond film was produced and consisted of randomly oriented well-faceted grains. As shown in Figure 2a, the appearance looks like clouds cluster. Such porosity can achieve high active site density. When the image is enlarged 50 times (Figure S1, Supplementary Materials), small nanoparticles with an average diameter of more than 10 nanometers can be observed. As depicted in Figure 2b, polycrystalline diamond film with larger grains shows obvious boundary with tens of micro grain diameter. Additionally, there is no cluster spherical shape. For the purpose of preventing the influence of CN species that are on the N-doped diamond surface or in the grain boundaries, single crystalline diamond (SCD) film was studied for a contrast. Clearly, in Figure 2c, the surface of SCD was flat with no grand boundaries. The film thicknesses of all samples were 200 nm. Actually, photocatalytic oxidation activity occurs more easily in grain boundaries. Since, it is weak bonds between grain boundaries that might be broken by the irradiation, resulting in a higher probability of oxygen radicals, such as O3. The oxygen radicals are produced by the reaction induced by UV light just at the top of the diamond surface with water during the photo-irradiation process [33,34,35]. In addition, XRD spectrum was illustrated in Supplementary Materials (Figure S2). The crystal plane indices demonstrated existence of the diamond.
Raman spectroscopy is employed for analyzing the composition of chemical vapor deposited diamond films, mainly because the scattering effect of graphite and amorphous carbon (peaks on 1520 cm−1) is very obvious and 1332 cm−1 has been recognized as a characteristic peak derived from sp3 diamond crystals [11,36]. Wherefore, the 632 nm laser photoexcitation was used to measure Raman spectra of N-doped diamond, and undoped poly-crystalline diamond, as shown in Figure 3a,b, respectively. Peaks on 1332 and 1520 cm−1 represent diamond and graphite in Raman spectra of the nitrogen-doped diamond film, which means D (diamond) and G (graphite) bands. Differently, the peak on 500 cm−1 as a result of silicon substrate in the polycrystal diamond film is much higher than it is in the nitrogen diamond film. However, silicon has no effect in the experiment, there will be a comparative experiment in the following part. In addition, the characteristic peak position of Raman spectrum (see Figure S3) is 1332.15 cm−1, which is the characteristic peak position of the single crystal diamond. Moreover, the NV center is as a deep-level defect in diamond defect with C3v symmetry consisting of a substitutional nitrogen–lattice vacancy pair orientated along the (111) crystalline direction. The center may be found as an ‘in grown’ product of the chemical vapor deposition (CVD) diamond synthesis process added N2 gas in bulk and nanocrystalline diamond [37,38]. We investigated the PL spectrum at 325 nm for certifying features of NV− and NV0, which are their optical zero phonon lines (ZPLs)at 1.945 eV (637 nm) and 2.156 eV (575 nm), respectively [39]. Thus, PL spectrum of nitrogen-doped diamond films are depicted in Figure 3c. Two peaks around 575 and 625 nm can be discovered in the nitrogen-doped diamond film, indicating ZPL spectral characteristics of the NV0 and NV− charge states. Corresponding to Raman spectrum, 340 and 342 nm peaks appear for nitrogen-doped, verifying the existence of diamond and graphite phase one more time, respectively. Besides, we also reveal undoped polycrystal diamond fluorescence properties for contrast, which is illustrated in Figure 3d. A PL peak at 737 nm is attributed to Si–V defect [40]. Few other specific peaks appear except for 340 nm (diamond phase), 342 nm (graphite phase), and 737 nm (Si–V defect). Consequently, the nitrogen-doped diamond film contains extra NV defect energy level in the forbidden gap compared with the undoped diamond film.
The X-ray photoelectron spectroscopy (XPS), an important surface analysis technique, provides surface information with a thickness of 3–5 nm. Here, the XPS is utilized to measure the existence of C-O after experiments, which can strongly identify oxidation reaction on the surface of the diamond. Therefore, the comparison before and after reaction for high-resolution spectra of the C1s is depicted in Figure 4a,b. Simulation of the XPS spectrum toward the surface on the diamond after photocatalyst is shown in Figure 4c,d. the C1s peak was centered on ~283.7 eV [41]. The main oxygenated group in homoepitaxial films is ether (C–O–C), situated at 285.26 eV in {111} films [42,43]. The other oxygenated group is carbonyl (C=O) found at 287.83 eV [44,45,46]. The survey and high-resolution spectra show carbon with evidence of O at the surface after reduction. Thus, we suggested oxide reactions C + H2O→CO2 + 4H+ + 4e− and C + H2O→CO + 2H+ + 2e− on the surface may be generated in order to keep the law of conservation of electric charge [47,48]. In addition, the XPS survey spectra of nitrogen-doped diamond film after experiments and the high-resolution spectra of the C1s, O1s, and N are measured, as shown in the Supplementary Materials (Figure S4).
N2 reduction efficiency with types of the diamond sample under visible and UV illumination (200–800 nm) was investigated. To verify that the nitrogen-doped diamond plays a crucial role in photocatalysis, five different control experiments illustrated in Figure 5a were performed under the same conditions. They are experiments NDD, PD, SCD, Ar gas instead N2, silicon, respectively. Moreover, we use the method of obtaining the ammonia production per unit area for comparison due to different substrate growth sizes of the samples. The ammonia yield was calculated by the formula (y = n (nmol)/A (cm2)), where A represents reaction area, n was calculated in proportion to the standard value. Standard absorption curve (see Figure S5) was obtained by using ammonium chloride solutions with known concentrations. The original absorption curve tested by UV spectrophotometer is illustrated in Figure S6. The change rate of ammonia production over time of the three diamond samples is shown in Figure 5b. We also performed the linear regression curve fitting by the method of least square, the relevant parameters were presented in Supplementary Materials (Table S1). Average rates per hour within reaction time of NDD, SCD, and PD were 6.27 ± 1.48 nmol/cm2·h, 2.53 ± 0.16 nmol/cm2·h, 3.16 ± 0.19 nmol/cm2·h, respectively. Obviously, the NDD attributed to the NV center showed the best performance. Grain boundaries in PD resulting in a higher probability of oxygen radical reduced the rate of ammonia production since weak bonds might be dissociated by the irradiation. However, lower efficiency employed by SCD ruled out the influence by CN species that are on the N-doped diamond surface or in the grain boundaries [49,50,51]. Moreover, ammonia yield lower than the calibrated minimum value through Ar instead of N2 also confirmed that other species existed on the N-doped diamond surface or in the grain boundaries hardly work in the ammonia production. On the other hand, the almost fixed ammonia yield below the minimum by utilizing silicon precludes the influence of the growth substrate on experiment.
In addition, we also tested the surface resistance (an Agilent B1505A power device analyzer) before and after experiments by sticking the two probes to points 1 cm apart for dozens of times. The average resistance values of nitrogen-doped diamond film changes from 30 KΩ to 100 MΩ, which is consistence with C–O bonds, appeared on the diamond surface after catalysis. Further, it proved hydroxyl terminal may be oxidized to OH•, which may react with carbon atoms to be removed as CO and CO2 to maintain charge neutrality.
To explore whether the NV center has an influence on the optical properties of the diamond film, we used an integrating sphere to study the light absorption by converting UV-vis diffuse reflectance spectroscopy (DRS) (see Figure S7) since the incorporation of nitrogen impurities into the diamond film is accompanied by changes in both optical absorption and scattering from the film. The absorbance spectra range from 200 to 800 nm of NDD, PD, SCD are shown in Figure 6. Note that there is no vertical offset in the collected spectrum and the maximum saturation absorption of this instrument is 10. Over the entire wavelength region shown, the nitrogen-doped diamond shows higher absorbance, and also exhibits new peaks in the absorption spectrum at approximately ~320 and 460 nm, owing to nitrogen impurities [12,33,34,35]. All of the three samples also show a feature near 220 nm, which corresponds to the absorption for photon energies above the band gap of the diamond (λ < 225 nm). Polycrystalline diamond films show a feature near 240 nm, which is attributed to a direct (momentum-conserving) optical transition of bulk silicon [52,53]. A similar peak on 240 nm in the DRS of silicon (Figure S8) for comparison further proved the conclusion. In addition, the peak on 375 nm appearing in all samples may come from the fact that the deuterium lamp spectrum in this region is somewhat noisy. The results in Figure 5 and the Supporting Information indicated that the presence of nitrogen impurities increases optical absorption in the visible and ultraviolet region.

4. Discussion

The mechanism of the influence of nitrogen levels in the diamond for reduction N2 to NH3 has been studied. The steps can occur by three pathways which are labeled in Figure 7-I, II, and III. The first step (I) in the photocatalyst for reduction indicates intrinsic excitation, the excitation from the conduction band to the valence band, which must occur under deep ultraviolet light. Electron transition from defect levels to the conduction band can be illustrated in the second step (II) and third step (III). The neutral state of NV0 (step II), as an acceptor impurity in diamond, can absorb the photon transition from the ground state to the excited state. When the excitation light energy is higher than 2.156 eV, the absorbed photon transitions to the conduction band to become free electrons, thereby breaking away from the bondage of the impurity center. The negatively charged state NV− (step III) transitions from the ground state to the excited state by absorbing an energy greater than zero phonon transition. NV− has a 3A ground state and a 3E excited state, with a 1A state located in between them, to which transitions are (nearly) forbidden, implying that the excited states are close to the band edges, while the ground states are in the middle of the band gap [33,34,35,36,37]. The excitation band is near the conduction band, which represents that it is easier for electrons to jump from nitrogen impurity levels to conduction band. At the same time, conversion from the NV− color center to a neutral NV can be carried out after losing electrons [54]. The intrinsic and extrinsic transitions both occurred under illumination. The radiative transitions between charge states have occurred optically at excited levels via the intermediate valence/conduction band. Furthermore, the non-radiative transitions are believed to connect with tunneling of electrons. When illuminated by light irradiation, the electrons transition would take place at the defect level, simultaneously occurring from valence band to conduction band. Therefore, more photo-generated electrons benefit from the activation of N≡N bonds.
The electrochemical energy scale relative to normal hydrogen electrode (NHE) of the diamond and other band wide gap semiconductors was shown in Figure 8. The photocatalytic reduction of nitrogen requires the following steps. The first step to reduction is to form N2H with high energy. Electron transfer reaction H2O + e−→e− (aq.) has a reduction potential E of −3.2 eV versus NHE, which is the most possible way to form N2H [55,56]. In addition, the solvated electrons served as an intermediate to form H• (H+ + e−→H•). Then, the N2H can continuously react with H• to the subsequent reaction with e− and H• to ultimately NH3 [57,58,59]. It is notable that the electrochemical potential window of hydrogen terminated diamond is more negative at about 5.2 eV versus NHE. Thus, the diamond can be capable of initiating higher energy reduction reactions. Previous studies reported the approach for reduction of nitrogen was firstly and subsequently studied by using modified forms of TiO2 [60,61]. The N2 fixation yield in the visible area was less than 67%, due to the re-oxidation of intermediates and products by the pores in the deep valence band of TiO2 and weak absorption on the surface of reactant. In addition, the work function of TiO2 is 4.6 eV, which means electrons jumped to above the conduction band with barrier [60,61,62,63]. Other wide bandgap semiconductors such as GaN, SiC, due to lower potential energy, have more difficulty for the photocatalyst [56,64,65]. The hydrogen-terminated diamond, currently the only semiconductor with negative electron affinity, was used for an electron state source into liquids for initiating high-energy reduction. This provides a development direction for the field of catalysis.

5. Conclusions

Our work demonstrates that nitrogen impurities entering the film can significantly enhance photocatalytic activity, thereby reducing N2 to NH3. The negatively charged state NV− transitions from the ground state to the excited state by absorbing energy, which contributed to the optical spectra of the films, revealing an increased absorbance both above and below the band gap energy of the diamond. The increase in absorption and scattering results in the diamond’s ability to emit electrons and induce subsequent electron-induced reduction of N2 to NH3. It is worth mentioning that our method enables the nitrogen fixation reaction to proceed under visible light, thereby reducing the cost of the reaction and promoting its practical application. In this perspective, nitrogen impurity levels in the diamond film have been experimentally proven as the electron source of N2 reduction photocatalyst with high catalytic activity.

Supplementary Materials

The following are available online at https://www.mdpi.com/1996-1944/13/20/4559/s1. Figure S1: SEM images of nitrogen-doped diamond film at different scales; Figure S2: XRD spectrum of polycrystalline diamond, different crystal plane orientations correspond to diffraction angles; Figure S3: Raman spectrum of single crystal diamond, the peak position of is 1332.15 cm−1, which is the characteristic peak position of single crystal diamond; Figure S4: the XPS spectrum of nitrogen doped diamond after nitrogen reduction, the high-resolution spectra of the C1s, O1s, and N are measured, since XPS is an important surface analysis technique providing surface information with a thickness of 3–5 nm, we pay more attention on the change on surface of C–O before and after experiments; Figure S5: a standard absorption curve was obtained using ammonium chloride solutions with known concentration by indophenol blue method. The formation of indophenol blue was determined using absorbance at a wavelength of 635 nm; Figure S6: Expriments with differernt samples and controls. They are nitrogen doped diamond (called experiment NDD), polycrystalline diamond (PD), single-crystalline diamond (SCD), Ar gas instead N2, silicon, respectively. The curve of ammonia absorption solution measured at 635 nm by ultraviolet-visible spectrophotometer after 24 h. The ammonia production rate is calculated by the ratio of the absorbance to the standard curve, and calculated by the formula; Figure S7: Diffuse reflectance spectroscopy (DRS) of nitrogen doped diamond film, polycrystalline diamond film and single crystal diamond film. we measure the optical absorption via transforming UV−vis diffuse reflectance spectroscopy by using an integrating sphere, since the incorporation of nitrogen impurities into the diamond film is accompanied by changes in both optical absorption and scattering from the film; Figure S8: absorbance spectra of silicon for contrast, the peak on 240 nm corresponds to a direct (momentum-conserving) optical transition of bulk silicon; Table S1: Linear regression curve fitting by the method of least square.

Author Contributions

Conceptualization, data curation, investigation, R.S.; methodology, Z.L.; validation, R.S., Z.L.; formal analysis, R.S., Z.L.; resources, R.S.; writing—original draft preparation, R.S.; validation, writing—review and editing, H.N.A.; visualization, R.S.; supervision, H.W., J.W.; project administration, funding acquisition, H.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Key R&D Program of China (2017YFB0402800); National Natural Science Foundation of China (NSFC) (61705176, 61627812 and 61605155); China Postdoctoral Science Foundation (2017M620449, 2018T111057); and Dongguan Introduction Program of Leading Innovative and Entrepreneurial Talent.

Acknowledgments

This work was supported by Innovation Capability Support Program of Shaanxi (2018PT-28 and Key Laboratory for Physical Electronics and Devices of the Ministry of Education. 2019PT-05).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Boukahil, I.; Johnson, P.S.; Himpsel, F.J.; Qiao, R.; Bandy, J.A.; Hamers, R.J. Unoccupied Surface State Induced by Ozone and Ammonia On H-Terminated Diamond Electrodes for Photocatalytic Ammonia Synthesis. J. Vac. Sci. Technol. A Vac. Surf. Films 2017, 35, 04D102. [Google Scholar] [CrossRef]
  2. Chatterjee, A.; Compton, R.G.; Foord, J.S.; Hiramatsu, M.; Marken, F. Electrochemical and Related Processes at Surface Conductive Diamond–Solution Interfaces. Phys. Status Solidi A 2003, 199, 49–55. [Google Scholar] [CrossRef]
  3. Choo, H.; Kinumoto, T.; Nose, M.; Miyazaki, K.; Abe, T.; Ogumi, Z. Electrochemical Oxidation of Highly Oriented Pyrolytic Graphite During Potential Cycling in Sulfuric Acid Solution. J. Power Sources 2008, 185, 740–746. [Google Scholar] [CrossRef]
  4. Wang, H.; Yu, H.; Wang, Z.; Li, Y.; Xu, Y.; Li, X.; Xue, H.; Wang, L. Electrochemical Fabrication of Porous Au Film On Ni Foam for Nitrogen Reduction to Ammonia. Small 2019, 15, 1804769. [Google Scholar] [CrossRef] [PubMed]
  5. Yao, Y.; Wang, H.; Yuan, X.; Li, H.; Shao, M. Electrochemical Nitrogen Reduction Reaction on Ruthenium. ACS Energy Lett. 2019, 4, 1336–1341. [Google Scholar] [CrossRef]
  6. James, M.C.; Croot, A.; May, P.W.; Allan, N.L. Negative Electron Affinity from Aluminium on the Diamond (100) Surface: A Theoretical Study. J. Phys. Condens. Matter Inst. Phys. J. 2018, 30, 235002. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Takeuchi, D.; Kato, H.; Ri, G.S.; Yamada, T.; Vinod, P.R.; Hwang, D.; Nebel, C.E.; Okushi, H.; Yamasaki, S. Direct Observation of Negative Electron Affinity in Hydrogen-Terminated Diamond Surfaces. Appl. Phys. Lett. 2005, 86, 152103. [Google Scholar] [CrossRef] [Green Version]
  8. Baumann, P.K.; Nemanich, R.J. Electron Affinity and Schottky Barrier Height of Metal-Diamond (100), (111), (110) Interfaces. J. Appl. Phys. 1998, 83, 2072. [Google Scholar] [CrossRef]
  9. Luo, Y.; Chen, G.; Ding, L.; Chen, X.; Ding, L.; Wang, H. Efficient Electrocatalytic N2 Fixation with Mxene Under Ambient Conditions. Joule 2019, 3, 279–289. [Google Scholar] [CrossRef] [Green Version]
  10. Kulkarni, P.; Porter, L.M.; Koeck, F.A.M.; Tang, Y.J.; Nemanich, R.J. Electrical and Photoelectrical Characterization of Undoped and S-Doped Nanocrystalline Diamond Films. J. Appl. Phys. 2008, 103, 084905. [Google Scholar] [CrossRef] [Green Version]
  11. Nishitani-Gamo, M.; Yasu, E.; Xiao, C.; Kikuchi, Y.; Ushizawa, K.; Sakaguchi, I.; Suzuki, T.; Ando, T. Sulfur-Doped Homoepitaxial (001) Diamond with N-Type Semiconductive Properties. Diam. Relat. Mater. 2000, 9, 941–947. [Google Scholar] [CrossRef]
  12. Zhu, D.; Zhang, L.; Ruther, R.E.; Hamers, R.J. Photo-Illuminated Diamond as a Solid-State Source of Solvated Electrons in Water for Nitrogen Reduction. Nat. Mater. 2013, 12, 836–841. [Google Scholar] [CrossRef] [PubMed]
  13. Zhao, Y.; Shi, R.; Bian, X.; Zhou, C.; Zhao, Y.; Zhang, S.; Wu, F.; Waterhouse, G.I.N.; Wu, L.Z.; Tung, C.H.; et al. Ammonia Detection Methods in Photocatalytic and Electrocatalytic Experiments: How to Improve the Reliability of NH3 Production Rates? Adv. Sci. 2019, 6, 1802109. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Rosca, V.; Duca, M.; de Groot, M.T.; Koper, M.T.M. Nitrogen Cycle Electrocatalysis. Chem. Rev. 2009, 109, 2209–2244. [Google Scholar] [CrossRef] [PubMed]
  15. Shilov, A.E. Catalytic Reduction of Molecular Nitrogen in Solutions. Russ. Chem. Bull. 2003, 52, 2555–2562. [Google Scholar] [CrossRef]
  16. Wang, L.; Xia, M.; Wang, H.; Huang, K.; Qian, C.; Maravelias, C.T.; Ozin, G.A. Greening Ammonia Toward the Solar Ammonia Refinery. Joule 2018, 2, 1055–1074. [Google Scholar] [CrossRef]
  17. Sutton, M.A.; Galloway, J.; Erisman, J.W.; Klimont, Z.; Winiwarter, W. How a Century of Ammonia Synthesis Changed the World. Nat. Geosci. 2008, 1, 636–639. [Google Scholar]
  18. Ogawa, T.; Kitamura, T.; Shibuya, T.; Hoshino, K. Characterization and Material Conditions of Conducting Polymer/Titanium Oxide Hybrid Systems Used for Dinitrogen Fixation Under Ordinary Pressure and Temperature. Electrochem. Commun. 2004, 6, 55–60. [Google Scholar] [CrossRef]
  19. Bazhenova, T.A.; Shilov, A.E. Nitrogen Fixation in Solution. Coord. Chem. Rev. 1995, 144, 69–145. [Google Scholar] [CrossRef]
  20. Zhang, C.; Xu, Y.; Lv, C.; Bai, L.; Liao, J.; Zhai, Y.; Zhang, H.; Chen, G. Amorphous Engineered Cerium Oxides Photocatalyst for Efficient Nitrogen Fixation. Appl. Catal. B Environ. 2020, 264, 118416. [Google Scholar] [CrossRef]
  21. Georgeaud, V.; Diamand, A.; Borrut, D.; Grange, D.; Coste, M. Electrochemical Treatment of Wastewater Polluted by Nitrate: Selective Reduction to N2 on Boron-Doped Diamond Cathode. Water Sci. Technol. 2011, 63, 206–212. [Google Scholar] [CrossRef] [PubMed]
  22. Yandulov, D.V.; Schrock, R.R. Reduction of Dinitrogen to Ammonia at a Well-Protected Reaction Site in a Molybdenum Triamidoamine Complex. J. Am. Chem. Soc. 2002, 124, 6252–6253. [Google Scholar] [CrossRef]
  23. Christianson, J.R.; Zhu, D.; Hamers, R.J.; Schmidt, J.R. Mechanism of N2 Reduction to NH3 by Aqueous Solvated Electrons. J. Phys. Chem. B 2013, 118, 195–203. [Google Scholar] [CrossRef]
  24. Zhang, Q.; Liu, B.; Yu, L.; Bei, Y.; Tang, B. Synergistic Promotion of the Electrochemical Reduction of Nitrogen to Ammonia by Phosphorus and Potassium. Chem. Cat. Chem. 2019, 12, 334–341. [Google Scholar] [CrossRef] [Green Version]
  25. Laube, C.; Oeckinghaus, T.; Lehnert, J.; Griebel, J.; Knolle, W.; Denisenko, A.; Kahnt, A.; Meijer, J.; Wrachtrup, J.; Abel, B. Controlling the Fluorescence Properties of Nitrogen Vacancy Centers in Nanodiamonds. Nanoscale 2019, 11, 1770–1783. [Google Scholar] [CrossRef] [PubMed]
  26. Hirakawa, H.; Hashimoto, M.; Shiraishi, Y.; Hirai, T. Photocatalytic Conversion of Nitrogen to Ammonia with Water on Surface Oxygen Vacancies of Titanium Dioxide. J. Am. Chem. Soc. 2017, 139, 10929–10936. [Google Scholar] [CrossRef] [PubMed]
  27. Liu, X.; Jiao, Y.; Zheng, Y.; Jaroniec, M.; Qiao, S. Building Up a Picture of the Electrocatalytic Nitrogen Reduction Activity of Transition Metal Single-Atom Catalysts. J. Am. Chem. Soc. 2019, 141, 9664–9672. [Google Scholar] [CrossRef]
  28. Yiming, Z.; Larsson, F.; Larsson, K. Effect of CVD Diamond Growth by Doping with Nitrogen. Theor. Chem. Acc. 2014, 133, 1432. [Google Scholar] [CrossRef] [Green Version]
  29. Liu, C.; Li, Q.; Wu, C.; Zhang, J.; Jin, Y.; MacFarlane, D.R.; Sun, C. Single-Boron Catalysts for Nitrogen Reduction Reaction. J. Am. Chem. Soc. 2019, 141, 2884–2888. [Google Scholar] [CrossRef]
  30. Zhang, G.; Sewell, C.D.; Zhang, P.; Mi, H.; Lin, Z. Nanostructured Photocatalysts for Nitrogen Fixation. Nano Energy 2020, 71, 104645. [Google Scholar] [CrossRef]
  31. Tian, Y.; Xu, D.; Chu, K.; Wei, Z.; Liu, W. Metal-Free N, S Co-Doped Graphene for Efficient and Durable Nitrogen Reduction Reaction. J. Mater. Sci. 2019, 54, 9088–9097. [Google Scholar] [CrossRef]
  32. Li, L.; Tang, C.; Xia, B.; Jin, H.; Zheng, Y.; Qiao, S. Two-Dimensional Mosaic Bismuth Nanosheets for Highly Selective Ambient Electrocatalytic Nitrogen Reduction. ACS Catal. 2019, 9, 2902–2908. [Google Scholar] [CrossRef]
  33. Gustafson, P. An Evaluation of the Thermodynamic Properties and the P, T Phase Diagram of Carbon. Carbon 1986, 24, 169–176. [Google Scholar] [CrossRef]
  34. Salvatori, S.; Rossi, M.C.; Galluzzi, F. Dynamic Performance of Uv Photodetectors Based On Polycrystalline Diamond. IEEE Trans. Electron. Devices 2000, 47, 1334–1340. [Google Scholar] [CrossRef]
  35. Salvatori, S.; Rossi, M.C.; Galluzzi, F.; Pace, E.; Ascarelli, P.; Marinelli, M. Performance of Diamond-Based Photoconductive Devices in the Uv Range. Diam. Relat. Mater. 1998, 7, 811–816. [Google Scholar] [CrossRef]
  36. Zhang, H.; Penn, R.L.; Hamers, R.J.; Banfield, J.F. Enhanced Adsorption of Molecules on Surfaces of Nanocrystalline Particles. J. Phys. Chem. B 1999, 103, 4656–4662. [Google Scholar] [CrossRef]
  37. Doherty, M.W.; Manson, N.B.; Delaney, P.; Jelezko, F.; Wrachtrup, J.; Hollenberg, L.C.L. The Nitrogen-Vacancy Colour Centre in Diamond. Phys. Rep. 2013, 528, 1–45. [Google Scholar] [CrossRef] [Green Version]
  38. Chen, X.; Zou, C.; Gong, Z.; Dong, C.; Guo, G.; Sun, F. Subdiffraction Optical Manipulation of the Charge State of Nitrogen Vacancy Center in Diamond. Light Sci. Appl. 2015, 4, e230. [Google Scholar] [CrossRef]
  39. Choi, S.; Jain, M.; Louie, S.G. Mechanism for Optical Initialization of Spin in NV Center in Diamond. Phys. Rev. B 2012, 86, 041202. [Google Scholar] [CrossRef]
  40. Suo, N.; Huang, H.; Wu, A.; Cao, G.; Hou, X.; Zhang, G. Porous Boron Doped Diamonds as Metal-Free Catalysts for the Oxygen Reduction Reaction in Alkaline Solution. Appl. Surf. Sci. 2018, 439, 329–335. [Google Scholar] [CrossRef]
  41. Ghodbane, S.; Ballutaud, D.; Omnès, F.; Agnès, C. Comparison of the Xps Spectra from Homoepitaxial {111}, {100} and Polycrystalline Boron-Doped Diamond Films. Diam. Relat. Mater. 2010, 19, 630–636. [Google Scholar] [CrossRef]
  42. Hutton, L.A.; Iacobini, J.G.; Bitziou, E.; Channon, R.B.; Newton, M.E.; Macpherson, J.V. Examination of the Factors Affecting the Electrochemical Performance of Oxygen-Terminated Polycrystalline Boron-Doped Diamond Electrodes. Anal. Chem. 2013, 85, 7230–7240. [Google Scholar] [CrossRef] [PubMed]
  43. Ghodbane, S.; Ballutaud, D.; Deneuville, A.; Baron, C. Influence of Boron Concentration on the XPS Spectra of the (100) Surface of Homoepitaxial Boron-Doped Diamond Films. Phys. Status Solidi A 2006, 203, 3147–3151. [Google Scholar] [CrossRef]
  44. Takeuchi, D.; Nebel, C.E.; Yamasaki, S. Surface Defect States Analysis on Diamond by Photoelectron Emission Yield Experiments. Diam. Relat. Mater. 2007, 16, 823–825. [Google Scholar] [CrossRef]
  45. Ristein, J.; Stein, W.; Ley, L. Defect Spectroscopy and Determination of the Electron Diffusion Length in Single Crystal Diamond by Total Photoelectron Yield Spectroscopy. Phys. Rev. Lett. 1997, 78, 1803–1806. [Google Scholar] [CrossRef]
  46. Yan, D.; Li, H.; Chen, C.; Zou, Y.; Wang, S. Defect Engineering Strategies for Nitrogen Reduction Reactions under Ambient Conditions. Small Methods 2018, 3, 1800331. [Google Scholar] [CrossRef]
  47. Zhang, L.; Zhu, D.; Nathanson, G.M.; Hamers, R.J. Selective Photoelectrochemical Reduction of Aqueous CO2 to CO by Solvated Electrons. Angew. Chem. Int. Ed. 2014, 53, 9746–9750. [Google Scholar] [CrossRef]
  48. Zhang, L.; Hamers, R.J. Photocatalytic Reduction of CO2 to CO by Diamond Nanoparticles. Diam. Relat. Mater. 2017, 78, 24–30. [Google Scholar] [CrossRef]
  49. Strother, T.; Knickerbocker, T.; Russell, J.N.; Butler, J.E.; Smith, L.M.; Hamers, R.J. Photochemical Functionalization of Diamond Films. Langmuir 2002, 18, 968–971. [Google Scholar] [CrossRef]
  50. Sussmann, R.S. (Ed.) CVD Diamond for Electronic Devices and Sensors; John Wiley & Sons: Hoboken, NJ, USA, 2009. [Google Scholar]
  51. Wan, Y.; Xu, J.; Lv, R. Heterogeneous Electrocatalysts Design for Nitrogen Reduction Reaction under Ambient Conditions. Mater. Today 2019, 27, 69–90. [Google Scholar] [CrossRef]
  52. Wu, J.; Zhu, J.; Shan, L.; Cheng, N. Voltammetric and Amperometric Study of Electrochemical Activity of Boron-Doped Polycrystalline Diamond Thin Film Electrodes. Anal. Chim. Acta 1996, 333, 125–130. [Google Scholar] [CrossRef]
  53. Hasija, V.; Raizada, P.; Sudhaik, A.; Sharma, K.; Kumar, A.; Singh, P.; Jonnalagadda, S.B.; Thakur, V.K. Recent Advances in Noble Metal Free Doped Graphitic Carbon Nitride Based Nanohybrids for Photocatalysis of Organic Contaminants in Water: A Review. Appl. Mater. Today 2019, 15, 494–524. [Google Scholar] [CrossRef]
  54. Ahmed, N.; Khan, G.A.; Wang, R.; Hou, J.; Gong, R.; Yang, L.; Zhang, Y. Correlation and Squeezing for Optical Transistor and Intensity Router Applications in Diamond NV Center. Opt. Lett. 2017, 42, 1788. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Bandy, J.A.; Zhu, D.; Hamers, R.J. Photocatalytic Reduction of Nitrogen to Ammonia on Diamond Thin Films Grown on Metallic Substrates. Diam. Relat. Mater. 2016, 64, 34–41. [Google Scholar] [CrossRef] [Green Version]
  56. Jang, D.M.; Myung, Y.; Im, H.S.; Seo, Y.S.; Cho, Y.J.; Lee, C.W.; Park, J.; Jee, A.; Lee, M. Nanodiamonds as Photocatalysts for Reduction of Water and Graphene Oxide. Chem. Commun. 2012, 48, 696–698. [Google Scholar] [CrossRef] [PubMed]
  57. Li, S.; Bandy, J.A.; Hamers, R.J. Enhanced Photocatalytic Activity of Diamond Thin Films Using Embedded Ag Nanoparticles. ACS Appl. Mater. Interfaces 2018, 10, 5395–5403. [Google Scholar] [CrossRef] [PubMed]
  58. Zhang, L.; Ji, X.; Ren, X.; Luo, Y.; Shi, X.; Asiri, A.M.; Zheng, B.; Sun, X. Efficient Electrochemical N2 Reduction to NH3 on MoN Nanosheets Array under Ambient Conditions. ACS Sustain. Chem. Eng. 2018, 6, 9550–9554. [Google Scholar] [CrossRef]
  59. Min, Y.; Zhang, K.; Chen, L.; Chen, Y.; Zhang, Y. Ionic Liquid Assisting Synthesis of Zno/Graphene Heterostructure Photocatalysts with Tunable Photoresponse Properties. Diam. Relat. Mater. 2012, 26, 32–38. [Google Scholar] [CrossRef]
  60. Ding, J.; Zhong, Q.; Gu, H. Iron-Titanium Dioxide Composite Nanoparticles Prepared with an Energy Effective Method for Efficient Visible-Light-Driven Photocatalytic Nitrogen Reduction to Ammonia. J. Alloys Compd. 2018, 746, 147–152. [Google Scholar] [CrossRef]
  61. Han, Z.; Choi, C.; Hong, S.; Wu, T.; Soo, Y.; Jung, Y.; Qiu, J.; Sun, Z. Activated TiO2 with Tuned Vacancy for Efficient Electrochemical Nitrogen Reduction. Appl. Catal. B Environ. 2019, 257, 117896. [Google Scholar] [CrossRef]
  62. Shiraishi, Y.; Toi, S.; Ichikawa, S.; Hirai, T. Photocatalytic NH3 Splitting On TiO2 Particles Decorated with Pt–Au Bimetallic Alloy Nanoparticles. ACS Appl. Nano Mater. 2020, 3, 1612–1620. [Google Scholar] [CrossRef]
  63. Du, X.; Bai, X.; Xu, L.; Yang, L.; Jin, P. Visible-Light Activation of Persulfate by TiO2/g-C3N4 Photocatalyst Toward Efficient Degradation of Micropollutants. Chem. Eng. J. 2020, 384, 123245. [Google Scholar] [CrossRef]
  64. Seng, R.X.; Tan, L.; Lee, W.P.C.; Ong, W.; Chai, S. Nitrogen-Doped Carbon Quantum Dots-Decorated 2D Graphitic Carbon Nitride as a Promising Photocatalyst for Environmental Remediation: A Study on the Importance of Hybridization Approach. J. Environ. Manag. 2020, 255, 109936. [Google Scholar] [CrossRef]
  65. Chen, X.; Guo, Y.; Du, X.; Zeng, Y.; Chu, J.; Gong, C.; Huang, J.; Fan, C.; Wang, X.; Xiong, J. Atomic Structure Modification for Electrochemical Nitrogen Reduction to Ammonia. Adv. Energy Mater. 2019, 10, 1903172. [Google Scholar] [CrossRef]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Materials 13 04559 g001 550

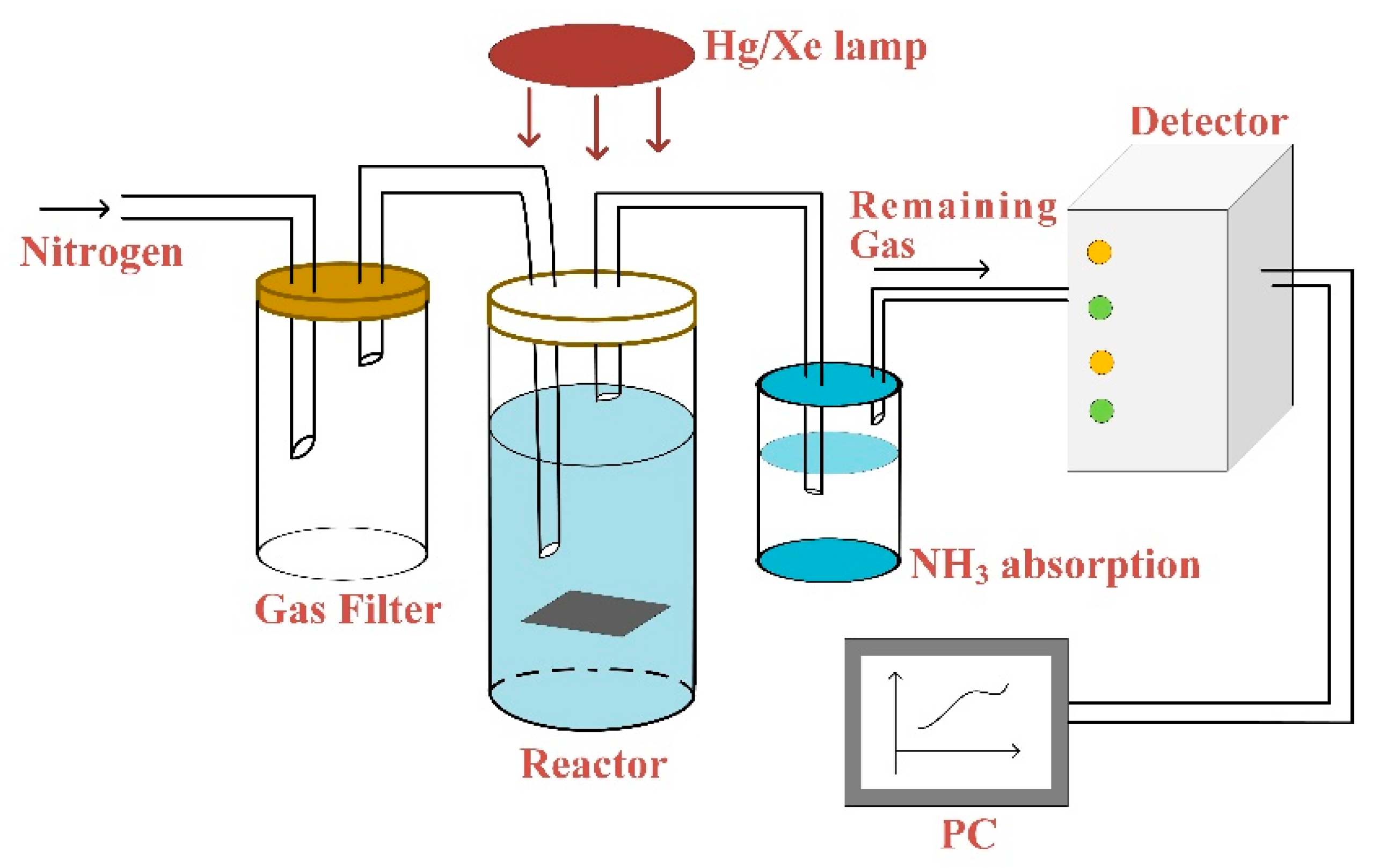

Figure 1. Schematic diagram of simple reaction vessel (Gas filter guarantees purity of reaction gas N2 without impurities. Then, N2 was slowly bubbled into vessel contained 18.2 MΩ water (Barnsted NanoPure) with 0.01 M high-purity (Alfa Puratronic, 99.9955%) Na2SO4. The container was sealed by quartz cover and exposed to light for different time periods. The gas exported from vessel was run through the NH3 absorption bottle and finally exported from the computer system).
Figure 1. Schematic diagram of simple reaction vessel (Gas filter guarantees purity of reaction gas N2 without impurities. Then, N2 was slowly bubbled into vessel contained 18.2 MΩ water (Barnsted NanoPure) with 0.01 M high-purity (Alfa Puratronic, 99.9955%) Na2SO4. The container was sealed by quartz cover and exposed to light for different time periods. The gas exported from vessel was run through the NH3 absorption bottle and finally exported from the computer system).
Materials 13 04559 g001
Materials 13 04559 g002 550
Figure 2. Scanning electron microscope images of diamond film after growth, (a) nitrogen diamond film, (b) poly-crystalline diamond, (c) single crystalline diamond film.
Figure 2. Scanning electron microscope images of diamond film after growth, (a) nitrogen diamond film, (b) poly-crystalline diamond, (c) single crystalline diamond film.
Materials 13 04559 g002
Materials 13 04559 g003 550

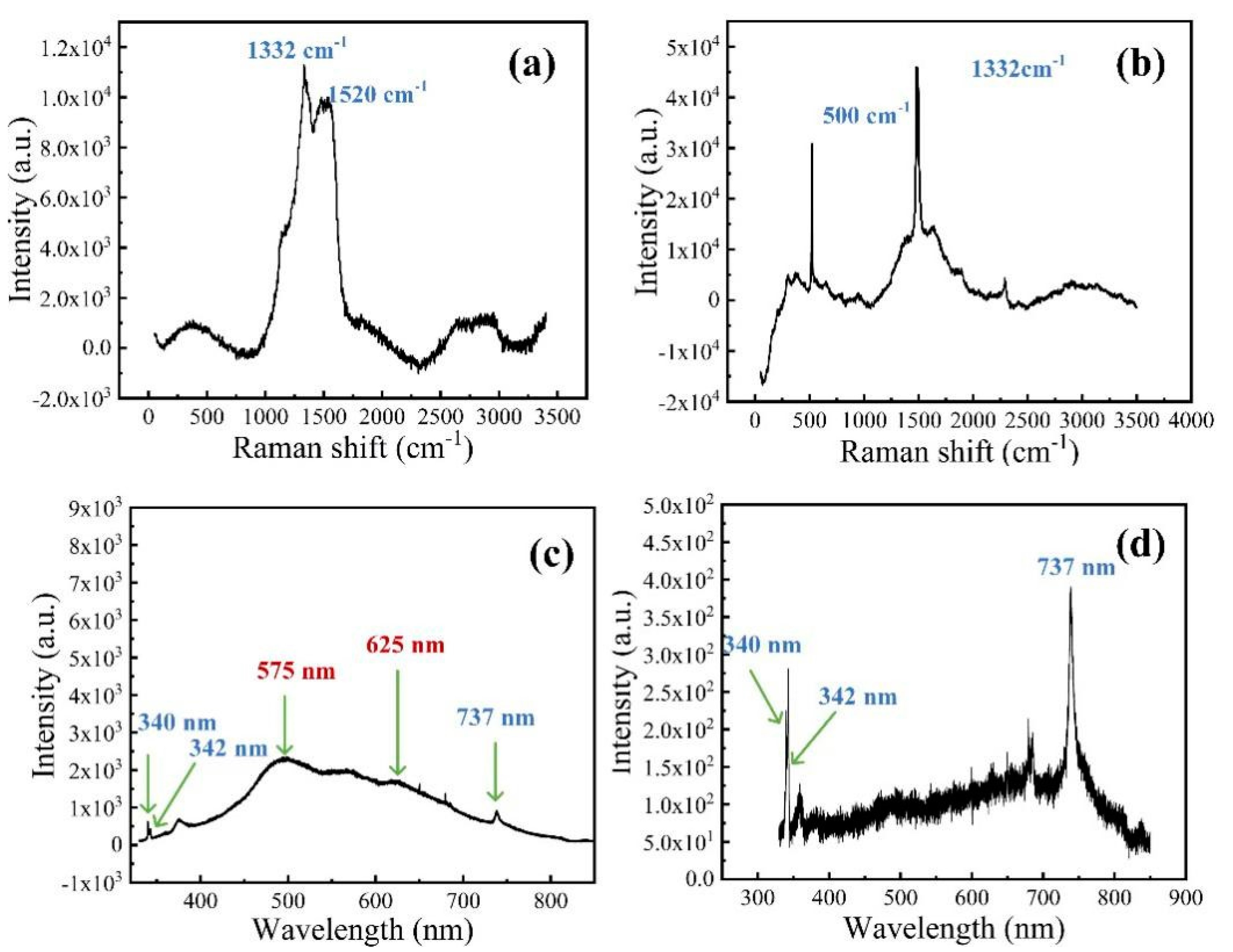

Figure 3. The Raman spectrum of (a) nitrogen-doped diamond film, (b) polycrystal diamond film. The PL spectrums with excitation at 325 nm of (c) nitrogen-doped diamond film and (d) polycrystal diamond film after photocatalysis.
Figure 3. The Raman spectrum of (a) nitrogen-doped diamond film, (b) polycrystal diamond film. The PL spectrums with excitation at 325 nm of (c) nitrogen-doped diamond film and (d) polycrystal diamond film after photocatalysis.
Materials 13 04559 g003
Materials 13 04559 g004 550

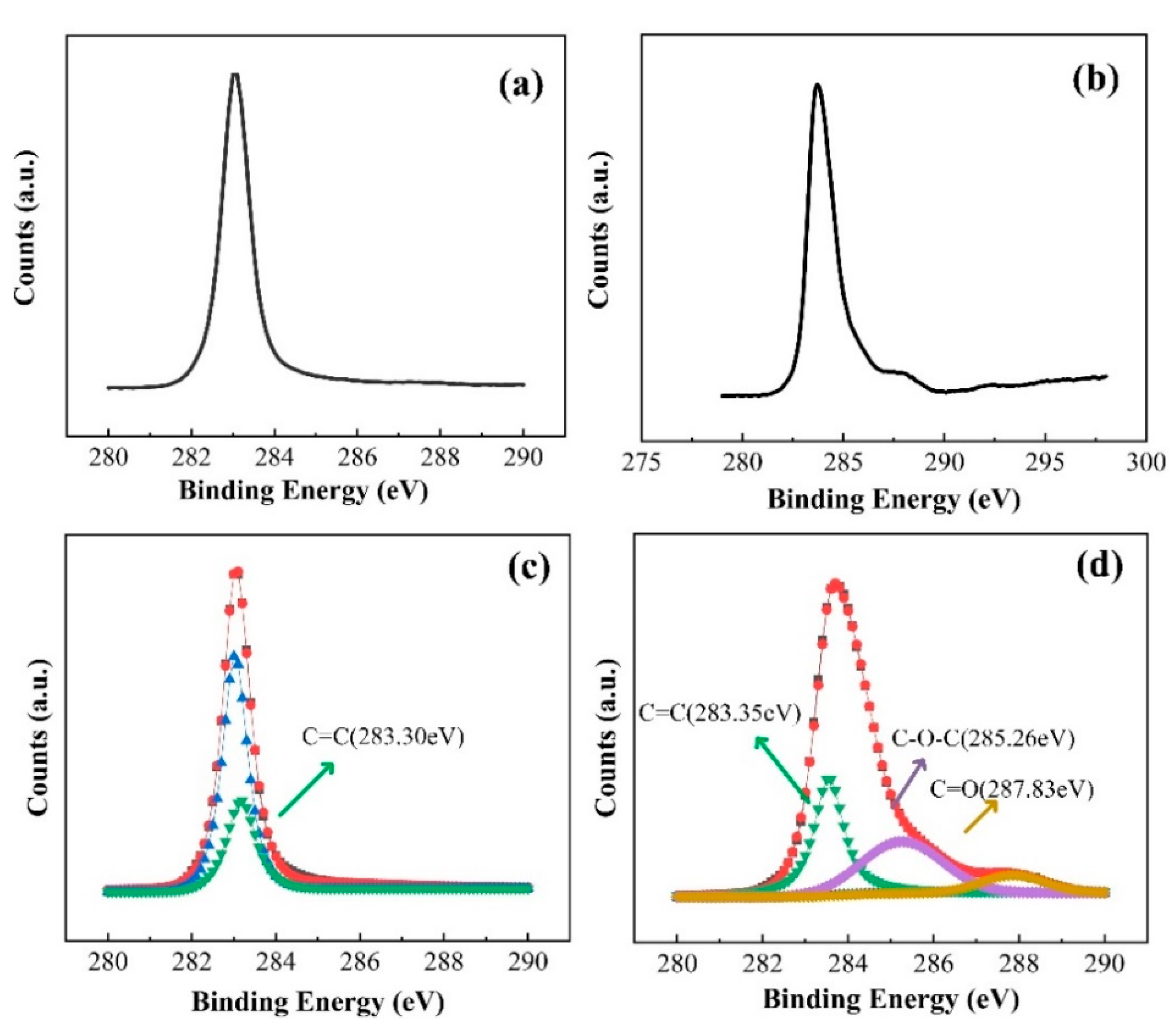

Figure 4. The survey and resolution spectra of C1s. Comparison between before (a) and after (b) reaction for high-resolution spectra of the C1s. Simulation of XPS spectrum toward surface on diamond before (c) and after (d) photocatalyst. Carbon–oxygen bonds appeared on the surface after catalysis.
Figure 4. The survey and resolution spectra of C1s. Comparison between before (a) and after (b) reaction for high-resolution spectra of the C1s. Simulation of XPS spectrum toward surface on diamond before (c) and after (d) photocatalyst. Carbon–oxygen bonds appeared on the surface after catalysis.
Materials 13 04559 g004
Materials 13 04559 g005 550

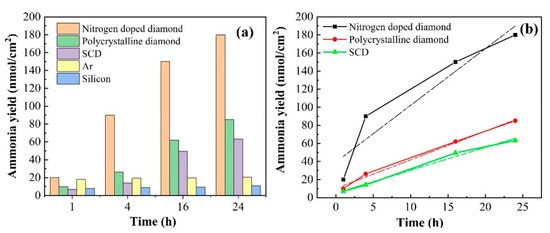

Figure 5. Catalytic efficiency of different control experiments (a), experimental curve and linear fit between nitrogen-doped diamond film, SCD film, and polycrystalline diamond film (b), the inset is fitting parameters. All of the procedures and experimental instrumentals are identical.
Figure 5. Catalytic efficiency of different control experiments (a), experimental curve and linear fit between nitrogen-doped diamond film, SCD film, and polycrystalline diamond film (b), the inset is fitting parameters. All of the procedures and experimental instrumentals are identical.
Materials 13 04559 g005
Materials 13 04559 g006 550

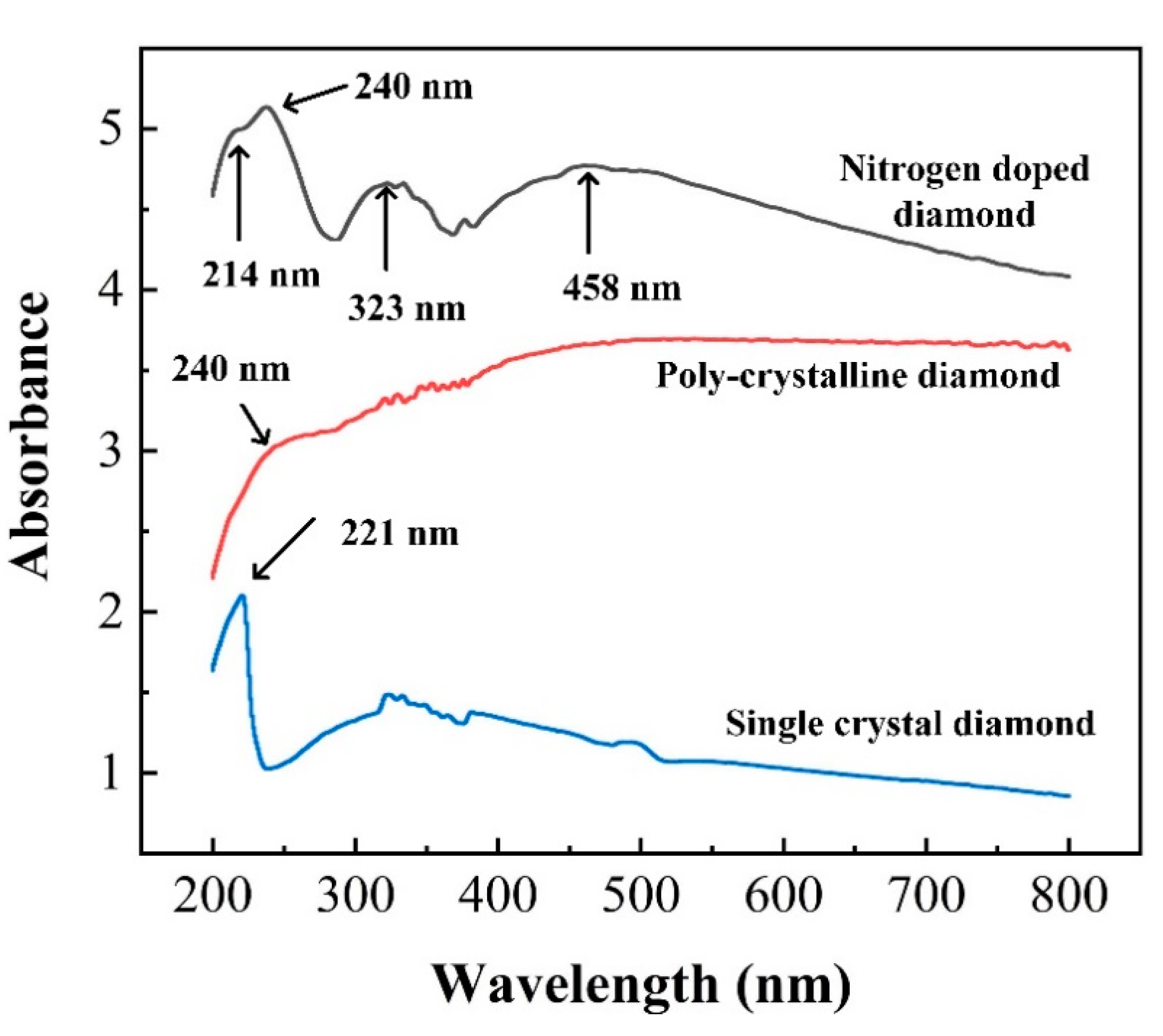

Figure 6. Contrast for absorbance spectra of nitrogen-doped diamond (black line), polycrystalline diamond (red line), and SCD (blue line) in visible and UV regions.
Figure 6. Contrast for absorbance spectra of nitrogen-doped diamond (black line), polycrystalline diamond (red line), and SCD (blue line) in visible and UV regions.
Materials 13 04559 g006
Materials 13 04559 g007 550

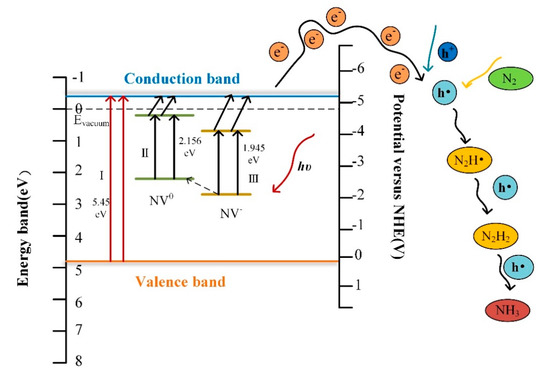

Figure 7. The schematic diagrams of the influence of nitrogen levels on diamond photocatalysis. Step I in the photocatalyst for reduction is intrinsic excitation. The presence of nitrogen levels in diamond can be illustrated in the second step II (the neutral state of NV0) and third step III (the negatively charged state NV−).
Figure 7. The schematic diagrams of the influence of nitrogen levels on diamond photocatalysis. Step I in the photocatalyst for reduction is intrinsic excitation. The presence of nitrogen levels in diamond can be illustrated in the second step II (the neutral state of NV0) and third step III (the negatively charged state NV−).
Materials 13 04559 g007
Materials 13 04559 g008 550

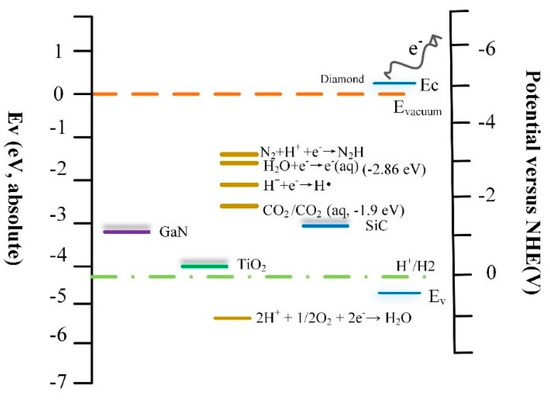

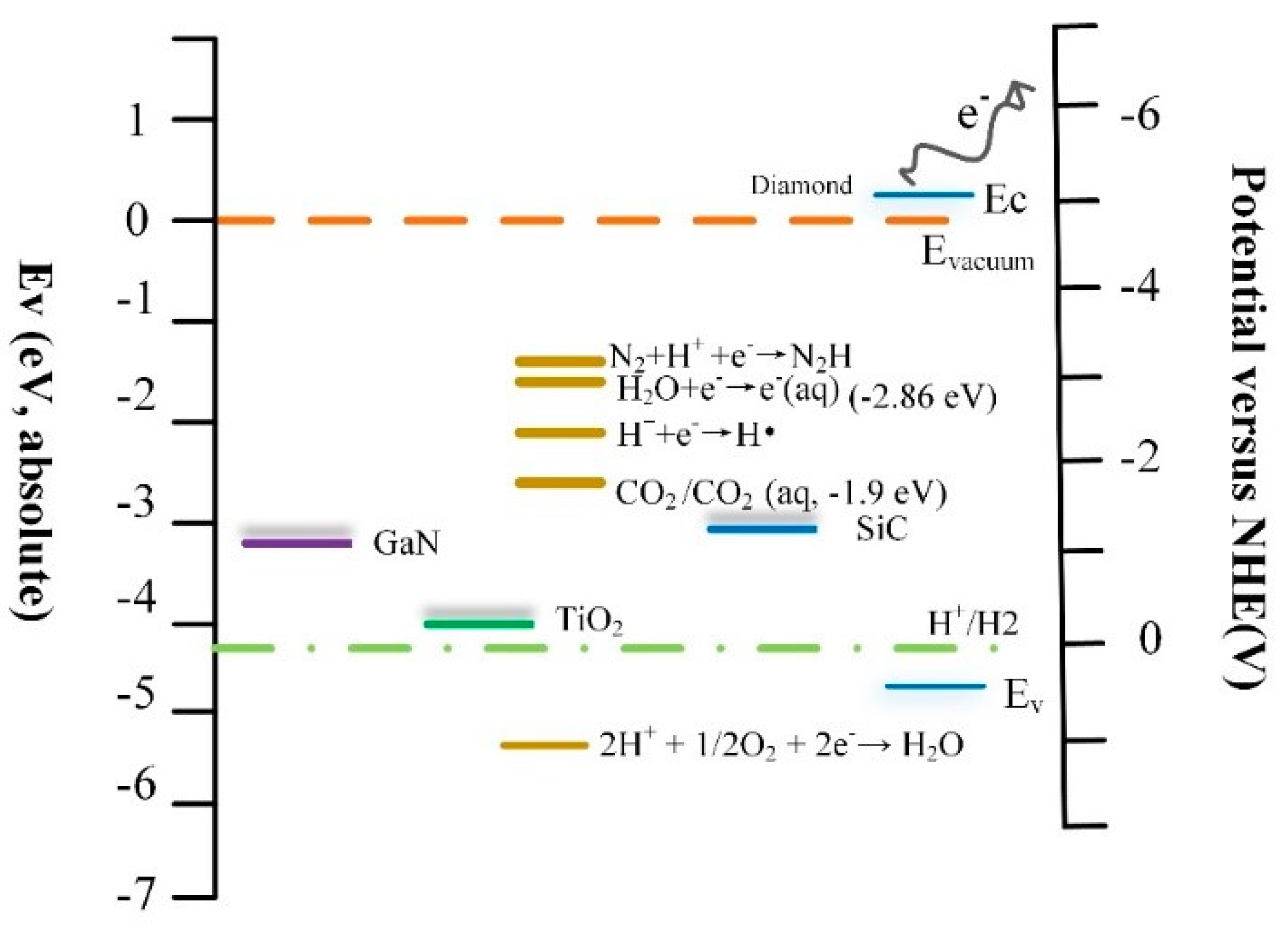

Figure 8. Electrochemical energy scale relative to the NHE of the diamond and other band wide gap semiconductors. Energy scale (left) and the electrochemical energy scale (right) relative to the NHE. Potential for reduction of oxygen to water is shown for pH 7.
Figure 8. Electrochemical energy scale relative to the NHE of the diamond and other band wide gap semiconductors. Energy scale (left) and the electrochemical energy scale (right) relative to the NHE. Potential for reduction of oxygen to water is shown for pH 7.
Materials 13 04559 g008
