Article

Use of Pyrazole Hydrogen Bonding in Tripodal Complexes to Form Self Assembled Homochiral Dimers

by
Greg Brewer
1,*,
Raymond J. Butcher
2 and
Peter Zavalij
3
1
Department of Chemistry, Catholic University, Washington, DC 20064, USA
2
Department of Chemistry, Howard University, Washington, DC 20059, USA
3
Department of Chemistry and Biochemistry, University of Maryland, College Park, MD 20742, USA
*
Author to whom correspondence should be addressed.
Materials 2020, 13(7), 1595; https://doi.org/10.3390/ma13071595
Submission received: 5 March 2020 / Revised: 24 March 2020 / Accepted: 25 March 2020 / Published: 31 March 2020
(This article belongs to the Special Issue Metal Complexes: Applications in Chemistry and Materials Science)
Browse Figures
Versions Notes

Abstract

:
The 3:1 condensation of 5-methyl-1H-pyrazole-3-carboxaldehyde (MepyrzH) with tris(2-aminoethyl)amine (tren) gives the tripodal ligand tren(MePyrzH)3. Aerial oxidation of a solution of cobalt(II) with this ligand in the presence of base results in the isolation of the insoluble Co(tren)(MePyrz)3. This complex reacts with acids, HCl/NaClO4, NH4ClO4, NH4BF4, and NH4I to give the crystalline compounds Co(tren)(MePyrzH)3(ClO4)3, {[Co(tren)(MePyrzH0.5)3](ClO4)1.5}2 {[Co(tren)(MePyrzH0.5)3](BF4)1.5}2 and [Co(tren)(MePyrzH)3][Co(tren)(MePyrzH)3]I2. The latter three complexes are dimeric, held together by three Npyrazole –H…Npyrazolate hydrogen bonds. The structures and symmetries of these homochiral dimers or pseudodimers are discussed in terms of their space group. Possible applications of these complexes by incorporation into new materials are mentioned.

1. Introduction

Tripodal ligands (see Figure 1) discussed in this report are formed from the Schiff base condensation of tris(2-aminoethyl)amine (tren), with three moles of an imidazole-2-carboxaldehyde, imidazole-4-carboxaldehyde or 5-methyl-1H-pyrazole-3-carboxaldehyde. The imidazole rings may have methyl substituents (not illustrated) in the 1,2 or 4 positions, which does not drastically affect reactivity [1,2]. The ligands are triprotic, H3L, and can coordinate to a metal(II) or metal(III) to give mononuclear complexes [MH3L]2+, [MH3L]3+ or [ML] in the presence of base [3,4,5,6,7]. The resultant imidazole and imidazolate complexes have been extensively studied in terms of proton coupled electron transfer (PCET) [8,9,10,11,12,13], tunable redox potentials, spin crossover (SC) between spin(HS) low spin(LS) electronic ground states [14,15,16] and formation of double salts which exhibit size recognition properties [17,18]. The properties of the metal complexes of the fully protonated (H3L) or fully deprotonated ligands (L3−) are certainly important as they have far ranging applications to materials research including switches [19,20], memory storage [21], and magnets [22,23]. The complexes are also chiral as the three arms of the tren ligand can wrap around the metal in a clockwise or counter clockwise fashion to give Δ (delta) or Λ (lambda) complexes.
The supramolecular [24,25,26] properties of the complexes of partially deprotonated or hemideprprotonated ligands (H2L−, HL2−, H1.5L−1.5) are perhaps more important in potential materials science applications. These complexes self assemble to give extended molecular arrays that exhibit very different topologies and preference for homo vs heterochirality.
The driving force is the formation of an extensive network of hydrogen bonding interactions between a protonated azole and a deprotonated azole, Nazole–H…Nazolate. Examples of complexes of H2L− and HL2− ligands that give 1D linear and zig-zag chains are illustrated below in Figure 2 [27].
The greatest number of supramolecular complexes are those of the hemideprotonated ligand with with iron(II), iron(III), cobalt(II) or cobalt(III) as the metal. The hemideprotonated state can be achieved if each of the three N1 azole nitrogen atoms has a hydrogen atom at half occupancy, NH0.5, tren(azoleH0.5)3−1.5 or if the metal complexes average out to 1.5 hydrogen atoms per complex as in a 50:50 compound of [Mtren(azoleH)3]+2 or +3 and [Mtren(azole)3]. The hemideprotonated tren(2-ImH0.5)3 −1.5 and tren(4-ImH0.5)3−1.5 systems exhibit a 2D hexagonal sheet structure, which exhibit extensive hydrogen bonding between neighboring complexes [28]. Each hemideprotonated complex is hydrogen bound to three neighboring structures, which give an extended 2D sheet. There is little or no interaction between adjacent layers [29,30]. Examples of these are depicted in Figure 3 [31].
This work describes the preparation and structures of the cobalt complexes of the tren(MepyrzH)3 ligand.

2. Experimental

2.1. General Information

Tris(2-aminoethyl)amine (tren), cobalt(II) tetrafluoroborate hexahydrate, cobalt(II) perchlorate hexahydrate, ammonium perchlorate, ammonium tetrafluoroborate, ammonium iodide and 0.10 M potassium hydroxide in methanol were obtained from Aldrich (Milwaukee, WI, USA). 5-Methyl-1H-pyrazole-3-carboxaldehyde was obtained from ChemBridge (San Diego, CA, USA). All solvents were of reagent grade and used without further purification. IR spectra were obtained as KBr pellets on a 1600 FT IR spectrometer (Perkin Elmer, Walthem, MA, USA).

2.2. Synthesis

[Co(tren(MepyrzH)3](ClO4)3 A solution of HCl (1.32 mL of 0.1 M HCl in methanol, 0.132 mmol) was added to a slurry of the previously prepared [32] Cotren(Mepyrz)3 (0.021 g, 0.044 mmols) in methanol (40 mL) in a 100 mL round bottom flask. The mixture was refluxed for an hour and filtered while hot. An excess of NaClO4 in a few mL of methanol was added. Orange-red crystals precipitated overnight.
{[Cotren(MepyrzH0.5)3](ClO4)1.5}2 NH4ClO4 (0.034 g, 0.29 mmol) was added as a solid to a slurry of Cotren(Mepyrz)3 (0.023 g, 048 mmol) in methanol (30 mL) in a 100 mL round bottom flask. There was no immediate change. The mixture was refluxed for 2 h to give a clear, orange solution. The reaction mixture was filtered while hot and set aside to concentrate. After several hours small red crystals were produced. They were recrystallized from DMF to produce crystals suitable for crystallography.
{[Cotren(MepyrzH0.5)3](ClO4)1.5}2 NH4BF4 (0.029 g, 0.28 mmol) was added as a solid to a slurry of Cotren(Mepyrz)3 (0.021 g, 044 mmol) and methanol (30 mL) in a 100 mL round bottom flask. There was no immediate change. The mixture was refluxed for 2 h to give a clear, orange solution. The reaction mixture was filtered while hot and set aside to concentrate. After several hours small red crystals were produced. Two different types of crystals, the title compound and a hydrate) were produced and analyzed
[Cotren(MepyrzH)3][Cotren(Mepyrz)3]I2 NH4I (0.047 g, 0.32 mmol) was added as a solid to a slurry of Cotren(Mepyrz)3 (0.032 g, 067 mmol) and methanol (10 mL) in a 100 mL round bottom flask. There was no immediate change. The mixture was refluxed for 2 h to give a clear, orange solution. The reaction mixture was filtered while hot and set aside to concentrate. After several hours small red crystals were produced.
{[Cotren(MepyrzH0.5)3 (C6H6) CH3CN)}2(ClO4)3. This complex was isolated in an attempt to repeat the synthesis of [Cotren(MepyrzH)(Mepyrz)2](ClO4) [33]. Tren (0.077 g, 0.53 mmol) and absolute ethanol (~16 mL) were added to a 25 mL round bottom flask. 5-Methyl-1H-pyrazole-3-carbaldehyde (0.174 g, 1.6 mmol) was added as a solid. The reaction mixture was refluxed for 2 h and filtered. Co(ClO4)2.6H2O (0.193, 0.53 mmol) was added as a solid to the filtrate. The reaction mixture was refluxed a further 2 h and was set aside to concentrate. Over a week a large quantity of solid had formed. It was filtered, washed sparingly with absolute ethanol and placed in a dessicator over CaCl2 to dry. After several days the solid (0.110 g) was dissolved in 15–20 mL acetonitrile with warming. The solution was filtered into a beaker. The beaker was set in a sealed jar with a few mL benzene in jar to allow for slow diffusion of benzene into the acetonitrile solution. Large brown blockish crystals formed over several days.

2.3. Structure Determinations

Crystal data were collected on a SMART 1000 CCD area2 detector Apex II system (Bruker, Madison, WI, USA), or on an Oxford Gemini diffractometer (Oxford, UK). All structures were solved using the direct methods program SHELXS-97 (Univ. of Gottingen, Germany) [34]. All nonsolvent heavy atoms were located using subsequent difference Fourier syntheses. The structures were refined against F2 with the program SHELXL [35,36], in which all data collected were used including negative intensities. In several of the complexes the perchlorate or tetrafluoroborate anions were conformationally disordered. In these cases each conformation was tetrahederally idealized and the multiplicities of the conformations were constrained to unity. All nonsolvent heavy atoms were refined anisotropically. All hydrogen atoms were located by Fourier difference. Complete crystallographic details are summarized in Table 1. Selected bond distances and angles are given in Table 2 and hydrogen bonding data is in Table 3. Crystallographic data for all complexes can be obtained free of charge from the Cambridge Crystallographic Data Center. The deposition numbers for the complexes are provided. [Cotren(MepyrzH)3] (ClO4)3 973179, [Cotren(MepyrzH0.5)3]2 (ClO4)3 973180, [Cotren(MepyrzH0.5)3]2 (BF4)3 973182, [Cotren(MepyrzH)2(Mepyrz)] [Cotren(Mepyrz)2(MepyrzH)] (BF4)3.3.81 H2O 973183, {[Cotren(MepyrzH0.5)3 (C6H6) CH3CN)}2(ClO4)3 973181 (123 K), {[Cotren(MepyrzH0.5)3 (C6H6) CH3CN)}2(ClO4)3 973178 (150 K), [Cotren(MePyrzH)3][Cotren(MePyrz)3]I2 973177.

3. Results and Discussion

3.1. Synthesis and Initial Characterization

The syntheses of [Cotren(MePyrzH)3](ClO4)3, [Cotren(MePyrzH0.5)3]2(ClO4)3 and [Cotren(MePyrzH0.5)3]2(BF4)3 were achieved by the reaction of the previously prepared insoluble Co(tren)(MePyrz)3, [37] with Lewis acids as illustrated below. The insolubility of this species is not understood in comparison to analogous complexes of similar ligands, but does not appear to hinder its reactivity. Lewis acid base reactions can be conducted by adding a solution of a suitable Lewis acid to a slurry of [Cotren(MePyrz)3] which acts as a Lewis base due to its three deprotonated pyrazolate rings. The resulting solution of both reactants isleft to stand and the products crystallize from the reaction mixture.
Cotren(MePyrz)3(s) + 3 HCl/NaClO4 (aq/methanol) → [Cotren(MePyrzH)3](ClO4)3
2Cotren(MePyrz)3(s) + 3NH4ClO4 (methanol) → [Cotren(MePyrzH0.5)3]2(ClO4)3 + 3NH3
2Cotren(MePyrz)3(s) + 3NH4BF4 (methanol) → [Cotren(MePyrzH0.5)3]2(BF4)3 + 3NH3
The tetrafluoroborate salt crystallizes as both an anhydrous and a hydrated form and both were structurally characterized. The synthesis of the analogous iodide salt is complicated by the fact that the iodide ion can reduce the cobalt(III) to cobalt(II). The product is a cobalt(II)-cobalt(III) mixed valence species [38], [Cotren(MePyrzH)3][Cotren(MePyrz)3]I2. The likely sequence of reactions is protonation of the cobalt complex by the ammonium cation, followed by reduction of this species by iodide and the formation of the pseudo dimer as illustrated below:
2Cotren(MePyrz)(s) + 6NH4I → 2[Cotren(MePyrzH)3](I)3 + 6NH3
2[Cotren(MePyrzH)3](I)3 → 2[Cotren(MePyrzH)3](I)2 + I2
NH4I + I2 → NH4I3
2[Cotren(MePyrzH)3](I)2 + 2[Cotren(MePyrz)3] → 2[Cotren(MePyrzH)3][Cotren(MePyrz)3](I)2
4Cotren(MePyrz)(s) + 7NH4I → 2[Cotren(MePyrzH)3][Cotren(MePyrz)3]I2 + 6NH3 + NH4I3
For completeness an attempt was made to prepare the previously synthesized [33] and structurally characterized [Cotren(MepyrzH)(Mepyrz)2](ClO4) by following the literature preparation which grew crystals by infusion of benzene into an acetonitrile solution of the reaction product. The present work resulted in the isolation of {[Cotren(MepyrzH0.5)3 (C6H6) CH3CN)}2(ClO4)3 despite careful attempts to reproduce the previously reported synthesis. The present inability to isolate the reported [Cotren(MepyrzH)(Mepyrz)2](ClO4) is not understood, but it is possible that in the earlier work the purification produced both [Cotren(MepyrzH)(Mepyrz)2](ClO4) (which was reported) and {[Cotren(MepyrzH0.5)3 (C6H6) CH3CN)}2(ClO4)3 which was not reported or observed earlier. However, it is isolated and structurally characterized as part of this work.
The initial characterization of complexes was carried out by IR spectroscopy. The most useful regions for examination in the IR were the N-H, C=N, and perchlorate Cl-O, and tetrafluoroborate B-F. The IR spectra of the [Cotren(MepyrzH)3](ClO4)3 mononuclear complex shows the characteristic absorption bands attributable to the pyrazole νN-H (3100–3300 cm−1), imine νC=N at ~1640 cm−1 and perchlorate νCl-O (1147–1154 and 625 cm−1). The position of the imine absorption for the cobalt complexes increases with the protonation state of the ligand [39]. For [Cotren(Mepyrz)3] the absorption appears close to 1600 cm−1, consistent with deprotonation of the ligand. This peak shifts to higher wavenumbers for the dimers/pseudodimers. The [Cotren(MePyrzH)3][Cotren(MePyrz)3]I2 pseudo-dimer exhibit two imine νC=N absorptions in the IR spectrum corresponding to the Co(II) and Co(III) components. In addition to the expected νN-H and νC=N absorptions, the IR spectra of all the pseudo-dimers exhibit broad bands at ~2100–1800 and ~2375 cm−1, which are not observed in the IR spectra of the mononuclear complexes. These bands have been observed previously in similar hydrogen bound complexes and are attributed to intermolecular azole-azole hydrogen bonding [40,41,42].

3.2. Structures of the Complexes, General Features

All of the cobalt species reported here are six coordinate distorted octahedral complexes bound to three facial pyrazole nitrogen atoms and three facial imine nitrogen atoms. The apical nitrogen atom (Nap) of the tren caps the three facial imine nitrogen atoms. In these complexes the Co to Nap distance is too large to be considered a bond. However in related complexes the distance is short enough that the geometry is the seven coordinate capped octahedron [43]. The complexes are chiral, Λ or Δ, as determined by the twist orientation of the three tren arms. Relevant bond distance and angles are given for all complexes in Table 2. The above features are illustrated for [Cotren(MepyrzH)3](ClO4)3 in Figure 4. This is the only mononuclear complex reported here and the remaining complexes are dimeric or pseudodimeric species held together by three Npyrazole–H…Npyrazolate hydrogen bonds as described below. There are earlier reports of mononuclear tren pyrazole complexes [44,45,46,47].

3.3. General Structure of the Dimers/Pseudodimers

Structures of several tren pyrazolate dimers or pseudodimers, [Fetren(MepyrzH)3–Fetren(Mepyrz)3]2+, [Mntren(MepyrzH)3–Fetren(Mepyrz)3]2+, [Fetren(MepyrzH)3–Cotren(Mepyrz)3]2+ [Mntren(MepyrzH)3–Cotren(Mepyrz)3]2+ have been reported previously [32,37]. The term dimer is used if there is a single metal complex in the asymmetric unit, meaning that it is a true dimer, made of two identical halves Even in a dimer that contains two different metals, M and M’, or the same metal in two different oxidation states the symmetry imposed by the space group may average these which manifests as a M0.5 M’0.5 bound to a hemideprotonated ligand, tren(MepyrzH0.5)3−1.5. The term pseudodimer is used if there are two metal complexes in the asymmetric unit. This too is determined by the symmetry imposed by the space group. In this case the two metal complexes are different, either because the metals are different, in different oxidation states or the levels of protonation on the two ligands are different, such as tren(MepyrzH)3. tren(Mepyrz)33−. Regardless of this distinction between dimer and pseudodimer both complexes exhibit three structural features in common. 1) The dimers have three Npyrazole–H…..Npyrazolate hydrogen bonds that link the two halves of the dimer/pseudodimer together. 2) The dimers exhibit π-π stacking of the three pairs of pyrazole rings. The pyrazole rinds are not perfectly eclipsed. There is slippage between the two rings but their small interplanar angle (<2°) and a short centroid to centroid distance (~3.4 Å) supports the π-π interaction. And 3) homochirality of both metal complexes of the dimer/pseudodimer, either both Δ or both Λ. These features are illustrated in Figure 5 for [Cotren(MepyrzH)3][Cotren(Mepyrz)3]2+ cation. This homochirality feature is required for the formation of both the hydrogen bonding and the π-π stacking. There are other examples of complexes that exhibit some of these features individually. A copper Schiff base dimer is held together by hydrogen bonding but lacks the other structural elements [48]. The π-π stacking feature is observed in imidazole based supramolecular complexes of manganese(II) and cobalt(II) [49]. The intervalence and hydrogen bonding features of the Co(II)-Co(III) pseudodimer were observed in a ferrocene derivative [50]. The structures of the present cobalt complexes exhibit these same features but these new systems exhibit previously unobserved symmetry characteristics due to the crystallization of the complex in Sohncke [51] space groups as discussed in the descriptions that follow.
In the case of the tren pyrazole dimers both halves of the dimer must be of the same chirality either delta or lambda in order for the hydrogen bonding and π-π stacking to occur. Another example of polynucleation that must select for homochirality is the tetrahedral tetranuclear complex, {[Cotren(4-MeImH)(4-MeIm)2]3[Cotren(4-MeImH)3]}(ClO4)6, which is averaged as [Cotren(4-MeImH0.5)3]4(ClO4)6, and pictured in Figure 6 [52]. In the case of both the dinuclear and tetranuclear complex homochirality within the polynuclear unit, dimer or tetramer, is required to form the three (dimer) or six hydrogen bonds (tetramer) that hold the polynuclear unit together. In both cases each monomer forms three hydrogen bonds. In the dimer the three hydrogen bonds are to the same molecule and in the tetramer the three hydrogen bonds are to three different complexes. Extension of homochirality throughout the entire crystal can only occur in a Sohncke space group which is non-centrosymmetric and contains a single enantiomer.
Broadly speaking there are two types of symmetry elements that could be observed in these Mtren(Mepyrz)3 dimers/pseudodimers. A three-fold axis along the apical tren nitrogen atom and the metal atom (making the three tren arms identical) or a symmetry element that interchanges the two metal sites such as a two fold rotation axis. The former would result in a single tren arm per metal complex in the asymmetric unit and the latter would give three tren arms but an average metal site, [M0.5 M0.5’L]. The presence of both symmetry elements would give a single tren arm and a single metal atom in the asymmetric unit. Some previously prepared dimers/pseudodimers crystallized in C2/c (C2h) and Pbcn (D2h). These space groups are centrosymmetric, contain both enantiomers and exhibit one metal and three tren arms in the asymmetric unit due to a two fold proper rotation axis. Others crystallize in Cc (Cs) (non centrosymmetric, both enantiomers) and Pbar1 (Ci) (centrosymmetric, both enantiomers). The dimers in these groups exhibit two metal sites and three tren arms/metal in the asymmetric unit. None of these space groups are of the Sohncke classification. In the present collection of homonuclear cobalt complexes Sohncke space groups are observed for three of the dimers which alters the symmetry considerations significantly.
[Cotren(MepyrzH0.5)3]2 X3 (X = ClO4− and BF4−). The structures of [Cotren(MepyrzH0.5)3]2 X3 (X = ClO4− and BF4−) dimers are isomorphous in Sohncke space group R32 which has D3 symmetry. There is a single cobalt(III) ion and a three fold rotation axis (shown in red) that runs through the apical tren nitrogen and the cobalt atoms. They also possess three two fold rotation axis (shown in blue) that bisects the cobalt-cobalt non bonded axis. This is illustrated in Figure 7.
There are no mirror planes or glide planes as R32 is a Sohncke space group that allows for the crystallization of a single enantiomer of a chiral molecule. A mirror plane is equivalent to an improper axis of rotation which a chiral molecule cannot have. This type of symmetry, imposed by a Sohncke space group, has not been observed previously in the earlier pyrazole dimers/pseudodimers. The entire crystal is homochiral (resolved at the level of the crystal) but the entire sample is likely achiral as it contains equal numbers of molecules of opposite chirality (racemic conglomerate). Crystals of this type could be separated by hand into the lambda and delta isomers as was done by Pasteur for tartrate salts.
[Cotren(MepyrzH0.5)3]2 (BF4)3 also crystallizes as a hydrate, [Cotren(MepyrzH)2(Mepyrz)] [Cotren(Mepyrz)2(MepyrzH)] (BF4)3.3.81 H2O, in Cc. It is neither isomorphous or a polymorph of [Cotren(MepyrzH0.5)3]2. In this case the space group requires that the two metal sites be distinct and that there is no three fold axis along the apical tren nitrogen and cobalt atoms. These differences are achieved by having different levels of protonation on the two pyrazolate rings of the two ligands in the pseudodimer to give the {[Cotren(MepyrzH)2(Mepyrz)] [Cotren(MepyrzH)(Mepyrz)2]}3+ cation.
{[Cotren(MepyrzH0.5)3 (C6H6) CH3CN)}2(ClO4)3. This complex resulted from the attempt to repeat the earlier synthesis of [Cotren(MepyrzH)(Mepyrz)2]ClO4. This attempt resulted in the preparation of a new compound that crystallized in P43212 which has D4 symmetry. In this dimer the two cobalt complexes are equivalent as a two-fold rotation axis bisects a Npyrazole–H…..Npyrazolate hydrogen bond axis and the non-bonded cobalt-cobalt axis as shown in Figure 8. The three tren arms are not equivalent. The four fold rotation axis is a screw axis of the cell (not the molecule) There are no mirror planes as this is a Sohncke space group that allows for crystallization of a single enantiomer as was discussed earlier for [Cotren(MepyrzH1.5)3]2 X3 (X = ClO4− and BF4−) that crystallizes in R32 (racemic conglomerate). The situation here is more complicated as P43212 is an entaniomorphous (chiral) space group which means that if one enantiomer crystallizes in P43212 the other enantiomer cannot crystallize in the same space group and must crystallize in the enantiomorphous space group, P41212 in this case. This could result in total spontaneous resolution. While it was not possible to examine each crystal a structural determination was made of another crystal from the same batch and it was identical to the first. Both results are reported here.
[Cotren(MePyrzH)3][Cotren(MePyrz)3]I2. This compound was prepared by the same method as were [Cotren(MepyrzH0.5)3]2 X3 (X = ClO4− and BF4−). The reaction was simply adding a solution of ammonium iodide (rather than perchlorate or tetrafluoroborate) to the insoluble Cotren(Mepyrz)3. The result in this case was different as the product was the mixed valent cobalt(II)-cobalt(III) pseudodimer in Cc (Cs symmetry). There are two cobalt complexes in the asymmetric unit each with three unique tren arms. In this case one complex has all three pyrazolates protonated and the other has all three deprotonated. These are assigned as cobalt(II) and cobalt(III) respectively due to the fact that reduction is easier for a positively charged species over a neutral assuming other factors are unchanged. This species is an intervalence compound as it contains a cobalt(II) and a cobalt(III) or an average oxidation state of Co+2.5. In this case the rate of electron transfer between the two cobalt atoms would be slow as this is a Class I intervalence compound as the metals are nor in identical structural fields. However a small change in crystallization conditions (presence of a two-fold rotation axis) would mean that the compound was a Class III intervalence system with a non-localized electron.

3.4. Correlation of Spin State with Structural Parameters

Structural signatures of high spin (HS) and low spin (LS) iron(II) and iron(III) [53] tripodal tren imidazole complexes have been investigated previously from experimental and computational approaches [54,55]. The signatures are 1) the Fe-Nimidazole and Fe-Nimine bond distances 2) the Nimidazole-Fe-Nimine bite angle 3) the Nimidazole-Fe-Nimine’ trans angle 4) the Fe-Nap distance and 5) the Nap conformation. In general the HS state correlates with long Fe-Nimidazole and Fe-Nimine bond distances (> 2.10 Å), Nimidazole-Fe-Nimine bite angles of ~76°, Nimidazole-Fe-Nimine’ trans angles of ~166°, short M-Nap distances (<3.1 Å) and the conformation of the apical nitrogen atom of the tren bent in (“Nin”)towards the iron atom. In contrast the LS state correlates with short Fe-Nimidazole and Fe-Nimine bond distances (<2.00 Å), Nimidazole-Fe-Nimine bite angles of ~81°, Nimidazole-Fe-Nimine’ trans angles of ~175°, long Fe-Nap distances (>3.1 Å) and “N out” or planar conformation of the apical tren nitrogen atom. The above structural signatures are so pronounced that LS structures of iron(II) and iron(III) are essentially identical with these ligands as are HS structures. In other words the effect of oxidation state is minor relative to spin state on structural parameters.
Comparison of the above structural parameters of iron(III) (d5) and iron(II) (d6) with the analogous values for all of the cobalt(III) (d6) complexes in Table 2 clearly suggests that all of the cobalt(III) complexes are LS. This is hardly surprising as all but a few cobalt(III) complexes are LS. This does not mean that structural data is a true measurement of the electronic ground state but it does suggest that the above parameters correlate extremely well with spin state selection in this class of complexes. The [Cotren(MePyrzH)3][Cotren(MePyrz)3]I requires further comment as it contains both a cobalt(II) and a cobalt(III). The Co-pyrazole bond distance is the longest (2.048 Å) and the bite (77.2°) and trans (172.1°) angles are the smallest for Cotren(MePyrzH)3 of all the complexes listed in Table 2. The lengthening of the Co-pyrazole bond distance can be explained on the fact that pyrazolate is a stronger binder than a pyrazole. The bite and trans angles are not completely in the LS regime but have moved in that direction. More definitive comments on the spin state of the Co(II) in this complex requires a separate investigation to synthesize, isolate and magnetostructurally characterize a mononuclear [Cotren(MePyrzH)3]2+ species. It is possible that the Co(II) d7 species is LS or close to the equilibrium:
2E (LS) ⇌ 4T (HS) spin crossover point.

4. Summary

One aspect of materials science work is to incorporate features into a molecular system that have potential for applications. Two aspects that may be desirable to incorporate into a molecular system are spin crossover (SC) and intervalence (IV). A SC molecule can switch between two electronic states with different magnetic properties due to a change in temperature, pressure, optical stimulation or other environmental features such as pH. Such molecules can be thought of as a switch or memory storage device. A metal(II)-metal(III) intervalence molecule has a non integral average oxidation state and can serve as a storage site for an electron or could be used to promote rapid electron transfer. If the symmetry of the intervalence compound resulted in a single metal in the asymmetric unit then the compound would be a Class III intervalence species in which the electron is not localized and the metal ions are in an average non integral oxidation state. Well know examples of these are magnetite, Fe3O4, basic iron acetate, Fe3O (OAc)6(H2O)3, and the Creutz Taube ion, [(NH3)5Ru(pyrazine)Ru(NH3)5]5+. The pyrazole dimers/pseudodimers discussed here have the features of SC and IV. In addition they have the ability to self-assemble through a stereochemical (chiral) molecular recognition process which means that one tren pyrazole complex can bind selectively to only the same enantiomer of a racemic mixture. If these molecules were incorporated into a material then the door is open to fully exploit the stereochemical and symmetry features as well as the SC and IV aspects. An example of how this incorporation could be achieved is as follows. The central nitrogen atom of the tren can be alkylated by reaction with an alkyl iodide, RI, or other agent. A silicon (or other) based material, which had incorporation of this functionalization, -Si-Si-C(I)-Si-Si- could be reacted with tren to give -Si-Si-C(N(CH2CH2NH2)3–Si-Si-. Further reaction of this with MepyrzH followed by a metal would incorporate half of the dimer (monomer) into the material The other half of the dimer can self-assemble onto the first half by chiral recognition and formation of hydrogen bonds to give dimer/pseudodimer attached to the original material. Incorporation of the dimer/pseudodimer into the original material allows for possible exchange reactions such as selective removal of a single enantiomer from solution. There are many potential uses of such a material that could exploit the SC and IV properties. The complexes presented here and in earlier work show that subtle variations in reaction and or crystallization conditions have a profound effect on the molecular symmetry by altering the space group that is exhibited. Any of these features could be exploited by incorporating these molecules into a new material.

Author Contributions

G.B. was responsible for the conceptual development of the project, design of experimental synthesis and obtaining crystals of the desired compounds; R.J.B. and P.Z. independently carried out the single crystal structure determinations; G.B. wrote the manuscript but discussion of the crystallographic information was dependent upon the expertise of the crystallographers; Clearly this report would not be possible without the experimental work and structural expertise of R.J.B. and P.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was in part funded by NASA under the coop NASAM13A administered through the Goddard Space Flight center.

Acknowledgments

The contribution of C.T. Brewer to the discussion if this work is gratefully acknowledged.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Brewer, C.T.; Brewer, G.; Luckett, C.; Marbury, G.S.; Viragh, C.; Beatty, A.M.; Scheidt, W.R. Proton control of oxidation and spin state in a series of iron tripodal imidazole complexes. Inorg. Chem. 2004, 43, 2402–2415. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Lambert, F.; Policar, C.; Durot, S.; Cesario, M.; Yuwei, L.; Korri-Youssoufi, H.; Keita, B.; Nadjo, L. Imidazole and imidazolate iron complexes: on the way for tuning 3D-structural characteristics and reactivity. Redox Inorg. Chem. 2004, 43, 4178–4188. [Google Scholar] [CrossRef] [PubMed]
  3. Sunatsuki, Y.; Ikuta, Y.; Matsumoto, N.; Ohta, H.; Kojima, M.; Iijima, S.; Hayami, S.; Maeda, Y.; Kaizaki, S.; Dahan, F.; et al. An unprecedented homochiral mixed-valence spin-crossover compound. Angew. Chem. Int. Ed. 2003, 42, 1614. [Google Scholar] [CrossRef] [PubMed]
  4. Ikuta, Y.; Ooidemizu, M.; Yamahata, Y.; Yamada, M.; Osa, S.; Matsumoto, N.; Iijima, S.; Sunatsuki, Y.; Kojima, M.; Dahan, F.; et al. A New Family of Spin Crossover Complexes with a Tripod Ligand Containing Three Imidazoles:  Synthesis, Characterization, and Magnetic Properties of [FeIIH3LMe](NO3)2·1.5H2O, [FeIIILMe]·3.5H2O, [FeIIH3LMe][FeIILMe]NO3, and [FeIIH3LMe][FeIIILMe](NO3)2 (H3LMe = Tris[2-(((2-methylimidazol-4-yl)methylidene)amino)ethyl]amine). Inorg. Chem. 2003, 42, 7001–7017. [Google Scholar] [PubMed]
  5. Yamada, M.; Ooidemizu, M.; Ikuta, Y.; Osa, S.; Matsumoto, N.; Iijima, S.; Kojima, M.; Dahan, F.; Tuchagues, J.P. Interlayer Interaction of Two-Dimensional Layered Spin Crossover Complexes [FeIIH3LMe][FeIILMe]X (X− = ClO4−, BF4−, PF6−, AsF6−, and SbF6−; H3LMe = Tris[2-(((2-methylimidazol-4-yl)methylidene)amino)ethyl]amine). Inorg. Chem. 2003, 42, 8406. [Google Scholar] [CrossRef]
  6. Sunatsuki, Y.; Ohta, H.; Kojima, M.; Ikuta, Y.; Goto, Y.; Matsumoto, N.; Iijima, S.; Akashi, H.; Kaizaki, S.; Dahan, F.; et al. Supramolecular Spin-Crossover Iron Complexes Based on Imidazole−Imidazolate Hydrogen Bonds. Inorg. Chem. 2004, 43, 4154–4171. [Google Scholar] [CrossRef]
  7. Ohta, H.; Sunatsuki, Y.; Ikuta, Y.; Matsumoto, N.; Ijima, S.; Akashi, H.; Kambee, T.; Kojima, M. Spin crossover in a supramolecular Fe(II)-Fe(III) system. Mater. Sci. 2003, 21, 191. [Google Scholar]
  8. Slattery, S.J.; Blaho, J.K.; Lehnes, J.; Goldsby, K.A. pH-Dependent metal-based redox couples as models for proton-coupled electron transfer reactions. Coord. Chem. Rev. 1998, 174, 391–416. [Google Scholar] [CrossRef]
  9. Hays, A.A.; Vassiliev, I.R.; Golbeck, J.H.; Debus, R.J. Role of D1-His190 in Proton-Coupled Electron Transfer Reactions in Photosystem II:  A Chemical Complementation Study. Biochemistry 1998, 37, 11352–11365. [Google Scholar] [CrossRef] [PubMed]
  10. Aedelroth, P.; Paddock, M.L.; Tehrani, A.; Beatty, J.T.; Feher, G.; Okamura, M.Y. Identification of the Proton Pathway in Bacterial Reaction Centers:  Decrease of Proton Transfer Rate by Mutation of Surface Histidines at H126 and H128 and Chemical Rescue by Imidazole Identifies the Initial Proton Donors. Biochemistry 2001, 40, 14538–14546. [Google Scholar] [CrossRef]
  11. Carina, R.F.; Verzegnassi, L.; Bernardinelli, G.; Williams, A.F. Modulation of iron reduction potential by deprotonation at a remote site. Chem. Comm. 1998, 2681–2682. [Google Scholar] [CrossRef] [Green Version]
  12. Bond, A.M.; Haga, M. Spectrophotometric and voltammetric characterization of complexes of bis(2,2’-bipyridine)(2,2’-bibenzimidazole)ruthenium and -osmium in oxidation states II, III, and IV in acetonitrile/water mixtures. Inorg. Chem. 1986, 25, 4507–4514. [Google Scholar] [CrossRef]
  13. Haga, M.; Ano, T.; Kano, K.; Yamabe, S. Proton-induced switching of metal-metal interactions in dinuclear ruthenium and osmium complexes bridged by 2,2’-bis(2-pyridyl)bibenzimidazole. Inorg. Chem. 1991, 30, 3843–3849. [Google Scholar] [CrossRef]
  14. Real, J.A.; Gasper, A.B.; Muñoz, M.C. Thermal, pressure and light switchable spin-crossover materials. Dalton Trans. 2005, 12, 2062–2079. [Google Scholar] [CrossRef] [PubMed]
  15. Ohta, H.; Sunatsuki, Y.; Kojima, M.; Iijima, S.; Akashi, H.; Matsumoto, N. A Tripodal Ligand Containing Three Imidazole Groups Inducing Spin Crossover in Both Fe(II) and Fe(III) Complexes; Structures and Spin Crossover Behaviors of the Complexes. Chem. Lett. 2004, 33, 350–351. [Google Scholar] [CrossRef]
  16. Sunatsuki, Y.; Sakata, M.; Matsuzaki, S.; Matsumoto, N.; Kojima, M. Thermal and Pressure Induced Spin Crossover of a Novel Iron(III) Complex with a Tripodal Ligand Involving Three Imidazole Groups. Chem. Lett. 2001, 1254. [Google Scholar] [CrossRef]
  17. Brewer, G.; Butcher, R.J.; Viragh, C.; White, G. Supramolecular assemblies prepared from an iron(II) tripodal imidazole complex. A molecular scaffolding for the self assembly of icosahedral complexes of K+, Rb+, Cs+ and NH4+ cations. Dalton Trans. 2007, 4132–4142. [Google Scholar] [CrossRef]
  18. Alvarado, L.; Brewer, C.; Brewer, G.; Butcher, R.J.; Straka, A.; Viragh, C. Supramolecular assemblies prepared from an iron(II) tripodal complex, tetrafluoroborate, and alkali metal cations. The effect of cation size on coordination number, anion disorder and hydrogen bonding. Cryst. Eng. Comm. 2009, 11, 2297–2307. [Google Scholar] [CrossRef]
  19. Ohba, M.; Yoneda, K.; Agusti, G.; Munoz, M.C.; Gasbar, A.B.; Real, J.A.; Yamasaki, M.; Ando, H.; Nakao, Y.; Sakaki, S.; et al. Bidirectional Chemo-Switching of Spin State in a Microporous Framework. Angew. Chem. Int. Ed. 2009, 48, 4767. [Google Scholar] [CrossRef]
  20. Hauser, A.; Jeftic, J.; Romstedt, H.; Hinek, R.; Spiering, H. Cooperative phenomena and light-induced bistability in iron(II) spin-crossover compounds. Coord. Chem. Rev. 1999, 190, 471–491. [Google Scholar] [CrossRef] [Green Version]
  21. Kahn, T.O.; Jay-Martinez, C. Spin-Transition Polymers: From Molecular Materials Toward Memory Devices. Science 1998, 279, 44–48. [Google Scholar] [CrossRef]
  22. Miller, T.J.S. Magnetically ordered molecule-based assemblies. Dalton Trans. 2006, 2742–2749. [Google Scholar] [CrossRef]
  23. Batten, S.R.; Murray, K.S. Structure and magnetism of coordination polymers containing dicyanamide and tricyanomethanide, Coord. Chem. Rev. Coord. Chem. Rev. 2003, 246, 103–130. [Google Scholar] [CrossRef]
  24. Steed, J.W.; Atwood, J.L. Supramolecular Chemistry; John Wiley and Sons: Weinheim, Germany, 2000. [Google Scholar]
  25. Saalfrank, R.W.; Demleitner, B.; Sauvage, J.P. Transition Metals in Supramolecular Chemistry; Sauvage, J.P., Ed.; John Wiley and Sons: Weinheim, Germany, 1999. [Google Scholar]
  26. Dodziuk, H. Introduction to Supramolecular Chemistry; Kluwer Academic Publishers: Boston, MA, USA, 2001. [Google Scholar]
  27. Alvarado, L.; Brewer, G.; Carpenter, E.E.; Viragh, C.; Zavalij, P. Use of acid–base and redox chemistry to synthesize cobalt(III) and iron(III) complexes of a partially deprotonated triprotic imidazole-containing Schiff base ligand: Hydrogen bound 1D linear homochiral and zig-zag heterochiral supramolecular complexes. Inorg. Chim. Acta 2010, 363, 817–822. [Google Scholar] [CrossRef]
  28. Brewer, G.; Alvorado, L.; Lear, S.; Viragh, C.; Zavalij, P. Synthesis, Structure and Supramolecular Features of Heteronuclear Iron(III)-Copper(II) Complexes of a tripodal imidazole containing ligand. Inorg. Chim. Acta 2016, 439, 111–116. [Google Scholar] [CrossRef]
  29. Garcia-Terán, J.P.; Castillo, O.; Luque, A.; Garcia-Couceiro, U.; Beobide, G.; Román, P. Supramolecular architectures assembled by the interaction of purine nucleobases with metal-oxalato frameworks. Non-covalent stabilization of the 7H-adenine tautomer in the solid-state. Dalton Trans. 2006, 902–911. [Google Scholar]
  30. Maurizot, V.; Yoshizawa, M.; Kawano, M.; Fujita, M. Control of molecular interactions by the hollow of coordination cages. Dalton. Trans. 2006, 2750–2756. [Google Scholar] [CrossRef]
  31. Brewer, G.; Alvorado, L.J.; Brewer, C.T.; Butcher, R.J.; Cipresi, J.; Viragh, C.; Zavalij, P.Y. Synthesis, structure and supramolecular features of homonuclear iron(III) and heteronuclear iron(III)–cobalt(III) complexes, [FeH3L][ML](ClO4)3 (M = Fe(III) or Co(III). 2D sheet and tetrahedral arrays. Inorg. Chim. Acta 2014, 421, 100–109. [Google Scholar] [CrossRef]
  32. Brewer, C.T.; Brewer, G.; Butcher, R.J.; Carpenter, E.E.; Schmiedekamp, A.M.; Schmiedekamp, C.; Straka, A.; Viragh, C.; Yuzafpolskiy, Y.; Zavalij, P. Synthesis and Characterization of Homo- and Heterodinuclear M(II)-M(III)’ (M(II) = Mn or Fe, M(III)’ = Fe or Co) Mixed Valence Supramolecular Pseudo-dimers. The Effect of Hydrogen Bonding on Spin State Selection of M(II). Dalton Trans. 2011, 40, 181. [Google Scholar] [CrossRef]
  33. Paul, S.; Barik, A.K.; Peng, S.M.; Kar, S.K. Novel Copper(II) Induced Formation of a Porphyrinogen Derivative: X-ray Structural, Spectroscopic, and Electrochemical Studies of Porphyrinogen Complexes of Cu(II) and Co(III) Complex of a Trispyrazolyl Tripodal Ligand. Inorg. Chem. 2002, 41, 5803–5809. [Google Scholar] [CrossRef]
  34. Sheldrick, G.M. Phase Annealing in SHELX-90: Direct Methods for Larger Structures. Acta Crystallogr. 1990, A46, 467–473. [Google Scholar] [CrossRef]
  35. Sheldrick, G.M. SHELXL-97: FORTRAN Program for Crystal Structure Refinement, 1997; Göttingen University: Göttingen, Germany, 2001. [Google Scholar]
  36. Sheldrick, G.M. SHELXL-97: FORTRAN Program for Crystal Structure Analysis, Göttingen University, Instit; Fr Anorganisheche Chemie der Universitat, Tammanstrasse 4, D-3400; Gőttingen University: Göttingen, Germany, 1998. [Google Scholar]
  37. Brewer, C.T.; Brewer, G.; Butcher, R.J.; Carpenter, E.E.; Schmiedekamp, A.M.; Viragh, C. Synthesis and characterization of a spin crossover iron(ii)–iron(iii) mixed valence supramolecular pseudo-dimer exhibiting chiral recognition, hydrogen bonding, and π–π interactions. Dalton Trans. 2007, 21, 295–298. [Google Scholar] [CrossRef] [PubMed]
  38. Clark, R.J.H. The Chemistry and spectroscopy of Mixed-Valence complexes. Chem. Soc. Rev. 1984, 13, 219. [Google Scholar] [CrossRef]
  39. Katsuki, I.; Motoda, Y.; Sunatsuki, Y.; Matsumoto, N.; Nakashima, T.; Kojima, M. Spontaneous Resolution Induced by Self-Organization of Chiral Self-Complementary Cobalt(III) Complexes with Achiral Tripod-Type Ligands Containing Three Imidazole Groups. J. Am. Chem. Soc. 2002, 124, 629–640. [Google Scholar] [CrossRef]
  40. Mimura, M.; Matsuo, T.; Motoda, Y.; Matsumoto, N.; Nakashima, T.; Kojima, M. Deprotonated Copper(II) Complex with a Tripod Ligand Involving Three Imidazole Groups: A Two-Dimensional Chiral Honey-Comb Structure Made by Hydrogen Bonds. Chem. Lett. 1998, 691. [Google Scholar] [CrossRef]
  41. Nakamoto, K. Infrared and Raman Spectra of Inorganic and Coordination Compounds, 3rd ed.; John Wiley and Sons: New York, NY, USA, 1978. [Google Scholar]
  42. Novak, A. Hydrogen bonding in solids correlation of spectroscopic and crystallographic data. Struc. Bond. 1973, 18, 177–216. [Google Scholar]
  43. Brewer, G.; Brewer, C.; White, G.; Butcher, R.J.; Viragh, C.; Carpenter, E.E.; Schmiedekamp, A. Synthesis and Characterization of Iron(II) and Iron(III) Complexes Derived from Tris(2-aminoethyl)methane. Inorg. Chim. Acta 2009, 362, 4158. [Google Scholar] [CrossRef]
  44. Hardie, M.J.; Kilner, C.A.; Halcrow, M.A. Tris[4-(1H-pyrazol-3-yl)-3-azabut-3-enyl]amine iron(II) diperchlorate monohydrate. Acta Crystallogr. Sect. C. 2004, C60, m177. [Google Scholar] [CrossRef]
  45. Sczepanik, J.; Kaminsky, E.B.K.W.; Dechert, S.; Meyer, F. Non-Macrocyclic Schiff Base Complexes of Iron(II) as ParaCEST Agents for MRI. Eur. J. Inorg. Chem. 2019, 2019, 2404–2411. [Google Scholar] [CrossRef]
  46. Lazar, H.C.; Barrett, T.F.S.A.; Kliner, C.A.; Letard, J.F.; Halcrow, M.A. Thermal and light-induced spin-crossover in salts of the heptadentate complex [tris(4-{pyrazol-3-yl}-3-aza-3-butenyl)amine]iron(ii). Dalton Trans. 2007, 4276–4285. [Google Scholar] [CrossRef]
  47. Paul, S.; Barik, A.K.; Butcher, R.J.; Kar, S.K. Synthesis and characterisation of nickel(II) complexes with tripodal ligand tris[4-(3-(5-methylpyrazolyl)-3-aza-3-butenyl] amine (MPz3tren): X-ray crystal structure of [Ni(MPz3tren)](BF4)2·0.5H2O. Polyhedron 2000, 19, 2661. [Google Scholar] [CrossRef]
  48. Plass, W.; Pohlmann, A.; Rautengarten, J. Magnetic Interactions as Supramolecular Function: Structure and Magnetic Properties of Hydrogen-Bridged Dinuclear Copper(II) Complexes. Angew. Chem. Int. Ed. 2001, 40, 4207. [Google Scholar] [CrossRef]
  49. Yi, J.; Che, Y.X.; Zheng, J.M. Magnetic Interactions as Supramolecular Function: Structure and Magnetic Properties of Hydrogen-Bridged Dinuclear Copper(II) Complexes. J. Coord. Chem. 2007, 60, 2067. [Google Scholar]
  50. Sun, H.; Steeb, J.; Kaifer, A.E.J. Efficient Electronic Communication between Two Identical Ferrocene Centers in a Hydrogen-Bonded Dimer. Am. Chem. Soc. 2006, 128, 2820–2821. [Google Scholar] [CrossRef]
  51. Lenartson, A. Absolute Asymmetric Synthesis. Ph.D. Thesis, University of Gothenberg, Gothenberg, Sweden, 2009. [Google Scholar]
  52. Brewer, G.; Butcher, R.J.; Lear, S.; Noll, B.; Zavalij, P.Y. Synthesis, Structure and Supramolecular Features of Cobalt(III) and Cobalt(II) Complexes, [CoHxL](ClO4)y (x = 3, 2, 1.50, 1.45, 1 and 0) and x = 3, y = 2) of a Triprotic Imidazole Containing Schiff Base Ligand. Effect of protonation state on supramolecular structure. Inorg. Chim. Acta 2014, 410, 94–105. [Google Scholar]
  53. Brewer, C.; Brewer, G.; Butcher, R.J.; Carpenter, E.E.; Cuenca, L.; Noll, B.C.; Scheidt, W.R.; Viragh, C.; Zavalij, P.Y.; Zielaski, D. Synthesis and characterization of manganese(ii) and iron(iii) d5 tripodal imidazole complexes. Effect of oxidation state, protonation state and ligand conformation on coordination number and spin state. Dalton. Trans. 2006, 28, 1009–1019. [Google Scholar] [CrossRef] [Green Version]
  54. Brewer, G.; Olida, M.J.; Schmiedekamp, A.M.; Viragh, C.; Zavalij, P.Y. A DFT Computational Study of Spin Crossover in Iron(III) and Iron(II) Tripodal Imidazole Complexes. A Comparison of Experiment with Calculations. Dalton Trans. 2006, 5617–5629. [Google Scholar] [CrossRef]
  55. Brewer, G.; Olida, M.J.; Schmiedekamp, A.M.; Viragh, C.; Zavalij, P.Y. A DFT Computational Study of Spin Crossover in Iron(III) and Iron(II) Tripodal Imidazole Complexes. A Comparison of Experiment with Calculations, 2nd printing. Dalton Trans. 2007, 697. [Google Scholar] [CrossRef]
Materials 13 01595 g001 550

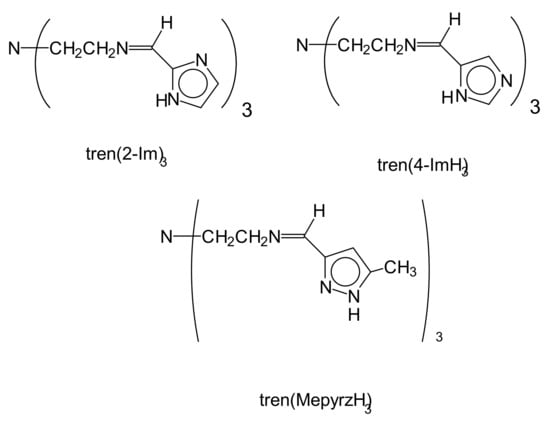

Figure 1. Line drawings of tripodal azole ligands.
Figure 1. Line drawings of tripodal azole ligands.
Materials 13 01595 g001
Materials 13 01595 g002 550
Figure 2. Partially deprotonated complexes have been observed for [Fetren(2-Im)2(2-ImH)]+ (linear, top) and [Cotren(2-ImH)2(2-Im)]2+ (zig-zag, bottom) that give 1D hydrogen bound chains. Please see [27] from preceding paragraph.
Figure 2. Partially deprotonated complexes have been observed for [Fetren(2-Im)2(2-ImH)]+ (linear, top) and [Cotren(2-ImH)2(2-Im)]2+ (zig-zag, bottom) that give 1D hydrogen bound chains. Please see [27] from preceding paragraph.
Materials 13 01595 g002
Materials 13 01595 g003 550

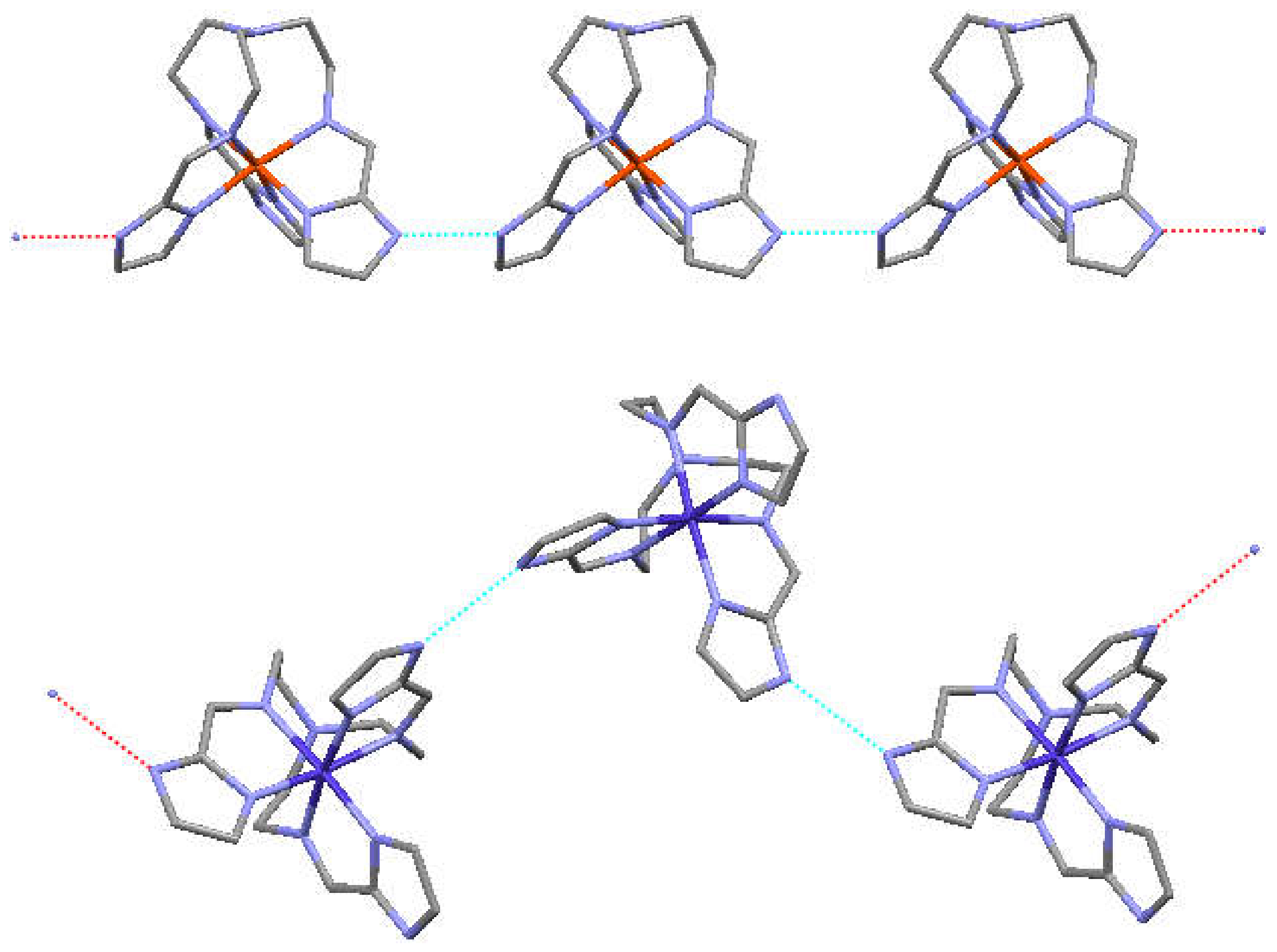

Figure 3. Face on upper and sideway lower views of extended 2D sheet structures for trigonal Fetren(4-MeImH0.5)3+1.5 (top) and hexagonal [Fetren(4-MeImH0.5)3]+1.5 (bottom). Please see [31] from preceding paragraph.
Figure 3. Face on upper and sideway lower views of extended 2D sheet structures for trigonal Fetren(4-MeImH0.5)3+1.5 (top) and hexagonal [Fetren(4-MeImH0.5)3]+1.5 (bottom). Please see [31] from preceding paragraph.
Materials 13 01595 g003
Materials 13 01595 g004 550

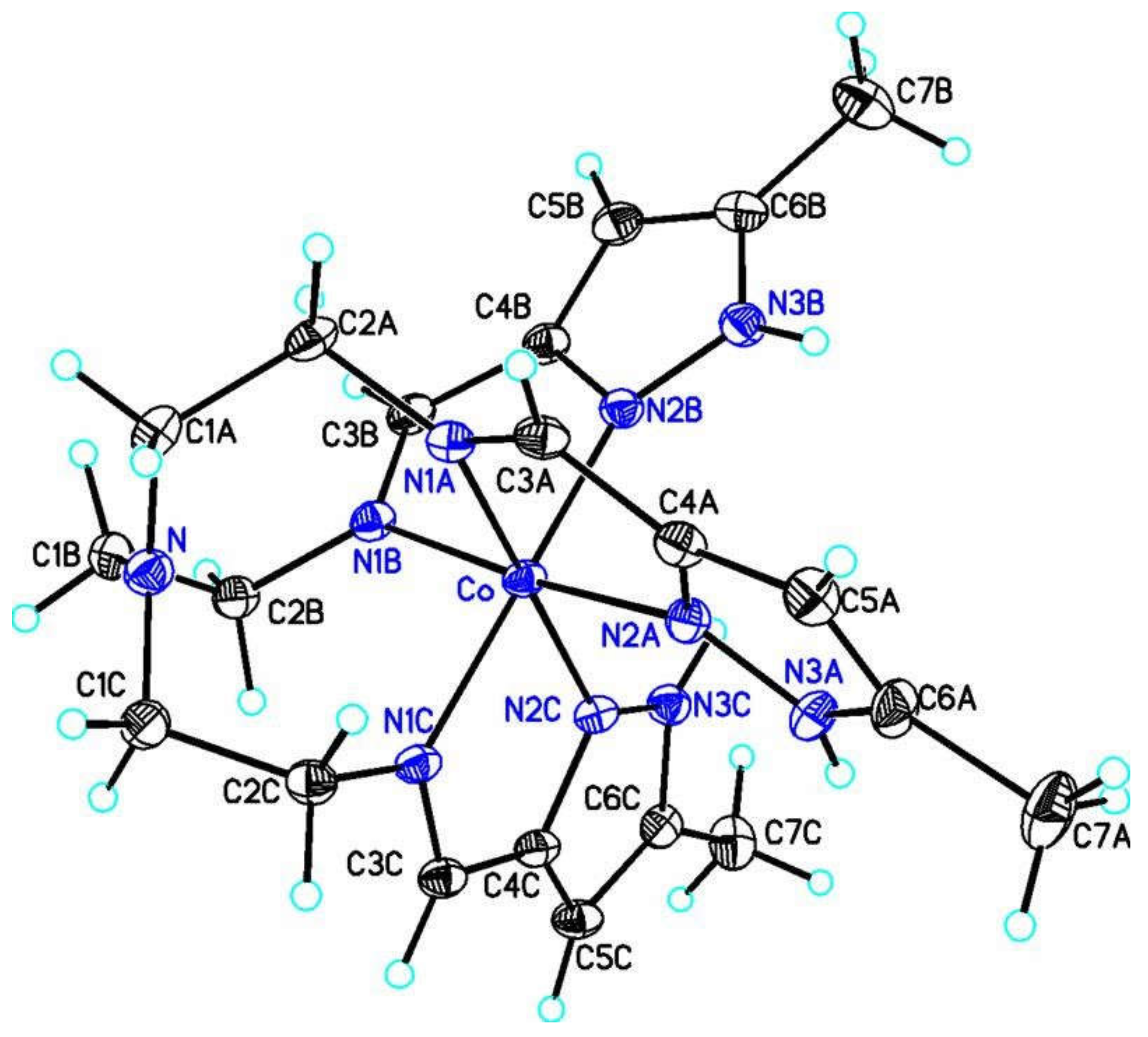

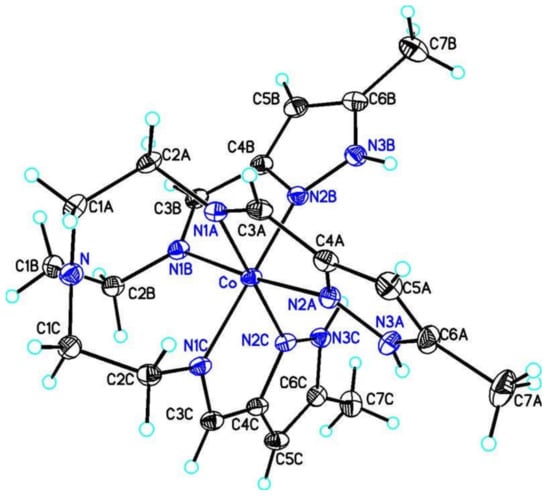

Figure 4. Structure of the [Co(tren(MepyrzH)3]3+ cation. Note that the apical nitrogen atom, labelled N above, caps the face of the three imine nitrogen atoms, N1A, N1B and N1C.
Figure 4. Structure of the [Co(tren(MepyrzH)3]3+ cation. Note that the apical nitrogen atom, labelled N above, caps the face of the three imine nitrogen atoms, N1A, N1B and N1C.
Materials 13 01595 g004
Materials 13 01595 g005 550

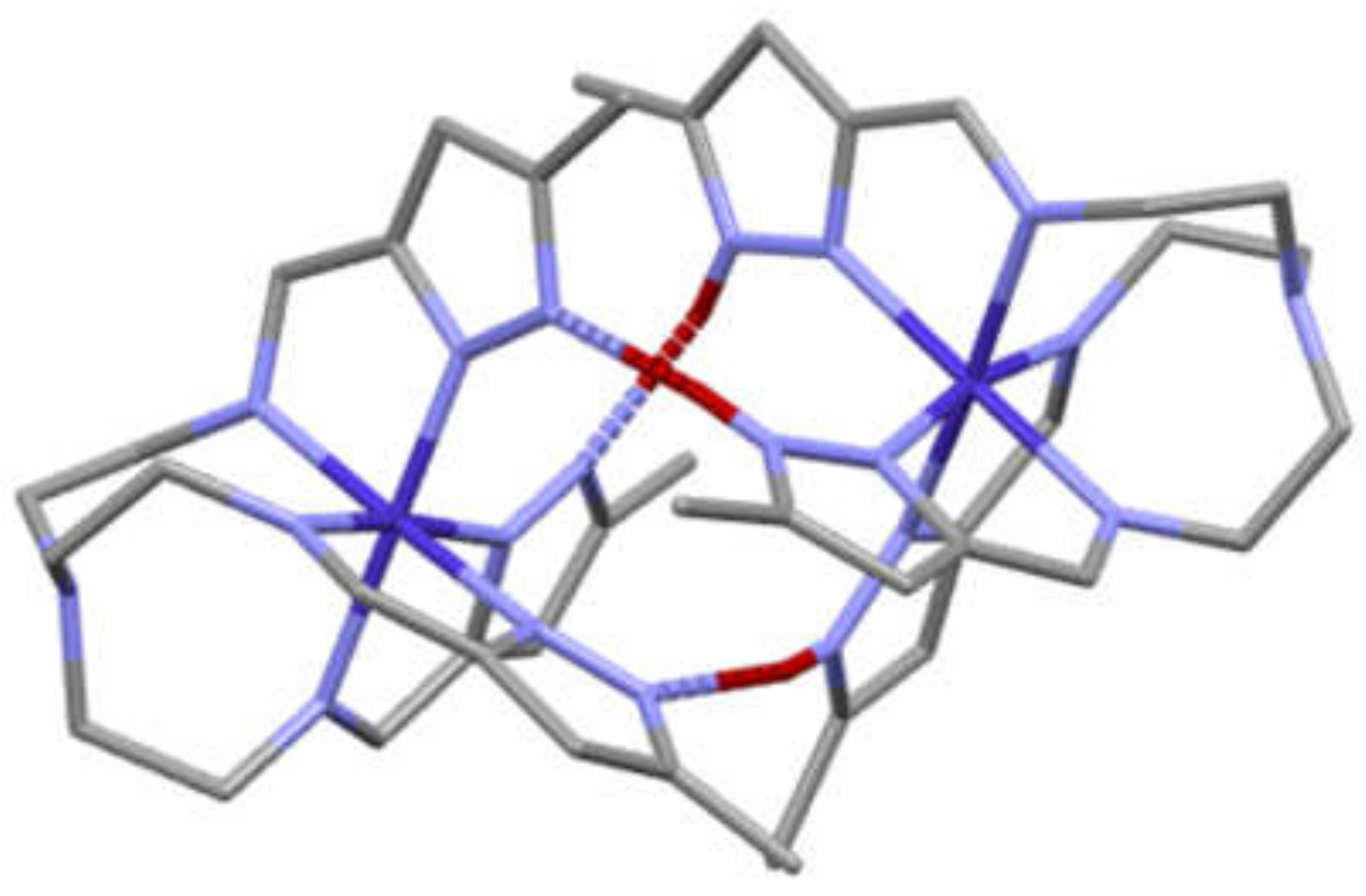

Figure 5. Structure of the [Cotren(MepyrzH)3][Cotren(Mepyrz)3]2+ cation. All the hydrogen atoms except for the bridging hydrogen atoms, shown in red, have been deleted. Note the three.Npyrazole–H…Npyrazolate hydrogen bonds, shown as dashed blue red bonds, holding the two homochiral halves of cation together and the alignment of the three pairs of pyrazole rings to promote π-π stacking. The apical nitrogen atoms of the tren units are in light blue at the bottom left and upper right of figure. The two octahedral cobalt atoms are in dark blue, the cobalt(III) on left and cobalt(II) on right.
Figure 5. Structure of the [Cotren(MepyrzH)3][Cotren(Mepyrz)3]2+ cation. All the hydrogen atoms except for the bridging hydrogen atoms, shown in red, have been deleted. Note the three.Npyrazole–H…Npyrazolate hydrogen bonds, shown as dashed blue red bonds, holding the two homochiral halves of cation together and the alignment of the three pairs of pyrazole rings to promote π-π stacking. The apical nitrogen atoms of the tren units are in light blue at the bottom left and upper right of figure. The two octahedral cobalt atoms are in dark blue, the cobalt(III) on left and cobalt(II) on right.
Materials 13 01595 g005
Materials 13 01595 g006 550

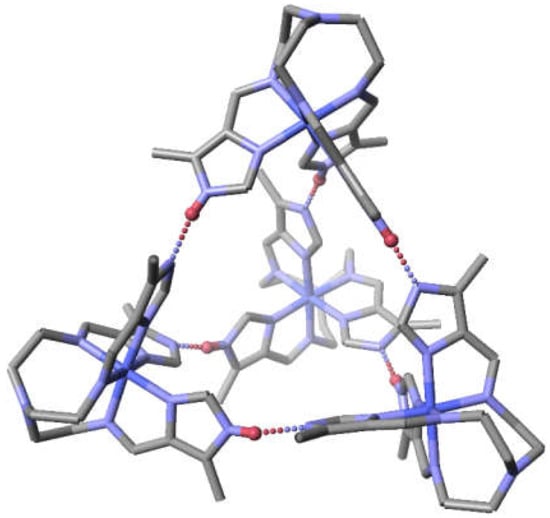

Figure 6. Structure of [Cotren(4MeImH0.5)3]4(ClO4)6 (average level of protonation per Co) showing the tetrahedral array of cobalt complexes and the six hydrogen bonds folding the cluster together. All hydrogen atoms, except for the hydrogen bound bridging hydrogen atoms, shown in red, and the perchlorate anions have been omitted for clarity. Note that there are twelve hydrogen bound imidazole atoms which require six hydrogen atoms to link all the imidazoles together. Each cobalt complex forms three hydrogen bonds (through its three arms) to each of the other three cobalt complexes.
Figure 6. Structure of [Cotren(4MeImH0.5)3]4(ClO4)6 (average level of protonation per Co) showing the tetrahedral array of cobalt complexes and the six hydrogen bonds folding the cluster together. All hydrogen atoms, except for the hydrogen bound bridging hydrogen atoms, shown in red, and the perchlorate anions have been omitted for clarity. Note that there are twelve hydrogen bound imidazole atoms which require six hydrogen atoms to link all the imidazoles together. Each cobalt complex forms three hydrogen bonds (through its three arms) to each of the other three cobalt complexes.
Materials 13 01595 g006
Materials 13 01595 g007 550

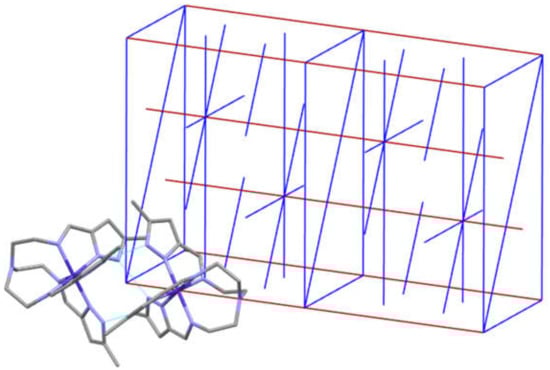

Figure 7. The unit cell (space group R32) of [Cotren(MepyrzH0.5)3]23+ is depicted above with one of the dimers (all H atoms and counterions omitted for clarity) that it contains. The red line is a three fold rotation axis and also an axis of the cell. Note that the three fold axis (red) runs through the apical tren nitrogen and cobalt atoms which result in a single tren arm in the asymmetric unit. R32 (D3) requires a three fold rotation axis (red) and three perpendicular two fold rotation axis (blue). The two fold rotation (blue) bisects the non bonded cobalt-cobalt axis and is perpendicular to a Npyrazole–H…Npyrazolate hydrogen bond. This results in a single cobalt atom in the asymmetric unit by a two fold rotation. The effect of both of these symmetry elements is that the asymmetric unit contains a single cobalt atom (not two) and a single tren arm (not three).
Figure 7. The unit cell (space group R32) of [Cotren(MepyrzH0.5)3]23+ is depicted above with one of the dimers (all H atoms and counterions omitted for clarity) that it contains. The red line is a three fold rotation axis and also an axis of the cell. Note that the three fold axis (red) runs through the apical tren nitrogen and cobalt atoms which result in a single tren arm in the asymmetric unit. R32 (D3) requires a three fold rotation axis (red) and three perpendicular two fold rotation axis (blue). The two fold rotation (blue) bisects the non bonded cobalt-cobalt axis and is perpendicular to a Npyrazole–H…Npyrazolate hydrogen bond. This results in a single cobalt atom in the asymmetric unit by a two fold rotation. The effect of both of these symmetry elements is that the asymmetric unit contains a single cobalt atom (not two) and a single tren arm (not three).
Materials 13 01595 g007
Materials 13 01595 g008 550

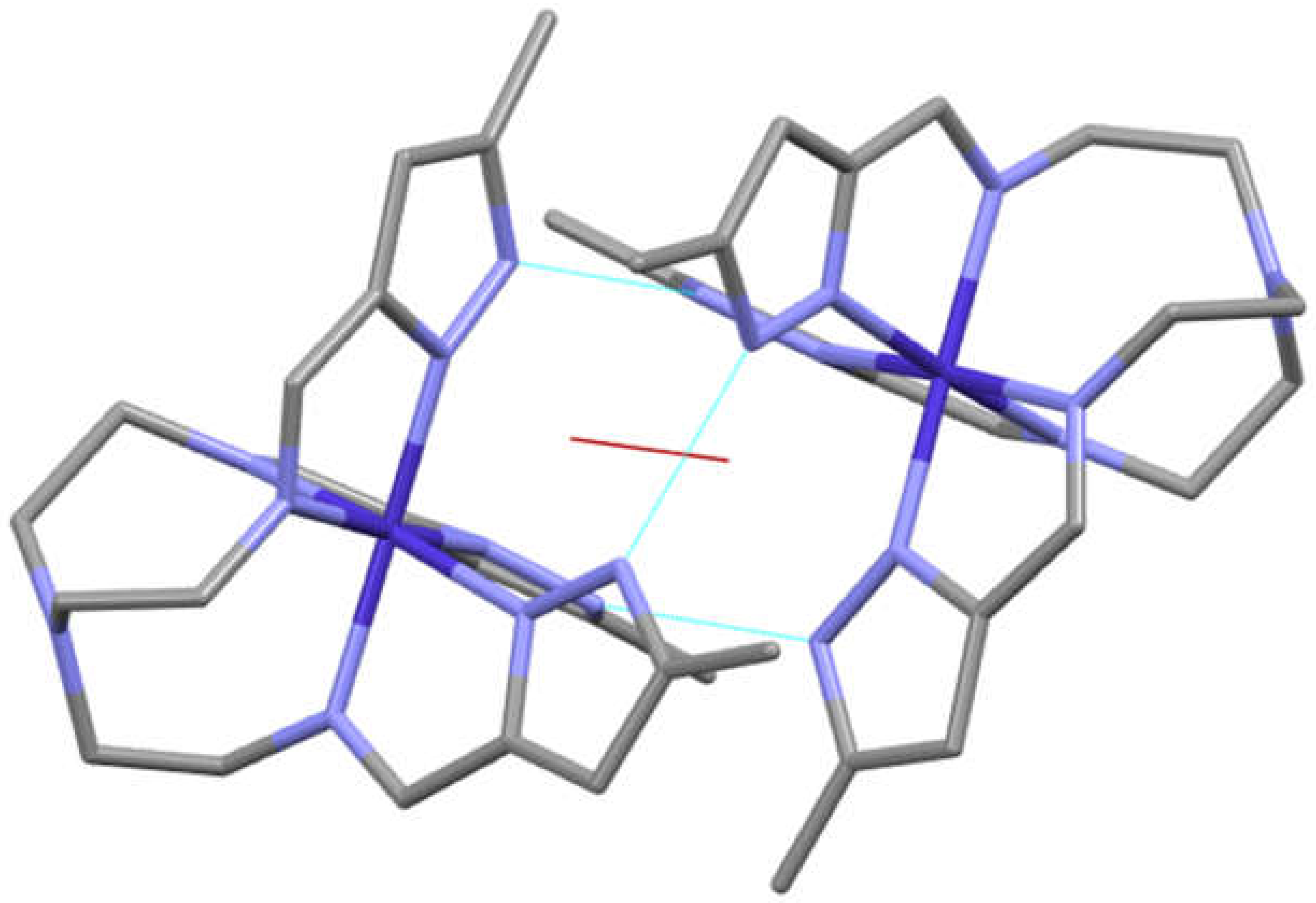

Figure 8. Structure of the pyrazole dimer in P43212. The unit cell axes are not depicted here. The hydrogen atoms and counterions have been omitted for clarity. Note the three hydrogen bonds (dashed blue) connecting the tree pairs of pyrazole rimgs and the alignment of rings for π-π stacking. The red line is a C2 proper rotation axis that bisects one of the three hydrogen bonds and the non bonded cobalt-cobalt axis. This two fold rotation axis (the only symmetry element in the molecule) means that there is a single cobalt atom and three tren arms in the asymmetric unit. This contrasts with the previous molecule in R32 in that it lacks a three fold rotation axis on the molecule. The four fold rotation axis in this space group (D4 symmetry) is not a rotation axis of the molecule itself but a screw axis of the cell. Clerly a tripodal ligand could not have a fold fold proper rotation axis.
Figure 8. Structure of the pyrazole dimer in P43212. The unit cell axes are not depicted here. The hydrogen atoms and counterions have been omitted for clarity. Note the three hydrogen bonds (dashed blue) connecting the tree pairs of pyrazole rimgs and the alignment of rings for π-π stacking. The red line is a C2 proper rotation axis that bisects one of the three hydrogen bonds and the non bonded cobalt-cobalt axis. This two fold rotation axis (the only symmetry element in the molecule) means that there is a single cobalt atom and three tren arms in the asymmetric unit. This contrasts with the previous molecule in R32 in that it lacks a three fold rotation axis on the molecule. The four fold rotation axis in this space group (D4 symmetry) is not a rotation axis of the molecule itself but a screw axis of the cell. Clerly a tripodal ligand could not have a fold fold proper rotation axis.
Materials 13 01595 g008
Table
Table 1. a) [Cotren(MepyrzH)3](ClO4)3.3.5 H2O, b) [Cotren(MepyrzH0.5)3]2(ClO4)3, c) [Cotren(MepyrzH0.5)3]2(BF4)3, d) [Cotren(MepyrzH)2(Mepyrz)} [Cotren(MepyrzH)(Mepyrz)2](BF4)3.3.81 H2O, e) {[Cotren(MepyrzH0.5)3]2 (ClO4)3.(C6H6)2 (CH3CN)2 @123K, f) {[Cotren(MepyrzH0.5)3]2 (ClO4)3.(C6H6)2.(CH3CN)2 @150K, g) [Cotren(MepyrzH)3][Cotren(Mepyrz)3] I2.
Table 1. a) [Cotren(MepyrzH)3](ClO4)3.3.5 H2O, b) [Cotren(MepyrzH0.5)3]2(ClO4)3, c) [Cotren(MepyrzH0.5)3]2(BF4)3, d) [Cotren(MepyrzH)2(Mepyrz)} [Cotren(MepyrzH)(Mepyrz)2](BF4)3.3.81 H2O, e) {[Cotren(MepyrzH0.5)3]2 (ClO4)3.(C6H6)2 (CH3CN)2 @123K, f) {[Cotren(MepyrzH0.5)3]2 (ClO4)3.(C6H6)2.(CH3CN)2 @150K, g) [Cotren(MepyrzH)3][Cotren(Mepyrz)3] I2.
a)b)c)d)e)f)g)
Empirical formulaC21H37Cl3Co N10O15.5C42H57Cl3Co2 N20O12C42H57B3Co2 F12 N20C42H64.62B3Co2 F12N20O3.81C58H75Cl3Co2 N22O12C58H75Cl3Co2 N22O12C42H57Co2 N20I2
M/g mol−1842.891258.281220.371292.431496.611496.611213.74
Temperature/K295(2)123(2)123(2)150(2)123(2)150(2)150(2)
λ/Å0.710730.710731.541780.710730.710730.710730.71073
Crystal SystemMonoclinicTrigonalTrigonalMonoclinicTetragonalTetragonalMonoclinic
Space groupP21//cR32R32CcP43212P43212Cc
Unit cell dimensionsa = 12.9005(9) Åa = 16.7663(2) Åa = 16.6003(3) Åa = 16.268(2) Åa = 11.82570(10) Åa = 11.8445(18) Åa = 21.1716(10) Å
b = 17.8994(10) Åb = 16.766(3) Åb = 16.6003(3) Åb = 17.394(2) Åb = 11.82570(10) Åb = 11.8445(18) Åb = 12.3416(6) Å
c = 15.5785(11) Åc = 20.0641(3) Åc = 20.0513(6) Åc = 20.188(3) Åc = 48.5723(11) Åc = 48.694(8) Åc = 19.6850(9) Å
α = 90°α = 90°α = 90°α = 90°α = 90°α = 90°α = 90°
β = 99.931(7)°β = 90°β =90°β = 106.941(2)°β = 90°β = 90°β = 93.1640(10) °
γ = 90°γ = 120°γ = 120°γ = 90°γ = 90°γ = 90°γ = 90°
Volume/Å33543.3(4)4884.55(14)4785.25(19)5464.7(13)6792.70(17)6831.4(18)5135.7(4))
Z4334444
Abs. Coeff./mm−10.7910.6974.7760.7100.6820.6791.900
F(000)1740195018782664311231122436
Crystal size/mm30.53 × 0.47 × 0.080.47 × 0.43 × 0.280.26 × 0.24 × 0.190.295 × 0.05 × 0.0450.39 × 0.39 × 0.320.21 × 0.30 × 0.440.22 × 0.135 × 0.11
Theta range/o5.05 to 26.375.164 to 32.8285.33 to 75.571.76 to 22.503.05 to 35.172.13 to 25.001.91 to 27.50
Index ranges−15 ≤ h ≤ 16−24 ≤ h ≤ 25−20 ≤ h ≤ 20−17 ≤ h ≤ 17−19 ≤ h ≤ 18−14 ≤ h ≤ 13−27 ≤ h ≤ 27
−22 ≤ k ≤ 19−25 ≤ k ≤ 25−19 ≤ k ≤ 20−18 ≤ k ≤ 18−18 ≤ k ≤ 18−14 ≤ k ≤ 14−16 ≤ k ≤ 16
−18 ≤ l ≤ 19−30 ≤l ≤ 30−14 ≤ l ≤ 25−21 ≤ l ≤ 21−76 ≤ l ≤ 51−57 ≤ l ≤ 57−25 ≤ l ≤ 25
Reflections Collected20,90631,67211,28215,31799,40957,50336,049
Independent Reflections719338622195697014,527600611,652
R10.08530.02940.08140.07750.07240.05370.0371
WR20.20310.08470.22030.19130.15150.11890.0774
GOF on F21.0311.1231.0751.0741.1941.0001005
Table
Table 2. Selected bond distances (Å) and angles (°) for a) [Cotren(MepyrzH)3](ClO4)3.3.5 H2O, b) [Cotren(MepyrzH0.5)3]2(ClO4)3 [a], c) [Cotren(MepyrzH0.5)3]2(BF4)3, [a] d) [Cotren(MepyrzH)2(Mepyrz)}[Cotren(MepyrzH)(Mepyrz)2 ](BF4)3.3.81 H2O [b], e) {[Cotren(MepyrzH0.5)3]2 (ClO4)3.(C6 H6)2.(CH3CN)2 @123K [c], f) {[Cotren(MepyrzH0.5)3]2 (ClO4)3.(C6H6)2.(CH3CN)2 @150K, [c] g) [Cotren(MepyrzH)3][Cotren(Mepyrz)3] I2 [d].
Table 2. Selected bond distances (Å) and angles (°) for a) [Cotren(MepyrzH)3](ClO4)3.3.5 H2O, b) [Cotren(MepyrzH0.5)3]2(ClO4)3 [a], c) [Cotren(MepyrzH0.5)3]2(BF4)3, [a] d) [Cotren(MepyrzH)2(Mepyrz)}[Cotren(MepyrzH)(Mepyrz)2 ](BF4)3.3.81 H2O [b], e) {[Cotren(MepyrzH0.5)3]2 (ClO4)3.(C6 H6)2.(CH3CN)2 @123K [c], f) {[Cotren(MepyrzH0.5)3]2 (ClO4)3.(C6H6)2.(CH3CN)2 @150K, [c] g) [Cotren(MepyrzH)3][Cotren(Mepyrz)3] I2 [d].
a)b)c)d) [CoH2L]2+ and [CoHL]+e)f)g) [CoH3L]2+ and [CoL]
SG and symP21/c C2hR32 D3R32 D3Cc, CsP43212 D4P43212 D4Cc, Cs
T(K)295(2)123(2)123(2)150(2)123(2)150(2)150(2)
Co-Nap non-bonded3.3393.4683.4683.432  3.4623.4923.4923.306  3.300
M-M’non-bondedNA5.8535.8535.7735.8615.8725.847
Co-N1(imine)1.954(2)1.9591(14)1.962(4)1.954(18)  1.947(18)1.951(2)1.963(4)2.031(8)  2.060(7)
1.955(2) 1.940(17)  1.982(17)1.961(2)1.951(4)2.049(7)  2.067(8)
1.970(3)1.974(18)  1.921(18)1.924(2)1.962(4)2.064(9)  2.038(10)
average1.9601.95911.96241.956  1.9501.9451.9592.048  2.055
Co-N2(pyrazole)1.908(3)1.9141(15)1.910(4)1.896(15)  1.918(15)1.908(2)1.928(4)1.979(7)  2.017(8)
1.919(2) 1.893(16)  1.8959(16)1.917(2)1.913(4)2.019(8)  2.048(7)
1.928(2)1.954(17)  1.883(17)1.924(2)1.915(4)2.145(5)  1.865(5)
average1.9181.91411.9101.914  1.8991.9161.9192.048  1.977
N1-Co-N2 (bite)81.32(10)81.66(6)81.52(17)81.6(8)  83.6(8)82.16(10)80.94(15)77.3(3)  80.0(3)
81.53(11) 82.5(7)  81.3(7)81.32(10)82.00(15)78.3(3)  80.6(3)
81.46(11)80.2(8)  80.1(7)81.25(9)81.17(16)76.1(3)  82.2(3)
average81.4481.6681.5281.4  81.781.5881.3777.2  80.9
N1-Co-N2’(trans)175.82(11)175.23(6)175.43(17)175.0(7)  176.0(8)174.95(11)173.78(17)174.2(4)  175.8(3)
175.22(11) 174.0(8)  177.5(8)174.19(10)174.71(17)170.6(3)  176.2(3)
175.19(11)172.6(8)  173.7(8)175.16(10)175.12(16)171.4(3)  172.9(3)
average175.4175.23175.43173.9  175.7174.77174.54172.1  174.97
C1-Nap-C1118.6(3)119.991(5)119.996(14)121(2)  130(2)120.0(2)120.3(4)119.6(80  116.2(8)
120.8(3)119.990(6)119.991(12)114(2)  116.0(19)120.6(2)120.0(4)121.1(8)  120.7(7)
119.1(3)119.984(5)119.995(14)123(2)  114(2)119.4(3)119.7(4)116.6(8)  119.1(9)
average119.5119.988119.994119.3  120.0120.0120.0119.1  118.7
[a] There is only one Co and one arm of tren in the asymmetric unit. [b] There are two Co atoms each with three tren arms in the asymmetric unit, [CoH2L]2+ (listed first) and [CoHL]+ listed second. [c] There is one Co atom and three tren arms in the asymmetric unit. [d] There are two Co atoms each with three tren arms in the asymmetric unit, [CoH3L]2+ (listed first) and [CoL] listed second.
Table
Table 3. Pyrazole hydrogen bond distances (Å) and angles (°) for, [Cotren(MepyrzH0.5]2 (ClO4)3, [Cotren(MepyrzH0.5]2 (BF4)3, [Cotren(MepyrzH)2(Mepyrz)][Cotren(MepyrzH)(Mepyrz)2](BF4)3.3.81 H2O, {[Cotren(MepyrzH0.5)3]2}(ClO4)3.(C6H6)2.(CH3CN)2 @123K, {[Cotren(MepyrzH0.5)3]2} (ClO4)3.(C6H6)2.(CH3CN)2 @150K, [Cotren(MepyrzH)3][Cotren(Mepyrz)3] I2.
Table 3. Pyrazole hydrogen bond distances (Å) and angles (°) for, [Cotren(MepyrzH0.5]2 (ClO4)3, [Cotren(MepyrzH0.5]2 (BF4)3, [Cotren(MepyrzH)2(Mepyrz)][Cotren(MepyrzH)(Mepyrz)2](BF4)3.3.81 H2O, {[Cotren(MepyrzH0.5)3]2}(ClO4)3.(C6H6)2.(CH3CN)2 @123K, {[Cotren(MepyrzH0.5)3]2} (ClO4)3.(C6H6)2.(CH3CN)2 @150K, [Cotren(MepyrzH)3][Cotren(Mepyrz)3] I2.
CompoundInteractiond(D-H)d(H …A)d(D …A)<(DHA)
[Cotren(MepyrzH0.5]2 (ClO4)3N-H….N’ (three)0.881.832.670(3)160.1
T = 123(2)K
Average0.881.832.670160.1
[Cotren(MepyrzH0.5]2 (BF4)3N-H….N’ (three)0.881.832.674(8)158.9
T = 123(2)K
Average0.881.832.67158.9
[Cotren(MepyrzH)2(Mepyrz)}[Cotren(MepyrzH)(Mepyrz)2](BF4)3.3.81 H2ON-H….N’
N-H …N’
N-H …N’		0.881.882.73(2)162
0.881.872.72(3)161
T = 150(2) K0.881.872.714(10)160.
Average0.881.872.72161
{[Cotren(MepyrzH0.5)3]2(ClO4)3.(C6H6)2.(CH3CN)2@123KN-H….N’
N-H …N’
N-H….N’		0.881.832.679(3)161.9
0.881.832.679(3)161.5
T = 123(2) K0.881.802.643(4)160.5
Average0.881.822.667161.3
{[Cotren(MepyrzH0.5)3]2 (ClO4)3.(C6 H6)2. (CH3CN)2 @150K,N-H….N’
N-H …N’(twice)		0.881.812.655(7)160.0
0.881.842.685(5)161.0
T = 150(2) K
Average0.881.832.675160.7
[Cotren(MepyrzH)3][Cotren(Mepyrz)3] I2N-H….N’
N-H …N’
N-H ….N’		0.881.982.819(12)160.
0.881.892.744(12)162
T = 150(2) K0.881.902.754(8)162
Average0.881.922.772152

Share and Cite

MDPI and ACS Style

Brewer, G.; Butcher, R.J.; Zavalij, P. Use of Pyrazole Hydrogen Bonding in Tripodal Complexes to Form Self Assembled Homochiral Dimers. Materials 2020, 13, 1595. https://doi.org/10.3390/ma13071595

AMA Style

Brewer G, Butcher RJ, Zavalij P. Use of Pyrazole Hydrogen Bonding in Tripodal Complexes to Form Self Assembled Homochiral Dimers. Materials. 2020; 13(7):1595. https://doi.org/10.3390/ma13071595

Chicago/Turabian Style

Brewer, Greg, Raymond J. Butcher, and Peter Zavalij. 2020. "Use of Pyrazole Hydrogen Bonding in Tripodal Complexes to Form Self Assembled Homochiral Dimers" Materials 13, no. 7: 1595. https://doi.org/10.3390/ma13071595

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
