Article

Radiation Tolerance and Charge Trapping Enhancement of ALD HfO2/Al2O3 Nanolaminated Dielectrics

by
Dencho Spassov
1,
Albena Paskaleva
1,*,
Elżbieta Guziewicz
2,
Vojkan Davidović
3,
Srboljub Stanković
4,
Snežana Djorić-Veljković
5,
Tzvetan Ivanov
1,
Todor Stanchev
1 and
Ninoslav Stojadinović
6
1
Institute of Solid State Physics, Bulgarian Academy of Sciences, Tzarigradsko Chaussee 72, 1784 Sofia, Bulgaria
2
Institute of Physics, Polish Academy of Sciences, Al. Lotników 32/46, 02-668 Warsaw, Poland
3
Faculty of Electronic Engineering, University of Niš, Aleksandra Medvedeva 14, 18000 Nis, Serbia
4
Institute of Nuclear Sciences "Vinča", University of Belgrade, Mike Petrovića 12-14, 11000 Belgrade, Serbia
5
Faculty of Civil Engineering and Architecture, University of Niš, Aleksandra Medvedeva 14, 18000 Nis, Serbia
6
Department of Technical Sciences, Serbian Academy of Sciences and Arts (SASA), Knez Mihailova 35, 11000 Belgrade, Serbia
*
Author to whom correspondence should be addressed.
Materials 2021, 14(4), 849; https://doi.org/10.3390/ma14040849
Submission received: 6 January 2021 / Revised: 29 January 2021 / Accepted: 8 February 2021 / Published: 10 February 2021
(This article belongs to the Special Issue Physics, Electrical and Structural Properties of Dielectric Layers)
Browse Figures
Versions Notes

Abstract

:
High-k dielectric stacks are regarded as a promising information storage media in the Charge Trapping Non-Volatile Memories, which are the most viable alternative to the standard floating gate memory technology. The implementation of high-k materials in real devices requires (among the other investigations) estimation of their radiation hardness. Here we report the effect of gamma radiation (60Co source, doses of 10 and 10 kGy) on dielectric properties, memory windows, leakage currents and retention characteristics of nanolaminated HfO2/Al2O3 stacks obtained by atomic layer deposition and its relationship with post-deposition annealing in oxygen and nitrogen ambient. The results reveal that depending on the dose, either increase or reduction of all kinds of electrically active defects (i.e., initial oxide charge, fast and slow interface states) can be observed. Radiation generates oxide charges with a different sign in O2 and N2 annealed stacks. The results clearly demonstrate a substantial increase in memory windows of the as-grown and oxygen treated stacks resulting from enhancement of the electron trapping. The leakage currents and the retention times of O2 annealed stacks are not deteriorated by irradiation, hence these stacks have high radiation tolerance.

1. Introduction

The charge trapping in thin dielectric films has been intensively investigated recently in order to employ this phenomenon in the non-volatile memories as a replacement of the existing floating gate technology [1,2,3,4,5,6,7]. The charge trapping memory (CTM) design has a lot in common with the floating gate design. The main difference is that the CTM concept uses charge storage in spatially separated charge traps in dedicated dielectric layers while the floating gate concept relies on keeping charges in a potential well realized through a poly-Si layer (floating gate) sandwiched between two dielectrics [6]. The CTM concept is not new but offers some advantages over the floating gate design that are vital for the continuing scaling of non-volatile memories [7]. The introduction of high-k dielectrics in microelectronic technology boosted CTM development as these dielectrics have been proven to possess large densities of traps whose parameters could be tailored by the fabrication processes and consequent treatments. On the other hand, they could be optimized to satisfy the requirements for replacement of SiO2 in the nanosized field effect transistors [6,7]. Among the available high-k materials, HfO2 takes a special place since it is already implemented in real production technologies. The trap densities available in HfO2 are adequate for CTM applications [8] but its potential for charge storage media can be further enhanced by its doping/mixing with other metals/oxides. It has been reported that by doping HfO2 with Al very promising charge trapping layers can be obtained, although the reasons for the substantial improvements in charge trapping parameters are not clear yet [9,10,11].
The assessment of radiation hardness is an important reliability issue for microelectronic devices as they are used in conditions characterized with increased radiation beyond the natural one-space navigation, radiology equipment, instrumentation for nuclear energy plants and detectors for high-energy physics experiments. The devices in a radiation-intensive environment are subjected to the impact of high-energy particles and / or photons which may cause generation of various electrically active defects, leakage currents, early breakdown or loss of stored information. Despite the intensive investigations carried out recently [12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30], the radiation response of high-k-based metal-insulator-semiconductor (MIS) devices is far less understood compared to metal-SiO2-Si (MOS) structures. The radiation hardness of the alternative dielectrics and especially HfO2 and Al2O3 has been evaluated as comparable [12,13] or even better than that of SiO2 [14,15] although the average dissipated energy during irradiation is much higher in HfO2 than in SiO2 layer that results in generation of more electron-hole pairs [16,17]. As with the SiO2/Si system, irradiation of HfO2 and Al2O3 leads to an appearance of a positive oxide charge [12,13,14,15,18,19,20,21,22]. However, the damage is not regarded as severe [12,13,14,15]. The large density of electron traps present in high-k materials is most likely the reason for such an observation. Hence, during the irradiation the enhanced electron trapping balances the hole trapping and other mechanisms of positive charge formation unlike the case of thermal SiO2 where the electron trapping is negligible. The increase of the density of interface states Dit is another possible radiation-induced effect in the MIS devices. For SiO2/Si structures radiation-induced Dit increases with increasing dose, which is related to the release of H+ [12]. In the case of Al2O3 and HfO2; however, more complicated behavior is observed. Although some studies show an increase of Dit with the dose [12,22,23,24], there are also reports that Dit is not changed noticeably [20,25] and even studies demonstrating an improvement of Dit values upon irradiation especially at low doses [14,26,27,28]. In contrast to SiO2, in the case of HfO2 radiation-induced electron traps generation is also reported [25]. The investigations of leakage currents of Al2O3 and HfO2 films after irradiation also produce somehow contradictory results—a deterioration of the current-voltage (J-V) characteristics is obtained in [20,21,22,29] while other works do not find substantial radiation-induced change [23,30]. An improvement of the breakdown voltage is reported in [12,23]. It should also be noted that the radiation response of the complex dielectric stacks might be different compared to the dielectrics building the structure [21].
The observed discrepancy in the response of high-k dielectrics (and particularly Al2O3 and HfO2) to the radiation is probably related rather to the initial properties of the investigated layers than to the intrinsic properties of the materials themselves. Unlike the active SiO2 layer in the MOS devices which is produced only by thermal oxidation of Si, the deposition of high-k materials could be performed by several different methods, using a variety of precursors and deposition conditions as well as post-deposition treatments. This inevitably causes dispersion in the dielectric properties, hence different impact of the radiation.
There are only a few works which study the impact of radiation on CTM with high-k dielectrics and similarly to the other parameters, radiation is found both to deteriorate [19] and not to affect the memory windows [18]. Additionally, the results in [18] indicate that radiation reduces the already trapped in the dielectric charge which certainly causes a loss of at least a part of the stored information.
Recently, we demonstrated the excellent application capability of Al2O3/HfO2 stacks obtained by atomic layer deposition technique (ALD) as charge trapping media in CTM-based non-volatile memory devices. Moreover, it was established that by tailoring of the stack structure; optimization of Al2O3 to HfO2 ratio; and applying post-deposition annealing (PDA), substantial improvement of Al2O3/HfO2 stacks’ charge storage characteristics could be achieved [31,32]. The results obtained in [11,31,32] and also supported by others [33], demonstrated unequivocally that oxygen annealing substantially stimulates electron trapping in deep traps, thus enhancing charge storage ability of stacks. On the contrary, rapid thermally annealed (RTA) in N2 results in a substantial decrease of the memory windows.
In this work, the effects of γ-radiation (60Co) on the electrical characteristics and charge trapping of Al2O3/HfO2 nanolaminated stacks deposited on Si by ALD are investigated. The focus is on the properties (memory windows, leakage currents and retention) which are of primary interest for implementation of these structures in non-volatile memories. The influence of post-deposition ambient annealing on radiation response is also examined, as it strongly affects stacks parameters.

2. Materials and Methods

Nanolaminated Al2O3/HfO2 stacks were deposited on p-type (100) Si wafers with resistivity of 6 Ω cm by atomic layer deposition (ALD). The investigated stacks consist of five bi-layer blocks, each block containing 30 cycles of HfO2 and 10 cycles of Al2O3 sublayers. The schematic picture of this structure is presented in Supplementary Figure S1. HfO2 deposition was realized with tetrakis (dimethylamido) hafnium (TDMA) precursor, and for the Al2O3 sublayers trimethylaluminum precursor (TMA) was used. In both processes, H2O was used as oxidant and the deposition temperature was 135 °C. The stack deposition starts with Al2O3 process followed by HfO2 one. The total thickness of the nanolaminated dielectric structure is 26 nm as evaluated by Woollman M2000D spectral ellipsometer (JA Woolman Co., Lincoln, NE, USA). A part of the samples were rapid thermally annealed (RTA) in oxygen or nitrogen at 800 °C for 1 min. The electrical properties of the stacks were examined on MIS capacitors with Al top (gate) and backside contacts. The square gate electrodes with an area of 10−4 cm2 were patterned photolithographycally. Two separate sets of capacitors were irradiated using 60Co source—one at 10 kGy and the other at 100 kGy (Si). No external voltage was applied to the capacitor’s terminals during the irradiation. The charge trapping in the nanolaminates were examined through capacitance-voltage (C-V) measurements in a dark chamber at 1 MHz with an Agilent 4980A LCR meter (Keysight Technologies, Santa Rosa, CA, USA). The leakage currents measurements were carried out with a Keithley 236 SMU (Tektronix Inc, Beaverton, OR, USA). The charge trapping characteristics of the stacks were studied by applying to the capacitors negative and positive square voltage pulses Vp with a duration of 1 s. After each pulse a consecutive C-V curve was recorded in order to find the shift of the flat-band voltage, Vfb (Supplementary Figure S2). The retention characteristics of selected memory capacitors were assessed by applying a charging pulse (12 V, 1 s) to introduce a negative or positive charge and a subsequent monitoring of the evolution of Vfb over time.

3. Results and Discussions

3.1. Initial Oxide Charges, C-V Hysteresis and Density of Interface States

The initial oxide charge present in the dielectric stacks, Qox, is estimated from the flat band voltage of C-V curves recorded under small applied voltage sweeps (about −3 ÷ 2 V) at which charge injection in the stacks is negligible. Qox has been found to depend strongly on the PDA treatment [31]. Qox of the as-grown layers is positive ~0.7 × 1012 cm−2, the treatment in O2 increases the value of Qox to about 2 × 1012 cm−2. PDA in nitrogen; however, results in a change of the sign of Qox, i.e., for these samples the initial oxide charge is negative ~−1.8 × 1012 cm2.
The radiation response of Qox depends also on PDA (Figure 1a). The generation of a positive oxide charge Qox after irradiation is observed for the as-grown and O2 treated stacks. The radiation-induced change in the initial oxide charge is higher for the as-grown samples. 10 kGy exposure slightly increases Qox to about 0.9 × 1012 cm−2 but for a higher dose, Qox is doubled (~1.8 × 1012 cm−2). The initial oxide charge of O2 annealed stacks also increases to 2.5 × 1012 cm−2 after 104 Gy irradiation, but further increase of the dose to 100 kGy reduces Qox to the values close to the non-irradiated capacitors. As seen in Figure 1a after 100 kGy irradiation Qox of as-grown samples is equal to the Qox values of O2 annealed ones in contrast to the non-irradiated capacitors for which substantially larger Qox is found after O2 annealing. The irradiation of stacks treated in N2 inflicts appearance of additional negative charges. As with the oxygen treated samples, after the initial increase to about −3 × 1012 cm−2 for 10 kGy exposure, the higher dose of 100 kGy reduces Qox to its initial non-irradiated values. Therefore, the higher doses seem to inflict a turn-around point in the sign of radiation-generated charge in the annealed stacks. The different sign of the radiation created charge in O2 and N2 annealed stacks strongly suggests that the nature of the centers giving rise to oxide charge in the two cases is also different.
A small counterclockwise hysteresis ΔV0fb is observed in the initial C-V curves measured in a sweep voltage range in which the charge trapping into the stacks is negligible. ΔV0fb is 34; 8; and 250 mV for the as-grown samples, O2 and N2 annealed ones, respectively. The hysteresis is usually ascribed to the charge capture at slow states—i.e., traps inside the dielectric located within a tunneling distance from Si. The obtained values for non-irradiated films suggest that PDA in N2 creates a substantial number of traps in the first Al2O3 sublayer, in the possible interfacial SiOx layer and/or at their interface. Generally, γ-radiation changes only slightly the hysteresis of the as-grown and O2 annealed stacks, (Figure 1b). The induced changes, however, are very small and close to the detection limits especially in the case of the O2 annealed samples, so that tracing a certain tendency cannot be done. The nitrogen treated samples show almost twofold increase of ΔV0fb to 420 mV after 10 kGy exposure. However, after the 100 kGy exposure ΔV0fb decreases to the values similar to those of the control non-irradiated capacitors. Hence, the dependence of ΔV0fb on the γ-radiation dose for the N2 treated stacks shows the same radiation behavior as the oxide charge and the density of fast interface states (as shown below).
The effect of gamma radiation on the density of the fast interface states at Si, Dit, is evaluated through Terman method under the flat-band condition (Figure 2). The choice of the Terman technique over the other more precise methods such as: low-high frequency C-V; conduction method (G—ω); and charge pumping seems justified since the fast interface states at Si do not affect directly the charge storage into the stack. The obtained here Dit serve only as an indication of the radiation hardness of interface between Al2O3/HfO2 stack and Si which thorough study is out of the scope of the present work. Moreover, Dit is defined by the dielectric at contact with Si and in the real memory cells the charge trapping media is separated from Si by a dedicated tunnel oxide layer (usually SiO2). Dit values of about 2.2 × 1011, 7.8 × 1012 and 3.9 × 1012 eV−1 cm−2 have been obtained for non-irradiated as-grown, oxygen annealed and nitrogen annealed stacks, respectively. A higher Dit value for annealed samples indicates that during PDA some kind of interaction between the stack and Si takes place, and oxygen ambient seems to intensify this reaction. The gamma radiation treatment increases density of interface states of the as-grown stacks without a clear dependence on the dose (at 10 kGy the Dit value is ~1.3 × 1012 eV−1 cm−2 while for 100 kGy Dit is slightly lower ~1.1 × 1012 eV−1 cm−2). Dit of the N2 annealed layers exhibits a similar behavior–the density of the interface states increases after 10 kGy (to ~6.4 × 1012 eV−1 cm−2), but the 100 kGy irradiation leads to its reduction. However, in this case the decrease is more prominent (twofold reduction) and after the 100 kGy treatment Dit is almost equal to the values for non-irradiated capacitors. For the oxygen annealed samples Dit monotonically decreases with the dose and the 100 kGy γ-radiation reduces Dit almost twice.
The results obtained for the as-grown and oxygen annealed HfO2/Al2O3 stacks corroborate the reports [14,20,23] of higher radiation hardness of HfO2 and HfO2/Al2O3-based MOS structures compared to the SiO2 based ones. For these structures the effect of radiation mainly consists of a moderate positive oxide charge generation, and in accordance with [14,20,23,26] depending on the dose of γ radiation some improvement of the interface properties (reduction of slow interface states as well as fast interface states in the case of O2 annealed samples) of high-k stack/Si system can be obtained. At the same time, the data for the N2 treated samples suggest that the pre-irradiation processing affects the radiation response, most likely as a result of the different defect structure created under PDA in oxidizing and nitrogen containing ambient. Our previous studies [31] revealed that the amount of negative oxide charge in the N2 treated samples depends also on the Al2O3 content, and the layers with a lower Al2O3 content exhibit a lower negative Qox or even a positive one for the smallest alumina amount in the stack. In this context, it should be noted that the Al2O3 layers commonly demonstrate a negative oxide charge [34,35] unlike the HfO2 ones whose Qox is predominantly positive. The short annealing in N2 [35] is found to increase the negative Qox value which is related to reduction of the density of positively charged Al interstitials, whereas the density of negative O interstitials remains unchanged. Other studies [36] of the effect of nitridation annealing environment (RTN in NH3) suggest that the higher negative oxide charge of the HfAlO ALD stacks could be associated with the incorporation of N at the interface between the laminated film and Si. In addition, the N atoms have been found predominantly bonded to Al2O3, but not to HfO2. The N2 annealing ambient, however, is regarded as an inert one compared to the case of NH3 treatment. Therefore, a more plausible explanation of the observed results is related to the possible high temperature induced transformations in the stacks. The theoretical analysis of defects in the Al-doped HfO2 films suggests that under O-rich conditions the most probable defects are electronically compensated–a negatively charged Al ion at the Hf site is compensated by a hole in the valence band. Under oxygen poor conditions the most stable defect is ionically compensated (2Al−hf) VO (two negative Al ions compensated by a double positively charged neighbor oxygen vacancy). This defect, however, requires two dopant atoms located in a close proximity to each other. Therefore, if the mobility of dopant atoms within the HfO2 matrix is low and/or the distance between dopant atoms is large, the formation of this defect might be suppressed. In this case, formation of a mixed compensated Al−hf VO defect (negative Al at the Hf site and double positively charged oxygen vacancy VO and electron in conduction band) is fovored. The oxygen poor ambient will likely increase the number of oxygen vacancies in the stack as the formation energy of VO is decreased from 7.5 eV in the O reach conditions to below 2 eV [37]. In fact, some recent investigations [38] notice that the incorporation of aluminum in ALD HfO2 films significantly increases the density of oxygen vacancies. Another important aspect of the ALD films is the inevitable presence of hydrogen and C-N radicals as leftovers from the chemical reactions [39,40]. Their interaction with the annealing gas ambient could lead to creation of different types of defects depending on the used PDA environment.

3.2. Memory Windows

Next, we will consider the effect of γ-radiation on the memory windows of the stacks, formed as a result of the trapping of electrons and/or holes into bulk traps. To get better notion on the different types of charge accumulation processes (electron trapping, hole trapping and/or electric stress-generated defects) contributing to and affecting the memory window, the evolution of the flat-band voltage after applying voltage pulses with duration of 1 s and different amplitude to the capacitors is presented in Figure 3. The data are plotted with respect to the initial (before applying Vp) value of the flat-band voltage, Vfb0. Under positive voltage pulses electrons from the substrate are injected into the stack and their consecutive capturing leads to accumulation of a negative charge into the capacitor. Under negative Vp holes from Si are injected and trapped into the stack and the emerging charge is positive. (Strictly speaking, for both Vp polarities the charge carriers with opposite sign with respect to the injected from Si are introduced into the layers from the gate electrode. Therefore, the resulting charge in the dielectric is the sum of trapped carriers supplied by the opposite flows of carries injected from the gate and the substrate. However, as we will see below, the obtained C-V data follow predominantly the substrate injection scenario). The resulting memory window is defined as the difference between the positions of curves measured at two pulse polarities, along the voltage axis at flat-band point.
As seen in Figure 3a, electron trapping is hardly observed in the as-grown sample before irradiation at |Vp| < 10 V. The C-V curves for both Vp polarities are shifted toward negative voltages implying an accumulation of positive charge in the structures. As a result, the memory windows ΔV are negligible. Only at |Vp| above 10 V some noticeable electron trapping occurs. With the increase of |Vp| both C-V characteristics (for negative and positive Vp) are progressively shifted to more negative voltages. Such a behavior is most likely due to the prevalence of the accumulated positive charge over the electron trapping. The increase of positive charge with increasing Vp under both polarities also implies that some part of it is due to stress-induced positively charged defects, representing irreversible damage. Thus, a net positive charge accretion is observed even at conditions of substrate electron injection. The results, however, could be interpreted also in terms of low initial electron trap density which increases slightly as a result of the stress-related effects, i.e., some of the positively charged defects act as electron traps.
For the samples with PDA in O2 before irradiation (Figure 3b) the charge trapping (both positive and negative) is negligible up to |Vp| of 7 V. Unlike the as-deposited stacks, the O2 annealed ones show a steady electron trapping which increases at Vp > 7 V. A noticeable positive charge trapping starts at Vp about −9 V and for more negative Vp it increases continuously in the same way as for unannealed samples. Therefore, in the |Vp| range of 7–9 V, the electron trapping prevails. The data clearly indicate that O2 annealing creates electron traps which in turn gives rise to a significant memory window (e.g., at Vp = ±18 V the memory windows, ΔV, are 9.5 V and 3.2 V for annealed and as-grown stacks, respectively). The beneficial effect of PDA in oxygen on the memory windows of the ALD Al2O3/HfO2 stacks is also confirmed in [11,33] for structures obtained under different deposition conditions and with different compositions.
The charge trapping for the nitrogen annealed samples before irradiation is negligible at |Vp| below ~5 V. Generally, the positive charge trapping for Vp above −5 V follows the behavior of the as-grown ones (Figure 3c). At positive Vp > 5 V, the electron capture is more pronounced than for the as-grown stacks, but the positive charge trapping still prevails. The electron trapping increases more significantly and progressively at Vp > 10 V, reaching a maximum shift of ~1.5 V at Vp = 17 V. However, as evidenced in Figure 3b,c, the effects of O2 and N2 annealing are different, i.e., the gas ambient plays a significant role. The enhanced electron trapping observed for Vp > 10 V for the N2 treated samples could be also associated with a creation of new traps as a result of voltage stress.
The impact of γ-radiation on the charge trapping phenomena in the HfO2/Al2O3 stacks could be summarized as follows:
(1)
The positive charge trapping is almost unaffected by irradiation for the as-grown and oxygen treated samples. Indeed, the irradiation slightly decreases the positive charge build-up in the as-grown stacks, and for the O2 annealed ones it is somewhat enhanced at Vp > 10–15 V. Though, the observed effects are small and it can be assumed that irradiation does not generate any new hole traps and does not change the positive charge build-up behavior for these structures. The case of the N2 treatment, however, is different. The 10 kGy irradiation slightly increases the positive charge trapping for Vp < 8 V, but for the higher Vp the magnitude of the Vfb shift saturates. For the 100 kGy irradiation the flat-band shift under negative Vp is almost the same as that for non-irradiated films. Therefore, the behavior of the positive charge build-up at γ exposure seems to correlate somehow with the effect of the irradiation on Qox for these samples. In other words, the high negative Qox at 10 kGy results in the reduced hole trapping, which is restored after the 100 kGy irradiation in accordance with the recovery of Qox to its non-irradiated values.
(2)
The data clearly indicate that γ-radiation boosts significantly electron trapping in both the O2 annealed stacks and the stacks without PDA. The 10 kGy irradiation of the as-deposited stack results in a noticeable Vfb shift due to the electron trapping which initially increases with voltage pulse magnitude up to ~9 V, and for higher Vp the flat-band voltage shift turns-around. Most likely, this kind of dependence is a consequence of interplay between positive charge accumulation and electron trapping at radiation-generated by traps with the domination of the first process. Moreover, a part of the positive charge is probably stress generated, as indicated by the results for non-irradiated stacks [31]. Since the generated electron traps increase with the dose, the turn-around effect for 100 kGy is weakly pronounced and begins at higher Vp. For the O2 annealed samples the flat-band voltage shift corresponding to electron trapping tends to saturate at level which increases with the γ-exposure dose. Hence, radiation-induced electron traps play a major role in the charge trapping while the effects of high field stress-induced positive charge are negligible. More complicated response to the radiation is found for stacks annealed in N2. The 10 kGy exposure increases electron trapping and negative charge accumulation, respectively up to Vp = 10 V. For higher Vp, the Vfb shift is smaller than the observed in non-irradiated layers. The dose of 100 kGy results in the same behavior of the flat-band voltage shift as for the pristine stacks, but with reduced electron trapping. The Vfb shift corresponding to the electron trapping for the N2 treated samples before and after irradiation exhibits a drop at about 9–10 V. This drop is the smallest for the 10 kGy dose and its location coincides with the beginning of the saturation of the positive charge build-up. Thus, the decrease of the electron related Vfb shift can be attributed to the electric stress-generated positive charge. With the further increase of electric field new electron traps might be created leading as well to an increase of the Vfb shift under positive Vp.
(3)
Because of the intensified electron trapping, the as-deposited and O2 annealed stacks demonstrate improved memory windows ΔV after irradiation. It is illustrated in Table 1, where ΔV values measured at |Vp| = 15 V are given. As is seen, the radiation-induced enhancement of the memory windows is larger for the as-grown films which is a result of a very weak electron trapping in the non-irradiated stacks. Since the irradiation (especially at higher doses) tends to level out the memory windows of the as-deposited and O2 annealed stacks, it might be suggested that the traps induced by oxygen annealing and by radiation have the same origin. This is further supported by the radiation response of the N2 annealed samples for which γ-radiation shrinks the memory windows due to the reduced electron trapping (and also hole trapping at 10 kGy). The behavior of these samples suggests that the defects developed by PDA in N2 are different compared to the as-grown and O2 annealed layers.

3.3. Leakage Currents and Conduction Mechanisms

Leakage currents of non-irradiated stacks are depicted in Figure 4.
The annealing procedure does not affect the leakage current values of non-irradiated capacitors in the voltage range of ±5 V. However, for higher applied V, annealing influences the leakage. The lowest leakage at high field is observed for PDA in O2. The extent of the reduction compared to the as-grown stacks increases with the increase of the electric field and at ±10 V it is larger than 1 order of magnitude. A similar improvement of the leakage currents by oxygen annealing of the HfO2-based stacks is also observed in [41,42]. The N2 annealing effect on J is more unclear. PDA in nitrogen is often reported as a beneficial step for leakage current improvement (in some cases substantial) of ALD HfO2 and Al2O3/HfO2 nanolaminated dielectrics [43,44,45,46]. Our results show that PDA affects J-V characteristics differently, depending on the voltage polarity: for negative V, J is practically not changed while for positive V > +5 V nitrogen processing provides a lower leakage, which values are close to those observed for PDA in O2. Considering the effect of PDA on J it should be mentioned that divergent effects of PDA on J found in the literature seem to be closely related to the initial properties of the layers depending on the parameters of implemented ALD process. Hence, the response of J to the PDA could be different for each particular case.
Furthermore, we note that the leakage current does not appear to correlate with the initial oxide charges. Despite the different amount and sign of Qox all structures have similar J in the low voltage range (up to ± 5 V). At higher fields the layers with the highest positive initial charge (annealed in O2) exhibit the lowest J, while as-grown stacks with positive Qox demonstrate leakage currents at negative V identical to the N2 treated stacks which have negative initial charge. The values of J for samples with RTA in O2 are comparable to J of the nitrogen annealed ones for the positive applied voltages. This behavior might indicate that leakage is governed by bulk-limited conduction mechanisms. (The saturation tendency of J at high positive applied V is related to the limited amount of minority carriers in p-Si, whereas the slight asymmetry of J branches at negative and positive V reflects the influence of different barrier heights at gate (Al/HfO2) and substrate (Al2O3/Si) interfaces.) Indeed, the leakage current of the stacks is described reasonably well by a combination of Ohmic (JOhm) and Poole-Frenkel (JPF) conduction (inset in Figure 4):
J = JOhm + JPF
with:
JOhm = σOhm·E
JPF = σPF·E·exp(β·E1/2/r·k·T), β = (q3/π·ε0·εr)1/2
where E is the electric field, σOhm, σPF are conductivity constants, q-electron charge, k-Boltzmann constant, T–temperature, εr–optical dielectric constant of the stack (εr is square of the refractive index), r is a parameter (1 ≤ r ≤ 2) describing the presence of additional traps in the dielectric, apart from the PF emitting donor-like center [47,48,49]. J has been modeled only for negative V for which the Si substrate is in accumulation since in this case the whole voltage drop is on the dielectric itself. The conduction at electric field values below about 3 MV/cm shows the Ohmic-like behavior, while at higher fields it could be modeled by PF expression (inset of Figure 4). The obtained values of r and εr are well in the self-consistent range for the investigated stacks (r = 1.8 εr = 3.6 for the as-grown; r = 1.89, εr = 3.9 for the O2 annealed stacks and r = 1.95, εr = 3.6 for the N2 treated layers). Although εr of nanolaminated HfO2/Al2O3 stack is not known, the obtained from the fit values are close to the value (3.3) estimated by effective media approximation [50] (values of refractive index of HfO2 and Al2O3-1.88 and 1.62 at 5000 nm, respectively [51,52]). (Please note that the agreement between the obtained from Equation (3) high frequency (optical) dielectric constant, εr, and its value established from refractive index measurements is assumed as the main indication for the operation of PF mechanism [47,48,49,53,54]). The increase of εr of the annealed stacks certainly reflects the densification of the films after PDA. A closer look to Figure 4 also reveals that J-V curves for the negative applied voltages demonstrate good linearity in log(J) vs. V plot scale. This J-V dependence is characteristic for Poole hopping conduction which variant is the PF mechanism. The current density in Poole conduction is given by:
J = JPO·exp[−(ϕa – q·l·E/2)/k·T]
where l is the distance between the adjacent traps, ϕa is the ionization barrier, and JPO is a proportionality constant [53]. Therefore, it turns out as demonstrated in Figure 5, that current-voltage curves can be represented by either PF or Poole mechanism in the high field range E > 3 MV/cm. (Here we will note that the slopes (β) found from the linear fit of the data in Figure 5a (PF scale) are slightly different from the slopes which would be obtained using εr and r produced by the fit of J-E curves to Equation (1).) That is because of the effect of the linear part in Equation (1) (namely Equation (2)). In [53] De Salvo et al., by using a two-trap center model, show that for a certain range of distances between traps, experimental curves are equally well fitted by PF and Poole equations. Following the analysis in [53] the distance between traps estimated assuming εr = 3.3 is as follows: l = 1.05, 1.16, and 0.92 nm for the as-grown, O2 and N2 treated structures, respectively. The estimated trap distances suggest that O2 annealing reduces the density of trap-centers taking part in the conduction process. Therefore, one of the reasons for the better charge trapping properties of oxygen treated stacks may be the reduction of the leakage through these layers leading to more efficient trapping of the carriers injected into the dielectric. At the same time, the J-V data could be also interpreted in the light of some structural transformation of the existing trap levels making them deeper; or generation of new deeper centers; or annealing of the per-existing ones as a consequence of oxygen annealing.
The effect of gamma irradiation on leakage currents is presented in Figure 6. As shown, the radiation does not lead to an increase of the leakage current unlike the data reported in [20,21]. The results presented here seem to be more consistent with the findings published in [23], where no current deterioration is found. In fact, the irradiation with 10 kGy leads to a lower J for all stacks. The induced changes are most prominent for the N2 annealed samples (Figure 6c)–for both polarities the current after 10 kGy irradiation is substantially reduced. For the as-grown stacks J is reduced mainly in the low electric field of Ohmic-like region while at higher E the values of J are not affected; the changes are more pronounced for −V. In case of oxygen treated stacks J-E curves after 10 kGy are shifted toward lower J values in the whole range of the applied V except for the high positive biases. As with the as-grown layers, the current decrease is clearer for the negative applied V. For both types of PDA the difference between pristine and 10 kGy irradiated curves increases with the magnitude of the applied negative V.
The impact of the 100 kGy dose is more complicated. For the as-grown stacks the values of J at negative biases are close to those for non-irradiated structures, except for the voltage interval (−11 ÷ −6 V) in which J after 100 kGy is lower. However, at positive applied voltages, the 100 kGy treatment lowers J significantly for V > 1 V by shifting the curve to higher V. Oxygen annealed stacks exhibit further lowering of J after the 100 kGy irradiation at high negative V, but for the positive applied biases, J-V curves of non-irradiated and the 100 kGy treated samples are almost the same. For both types of stacks the 100 kGy irradiation inflicts some noise appearance at high applied V, (more noticeable under negative V). The 100 kGy irradiation returns the J-V curves of the N2 annealed structures in the initial state defined by the pristine case. It should be noted that a similar behavior is observed also for the charge trapping characteristics (Figure 3c).
The irradiation does not seem to change the dominant conduction mechanism; the J-E characteristics are well described by a combination of Ohmic and PF conduction (solid lines in the insets of Figure 6). For the as-grown samples, however, the 100 kGy curve after the Ohmic part cannot be fitted because of the current fluctuations. The obtained r and εr are as follows: for the as-grown stacks 1.5 and 3.6 after the 10 kGy; for layers with PDA in O2-r = 2, εr = 4 and r = 2, εr = 10 after 10 and 100 kGy irradiation, respectively; and r = 2, εr = 10 for the annealed in nitrogen structures after the 10 kGy. By applying the analysis of De Salvo et al. [53], the distances between adjacent traps after irradiation have been obtained–l = 1.2 nm in the case of as-grown layers after the 10 kGy; l = 0.83 and 0.5 nm for the samples annealed in oxygen after 10 and 100 kGy, respectively; and 0.5 nm for the 10 kGy irradiated nitrogen annealed stacks. Therefore, the results indicate that radiation increases the trap density into the stacks resulting in a smaller distance between adjacent traps. It should be noted, however, that determined l depends on the value of optical dielectric constant of the stacks, which is not known and is supposed to change after PDA and possibly after irradiation.
As seen in Figure 6, radiation reduces the slope of the high voltage part of J-V curves (negative applied voltages) of the annealed samples. According to the PF theory this corresponds to an increase of εr or r, or both which is indeed obtained by the fitting. The variation of r is suggested to result from changes in the ratio of PF-centers, compensating traps and the density of free carriers. R = 2 corresponds to the presence of either a single donor center, or a combination of deep (below Fermi level) donor and a shallow trap [47]. In the latter case the donor energy is equal to the sum of the real ionization energies of the donor (PF) center and the shallow trap, which leads to a smaller current. The presence of a noticeable amount of deep compensating acceptor-like centers results in r = 1 [48]. The radiation with both doses resulted in an increase of r from 1.8 to its upper limit of 2 which might be indeed inflicted by a certain change in the defects structure in the stacks. However, drawing of more specific conclusions is hindered, keeping in mind the uncertainties related with the actual value of εr, and that in the PF theory involving two defect centers, one and the same slope can be attributed to different defect combinations [47,48]. At the same time, the increase of εr might be interpreted as an irradiation-induced densification of stacks. It also worth noting that in some recent studies [54] involving simulations of the charge transfer through thin high-k films, the identification of PF conduction by its “fingerprint” linearity of ln(J/E) vs. E1/2 (and its slope) is contested. Finally, we would like to mention that the observed effect of radiation on the leakage currents seems somehow counter-intuitive since the lowering of the leakage current is accompanied by an increased trap density. (A higher density of traps was obtained from the memory windows measurements as well as the interpretation of leakage current considering both PF and Poole mechanisms [53]). We should note that the same is valid for the non-irradiated nanolaminates as well–the lowest J is found for the oxygen treated samples for which the electron trapping is the strongest. Apart from the interpretation that different types of centers are involved in the conduction and charge storage, another possible explanation of this observation is the modification of electric field into the stacks by the built up charge. Therefore, a more complicated analysis of the J-V characteristics based on the modeling of the electric field redistribution during the current measurement procedure is needed.

3.4. Retention Characteristics

As seen in Section 3.2, the as-grown structures before irradiation as well as the N2 annealed Al2O3/HfO2 stacks before and after irradiation provide rather small memory windows due to the weak electron trapping which makes them unattractive from the CTM application point of view. Thus, we will focus mainly on radiation effect on the retention of the O2 treated layers (Figure 7a). The retention of as-grown stacks after irradiation is also considered (Figure 7b) in order to answer the question whether the process of radiation-induced enhancement of the trap density could be used in charge storage devices.
The retention is defined as the ratio between ΔVfb(t) (the difference between Vfb at time (t) and Vfb of uncharged capacitor) to its initial value ΔVfb initial immediately after the charging operation. The data clearly indicate that for oxygen treated stacks γ-radiation does not deteriorate the charge retention (Figure 7a). The charge decay with time (t) can be well fitted with a ln2(t) dependence. Such a type of relation between the trapped charge and the retention time is most likely due to domination of Poole-Frenkel discharge currents [31,55]. However, a more detailed analysis, which takes into account the electric field redistribution; possible secondary capture events of emitted electrons/holes; and the charge transfer from/into the electrodes, has to be applied to describe the retention characteristics and to estimate the remnant charge at the 10 years limit. Additionally, the positive charge seems to decline faster than the negative one (Figure 7a). The experimental data show that at 106 s the negative charge remaining in the capacitors is ~80% from its initial value, while the positive charge drops to ~60%. By using ln2(t) dependence for extrapolation to 10 years it is obtained that 44% of the initial negative charge will be lost, and for the positive trapped charge the loss is 70%, i.e., the memory window will be reduced by 57%.
The retention for the as-grown irradiated samples turns out to be independent of the γ-radiation dose especially for trapped electrons. Moreover, the 100 kGy dose seems to improve the retention of the accumulated positive charge. Unlike the case of PDA in O2, the discharge in the irradiated as-grown capacitors obeys the exponential dependence on time (linear dependence in semi-logarithmic plot). This kind of dependence is usually observed when the charge loss is realized via tunneling front processes [56]. More elaborated models based on thermal detrapping combined with reduction of the electron escape probability in the volume near the positive-ionized center, left after the first dettrapping act [57] can also explain such a dependence. In contrast to the O2 annealed stacks, for as-grown samples the electron discharge rate is faster than the reduction of the positive charge: 12% per decade for electron decay vs. ~10% for the trapped holes. For the 10 kGy exposure case a strong hole detrapping, (a drop of ~25% from the initial charge) is observed within the first 10 s; the 100 kGy irradiation seems to improve to some extend the retention of the accumulated positive charge. It is evident from Figure 7b that the charge loss rate in the case of as-grown films is much higher than for the O2 annealed ones. Based on this higher detrapping rate and the difference in the retention characteristics of the as-grown stacks and those with PDA in O2, we conclude that radiation-induced traps in as-grown stacks are of different type than the capture centers produced by the oxygen annealing and they are not effective for reliable storage.

4. Conclusions

The results clearly demonstrate that ALD HfO2/Al2O3 nanolaminated stacks have good radiation tolerance to γ-rays up to very high doses of 100 kGy. Although γ-irradiation affects the oxide charges and the interfacial properties of the stacks, the inflicted changes are not severe, and depending on the dose, even radiation-induced improvement of the density of fast and slow interface states can be obtained. The specific radiation response of the HfO2/Al2O3 stack depends also on the post-deposition treatment, reflecting the differences in the layer structure after annealing in different ambient. The γ-radiation significantly enhances the electron trapping in the as-grown and oxygen annealed HfO2/Al2O3 nanolaminates due to the creation of new electron traps. As a result, a significant widening of the memory windows is obtained. The nitrogen annealing, however, seems to suppress the generation of radiation-induced electron traps. Generally, the positive charge trapping in all investigated stacks is not affected by the irradiation. No deterioration of the leakage currents and retention characteristics have been observed after irradiation. The obtained results demonstrate that the oxygen annealed HfO2/Al2O3 stacks can be successfully used in CTM devices working in radiation-intensive environment. Moreover, for these stacks γ-treatment with suitable doses can be applied to extend the charge trapping characteristics relevant to the charge trapping-based non-volatile memory devices. In case of the as-grown films, however, the retention times associated with the radiation-generated electron traps are not adequate for application in memory devices, suggesting that radiation-induced traps in oxygen annealed and in as-deposited stacks have different nature.

Supplementary Materials

The following are available online at https://www.mdpi.com/1996-1944/14/4/849/s1, Figure S1: A schematic presentation of a test wafer with MIS capacitors, blue layers—HfO2, yellow Al2O3, Figure S2: An illustration of the memory window definition. The memory window, ΔV is defined as the difference in the position of the measured C-V curves at flat band capacitance Cfb after applying consecutively positive voltage pulse (+Vp) and negative voltage pulse(–Vp). The inset shows the measurement procedure.

Author Contributions

Conceptualization, A.P., D.S.; formal analysis, D.S., A.P., V.D.; investigation, T.S., T.I., V.D., S.D.-V., resources, E.G., T.I., S.S.; writing—original draft preparation, D.S. and A.P.; writing—review and editing, E.G., N.S., V.D., S.D.-V., S.S., visualization, D.S.; project administration, D.S.; funding acquisition, D.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Bulgarian National Scientific Fund, Project KP-06-H37/32.

Institutional Review Board Statement

Not Applicable.

Informed Consent Statement

Not Applicable.

Data Availability Statement

The data presented in this study are available on request from corresponding author.

Acknowledgments

This paper is dedicated to the memory of N. Stojadinović who lost the battle with Covid-19 just a few days before submission of this work.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ji, H.; Wei, Y.; Ma, P.; Jiang, R. Improvement of Charge Injection by Using Separated SiN as Charge Trapping Layer in MONOS Charge Trap Flash Memory. IEEE J. Electron. Devices Soc. 2018, 6, 81–84. [Google Scholar] [CrossRef]
  2. Wei, C.Y.; Shen, B.; Ding, P.; Li1, A.D.; Xia, Y.D.; Xu, B.; Yin, J.; Liu, Z.G. Ta2O5-TiO2 Composite Charge-trapping Dielectric for the Application of the Nonvolatile Memory. Sci. Rep. 2017, 7, 5988. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Bing, B.; Wang, H.; Li, Y.; Hao, Y.; Zhang, B.; Wang, B.; Wang, Z.; Yang, H.; Gao, Q.; Lu, C.; et al. Charge trapping memory device based on the Ga2O3 films as trapping and blocking layer. Phys. B 2019, 28, 106802. [Google Scholar]
  4. Yang, T.; Wang, H.; Zhang, B.; Yan, X. Enhanced memory characteristics of charge trapping memory by employing graphene oxide quantum dots. Appl. Phys. Lett. 2020, 116, 103501. [Google Scholar] [CrossRef]
  5. Kadoshima, M.; Inoue, M.; Maruyama, T.; Matsuura, M. Large initial flatband voltage shifts in HfSiO2 high-kcharge trapping memory. J. Appl. Phys. 2019, 58, SBBA10. [Google Scholar] [CrossRef]
  6. Ramkumar, K. Materials and Device Reliability in SONOS Memories. In Book Charge-Trapping Non-Volatile Memories Volume 2—Emerging Materials and Structures; Dimitrakis, P., Ed.; Springer International Publishing AG: Cham, Switzerland, 2017; pp. 1–54. [Google Scholar]
  7. Zhao, C.; Zhao, C.Z.; Taylor, S.; Chalker, P.R. Review on Non-Volatile Memory with High-k Dielectrics: Flash for Generation Beyond 32 nm. Materials 2014, 7, 5117–5145. [Google Scholar] [CrossRef] [Green Version]
  8. You, H.W.; Cho, W.J. Charge trapping properties of the HfO2 layer with various thicknesses for charge trap flash memory applications. Appl. Phys. Lett. 2010, 96, 093506. [Google Scholar] [CrossRef]
  9. Zhu, C.; Huo, Z.; Xu, Z.; Zhang, M.; Wang, Q.; Liu, J.; Long, S.; Liu, M. Performance enhancement of multilevel cell nonvolatile memory by using a bandgap engineered high-k, trapping layer. Appl. Phys. Lett. 2010, 97, 253503. [Google Scholar] [CrossRef]
  10. Lan, X.; Ou, X.; Cao, Y.; Tang, S.; Gong, C.; Xu, B.; Xia, Y.; Yin, J.; Li, A.; Yan, F.; et al. The effect of thermal treatment induced inter-diffusion at the interfaces on the charge trapping performance of HfO2/Al2O3 nanolaminate-based memory devices. J. Appl. Phys. 2013, 114, 044104. [Google Scholar] [CrossRef]
  11. Paskaleva, A.; Rommel, M.; Hutzler, A.; Spassov, D.; Bauer, A.J. Tailoring the electrical properties of HfO2 MOS-devices by aluminum doping. ACS Appl. Mater. Interfaces 2015, 7, 17032–17043. [Google Scholar] [CrossRef] [PubMed]
  12. Felix, A.; Schwank, J.R.; Fleetwood, D.M.; Shaneyfelt, M.R.; Gusev, E.P. Effects of radiation and charge trapping on the reliability of high-k gate dielectrics. Microelectron. Reliab. 2004, 44, 563–575. [Google Scholar] [CrossRef]
  13. Dixit, S.K.; Zhou, X.J.; Schrimpf, R.D.; Fleetwood, D.M.; Pantelides, S.T.; Choi, R.; Bersuker, G.; Feldman, L.C. Radiation induced charge trapping in ultrathin HfO2-based MOSFETs. IEEE Trans. Nucl. Sci. 2007, 54, 1883–1890. [Google Scholar] [CrossRef]
  14. Kaya, S.; Jaksič, A.; Yilmaz, E. Co-60 gamma irradiation effects on electrical characteristics of HfO2 MOSFETs and specification of basic radiation-induced degradation mechanism. Radiat. Phys. Chem. 2018, 149, 7–13. [Google Scholar] [CrossRef]
  15. Suria, A.J.; Chiamori, H.C.; Shankar, A.; Senesky, D.G. Capacitance-voltage characteristics of gamma irradiated Al2O3, HfO2, and SiO2 thin films grown by plasma-enhanced atomic layer deposition. In Proceedings of the SPIE 9491 Sensors for Extreme Harsh Environments II, Baltimore, MD, USA, 13 May 2015; p. 949105. [Google Scholar]
  16. Dasgupta, A.; Fleetwood, D.M.; Reed, R.A.; Weller, R.A.; Mendenhall, M.H.; Sierawski, B.D. Dose enhancement and reduction in SiO2 and high-k MOS insulators. IEEE Trans. Nucl. Sci. 2010, 57, 3463–3469. [Google Scholar]
  17. Stanković, S.; Nikolić, D.; Kržanović, N.; Nadjdjerdj, L.; Davidović, V. Comparison of radiation characteristics of HfO2 and SiO2 incorporated in MOS capacitor in field of gamma and X radiation. In Proceedings of the IEEE 31st International Conference on Microelectronics (MIEL), Nis, Serbia, 16–18 September 2019; pp. 181–184. [Google Scholar]
  18. Bi, J.S.; Xu, Y.N.; Xu, G.; Wang, H.; Chen, L.; Liu, M. Total ionization dose effects on charge-trapping memory with Al2O3/HfO2/Al2O3 trilayer structure. IEEE Trans. Nucl. Sci. 2018, 65, 200–205. [Google Scholar] [CrossRef]
  19. Cao, S.; Ke, X.; Ming, S.; Wang, D.; Li, T.; Liu, B.; Ma, Y.; Li, Y.; Yang, Z.; Gong, M.; et al. Study of γ-ray radiation influence on SiO2/HfO2/Al2O3/HfO2/Al2O3 memory capacitor by C–V and DLTS. J. Mater. Sci. Mater. Electron. 2019, 30, 11079–11085. [Google Scholar] [CrossRef]
  20. Zhu, H.P.; Zheng, Z.S.; Li, B.; Li, B.H.; Zhang, G.P.; Li, D.L.; Gao, J.T.; Yang, L.; Cui, Y.; Liang, C.P.; et al. Total dose effect of Al2O3-based metal–oxide–semiconductor structures and its mechanism under gamma-ray irradiation. Semicond. Sci. Technol. 2018, 33, 115010. [Google Scholar] [CrossRef]
  21. Rafí, J.M.; Campabadal, F.; Ohyama, H.; Takakura, K.; Tsunoda, I.; Zabala, M.; Beldarrain, O.; González, M.B.; García, H.; Castán, H.; et al. 2 MeV electron irradiation effects on the electrical characteristics of metal–oxide–silicon capacitors with atomic layer deposited Al2O3, HfO2 and nanolaminated dielectrics. Solid State Electron. 2013, 79, 65–74. [Google Scholar] [CrossRef]
  22. Zhang, X.; Chen, L.; Wang, Z.S.; Zheng, H.P.; Zhu, B.L.; Gao, J.T.; Li, D.L.; Luo, J.J.; Han, Z.S.; Song, C.; et al. Studies of radiation effects in Al2O3-based metal-oxide-semiconductor structures induced by Si heavy ions. J. Appl. Phys. 2019, 125, 115701. [Google Scholar] [CrossRef]
  23. García, H.; González, M.B.; Mallol, M.M.; Castán, H.; Dueñas, S.; Campabadal, F.; Acero, M.C.; Salomone, L.S.; Faigón, A. Electrical Characterization of Defects Created by γ-Radiation in HfO2-Based MIS Structures for RRAM Applications. J. Electron. Mater. 2018, 47, 5013–5018. [Google Scholar] [CrossRef]
  24. Li, Y.; Ma, Y.; Lin, W.; Dong, P.; Yang, Z.; Gong, M.; Bi, J.; Li, B.; Xi, K.; Xu, G. Study of γ-ray irradiation influence on TiN/HfO2/Si MOS capacitor by C-V and DLTS. Superlattices Microstruct. 2018, 120, 313–318. [Google Scholar] [CrossRef]
  25. Kang, A.Y.; Lenahan, P.M.; Conley, J.F. The radiation response of the high dielectric-constant hafnium oxide/silicon system. IEEE Trans. Nucl. Sci. 2002, 49, 2636–2642. [Google Scholar] [CrossRef] [Green Version]
  26. Maurya, S. Effect of zero bias Gamma ray irradiation on HfO2 thin films. J. Mater. Sci. Mater. Electron. 2016, 27, 12796–12802. [Google Scholar] [CrossRef]
  27. Maurya, S. Interface modification by irradiation with alpha particles. J. Mater. Sci. Mater. Electron. 2017, 28, 17442–17447. [Google Scholar] [CrossRef]
  28. Shashank, V.S.; Sharma, S.K.; Shekhawat, R.S.; Kumar, D.; Nahar, R.K. Frequency dependence studies on the interface trap density and series resistance of HfO2 gate dielectric deposited on Si substrate: Before and after 50 MeV Li3+ ions irradiation. Nucl. Instrum. Methods Phys. Res. Sect. B 2011, 269, 2765–2770. [Google Scholar]
  29. Ding, M.; Cheng, Y.; Liu, X.; Li, X. Total Dose Response of Hafnium Oxide based Metal-Oxide-Semiconductor Structure under Gamma-ray Irradiation. IEEE Trans. Dielectr. Electr. Insul. 2014, 21, 1792–1800. [Google Scholar] [CrossRef]
  30. Lin, S.; Wu, Y.L.; Hwang, Y.H.; Lin, J.J. Study of radiation hardness of HfO2-based resistive switching memory at nanoscale by conductive atomic force microscopy. Microelectron. Reliab. 2015, 55, 2224–2228. [Google Scholar] [CrossRef]
  31. Spassov, D.; Paskaleva, A.; Krajewski, T.A.; Guziewicz, E.; Luka, G.; Ivanov, T. Al2O3/HfO2 Multilayer High-k Dielectric Stacks for Charge Trapping Flash Memories. Phys. Status Solidi A 2018, 215, 1700854. [Google Scholar] [CrossRef]
  32. Spassov, D.; Paskaleva, A.; Krajewski, T.A.; Guziewicz, E.; Luka, G. Hole and electron trapping in HfO2/Al2O3 nanolaminated stacks for emerging non-volatile flash memories. Nanotechnology 2018, 29, 505206. [Google Scholar] [CrossRef]
  33. Yoo, J.; Kim, S.; Jeon, W.; Park, A.; Choi, D.; Choi, B. A Study on the Charge Trapping Characteristics of High-k Laminated Traps. IEEE Electron. Device Lett. 2019, 40, 1427–1430. [Google Scholar] [CrossRef]
  34. Simon, D.K.; Jordan, P.M.; Mikolajick, T.; Dirnstorfer, I. On the Control of the Fixed Charge Densities in Al2O3-Based Silicon Surface Passivation Schemes. ACS Appl. Mater. Interfaces 2015, 7, 28215–28222. [Google Scholar] [CrossRef] [PubMed]
  35. Pawlik, M.; Vilcot, J.P.; Halbwax, M.; Aureau, D.; Etcheberry, A.; Slaoui, A.; Schutz-Kuchly, T.; Cabl, R. Electrical and Chemical studies on Al2O3 passivation activation process. Energy Procedia 2014, 60, 85–89. [Google Scholar] [CrossRef] [Green Version]
  36. Cho, M.; Moon, D.; Park, S.; Kim, Y.K.; Jeong, K.; Kang, S.; Ko, D.H.; Doh, S.; Lee, J.; Lee, N. Interfacial characteristics of N-incorporated HfAlO high-k thin films. Appl. Phys. Lett. 2004, 84, 5243–5245. [Google Scholar] [CrossRef]
  37. Materlik, R.; Künneth, C.; Falkowski, M.; Mikolajick, T.; Kersch, A. Al-, Y-, and La-doping effects favoring intrinsic and field induced ferroelectricity in HfO2: A first principles study. J. Appl. Phys. 2018, 123, 164101. [Google Scholar] [CrossRef]
  38. Chandreswar, M.; Sungjun, K. Modified resistive switching performance by increasing Al concentration in HfO2 on transparent indium tin oxide electrode. Ceram. Int. 2021, 47, 1199–1207. [Google Scholar]
  39. Hino, S.; Nakayama, M.; Takashi, K.; Funakubo, H.; Tokumitsu, E. Characterization of Hafnium Oxide Thin Films by Source Gas Pulse Introduced Metalorganic Chemical Vapor Deposition Using Amino-Family Hf Precursors. J. Appl. Phys. 2003, 42, 6015–6018. [Google Scholar] [CrossRef]
  40. Park, I.S.; Lee, T.; Choi, D.K.; Ahn, J. Metal Precursor Effects on Deposition and Interfacial Characteristics of HfO2 Dielectrics Grown by Atomic Layer Deposition. J. Phys. Soc. 2006, 49, S544–S547. [Google Scholar]
  41. Yang, Y.L.; Zhang, W.; Cheng, C.Y.; Huang, Y.P.; Chen, P.T.; Hsu, C.W.; Chin, L.K.; Lin, C.T.; Hsu, C.H.; Lai, C.M.; et al. Reliability Improvement of 28-nm High-k /Metal Gate-Last MOSFET Using Appropriate Oxygen Annealing. IEEE Electron. Device Lett. 2012, 33, 1183–1185. [Google Scholar] [CrossRef]
  42. Lemberger, M.; Paskaleva, A.; Zürcher, S.; Bauer, A.J.; Frey, L.; Ryssel, H. Electrical properties of hafnium silicate films obtained from a single-source MOCVD precursor. Microelectron. Reliab. 2005, 45, 819–822. [Google Scholar] [CrossRef]
  43. Kukli, K.; Pilvi, T.; Ritala, M.; Sajavaara, T.; Lu, J.; Leskelä, M. Atomic layer deposition of hafnium dioxide thin films from hafnium tetrakis (dimethylamide) and water. Thin Solid Films 2005, 491, 328–338. [Google Scholar] [CrossRef]
  44. García, H.; Castán, H.; Dueñas, S.; Bailón, L.; Campabadal, F.; Beldarrain, O.; Zabala, M.; González, M.B.; Rafí, J.M. Electrical characterization of atomic-layer-deposited hafnium oxide films from hafnium tetrakis(dimethylamide) and water/ozone: Effects of growth temperature, oxygen source, and postdeposition annealing. J. Vac. Sci. Technol. A 2013, 31, 01A127. [Google Scholar] [CrossRef] [Green Version]
  45. Kumar, A.; Mondal, S.; Koteswara Rao, K.S.R. Structural, electrical, band alignment and charge trapping, analysis of nitrogen-annealed Pt/HfO2/p-Si (100) MIS devices. Appl. Phys. A 2016, 122, 1027. [Google Scholar] [CrossRef] [Green Version]
  46. Zhu, W.; Ma, T.P. HfO2 and HfAlO for CMOS: Thermal Stability and Current Transport. IEDM Tech. Digest 2001, 20.4.1–20.4.4. [Google Scholar] [CrossRef]
  47. Simmons, J.G. Poole-Frenkel effect and Schottky effect in Metal-Insulator-Metal systems. Phys. Rev. 1966, 155, 657. [Google Scholar] [CrossRef]
  48. Yeargan, J.R.; Taylor, H.L. The Poole-Frenkel Effect with Compensation Present. J. Appl. Phys. 1968, 39, 5600–5604. [Google Scholar] [CrossRef]
  49. Harrell, W.R.; Cordella, T.; Poole, K. Implications of non-linearPoole–Frenkel plots on high-kdielectric leakage. ECS Trans. 2006, 1, 705–716. [Google Scholar] [CrossRef]
  50. Sukham, J.; Takayama, O.; Mahmoodi, M.; Sychev, S.; Bogdanov, A.; Tavassoli, S.H.; Lavrinenko, A.V.; Malureanu, R. Investigation of effective media applicability for ultrathin multilayer structures. Nanoscale 2019, 11, 12582–12588. [Google Scholar] [CrossRef]
  51. Kruschwitz, J.D.T.; Pawlewicz, W.T. Optical and durability properties of infrared transmitting thin films. Appl. Optics 1997, 36, 2157–2159. [Google Scholar] [CrossRef]
  52. Gervais, F. Aluminum Oxide (Al2O3). In Book Handbook of Optical Constants of Solids; Palik, E.D., Ed.; Academic Press: London, UK, 1991; Volume 2, pp. 761–775. [Google Scholar]
  53. De Salvo, B.; Ghibaudo, G.; Pananakakis, G.; Guillaumot, B.; Reimbold, G. A general bulk-limited transport analysis of a 10 nm-thick oxide stress-induced leakage current. Solid State Electron. 2000, 44, 895–903. [Google Scholar] [CrossRef]
  54. Schroeder, H. Poole-Frenkel-effect as dominating current mechanism in thin oxide films—An illusion? J. Appl. Phys. 2015, 117, 215103. [Google Scholar] [CrossRef] [Green Version]
  55. Lehovec, K.; Fedotowsky, A. Charge retention of MNOS devices limited by Frenkel-Poole detrapping. Appl. Phys. Lett. 1978, 32, 335–338. [Google Scholar] [CrossRef]
  56. McWhorter, P.J.; Miller, S.L.; Miller, W.M. Modeling the anneal of radiation-induced trapped holes in a varying thermal environment. IEEE Trans. Nucl. Sci. 1990, 37, 1682–1689. [Google Scholar] [CrossRef]
  57. Kamohara, S.; Okumura, T. New physical model to explain logarithmic time dependence of data, retention in flash EEPROM. Appl. Surf. Sci. 2008, 254, 6174–6176. [Google Scholar] [CrossRef]
Materials 14 00849 g001 550

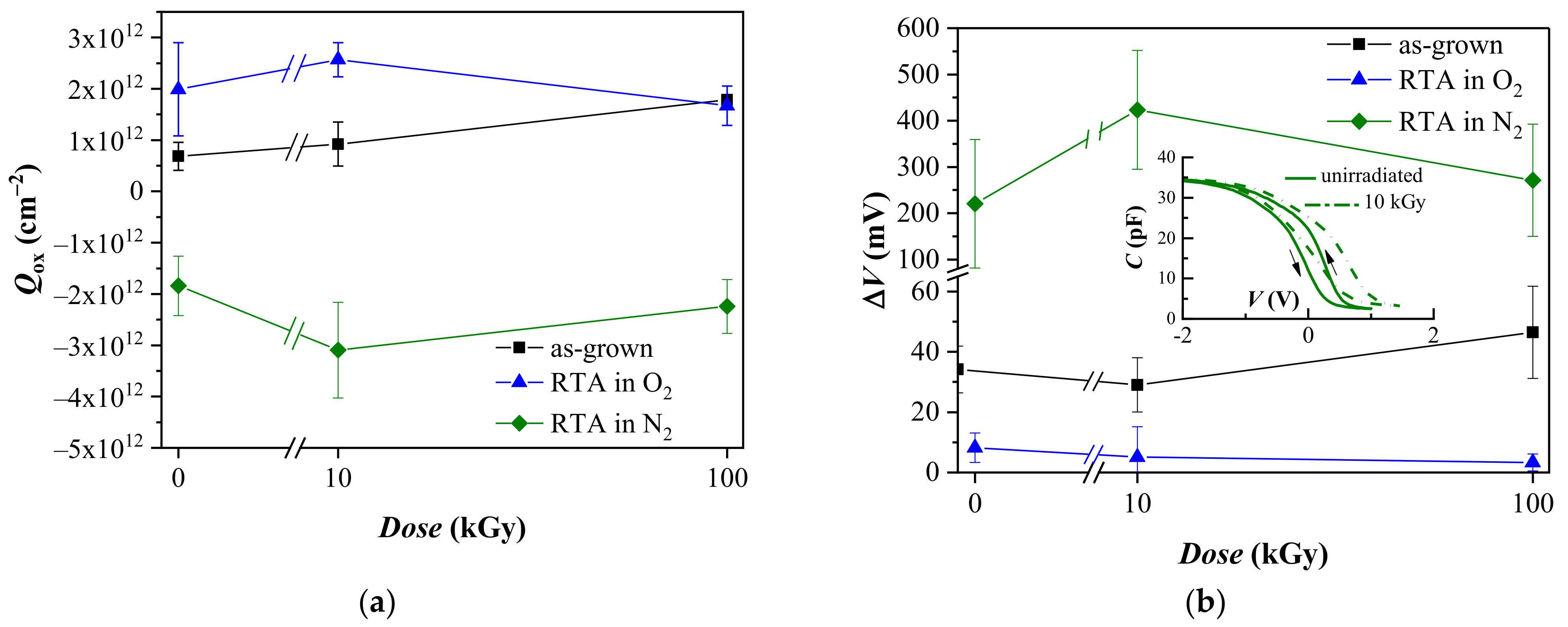

Figure 1. The initial oxide charge (a) and C-V hysteresis (b) of stacks before and after γ-irradiation. The inset in (b) illustrates the C-V hysteresis of stacks annealed in N2: solid line pristine and dash-dot line after irradiation with 10 kGy.
Figure 1. The initial oxide charge (a) and C-V hysteresis (b) of stacks before and after γ-irradiation. The inset in (b) illustrates the C-V hysteresis of stacks annealed in N2: solid line pristine and dash-dot line after irradiation with 10 kGy.
Materials 14 00849 g001
Materials 14 00849 g002 550

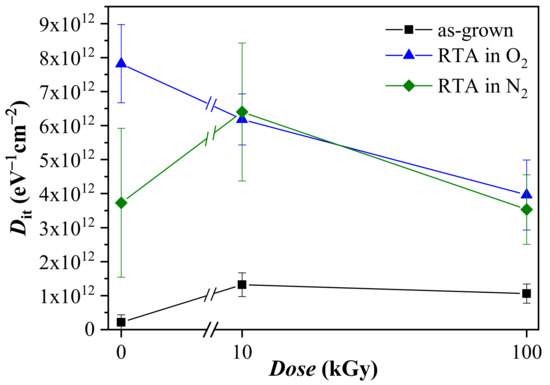

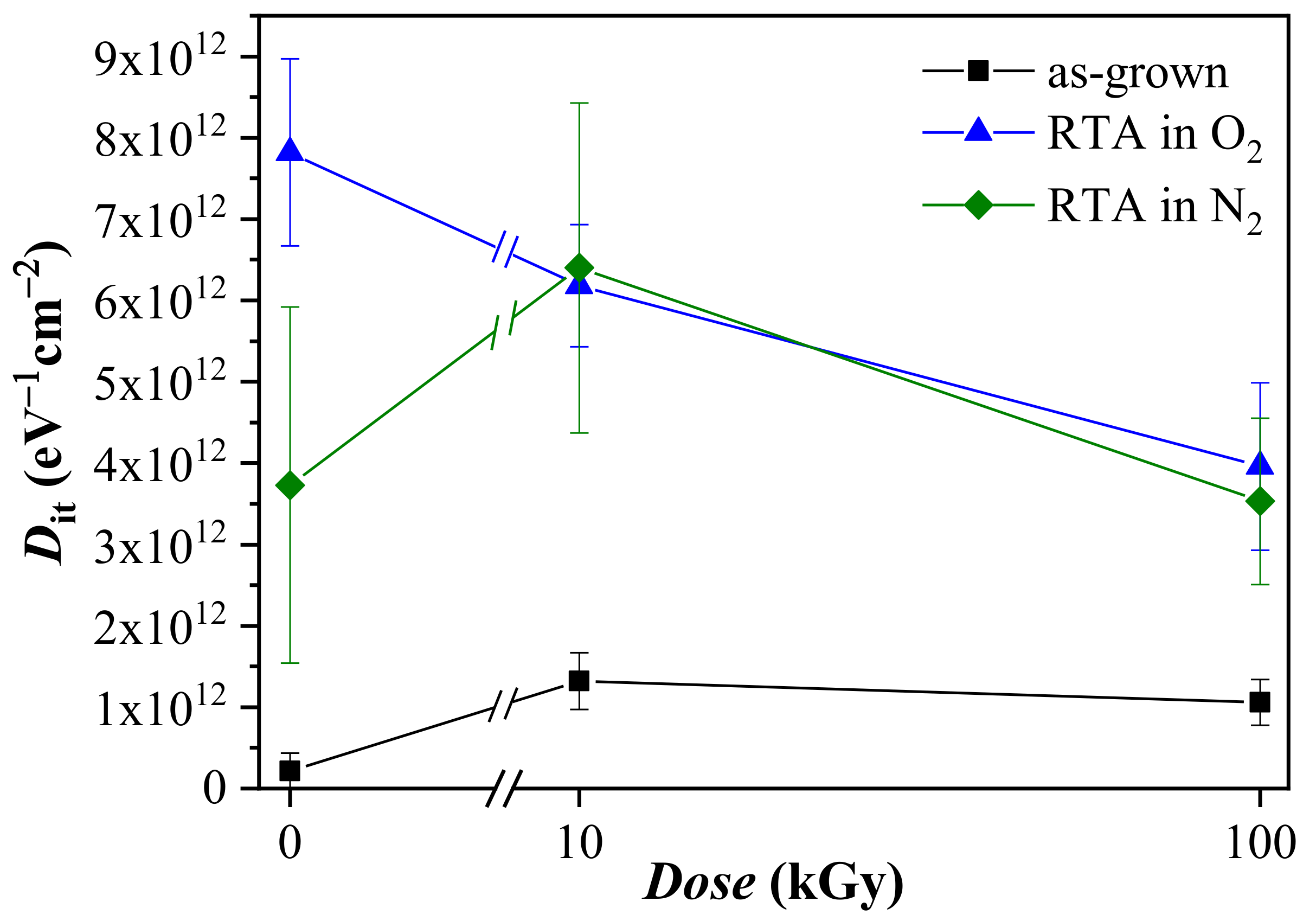

Figure 2. The density of the fast interface states at flat-band before and after irradiation.
Figure 2. The density of the fast interface states at flat-band before and after irradiation.
Materials 14 00849 g002
Materials 14 00849 g003 550

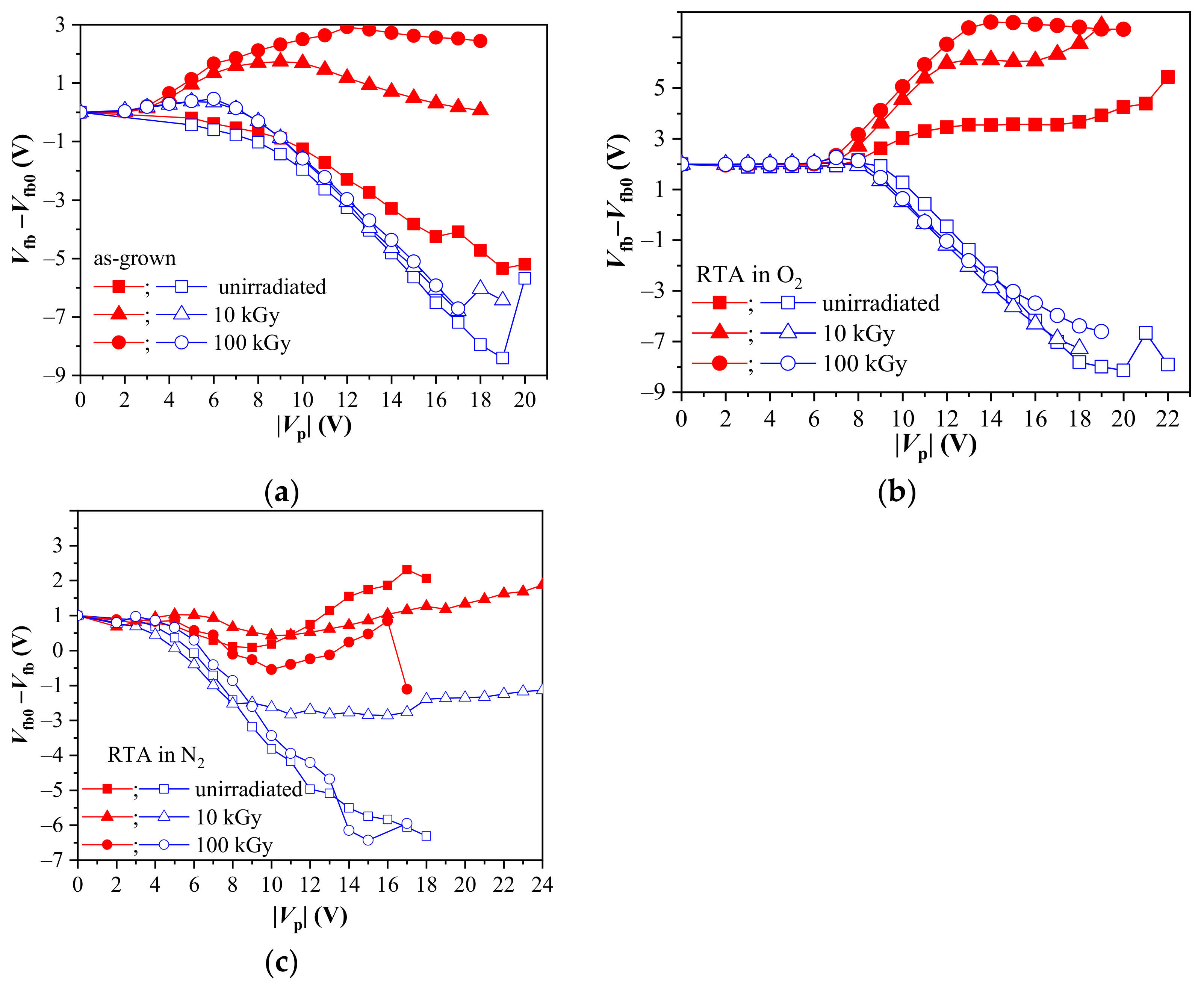

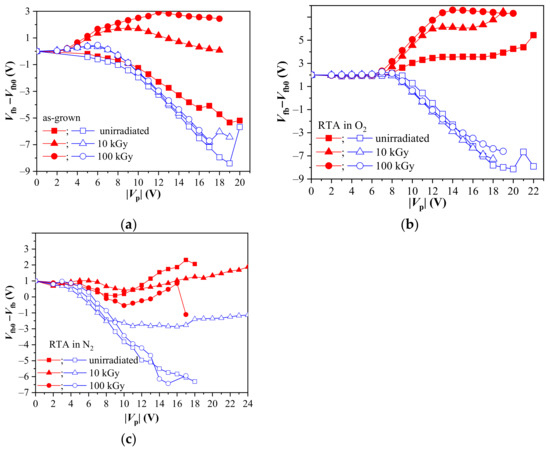

Figure 3. The evolution of the flat-band voltage changes on applying voltage pulses with different Vp, before and after irradiation: (a) as-grown; (b) O2 treated and (c) N2 treated stacks, respectively. Solid symbols depicts values after +Vp and hollow after −Vp.
Figure 3. The evolution of the flat-band voltage changes on applying voltage pulses with different Vp, before and after irradiation: (a) as-grown; (b) O2 treated and (c) N2 treated stacks, respectively. Solid symbols depicts values after +Vp and hollow after −Vp.
Materials 14 00849 g003
Materials 14 00849 g004 550

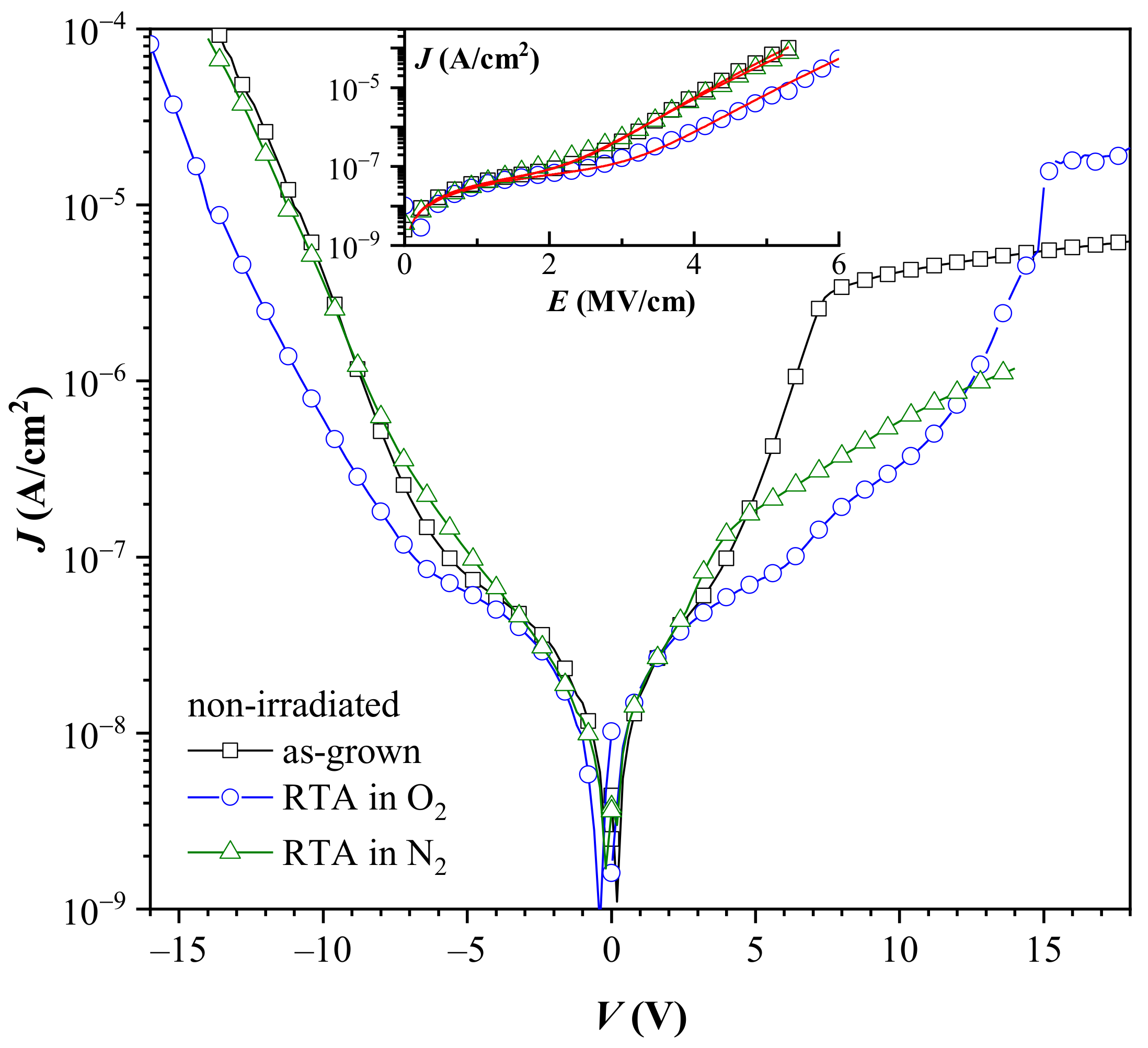

Figure 4. Leakage currents of the non-irradiated stacks. Inset–experimental data for negative applied voltages fitted with a combination of Ohmic and PF conduction (solid lines).
Figure 4. Leakage currents of the non-irradiated stacks. Inset–experimental data for negative applied voltages fitted with a combination of Ohmic and PF conduction (solid lines).
Materials 14 00849 g004
Materials 14 00849 g005 550

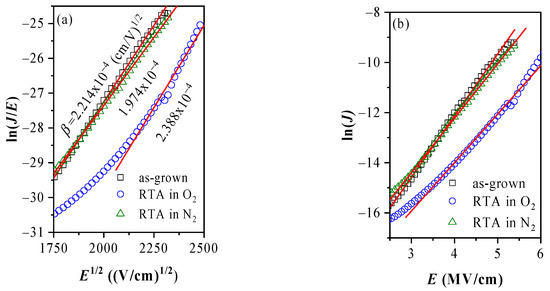

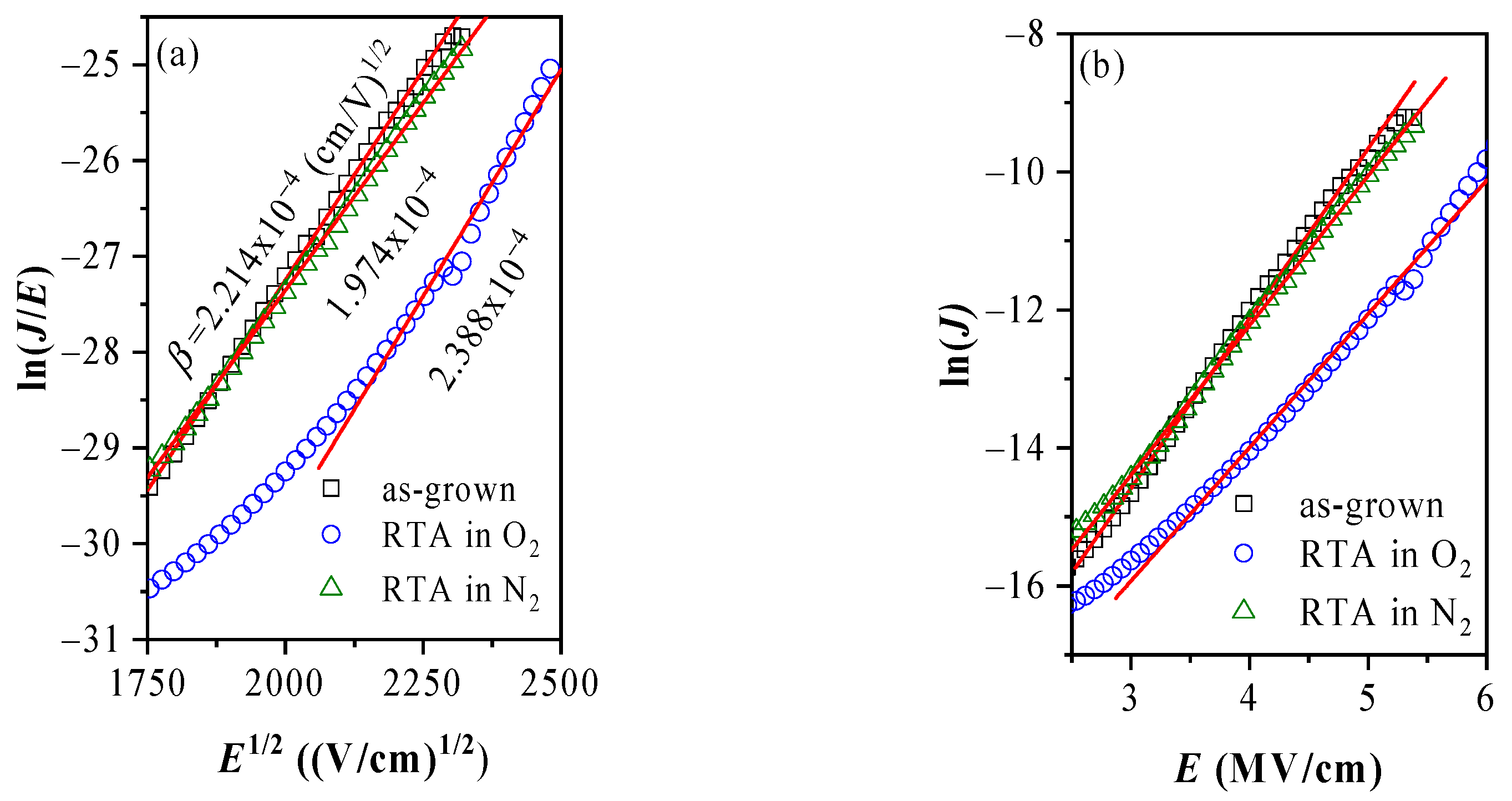

Figure 5. Poole-Frenkel (a) and Poole (b) plots of J-V characteristics presented in Figure 4. The values of β are calculated for r = 1.
Figure 5. Poole-Frenkel (a) and Poole (b) plots of J-V characteristics presented in Figure 4. The values of β are calculated for r = 1.
Materials 14 00849 g005
Materials 14 00849 g006 550

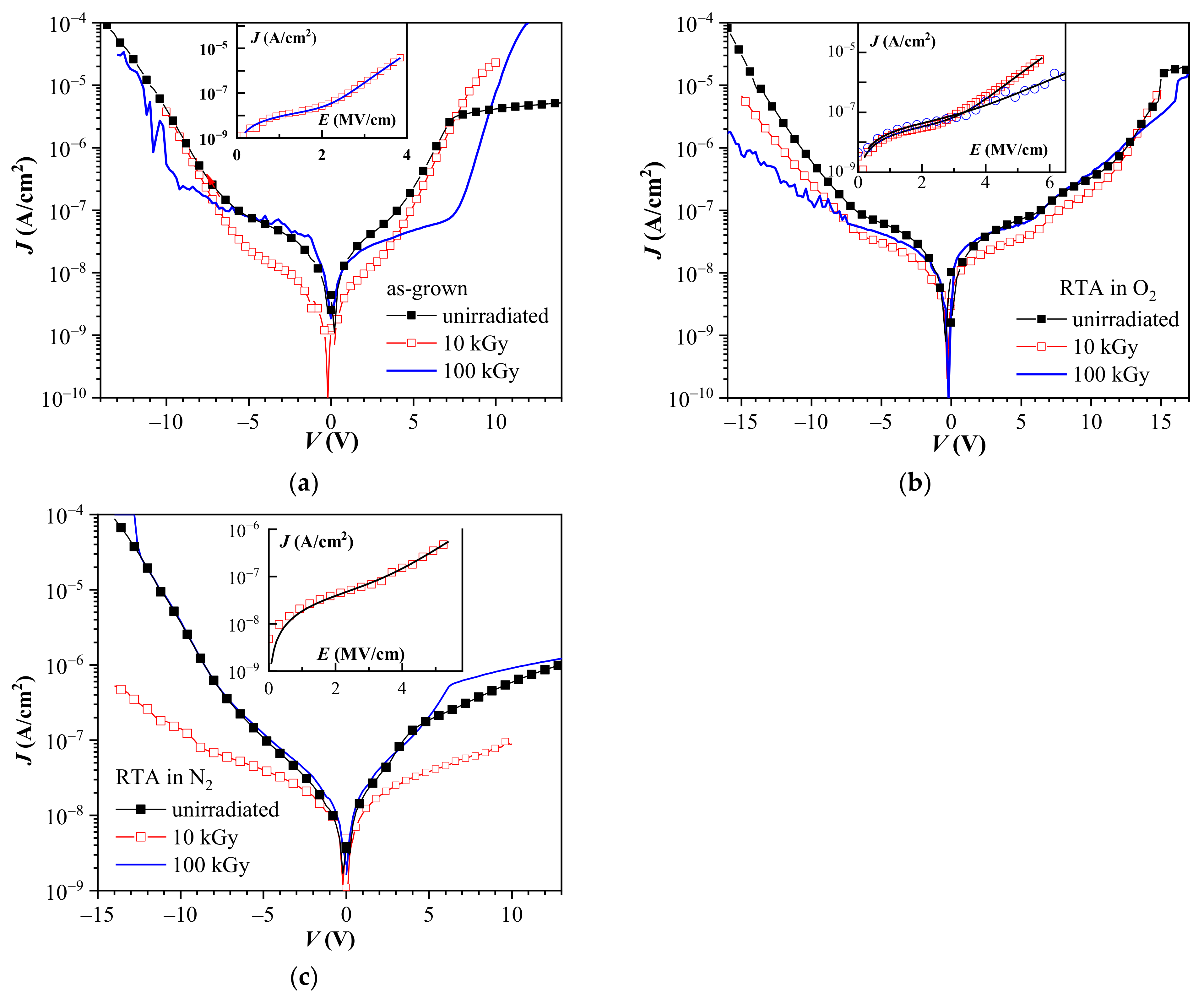

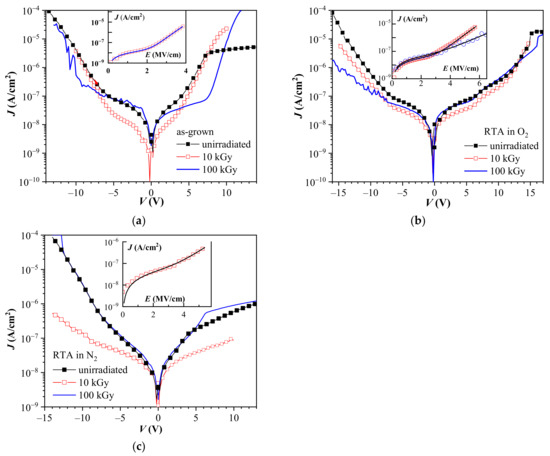

Figure 6. The impact of gamma radiation on the leakage current characteristics of as-grown (a) annealed in O2; (b) annealed in N2; (c) stacks. The insets represent fits of the experimental data to Equation (1) for 10 kGy (a) 10 and 100 kGy (b) 10 kGy (c).
Figure 6. The impact of gamma radiation on the leakage current characteristics of as-grown (a) annealed in O2; (b) annealed in N2; (c) stacks. The insets represent fits of the experimental data to Equation (1) for 10 kGy (a) 10 and 100 kGy (b) 10 kGy (c).
Materials 14 00849 g006
Materials 14 00849 g007 550

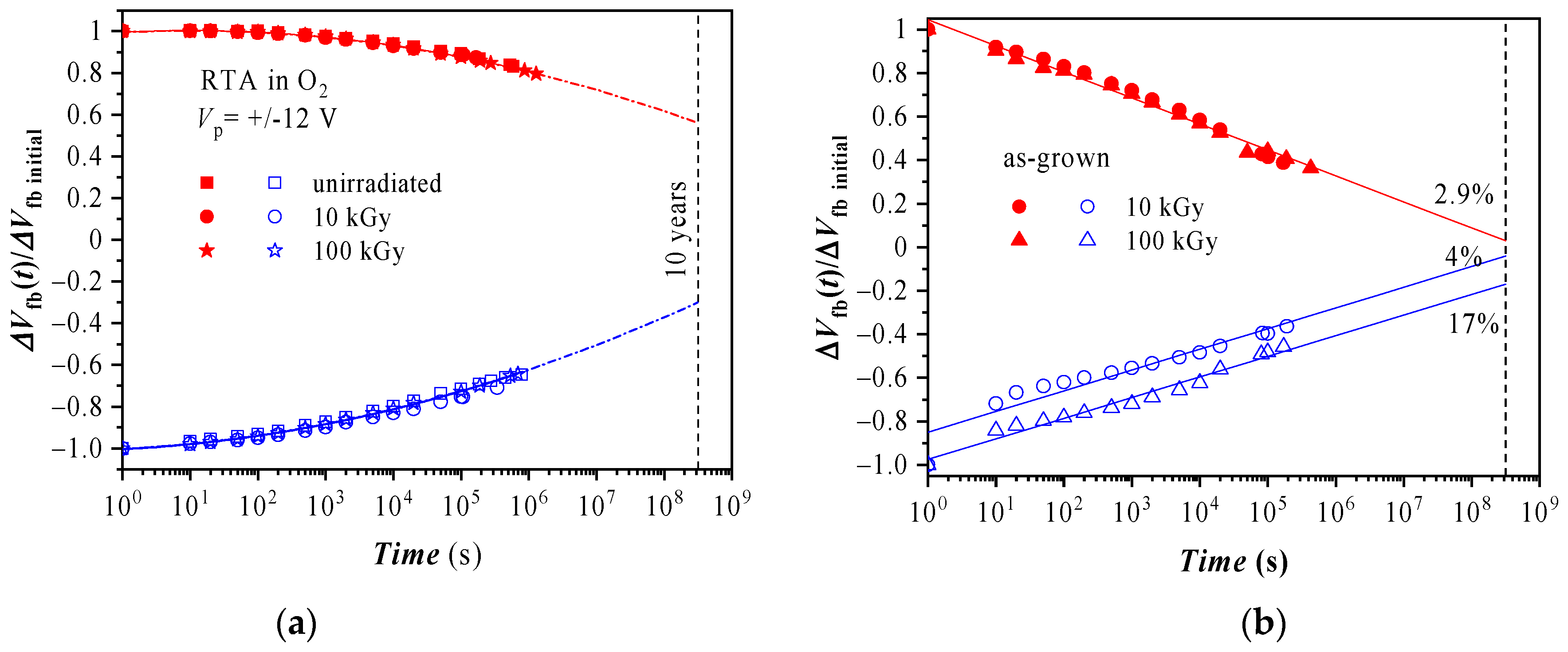

Figure 7. Retention characteristics of stacks annealed in oxygen (a) before and after irradiation, and (b) irradiated as-grown stacks.
Figure 7. Retention characteristics of stacks annealed in oxygen (a) before and after irradiation, and (b) irradiated as-grown stacks.
Materials 14 00849 g007
Table
Table 1. Comparison of the memory windows ΔV of the investigated stacks as measured at Vp = ±15 V before and after irradiation.
Table 1. Comparison of the memory windows ΔV of the investigated stacks as measured at Vp = ±15 V before and after irradiation.
DoseMemory Window, ΔV (V)
As-DepositedRTA in O2RTA in N2
Before Irradiation1.86.86.5
10 kGy5.89.72.7
100 kGy7.710.65.9
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Spassov, D.; Paskaleva, A.; Guziewicz, E.; Davidović, V.; Stanković, S.; Djorić-Veljković, S.; Ivanov, T.; Stanchev, T.; Stojadinović, N. Radiation Tolerance and Charge Trapping Enhancement of ALD HfO2/Al2O3 Nanolaminated Dielectrics. Materials 2021, 14, 849. https://doi.org/10.3390/ma14040849

AMA Style

Spassov D, Paskaleva A, Guziewicz E, Davidović V, Stanković S, Djorić-Veljković S, Ivanov T, Stanchev T, Stojadinović N. Radiation Tolerance and Charge Trapping Enhancement of ALD HfO2/Al2O3 Nanolaminated Dielectrics. Materials. 2021; 14(4):849. https://doi.org/10.3390/ma14040849

Chicago/Turabian Style

Spassov, Dencho, Albena Paskaleva, Elżbieta Guziewicz, Vojkan Davidović, Srboljub Stanković, Snežana Djorić-Veljković, Tzvetan Ivanov, Todor Stanchev, and Ninoslav Stojadinović. 2021. "Radiation Tolerance and Charge Trapping Enhancement of ALD HfO2/Al2O3 Nanolaminated Dielectrics" Materials 14, no. 4: 849. https://doi.org/10.3390/ma14040849

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
