Investigation on Application Prospect of Refractories for Hydrogen Metallurgy: The Enlightenment from the Reaction between Commercial Brown Corundum and Hydrogen

Abstract

Hydrogenous environments put forward new requirements to refractories for the hydrogen metallurgy field. The temperature and impurities in refractories played an important role in stability. A commercial brown corundum with many impurities was adopted as a raw material, thermodynamic calculations and reduction experiments of the brown corundum by high-purity hydrogen (99.99%) were accepted to investigate the stability of the oxides. The weight loss and mass fraction were tested to estimate the stability of the oxides in the brown corundum. XRD and SEM were used to analyze the mineral compositions and microstructures. The results showed that: the thermodynamic stability of the oxides in the brown corundum under high-purity hydrogen was in the order of Al₂O₃ > CaO > MgO > SiO₂ > TiO₂ > Fe₂O₃ at temperatures lower than 1400 °C. Obvious weight loss appeared after heating at 1400 °C for 8 h. The content of CaO did not decline after reduction even at 1800 °C, owing to the formation of hibonite (CaAl₁₂O₁₉), high-purity Al₂O₃ and CaAl₁₂O₁₉ -based refractories had the prospect for lining materials in the hydrogen metallurgy field, owing to their excellent chemical stability under hydrogenous environments.

1. Introduction

The process of iron ore reduction by carbon in iron and steel metallurgy has contributed the most greenhouse gas emissions in the whole process of iron and steel production. CO₂ emissions from the steel industry have constituted a high proportion, equivalent to about 33.8% of industrial emissions [1]. The enhancement of clean energy technology and optimizing energy structures are crucial for carbon emissions reduction [2]. Therefore, environmentally friendly and economical iron ore reduction methods have become a hot spot in the exploration of an ideal process. Hydrogen metallurgy is a technology that partially or completely uses hydrogen to replace carbon as the reduction agent to reduce iron ore to obtain solid iron at the temperature range below the melting point of Fe, which has been very beneficial through energy savings and the reduction in CO₂ emissions [3].

Refractories were indispensable key materials in the iron and steel industry, the hydrogenous environment has put forward new requirements due to the strong reducibility of hydrogen. Tso [4] has studied reactions between fused silica and hydrogen gas in the temperature range from 1200 °C to 1400 °C, the formation of SiO (g) and H₂O (g) has caused the main weight loss. Herbell [5] has investigated the reactions between dry/wet hydrogen and some high-temperature ceramics including Al₂O₃, MgO, SiC, Si₃N₄ and mullite at 1400 °C, the increase in moisture provided the most benefits for stability, the Al₂O₃ ceramic performed excellently in stability. However, the reaction of Al₂O₃-based ceramics with hydrogen at the temperature range over 1400 °C needs further research.

Presently, blast furnace ironmaking adding hydrogen and direct reduction iron by hydrogen (DRI) are the two main hydrogen metallurgy methods [6,7], the temperature of the former process is about 1500 °C, the DRI is 750–1360 °C [8,9,10,11,12,13,14,15,16]. In addition, raising the temperature is the trend because a high temperature means high productivity in the hydrogen metallurgy process. So, the stability of Al₂O₃-based materials under a hydrogen atmosphere in a wide temperature range should be studied. Furthermore, the presence of impurities has played a significant role in the stability of the refractories and high-temperature ceramics under a hydrogen atmosphere.

Commercial corundum raw materials including brown corundum, white corundum, and tabular corundum are the main Al₂O₃-based refractory raw materials. In general, the content of Al₂O₃ in the latter two corundum raw materials is close to 99%. There are many impurities in brown corundum. In this paper, the commercial brown corundum was adopted as a raw material to react with the high-purity hydrogen in a wide temperature range from 600 °C to 1800 °C. The mass fractions of the oxides and mineral phase changes were tested to estimate the stability of the oxides in the brown corundum. The results have been beneficial for seeking stable refractories for the hydrogen metallurgy field.

2. Materials and Methods

Commercial brown corundum powder (≤0.045 mm) was chosen as the raw material. The chemical compositions are shown in

Table 1. Chemical compositions of the brown corundum raw materials (wt%).

SiO2	Al2O3	Fe2O3	CaO	MgO	K2O	Na2O	TiO2
1.12	92.97	0.2	0.26	0.17	0.094	0.038	2.13

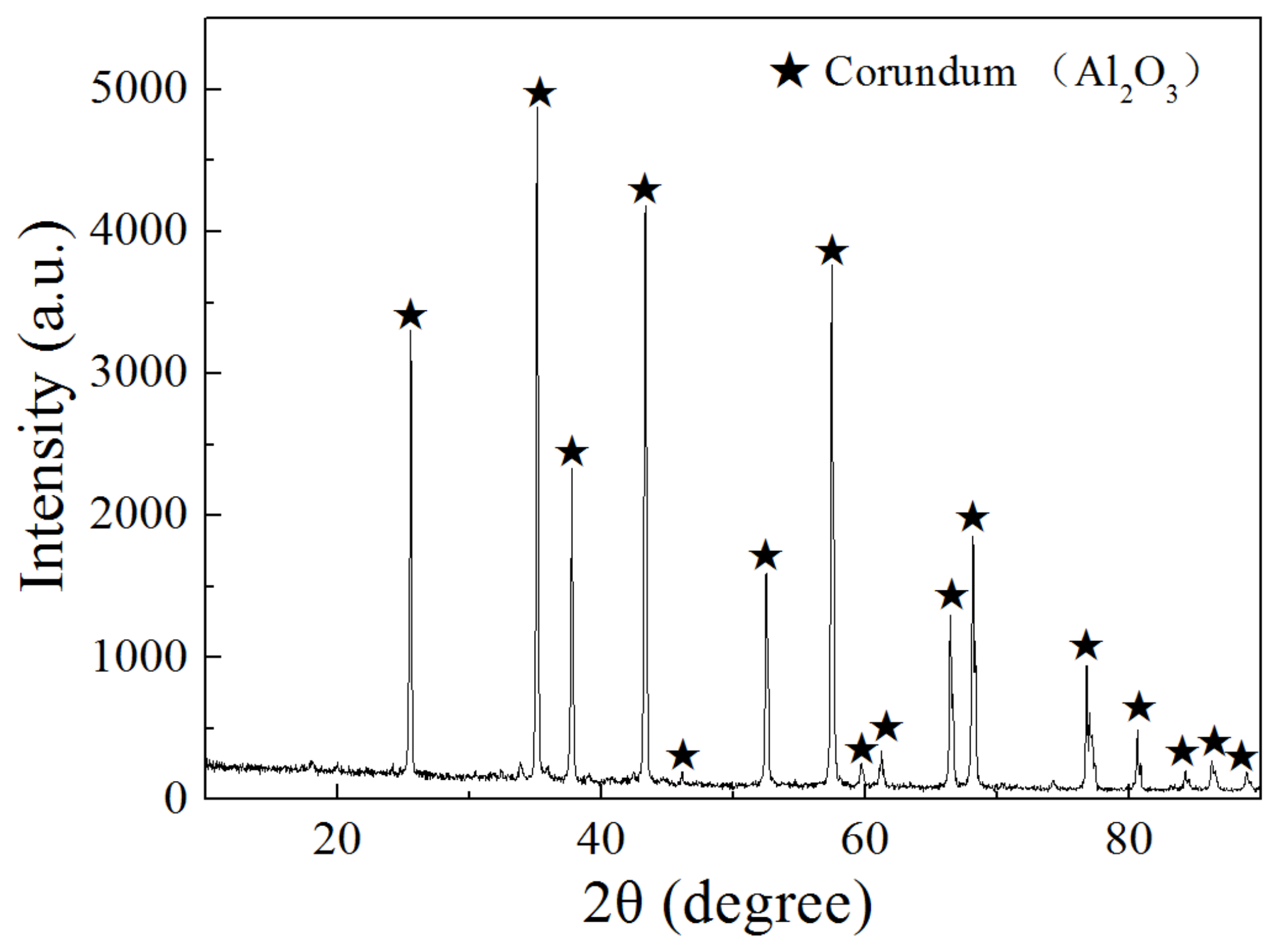

, the raw material consisted of 92.97 wt% of Al₂O₃ and some impurities including SiO₂, CaO, TiO₂ and MgO. The XRD pattern (Figure 1) showed the mineralogical compositions of the raw material, Al₂O₃ (corundum) was the main mineral phase. The peaks of the minerals related to the impurities are not shown in Figure 1, which might be caused by the following two reasons. First, the amount of such minerals containing impurities was too little. Second, impurities were distributed in the amorphous glass phases. High-purity hydrogen (99.99% of volume fraction) was adopted as the reductive agent.

The brown corundum was placed in molybdenum crucibles. The brown corundum raw material was dried at 110 °C for 24 h in a vacuum oven. The samples were ready for experiments after drying. Then the crucibles containing the brown corundum raw materials were put into a high temperature hydrogen furnace and heated to 600 °C, 700 °C, 800 °C, 1200 °C, 1400 °C, 1600 °C and 1800 °C for 8 h, respectively, under the high-purity hydrogen atmosphere. The heating rate was 3~6 °C/min, the flow rate of hydrogen was 2500 mL/min.

The masses of the brown corundum before and after heating were measured accurately. The weight loss of the brown corundum was evaluated as follows:

Weight loss = (M − M0)/M0

(1)

Therein, M0 is the mass of a molybdenum crucible containing the brown corundum raw material before heating, M is the mass of a molybdenum crucible containing the brown corundum raw material after heating at different temperatures.

Then, the mass fractions of the Al₂O₃ and main impurities including SiO₂, Fe₂O₃, CaO, TiO_x, MgO in the brown corundum were measured via XRF (X-ray Fluorescence). The microstructures and mineralogical compositions were tested via SEM (SEM, JSM-6610, JEOL, Tokyo, Japan) and X-ray diffraction (XRD, X’ Pert Pro, Philips, The Netherlands).

3. Results and Discussion

3.1. Thermodynamic Calculations

The oxides in the brown corundum could react with the hydrogen, which would form gaseous products and result in weight loss. The equilibrium partial pressure of the gaseous products could be calculated. The reaction between SiO₂ and H₂ was taken as an example. Equation (2) showed the reaction, and the equilibrium partial pressures of SiO (g) and H₂O (g) could be calculated according to Equation (3) under the hydrogen atmosphere [4]. For Equation (3), the pressure of H₂ and the value of P^θ were both 10⁵ Pa. The results were obtained and are shown in

Table 2. Equilibrium partial pressures of gaseous products of reactions at different temperatures (Pa).

Reactions		1200 °C	1400 °C	1600 °C	1800 °C
SiO2 (s) + H2 (g) = SiO (g) + H2O (g)	PSiO	2.7	41.3	345.2	1884.3
	PH2O	2.7	41.3	345.2	1884.3
MgO (s) + H2 (g) = Mg (g) + H2O (g)	PMg	2.2	23.2	146.2	639.4
	PH2O	2.2	23.2	146.2	639.4
Al2O3 (s) + 3H2 (g) = 2Al (g) + 3H2O (g)	PAl	9.3 × 10−22	7.0 × 10−18	7.5 × 10−15	2.0 × 10−12
	PH2O	1.4 × 10−21	1.0 × 10−17	1.1 × 10−14	3.0 × 10−12
CaO (s) + H2 (g) = Ca (g) + H2O (g)	PCa	0.3	2.0	11.6	60.9
	PH2O	0.3	2.0	11.6	60.9
2TiO2 (s) + H2 (g) = Ti2O3 (s) + H2O (g)	PH2O	77.4	201.7	394.1	625.5
Fe2O3 (s) + 3H2 (g) = 2Fe + 3H2O (g)	PH2O	1.5 × 105	1.3 × 105	9.8 × 104	7.3 × 104

, the equilibrium partial pressures of SiO (g) and H₂O (g) were both 2.7 Pa at 1200 °C, which would cause a slight weight loss of the brown corundum. At 1600 °C, the value was 345.2 Pa, which indicated serious degradation of SiO₂ in the hydrogen furnace.

SiO₂ (s) + H₂ (g) = SiO (g) + H₂O (g)

(2)

$$\ln \frac{\frac{P_{SiO}}{P^{\theta }}\cdot \frac{P_{H_{2}O}}{P^{\theta }}}{\frac{P_{H_2}}{P^{\theta }}}=\frac{{\Delta }_r{G}_m^{\theta }}{-RT}$$

(3)

The reaction conditions of the other oxides were calculated via the same method and the results are shown in Table 2.

Al₂O₃ was the most stable oxide in the brown corundum, the equilibrium partial pressures of Al (g) and H₂O (g) were 2.0 × 10⁻¹² Pa and 3.0 × 10⁻¹² Pa at 1800 °C, such a small sum of gaseous products had a negligible effect on mass. CaO also performed well in stability when the temperature was lower than 1600 °C. The reduction process of TiO₂ was complicated, a series of oxides of titanium would be generated [17,18], Ti₂O₃ was accepted as a reduction product for the calculation in Table 2. The TiO_x (x ≤ 2) was adopted to stand for oxides of titanium in the following contents. The thermodynamic stability of the oxides under high-purity hydrogen was in the order of Al₂O₃ > CaO > MgO > SiO₂ > TiO₂ > Fe₂O₃ at the temperature lower than 1400 °C, continuously increasing the temperature, the SiO₂ performed worse in stability, compared with TiO₂ and MgO. The Al₂O₃ could remain stable even at 1800 °C.

3.2. Weight Loss of Brown Corundum

The Al₂O₃ in the brown corundum was stable under the H₂ atmosphere according to Table 2. However, the brown corundum raw material consisted of impurities. Some impurities could react with H₂ at elevated temperatures, which resulted in weight loss. The weight loss of the brown corundum after a high temperature hydrogen reduction is shown in Figure 2. The slight weight loss occurred when the temperature was increased to 1200 °C, which may be caused by the reduction in Fe₂O₃. Continuously raising the temperature to 1400 °C resulted in the increase in weight loss, the reduction in TiO₂, MgO and SiO₂ contributed a lot for weight loss.

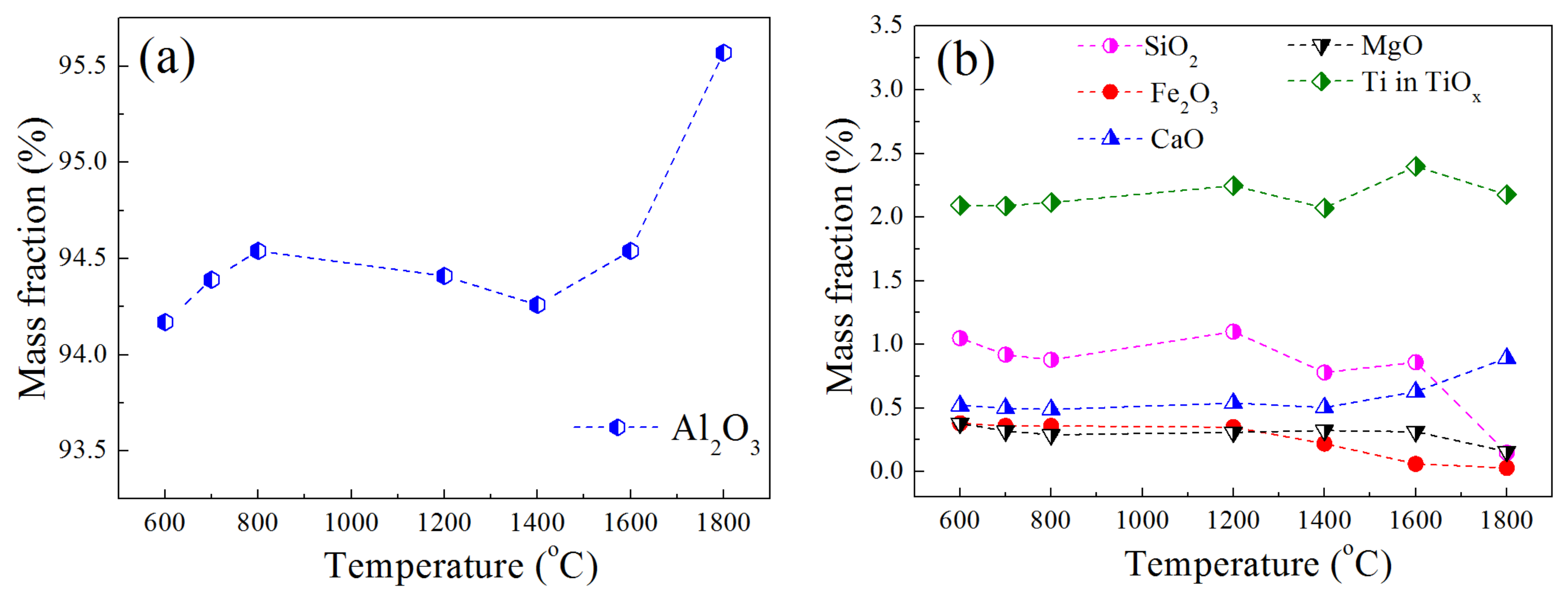

The mass fractions of Al₂O₃ and impurities were tested and are shown in Figure 3. On the whole, the content of the Al₂O₃ presented an upward trend (shown in Figure 3a). Some impurities reacted with the H₂, the gaseous products volatilized, while the Al₂O₃ had favorable stability in the high-temperature hydrogen furnace, which could have resulted in the increase in mass fraction of the Al₂O₃ and the decrease in mass fractions of the impurities. The mass fractions of the impurities after reduction for 8 h at different temperatures are shown in Figure 3b, the obvious mass fraction change occurred after rising up to 1400 °C, the mass fractions of TiO_x and CaO performed upward trends. The reaction between Fe₂O₃ and H₂ could proceed at a low temperature according to Table 2, the contents of Fe₂O₃ decreased from 600 °C to 1200 °C, a continuously rising temperature accelerated the decline of Fe₂O₃. When the temperature was increased to 1400 °C, the mass fraction of SiO₂ decreased obviously. On the whole, the Al₂O₃ was stable during heating under a hydrogen atmosphere up to 1800 °C. Furthermore, the CaO and TiO_x also performed excellently in stability during the experiments. TiO₂ was easily reduced by H₂ below 1600 °C, according to Table 2. However, the reduction product was solid phase TiO_x (x ≤ 2) with a high melting point. In the case of Ti₂O₃, the Ti₂O₃ had excellent stability under a hydrogen atmosphere. Equation (4) showed the reaction between the Ti₂O₃ and H₂, the equilibrium partial pressure of H₂O (g) could be calculated based on Equation (5), the value was 0.18 Pa at 1800 °C, which indicated a insignificant degradation of Ti₂O₃ under the hydrogen atmosphere at 1800 °C. The oxides of titanium performed an upward trend of mass fraction, with the increasing of temperature owing to the stability of TiO_x.

Ti₂O₃ (s)+3H₂ (g)=2Ti (s)+3H₂O (g)

(4)

$$\ln \frac{\frac{P_{H_{2}O}}{P^{\theta }}}{\frac{P_{H_2}}{P^{\theta }}}=\frac{{\Delta }_r{G}_m^{\theta }}{-RT}$$

(5)

3.3. Phase Compositions of Brown Corundum after Reduction by Hydrogen

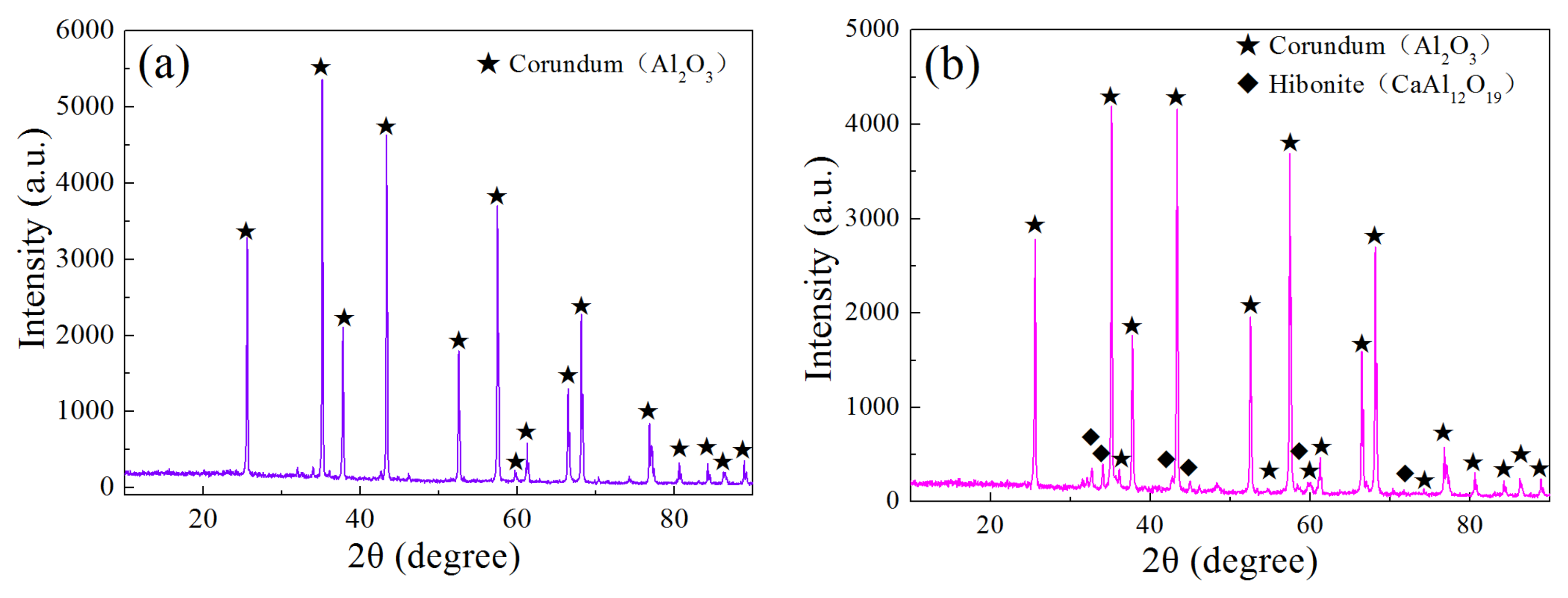

The mineral phases in brown corundum would change owing to the decrease in impurities. The main phases in the raw material were Al₂O₃ (corundum), based on Figure 1. After the reaction with hydrogen at 1600 °C for 8 h, no peaks containing impurities appeared. When increasing the reaction temperature to 1800 °C, a new mineralogical phase hibonite (CaAl₁₂O₁₉) was generated (shown in Figure 4b). According to Table 2, CaO could be reduced by H₂ at 1800 °C, the pressure of the product H₂O (g) was 60.9 Pa. The reason that the CaO content did not decline may be the formation of hibonite (CaAl₁₂O₁₉). As shown in

Table 3. Equilibrium partial pressures of gaseous products of reduction reactions of CaAl₁₂O₁₉ and CaO at different temperatures (Pa).

Reactions		1200 °C	1400 °C	1600 °C	1800 °C
CaAl12O19 (s) + H2 (g) = Ca (g) + H2O (g) + 6Al2O3	PCa	3.6 × 10−3	4.7 × 10−2	0.35	1.62
	PH2O	3.6 × 10−3	4.7 × 10−2	0.35	1.62
CaO (s) + H2 (g) = Ca (g) + H2O (g)	PCa	0.3	2.0	11.6	60.9
	PH2O	0.3	2.0	11.6	60.9

, the pressures of Ca (g) and H₂O (g) caused by the reaction between CaAl₁₂O₁₉ and H₂ (g) were just 1.62 Pa at 1800 °C, the partial pressures of the gaseous products were much lower than the reaction of CaO and H₂ (g), which meant a good stability of hibonite (CaAl₁₂O₁₉).

With the increasing of temperature, the contents of SiO₂ decreased owing to the reduction reaction by hydrogen. The decrease in the SiO₂ content in the amorphous glass phase was the concrete expression. SiO₂ in the glass phase transferred to SiO (g), the volatilization of the gaseous products resulted in weight loss. Al₂O₃ (corundum) and CaAl₁₂O₁₉ (hibonite) were stable under the hydrogen atmosphere even at 1800 °C. Al₂O₃ and CaAl₁₂O₁₉ -based refractories were suitable for hydrogen metallurgy progress owing to their stability and availability of the raw materials.

3.4. Microstructure Evaluation of Brown Corundum after Reduction by Hydrogen

The microstructures of the samples were tested, the morphology and the EDS of the corundum materials are shown in Figure 5, the amorphous glass was distributed between the corundum particles, which consisted of the elements Ti, Al, Si, Mg, K, Fe and O, according to Figure 5d.

After heating at 1600 °C for 8 h in the hydrogen furnace, the compositions of the amorphous glass changed, the peaks of K, Fe and Mg disappeared. The elements Al, Ca, Ti, Si and O made up the amorphous glass based on Figure 5e. Compared with the raw materials, the elements Fe, Mg, and K decreased obviously owing to the reduction by hydrogen during heating at 1600 °C, the SiO₂ impurities were still distributed between the corundum particles.

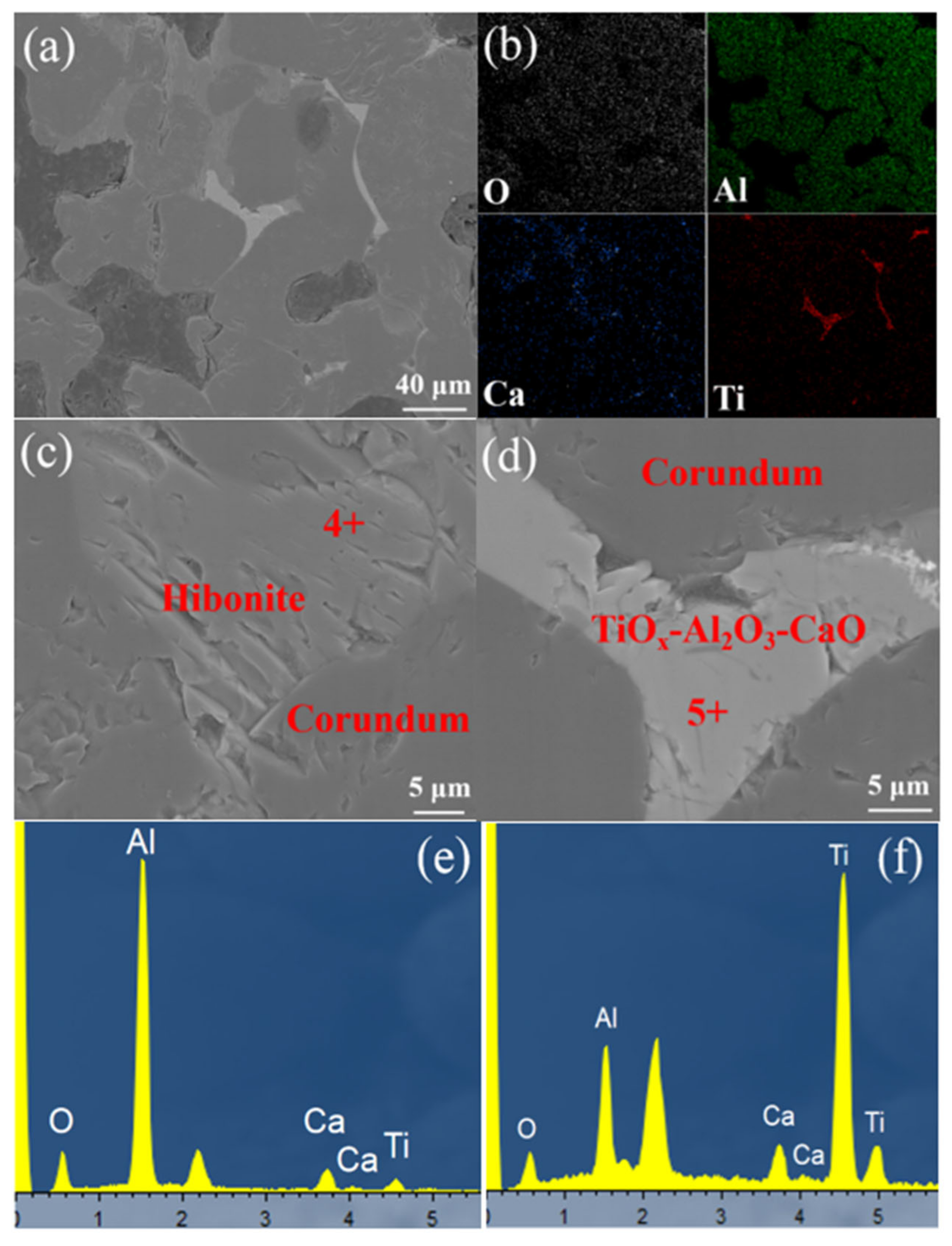

With continuous increasing of the temperature to 1800 °C, the phase compositions changed, according to Figure 6. The phases between corundum consisted of the elements Al, Ti, Ca and O. The element Si could not be detected, which indicated a violent reaction between SiO₂ and hydrogen at 1800 °C. An amorphous glass of TiO_x-Al₂O₃-CaO existed in the interface of the corundum particles. Furthermore, lamellar hibonite formed (Figure 6c), some TiO_x solubilized in the hibonite, according the result of EDS in point 4 (Figure 6e). The results indicated that the hibonite and corundum were the stable mineral phases under the hydrogen atmosphere, even at an elevated temperature of 1800 °C.

4. Conclusions

For the purpose of seeking suitable refractories for the hydrogen metallurgy field, thermodynamic calculations and reduction experiments of commercial brown corundum by high-purity hydrogen were adopted to investigate the stability of the oxides. The following results were obtained.

(1)

The thermodynamic stability of the oxides under high-purity hydrogen was in the order of Al₂O₃ > CaO > MgO > SiO₂ > TiO₂ > Fe₂O₃ at the temperature lower than 1400 °C, when continuously increasing the temperature, the SiO₂ performed worse in stability compared with TiO₂ and MgO. The Al₂O₃ could remain stable even at 1800 °C. Obvious weight loss appeared when raising the temperature to 1400 °C. The reduction in Fe₂O₃, SiO₂ and MgO contributed a lot to the weight loss.

(2)

The pressures of Ca (g) and H₂O (g) caused by the reaction between CaAl₁₂O₁₉ and H₂ (g) was just 1.62 Pa at 1800 °C. The CaO contents in the brown corundum remained stable owing to the formation of hibonite (CaAl₁₂O₁₉).

(3)

The corundum (Al₂O₃) and hibonite (CaAl₁₂O₁₉) performed excellently in stability under the high-purity hydrogen atmosphere, even at 1800 °C, which indicated that high-purity Al₂O₃ and CaAl₁₂O₁₉ -based refractories were suitable for lining materials in the hydrogen metallurgy field.
