The Influence of Electroluminescent Inhomogeneous Phase Addition on Enhancing MgB₂ Superconducting Performance and Magnetic Flux Pinning

Abstract

As a highly regarded superconducting material with a concise layered structure, MgB₂ has attracted significant scientific attention and holds vast potential for applications. However, its limited current-carrying capacity under high magnetic fields has greatly hindered its practical use. To address this issue, we have enhanced the superconducting performance of MgB₂ by incorporating inhomogeneous phase nanostructures of p-n junctions with electroluminescent properties. Through temperature-dependent measurements of magnetization, electronic specific heat, and Hall coefficient under various magnetic fields, we have confirmed the crucial role of inhomogeneous phase electroluminescent nanostructures in improving the properties of MgB₂. Experimental results demonstrate that the introduction of electroluminescent inhomogeneous phases effectively enhances the superconducting performance of MgB₂. Moreover, by controlling the size of the electroluminescent inhomogeneous phases and optimizing grain connectivity, density, and microstructural uniformity, we can further improve the critical temperature (T_C) and flux-pinning capability of MgB₂ superconducting materials. Comprehensive studies on the physical properties of MgB₂ superconducting structures added with p-n junction electroluminescent inhomogeneous phases also confirm the general effectiveness of electroluminescent inhomogeneous phases in enhancing the performance of superconducting materials.

1. Introduction

Superconductivity stands as one of the most captivating macroscopic quantum phenomena in physics, representing one of the greatest discoveries of the 20th century and an ever-evolving realm of study. Since the discovery of superconductivity in 1911, room-temperature superconducting behavior has been regarded as one of the brightest jewels in the crown of science. Throughout the quest to explore room-temperature superconductors or enhance the critical transition temperature (T_C) of superconductors, a myriad of materials including elemental substances, alloys, and compounds have been discovered, with the transition temperature ascending from the liquid helium range of 4.2 K to the liquid nitrogen regime. Hydrides represent a novel class of high-temperature superconducting materials discovered in recent years. Hydrides with metallic hydrogen cage structures can achieve superconducting properties at near-room temperature (for instance, LaH₁₀ exhibits a T_C of 250–260 K), albeit typically necessitating pressures exceeding 150 GPa for their manifestation [1,2]. Such stringent conditions are exceedingly challenging to achieve even within laboratory settings, let alone in everyday environments.

In physics research, it is often preferred to start from simple systems to reveal profound physical laws. For instance, the phenomenon of magic-angle graphene superconductivity is a case in point. Twisted bilayer graphene represents a tunable two-dimensional superconductor based on pure carbon, showcasing novel electronic states and providing an ideal adjustable platform for exploring the deeper mechanisms of superconductivity [3,4]. Additionally, MgB₂, as the binary metal compound with the highest critical transition temperature to date, also possesses a simple layered structure and is an outstanding superconducting material, garnering significant interest among researchers. For instance, the Bekaert research group proposed that hydrogenation of monolayer MgB₂ could yield a high critical temperature of 67 K, offering a new avenue for enhancing the performance of MgB₂ superconducting materials [5]. However, this research remains confined to the realm of simulation and modeling, posing challenges for practical realization and application. Therefore, the improvement of existing superconducting materials for performance under conventional conditions remains a pressing desire among researchers. Chemical doping is a simple, effective, and frequently used method to modify the performance of superconducting materials under conventional conditions [6,7]. However, many experimental results have confirmed that traditional chemical doping, while introducing new pinning centers to enhance the flux-pinning capability of MgB₂ in high magnetic fields, also severely suppresses the critical temperature (T_C) of MgB₂ [8,9]. To date, no effective methods have been developed to simultaneously improve both T_C and the critical current density (J_C) of MgB₂. Utilizing artificially designed material structures to achieve some special or even non-existent “anomalous” material properties, has emerged as an important method in recent years, providing a new avenue for enhancing various properties of superconducting materials [10,11,12]. Inspired by these ideas, our group proposed combining doping with electroluminescence (EL) excitation, i.e., adding EL materials into superconducting materials to form composite structures, which may be an effective method to enhance the T_C of superconductors. We have developed a novel type of smart meta-superconductors (SMSCs), where traditional superconducting materials serve as the matrix, and electroluminescent inhomogeneous phase particles act as the building blocks [13,14,15,16,17,18,19,20,21]. In this model, the inhomogeneous phase is used to inject energy through its EL under external fields to strengthen Cooper pairs, thereby altering T_C. Simultaneously, the introduction of inhomogeneous phases brings additional flux-pinning centers, effectively enhancing the flux-pinning capability of the matrix superconducting material. Li et al. prepared MgB₂ added with Y₂O₃: Eu³⁺ + Ag particles using an ex situ processing technique, effectively improving the T_C, J_C, and magnetic field criticality. However, limited by the low electroluminescence intensity and short luminescence lifetime of rare earth oxides, the improvement in superconducting performance remained less than ideal [13,14,15,16,17,18]. Therefore, we also introduced red AlGaInP p-n junction particles as inhomogeneous phases into the MgB₂ matrix [20], GaN p-n junction particles into BSCCO superconductor materials as inhomogeneous phases [21], and GaN p-n junction particles into the MgB₂ matrix as inhomogeneous phases [22], all of which further improved the performance. Compared with Y₂O₃:Eu³⁺ + Ag electroluminescent materials, p-n junction particles, due to their structural stability, high luminescence intensity, and activation at low voltage, can effectively enhance the critical temperature (T_C), critical current density (J_C), and Meissner effect of MgB₂ superconductors. In order to correlate the microstructural changes and superconducting performance improvements brought by the addition of p-n junction luminescent phases to superconductors, we utilized p-n junction electroluminescent inhomogeneous phases with a central wavelength of 550 nm, based on our previous work, and prepared MgB₂ samples with different particle sizes of inhomogeneous phases via solid-state sintering. We found that adding luminescent particle inhomogeneous phases could enhance J_C and pinning force by introducing effective pinning centers, but it also had adverse effects on the MgB₂ grain, resulting in pore formation. Optimization of the inhomogeneous phase size effectively mitigated these adverse effects and increased compactness. Through temperature-dependent measurements of magnetization intensity, electronic specific heat, and Hall coefficient under different magnetic fields, our analysis highlights the key role of p-n junction electroluminescent inhomogeneous phases in improving the base superconducting material.

2. Materials and Methods

2.1. Preparation of MgB₂ Superconductor and Inhomogeneous Phase Sample

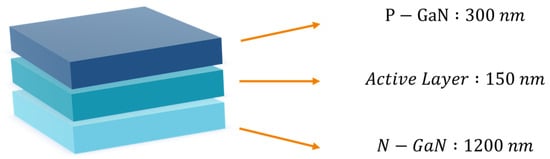

We employed commercially available green light-emitting diode (LED) epitaxial chips with a central wavelength of 550 nm as the raw material, whose primary emitting structure is composed of GaN semiconductor. The epitaxial chip was grown on a sapphire substrate using metalorganic chemical vapor deposition (MOCVD) method. We peeled off the emitting layer from the substrate and processed it to obtain the inhomogeneous phase particles. As shown in Figure 1, these particles comprise three layers of nanostructures: a 300-nanometer-thick p-type semiconductor layer, a 150-nanometer-thick quantum well layer, and a 1200-nanometer-thick n-type semiconductor layer. GaN exhibits stable chemical properties, with a melting point of 1700 degrees Celsius, allowing the p-n junction particles to endure annealing treatments at 850 degrees Celsius under an argon atmosphere for an extended period.

Experimental preparation of MgB₂ bulk superconductors and added samples was conducted using a non-in-situ method. The experimental procedures were carried out in an argon-filled glovebox to minimize exposure to air. Commercial MgB₂ powder (Alfa Aesar, Haverhill, MA, USA) and p-n junction luminescent particles were proportionally weighed and prepared into alcohol suspensions. The two suspensions were sonicated for 20 min, followed by the addition of the dopant to MgB₂. After sonication for more than 20 min, the mixture was transferred to a Petri dish. Subsequently, the Petri dish was placed in a vacuum oven at 60 °C for 4 h to obtain black powder. The obtained black powder was thoroughly ground in an agate mortar and pressed into cylindrical-block-shaped samples with a diameter of 11 mm and a thickness of 1.2 mm using a pressure of 14 MPa. The samples to be sintered were sealed in a small tantalum container. Heat treatment was carried out in a tube furnace under an ultra-high-purity argon atmosphere with the following specific procedure: heating to 850 °C (5 °C/min), holding for 10 min, then cooling to 650 °C (−5 °C/min), holding for 1 h, followed by cooling to room temperature, to obtain the corresponding samples.

2.2. Phase Identification of Samples

The phase identification of the samples was conducted using X-ray diffraction (XRD) with Cu Kα radiation (0.15406 nm) at 40 kV and 40 mA (Germany Bruker D8 Advance, Bruker, Bremen, Germany). Rietveld refinement was performed using Jade6 software to obtain phase fractions, lattice parameters, grain sizes, and other relevant lattice parameters. The microstructure of the samples was investigated using a field emission scanning electron microscope (SEM) (Verios G4, FEI, Hillsboro, OR, USA), and the elemental composition and distribution of the samples were examined using an X-ray energy spectrometer (EDS) analysis (Thermo NS7, ThermoFisher, Waltham, MA, USA). Superconducting characterization was performed using a comprehensive physical properties measurement system (PPMS) equipped with a vibrating sample magnetometer (VSM) (Cryogenic, CFMS-14T, London, UK). Magnetic hysteresis loops were measured as a function of the applied magnetic field (0–5 T) and temperature (20 K). The dimensions of the rectangular samples were approximately 2.5 × 3.5 × 1 mm. The critical current density (Jc) was calculated from the magnetic hysteresis loops using the Bean critical state model [23]. The Hall effect and specific heat measurements were conducted using the physical properties measurement system (PPMS).

3. Results and Discussion

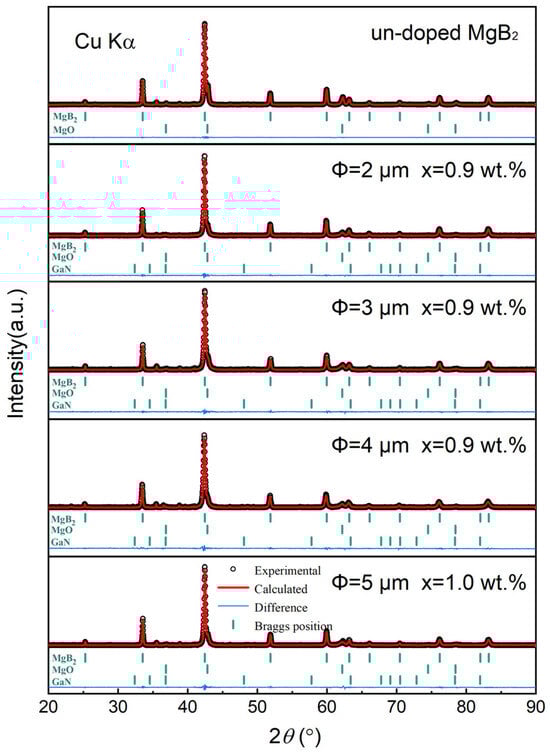

Figure 2 shows the refined X-ray diffraction (XRD) patterns of the pure MgB₂ sample and inhomogeneous-phases-added MgB₂ samples with different sizes of p-n junction particles. The XRD patterns reveal that the main peaks of the samples correspond to the MgB₂ phase, with minor amounts of MgO and GaN phases present. The specific contents are summarized in

Table 1. Lattice parameters, particle size, MgO content, and T_C of samples with different adding concentrations.

Sample	Dopant	Doping Concentration (wt.%)	a (Å)	c (Å)	MgO (%)
S1	2 μm	0.9	3.08533	3.52334	8.29
S2	3 μm	0.9	3.08528	3.52322	8.25
S3	4 μm	0.9	3.08530	3.52331	8.27
S4	5 μm	1.0	3.08527	3.52325	8.34
S5	None	0	3.08532	3.52317	8.13

. The pure MgB₂ sample contains 91.87% MgB₂ as the superconducting phase and 8.13% MgO as the sole impurity phase. After adding the inhomogeneous phases and sintering, there is little change in the volume fraction of MgO impurity. For all samples, the MgO phase mainly originates from MgO impurities in the MgB₂ raw materials and unavoidable oxidation during sample preparation. Therefore, the maximum change in the volume fraction of MgO among the four samples is only 0.16%. Additionally, Table 1 provides information on the lattice parameters of all samples. The lattice parameters of pure MgB₂ are a = 3.08532 Å and c = 3.52317 Å, which align well with the standard MgB₂ lattice data. When adding with inhomogeneous phase particles and sintering, there is no significant shift or change in the lattice parameters of the samples, and their XRD diffraction peaks do not exhibit any noticeable shifting trend. This indicates that our inhomogeneous phase particles are located between the MgB₂ particles, and there is no elemental substitution phenomenon to perturb the MgB₂ lattice, which is also confirmed by the absence of new peaks in the XRD diffraction pattern.

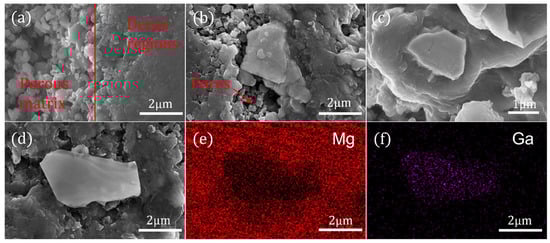

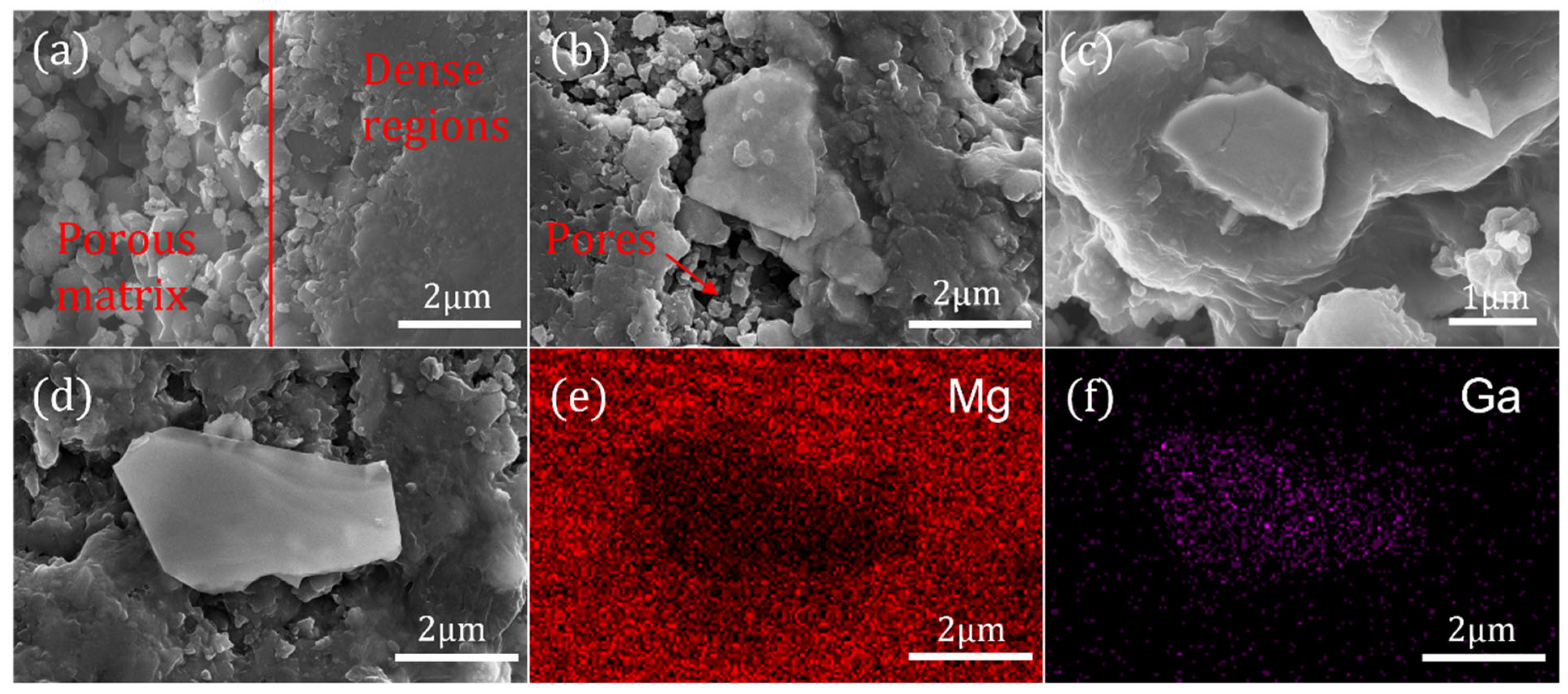

Figure 3 illustrates the SEM results of samples with and without the addition of a p-n junction electroluminescent inhomogeneous phase with different particle sizes. Figure 3a displays the microstructure of a typical solid-state sintered bulk MgB₂ sample. The left region represents a porous matrix, while the right region corresponds to the dense MgB₂ regions. It is observed that in the bulk MgB₂ sample obtained through solid-state sintering, there is a lack of neck formation and growth between the powder particles, resulting in a relatively high porosity, which is expected to compromise electrical connectivity and hinder macroscopic supercurrent flow. This is also why conventional sintering processes fail to achieve the theoretical transition temperature of 39 K for MgB₂. Figure 3b–d compare the microstructures of samples added with inhomogeneous phases of different particle sizes. It is evident that the inhomogeneous phase particles generally exist between the pores of MgB₂ particles and affect the neck growth of surrounding MgB₂ particles, leading to enlarged pre-existing pores and further deterioration of the purity and grain connectivity of the original MgB₂ phase. However, as the particle size of the inhomogeneous phase decreases, the detrimental effect on the connectivity of the MgB₂ phase diminishes. This is because smaller inhomogeneous phase particles can better embed into the porous MgB₂ matrix and even come into close contact with MgB₂ particles, collectively forming dense MgB₂ regions. As shown in Figure 3c, when using inhomogeneous phase particles with a particle size close to that of MgB₂ particles (2 μm), the MgB₂ matrix grows around the inhomogeneous phase particles to form dense regions. This significantly improves the connectivity within the superconducting sample while also reducing the defects, stresses, and dislocations introduced by the addition of second-phase particles. Figure 3e,f show the elemental scanning analysis of the region shown in Figure 3d. It is evident that the inhomogeneous phase particles exist independently in the MgB₂ matrix and form relatively large pores.

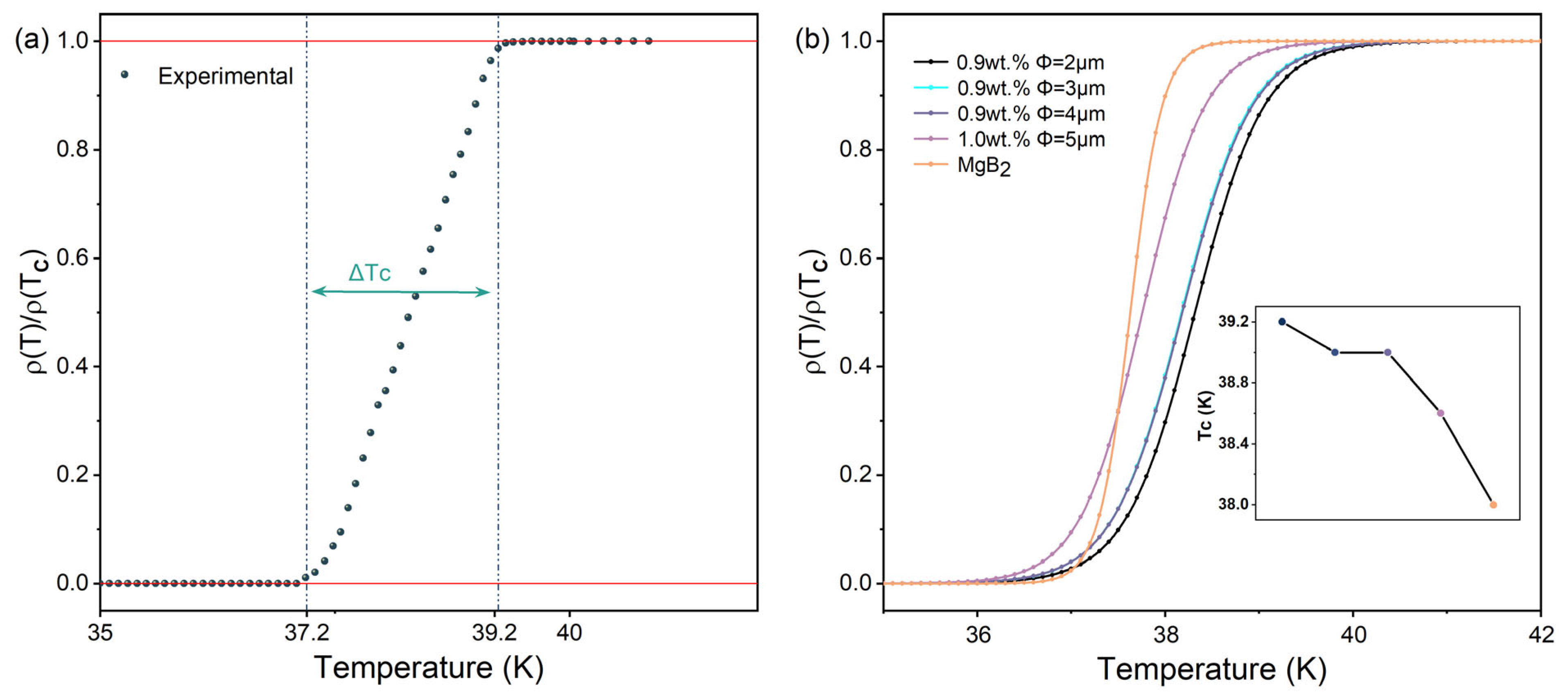

Figure 4 presents the normalized resistivity curves of all MgB₂ samples from 30 K to 50 K.

Table 2. The superconducting transition data of MgB₂ samples with inhomogeneous phase additions.

Sample	Dopant	Doping Concentration (wt.%)	TC (K)	ΔTC (K)	δTC (K)
S1	2 μm	0.9	39.2	1.8	1.2
S2	3 μm	0.9	39.0	1.8	1.0
S3	4 μm	0.9	39.0	1.6	1.0
S4	5 μm	1.0	38.6	1.6	0.6
S5	None	0	38.0	0.8	0

shows the superconducting transition data for all samples. In Figure 4b, the orange curve represents the normalized resistivity curve of the pure MgB₂ sample, indicating a sharp superconducting transition region, suggesting high crystallinity, low defect density, and low porosity in the pure MgB₂ samples. As the particle size of the inhomogeneous phases decreases, the superconducting transition width ΔT_C of our added samples gradually widens to 1.8 K. The superconducting transition region is sensitive to factors such as microstructural heterogeneity and impurities, indicating that the inhomogeneous phase addition in the experiment has distinct impurity phase properties, disrupting the uniformity of the original phase, increasing impurities, defects, stress, and dislocations inside the superconductor, thereby reducing the material’s “cleanliness” [24]. Combining SEM microstructural characterization, it can be inferred that the presence of inhomogeneous phase particles influences the growth of necks between MgB₂ grains, resulting in an increase in the porosity of the superconducting material matrix and hindering the macroscopic connectivity between MgB₂ grains. Additionally, the inhomogeneous phase particles, being nonsuperconducting materials, are widely distributed among the superconducting matrix, serving as additional scattering centers, thereby increasing electron scattering and impeding the macroscopic current transport in bulk samples. These factors contribute to the gradual broadening of the superconducting transition region in our samples with added luminescent particles. However, intriguingly, as the particle size of the inhomogeneous phases decreases from 5.0 μm to 2.0 μm, the critical transition temperature T_C of the added sample gradually increases, reaching a maximum of 39.2 K when using the 2 μm particle size inhomogeneous-phase-added sample, an increase of 1.2 K compared to the pure MgB₂ sample. At this point, the adding concentration remains unchanged, but as the size of the p-n junction nanostructure gradually decreases, the effective number of inhomogeneous phases particles increases exponentially. The uniform distribution of inhomogeneous phase particles in the sample allows the gain effect of the optical field energy to be evenly distributed around each particle of the MgB₂ matrix material, providing a better gain effect. Moreover, as the size of the inhomogeneous phase particles decreases, the formation of dense MgB₂ regions increases, and the porosity of the sample decreases. This results in a reduction in negative effects such as decreased crystallinity and weakened connectivity caused by impurity effects. Additionally, smaller defects lead to reduced electron scattering. Under the combined effect of the continuously enhanced gain effect brought by the inhomogeneous phases and the continuously reduced negative gain effect brought by impurity effects, the T_C of the sample is further increased.

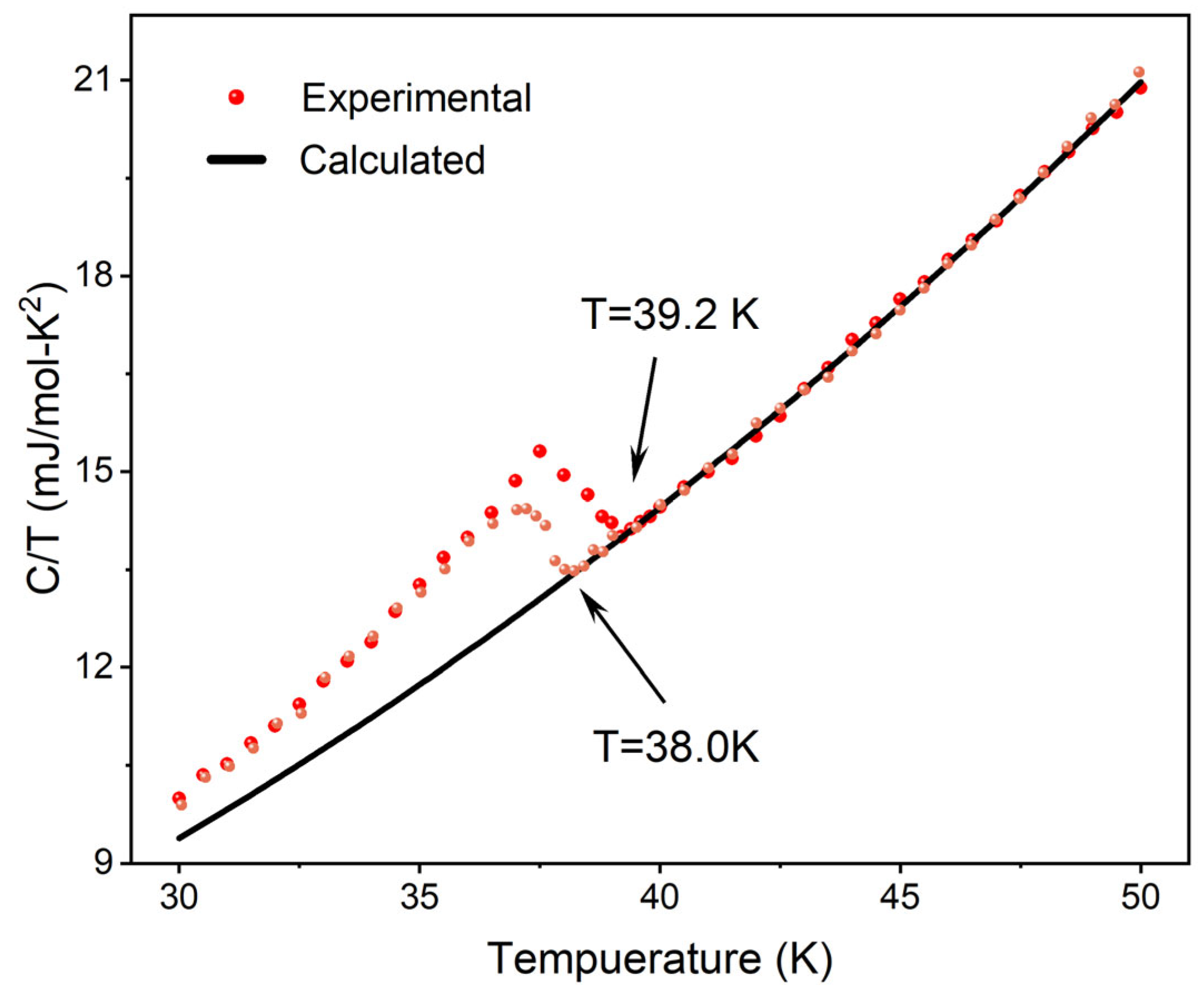

Specific heat is a significant thermodynamic quantity frequently employed in the study of superconducting materials to obtain information regarding electronic structure, lattice vibrations, and conduction transition properties [25,26]. By measuring the specific heat as a function of temperature for both the pure MgB₂ sample and those added with 2 μm-sized luminescent inhomogeneous phases under an applied magnetic field of 0 T, further exploration into the superconductivity of p-n junction electroluminescent-inhomogeneous-phase-added superconductors was conducted. Figure 5 illustrates the jump in specific heat data at T_C = 39.2 K for the inhomogeneous-phase-added samples and at T_C = 38.0 K for the pure MgB₂ sample, indicating the emergence of superconducting phenomena, consistent with resistivity measurement results and corroborated by other reports [27]. Regarding the specific heat data for MgB₂, our particular interest lies in the electronic specific heat portion. Therefore, when the temperature is significantly lower than the material’s Debye temperature, we employed the Debye relation to fit the experimental data, $C/T={\gamma }_n+\beta T^2$, where ${\gamma }_n$ is the Sommerfeld coefficient, and $\beta$ is the lattice constant. The fitting of the data yielded parameters $\gamma =2.8613\pm 0.094 \mathrm{m}\mathrm{J} {\mathrm{m}\mathrm{o}\mathrm{l}}^{-1} {\mathrm{K}}^{-2},\beta =0.00724\pm 4.714\times {10}^{-5} \mathrm{m}\mathrm{J} {\mathrm{m}\mathrm{o}\mathrm{l}}^{-1} {\mathrm{K}}^{-4}$. The lattice constant parameter $\beta$ can also provide information regarding phonons, allowing for the calculation of the Debye temperature ${\mathrm{\Theta }}_D$. By employing ${\mathrm{\Theta }}_D={\left(\frac{12{\pi }^{4}Nk}{5\beta }\right)}^{1/3}$, where N is the number of atoms per unit substance and k is the Boltzmann constant, the calculated value of ${\mathrm{\Theta }}_D$ is 930 K, consistent with data reported in the literature [28,29,30].

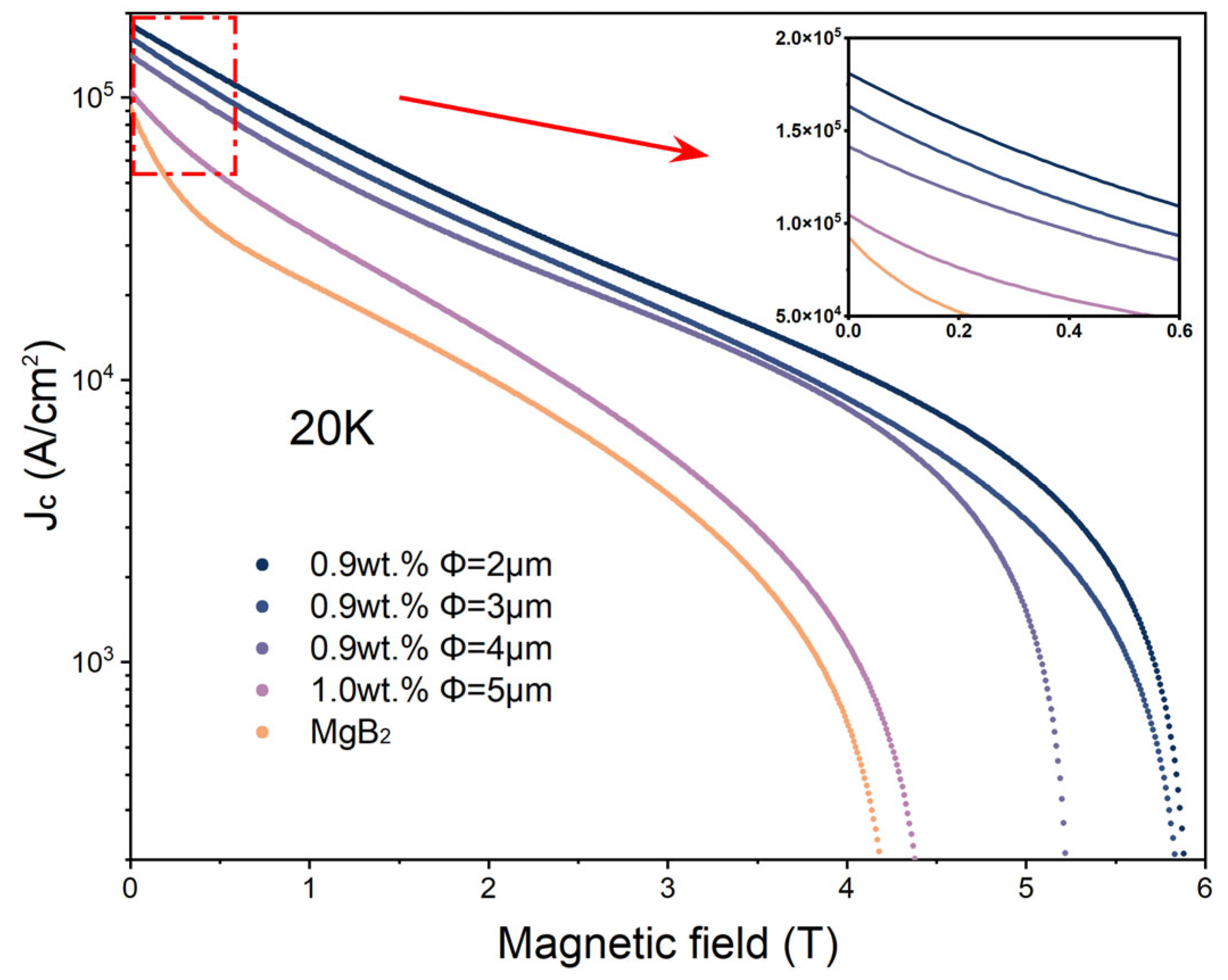

Figure 6 illustrates the variation in critical current density with a magnetic field for both the pristine MgB₂ sample and the p-n junction electroluminescence (EL)-inhomogeneous-phase-added sample. This curve is calculated using the Bean critical state model from the hysteresis loops obtained at 20 K [23]. The inhomogeneous-phase-added sample exhibits enhancement across the entire field range, with the 2 μm-inhomogeneous-phase-added sample demonstrating the most favorable performance. At zero applied magnetic field, the critical current density (J_C) of the pristine MgB₂ sample is 9.27 × 10⁴ A/cm², while the 2 μm-inhomogeneous-phase-added sample exhibits significantly improved J_C, approximately 1.81 × 10⁵ A/cm², representing a notable enhancement over the pristine sample. As the external magnetic field increases, the enhancement in critical current density due to inhomogeneous phase adding becomes increasingly pronounced. At 3 T magnetic field, the J_C values for the pristine MgB₂ sample and the 2 μm-inhomogeneous-phase-added sample are 3.93 × 10³ A/cm² and 2.08 × 10⁴ A/cm², respectively, differing by several orders of magnitude. The pristine MgB₂ samples experience a sharp decrease in J_C with increasing applied magnetic field due to the lack of effective pinning centers. In contrast, the addition of inhomogeneous phases can be regarded as the introduction of strong flux-pinning centers, effectively enhancing the upper critical magnetic field strength and the number of effective pinning centers of MgB₂, thus improving its current carrying capacity at high fields [31,32]. With the reduction in the size of the inhomogeneous phases, the added samples exhibit better flux-pinning capability and high-field performance. This indicates that the addition of inhomogeneous phases can effectively enhance the critical current density (J_C) of MgB₂ superconducting materials, and the smaller the size, the greater the number of accommodated inhomogeneous phases, resulting in a greater enhancement effect.

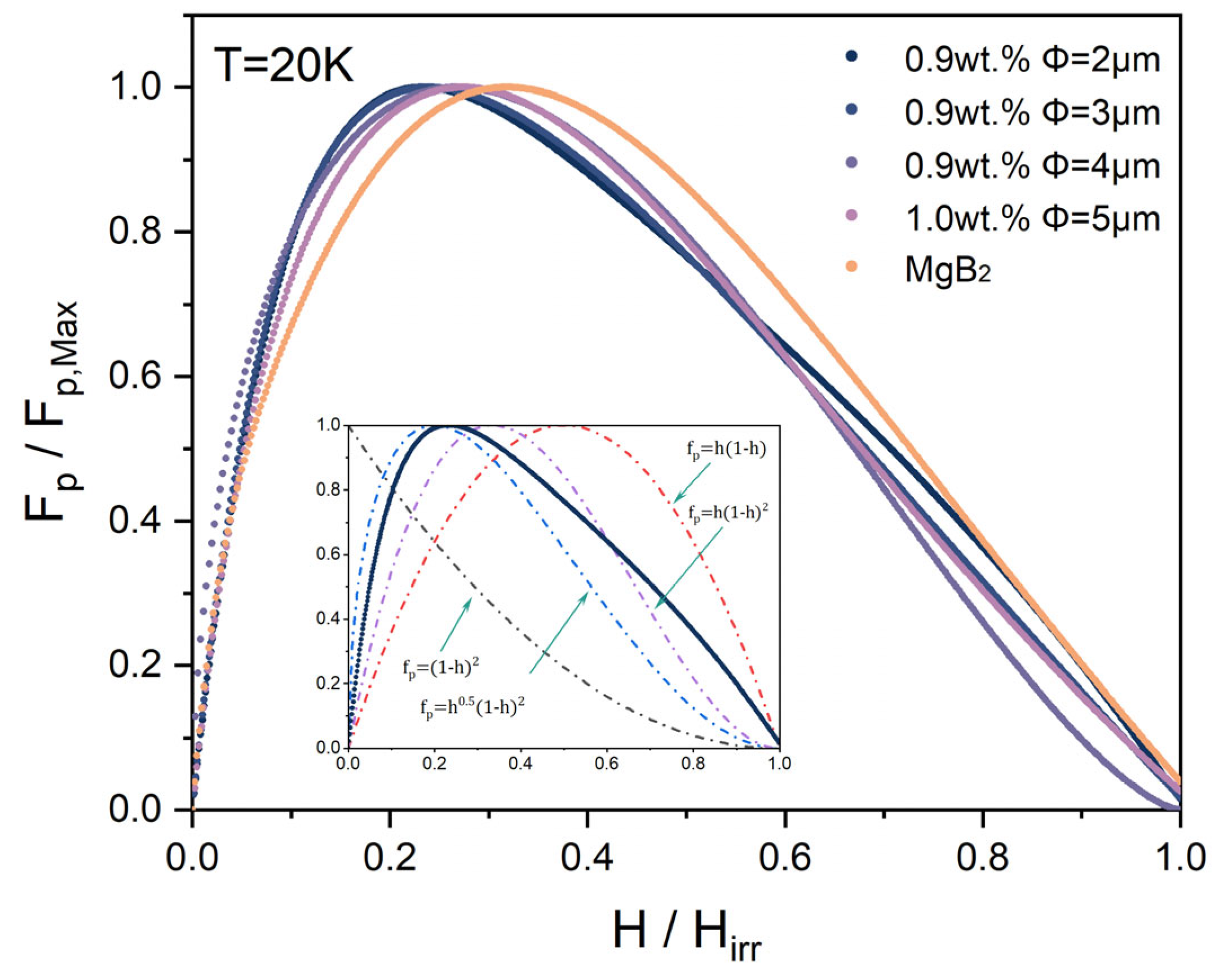

Figure 7 presents the normalized pinning force (F_p/F_p,max) as a function of field (h = H/H_irr) for both added and pure MgB₂ samples at 20 K. The inset in Figure 6 illustrates the scaling behavior of f_p using the Dew-Hughes model, where the solid line represents the normalized pinning force curve of our optimal sample, S1. To delve deeper into comprehending the pinning mechanism within the samples and to gauge the primary pinning centers, we adopted scaling functions introduced by Dew-Hughes, which are widely utilized for characterizing the pinning mechanisms observed in type-II superconducting bulk materials [33]. The pinning behavior can be dissected through an analysis of the normalized flux-pinning force density, denoted as f_p, defined as follows:

$$f_p=\frac{F_p}{F_{p,max}}=h^p{\left(1-h\right)}^q$$

where h = H/H_irr, with H_irr, typically considered as the magnetic field at which J_C equals 100 A cm⁻² [34,35,36], and p and q are parameters linked to the nature of the pinning sites (point, surface, or volume) and whether they are superconducting ($∆\kappa$ pinning) or nonsuperconducting (normal pinning). According to this model, pinning centers can be classified by comparing the size of the pinning with the flux line spacing d. The peak pinning force of the pure MgB₂ sample occurs at h ≈ 0.3, indicating that the primary pinning centers of the pure MgB₂ sample at low fields are composed of nanoscale defects or second phases (such as MgO, d = 50 nm) [35,36,37]. Throughout the entire magnetic field range, as the size of the p-n junction electroluminescence inhomogeneous phase adding decreases gradually, the maximum pinning force F_p position of the sample shifts towards h = 0.2. This is due to the additional contribution of normal and point defect pinning (f_p = h(1 − h)²) to the surface pinning of the nonsuperconducting phase, attributed to the structural defects generated by the electroluminescent inhomogeneous phase adding in the MgB₂ matrix. Some of the defects and impurity phases act as pinning centers, resulting in an increase in the H_irr value of the irreversible field of MgB₂. In addition, the addition of inhomogeneous phases leads to enhanced electron scattering and an increase in the upper critical magnetic field (H_C2) of MgB₂, which improves the J_C performance of MgB₂ at high fields.

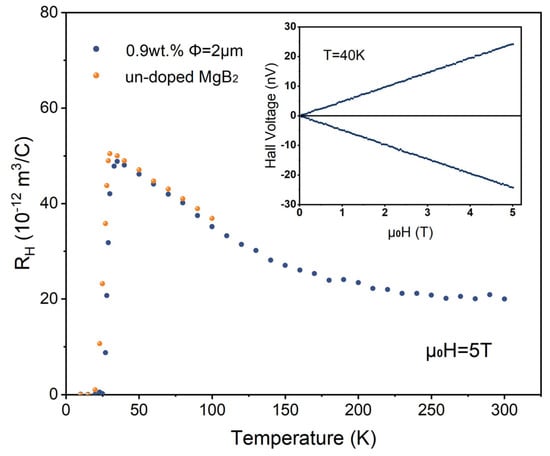

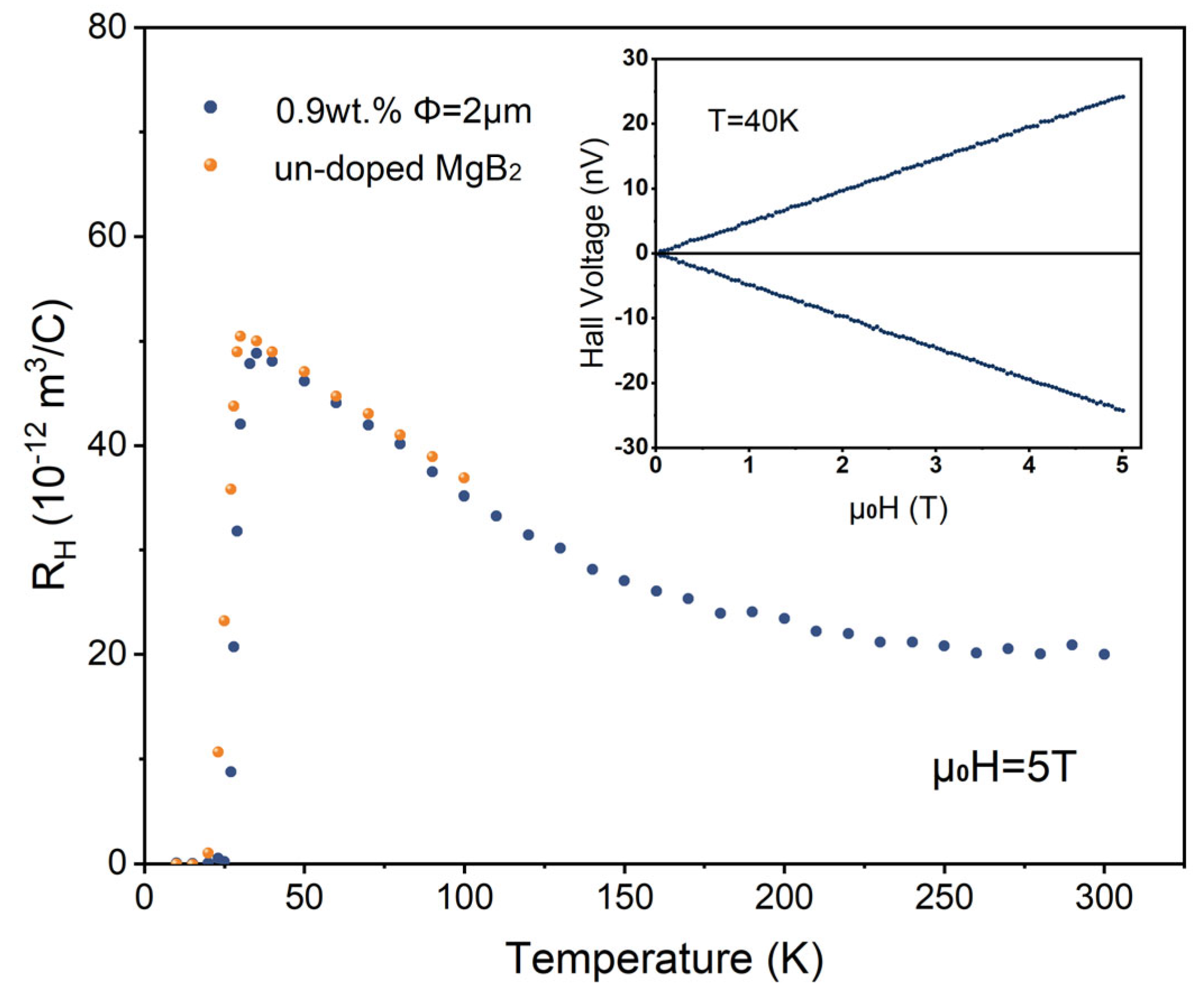

The temperature dependence of the Hall coefficient for both the pure MgB₂ sample and 0.9 wt.% 2 μm-inhomogeneous-phase-added samples is shown in Figure 8. The two curves in the inset represent the Hall voltage measured for the 0.9 wt.% 2 μm-inhomogeneous-phase-added sample under a reverse magnetic field of up to 5 T at 40 K. The apparent symmetry and linearity of the curves indicate good alignment of the Hall electrodes, ensuring the reliability of our measurements. It can be observed that within the temperature measurement range, the Hall coefficients of the samples are all positive, and as the temperature decreases towards T_C, the Hall coefficient continuously increases; especially after the temperature drops below 150 K, the rate of increase significantly accelerates. This suggests that the scattering rates of the two bands in the MgB₂ sample have different temperature dependencies, resulting in a pronounced temperature dependence of its R_H. At 40 K, the Hall coefficient for the pure MgB₂ sample is R_H = 4.62 × 10⁻¹¹ m³/C, with a hole carrier density of 1.35 × 10²³ cm⁻³, indicating that MgB₂ is a metallic superconductor, and the average value of R_H is consistent with previous experimental reports [38,39]. A sharp step-like transition in the Hall coefficient can be observed when the temperature is below T_C. The Hall coefficient of the added sample also exhibits strong temperature dependence, which is generally consistent with the trend of the pure MgB₂ sample. Compared to the pure MgB₂ sample, the sharp transition in the Hall coefficient of the added sample near T_C occurs earlier, indicating the earlier entry into the superconducting state of the added sample. Its Hall coefficient slightly decreases, which may be related to the slight increase in carrier concentration introduced by the introduction of the inhomogeneous phase.

4. Conclusions

In this study, we investigated the impact mechanism of electroluminescent inhomogeneous phase adding on the performance of MgB₂ samples at the microscale. Through microstructural characterization and measurements of charge carrier transport properties, we emphasized the characteristic of independent existence and operation of electroluminescent inhomogeneous phases in SMSCs structures. The experimental results demonstrate that electroluminescent inhomogeneous phase adding can effectively improve the critical temperature (T_C), critical current (J_C), and irreversibility field (H_irr) properties of superconducting materials. The addition of luminescent particles can be regarded as the introduction of strong flux-pinning centers, enhancing the upper critical magnetic field strength and the effective number of pinning centers in MgB₂. Moreover, optimizing the size of the inhomogeneous phase can improve the grain connectivity within the material and reduce electron scattering, thereby achieving better performance enhancements. When determining the optimal size and content of inhomogeneous phases, a compromise should be made between introducing second-phase particles as pinning centers to enhance the intrinsic J_C and the adverse effects on grain connectivity. Using 2 μm 0.9 wt.% electroluminescent-inhomogeneous-phase-added MgB₂ achieved the best performance improvement, with T_C increased by 1.2 K, a maximum enhancement of 1.8 times in maximum pinning performance at 20 K, and achieving a maximum critical current density of 1.81 × 10⁵ A/cm² under self-field. Sufficiently large critical current densities are maintained at high magnetic fields of 4 T. Compared to chemical adding methods that only increase critical current density, this approach offers significant advantages. This method of enhancing superconductivity through the electroluminescent effect of luminescent particles provides a new avenue for exploring superconductor modification.
