Review

Inorganic Hybrid Materials with Encapsulated Polyoxometalates

by
Véronique Dufaud
1,* and
Frédéric Lefebvre
2,*
1
Laboratoire de Chimie, Université de Lyon, UMR 5182 CNRS-ENS Lyon, 46 Allée d'Italie, F-69364 Lyon cedex 07, France
2
Laboratoire de Chimie, Catalyse, Polymères et Procédés, Université de Lyon, UMR 5265 CNRS-CPE Lyon, 43 bd du 11 Novembre 1918, 69622 Villeurbanne cedex, France
*
Authors to whom correspondence should be addressed.
Materials 2010, 3(1), 682-703; https://doi.org/10.3390/ma3010682
Submission received: 16 December 2009 / Revised: 19 January 2010 / Accepted: 22 January 2010 / Published: 25 January 2010
(This article belongs to the Special Issue Polyoxometalate Compounds)
Browse Figures
Versions Notes

Abstract

:
This review describes the synthesis and characterization of inorganic materials containing polyoxometalates encapsulated in oxide matrices. Examples illustrating key aspects in terms of synthesis and applications are presented according to the nature of the final hybrid material: those based on non-structured silicas, on mesostructured silicas, on macrostructured silicas and on other oxides. In each part, key points of the synthetic protocols are highlighted and structural features and properties of the resultant hybrid nanocomposites are discussed.

1. Introduction

Polyoxometalates (POMs) are a class of molecularly defined inorganic metal-oxide clusters formed from early transition metals (V, Nb, Ta, Mo, W) in their highest oxidation states [1]. Initially, studies were purely fundamental, without any practical applications in mind, but more recently numerous applications have appeared. POMs are attractive compounds due to their molecular and electronic structural diversity. Applications have been reported in diverse domains including medicine, material science, photochemistry or catalysis [2,3,4,5]. In catalysis, polyoxometalate compounds have been extensively used as acid and oxidation catalysts in many reactions, notably because their acid-base and redox properties can be tuned by simply changing the polyanion chemical composition. Unfortunately, these compounds are highly soluble in various polar solvents which renders them less attractive for applications in heterogeneous catalysis as their use with polar molecules will result in non-negligible leaching and thus deactivation of the catalytic system.
Porous oxidic materials constitute an interesting class of solids widely used for applications in the fields of material science, adsorption and catalysis, due notably to their rigidity, thermal stability and regular, adjustable nanosized porous structure. In particular, porous materials with high surface area and regular geometry represent suitable supports for the immobilization of catalytically relevant species. Two major strategies have been described in the literature to achieve immobilization of POMs onto porous oxides: i) post-synthetic procedures involving the modification of the inner surface of a pre-formed oxide; the functionalization is, in this case, usually carried out by using the incipient wetness technique (also referred to as impregnation); ii) direct synthesis (also referred to as one-pot synthesis) implying the co-incorporation of an oxide precursor together with POM clusters using a sol-gel technique. The conventional post-synthesis impregnation method is undoubtedly the simplest route to access functionalized materials, but it suffers from several drawbacks including difficulty in achieving high POMs loading without significant decrease in surface area and ordering, loss of the initial high dispersity of supported POM units via leaching, and loss of homogeneity due to minor changes in the structure. All of these lead to reduced activity or stability of the immobilized POMs. On the contrary, the preparation of POM-oxide materials via direct synthesis leads to materials with larger pore sizes without pore blockage and more stable and uniform distribution of the active phase in the solid which in turn can enhance the performance of the resulting nanocomposites. In this review, we chose to focus on the main synthesis methodologies to entrap POMs clusters inside porous oxide frameworks with an emphasis on silica-based oxides. Our purpose is not to provide an exhaustive catalogue of all the works in this domain, but rather to illustrate through representative examples different applications. A common aspect of all the syntheses is the use of the sol-gel approach which can be combined with different supramolecular templating techniques (Figure 1). The review is organized into four parts based on the nature of the final hybrid material: those based on non-structured silicas, on mesostructured silicas, on macrostructured silicas and on other oxides. In each part, we will present the key points of the synthetic protocols and discuss the structural features and properties of the different types of hybrid nanocomposites obtained. We conclude with an example where the POM is integrated with both organic and inorganic matrices in the sophisticated synthesis of metal nanoparticules, mirroring the broader current trend in catalyst design toward nanometric or molecular scale structural control of active sites and their surroundings.
Materials 03 00682 g001 1024

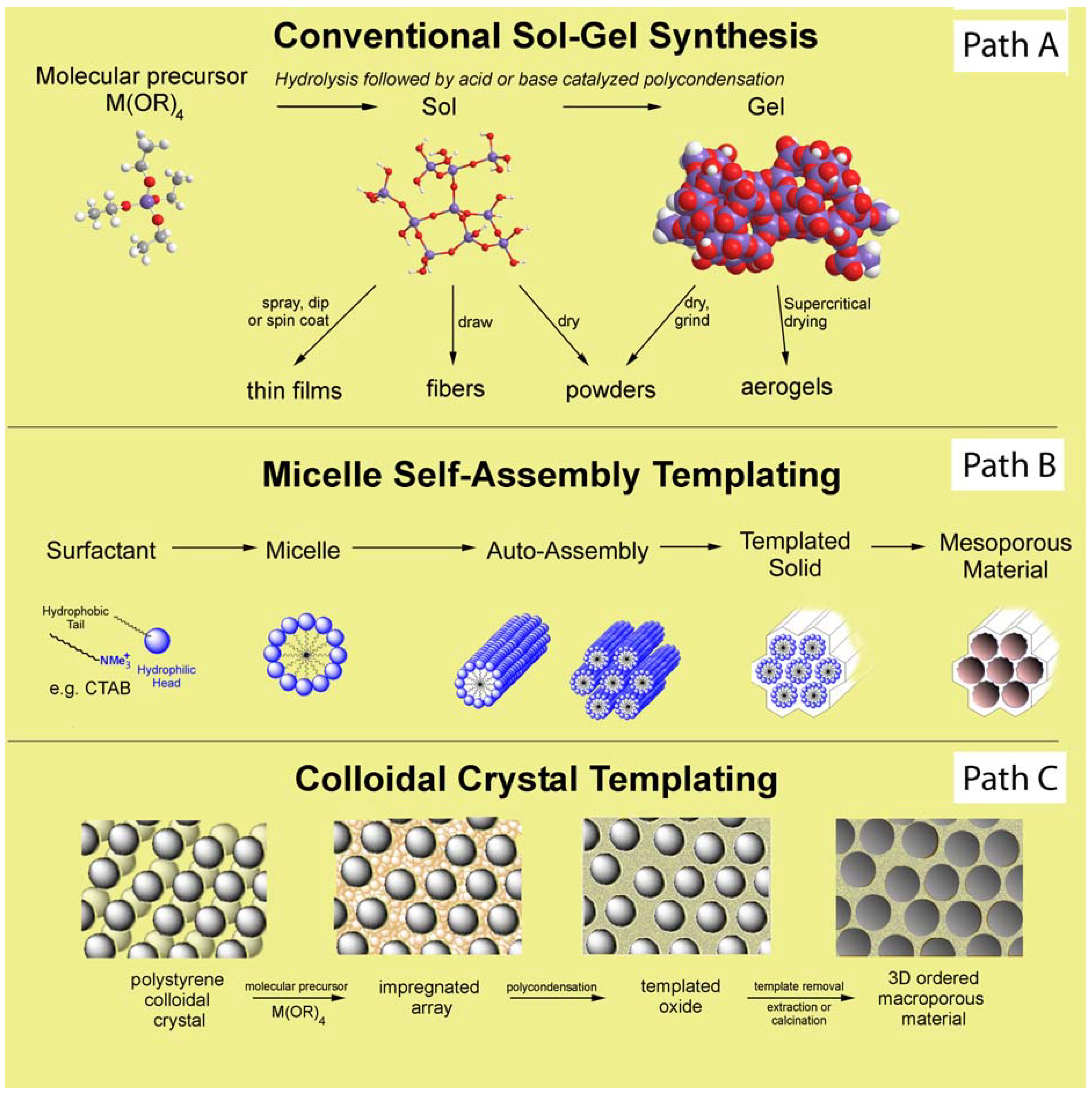

Figure 1. Common pathways to porous inorganic materials: (a) Conventional sol-gel route (b) Micelle self-assembly templating (c) Colloidal crystal templating.
Figure 1. Common pathways to porous inorganic materials: (a) Conventional sol-gel route (b) Micelle self-assembly templating (c) Colloidal crystal templating.
Materials 03 00682 g001

2. Non-Structured Silica Based Materials

The sol-gel technique is a method of choice for synthesizing porous silica-based materials. This soft inorganic chemistry process consists in inorganic polymerization of silica precursors (silicon alkoxides or silicates) in aqueous or alcoholic solutions giving rise to highly cross-linked solids (Figure 1, path A). This mild solid synthesis can be carried out over an extremely wide range of experimental conditions which in turn will govern the characteristics of the resulting material: for example cross-link density, porosity and homogeneity of the functional sites will depend on the pH of the solution, the method of solvent removal, the type of catalysis applied for the polycondensation reaction (acidic, basic, nucleophilic). In general, POMs containing silica composites were prepared by hydrolysis of tetraethyl orthosilicate (TEOS) in the presence of POM-ion at acidic pH, pH~2.0, which may be adjusted to avoid the decomposition of the POM moiety. POM-ion was entrapped into the silica network during TEOS polycondensation. Although this approach seems to be straightforward, subtle changes in the synthetic protocols may have a profound influence on the resulting material properties and thus considerable effort has been devoted to optimizing syntheses.
The pioneering studies in this field started with the attempts of Izumi et al. to render the acidic cesium salt of the Keggin-type, Cs2.5H0.5PW12O40, more separable from highly polar reaction media by entrapping it into a silica matrix. Although insoluble, bulk Cs2.5H0.5PW12O40, which is characterized by very fine crystal particles (average diameter ca. 10 nm), had the disadvantage to form a colloidal solution in water or alcohol, inseparable by filtration [6]. The preparative method for POM inclusion involved the hydrolysis of TEOS in the presence of Cs2.5H0.5PW12O40 dispersed in ethanol. No additional acid catalyst was added to the reaction mixture since Cs2.5H0.5PW12O40, by its own acidity, was able to promote the hydrolysis and polycondensation of TEOS. The obtained hydrogel was dried under vacuum and then submitted to successive water extraction and calcination steps. The influence of different parameters on the success of the encapsulation was studied in detail. Notably, it was found that a high silica content was necessary to reduce the leaching of the Cs salt and that a silica/POMs ratio of 8 led to a material which could be used as a catalyst for the hydrolysis of ethyl acetate, recovered, and reused for four cycles without deactivation. This method was successfully extended to the inclusion of the corresponding free acid, H3PW12O40, using similar synthetic conditions (the order of the extraction-calcination steps was inverted). Both silica-included heteropoly compounds were porous materials with relatively large surface area (300–550 m2g-1) presenting meso- (Cs2.5H0.5PW12O40) and micropores (H3PW12O40), the difference observed in the pore diameter coming likely from the molecular size of the heteropolyanion (10 nm versus 1 nm for respectively Cs2.5H0.5PW12O40 and H3PW12O40). Inclusion of other POMs such as H3PMo12O40, H4SiW12O40 and H3PW6Mo6O40 was reported to fail, these acids being leached from the silica matrix during the inclusion process but no explanation was put forward [7]. The scope of the silica-included H3PW12O40 in other acid-catalyzed reactions was further studied by Izumi et al. [8]. In general, the silica composite exhibited higher thermal stability than acidic ion-exchange resins and was found to be an efficient acid catalyst for liquid phase esterification and isobutene hydration with turnover frequencies larger than those of Amberlyst-15 and H-ZSM-5. Shape selectivity was also showed in the acid-catalyzed alkylation of phenol with formaldehyde giving a higher yield of the less hindered 4,4’-dihydroxydiphenylmethane isomer [8]. In 2002, Kukovecz et al., as a continuation of the pioneering work of Izumi, undertook a comprehensive study by examining the effect of H3PW12O40 loading on the acidity of both sol-gel encapsulated and impregnated materials using pyridine adsorption, NH3-TPD (Temperature Programmed Desorption) and isomerization of 1-butene as a model reaction [9]. Although the acidic properties of the impregnated catalysts were superior to their sol–gel analogues, the latter exhibited higher stability. In particular, in 1-butene isomerization, the catalytic activity of encapsulated H3PW12O40, albeit initially lower than that of the supported materials, did not decrease significantly after the catalyst had been washed in water–alcohol solution whereas the activity of the impregnated solids dropped dramatically. This phenomenon was attributed to the dissolution of the POM in these polar solvents, as evidenced by the absence of the Keggin anion in the infrared spectra of the used catalyst. Microporous polyoxometalate based silica materials containing various amounts of H3PW12O40 and H4SiW12O40 were tested as photocatalysts in the degradation of aqueous organochlorine pesticides [10]. The materials were prepared following the synthetic and improved methods described by Izumi [6,8]. By irradiating the catalytic system with energy in the near-UV region, trace aqueous organocholorine pesticides were totally degraded and mineralized into CO2 and HCl under mild conditions. The photocatalytic activities of POMs were greatly improved when the POMs were entrapped by the silica matrix. However, in some cases leaching was observed during the course of the irradiation as evidenced by the appearance of a blue colour of the suspension coming from the reduced form of PW12O403- (also named heteropolyblue). As in the Izumi report [6], the authors obtained better results using a high weight ratio silica/POM (18.2 for H3PW12O40 and 32.2 for H4SiW12O40) to ensure a better inclusion and suppress the release of the Keggin anion yielding catalytic systems which could be reused 8 times without losing their initial activity. The authors commented on the integrity of the Keggin anion and the interactions between the POM and the silica network based on their DR-UV and FT-IR spectroscopic results. They stated that infrared absorbances characteristic of POMs in the hybrid, compared to the parent POMs, indicated the primary structure of the POM has been retained and that a strong chemical interaction exists between the POM and the silica surface. In the acidic synthesis conditions the silanol groups would be protonated and act as a counterion for the polyanion leading to the generation of species such as (≡Si-OH2+)(H2PW12O40-) or (≡Si-OH2+)(H3SiW12O40-). Thus, the reaction of the polyanion with SiO2 may be better described as a true acid-base reaction between the silanol groups (acting as the base) and the polyanion (acting as a Brønsted acid), accounting for the stabilization effect of the silica framework, rather than a simple ion exchange reaction. Similar chemical interactions were reported to occur during the formation of microporous decatungstates between M4W10O32 (M = Na+, nBu4N+) molecules and the silica network yielding (≡Si-OH2+)(M3W10O32-) surface species [11]. On the other hand, Thouvenot [12] and Lefebvre [13], respectively, for H4SiMo12O40 and H3PW12O40 supported on silica via impregnation methods, also proved such interactions through 29Si- and 31P MAS-NMR experiments.
In general, the encapsulation of POM clusters inside the silica framework leads to hybrid composites which exhibit higher performances over their supported counterparts in terms of activity, selectivity but also recycling efficiency [6,10,11]. More importantly, leaching of the immobilized POM clusters has been reduced, if never completely suppressed, during the catalytic processes. Owing to their molecular and electronic structural diversity and for practical applications, and indeed to the simplicity of their preparation, studies dealing with the inclusion of polyoxometalates into silica matrix continue to appear regularly [14,15]. Among many applications one can cite the environmentally friendly photo-degradation of organophosphorus pesticides by encapsulated decatungstates [11], the gasochromic sensing activity of hybrid silica material containing phosphomolybdic acid for H2S and SO2 gases at room temperature [16], the luminescent properties of materials containing heteropolyoxometalates of the type K13[Eu(SiMoxW11-xO39)2] incorporated into organically modified xerogel matrices [17] and the catalytic methoxylation of α-pinene catalyzed by molybdophosphoric and tungstosilicic acids immobilized on silica [15].
However, due to the relatively small size of their pores (<2 nm), these hybrid materials may suffer from similar diffusional problems as zeolites for applications involving larger substrates. Therefore, to extend the scope of POM heterogeneous catalysis, the development of new routes to solid POMs with larger pore sizes and higher surface areas is of primary importance.

3. Mesostructured Silica Based Materials

A new class of mesoporous silicates and aluminosilicates, called M41S, has been developed by a research group at Mobil Oil by combining the sol-gel processing with supramolecular templating agents [18,19,20,21]. These silica-based materials, structured at the mesoscopic level, were synthesized by introducing in the hydrothermal sol-gel synthesis entities able to self-assemble (surfactant) (Figure 1, path B). The existence of an attractive interaction between the template and the silica precursor is necessary to ensure inclusion of the structure directing agent (SDA) without phase separation. These materials are characterized by very large specific surface areas and tunable ordered pore systems with narrow pore size distributions. Surfactant-templated ordered mesostructured materials like MCM-41, MCM-48, and SBA-15 are known to be excellent supports for the dispersion of POMs. However, leaching of POMs from the surface or migration to aggregate on the outer surface of the support as larger clusters usually occurred when water was formed as a side-product in the reaction (i.e., esterification reactions) or in applications using polar solvents. Since no strong linkage exists between the POMs and the silica surface via the impregnation route, the widespread use of the modified hybrid materials remains still limited for industrial applications. To avoid these problems, new synthetic routes have been reported for the immobilization of polyoxometalates by stronger chemical bonding through organic modification of mesoporous silica. For example, H6PMo9V3O40 was immobilized inside the channels of MCM-41 which had been modified by amine functional groups: in this case the POM was held through an ionic bond (anion, ammonium) [22]. Transition-metal substituted polyoxometalates of the type [MII(H2O)PW11O39]5- (M = Co, Zn), have also been chemically anchored to aminopropyl modified silica surfaces through dative bonding [23].
Another approach to stabilize the POM into the silica host matrix is to encapsulate it during the formation of the ordered silica mesostructure. This promising route has been recently described by different authors to yield well-dispersed and stabilized POM clusters containing nanocomposites [24,25,26,27,28,29,30,31,32,34,35,36,37]. The incorporation of bulky POM clusters during the gel formation may lead to substantial modifications of the resulting supramolecular assemblies giving rise to more disordered hybrid solids. Recall that the mild conditions used in sol-gel chemistry afford systems mostly under kinetic control and that slight changes of experimental parameters may have a profound influence on the morphology, structure and properties of the resulting solids.
Here, we will discuss the variations of the synthetic procedures to encapsulate POMs into organized mesoporous silicas and discuss the key factors which are necessary to take care of to preserve structural integrity of the POM and textural properties of the support upon site inclusion. In Table 1, we have summarized the principle experimental conditions and characteristics of the obtained materials reported to date. Although the synthesis of ordered mesoporous silica materials can be achieved over a wide range of experimental conditions, the inclusion of POMs limits the possibilities. Notably, one cannot use syntheses in alkaline medium and/or involving cationic alkylammonium halide templates because POMs are usually unstable at basic pH and the ammonium POM salt is insoluble in water (leading to precipitation and hence poor dispersion of the active phase).
Table
Table 1. Major synthetic routes to mesostructured silica based materials containing entrapped POMs.
Table 1. Major synthetic routes to mesostructured silica based materials containing entrapped POMs.
Polyoxo-metalateOther functionStructure directing agentType of mesostructured silicaType of bondingTemplate removal techniqueRefer-ence
H3PW12O40 CTAB + Triton (TX-100)MSUElectrostatic bondCalcination[24,25,26]
H3PW12O40H2PtCl6.6H2O(a)CTAB + Triton (TX-100)MSUElectrostatic bondCalcination[27]
H3PW12O40 MTMABrSBA-3Electrostatic bondCalcination[28]
H3PW12O40 Pluronic 123SBA-15Electrostatic bondCalcination[29,30,32]
H3PW12O40
H3PMo12O40		 CTAB + Pluronic 123SBA-15Electrostatic bondSubsequent calcination & extraction[31]
H3PW12O40[Pt(NH3)4]Cl2(b)Pluronic 123SBA-15Electrostatic bondCalcination[34]
Na2HPO4 + Na2WO4 Pluronic 123SBA-15Electrostatic bondExtraction[35]
K8SiW11O39
(R4N)8SiW11O39		 Pluronic 123SBA-15Covalent bondExtraction[37]
(a) Introduced simultaneously with H3PW12O40. (b) Introduced post-synthetically by impregnation.

3.1. MSU-type Mesoporous Material

In several reports, Toufaily et al. [24,25,26] studied the direct incorporation of Keggin-type H3PW12O40 into organized silica molecular sieves based on the association of two surfactants: a non-ionic one (S0), polyethyleneglycol-4-tert-octylphenylether (Triton X-100), and an ionic one (S+), cetyltrimethylammonium bromide (CTAB). The effects of several synthetic parameters on the structure of the mesoporous solid were examined (pH of the blend, POM loading, molar ratio S0/ S+). Stabilized materials with high loading and intact Keggin anion, albeit exhibiting poor long range ordering, were obtained by restricting the pH domain to 4–6 and by using an additional cationic surfactant together with non-ionic Triton X-100. Extraction performed on incorporated and impregnated materials showed that H3PW12O40 was still maintained in the solid prepared by direct synthesis whereas complete leaching was noticed for impregnated solid [25]. The authors attributed the stabilization effect of silica to interactions of the type (≡Si)m+(H3-mPW12O40)m- as shown below:
H3PW12O40 + m(≡Si-OH) ➔ (≡Si)m+(H3-mPW12O40)m- + H2O (with m = 1–3)
Further insights concerning the location of POM entities in the hybrid solid were obtained from 31P MAS-NMR studies leading to an estimation of the mobility of the POM clusters (via the measurement of spin–lattice relaxation times, T1) [24]. The samples prepared by direct incorporation exhibited a T1 30 times higher than that of the species prepared by impregnation which suggests a weaker mobility of the POM units and demonstrates that they are likely located in the walls.
The role of the cationic surfactant was investigated in the synthesis of functionalized MSU-type mesoporous silica which was carried out in an acidic medium in the presence of H3PW12O40 [26]. The ordering of the inorganic lattice was mediated by either a mixture of non-ionic (S0) and cationic (S+) surfactants (TX100/CTAB) or by only a non-ionic one (Tween 60 and Tergitol 15-S-12). Fluorine anions were used as catalysts to accelerate the polycondensation of silica and improve structural ordering of the material. In general, the calcined POM materials exhibited poor mesoscopic order with no long-range periodicity likely due to the wormhole structure of MSU type solids. Where the non-ionic surfactants were employed, the authors attributed the inclusion of H3PW12O40 to the acidic protonation of the ethoxy groups of the polyoxyethylene alkyl ether surfactant whereas for mixed micellar systems, the incorporation has been ascribed to interactions with the cationic co-surfactant. Increasing the electrostatic interactions (increasing S+ concentration) gave rise to a more highly organized material.
Based on this work, Hamad et al. prepared dual functionalized materials via direct incorporation of H3PW12O40 and H2PtCl6·6H2O at various ratios into MSU-type materials using the same CTAB/TX100 mixed micellar system [27]. The presence of different POM local structures was evidenced by the presence of several peaks in solid-state 31P-NMR. They observed not only H3PW12O40, which may or may not be involved in a weak interaction with the silica surface, but also mixed Pt/POM complexes of the type [PW11O39Pt] or [PW11O39Pt–O–PtPW11O39] which would arise from the reaction between Pt and lacunary (PW11O39)7−. The catalytic activity of the calcined Pt/POM silica mesoporous solids for NOx reduction showed that optimal activity (up to 97%) was obtained with a catalytic system characterized by low Pt loading (0.5 wt %) and a moderate amount of H3PW12O40 (~ 15%), and in the temperature range 225–250 °C and for a large oxygen concentration (0.5–10 vol %). Under identical reaction conditions, only moderate conversion was achieved for the monofunctionalized solids H3PW12O40/MSU and Pt/MSU.

3.2. SBA-3-Type Mesoporous Materials

In 2003, Nowińska et al. described the synthesis of SBA-3 type silica by direct incorporation of H3PW12O40 and H5PMo10V2O40 POM clusters under acidic pH and in the presence of meristyltrimethylammoniun bromide (MTMABr) as unique structure directing agent [28]. Compared to plain SBA-3, a slight excess of MTMABr was introduced in the gel to prevent the neutralization of all template by H3PW12O40 or H5PMo10V2O40. Modified solids with proper mesostructures could be obtained with up to 20 wt % of POM in the system, using calcination as the template removal method. Accessibility and acidity of the POM sites were confirmed by their activity for cumene cracking reaction which was similar to that reported for impregnated analogue solids. The authors reported on the stability, or rather the instability, of the materials with respect to alcohols (leaching again being a major problem) and drew interesting conclusions about the localization of POM inclusion based on the comparison of the stability of their hybrid materials with that of simply impregnated mesoporous silicas. Leaching of the POM by polar molecules (alcohol, water) was complete in all cases, but, significantly, in the case of the authors’ hybrid material, this leaching led to the collapse of the mesostructure. In the case of impregnated materials, the silica structure was unaffected. Clearly, the POM plays a role in the structural integrity of Nowińska’s hybrid, and the authors suggest that this indicates that the Keggin units in these materials were mainly located in the walls.

3.3. SBA-15-Type Mesoporous Materials

The loss of mesoporous ordering and poor stability of SBA-3 type materials could stem from the thin wall thickness intrinsic to the nature of the template and assembly pathway. On the other hand, SBA-15 mesoporous silica is well-suited as a support for immobilizing functional groups. Its large, uniform pore diameter (~ 6 nm) provides ample room for reactant and product diffusion, and its thick walls (50–60 Å for SBA-15 versus 15 Å for SBA-3 silica) provide hydrothermal stability. In addition, the acidic conditions of the synthesis should be a key factor to maintain the integrity of the primary structure of the included POMs. Many reports have recently appeared of SBA-15 synthesis protocols to incorporate POM clusters into the silica framework. These studies vary both in terms of the nature of the POM introduced, the order of the introduction of the different components (template/POM/TEOS) and the nature of the interactions (covalent or electrostatic) between POM and the inorganic network. All these aspects will be illustrated by a few examples. The preparation of mesoporous SBA-15 type silica containing 12-phosphotungstic acid has been reported by different groups [29−32]. The basic synthetic procedure involves the hydrolysis and condensation of TEOS in acidic medium in the presence of H3PW12O40 and a non ionic triblock copolymer as the template, Pluronic 123 (EO20PO70EO20 with EO, ethylene oxide and PO, propylene oxide). Some variations of the classical preparation were described leading to materials with quite different properties in term of morphologies, structural and textural order, loading and hydrothermal stability. For example, some have mentioned a prehydrolysis of TEOS (the length of time varying between 30 min to 20 hours) in the presence of Pluronic 123 before adding H3PW12O40 as a key synthetic variation [29,31], while others proceeded by simultaneous hydrolysis and condensation of TEOS with H3PW12O40 in the presence of the template [32]. Dufaud and co-workers [31] also used a mixture of structure directing agents (CTAB and Pluronic 123), the idea being that mixed micelles with ionic surfactants is an easy way to change the surface charge distribution (at the surface of the micelle) leading to stronger interactions between the template, inorganic precursor and included POM. Indeed, stabilized materials with intact Keggin units were obtained with a SDA mixture Pluronic/CTAB molar ratio of 1 to 0.8 whereas in the absence of CTAB or with a higher CTAB concentration (1:1.6 molar Pluronic/CTAB ratio) the primary Keggin unit was respectively partially or completely destroyed as evidenced by 31P-NMR spectroscopy [31].
In all the syntheses, a hydrothermal treatment of the gel was performed after all of the components have been introduced to allow the polymerization to occur (ageing step), usually at temperatures ranging from 80 to 110 °C. After drying the resulting solid, calcination in air was usually employed to remove the Pluronic 123 [29,30]. To reinforce the interactions between POM clusters and the silica matrix and hence trap more firmly the embedded POM in the solid, some authors introduced a calcination step in the synthesis protocol [31,32]. Guo et al. carried out the calcination of the dried gel particulates successively at 80, 100 and 120 °C under vacuum before removing the template from the pores either by ethanol extraction or by calcination at 420 °C. In both cases, high H3PW12O40 loadings were obtained indicating that the “calcination” step which can be considered here more as a thermal treatment (no surfactant was removed at this stage) inhibited the loss of the Keggin unit during template extraction process. The authors confirmed the integrity of the Keggin unit by Raman scattering studies excepting for the case where calcination was performed at high temperatures (up to 520 °C) [32]. On the contrary, in the protocol described by Dufaud et al., the calcination in air at 500 °C overnight was accompanied by quantitative removal of the P123 template [31]. Although high POM loadings remained in the material the primary Keggin unit was partially destroyed upon this treatment as evidenced by solid state 31P-NMR. However, structurally intact and accessible POM moieties could be obtained after a subsequent extraction of the calcined material with methanol. The authors hypothesized that calcination could lead to some restructuring of the surface by reducing the size of the entrance of the micropore host which in turn would inhibit extraction. The methanol-mediated reformation of the Keggin structure could then take place in the solid.
Some studies seem to indicate that POM clusters in the hybrid materials are likely located into the silica framework rather than held at the surface of the pores. For example, Yang et al. when comparing the mesostructure and acidic properties between sol–gel derived and impregnated samples showed that the sol-gel material exhibited a better stability in systems involving polar solvent and that the changes in textural properties by POM introduction (decrease in surface area, total pore volume and pore diameter) were smaller than those observed for impregnated sample [30]. They suggested that this indicates the presence of a considerable amount of POM in the pore walls of the sol-gel material. One could also cite Yun et al. who, based on nitrogen adsorption-desorption measurements, proposed that the loaded POM did not exist in the inner part of the mesopores but rather in the micropores of the SiO2 framework [29]. This is not surprising given that the sol solution was aged at 80 °C which is known to produce micropores [33].
The localisation of the POMs in the silica framework can be explained in terms of the commonly accepted mechanism of solid assembly. As proposed above for non-structured sol-gel based materials [10,11], the acidic conditions of the synthesis resulted in the presence of ionic species in solution. The ethylene oxide (EO) moieties of the surfactant, Pluronic 123 (EO20PO70EO20) could be associated with hydronium ions as POm[(EO).H3O+)]x….xCl- which could further react with monomers like (SiO4H5)+ originating from the hydrolysis and protonation of TEOS (Figure 2a).
The POM clusters dissolved in water are thus easily and homogeneously incorporated in the hydrophilic/silicate chain interface via electrostatic interactions or hydrogen bonding, subsequently affording well dispersed POM clusters throughout the solid upon solidification of the silica network. In the case of the synthesis described by Dufaud et al. this organized assembly pathway would be reinforced by the presence of an additional cationic surfactant (cetyltrimethylammonium bromide) which could directly interact with some of the H3PW12O40 to form the corresponding ammonium salt, hence forcing the POM to remain in the polar medium and consequently in the walls of the material [31]. To attempt better dispersion of POM clusters into the SBA-15 silica network, Gagea et al. reported a direct synthesis which involved the introduction of H3PW12O40 in an acidified solution of P123 triblock copolymer, the SBA-15 mesostructuring agent [34]. In this approach, H3PW12O40 was introduced before the hydrolysis of TEOS. Based on the supramolecular mechanism of SBA-15 formation denoted S0H+X-I+, with S0, H+, X- and I+ referring to as respectively Pluronic 123, hydronium cation, halogen anions and positively charged silica source [20], the authors proposed the following pathway to account for the synthesis mechanism in the presence of H3PW12O40 (Figure 2b) [34]. As previously described, the P123 micelles would be protonated through the ethoxy groups, the positive charge being compensated by the chloride anion. The weak conjugate base of H3PW12O40 could then substitute the Cl- anions leading to strongly attached and molecularly dispersed Keggin units on the P123 micelle before the addition of the silica source. This exchange is likely given the 24 hours allowed at this step in the synthesis. TEOS as (SiO4H5)+ cations would then interact with the anionic shell surrounding the P123 micelles. The subsequent hydrothermal treatment which creates the silica network would thus trap both Cl- and heteropoly anions between P123 and the silica.
Materials 03 00682 g002 1024

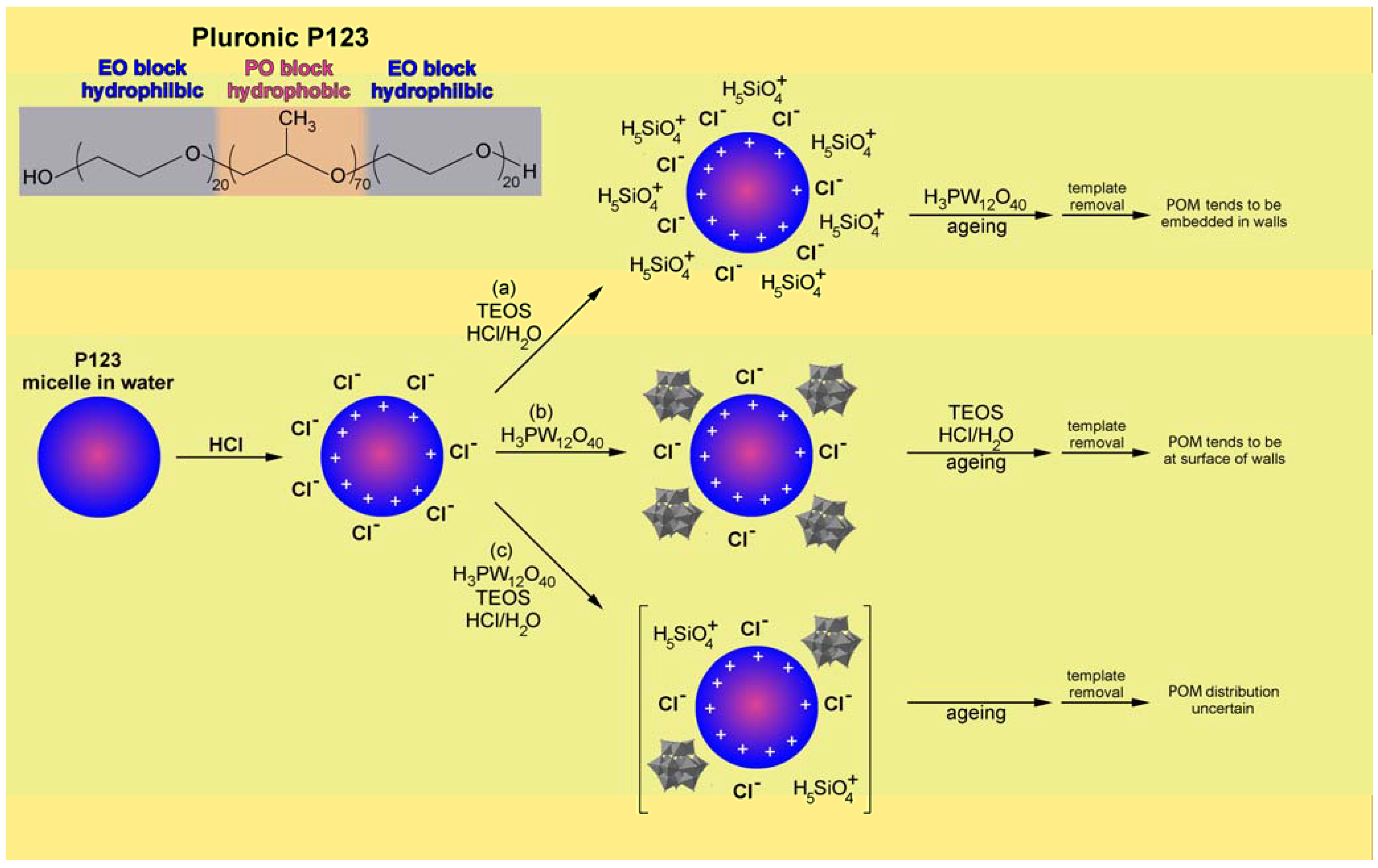

Figure 2. Proposed synthesis mechanism for POMs encapsulation into the silica framework of SBA-15 type silica: (a) Prehydrolysis of TEOS in the presence of P123 followed by introduction of H3PM12O40 [29,31] (b) Introduction of H3PM12O40 in the P123 system followed by TEOS addition [34] (c) Simultaneous introduction of TEOS and H3PM12O40 in the P123 structure directing agent solution [32].
Figure 2. Proposed synthesis mechanism for POMs encapsulation into the silica framework of SBA-15 type silica: (a) Prehydrolysis of TEOS in the presence of P123 followed by introduction of H3PM12O40 [29,31] (b) Introduction of H3PM12O40 in the P123 system followed by TEOS addition [34] (c) Simultaneous introduction of TEOS and H3PM12O40 in the P123 structure directing agent solution [32].
Materials 03 00682 g002
SBA-15 ordered mesoporous silica materials containing up to 40 wt % stabilized H3PW12O40 were synthesized via this route and converted into bifunctional H3PW12O40/Pt catalysts presenting acid and hydrogenation–dehydrogenation functions. The performances of these materials were investigated in the conversion of n-decane under different catalytic conditions [34].
Another route to incorporate POMs into the SBA-15 silica framework has been recently reported by Shi et al. [35]. This approach relied on the in situ formation of the Keggin unit H3PW12O40 by directly introducing Na2HPO4 and Na2WO4 as P and W sources respectively into the initial sol-gel system during hydrolysis of TEOS. SBA-15 mesoporous solids with highly ordered hexagonal mesostructures were obtained for POM contents varying between 13.3–20.7 wt % suggesting that the in situ formation of H3PW12O40 did not disturb the assembly pathway. The Keggin units retained their integrity as confirmed by FTIR and UV-Vis spectroscopy and were quite stable as evidenced by the high amount of POM remaining after repetitive ethanol and water washings employed to extract the Pluronic 123. These hybrid materials were used successfully in acid-catalyzed cracking reactions with small (cumene) and bulky (1,3,5-triisopropylbenzene) molecules. The catalyst maintained high activity in esterification of acetic acid with ethanol over five reuse cycles whereas activity dropped rapidly for analogous silica supported POMs prepared by post-synthetic impregnation [35]. The authors attributed the increased stability of encapsulated POMs to the existence of stronger interactions with the silica surface than those operant in impregnated samples. The scope of these hybrid materials was further investigated by Wang et al. in the preparation of 1,1-diacetates from aldehydes under mild reaction conditions [36]. The catalysts showed high activity and selectivity and were efficiently reused without significant loss of activity. Recently, polyoxometalate compounds were introduced onto periodic ordered mesoporous silica by covalent linkages [37]. This interesting approach involves the co-condensation of TEOS with Keggin-type monovacant polyoxometalate of the type SiW11O398- in the presence of block copolymer P123. A similar approach was described in 2002 by Guo et al. for the preparation of macroporous structured silica based POM materials (vide infra) [38]. Monovacant tungstosilicate SiW11O398-, which is an lacunary Keggin (SiW12O404-) fragment, was reported to react with silicon atoms of organotrialkoxysilane by a nucleophilic mechanism under acidic conditions to yield organo-species of the type SiW11O39[O(SiR)2]4- [39]. In this reaction, two tetrahedral Si atoms were inserted into the vacancy of SiW11 via Si–O–W bonds, with the concomitant formation of a Si–O–Si bridge between the two Si atoms, leading to the saturation of the lacunary Keggin structure. Based on this synthesis, Zhang et al. investigated the reactivity of SiW11O398- with TEOS, traditional source of silica in the preparation of silica based mesoporous materials, to produce molecule such as SiW11O39[O(SiOH)2]4- which then could act as an intermediate by which the condensation between POM and silica species could occur. Tetraalkylammoniun and potassium salts of SiW11O39[O(SiOH)2]4- species were isolated and fully characterized and used as a reference to confirm the in situ generation of the latter from SiW11O398- and TEOS during the formation of the mesostructured silica framework. The synthetic scheme of the incorporation and bonding of SiW11O398- with the silica framework is depicted below (Figure 3). The authors proposed that the POM species are bound on the surface instead of being encapsulated into the SiO2 network of the walls even though some of them may have been entrapped into the small pores of the walls [37].
The investigation of the synthesis conditions showed that the prehydrolysis time of TEOS was a key factor to obtain materials with highly ordered mesostructure and intact Keggin units immobilized in channels by covalent linkages with the mesopore walls. The hybrid materials exhibited also higher stability in water-leaching experiments compared to impregnated samples suggesting that the nature of the link but also the strategy of synthesizing the material was important.
Materials 03 00682 g003 1024

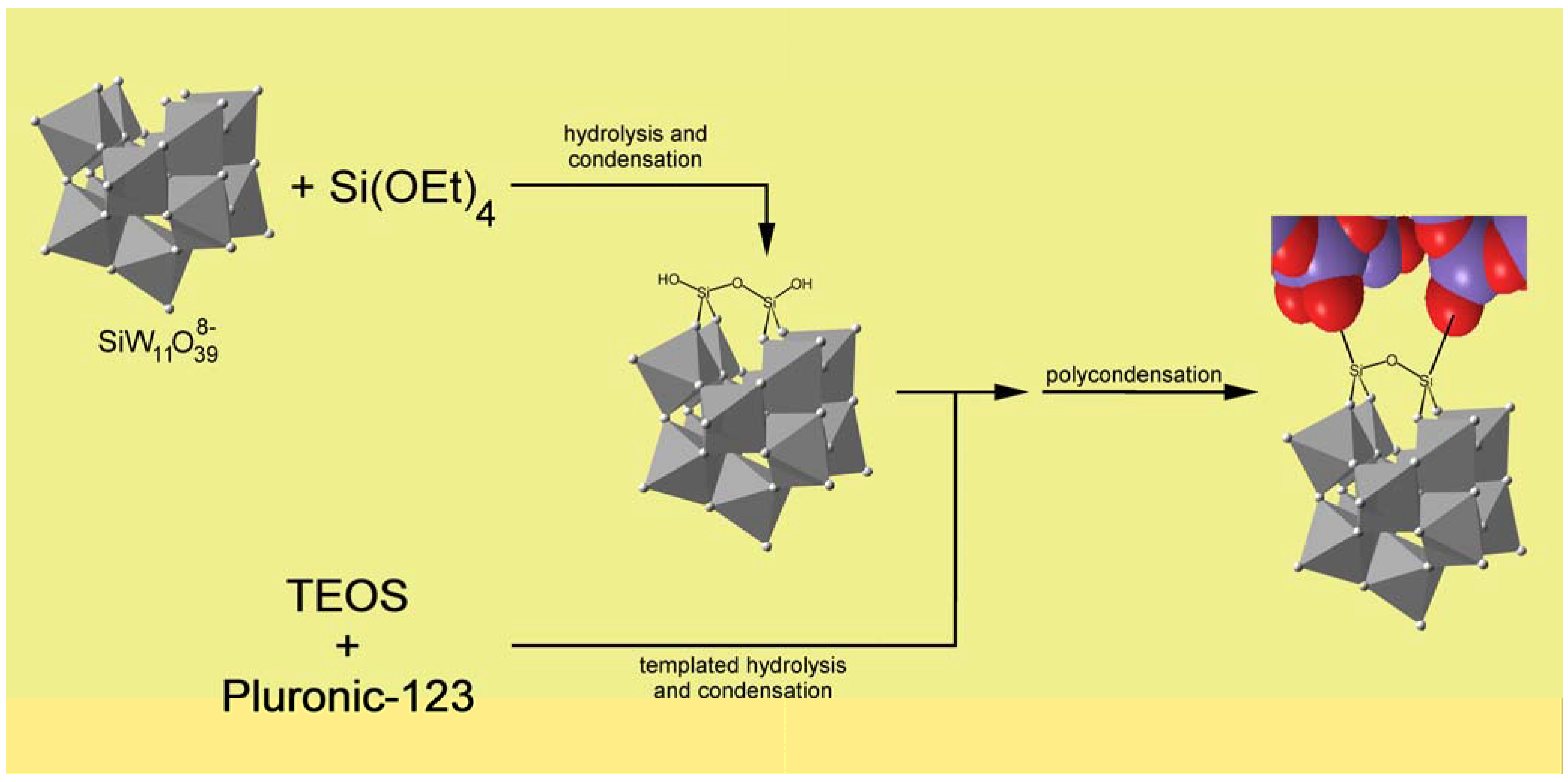

Figure 3. Inclusion of lacunary SiW11O398- and covalent bonding with the framework.
Figure 3. Inclusion of lacunary SiW11O398- and covalent bonding with the framework.
Materials 03 00682 g003

4. Macrostructured Silica Based Materials

Ordered macroporous materials in the submicronic range (∅pore > 50 nm) are of particular importance due to their potential applications as adsorbents, battery materials, three-dimensional photonic crystals with optical band gaps and catalyst supports [40,41]. In the field of catalysis, organized macroporous arrays should provide good accessibility to reactive site owing to their improved transport properties and optimal diffusion. Three-dimensional ordered macroporous (3DOM) solids, also referred to as inverse opals, with narrow macropore size distributions and high porosity are generally obtained by colloidal crystal templating (Figure 1, path C). This approach is based on the use of colloidal crystals (usually colloidal suspension of polystyrene spheres (PS)) as template. The interstitial space between the close-packed PS spheres is then impregnated with an alkoxide precursor which is capable of solidification followed by elimination of the organic template by heating or washing. The three dimensional porous network is thus liberated.
Based on this approach, polyoxometalates functionalized 3DOM silicates have been recently developed by different groups [42,38]. Using a direct synthesis procedure, Schroden et al. reported the incorporation of divacant tungstosilicate cluster of the type [γ-SiW10O36]8- into the wall structures of macroporous silica through covalent bonding [42]. In this study, the authors utilized the reactivity of lacunary polyoxometalates toward siloxanes previously described by Mayer and co-workers [43,44] to create a covalent bond, W-O-Si, between the POM and the silica precursor, either in the presence or the absence of bifunctional organosiloxane linkers (Figure 4). Further condensation of the silicate framework around polystyrene colloidal crystals led to the incorporation of the POM containing species to the 3DOM [42].
Materials 03 00682 g004 1024

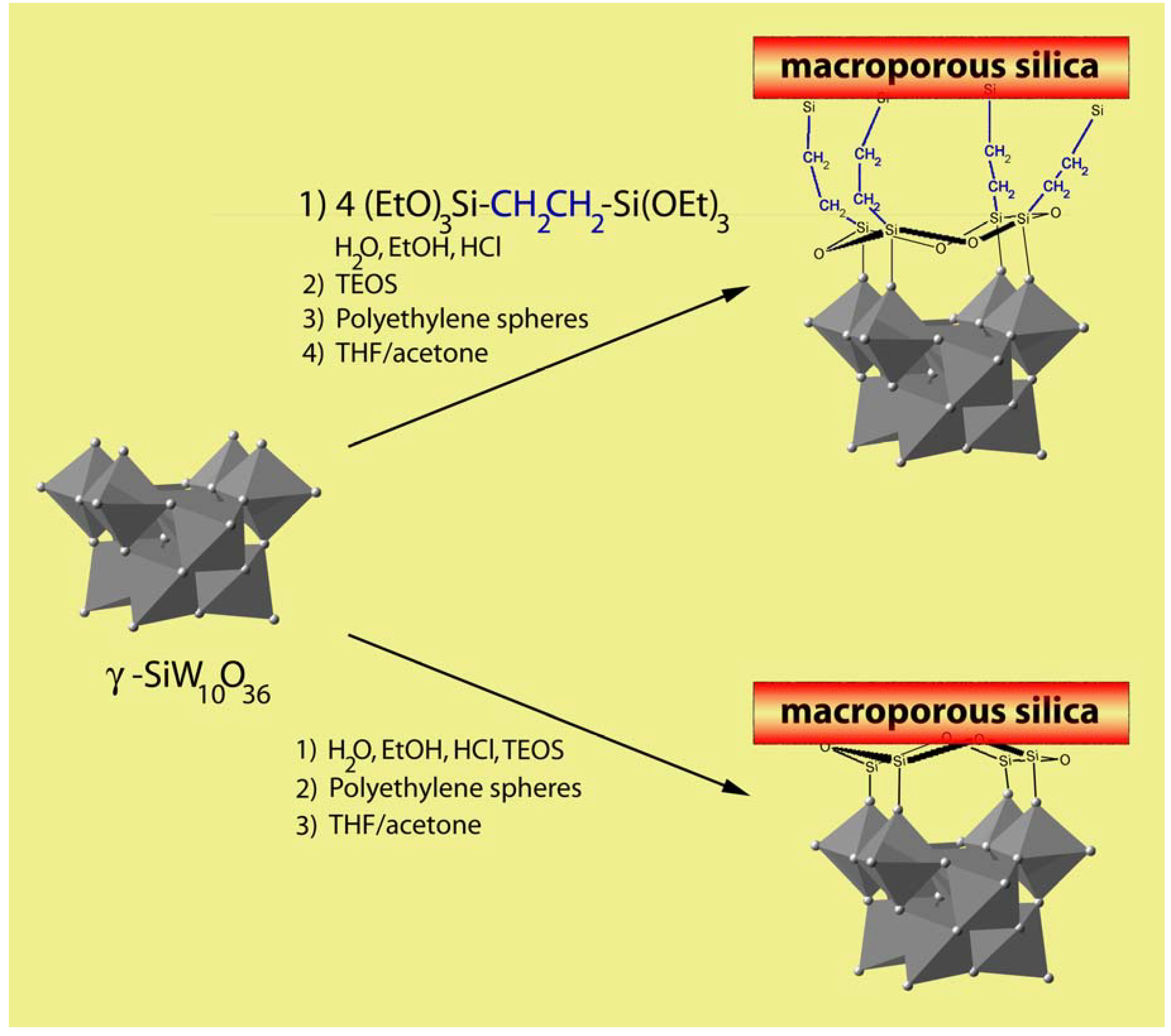

Figure 4. 3DOM silica functionalized with γ-tungstosilicate clusters of the type [γ-(RSiO)4SiW10O36]4-.
Figure 4. 3DOM silica functionalized with γ-tungstosilicate clusters of the type [γ-(RSiO)4SiW10O36]4-.
Materials 03 00682 g004
Template removal by extraction was found to be a key parameter to the obtention of stable hybrid macroporous materials with structurally intact POM units homogeneously distributed throughout the material. In contrast, calcination procedures led to the decomposition of POMs and aggregation of tungsten oxide species on the outer-surface of the solid. The different modes of POM linking to the silica matrix depended on the synthetic methods employed (through an organic spacer or directly attached), as confirmed by single-pulse and CP 29Si MAS-NMR technique. Evaluation of the POM-functionalized silica materials in the epoxidation of cyclooctene using hydrogen peroxide as co-oxidant showed high selectivity toward the epoxide product. POM clusters linked to the silica framework by bis(silyl)ethane groups remained intact after catalytic testing whereas those directly condensed with the silica matrix, while exhibiting higher activity, underwent partial degradation. The authors draw a parallel between this behaviour and previously observed correlations between POM decomposition by hydrogen peroxide and catalytic epoxidation efficiency [42].
An extended work with monovacant lacunary Keggin-type polyoxometalates [XW11O39]8- (with X = P5+, Si4+, Ge4+, B3+) was performed successively by Guo et al. to prepare composites capable of photocatalytic activity [38]. Like Shroden and co-workers [42], they took advantage of the specificity of monovacant lacunary POMs to react via their nucleophilic surface oxygen atoms with TEOS to covalently anchor the POM cluster to the silica matrix. Permeating the obtained hybrid [XW11O39]8--SiO2 sol into the voids of PS spheres yielded three-dimensionally ordered macroporous hybrid silica materials with pore diameters ranging from 285 to 385 nm. Adaptation of the reaction conditions (solubility of the inorganic [XW11O39]8- species in water, control of the acidification of the sol mixture, choice of the method for template removal) was necessary to achieve materials with molecularly well dispersed [XW11O39]8- units. Based on different spectroscopic techniques (FTIR, 31P NMR) the authors confirmed that the primary Keggin structures remained intact regardless of the functionality of the polyanions, and that the surface of the parent [XW11O39]8- units achieved saturation through chemical grafting of silanol groups from the silica network. The photocatalytic degradation of aqueous malic acid used as benchmark reaction showed that [XW11O39]8- sites retained their photocatalytic activity in the hybrid materials without observable leaching of POM clusters from the used catalyst. The authors attributed the improved stability of these materials over analogs prepared by conventional impregnation technique to the strong covalent interactions between silanol groups and the lacunary POM molecules in the composites.

5. Other Oxides

Farhadi et al. described the preparation of polyoxometalate–zirconia (POM/ZrO2) nanocomposite through entrapment of H3PW12O40 into zirconia matrix by sol–gel technique [45]. The procedure involves the hydrolysis of zirconium (IV) n-butoxide, Zr(n-OBu)4, as the ZrO2 source in the presence of phosphotungstic acid under acidic conditions. The resultant materials contained 20 wt % of intact POM units which were firmly maintained in the material via electrostatic interactions and hydrogen bonding with the ≡Zr–OH groups of the ZrO2 support. In acidic medium, these latter are protonated to form ≡Zr–OH2+ species which act as the counter ion of polyanion, and yield (≡Zr-OH2)+(H2PW12O40)- species by acid-base reactions, similar to what was observed in the case of silica. This strong chemical interaction between the polyanion and the zirconia surface was confirmed by red shifts of characteristic bands of POM in the POM/ZrO2 nanocomposite relative to the pure POM in the FTIR and UV-Vis spectra. Hybrid materials with specific area up to 300 m2g-1 and particles h²aving a narrow size distribution in the range of 10–15 nm were obtained making the POM/ZrO2 nanocomposite promising as an environmentally friendly heterogeneous catalyst for photocatalytic transformations. The performances of POM/ZrO2 were evaluated in the selective aerobic oxidation of alcohols into corresponding carbonyl compounds under mild conditions (oxygen atmospheric pressure, room temperature). Various primary and secondary benzylic alcohols were efficiently oxidized into the corresponding aldehydes and ketones in the presence of photoexcited POM/ZrO2 nanocomposite under O2 atmosphere. When the reaction was carried out under nitrogen, the desired product was obtained in low yield (< 6%), stressing the important role that O2 plays in the reoxidation of the reduced POM. The scope of the reaction was also extended to nonactivated aliphatic alcohols for which longer reaction times were necessary to achieve good yields and to heteroaromatic alcohols which were converted to the corresponding aldehydes in high yields without oxidation of the heteroatoms (i.e., N, S). The difference in reactivity observed between benzylic and aliphatic alcohols allowed the authors to perform selective oxidation of vicinal-diols containing benzylic and non-benzylic hydroxy groups by choosing an appropriate reaction time. Indeed, α-ketols were thus cleanly obtained at short reaction times via selective oxidation of the hydroxyl group α to the benzene ring. In addition, recycling of the POM/ZrO2 photocatalyst showed no significant loss of activity and selectivity upon several cycles.
In 2008, Xu et al. reported the preparation of mesoporous polyoxometalate-tantalum pentoxide composite, H3PW12O40/Ta2O5, using a sol–gel hydrothermal route in the presence of Pluronic 123 [46]. TaCl5, precursor of the Ta2O5 support, was first introduced on a P123 alcoholic solution followed by addition of H3PW12O40. The subsequent hydrothermal treatment of the sol and template removal by extraction with boiling ethanol led to 3D interconnected mesoporous hybrid composite with high surface area (130 m2 g-1) containing homogeneously dispersed Keggin units throughout the solid, as evidenced by wide-angle XRD. Various spectroscopic methods (FTIR, Raman, 31P-NMR and XPS) were used to get better insights into the structural nature of the POM and the type of interactions between this latter and Ta2O5 support. Taken together, the data suggest that the integrity of the primary Keggin unit was retained after incorporation into the material and that strong interactions between the Keggin unit and Ta2O5 framework exist in the composite. Based on the similarities observed between Ta5+ and W6+ in term of electronegativity and ionic radius, the authors tentatively proposed that the terminal W=O moieties within H3PW12O40 coordinate the surface Ta-OH groups through W-O-Ta bonds leading to the formation of (TaOH2)n+[H3-nPW12O40]n- species on the surface. The H3PW12O40/Ta2O5 composite exhibited higher activity, selectivity and stability than either molecular H3PW12O40 or Ta2O5 support for the acid-catalyzed esterification and transesterification for biodiesel production. This was attributed to the presence of stronger acidic sites originating from the strong interactions which exist in the solid between the Keggin unit and the hydroxyl groups of the tantalum pentoxide support which could result in lower proton releasing energy and hence increased Brønsted acidity of the material [46]. However, some limitations affecting the performances of the catalyst remained. In esterification reaction, the water by-product was not efficiently removed from the surface owing to the hydrophilicity of the H3PW12O40/Ta2O5 composite, preventing the approach of the reactants and hence slowing down the reaction rate. Likewise, for transesterification reactions, the strong adsorption of glycerol on the H3PW12O40/Ta2O5 surface hindered the diffusion and adsorption of triglycerides along the channels and, in some cases, led to the deactivation of the catalyst. Therefore continuing work was performed by Xu et al. to enhance the hydrophobicity of H3PW12O40/Ta2O5 composite [47]. This was achieved by simultaneous co-condensation of organosilanes of the type RSi(OCH3)3 (R = Me, Ph) with H3PW12O40 and TaCl5 in the presence of non-ionic surfactant following the procedure described in their previous work [46]. 3D interconnected mesoporous organic–inorganic hybrid catalysts, Ta2O5/SiO2-[H3PW12O40/R] (R = Me or Ph), functionalized with both alkyl groups and POM clusters, were thus prepared and their performances evaluated towards esterification of free fatty acids and transesterification of triglycerides in soybean oil to produce fatty acid methyl esters (main components of biodiesel). A complete study regarding the influence of different synthetic parameters and reaction conditions (catalyst preparation route, relative functional groups ratios, and molar ratios of oil to methanol) on the catalytic activity and selectivity as well as on the recyclability of the hybrid materials was undertaken [47]. In general, dual functionalized hybrid catalysts exhibited much higher catalytic activity to the above reactions than their alkyl-free counterparts and could be reused at least 4 times without noticeable deactivation. The authors attributed this enhanced performance to the presence in the solid of an alkyl functional group which renders the local micro-environment around the active site more hydrophobic. The differences in term of activity and stability observed between multifunctionalized grafted and co-condensed hybrid materials arose from the preparation routes which led to materials with different properties (Figure 5). While co-condensation approach yielded a solid with homogeneous random dispersion of both alkyl groups and Keggin units throughout the solid (Figure 5, route b), the grafting method led to a less uniform distribution of the two functionalities (Figure 5, route a). Indeed, the reactive organosilanes may react preferentially with the Ta-OH groups on the outside of the particle and at the pore aperture resulting in pore clogging hence masking any benefit that surface hydrophobicity at the active site might bring. Moreover, the weak interactions between POM clusters and the surface hydroxyl groups (mainly through hydrogen bonding) in the grafting route compared to the strongly bound (TaOH2)n+[H3-nPW12O40]n- species in the co-condensed route, resulted in leaching of most of the H3PW12O40 during catalytic experiments.
Materials 03 00682 g005 1024

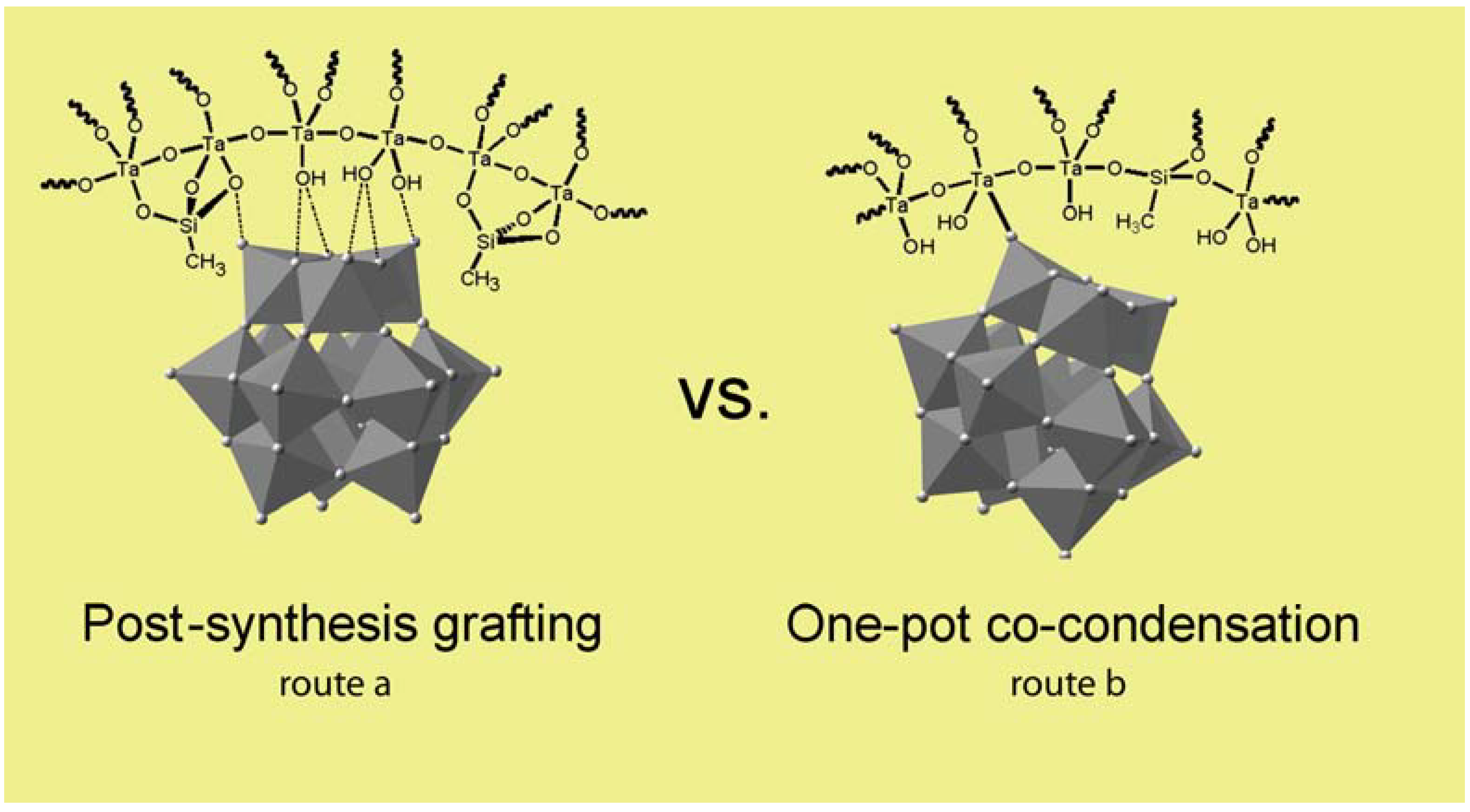

Figure 5. 3D interconnected mesoporous organic–inorganic hybrid catalysts prepared via dual functionalization through (a) post-synthesis grafting (b) one-pot co-condensation route.
Figure 5. 3D interconnected mesoporous organic–inorganic hybrid catalysts prepared via dual functionalization through (a) post-synthesis grafting (b) one-pot co-condensation route.
Materials 03 00682 g005
Recently a new field of research has emerged based on the direct assembly of POMs and organic cations leading to the formation of a variety of supramolecular structures which have been used in various domains [48,49,50,51,52,53,54]. Various polyoxometalates have been used although Keggin structures were preferred for their higher stability and fully symmetric structure. The organic cation was generally in the form of an ammonium group bearing one or two long alkyl chains. The resulting material can display an amorphous or a crystalline structure and among their reported applications, one can use them as templates for the polymerization of organic or inorganic monomers. Zhao et al. illustrated the diversity of applications possible with such systems [55]. A polyoxometalate displaying interesting photoreduction properties (EuP5W30O11012-) was reacted with a long chain organic cation, 11-hydroxylundecyldimethylammonium, leading to a surfactant-encapsulated cluster. This organic-inorganic complex possessed an inorganic core of POM and an organic shell constituted of hydrophobic surfactant with hydroxyl groups pointing at the outside of the supramolecular structure. The resulting material was soluble in a water/ethanol mixture and co-condensed with alkylorthosilicate, Si(OEt)4, in the presence of ammonia leading to stable silica spheres containing surfactant-encapsulated POM. The POMs were shown to be uniformly dispersed and firmly maintained in the hybrid silica spheres with intact structure and properties. Although, embedded in the hydrophobic microenvironment of the surfactant, ultraviolet light can penetrate this outer sphere and trigger the photoreduction of the POM leading to a reduced form, heteropolyblue, inside the silica sphere. The heteropolyblue was then employed for the preparation of supported metal nanoparticles. For this purpose, the material in suspension in water was first irradiated with a 300-W high-pressure mercury lamp. After 15 min irradiation, the suspension was mixed in dark with a solution of the metal salts (AgNO3, HAuCl4 or H2PtCl6). Electronic transfers occurred resulting in a reduction of the metal salt and the formation of metal nanoparticles which were very small in size (several nanometers) and well dispersed on the surface of the polyoxometalate/organic cation/silica composite material.

6.Conclusions

As shown in this overview, the field of materials synthesis with entrapped polyoxometalates has been highly diversified during the last years. Starting from a simple hydrolysis and polycondensation of Si(OEt)4 in the presence of polyoxometalate, increasingly complex and subtle synthetic methods have been developed over the years leading to a wide variety of materials adapted to numerous applications. The convergence of porous silica synthesis techniques with the highly reactive and tunable class of POM inclusions results in a powerful new tool for functional material design. The emerging field is now being extended to the synthesis of oxides other than silica with encapsulated polyoxometalates, for example POMs/TiO2 materials which display interesting properties in photochemistry [56]. Further convergence of these methods with other nanoscale domains (supramolecular species, metal nanoparticles, vesicles …) should provide surprising and interesting applications in the very near future.

Acknowledgements

The authors would like to thank Gerald P. Niccolai and Xavier Rosanska for fruitful discussions and technical aid in the production of the manuscript.

References and Notes

  1. Pope, M.T. Heteropoly and Isopoly Oxometalates; Springer-Verlag Berlin: New York, NY. USA, 1983. [Google Scholar]
  2. Mizuno, N.; Misono, M. Heterogeneous catalysis. Chem. Rev. 1998, 98, 199–217. [Google Scholar] [CrossRef] [PubMed]
  3. Katsoulis, D.E. A survey of applications of polyoxometalates. Chem. Rev. 1998, 98, 359–387. [Google Scholar] [CrossRef] [PubMed]
  4. Rhule, J.T.; Hill, C.L.; Judd, D.A.; Schinazi, R.F. Polyoxometalates in medicine. Chem. Rev. 1998, 98, 327–357. [Google Scholar] [CrossRef] [PubMed]
  5. Kozhevnikov, I.V. Catalysis by heteropoly acids and multicomponent polyoxometalates in liquid-phase reactions. Chem. Rev. 1998, 98, 171–198. [Google Scholar] [CrossRef] [PubMed]
  6. Izumi, Y.; Ono, M.; Kitagawa, M.; Yoshida, M.; Urabe, K. Silica-included heteropoly compounds as solid acid catalysts. Microporous Mater. 1995, 5, 255–262. [Google Scholar] [CrossRef]
  7. Izumi, Y. Recent advances in immobilization of heteropolyacids. Res. Chem. Intermediates 1998, 24, 461–471. [Google Scholar] [CrossRef]
  8. Izumi, Y.; Hisano, K.; Hida, T. Acid catalysis of silica-included heteropolyacid in polar reaction media. Appl. Catal. A-Gen. 1999, 181, 277–282. [Google Scholar] [CrossRef]
  9. Kukovecz, A.; Balogi, Z.; Konya, Z.; Toba, M.; Lentz, P.; Niwa, S.-I.; Mizukami, F.; Molnar, A.; Nagy, J.B.; Kiricsi, I. Synthesis, characterisation and catalytic applications of sol-gel derived silica-phosphotungstic acid composites. Appl. Catal. A-Gen. 2002, 228, 83–94. [Google Scholar] [CrossRef]
  10. Guo, Y.; Wang, Y.; Hu, C.; Wang, Y.; Wang, E.; Zhou, Y.; Feng, S. Microporous polyoxometalates POMs/SiO2: Synthesis and photocatalytic degradation of aqueous organocholorine pesticides. Chem. Mater. 2000, 12, 3501–3508. [Google Scholar] [CrossRef]
  11. Guo, Y.; Hu, C.; Wang, X.; Wang, Y.; Wang, E.; Zou, Y.; Ding, H.; Feng, S. Microporous decatungstates: Synthesis and photochemical behavior. Chem. Mater. 2001, 13, 4058–4064. [Google Scholar] [CrossRef]
  12. Thouvenot, R.; Fournier, M.; Rocchiccioli-Deltcheff, C. Catalysis by polyoxometalates. 2. Silicon-29 nuclear magnetic resonance evidence for 12-molybdosilicate in silica-supported molybdenum catalysts. J. Chem. Soc. Faraday Trans. 1991, 87, 2829–2835. [Google Scholar] [CrossRef]
  13. Lefebvre, F. 31P MAS NMR study of H3PW12O40 supported on silica: Formation of (SiOH2+)(H2PW12O40)-. J. Chem. Soc. Chem. Commn. 1992, 756–757. [Google Scholar] [CrossRef]
  14. Popa, A.; Sasca, V.; Kiss, E.E.; Marinkovic-Neducin, R.; Bokorov, M.T.; Holclajtner-Antunović, I. Studies in structural characterization of silica–heteropolyacids composites prepared by sol–gel method. Mater. Chem. Phys. 2010, 119, 465–470. [Google Scholar] [CrossRef]
  15. Pito, D.S.; Matos, I.; Fonseca, I.M.; Ramos, A.M.; Vital, J.; Castanheiro, J.E. Methoxylation of alpha-pinene over heteropolyacids immobilized in silica. Appl. Catal. A-Gen. 2010, 373, 140–146. [Google Scholar] [CrossRef]
  16. Xu, B.; Xu, L.; Gao, G.; Li, Z.; Liu, Y.; Guo, W.; Jia, L. Polyoxometalate-based gasochromic silica. New J. Chem. 2008, 32, 1008–1013. [Google Scholar] [CrossRef]
  17. Klonkowski, A.M.; Grobelna, B.; But, S.; Lis, S. Luminescent materials consisting of Eu(III) ions complexed in heteropolyoxometalates incorporated into silica xerogels. J. Non-Cryst. Solids 2006, 352, 2213–2219. [Google Scholar] [CrossRef]
  18. Kresge, C.T.; Leonowicz, M.E.; Roth, W.J.; Vartuli, J.C.; Beck, J.S. Ordered mesoporous molecular sieves synthesized by a liquid-crystal template mechanism. Nature 1992, 359, 710–712. [Google Scholar] [CrossRef]
  19. Beck, J.S.; Vartuli, J.C.; Roth, W.J.; Leonowicz, M.E.; Kresge, C.T.; Schmitt, K.D.; Chu, C.T.-W.; Olson, D.H.; Sheppard, E.W.; McCullen, S.B.; Higgins, J.B.; Schlenker, J.L. A new family of mesoporous molecular sieves prepared with liquid crystal templates. J. Am. Chem. Soc. 1992, 114, 10834–10843. [Google Scholar] [CrossRef]
  20. Zhao, D.; Feng, J.; Huo, Q.; Melosh, N.; Fredrickson, G.H.; Chmelka, B.F.; Stucky, G.D. Triblock copolymer syntheses of mesoporous silica with periodic 50 to 300 Angstrom pores. Science 1998, 279, 548–552. [Google Scholar] [CrossRef] [PubMed]
  21. Zhao, D.; Huo, Q.; Feng, J.; Chmelka, B.F.; Stucky, G.D. Nonionic triblock and star copolymer and oligomeric surfactant syntheses of highly ordered hydrothermally stable mesoporous silica structures. J. Am. Chem. Soc. 1998, 120, 6024–6036. [Google Scholar] [CrossRef]
  22. Kaleta, W.; Nowinska, K. Immobilisation of heteropoly anions in Si-MCM-41 channels by means of chemical bonding to aminosilane groups. Chem. Commun. 2001, 535–536. [Google Scholar] [CrossRef]
  23. Johnson, B.J.S.; Stein, A. Surface modification of mesoporous, macroporous, and amorphous silica with catalytically active polyoxometalate clusters. Inorg. Chem. 2001, 40, 801–808. [Google Scholar] [CrossRef] [PubMed]
  24. Toufaily, J.; Guth, J.-L.; Soulard, M.; Patarin, J.; Hamad, H.; Hamieh, T. RMN du 31P et mesure de temps de relaxation de l'acide 12-tungstophosphorique incorporé par synthèse directe dans une charpente silicique mésoporeuse. J. Phys. IV Fr. 2005, 124, 69–73. [Google Scholar] [CrossRef]
  25. Toufaily, J.; Soulard, M.; Guth, J.-L. Etude physicochimique de nouveaux composés formés par incorporation directe d'hétéropolyacide dans une silice mésoporeuse organisée. C. R. Acad. Sci. Chem. 2001, 4, 675–681. [Google Scholar]
  26. Toufaily, J.; Soulard, M.; Guth, J.-L.; Patarin, J.; Delmote, L.; Hamieha, T.; Kodeih, M.; Naoufal, D.; Hamad, H. Synthesis and characterization of new catalysts formed by direct incorporation of heteropolyacids into organized mesoporous silica. Colloid. Surface. A 2008, 316, 285–291. [Google Scholar] [CrossRef]
  27. Hamad, H.; Soulard, M.; Lebeau, B.; Patarin, J.; Hamieh, T.; Toufaily, J.; Mahzoul, H. A new way for deNOx catalyst preparation: Direct incorporation of 12-tungstophosphoric acid H3PW12O40 and platinum into mesoporous molecular sieves material. J. Mol. Catal. A-Chem. 2007, 278, 53–63. [Google Scholar] [CrossRef]
  28. Nowinska, K.; Formaniak, R.; Kaleta, W.; Waclaw, A. Heteropoly compounds incorporated into mesoporous material structure. Appl. Catal. A-Gen. 2003, 256, 115–123. [Google Scholar] [CrossRef]
  29. Yun, H.-S.; Kuwabara, M.; Zhou, H.S.; Honma, I. One-pot synthesis of mesoporous PWA/SiO2 composite materials using triblock copolymer templates. J. Mater. Sci. 2004, 39, 2341–2347. [Google Scholar] [CrossRef]
  30. Yang, L.; Qi, Y.; Yuan, X.; Shen, J.; Kim, J. Direct synthesis, characterization and catalytic application of SBA-15 containing heteropolyacid H3PW12O40. J. Mol. Catal. A-Chem. 2005, 229, 199–205. [Google Scholar] [CrossRef]
  31. Dufaud, V.; Lefebvre, F.; Niccolai, G.P.; Aouine, M. New insights into the encapsulation and stabilization of heteropolyacids inside the pore walls of mesostructured silica materials. J. Mater. Chem. 2009, 19, 1142–1150. [Google Scholar] [CrossRef]
  32. Guo, Y.; Li, K.; Yu, X.; Clark, J.H. Mesoporous H3PW12O40-silica composite: Efficient and reusable solid acid catalyst for the synthesis of diphenolic acid from levulinic acid. Appl. Catal. B-Environ. 2008, 81, 182–191. [Google Scholar] [CrossRef]
  33. Galarneau, A.; Cambon, H.; Renzo, F.D.; Fajula, F. True microporosity and surface area of mesoporous SBA-15 silicas as a function of synthesis temperature. Langmuir 2001, 17, 8328–8335. [Google Scholar] [CrossRef]
  34. Gagea, B.C.; Lorgouilloux, Y.; Altintas, Y.; Jacobs, P.A.; Martens, J.A. Bifunctional conversion of n-decane over HPW heteropoly acid incorporated into SBA-15 during synthesis. J. Catal. 2009, 265, 99–108. [Google Scholar] [CrossRef]
  35. Shi, C.; Wang, R.; Zhu, G.; Qiu, S.; Long, J. Synthesis, characterization, and catalytic properties of SiPW-X mesoporous silica with heteropolyacid encapsulated into their framework. Eur. J. Inorg. Chem. 2005, 4801–4807. [Google Scholar] [CrossRef]
  36. Wang, J.; Yan, L.; Qian, G.; Yang, K.; Liu, H.; Wang, X. Heteropolyacid encapsulated into mesoporous silica framework for an efficient preparation of 1,1-diacetates from aldehydes under a solvent-free condition. Tetrahedron Lett. 2006, 47, 8309–8312. [Google Scholar] [CrossRef]
  37. Zhang, R.; Yang, C. A novel polyoxometalate-functionalized mesoporous hybrid silica: Synthesis and characterization. J. Mater. Chem. 2008, 18, 2691–2703. [Google Scholar] [CrossRef]
  38. Guo, Y.; Yang, Y.; Hu, C.; Guo, C.; Wang, E.; Zou, Y.; Feng, S. Preparation, characterization and photochemical properties of ordered macroporous hybrid silica materials based on monovacant Keggin-type polyoxometalates. J. Mater. Chem. 2002, 12, 3046–3052. [Google Scholar] [CrossRef]
  39. Judeinstein, P.; Deprun, C.; Nadjo, L. Synthesis and multispectroscopic characterization of organically modified polyoxometalates. J. Chem. Soc., Dalton Trans. 1991, 1991. [Google Scholar]
  40. Stein, A.; Schroden, R.C. Colloidal crystal templating of three-dimensionally ordered macroporous solids: Materials for photonics and beyond. Curr. Opin. Solid State Mater. Sci. 2001, 5, 553–564. [Google Scholar] [CrossRef]
  41. Blanford, C.F.; Yan, H.; Schroden, R.C.; Al-Daous, M.; Stein, A. Gems of chemistry and physics: Macroporous metal oxides with 3D order. Adv. Mater. 2001, 13, 401–407. [Google Scholar] [CrossRef]
  42. Schroden, R.C.; Blanford, C.F.; Brian, J.; Melde; Johnson, B.J.S.; Stein, A. Direct synthesis of ordered macroporous silica materials functionalized with polyoxometalate clusters. Chem. Mater. 2001, 13, 1074–1081. [Google Scholar] [CrossRef]
  43. Mayer, C.R.; Fournier, I.; Thouvenot, R. Bis- and tetrakis(organosilyl) decatungstosilicate, [γ-SiW10O36(RSi)2O]4- and [γ-SiW10O36(RSiO)4]4-: Synthesis and structural determination by multinuclear NMR spectroscopy and matrix-assisted laser desorption/ionization time-of-flight mass spectrometry. Chem. Eur. J. 2000, 6, 105–110. [Google Scholar] [CrossRef] [PubMed]
  44. Mayer, C.R.; Thouvenot, R.; Lalot, T. New hybrid covalent networks based on polyoxometalates: Part 1. hybrid networks based on poly(ethyl methacrylate) chains covalently cross-linked by heteropolyanions: Synthesis and swelling properties. Chem. Mater. 2000, 12, 257–260. [Google Scholar] [CrossRef]
  45. Farhadi, S.; Zaidi, M. Polyoxometalate–zirconia (POM/ZrO2) nanocomposite prepared by sol–gel process: A green and recyclable photocatalyst for efficient and selective aerobic oxidation of alcohols into aldehydes and ketones. Appl. Catal. A-Gen. 2009, 354, 119–126. [Google Scholar] [CrossRef]
  46. Xu, L.; Wang, Y.; Yang, X.; Yu, X.; Guo, Y.; Clark, J.H. Preparation of mesoporous polyoxometalate-tantalum pentoxide composite catalyst and its application for biodiesel production by esterification and transesterification. Green Chem. 2008, 10, 746–755. [Google Scholar] [CrossRef]
  47. Xu, L.; Li, W.; Hu, J.; Yang, X.; Guo, Y. Biodiesel production from soybean oil catalyzed by multifunctionalized Ta2O5/SiO2-[H3PW12O40/R] (R = Me or Ph) hybrid catalyst. Appl. Catal. B-Environ. 2009, 90, 587–594. [Google Scholar] [CrossRef]
  48. Wang, Y.; Li, W.; Wu, L. Organic−inorganic hybrid supramolecular gels of surfactant-encapsulated polyoxometalates. Langmuir 2009. [Google Scholar]
  49. Clemente-León, M.; Agricole, B.; Mingotaud, C.; Gómez-García, C.J.; Coronado, E.; Delhaes, P. Toward new organic/inorganic superlattices: Keggin polyoxometalates in Langmuir and Langmuir−Blodgett films. Langmuir 1997, 13, 2340–2347. [Google Scholar] [CrossRef]
  50. Clemente-León, M.; Mingotaud, C.; Agricole, B.; Gómez-Garcia, C.J.; Coronado, E.; Delhaès, P. Application of the Langmuir-Blodgett technique to polyoxometalates: Towards new magnetic films. Angew. Chem., Int. Ed. Engl. 1997, 36, 1114–1116. [Google Scholar]
  51. Li, H.; Sun, H.; Qi, W.; Xu, M.; Wu, L. Onionlike hybrid assemblies based on surfactant-encapsulated polyoxometalates. Angew. Chem., Int. Ed. 2007, 46, 1300–1303. [Google Scholar]
  52. Pradeep, C.P.; Misdrahi, M.F.; Li, F.-Y.; Zhang, J.; Xu, L.; Long, D.-L.; Liu, T.; Cronin, L. Synthesis of modular inorganic-organic-inorganic polyoxometalates and their assembly into vesicles. Angew. Chem., Int. Ed. 2009, 48, 8309–8313. [Google Scholar] [CrossRef]
  53. Tagami, H.; Uchida, S.; Mizuno, N. Size-selective sorption of small organic molecules in one-dimensional channels of an ionic crystalline organic-inorganic hybrid compound stabilized by π-π interactions. Angew. Chem., Int. Ed. 2009, 48, 6160–6164. [Google Scholar] [CrossRef]
  54. Rodriguez-Albelo, L.M.; Ruiz-Salvador, A.R.; Sampieri, A.; Lewis, D.W.; Gomez, A.; Nohra, B.; Mialane, P.; Marrot, J.; Sécheresse, F.; Mellot-Draznieks, C.; Biboum, R.N.; Keita, B.; Nadjo, L.; Dolbecq, A. Zeolitic polyoxometalate-based metal−organic frameworks (Z-POMOFs): Computational evaluation of hypothetical polymorphs and the successful targeted synthesis of the redox-active Z-POMOF1. J. Am. Chem. Soc. 2009, 131, 16078–16087. [Google Scholar] [CrossRef] [PubMed]
  55. Zhao, Y.; Qi, W.; Li, W.; Wu, L. Covalent dispersion of surfactant-encapsulated polyoxometalates and in situ incorporation of metal nanoparticles in silica spheres. Langmuir 2009. [Google Scholar] [CrossRef]
  56. He, T.; Yao, J. Photochromism in composite and hybrid materials based on transition-metal oxides and polyoxometalates. Prog. Mater. Sci. 2006, 51, 810–879. [Google Scholar] [CrossRef]
