Review

Oligomers and Polymers Based on Pentacene Building Blocks

by
Dan Lehnherr
1 and
Rik R. Tykwinski
1,2,*
1
Department of Chemistry, University of Alberta, Edmonton, Alberta, T6G 2G2, Canada
2
Institut für Organische Chemie, Friedrich-Alexander-Universität Erlangen-Nürnberg, Henkestrasse 42, D-91054 Erlangen, Germany
*
Author to whom correspondence should be addressed.
Materials 2010, 3(4), 2772-2800; https://doi.org/10.3390/ma3042772
Submission received: 10 February 2010 / Revised: 16 March 2010 / Accepted: 9 April 2010 / Published: 14 April 2010
(This article belongs to the Special Issue Conjugated Oligomers)
Browse Figures
Versions Notes

Abstract

:
Functionalized pentacene derivatives continue to provide unique materials for organic semiconductor applications. Although oligomers and polymers based on pentacene building blocks remain quite rare, recent synthetic achievements have provided a number of examples with varied structural motifs. This review highlights recent work in this area and, when possible, contrasts the properties of defined-length pentacene oligomers to those of mono- and polymeric systems.

Graphical Abstract

1. Introduction

Over the past few years, significantly improved optoelectronic properties have been achieved by conjugating chromophores such as thiophenes [1,2] and anthracenes [3,4,5,6,7,8,9,10,11] to form oligomers and polymers. For example, conjugated oligomers and polymers of anthracene have promising charge-carrier mobilities and continue to be explored [3,4,5,6,7,8,9,10,11], even though anthracene is not regarded as a particularly good organic semiconductor for thin film applications. On the other hand, pentacene, a benzannulated relative of anthracene in the linear oligoacene family, has technologically relevant charge-carrier mobilities. Thus a logical hypothesis is that conjugated (and perhaps non-conjugated) oligomers and polymers of pentacene should provide further improved semiconductive materials.
Organic materials can provide numerous advantages over their inorganic counterparts, including ease of tunability of the HOMO and LUMO levels through chemical functionalization, compatibility with flexible substrates, as well as lower manufacturing costs. Today the field of organic semiconductors seems on the doorstep of revolutionizing applications in the areas of field effect transistors [12], light emitting diodes [13], sensors [14], thin film transistors [15], solar cells [16], and beyond. The use of polycyclic aromatic hydrocarbons (PAHs), such as pentacene, has figured prominently in these efforts. Unfortunately, pentacene faces problems of poor stability and low solubility in organic solvents, even though it has large charge-carrier mobilities [17,18,19]. The issue of stability is related to the fact that pentacene is easily oxidized in air, whereas the solubility issues derive from the strong intermolecular forces associated with π-stacking in a herringbone manner [17,18,19]. These issues cause problems for the processing of pentacene, including purification and deposition of pentacene films from solution for device fabrication. As a result, formation of pentacene-based devices typically requires the use of thermal vapor deposition. Historically, efforts to enhance the performance of pentacene-based devices have been through device fabrication techniques rather than synthetic derivatization of pentacene. However, synthetic advancements in the last 10 years have provided methodology for functionalizing pentacene toward the realization of solution-processable, semiconductive materials [17,18,19].
Materials 03 02772 g001 1024

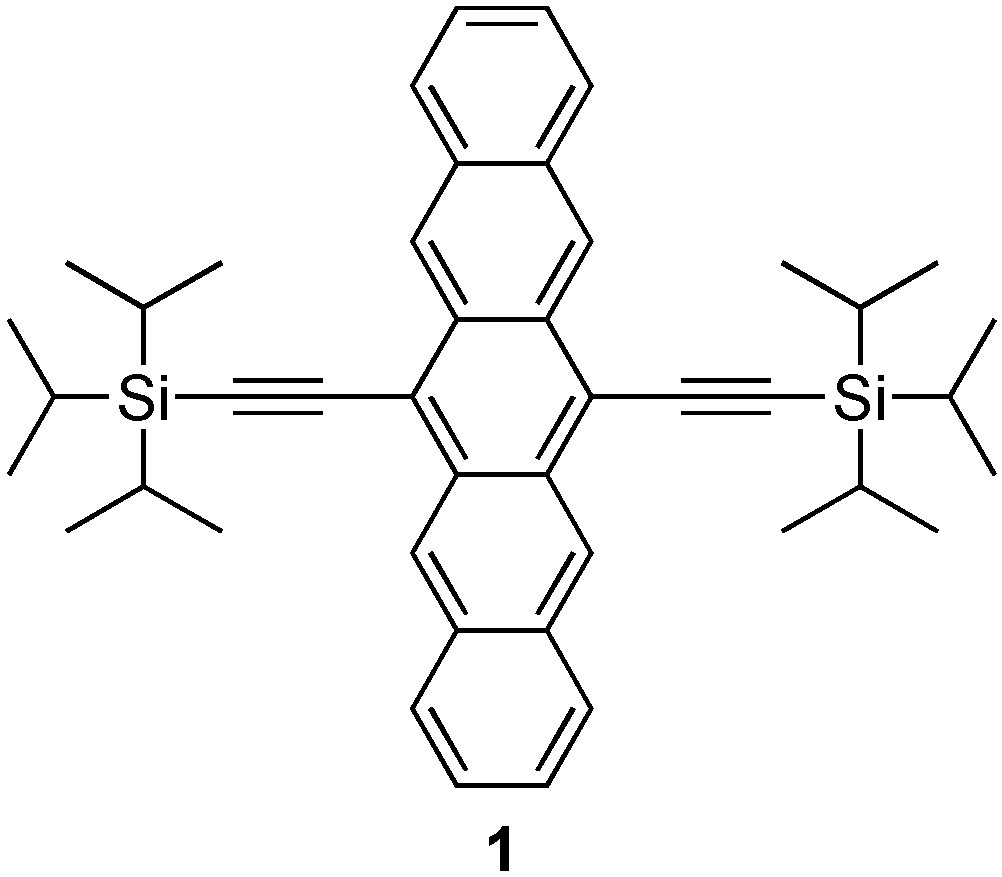

Figure 1. Structure of 6,13-bis(triisopropylsilylethynyl)pentacene (1).
Figure 1. Structure of 6,13-bis(triisopropylsilylethynyl)pentacene (1).
Materials 03 02772 g001
One could not begin discussing functionalized pentacenes without acknowledging the discovery of 6,13-bis(triisopropylsilylethynyl)pentacene (1, Figure 1) by Anthony in 2001 [20]. Pentacene 1 is both benchtop stable and highly soluble in common organic solvents, which allows for easy processing, including purification and solution deposition of thin films for device fabrication. Additionally, the size of the trialkylsilyl groups allows for control of the solid-state packing [21] by interfering with the tendency of pentacene to stack in a herringbone manner. Thus, pentacene 1 adopts a highly beneficial face-to-face π-stacking in the form of a 2-dimensional bricklayer arrangement with short interplanar distances (3.47 Å) between the acenes, which facilitates electronic coupling in the solid-state. Despite almost a decade of intense research in the field of functionalized pentacene, pentacene 1 still stands among the best functionalized pentacene materials from a device fabrication stand point. The use of silylacetylenes has also been useful for the functionalization of larger acenes, e.g., hexacenes [22] and heptacenes [22,23], as well as smaller acenes like tetracene [24], anthracene [10,25], anthradithiophenes [26], and related chromophores [27,28]. Advances in the synthesis and study of functionalized pentacenes has been reviewed [17,18,19], and will not be discussed further. The focus of this review will be the synthesis and properties of oligomers and polymers based on pentacene building blocks.

2. Non-Conjugated Oligomers and Polymers

2.1. Non-conjugated Pentacene Oligomers

The first reported synthesis of pentacene-based oligomers dates back to 2007, when Tykwinski and Lehnherr reported a homologous series of non-conjugated pentacene dimers and trimers, as well as the corresponding polymers (see Section 2.2) [29,30]. Silylacetylene 2 was appended onto the pentacene chromophore in two steps from 6,13-pentacenequinone to afford 3 (Scheme 1). From pentacene 3, building blocks 4 and 5 were obtained via removal of either one or both of the tert-butyldimethylsilyl (TBS) groups.
Materials 03 02772 g012 1024

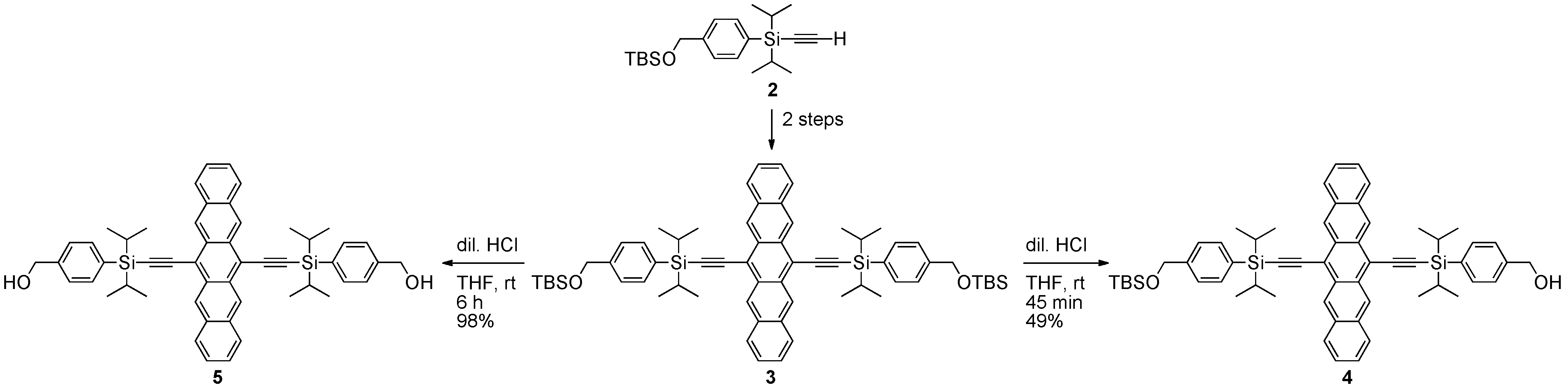

Scheme 1. Pentacene building blocks 4 and 5 used for non-conjugated pentacene oligomers.
Scheme 1. Pentacene building blocks 4 and 5 used for non-conjugated pentacene oligomers.
Materials 03 02772 g012
Pentacene dimers 6–13 were then obtained in good yield from 4 by simple esterification of a bis-acid chloride (Scheme 2). Pentacene trimers were also formed from alcohol 4 via initial reaction with cyclic anhydrides to form intermediates 14 and 15. The pendent carboxylic acid functionality of 14 and 15 was then esterified via the reaction with 5 to provide trimers 16 and 17, respectively. The esterification process could be accomplished with DCC, but higher yields and easier purification were possible with EDC·HCl.
Materials 03 02772 g013 1024

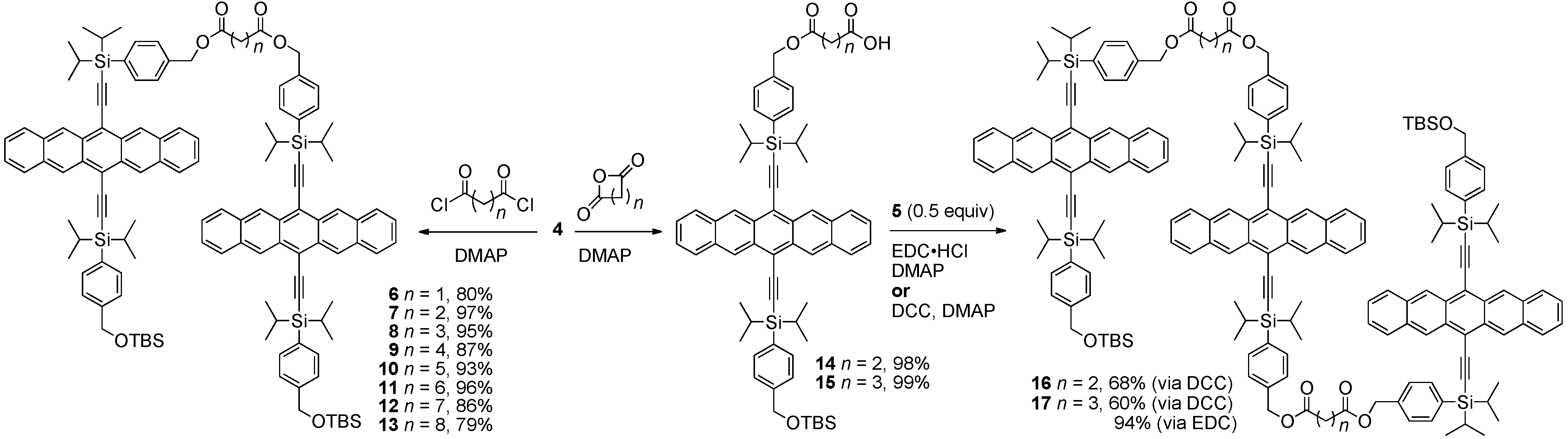

Scheme 2. Synthesis of non-conjugated pentacene oligomers connected via ester linkages.
Scheme 2. Synthesis of non-conjugated pentacene oligomers connected via ester linkages.
Materials 03 02772 g013
Solution-state aggregation is observed for oligomers 6, 7, and 10 by 1H NMR spectroscopy at concentrations >0.05 M in CDCl3. Under dilute conditions (6.6 × 10–7 to 1.7 × 10–5 M), however, no aggregation is observed by UV–vis spectroscopy in CH2Cl2. Furthermore, no change in the qualitative shape or absorption maxima (±1 nm) is found for the UV–vis spectra of dimers 6–13 and trimers 16–17 compared to monomeric pentacenes 3–5. Molar absorptivities (ε) increase monotonically as a function of the number of pentacene units: dimers 6–13 have roughly twice the ε values of monomer 5, while trimers 16–17 have ε values three times that of 5 (comparison made at λmax = 645 nm). Fluorescence studies using an excitation wavelength (λexc) of 551 nm show that the emission maximum, located at 652 nm, is identical for all dimers and trimers. Fluorescence quantum yield (ΦF) studies show that dimers 6–13 all show quantum yields ΦF = 0.08–0.11, whereas the values for trimers 16–17 (ΦF = 0.06) are about half that of the dimers. Thermal analysis by differential scanning calorimetry (DSC) shows that all dimers and trimers begin to decompose somewhere in the range of 360–380 °C, and TGA analysis reveals no significant weight loss below 370 °C. Charge transport properties have unfortunately not been reported for these oligomeric materials.

2.2. Non-conjugated Pentacene Polymers

In addition to the oligomers described above, Tykwinski and Lehnherr reported non-conjugated pentacene-based polymers 18 and 19, synthesized by reacting diol 5 with the acid chloride of either glutaric or adipic acid, respectively (Scheme 3) [29,30]. Although no weight-average molecular weight (Mw) or number-average molecular weight (Mn) were reported for these polymers, MALDI MS analysis showed macromolecules of over m/z 17,000 (e.g., m = 20) for 18 and m/z 15,000 (e.g., m = 17) for 19. In addition to the generalized structure in Scheme 3, MALDI MS analysis also showed signals consistent with both termini of the polymer functionalized with either a carboxylic acid or an alcohol, as well as signals corresponding to macrocyclic structures.
UV–vis absorption and emission characteristics for 18 and 19 are qualitatively equivalent (λmax = 645 nm, λmax,em = 652 nm) to those of the corresponding mono-, di- and trimers (vide supra). These polymers are soluble in solvents such as CH2Cl2, CHCl3, and THF and can be handled in the presence of air and water without any noticeable decomposition. Thin films cast from solution exhibit only a slight red-shift in λmax (<10 nm) in comparison to their solution-state UV–vis absorptions. DSC and TGA analysis of polymers 18–19 show thermal stabilities comparable to dimers 6–13 and trimers 16–17.
Materials 03 02772 g014 1024

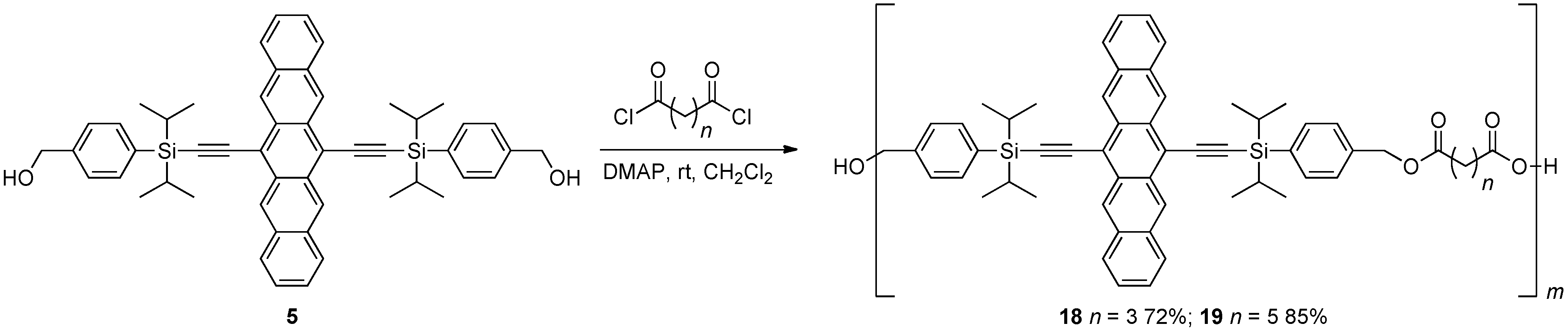

Scheme 3. Synthesis of non-conjugated pentacene polymers 18–19 connected via ester linkages.
Scheme 3. Synthesis of non-conjugated pentacene polymers 18–19 connected via ester linkages.
Materials 03 02772 g014

2.3. Non-Conjugated Pentacene Dendrimers

Dendrimers are branched, 3-dimensional, defined-length oligomers and have been synthetically targeted for a range of applications, such as biomedical [31], catalysis [32], and light-harvesting [33,34]. Recently, the use of dendrimers as semiconductive materials for light-emitting diodes and photovoltaic cells has come to the forefront [35]. The dendritic structure offers the potential of enhanced performance through the ability to control the local environment of the chromophore within the macromolecular shell, as well as providing 3-dimensional ordering of the chromophores [36]. Since 3-dimensional arrangement of chromophores in the solid-state strongly influences the electronic properties of a material, and thus device performance, dendritic pentacene-based molecules might afford new and enhanced properties as a result of this controlled geometrical organization [17,18,19].
In 2009, Tykwinski and Lehnherr reported the synthesis and properties of pentacene-based dendrimers 20 and 21 (Figure 2) [37]. The esterification reaction of 1,3,5-benzenetricarboxylic acid with building block 4 in the presence of EDC provided dendrimer 20 (C183H204O9Si9, 2800 g·mol–1) in 86% yield (Scheme 4). A mild and carefully controlled desilylation of 20 with dilute HCl provided dendron 22, which was then allowed to react with 1,3,5-benzenetricarboxylic acid in the presence of EDC to afford dendrimer 21 (C540H570O30Si24, 8214 g·mol–1) in 76% yield.
Both 20 and 21 show significant solubility in solvents such as CH2Cl2, CHCl3, and THF. Similar to their linearly arranged cousins (oligomers 6–13 and 16–17), no qualitative change in the UV–vis absorption profile for the dendrimers is found in comparison to monomer 5 (Figure 3a). The molar absorptivity of dendrimer 21 (ε = 2,230,000) for the most intense absorption (309 nm) is approximately three times larger than that of 20 (ε = 747,000), as expected based on the number of pentacene chromophores in each molecule. Solution-state fluorescence reveals a small Stokes shift of only 213 cm–1 for both dendrimers, suggesting minimal molecular rearrangement upon photoexcitation. Although the fluorescence spectra of dendrimers 20 and 21 appear similar to that of monomeric building block 5 (see Scheme 1 for structure), the fluorescence quantum yields in CH2Cl2 decrease as a result of dendrimer formation, ΦF = 0.14 (monomer 5) to ΦF = 0.04 (20) to ΦF = 0.03 (21). This trend is analogous to that observed in pentacene-based oligomers 6–13 and 16–17 (vide supra).
Materials 03 02772 g015 1024

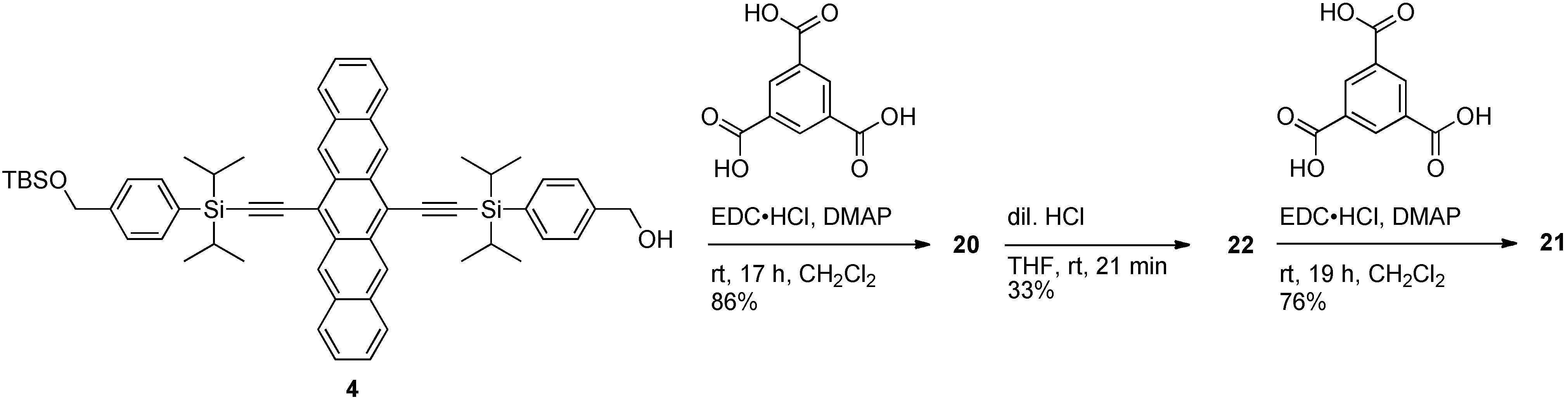

Scheme 4. Synthesis of pentacene-based dendrimers.
Scheme 4. Synthesis of pentacene-based dendrimers.
Materials 03 02772 g015
Materials 03 02772 g002 1024

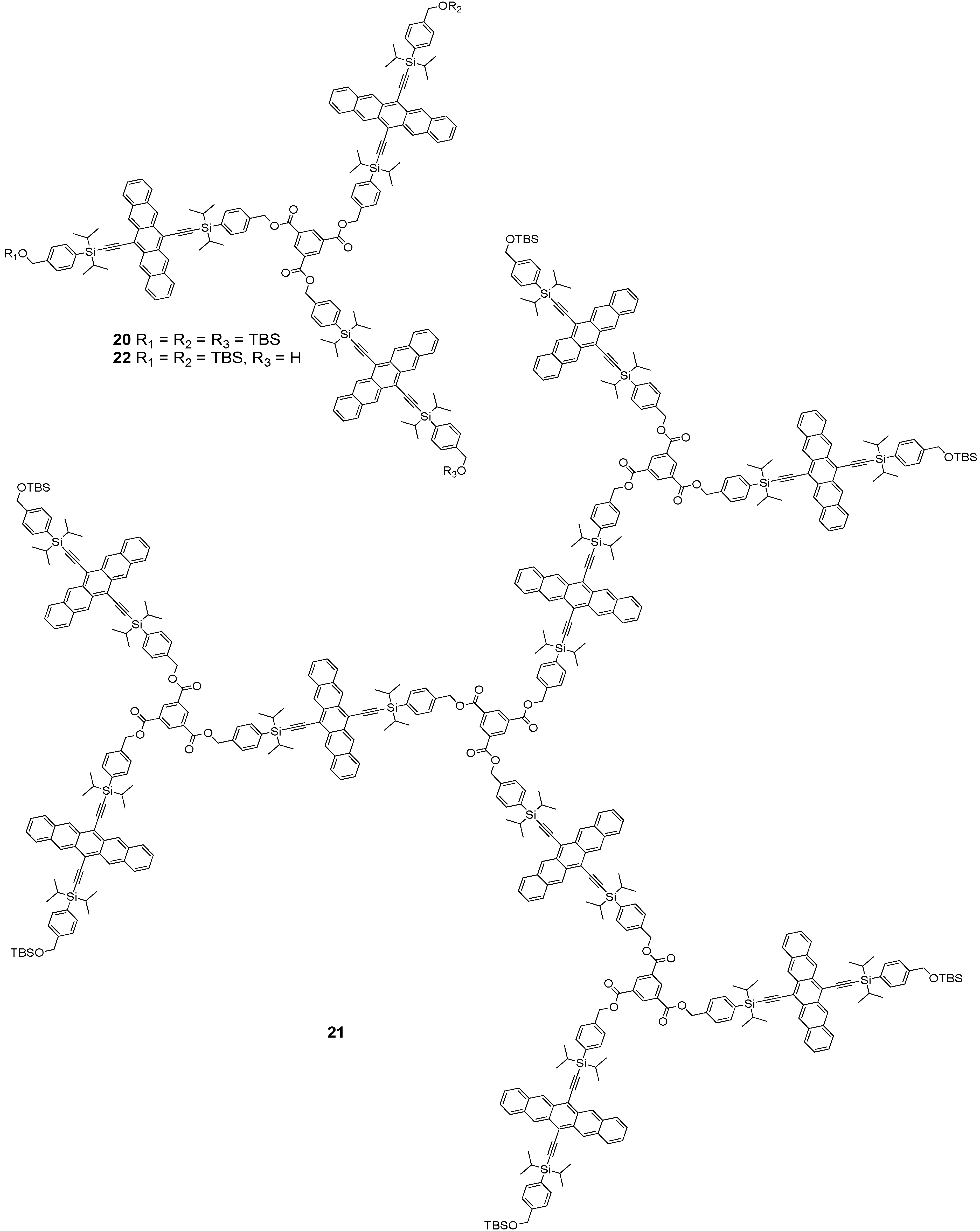

Figure 2. Structures of dendrimers 20 and 21, and dendron 22.
Figure 2. Structures of dendrimers 20 and 21, and dendron 22.
Materials 03 02772 g002
Thin film photodetectors have been formed using polymers 18–19 and dendrimers 20–21 by solution spin-casting. A specific element of this study examined photocurrent yield [38], which is defined as the ratio between the photogenerated electron flow rate and the absorbed photon rate given as:
Photocurrent yield = (I/e)/(Pabs/hν)
where I is the photocurrent, e is the electron charge, Pabs is the absorbed light power in the active region between the electrodes, h is Planck's constant and ν is the frequency of the light.
Dendrimers 20 and 21 show photoconduction onset at ca. 700 nm (Figure 3c) corresponding to the absorption edge for these materials (Figure 3b). This might indicate the presences of a band-to-band photogeneration mechanism [39], as opposed to an excitonic (Onsager) model [40,41]. Photocurrent yields for dendrimer 20 and 21 have been measured at 9 × 10–4 and 4 × 10–4, respectively (Figure 3d). These efficiencies are up to an order of magnitude greater than those of linearly-connected polymers 18 and 19. It is worth noting that a flatter response in the photocurrent yield as a function of wavelength is also observed for the dendritic derivatives in comparison to the linear polymers. The photocurrent yield for dendrimers 20 and 21 varies approximately one order of magnitude over the range of 360–650 nm, while that of polymers 18 and 19 decreases by almost two orders of magnitude over the same range (Figure 3d). These results show that these dendritic materials might have enhanced efficiency compared to linearly-connected pentacene-materials, although the photocurrent yields are still very low. This is almost certainly due to a lack of effective π-stacking interaction between neighboring pentacene chromophores, a premise supported by the lack of any substantial red-shift in absorptions in the solid-state UV–vis spectra (Figure 3b) for 20, 21 as compared to the solution-state data (Figure 3a).
Materials 03 02772 g003 1024

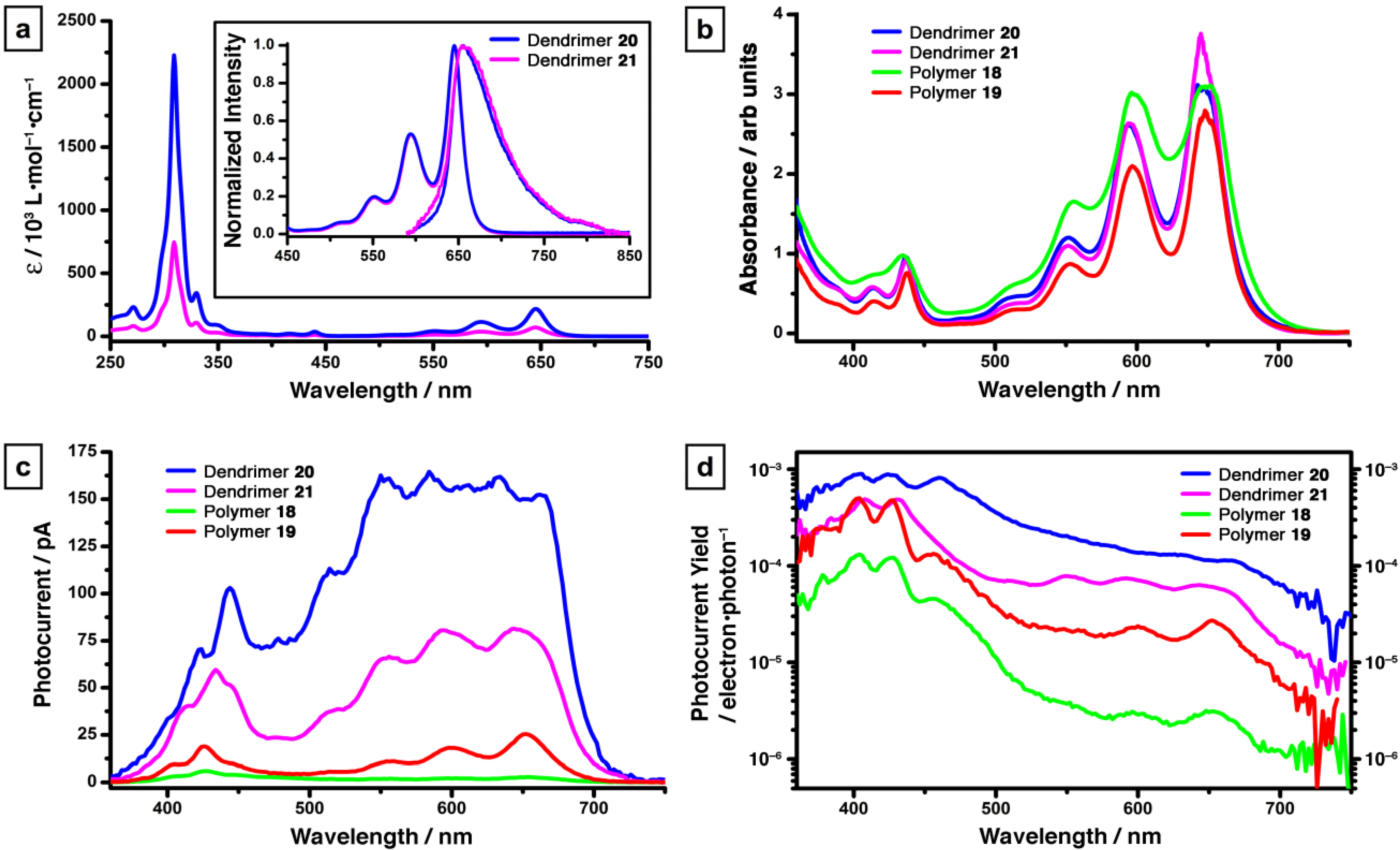

Figure 3. (a) Solution-state absorption and emission spectra for dendrimers 20–21 (in CH2Cl2). Plots of (b) UV–vis absorption spectra, (c) photoconductive response, and (d) photoconductive yield of thin film devices of dendrimers 20–21 and polymers 18–19. Figure adapted with permission from reference [37]. Copyright 2009 American Chemical Society.
Figure 3. (a) Solution-state absorption and emission spectra for dendrimers 20–21 (in CH2Cl2). Plots of (b) UV–vis absorption spectra, (c) photoconductive response, and (d) photoconductive yield of thin film devices of dendrimers 20–21 and polymers 18–19. Figure adapted with permission from reference [37]. Copyright 2009 American Chemical Society.
Materials 03 02772 g003

3. Pentacene-Based Polycyclic Aromatic Hydrocarbon Conjugates as Pseudo-Oligomers

3.1. Arylated Pentacenes

The past decade has provided a large number of substituted pentacene derivatives, partly in attempt to gain understanding towards tuning the electronic properties of pentacene. The appendage of one or more aromatic chromophores to the pentacene core has been investigated, resulting in materials that could be described as pentacene-based PAH conjugates. While this review intends to cover pentacene oligomers and pseudo-oligomers comprehensively, it will not attempt to cover monomeric pentacene derivatives exhaustively. Substitution of pentacene with mononuclear aromatic rings such as substituted-benzene or thiophene systems either directly onto the pentacene or connected through an ethynyl linker will not be discussed in great detail as the topic is simply too large, instead we will briefly highlight some key points.
In 1942, Allen and Bell synthesized 6,13-diphenylpentacene (23) and 5,7,12,14-tetraphenyl-pentacene (24) via addition of phenyl Grignard into 6,13-pentacenequinone and 5,7,12,14-pentacene-diquinone, respectively, followed by reductive aromatization using KI and acetic acid (Figure 4) [42]. This synthetic protocol, after some minor modifications, such as using SnCl2·2H2O in the presence of acid for the aromatization step, has provided the synthetic route to most 6,13-disubstituted pentacenes reported to date. In 1969, Maulding and Roberts reported the synthesis of 6,13-bis(phenylethynyl)pentacene (25) and 5,7,12,14-tetrakis(phenylethynyl)pentacene (26) from the corresponding acene mono- or diquinone [43].
In 2005, Dehaen and coworkers described the synthesis of 6,13-di(2'-thienyl)pentacene (27) and its benzothiophene analog (28) [44], but neither electronic properties nor device characterization were reported. However, Nuckolls and coworkers have studied the application of 27 for solar cells, in which 27 provided peak power efficiency of 1.4% when used in conjunction with PEDOT:PSS and C60 [45]. In 2006, Dehaen and coworkers also reported tetra-substituted pentacene derivatives 29 and 30 [46]. Sterically bulky aromatic rings such as 2',6'-dimethylphenyl group(s) have been attached to the pentacene core, such as in 31 [47] and 32 [48]. Kafafi has also reported 5,6,13,14-tetraarylated pentacenes 33 and 34 and their organic light emitting diode (OLED) device performance in 2006 [49]. In 2008, Neckers and coworkers reported the photochemical synthesis of di- and tetra-arylated pentacenes (35–38) at the pro-cata positions (2,3,9,10-positions of pentacene) [50]. Yamada and coworkers have developed a photochemical synthesis to 1,4,8,11-tetraarylpentacenes 39 and 40 [51,52]. Other substitution patterns have been achieved such as 1,4,6,8,11,13-hexaphenylpentacene (41) and 1,2,3,4,6,8,9,10,11,13-decaphenylpentacene (42) reported by Nuckolls [53] via generation of a naphthyne followed by in situ trapping with a diazopyrone. Recently, Pascal has reported several highly arylated pentacene derivatives (43–44) which have exceptionally twisted frameworks, as high as 144° for 43 [54,55].
Materials 03 02772 g004 1024

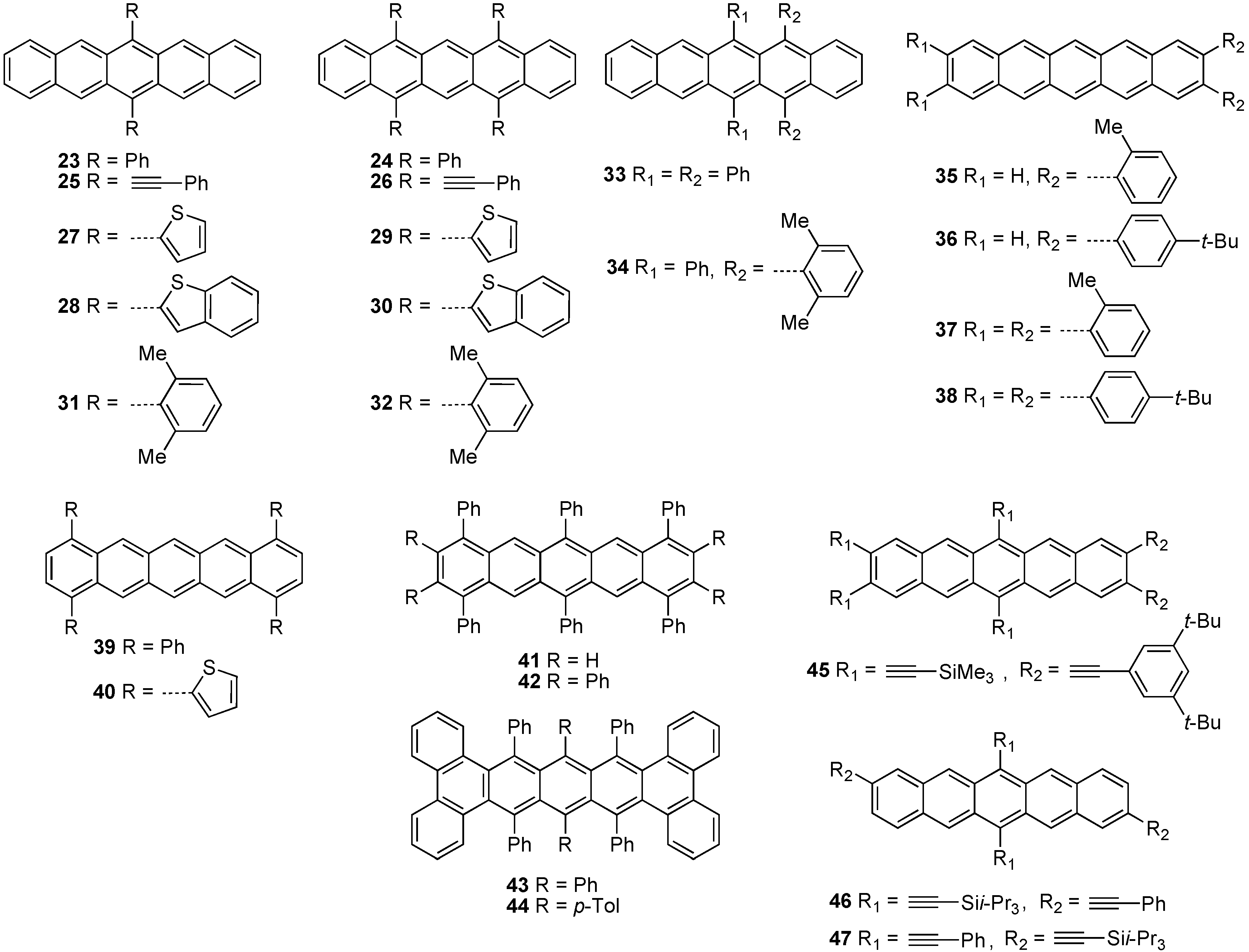

Figure 4. Arylated pentacene derivatives 23–47.
Figure 4. Arylated pentacene derivatives 23–47.
Materials 03 02772 g004
In 2006, Neckers reported hexaethynylated pentacenes such as 45 which had a reduced electrochemical band gap (Egelectro) of 1.69 eV in CH2Cl2 [56] and significantly red-shifted UV–vis absorption λmax (681 nm in CH2Cl2) compared to 6,13-bis(triisopropylsilylethynyl)pentacene 1 (Egelectro = 1.81 eV, λmax = 643 nm in CH2Cl2) [57]. In 2007, Fallis and coworkers reported tetraethynylated pentacenes such as 46 and 47 (λmax ca. 650 nm in hexanes) [58]. Several groups have also tried to vary the electronic nature of the substituents on pentacene to explore various properties [59,60,61,62,63], including the influence on stability [48,64,65]. Even so, the impact of various substitution patterns on stability as well as the mechanism of photodegradation are still not well understood [48,66].
Larger aromatic systems have been appended onto the pentacene framework. In 2006, Park and coworkers reported pentacenes 48–49 functionalized with either fluorenes or carbazoles at the 6,13-positions of pentacene (Figure 5) [67]. These were synthesized via the typical addition of lithiated nucleophiles into 6,13-pentacenequinone followed by SnII-mediated reductive aromatization of the resulting diol. The functionalization of the pentacene chromophore with these aromatic systems did not yield any change or red shift in the typical absorptions of pentacene [68], likely due to the inability for the side groups to be co-planar with the pentacene moiety as a result of steric interactions enforcing a twisted geometry. However, additional absorptions were observed in the UV–vis spectra corresponding to the carbazole and fluorene chromophores. The overall spectra of 48–49 overlap well with the photoluminescence spectra of tris(quinolin-8-olato)aluminum (III) (Alq3) making it a suitable host material for electroluminescent (EL) device fabrication with pentacenes 48–49.
Materials 03 02772 g005 1024

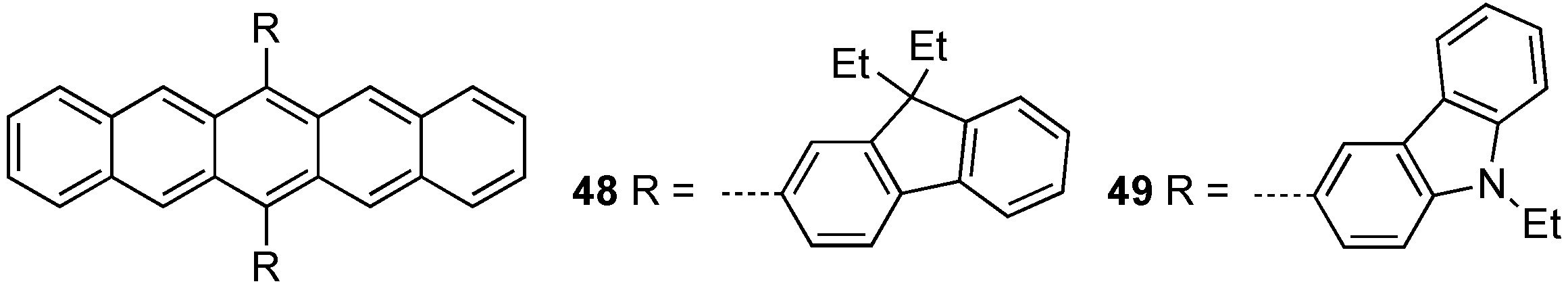

Figure 5. Structures of 6,13-bis(9,9-diethyl-9H-fluoren-2-yl)pentacene (48) and 6,13-bis(9-ethyl-9H-carbazol-3-yl)pentacene (49).
Figure 5. Structures of 6,13-bis(9,9-diethyl-9H-fluoren-2-yl)pentacene (48) and 6,13-bis(9-ethyl-9H-carbazol-3-yl)pentacene (49).
Materials 03 02772 g005
EL devices were fabricated using vacuum-deposition of pentacenes 48 onto ITO. EL devices had the following configuration: ITO/m-MTDATA/NPB/Alq3:48 or 49 (5%)/LiF/Al (m-MTDATA = 4,4',4''-tris[N-(3-methylphenyl)-N-phenylamino)triphenylamine; NPB = N,N'-bis(1-naphthyl)-N,N'-diphenyl-1,1'-biphenyl-4,4'-diamine). Devices using pentacene 48 as a dopant showed red EL spectrum at 636 nm with 0.03 cd/A efficiency, while those using pentacene 49 showed dramatically better performances of 0.21 cd/A. These values are still both lower than those of devices with 6,13-diphenylpentacene (23) using 0.55 mol% pentacene:Alq3 which have 1.2 cd/A performance as reported by Kafafi and coworkers [69].
Materials 03 02772 g006 1024

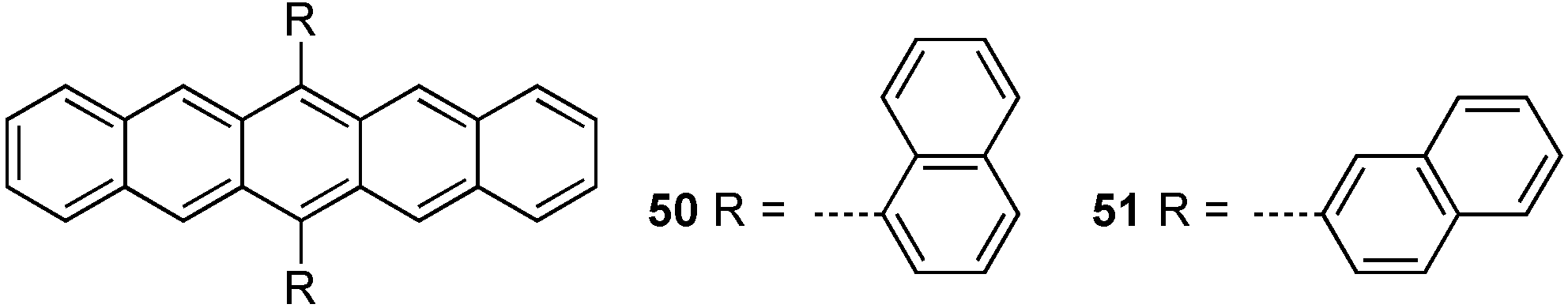

Figure 6. Structures of 6,13-bis(naphthyl)pentacenes 50–51.
Figure 6. Structures of 6,13-bis(naphthyl)pentacenes 50–51.
Materials 03 02772 g006
A variety of other PAH systems have been appended to pentacene, such as naphthyls (50–51) reported by Park (Figure 6) [70,71,72]. The 1-naphthyl isomer 50 had a higher melting point (272 °C) compared to the 2-naphthyl isomer 51 (160 °C) [71]. Both materials had photoluminescence maximum wavelengths around 620 and 660 nm [70]. OLED devices were fabricated using these pentacenes with the following device geometry: ITO/2-TNATA/NPB/Alq3 doped with either 50 or 51/Alq3/LiF/Al in which electroluminescent wavelength maximum values were at 621 and 628 nm, respectively (2-TNATA = 4,4',4''-tris[N-2-naphthyl-N-phenylamino)triphenylamine) [72]. The EL efficiency of 51 (0.67 cd/A) was significantly higher than that of 50 (0.027 cd/A).
Materials 03 02772 g016 1024

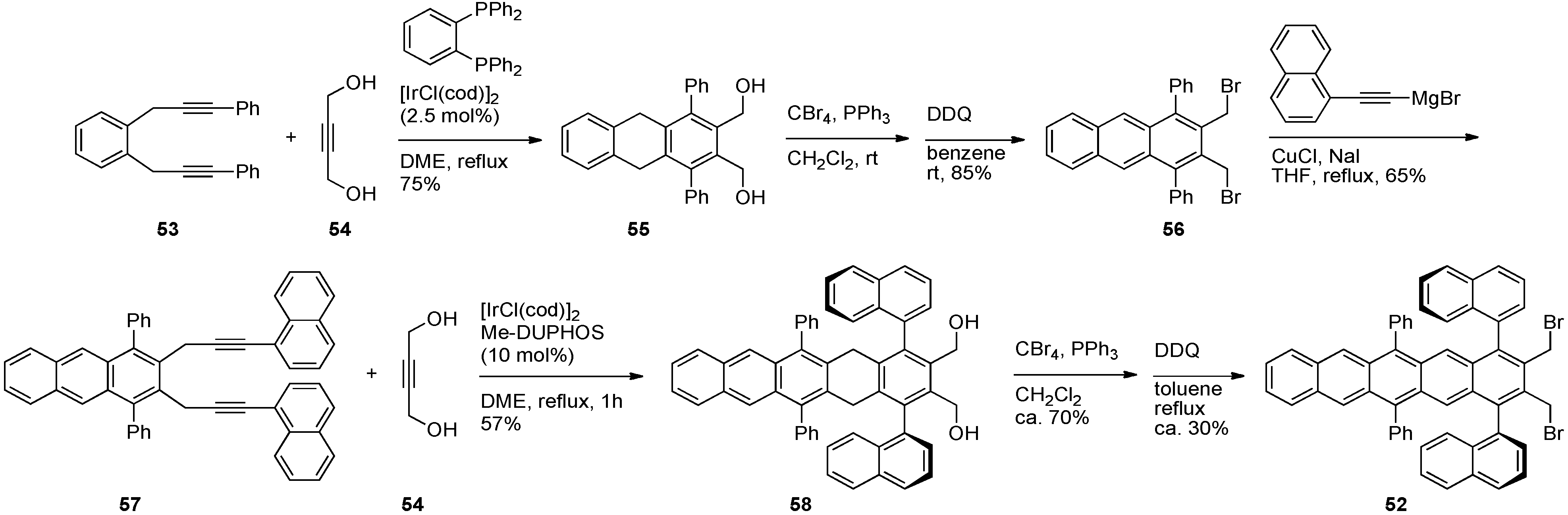

Scheme 5. Synthesis of axially chiral pentacene 52.
Scheme 5. Synthesis of axially chiral pentacene 52.
Materials 03 02772 g016
Naphthyl moieties have been appended to the pentacene skeleton at the 5,14-positions in the form of pentacene 52 (Scheme 5) [73]. ortho-Substituted benzene 53 was subjected to a iridium-catalyzed [2+2+2] cycloaddition with buta-2-yne-1,4-diol (54) to afford tricyclic 55. Conversion of the alcohols of 55 to bromides followed treatment with DDQ to aromatize the system afforded anthracene dibromide 56. Alkynylation of 56 with 1-ethynylnaphthyl Grignard provided intermediate 57. A second iteration of the homologation procedure, in this case with Me-DUPHOS, was applied to anthracene 57 to afford pentacene 52 via intermediate 58. Pentacene 52 has axial chirality and was synthesized in >99% ee. This synthetic approach is similar to Takahashi's homologation approach to pentacenes which uses a zirconium-mediated [2+2+2] cycloaddition of diynes [74,75].
In 2009, Zhang and coworkers have reported the synthesis of pentacenes substituted with oligothiophenes at the 6,13-positions (Figure 7), as well as their anthradithiophenes analogs [76]. The energy level of the HOMO of these materials increases as a function of the oligothiophene chain length, for example in the alkylated series: –5.22 eV (61) to –5.14 eV for (63) (all vs. vacuum), which is consistent with increasing the effective conjugation length (Table 1). As for the LUMO energy, it decreases in energy as the number of thiophene units increases (from –3.14 eV (61) to –3.35 eV (63). The overall effect is a reduced electrochemical band gap, from 2.08 eV (61) to 1.79 eV (63), as the conjugation length increases with the length of the oligothiophene side chain. Analysis of the thermal stability (determined via TGA) as well as photostability of these hybrids affords no real trends as a function of the number of thiophenes in the side chain, although the alkylated thiophenes (61–63) are consistently more stable than their unalkylated counterparts. Increasing the number of thiophene units in the side chain results in a progressive decrease in solubility, although the alkylated derivatives have improved solubility compared to the alkyl-free derivatives. Solid-state packing of 62, determined by X-ray crystallography, reveals a 1-dimensional slipped-stack arrangement with interplanar distance of 3.41 Å between the pentacenes.
Materials 03 02772 g007 1024

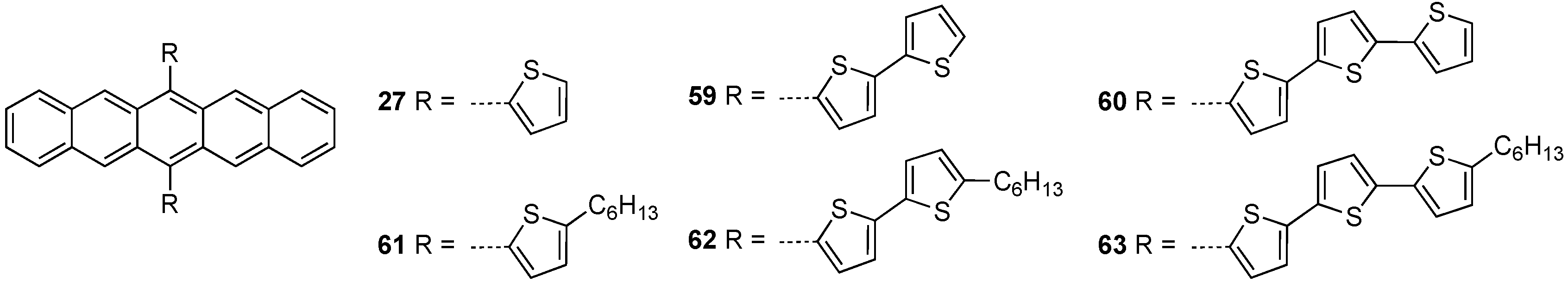

Figure 7. Structure of 6,13-bis(oligothienyl)pentacenes.
Figure 7. Structure of 6,13-bis(oligothienyl)pentacenes.
Materials 03 02772 g007
In 2005, Therien and coworkers reported the synthesis of conjugated bis[(porphinato)zinc(II)] compounds having a variety of aromatic chromophores as a π-spacer, one of which was a pentacene, namely compound 64 (Scheme 6) [77]. The synthesis of 64 was accomplished by carrying out an in situ desilylation of 65 followed by Sonogashira-type coupling reaction with bromide 66 to afford 64. Pentacene 64 had UV–vis absorptions in the Q-band region at 555 nm and 823 nm (λmax) in THF, with Soret bands at 421 and 493 nm. The band gap was determined from the UV–vis absorption edge to be 1.41 eV, which compared well with the electrochemically determined band gap of 1.40 eV measured in CH2Cl2.
Table
Table 1. Properties of 6,13-disubstituted pentacenes with oligothiophenes.
Table 1. Properties of 6,13-disubstituted pentacenes with oligothiophenes.
Compoundλmax [a] (in toluene) /nmλmax (thin film) /nmEgopt [b]/eVEgelectro [c]/eVEHOMO [c]/eVELUMO [c]/eVTd [d]/°Ct1/2 [e]/min
276206221.972.02–5.26–3.2430012
596356251.941.98–5.24–3.2635075
606396331.931.75–5.16–3.4134054
616286331.962.08–5.22–3.1436039
626386731.931.89–5.16–3.2737597
636436861.921.79–5.14–3.3538050
[a] Lowest-energy absorption maximum. [b] Optical band gap (Egopt) determined from the onset of the lowest-energy visible absorption band. The onset was defined as the intersection between the baseline and the tangent line that touches the point of inflection. [c] Eg = ELUMO – EHOMO = (E1/2red + 4.44) – (E1/2ox + 4.44). [d] Decomposition temperatures determined by TGA analysis. [e] Half-life times (t1/2) for the photooxidative stability determined by monitoring the decrease in absorbance at λmax for an air-saturated solution of the pentacene (1.0 × 10–4 M) in THF under ambient light at 22 °C and fitting the data to a unimolecular first order kinetics.
Materials 03 02772 g017 1024

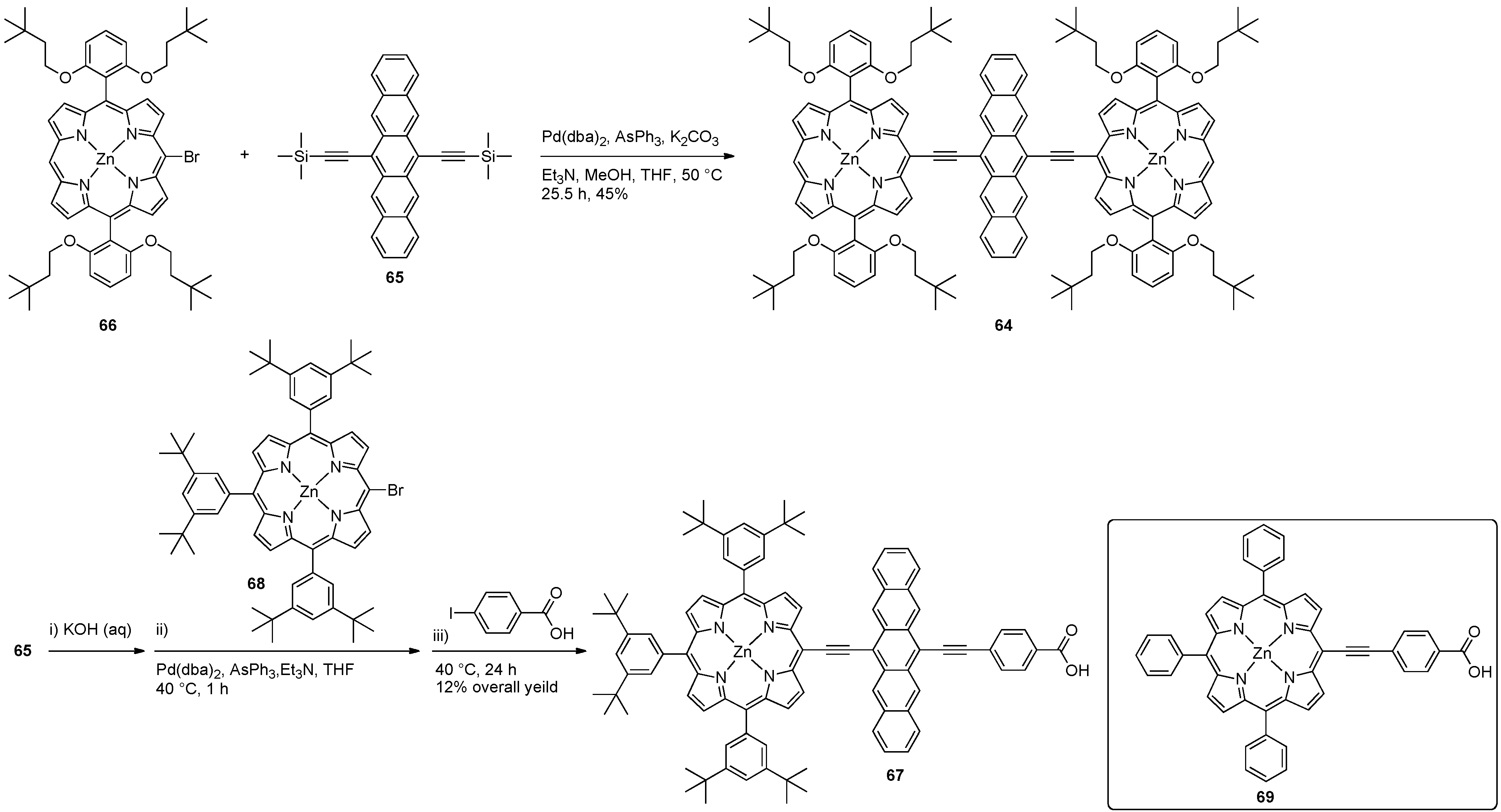

Scheme 6. Synthesis of porphyrin functionalized pentacenes 64 and 67. Inset: Model compound 69.
Scheme 6. Synthesis of porphyrin functionalized pentacenes 64 and 67. Inset: Model compound 69.
Materials 03 02772 g017
Very recently, Lin and coworkers have synthesized conjugated pentacene-porphyrin derivative 67 following a route analogous to Therien (Scheme 6), starting from porphyrin bromide 68 as the coupling partner [78]. UV–vis spectroscopic study of 67 (in THF) reveals Soret bands at 429 nm and 482 nm and an extremely broadened Q-band in the 500–800 nm region (λmax = 751 nm). Intramolecular charge transfer is tentatively assigned for the lowest absorption band because it is significantly red-shifted in comparison to the absorption spectra of the components. Pentacene 67 emits at λmax,em = 778 (in THF) using λexc = 429 nm. Electrochemical study of 67 reveals that oxidation is irreversible (no potential was given), while quasi-reversible reduction is observed at –0.85 V and –1.10 V vs. standard calomel electrode (SCE). The first reduction potential of 67 is closer to that of pentacene precursor 65 (0.92 V vs. SCE) than the reduction of model porphyrin 69 (–1.23 V vs. SCE) suggesting the reduction is occurring at the pentacene moiety. The photovoltaic properties of 67 have been studied, and, despite having a broad absorption spectrum able to capture a significant portion of the solar output spectrum, devices based on 67 have lower overall efficiencies (0.10%) than related materials in which the pentacene moiety is formally replaced with an anthracene moiety (which had an overall efficiency of 5.44%). The poor performance of sensitized solar cells based on pentacene 67 has been attributed to rapid non-radiative relaxation from the singlet excited state.

3.2. Unsymmetrically 6,13-Disubstituted Pentacenes

As can be seen from the synthesis of unsymmetrical pentacene 67 just described above (Scheme 6), unsymmetrically 6,13-disubstituted pentacenes can be challenging to synthesize and a general approach to such compounds would be synthetically beneficial. The synthesis of unsymmetrically 6,13-disubstituted pentacenes can be envisioned via the addition of two different nucleophiles in a stepwise fashion to 6,13-pentacenequinone. In the method reported by Dehaen and coworkers (Scheme 7) [44], addition of 2-lithiothiophene (as the limiting reagent) to a suspension of 6,13-pentacenequinone in THF at –78 °C afforded the monoaddition product 70 in 39% yield. Addition 1.5 equiv of the second nucleophile to mono-ketone 70 afforded unsymmetrical diol 71 in 58% yield. This diol was aromatized using NaI and NaH2PO2 in the presence of acid to afford unsymmetrical pentacene 72 in 8% overall yield.
Materials 03 02772 g018 1024

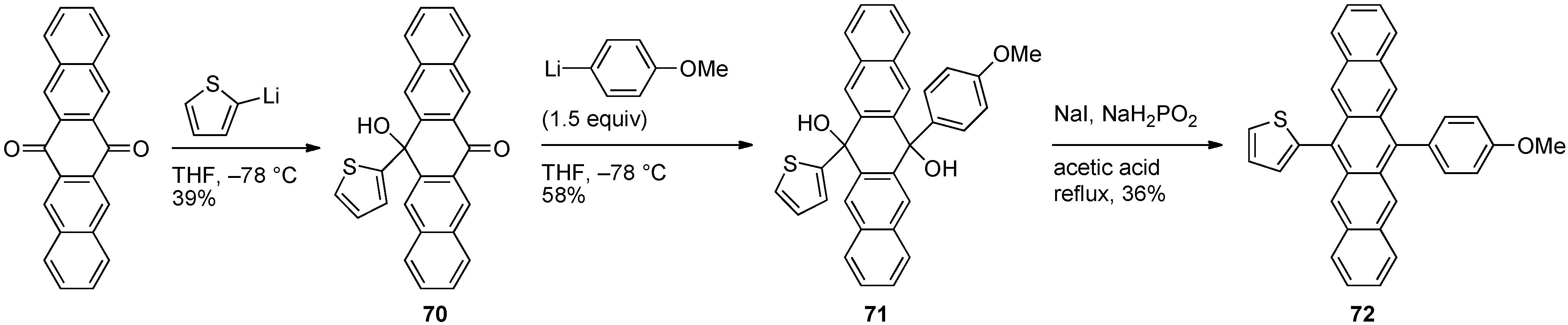

Scheme 7. Synthesis of unsymmetrical pentacene 72.
Scheme 7. Synthesis of unsymmetrical pentacene 72.
Materials 03 02772 g018

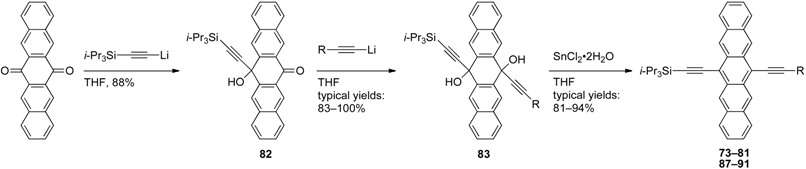

In 2008, a general stepwise approach to unsymmetrical pentacene chromophores was reported by Tykwinski and Lehnherr, providing electronically varied pentacenes 73–81 in high yields over three steps (Table 2) [79]. Key to this stepwise protocol was the slow addition of one equivalent of LiC≡CSii‑Pr3 at –78 °C to a suspension of 6,13-pentacenequinone at room temperature. This allowed for the continued dissolution of 6,13-pentacenequinone (as the dissolved portion is being consumed) to compete effectively against the addition of a second acetylide into the highly soluble lithiated alkoxide intermediate. With 82 in hand, the subsequent addition of two or more equivalents of the second acetylide (as the first equivalent is consumed by the acidic alcohol proton of 82) resulted unsymmetrical diol 83. The addition of the two different nucleophiles to 6,13-pentacenequinone can be combined into a one-pot procedure, providing 83 (with R = Ph) in comparable yields (84% yield for the 1-step synthesis of 83 vs. 77% for the 2-step route) [80]. Unsymmetrical diols 83 were aromatized at room temperature using SnCl2·2H2O to afford polarized pentacenes 73–81 in which either an electron-donating group or electron-withdrawing group could be incorporated to vary the electronic properties of pentacene (see Table 2). It should be noted that the SnII-mediated aromatization to 73–81 can be carried out without using an additional Brønsted acid (e.g., HCl, H2SO4, AcOH), and the milder conditions provide excellent yields for a wider substrate scope [29,30,79,80].
Table
Table 2. Pentacenes dyads and reported optical properties. Materials 03 02772 i001
Table 2. Pentacenes dyads and reported optical properties. Materials 03 02772 i001
Compound number and R =λmid [a] (CH2Cl2)/nmλmax [b] (CH2Cl2)/nmλmax (film)/nmλmax,em (CH2Cl2)/nmΦF [c] (CH2Cl2)Egopt [d] (CH2Cl2)/eVEgelectro [e] (3:1 PhH/MeCN) /eVTd (DSC)/°C
1 Materials 03 02772 i002328643–6490.151.84–265
73 Materials 03 02772 i003327642–6490.131.84–167
74 Materials 03 02772 i004368656–6660.051.78–136
75 Materials 03 02772 i005367655–6660.051.78–149
76 Materials 03 02772 i006363654–6610.101.80–191
77 Materials 03 02772 i007366654–6630.121.80–214
78 Materials 03 02772 i008364659–6680.121.78–210
79 Materials 03 02772 i009365654–6670.061.79–215
80 Materials 03 02772 i010357651–6600.131.81–194
81 Materials 03 02772 i0113606526716610.131.811.83180
86(see Scheme 8)374664–6790.041.76–175
87 Materials 03 02772 i0123816576796670.121.791.80197
88 Materials 03 02772 i0133956586796680.121.791.81210
89 Materials 03 02772 i0143986606866700.111.781.79221
90 Materials 03 02772 i0154406717126810.071.741.74256
91 Materials 03 02772 i0164656717126880.0061.741.71271
[a] Wavelength of most intense absorption in the range of 325–500 nm. [b] Lowest-energy absorption maxima. [c] Measured using λexc = 551 nm and cresyl violet perchlorate as a standard (see reference [83]). [d] The wavelength used as the absorption edge for determining Egopt corresponds to the lowest-energy absorption that has a molar absorptivity ε ≥ 1000 L·mol–1·cm–1. [e] Egelectro determined from the separation between the first oxidation and first reduction potentials measured in benzene/MeCN (3:1 v/v) containing 0.1 M n-Bu4NPF6 as supporting electrolyte.
Using a stepwise approach, Tykwinski and Lehnherr synthesized polarized pentacene 84 (Scheme 8) [79]. Addition of one equivalent of p-octyloxybenzene Li-acetylide into 6,13-pentacenequinone afforded monoaddition product 85 in 60% yield. Addition of excess p-fluorobenzene Li-acetylide to a solution of 85 afforded unsymmetrical diol 86 in 61% yield, which was aromatized using SnCl2·2H2O to provide pentacene 84 in 82% yield. Push-pull pentacene 84 has an absorption λmax of 664 nm (in CH2Cl2), which is more red-shifted than any of the unsymmetrical derivatives 73–81.
Materials 03 02772 g019 1024

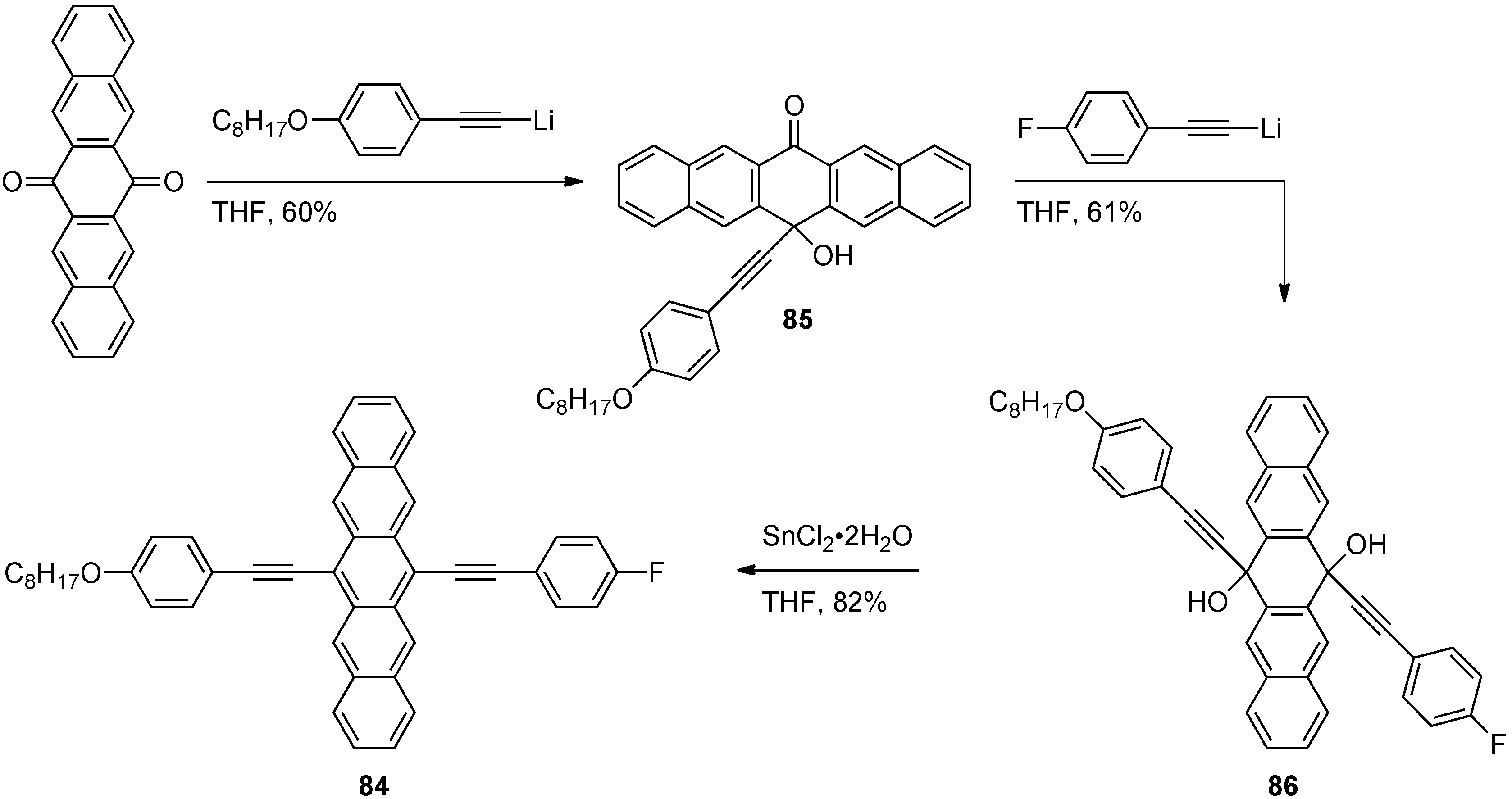

Scheme 8. Synthesis of push-pull pentacene 84.
Scheme 8. Synthesis of push-pull pentacene 84.
Materials 03 02772 g019
Ideally, organic materials for solar cell applications would absorb light throughout the solar spectrum [35,81,82]. This requires materials with electronic absorption spectra covering a wide range of energies across the UV–vis spectrum and into the near-IR. Unfortunately, functionalized pentacenes such as 6,13-bis(triisopropylsilylethynyl)pentacene (1) typically have a very narrow absorption region in the ultra-violet region (centered around ca. 310 nm) in addition to absorption bands in the visible region of 525–660 nm; they are quite transparent in the region of 350–525 nm [20]. Thus, a homologous series of pentacene–PAH dyads (87–91, Table 2) has been realized toward maximizing absorption [84].
The optical properties of these pentacene-PAH dyads have been characterized by UV–vis absorption and emission spectroscopy. UV–vis spectroscopy (in CH2Cl2) shows that the ethynyl linker in 87–91 facilitates electronic communication between the PAH pairs, as observed by the red shift in the observed λmax values for 87–91 as the pendent PAH chromophore is formally increased in size (Table 2). More interesting effects are observed in the mid-energy absorption range between 325–500 nm, as absorptions (λmid) are substantially red-shifted with increasing size of the pendent PAH group (Figure 8). Thus, the structural evolution in the acene series from phenyl 81 (λmid = 360 nm) to naphthyl 88 (λmid = 395 nm) to anthryl 91 (λmid = 465 nm) demonstrates a red shift of over 100 nm for this absorption. Fluorescence quantum yields range from 0.11–0.13 for dyads 81, and 87–89, and then drop to 0.07 for pyrenyl 90. Anthryl dyad 91 has a very low ΦF = 0.006, approaching the behavior of non-emissive conjugated pentacene dimers (vide infra). Cyclic voltammetry (CV) experiments suggest that the energy of the HOMO is raised while the LUMO energy is lowered as benzannulation is increased from 87 to 91. Furthermore, Eg values estimated from both UV–vis and CV analysis consistently decrease as annulation increases.
Materials 03 02772 g008 1024

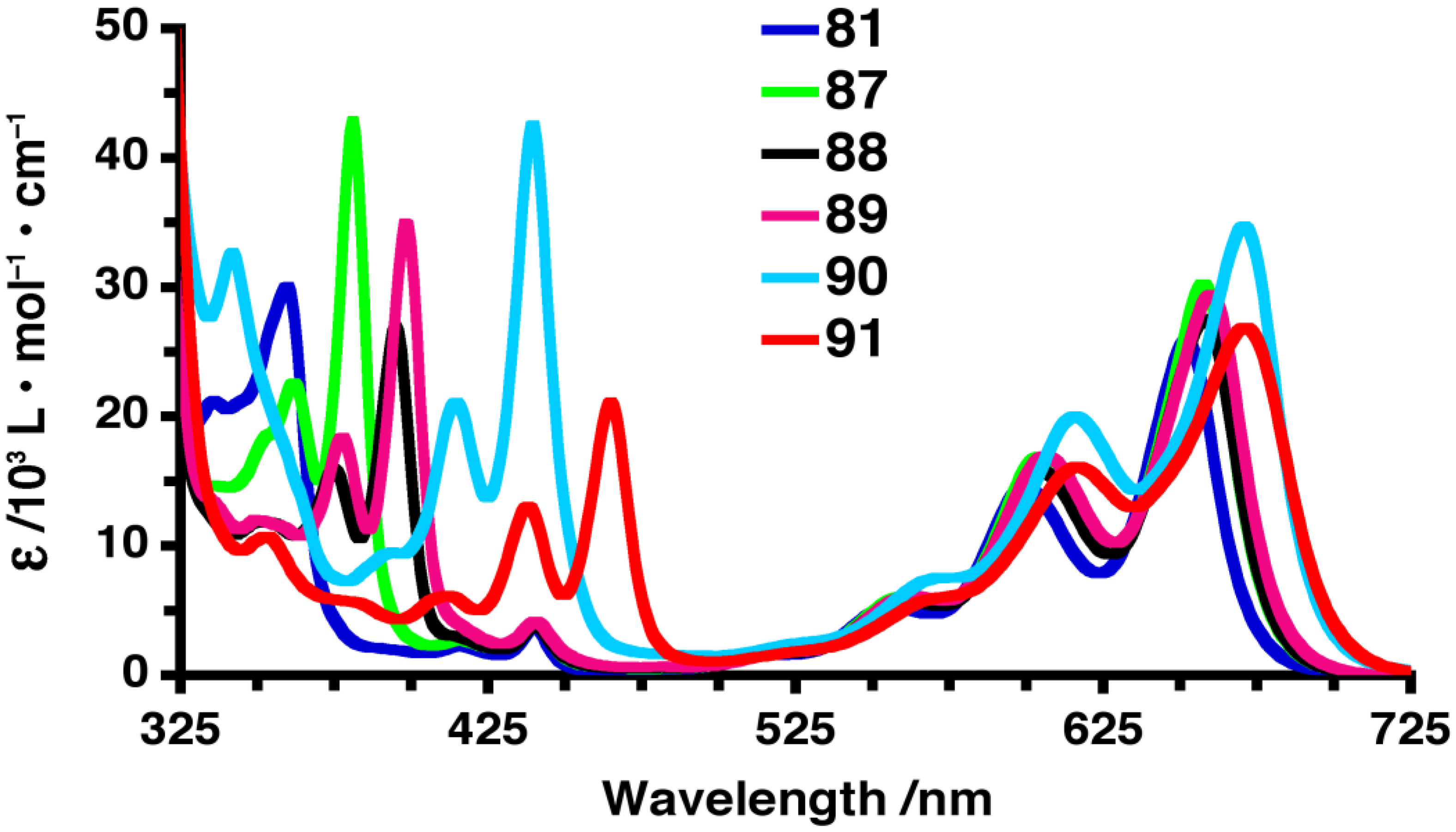

Figure 8. UV–vis absorption spectra of pentacenes 81 and 87–91 in CH2Cl2.
Figure 8. UV–vis absorption spectra of pentacenes 81 and 87–91 in CH2Cl2.
Materials 03 02772 g008
Solid-state analysis of pentacene-based PAH dyads 87–89 and 91 reveals that the molecules are able to π-stack with a cofacial arrangement with short interplanar distances (3.3–3.5 Å). The choice of the PAH moiety, as well as the point of attachment of 6,13-diethynylpentacene, offers the ability to manipulate the solid-state packing. X-ray crystallography nicely shows that with increasing size of the pendent PAH group in 87–89 and 91, cofacial packing is maximized between nearest neighbors (Figure 9). This fact should ultimately provide for a larger transfer integral, and, thus, enhanced conduction and improved charge-carrier mobility [85].
Materials 03 02772 g009 1024

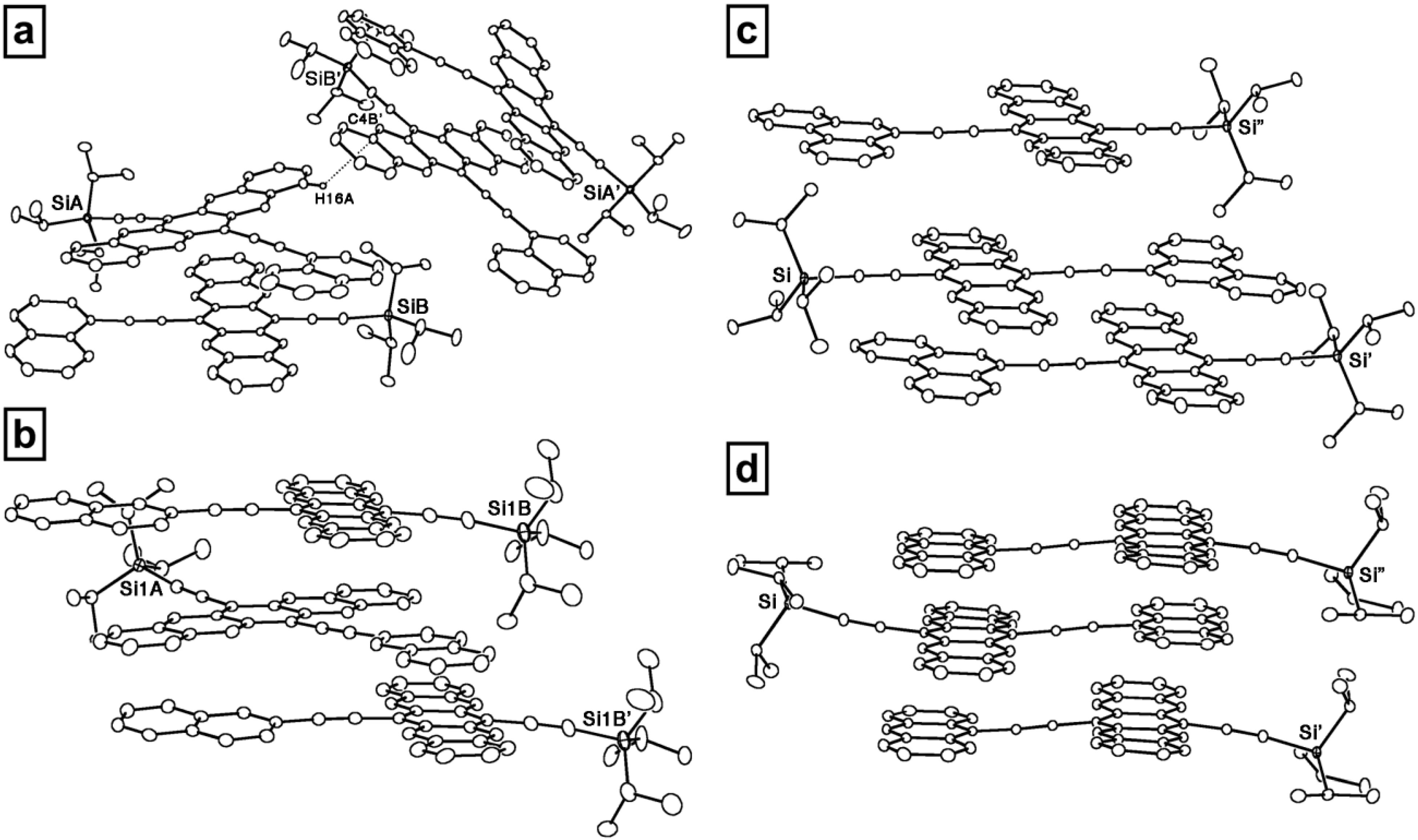

Figure 9. ORTEP representation illustrating solid-state packing of (a) 88, (b) 87, (c) 89, and (d) 91. Figure adapted with permission from reference [84]. Copyright 2009 Wiley-VCH Verlag GmbH & Co. KGaA.
Figure 9. ORTEP representation illustrating solid-state packing of (a) 88, (b) 87, (c) 89, and (d) 91. Figure adapted with permission from reference [84]. Copyright 2009 Wiley-VCH Verlag GmbH & Co. KGaA.
Materials 03 02772 g009
In addition to the pentacene-based PAH conjugates discussed above, there are of course the pentacenes which have aromatic rings fused to their skeleton, for example, hexacenes [22,86], heptacenes [22,23,86,87,88], and a recently reported functionalized nonacene [89]. Additional examples exist with pentacene structures that have one or more thiophene ring(s) fused to the pentacene core, such as pentadithiophenes (which contain 7-linearly fused aromatic rings) [90] and pentacenothiophene (which contains 6-linearly fused aromatic rings) [91]. A hexathiapentacene has also been formed and displays interesting properties [92,93,94].

4. Conjugated Pentacene Oligomers

Conjugated pentacene dimers 92–94 were first reported in 2008 [80]. The synthesis was accomplished by addition of either i-Pr3Si-acetylide or n-Hex3Si-acetylide to 6,13-pentacenequinone to achieve intermediates 95 and 96, respectively, followed by reaction with a dilithiated 1,4-diethynyl-benzene to provide tetraols 97–99 (Scheme 9). SnII-mediated reductive aromatization of tetraols 97–99 afforded pentacene dimers 92–94. Increased solubility was achieved by formally replacing the i-Pr3Si endgroups of 92 with n-Hex3Si groups in 93. Conjugated pentacene dimers 92–94 had a UV–vis absorption λmax around 680 nm (in CH2Cl2), a red shift of ca. 30 nm compared to 81. These conjugated dimers were found to have insignificant emission in CH2Cl2.
Materials 03 02772 g020 1024

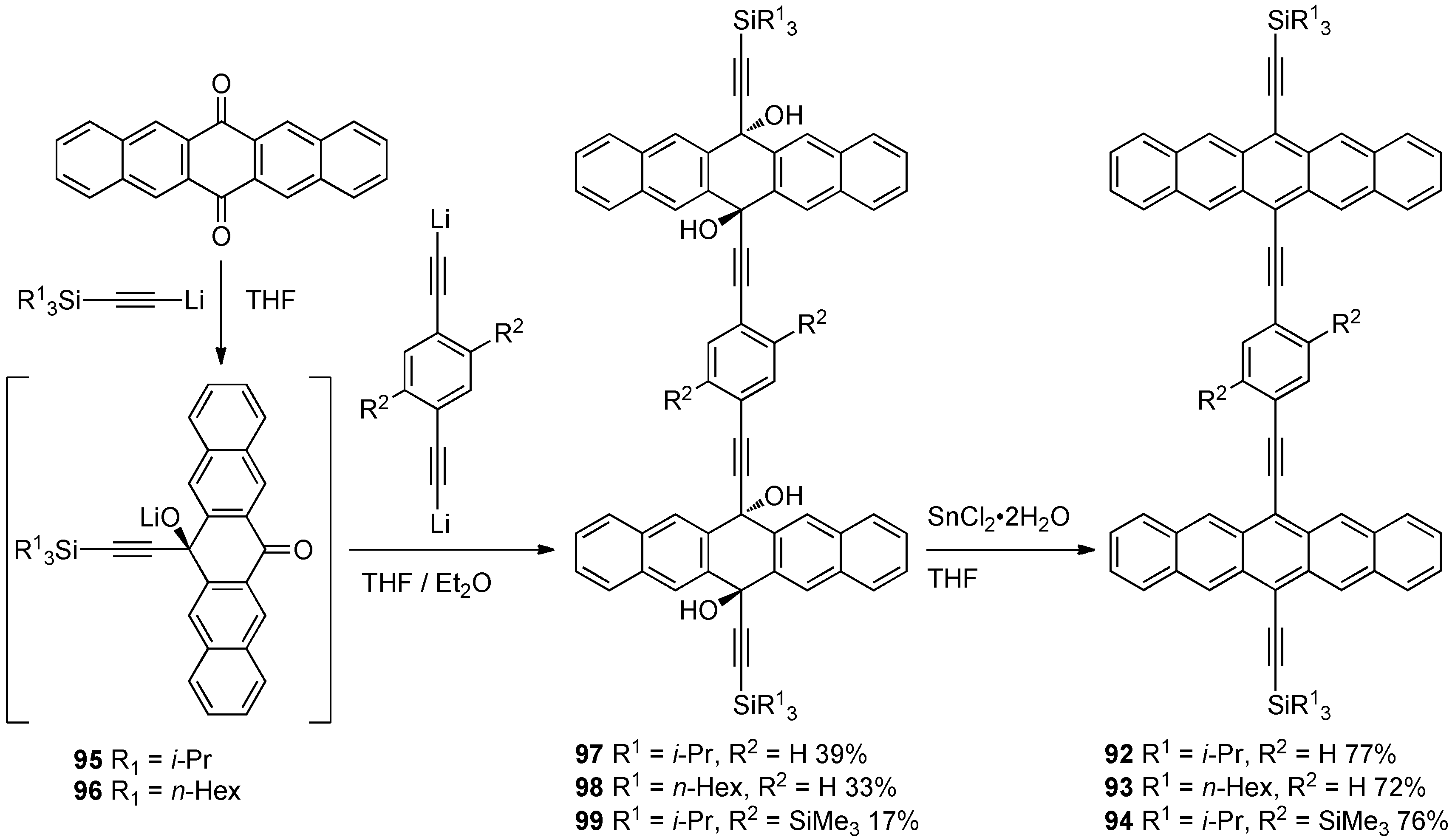

Scheme 9. Synthesis of conjugated pentacene dimers 92–94.
Scheme 9. Synthesis of conjugated pentacene dimers 92–94.
Materials 03 02772 g020
Thin film photodetectors have been fabricated from dimers 92–94, and photoconduction has been measured in comparison to 6,13-bis(triisopropylsilylethynyl)pentacene (1). The photocurrent yield for dimer 92 (Figure 10) is in the same order of magnitude as pseudo-monomer 81, while dimer 93 has the lowest efficiency, presumably due to the larger size of the pendent n-Hex3Si groups that can disrupt intermolecular interactions between pentacene chromophores. Dimer 94 has the highest efficiency, with bulk photoconductive gain >10, i.e., for every photon absorbed more than 10 charge-carriers traverse the active region of the device [95]. Thus, 94 outperforms 1, which has become somewhat of a benchmark in the field [17,18,20]. Furthermore, this efficiency places spin-cast films of dimer 94 within the same order of magnitude as thermally deposited films of pristine pentacene which has a photoconductive gain >16 [96].
In 2009, Wu and coworkers reported the synthesis of pentacene dimer 100 (Scheme 10) [97]. The synthesis was accomplished by dimerization of 6-pentacenone (101) using pyridine N-oxide in the presence of FeSO4 to form 6,6'-bispentacenequinone 102 in 83% yield. Addition of a Li-acetylide to diketone 102 afforded diol 103 which was aromatized using NaI and sodium hypophosphite to pentacene dimer 100 in 74% yield. Dimer 100, a deep blue solid, has UV–vis absorption λmax of 637 nm in CHCl3, slightly blue-shifted from pentacene 1 (λmax = 642 nm in CHCl3). Thin films of 100 have a minimally red-shifted λmax of 11 nm compared to solution-state data. The half-life of toluene solutions of pentacene 100 under white light irradiation (100 W) has been determined to be 350 min, compared to 140 min for 1 when measured under the same conditions. X-ray crystallographic data reveals that the two pentacene moieties of dimer 100 are nearly orthogonal to each other (78° twist), and that each pentacene moiety is part of separate cofacial π-stacking interactions with interplanar distances of ca. 3.4 Å. This results in two π-stacking axes nearly orthogonal to each other. FET were fabricated by using vapor-deposition to form thin films of 97 onto octadecyltrichlorosilane-treated Si/SiO2 substrate heated at 200 °C, yielding mobilities as high as 0.11 cm2·V–1·s–1 when measured in the saturated regime [98].
Materials 03 02772 g010 1024

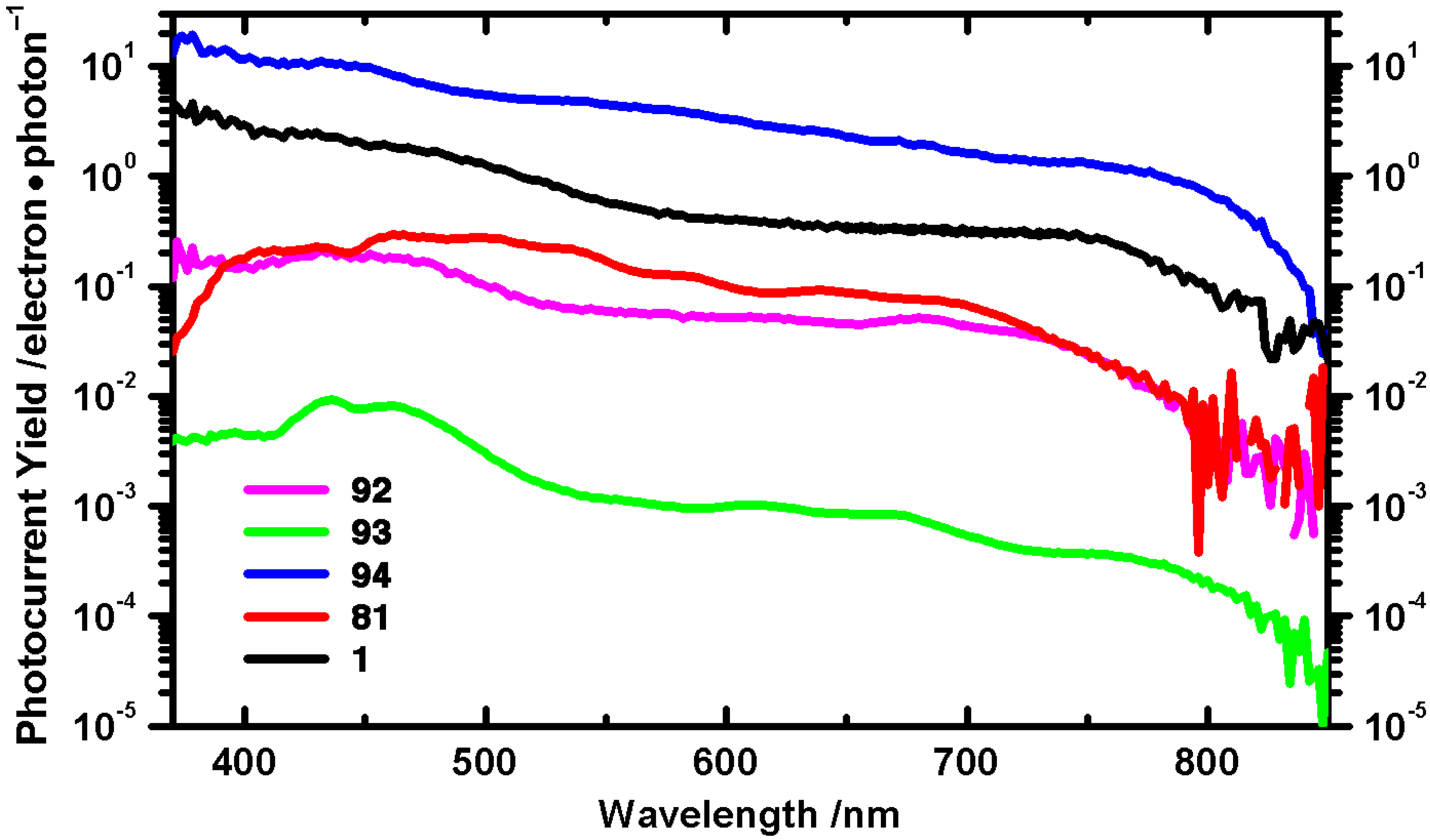

Figure 10. Photocurrent yield (370–850 nm) for dimers 92–94 and related monomers 1 and 81. Figure adapted with permission from reference [80]. Copyright 2008 American Chemical Society.
Figure 10. Photocurrent yield (370–850 nm) for dimers 92–94 and related monomers 1 and 81. Figure adapted with permission from reference [80]. Copyright 2008 American Chemical Society.
Materials 03 02772 g010
Materials 03 02772 g021 1024

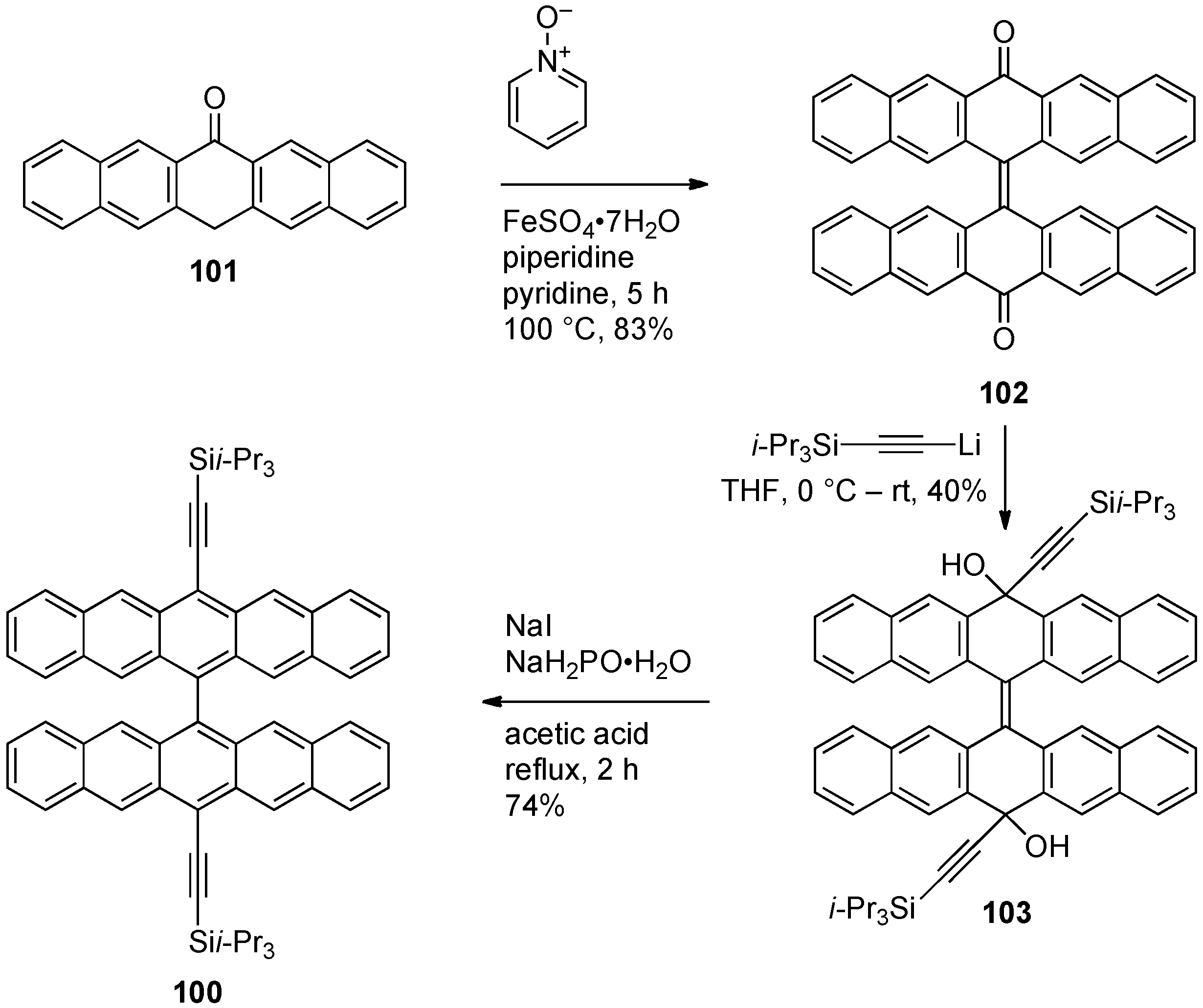

Scheme 10. Synthesis of 13,13'-bis(triisopropylsilylacetylene)-6,6'-dipentacenyl 100.
Scheme 10. Synthesis of 13,13'-bis(triisopropylsilylacetylene)-6,6'-dipentacenyl 100.
Materials 03 02772 g021
In 2009, Neckers reported the photochemical dimerization of 2,3,9,10-tetrabromopentacene (104) to produce 3,3',9,9',10,10'-hexabromo-2,2'-bipentacene (105, Scheme 11) [99,100]. Photochemically induced decarbonylation of 106 produced 104, and upon prolonged irradiation the dimerization of 104 produced 105 (confirmed by MALDI-TOF MS). The mechanism was postulated to proceed via formation of pentacene radical 107 (via loss of Br•) followed by bimolecular recombination of 107. Little is known about dimer 105 other than its constitution as established by MALDI-TOF MS and a tentative λmax value of ca. 688 nm (in toluene).
Materials 03 02772 g022 1024

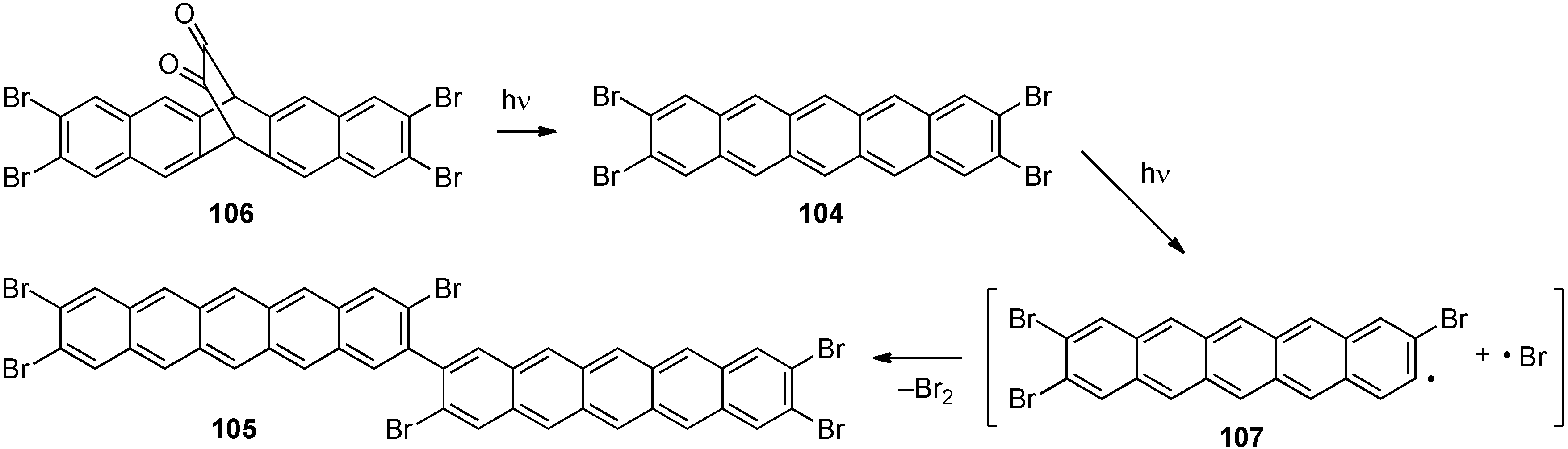

Scheme 11. Photochemical synthesis of conjugated pentacene dimer 105.
Scheme 11. Photochemical synthesis of conjugated pentacene dimer 105.
Materials 03 02772 g022
The purification of pentacene via sublimation is known to cause the decomposition of pentacene into a number of interesting byproducts depending on the nature of the atmosphere used for the purification [101]. The reactivity of the central ring with oxygen, water, or hydrogen is documented by the formation of 6,13-pentacenequinone and 6,13-dihydropentacene depending on the nature of the carrier gas and its purity when performing physical vapor transport for the growth of pentacene crystals [101,102]. The residue material from the sublimation contains compounds with the proposed structure 108a (peripentacene) and 109 (trisperipentacene) as determined by laser desorption FTMS (Figure 11) [102]. The MS data features a distribution of peaks around the expected signal of m/z 546 for 108a, which is explained by the relative positioning of the two pentacene molecules to one another. In the case that the two pentacenes are offset, one or more unfused position(s) remain, and this would result in a molecular mass increase of m/z 2 (108b), 4 (108c), or 6 (108d). The offset between the two pentacene moieties is not necessary, and these signals may be due to unfused sites such as in structure 108e; a number of isomers can be imagined. No experimental evidence has conclusively determined the exact structures related to these signals, but a theoretical computational study has been carried out [103]. Likewise, the signal at m/z 818 could be due to one of a number of possible isomers, such as 109, which has two unfused positions (i.e., [C66H26]+). These materials have not been thoroughly characterized, but the authors claim they are "…more conductive than pentacene, with a linear I–V dependence similar to graphite" [102].
Materials 03 02772 g011 1024

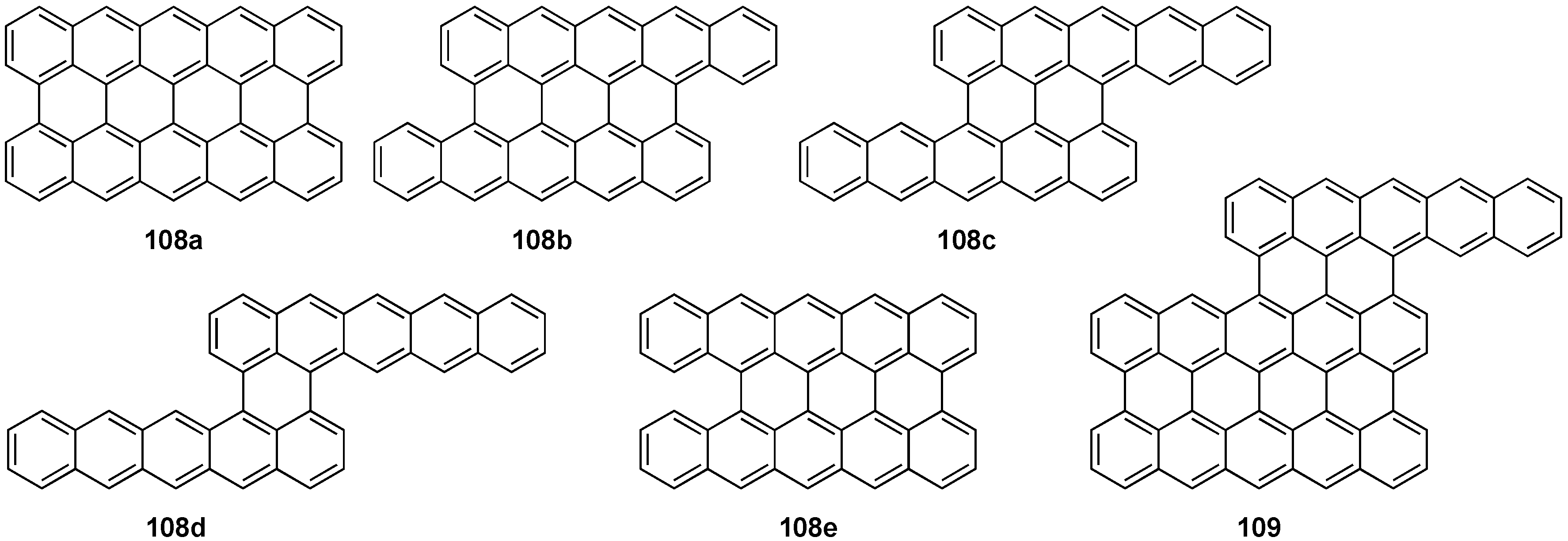

Figure 11. Proposed structures for 108a–e and 109.
Figure 11. Proposed structures for 108a–e and 109.
Materials 03 02772 g011

5. Conjugated Pentacene Polymers

In 2001, Tokito and coworkers have reported the first pentacene polymers [104]. Ni[0]-mediated Yamamoto coupling of dibromo monomers 110 and 111 provides random copolymers 112 and 113 depending on the relative mole ratio of the monomers used (Scheme 12). Polymer 112 has a weight-average molecular weight (Mw) of 86,000 g·mol–1 and polydispersity (PDI) of 1.7, while increasing the pentacene content results in polymer 113 with a lower MW of 61,000 g·mol–1 and smaller PDI of 1.6. Thin films of polymer 113 have an absorption λmax at 623 nm and emission at λmax,em = 625 nm (excitation at 365 nm). Polymer light emitting diodes (PLEDs) have been constructed using the following arrangement: ITO/PEDOT/polymer/Ca/Al. PLEDs with polymer 113 show a turn-on voltage of 30 V, a maximum photoluminescence of 240 cd/m2, and photometric efficiencies of 0.11 cd/A when operated at 100 cd/m2. The turn-on and operating voltages for 113 are higher than those of the homopolymer (polyfluorene). The incorporation of the pentacene into the polymer is believed to create electron- or hole-carrier traps, which likely cause a decrease in the carrier mobility. By decreasing the content of pentacene in the polymer, i.e. going from 113 to 112, turn-on voltages are reduced to 11 V and maximum luminance and photometric efficiencies improved to 1020 cd/m2 and 0.32 cd/A, respectively. It is noted that the PLEDs had a half-life of less than 10 h, which is insufficient for practical applications.
Materials 03 02772 g023 1024

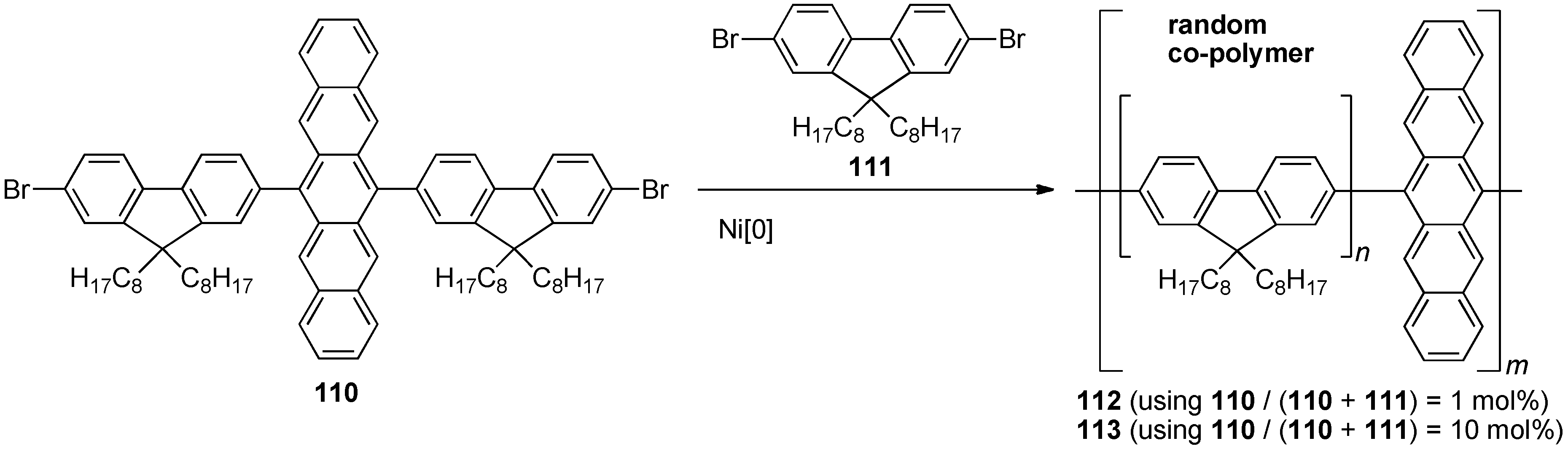

Scheme 12. Synthesis of conjugated random copolymers 112–113 containing pentacene.
Scheme 12. Synthesis of conjugated random copolymers 112–113 containing pentacene.
Materials 03 02772 g023
In 2007, Okamoto and Bao reported conjugated polymers 114–115 [105], which was followed by a 2008 report of a related polymer (116, Scheme 13) [106]. Dibromopentacene monomer 117 was used as a regio-mixture of 2,9- and 2,10-dibromopentacene to form copolymers 114–116 via a Sonogashira-type coupling with 1,4-diethynylbenzenes. Similarly, polymer 116 was formed from dibromides 117 via Suzuki coupling with fluorene diboronic ester 118, followed by endcapping of the polymer with phenyl groups.
Polymer 114 has a number-average molecular weight (Mn) = 1.13 × 104 g·mol–1 and PDI = 2.21, while polymer 115 has Mn = 2.39 × 104 g·mol–1 and PDI = 2.42, while polymer 116 has Mn = 3.64 × 104 g·mol–1 and PDI = 3.21. Polymer 115 shows greater solubility (>5.0 mg/mL in chlorinated solvents) compared to 114 (~0.3 mg/mL) which is likely due to the increased branching of the alkoxy group on the aryl spacer. Polymer 116 is soluble in halogenated benzenes, such as o-dichlorobenzene (o-DCB) with solubility of ~5.0 mg/mL. DSC analysis of polymers 114–115 shows no thermal transitions between 25 and 350 °C, while TGA data for polymers 114–116 reveals thermally induced weight loss occurs around 400 °C. Polymer 115 has better solution-state photochemical stability in comparison to 6,13-bis(triisopropylsilylethynyl)pentacene (1) as observed by monitoring the decrease in absorption at λmax in the UV–vis spectra over time. This is attributed to the slightly lower energy HOMO (by 0.04 eV) in polymer 115 compared 1, making the polymer harder to oxidize (Table 3). Fabrication of bulk heterojunction solar cells with polymer 116 and PCBM has been attempted, but result in "poor performance" [106]. This may be due to the high reactivity of pentacenes with C60 and its derivatives which would destroy the pentacene chromophore [107,108,109,110,111].
Materials 03 02772 g024 1024

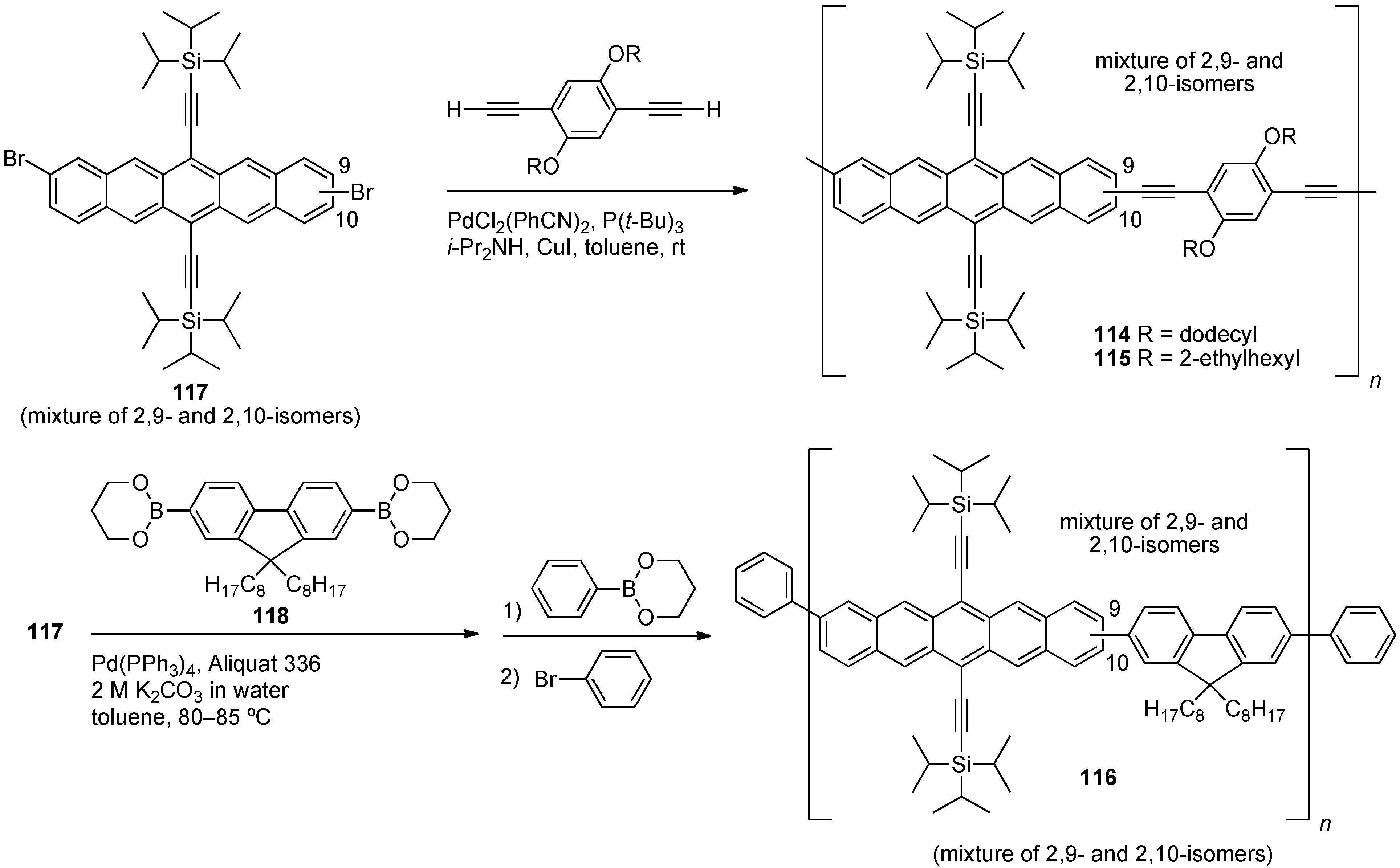

Scheme 13. Synthesis of conjugated pentacene-polymers 114–116.
Scheme 13. Synthesis of conjugated pentacene-polymers 114–116.
Materials 03 02772 g024
Table
Table 3. Optical and electrochemical properties of polymer 114–116 and compared to monomer 1.
Table 3. Optical and electrochemical properties of polymer 114–116 and compared to monomer 1.
CompoundEred1onset[c]/VEred2onset[c]/VEoxonset[c]/Vλmax, λonset (o-DCB) /nmλmax, λonset (film) /nmλmax,em (o-DCB) /nmEgelectro/eVEgopt[c]/eV
114–1.37–1.800.32671, 693672, 736676[a]1.691.68
115–1.42–1.820.28674, 695674, 706679[a]1.701.76
116–1.40–1.890.24675, 695670, 695683[b]1.641.78
[a] λexc = 435 nm. [b] λexc = 412 nm. [c] Potentials measured vs. ferrocenium/ferrocene (Fc+/Fc) couple in o-DCB containing 0.05 M n-Bu4NPF6 as supporting electrolyte.

6. Conclusions

An array of functionalized pentacenes has been synthesized over the past decade, some of which have provided useful devices. Pentacene oligomers and polymers, on the other hand, are still a relatively unexplored research area with much promise for interesting properties. Much the same as functionalization of monomeric pentacene-based materials has afforded the ability to vary electronic properties and control solid-state organization, oligomers and polymers offer many of the same opportunities. The incorporation of pentacene and related chromophores into an oligo- or polymer framework is, however, a very young field and many discoveries await the hands and imagination of talented synthetic chemists.

Acknowledgements

The work of the authors of this review has been generously supported by the University of Alberta, and the Natural Sciences and Engineering Research Council of Canada (NSERC) through the Discovery Grant program. D.L. thanks NSERC (PGS-D), the Alberta Ingenuity Fund, and the University of Alberta for scholarship support. The authors thank John E. Anthony (University of Kentucky) for enjoyable and insightful discussions over the years.

References and Notes

  1. Roncali, J. Conjugated poly(thiophenes): synthesis, functionalization, and applications. Chem. Rev. 1992, 92, 711–738. [Google Scholar] [CrossRef]
  2. Fichou, D. Handbook of Oligo- and Polythiophenes; Wiley-VCH: Weinheim, Germany, 1999. [Google Scholar]
  3. Ito, K.; Suzuki, T.; Sakamoto, Y.; Kubota, D.; Inoue, Y.; Sato, F.; Tokito, S. Oligo(2,6-anthrylene)s: acene–oligomer approach for organic field-effect transistors. Angew. Chem. Int. Ed. 2003, 42, 1159–1162. [Google Scholar] [CrossRef]
  4. Taylor, M.S.; Swager, T.M. Poly(anthrylenebutadiynylene)s: precursor-based synthesis and band-gap tuning. Angew Chem. Int. Ed. 2007, 46, 8480–8483. [Google Scholar] [CrossRef]
  5. Dell'Aquila, A.; Marinelli, F.; Tey, J.; Keg, P.; Lam, Y.-M.; Kapitanchuk, O.L.; Mastrorilli, P.; Nobile, C.F.; Cosma, P.; Marchenko, A.; Fichou, D.; Mhaisalkar, S.G.; Suranna, G.P.; Torsi, L. 9,10-Ter-anthrylene-ethynylene: a new molecular architecture for solution processed anthracene-based thin film transistors. J. Mater. Chem. 2008, 18, 786–791. [Google Scholar] [CrossRef]
  6. Merlo, J.A.; Newman, C.R.; Gerlach, C.P.; Kelley, T.W.; Muyres, D.V.; Fritz, S.E.; Toney, M.F.; Frisbie, C.D. p-Channel organic semiconductors based on hybrid acene–thiophene molecules for thin-film transistor applications. J. Am. Chem. Soc. 2005, 127, 3997–4009. [Google Scholar] [CrossRef] [PubMed]
  7. Toyota, S.; Goichi, M.; Kotani, M. Macrocyclic 1,8-anthrylene–ethynylene oligomers: three-dimensional π-conjugated architectures. Angew. Chem. Int. Ed. 2004, 43, 2248–2251. [Google Scholar] [CrossRef]
  8. Cui, W.; Zhang, X.; Jiang, X.; Tian, H.; Yan, D.; Geng, Y.; Jing, X.; Wang, F. Synthesis and characterization of soluble oligo(9,10-bisalkynylanthrylene)s. Org. Lett. 2006, 8, 785–788. [Google Scholar] [CrossRef] [PubMed]
  9. Zhao, W.; Tang, Q.; Chan, H.S.; Xu, J.; Lo, K.Y.; Miao, Q. Transistors from a conjugated macrocycle molecule: field and photo effects. Chem. Commun. 2008, 4324–4326. [Google Scholar] [CrossRef]
  10. Park, J.-H.; Chung, D.S.; Lee, D.H.; Kong, H.; Jung, I.H.; Park, M.-J.; Cho, N.S.; Park, C.E.; Shim, H.-K. New anthracene-thiophene-based copolymers that absorb across the entire UV-vis spectrum for application in organic solar cells. Chem. Commun. 2010, 1863–1865. [Google Scholar] [CrossRef]
  11. Egbe, D.A.M.; Türk, S.; Rathgeber, S.; Kühnlenz, F.; Jadhav, R.; Wild, A.; Birckner, E.; Adam, G.; Pivrikas, A.; Cimrova, V.; Knör, G.; Sariciftci, N.S.; Hoppe, H. Anthracene based conjugated polymers: correlation between π–π-stacking ability, photophysical properties, charge carrier mobility, and photovoltaic performance. Macromolecules 2010, 43, 1261–1269. [Google Scholar] [CrossRef]
  12. Zaumseil, J.; Sirringhaus, H. Electron and ambipolar transport in organic field-effect transistors. Chem. Rev. 2007, 107, 1296–1323. [Google Scholar] [CrossRef] [PubMed]
  13. Friend, R.H.; Gymer, R.W.; Holmes, A.B.; Burroughes, J.H.; Marks, R.N.; Taliani, C.; Bradley, D.D.C.; Dos Santos, D.A.; Brédas, J.L.; Lögdlund, M.; Salaneck, W.R. Electroluminescence in conjugated polymers. Nature 1999, 397, 121–128. [Google Scholar] [CrossRef]
  14. Thomas III, S.W.; Joly, G.D.; Swager, T.M. Chemical sensors based on amplifying fluorescent conjugated polymers. Chem. Rev. 2007, 107, 1339–1386. [Google Scholar] [CrossRef] [PubMed]
  15. Murphy, A.R.; Fréchet, J.M.J. Organic semiconducting oligomers for use in thin film transistors. Chem. Rev. 2007, 107, 1066–1096. [Google Scholar] [CrossRef] [PubMed]
  16. Günes, S.; Neugebauer, H.; Sariciftci, N.S. Conjugated polymer-based organic solar cells. Chem. Rev. 2007, 107, 1324–1338. [Google Scholar] [CrossRef]
  17. Anthony, J.E. Functionalized acenes and heteroacenes for organic electronics. Chem. Rev. 2006, 106, 5028–5048. [Google Scholar] [CrossRef] [PubMed]
  18. Anthony, J.E. The larger acenes: verstile organic semiconductors. Angew. Chem. Int. Ed. 2008, 47, 452–483. [Google Scholar] [CrossRef]
  19. Bendikov, M.; Wudl, F.; Perepichka, D.F. Tetrathiafulvalenes, oligoacenenes, and their buckminsterfullerene derivatives: the brick and mortar of organic electronics. Chem. Rev. 2004, 104, 4891–4945. [Google Scholar] [CrossRef] [PubMed]
  20. Anthony, J.E.; Brooks, J.S.; Eaton, D.L.; Parkin, S.R. Functionalized pentacene: improved electronic properties from control of solid-state order. J. Am. Chem. Soc. 2001, 123, 9482–9483. [Google Scholar] [CrossRef] [PubMed]
  21. Anthony, J.E.; Eaton, D.L.; Parkin, S.R. A road map to stable, soluble, easily crystallized pentacene derivatives. Org. Lett. 2002, 4, 15–18. [Google Scholar] [CrossRef] [PubMed]
  22. Payne, M.M.; Parkin, S.R.; Anthony, J.E. Functionalized higher acenes: hexacene and heptacene. J. Am. Chem. Soc. 2005, 127, 8028–8029. [Google Scholar] [CrossRef] [PubMed]
  23. Chun, D.; Cheng, Y.; Wudl, F. The most stable and fully characterized functionalized heptacene. Angew. Chem. Int. Ed. 2008, 47, 8380–8385. [Google Scholar] [CrossRef]
  24. Odom, S.A.; Parkin, S.R.; Anthony, J.E. Tetracene derivatives as potential red emitters for organic LEDs. Org. Lett. 2003, 5, 4245–4248. [Google Scholar] [CrossRef] [PubMed]
  25. Chung, D.S.; Park, J.W.; Park, J.-H.; Moon, D.; Kim, G.H.; Lee, H.-S.; Lee, D.H.; Shim, H.-K.; Kwon, S.-K.; Park, C.E. High mobility organic single crystal transistors based on soluble triisopropylsilylethynyl anthracene derivatives. J. Mater. Chem. 2010, 20, 524–530. [Google Scholar] [CrossRef]
  26. Subramanian, S.; Park, S.K.; Parkin, S.R.; Podzorov, V.; Jackson, T.N.; Anthony, J.E. Chromophore fluorination enhances crystallization and stability of soluble anthradithiophene semiconductors. J. Am. Chem. Soc. 2008, 130, 2706–2707. [Google Scholar] [CrossRef] [PubMed]
  27. Tang, M.L.; Oh, J.H.; Reichardt, A.D.; Bao, Z. Chlorination: a general route toward electron transport in organic semiconductors. J. Am. Chem. Soc. 2009, 131, 3733–3740. [Google Scholar] [CrossRef] [PubMed]
  28. Appleton, A.L.; Miao, S.; Brombosz, S.M.; Berger, N.J.; Barlow, S.; Marder, S.R.; Lawrence, B.M.; Hardcastle, K.I.; Bunz, U.H.F. Alkynylated aceneo[2,1,3]thiadiazoles. Org. Lett. 2009, 11, 5222–5225. [Google Scholar] [CrossRef] [PubMed]
  29. Lehnherr, D.; Tykwinski, R.R. Pentacene oligomers and polymers: functionalization of pentacene to afford mono-, di-, tri-, and polymeric materials. Org. Lett. 2007, 9, 4583–4586. [Google Scholar] [CrossRef] [PubMed]
  30. Lehnherr, D.; McDonald, R.; Ferguson, M.J.; Tykwinski, R.R. Synthesis of soluble oligo- and polymeric pentacene-based materials. Tetrahedron 2008, 64, 11449–11461. [Google Scholar] [CrossRef]
  31. Svenson, S.; Tomalia, D.A. Dendrimers in biomedical applications–reflections on the field. Adv. Drug Delivery Rev. 2005, 57, 2106–2129. [Google Scholar] [CrossRef]
  32. Astruc, D.; Chardac, F. Dendritic catalysts and dendrimers in catalysis. Chem. Rev. 2001, 101, 2991–3023. [Google Scholar] [CrossRef] [PubMed]
  33. Adronov, A.; Fréchet, J.M.J. Light harvesting dendrimers. Chem. Commun. 2000, 1701–1710. [Google Scholar] [CrossRef]
  34. Balzani, V.; Bergamini, G.; Ceroni, P.; Vögtle, F. Electronic spectroscopy of metal complexes with dendritic ligands. Coord. Chem. Rev. 2007, 251, 525–535. [Google Scholar] [CrossRef]
  35. Lo, S.-C.; Burn, P.L. Development of dendrimers: macromolecules for use in organic light-emitting diodes and solar cells. Chem. Rev. 2007, 107, 1097–1116. [Google Scholar] [CrossRef] [PubMed]
  36. Duan, R.G.; Miller, L.L.; Tomalia, D.A. An electrically conducting dendrimer. J. Am. Chem. Soc. 1995, 117, 10783–10784. [Google Scholar] [CrossRef]
  37. Lehnherr, D.; Gao, J.; Hegmann, F.A.; Tykwinski, R.R. Pentacene-based dendrimers: synthesis and thin film photoconductivity measurements of branched pentacene oligomers. J. Org. Chem. 2009, 74, 5017–5024. [Google Scholar] [CrossRef] [PubMed]
  38. Verhoeven, J.W. Glossary of terms used in photochemistry. Pure Appl. Chem. 1996, 68, 2223–2286. [Google Scholar] [CrossRef]
  39. Ostroverkhova, O.; Cooke, D.G.; Shcherbyna, S.; Egerton, R.F.; Hegmann, F.A.; Tykwinski, R.R.; Anthony, J.E. Bandlike transport in pentacene and functionalized pentacene thin films revealed by subpicosecond transient photoconductivity measurements. Phys. Rev. B 2005, 71, 035204. [Google Scholar] [CrossRef]
  40. Onsager, L. Initial recombination of ions. Phys. Rev. 1938, 54, 554–557. [Google Scholar] [CrossRef]
  41. Najafov, H.; Biaggio, I.; Podzorov, V.; Calhoun, M.F.; Gershenson, M.E. Primary photoexcitations and the origin of the photocurrent in rubrene single crystals. Phys. Rev. Lett. 2006, 96, 056604. [Google Scholar] [CrossRef] [PubMed]
  42. Allen, C.F.H.; Bell, A. Action of Grignard reagents on certain pentacenequinones, 6,13-diphenylpentacene. J. Am. Chem. Soc. 1942, 64, 1253–1260. [Google Scholar] [CrossRef]
  43. Maulding, D.R.; Roberts, B.G. Electronic absorption and fluorescence of phenylethynyl-substituted acenes. J. Org. Chem. 1969, 34, 1734–1736. [Google Scholar] [CrossRef]
  44. Vets, N.; Smet, M.; Dehaen, W. Reduction versus rearrangement of 6,13-dihydro-6,13-diarylpentacene-6,13-diols affording 6,13- and 13,13'-substituted pentacene derivatives. Synlett 2005, 217–222. [Google Scholar]
  45. Gorodetsky, A.A.; Cox, M.; Tremblay, J.; Kymissis, I.; Nuckolls, C. Solar cells from a solution processable pentacene with improved air stability. Chem. Mater. 2009, 21, 4090–4092. [Google Scholar] [CrossRef]
  46. Vets, N.; Diliën, H.; Toppet, S.; Dehaen, W. Synthesis of 5,7,12,14-tetraarylpentacenes from pentacene-5,7,12,14-tetrone and characterisation of the tetrol intermediates. Synlett 2006, 1359–1362. [Google Scholar]
  47. Wolak, M.A.; Jang, B.-B.; Palilis, L.C.; Kafafi, Z.H. Functionalized pentacene derivatives for use as red emitters in organic light-emitting diodes. J. Phys. Chem. B 2004, 108, 5492–5499. [Google Scholar] [CrossRef]
  48. Kaur, I.; Jia, W.; Kopreski, R.P.; Selvarasah, S.; Dokmeci, M.R.; Pramanik, C.; McGruer, N.E.; Miller, G.P. Substituent effects in pentacenes: gaining control over HOMO–LUMO gaps and photooxidative resistances. J. Am. Chem. Soc. 2008, 130, 16274–16286. [Google Scholar] [CrossRef] [PubMed]
  49. Jang, B.-B.; Lee, S.H.; Kafafi, Z.H. Asymmetric pentacene derivatives for organic light-emitting diodes. Chem. Mater. 2006, 18, 449–457. [Google Scholar] [CrossRef]
  50. Zhao, Y.; Mondal, R.; Neckers, D.C. Photochemical formation of substituted pentacenes. J. Org. Chem. 2008, 73, 5506–5513. [Google Scholar] [CrossRef] [PubMed]
  51. Katsuta, S.; Yamada, H.; Okujima, T.; Uno, H. Photochemical synthesis of tetraaryl-substituted pentacenes. Tetrahedron Lett. 2010, 51, 1397–1400. [Google Scholar] [CrossRef]
  52. Miller has previously formed and reacted pentacene 39 in situ with C60, see: Rainbolt, J.E.; Miller, G.P. 4,7-Diphenylisobenzofuran: a useful intermediate for the construction of phenyl-substituted acenes. J. Org. Chem. 2007, 72, 3020–3030.
  53. Miao, Q.; Chi, X.; Xiao, S.; Zeis, R.; Lefenfeld, M.; Siegrist, T.; Steigerwald, M.L.; Nuckolls, C. Organization of acenes with a cruciform assembly motif. J. Am. Chem. Soc. 2006, 128, 1340–1345. [Google Scholar] [CrossRef] [PubMed]
  54. Lu, J.; Ho, D.M.; Vogelaar, N.J.; Kraml, C.M.; Pascal, R.A., Jr. A pentacene with a 144° twist. J. Am. Chem. Soc. 2004, 126, 11168–11169. [Google Scholar] [CrossRef] [PubMed]
  55. Lu, J.; Ho, D.M.; Vogelaar, N.J.; Kraml, C.M.; Bernhard, S.; Byrne, N.; Kim, L.R.; Pascal, R.A., Jr. Synthesis, structure, and resolution of exceptionally twisted pentacenes. J. Am. Chem. Soc. 2006, 128, 17043–17050. [Google Scholar] [CrossRef] [PubMed]
  56. Jiang, J.; Kaafarani, B.R.; Neckers, D.C. Design, synthesis and properties of new derivatives of pentacene. J. Org. Chem. 2006, 71, 2155–2158. [Google Scholar] [CrossRef] [PubMed]
  57. Lim, Y.-F.; Shu, Y.; Parkin, S.R.; Anthony, J.E. Soluble n-type pentacene derivatives as novel acceptors for organic solar cells. J. Mater. Chem. 2009, 19, 3049–3056. [Google Scholar] [CrossRef]
  58. Bénard, C.P.; Geng, Z.; Heuft, M.A.; VanCrey, K.; Fallis, A.G. Double Diels–Alder strategies to soluble 2,9- and 2,9,6,13-tetraethynylpentacenes, photolytic [4 + 4] cycloadditions, and pentacene crystal packing. J. Org. Chem. 2007, 72, 7229–7236. [Google Scholar] [CrossRef] [PubMed]
  59. Ono, K.; Totani, H.; Hiei, T.; Yoshino, A.; Saito, K.; Eguchi, K.; Tomura, M.; Nishida, J.-I.; Yamashita, Y. Photooxidation and reproduction of pentacene derivatives substituted by aromatic groups. Tetrahedron 2007, 63, 9699–9704. [Google Scholar] [CrossRef]
  60. Wang, Y.-M.; Fu, N.-Y.; Chan, S.-H.; Lee, H.-K.; Wong, H.N.C. Synthesis, characterization, and reactions of 6,13-disubstituted 2,3,9,10-tetrakis(trimethylsilyl)pentacene derivatives. Tetrahedron 2007, 63, 8586–8597. [Google Scholar] [CrossRef]
  61. Stone, M.T.; Anderson, H.L. Three-step synthesis of end-substituted pentacenes. J. Org. Chem. 2007, 72, 9776–9778. [Google Scholar] [CrossRef] [PubMed]
  62. Mosurkal, R.; Samuelson, L.A.; Kumar, J.; Waller, D.; Gaudiana, R. Synthesis of a soluble pentacene derivative: 6,13-bis(m-trifluoromethyl phenyl ethenyl) pentacene. J. Macromol. Sci., A: Pure Appl. Chem. 2008, 45, 948–951. [Google Scholar]
  63. Schmidt, R.; Göttling, S.; Leusser, D.; Stalke, D.; Krause, A.-M.; Würthner, F. Highly soluble acenes as semiconductors for thin film transistors. J. Mater. Chem. 2006, 16, 3708–3714. [Google Scholar] [CrossRef]
  64. Li, Y.; Wu, Y.; Liu, P.; Prostran, Z.; Gardner, S.; Ong, B.S. Stable solution-processed high-mobility substituted pentacene semiconductors. Chem. Mater. 2007, 19, 418–423. [Google Scholar] [CrossRef]
  65. Northrop, B.H.; Houk, K.N.; Maliakal, A. Photostability of pentacene and 6,13-disubstituted pentacene derivatives: a theoretical and experimental mechanistic study. Photochem. Photobiol. Sci. 2008, 7, 1463–1468. [Google Scholar] [CrossRef] [PubMed]
  66. Maliakal, A.; Raghavachari, K.; Katz, H.; Chandross, E.; Siegrist, T. Photochemical stability of pentacene and substituted pentacene in solution and in thin films. Chem. Mater. 2004, 16, 4980–4986. [Google Scholar] [CrossRef]
  67. Hwang, E.-J.; Kim, Y.-E.; Lee, C.-J.; Park, J.-W. Synthesis and luminescent properties of pentacene derivatives having a chromophore. Thin Film Solids 2006, 499, 185–191. [Google Scholar] [CrossRef]
  68. For absorption characteristics of pentacene, see: reference [43].
  69. Picciolo, L.C.; Murata, H.; Kafafi, Z.H. Organic light-emitting devices with saturated red emission using 6,13-diphenylpentacene. Appl. Phys. Lett. 2001, 78, 2378–2380. [Google Scholar] [CrossRef]
  70. Kim, Y.-E.; Park, J.-W. Luminescent properties of pentacene derivatives with naphthalene moiety. Mol. Cryst. Liq. Cryst. 2006, 444, 137–143. [Google Scholar] [CrossRef]
  71. Son, J.-H.; Kang, I.-N.; Oh, S.-Y.; Park, J.-W. Structure effects on organic thin-film transistor properties of dinaphthyl substituted pentacene derivatives. Bull. Korean Chem. Soc. 2007, 28, 995–998. [Google Scholar] [CrossRef]
  72. Kim, Y.E.; Park, J.W.; Kim, K.S.; Lee, S.D. Electroluminescent properties of pentacene derivatives having a naphthalene moiety. Mol. Cryst. Liq. Cryst. 2006, 459, 57–63. [Google Scholar]
  73. Shibata, T.; Yoshida, S.; Arai, Y.; Otsuka, M.; Endo, K. Iridium-catalyzed consecutive and enantioselective [2+2+2] cycloaddition of tetraynes and hexaynes for the construction of an axially chiral biaryl system. Tetrahedron 2008, 64, 821–830. [Google Scholar] [CrossRef]
  74. Takahashi, T.; Kitamura, M.; Shen, B.; Nakajima, K. Straightforward method for synthesis of highly alkyl-substituted naphthacene and pentacene derivatives by homologation. J. Am. Chem. Soc. 2000, 122, 12876–12877. [Google Scholar] [CrossRef]
  75. Takahashi, T.; Li, S.; Huang, W.; Kong, F.; Nakajima, K.; Shen, B.; Ohe, T.; Kanno, K.-i. Homologation method for preparation of substituted pentacenes and naphthacenes. J. Org. Chem. 2006, 71, 7967–7977. [Google Scholar] [CrossRef] [PubMed]
  76. Wang, J.; Liu, K.; Liu, Y.-Y.; Song, C.-L.; Shi, Z.-F.; Peng, J.-B.; Zhang, H.-L.; Cao, X.-P. New oligothiophene-pentacene hybrids as highly stable and soluble organic semiconductors. Org. Lett. 2009, 11, 2563–2566. [Google Scholar] [CrossRef] [PubMed]
  77. Susumu, K.; Duncan, T.V.; Therien, M.J. Potentiometric, electronic structural, and ground- and excited-state optical properties of conjugated bis[(porphinato)zinc(II)] compounds featuring proquinoidal spacer units. J. Am. Chem. Soc. 2005, 127, 5186–5195. [Google Scholar] [CrossRef] [PubMed]
  78. Lin, C.-Y.; Wang, Y.-C.; Hsu, S.-J.; Lo, C.-F.; Diau, E.W.G. Preparation and spectral, electrochemical, and photovoltaic properties of acene-modified zinc porphyrins. J. Phys. Chem. C 2010, 114, 687–693. [Google Scholar] [CrossRef]
  79. Lehnherr, D.; McDonald, R.; Tykwinski, R.R. Exploring electronically polarized pentacenes. Org. Lett. 2008, 10, 4163–4166. [Google Scholar] [CrossRef] [PubMed]
  80. Lehnherr, D.; Gao, J.; Hegmann, F.A.; Tykwinski, R.R. Synthesis and electronic properties of conjugated pentacene dimers. Org. Lett. 2008, 10, 4779–4782. [Google Scholar] [CrossRef] [PubMed]
  81. Scharber, M.C.; Mühlbacher, D.; Koppe, M.; Denk, P.; Waldauf, C.; Heeger, A.J.; Brabec, C.J. Design rules for donors in bulk-heterojunction solar cells–towards 10% energy-conversion efficiency. Adv. Mater. 2006, 18, 789–794. [Google Scholar] [CrossRef]
  82. Brabec, C.J.; Sariciftci, N.S.; Hummelen, J.C. Plastic solar cells. Adv. Funct. Mater. 2001, 11, 15–26. [Google Scholar] [CrossRef]
  83. Isak, S.J.; Eyring, E.M. Fluorescence quantum yield of cresyl violet perchlorate in methanol and water as a function of concentration. J. Phys. Chem. 1992, 96, 1738–1742. [Google Scholar] [CrossRef]
  84. Lehnherr, D.; Murray, A.H.; McDonald, R.; Ferguson, M.J.; Tykwinski, R.R. Pentacene-based polycyclic aromatic hydrocarbon dyads with cofacial solid-state π-stacking. Chem. Eur. J. 2009, 15, 12580–12584. [Google Scholar] [CrossRef] [PubMed]
  85. Brédas, J.-L.; Beljonne, D.; Coropceanu, V.; Cornil, J. Charge-transfer and energy-transfer processes in π-conjugated oligomers and polymers: a molecular picture. Chem. Rev. 2004, 104, 4971–5003. [Google Scholar] [CrossRef] [PubMed]
  86. Mondal, R.; Tönshoff, C.; Khon, D.; Neckers, D.C.; Bettinger, H.F. Synthesis, stability, and photochemistry of pentacene, hexacene, and heptacene: a matrix isolation study. J. Am. Chem. Soc. 2009, 131, 14281–14289. [Google Scholar] [CrossRef] [PubMed]
  87. Kaur, I.; Stein, N.N.; Kopreski, R.P.; Miller, G.P. Exploiting substituent effects for the synthesis of a photooxidatively resistant heptacene derivative. J. Am. Chem. Soc. 2009, 131, 3424–3425. [Google Scholar] [CrossRef] [PubMed]
  88. Mondal, R.; Shah, B.K.; Neckers, D.C. Photogeneration of heptacene in a polymer matrix. J. Am. Chem. Soc. 2006, 128, 9612–9613. [Google Scholar] [CrossRef] [PubMed]
  89. Kaur, I.; Jazdzyk, M.; Stein, N.N.; Prusevich, P.; Miller, G.P. Design, synthesis, and characterization of a persistent nonacene derivative. J. Am. Chem. Soc. 2010, 132, 1261–1263. [Google Scholar] [CrossRef] [PubMed]
  90. Payne, M.M.; Odom, S.A.; Parkin, S.R.; Anthony, J.E. Stable, crystalline acenedithiophenes with up to seven linearly fused rings. Org. Lett. 2004, 6, 3325–3328. [Google Scholar] [CrossRef] [PubMed]
  91. Tang, M.L.; Mannsfeld, S.C.B.; Sun, Y.-S.; Becerril, H.A.; Bao, Z. Pentaceno[2,3-b]thiophene, a hexacene analogue for organic thin film transistors. J. Am. Chem. Soc. 2009, 131, 882–883. [Google Scholar] [CrossRef] [PubMed]
  92. Goodings, E.P.; Mitchard, D.A.; Owen, G. Synthesis, structure, and electrical properties of naphthacene, pentacene, and hexacene sulphides. J. Chem. Soc., Perkin Trans. 1 1972, 1310–1314. [Google Scholar] [CrossRef]
  93. Briseno, A.L.; Miao, Q.; Ling, M.-M.; Reese, C.; Meng, H.; Bao, Z.; Wudl, F. Hexathiapentacene: structure, molecular packing, and thin-film transistors. J. Am. Chem. Soc. 2006, 128, 15576–15577. [Google Scholar] [CrossRef] [PubMed]
  94. Briseno, A.L.; Mannsfeld, S.C.B.; Lu, X.; Xiong, Y.; Jenekhe, S.A.; Bao, Z.; Xia, Y. Fabrication of field-effect transistors from hexathiapentacene single-crystal nanowires. Nano Lett. 2007, 7, 668–675. [Google Scholar] [CrossRef] [PubMed]
  95. For a discussion of the mechanisms of photoconductive gain in organic materials, see: Campbell, I.H.; Crone, B.K. Bulk photoconductive gain in poly(phenylene vinylene) based diodes. J. Appl. Phys. 2007, 101, 024502. [Google Scholar]
  96. Gao, J.; Hegmann, F.A. Bulk photoconductive gain in pentacene thin films. Appl. Phys. Lett. 2008, 93, 223306. [Google Scholar] [CrossRef]
  97. Zhang, X.; Jiang, X.; Luo, J.; Chi, C.; Chen, H.; Wu, J. A cruciform 6,6'-dipentacenyl: synthesis, solid-state packing and application in thin film transistors. Chem. Eur. J. 2010, 16, 464–468. [Google Scholar] [CrossRef] [PubMed]
  98. A theoretical study of conjugated oligomers endcapped with pentacene moieties has been explored toward understanding bridge-mediated electronic coupling, see: Eng, M.P.; Albinsson, B. Non-exponential distance dependence of bridge-mediated electronic coupling. Angew. Chem. Int. Ed. 2006, 45, 5626–5629. [Google Scholar]
  99. Zhao, Y.; Cai, X.; Danilov, E.; Li, G.; Neckers, D.C. Photochemical synthesis of 2,3,9,10-tetraboromopentacene: its unusual photodimerization. Photochem. Photobiol. Sci. 2009, 8, 34–36. [Google Scholar] [CrossRef] [PubMed]
  100. For the thermal dimerization and polymerization of 2,3,9,10-tetrachloropentacene, see: Perepichka, D.F.; Bendikov, M.; Meng, H.; Wudl, F. A one-step synthesis of a poly(iptycene) through an unusual Diels–Alder cyclization/dechlorination of tetrachloropentacene. J. Am. Chem. Soc. 2003, 125, 10190–10191. [Google Scholar]
  101. Mattheus, C.C.; Baas, J.; Meetsma, A.; de Boer, J.L.; Kloc, C.; Siegrist, T.; Palstra, T.T.M. Acta Cryst., Sect. E: Struct. Rep. Online 2002, E58, o1229–o1231. [CrossRef]
  102. Roberson, L.B.; Kowalik, J.; Tolbert, L.M.; Kloc, C.; Zeis, R.; Chi, X.; Fleming, R.; Wilkins, C. Pentacene disproportionation during sublimation for field-effect transistors. J. Am. Chem. Soc. 2005, 127, 3069–3075. [Google Scholar] [CrossRef] [PubMed]
  103. Northrop, B.H.; Norton, J.E.; Houk, K.N. On the mechanism of peripentacene formation from pentacene: computational studies of a prototype for graphene formation form smaller acenes. J. Am. Chem. Soc. 2007, 129, 6536–6546. [Google Scholar] [CrossRef] [PubMed]
  104. Tokito, S.; Weinfurtner, K.-H.; Fujikawa, H.; Tsutsui, T.; Taga, Y. Acene containing polyfluorenes for red, green and blue emission in organic light-emitting diodes. Proc. SPIE–Int. Opt. Soc. Eng. 2001, 4105, 69–74. [Google Scholar]
  105. Okamoto, T.; Bao, Z. Synthesis of solution-soluble pentacene-containing conjugated copolymers. J. Am. Chem. Soc. 2007, 129, 10308–10309. [Google Scholar] [CrossRef] [PubMed]
  106. Okamoto, T.; Jiang, Y.; Qu, F.; Mayer, A.C.; Parmer, J.E.; McGehee, M.D.; Bao, Z. Synthesis and characterization of pentacene– and anthradithiophene–fluorene conjugated copolymers synthesized by Suzuki reactions. Macromolecules 2008, 41, 6977–6980. [Google Scholar] [CrossRef]
  107. Mack, J.; Miller, G.P. Synthesis and characterization of a C60-pentacene monoadduct. Fullerene Sci. Tech. 1997, 5, 607–614. [Google Scholar] [CrossRef]
  108. Miller, G.P.; Mack, J. Completely regioselective, highly stereoselective syntheses of cis-bisfullerene[60] adducts of 6,13-disubstituted pentacenes. Org. Lett. 2000, 2, 3979–3982. [Google Scholar] [CrossRef] [PubMed]
  109. Miller, G.P.; Mack, J.; Briggs, J. π-Stacking interactions in cis-bisfullerene[60] adducts of 6,13-disubstituted pentacenes. Org. Lett. 2000, 2, 3983–3986. [Google Scholar] [CrossRef] [PubMed]
  110. Miller, G.P.; Briggs, J.; Mack, J.; Lord, P.A.; Olmstead, M.M.; Balch, A.L. Fullerene–acene chemistry: single-crystal X-ray structure for a [60]fullerene–pentacene monoadduct and a cis-bis[60]fullerene adduct of 6,13-diphenylpentacene. Org. Lett. 2003, 5, 4199–4202. [Google Scholar] [CrossRef] [PubMed]
  111. Briggs, J.B.; Miller, G.P. [60]Fullerene–acene chemistry: a review. C. R. Chim. 2006, 9, 916–927. [Google Scholar] [CrossRef]

Share and Cite

MDPI and ACS Style

Lehnherr, D.; Tykwinski, R.R. Oligomers and Polymers Based on Pentacene Building Blocks. Materials 2010, 3, 2772-2800. https://doi.org/10.3390/ma3042772

AMA Style

Lehnherr D, Tykwinski RR. Oligomers and Polymers Based on Pentacene Building Blocks. Materials. 2010; 3(4):2772-2800. https://doi.org/10.3390/ma3042772

Chicago/Turabian Style

Lehnherr, Dan, and Rik R. Tykwinski. 2010. "Oligomers and Polymers Based on Pentacene Building Blocks" Materials 3, no. 4: 2772-2800. https://doi.org/10.3390/ma3042772

Article Metrics

Back to TopTop
