Study of Morphological Changes in MgH₂ Destabilized LiBH₄ Systems Using Computed X-ray Microtomography

Abstract

The objective of this study was to apply three-dimensional x-ray microtomographic imaging to understanding morphologies in the diphasic destabilized hydride system: MgH₂ and LiBH₄. Each of the single phase hydrides as well as two-phase mixtures at LiBH₄:MgH₂ ratios of 1:3, 1:1, and 2:1 were prepared by high energy ball milling for 5 minutes (with and without 4 mol % TiCl₃ catalyst additions). Samples were imaged using computed microtomography in order to (i) establish measurement conditions leading to maximum absorption contrast between the two phases and (ii) determine interfacial volume. The optimal energy for measurement was determined to be 15 keV (having 18% transmission for the MgH₂ phase and above 90% transmission for the LiBH₄ phase). This work also focused on the determination of interfacial volume. Results showed that interfacial volume for each of the single phase systems, LiBH₄ and MgH₂, did not change much with catalysis using 4 mol % TiCl₃. However, for the mixed composite system, interphase boundary volume was always higher in the catalyzed system; increasing from 15% to 33% in the 1:3 system, from 11% to 20% in the 1:1 system, and 2% to 14% in the 2:1 system. The parameters studied are expected to govern mass transport (i.e., diffusion) and ultimately lead to microstructure-based improvements on H₂ desorption and uptake rates.

1. Introduction

Many light metal hydrides have been considered for hydrogen storage applications. Among these, the light metal hydride which has demonstrated a higher hydrogen gravimetric capacity at 9 wt % hydrogen is LiBH₄. This hydride requires 400 °C for hydrogen desorption and has recently been “destabilized” using MgH₂, which produces the more thermodynamically stable product phase MgB₂ in the reaction to release 12 wt % H₂.

$$\text{LiB}{\text{H}}_4+\frac{1}{2}\text{Mg}{\text{H}}_2\leftrightarrow \text{LiH}+\frac{1}{2}\text{Mg}{\text{B}}_2+2{\text{H}}_2$$

(1)

This destabilization reaction was first demonstrated by Vajo et al. in 2005—who reduced the enthalpy of the dehydrogenation reaction by 25 kJ/mol H₂ over the pure LiBH₄ [1,2]. By extrapolation, this data implies a lowering in the reaction temperature at 1 bar of H₂ pressure from 400 °C in pure LiBH₄ to 225 °C in the destabilized system [1,2]. Reaching the predicted temperatures would require a thorough understanding of interphase reaction rates and interphase boundary volumes. The early concept of destabilized metal hydrides is attributed to Reilly and Wiswall in a study of MgH₂ with Cu as a destabilizer [3]. Further thermodynamic predictions show that other M(BH₄)_x compounds (where M = Ca, Mg, Al, Li, and Na) should undergo similar destabilization reactions with other borohydrides, amides, and magnesium or silicon hydrides [4,5]. Still, slow dehydrogenation kinetics and reversibility of the destabilized systems remain an issue. Examining phase distributions of two phases, i.e., LiBH₄ and MgH₂, using 3D imaging will provide the opportunity to understand diffusion and desorption kinetic limitations in the destabilized hydride systems. Likewise, the addition of catalysts, which have been shown to enhance diffusion in the single phase regions [6], is expected to improve overall kinetics and address reversibility issues.

The present study attempts to address the kinetics of destabilized light metal hydride systems by examining hydride microstructures using 3 dimensional imaging (x-ray tomography) in order to determine reactant phase domain size and interphase boundary volume. These parameters will play a critical role for understanding and modeling ionic transport. As well, quantity and distribution of interphase boundaries—which are sites for the reaction of MgH₂/LiBH₄ to form LiH/MgB₂ can be directly measured using 3D imaging [7]. Technological challenges in microtomographic imaging of hydrides to be overcome include: (i) understanding the influence of x-ray energy (in keV) on phase contrast and (ii) utilizing image processing in order to quantify content of phases and interphase boundary volume. Here, we present very preliminary studies which show the possibility for tomographic to overcome such challenges and address microstructure-based issues related to thermodynamic and kinetic limitations within the destabilized hydrides.

2. Results and Discussion

2.1. 3D Imaging Using Absorption Contrast

Figure 1 shows equiaxed morphologies for powders of (a) LiBH₄, (b) MgH₂, and (c) a 1:1 mixture of LiBH₄:MgH₂. Similar morphologies were found for the 1:3 and 2:1 mixtures. Figure 2 shows a single slice (in x-z plane) from the 1:1 mixture of LiBH₄:MgH₂. Here, it is clear to see that the phase contrast between LiBH₄ (above 90% transmission at 15 keV) and MgH₂ (18% transmission at 15 keV) gives rise to LiBH₄ particles which appear lighter than the darker MgH₂ ones. The LiBH₄ particles are ~50 μm–100 μm in size and the MgH₂ particles are slightly larger at ~100 μm–150 μm. Because of high transmission for LiBH₄, sample to detector distances were adjusted to increase edge contrast of the LiBH₄ phase.

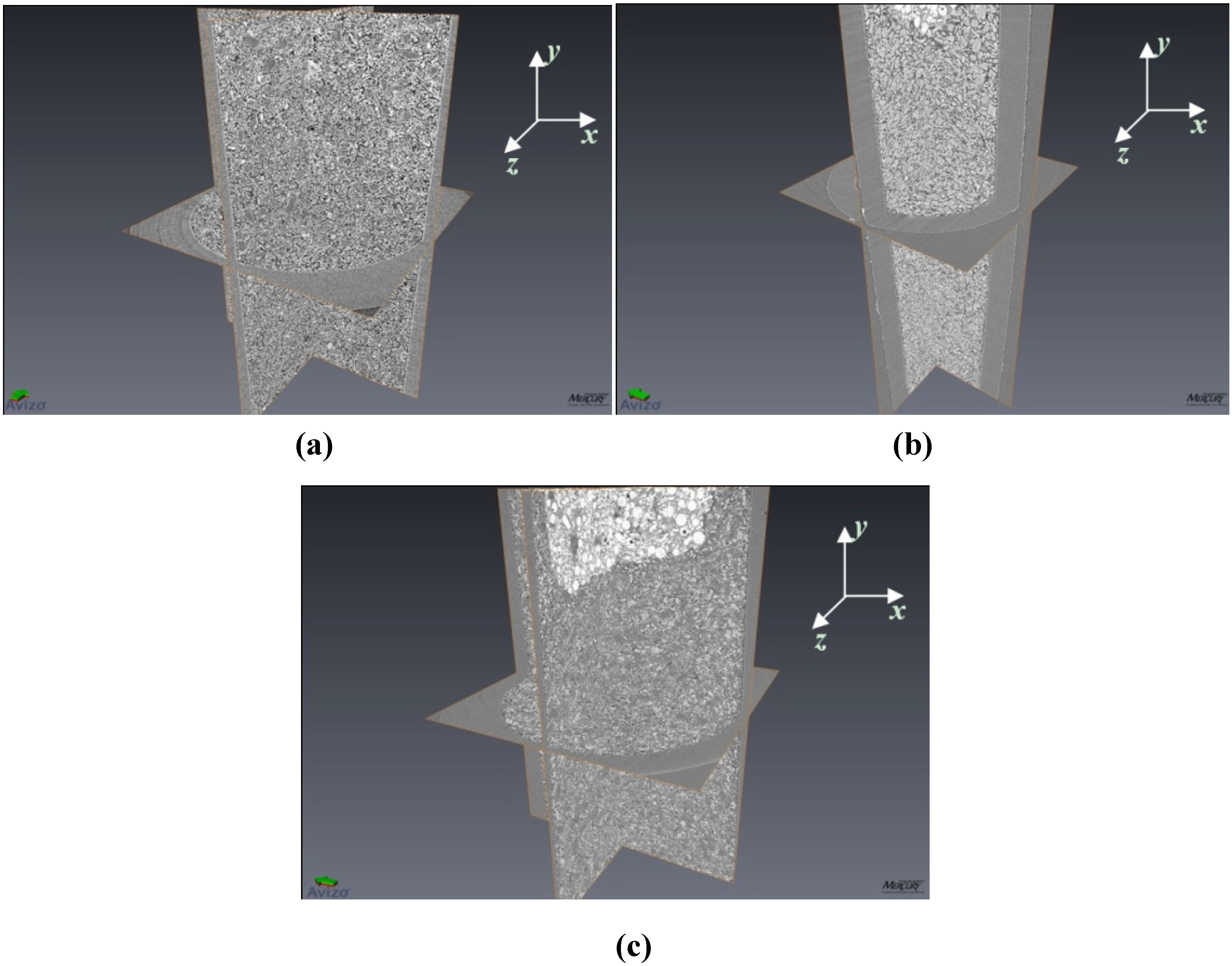

Figure 1. Three dimensional images of (a) 4 mol % TiCl₃ catalyzed LiBH₄; (b) 4 mol % TiCl₃ catalyzed MgH₂, and (c) 4 mol % TiCl₃ catalyzed LiBH₄:MgH₂ in 1:1 molar ratio. Here only the x-y, y-z, and x-z planes are rendered in the images. For reference, the inner diameter of the tube (seen in the x-z plane) is 1.87 mm. In (b) and (c) the bright/white areas are tomographic images of the epoxy putty used to seal the samples within the holders (and are not a part of the sample itself). In subsequent sections, image analysis data performed on all individual x-z planar slices is reported.

Figure 1. Three dimensional images of (a) 4 mol % TiCl₃ catalyzed LiBH₄; (b) 4 mol % TiCl₃ catalyzed MgH₂, and (c) 4 mol % TiCl₃ catalyzed LiBH₄:MgH₂ in 1:1 molar ratio. Here only the x-y, y-z, and x-z planes are rendered in the images. For reference, the inner diameter of the tube (seen in the x-z plane) is 1.87 mm. In (b) and (c) the bright/white areas are tomographic images of the epoxy putty used to seal the samples within the holders (and are not a part of the sample itself). In subsequent sections, image analysis data performed on all individual x-z planar slices is reported.

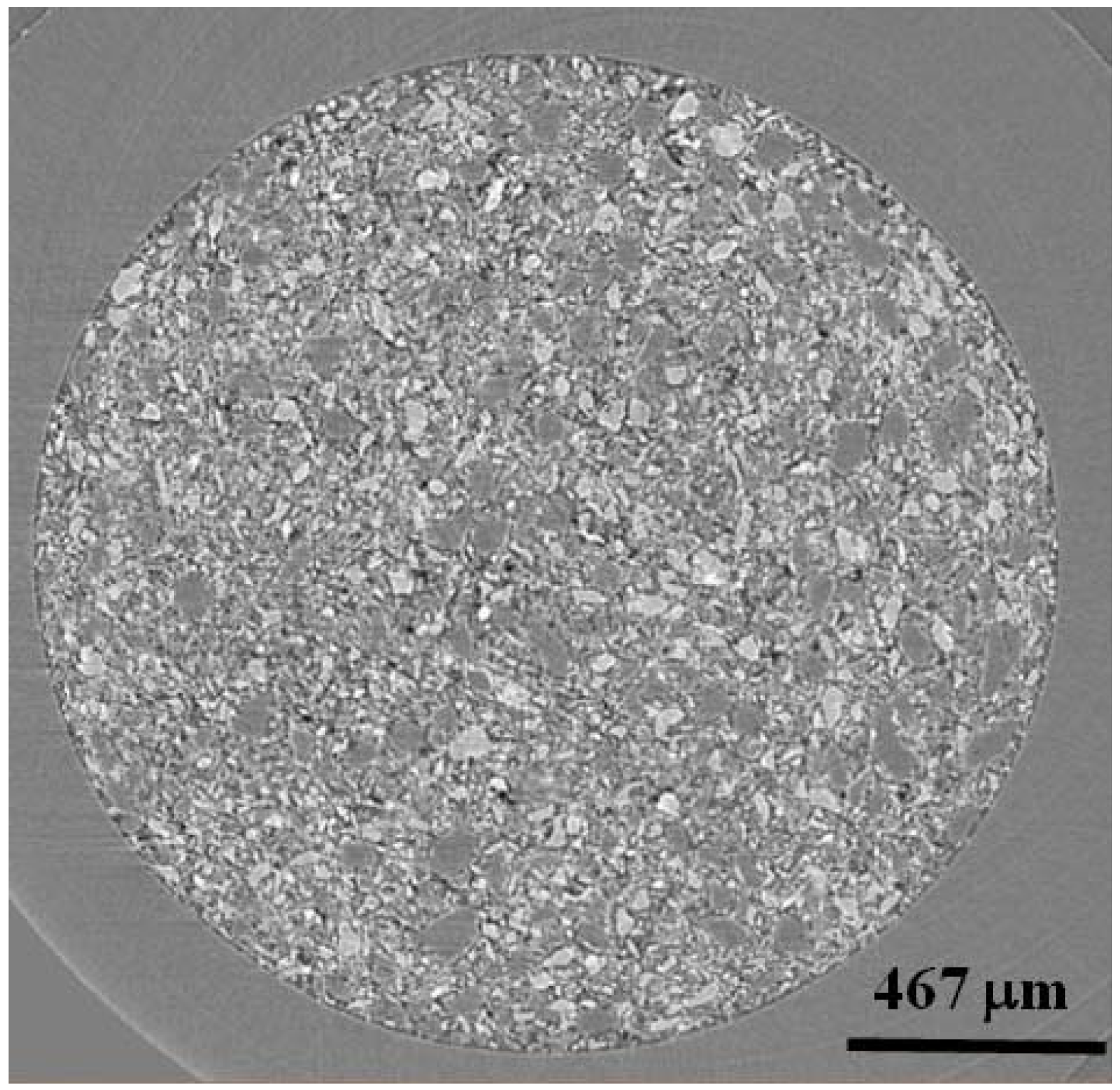

Figure 2. A single x-z oriented slice from 4 mol % TiCl₃ catalyzed LiBH₄:MgH₂ in 1:1 molar ratio. Light contrasting particles are LiBH₄ and dark contrasting particles are MgH₂. The black areas are air or void space.

Figure 2. A single x-z oriented slice from 4 mol % TiCl₃ catalyzed LiBH₄:MgH₂ in 1:1 molar ratio. Light contrasting particles are LiBH₄ and dark contrasting particles are MgH₂. The black areas are air or void space.

2.2. Using Microtomography to Determine Relative Amounts of LiBH₄ and MgH₂

Figure 3 shows an example of image analysis thresholds used. Here the 1:3 LiBH₄:MgH₂ (uncatalyzed) sample is shown. The thresholded images were derived from histograms of the grey-scale images wherein a narrow peak (corresponding to the lightest grey) denotes the LiBH₄ phase—whilst a second, broader peak-like feature in the histogram corresponds to the MgH₂ phase. These two peak-like features showed a slight overlap. For LiBH₄ thresholding, the levels were selected to capture most of the “narrow” peak (omitting overlap regions). For both LiBH₄ and MgH₂ thresholding, the levels were selected to capture both the “narrow” peak and the broadened peak-like features—using the difference in the volumes of those levels computed by Avizio^TM software as the MgH₂ volume. In all cases, images were inspected after the first threshold selection (of the narrow peak) to ensure all highlighted (red) pixels are comprised of LiBH₄. Images were also inspected upon the second threshold selection (corresponding to both the narrow and broader peaks) to ensure that highlighted pixels correspond to material (not void space). Figure 3a shows images without thresholding and Figures 3b,c show thresholding for the LiBH₄ phase (selection of the narrow peak) and the combined MgH₂/LiBH₄ phases (selection of both peaks), respectively.

After thresholding the images using 2D x-z plane slices, volume fraction data is calculated by Avizo^TM software using voltex volume data. Table 1 shows volume data (in μm³) computed using pixel count of microtomographic data. Table 2 shows molar ratios calculated from volume fraction data. Results show that experimental determination of relative amount of each phase measured by tomographic imaging did not correctly predict the relative amounts of LiBH₄ and MgH₂ used for sample preparation. It is hypothesized that the poor correlations to target compositions prepared at LiBH₄:MgH₂ molar ratios of 1:1, 1:3, and 2:1 may have occurred because the high energy ball milling process resulted in particles sizes which are either below the 2 μm spatial resolution of the tomographic imaging or smaller particles settled to the bottom of the sample vial where they were not included in the measurement.

The molar ratio data shown in Table 2 indicates that the majority constituent in each two phase mixture is milled to finer sizes than the smaller constituent. High energy ball milling results in reduced particle sizes with increased mill time. The smallest particles in the system may not have been included in the image sets because of gravitational settling or because of milling to sizes below the spatial resolution of the tomography. Some factors which influence the final particle size are material hardness, initial particle size, and ratio of powder-to-milling media (i.e., stainless steel mill balls). In these experiments, LiBH₄ and MgH₂ phases were milled simultaneously keeping the ratio of powder-to milling media fixed. It is important to note that when molar ratio of the constituent powders changes—the ratio of powder-to-milling media for each phase is also changed. This variable would determine which phase attrition mills at a higher rate and hence reaches to sizes below the spatial resolution of the tomographic instrument or settles to bottom of sample vial. For example, in the 1:3 LiBH₄:MgH₂ (molar ratio) mixed powder system, the stoichiometric starting composition is 0.3 mol LiBH₄ to 1 mol of MgH₂—however, the tomographic imaging data erroneously measures 0.46 mol of LiBH₄ to 1 mol of MgH₂ (i.e., the imaging data reports too little MgH₂). Since MgH₂ is the most abundant phase in the starting powder—its ratio of powder-to-milling media is higher resulting in a higher probability of contact with milling media and a higher rate of particle attrition leading to size reduction. Indeed, this explanation would account for the poor correlations in the 2:1 LiBH₄:MgH₂ (molar ratio) mixed powders whereby a higher ratio of powder-to-milling media for LiBH₄ yields more rapid reduction in particle size for this phase. As a result, imaging data erroneously measures lower than expected amounts of LiBH₄ (measured at 0.45 mol of LiBH₄ per 1 mol of MgH₂). In the case of the 1:1 sample, the measurements show 0.39 mol of LiBH₄ to 1 mol of MgH₂ for the uncatalyzed and 0.59 mol of LiBH₄ to 1 mol of MgH₂ for the catalyzed system. In both cases (i.e., catalyzed and uncatalyzed), the amount of LiBH₄ was underestimated by these measurements indicating that LiBH₄ was milled more effectively to smaller sizes. The density of LiBH₄ is approximately half that of MgH₂ and so it can be reasoned that, at equal molar amounts, the volume of LiBH₄ is twice that of the MgH₂ (leading to more opportunity for the LiBH₄ phase to encounter the milling media and hence more particle size reduction). Table 2 summarizes this data and includes—in parenthesis—notation of the phase which is most abundant and below spatial resolution. Again, the abundant phase in each mixture is underestimated by the imaging data because of gravitation sedimentation which may have caused it to fall to the bottom of the sample vial where it was excluded from measurement or because during attrition milling it achieved sizes smaller than the spatial resolution of the tomographic instrument.

In all cases of measured compositions, the percent difference between measured and target composition is very large. Therefore, to bring into focus the actual compositions of the three samples, x-ray diffraction measurements were made. Figure 4 shows x-ray diffraction of the uncatalyzed samples and clearly indicates increasing amounts of LiBH₄ in going from the 1:3, 1:1 and 2:1 (LiBH₄:MgH₂) as indicated by the increasing in peak intensity at 2θ~22° and at 2θ~49.98°. By x-ray diffraction, it is confirmed that no desorption product, i.e., LiH, is present. LiH diffraction peaks occur at 2θ~38° and 44° [8].

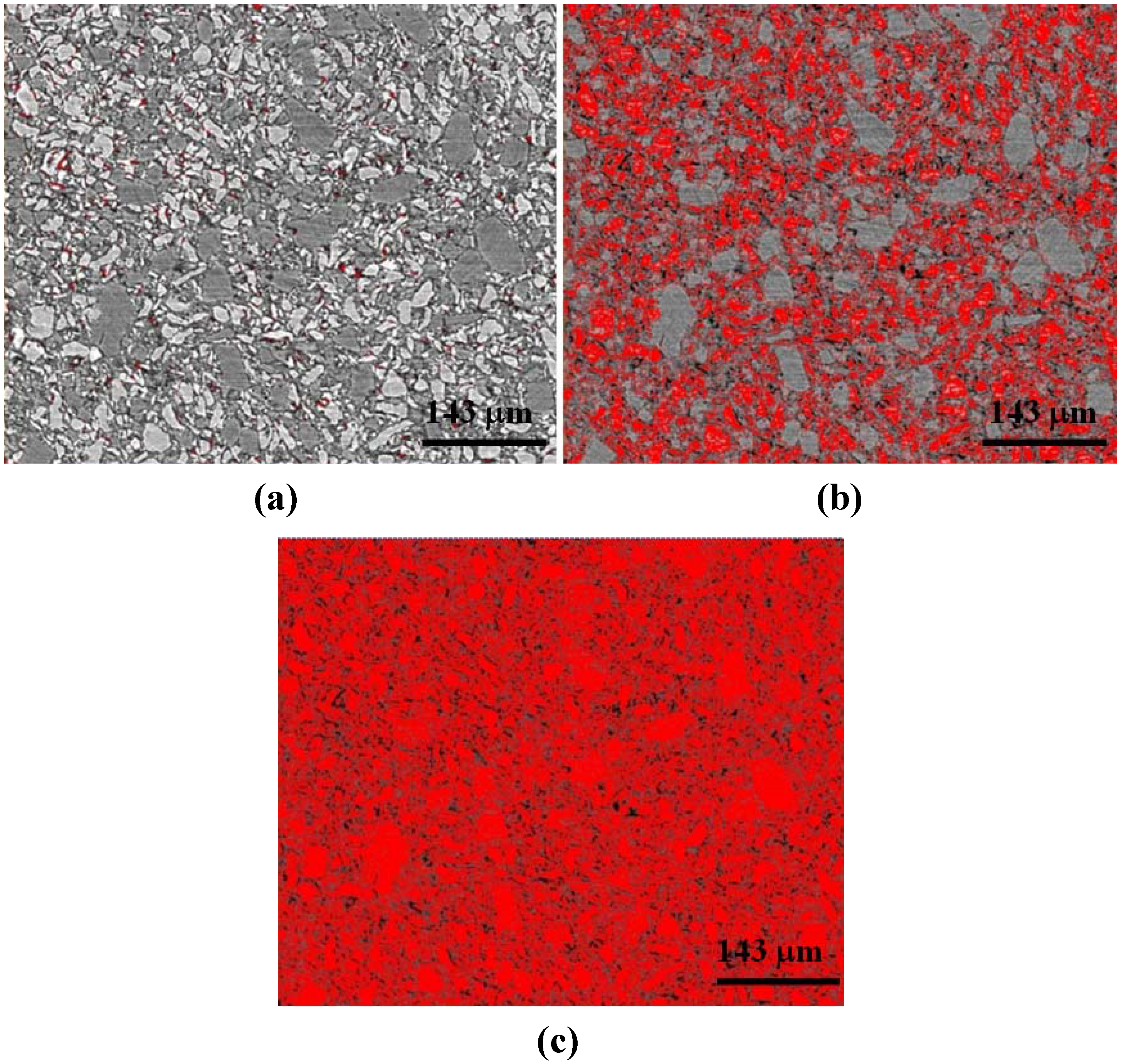

Figure 3. Two dimensional x-z plane slices were used for thresholding. Here the 1:3 LiBH₄:MgH₂ (uncatalyzed) sample with (a) no thresholding; (b) red highlighted pixels corresponding to thresholding for LiBH₄; and (c) red highlighted pixels corresponding to thresholding for both LiBH₄ and MgH₂. Taking the difference in volume computed from (c) and (b), we may determine the volume of MgH₂. The black areas are air or void space.

Figure 3. Two dimensional x-z plane slices were used for thresholding. Here the 1:3 LiBH₄:MgH₂ (uncatalyzed) sample with (a) no thresholding; (b) red highlighted pixels corresponding to thresholding for LiBH₄; and (c) red highlighted pixels corresponding to thresholding for both LiBH₄ and MgH₂. Taking the difference in volume computed from (c) and (b), we may determine the volume of MgH₂. The black areas are air or void space.

Table 1. Total volume of void space, LiBH₄, and MgH₂ (in μm³) computed from pixel count in computed microtomographic images. These data were used (along with density and molecular weight) to compute molar ratios or molar fractions (reported in Table 2). In computing molar ratios, the void space volume was attributed equally to LiBH₄ and MgH₂.

Volume Air	Volume LiBH4	Volume MgH2
1:3 Catalyzed LiBH4:MgH2
1.60 × 108	3.23 × 108	2.26 × 108
1:3 Uncatalyzed LiBH4:MgH2
1.71 × 108	1.76 × 108	2.27 × 108
1:1 Catalyzed LiBH4:MgH2
1.77 × 108	2.78 × 108	2.57 × 108
1:1 Uncatalyzed LiBH4:MgH2
1.04 × 108	7.64 × 107	1.16 × 108
2:1 Catalyzed LiBH4:MgH2
1.45 × 108	1.68 × 108	2.49 × 108
2:1 Uncatalyzed LiBH4:MgH2
1.46 × 108	1.30 × 107	3.24 × 107

Table 1. Total volume of void space, LiBH₄, and MgH₂ (in μm³) computed from pixel count in computed microtomographic images. These data were used (along with density and molecular weight) to compute molar ratios or molar fractions (reported in Table 2). In computing molar ratios, the void space volume was attributed equally to LiBH₄ and MgH₂.

Volume Air	Volume LiBH4	Volume MgH2
1:3 Catalyzed LiBH4:MgH2
1.60 × 108	3.23 × 108	2.26 × 108
1:3 Uncatalyzed LiBH4:MgH2
1.71 × 108	1.76 × 108	2.27 × 108
1:1 Catalyzed LiBH4:MgH2
1.77 × 108	2.78 × 108	2.57 × 108
1:1 Uncatalyzed LiBH4:MgH2
1.04 × 108	7.64 × 107	1.16 × 108
2:1 Catalyzed LiBH4:MgH2
1.45 × 108	1.68 × 108	2.49 × 108
2:1 Uncatalyzed LiBH4:MgH2
1.46 × 108	1.30 × 107	3.24 × 107

Table 2. LiBH₄:MgH₂ molar ratios computed from microtomographic image analysis for catalyzed and uncatalyzed systems. Poor correlations between the target molar ratios of 0.3, 1.0 and 2.0 may be explained if high energy ball milling preferentially reduces particle sizes for the most abundant phase in the mixture.

Target LiBH4:MgH2 Composition	LiBH4:MgH2 Molar Fractions for Uncatalyzed Samples	LiBH4:MgH2 Molar Fractions for 4 mol % TiCl3 Catalyzed Samples
1:3	0.46	0.73
(0.33 LiBH4 molar fraction)	(more MgH2 below spatial resolution)	(more MgH2 below spatial resolution)
1:1	0.39	0.59
(1.0 LiBH4 molar fraction)	(more LiBH4 below spatial resolution)	(more LiBH4 below spatial resolution)
2:1	0.45	0.41
(2.0 LiBH4 molar fraction)	(more LiBH4 below spatial resolution)	(more LiBH4 below spatial resolution)

Table 2. LiBH₄:MgH₂ molar ratios computed from microtomographic image analysis for catalyzed and uncatalyzed systems. Poor correlations between the target molar ratios of 0.3, 1.0 and 2.0 may be explained if high energy ball milling preferentially reduces particle sizes for the most abundant phase in the mixture.

Target LiBH4:MgH2 Composition	LiBH4:MgH2 Molar Fractions for Uncatalyzed Samples	LiBH4:MgH2 Molar Fractions for 4 mol % TiCl3 Catalyzed Samples
1:3	0.46	0.73
(0.33 LiBH4 molar fraction)	(more MgH2 below spatial resolution)	(more MgH2 below spatial resolution)
1:1	0.39	0.59
(1.0 LiBH4 molar fraction)	(more LiBH4 below spatial resolution)	(more LiBH4 below spatial resolution)
2:1	0.45	0.41
(2.0 LiBH4 molar fraction)	(more LiBH4 below spatial resolution)	(more LiBH4 below spatial resolution)

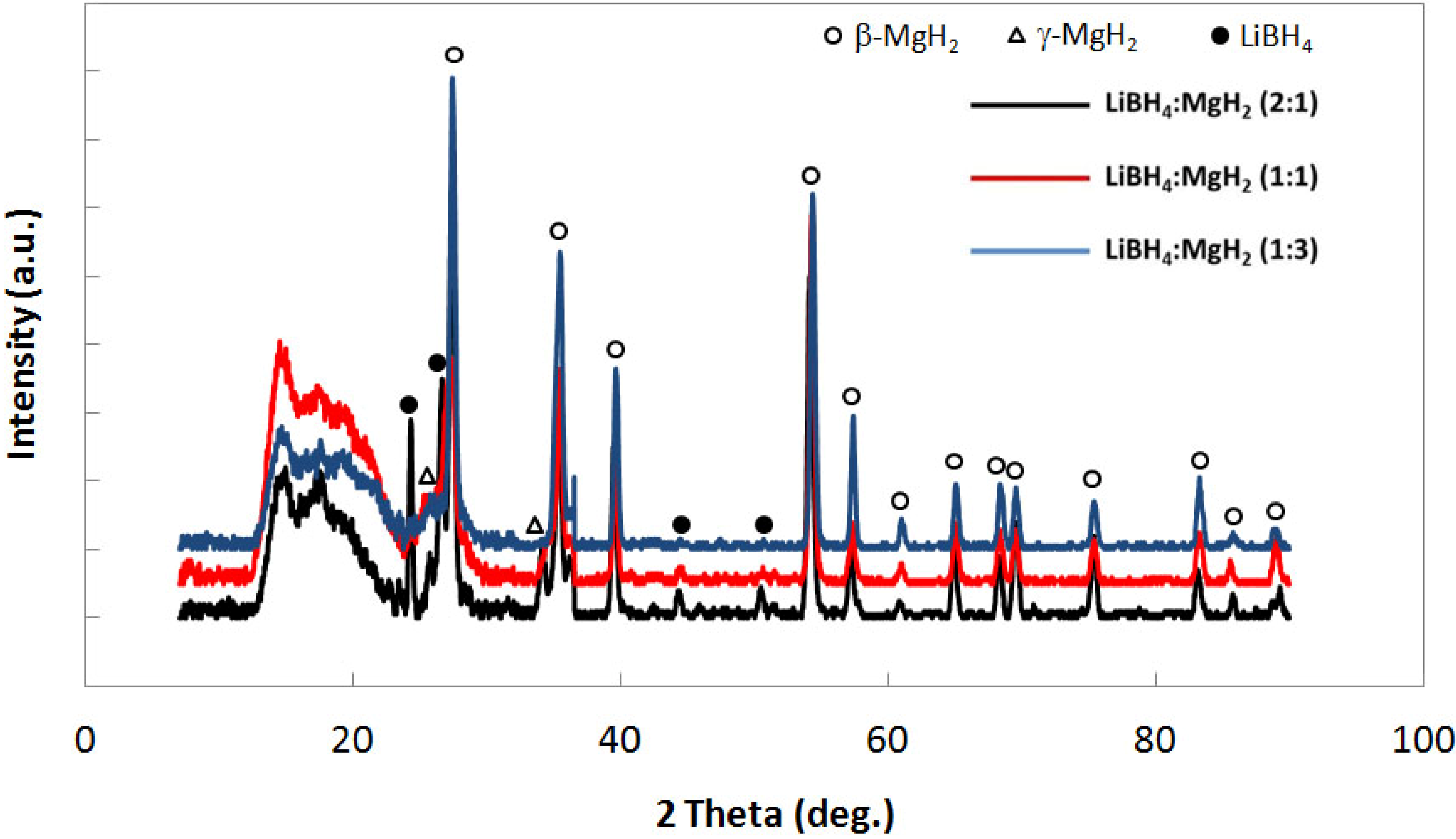

Figure 4. X-ray diffraction for uncatalyzed LiBH₄:MgH₂ in 2:1, 1:1 and 1:3 molar ratios.

Figure 4. X-ray diffraction for uncatalyzed LiBH₄:MgH₂ in 2:1, 1:1 and 1:3 molar ratios.

2.3. Interfacial Volume for Single Phase MgH₂ and LiBH₄ and Interphase Volume for 3:1, 1:1, and 2:1 Mixtures of LiBH₄:MgH₂

The tomographic images showed a bright fringe around the edges of the LiBH₄ particles—and so Avizo^TM software could be used to threshold those edges in the mixed powder systems. This may have been possible because of phase contrast yielding brighter edges around LiBH₄ and optimal edge enhancement for that phase. Within the grey-scale histogram, a very low intensity peak appearing to the left of the LiBH₄ (narrow) and MgH₂ (broadened) peaks is present. This peak was selected for generating the edge thresholded images. Figure 5 shows an example of the edge thresholding of LiBH₄ particles in a sample comprised of 1:3 LiBH₄:MgH₂ (uncatalyzed). Figure 6 shows the interfacial volume calculated for each of the single phase powders, i.e., LiBH₄ and MgH₂, in their catalyzed and uncatalyzed state. No significant trend in interfacial volume is noted. The standard deviation for uncatalyzed and catalyzed LiBH₄ is 0.04 and the standard deviation for uncatalyzed and catalyzed MgH₂ is 0.02. The data plotted in Figure 6 is a ratio of the interfacial boundary volume to bulk volume (and is unitless). The standard deviation is +/−0.04 for uncatalyzed and catalyzed LiBH₄. The +/−0.04 standard deviation is used for the analysis of trends in the interphase volume ratios for the mixed LiBH₄ and MgH₂ systems (shown as error bars in Figure 7).

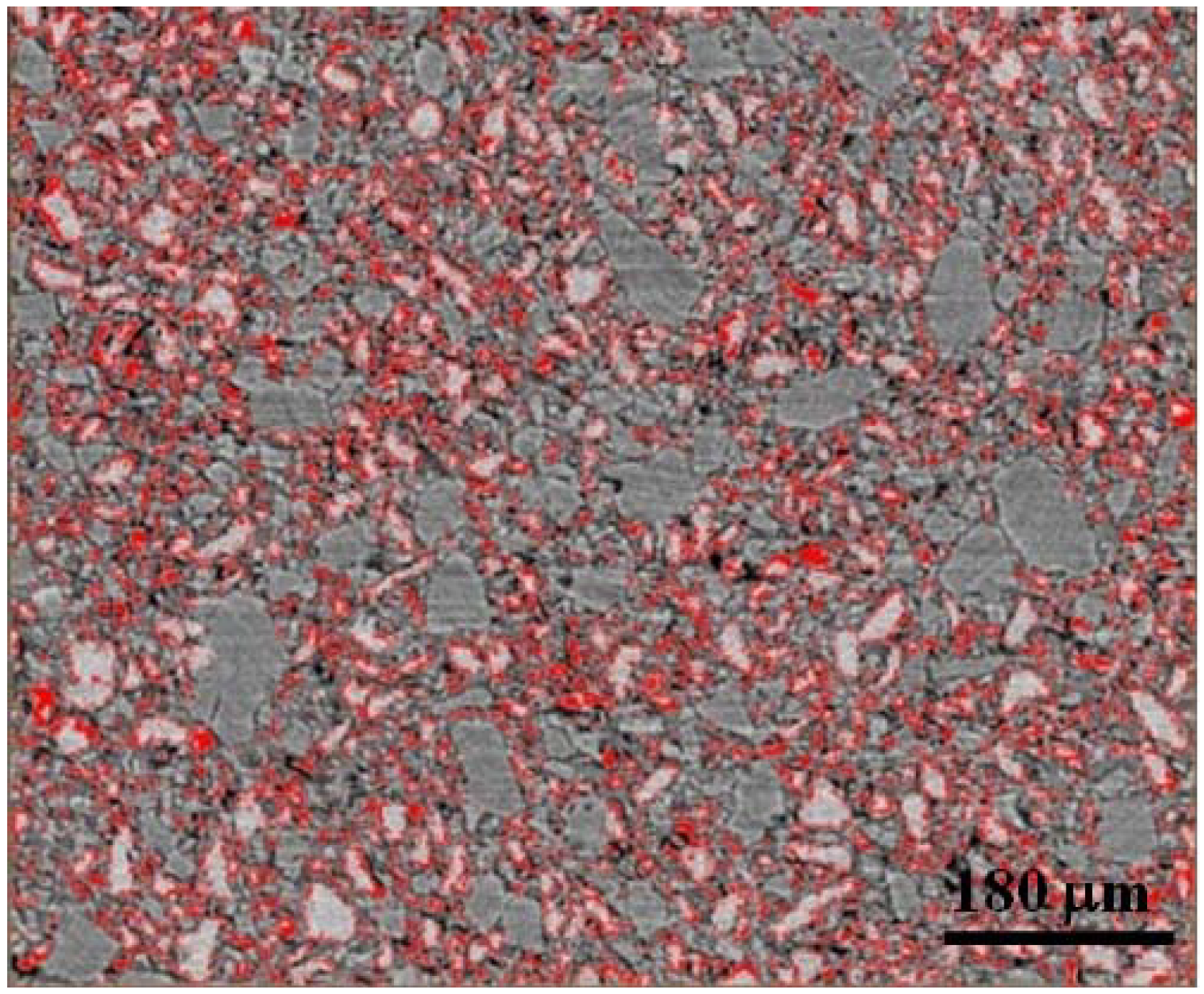

Figure 5. Two dimensional x-z slice used for thresholding edges of the LiBH₄ phase in the 1:3 LiBH₄:MgH₂ (uncatalyzed) sample. Similar threshold levels were selected for computing interfacial boundary volume between LiBH₄ and MgH₂ for all samples data.

Figure 5. Two dimensional x-z slice used for thresholding edges of the LiBH₄ phase in the 1:3 LiBH₄:MgH₂ (uncatalyzed) sample. Similar threshold levels were selected for computing interfacial boundary volume between LiBH₄ and MgH₂ for all samples data.

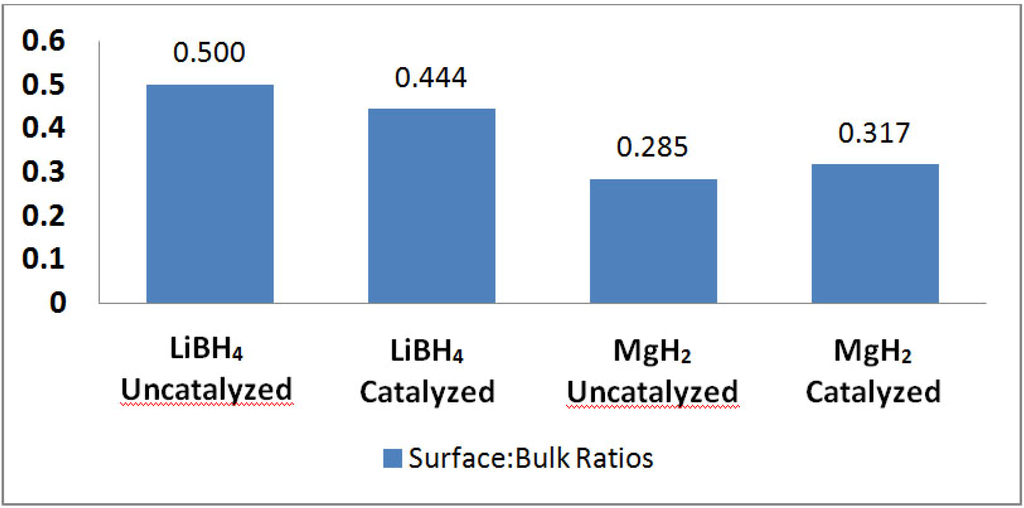

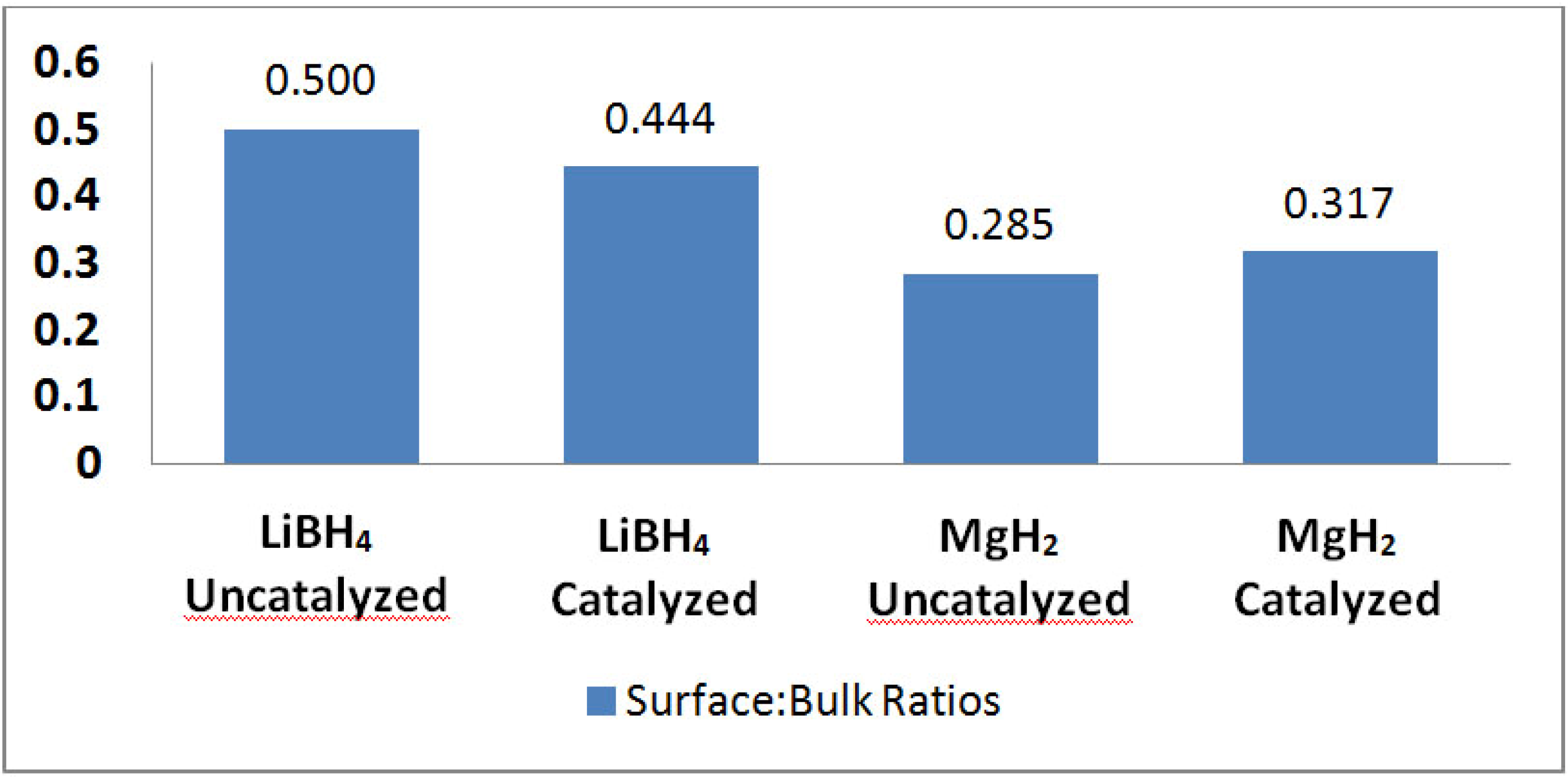

Figure 6. Comparison of interfacial boundary volume for LiBH₄ (uncatalyzed), LiBH₄ (catalyzed), MgH₂ (uncatalyzed), and MgH₂ (catalyzed). The LiBH₄ phase contains smaller particles (i.e. higher interface volume to bulk volume ratios) than the MgH₂ phase. No significant trend in interfacial volume for catalyzed and uncatalyzed samples is noted in either the case of pure LiBH₄ or MgH₂.

Figure 6. Comparison of interfacial boundary volume for LiBH₄ (uncatalyzed), LiBH₄ (catalyzed), MgH₂ (uncatalyzed), and MgH₂ (catalyzed). The LiBH₄ phase contains smaller particles (i.e. higher interface volume to bulk volume ratios) than the MgH₂ phase. No significant trend in interfacial volume for catalyzed and uncatalyzed samples is noted in either the case of pure LiBH₄ or MgH₂.

Figure 7 shows interphase boundary to bulk volume ratios for the mixtures. Both uncatalyzed and catalyzed samples are represented. In all cases, catalyzed systems have higher interfacial volumes relative to the uncatalyzed systems for all molar ratios. These data suggest that the catalyst contributes to reduction in particle size in the mixed powder systems. The reason for this enhanced reduction in particle size is yet unknown, however, it may be attributed to particle embrittlement associated with diffusion Ti³⁺ cations into individual LiBH₄ or MgH₂ particles. Still, a different explanation for the increased interfacial boundary to bulk volume ratio within the catalyzed samples might be that TiCl₃ remained as a separate powder phase in the system. Although comprising only 4 mol. percent of the powder sample, X-ray diffraction data for the catalyzed samples (shown in Figure 8) reveals a peak at 2θ~49.84° which could correspond to either TiCl₃ or to LiBH₄ (having a peak at 2θ~49.98°). It is, however, unlikely that the inclusion of TiCl₃ (as a separate powder phase) is solely responsible for the variation in interphase to bulk volume ratio observed because it was added in only 4 mol % amounts.

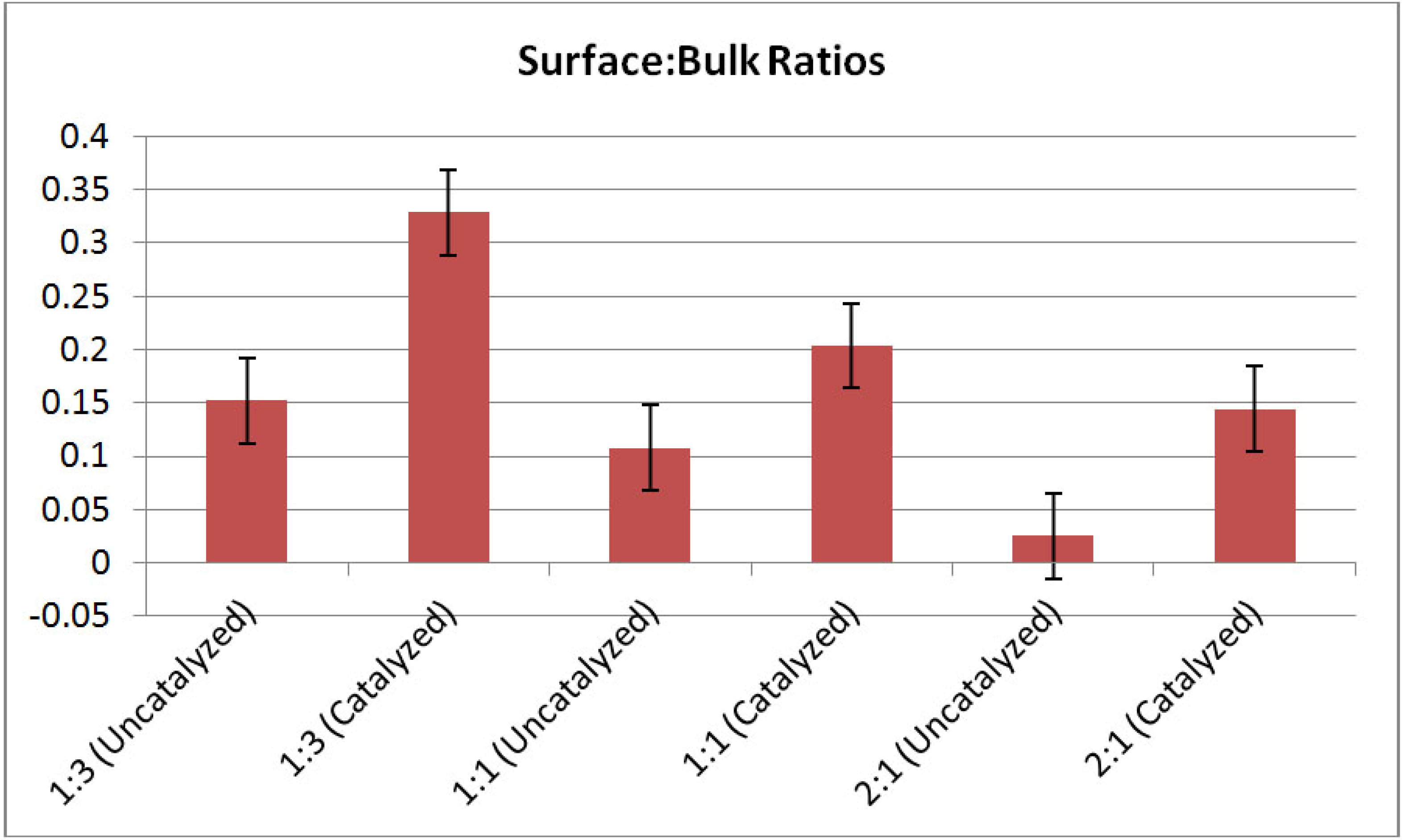

Figure 7. Interphase boundary to bulk volume ratios for LiBH₄:MgH₂ mixtures in 1:3, 1:1, and 2:1 molar ratios. Error bars shown are +/−0.04. In all cases, the interphase volume is increased after 4 mol % TiCl₃ catalyst additions. Again, the interphase volume is computed using the edge thresholding for the LiBH₄ phase—and so naming these edges as “interphase volume” makes the assumption that each LiBH₄ particle is surrounded by MgH₂ (not air or other LiBH₄ particles).

Figure 7. Interphase boundary to bulk volume ratios for LiBH₄:MgH₂ mixtures in 1:3, 1:1, and 2:1 molar ratios. Error bars shown are +/−0.04. In all cases, the interphase volume is increased after 4 mol % TiCl₃ catalyst additions. Again, the interphase volume is computed using the edge thresholding for the LiBH₄ phase—and so naming these edges as “interphase volume” makes the assumption that each LiBH₄ particle is surrounded by MgH₂ (not air or other LiBH₄ particles).

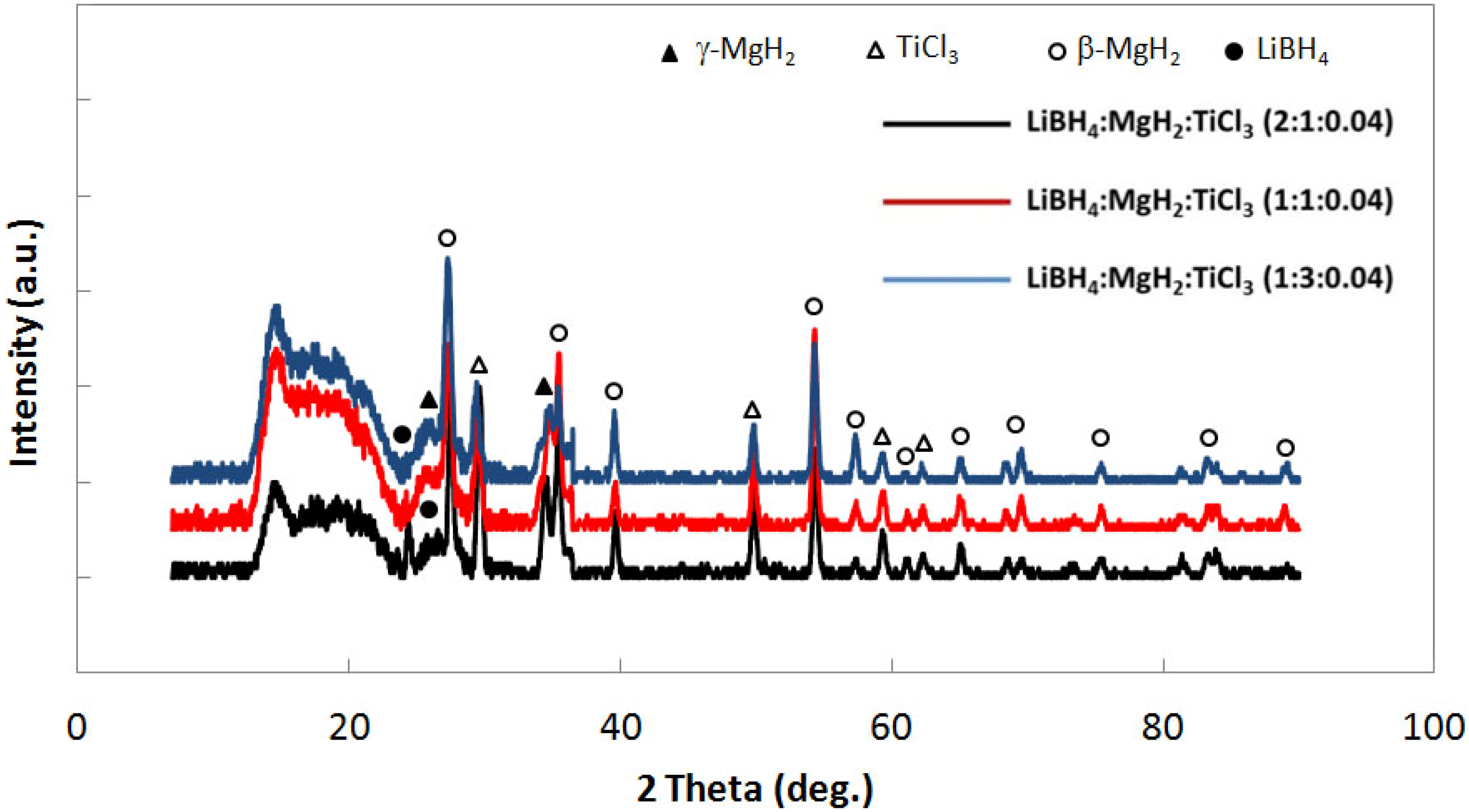

Figure 8. X-ray diffraction for 4 mol % TiCl₃ catalyzed LiBH₄:MgH₂ in 2:1, 1:1 and 1:3 molar ratios.

Figure 8. X-ray diffraction for 4 mol % TiCl₃ catalyzed LiBH₄:MgH₂ in 2:1, 1:1 and 1:3 molar ratios.

The parameter of interfacial boundary volume-to-bulk volume is an important parameter for any solid-solid phase transformation. The interphase boundary volume would indicate the available volume for solid-solid reactions to occur. Here, the pixels found along the edges of the LiBH₄ particles are highlighted and counted via image analysis. However, this edge count is limited to the light grey LiBH₄ phase and in no way quantitatively determines the amount of interphase between LiBH₄ and MgH₂. For example, the method used for processing this image data does not exclude the possibility that a LiBH₄ particle is in contact with void space or with another LiBH₄ particle. Here, it can only be assumed that each LiBH₄ particle is surrounded by MgH₂ particles. At low molar fraction of LiBH₄ in the powders (i.e., molar fractions below the percolation threshold where LiBH₄ particle-to-particle contact occurs)—this is a believed to be a valid assumption.

Other studies have been undertaken to use microtomography for understanding solid-to-solid microstructural and phase transformations. Many studies focus on sintering and neck formation in heterogenous systems [9,10]. Fewer studies have undertaken, as this one does, a comprehensive analysis of interfacial volume driven reactions in heterogenous systems [11].Furthermore, the tomographic imaging allowed (with relative ease) the preparation of samples without exposure to air and moisture known to oxidize or decompose many complex metal hydrides. A detailed image analysis and high spatial resolution of the type presented here would not be possible using a scanning electron microscope unless that microscope is equipped with an environmental sample loading chamber.

3. Experimental Section

Magnesium hydride (MgH₂) and hydrogen storage grade lithium borohydride (LiBH₄) were obtained commercially from Sigma Aldrich^® (St. Louis, MO). Mixtures of the powders were prepared in 1:3, 1:1, 2:1 LiBH₄:MgH₂ molar ratios and high energy ball milled for 5 minutes using a SPEX Certiprep 8000M mixer mill and stainless steel milling media. The milling was done within a stainless steel mill jar using two stainless steel balls of 0.5 cm in diameter as milling media. The milling media-to-hydride powder mass ratio was maintained close to 10:1. To study the effect of 4 mol % TiCl₃ catalyst, a second set of mixtures in 1:3, 1:1, and 2:1 ratios were prepared with catalyst added and were milled for 5 minutes. To prepare control samples, single phase LiBH₄ and single phase MgH₂ were both milled for 5 minutes using catalyzed (4 mol % TiCl₃) and uncatalyzed conditions. Samples were loaded to tapping density into 1mm and 1.87 mm inner diameter polyamide tubes (Goodfellow Corp, Huntingdon, England) and edges were sealed using epoxy putty for transport to the x-ray beamline. (Analysis reported here includes only samples loaded into the 1.87 mm inner diameter tubes because very sparse sample amounts were able to be loaded into the 1 mm diameter tubes.)

Samples were measured using the microtomography instrument located at 2BM Advanced Photon Source (Argonne National Laboratory, IL, USA) [7]. The instrument can reach a 200 nm spatial resolution but was operated at a 2 μm resolution for these experiments. The instrument at 2BM is made for high throughput measurement and is equipped with an automatic sample changer to image up to 20 samples per hour. Samples comprised of an abundance of low atomic number elements are a challenge for absorption based imaging so the sample to detector distance was offset to enhance phase contrast imaging for the LiBH₄ phase. Data processing was performed using the Avizo^TM Software package available at the Louisiana State University’s Center for Computation and Technology.

4. Conclusions

Overcoming kinetic limitations are the key to meeting performance targets for a most promising class of metal hydride materials—the destabilized hydrides. The present study focuses on the MgH₂-destabilized LiBH₄ system and the effect of transition metal catalysts on those systems. This work demonstrates that three dimensional imaging is poised to be a platform technology in understanding the influences on H₂ desorption and uptake rates of (i) domain sizes (i.e., reactant and product phase particle sizes), (ii) H₂ adsorption and desorption reaction site density (i.e., content of interphase boundary volume per unit sample volume), and (iii) diffusional transport throughout the composite system. Future studies should include examination of powders after desorption excursions. Tomographic 3D imaging can be used to provide much needed data on the relationship between morphology and the kinetics of H₂ desorption and uptake in the destabilized hydride systems.
