Next Article in Journal
Green Synthesis, Molecular Characterization and Associative Behavior of Some Gemini Surfactants without a Spacer Group
Previous Article in Journal
Mechanical Properties and Microstructure of Class C Fly Ash-Based Geopolymer Paste and Mortar
Materials 2013, 6(4), 1496-1505; doi:10.3390/ma6041496
Article

Randomness and Statistical Laws of Indentation-Induced Pop-Out in Single Crystal Silicon

,
* ,
,
,
 and
College of Mechanical Science & Engineering, Jilin University, Renmin Street 5988, Changchun 130025, China
* Author to whom correspondence should be addressed.
Received: 6 February 2013 / Accepted: 2 April 2013 / Published: 12 April 2013
View Full-Text   |   Download PDF [481 KB, uploaded 12 April 2013]   |   Browse Figures

Abstract

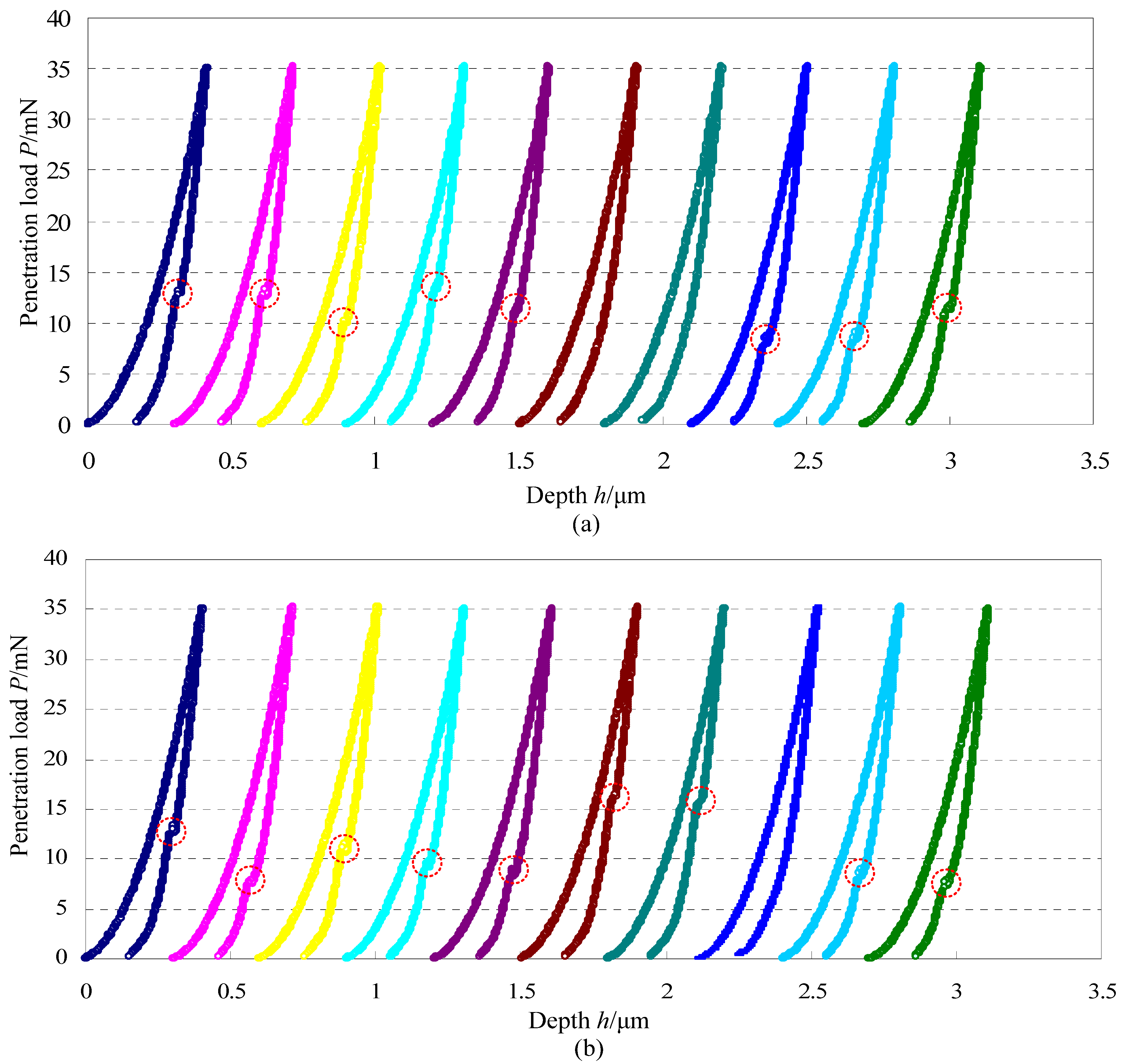

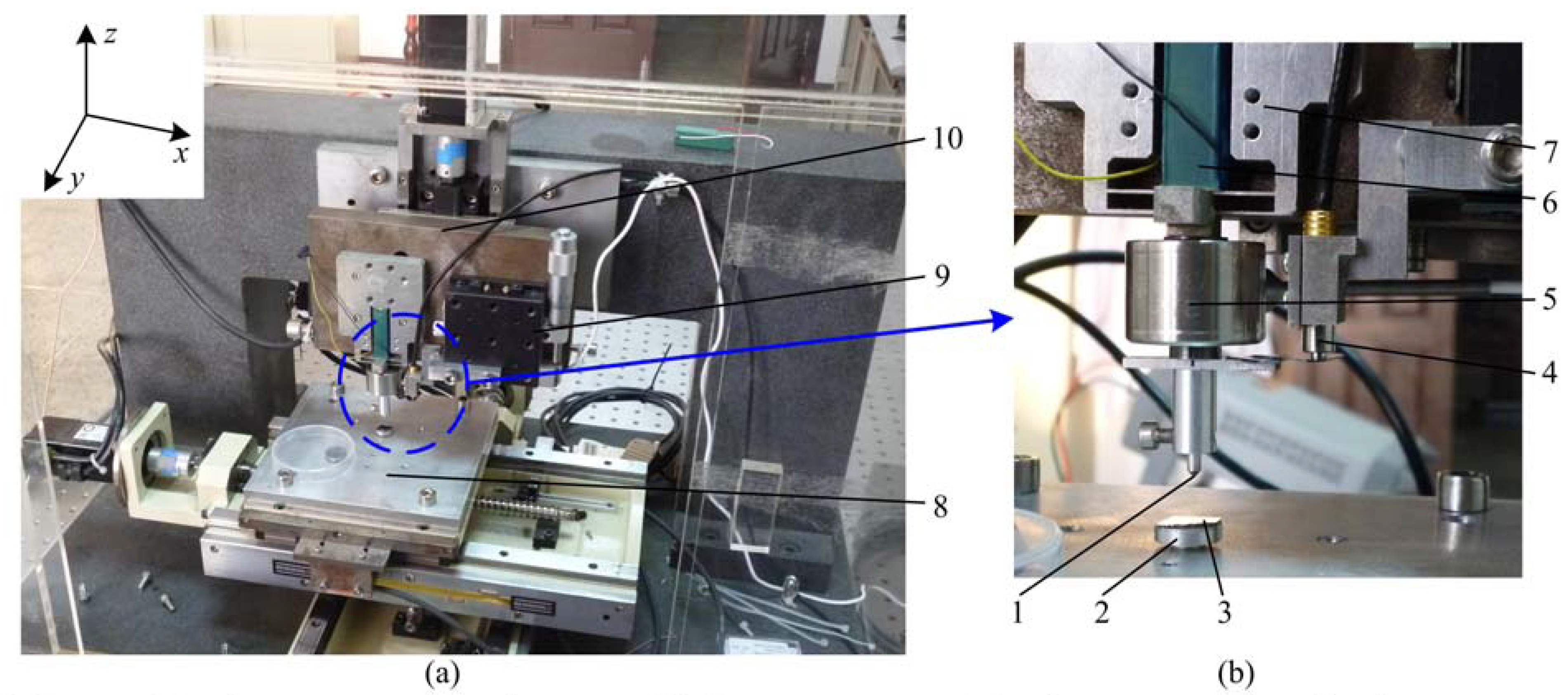

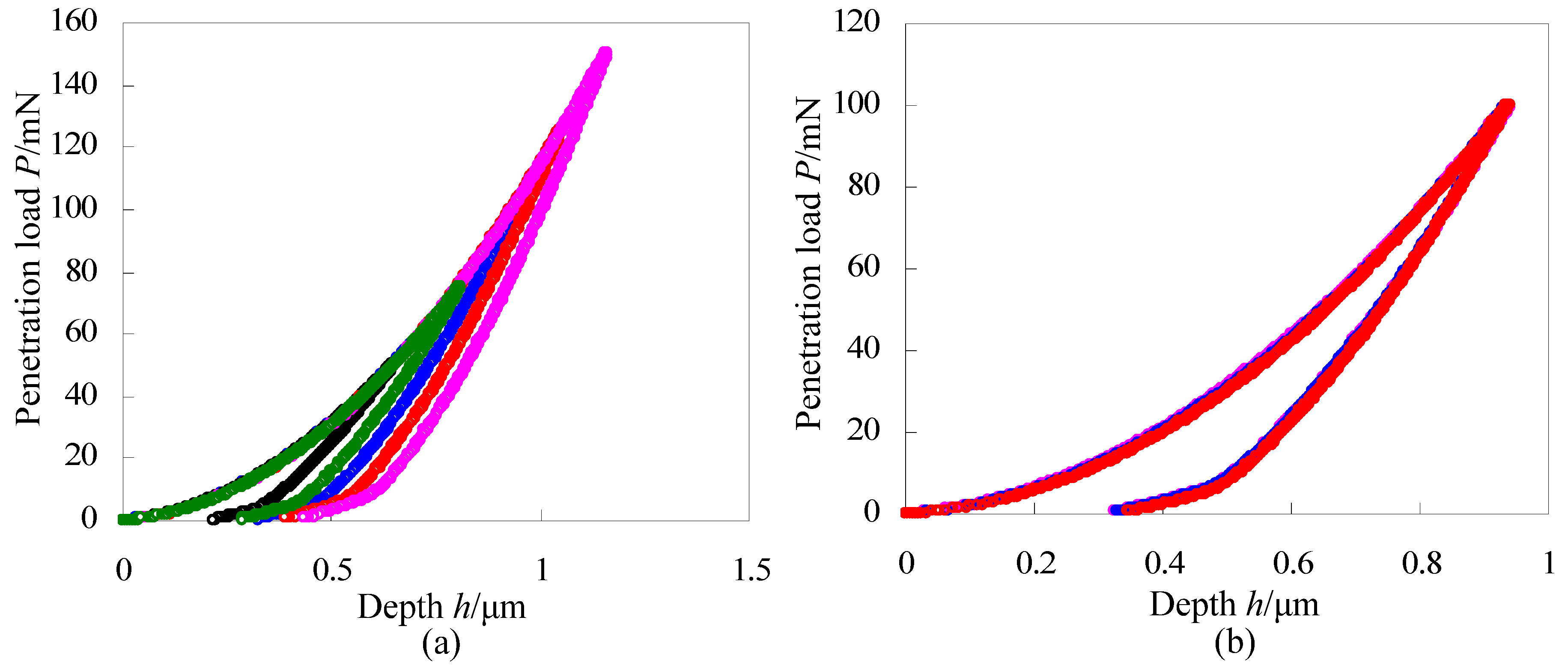

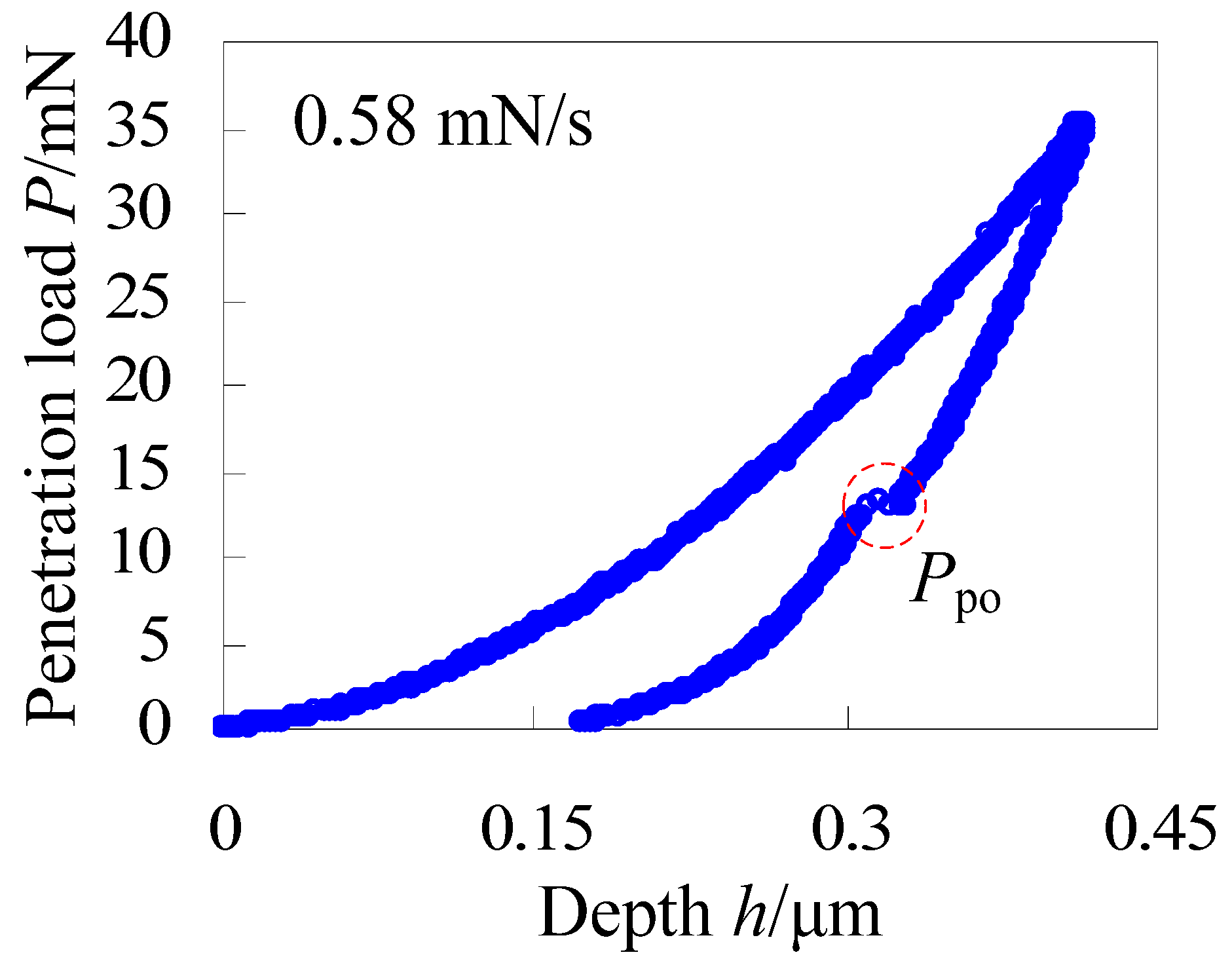

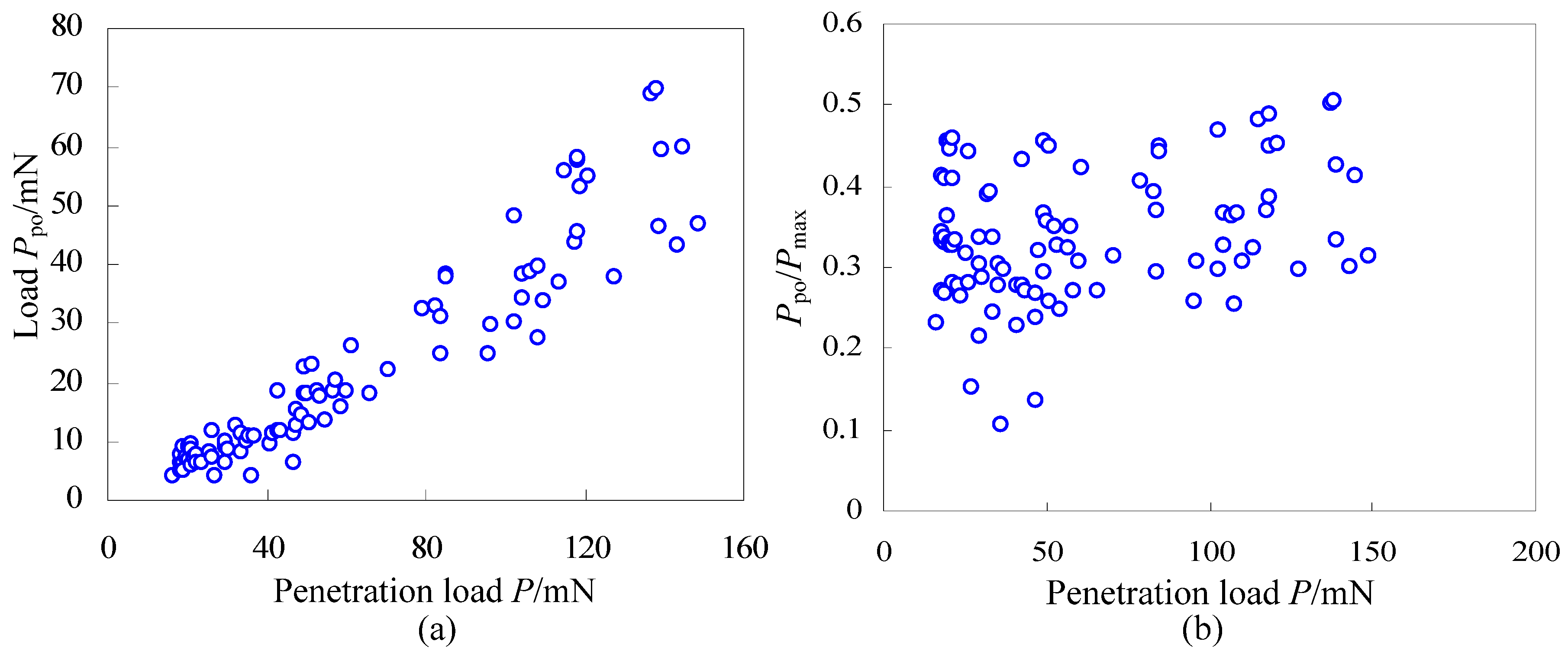

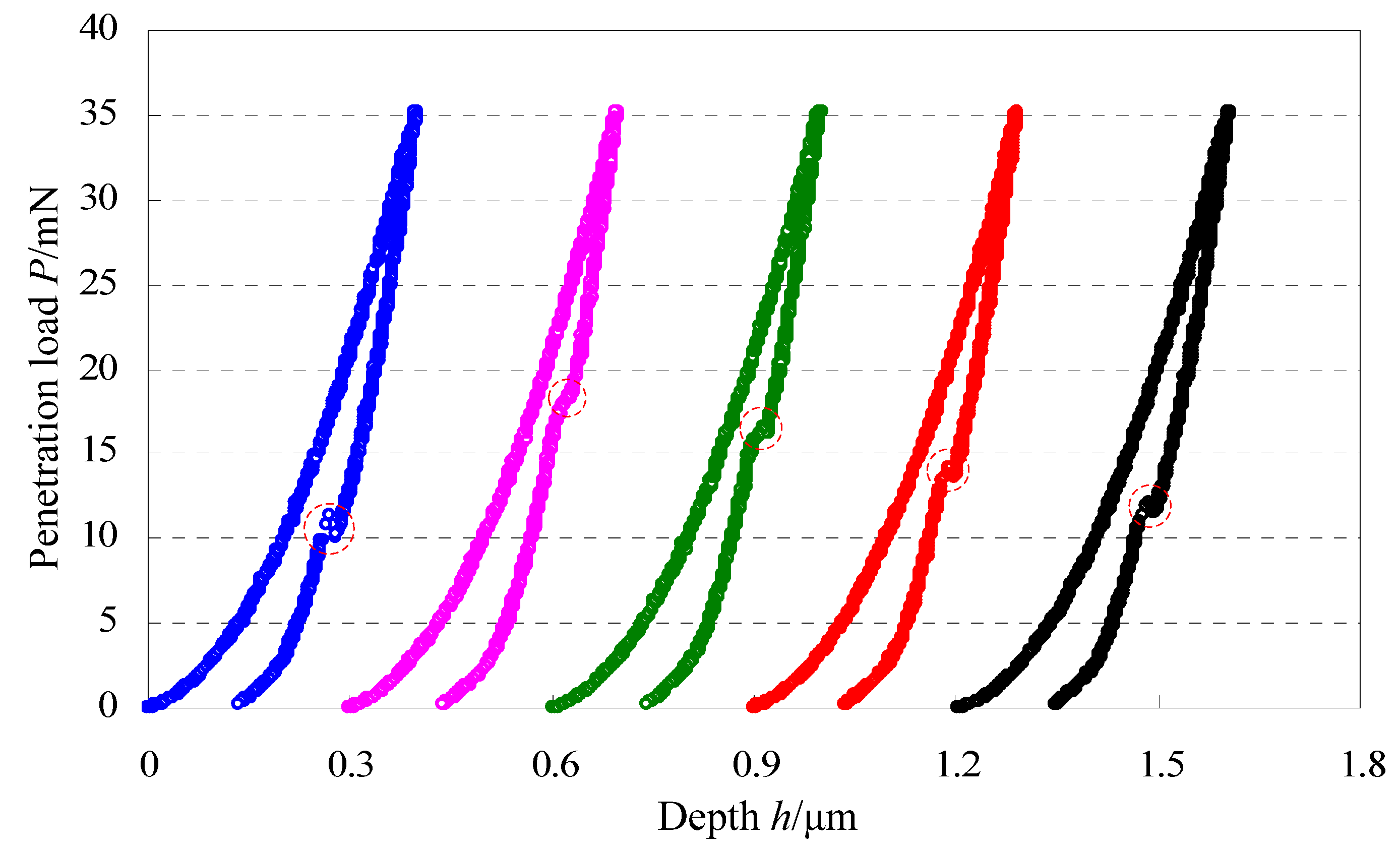

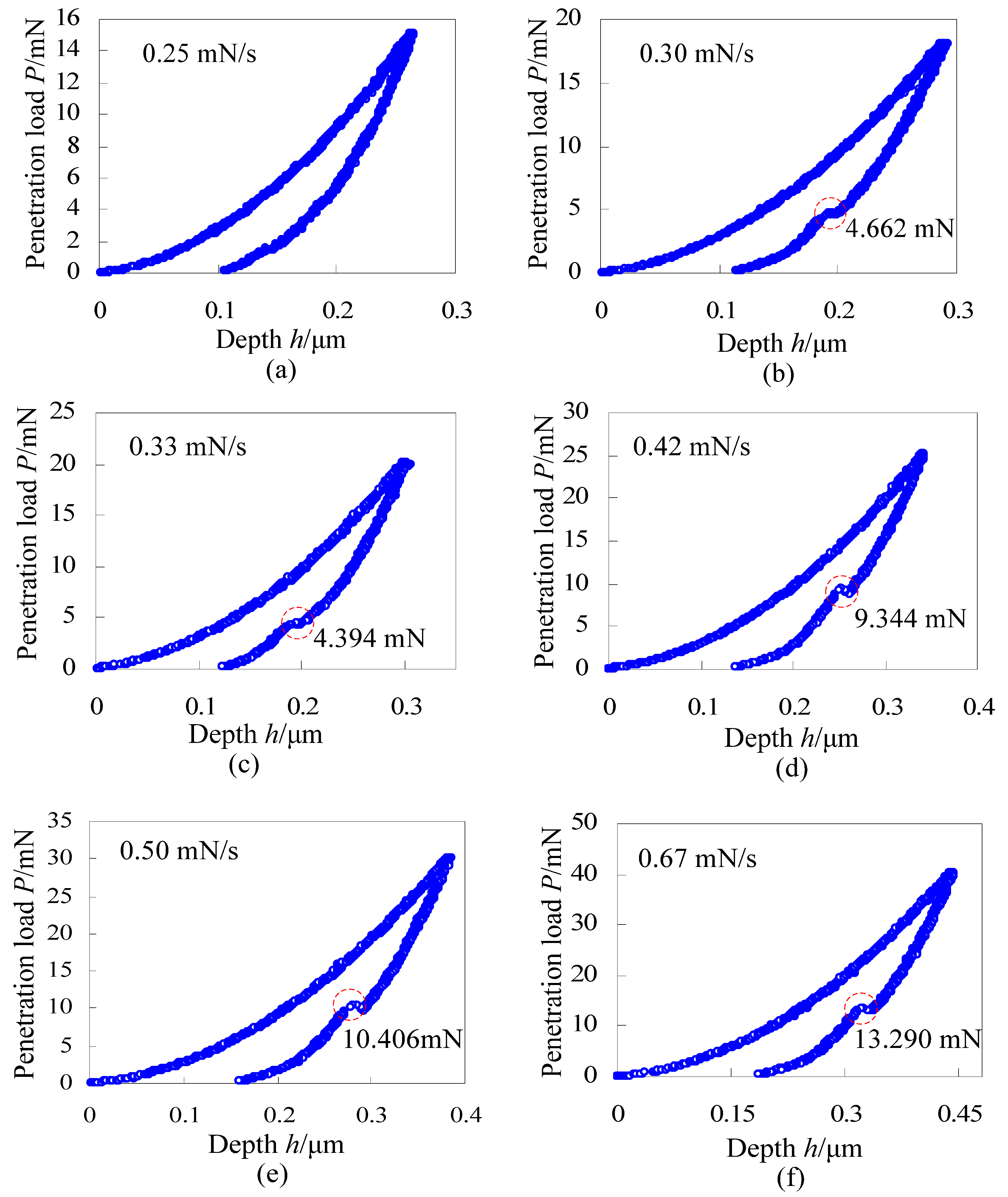

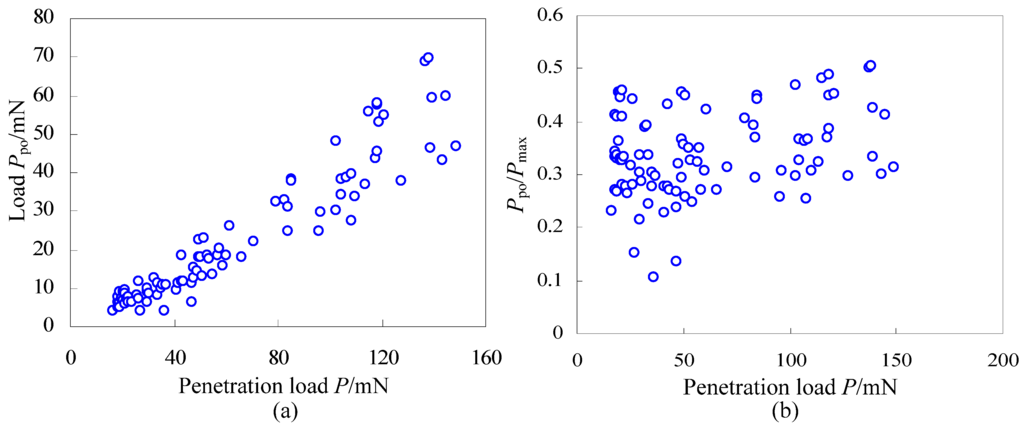

Randomness and discreteness for appearance of pop-out of the single crystal silicon with a (100) orientation were studied by a self-made indentation device. For a given maximum penetration load, the load Ppo for appearance of pop-out fluctuates in a relatively large range, which makes it hard to study the effect of the loading/unloading rate on the load Ppo. Experimental results with different maximum penetration loads indicate that the critical penetration load for appearance of pop-out is in the range of 15 mN~20 mN for the current used single crystal silicon. For a given maximum penetration load, the load Ppo for appearance of pop-out seems random and discrete, but in the point of statistics, it has an obviously increasing trend with increase of the maximum penetration load and also the fraction Ppo/Pmax approximately keeps in the range of 0.2~0.5 for different maximum penetration loads changing from 15 mN to 150 mN.
Keywords: pop-out; single crystal silicon; maximum penetration load; loading/unloading rate; statistic pop-out; single crystal silicon; maximum penetration load; loading/unloading rate; statistic
This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).
SciFeed

Share & Cite This Article

Further Mendeley | CiteULike
Export to BibTeX |
EndNote |
RIS
MDPI and ACS Style

Huang, H.; Zhao, H.; Shi, C.; Zhang, L.; Wan, S.; Geng, C. Randomness and Statistical Laws of Indentation-Induced Pop-Out in Single Crystal Silicon. Materials 2013, 6, 1496-1505.

View more citation formats

Related Articles

Article Metrics

For more information on the journal, click here

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
