Article

Influence of Oxygen Partial Pressure during Processing on the Thermoelectric Properties of Aerosol-Deposited CuFeO2

Department of Functional Materials, Zentrum für Energietechnik (ZET), University of Bayreuth, Bayreuth 95440, Germany
*
Author to whom correspondence should be addressed.
Materials 2016, 9(4), 227; https://doi.org/10.3390/ma9040227
Submission received: 11 January 2016 / Revised: 1 March 2016 / Accepted: 17 March 2016 / Published: 24 March 2016
(This article belongs to the Section Energy Materials)

Abstract

:
In the field of thermoelectric energy conversion, oxide materials show promising potential due to their good stability in oxidizing environments. Hence, the influence of oxygen partial pressure during synthesis on the thermoelectric properties of Cu-Delafossites at high temperatures was investigated in this study. For these purposes, CuFeO2 powders were synthetized using a conventional mixed-oxide technique. X-ray diffraction (XRD) studies were conducted to determine the crystal structures of the delafossites associated with the oxygen content during the synthesis. Out of these powders, films with a thickness of about 25 µm were prepared by the relatively new aerosol-deposition (AD) coating technique. It is based on a room temperature impact consolidation process (RTIC) to deposit dense solid films of ceramic materials on various substrates without using a high-temperature step during the coating process. On these dense CuFeO2 films deposited on alumina substrates with electrode structures, the Seebeck coefficient and the electrical conductivity were measured as a function of temperature and oxygen partial pressure. We compared the thermoelectric properties of both standard processed and aerosol deposited CuFeO2 up to 900 °C and investigated the influence of oxygen partial pressure on the electrical conductivity, on the Seebeck coefficient and on the high temperature stability of CuFeO2. These studies may not only help to improve the thermoelectric material in the high-temperature case, but may also serve as an initial basis to establish a defect chemical model.

1. Introduction

With thermoelectric generators, thermal energy can be directly converted into electrical energy. Great efforts have been undertaken in the past few decades to increase the efficiency-characterizing figure of merit (ZT)
Z T = S 2 σ κ T
which depends on the Seebeck coefficient (S), electrical conductivity (σ), and thermal conductivity (κ). If one considers only the electrical parameters, the power factor (PF) is an established parameter of thermoelectric materials:
P F = S 2 σ
ZT values above 1 were reported for semiconductors like Bi2-xSbxTe3 and filled skudderudites like Ba0.3Ni0.05Co3.95Sb12 or SnSe [1,2,3,4,5,6,7], and can be further enhanced when optimizing the thermoelectric properties through nanostructuring [8,9,10,11]. However, the commercial application of these materials is limited due to their high synthesis and production costs. In addition, several high-ZT-materials contain elements that are not abundant and most materials cannot be processed in an environmentally friendly manner. Stability in oxidizing atmospheres, particularly at elevated temperatures, is another serious issue.
Hence, it is a research trend today to substitute those costly and less abundant thermoelectric materials with inexpensive materials, while sustaining acceptable figures of merit. Whereas thermoelectric materials based on conductive polymers or ceramic-polymer hybrids were investigated for room-temperature applications [12,13,14,15,16,17], oxides are especially attractive at elevated temperatures due to their chemical and high-temperature stability, with limitations to some special oxide classes like doped ZnO [18,19], while not having a negative impact on the environment [20,21,22,23,24]. The key challenge when using oxides as materials in thermoelectric generators is the enhancement of their usually low electrical conductivity. In recent years, considerable good figures of merit for layered p-type cobaltites were reported [25,26]. Even though these materials exhibit good thermoelectric properties, NaCo2O4 for example is not supposed to be stable against temperature cycling and requires a complex synthesis route due to its highly anisotropic behavior [27].
Concerning n-type thermoelectric oxides, SrTiO3 exhibits the best properties, even though it has a low mobility (compared to classical semiconductors); the effective mass is particularly high resulting in a power-factor comparable with Bi2Te3 at room temperature [28,29]. However, ZT is rather low owing to a very high thermal conductivity. Another promising n-type semiconducting oxide is Al-doped ZnO, with a reported ZT of 0.24 at 1000 °C, and ZT = 0.47 at 975 °C for Al-Ga doped ZnO [24,30]. Keeping this in mind, SrTiO3 and ZnO are the only n-type oxide materials reported with reasonably high ZT values [31].
In the past, some studies have described copper-iron-oxides and claimed them as promising thermoelectric materials due to their high Seebeck coefficient while sustaining a high electrical conductivity and thermal stability [32,33,34,35]. In this work, we evaluated the thermoelectric performance and the electrical conductivity of the delafossite-type oxide CuFeO2, as it depends on the oxygen partial pressure at high temperatures, and found some interesting properties, especially an as yet unknown p-n-transition.
Cu+Fe3+O2 delafossite type oxides belong to the R3;m space group and have a layered crystal structure. The Cu+ ions are coordinated by two O2− ions and form O-Cu-O layers parallel to the c-axis, whereas the Fe3+ ions are coordinated by six O2− ions in an octahedron [36]. By doping the Fe3+ site with divalent 3d cations, the electrical conductivity of the intrinsically p-type CuFeO2 can be enormously enhanced [37]. Consequently, doping with tetravalent 3d cations leads to n-type semiconductors [38]. Even though this behavior has been published earlier, the fundamental understanding of the electronic conduction mechanism has still not been fully elucidated.
In this study, the novel aerosol deposition method (often abbreviated as AD method or ADM) is used to obtain dense ceramic thin-films of CuFeO2. The AD is based on room temperature impact consolidation (RTIC) of ceramic powders and uses a pressure gradient to accelerate an aerosol of submicron particles through a nozzle to the substrate [39,40]. As the particles impact on the substrate, a dense layer forms by fracture and plastic deformation of the particles on the surface of the substrate [41,42,43,44]. Using this method, thin CuFeO2 and dense layers were prepared to study the oxygen partial pressure dependence on the thermoelectric properties, to compare aerosol deposited CuFeO2 with conventionally solid-state prepared CuFeO2, and to deepen the understanding of their electrical conduction mechanism.

2. Experimental

Ceramic CuFeO2 powders were synthesized in a conventional mixed-oxide technique using copper(I)-oxide (99.9%, Alfa-Aesar, Karlsruhe, Germany) and iron(III)-oxide (99%, Alfa-Aesar, Karlsruhe, Germany)). These starting materials were processed in a wet planetary ball mill (FRITSCH, Idar-Oberstein, Germany) with cyclohexane as solvent. After milling the powders for 4 h, the solvent was removed in a rotary evaporator (Heidolph Instruments, Schwabach, Germany). To elucidate the influence of the oxygen content of the gas atmosphere during the solid state reaction, CuFeO2 fired in 100% N2 and CuFeO2 fired in 1% O2 were synthesized in a high temperature furnace at 1050 °C for 12 h. The obtained delafossite powders were reground in a planetary ball mill using the above mentioned method, sieved with a 90 µm screen in order to reduce agglomerates and finally dried in a furnace at 200 °C for at least 24 h. A scanning electron microscope (SEM, Zeiss, Oberkochen, Germany) image of the calcined and milled delafossite powder used for the AD process is shown in Figure 1. It can be seen that there is a broad particle size distribution ranging from 0.1 to 30 µm which is uncommon for AD processes. Bulk CuFeO2 samples were formed into brick shaped pellets, uniaxially cold pressed, and sintered at 1050 °C under the same gas atmosphere as the corresponding starting powder. In order to determine the thermoelectric properties, platinum/gold thermocouples and platinum wires were attached to the sintered samples with platinum conductor paste. Details of the setup are shown in Figure 2.
The AD films were processed in a setup similar to previously published works [45,46,47,48]. It generally contains an aerosol generator, a deposition chamber and a vacuum pump (Edwards Germany, Kirchheim, Germany). In the deposition chamber and in the aerosol generator, a vacuum of 8 mbar is induced. Oxygen serves as a carrier gas at a flow rate of 6 L/min in the aerosol generator where an aerosol is created from the ceramic particles. These particles are transported through a slit-nozzle with an orifice size of 10 × 0.5 mm² and accelerated up to several hundred m/s due to the pressure drop from the aerosol generator into the deposition chamber. The streaming aerosol is ejected on the target at a distance of 3 mm from the nozzle to the substrate and forms dense ceramic layers of several microns. For electrical measurements, AD films were deposited on alumina substrates (CeramTec, Marktredwitz, Germany) of a thickness of 635 µm, a length of 25 mm, and a width of 12.5 mm, on which screen-printed platinum/gold electrodes have been applied before. To obtain XRD patterns, silicon was used as substrate material (CrysTec, Berlin, Germany). The silicon wafers had an orientation of (911), exhibiting no silicon reflexes in the measured XRD diffraction angle range, avoiding substrate influences to the diffraction pattern.
To verify the phase composition of the starting powders and to elucidate the effect of the AD on the crystallography of CuFeO2, X-Ray diffraction patterns of both the calcined powder and the aerosol deposited films were taken at room temperature using a PANalytical Xpert Pro system (PANalytical, Almelo, Netherlands) operating with CuKα radiation (1.541874 Å). The intensities were recorded within 2θ = 25° .. 60° at a step size of 0.02°. The morphology of the AD films was examined by scanning electron microscopy images of both the cross section and the fracture pattern of the AD samples.
Figure 2 depicts the setup to determine the thermoelectric properties of bulk (a) and aerosol-deposited CuFeO2 (b). In both cases, the resistance is measured by a four probe technique with offset compensation (digital multimeter Keithley 2700). By knowing the geometry, the electrical conductivity can be calculated:
σ = s R A = 1 R s b d
In Equation (3), s is the spacing between the inner Pt electrodes, R is the measured resistance, b the width of the sample, and d the thickness of the pellet or the AD film, respectively. The latter was measured by a stylus profilometer (PGK/S2, Mahr, Göttingen, Germany).
To determine the Seebeck coefficient, S, an additional modulation heater in front of the samples generated an alternating temperature gradient over the specimens. The temperature difference between the thermocouples TC1 and TC2 was determined via the Au and Pt thermocouple tracks and contact pads, while the thermovoltage Umeas of the film was measured between the Pt contacts.
Since the Seebeck coefficients of Pt and Au, SPt and SAu, respectively, are known, the Seebeck coefficient S of the delafossite film versus Pt can be determined from Umeas. It has to be corrected by the known Seebeck coefficient of platinum, SPt. Details of the evaluation of S can be found in [49]
S =   S P t U m e a s Δ T
A periodic voltage, Uheater = U0∙cos(2π∙ƒmod,heater∙t)was applied to the modulation heater. It generated the temperature difference ΔT = TTC2TTC1 with the frequency fmod:
Δ T =   Δ T 0 cos ( 2 π f m o d t )
Since heater power and applied modulation heater voltage show a quadratic relation, the temperature difference is modulated with the double frequency as the modulation heater voltage, i.e., fmod = 2fmod,heater [49]. In Equation (5), ΔT0 is the amplitude of the temperature modulation, fmod stands for the frequency of the temperature modulation, and t is the time. UmeasT is determined by a regression analysis of many measured data pairs of the two signals ΔTj and Umeas,i. They are plotted according to the following linear equation:
U meas , j   =   a Δ T j   +   b
The slope, a, represents the quotient UmeasT for Equation (6). This method allows elimination of interfering offset voltages. Further details of the data evaluation procedure and accuracies are given in [50]. For our experiments, fmod = 12.5 mHz was used, being low enough for our aerosol-deposited specimen to sustain a frequency-independent temperature gradient over the sample [51]. To circumvent interferences between the measurement of the electrical conductivity and the thermopower measurement, a custom-made switching device was used, enabling the automatic alternate measurement of both and electrically insulating them from each other.
In order to determine the influence of the oxygen partial pressure on the thermoelectric properties, the transducers were placed in a tube furnace and gas mixtures of oxygen and nitrogen were applied. The oxygen partial pressure was increased stepwise from 10−2.6 bar, being the lower limit of the employed mass-flow-controller, to 1 bar and both the electrical conductivity and the Seebeck coefficient were measured during each pO2-step while each pO2 measurement cycle was conducted at 700 °C, 800 °C, and 900 °C.

3. Results and Discussion

3.1. Characterization of the Synthesized CuFeO2 Powders and AD Films

The crystal structure of CuFeO2 was determined by XRD from the calcined powders. Figure 3 shows the pattern of CuFeO2 fired in 0% O2 (pure N2) and the pattern of the 1% O2 (1% O2, 99% N2) fired powder together with the reference pattern (JPCD 39-0246). The characteristic diffraction peaks of CuFeO2 can be observed in the pattern, indicating the rhombohedral 3R type with the R3;m space group symmetry [52].
While the XRD pattern of CuFeO2 fired in 1% O2 appears free from secondary phases, a secondary phase can be seen for the 0% O2-fired CuFeO2 at = 43° (indicated in Figure 3 by #), accounting for elemental copper. We assume this metal impurity is related to the low oxygen content of N2 in the alumina tube furnace, resulting in a reduction of Cu2O to Cu:
2 Cu2O ⬄ 4 Cu + O2
A similar behavior has already been reported by Zhao et al. [53] for delafossites calcined under Ar atmosphere. For further aerosol deposition of powders and for the measurements of the thermoelectric properties, CuFeO2 calcined in a mixture of 1% O2 in nitrogen was used to avoid traces of the above mentioned copper impurities. The lattice parameters were calculated by Rietveld analyses for Cu-delafossites fired in 1% oxygen to be a = 3.0341 Å and c = 17.169 Å, which corresponds to pure CuFeO2 data reported earlier [54].
Figure 4 depicts the XRD patterns of aerosol deposited CuFeO2 on silicon substrates. No secondary phases or impurities were observed but the peaks got broader compared to the powder measurements arising from the reduction of the grain sizes during deposition. Based on the Rietveld refinement, the calculated mean grain size of AD CuFeO2 was 90 nm compared to 300 nm for the calcined powder. This is a well-known effect in AD films and has been observed for many aerosol-deposited materials [47,55]. In addition, the relative peak intensities differ from the pattern of bulk and reference CuFeO2 indicating high lattice strain of aerosol-deposited films, which is also a known phenomenon for aerosol-deposited materials [56,57].
SEM cross-sectional images shown in Figure 5a and b indicate crack-free bulk CuFeO2 and dense layers of aerosol deposited CuFeO2 on alumina, respectively. The film thickness is around 25 µm. From the scanning electron microscope images shown in Figure 5c, the nano-sized microstructure of the aerosol deposited films becomes obvious. The primary particle size ranges from 50 nm to 100 nm, being consistent with the XRD analysis, while agglomerates 400 nm in size are embedded in the nano-sized matrix. This inhomogeneous distribution of grain sizes is due to the particle size distribution of the starting powder for the ADM. While the CuFeO2 powders exhibit a d50 = 6.5 µm (the medium value of the particle size distribution), the d90 value (90 percent of the distribution lies below this value) of the particles is much larger (d90 = 16.1 µm). The film forming mechanism for AD layers is supposed to favor mid-range particles around 1 µm, so mainly these particles contribute to the layer formation. The larger particles of the aerosol stream may have less energy to form new ceramic layers and are therefore intercalated between the AD-formed ceramic planes. This phenomenon has also been observed for other aerosol-deposited materials [39,58,59].

3.2. Electrical Conductivity of Aerosol-Deposited and Bulk CuFeO2

In order to compare the power factors, PF (s. Equation (2)), of AD-processed CuFeO2 and standard ceramic-processed delafossites, both the electrical conductivity and the Seebeck coefficient were determined. Figure 6 shows the temperature dependency of the electrical conductivity of AD-CuFeO2 and bulk CuFeO2 as well as the activation energy of conduction.
AD-processed samples show an offset in the electrical conductivity compared to bulk samples of almost one decade at room temperature, getting smaller with increasing temperature. This effect can be attributed to the microstructure of the deposited CuFeO2 films. While sintered bulk samples exhibit almost perfect grain interconnections, AD samples show regions of less densely connected grains. In addition, high strains, as they are common for the room temperature impact consolidation process, impede movements of the charge carriers and diminish the electrical conductivity [47]. With increasing temperature, the grains sinter as well as the microstrain releases, thus enhancing the electrical conductivity, a mechanism observed, e.g., for aerosol deposited MgB2 [60].
Since both aerosol-deposited CuFeO2 and bulk CuFeO2 behave as though thermally activated, the electrical conductivity increases exponentially and can be described by Equation (8); hence, Ea can be derived from the slope of the Arrhenius-like plot of the electrical conductivity as a function of the inverse temperature.
σ   =   σ 0 exp ( E a k B T )
Both aerosol-deposited CuFeO2 and bulk CuFeO2 indicate a change in the activation energy. While the aerosol-processed sample exhibits a change from Ea = 0.28 eV to Ea = 0.38 eV at 200 °C, the bulk sample shows this transition behavior from Ea = 0.24 eV to Ea = 0.35 eV at 400 °C. The different transition temperature may be attributed to the microstructure of AD films mentioned above. The values as well as the change of activation energy are consistent with previously published work from Dordor et al. [61], where both single-crystals and polycrystalline samples of CuFeO2 were investigated.
At temperatures above 800 °C, the electrical conductivity of both samples decreases abruptly, supposedly induced by a certain oxygen loss [37]. To study the origin of this conductivity decrease, the dependency of the electrical transport parameters conductivity (σ) and Seebeck coefficient (S) on the oxygen partial pressure (pO2) was investigated at 900 °C for both aerosol deposited and bulk CuFeO2.
Figure 7 shows a characteristic measurement cycle. Starting with a pure nitrogen gas atmosphere, the oxygen partial pressure, pO2, was increased stepwise. Compared to bulk CuFeO2, aerosol deposited samples respond much faster to pO2 steps, promptly reaching an equilibrium state. Below an oxygen partial pressure of 31 mbar (3.1% oxygen), CuFeO2 shows a p-type conduction behavior, as can be seen by the increasing conductivity with pO2. With increasing pO2, more oxygen is incorporated into the material, resulting in an increased hole concentration, resulting in an increasing electrical conductivity. Thus the σ (pO2) measurement supports the assumption that the abrupt decrease of the electrical conductivity that occurs at 900 °C (displayed in the inset in Figure 6) may be attributed to a loss in oxygen.
Astonishingly, the conduction mechanism changes from p-type to n-type behavior at an oxygen partial pressure of 31 mbar, i.e., with increasing pO2 the electrical conductivity decreases first sharply with a huge conductivity decrease by more than a half decade and then slightly at higher pO2. This effect is more distinctive for aerosol deposited samples, since the response time for the change in pO2 is larger compared to bulk samples, not reaching a state of equilibrium. The double-logarithmic representation of the final values in Figure 8 accentuates this.
For typical semiconducting oxides, the electrical conductivity depends on the oxygen partial pressure acc. to Equation (9):
σ   =   const .   p O 2 m
In a double-logarithmic plot, the prevalent defect mechanism may be deduced from the slope m. While typically slopes of m = +1/4 or m = −1/6, as they appear for the aerosol-deposited sample, can be explained by classical defect chemical means, see for instance [62,63,64], the slope for the bulk CuFeO2 samples can only be explained if one assumes that no equilibration has been settled, i.e., the final values are not equilibrium values.
The abrupt change of the conductivity at around 31 mbar cannot be explained by classical defect chemistry. Instead, we suggest a decomposition of delafossite-type CuFeO2 to the corresponding spinel phase CuFe2O4 and CuO, following Equation (10)
2 CuFeO2 + 1/2 O2 ➔ CuFe2O4 + CuO
According to the Ellingham diagram of CuFeO2, this phase change occurs at a pO2 = 30 mbar at 900 °C [65]. While CuFeO2 is a p-type semiconductor, CuFe2O4 is n-type, being in agreement with our conductivity vs. pO2 data [66]. Such a decomposition reaction could also explain the different distinct conductivity changes between bulk and aerosol deposited films. Since the bulk samples are considerably thicker, oxygen diffusion is by far slower, and a mixed phase consisting of CuFeO2 and CuFe2O4 as well as CuO may be present simultaneously. XRD measurements on samples that have been processed under 5% oxygen also support these assumptions since the XRD pattern clearly showed a mixed phase consisting of both CuFe2O4 and CuO (Figure 9). No CuFeO2 was found since the sample was exposed to the 5% O2 atmosphere for a long time (over several hours), so no evidence on the transition phase could be obtained. In order to elucidate this mechanism in particular, measurements of the Seebeck coefficient were conducted.

3.3. Thermoelectric Properties of Aerosol Deposited and Bulk CuFeO2

Astonishingly, the Seebeck coefficient of bulk CuFeO2 is inferior compared to aerosol deposited CuFeO2 at low pO2. This discrepancy cannot be explained in the manner described for the electrical conductivity, since the thermopower is independent of the geometry (here the interconnection of grains and ceramic layers) and the reduced mobility caused by the high microstrains. Since this behavior is not fully understood, and to elucidate the change of the conduction mechanism from p-type to n-type at pO2 > 31.6 mbar, detailed measurements of the oxygen dependency of the thermopower were conducted. Figure 10 shows the Seebeck coefficient at 900 °C of both aerosol deposited CuFeO2 and bulk CuFeO2 as a function of oxygen partial pressure.
With increasing oxygen partial pressure, the Seebeck coefficient of bulk CuFeO2 declines slightly up to a pO2 of 31.6 mbar, thereafter dropping faster with a slope of −115 µV/K per decade pO2. It becomes even negative at pO2 = 1 bar (100% O2 in the gas), indicating n-type conductivity. Aerosol deposited CuFeO2 shows an always constant Seebeck coefficient of +425 µV/K up to an oxygen partial pressure of 31.6 mbar. However, in contrast to bulk CuFeO2, the transition from the p-type to n-type conductivity mechanism occurs sharper for aerosol-deposited CuFeO2, resulting in a negative Seebeck coefficient of S = −100 µV/K at pO2 = 0.1 bar, which persists at this value up to an oxygen partial pressure of 1 bar.
The changing sign of the Seebeck coefficient supports our assumption of a phase transition of CuFeO2 to CuFe2O4 and CuO with increasing oxygen partial pressure. Since oxygen equilibration kinetics of aerosol deposited CuFeO2 samples is much faster compared to bulk CuFeO2, the transition appears more pronounced, being completed within one measurement cycle, whereas bulk CuFeO2 supposedly exhibits a phase mixture of both CuFeO2 (p-type), CuFe2O4 (n-type) and CuO (p-type), resulting in ambiguous, bipolar thermoelectric effects. With two types of charge carriers present, the Seebeck coefficient of the material is the weighted average of the Seebeck coefficients associated to the different charge carriers as described by Equation (11):
S = σ n S n + σ p S p σ n + σ p
with the Seebeck coefficients of the materials with different charge carrier types, Sn,p, and their electrical partial conductivities, σn,p, respectively [31]. Keeping in mind that the Seebeck coefficients of the n-type and p-type phases have opposite signs, the weighted Seebeck coefficient of a bipolar thermoelectric can be small compared to the purely n-type or p-type conducting materials. The measurements of the Seebeck coefficient of aerosol deposited CuFeO2 indicate that at a pO2 < 31.6 mbar the prevailing phase is CuFeO2 with a high thermopower of +425 µV/K. When increasing the pO2, bipolar effects occur in the transition region, due to the mixture of the decomposing CuFeO2 and the emerging CuFe2O4 and CuO phases. At high pO2, the transformation ends and the thermoelectric measurements indicate the prevailing n-type CuFe2O4 phase. For bulk CuFeO2, this effect arises much more slowly, resulting in a broader bipolar transition region, and the transformation is not finished at high pO2 within the measurement cycle, resulting in a bipolar thermopower and a Seebeck coefficient of −15 µV/K compared to −120 µV/K for aerosol-deposited CuFeO2 at pO2 = 1 bar. In fact, it is believed that the bulk sample with a thickness of 500 µm does not reach an equilibrium within half an hour. If one assumes an oxygen kinetic that is diffusion-controlled, one finds equilibration kinetics to be proportional to the square of the thickness of the smallest geometry. In other words, the equilibration kinetics of the AD sample should be faster by a factor of (dbulk,sample/dAD sample)2 202 400. Hence, both the thermopower and the conductivity values of the bulk samples appear to be nonequilibrium values and therefore always lie “between” the AD curves. Nevertheless, since the detailed process of aerosol deposition has not yet been fully understood, the consequences of the room temperature impact consolidation on the thermoelectric properties, especially the diverging Seebeck coefficient of bulk and AD processed samples at a pO2 < 31.6 mbar, remains an open-ended question for further investigations.
Being of interest as high temperature thermoelectric material, the electrical conductivity and Seebeck coefficients were investigated at temperatures up to 900 °C. Figure 11 shows the power factor (PF) of both aerosol deposited CuFeO2 and standard processed bulk CuFeO2, exhibiting a maximum of PF = 59 µW/(K²∙m) at T = 800 °C for aerosol deposited CuFeO2 and PF = 130 µW/(K²∙m) for bulk CuFeO2, featuring the same magnitude like other oxide thermoelectrics, e.g., Ca3Co4O9 with PF = 225 µW/(K²∙m) or PF = 810 µW/(K²∙m) for doped NaxCoO2 [20].

4. Conclusions

In the present study, the novel aerosol deposition method (ADM) was successfully employed to fabricate dense and crack-free ceramic layers of several microns from the undoped p-type thermoelectric CuFeO2 at room temperature with no further heat treatment, thus avoiding interactions with the substrate or the influence of sinter additives. By employing the aerosol deposition method, measurements could be performed on very thin films enabling very fast responses. Since the oxygen partial pressure plays a decisive role during the synthesis and application of Delafossites, XRD studies confirmed that a lowly oxidizing calcination atmosphere is essential for the preparation of single phase CuFeO2. The process window, however, is small since at higher oxygen partial pressures, pO2 > 30 mbar at 900 °C, a phase transition from CuFeO2 to the spinel-type CuFe2O4 and CuO occurs.
Astonishingly, we observed a sudden change of conduction from p-type to n-type at an oxygen partial pressure of pO2 = 30 mbar. While the electronic structure of CuFeO2 can be calculated by an enhanced local spin density approximation [67], this change in the conduction mechanism at a defined oxygen partial pressure has not been observed yet. Investigations on changing valance states of the copper and iron sites in CuFeO2 were also conducted in order to establish a defect chemical model [68]. However, we propose that the change is based, for instance, (at least partly) upon a phase transition from p-type semiconducting CuFeO2 to n-type CuFe2O4 and CuO, resulting in a bipolar thermoelectric material. While the thermoelectric properties of the n-type phase are inferior to the p-type CuFeO2, this material system can be of interest for use in thermoelectric generators, since both p-type and n-type materials can be precisely tailored only by defined process conditions based on the identical starting thermoelectric material. Nevertheless, detailed defect chemical investigations, particularly more measurements of electric transport parameters combined with other non-electrical analytical means, need to be conducted at defined and especially low-oxygen partial pressures in order to develop a comprehensive defect model of CuFeO2. The measurements shown in this study may serve as an initial basis. Furthermore, the influence of dopants needs to be studied to tailor the thermoelectric properties, and detailed measurements on the thermal conductivity of thin aerosol-deposited films deserve further investigation since the reduction in grain size, resulting from the room temperature impact consolidation effect, could lead to a reduction of the thermal conductivity of CuFeO2, probably due to increasing phonon scattering at grain boundaries thereby increasing the thermoelectric performance of delafossites.

Acknowledgments

The authors are indebted to the following persons and organizations for supporting this work: A. Mergner (Department for Functional Materials) and M. Heider (BIMF) for SEM sample preparation and characterization. This publication was funded by the German Research Foundation (DFG) and the University of Bayreuth in the funding program “Open Access Publishing”.

Author Contributions

Ralf Moos, Jörg Exner, Michael Schubert and Thomas Stöcker planned the experiments. Maximilian Streibl prepared the aerosol deposited samples. Ralf Moos supervised the study. Thomas Stöcker conducted the experiments and evaluated the data. All authors contributed to the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. He, J.; Kanatzidis, M.G.; Dravid, V.P. High performance bulk thermoelectrics via a panoscopic approach. Mater. Today 2013, 16, 166–176. [Google Scholar] [CrossRef]
  2. Snyder, G.J.; Toberer, E.S. Complex thermoelectric materials. Nat. Mater. 2008, 7, 105–114. [Google Scholar] [CrossRef] [PubMed]
  3. Rowe, D.M. CRC Handbook of Thermoelectrics; CRC Press: Boca Raton, FL, USA, 1995. [Google Scholar]
  4. Nolas, G.S.; Sharp, J.; Goldsmid, H.J. Thermoelectrics: Basic Principles and New Materials Developments; Springer: Berlin, Germany, 2001. [Google Scholar]
  5. Rowe, D.M. Thermoelectrics Handbook: Macro to Nano; CRC Taylor & Francis: Boca Raton, FL, USA, 2006. [Google Scholar]
  6. Sootsman, J.R.; Chung, D.Y.; Kanatzidis, M.G. Alte und neue Konzepte für thermoelektrische Materialien. Angew. Chem. 2009, 121, 8768–8792. [Google Scholar] [CrossRef]
  7. Zhao, L.-D.; Lo, S.-H.; Zhang, Y.; Sun, H.; Tan, G.; Uher, C.; Wolverton, C.; Dravid, V.P.; Kanatzidis, M.G. Ultralow thermal conductivity and high thermoelectric figure of merit in SnSe crystals. Nature 2014, 508, 373–377. [Google Scholar] [CrossRef] [PubMed]
  8. Chen, G.; Dresselhaus, M.S.; Dresselhaus, G.; Fleurial, J.-P.; Caillat, T. Recent developments in thermoelectric materials. Int. Mater. Rev. 2003, 48, 45–66. [Google Scholar] [CrossRef]
  9. Vineis, C.J.; Shakouri, A.; Majumdar, A.; Kanatzidis, M.G. Nanostructured thermoelectrics: Big efficiency gains from small features. Adv. Mater. 2010, 22, 3970–3980. [Google Scholar] [CrossRef] [PubMed]
  10. Dresselhaus, M.S.; Chen, G.; Tang, M.Y.; Yang, R.G.; Lee, H.; Wang, D.Z.; Ren, Z.F.; Fleurial, J.-P.; Gogna, P. New directions for low-dimensional thermoelectric materials. Adv. Mater. 2007, 19, 1043–1053. [Google Scholar] [CrossRef]
  11. Poudel, B.; Hao, Q.; Ma, Y.; Lan, Y.; Minnich, A.; Yu, B.; Yan, X.; Wang, D.; Muto, A.; Vashaee, D.; et al. High-thermoelectric performance of nanostructured bismuth antimony telluride bulk alloys. Science 2008, 320, 634–638. [Google Scholar] [CrossRef] [PubMed]
  12. Bubnova, O.; Crispin, X. Towards polymer-based organic thermoelectric generators. Energy Environ. Sci. 2012, 5, 9345–9362. [Google Scholar] [CrossRef]
  13. Bubnova, O.; Khan, Z.U.; Malti, A.; Braun, S.; Fahlman, M.; Berggren, M.; Crispin, X. Optimization of the thermoelectric figure of merit in the conducting polymer poly(3,4-ethylenedioxythiophene). Nat. Mater. 2011, 10, 429–433. [Google Scholar] [CrossRef] [PubMed]
  14. Plochmann, B.; Lang, S.; Rüger, R.; Moos, R. Optimization of thermoelectric properties of metal-oxide-based polymer composites. J. Appl. Polym. Sci. 2013, 131, 40038. [Google Scholar] [CrossRef]
  15. Stöcker, T.; Köhler, A.; Moos, R. Why does the electrical conductivity in PEDOT:PSS decrease with PSS content? A study combining thermoelectric measurements with impedance spectroscopy. J. Polym. Sci. B Polym. Phys. 2012, 50, 976–983. [Google Scholar] [CrossRef]
  16. He, M.; Qiu, F.; Lin, Z. Towards high-performance polymer-based thermoelectric materials. Energy Environ. Sci. 2013, 6, 1352–1641. [Google Scholar] [CrossRef]
  17. Kim, G.H.; Shao, L.; Zhang, K.; Pipe, K.P. Engineered doping of organic semiconductors for enhanced thermoelectric efficiency. Nat. Mater. 2013, 12, 719–723. [Google Scholar] [CrossRef] [PubMed]
  18. Bérardan, D.; Byl, C.; Dragoe, N. Influence of the Preparation conditions on the thermoelectric properties of Al-Doped ZnO. J. Am. Ceram. Soc. 2010, 93, 2352–2358. [Google Scholar] [CrossRef]
  19. Dragoe, N.; Bérardan, D.; Byl, C. On the high temperature transport properties of thermoelectric oxides. Phys. Status Solidi A 2011, 208, 140–143. [Google Scholar] [CrossRef]
  20. Fergus, J.W. Oxide materials for high temperature thermoelectric energy conversion. J. Eur. Ceram. Soc. 2012, 32, 525–540. [Google Scholar] [CrossRef]
  21. Singh, D.J.; Kasinathan, D. Thermoelectric properties of NaxCoO2 and prospects for other oxide thermoelectrics. J. Electron. Mater. 2007, 36, 736–739. [Google Scholar] [CrossRef]
  22. Misture, S.; Edwards, D. High-temperature oxide thermoelectrics. Am. Ceram. Soc. Bull. 2012, 91, 24–27. [Google Scholar]
  23. Walia, S.; Balendhran, S.; Nili, H.; Zhuiykov, S.; Rosengarten, G.; Wang, Q.H.; Bhaskaran, M.; Sriram, S.; Strano, M.S.; Kalantar-zadeh, K. Transition metal oxides—Thermoelectric properties. Prog. Mater. Sci. 2013, 58, 1443–1489. [Google Scholar] [CrossRef]
  24. Ohtaki, M.; Araki, K.; Yamamoto, K. High thermoelectric performance of dually doped ZnO ceramics. J. Electron. Mater. 2009, 38, 1234–1238. [Google Scholar] [CrossRef]
  25. Ohta, H.; Sugiura, K.; Koumoto, K. Recent progress in oxide thermoelectric materials: P-type Ca3Co4O9 and n-type SrTiO3. Inorg. Chem. 2008, 47, 8429–8436. [Google Scholar] [CrossRef] [PubMed]
  26. Nagira, T.; Ito, M.; Katsuyama, S.; Majima, K.; Nagai, H. Thermoelectric properties of (Na1−yMy)xCo2O4 (M = K, Sr, Y, Nd, Sm and Yb; y = 0.01∼0.35). J. Alloys Compd. 2003, 348, 263–269. [Google Scholar] [CrossRef]
  27. Guilmeau, E.; Maignan, A.; Martin, C. Thermoelectric oxides: Effect of doping in delafossites and zinc oxide. J. Electron. Mater. 2009, 38, 1104–1108. [Google Scholar] [CrossRef]
  28. Koumoto, K.; Terasaki, I.; Funahashi, R. Complex oxide materials for potential thermoelectric applications. Mater. Res. Bull. 2006, 31, 206–210. [Google Scholar] [CrossRef]
  29. Moos, R.; Gnudi, A.; Hardtl, K.H. Thermopower of Sr1−xLaxTiO3 ceramics. J. Appl. Phys. 1995, 78, 5042–5047. [Google Scholar] [CrossRef]
  30. Ohtaki, M.; Tsubota, T.; Eguchi, K.; Arai, H. High-temperature thermoelectric properties of (Zn1−xAlx)O. J. Appl. Phys. 1996, 79, 1816–1818. [Google Scholar] [CrossRef]
  31. Goldsmid, H.J. Introduction to Thermoelectricity; Springer: Berlin, Germany, 2010. [Google Scholar]
  32. Hayashi, K.; Sato, K.-i.; Nozaki, T.; Kajitani, T. Effect of doping on thermoelectric properties of delafossite-type oxide CuCrO2. Jpn. J. Appl. Phys. 2008, 47, 59–63. [Google Scholar] [CrossRef]
  33. Nozaki, T.; Hayashi, K.; Kajitani, T. Thermoelectric properties of delafossite-type oxide CuFe1-xNixO2 (0 ≤ x ≤ 0.05). J. Chem. Eng. Jpn. 2007, 40, 1205–1209. [Google Scholar] [CrossRef]
  34. Ono, Y.; Satoh, K.-i.; Nozaki, T.; Kajitani, T. Structural, magnetic and thermoelectric properties of delafossite-type Oxide, CuCr1-xMgxO2 (0 ≤ x ≤ 0.05). Jpn. J. Appl. Phys. 2007, 46, 1071–1075. [Google Scholar] [CrossRef]
  35. Okuda, T.; Jufuku, N.; Hidaka, S.; Terada, N. Magnetic, transport, and thermoelectric properties of the delafossite oxides CuCr1-xMgxO2 (0 ≤ x ≤ 0.04). Phys. Rev. B: Condens. Matter Mater. Phys. 2005, 72, 144403–1–144403–5. [Google Scholar] [CrossRef]
  36. Hayashi, K.; Nozaki, T.; Kajitani, T. Structure and high temperature thermoelectric properties of delafossite-type oxide CuFe1- xNixO2 (0 ≤ x ≤ 0.05). Jpn. J. Appl. Phys. 2007, 46, 5226–5229. [Google Scholar] [CrossRef]
  37. Nozaki, T.; Hayashi, K.; Kajitani, T. Electronic structure and thermoelectric properties of the delafossite-type oxides CuFe1-xNixO2. J. Electron. Mater. 2009, 38, 1282–1286. [Google Scholar] [CrossRef]
  38. Benko, F.; Koffyberg, F. Opto-electronic properties of p- and n-type delafossite, CuFeO2. J. Phys. Chem. Solids 1987, 48, 431–434. [Google Scholar] [CrossRef]
  39. Hanft, D.; Exner, J.; Schubert, M.; Stöcker, T.; Fuierer, P.; Moos, R. An overview of the aerosol deposition method: Process fundamentals and new trends in materials applications. J. Ceram. Sci. Technol. 2015, 6, 147–182. [Google Scholar]
  40. Akedo, J. Room temperature impact consolidation (RTIC) of fine ceramic powder by aerosol deposition method and applications to microdevices. J. Therm. Spray Technol. 2008, 17, 181–198. [Google Scholar] [CrossRef]
  41. Ryu, J.; Choi, J.J.; Hahn, B.D.; Park, D.S.; Yoon, W.H. Ferroelectric and piezoelectric properties of 0.948(K0.5Na0.5)NbO3-0.052LiSbO3 lead-free piezoelectric thick film by aerosol deposition. Appl. Phys. Lett. 2008, 92, 12905. [Google Scholar] [CrossRef]
  42. Johnson, S.D.; Newman, H.S.; Glaser, E.R.; Cheng, S.F.; Tadjer, M.J.; Kub, F.J.; Eddy, C.R. Aerosol Deposition of yttrium iron garnet for fabrication of ferrite-integrated on-chip inductors. IEEE Trans. Magn. 2014, 1–6. [Google Scholar] [CrossRef]
  43. Henon, J.; Piechowiak, M.A.; Durand-Panteix, O.; Etchegoyen, G.; Masson, O.; Dublanche-Tixier, C.; Marchet, P.; Lucas, B.; Rossignol, F. Dense and highly textured coatings obtained by aerosol deposition method from Ti3SiC2 powder: Comparison to a dense material sintered by Spark Plasma Sintering. J. Eur. Ceram. Soc. 2015, 35, 1179–1189. [Google Scholar] [CrossRef]
  44. Lin, S.C.; Wu, W.J. Fabrication of PZT MEMS energy harvester based on silicon and stainless-steel substrates utilizing an aerosol deposition method. J. Micromech. Microeng. 2013, 23, 125028. [Google Scholar] [CrossRef]
  45. Sahner, K.; Kaspar, M.; Moos, R. Assessment of the novel aerosol deposition method for room temperature preparation of metal oxide gas sensor films. Sens. Actuators, B 2009, 139, 394–399. [Google Scholar] [CrossRef]
  46. Schubert, M.; Exner, J.; Moos, R. Influence of carrier gas composition on the stress of Al2O3 coatings prepared by the aerosol deposition method. Materials 2014, 7, 5633–5642. [Google Scholar] [CrossRef]
  47. Exner, J.; Fuierer, P.; Moos, R. Aerosol deposition of (Cu,Ti) substituted bismuth vanadate films. Thin Solid Films 2014, 573, 185–190. [Google Scholar] [CrossRef]
  48. Exner, J.; Hahn, M.; Schubert, M.; Hanft, D.; Fuierer, P.; Moos, R. Powder requirements for aerosol deposition of alumina films. Adv. Powder Technol. 2015, 26, 1143–1151. [Google Scholar] [CrossRef]
  49. Rettig, F.; Moos, R. Direct thermoelectric gas sensors: Design aspects and first gas sensors. Sens. Actuators B 2007, 123, 413–419. [Google Scholar] [CrossRef]
  50. Rettig, F.; Moos, R. Temperature-modulated direct thermoelectric gas sensors: thermal modeling and results for fast hydrocarbon sensors. Meas. Sci. Technol. 2009, 20, 65205. [Google Scholar] [CrossRef]
  51. Goto, T.; Li, J.H.; Hirai, T.; Maeda, Y.; Kato, R.; Maesono, A. Measurements of the seebeck coefficient of thermoelectric materials by an AC method. Int. J. Thermophys. 1997, 18, 569–577. [Google Scholar] [CrossRef]
  52. Marquardt, M.A.; Ashmore, N.A.; Cann, D.P. Crystal chemistry and electrical properties of the delafossite structure. Thin Solid Films 2006, 496, 146–156. [Google Scholar] [CrossRef]
  53. Zhao, T.-R.; Hasegawa, M.; Takei, H. Crystal growth and characterization of cuprous ferrite (CuFeO2). J. Cryst. Growth 1996, 166, 408–413. [Google Scholar] [CrossRef]
  54. Shannon, R.D.; Prewitt, C.T.; Rogers, D.B. Chemistry of noble metal oxides. II. Crystal structures of platinum cobalt dioxide, palladium cobalt dioxide, copper iron dioxide, and silver iron dioxide. Inorg. Chem. 1971, 10, 719–723. [Google Scholar] [CrossRef]
  55. Yao, Z.; Wang, C.; Li, Y.; Kim, H.K.; Kim, N.Y. Effects of starting powder and thermal treatment on the aerosol deposited BaTiO3 thin films toward less leakage currents. Nanoscale Res. Lett. 2014, 9, 435. Available online: http://link.springer.com/article/10.1186/1556-276X-9-435 (accessed on 27 August 2014). [Google Scholar] [CrossRef] [PubMed]
  56. Kim, H.J.; Kim, Y.H.; Lee, J.W.; Nam, S.M.; Yoon, Y.J.; Kim, J.H. Residual stress relief in Al2O3-Poly-Tetra-Fluoro-Ethylene hybrid thick films for integrated substrates using aerosol deposition. J. Nanoelectron. Optoelectron. 2012, 7, 287–291. [Google Scholar] [CrossRef]
  57. Lee, J.; Lee, S.; Choi, M.G.; Ryu, J.; Lee, J.P.; Lim, Y.S.; Jeong, D.Y.; Kim, H.E. Stress modulation and ferroelectric properties of nanograined PbTiO3 thick films on the different substrates fabricated by aerosol deposition. J. Am. Ceram. Soc. 2014, 97, 3872–3876. [Google Scholar] [CrossRef]
  58. Akedo, J. Aerosol deposition of ceramic thick films at room temperature: Densification mechanism of ceramic layers. J. Am. Ceram. Soc. 2006, 89, 1834–1839. [Google Scholar] [CrossRef]
  59. Daneshian, B.; Assadi, H. Impact behavior of intrinsically brittle nanoparticles: A molecular dynamics perspective. J. Therm. Spray Technol. 2013, 23, 541–550. [Google Scholar] [CrossRef]
  60. Sinha, B.B.; Chung, K.C. Fabrication and properties of MgB2 coated superconducting tapes. J. Supercond. Novel Magn. 2013, 26, 1507–1511. [Google Scholar] [CrossRef]
  61. Dordor, P.; Chaminade, J.P.; Wichainchai, A.; Marquestaut, E.; Doumerc, J.P.; Pouchard, M.; Hagenmuller, P.; Ammar, A. Crystal growth and electrical properties of CuFeO2 single crystals. J. Solid State Chem. 1988, 75, 105–112. [Google Scholar] [CrossRef]
  62. Tuller, H.L.; Bishop, S.R. Point defects in oxides: Tailoring materials through defect engineering. Annu. Rev. Mater. Res. 2011, 41, 369–398. [Google Scholar] [CrossRef]
  63. Moos, R.; Härdtl, K.H. Defect chemistry of donor-doped and undoped strontium titanate ceramics between 1000 °C and 1400 °C. J. Am. Ceram. Soc. 1997, 80, 2549–2562. [Google Scholar] [CrossRef]
  64. Smyth, D.M. The Defect Chemistry of Metal Oxides; Oxford Univ. Press: New York, NY, USA, 2000. [Google Scholar]
  65. Amrute, A.P.; Łodziana, Z.; Mondelli, C.; Krumeich, F.; Pérez-Ramírez, J. Solid-state chemistry of cuprous delafossites: Synthesis and stability aspects. Chem. Mater. 2013, 25, 4423–4435. [Google Scholar] [CrossRef]
  66. Mahajan, R.P.; Patankar, K.K.; Kothale, M.B.; Patil, S.A. Conductivity, dielectric behaviour and magnetoelectric effect in copper ferrite-barium titanate composites. Bull. Mater. Sci. 2000, 23, 273–279. [Google Scholar] [CrossRef]
  67. Galakhov, V.R.; Poteryaev, A.I.; Kurmaev, E.Z.; Anisimov, V.I.; St. Bartkowski; Neumann, M.; Lu, Z.W.; Klein, B.M.; Zhao, T.-R. Valence-band spectra and electronic structure of CuFeO2. Phys. Rev. B: Condens. Matter Mater. Phys. 1997, 56, 4584–4591. [Google Scholar] [CrossRef]
  68. Zhao, T.-R.; Hasegawa, M.; Takei, H. Oxygen nonstoichiometry in copper iron oxide [CuFeO2 + δ] single crystals. J. Cryst. Growth 1997, 181, 55–60. [Google Scholar] [CrossRef]

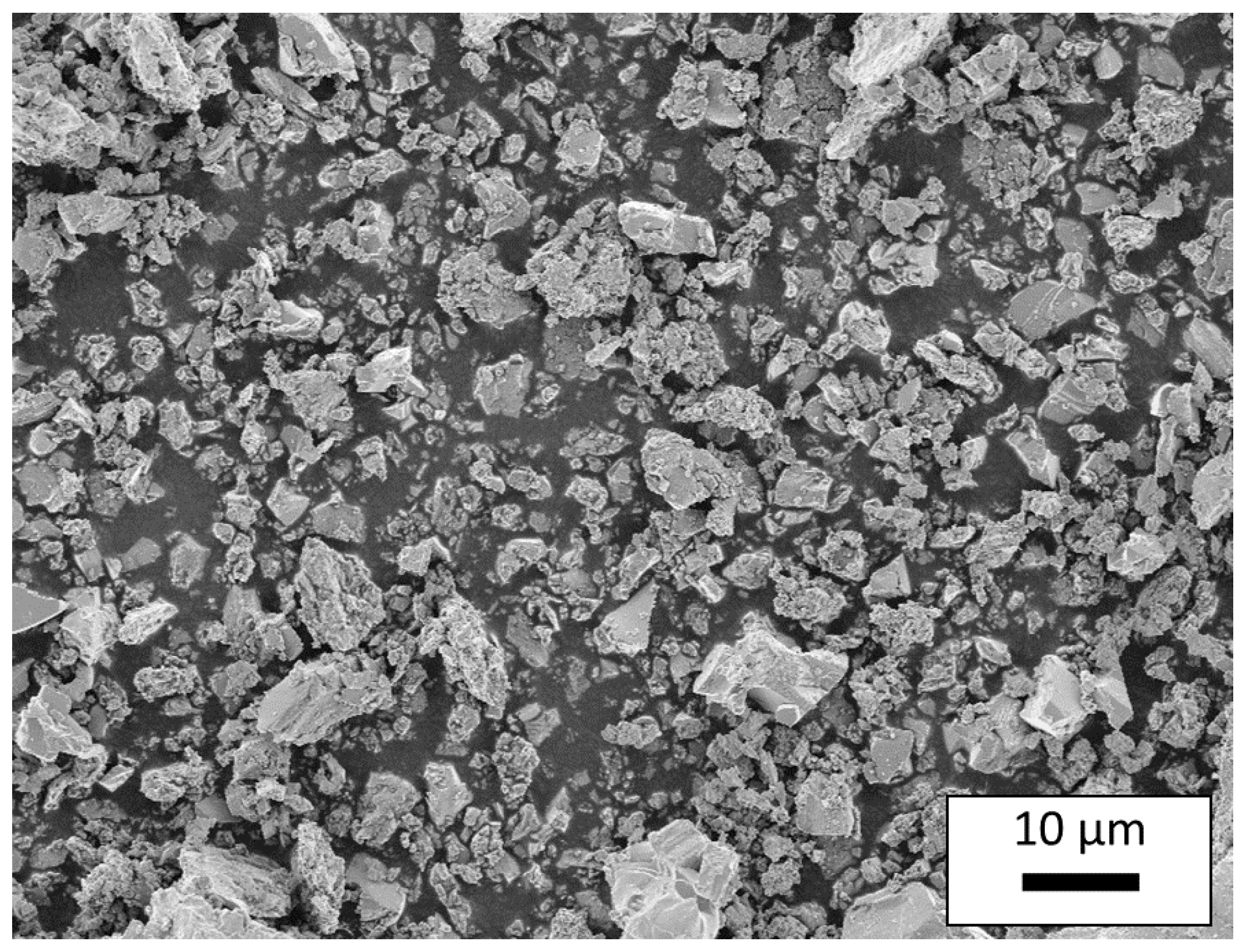

Figure 1. Scanning electron microscope image of a processed starting powder for aerosol deposition.
Figure 1. Scanning electron microscope image of a processed starting powder for aerosol deposition.
Materials 09 00227 g001

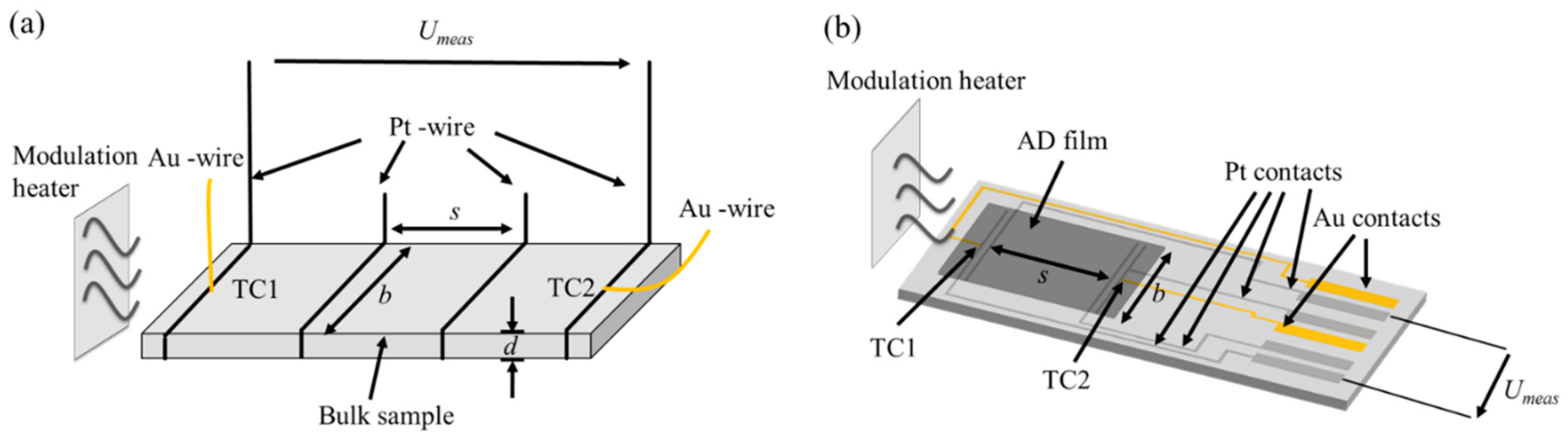

Figure 2. Setup to determine thermoelectric properties of bulk samples (a); and aerosol-deposited samples (b).
Figure 2. Setup to determine thermoelectric properties of bulk samples (a); and aerosol-deposited samples (b).
Materials 09 00227 g002

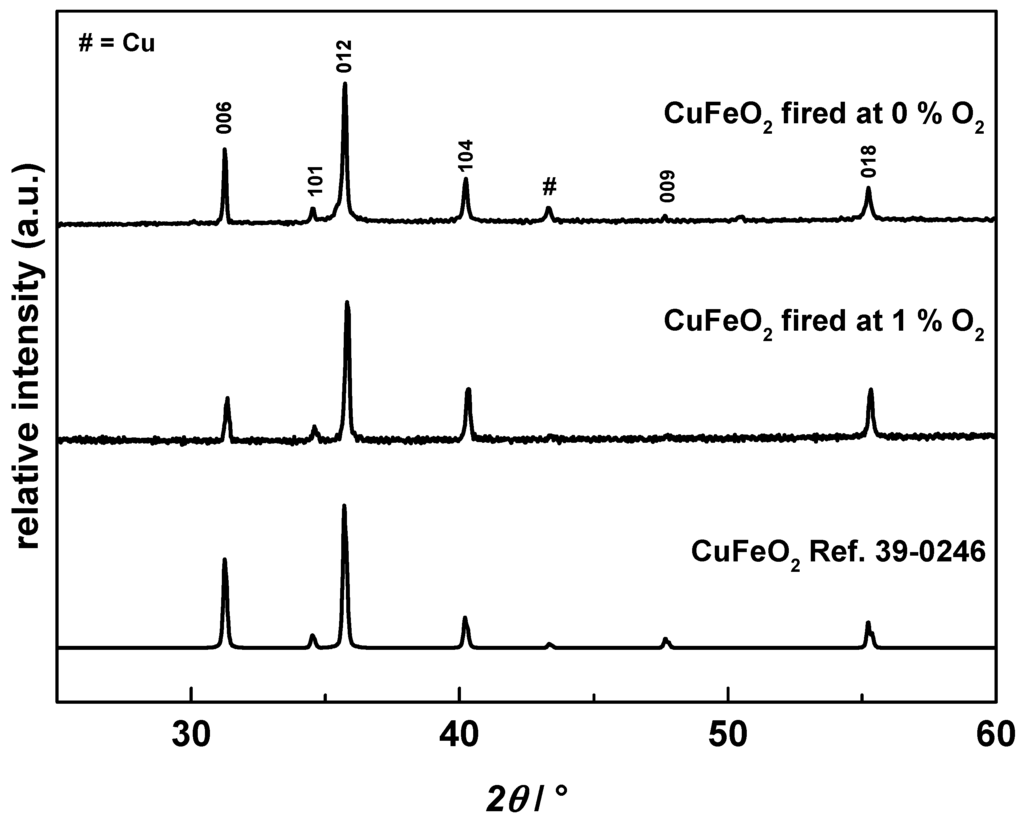

Figure 3. XRD pattern of CuFeO2 calcined under pure nitrogen, 1% oxygen mixed in nitrogen and the reference spectrum of CuFeO2 JPCD 39-0246).
Figure 3. XRD pattern of CuFeO2 calcined under pure nitrogen, 1% oxygen mixed in nitrogen and the reference spectrum of CuFeO2 JPCD 39-0246).
Materials 09 00227 g003

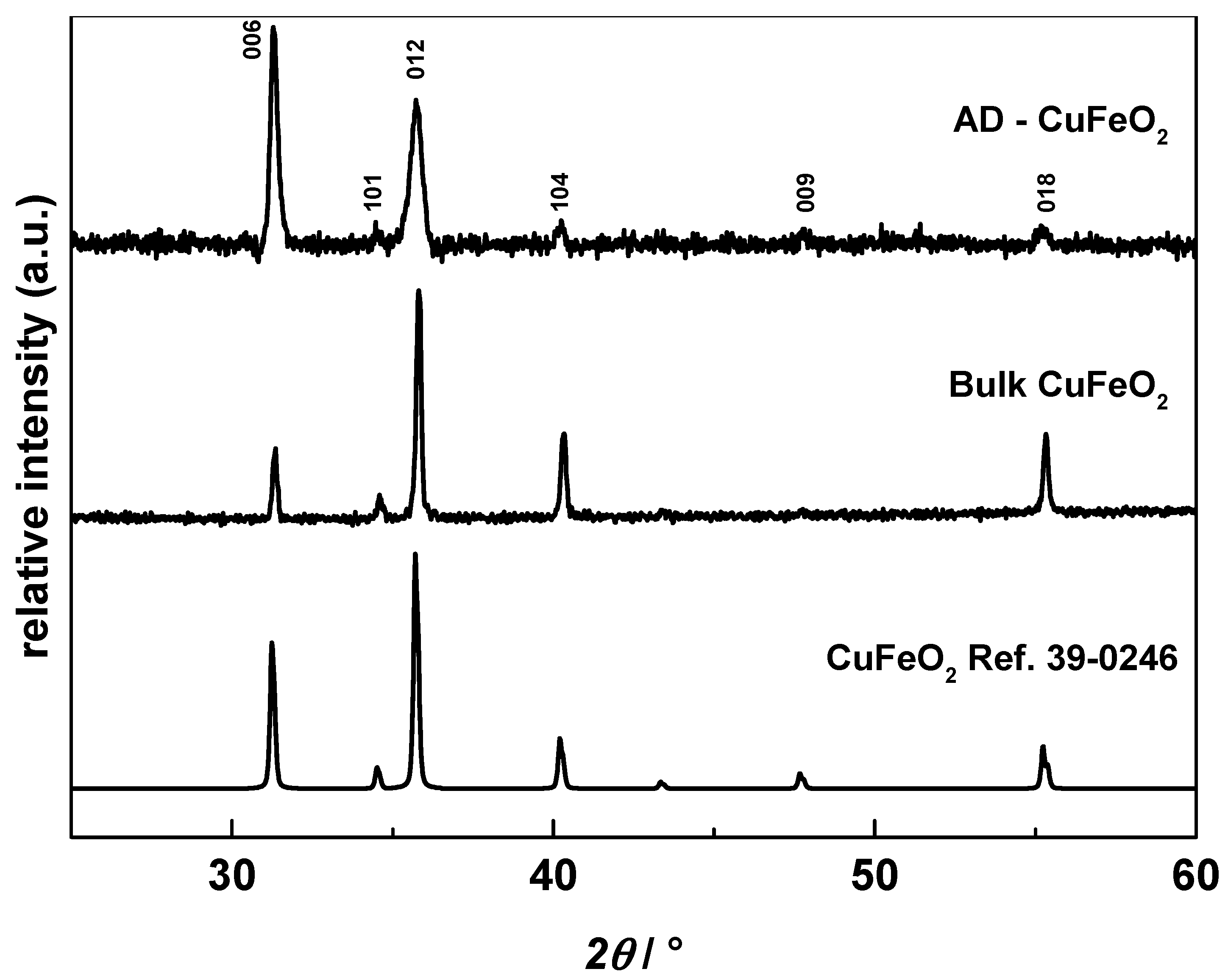

Figure 4. XRD pattern of aerosol-deposited CuFeO2 on silicon substrate compared to bulk and reference CuFeO2 (JPCD 39-0246).
Figure 4. XRD pattern of aerosol-deposited CuFeO2 on silicon substrate compared to bulk and reference CuFeO2 (JPCD 39-0246).
Materials 09 00227 g004

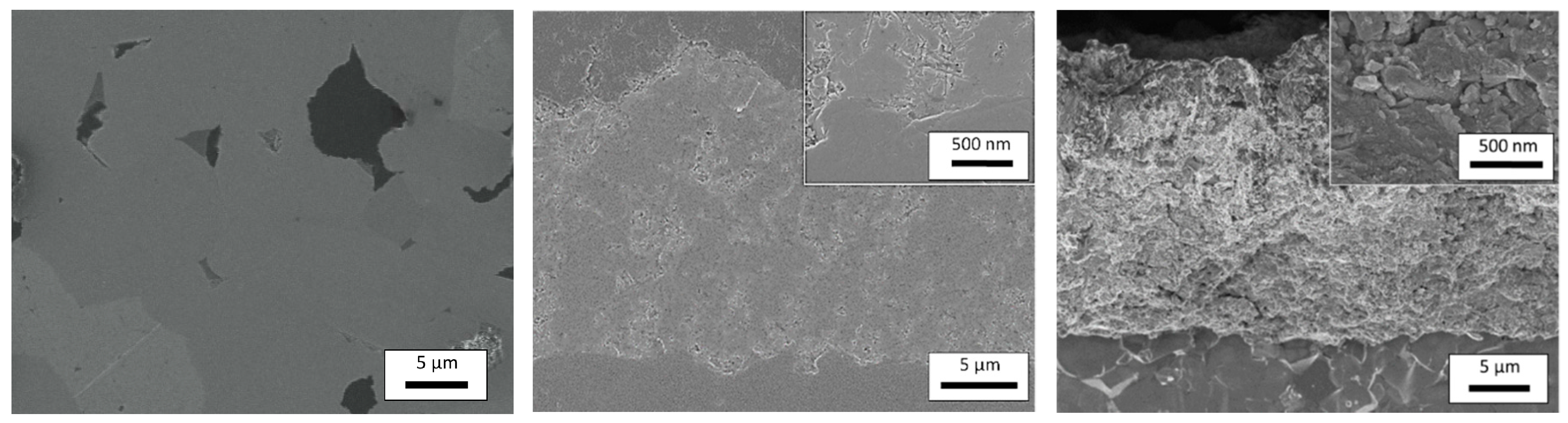

Figure 5. (a) Polished cross sectional SEM image of bulk CuFeO2; (b) Polished cross sectional SEM image of aerosol deposited CuFeO2. The inset shows the boundary surface between substrate and film in detail; (c) Fractography of aerosol deposited CuFeO2 with the inset showing details of the dense CuFeO2 film.
Figure 5. (a) Polished cross sectional SEM image of bulk CuFeO2; (b) Polished cross sectional SEM image of aerosol deposited CuFeO2. The inset shows the boundary surface between substrate and film in detail; (c) Fractography of aerosol deposited CuFeO2 with the inset showing details of the dense CuFeO2 film.
Materials 09 00227 g005

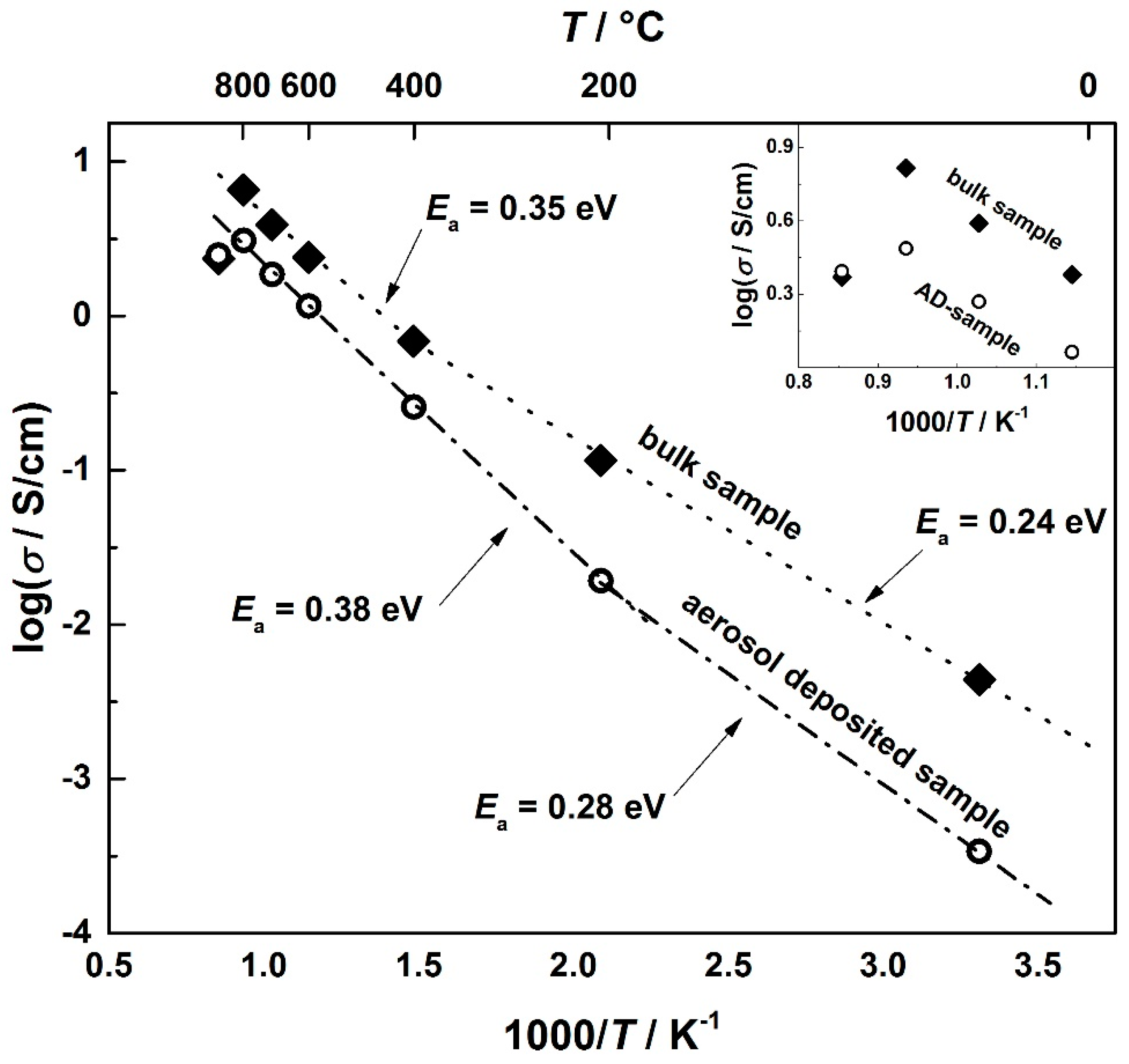

Figure 6. Electrical conductivity of bulk and aerosol deposited CuFeO2 and calculated activation energies. The inset displays the abruptly decreasing electrical conductivity at 900 °C in detail.
Figure 6. Electrical conductivity of bulk and aerosol deposited CuFeO2 and calculated activation energies. The inset displays the abruptly decreasing electrical conductivity at 900 °C in detail.
Materials 09 00227 g006

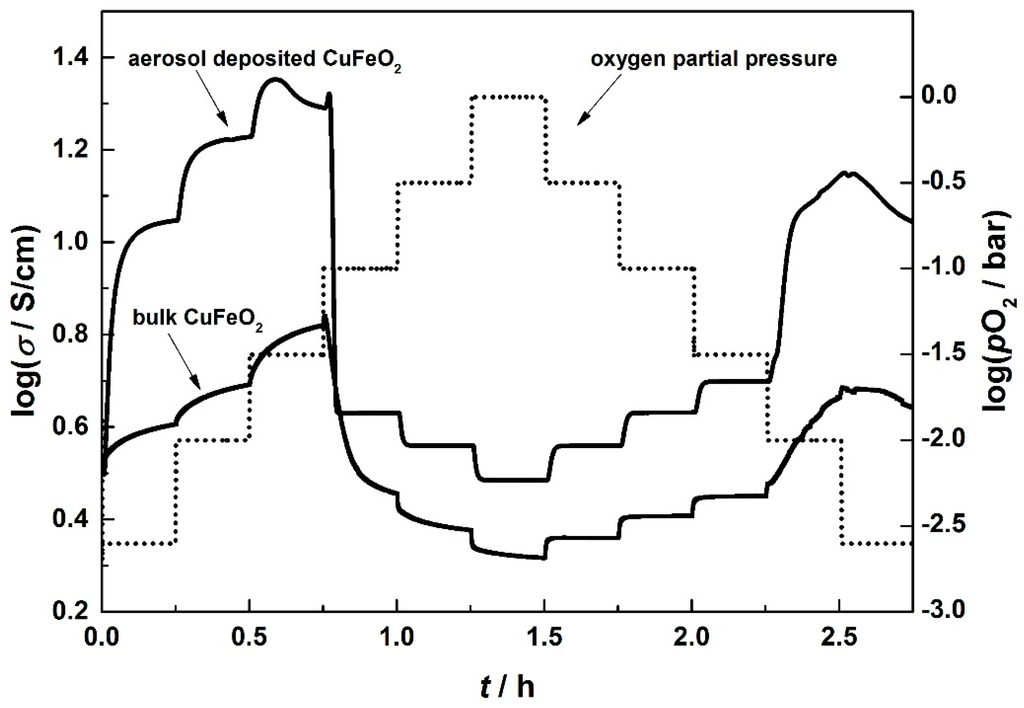

Figure 7. Electrical conductivity of bulk and aerosol deposited CuFeO2 with varying oxygen partial pressure at 900 °C. The dotted line represents the oxygen partial pressure.
Figure 7. Electrical conductivity of bulk and aerosol deposited CuFeO2 with varying oxygen partial pressure at 900 °C. The dotted line represents the oxygen partial pressure.
Materials 09 00227 g007

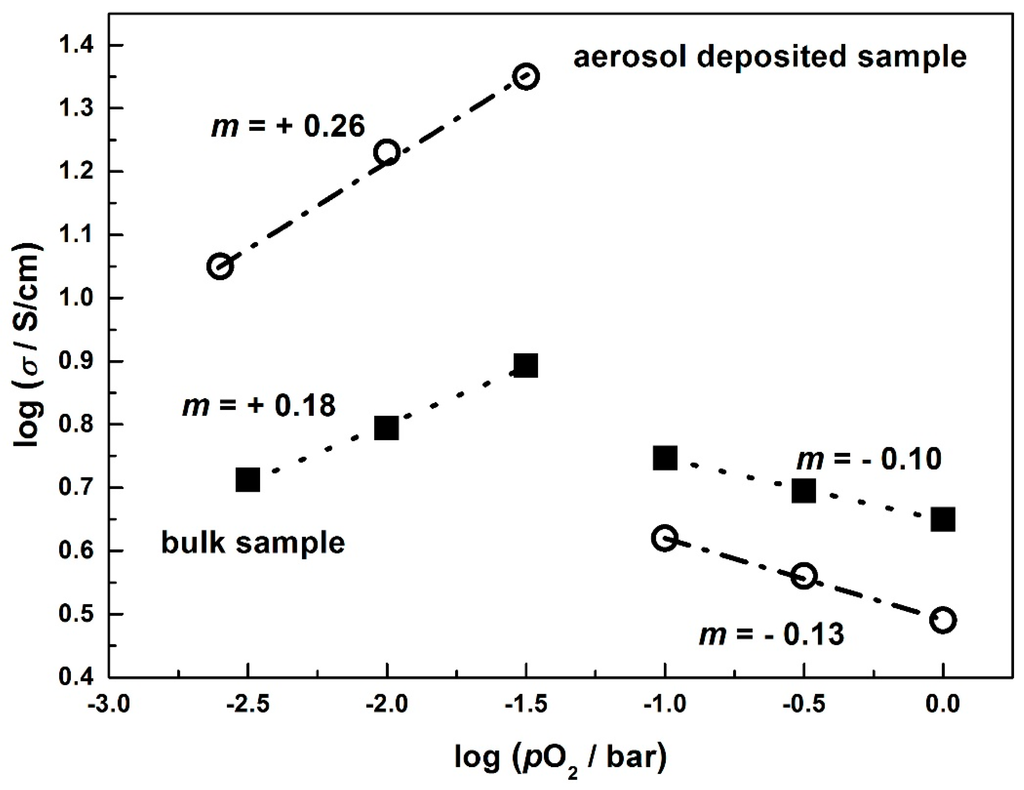

Figure 8. Double logarithmic representation of the electrical conductivity vs. oxygen partial pressure at 900 °C for aerosol-deposited CuFeO2 and bulk CuFeO2.
Figure 8. Double logarithmic representation of the electrical conductivity vs. oxygen partial pressure at 900 °C for aerosol-deposited CuFeO2 and bulk CuFeO2.
Materials 09 00227 g008

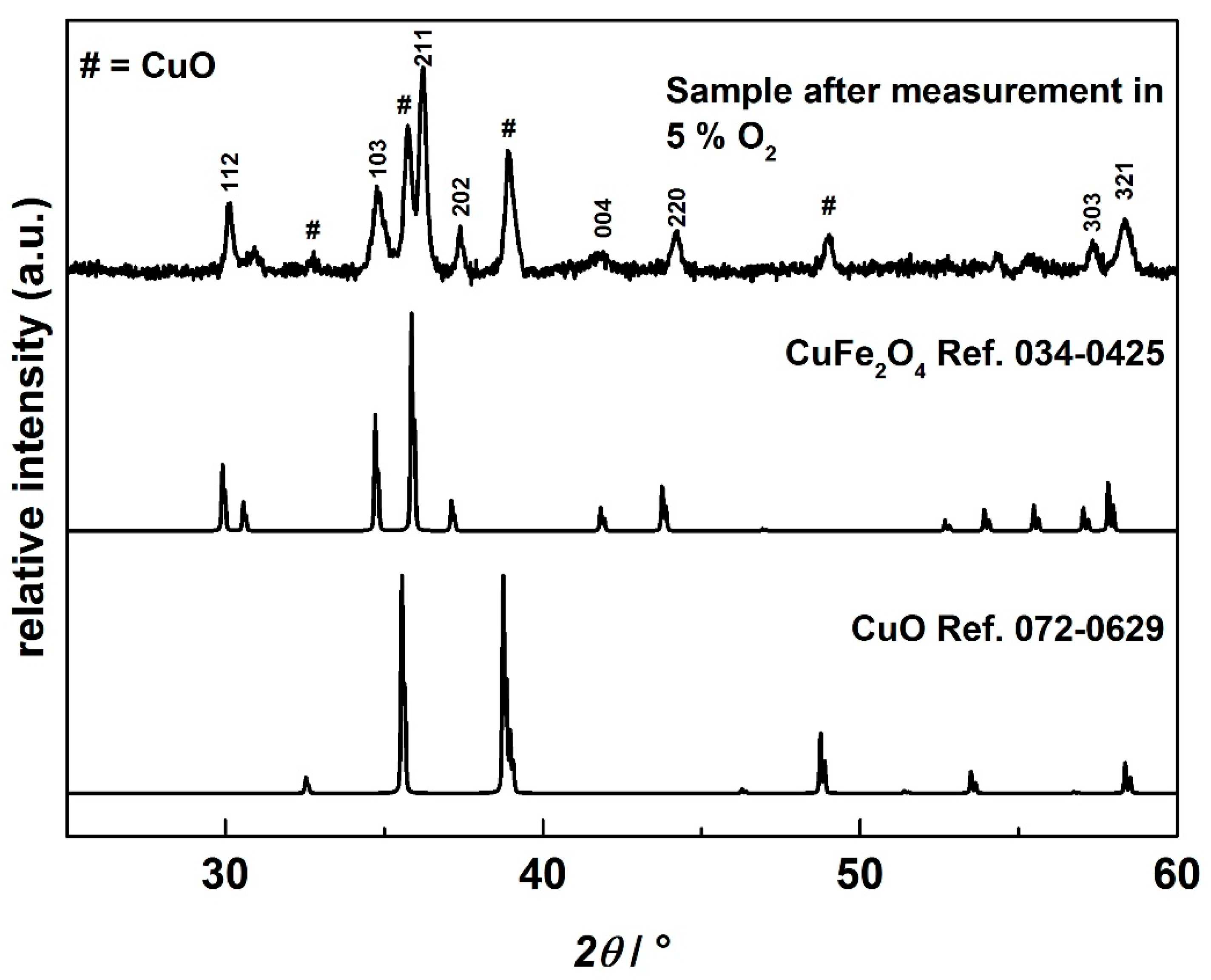

Figure 9. XRD pattern of a sample measured under 5% oxygen for several hours with a reference pattern of CuFe2O4 (JPCD 34-0425) and CuO (JPCD 39-0629).
Figure 9. XRD pattern of a sample measured under 5% oxygen for several hours with a reference pattern of CuFe2O4 (JPCD 34-0425) and CuO (JPCD 39-0629).
Materials 09 00227 g009

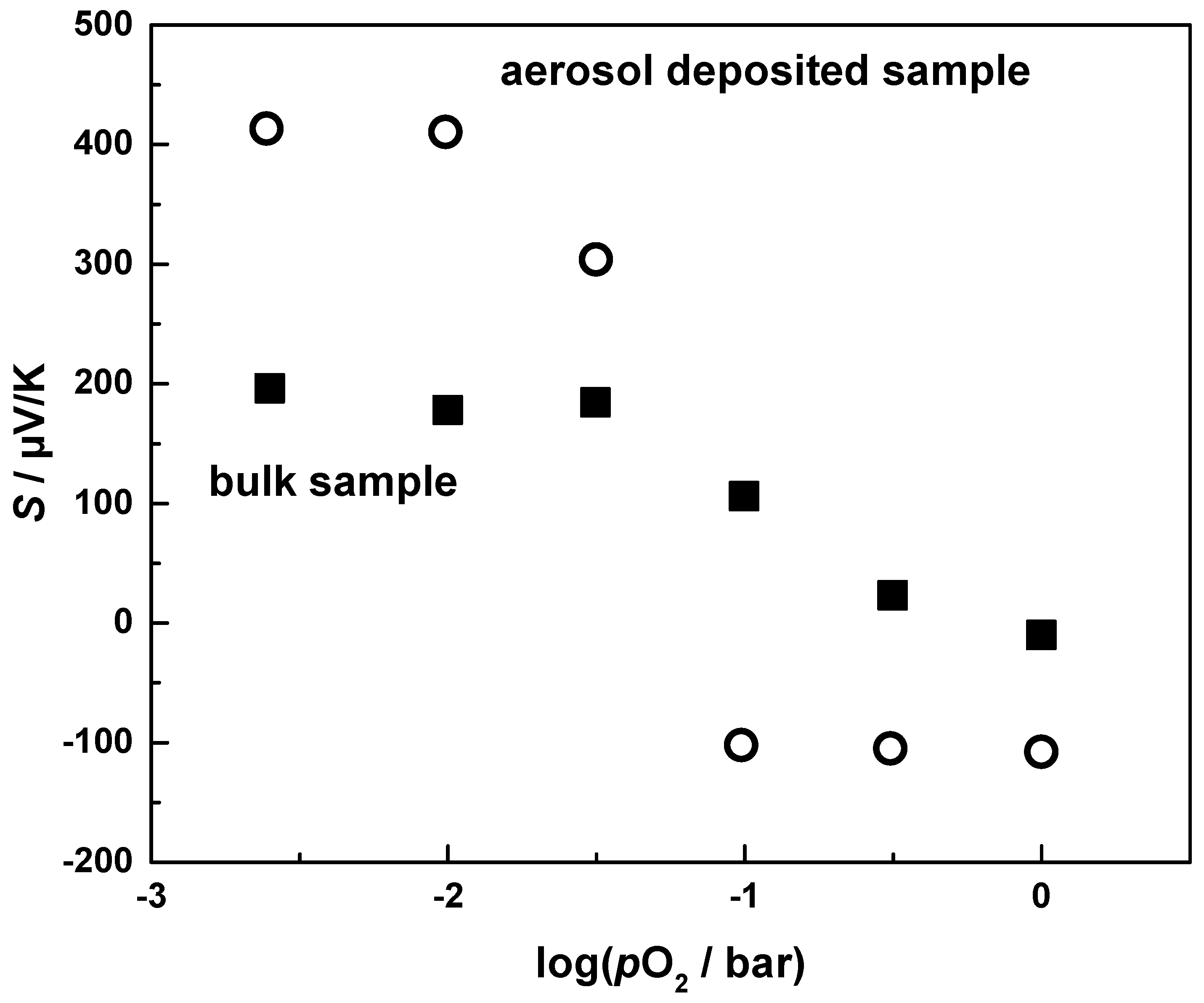

Figure 10. Seebeck coefficient of aerosol-deposited CuFeO2 and bulk CuFeO2 with varying oxygen partial pressure at 900 °C.
Figure 10. Seebeck coefficient of aerosol-deposited CuFeO2 and bulk CuFeO2 with varying oxygen partial pressure at 900 °C.
Materials 09 00227 g010

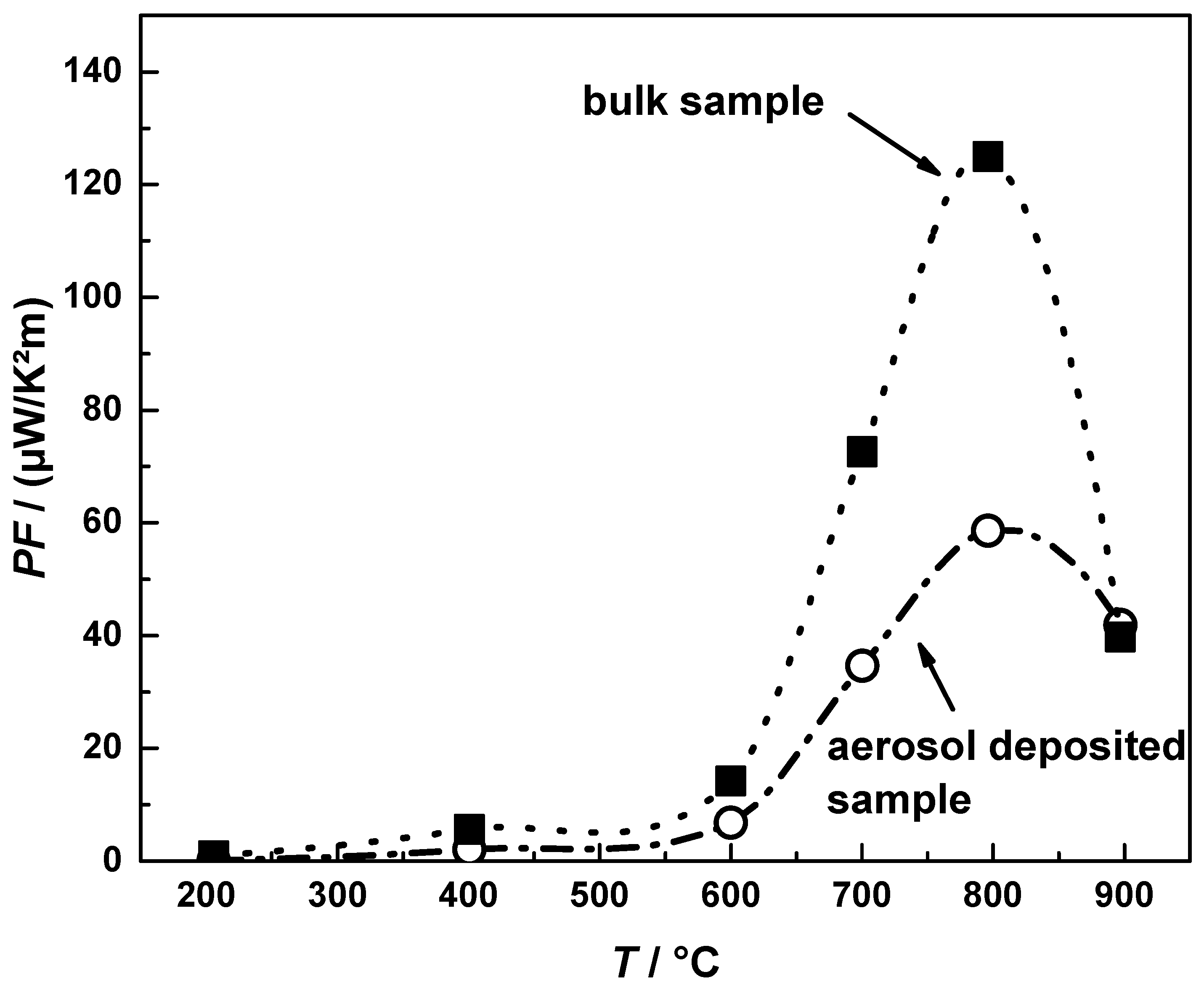

Figure 11. Power factor (PF) of aerosol-deposited CuFeO2 and bulk CuFeO2. The lines are guides for the eye only.
Figure 11. Power factor (PF) of aerosol-deposited CuFeO2 and bulk CuFeO2. The lines are guides for the eye only.
Materials 09 00227 g011

Share and Cite

MDPI and ACS Style

Stöcker, T.; Exner, J.; Schubert, M.; Streibl, M.; Moos, R. Influence of Oxygen Partial Pressure during Processing on the Thermoelectric Properties of Aerosol-Deposited CuFeO2. Materials 2016, 9, 227. https://doi.org/10.3390/ma9040227

AMA Style

Stöcker T, Exner J, Schubert M, Streibl M, Moos R. Influence of Oxygen Partial Pressure during Processing on the Thermoelectric Properties of Aerosol-Deposited CuFeO2. Materials. 2016; 9(4):227. https://doi.org/10.3390/ma9040227

Chicago/Turabian Style

Stöcker, Thomas, Jörg Exner, Michael Schubert, Maximilian Streibl, and Ralf Moos. 2016. "Influence of Oxygen Partial Pressure during Processing on the Thermoelectric Properties of Aerosol-Deposited CuFeO2" Materials 9, no. 4: 227. https://doi.org/10.3390/ma9040227

APA Style

Stöcker, T., Exner, J., Schubert, M., Streibl, M., & Moos, R. (2016). Influence of Oxygen Partial Pressure during Processing on the Thermoelectric Properties of Aerosol-Deposited CuFeO2. Materials, 9(4), 227. https://doi.org/10.3390/ma9040227

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
