Synthesis of a New Titanate Coupling Agent for the Modification of Calcium Sulfate Whisker in Poly(Vinyl Chloride) Composite

by
Wenjin Yuan
1,2,
Yunhua Lu
2 and
Shiai Xu
1,2,*
1
School of Chemical Engineering, Qinghai University, Xining 810016, China
2
School of Materials Science and Engineering, East China University of Science and Technology, Shanghai 200237, China
*
Author to whom correspondence should be addressed.
Materials 2016, 9(8), 625; https://doi.org/10.3390/ma9080625
Submission received: 27 May 2016 / Revised: 16 July 2016 / Accepted: 19 July 2016 / Published: 28 July 2016
(This article belongs to the Special Issue Polymer Blends and Compatibilization)
Browse Figures
Versions Notes

Abstract

:
A new titanate coupling agent synthesized from polyethylene glycol (PEG), isooctyl alcohol, and phosphorus pentoxide (P2O5) was used for the modification of calcium sulfate whiskers (CSWs) and the preparation of high-performance CSW/poly(vinyl chloride) (PVC) composites. The titanate coupling agent (sTi) and the modified CSWs (sTi–CSW) were characterized by Fourier transform infrared (FTIR) spectroscopy, and the mechanical, dynamic mechanical, and heat resistant properties and thermostability of sTi–CSW/PVC and CSW/PVC composites were compared. The results show that sTi–CSW/PVC composite with 10 wt. % whisker content has the best performance, and its tensile strength, Young’s modulus, elongation at break, break strength, and impact strength are 67.2 MPa, 1926 MPa, 233%, 51.1 MPa, and 12.75 KJ·m−2, with an increase of 20.9%, 11.5%, 145.3%, 24.6%, and 65.4% compared to that of CSW/PVC composite at the same whisker content. As the whisker content increases, the storage modulus increases, the Vicat softening temperature decreases slightly, and the glass transition temperature increases at first and then decreases.

Graphical Abstract

1. Introduction

Poly(vinyl chloride) (PVC) is one of the most widely used general-purpose plastics, with a number of advantageous properties, such as good flame retardancy, corrosion resistance, and wear resistance [1]. It is generally classified into two types: rigid PVC with high strength and stiffness, and soft PVC with low-molecular-weight plasticizers that can greatly weaken the interactions between PVC chains [2]. The rigid PVC also has some intrinsic disadvantages, such as low impact strength and low resistance to microcrack propagation, thus severely limiting its applications as a high-performance structural material [3]. A variety of fillers have been incorporated into the PVC matrix to improve its performance (e.g., toughness, modulus, permeability, and heat resistance) and to reduce the production cost [4]. These fillers can be roughly divided into four types, according to their shapes: one-dimensional fillers (e.g., natural fibers [5,6], carbon nanotubes [7,8,9], and whiskers [10,11,12]), two-dimensional fillers (e.g., montmorillonite [13,14], graphene (G) [15,16,17,18], and graphene oxide [18]), three-dimensional fillers (e.g., CaCO3 particles [19,20], SiO2 particles [21,22], and TiO2 particles [23,24]), and the compounds of different dimensional fillers (e.g., Ag/G [17] and TiO2/G [25]). Calcium sulfate whisker (CSW) is a fiber-shaped single crystal with many desirable properties, such as high strength, high stiffness, and low cost [26], making it a desirable filler for the reinforcement of polymer composites.
However, the incorporation of most fillers, such as multiple-walled carbon nanotubes [27], CaCO3 particles [28], and nano-TiO2 particles [24], into the PVC matrix results in a decrease of the tensile strength of the composite. This is mainly because the interfacial interactions between the fillers and the polymer matrix are poor, and thus the stress applied to the composite cannot be transmitted sufficiently from the matrix to the fillers, leading to premature rupture of the composite [29]. Thus, the surface of the fillers needs to be modified to improve their wettability and adhesion with the polymer matrix [30]. This can be achieved with the use of appropriate coupling agents such as silane coupling agents [31,32], titanate coupling agents [33], and fatty acids [34]. However, a potential drawback of these commercial coupling agents is that they only have either polar or nonpolar groups on their chains.
The main purpose of this study is to synthesize a new titanate coupling agent having both polar and nonpolar groups, used for the modification of CSW. The polar groups have a strong interaction with the PVC matrix and thus can improve the interfacial interaction between CSW and the matrix, while the nonpolar groups can act as flexible chains to improve the toughness of the composite. Titanate coupling agent modified CSW (sTi–CSW)/PVC composite shows better tensile strength, stiffness, elongation at break, break strength, and impact strength than CSW/PVC composite. The toughness of PVC is significantly improved without a significant decrease of tensile strength.

2. Results and Discussion

2.1. Fourier Transform Infrared (FTIR) Spectra of the Titanate Coupling Agent and sTi–CSW

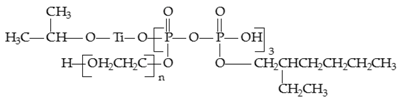

The structural formula of the target product is as follows:
Materials 09 00625 i001
Figure 1 shows the FTIR spectra of the intermediate product (pyrophosphate) and the target product (titanate coupling agent). The absorption band at 724 cm−1 is assigned to the absorption of the CH2CH2O groups of polyethylene glycol (PEG), and the absorption intensity increases as the chain length increases. The absorption band at 2930 cm−1 is assigned to the stretching vibration of the CH3 and CH2 groups in isooctyl alcohol and that of the CH2 groups in PEG, which is most indicative of the presence of PEG. The absorption band at 1360 cm−1 is assigned to the rocking vibration of CH2. The wide absorption band at 2564–2000 cm−1 is assigned to the characteristic absorption of P–O–H (broad peak at 2350 cm−1). The absorption band of pyrophosphate is between 1310 and 1210 cm−1, so the peak at 1250 cm−1 may be the absorption peak of that group. The peak at 1050 cm−1 is assigned to the characteristic absorption of C–O. The new absorption peaks at 613 and 698 cm−1 in line b are the absorption bands of Ti–O. These results imply that a new titanate coupling agent with both PEG and isooctyl alcohol segments has been successfully synthesized.
Figure 2 shows the FTIR spectra of CSW and sTi–CSW. When compared with CSW, two new absorption peaks are observed at 2930 and 2350 cm−1 in sTi–CSW, which are the characteristic absorption bands of the titanate coupling agent, and thus indicate the successful modification of CSW.
Figure 3 shows the modification mechanism of sTi–CSW. The alkoxy groups of the titanate coupling agent can easily hydrolyze and react with the hydroxyl groups of CSWs. Thus, the polar groups are grafted to CSWs, which can interact with polar PVC and thus improve the properties of the composite.

2.2. Mechanical Performance

Figure 4 shows that as the whisker content increases, the tensile strength of the CSW/PVC composite decreases, whereas that of sTi–CSW/PVC composite increases at first and then decreases. The tensile properties of sTi–CSW/PVC composite—especially the elongation at break—are obviously better than that of CSW/PVC composite. The elongation at break of CSW/PVC composite decreases rapidly with the increase of the whisker content, while that of sTi–CSW/PVC composite remains at a relatively high level with the increase of the whisker content up to 20 wt. %, but decreases significantly with further increase of the whisker content to 30 wt. %. The sTi–CSW/PVC composite has the best performance at 10 wt. % whisker content. In this case, its tensile strength, Young’s modulus, elongation at break, and break strength are 67.2 MPa, 1926 MPa, 233%, and 51.1 MPa, with an increase of 20.9%, 11.5%, 145.3%, and 24.6% compared with that of CSW/PVC composite at the same whisker content. However, the tensile properties of sTi–CSW/PVC composite decrease significantly at 30 wt. % whisker content. This may be because there is a percolation threshold of the filler content for the composite [35], exceeding which the fillers are more likely to collide with each other, thus leading to fracture or crumble of these fillers, and consequently the decrease of the reinforcing and toughening effects [2]. As a result, the mechanical properties of the composite decrease dramatically. In general, sTi–CSW can obviously improve the tensile properties of the composite. This may be due to the fact that the polar groups in the organic chain of the coupling agent have strong interactions with the PVC matrix, leading to the improvement of the interfacial bonding between the matrix and the whiskers [36,37], and that the flexible segments (the alkane and ether groups) of the coupling agent can act as a toughening agent, leading to the improvement of the elongation at break.
Figure 5 shows the Izod impact strength of CSW/PVC and sTi–CSW/PVC composites with different CSW contents. It can be seen that the impact strength is increased from 7.71 KJ·m−2 for CSW/PVC to 12.75 KJ·m−2 for sTi–CSW/PVC with 10 wt. % CSWs. This may also be due to the combined effects of the flexible segments and the strong interfacial interaction. The impact strength of sTi–CSW/PVC composite also decreases rapidly at 30 wt. % whisker content, which is consistent with the tensile properties.

2.3. Interfacial Morphology

Figure 6 shows the SEM images of the tensile fracture surfaces of CSW/PVC [38] and sTi–CSW/PVC composites with 5, 10, and 30 wt. % CSWs. For CSW/PVC composite, pullouts and gaps between whiskers and PVC matrix are clearly observed, and the whiskers are more likely to agglomerate as their content increases. However, for sTi–CSW/PVC composite, the PVC matrix adheres tightly to the whiskers at 5 and 10 wt. % whisker content. This may also be due to the strong interaction between the polar groups of the coupling agent and the PVC matrix, which can improve the interfacial properties of the composite [12]. Although the interfacial interaction between whiskers and matrix is still good at 30 wt. % whisker content, the whisker size decreases due to collisions during the mixing process that may lead to the fracture of whiskers.

2.4. Dynamic Mechanical Properties

The thermomechanical properties of sTi–CSW/PVC composite with different whisker contents—including storage modulus (E’), loss modulus (E”), and tangent δ (tan δ)—were determined by dynamic mechanical analysis (DMA), and the results are shown in Figure 7, Figure 8 and Figure 9, respectively. Figure 7 shows that at low temperatures, the storage modulus of sTi–CSW/PVC composite increases with increasing whisker content, except at 30 wt. % whisker content. Besides, it is much higher than that of CSW/PVC composite at the same whisker content (Table 1), indicating that the titanate coupling agent can efficiently improve the interfacial interaction between whiskers and PVC matrix [39]. This allows the whiskers to effectively restrict the deformation of the matrix, thus resulting in the improvement of the performance of the composite [40,41].
Figure 8 and Figure 9 show that the peak temperature of the composite increases at first and then decreases with the increase of the whisker content. The glass transition temperature of sTi–CSW/PVC and CSW/PVC composites are listed in Table 2. For sTi–CSW/PVC composite, the glass transition temperature reaches a maximum at 10 wt. % whisker content, and then decreases with further packing of whiskers, probably due to the presence of both polar organic groups and nonpolar flexible alkane chains in the coupling agent. The polar groups have strong interactions with the PVC matrix, which can prevent the PVC matrix from deforming at high temperatures and improve the glass transition temperature of the composite. However, the alkane chains and the ether groups are flexible, which can decrease the glass transition temperature.

2.5. Heat Resistance Property

Vicat softening temperatures (VST) reflect the moving ability of chain segments. The more difficult it is for the chain segments to move, the higher the VST will be [42]. Figure 10 shows the VST of CSW/PVC and sTi–CSW/PVC composites with various filler contents. It can be seen that as the whisker content increases, the VST of both CSW/PVC and sTi–CSW/PVC composites increases, because these whiskers can effectively restrict the mobility of the PVC segments due to their large length-to-diameter ratio [43]. However, the VST of the sTi–CSW/PVC composite is slightly lower than that of the CSW/PVC composite, due to the flexible chains in the coupling agent.

2.6. Thermal Properties

The thermogravimetric analysis (TGA) and differential thermogravimetry (DTG) curves of pristine PVC, CSW/PVC, and sTi–CSW/PVC composites are shown in Figure 11 and Figure 12, respectively. It shows that there are two weight loss stages for pristine PVC, CSW/PVC, and sTi–CSW/PVC composites. The first decomposition stage starts at about 276 °C and ends at about 298 °C, which can be attributed to the dehydrochlorination that may induce double bonds along the polymer chain and lead to conjugated polymer chains [44]. However, the sample becomes thermally stable again at 298–435 °C due to the formation of conjugated double bonds after HCl evolution [45]. A second decomposition stage occurs at 435–489 °C, which corresponds to the polyacetylene cracking (scission of covalent and multiple bonds). A stable residue (i.e., carbon black) is formed at temperatures greater than 489 °C [46].
The temperatures of onset decomposition (Tonset), rapidest decomposition (Trpd), and 50% weight loss residue (T50) are summarized in Table 3. It can be seen that the Tonset and Trpd of sTi–CSW/PVC composite are quite close to that of CSW/PVC composite and pristine PVC, indicating no significant improvement of thermal degradation in CSW/PVC and sTi–CSW/PVC composites [12]. The TGA curve of sTi–CSW/PVC composite is almost coincident with that of CSW/PVC composite, and their T50 values are higher than that of pristine PVC, indicating that the thermal stability of both sTi–CSW/PVC and CSW/PVC composites are improved to a certain degree [46,47]. However, the thermal stability of the composite cannot be further improved by sTi–CSW.

3. Materials and Methods

3.1. Materials

P2O5 (analytically pure), isooctyl alcohol (chemically pure) and dichloroethane (analytically pure) were purchased from Shanghai Lingfeng Reagent Co., Ltd. (Shanghai, China). Titanium isopropoxide was purchased from Aladdin Reagent Co., Ltd. (Shanghai, China). PEG 200 (chemically pure) was purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). PVC (SG-5) was purchased from Dongguan Dansheng Plastic Materials Co., Ltd. (Dongguan, China). CSWs were purchased from Shanghai Fengzhu Trading Co., Ltd. (Shanghai, China). Organic tin, dioctyl phthalate (DOP), glyceryl monosterate (GMS), acrylic processing aid (ACR) and paraffin wax were commercially available, all of which were of technical grade.

3.2. Preparation

3.2.1. Synthesis of Polar Polyether Titanate Coupling Agent

Pyrophosphate was prepared as follows: 2.1 g of P2O5 and 40 mL of dichloromethane solvent were added sequentially into a 250 mL three-necked round-bottom flask fitted with a mechanical overhead stirrer, and stirred rapidly. Then, 5.28 g of isooctyl alcohol and 4 g of PEG 200 were added slowly, the mixture was stirred at 60 °C for 2 h, and excess solvent was removed by vacuum distillation. The obtained transparent liquid was pyrophosphate.
Then, 1.6 g of titanium isopropoxide and 30 mL of dichloromethane solvent were added sequentially into a 250 mL three-necked round-bottom flask, and 8 g of pyrophosphate was added dropwise. The temperature of the water bath was maintained at 20–55 °C. The mixture was stirred at 75 °C for 2.5 h and then heated to 90 °C to complete the reaction and to remove excess solvent. The obtained light yellow and viscid liquid was the titanate coupling agent.

3.2.2. Preparation of sTi–CSW and sTi–CSW/PVC Composites

sTi–CSWs were prepared as follows: 1.5 g of sTi was pre-hydrolysed in 95 wt. % ethanol solution, and 50 g of dried CSWs were added sequentially into a 500 mL three-necked round-bottom flask fitted with a mechanical overhead stirrer. The mixture was stirred at 75 °C for 4 h, and then the obtained products were dried under vacuum at 100 °C for 2 h to remove excess water.
sTi–CSW/PVC composites were prepared as described in our previous study [12]: PVC resin (100 phr) was mixed with various contents of CSW or sTi–CSW using organic tin (2 phr) as the heat stabilizer and DOP (4 phr) as the plasticizer. GMS (0.6 phr), ACR (4 phr), and paraffin wax (0.4 phr) were then added. All PVC constitutes were mixed uniformly and then processed using a two-roll mill at 170 °C. The resultant compound was molded into rectangular sheets by compression molding at 170 °C and 10 MPa for 5 min using a plate vulcanizing press.

3.3. Characterization

3.3.1. Fourier Transform Infrared (FTIR) Spectroscopy

The FTIR spectra of the titanate coupling agent and sTi–CSW were recorded using a Nicolet 6700 FTIR spectrometer (Thermo Fisher, New York, NY, USA) with a scan number of 32 and a resolution of 4 cm−1.

3.3.2. Mechanical Properties

The tensile properties of CSW/PVC and sTi–CSW/PVC composites were determined on a MTS E44 universal testing machine (MTS Industrial Systems, Shenzhen, China) in accordance with ISO 527 [48], and the notched impact strength was determined on a CEAST 9050 tester (CEAST, Turin, Italy) according to ISO 179 [49]. The means and standard deviations were calculated from at least five independent tests for each sample.

3.3.3. Scanning Electron Microscopy

The fracture surfaces of the tensile samples were characterized by scanning electron microscopy (SEM, S-4800, Hitachi, Tokyo, Japan). Prior to SEM observation, the fracture surfaces were coated with a thin gold layer.

3.3.4. Dynamic Mechanical Analysis

The dynamic properties of CSW/PVC and sTi–CSW/PVC composites were determined on a TA Instruments Q800 (TA instruments, New Castle, DE, USA) in three-point bending mode. A single specimen of each composite type was tested at a vibration frequency of 1 Hz and heated from 25 to 140 °C at a heating rate of 3 °C/min.

3.3.5. Heat Resistance Analysis

Vicat softening temperatures (VST) were measured using a VST tester (ZWK1302-B, MTS, Shenzhen, China) according to ISO 306:2004 [50]. The test load was 10 N and the heating rate was 120 °C/h.

3.3.6. Thermogravimetric Analysis

Thermogravimetric analysis (TGA) was carried out at a heating rate of 10 °C/min to 600 °C under a nitrogen atmosphere using a Netzsch STA 409PC thermogravimetric analyzer.

4. Conclusions

A new polar organic coupling agent having both polar and nonpolar (alkane and ether) groups has been successfully synthesized in this study. The polar groups can improve the interfacial interactions between the whiskers and the PVC matrix, while the non-polar groups can improve the toughness of the composites, thus resulting in a significant improvement of the mechanical properties of the sTi–CSW/PVC composites. The tensile strength, Young’s modulus, elongation at break, break strength, and impact strength of sTi–CSW/PVC composite with 10 wt. % whisker are 67.2 MPa, 1926 MPa, 233%, 51.1 MPa, and 12.75 KJ m−2, with an increase of 20.9%, 11.5%, 145.3%, 24.6%, and 65.4%, respectively, as compared with that of CSW/PVC composite with the same whisker content. There is a strong interfacial interaction between the modified whiskers and the PVC matrix. The DMA results show that the storage modulus is also obviously improved. The glass transition temperature increases at first and then decreases with the increase of the whisker content. However, no obvious improvement is observed in the heat resistant property and the thermal stability, which may be due to the flexible groups of the coupling agent. In general, the coupling agent synthesized in this study can effectively improve the toughness of PVC without significantly decreasing its tensile properties. Thus, this coupling agent may have important applications in the modification of inorganic fillers.

Acknowledgments

This research is financially supported by the National Natural Science Foundation of China (U 1507123), the Foundation from Qinghai Science and Technology Department (2014-HZ-817) and Kunlun Scholar Award Program of Qinghai Province.

Author Contributions

Wenjin Yuan did the experiments, data analysis and wrote the paper. Shiai Xu reviewed and revised the manuscript of this paper. Yunhua Lu contributed to the data analysis.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fu, S.Y.; Feng, X.Q.; Lauke, B.; Mai, Y.W. Effects of particle size, particle/matrix interface adhesion and particle loading on mechanical properties of particulate-polymer composites. Compos. Part B Eng. 2008, 39, 933–961. [Google Scholar] [CrossRef]
  2. Wang, H.; Xie, G.; Yang, C.; Zheng, Y.; Ying, Z.; Ren, W.; Zeng, Y. Enhanced toughness of multilayer graphene filled poly(vinyl chloride) composites prepared using melt-mixing method. Polym. Compos. 2015. [Google Scholar] [CrossRef]
  3. Yanagase, A.; Ito, M.; Yamamoto, N.; Ishikawa, M. Effect of modifier characteristics on toughness of poly (vinyl chloride). J. Appl. Polym. Sci. 1996, 62, 1387–1393. [Google Scholar] [CrossRef]
  4. Wang, H.; Xie, G.; Ying, Z.; Tong, Y.; Zeng, Y. Enhanced Mechanical Properties of Multi-layer Graphene Filled Poly(vinyl chloride) Composite Films. J. Mater. Sci. Technol. 2015, 31, 340–344. [Google Scholar] [CrossRef]
  5. El-Shekeil, Y.A.; Sapuan, S.M.; Jawaid, M.; Al-Shuja’a, O.M. Influence of fiber content on mechanical, morphological and thermal properties of kenaf fibers reinforced poly(vinyl chloride)/thermoplastic polyurethane poly-blend composites. Mater. Design 2014, 58, 130–135. [Google Scholar] [CrossRef]
  6. Petchwattana, N.; Covavisaruch, S.; Pitidhammabhorn, D. Influences of water absorption on the properties of foamed poly(vinyl chloride)/rice hull composites. J. Polym. Res. 2013. [Google Scholar] [CrossRef]
  7. Mkhabela, V.J.; Mishra, A.K.; Mbianda, X.Y. Thermal and mechanical properties of phosphorylated multiwalled carbon nanotube/polyvinyl chloride composites. Carbon 2011, 49, 610–617. [Google Scholar] [CrossRef]
  8. Yazdani, H.; Smith, B.E.; Hatami, K. Multi-walled carbon nanotube-filled polyvinyl chloride composites: Influence of processing method on dispersion quality, electrical conductivity and mechanical properties. Compos. Part A 2016, 82, 65–77. [Google Scholar] [CrossRef]
  9. Yu, B.; Xu, X. Conductive properties and mechanism of polyvinyl chloride doped by a multi-walled carbon nanotube–polypyrrole nano-complex dopant. RSC Adv. 2014, 4, 3966–3973. [Google Scholar] [CrossRef]
  10. Chen, L.; Hong, Y.; Zhang, Y.; Qiu, J. Fabrication of polymer matrix composites reinforced with controllably oriented whiskers. J. Mater. Sci. 2000, 35, 5309–5312. [Google Scholar] [CrossRef]
  11. Chazeau, L.; Cavaille, J.; Terech, P. Mechanical behaviour above Tg of a plasticised PVC reinforced with cellulose whiskers; a SANS structural study. Polymer 1999, 40, 5333–5344. [Google Scholar] [CrossRef]
  12. Yuan, W.; Cui, J.; Cai, Y.; Xu, S. A novel surface modification for calcium sulfate whisker used for reinforcement of poly(vinyl chloride). J. Polym. Res. 2015, 22. [Google Scholar] [CrossRef]
  13. Sterky, K.; Jacobsen, H.; Jakubowicz, I.; Yarahmadi, N.; Hjertberg, T. Influence of processing technique on morphology and mechanical properties of PVC nanocomposites. Eur. Polym. J. 2010, 46, 1203–1209. [Google Scholar] [CrossRef]
  14. Madaleno, L.; Schjødt-Thomsen, J.; Pinto, J.C. Morphology, thermal and mechanical properties of PVC/MMT nanocomposites prepared by solution blending and solution blending+melt compounding. Compos. Sci. Technol. 2010, 70, 804–814. [Google Scholar] [CrossRef]
  15. Vadukumpully, S.; Paul, J.; Mahanta, N.; Valiyaveettil, S. Flexible conductive graphene/poly(vinyl chloride) composite thin films with high mechanical strength and thermal stability. Carbon 2011, 49, 198–205. [Google Scholar] [CrossRef]
  16. Yao, K.; Tan, H.; Lin, Y.; Zhang, G.; Gong, J.; Qiu, J.; Tang, T.; Na, H.; Jiang, Z. Effect of polystyrene long branch chains on melt behavior and foaming performance of poly(vinyl chloride)/graphene nanocomposites. RSC Adv. 2014, 4, 64053–64060. [Google Scholar] [CrossRef]
  17. Saadatabadi, N.M.; Nateghi, M.R.; Borhanizarandi, M. Fabrication and characterization of nanosilver intercalated graphene embedded poly(vinyl chloride)composite thin films. J. Polym. Res. 2014, 21. [Google Scholar] [CrossRef]
  18. Deshmukh, K.; Khatake, S.M.; Joshi, G.M. Surface properties of graphene oxide reinforced polyvinyl chloride nanocomposites. J. Polym. Res. 2013, 20. [Google Scholar] [CrossRef]
  19. Kemal, I.; Whittle, A.; Burford, R.; Vodenitcharova, T.; Hoffman, M. Toughening of unmodified polyvinylchloride through the addition of nanoparticulate calcium carbonate. Polymer 2009, 50, 4066–4079. [Google Scholar] [CrossRef]
  20. Xie, X.L.; Liu, Q.X.; Li, K.Y.; Zhou, X.P.; Zhang, Q.X.; Yu, Z.Z.; Mai, Y.W. Rheological and mechanical properties of PVC/CaCO3 nanocomposites prepared by in situ polymerization. Polymer 2004, 45, 6665–6673. [Google Scholar] [CrossRef]
  21. Conradi, M.; Zorko, M.; Jerman, I.; Orel, B.; Verpoest, I. Mechanical properties of high density packed silica/poly (vinyl chloride) composites. Polym. Eng. Sci. 2013, 53, 1448–1453. [Google Scholar] [CrossRef]
  22. Zhu, A.; Cai, A.; Zhou, W.; Shi, Z. Effect of flexibility of grafted polymer on the morphology and property of nanosilica/PVC composites. Appl. Surf. Sci. 2008, 254, 3745–3752. [Google Scholar] [CrossRef]
  23. Zhang, Z.; Wang, S.; Zhang, J. Large stabilizing effect of titanium dioxide on photodegradation of PVC/α-methylstyrene-acrylonitrile copolymer/impact modifier-matrix composites. Polym. Compos. 2014, 35, 2365–2375. [Google Scholar] [CrossRef]
  24. Zhang, Y.X.; Song, Y.H.; Zheng, Q. Mechanical and thermal properties of nanosized titanium dioxide filled rigid poly(vinyl chloride). Chin. J. Polym. Sci. 2012, 31, 325–332. [Google Scholar] [CrossRef]
  25. Feng, X.; Xing, W.; Song, L.; Hu, Y.; Liew, K.M. TiO2 loaded on graphene nanosheet as reinforcer and its effect on the thermal behaviors of poly(vinyl chloride) composites. Chem. Eng. J. 2015, 260, 524–531. [Google Scholar] [CrossRef]
  26. Wang, Y.; Li, Y.; Yuan, A.; Yuan, B.; Lei, X.; Ma, Q.; Han, J.; Wang, J.; Chen, J. Preparation of calcium sulfate whiskers by carbide slag through hydrothermal method. Cryst. Res. Technol. 2014, 49, 800–807. [Google Scholar] [CrossRef]
  27. Wang, G.; Qu, Z.; Liu, L.; Shi, Q.; Guo, J. Study of SMA graft modified MWNT/PVC composite materials. Mater. Sci. Eng. A 2008, 472, 136–139. [Google Scholar] [CrossRef]
  28. Zeng, X.F.; Wang, W.Y.; Wang, G.Q.; Chen, J.F. Influence of the diameter of CaCO3 particles on the mechanical and rheological properties of PVC composites. J. Mater. Sci. 2008, 43, 3505–3509. [Google Scholar] [CrossRef]
  29. Kim, H.; Miura, Y.; Macosko, C.W. Graphene/Polyurethane Nanocomposites for Improved Gas Barrier and Electrical Conductivity. Chem. Mater. 2010, 22, 3441–3450. [Google Scholar] [CrossRef]
  30. Altan, M.; Yildirim, H. Mechanical and Antibacterial Properties of Injection Molded Polypropylene/TiO2 Nano-Composites: Effects of Surface Modification. J. Mater. Sci. Technol. 2012, 28, 686–692. [Google Scholar] [CrossRef]
  31. Sun, S.; Li, C.; Zhang, L.; Du, H.; Burnell-Gray, J. Effects of surface modification of fumed silica on interfacial structures and mechanical properties of poly (vinyl chloride) composites. Eur. Polym. J. 2006, 42, 1643–1652. [Google Scholar] [CrossRef]
  32. Yun, S.; Song, Q.; Zhao, D.; Qian, G.; Li, X.; Li, W. Study on the inorganic–organic surface modification of potassium titanate whisker. Appl. Surf. Sci. 2012, 258, 4444–4448. [Google Scholar] [CrossRef]
  33. Wah, C.A.; Choong, L.Y.; Neon, G.S. Effects of titanate coupling agent on rheological behaviour, dispersion characteristics and mechanical properties of talc filled polypropylene. Eur. Polym. J. 2000, 36, 789–801. [Google Scholar] [CrossRef]
  34. Osman, M.A.; Atallah, A. Surfactant Chain Length and Tensile Properties of Calcium Carbonate—Polyethylene Composites. Macromol. Chem. Phys. 2007, 208, 87–93. [Google Scholar] [CrossRef]
  35. Patil, C.B.; Kapadi, U.R.; Hundiwale, D.G.; Mahulikar, P.P. Preparation and characterization of poly(vinyl chloride) calcium carbonate nanocomposites via melt intercalation. J. Mater. Sci. 2009, 44, 3118–3124. [Google Scholar] [CrossRef]
  36. Zhang, H. Effect of a novel coupling agent, alkyl ketene dimer, on the mechanical properties of wood–plastic composites. Mater. Design 2014, 59, 130–134. [Google Scholar] [CrossRef]
  37. Hu, J.; Jia, X.; Li, C.; Ma, Z.; Zhang, G.; Sheng, W.; Zhang, X.; Wei, Z. Effect of interfacial interaction between graphene oxide derivatives and poly(vinyl chloride) upon the mechanical properties of their nanocomposites. J. Mater. Sci. 2014, 49, 2943–2951. [Google Scholar] [CrossRef]
  38. Yuan, W.; Xu, S. Mechanical properties and interfacial interaction of modified calcium sulfate whisker/poly(vinyl chloride) composites. J. Mater. Sci. Technol. 2016. accepted. [Google Scholar]
  39. Auad, M.L.; Mosiewicki, M.A.; Uzunpinar, C.; Williams, R.J.J. Single-wall carbon nanotubes/epoxy elastomers exhibiting high damping capacity in an extended temperature range. Compos. Sci. Technol. 2009, 69, 1088–1092. [Google Scholar] [CrossRef]
  40. Lian, M.; Fan, J.; Shi, Z.; Li, H.; Yin, J. Kevlar®-functionalized graphene nanoribbon for polymer reinforcement. Polymer 2014, 55, 2578–2587. [Google Scholar] [CrossRef]
  41. Abu-Abdeen, M. Static and dynamic mechanical properties of poly(vinyl chloride) loaded with aluminum oxide nanopowder. Mater. Design 2012, 33, 523–528. [Google Scholar] [CrossRef]
  42. Yang, L.; Sun, D.; Li, Y.; Liu, G.; Gao, J. Properties of poly(vinyl chloride) blended with an emulsion copolymer of N-cyclohexylmaleimide and methyl methacrylate. J. Appl. Polym. Sci. 2003, 88, 201–205. [Google Scholar] [CrossRef]
  43. Yu, T.; Li, Y.; Ren, J. Preparation and properties of short natural fiber reinforced poly(lactic acid) composites. Trans. Nonferrous Metal. Soc. 2009, 19, s651–s655. [Google Scholar] [CrossRef]
  44. Djidjelli, H.S.T.; Benachour, D. Effect of plasticizer nature and content on the PVC stability and dielectric properties. J. Appl. Polym. Sci. 2000, 78, 685–691. [Google Scholar] [CrossRef]
  45. Benavides, R.C.B.; Castañeda, A.O.; López, G.M.; Arias, G. Different thermo-oxidative degradation routes in poly(vinyl chloride). Polym. Degrad. Stable 2001, 73, 417–423. [Google Scholar] [CrossRef]
  46. Bishay, I.K.; Abd-El-Messieh, S.L.; Mansour, S.H. Electrical, mechanical and thermal properties of polyvinyl chloride composites filled with aluminum powder. Mater. Design 2011, 32, 62–68. [Google Scholar] [CrossRef]
  47. Li, X.; Lei, B.; Lin, Z.; Huang, L.; Tan, S.; Cai, X. The utilization of bamboo charcoal enhances wood plastic composites with excellent mechanical and thermal properties. Mater. Design 2014, 53, 419–424. [Google Scholar] [CrossRef]
  48. Plastics. Determination of Tensile Properties; BS EN ISO 527-1:2012; The British Standards Institution: London, UK, 31 March 2012.
  49. Plastics. Determination of Charpy Impact Properties; BS EN ISO 179-1:2010; The British Standards Institution: London, UK, 31 July 2010.
  50. Plastics. Thermoplastic Materials—Determination of Vicat Softening Temperature; BS EN ISO 306:2004; The British Standards Institution: London, UK, 5 October 2004.
Materials 09 00625 g001 1024

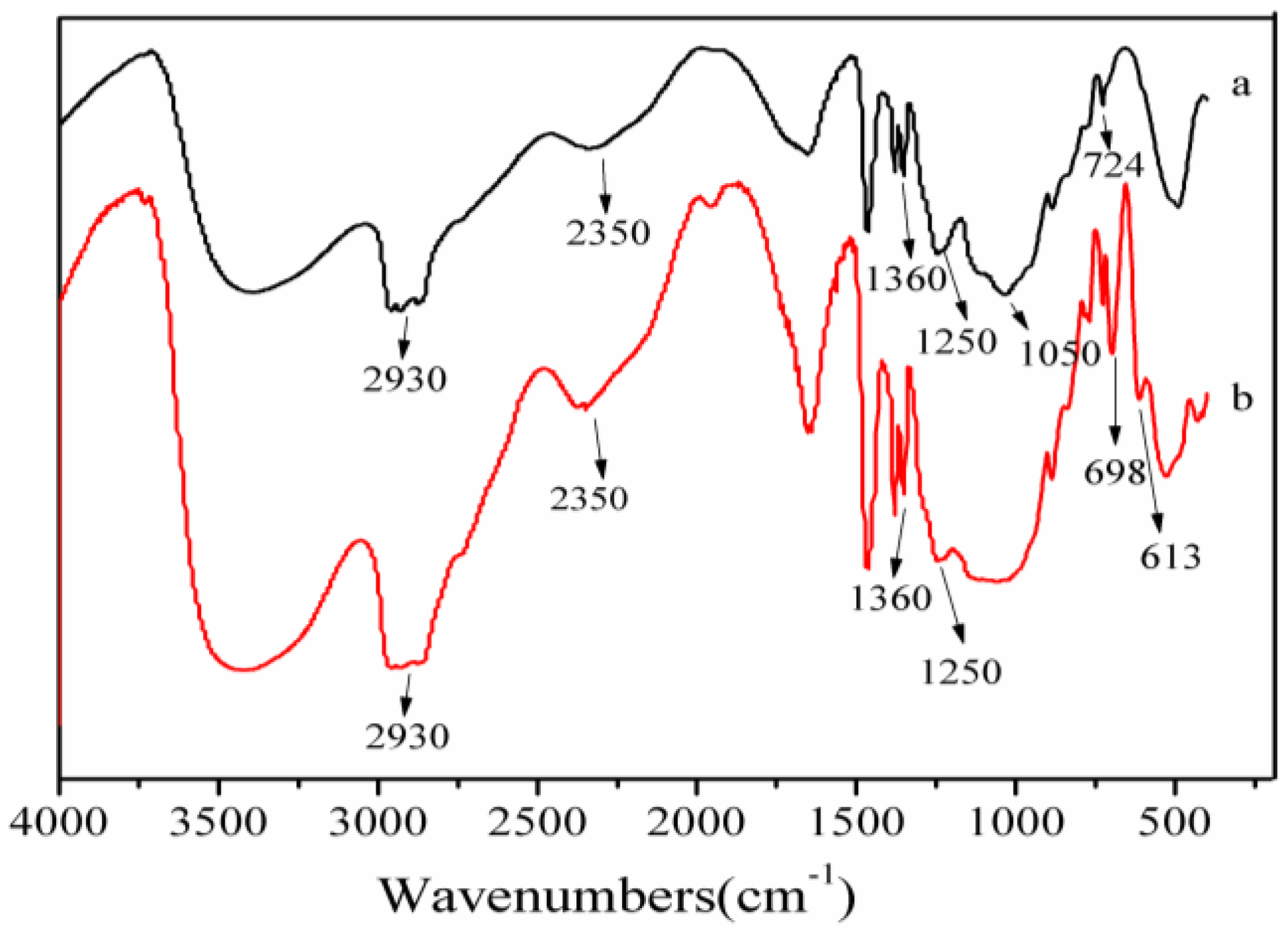

Figure 1. Fourier Transform Infrared (FTIR) spectra of (a) pyrophosphate and (b) self-synthesized titanate coupling agent.
Figure 1. Fourier Transform Infrared (FTIR) spectra of (a) pyrophosphate and (b) self-synthesized titanate coupling agent.
Materials 09 00625 g001
Materials 09 00625 g002 1024

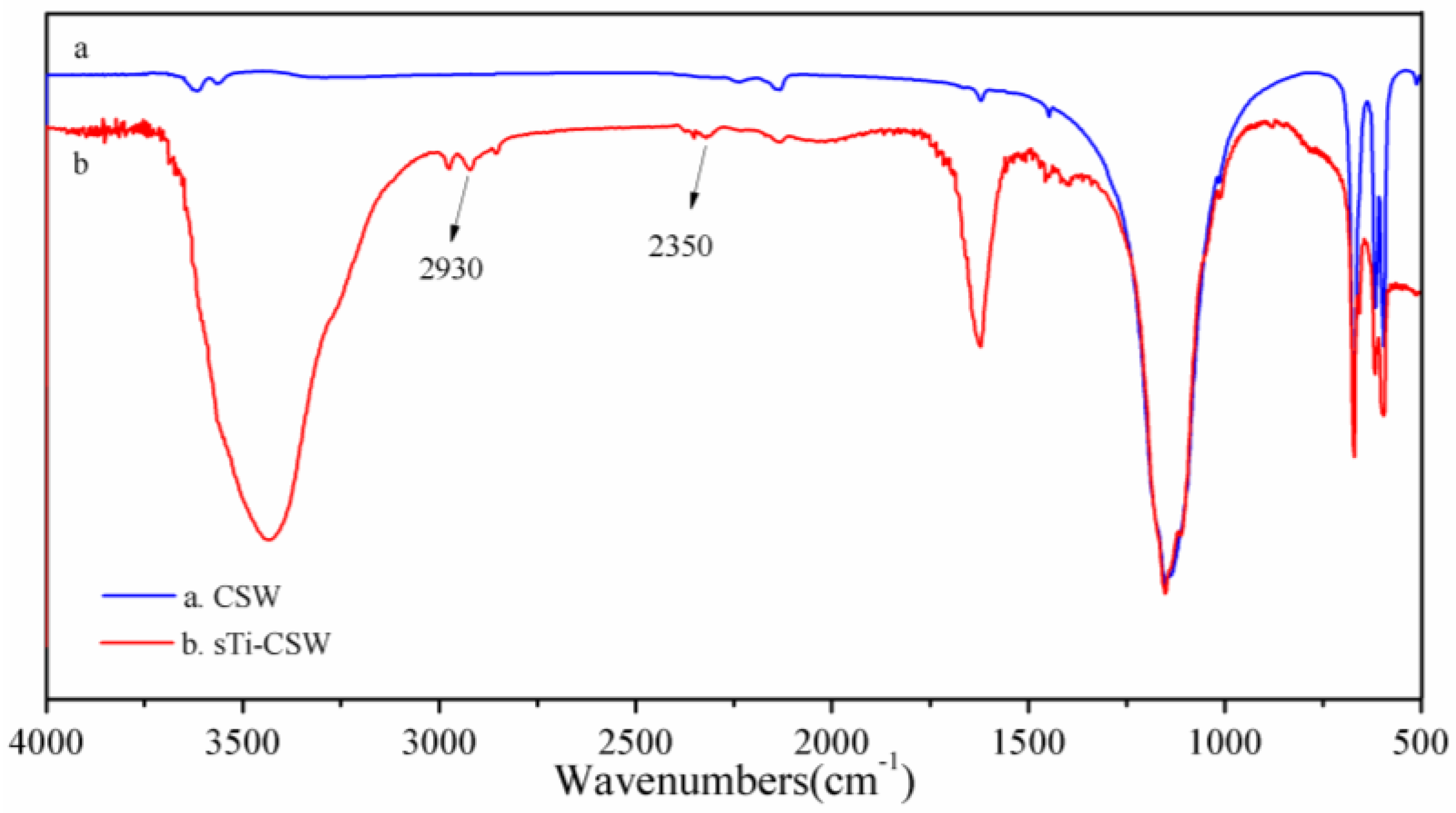

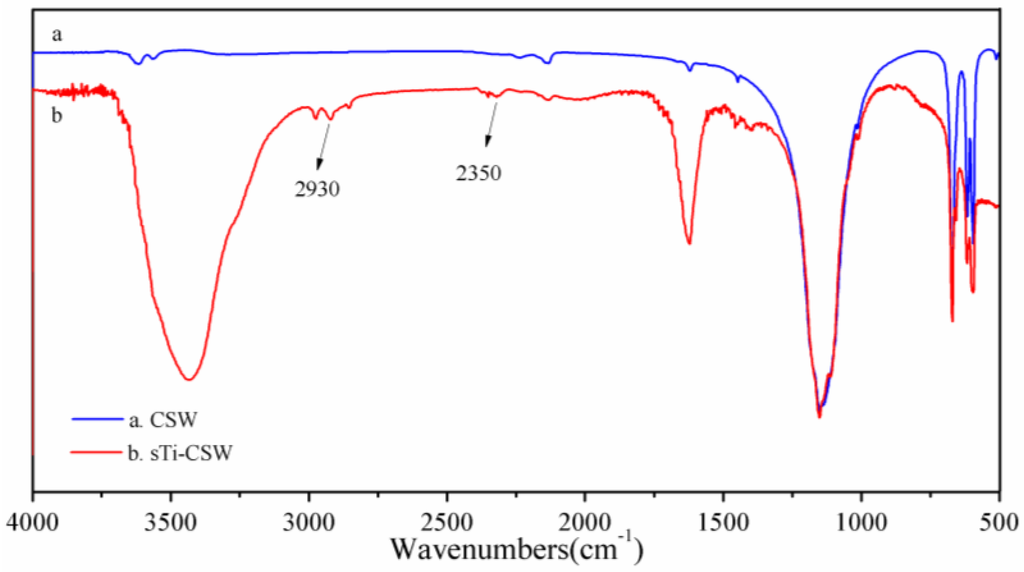

Figure 2. FTIR spectra of (a) calcium sulfate whisker (CSW) and (b) titanate coupling agent modified CSW (sTi–CSW).
Figure 2. FTIR spectra of (a) calcium sulfate whisker (CSW) and (b) titanate coupling agent modified CSW (sTi–CSW).
Materials 09 00625 g002
Materials 09 00625 g003 1024

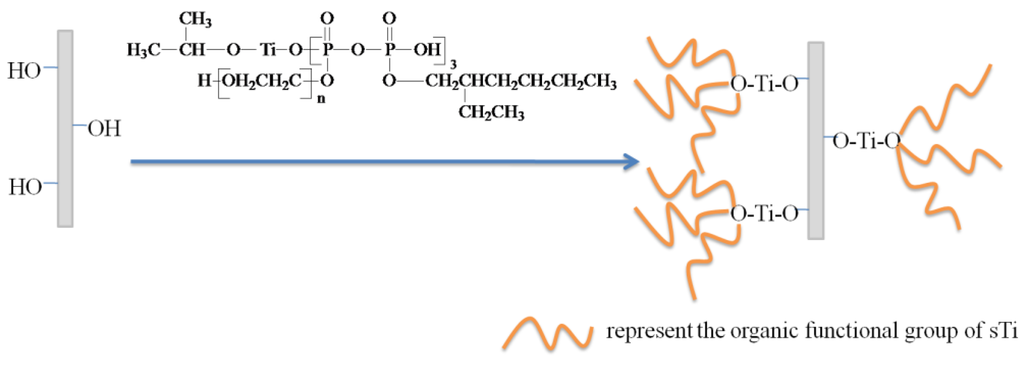

Figure 3. The modification mechanism of sTi–CSW.
Figure 3. The modification mechanism of sTi–CSW.
Materials 09 00625 g003
Materials 09 00625 g004 1024

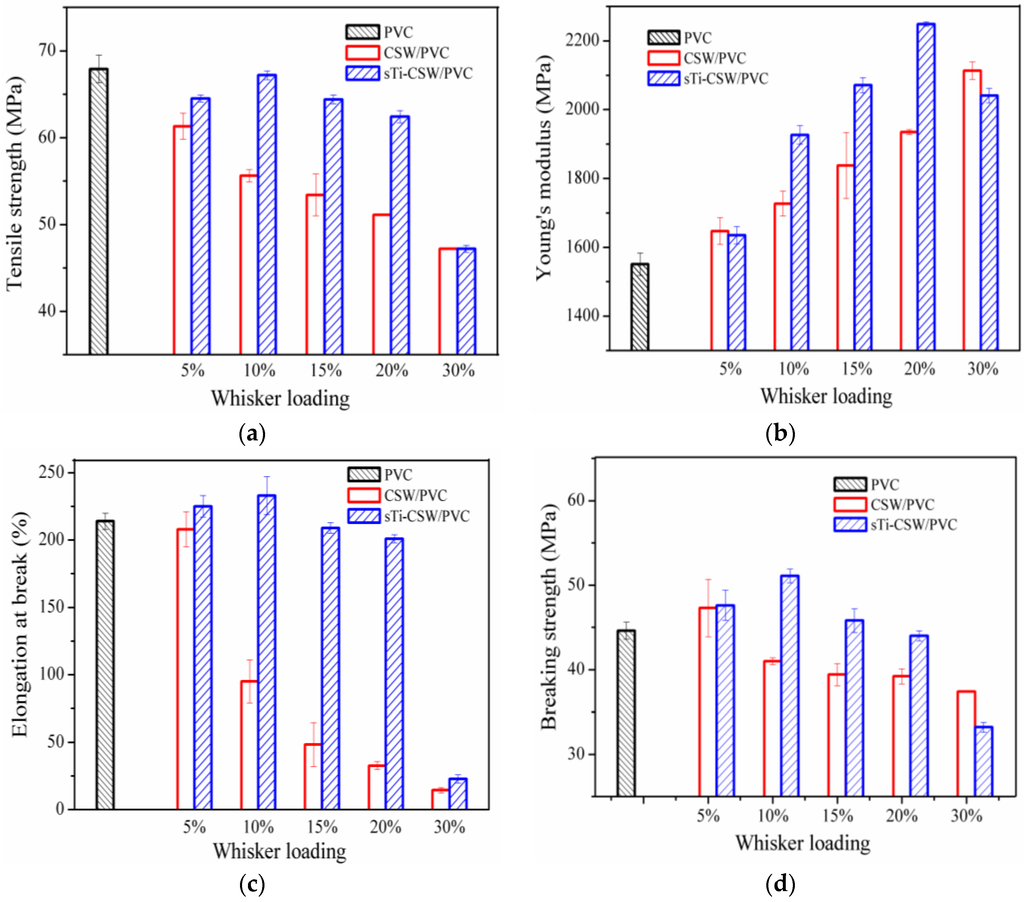

Figure 4. Mechanical properties (a) Tensile strength; (b) Young’s modulus; (c) Elongation at break; (d) Breaking strength of CSW/PVC and sTi–CSW/PVC composites with various filler contents.
Figure 4. Mechanical properties (a) Tensile strength; (b) Young’s modulus; (c) Elongation at break; (d) Breaking strength of CSW/PVC and sTi–CSW/PVC composites with various filler contents.
Materials 09 00625 g004
Materials 09 00625 g005 1024

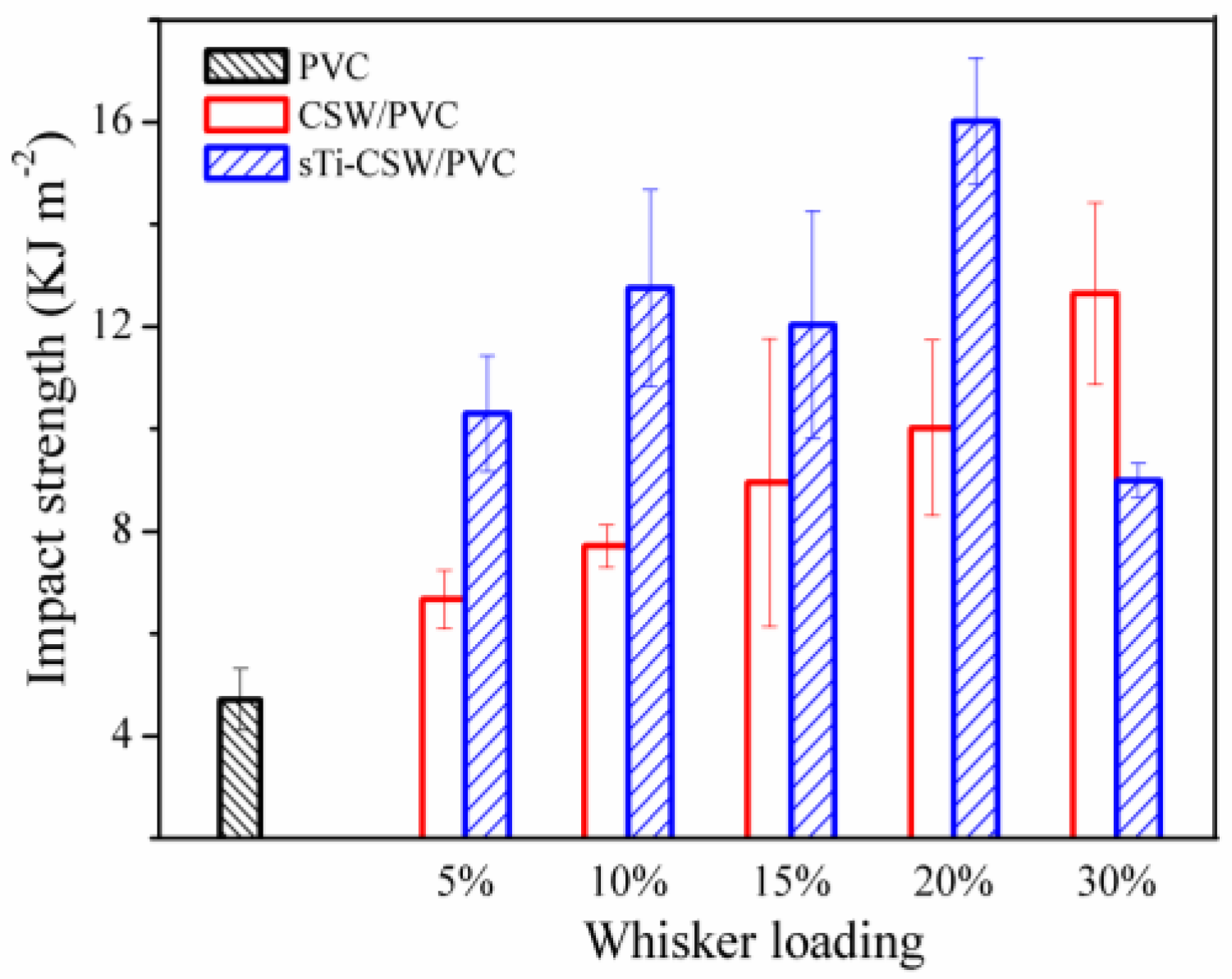

Figure 5. Impact strength of CSW/PVC and sTi–CSW/PVC composites with various filler contents.
Figure 5. Impact strength of CSW/PVC and sTi–CSW/PVC composites with various filler contents.
Materials 09 00625 g005
Materials 09 00625 g006 1024
Figure 6. SEM images of the tensile fracture surfaces of CSW/PVC with (a1) 5 wt. %; (b1) 10 wt. % and (c1) 30 wt. % whisker (Thanks for the permission from J. Mater. Sci. Technol.); and sTi–CSW/PVC with (a2) 5 wt. %; (b2) 10 wt. % and (c2) 30 wt. % whisker.
Figure 6. SEM images of the tensile fracture surfaces of CSW/PVC with (a1) 5 wt. %; (b1) 10 wt. % and (c1) 30 wt. % whisker (Thanks for the permission from J. Mater. Sci. Technol.); and sTi–CSW/PVC with (a2) 5 wt. %; (b2) 10 wt. % and (c2) 30 wt. % whisker.
Materials 09 00625 g006
Materials 09 00625 g007 1024

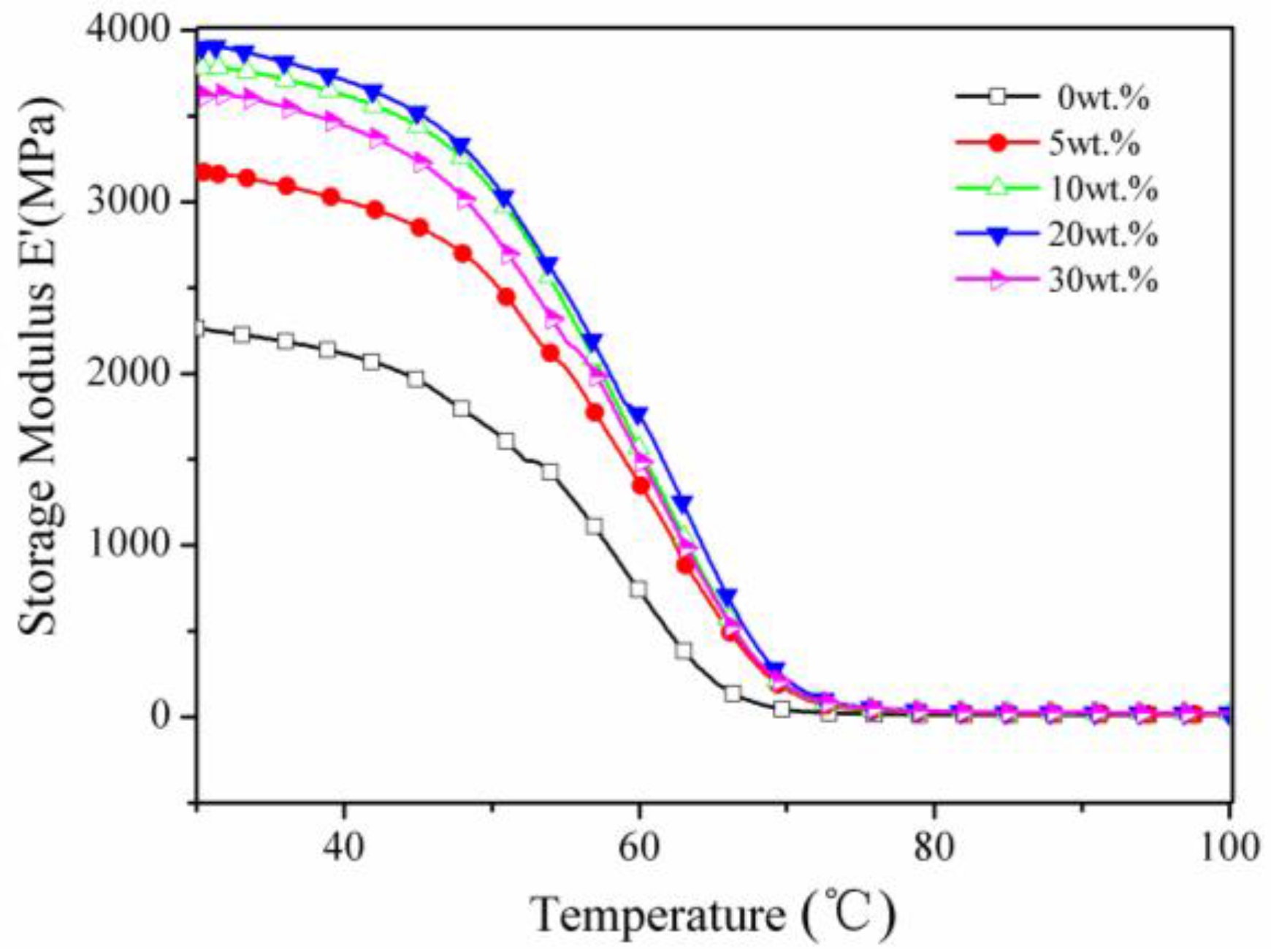

Figure 7. Storage modulus as a function of temperature for sTi–CSW/PVC composites with different whisker contents.
Figure 7. Storage modulus as a function of temperature for sTi–CSW/PVC composites with different whisker contents.
Materials 09 00625 g007
Materials 09 00625 g008 1024

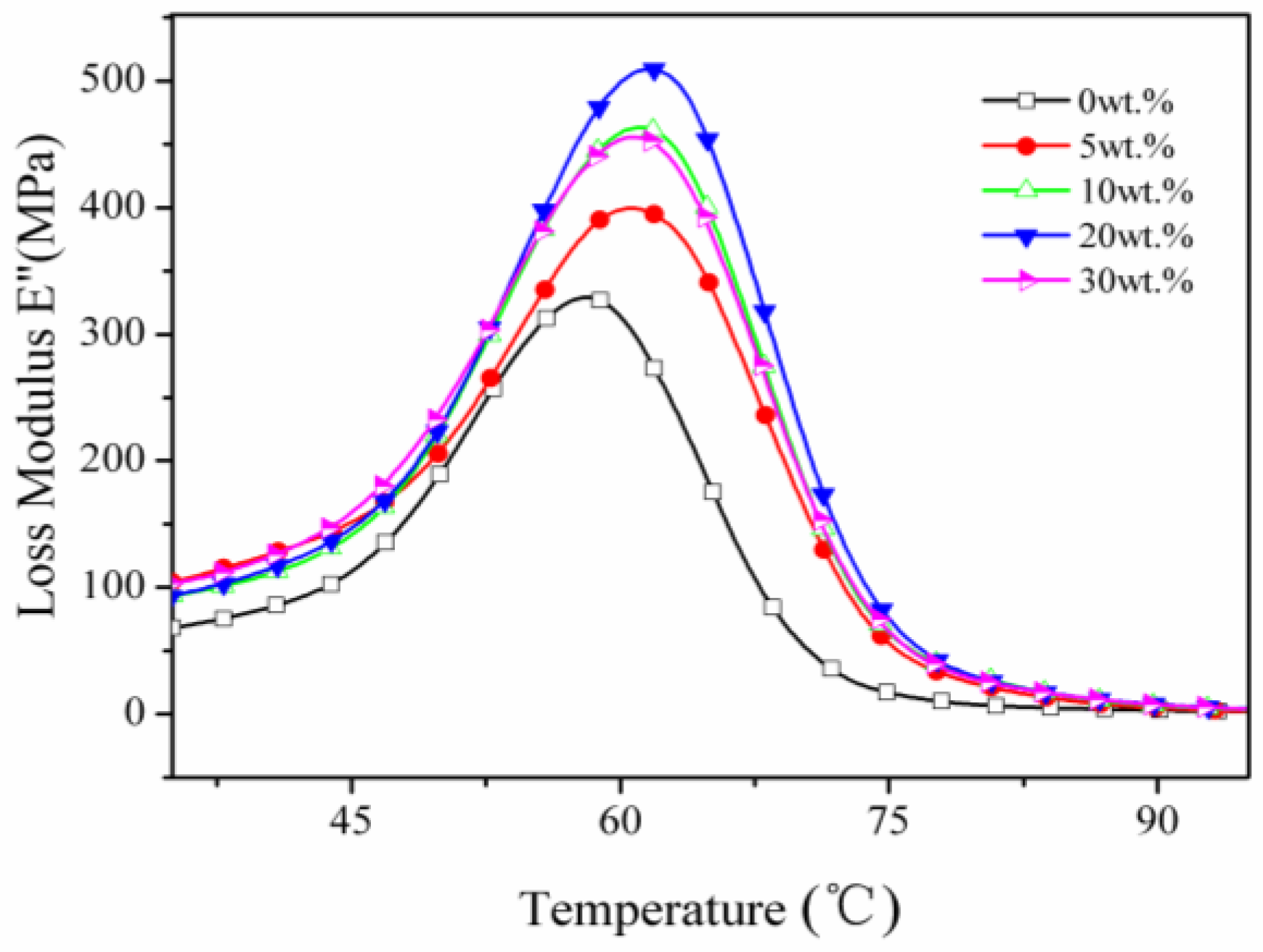

Figure 8. Loss modulus as a function of temperature for sTi–CSW/PVC composites with different whisker contents.
Figure 8. Loss modulus as a function of temperature for sTi–CSW/PVC composites with different whisker contents.
Materials 09 00625 g008
Materials 09 00625 g009 1024
Figure 9. Tanδ as a function of temperature for sTi–CSW/PVC composites with different whisker contents.
Figure 9. Tanδ as a function of temperature for sTi–CSW/PVC composites with different whisker contents.
Materials 09 00625 g009
Materials 09 00625 g010 1024

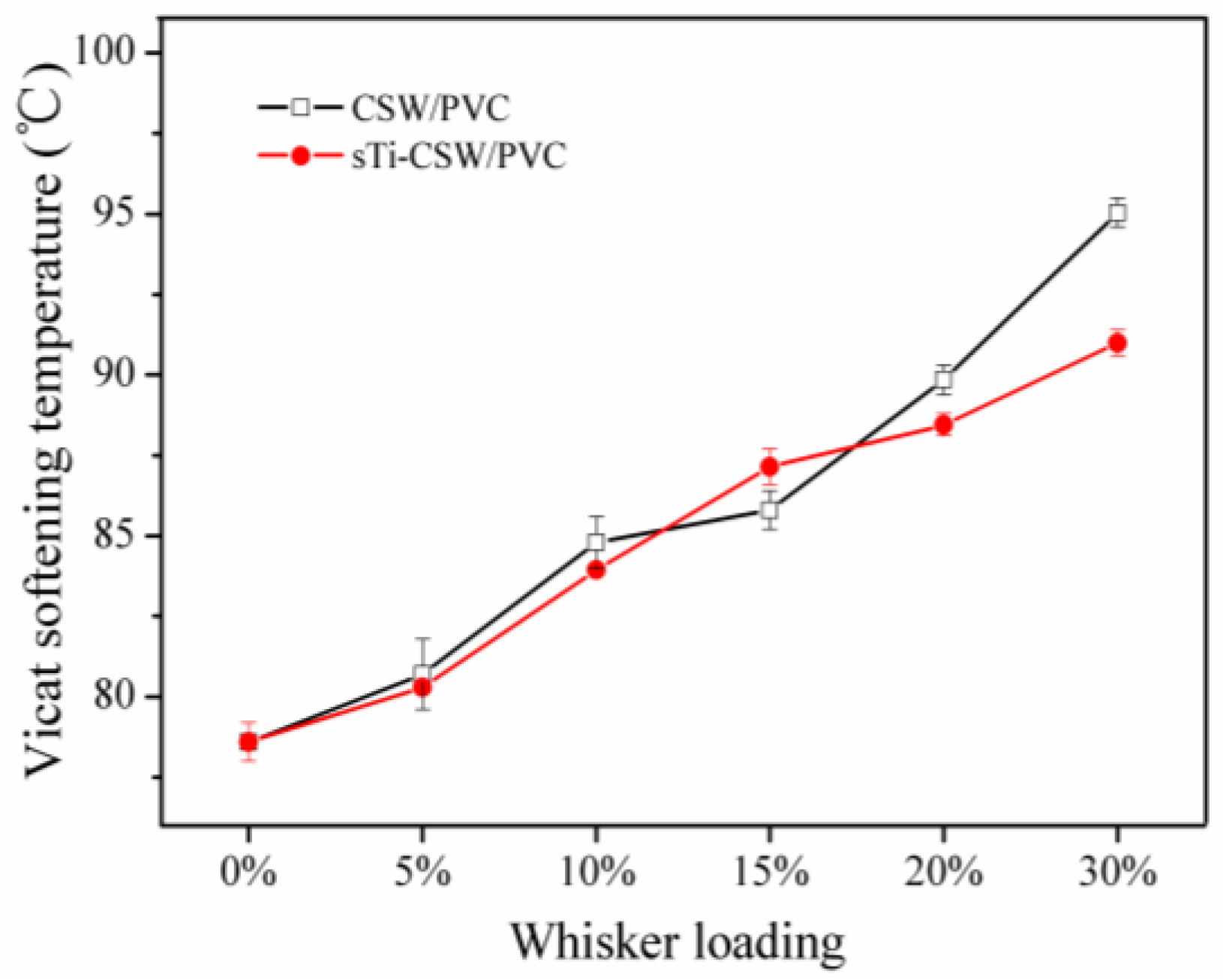

Figure 10. Vicat softening temperature (VST) for CSW/PVC and sTi–CSW/PVC composites with various filler contents.
Figure 10. Vicat softening temperature (VST) for CSW/PVC and sTi–CSW/PVC composites with various filler contents.
Materials 09 00625 g010
Materials 09 00625 g011 1024

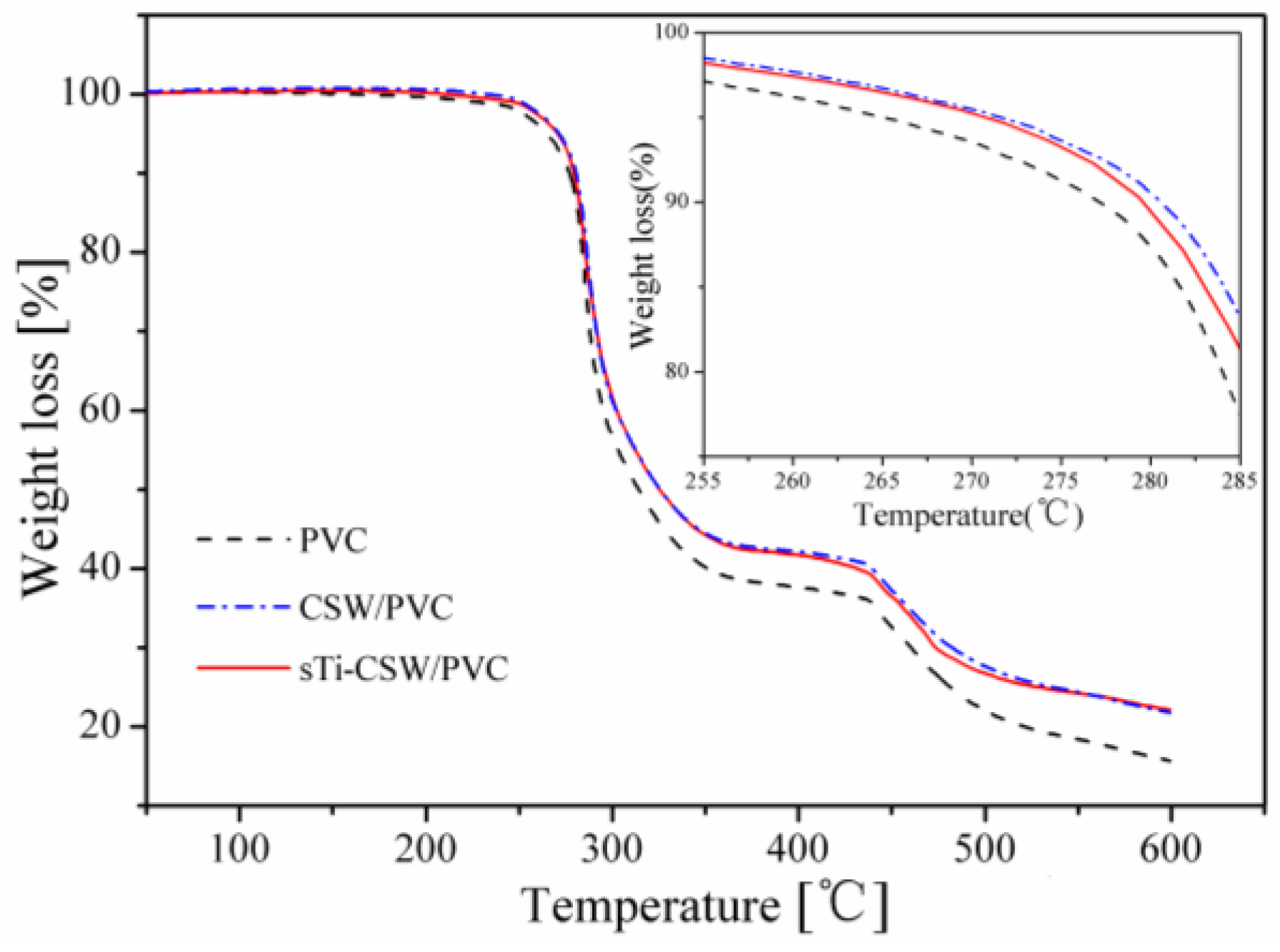

Figure 11. Thermogravimetric analysis (TGA) curves of PVC and its composites.
Figure 11. Thermogravimetric analysis (TGA) curves of PVC and its composites.
Materials 09 00625 g011
Materials 09 00625 g012 1024

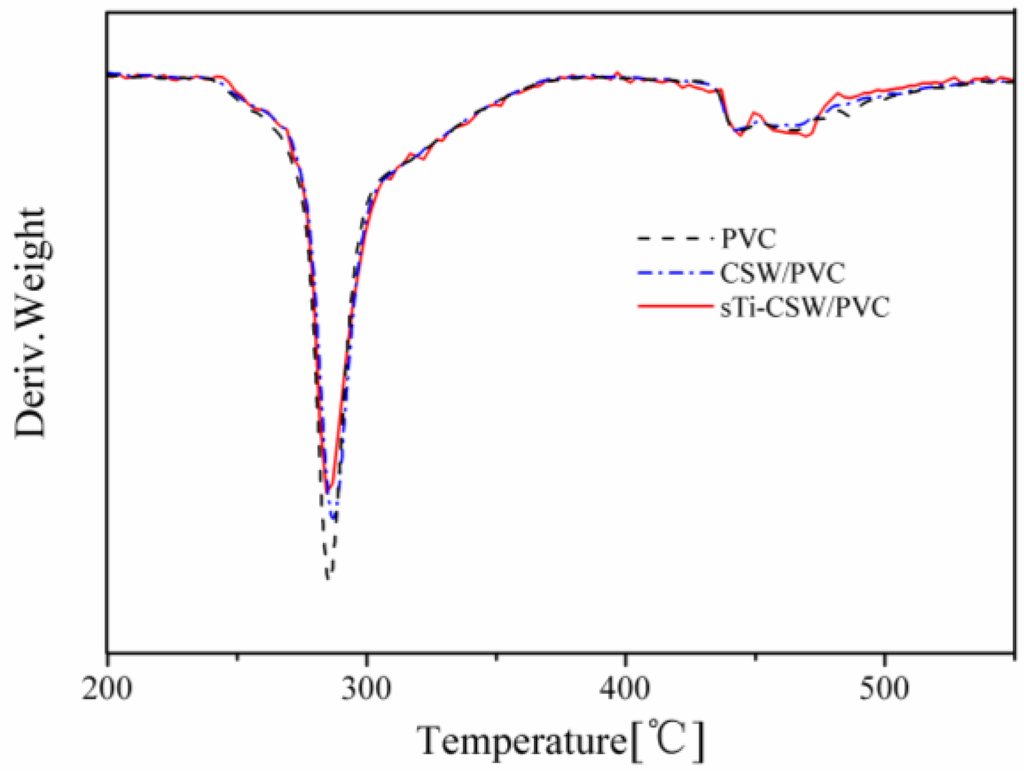

Figure 12. Differential thermogravimetry (DTG) curves of PVC and its composites.
Figure 12. Differential thermogravimetry (DTG) curves of PVC and its composites.
Materials 09 00625 g012
Table
Table 1. The storage modulus (MPa) of CSW/PVC and sTi–CSW/PVC composites at 30 °C.
Table 1. The storage modulus (MPa) of CSW/PVC and sTi–CSW/PVC composites at 30 °C.
Whisker Content (%)05102030
CSW/PVC22632760287129293540
sTi–CSW/PVC22633172378039003616
Table
Table 2. Glass transition temperature (°C) of CSW/PVC and sTi–CSW/PVC composites.
Table 2. Glass transition temperature (°C) of CSW/PVC and sTi–CSW/PVC composites.
Whisker Content (%)05102030
CSW/PVC70.370.473.074.374.4
sTi–CSW/PVC70.373.874.473.872.9
Table
Table 3. Degradation temperatures of PVC and its composites obtained from the TGA and DTG curves.
Table 3. Degradation temperatures of PVC and its composites obtained from the TGA and DTG curves.
SampleTemperature (°C)
TonsetTrpdT50
Pristine PVC276285314
CSW/PVC277286325
sTi–CSW/PVC277285325
The content of CSW in all composites is 5 wt. %.

Share and Cite

MDPI and ACS Style

Yuan, W.; Lu, Y.; Xu, S. Synthesis of a New Titanate Coupling Agent for the Modification of Calcium Sulfate Whisker in Poly(Vinyl Chloride) Composite. Materials 2016, 9, 625. https://doi.org/10.3390/ma9080625

AMA Style

Yuan W, Lu Y, Xu S. Synthesis of a New Titanate Coupling Agent for the Modification of Calcium Sulfate Whisker in Poly(Vinyl Chloride) Composite. Materials. 2016; 9(8):625. https://doi.org/10.3390/ma9080625

Chicago/Turabian Style

Yuan, Wenjin, Yunhua Lu, and Shiai Xu. 2016. "Synthesis of a New Titanate Coupling Agent for the Modification of Calcium Sulfate Whisker in Poly(Vinyl Chloride) Composite" Materials 9, no. 8: 625. https://doi.org/10.3390/ma9080625

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
