CCR5 as a Natural and Modulated Target for Inhibition of HIV

by
Bryan P. Burke
1,
Maureen P. Boyd
1,
Helen Impey
1,
Louis R. Breton
1,
Jeffrey S. Bartlett
1,
Geoff P. Symonds
1,* and
Gero Hütter
2,3
1
Calimmune, Inc., Los Angeles, California, CA 90024, USA
2
Institute of Transfusion Medicine and Immunology, Medical Faculty Mannheim, Heidelberg University, German Red Cross Blood Service Baden-Württemberg-Hessen, 68167 Mannheim, Germany
3
Cellex GmbH, 01307 Dresden, Germany
*
Author to whom correspondence should be addressed.
Viruses 2014, 6(1), 54-68; https://doi.org/10.3390/v6010054
Submission received: 2 September 2013 / Revised: 2 December 2013 / Accepted: 11 December 2013 / Published: 30 December 2013
(This article belongs to the Special Issue Gene Therapy for Retroviral Infections)
Browse Figures
Versions Notes

Abstract

:
Human immunodeficiency virus type 1 (HIV-1) infection of target cells requires CD4 and a co-receptor, predominantly the chemokine receptor CCR5. CCR5-delta32 homozygosity results in a truncated protein providing natural protection against HIV infection—this without detrimental effects to the host—and transplantation of CCR5-delta32 stem cells in a patient with HIV (“Berlin patient”) achieved viral eradication. As a more feasible approach gene-modification strategies are being developed to engineer cellular resistance to HIV using autologous cells. We have developed a dual therapeutic anti-HIV lentiviral vector (LVsh5/C46) that down-regulates CCR5 and inhibits HIV-1 fusion via cell surface expression of the gp41-derived peptide, C46. This construct, effective against multiple strains of both R5- and X4-tropic HIV-1, is being tested in Phase I/II trials by engineering HIV-resistant hematopoietic cells.

1. CCR5 and the CCR5-Delta32 Deletion

The entry of human immunodeficiency virus type 1 (HIV-1) into target cells requires both CD4 and a co-receptor, predominantly the chemokine receptor CCR5. A 32 base pair deletion in the CCR5 gene results in a truncated protein that is insufficient for HIV entry. CCR5-delta32 homozygosity provides natural protection against HIV infection without detrimental effects to the host, further commented on below [1].

2. A First Case of a “Natural” Gene Therapy

In 2009, Hütter and colleagues described successful hematopoietic stem cell transplantation (SCT) in an HIV-1 infected patient by transferring CCR5-delta32 donor derived cells that harbor a natural resistance against HIV infection. These hematopoietic stem cells engrafted, proliferated and differentiated into mature myeloid and lymphoid cells. At present the patient is more than five years post allogeneic transplantation without the requirement of any antiretroviral treatment. Analyzing peripheral blood cells and different tissue samples including gut, liver, and brain, no viral RNA load or proviral DNA could be detected [2,3].

3. Benefits and Risks of Transplanting CCR5 Deficient Stem Cells

Recipients of organ allografts homozygous for CCR5-delta32 show longer survival of transplant function than those with other genotypes. This has been shown for renal and liver transplants suggesting that patients with CCR5-delta32 might be candidates for a reduced immunosuppressive therapy [4,5]. Consequently, interaction and blockade of the CCR5 receptor may also reduce alloantigen-specific T lymphocyte proliferation, and may be effective in preventing acute and chronic rejection of the allograft [6]. Furthermore, the presence of the CCR5-delta32 allele represents a protective factor in terms of the risk of developing graft-versus-host disease (GvHD) after allogeneic SCT [7]. Taken together, the presence of the CCR5-delta32 allele in recipients of allografts constitutes an independent and protective factor associated with a decreased risk of GvHD and graft rejection. However, the mechanism of this beneficial effect of the deletion regarding GvHD is not known.
In the past there was much speculation about the association of the CCR5-delta32 genotype and other diseases with chronic autoimmune inflammation. The results of these retrospective studies are controversial. No association or beneficial effect was observed in diabetes mellitus type 1, asthma, rheumatoid arthritis, and Behcet’s disease [8,9,10,11]. There have been reports of individuals with the CCR5-delta32 homozygous genotype being associated with an increased risk of symptomatic West Nile virus infection [12].
Thus overall, there is no evidence that the CCR5-delta32 genotype is associated with significant negative co-morbidities or risks in terms of transplantation, and the presence of the CCR5-delta32 genotype should not have negative implications for the recipient of a CCR5 targeted therapy.

4. Challenges in Repeating the “Berlin Patient”

4.1. HLA Matched Related or Unrelated Donors

Over 16,000,000 people are already registered worldwide as stem cell donors. Based on a 10/10 allele HLA-match, the probability in finding a matching donor is over 80%, and there is commonly more than 1 donor and sometimes more than 100 donors available for each patient. According to the frequency of around 1% homozygous CCR5-delta32 Caucasians, there is a small but reasonable chance to find both an HLA-identical donor without CCR5 surface expression.
The major limitations are that donors are not generally tested for CCR5 genotype, and there is commonly not enough time to complete the screening process. Therefore, Hütter’s group organized a workshop in 2009 bringing together leading European stem cell registries for a discussion of the possibilities and limitations of a CCR5-based donor screening. The meeting came to the agreement to support further attempts to use CCR5-delta32 deleted stem cells in appropriate candidates. However, none of these registries initiated a program of pre-emptive CCR5 genotyping [13].
With a grant from the Bill & Melinda Gates foundation, Hütter’s group was able to carry on 18 additional donor searches requesting units for transplantation (Table 1).
Table
Table 1. Summary of 18 patient/donor screening series searching for a CCR5-delta32 homozygote stem cell donor.
Table 1. Summary of 18 patient/donor screening series searching for a CCR5-delta32 homozygote stem cell donor.
Start of ScreeningGenderAgeDiagnosisLocationRegistered DonorsCCR5 Results
WT/HG/HC		Status
03/09maleadultNHLFreiburg, Germany>1NDdied before Tx
03/09female3DBAHeidelberg, Germany120103/17/1 astopped
07/09maleadultMDSLausanne, Switzerland11/-/-Tx with WT
11/09male29NHLMainz, Germany11/-/-Tx with WT
12/09male15AMLJerusalem, Israel6ND/ND/3 aTx with untested, died after Tx
01/10male50CMMLBerlin, Germany6025/5/0Tx with WT
03/11male59NABerlin, Germany1 b1/-/-NA
05/11maleadultNHLMannheim, GermanyNDNDTx cancelled
06/11male14KSDublin, IrelandNDNDstopped
08/11male42AMLHamburg, Germany11/-/-Tx with wt
01/11male48MDSFrankfurt, Germany3cNDstopped
01/11female70AMLFrankfurt, GermanyNDNDdied before Tx
06/12male61CMMLFrankfurt, Germany2NDTx chancelled
05/12maleadultAMLMünster, Germany307/2/1died before Tx
08/12maleadultAMLHamburg, Germany>104/4/0lost to follow up
02/13maleadultAMLCagliari, Italy3 b3/0/0pending
03/13female40NHLBasel, Switzerland3524/1/1pending
03/13male51NHLMünster, Germany>3038/3/1 cpending
AML = acute myeloblastic leukemia; CMML = chronic myelomoncytic leukemia; DBA = Diamond-Blackfan anemia; HC = homozygotes; HG = heterozygotes; KS = Kaposi’s sarcoma; MDS = myelodysplastic syndrome; ND = not done; NHL = non Hodgkin’s lymphoma; Tx = transplantation; WT = wild type; a cord blood unit with 3/6 HLA-match; b matched related donor; c HLA mismatch.
Unfortunately, in none of these cases could a CCR5-negative stem cell unit be administered. In three cases the search found at least 1 unit with the CCR5-delta32 homozygous genotype; however, one patient died prior to initiation of the transplantation procedure, the decision for transplantation is pending for the second case, and the CCR5 negative unit had a HLA mismatch for the third patient.
Furthermore, Hutter’s group initiated a CCR5 genotype pre-screen program for the “German Red Cross Donor Registry” of Mannheim, Germany, which currently has tested approximately 8,000 of 40,000 adult unrelated stem cell donors. Together with the cord blood bank of Stemcyte, Covina, CA, USA (>25,000 units) and the M.D. Anderson CB Bank, Houston, TX, USA (>10,000 units), these repositories represent the largest potential source of CCR5 negative stem cells for transplantation.

4.2. Cord Blood: An Alternative Stem Cell Source

As an alternative to HLA matched related or unrelated donors, cord blood units are an interesting stem cell source. Since 2001 R. Chow (founder of StemCyte Inc.) and L. Petz built up a database with more than 25,000 cord blood units genotyped for the CCR5-delta32 deletion, and over 300 of these UCB units have already been identified as being CCR5 negative. This would be sufficient to provide a 4/6 HLA matched unit with a 73.6% probability to Caucasian paediatric patients, and 27.9% for Caucasian adults in the case that a minimal cell dose of ≥2.5 × 107 total nucleated cell count (TNC)/kg is accepted [14].
However, since Stemcyte started the CCR5 testing in 2001, there were no CCR5-delta 32 homozygous UCB units administered up to 2011. The reason is probably due to the good access of perfectly matched stem cells from adult donors. Some countries, like Germany, do not use UCB in significant amounts. Some transplant centers are anxious that a delayed engraftment of UCB and the consequent higher risk of opportunistic infections during aplasia would narrow the success of the transplant procedure.
To overcome these limitations, strategies to increase the probability of administration of UCB are required. One option could be the so called “dual transplant” method consisting of the co-infusion of one UCB unit with a relatively low number of highly T-depleted mobilized CD34+ cells from an adult third party donor, after myeloablative conditioning regimen [15].
This approach has several advantages:
  • High accessibility of a haploidentical donor that bridges the time until the CCR5-negative UCB engrafts.
  • Increased probability of finding matching UCB due to the reduction of the required CD34+ cell dose. Lowering the required cell dose from 2.5 to 1.0 × 107 TNC/kg will increase the probability from 27.9% to 82.1%.
  • Reduced time of aplasia due to the haploidentical proportion of the transplant.
  • Finally, after engraftment, the UCB unit will take over the myeloid function while the haploidentical part disappears after a period of time resulting in a 100% chimerism of CCR5 depleted and HIV resistant peripheral blood cells.
Competition between grafts of various sources is commonly observed after double UCB transplantation and a similar competition phenomenon occurs after combined haploidentical/UCB transplantation. Immunologic mechanisms likely play a role in the UCB cord blood dominance and in this regard the T-cell depletion of the haplograft may be important but probably not essential [16]. This approach has already been performed in some selected patients (publication of first results is in progress) [17,18]. Unfortunately, one of these patients died due to relapse of the malignancy 2½ months after the transplantation procedure [19]. Due to the difficulties in finding a second candidate for SCT from an adult unrelated donor, the meeting suggested the initiation of a program to promote the idea of combined haploidentical/CCR5-negative UCB based on the experiences of the University of Utrecht, the Netherlands [20].

5. Limitations of the CCR5-Delta32 Approach

During transmission of HIV, CCR5 is the preferred co-receptor for cell entry. However, during the time course of HIV infection, the virus is able to change its tropism to other chemokine co-receptors, such as CXCR4, and the role of CCR5 in maintaining HIV infection is still unclear. The “Berlin patient” harbored a CXCR4 tropic variant before transplantation that did not emerge after discontinuation of antiretroviral therapy, a phenomenon that cannot yet be explained [20,21].
Secondly, there is a broad discussion about sterilizing cure in the “Berlin patient”. However, current investigations and several attempts with different techniques from tissues, cerebral fluid, and blood have led to contradicting results. However, the patient is well, more than 5 years off antiretroviral medication, without HIV related symptoms, without viral replication showing a perfect clinical remission of the infection [22].
Most recently, the report of a long-term control of HIV replication in two patients receiving an allogeneic SCT with a CCR5 wild type allo-graft (“Boston Patients”) has instigated new questions. After SCT these patients showed a profound reduction of the viral reservoir, declining HIV antibody levels, and ongoing engraftment during the follow-up period of several years similar to the “Berlin Patient” [23]. Finally, in 2013 antiretroviral medication was discontinued and none of the patients developed a rebound [24]. Transplantation has led to a replacement of the original immune system, antiretroviral therapy had protected the new engrafting cells from re-infection, and it is likely that GvHD has cleared residual viral reservoirs in the host. In conclusion, this could mean that CCR5 withdrawal in an allogeneic stem cell setting is not mandatory for a successful viral eradication. However, the exact mechanism and role of antiretroviral therapy, chemotherapy, and GvHD in this outcome will need to be determined.

6. Modulation of CCR5 Expression

Modulation of CCR5 expression in autologous cells is actively being pursued by multiple research teams to develop alternative therapies for treatment of HIV-1 infection with the potential of long-term therapeutic benefit. Gene therapeutic approaches targeting the disruption of CCR5 expression have been developed using ribozymes, intrabodies, and RNA interference that inhibit cell surface CCR5 expression; more recently, nucleases have been shown effective at disrupting the CCR5 gene (an approach undertaken by Sangamo) [25]. In general an approach targeting viral entry is preferred. We are currently testing a strategy that would protect the immune system and potentially allow patients to come off their life-time of drugs while mitigating the risks associated with the allo-SCT used in both the “Berlin patient” and “Boston patients”. Importantly, this approach is not only amenable to HIV-1 infected patients with malignancy, but to any HIV-1 infected individual due to the use of autologous cells. In this approach, a lentiviral vector is used to introduce a gene encoding a short hairpin RNA (shRNA) against CCR5 into an individual’s autologous hematopoietic stem/progenitor cells (HSPC) to protect those cells and their progeny from HIV. This shRNA, termed sh1005 (sh5), was identified by screening a library of more than one thousand candidate shRNAs targeting CCR5 [26]. Once expressed within the cell, the shRNA is processed by cellular machinery into a small interfering RNA (siRNA) for stable inhibition of CCR5 through a mechanism known as RNA interference (RNAi). RNAi has recently emerged as a powerful therapeutic approach towards a number of human diseases. Qin et al., first described in vitro success constructing a lentivirus-based vector to introduce sh5 into human peripheral blood T lymphocytes, and later demonstrated stable expression of sh5 in non-human primates following transplantation of ex vivo modified CD34+ HSPC [27,28]. 14 months after transplant, they were able to detect lymphocytes expressing sh5 and consistent down-regulation of the CCR5 receptor. Ex vivo studies showed that the gene-modified cells were less susceptible to Simian Immunodeficiency Virus (SIV) infection. Later, Liang et al., reported over 90% reduction in CCR5 mRNA levels and resistance to R5 tropic HIV-1 in macrophages differentiated in vitro from fetal liver-derived CD34+ HSPC transduced with a lentiviral vector encoding sh5 [29].
In vivo evaluation in a humanized bone marrow/liver/thymus (BLT) mouse model by Shimizu et al., demonstrated stable knockdown of human CCR5 by sh5 [30]. When introduced into human fetal liver-derived CD34+ HSPC by lentiviral vector transduction and transplanted into irradiated BLT mice, sh5 mediated CCR5 knockdown had no apparent adverse effects on T-cell development and suggested the potential for long-term hematopoietic reconstitution.
We have since continued pre-clinical development of sh5 within the context of a lentiviral vector and confirmed both efficacy and lack of toxicity.

7. Addition of a Second Inhibitory Element

It is well accepted that highly active antiretroviral therapy uses 2–3 drugs to effectively suppress HIV replication and mitigate the development of resistance. For this reason we have introduced a second element into its anti-HIV lentiviral vector construct. This second element is an HIV fusion inhibitor, which inhibits HIV-1 fusion via cell surface expression of a gp41-derived peptide. This peptide, known as C46, is comprised of 46 amino acids, 36 of them corresponding to the fusion-inhibitory peptide C36 (T-20/Enfuvirtide) [31]. It is expressed as a fusion protein with an N-terminal signal peptide, which targets the peptide through the endoplasmic reticulum to the cell surface and a C-terminal linker followed by a membrane-spanning domain. This moiety was originally developed by Dorothee von Laer’s group in Austria, which has generated strong pre-clinical data in tissue culture and in animal models indicating that C46 is very efficient at inhibiting HIV replication and its pathogenic effects [31,32]. In a Phase I clinical trial, 10 advanced HIV+ subjects received T lymphocytes transduced with a retroviral vector that encoded C46 [33]. This treatment was shown to be safe with ongoing detection of gene-marked cells in the peripheral blood, lymph nodes and bone marrow throughout a 1 year follow up period. Recently, the gene encoding C46 was also used to modify CD34+ HSPC in a non-human primate model and could mediate effective protection effect against Simian-Human Immunodeficiency Virus (SHIV) challenge [34].
Our team has incorporated both the gene encoding the CCR5-specific shRNA (sh5) and the gene encoding C46 into a dual therapeutic lentiviral construct termed LVsh5/C46 (Figure 1).
Viruses 06 00054 g001 1024

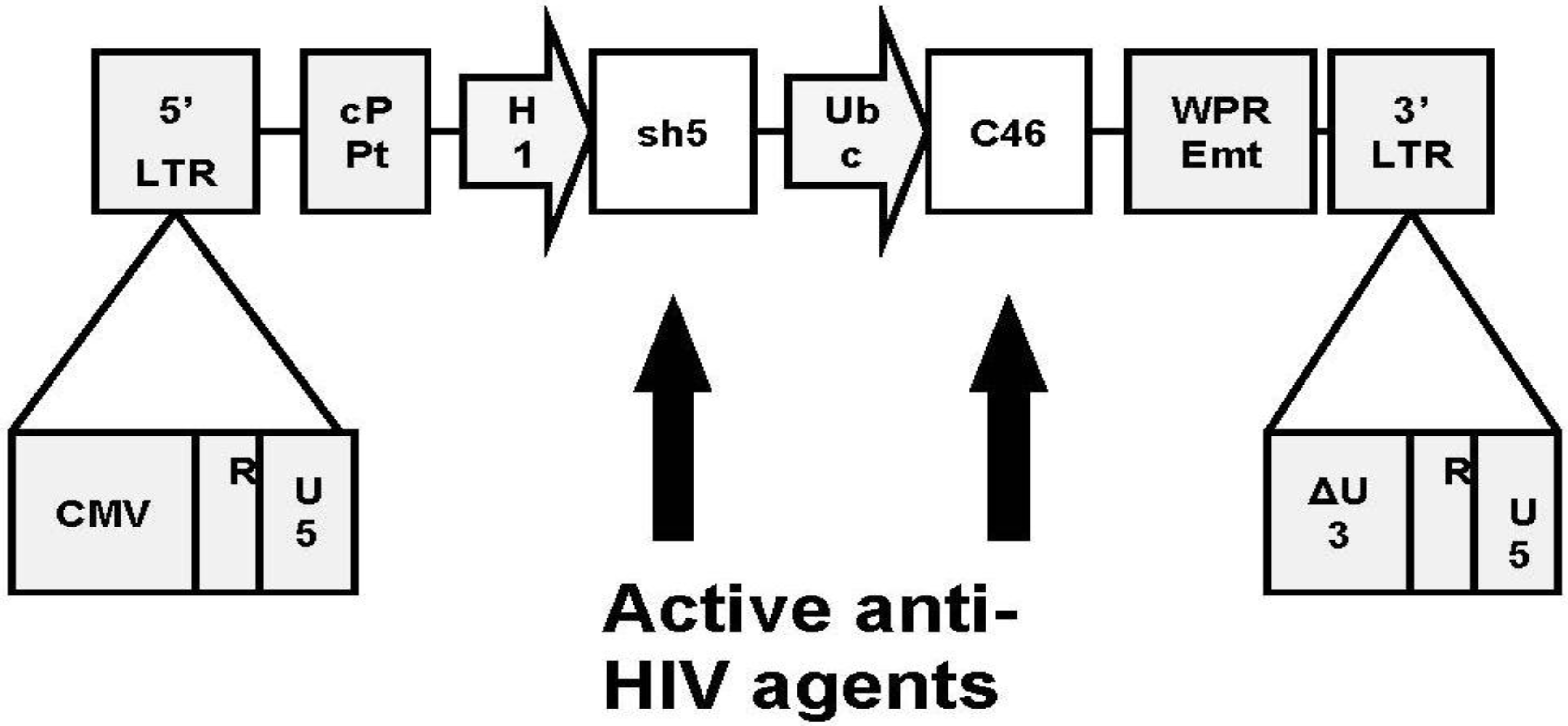

Figure 1. Lentiviral construct LVsh5/C46. LVsh5/C46 is a self-inactivating (SIN) lentiviral vector that lacks all viral coding sequences (gag, pol, and env genes deleted) which may give rise to the formation of replication-competent retrovirus or immunogenic peptides and is also devoid of all retroviral enhancer-promoter sequences that are known to be involved in insertional mutagenesis by related gammaretroviral-derived vectors. The internal promoters were chosen from human genes that show expression in hematopoietic stem/progenitor cells as well as T lymphocytes and macrophages, as required for anti-HIV therapy. Promoters were also chosen to direct appropriate levels of gene expression so as not to interfere with endogenous cellular processes. 5' LTR (long terminal repeat), derived from HIV-1 with the U3 region replaced with the cytomegalovirus (CMV) promoter/enhancer; 3' LTR, derived from HIV-1 with a 133bp deletion in the U3 region; cPPT, central polypurine tract; H1, human H1 RNA promoter; Ubc, human ubiquitin promoter; WPREmt, mutant woodchuck hepatitis virus post-transcriptional response element.
Figure 1. Lentiviral construct LVsh5/C46. LVsh5/C46 is a self-inactivating (SIN) lentiviral vector that lacks all viral coding sequences (gag, pol, and env genes deleted) which may give rise to the formation of replication-competent retrovirus or immunogenic peptides and is also devoid of all retroviral enhancer-promoter sequences that are known to be involved in insertional mutagenesis by related gammaretroviral-derived vectors. The internal promoters were chosen from human genes that show expression in hematopoietic stem/progenitor cells as well as T lymphocytes and macrophages, as required for anti-HIV therapy. Promoters were also chosen to direct appropriate levels of gene expression so as not to interfere with endogenous cellular processes. 5' LTR (long terminal repeat), derived from HIV-1 with the U3 region replaced with the cytomegalovirus (CMV) promoter/enhancer; 3' LTR, derived from HIV-1 with a 133bp deletion in the U3 region; cPPT, central polypurine tract; H1, human H1 RNA promoter; Ubc, human ubiquitin promoter; WPREmt, mutant woodchuck hepatitis virus post-transcriptional response element.
Viruses 06 00054 g001
The combined approach of sh5-mediated down-regulation of CCR5 and C46-mediated inhibition of fusion, appears to be significantly more effective at engineering cellular resistance to HIV than approaches utilizing single agents. The LVsh5/C46 construct has undergone extensive pre-clinical testing for characterization of safety, feasibility, and efficacy within cell culture and animal models, including a series of GLP pharmacology and toxicology studies using humanized mice and a non-human primate model needed for regulatory review. LVsh5/C46 is capable of mediating the expression of C46 and knockdown of CCR5 within target cells (Figure 2).
Viruses 06 00054 g002 1024

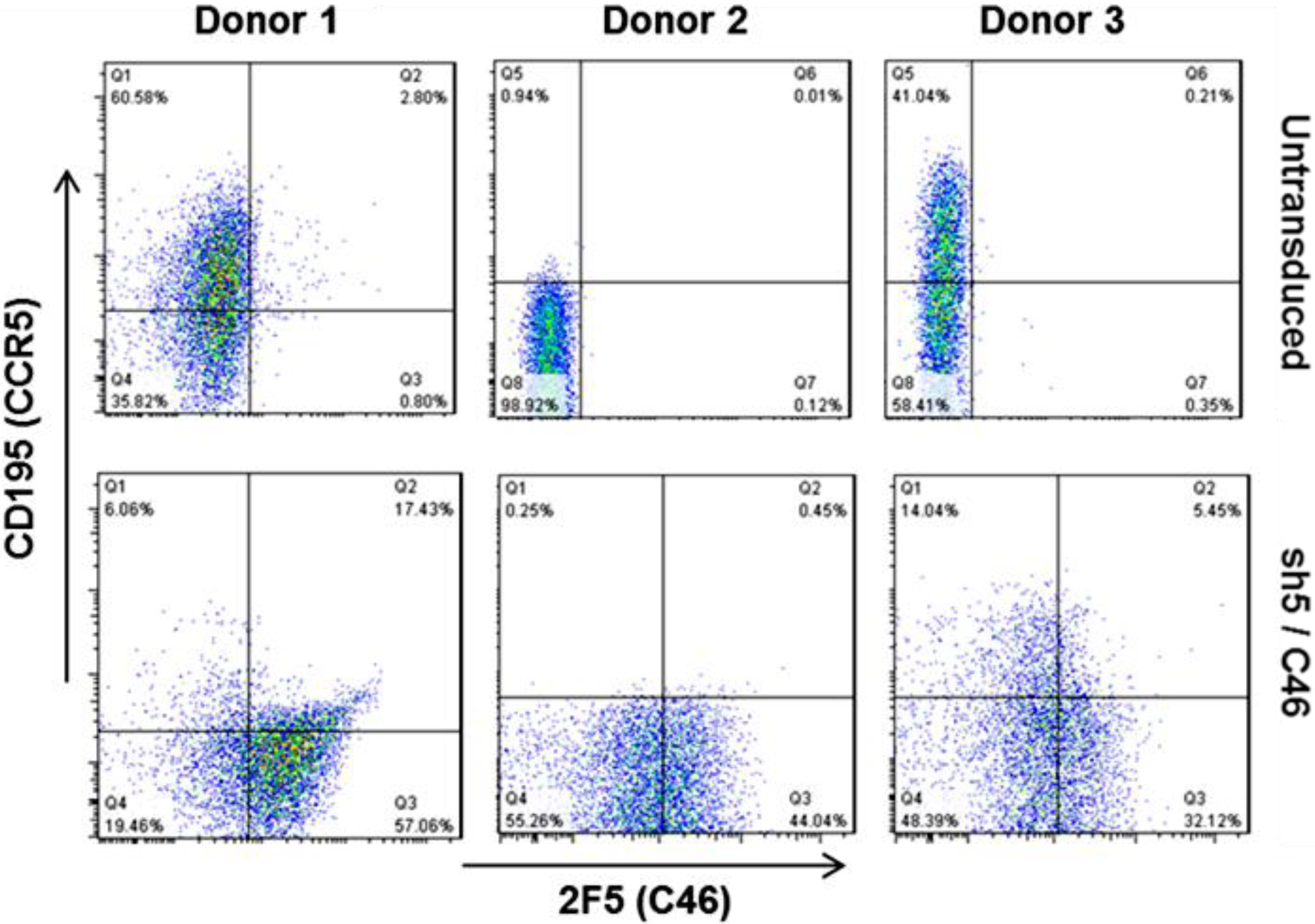

Figure 2. LVsh5/C46 introduction into target cells and simultaneous expression of C46 and knockdown of CCR5. Peripheral blood mononuclear cells (PBMC) were transduced with LVsh5/C46 (lower panel), or left untransduced (upper panel). C46 was detected by 2F5 monoclonal antibody, and CCR5 was detected by staining with anti-CD195 (CCR5) antibody. Cells from 3 independent donors are shown. Donor 2 was homozygous for CCR5-delta32 genotype and expresses no CCR5.
Figure 2. LVsh5/C46 introduction into target cells and simultaneous expression of C46 and knockdown of CCR5. Peripheral blood mononuclear cells (PBMC) were transduced with LVsh5/C46 (lower panel), or left untransduced (upper panel). C46 was detected by 2F5 monoclonal antibody, and CCR5 was detected by staining with anti-CD195 (CCR5) antibody. Cells from 3 independent donors are shown. Donor 2 was homozygous for CCR5-delta32 genotype and expresses no CCR5.
Viruses 06 00054 g002
LVsh5/C46 lentiviral vector and LVsh5/C46 transduced CD34+ HSPC and CD4+ T-cells have strong safety profiles supported by in vitro and in vivo analysis including integration site analysis, inability to generate replication competent lentivirus (RCL), genomic stability, and maintenance of hematopoietic engraftment and multi-lineage differentiation of gene modified HSPC. Through all in vitro, ex vivo and in vivo studies, LVsh5/C46 has displayed a profound ability to confer cellular resistance to HIV infection.

8. Clinical Trial Design

Calimmune is conducting a Phase I/II clinical trial (CAL-USA-11) using LVsh5/C46 administered ex vivo using autologous CD4+ T lymphocytes and CD34+ HSPC in HIV-1 infected patients without malignancy. These cells are collected by separate apheresis procedures; one to collect CD4+ T lymphocytes and the other to collect CD34+ HSPC after mobilization with G-CSF. The therapeutic DNA is then integrated into the chromosomal DNA of a percentage of the collected cells rendering them and their progeny competent to express sh5 and C46. The LVsh5/C46 transduced CD4+ T lymphocytes (Ttn) and LVsh5/C46 transduced CD34+ HSPC (HSPCtn) are then transplanted back to the patient where they have the potential to control HIV infection and stop disease progression (Figure 3).
Viruses 06 00054 g003 1024

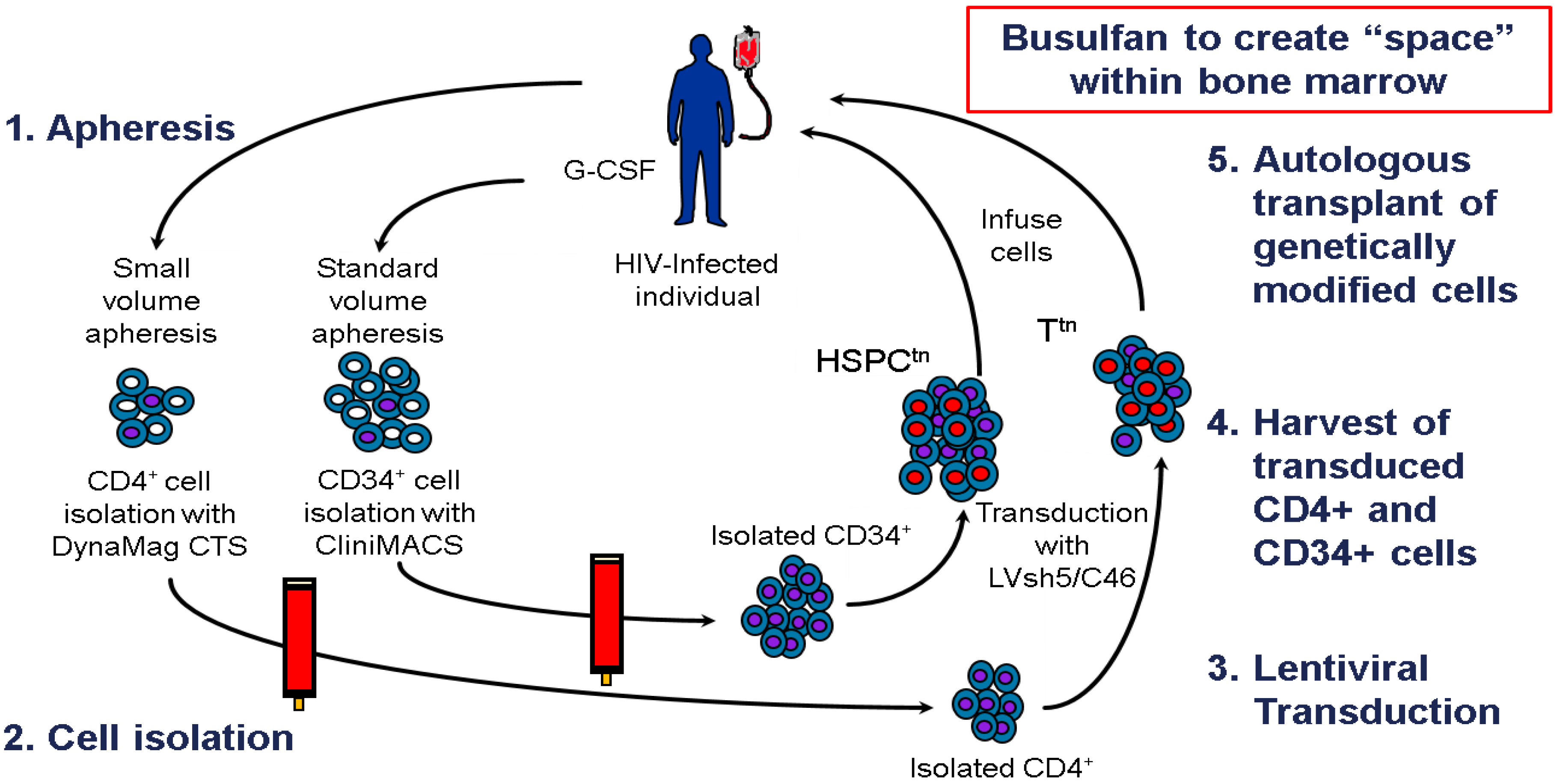

Figure 3. Schematic of the process for engineering protection from HIV-1 into human recipients via LVsh5/C46 mediated modification of CD4+ T lymphocytes and CD34+ HSPC. 1. Apheresis, small or standard volume respectively, to obtain CD4+ T cells or CD34+ hematopoietic stem cells; 2. Cell isolation using CliniMACS and DynaMag CTS bead separation; 3. Lentiviral vector transduction with LVsh5/C46 in appropriate cytokines—CD3/CD28 bead stimulation and IL2 for T cells, stem cell factor, thrombopoietin and FLT-3 ligand for hematopoietic stem cells; 4. Harvest of transduced cells and freezing; 5. Following release testing, transplantation of genetically modified cells. Busulfan (4 mg/kg or 8 mg/kg) is administered pre cell infusion to make bone marrow space for introduced CD34+ HSPC.
Figure 3. Schematic of the process for engineering protection from HIV-1 into human recipients via LVsh5/C46 mediated modification of CD4+ T lymphocytes and CD34+ HSPC. 1. Apheresis, small or standard volume respectively, to obtain CD4+ T cells or CD34+ hematopoietic stem cells; 2. Cell isolation using CliniMACS and DynaMag CTS bead separation; 3. Lentiviral vector transduction with LVsh5/C46 in appropriate cytokines—CD3/CD28 bead stimulation and IL2 for T cells, stem cell factor, thrombopoietin and FLT-3 ligand for hematopoietic stem cells; 4. Harvest of transduced cells and freezing; 5. Following release testing, transplantation of genetically modified cells. Busulfan (4 mg/kg or 8 mg/kg) is administered pre cell infusion to make bone marrow space for introduced CD34+ HSPC.
Viruses 06 00054 g003
Because the progression of HIV/AIDS depletes CD4+ T cells, a target of gene therapy approaches to date has been mature T lymphocytes. T lymphocytes are relatively abundant and are easily collected from peripheral blood, they can be readily transduced and expanded ex vivo; they also have the potential to rapidly replenish the immune system with HIV-protected cells and provide an immediate effect on viral load and T cell counts. Since CD4+ memory and effector T lymphocytes can persist for several years and have the capability for self-renewal [35,36], these cells also have the potential to provide longer-term therapeutic benefit. Early clinical data in the field of gene therapy has shown that delivery of genetically modified CD4+ T lymphocytes is safe and that the modified cells can have a survival advantage and sustained engraftment out to 10 years in some instances [33,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50]. This strategy, however, cannot protect other susceptible hematopoietic cell types, such as macrophages and is less likely to affect latent HIV reservoirs.
An alternative approach has been the genetic modification of HSPC [51,52,53,54,55,56]. The advantage of using HSPC is their ability to self-renew and to differentiate into all hematopoietic cell types, endowing their progeny, CD4+ T lymphocytes, monocytes, macrophages, dendritic cells and microglia, the same genetic protection from HIV-1.
The combination of Ttn and HSPCtn, as being utilized by Calimmune, potentially provides the immediate benefit of large numbers of Ttn that will protect against HIV-1 during the immediate post-transplant engraftment and hematopoietic regeneration/differentiation period, with the long-term ability of the HSPCtn to differentiate into all hematopoietic lineages and endow their progeny with the same genetic protection from HIV-1.
Clinical experience to date in the field of gene therapy suggests the potential for clinical benefit from gene-modified HSPC can be facilitated by creating an environment that enhances the ability of these cells to engraft and differentiate [57]. The potential of induction protocols, consisting of a non-myeloablative pre-transplant conditioning agent, will also be evaluated in the Calimmune trial for recipients of LVsh5/C46 transduced HSPC (Figure 3). As such the goal of the trial will not only be to evaluate the safety and feasibility of using LVsh5/C46 transduced CD34+ HSPC and CD4+ T lymphocytes, but will also look at the use of busulfan as a non-myeloablative conditioning agent to increase LVsh5/C46 transduced CD34+ HSPC engraftment. Secondarily, the trial will assess the level of gene marked cells and any impact on HIV-1 RNA and CD4+ T lymphocyte counts, as well as other exploratory parameters.

9. Conclusions: Tying It All Together

9.1. CCR5-Delta32 Compared with Down-Regulation of CCR5

The “Berlin patient” showed that modulating CCR5 can lead to a functional cure of HIV. In that case CCR5-delta32 hematopoietic stem cells were introduced following myeloablative conditioning leading to T cell recovery and suppression of HIV. This approach required a matched donor that was CCR5-delta32. This review documents the difficulty in repeating the approach of transplanting allogeneic CCR5-delta32 donor cells. Calimmune is testing the use of a short hairpin RNA to CCR5 to reproduce this result using autologous cells that are genetically modified ex vivo. In this approach, CCR5 is down regulated by the action of the shRNA to CCR5 and an additional agent, C46, is employed to increase efficacy and to mitigate the development of resistance.

9.2. Durability of Response

The “Berlin patient” exhibited a durable response in that T cells were reconstituted and HIV suppressed in an ongoing manner. The approach of Calimmune is being tested in a Phase I/II clinical trial to determine whether the introduction of a dual therapeutic can lead to significant numbers of autologous gene modified cells that are protected from HIV infection and pathogenicity.

Acknowledgments

Calimmune authors acknowledge the support of the company for this work. Gero Hutter acknowledges the Bill & Melinda Gates Foundation (Grand Challenges Explorations Grant Number: OPP1033364).

Conflicts of Interest

The Calimmune authors are supported by way of salary by Calimmune. No other conflicts of interest.

References and Notes

  1. Liu, R.; Paxton, W.A.; Choe, S.; Ceradini, D.; Martin, S.R.; Horuk, R.; MacDonald, M.E.; Stuhlmann, H.; Koup, R.A.; Landau, N.R. Homozygous defect in HIV-1 coreceptor accounts for resistance of some multiply-exposed individuals to HIV-1 infection. Cell 1996, 86, 367–377. [Google Scholar] [CrossRef]
  2. Hütter, G.; Nowak, D.; Mossner, M.; Ganepola, S.; Mussig, A.; Allers, K.; Schneider, T.; Hofmann, J.; Kücherer, C.; Blau, O.; et al. Long-term control of HIV by CCR5 Delta32/Delta32 stem-cell transplantation. N. Engl. J. Med. 2009, 360, 692–698. [Google Scholar] [CrossRef]
  3. Allers, K.; Hütter, G.; Hofmann, J.; Loddenkemper, C.; Rieger, K.; Thiel, E.; Schneider, T. Evidence for the cure of HIV infection by CCR5Delta32/Delta32 stem cell transplantation. Blood 2011, 117, 2791–2799. [Google Scholar] [CrossRef]
  4. Fischereder, M.; Luckow, B.; Hocher, B.; Wuthrich, R.P.; Rothenpieler, U.; Schneeberger, H.; Panzer, U.; Stahl, R.A.; Hauser, I.A.; Budde, K.; et al. CC chemokine receptor 5 and renal-transplant survival. Lancet 2001, 357, 1758–1761. [Google Scholar] [CrossRef]
  5. Heidenhain, C.; Puhl, G.; Moench, C.; Lautem, A.; Neuhaus, P. Chemokine receptor 5Delta32 mutation reduces the risk of acute rejection in liver transplantation. Ann. Transplant. 2009, 14, 36–44. [Google Scholar]
  6. Schnickel, G.T.; Bastani, S.; Hsieh, G.R.; Shefizadeh, A.; Bhatia, R.; Fishbein, M.C.; Belperio, J.; Ardehali, A. Combined CXCR3/CCR5 blockade attenuates acute and chronic rejection. J. Immunol. 2008, 180, 4714–4721. [Google Scholar]
  7. Bogunia-Kubik, K.; Duda, D.; Suchnicki, K.; Lange, A. CCR5 deletion mutation and its association with the risk of developing acute graft-versus-host disease after allogeneic hematopoietic stem cell transplantation. Haematologica 2006, 91, 1628–1634. [Google Scholar]
  8. Prahalad, S. Negative association between the chemokine receptor CCR5-Delta32 polymorphism and rheumatoid arthritis: A meta-analysis. Genes Immun. 2006, 7, 264–268. [Google Scholar] [CrossRef]
  9. Sandford, A.J.; Zhu, S.; Bai, T.R.; Fitzgerald, J.M.; Pare, P.D. The role of the C-C chemokine receptor-5 Delta32 polymorphism in asthma and in the production of regulated on activation, normal T cells expressed and secreted. J. Allergy Clin. Immunol. 2001, 108, 69–73. [Google Scholar] [CrossRef]
  10. Atzeni, F.; Boiardi, L.; Casali, B.; Farnetti, E.; Nicoli, D.; Sarzi-Puttini, P.; Pipitone, N.; Olivieri, I.; Cantini, F.; La Corte, R.; et al. CC chemokine receptor 5 polymorphism in Italian patients with Behcet’s disease. Rheumatology 2012, 51, 2141–2145. [Google Scholar] [CrossRef]
  11. Yang, B.; Houlberg, K.; Millward, A.; Demaine, A. Polymorphisms of chemokine and chemokine receptor genes in Type 1 diabetes mellitus and its complications. Cytokine 2004, 26, 114–121. [Google Scholar] [CrossRef]
  12. Glass, W.G.; McDermott, D.H.; Lim, J.K.; Lekhong, S.; Yu, S.F.; Frank, W.A.; Pape, J.; Cheshier, R.C.; Murphy, P.M. CCR5 deficiency increases risk of symptomatic West Nile virus infection. J. Exp. Med. 2006, 203, 35–40. [Google Scholar] [CrossRef]
  13. Hütter, G.; Thiel, E. Allogeneic transplantation of CCR5-deficient progenitor cells in a patient with HIV infection: An update after 3 years and the search for patient no. 2. AIDS 2009, 25, 273–274. [Google Scholar]
  14. Petz, L.D.; Redei, I.; Bryson, Y.; Regan, D.; Kurtzberg, J.; Shpall, E.; Gutman, J.; Querol, S.; Clark, P.; Tonai, R.; et al. Hematopoietic cell transplantation with cord blood for cure of HIV infections. Biol. Blood Marrow. Transplant. 2012, 19, 393–397. [Google Scholar]
  15. Kwon, M.; Balsalobre, P.; Serrano, D.; Perez Corral, A.; Buno, I.; Anguita, J.; Gayoso, J.; Diez-Martin, J.L. Single cord blood combined with HLA-mismatched third party donor cells: Comparable results to matched unrelated donor transplantation in high-risk patients with hematologic disorders. Biol. Blood Marrow. Transplant. 2012, 19, 143–149. [Google Scholar]
  16. Liu, H.; Rich, E.S.; Godley, L.; Odenike, O.; Joseph, L.; Marino, S.; Kline, J.; Nguyen, V.; Cunningham, J.; Larson, R.A.; et al. Reduced-intensity conditioning with combined haploidentical and cord blood transplantation results in rapid engraftment, low GVHD, and durable remissions. Blood 2011, 118, 6438–6445. [Google Scholar] [CrossRef]
  17. Kwon, M.; Kuball, J.H.; Balsalobre, P.; Serrano, D.; Buno, I.; Gayoso, J.; van Besien, K.M.; Petz, L.D.; Diez-Martin, J.L.; Wensing, A. A Single Cord Blood Transplantation Combined with a HLA Mismatched Third Party Donor for a Patuient with Burkitt Lymphoma and HIV Infection. In Proceedings of the 10th International Cord Blood Symposium, San Francisco, CA, USA, 7–9 June 2012.
  18. Kuball, J. (Ed.) Towards the next generation of transplantation: HIV positive patients. In Proceedings of the 10th International Cord Blood Symposium, San Francisco, CA, USA, 7–9 June 2012.
  19. Díez-Martín, J.L. Personal communication, Hematology Department, HGU Gregorio Marañón: Madrid, Spain, 2012.
  20. Nijhuis, M.; Kwon, M.; Kuball, J.; Ellerbroek, P.; Berenguer, J.; Stam, A.; Symons, J.; Richman, D.; Diez-Martin, J.L.; Wensing, A. (Eds.) Early viral dynamics after cord blood stem cell transplantation (with and without CCR5delta32) combined with HLA mismatched donor in two HIV-patients. In Proceedings of the 20th Conference on Retroviruses and Opportunistic Infections, Atlanta, GA, USA, 3–6 March 2013.
  21. Symons, J.; Deeks, S.; Hütter, G.; Wensing, A.; Martin, J.; van Ham, P.; Vandekerckhove, L.; Nijhuis, M. The cure of the 'Berlin patient': why did pre-existing X4-variants not emergence after allogeneic CCR5-Delta 32 SCT? JIAS 2012, 15, 17–18. [Google Scholar]
  22. Yukl, S.A.; Boritz, E.; Busch, M.; Bentsen, C.; Chun, T.W.; Douek, D.; Eisele, E.; Haase, A.; Ho, Y.C.; Hütter, G.; et al. Challenges in detecting HIV persistence during potentially curative interventions: A study of the Berlin patient. PLOS Pathog. 2013, 9, e1003347. [Google Scholar] [CrossRef]
  23. Henrich, T.J.; Hu, Z.; Li, J.Z.; Sciaranghella, G.; Busch, M.P.; Keating, S.M.; Gallien, S.; Lin, N.H.; Giquel, F.F.; Lavoie, L.; et al. Long-term reduction in peripheral blood HIV type 1 reservoirs following reduced-intensity conditioning allogeneic stem cell transplantation. J. Infect. Dis. 2013, 207, 1694–1702. [Google Scholar] [CrossRef]
  24. Henrich, T.; Hanhauser, E.; Sirignano, M.; Davis, B.; Lee, T.-H.; Keating, S.; Busch, M.; Marty, F.; LaCasce, A.; Armand, P.; et al. In depth investigation of peripheral and gut HIV-1 reservoirs, HIV-specific cellular immunity, and host microchimerism following allogeneic hematopoetic stem cell transplantation. In Proceedings of the 7th International AIDS Society Conference on HIV Pathogenesis, Treatment and Prevention, Kuala Lumpur, Malaysia, 30 June–3 July 2013.
  25. Kitchen, S.G.; Shimizu, S. Stem cell-based anti-HIV gene therapy. Virology 2011, 411, 260–272. [Google Scholar] [CrossRef]
  26. An, D.S.; Qin, F.X.; Auyeung, V.C.; Mao, S.H.; Kung, S.K.; Baltimore, D.; Chen, I.S.Y. Optimization and functional effects of stable short hairpin RNA expression in primary human lymphocytes via lentiviral vectors. Molecular therapy. J. Am. Soc. Gene Ther. 2006, 14, 494–504. [Google Scholar] [CrossRef]
  27. An, D.S.; Donahue, R.E.; Kamata, M.; Poon, B.; Metzger, M.; Mao, S.H.; Bonifacion, A.; Krouse, A.E.; Darlix, J.-L.; Baltimore, D.; et al. Stable reduction of CCR5 by RNAi through hematopoietic stem cell transplant in non-human primates. Proc. Natl. Acad. Sci. USA 2007, 104, 13110–13115. [Google Scholar] [CrossRef]
  28. Qin, X.F.; An, D.S.; Chen, I.S.; Baltimore, D. Inhibiting HIV-1 infection in human T cells by lentiviral-mediated delivery of small interfering RNA against CCR5. Proc. Nat. Acad. Sci. USA 2003, 100, 183–188. [Google Scholar] [CrossRef]
  29. Liang, M.; Kamata, M.; Chen, K.N.; Pariente, N.; An, D.S.; Chen, I.S. Inhibition of HIV-1 infection by a unique short hairpin RNA to chemokine receptor 5 delivered into macrophages through hematopoietic progenitor cell transduction. J. Gene Med. 2010, 12, 255–265. [Google Scholar] [CrossRef]
  30. Shimizu, S.; Hong, P.; Arumugam, B.; Pokomo, L.; Boyer, J.; Koizumi, N.; Kittipongdaja, P.; Chen, A.; Bristol, G.; Galic, Z.; et al. A highly efficient short hairpin RNA potently down-regulates CCR5 expression in systemic lymphoid organs in the hu-BLT mouse model. Blood 2010, 115, 1534–1544. [Google Scholar] [CrossRef]
  31. Egelhofer, M.; Brandenburg, G.; Martinius, H.; Schult-Dietrich, P.; Melikyan, G.; Kunert, R.; Baum, C.; Ingrid, C.; Alexandrov, A.; von Laer, D. Inhibition of human immunodeficiency virus type 1 entry in cells expressing gp41-derived peptides. J. Virol. 2004, 78, 568–575. [Google Scholar] [CrossRef]
  32. Zahn, R.C.; Hermann, F.G.; Kim, E.Y.; Rett, M.D.; Wolinsky, S.M.; Johnson, R.P.; Villinger, F.; von Laer, D.; Schmitz, J.E. Efficient entry inhibition of human and nonhuman primate immunodeficiency virus by cell surface-expressed gp41-derived peptides. Gene Ther. 2008, 15, 1210–1222. [Google Scholar] [CrossRef]
  33. Van Lunzen, J.; Glaunsinger, T.; Stahmer, I.; von Baehr, V.; Baum, C.; Schilz, A.; Kuehlcke, K.; Naundorf, S.; Martinius, H.; Hermann, F.; et al. Transfer of autologous gene-modified T cells in HIV-infected patients with advanced immunodeficiency and drug-resistant virus. Mol. Ther. 2007, 15, 1024–1033. [Google Scholar]
  34. Younan, P.M.; Polacino, P.; Kowalski, J.P.; Peterson, C.W.; Maurice, N.J.; Williams, N.P.; Ho, O.; Trobridge, G.D.; Von Laer, D.; Prlic, M.; et al. Positive selection of mC46-expressing CD4+ T cells and maintenance of virus specific immunity in a primate AIDS model. Blood 2013, 122, 179–187. [Google Scholar] [CrossRef]
  35. Sallusto, F.; Lenig, D.; Forster, R.; Lipp, M.; Lanzavecchia, A. Two subsets of memory T lymphocytes with distinct homing potentials and effector functions. Nature 1999, 401, 708–712. [Google Scholar] [CrossRef]
  36. Scholler, J.; Brady, T.L.; Binder-Scholl, G.; Hwang, W.T.; Plesa, G.; Hege, K.M.; Vogel, A.N.; Kalos, M.; Riley, J.L.; Deeks, S.G.; et al. Decade-long safety and function of retroviral-modified chimeric antigen receptor T cells. Sci. Transl. Med. 2012, 4, 132ra53. [Google Scholar]
  37. Deeks, S.G.; Wagner, B.; Anton, P.A.; Mitsuyasu, R.T.; Scadden, D.T.; Huang, C.; Macken, C.; Richman, D.D.; Christopherson, C.; June, C.H.; et al. A phase II randomized study of HIV-specific T-cell gene therapy in subjects with undetectable plasma viremia on combination antiretroviral therapy. Mol. Ther. 2002, 5, 788–797. [Google Scholar] [CrossRef]
  38. Edelstein, M.L.; Abedi, M.R.; Wixon, J. Gene therapy clinical trials worldwide to 2007—An update. J. Gene Med. 2007, 9, 833–842. [Google Scholar] [CrossRef]
  39. Frecha, C.; Levy, C.; Cosset, F.L.; Verhoeyen, E. Advances in the field of lentivector-based transduction of T and B lymphocytes for gene therapy. Mol. Ther. 2010, 18, 1748–1757. [Google Scholar] [CrossRef]
  40. Humeau, L.M.; Binder, G.K.; Lu, X.; Slepushkin, V.; Merling, R.; Echeagaray, P.; Pereira, M.; Slepushkina, T.; Barnett, S.; Dropulic, L.K.; et al. Efficient lentiviral vector-mediated control of HIV-1 replication in CD4 lymphocytes from diverse HIV+ infected patients grouped according to CD4 count and viral load. Mol. Ther. 2004, 9, 902–913. [Google Scholar] [CrossRef]
  41. June, C.H. Disruption of CCR5 in Zinc Finger Nuclease-treated CD4 T Cells: Phase I Trials. In Proceedings of the 18th Conference on Retroviruses and Opportunistic Infections, Boston, MA, USA, 27 February–2 March 2011. Abstract 165.
  42. Tebas, P.; Stein, S.; Zifchak, L.; Seda, A.; Binder, G.; Aberra, F.; Collman, G.; McGarrity, B.; June, C. Prolonged control of viremia after transfer of autologous CD4 T cells genetically modified with a lentiviral vector expressing long antisense to HIV env (VRX496). In Proceedings of the 17th Conference on Retroviruses and Opportunistic Infections, San Francisco, CA, USA, 16–19 February 2010.
  43. Levine, B.L.; Bernstein, W.B.; Aronson, N.E.; Schlienger, K.; Cotte, J.; Perfetto, S.; Humphries, M.J.; Ratto-Kim, S.; Birx, D.L.; Steffens, C.; et al. Adoptive transfer of costimulated CD4+ T cells induces expansion of peripheral T cells and decreased CCR5 expression in HIV infection. Nat. Med. 2002, 8, 47–53. [Google Scholar] [CrossRef]
  44. Levine, B.L.; Humeau, L.M.; Boyer, J.; MacGregor, R.R.; Rebello, T.; Lu, X.; Binder, G.K.; Slepushkin, V.; Lemiale, F.; Mascola, J.R.; et al. Gene transfer in humans using a conditionally replicating lentiviral vector. Proc. Natl. Acad. Sci. USA 2006, 103, 17372–17377. [Google Scholar] [CrossRef]
  45. Levine, B.L. T lymphocyte engineering ex vivo for cancer and infectious disease. Expert. Opin. Biol. Ther. 2008, 8, 475–489. [Google Scholar] [CrossRef]
  46. Macpherson, J.L.; Boyd, M.P.; Arndt, A.J.; Todd, A.V.; Fanning, G.C.; Ely, J.A.; Elliott, F.; Knop, A.; Raponi, M.; Murray, J.; et al. Long-term survival and concomitant gene expression of ribozyme-transduced CD4+ T-lymphocytes in HIV-infected patients. J. Gene Med. 2005, 7, 552–564. [Google Scholar] [CrossRef]
  47. Mitsuyasu, R.T.; Anton, P.A.; Deeks, S.G.; Scadden, D.T.; Connick, E.; Downs, M.T.; Bakker, A.; Roberts, M.R.; June, C.H.; Jalali, S.; Lin, A.A.; et al. Prolonged survival and tissue trafficking following adoptive transfer of CD4zeta gene-modified autologous CD4(+) and CD8(+) T cells in human immunodeficiency virus-infected subjects. Blood 2000, 96, 785–793. [Google Scholar]
  48. Morgan, R.A.; Walker, R.; Carter, C.S.; Natarajan, V.; Tavel, J.A.; Bechtel, C.; Herpin, B.; Muul, L.; Zheng, Z.; Jaqannatha, S.; et al. Preferential survival of CD4+ T lymphocytes engineered with anti-human immunodeficiency virus (HIV) genes in HIV-infected individuals. Hum. Gene Ther. 2005, 16, 1065–1074. [Google Scholar] [CrossRef]
  49. Morgan, R.A.; Dudley, M.E.; Wunderlich, J.R.; Hughes, M.S.; Yang, J.C.; Sherry, R.M.; Royal, R.E.; Topalian, S.L.; Kammula, T.U.; Restifo, N.P.; et al. Cancer regression in patients after transfer of genetically engineered lymphocytes. Science 2006, 314, 126–129. [Google Scholar] [CrossRef]
  50. Ranga, U.; Woffendin, C.; Verma, S.; Xu, L.; June, C.H.; Bishop, D.K.; Nabel, G.J. Enhanced T cell engraftment after retroviral delivery of an antiviral gene in HIV-infected individuals. Proc. Natl. Acad. Sci. USA 1998, 95, 1201–1206. [Google Scholar] [CrossRef]
  51. Rossi, J.J.; June, C.H.; Kohn, D.B. Genetic therapies against HIV. Nat. Biotechnol. 2007, 25, 1444–1454. [Google Scholar] [CrossRef]
  52. Amado, R.G.; Mitsuyasu, R.T.; Rosenblatt, J.D.; Ngok, F.K.; Bakker, A.; Cole, S.; Chorn, N.; Lin, L.S.; Bristol, G.; Boyd, M.P.; et al. Anti-human immunodeficiency virus hematopoietic progenitor cell-delivered ribozyme in a phase I study: myeloid and lymphoid reconstitution in human immunodeficiency virus type-1-infected patients. Hum. Gene Ther. 2004, 15, 251–262. [Google Scholar] [CrossRef]
  53. Kohn, D.B. Gene therapy using hematopoietic stem cells. Curr. Opin. Mol. Ther. 1999, 1, 437–442. [Google Scholar]
  54. Mitsuyasu, R.T.; Merigan, T.C.; Carr, A.; Zack, J.A.; Winters, M.A.; Workman, C.; Bloch, M.; Lalezari, J.; Becker, S.; Thornton, L.; et al. Phase 2 gene therapy trial of an anti-HIV ribozyme in autologous CD34+ cells. Nat. Med. 2009, 15, 285–292. [Google Scholar] [CrossRef]
  55. Podsakoff, G.M.; Engel, B.C.; Kohn, D.B. Perspectives on gene therapy for immune deficiencies. Biol. Blood Marrow. Transplant. 2005, 11, 972–976. [Google Scholar] [CrossRef]
  56. Muul, L.M.; Tuschong, L.M.; Soenen, S.L.; Jagadeesh, G.J.; Ramsey, W.J.; Long, Z.; Carter, C.S.; Garabedian, E.K.; Alleyne, M.; Brown, M.; Bernstein, W.; et al. Persistence and expression of the adenosine deaminase gene for 12 years and immune reaction to gene transfer components: Long-Term results of the first clinical gene therapy trial. Blood 2003, 101, 2563–2569. [Google Scholar] [CrossRef]
  57. Seymour, L.W.; Thrasher, A.J. Gene therapy matures in the clinic. Nat. Biotechnol. 2012, 30, 588–593. [Google Scholar] [CrossRef]
