Probabilistic Analysis of Major Construction Materials in the Life Cycle Embodied Environmental Cost of Korean Apartment Buildings

by
Seungjun Roh
1,
Sungho Tae
1,2,*,
Rakhyun Kim
1 and
Suroh Park
1
1
Sustainable Building Research Center, Hanyang University, Ansan 15588, Korea
2
Department of Architecture & Architectural Engineering, Hanyang University, Ansan 15588, Korea
*
Author to whom correspondence should be addressed.
Sustainability 2019, 11(3), 846; https://doi.org/10.3390/su11030846
Submission received: 14 November 2018 / Revised: 29 January 2019 / Accepted: 29 January 2019 / Published: 6 February 2019
(This article belongs to the Special Issue Sustainable Use and Management of Natural Resources in Buildings and in the Built Environment)
Browse Figures
Versions Notes

Abstract

:
This study employs probabilistic analysis to evaluate the life cycle embodied environmental cost of Korean apartment buildings, with a focus on six major construction materials. To this end, the bill of materials was analyzed for 443 Korean apartment buildings according to the type and plan form, and probability density functions (PDFs) were established for the input quantities of the six materials under consideration. Life cycle scenarios were then examined for each material, and their respective life cycle embodied environmental cost factors were established, using a monetary valuation-based damage cost life cycle analysis model. The estimated environmental costs were evaluated by apartment structural type and plan form, based on probability distributions using the Monte Carlo simulation (MCS). Building life cycle embodied environmental cost was estimated between 16.87 USD/m2 and 23.03 USD/m2 (90% confidence interval). Among the structure types analyzed, the highest costs were associated with the wall structure, followed by rigid frame and flat plate structures; at the plan form level, costs followed the sequence plate-type > mixed-type > tower type for a given type of structure.

1. Introduction

In recent years, sustainable development has been recognized as an international agenda that addresses global environmental problems while contributing to the balanced development of human society [1].
The construction sector is working towards encouraging the introduction of quantitative evaluation models for sustainable buildings, to reduce the potential environmental impacts of buildings and enhance the quality of life for residents, in line with the principles of sustainable development [2,3,4,5,6]. For example, Robichaud et al. [7] suggested four elements for a quantitative evaluation of buildings’ sustainability which are the minimization of environmental impact, the enhancement of residents’ health, the return of investments, and the introduction of the life cycle in the design phase. Zuo and Zhao [8] presented three elements, the reduction of environmental impacts, the creation of economic profits, and the enhancement of comfort and health, which can be achieved through the reduction of construction materials, operating energy consumption and waste products. Kang [9] also suggested sustainability evaluation factors that consisted of the reduction of environmental impact focusing on global warming, the saving of life cycle costs and indirect costs, and the enhancement of residents’ health and comfort, and developed a conceptual evaluation model based on these items.
Environmental impact can be defined as possible adverse environmental effects caused or induced by human activities and technologies. There are various categories of environmental impact, designated as quantifiable concepts, such as global warming potential (GWP), acidification potential (AP), eutrophication potential (EP), ozone layer depletion potential (ODP), photochemical oxidation potential (POCP), and abiotic depletion potential (ADP) [10,11,12]. A building’s potential environmental impact throughout its life cycle consists of embodied impacts and operational impact [10,13,14]. Embodied environmental impact equals the sum of all environmental impacts associated with construction materials, i.e., the environmental impacts caused by all construction material-related processes, such as their production and transportation; the materials used for construction; repair materials used for building management; and demolition waste. Operational environmental impacts encompass the environmental impact associated with a building’s operational energy consumption throughout its service life.
The construction sector has put much work into reducing the environmental impacts of buildings during their life cycle. Such efforts have focused on the operational environmental impact due to its higher magnitude, which results from the extremely long service life and huge energy demand of buildings compared with general consumer products [15,16,17,18]. In recent years, however, there is an increasing demand for research to intensively evaluate and reduce not only the operational environmental impact but also a building’s embodied environmental impact caused by construction materials [19,20,21,22,23,24]. To meet this demand, developed countries such as the US, UK, Germany, and South Korea are evaluating the life cycle embodied environmental impacts associated with construction materials, according to the criteria stipulated in their respective building codes and green building certification systems [8,25,26,27,28,29,30]. Alongside this, some researchers have presented new approaches for effectively evaluating a building’s life cycle embodied environmental impacts, and have conducted various case studies in an attempt to reduce these [31,32,33,34,35,36,37,38,39]. For example, Huang et al. [31] explored building material consumption and the embodied greenhouses gases emission from buildings constructed in Shanghai through life cycle assessment (LCA). Basbagill et al. [32] presented a method to reduce embodied environmental impacts, in which LCA is applied in the early planning stage of a construction project. Azari and Abbasabadi [33] provided an overview of the literature on embodied energy use in buildings in several aspects. Meneghelli [34] conducted a sensitivity analysis to identify the effects of construction materials on a building’s life cycle environmental impact. Malmqvist et al. [35] collected a comprehensive overview of quantitative reduction potentials of the embodied greenhouses gases reduction strategies, which should be considered by the stakeholders engaged in, and with the capacity to influence the outcome of, individual building projects. Chastas et al. [36] normalized the embodied CO2 emissions of residential buildings in their review of prior case studies on embodied environmental impact. Li et al. [37] presented and analyzed a system for evaluating the embodied CO2 emissions of residential buildings in China. The results of these studies are used as basic data for quantitative analysis of a building’s life cycle environmental impacts, and for research and policy geared towards reducing them efficiently. However, most previous studies evaluated only one or two buildings. To improve the applicability of study results as basic data for planning and implementing reductions in buildings’ life cycle environmental impacts, there is a need for research with the following foci:
  • Evaluation of embodied environmental impacts of buildings, comprehensively considering various environmental impact categories associated with buildings, as recent studies on buildings or construction materials are showing [26,40].
  • Presentation of the research findings on embodied environmental impacts in an easily understandable manner, given that comparison and interpretation of evaluation results concern different environmental impact categories and their respective standard materials. To address this problem, a new, integrated approach known as environmental cost has recently been introduced, in which end-point environmental problems attributable to various environmental impacts are presented as monetary values [41,42].
  • Evaluation of the embodied environmental impacts of all existing buildings, by employing a sufficient number of samples considering different buildings in terms of structure type and plan form, and estimating their characteristics; because an analysis of embodied environmental impacts based on only a small number of buildings cannot be considered representative of all existing buildings [41].
Against this background, the present study employs probabilistic analysis to evaluate the life cycle embodied environmental costs of apartment buildings in South Korea, focusing on six major construction materials, i.e., ready-mixed concrete (RMC), rebar, concrete brick, glass, insulation (expanded polystyrene and expanded polypropylene), and gypsum board which account for more than 95% of environmental impacts within the six impact categories (GWP, AP, EP, ODP, POCP, and ADP) [43].

2. Materials and Methods

This section describes the process of evaluating the life cycle embodied environmental costs of apartment buildings in South Korea according to structure type and plan form, based on probabilistic analysis. The probabilistic analysis method defines an uncertain variable expected to occur in real life as a numerical probability density function (PDF), and calculates the expected results and probabilities by means of probability distributions [44]. This method has various advantages. Firstly, it extracts not only specific values (mean values, in general) using a deterministic analysis method, but also the statistical properties of the results, such as mode; minimum, maximum, and expected values and probability distributions. The method also has the advantage that it can be combined with simulation methods such as the Monte Carlo simulation (MCS) for sample-based population estimation and that it can analyze the evaluation results separately according to range and segment, based on probability distributions [45,46]. Therefore, probabilistic analysis was selected as a descriptive approach for estimating the embodied environmental costs of the target sample (i.e., all apartment buildings constructed in South Korea) on the basis of evaluating a sufficient number of samples and for establishing a mathematical model for evaluating a building’s embodied environmental cost (Equation (1)), drawing on the LCA conceptual equation [47] for quantifying the environmental impact of a product or service (Equation (2)). We then analyzed the input quantities of the six major construction materials of 443 apartment buildings constructed in South Korea, and established PDFs of the input quantities of these construction materials according to the structural types and plan forms of the apartment buildings. Additionally, we examined life cycle scenarios for each of the six construction materials, and computed the life cycle embodied environmental cost factor using the Life Cycle Inventory (LCI) database and KOLID methodology (Korean Life cycle Impact assessment method based on damage-oriented modeling), which is a monetary valuation-based model used in South Korea for analyzing the costs of damage at the life cycle scale [42]. The obtained PDFs of the input quantities and the life cycle embodied environmental cost factors of the major construction materials were then subjected to 10,000 MCS iterations, and the life cycle embodied impacts, according to structure type and plan form, were presented as probability distributions. The workflow of investigation is presented in Figure 1.
P ( E C A ) = ∑ i = 1 n ( A P ( i ) × C C i )
E I A = ∑ i = 1 n ( A i × I F i )
In Equation (1), P(ECA) is the probabilistic life cycle embodied environmental cost of building A, AP(i) is the PDF of the input quantity of construction material (i) utilized in building A, and CCi is the life cycle embodied environmental cost factor of construction material (i). In Equation (2), EIA is the environmental impact of product or service A, Ai is the input quantity of material or energy (i) for product or service A, and IFi is the environmental impact factor of material or energy (i).

2.1. Establishing Probability Density Functions of Major Construction Materials

2.1.1. Establishing a Database of Material Input Quantities

Table 1 presents the number of buildings of each structure type and plan form (n = 443), to enable extrapolation to all apartment buildings constructed in South Korea. For each building, we established the input quantities of the six major construction materials, resulting in a database of input quantities per unit area [41]. The major construction materials selected in this study are RMC, rebar, concrete brick, glass, insulation, and gypsum board. Among all construction materials used in an apartment building, these six collectively account for more than 95% of environmental impacts within the six impact categories (GWP, AP, EP, ODP, POCP, and ADP) [43,48,49,50]. This input quantity database considers the six major construction materials used for the above-ground floors, on the assumption that the total quantities of all materials are used for construction, as specified in the original bill of materials. This is because the input quantity of construction materials could be varied during the actual construction process, and in particular, the input quantity of construction materials used for underground floors could vary significantly depending on the basement and ground structure. Table 2 shows examples of major construction material inputs for 9 different types of apartment building.

2.1.2. Establishing Probability Density Function

The PDF matrix was constructed based on the input quantities of major construction materials by structure type and plane form, as presented in Table 3. The flat plate structure sub-group contained fewer examples than the other structure types, and so was not subdivided into different plan forms when establishing the probability distributions. All PDF variables were based on exclusive use area. PDF fitting was performed using Crystal Ball commercial software for MCS, and the PDFs of major construction materials were checked against the statistics of the Anderson–Darling (A–D) test. Additionally, the input quantities of the major construction materials were assumed to be independent of each other. This is because the relationship between input quantities of construction materials is very complex and additional research is needed to understand this. Table 4 illustrates some of the PDFs for the major construction materials analyzed in this study.

2.2. Establishing Environmental Cost Factors of Major Construction Materials

2.2.1. Establishing Life Cycle Scenarios

The building LCA highlights the need for a life cycle scenario for each construction material, with systemized information throughout its life cycle, namely production (A1–A3) and transportation (A4), construction (A5), replacement (B4), deconstruction of construction materials (C1), transportation of waste construction materials (C2), and disposal (incineration and landfill) (C4), in order to determine its life cycle embodied environmental cost factor.
Figure 2 illustrates the overall life cycle scenario based on the system boundary for building LCA as specified in EN 15804 [51], broken down into the individual scenarios for the six materials.
For the production stage, we applied the life cycle inventory (LCI) database of each major material. For the construction progress stage, the freight vehicle, and transport distance for each major material were based on the Standard Estimating System of Construction Work, by the Korea Institute of Civil Engineering and Building Technology [52]. For the use (maintenance/repair) stage, we set the lifespan at 40 years, drawing on the standards stipulated in the Enforcement Decree of the Corporate Income Tax Act [53], and applied the repair cycle and repair rate of each material according to the long-term repair planning standards stipulated in the Enforcement Decree of the Apartment Housing Act [54]. For the end-of-life (deconstruction/disposal) stage, demolition work involved breaker (0.7 m3), and backhoe (1.0 m3) operations [21], the quantity of waste construction materials was assumed to equal the sum of the input quantities of the six materials during the production stage. The freight vehicle and transport distance were set at 15-ton truck and 30 km, in keeping with the Standard Estimating System of Construction Work [55], and the rates of reuse, incineration, and landfill for waste construction materials were taken from the waste construction material disposal status released by the Korea Environmental Industry and Technology Institute.

2.2.2. Establishing Environmental Cost Factors

Environmental cost refers to the cost of an environmental impact, converted into a monetary value, by quantifying the related environmental issues at the end-point level and categorizing the corresponding area of protection required as a safeguard from an environmental ethical viewpoint. This can be computed using a monetary valuation-based damage cost life cycle evaluation model.
The environmental cost factor for the functional unit of each construction material was established using the life cycle scenarios for the major construction materials, LCI database, and KOLID methodology, a monetary valuation-based damage cost life cycle analysis methodology developed by the Ministry of Environment of South Korea [42]. The KOLID methodology was designed to promote the purchase of eco-friendly products by collectively evaluating not only the economic value of the purchase, use, and disposal of the product but also the value of environmental impact. This methodology quantifies 16 types of end-point damage, such as cancer, heat stress, infectious disease, skin cancer, and cataract, attributable to the six environmental impact categories (GWP, AP, EP, ODP, POCP, and ADP), and evaluates the four safeguards, consisting of human health, social assets, biodiversity, and primary production. The damage indicators of these four safeguards are the disability-adjusted life year (DALY), i.e., the number of years lost due to the following: ill-health, disability, or early death; economic burdens of suppression or depletion of agricultural crops, marine, forest, or mineral resources, and fossil fuels; the expected increase in the number of extinct species (EINES) of vascular and aquatic plants; and the net primary production (NPP), i.e., the amount (kg/m2·yr) of organic matter resulting from photosynthesis by terrestrial plants and marine plankton, respectively. The environmental cost is represented by the marginal willingness to pay (MWTP) for these damage indicators using the MWTP unit that established the database in the KOLID methodology. MWTP is a contingent valuation method reflecting the threshold price consumers are willing to pay in a virtual market of a given material type.
In compliance with the ISO 14040 LCI database selection criteria (namely geographical, temporal, and technological correlations), we applied the Korean LCI database (Ministry of Commerce, Industry and Energy, and Ministry of Environment) [56], the National Database on Environmental Information of Construction Materials (Korea Institute of Civil Engineering and Building Technology) [57], and the German ÖKOBAU.DAT database [58] in descending priority. We applied the German database for the landfill of construction wastes due to the lack of such information in the LCI database.
The schematic in Figure 3 represents the process of establishing the environmental cost factors of major construction materials, and Table 5 presents the resulting environmental costs.

2.3. Monte Carlo Simulation (MCS)

MCS is the most widely used technique for probabilistic analysis. It consists of N runs using the PDFs, describing uncertain situations and randomized inputs within the PDFs derived from any random number between zero and one; the results are represented as probability distributions based on descriptive statistics [45,46]. The PDF for the input quantity of each major construction material was used to estimate the target population of each structure type and plan form of Korean apartment buildings, followed by analysis of the mode, median, mean, and range of the life cycle environmental costs obtained from 10,000 runs.
Sensitivity analysis was performed to identify the major construction materials (probability distribution events) that had a significant impact on the embedded environmental costs after the MCS was terminated by the event assumed to the probability distribution.

3. Results

Figure 4 illustrates the estimated environmental costs, presented as probability distributions. The environmental costs of each apartment building, concentrated on one single mode, show normal distributions, except the flat plate structure, which shows a left-skewed triangular distribution. This implies that the PDFs for wall structure and rigid frame structure have small deviations from their respective modes and relatively regular distributions, whereas those for the flat plate structure resulted in a skewed distribution, presumably due to its smaller sample size and larger deviation.
Table 6 presents descriptive statistics for the estimated life cycle embodied environmental costs. The environmental cost range for apartment buildings was estimated as 10.18–34.06 USD/m2, with the variability amounting to ~72%. In particular, both the minimum and maximum environmental costs related to buildings with plate-type wall structure. This finding was attributed to the larger sample group than the other structure types and plan forms, allowing a more comprehensive evaluation range. Therefore, assuming that the upper and lower 5% of the cost range, randomly estimated through MCS, represent unrealistic values for all input quantities of major construction materials, we re-analyzed the costs using the remaining 90%. Consequently, the minimum (16.87 USD/m2) and maximum (23.03 USD/m2) costs were associated with rigid frame structure tower-type and wall structure plate-type apartment buildings, respectively. Moreover, they showed a variation ratio ranging from 14.29% to 23.84% depending on the structure type and plan form; excluding buildings with flat plate structure, which exhibited a variation ratio of 23.84% due to the small sample size, the variation ratio was found to be less than 20% in all apartment buildings.
In particular, the mode, median, and mean environmental costs of the apartment buildings were highest according to the sequence wall structure > rigid frame structure > flat plate structures, whereas at the plan form level they followed the sequence plate-type > mixed-type > tower type within the same structure type. The same cost level tendencies, depending on the structure type and plan form of apartment buildings, were also observed in the overlay chart (Figure 5) representing the cumulative probability of life cycle embodied environmental cost and the chart (Figure 6) representing the life cycle embodied environmental cost range at 10%, 25%, 50%, and 90% confidence intervals. This was attributable primarily to the decrease in RMC input quantity, which has the highest cost intensity, depending on the structure type and plan form of the apartment building, decreasing in the sequence described above. On this note, sensitivity analysis revealed RMC to have the greatest influence on embodied environmental costs among the six materials, followed by concrete brick, rebar, insulation, glass, and gypsum board. Furthermore, in correlation analysis of the structure type and plan form, the mean correlation coefficient between RMC and life cycle embodied environmental cost was 0.82 (Figure 7), the highest among the construction materials, thus demonstrating the absolute influence of RMC on embodied environmental costs. Consequently, considering the life cycle embodied environmental cost simply in terms of the mode (which represents the highest probability of occurrence), the use of flat plate or rigid frame construction, and the tower-type wall structure, which require comparatively small input quantities of RMC, were found to be advantageous in reducing life cycle embodied environmental costs.

4. Discussion

The majority of Korean apartment buildings were constructed using the plate-type wall structure for cost- and time-saving purposes; unfortunately, according to the present findings, the plate-type wall structure has the highest life cycle embodied environmental cost. This highlights the need for comprehensive cost analysis in the early planning stage of an apartment construction project, taking into account not only direct construction cost but also environmental cost, consequently, aiming to reduce the input quantity of RMC, which has the greatest influence on environmental cost, or using RMC that has improved environmental performance. In view of this, the findings are expected to serve as weighting factors for estimating life cycle embodied environmental cost according to structure type and plan form, for practical work within the construction sector or central/regional government, as well as basic data for selecting environmental cost reduction measures. One limitation of this study is the unequal group sizes of different structure types and plan forms, due to difficulties associated with data collection. In order to improve the data reliability and significance, a follow-up study should perform reanalysis with additional samples of flat plate structure apartment buildings.

5. Conclusions

This study evaluates the life cycle embodied environmental cost of Korean apartment buildings by means of probabilistic analysis, with a focus on the major construction materials, as part of analytical research into the life cycle environmental impacts of buildings. The following points summarize the major steps and findings of the study:
  • We established environmental cost factors reflecting 42 PDFs for the input quantities of six major construction materials and their life cycle scenarios, and performed MCS-based probabilistic analysis of the life cycle embodied environmental costs of apartment buildings according to their structure type and plan form.
  • All the resulting probability distributions concentrated on one single mode, and showed fairly normal distributions except for those concerning the flat plate construction technique.
  • The life cycle embodied environmental cost within the scope of this study ranged from 16.87 USD/m2 to 23.03 USD/m2 within the 90% confidence interval, with significant variation ratios except for the flat plate structure, which showed a maximum variation ratio of 23.84%.
  • Life cycle embodied environmental cost followed the sequence: wall structure > rigid frame structure > flat plate at the structural level; and plate-type > mixed-type > tower-type at the plan form level, predominantly related to a decrease in RMC input quantity.
Considering the estimated costs simply in terms of the mode, apartment buildings constructed with a flat plate or rigid frame structure, and the tower-type of wall structure were advantageous for reducing life cycle embodied environmental cost within the scope of this study.

Author Contributions

This paper was designed and written by S.R., and reviewed by R.K. and S.P.; S.T. supervised the project.

Funding

This work was supported by the research fund of Hanyang University (HY-2017).

Conflicts of Interest

The authors have no conflicts of interest to declare.

References

  1. Laprise, M.; Lufkin, S.; Rey, E. An indicator system for the assessment of sustainability integrated into the project dynamics of regeneration of disused urban areas. Build. Environ. 2015, 86, 29–38. [Google Scholar] [CrossRef]
  2. Zeule, L.D.O.; Vinhal, L.D.; Serra, M.S.B.; Barreto, D. Decision making process assisted by life cycle assessment: Greenhouse gas emission. Int. J. Sustain. Build. Technol. Urban Dev. 2017, 8, 244–253. [Google Scholar]
  3. Kim, K.J.; Yun, W.G.; Cho, N.; Ha, J. Life cycle assessment based environmental impact estimation model for pre-stressed concrete beam bridge in the early design phase. Environ. Impact Assess. Rev. 2017, 64, 47–56. [Google Scholar] [CrossRef]
  4. Roh, S.; Tae, S.; Suk, S.J.; Ford, G.; Shin, S. Development of a building life cycle carbon emissions assessment program (BEGAS 2.0) for Korea’s green building index certification system. Renew. Sustain. Energy Rev. 2016, 53, 954–965. [Google Scholar] [CrossRef]
  5. Ortiz, O.; Castells, F.; Sonnemann, G. Sustainability in the construction industry: A review of recent developments based on LCA. Constr. Build. Mater. 2009, 23, 28–39. [Google Scholar] [CrossRef]
  6. Häkkinen, T. Systematic method for the sustainability analysis of refurbishment concepts of exterior walls. Constr. Build. Mater. 2012, 37, 783–790. [Google Scholar] [CrossRef]
  7. Robichaud, L.B.; Anantatmula, V.S. Greening project management practices for sustainable construction. J. Manag. Eng. 2010, 27, 48–57. [Google Scholar] [CrossRef]
  8. Zuo, J.; Zhao, Z.Y. Green building research-current status and future agenda: A review. Renew. Sustain. Energy Rev. 2014, 30, 271–281. [Google Scholar] [CrossRef]
  9. Kang, H.J. Development of a systematic model for an assessment tool for sustainable buildings based on a structural framework. Energy Build. 2015, 104, 287–301. [Google Scholar] [CrossRef]
  10. Lee, S.; Tae, S.; Roh, S.; Kim, T. Green template for life cycle assessment of buildings based on building information modeling: Focus on embodied environmental impact. Sustainability 2015, 7, 16498–16512. [Google Scholar] [CrossRef]
  11. Ismaeel, W.S.E. Midpoint and endpoint impact categories in Green building rating systems. J. Clean. Prod. 2018, 182, 783–793. [Google Scholar] [CrossRef]
  12. Arrigoni, A.; Beckett, C.; Ciancio, D.; Dotelli, G. Life cycle analysis of environmental impact vs. durability of stabilised rammed earth. Constr. Build. Mater. 2017, 142, 128–136. [Google Scholar] [CrossRef]
  13. Ibn-Mohammed, T.; Greenough, R.; Taylor, S.; Ozawa-Meida, L.; Acquaye, A. Operational vs. embodied emissions in buildings—A review of current trends. Energy Build. 2013, 66, 232–245. [Google Scholar] [CrossRef]
  14. Duggan, A.R.; McCabe, B.A.; Goggins, J.; Clifford, E. An embodied carbon and embodied energy appraisal of a section of Irish motorway constructed in peatlands. Constr. Build. Mater. 2015, 79, 402–419. [Google Scholar] [CrossRef]
  15. Roh, S.; Tae, S. An integrated assessment system for managing life cycle CO2 emissions of a building. Renew. Sustain. Energy Rev. 2017, 73, 265–275. [Google Scholar] [CrossRef]
  16. Geng, S.; Wang, Y.; Zuo, J.; Zhou, Z.; Du, H.; Mao, G. Building life cycle assessment research: A review by bibliometric analysis. Renew. Sustain. Energy Rev. 2017, 76, 176–184. [Google Scholar] [CrossRef]
  17. Häfliger, I.F.; John, V.; Passer, A.; Lasvaux, S.; Hoxha, E.; Saade, M.R.M.; Habert, G. Buildings environmental impacts’ sensitivity related to LCA modelling choices of construction materials. J. Clean. Prod. 2017, 156, 805–816. [Google Scholar] [CrossRef]
  18. Jeong, K.; Ji, C.; Koo, C.; Hong, T.; Park, H.S. A model for predicting the environmental impacts of educational facilities in the project planning phase. J. Clean. Prod. 2015, 107, 538–549. [Google Scholar] [CrossRef]
  19. Wang, T.; Seo, S.; Liao, P.C.; Fang, D. GHG emission reduction performance of state-of-the-art green buildings: Review of two case studies. Renew. Sustain. Energy Rev. 2016, 56, 484–493. [Google Scholar] [CrossRef]
  20. Kumanayake, R.; Luo, H.; Paulusz, N. Assessment of material related embodied carbon of an office building in Sri Lanka. Energy Build. 2018, 166, 250–257. [Google Scholar] [CrossRef]
  21. Roh, S.; Tae, S.; Shin, S.; Woo, J. Development of an optimum design program (SUSB-OPTIMUM) for the life cycle CO2 assessment of an apartment house in Korea. Build. Environ. 2014, 73, 40–54. [Google Scholar] [CrossRef]
  22. Salcido, J.C.; Raheem, A.A.; Ravi, S. Comparison of embodied energy and environmental impact of alternative materials used in reticulated dome construction. Build. Environ. 2016, 96, 22–34. [Google Scholar] [CrossRef]
  23. Bin Marsono, A.K.; Balasbaneh, A.T. Combinations of building construction material for residential building for the global warming mitigation for Malaysia. Constr. Build. Mater. 2015, 85, 100–108. [Google Scholar] [CrossRef]
  24. Vieira, D.R.; Calmon, J.L.; Coelho, F.Z. Life cycle assessment (LCA) applied to the manufacturing of common and ecological concrete: A review. Constr. Build. Mater. 2016, 124, 656–666. [Google Scholar] [CrossRef]
  25. Lee, N.; Tae, S.; Gong, Y.; Roh, S. Integrated building life-cycle assessment model to support South Korea’s green building certification system (G-SEED). Renew. Sustain. Energy Rev. 2017, 76, 43–50. [Google Scholar] [CrossRef]
  26. de Klijn-Chevalerias, M.; Javed, S. The Dutch approach for assessing and reducing environmental impacts of building materials. Build. Environ. 2017, 111, 147–159. [Google Scholar] [CrossRef]
  27. Roh, S.; Tae, S.; Shin, S. Development of building materials embodied greenhouse gases assessment criteria and system (BEGAS) in the newly revised Korea Green Building Certification System (G-SEED). Renew. Sustain. Energy Rev. 2014, 35, 410–421. [Google Scholar] [CrossRef]
  28. Ospina, A.P.; Castaño, A.G.; Restrepo, L.M. LEED certification and the new standard of sustainable construction in Colombia. Int. J. Sustain. Build. Technol. Urban Dev. 2017, 8, 125–134. [Google Scholar]
  29. Illankoon, I.M.C.S.; Tam, V.W.Y.; Le, K.N.; Shen, L. Key credit criteria among international green building rating tools. J. Clean. Prod. 2017, 164, 209–220. [Google Scholar] [CrossRef]
  30. Zhang, L.; Wu, J.; Liu, H. Turning green into gold: A review on the economics of green buildings. J. Clean. Prod. 2018, 172, 2234–2245. [Google Scholar] [CrossRef]
  31. Huang, B.; Chen, Y.; McDowall, W.; Türkeli, S.; Bleischwitz, R. Embodied GHG emissions of building materials in Shanghai. J. Clean. Prod. 2019, 210, 777–785. [Google Scholar] [CrossRef]
  32. Basbagill, J.; Flager, F.; Lepech, M.; Fischer, M. Application of life-cycle assessment to early stage building design for reduced embodied environmental impacts. Build. Environ. 2013, 60, 81–92. [Google Scholar] [CrossRef]
  33. Azari, R.; Abbasabadi, N. Embodied energy of buildings: A review of data, methods, challenges, and research trends. Energy Build. 2018, 168, 225–235. [Google Scholar] [CrossRef]
  34. Meneghelli, A. Whole-building embodied carbon of a North American LEED-certified library: Sensitivity analysis of the environmental impact of buildings materials. Build. Environ. 2018, 134, 230–241. [Google Scholar] [CrossRef]
  35. Malmqvist, T.; Nehasilova, M.; Moncaster, A.; Birgisdottir, H.; Rasmussen, F.N.; Wiberg, A.H.; Potting, J. Design and construction strategies for reducing embodied impacts from buildings–Case study analysis. Energy Build. 2018, 166, 35–47. [Google Scholar] [CrossRef]
  36. Chastas, P.; Theodosiou, T.; Kontoleon, K.J.; Bikas, D. Normalising and assessing carbon emissions in the building sector: A review on the embodied CO2 emissions of residential buildings. Build. Environ. 2018, 130, 212–226. [Google Scholar] [CrossRef]
  37. Li, X.; Yang, F.; Zhu, Y.; Gao, Y. An assessment framework for analyzing the embodied carbon impacts of residential buildings in China. Energy Build. 2014, 85, 400–409. [Google Scholar] [CrossRef]
  38. Chen, Y.; Ng, S.T. Factoring in embodied GHG emissions when assessing the environmental performance of building. Sustain. Cities Soc. 2016, 27, 244–252. [Google Scholar] [CrossRef]
  39. Evangelista, P.P.A.; Kiperstok, A.; Torres, E.A.; Gonçalves, J.P. Environmental performance analysis of residential buildings in Brazil using life cycle assessment (LCA). Constr. Build. Mater. 2018, 169, 748–761. [Google Scholar] [CrossRef]
  40. Kua, H.W.; Lu, Y. Environmental impacts of substituting tempered glass with polycarbonate in construction—An attributional and consequential life cycle perspective. J. Clean. Prod. 2016, 137, 910–921. [Google Scholar] [CrossRef]
  41. Roh, S.; Tae, S.; Kim, R. Analysis of Embodied Environmental Impacts of Korean Apartment Buildings Considering Major Building Materials. Sustainability 2018, 10, 1693. [Google Scholar] [CrossRef]
  42. Korea Environmental Industry & Technology Institute. Development of Integrated Evaluation Technology on Product Value for Dissemination of Environmentally Preferable Products; Korea Ministry of Environment: Sejong, Korea, 2009.
  43. Roh, S.; Tae, S.; Suk, S.J.; Ford, G. Evaluating the embodied environmental impacts of major building tasks and materials of apartment buildings in Korea. Renew. Sustain. Energy Rev. 2017, 73, 135–144. [Google Scholar] [CrossRef]
  44. Zhang, X.; Wang, F. Stochastic analysis of embodied emissions of building construction: A comparative case study in China. Energy Build. 2017, 151, 574–584. [Google Scholar] [CrossRef]
  45. Bersimis, S.; Georgakellos, D. A probabilistic framework for the evaluation of products’ environmental performance using life cycle approach and Principal Component Analysis. J. Clean. Prod. 2013, 42, 103–115. [Google Scholar] [CrossRef]
  46. Bieda, B. Application of stochastic approach based on Monte Carlo (MC) simulation for life cycle inventory (LCI) to the steel process chain: Case study. Sci. Total Environ. 2014, 481, 649–655. [Google Scholar] [CrossRef] [PubMed]
  47. ISO 14044. Environmental Management—Life Cycle Assessment—Requirements and Guidelines; ISO: Geneva, Switzerland, 2006. [Google Scholar]
  48. Shin, S.; Tae, S.; Woo, J.; Roh, S. The development of environmental load evaluation system of a standard Korean apartment house. Renew. Sustain. Energy Rev. 2011, 15, 1239–1249. [Google Scholar] [CrossRef]
  49. Pacheco-Torgal, F.; Faria, J.; Jalali, S. Embodied energy versus operational energy showing the shortcomings of the energy performance building directive (EPBD). Mater. Sci. Forum 2013, 730–732, 587–591. [Google Scholar] [CrossRef]
  50. Biswas, W.K. Carbon footprint and embodied energy consumption assessment of building construction works in Western Australia. Int. J. Sustain. Built Environ. 2014, 3, 179–186. [Google Scholar] [CrossRef]
  51. EN 15804. Sustainability of Construction Works—Environmental Product Declarations—Core Rules for the Product Category of Construction Products; CEN: Brussels, Belgium, 2012. [Google Scholar]
  52. Korea Institute of Civil Engineering and Building Technology (KICT). Standard Estimating System of the Construction Work; KICT: Goyang, Korea, 2017. [Google Scholar]
  53. Korea Corporate Tax Act: Korea Ministry of Strategy and Finance. Available online: http://elaw.klri.re.kr/kor_service/lawView.do?hseq=28577&lang=ENG (accessed on 26 October 2018).
  54. Korea Ministry of Land, Infrastructure and Transport. Korea Housing Act. Available online: http://elaw.klri.re.kr/kor_service/lawView.do?hseq=25579&lang=ENG (accessed on 26 October 2018).
  55. Korea Environmental Industry & Technology Institute (KEITI). Waste Statistics; KEITI: Seoul, Korea, 2017. [Google Scholar]
  56. Korea Environmental Industry & Technology Institute (KEITI). Korea Life Cycle Inventory Database. 2004. Available online: http://www.edp.or.kr/lci/lci_db.asp (accessed on 26 October 2018).
  57. Korea Institute of Civil Engineering and Building Technology. The Final Report of National DB on Environmental Information of Building Materials; KICT: Goyang, Korea, 2008. [Google Scholar]
  58. Germany Federal Ministry of the Interior, Building and Community. Oekobaudat. 2017. Available online: http://www.oekobaudat.de/en/database/database-oekobaudat.html (accessed on 26 October 2018).
Sustainability 11 00846 g001 550

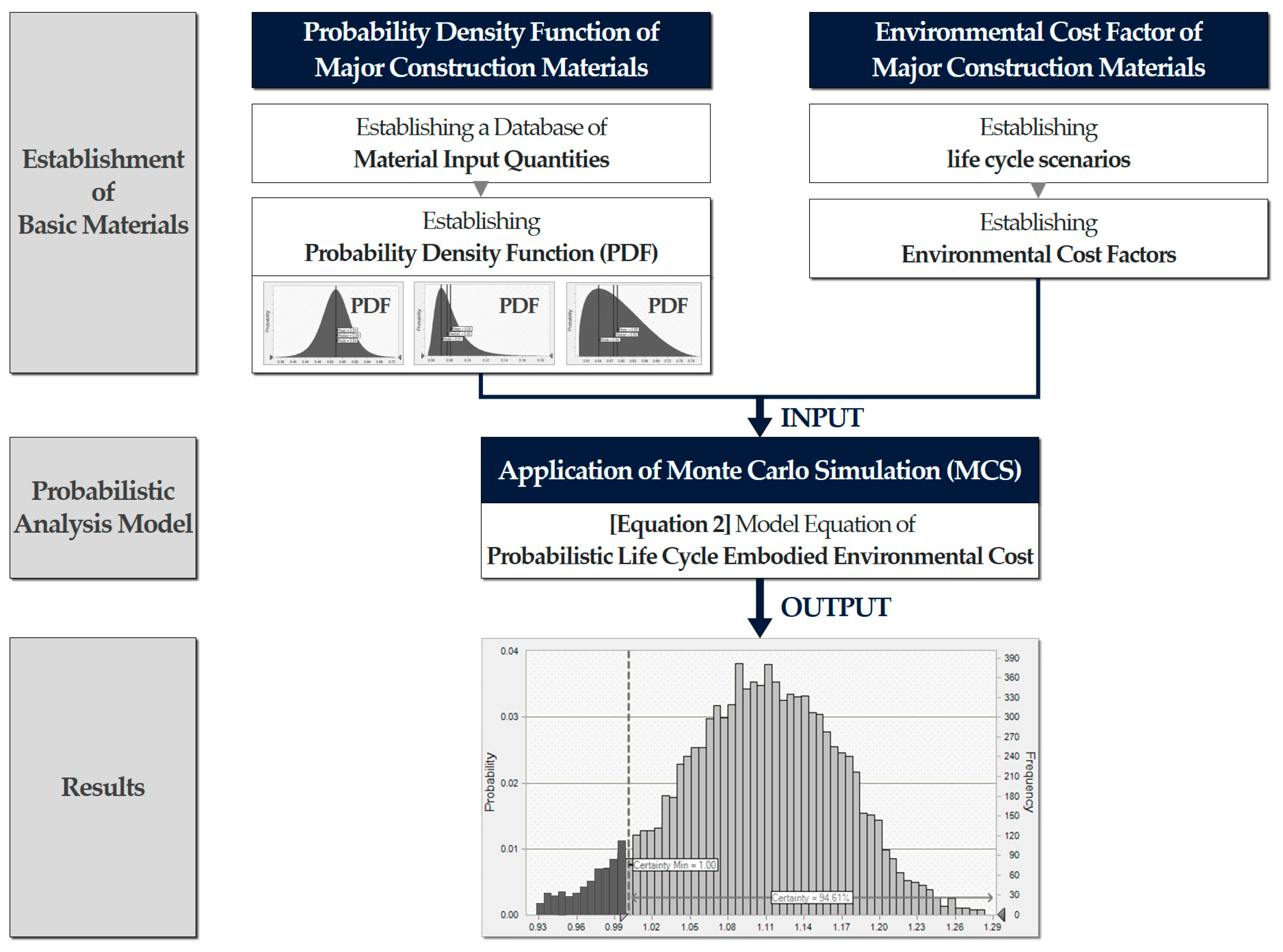

Figure 1. Workflow of investigation.
Figure 1. Workflow of investigation.
Sustainability 11 00846 g001
Sustainability 11 00846 g002 550

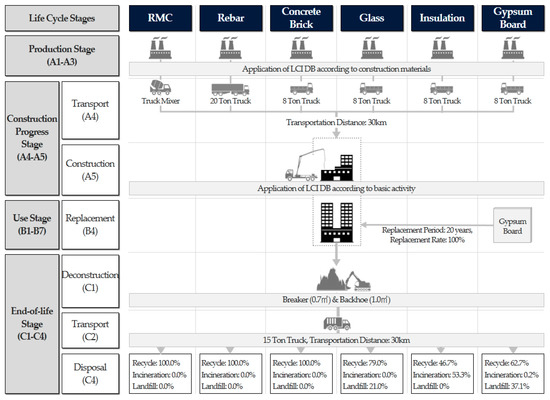

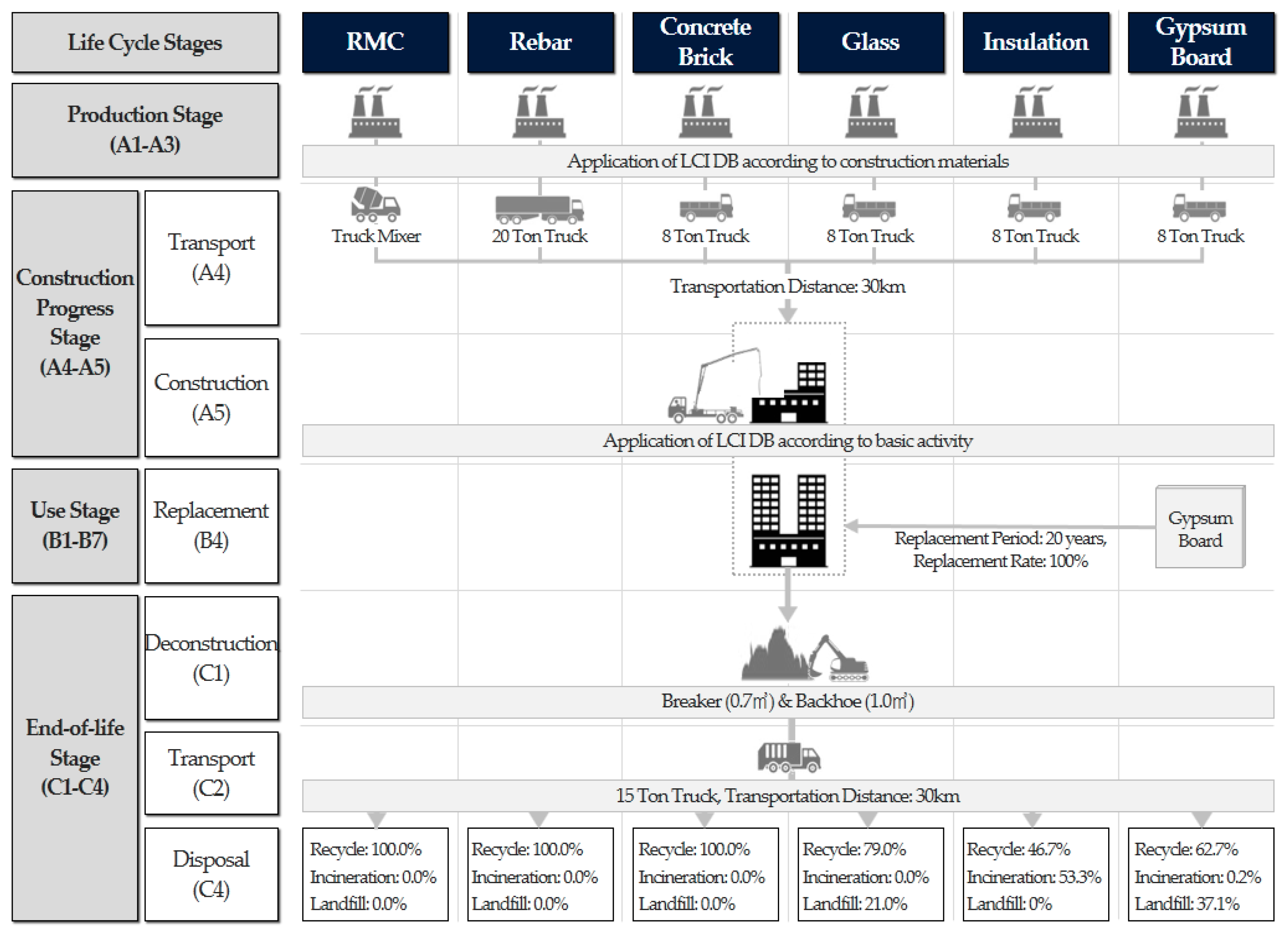

Figure 2. Life cycle scenario.
Figure 2. Life cycle scenario.
Sustainability 11 00846 g002
Sustainability 11 00846 g003 550

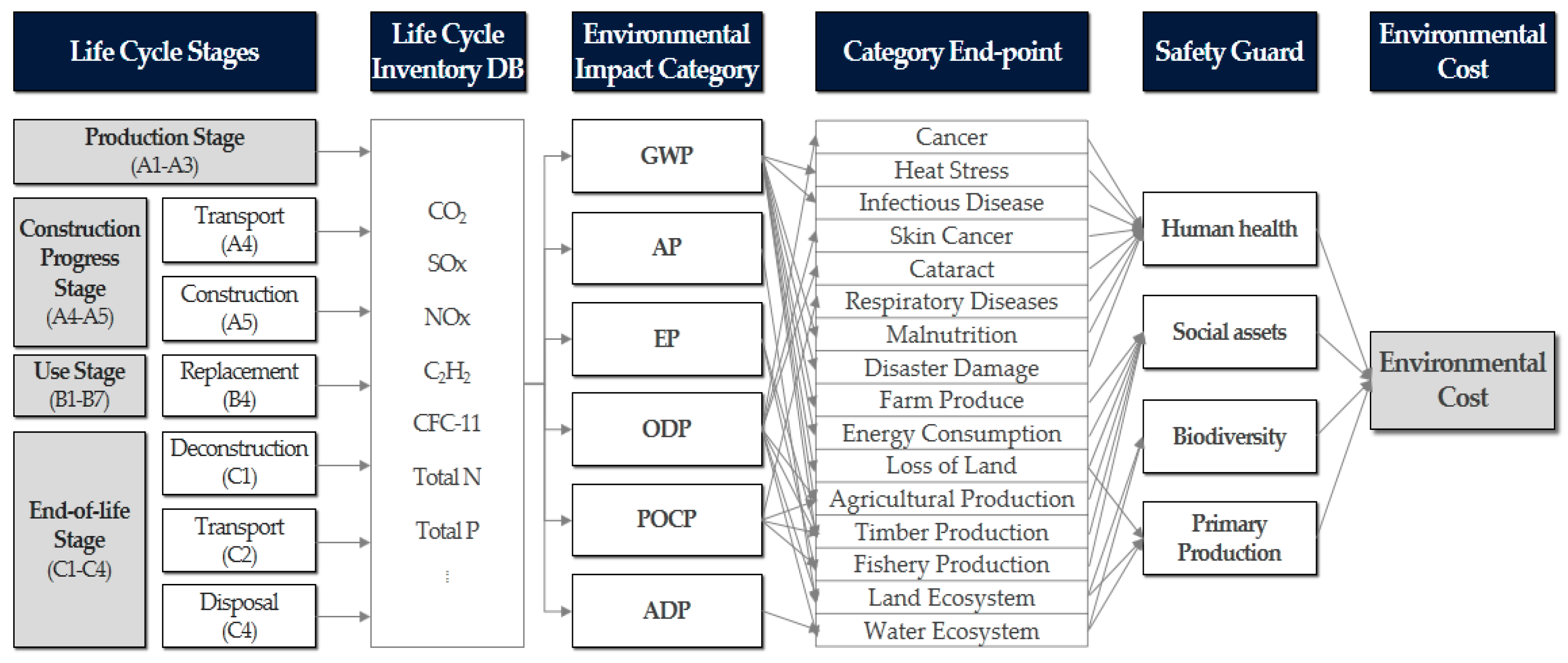

Figure 3. Process of establishing environmental cost factors.
Figure 3. Process of establishing environmental cost factors.
Sustainability 11 00846 g003
Sustainability 11 00846 g004 550

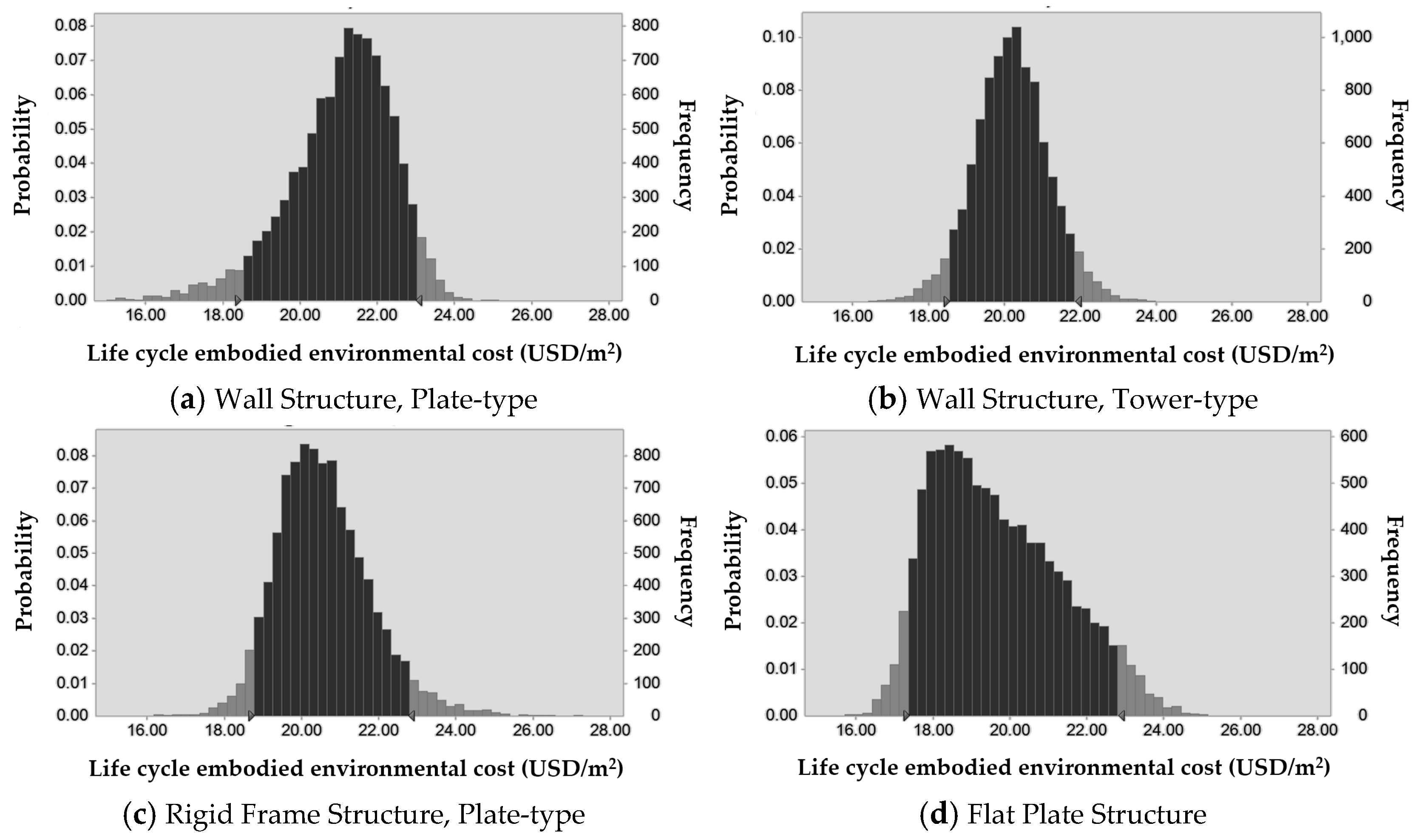

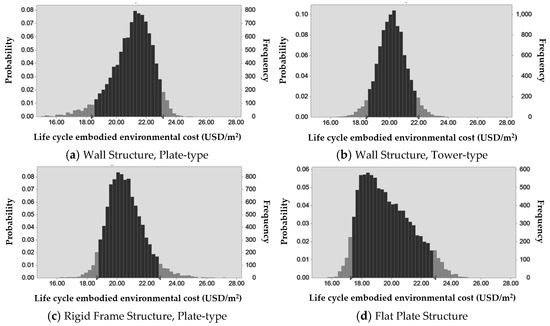

Figure 4. Results of probabilistic life cycle environmental cost.
Figure 4. Results of probabilistic life cycle environmental cost.
Sustainability 11 00846 g004
Sustainability 11 00846 g005 550

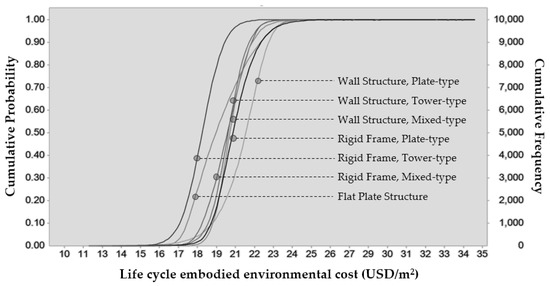

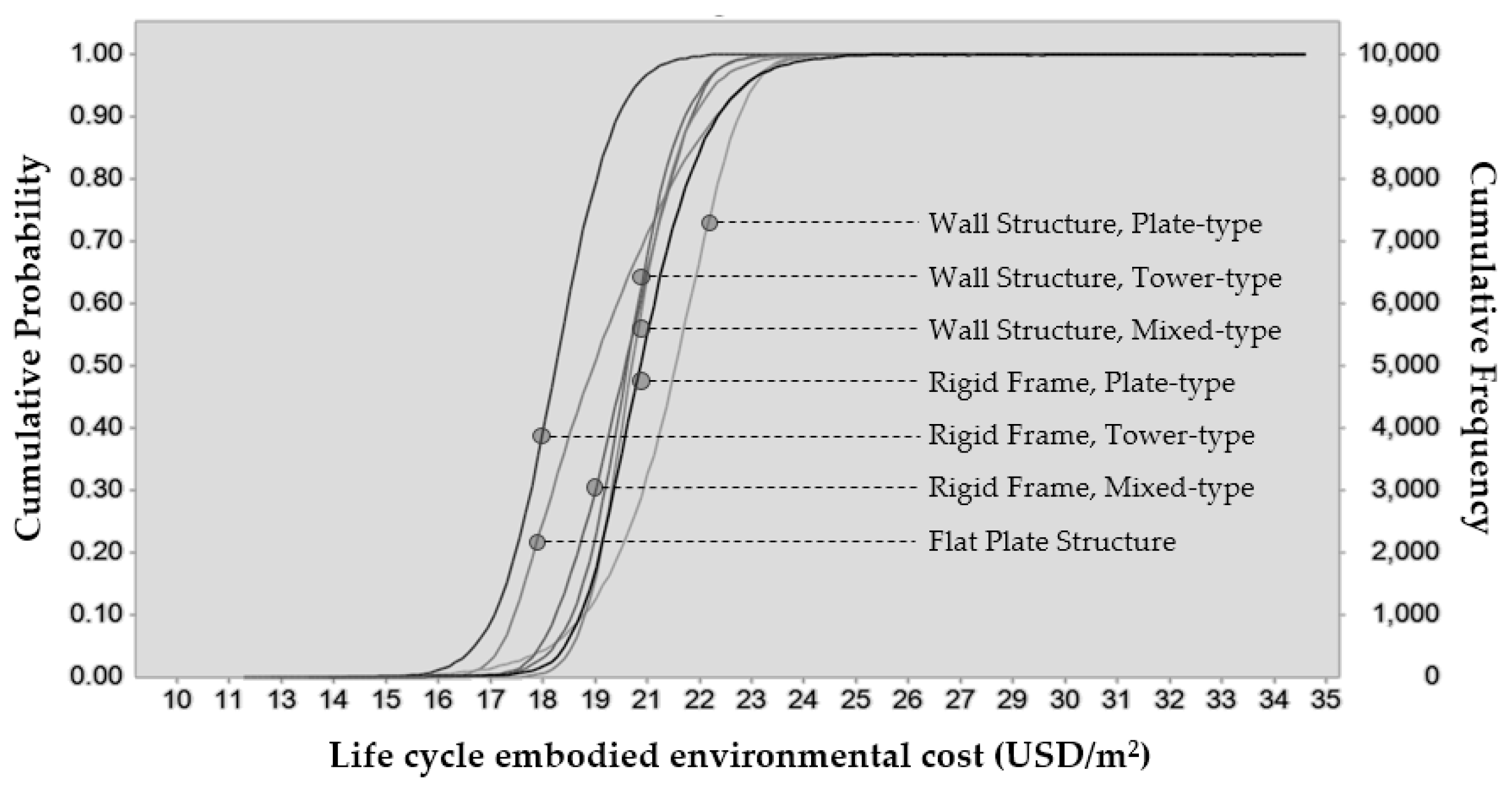

Figure 5. Cumulative probability of life cycle embodied environmental cost.
Figure 5. Cumulative probability of life cycle embodied environmental cost.
Sustainability 11 00846 g005
Sustainability 11 00846 g006 550

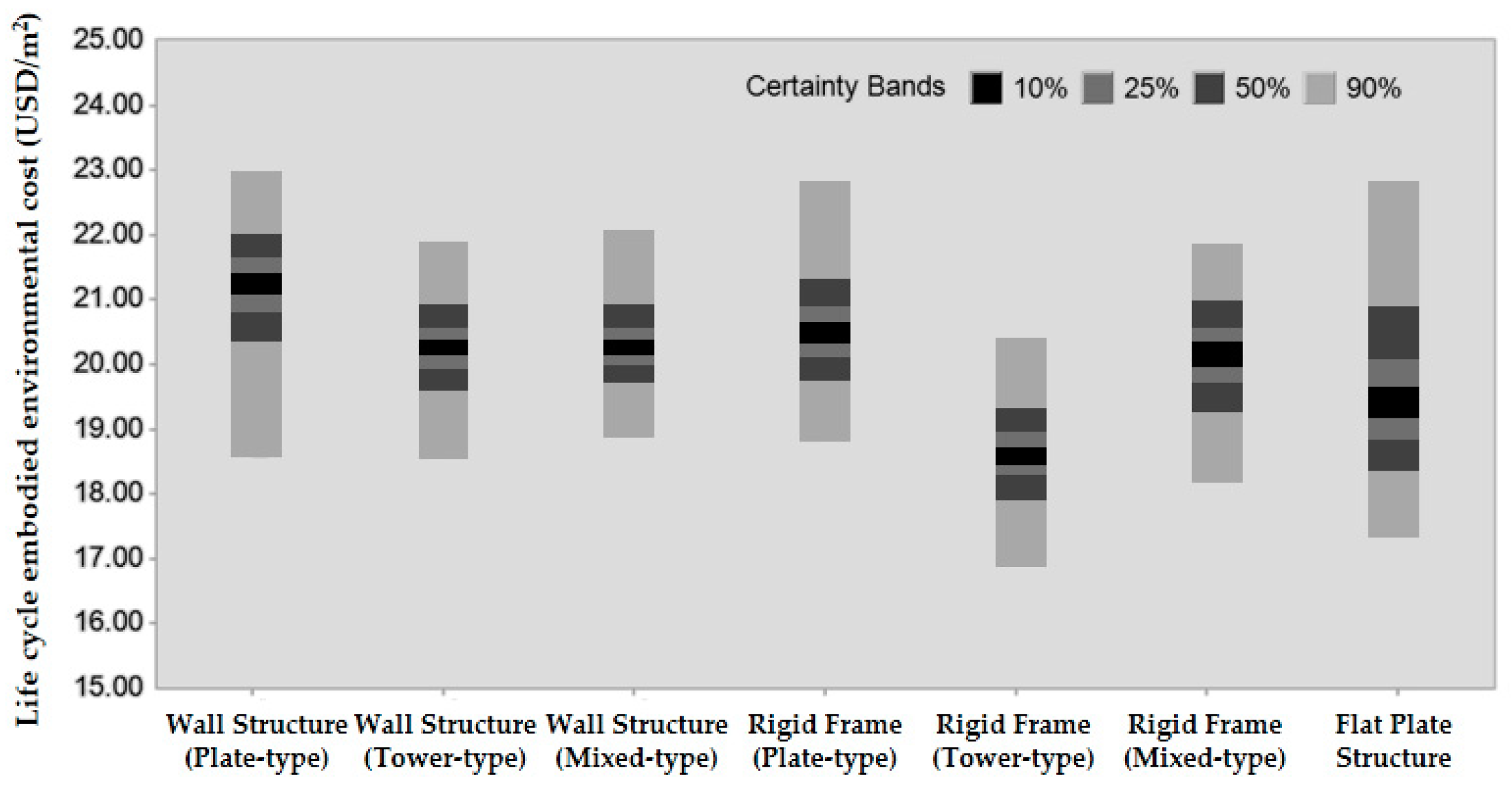

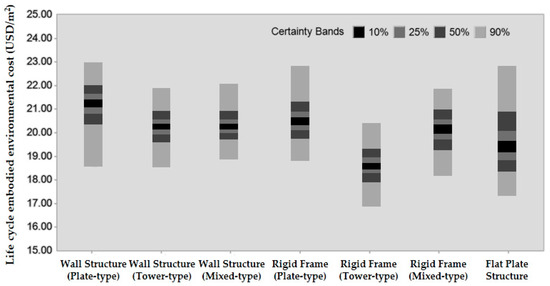

Figure 6. Range of life cycle embodied environmental cost.
Figure 6. Range of life cycle embodied environmental cost.
Sustainability 11 00846 g006
Sustainability 11 00846 g007 550

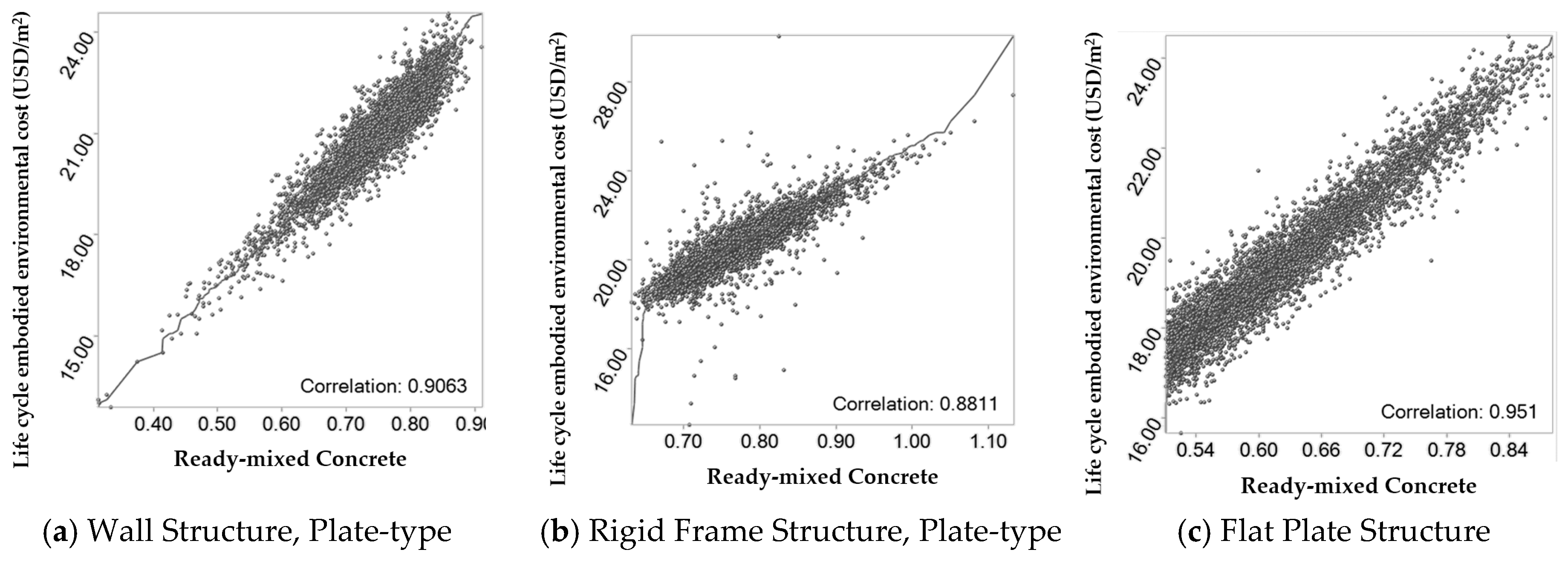

Figure 7. Correlation analysis between life cycle embodied environmental cost and RMC.
Figure 7. Correlation analysis between life cycle embodied environmental cost and RMC.
Sustainability 11 00846 g007
Table
Table 1. Number of samples.
Table 1. Number of samples.
Wall StructureRigid Frame StructureFlat Plate Structure
Plate-typeTower-typeMixed-typePlate-typeTower-typeMixed-typePlate-typeTower-typeMixed-type
1181016022406462210
Table
Table 2. Examples of quantity DB of major construction materials.
Table 2. Examples of quantity DB of major construction materials.
No.Structure TypePlane FormNo. of StoriesBuilding Area (m2)Exclusive Use Area (m2)Quantity of Major Construction Materials per Exclusive Use Area
RMC (m3/m2)Rebar (kg/m2)Concrete Brick (kg/m2)Glass (m2/m2)Insulation (kg/m2)Gypsum Board (kg/m2)
1Wall StructurePlate-type226709.155071.500.78105.3792.360.521.622.74
2Tower-type278536.106712.630.73101.3488.540.461.582.66
3Mixed-type2717,047.4113,451.390.7599.8690.350.451.612.67
4Rigid Frame StructurePlate-type208449.986023.500.80128.2191.240.451.642.70
5Tower-type154711.153290.470.60145.2690.140.441.592.71
6Mixed-type2411,416.778043.780.78138.5488.850.331.622.68
7Flat Plate StructurePlate-type131881.641439.760.65120.0790.670.521.562.62
8Tower-type219135.186880.070.52149.0288.370.491.492.68
9Mixed-type155973.464679.220.76137.4687.800.541.532.65
Table
Table 3. Probability density function (PDF) matrix.
Table 3. Probability density function (PDF) matrix.
Structure TypePlane FormRMCRebarConcrete BrickGypsum BoardGlassInsulation
Wall StructurePlate-typePDF-01PDF-02PDF-03PDF-04PDF-05PDF-06
Tower-typePDF-07PDF-08PDF-09PDF-10PDF-11PDF-12
Mixed-typePDF-13PDF-14PDF-15PDF-16PDF-17PDF-18
Rigid Frame StructurePlate-typePDF-19PDF-20PDF-21PDF-22PDF-23PDF-24
Tower-typePDF-25PDF-26PDF-27PDF-28PDF-29PDF-30
Mixed-typePDF-31PDF-32PDF-33PDF-34PDF-35PDF-36
Flat Plate StructurePDF-37PDF-38PDF-39PDF-40PDF-41PDF-42
Table
Table 4. Probability distribution of major construction materials.
Table 4. Probability distribution of major construction materials.
ClassificationPDF-01PDF-02PDF-04PDF-06
MaterialsRMCRebarGypsum BoardInsulation
StructureWall StructureWall StructureWall StructureWall Structure
Plan typePlate-typePlate-typePlate-typePlate-type
Probability Distribution Sustainability 11 00846 i001 Sustainability 11 00846 i002 Sustainability 11 00846 i003 Sustainability 11 00846 i004
Lognormal DistributionLogistic distributionLogistic distributionBeta distribution
No. of Samples118118118118
VariableExclusive Use AreaExclusive Use AreaExclusive Use AreaExclusive Use Area
Mean0.77 m3/m298.13 kg/m22.61 kg/m21.39 kg/m2
Median0.76 m3/m298.13 kg/m22.61 kg/m21.38 kg/m2
Mode0.74 m3/m298.13 kg/m22.61 kg/m21.35 kg/m2
Table
Table 5. Environmental cost of major construction materials.
Table 5. Environmental cost of major construction materials.
RMCRebarConcrete BrickGypsum BoardGlassInsulation
18.27 USD/m321.78 USD/ton6.79 USD/ton76.94 USD/ton97.19 USD/ton23.71 USD/ton
Table
Table 6. Result of probabilistic environmental cost of Korean apartment buildings (Unit: USD/m2).
Table 6. Result of probabilistic environmental cost of Korean apartment buildings (Unit: USD/m2).
Structure TypePlane FormModeMedianMeanMinimumMaximum90% Confidence Interval
FromToVariation Ratio
Wall StructurePlate-type21.7021.2421.0810.1834.0618.5223.0319.58%
Tower-type20.1620.1920.1915.4624.6518.5821.8014.77%
Mixed-type20.1120.2520.3816.8926.9818.9622.1214.29%
Rigid Frame StructurePlate-type20.4720.4920.6111.5033.0818.8422.7817.30%
Tower-type18.6318.6318.6313.4623.9516.8720.3917.26%
Mixed-type20.1420.1420.1216.3728.7418.2821.9116.57%
Flat Plate Structure19.0419.4419.6915.5525.3117.3822.8223.84%

Share and Cite

MDPI and ACS Style

Roh, S.; Tae, S.; Kim, R.; Park, S. Probabilistic Analysis of Major Construction Materials in the Life Cycle Embodied Environmental Cost of Korean Apartment Buildings. Sustainability 2019, 11, 846. https://doi.org/10.3390/su11030846

AMA Style

Roh S, Tae S, Kim R, Park S. Probabilistic Analysis of Major Construction Materials in the Life Cycle Embodied Environmental Cost of Korean Apartment Buildings. Sustainability. 2019; 11(3):846. https://doi.org/10.3390/su11030846

Chicago/Turabian Style

Roh, Seungjun, Sungho Tae, Rakhyun Kim, and Suroh Park. 2019. "Probabilistic Analysis of Major Construction Materials in the Life Cycle Embodied Environmental Cost of Korean Apartment Buildings" Sustainability 11, no. 3: 846. https://doi.org/10.3390/su11030846

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
