Evaluation of the Accuracy of Different PV Estimation Models and the Effect of Dust Cleaning: Case Study a 103 MW PV Plant in Jordan

Abstract

The estimation of PV production has been widely investigated previously, where many empirical models have been proposed to account for wind and soiling effects for specific locations. However, the performance of these models varies among the investigated sites. Hence, it is vital to assess and evaluate the performance of these models and benchmark them against the common PV estimation model that accounts only for the ambient temperature. Therefore, this study aims to evaluate the accuracy and performance of four empirical wind models considering the soiling effect, and compare them to the standard model for a 103 MW PV plant in Jordan. Moreover, the study investigates the effect of cleaning frequency on the annual energy production and the plant’s levelized cost of electricity (LCOE). The results indicate almost identical performance for the adopted models when comparing the actual energy production with R² and RMSE (root mean square error) ranges of 0.93–0.98 and 0.93–1.56 MWh for both sub-plants, with a slight superiority of the models that incorporate wind effect. Finally, it is recommended in this study to clean the PV panels every two weeks instead of every three months, which would increase annual energy production by 4%, and decrease the LCOE by 5% of the two PV sub-plants.

1. Introduction

The spread of the Corona virus (COVID-19) and the lockdown around the world in 2020 caused a drop in fossil fuel consumption along with a drop in the prices, which contributed to the mitigation of greenhouse gases in that year [1,2]. However, the dependency on fossil fuels is still significant, with a tremendous amount of greenhouse emissions escalating the global warming consequences. For instance, huge forest fires have increased due to global warming [3], in different countries around the world such as Algeria, Turkey, and Greece. This urgent global problem has crossed regional borders, and needs coordination and cooperation from all countries to solve it, as agreed upon at the Paris Agreement in 2016 [4]. Accordingly, many countries have increased their energy sector share of clean and renewable energy resources such as solar, wind, hydropower, geothermal, tidal, and biomass [5].

The Hashemite Kingdom of Jordan is one of the countries in the Middle East with significant concerns regarding its energy security, and fewer concerns about global warming. These concerns were raised due to the limited traditional energy resources [6], with almost total dependency on imported energy, where 97% of Jordan’s energy demand is imported [7]. This dependency causes significant pressure on the economy since a vast portion of the annual Jordanian budget is spent on importing this demand, which causes an outflow of foreign currency. On the other hand, similar to many countries in the region, Jordan is rich with renewable energy resources, especially solar energy in almost all of the country, and wind energy in some areas in the north [6,8]. Therefore, Jordan has recently started to increase the share of renewable energy sources in its energy market. For instance, between 2017 and 2020 the installed solar and wind capacities were raised almost threefold, as reported in [9], where the installed solar capacities increased from 591 GWh in 2017 to 1645 GWh in 2020. At the same time, the installed wind capacities increased from 447 GWh to 1378 GWh between 2017 and 2020 [9]. This significant increase is related to the change in energy policy in Jordan, as well as the drops in the prices of renewable energy systems, especially solar systems [5]. The Jordanian movement towards increasing the share of renewables is projected to surge, as highlighted by the 2020–2030 strategic energy plan, where there is an intention to increase the share of renewable energy from 11% in 2020 to 48% in 2030 [10].

As aforementioned, Jordan is located in an area with high solar potential, where the investments in solar energy projects have proven to be technically and economically feasible, especially in the southern part (Ma’an, Aqaba, Tafilah, and Karak) [6,11,12]. For instance, these regions have an average sunshine duration of about 300 days per year [13], and annual daily average solar radiation on a horizontal surface of 5–7 kWh/m² [13,14], which is one of the highest values in the world. Hence, most renewable energy investments in Jordan are in solar energy systems. It is reported that the solar systems have the largest contribution of almost 9% of the renewable energy share in Jordan [9].

The energy production of PV plants is highly affected by the ambient conditions (other than the solar radiation [15]), especially the ambient temperature [16], which has been incorporated in the standard energy estimation models of PV plants [17]. Other studies have highlighted the effect of wind speed [18,19,20,21,22], relative humidity [23,24], and dust/soil accumulation [24,25] on PV production. For instance, excluding wind data from PV estimation models could underestimate the PV production by 3.5%, as reported in [26]. Other studies such as [27] reported the necessity to include the wind speed and direction to better estimate the PV production. Likewise, excluding the dust/soiling effect results in overestimating the energy production [28,29]. For example, Zaihidee et al., [30] found that dust accumulation of 20 g/m² on a PV panel reduces its efficiency by 15–35%. Moreover, Ullah et al., [31] reported a 10–40% decrease in the monthly power production due to soil accumulation in Pakistan. Other studies such as [5] reported that in Oman the losses in the monthly energy production could reach 10.8% if proper cleaning is not maintained. Furthermore, studies in Jordan, specifically in Ma’an [25], showed the importance of a monthly cleaning process to minimize power production losses to 2.2%. However, other studies showed that the most feasible cleaning period is 15 days for PV plants in Tafilah, Jordan [16,32].

The ability to estimate the PV production accurately by incorporating these ambient conditions is vital to policymakers and investors. Excluding these factors from the energy estimation models could over- or underestimate the energy production, and affect the system’s technical and economic feasibility. Therefore, it is crucial to incorporate the soiling and wind effects in estimating the energy production, especially from large-scale PV plants, where minor inaccuracies could propagate and result in estimation errors up to the plant size. A few studies have investigated the performance of PV energy production models, and benchmarked them against the actual production of fixed PV plants with capacities up to 20 MW [33,34,35,36,37,38]. However, to the best of the authors’ knowledge the literature lacks studies that:

• Evaluated the performance of different energy estimation models of large-scale (larger than 20 MW) fixed and tracked PV power plants.
• Investigated the effect of cleaning cycle frequency on the energy production of large-scale fixed and tracked PV plants.
• Estimated the best cleaning frequency for large-scale fixed and tracked PV plants in arid and dusty climates.

Therefore, this study aims to:

• Investigate the performance of five energy estimation models, and benchmark them against the actual energy production of large-scale fixed and single-axis tracked PV plants in Jordan with a total capacity of 103 MW.
• Investigate the effect of cleaning cycle frequency on the annual energy production and the LCOE of the plant.
• Find the best cleaning frequency that maximizes the annual energy production of the two plants, and compare it with the current cleaning frequency.

2. Theory and Methodology

2.1. PV Plant Overview

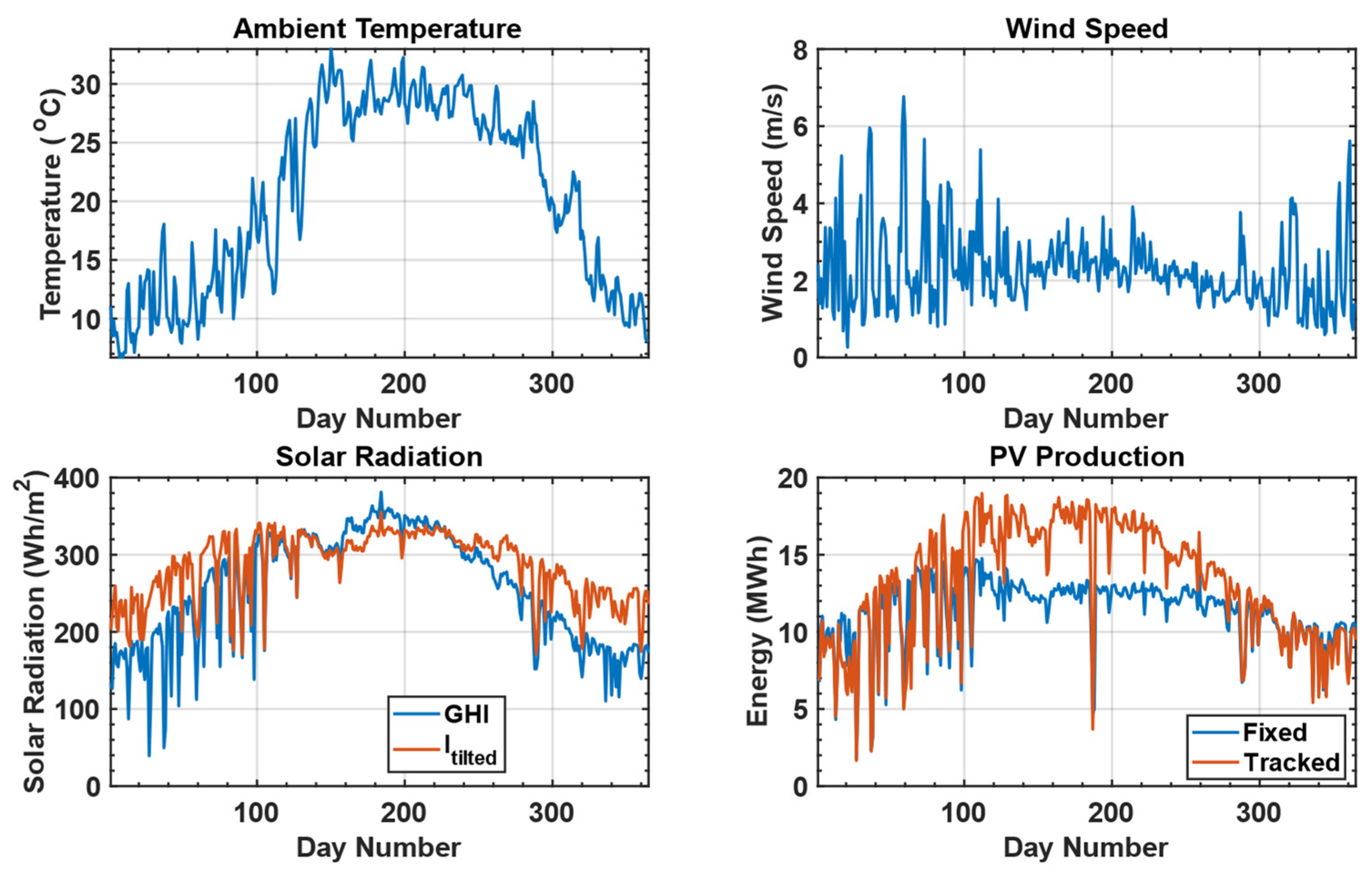

The PV power plant investigated in this study is located in Al-Rashadyah, south of Jordan (29.743976° N 35.360954° E). The plant’s location is characterized by a hot, arid, and dusty climate due to its desert-like nature, with average daily global solar radiation of 6.15 kWh/m², ambient temperature of 20 °C, and wind speed of 2.26 m/s. The first three subplots in Figure 1 show the measured average hourly ambient conditions at the PV plant location. The power plant has several weather stations that measure the ambient conditions and the hourly energy production—shown in Figure 1—using different instrumentations as shown in

Table 1. Overview of the measurements acquired at the PV plant.

Measurement	Accuracy	Frequency	Measurement Device	Model
Ambient temperature	±0.1 °C		STH-S331	Pt100 RTD
Humidity	±0.8% RH		STH-S331	Hygromer IN1
Wind speed and direction	Wind speed: ±0.5 m/s
	Wind direction: ±50	5 min	Wind Sentry Anemomter & Vane	03002
GHI:
Radiation on tilted surface	1 W/m2		Pyranometer	GEO-SR20
PV production	-	1 hr	-	-

. The studied PV plant is considered one of the largest solar plants in Jordan (2nd in ranking), with a total capacity of 103 MW. The plant consists of two sub-plants as indicated in

Table 2. Design parameters of the PV plant.

Design Parameters	Characteristics
Installation Type	Fixed Panels	Single-Axis Tracking Panels
Capacity	51.7 MW	51.7 MW
Module type	Poly-crystalline
Module model	JKM315PP-72	JKM315PP-72-V
Tilt angle	22°	-
Surface azimuth angle	0° (South)	0° (South)
Rotation limitation	-	−45° to 45°
Inverters	INGETEAM 1108 KW AC
Transformers	INGETEAM 3150 KVA, 50 Hz, 0.4 KV/33 KV

. The technical specifications of the PV modules are essential for accurate estimation of their energy production. PV modules used in the Al-Rashadyah plant are manufactured by Jinko Solar Company, where the specifications are shown in

Table 3. Technical specifications of the PV modules installed at the plant.

Parameter	Value
Maximum power	315 Wp
Maximum power voltage	37.2 V
Maximum power current	8.48 A
Open-circuit voltage	46.2 V
Short-circuit current	9.01 A
Operating Temperature	−40 °C~+85 °C
Module Efficiency	16.23%
Temperature Coefficient	−0.4%/°C
NOCT	45 °C
Wind speed at NOCT	1 m/s
STC temperature	25 °C
STC Radiation	1000 W/m2
PV lifespan	25 years

. Due to the dusty nature of the PV plant location, regular cleaning and maintenance are maintained. The normal cleaning period adopted in this plant is three months, where machine-based dry cleaning is used in this plant.

As aforementioned, the plant consists of two parts: a fixed system with PV panels facing the south and a 22° tilt angle, and a single-axis tracking system (around the horizontal axis). Each sub-plant consists of 19 PV stations, where each station has three inverters; each inverter is connected to six combiners. The combiner consists of 24 strings; each string has 20 PV panels connected in series. The total number of components in the PV plant is shown in

Table 4. PV power plant components details.

	Fixed Panels System	Tracking Panels System	Total
PV modules	164,160	164,160	328,320
Strings	8208	8208	16,416
Combiners	342	342	684
Inverters	57	57	114
Stations	19	19	38
Transformers	19	19	38

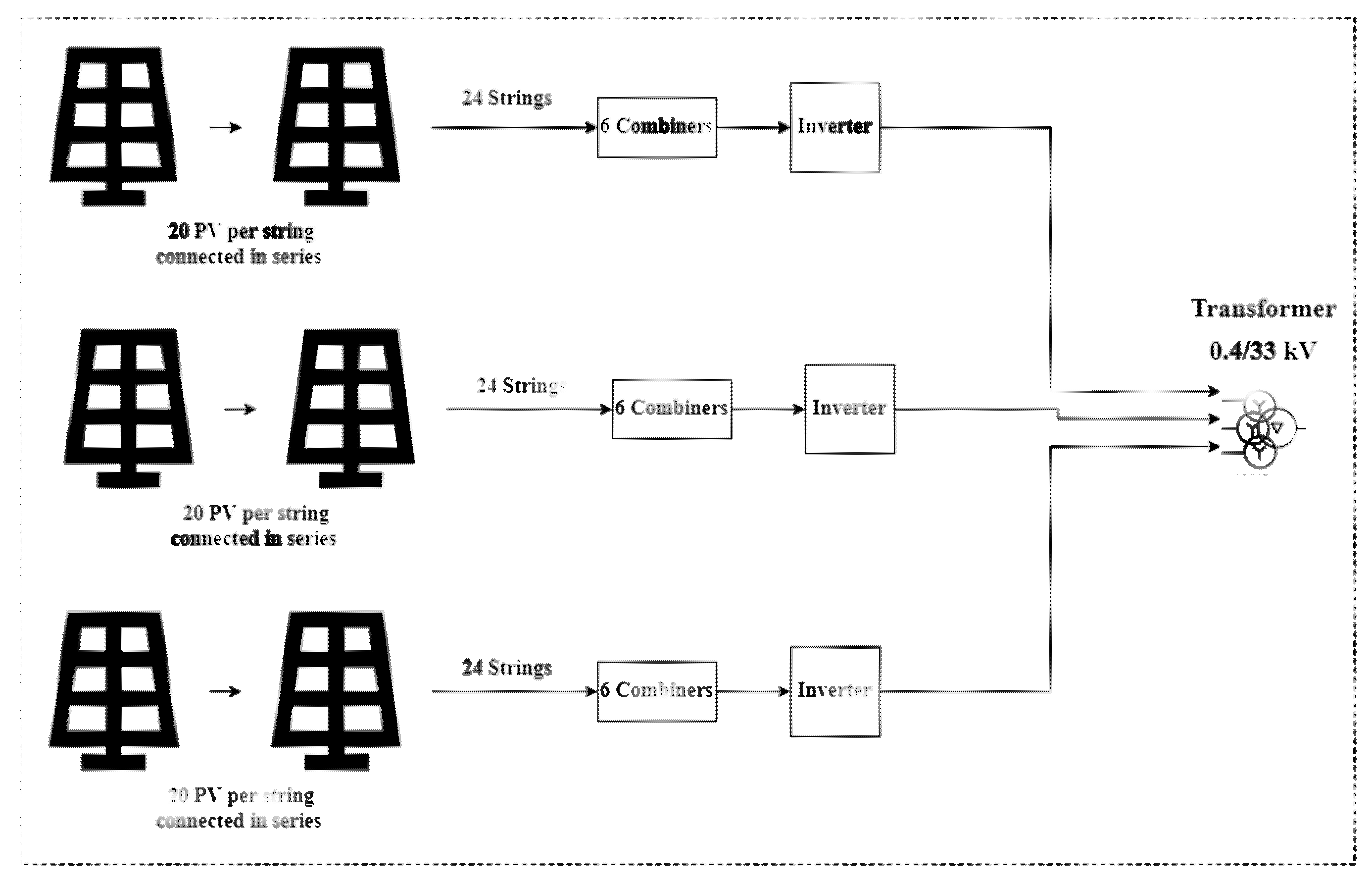

. Figure 2 shows a general schematic diagram of the PV power plant, whereas Figure 3 shows the schematic diagram of each PV station.

2.2. Modeling PV Production

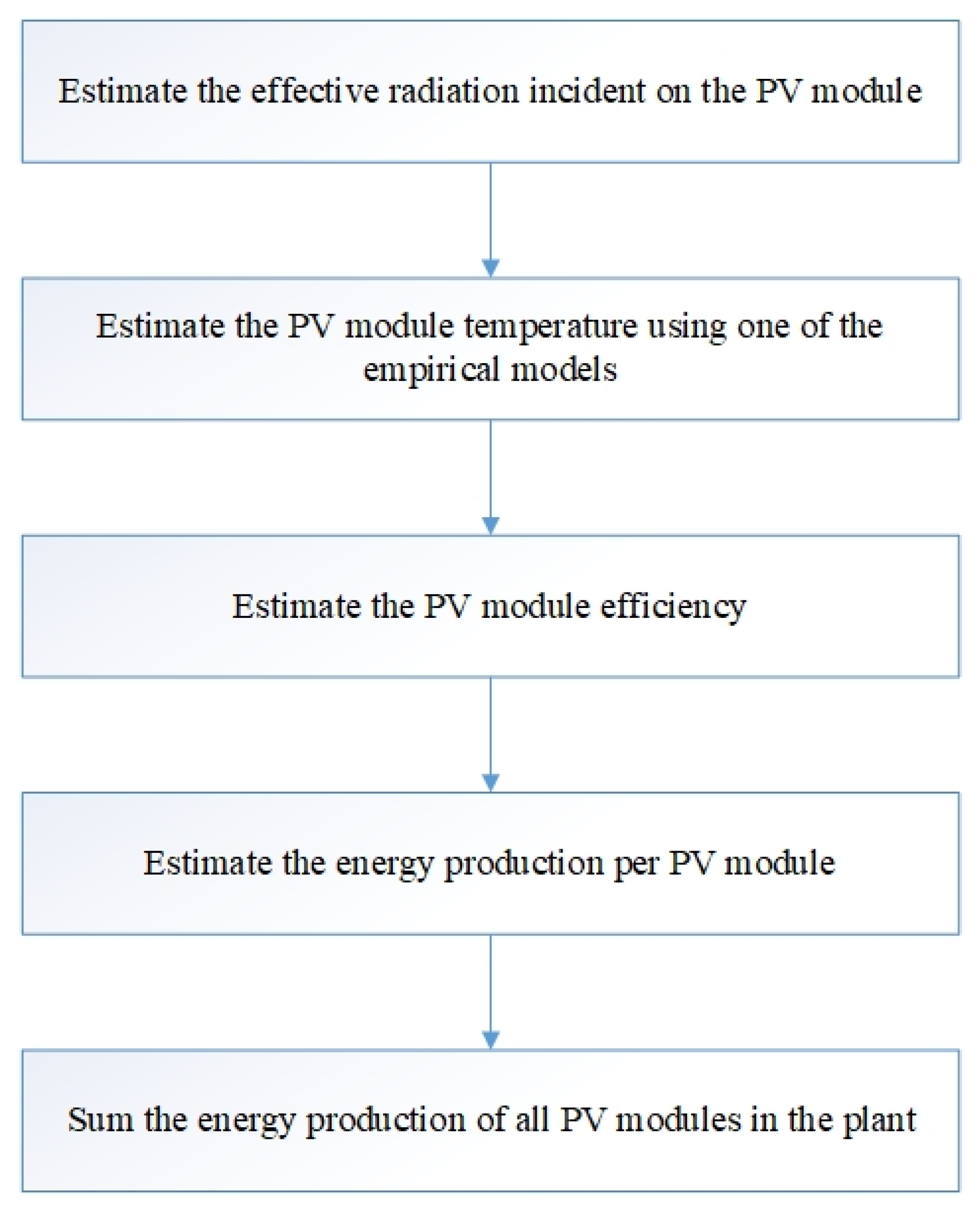

The energy production from PV plants is directly correlated with the site’s solar resources, but it is also affected by the ambient conditions, especially the ambient temperature. The ambient temperature increases the PV cell temperature and decreases the energy production by a specific rate, depending on the cell’s specifications. Many researches (e.g., Schwingshackl et al., [18]) highlighted the need to include the effect of wind speeds in estimating the PV cell temperature, where wind speeds could contribute to cooling the PV panels and increasing energy production. Several models have been proposed to account for the wind effect, as reported by [18]. In this study, the performance of five models (standard model and four wind models) in the PV energy estimation was benchmarked against the actual energy produced from the PV plant. These models are shown in

Table 5. The empirical cell temperature models used in this study [18].

Model	Formula	Ref.
Standard	$T_{PV}=T_a+\left(\mathrm{NOCT}-{\mathrm{T}}_{\mathrm{stc}}\right)\times \frac{I_{t,ef}}{{\mathrm{I}}_{\mathrm{ref}}}$	[17]
1	$T_{PV}=\frac{U_{PV}\times T_a+I_{t,ef}\times \left(0.81-{\eta }_{PV,ref}\times \left(1-{\beta }_{ref}\times T_{stc}\right)\right)}{U_{PV}+{\beta }_{ref}\times {\eta }_{PV,ref}\times I_{t,ef}}$ with $U_{PV}=26.6+2.3\times v_w$	[22]
2	$T_{PV}=T_a+\left(\mathrm{NOCT}-{\mathrm{T}}_{\mathrm{stc}}\right)\times \frac{I_{t,ef}}{{\mathrm{I}}_{\mathrm{ref}}}\times \frac{h_{w,NOCT}}{h_w}\times \left(1-\frac{{\eta }_{PV,ref}}{0.9}\right)\times \left(1-{\beta }_{ref}\times T_{stc}\right)$ with $h_w=5.7+2.8\times v_w$ $h_{w,NOCT}=5.7+2.8\times v_{W,NOCT}$	[19]
3	$T_{PV}=T_a+\frac{I_{t,ef}}{{\alpha }_1\times v_w+{\alpha }_0}$ with $a_1$ = 6.28 W s/°C m3 and $a_0$ = 30.02 W/°C m2 for polycrystalline PV modules [21].	[21]
4	$T_{PV}=T_a+I_{t,ef}\times exp\left(-3.473-0.0594\times v_w\right)$	[20]

, and were adopted from [18]. Root mean square error (RMSE) and coefficient of determination (R²) were used as the judging parameters. It should be noted that the local wind speed as suggested by [39] was used in these models, which can be estimated with the availability of wind speed measurements at ground level (10 m) using Equation (1).

$$v_w=0.68\times U-0.5$$

(1)

In addition to the ambient temperature and wind speeds, dust (or soil) significantly affects the energy produced by PV modules. The accumulation of dust on the PV module causes shading, and scatters the radiation, especially in dry regions such as Jordan [16,40]. One of the means used to estimate the drop in the energy generation is the soiling ratio (SR), as demonstrated in [41], where experimental studies such as [25,40,41] have found the average soiling ratio for different regions in Jordan. The PV plant location analyzed in this study is close to the location (Ma’an) investigated in [25], with similar ambient conditions. Hence, the average soiling ratio was adopted from that study. It is assumed in this study that the soiling ratio is constant throughout the year, and based on [25], the hourly soiling ratio is set to be 0.0065%.

It should be noted that this soiling ratio is the accumulative quantity unless the PV panel is cleaned, in which case the accumulation of SR restarts from the cleaning time. With the SR, the effective solar radiation incident on the PV module can be estimated using Equation (2), whereas the estimation of the hourly energy produced by the PV can be calculated using Equation (3). It should be noted that the reference cleaning frequency used in this study for evaluating all the models in Table 5 is 12 weeks (3 months). Moreover, the best cleaning frequency is assumed to be in the order of weeks with a time step of one week. Figure 4 shows the procedure adopted in this study to estimate the energy production from the PV power plant.

$$I_{t,ef}=I_{tn}\times \left(1-{{\displaystyle \sum }}_{i=t_{tc}}^{n}S{R}_i\right)$$

(2)

$$E_{estimated}=\left[{\eta }_{PV,ref}\times {\beta }_{ref}\times \left(T_{PV}-T_{stc}\right)\right]\times I_{t,ef}\times A_{PV}\times N_{PV}\times P_r$$

(3)

where $P_r$ is assumed to be 0.85, which accounts for wiring, inverter, and shading losses [42].

2.3. Plant Economics

It is vital to assess this effect, and to investigate the benefits of more frequent cleaning of the PV modules considering the additional cleaning cost. The levelized cost of electricity (LCOE) is one of the most common parameters used to assess the economic feasibility of energy systems, which was used in [1,43]. The LCOE is sensitive to any additional costs—such as the cleaning cost—and also to the variation in the annual energy production. Hence, it represents a suitable parameter for assessing the viability of more frequent cleaning of the PV modules. The LCOE can be estimated using Equation (4) with the economic parameters listed in

Table 6. The economic parameters used in this study.

Parameter	Unit	Plant Type	Value	Ref.
PV capital cost	(USD/kWp)	Fixed	1280	[44]
		Tracked	1350
Annual maintenance cost	(USD/kWp)	Fixed	24	[17,45]
		Tracked	24
Machine-based cleaning cost	(USD/m2/cycle)	Fixed	0.005	[32]
		Tracked	0.005
Annual discount rate	(%)	Fixed	5	[46]
		Tracked	5

.

$$LCOE=\frac{C_{PV}+{{\displaystyle \sum }}_{y=1}^{L_f}\frac{M_t+C_L}{{(1+d)}^y}}{{{\displaystyle \sum }}_{y=1}^{L_f}\frac{E_{\mathit{estimated}}}{{(1+d)}^y}}$$

(4)

where

$$C{l}_c=R_{cl}\times A_{PV}\times N_{PV}\times \left(N_{weeks}/f_{cl}\right)$$

(5)

3. Results and Discussion

3.1. PV Production Models

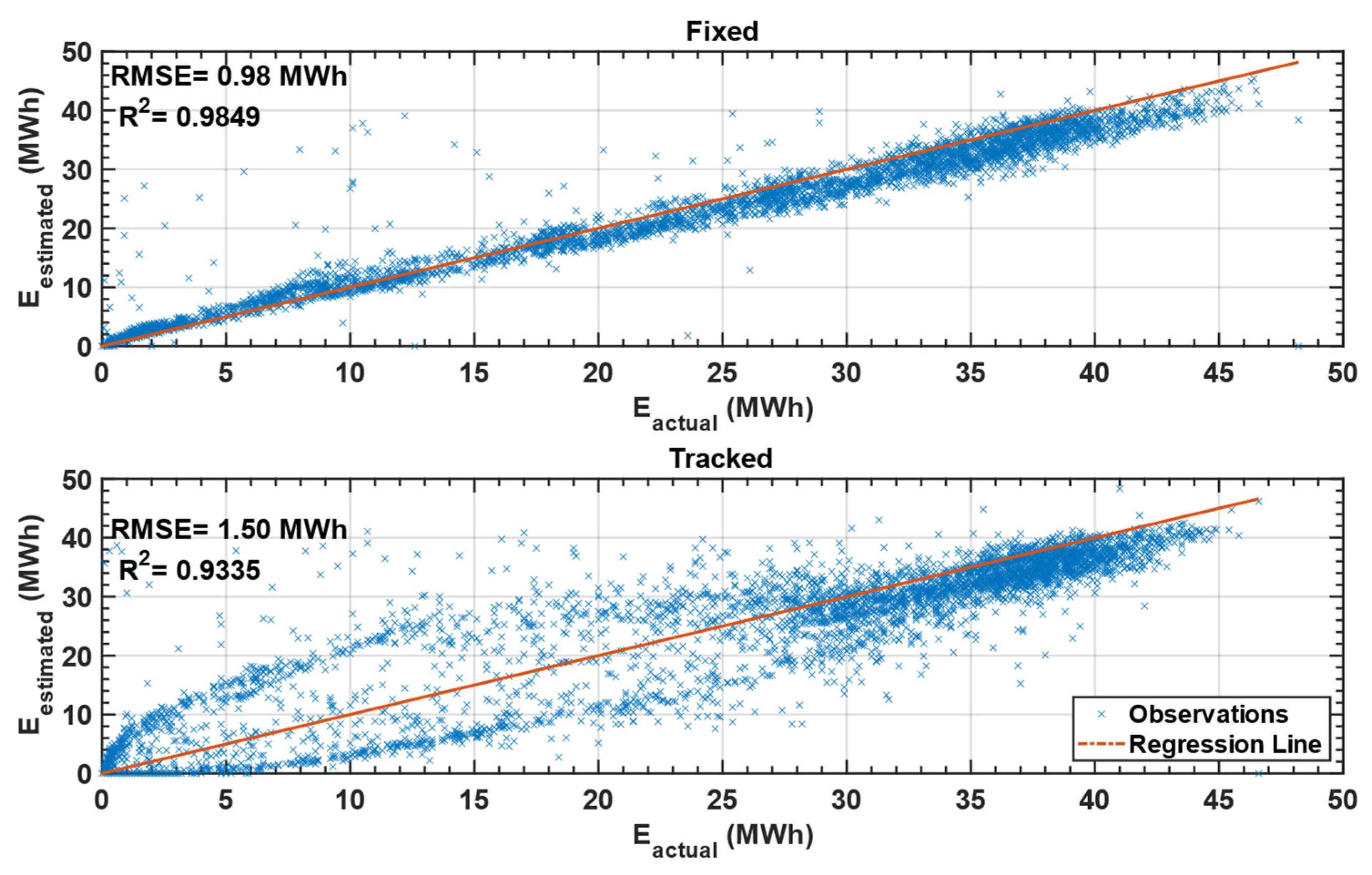

As aforementioned, the ability to accurately estimate the energy production from PV plants is vital to policymakers, PV plant owners, and any potential investor to assess the techno-economic feasibility of the PV plants. The literature is rich with models used to estimate this energy production, where most of these models have decent accuracy. The most common model is the standard one that only considers the effect of ambient temperature. The performance of this model in estimating the energy production of fixed and tracked PV plants is outstanding, as shown in Figure 5, with R² of 0.9849 and 0.9335 for the fixed and tracked sub-plants, respectively. Including the wind, the effect is expected to enhance the PV models’ estimation accuracy, which would vary among the empirical models. It can be depicted from Figure 6 and Figure 7 that all the models that incorporated the wind effect slightly outperformed the standard model in terms of R².

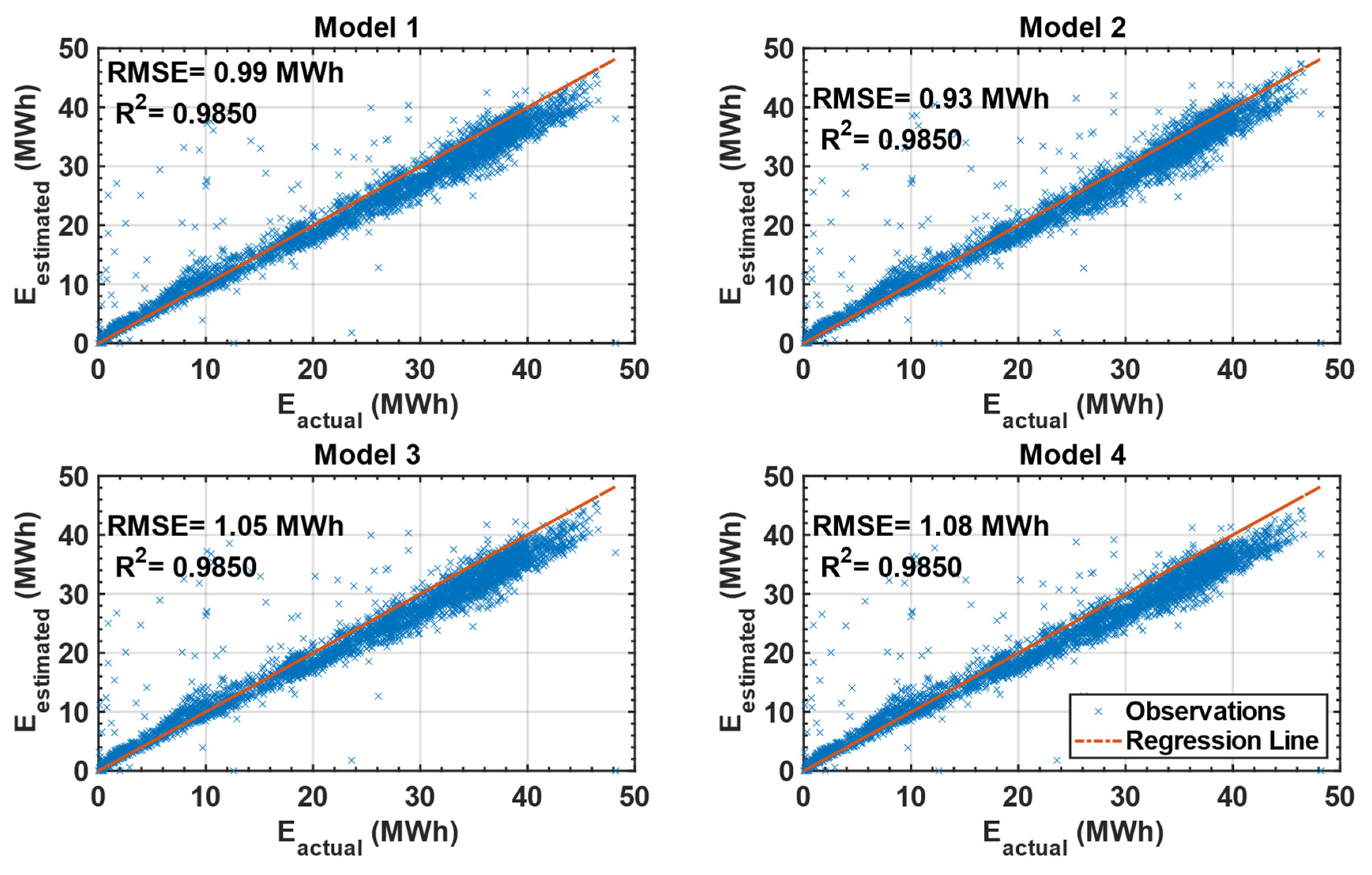

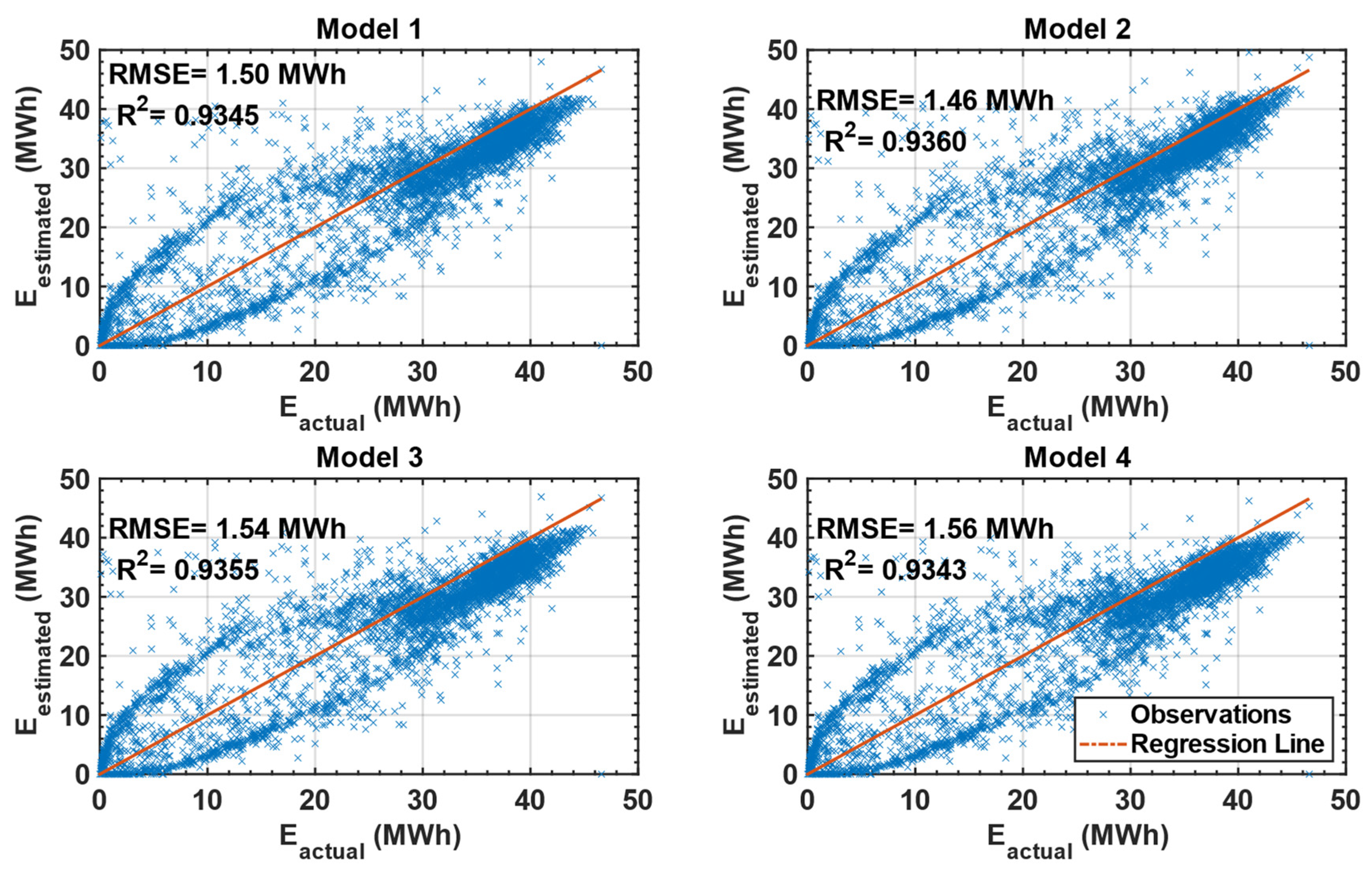

In contrast, model 2 outperformed the standard models in terms of RMSE for both sub-plants. The adopted models in this study have very similar performance in estimating the energy production with R² of 0.985 and RMSE between 0.93–1.08 MWh for the fixed PV plant, where model 2 suggested by [19] slightly outperformed the rest of the models in terms of R² and RMSE, as shown in Figure 6. While the performance of these models in the case of the single-axis tracked PV plant decreases in terms of R² to 0.9343 with the superiority of model 2, as shown in Figure 7. The main reason for this drop in the performance can be related to estimating the local wind speeds on the PV modules. The used empirical models were developed for fixed PV modules, and did not incorporate the variation in PV tilt angle. The movement of the PV modules affects the cooling caused by wind speeds (more cooling is predicted when the wind is parallel to the PV module), especially with the variation in the wind direction. The unavailability of the wind direction data from the measuring station is one of the barriers that hinged the investigation of this effect in this study.

The deviation between the measured and estimated energy prediction is expected, knowing that the empirical models (the models used to estimate the PV cell temperature) adopted in this study were obtained at specific locations with certain ambient conditions that deviate from those in this study. In addition, the dust\soiling accumulation amount and the drop in the PV performance due to this accumulation could be another source for the deviation. The lack of PV cell and dust accumulation measurements at the PV location prevents further improvement on the PV estimation models. Such measures could be used to find new empirical models for this location.

3.2. Effect of Cleaning Frequency

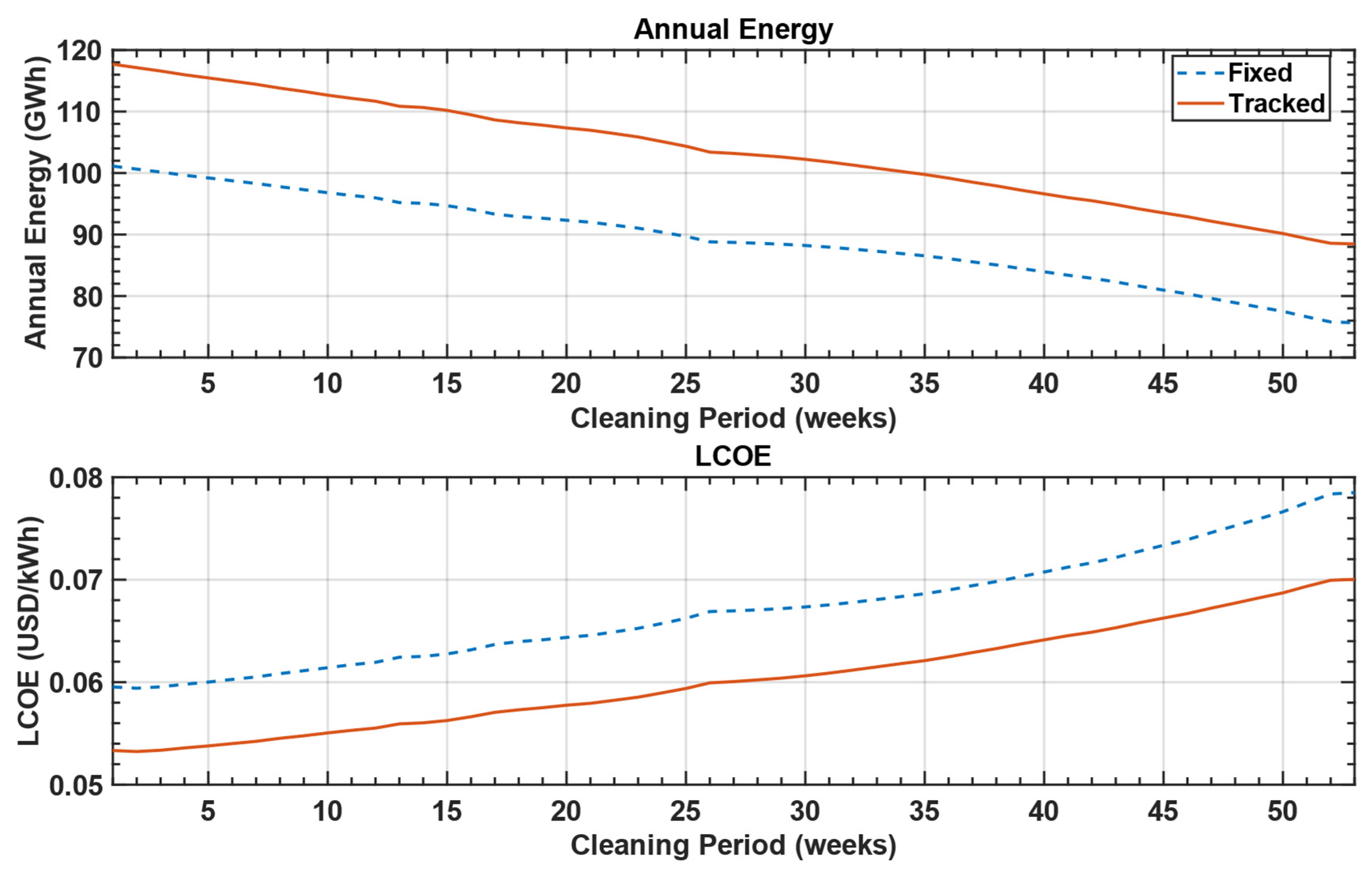

The effect of dust/soil accumulation on the PV can be significant if the cleaning frequency is insufficient, depending on the accumulation rates and ambient conditions. The location of the PV plant investigated in this study is characterized by an arid climate with rare rainfall events and a high probability of dust/soil accumulation. Hence, regular PV cleaning is vital for ensuring the PV plant’s best performance and maximizing its profits. Figure 8 shows the effect of the cleaning period on the annual energy production and the LCOE of the two PV sub-plants. It can be depicted from the figure, that irregular cleaning of the PV modules causes a significant drop in PV production and increases the LCOE. Moreover, it is evident in Figure 8 that decreasing cleaning frequency decreases the LCOE. However, this trend inverts after a cleaning frequency threshold of two weeks, implying that the best cleaning frequency that increases the energy production—and that corresponds to the lowest LCOE—is two weeks. Therefore, a cleaning frequency of two weeks is suggested in the PV plant, instead of the current three months, to ensure the best performance and the lowest LCOE of the PV plant. Moreover, Figure 5 can be used to introduce empirical formulas for quantifying the effect of the cleaning frequency on the annual energy production and the LCOE in regions with similar environmental conditions, as shown in

Table 7. Empirical formulas for estimating the annual energy production and the LCOE of PV power plants in desert conditions similar to the environmental conditions at the investigated plant.

System Type	Annual Energy (MWh/MWp)	LCOE (USD/kWh)
Fixed	$-4.49\times {\mathrm{f}}_{\mathrm{cl}}+986.86$	$3.482\times {10}^{-3}\times {\mathrm{f}}_{\mathrm{cl}}+0.0577$
Tracked	$-5.36\times {\mathrm{f}}_{\mathrm{cl}}+1149.22$	$3.21\times {10}^{-3}\times {\mathrm{f}}_{\mathrm{cl}}+0.0517$

.

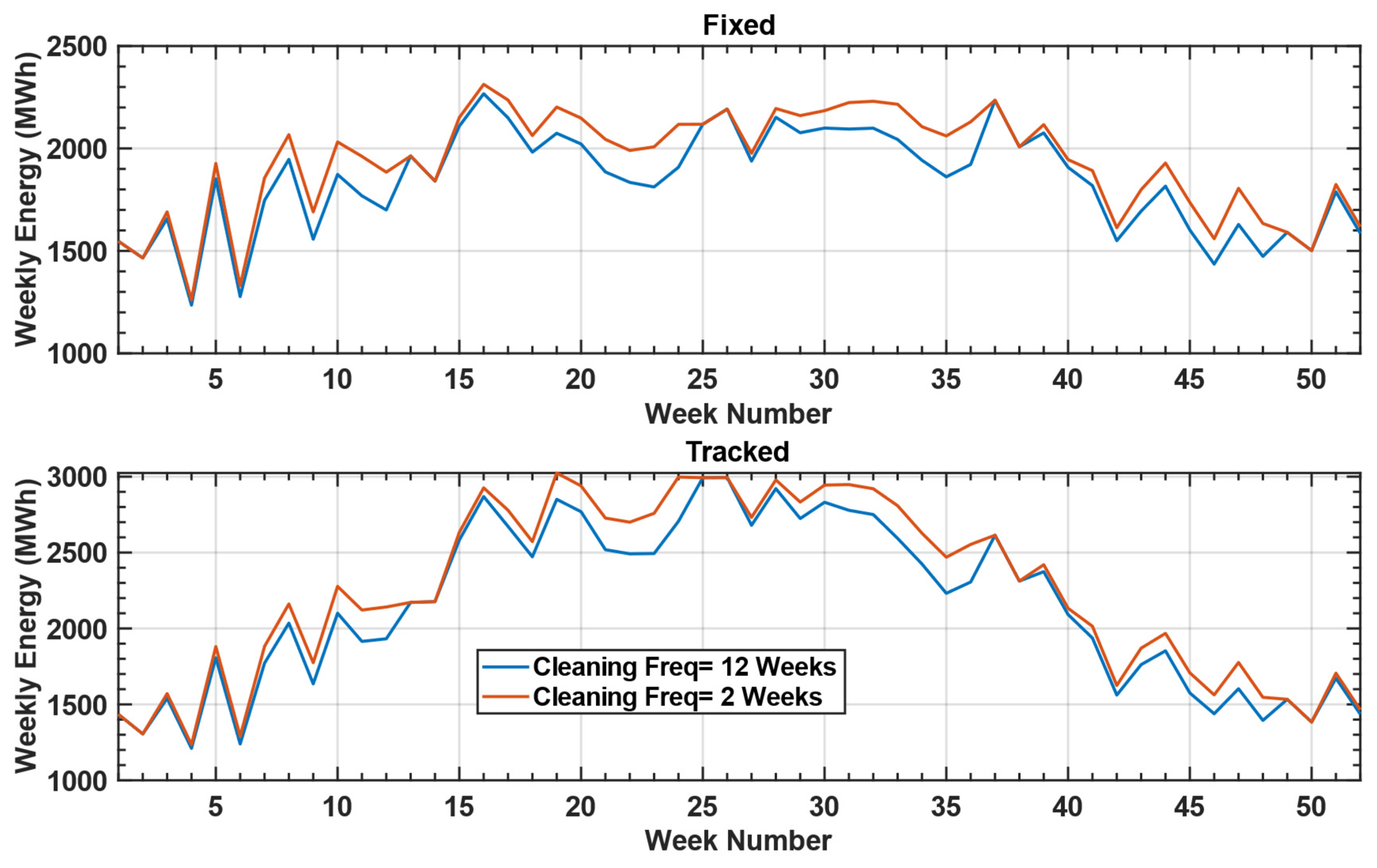

To highlight the benefits of this change in the cleaning frequency,

Table 8. The change in the annual energy production and the LCOE of the fixed and tracked PV plants with the proposed dust cleaning frequency.

Type	Cleaning Freq. (Weeks)	Annual Energy (GWh)	LCOE (USD/kWh)
Fixed	12	95.96	0.0619
	2	100.64	0.0594
Tracked	12	111.68	0.0555
	2	117.14	0.0532

shows a quantitative comparison between the estimated annual energy production and the LCOE of the two PV plants at the current and proposed cleaning frequencies. It can be depicted that the proposed cleaning frequency increases the annual energy production of the fixed and tracked PV plants by 4.88% and 4.89%, respectively. This also can be noticed in the weekly energy profile of the two PV plants, as shown in Figure 9, at the two cleaning frequencies. It can be seen in Figure 9 that the tracked PV plant outperforms the fixed plant during the summer months (which is expected since the tracked PV panels follow the sun), and thus increases the beam radiation incident on the surface. However, in winter months both plants have almost the same energy production since the beam radiation in these months has less contribution than the other solar radiation components due to the cloud cover. Moreover, two weeks’ cleaning frequency decreases the LCOE of the fixed and tracked PV plants by 4.04% and 4.14%, respectively, as shown in Table 8. Hence, this highlights the viability and significance of adopting the new cleaning frequency.

4. Conclusions

In this study, five PV energy estimation models were evaluated and compared to the actual energy produced from Jordan’s largest PV power plants with a capacity of 103 MW. The plant consists of two sub-plants: a 51.7 MW fixed panels plant and a 51.7 MW single-axis tracking panels plant. Root mean square error (RMSE) and the coefficient of determination (R2) were used to assess the performance of the estimation models. Moreover, the effect of cleaning frequency on the annual energy production as well as the levelized cost of electricity (LCOE) of the PV plant was investigated. Finally, the 103 MW PV plant’s best cleaning frequency was found that maximizes the annual energy production and minimizes the LCOE.

The investigated models in this study have very similar performance in predicting the energy production, with R² varying between 0.93 and 0.98, and RMSE between 0.93–1.56 MWh for both sub-plants. The results indicate that model 2 slightly outperforms the rest of the models—including the standard model—in terms of R² and RMSE. The deviation between the measured and estimated energy prediction is expected for many reasons, such as:

• Local wind speeds on the PV modules, where the used empirical models were developed for fixed PV modules only.
• The adopted models do not incorporate the effect of wind direction due to the unavailability of wind direction measurements at the PV plant.
• The models adopted in this study were obtained at specific locations with certain ambient conditions that deviate from the ones in this study.
• Finally, the dust\soiling accumulation rates and the drop amount in the PV performance due to this accumulation could be another source for the deviation.

The plant is located in the southern part of Jordan, which is considered a desert with a very hot and dry climate. Hence, regular cleaning of PV modules is required to ensure maximum performance of the PV panels. It is concluded in this study that cleaning the panels every two weeks is recommended, instead of every three months, whereby the new cleaning frequency will increase the annual energy by almost 5% and decrease the LCOE by nearly 4% for the fixed and tracked panels.
