An Experimental and Numerical Approach to Multifunctional Urban Surfaces through Blue Roofs

Abstract

Uncontrolled urban growth causes a number of problems associated with land use, stormwater management and energy generation. Sustainable Urban Drainage Systems (SUDS) are positioned as an alternative to traditional constructive solutions, contributing towards the generation of multifunctional urban spaces for efficient stormwater management and energy consumption reduction. Nevertheless, this combined goal calls for a deeper understanding of the heat transfer processes that govern the temperature performance in SUDS in order to be further validated as infrastructure to house renewable energy elements. This study intends to determine the thermal properties of two types of blue roofs under extreme conditions of performance (wet and dry), depicting the operation features of their layers and comparing their performances based on the materials used. With this aim, a hybrid experimental methodology, combining laboratory and numerical modelling, was designed using standardized equipment (ISO 8990:1994 and ASTM C1363-05), improving previous methods proposed in the study of the thermal properties of SUDS. The section with expanded clay improved the hydraulic capacity by 4.8%. The section without expanded clay increased its thermal transmittance value by 64.9% under wet conditions. It was also found that the presence of water increased the equivalent thermal conductivity in both sections by 60%.

1. Introduction

Cities across the globe have seen their populations increase by up to 1.1 billion people [1]. This tendency is estimated to continue over the next decades, causing a raise of 2.5 billion inhabitants by 2050 [2]. This phenomenon poses present and future challenges such as the enhancement of water management in urban environments [3], the search for new renewable energy sources and the optimization of urban space [4]. The latter being identified as a key factor for sustainable development in consolidated urban areas [5]. These challenges are outlined in the Sustainable Development Goals (SDGs) receiving special attention in Goal 11 related to sustainable cities and communities [6]. Moreover, buildings have been pinpointed as a cornerstone urban feature to cut energy demand in urban areas as they represent a significant amount of the total energy consumption in cities. For instance, air-conditioning and domestic hot water stand for 80% of the amount of energy consumed by a standard building [7], evidencing the need for the implementation of renewable energy systems within or adjacent to these urban structures.

Along these lines, the European Union (EU) encourages the adoption of Nature-based Solutions (NBS) at all territorial levels, including the urban environment [8]. Sustainable Urban Drainage Systems (SUDS) are highlighted as fundamental elements to help cities transition towards regenerative philosophies under this defiant context of change [9]. SUDS are a set of techniques enclosed in the Low Impact Development (LID) and the Water Sensitive Urban Design (WSUD) ethos [10]. Thus, it is necessary to strengthen the knowledge about the climate–land–water–energy nexus [11], paving the path for new studies that delve into the relations between these elements [12].

A few authors explored the water–energy nexus, combining SUDS and renewable energy techniques from a thermal harnessing viewpoint, with the majority of these investigations focused on the use of ground source heat pump (GSHP) alongside permeable pavement systems (PPS) [13,14,15]. Recent studies have examined the potential match between GSHP and wet swales [16], as well as the long-term temperature behavior of vegetated swales in the field [17]. The abovementioned studies revealed promising results for the future development of multifunctional surfaces, housing energy and stormwater management techniques.

Nevertheless, the SUDS utilized within the structure of a building have not been investigated from this particular angle, which exemplifies a knowledge gap in the field. Green and blue roofs are, perhaps, the most used SUDS in buildings. Therefore, they are appropriate candidates to be developed as potential multifunctional surfaces for water and energy management. In this regard, roofs have been spotted as one of the main causes of surface waterproof in urban environments [18]. Additionally, green roofs have proven to be efficient urban elements which reduce the heat island effect (HIE) by controlling the temperature of the roof of a building [19]. These SUDS allow temperature regulation, providing heating in winter conditions and cooling in summer conditions [20]. In addition, green and blue roofs mimic the natural hydrological processes [21], enhancing the development of new urban habitats [22].

The present research targeted blue roofs as one of the key SUDS based in buildings as well as one of the most investigated and extended across the world [23]. Hence, this study tackles one of the most significant knowledge gaps in relation with the water–energy nexus through the implementation of SUDS. Besides, previous experiences outlined in Charlesworth et al. [4] highlighted the need to further investigate the thermal properties provided by the most commonly used materials in the cross-section of SUDS. There is also a lack of comprehensive studies showing the combined performance of these materials under wet conditions, which represents one of the extreme operation scenarios in SUDS [24]. Consequently, this research elaborates on these previously described gaps, studying the thermal performance of blue roofs, using several materials which are widely utilized in blue roofs such as limestone, expanded clay aggregates, geotextiles and modular tanks.

A numerical analysis of the blue roofs was carried out, applying a hybrid methodology used by previous authors such as del Coz Díaz et al. [25] in order to study the thermal properties of construction materials. These numerical models allowed the in depth study and simulation of the heat transfer phenomena developed in the system [26]. With this aim, the research raised the following specific objectives:

• Development of a laboratory-based methodology using standardized tests in order to determine and measure the key thermal parameters in the different layers of wet and dry blue roofs. This method could be transferred to other SUDS.
• Identification and measurement of the effect of lightweight materials utilized in blue roofs such as expanded clay.
• Assessment of the thermal properties (i.e., transmittance and conductivity) of the blue roof cross-sections studied in the models.
• Obtainment of the thermal properties of the materials forming the standard sections of the roofs studied using numerical models, Design of Experiments (DOE) and Multi-Objective Genetic Algorithm methodologies (MOGA).

2. Materials and Methods

2.1. Materials and Experimental Set-Up

Blue roofs consist of four main layers based on the Philadelphia Water Department designs [27]: gravel/aggregate layer, geotextile, drainage layer, and a suitable waterproofing roof membrane. These sections share all layers with the structure of a regular green roof except the surface layer, where vegetation and growth substrate are usually located. This surface layer is replaced by a gravel/aggregate layer in the case of blue roofs [3]. This kind of structure has been widely utilized both in the laboratory and in the field, achieving prime results from a stormwater management standpoint [28]. Therefore, this research used the following materials as layers for the laboratory blue roof models:

• Material 1: limestone aggregate 10/20 mm particle size diameter, 2690 kg/m³ bulk density and 35% porosity. This material was included in sections type 1 and 2 as surface layer, as well as, in type 1 in the sub-base layer (Figure 1).
• Material 2: Atlantis Flo-Tank^® lightweight modular tank structural system with 450 mm height, 685 mm length and 408 mm width. These modular tank systems provide up to 90% of voids in volume and were implemented between the surface layer and the sub-base (Figure 1).
• Material 3: expanded clay 10/20 mm particle size diameter, 275 kg/m³ bulk density and 34% porosity. This material has a higher porosity and lower density due to its properties gained through an industrial manufacture process, which confers it a vitrified surface [29].

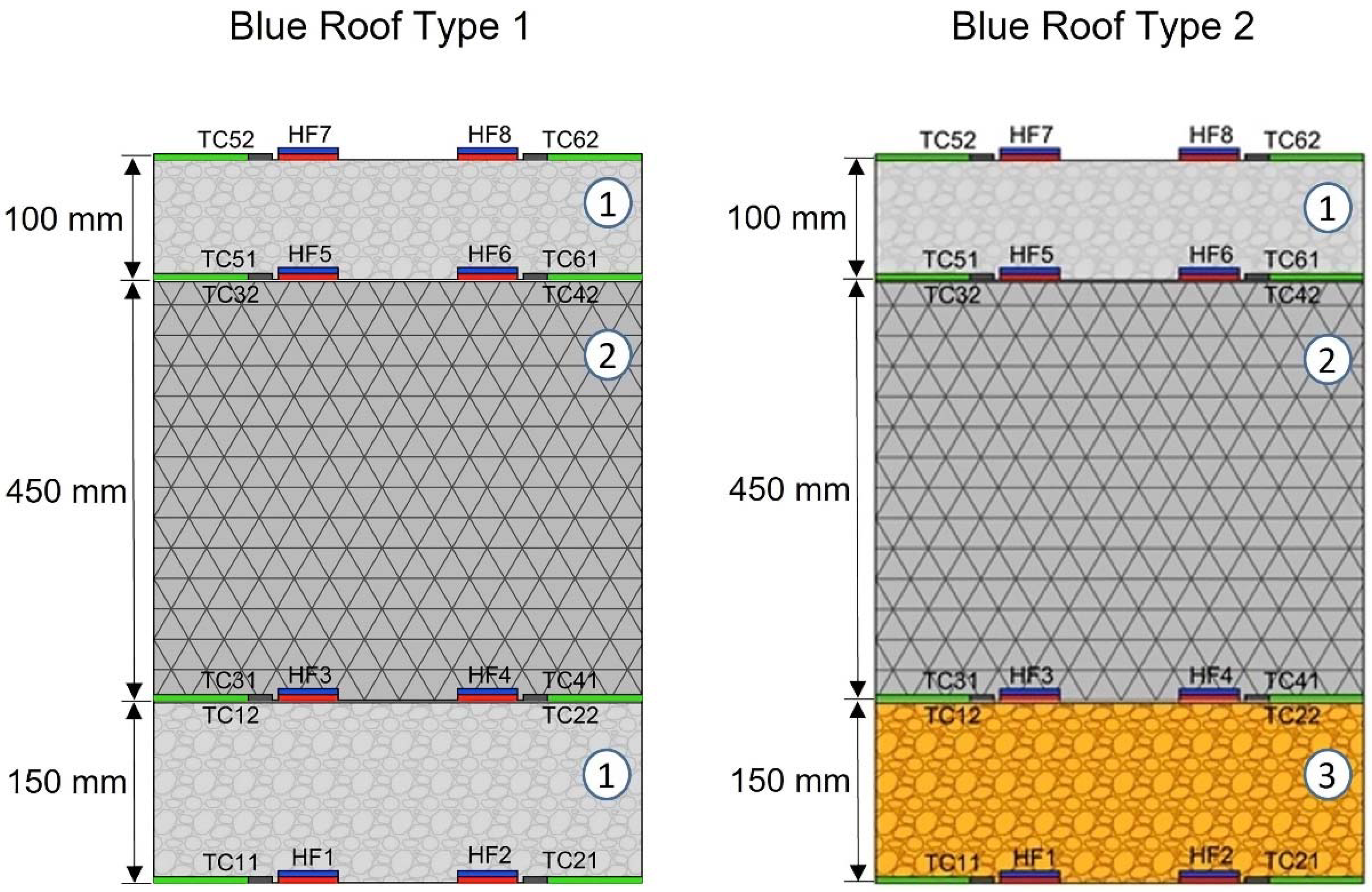

Figure 1. Types of blue roof models with details of the materials utilized (1-Limestone aggregates, 2-Atlantis’ Flo-Tank^®, 3-Expanded clay).

Figure 1. Types of blue roof models with details of the materials utilized (1-Limestone aggregates, 2-Atlantis’ Flo-Tank^®, 3-Expanded clay).

A geotextile is placed between all layers (surface–modular tank and modular tank–sub-base interfaces) with the aim to separate them and to filter the water. The geotextile consists of short polyester fibers 150 g/m², which are non-woven, and have a thickness of 1.0 ± 0.2 mm.

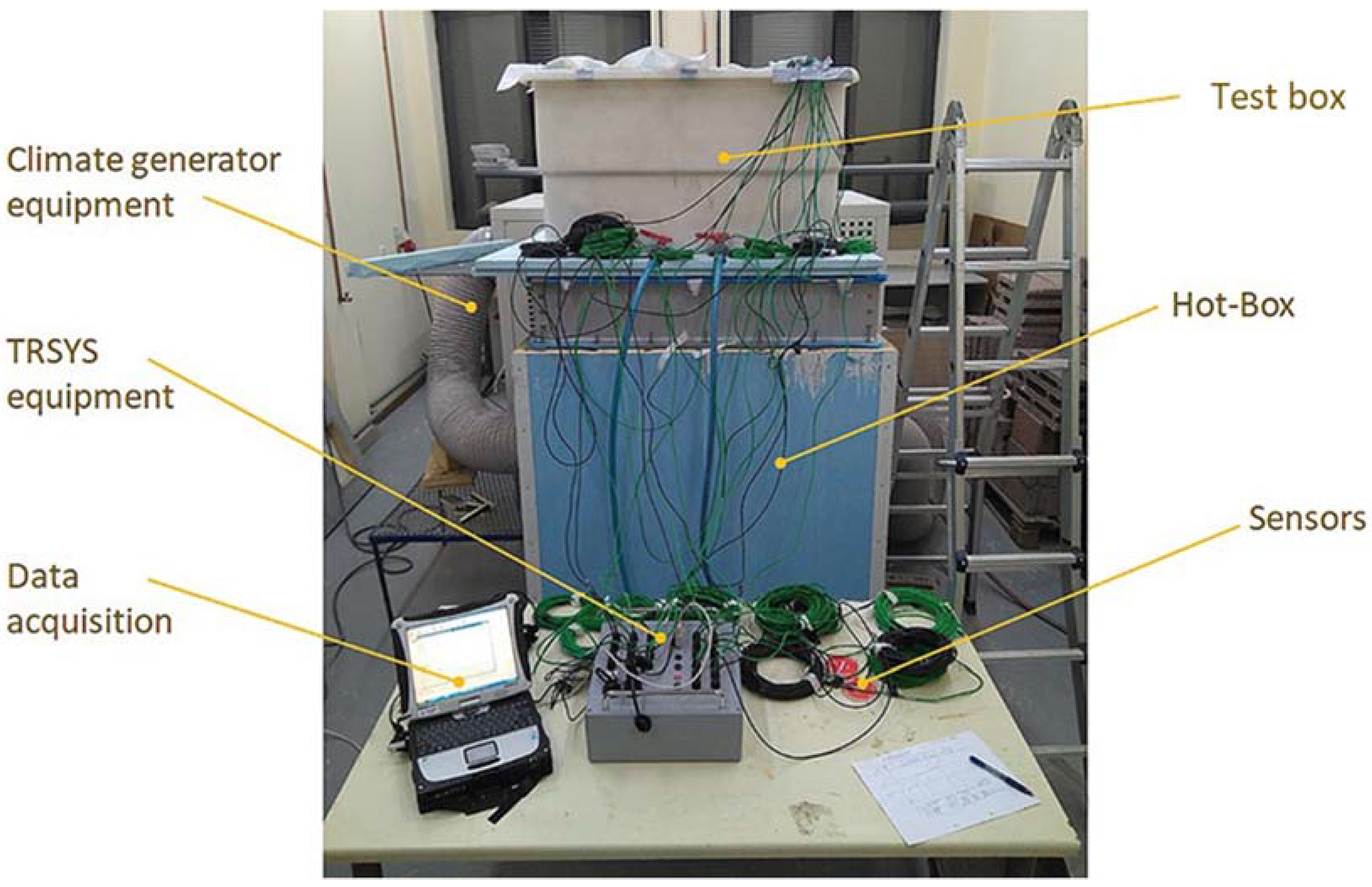

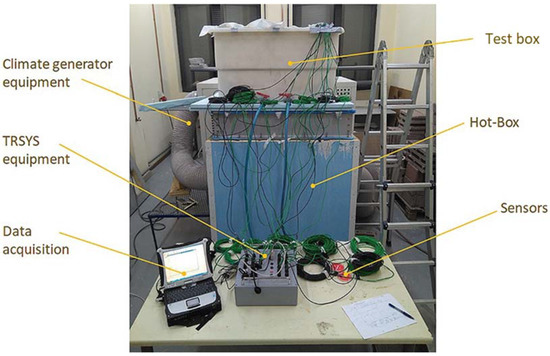

The equipment deployed to determine heat transfer under steady-state conditions consisted of a climate generator unit and a calibrated hot-box. The first device allows one to control the temperature values in an enclosed ambience through the provision of heating, cooling and moisture. The hot-box is connected to this device, delivering a 1 m³ space for the controlled climatic conditions. The abovementioned equipment operates in accordance with the standards ISO 8990:1994 [30] and ASTM C1363-05 [31].

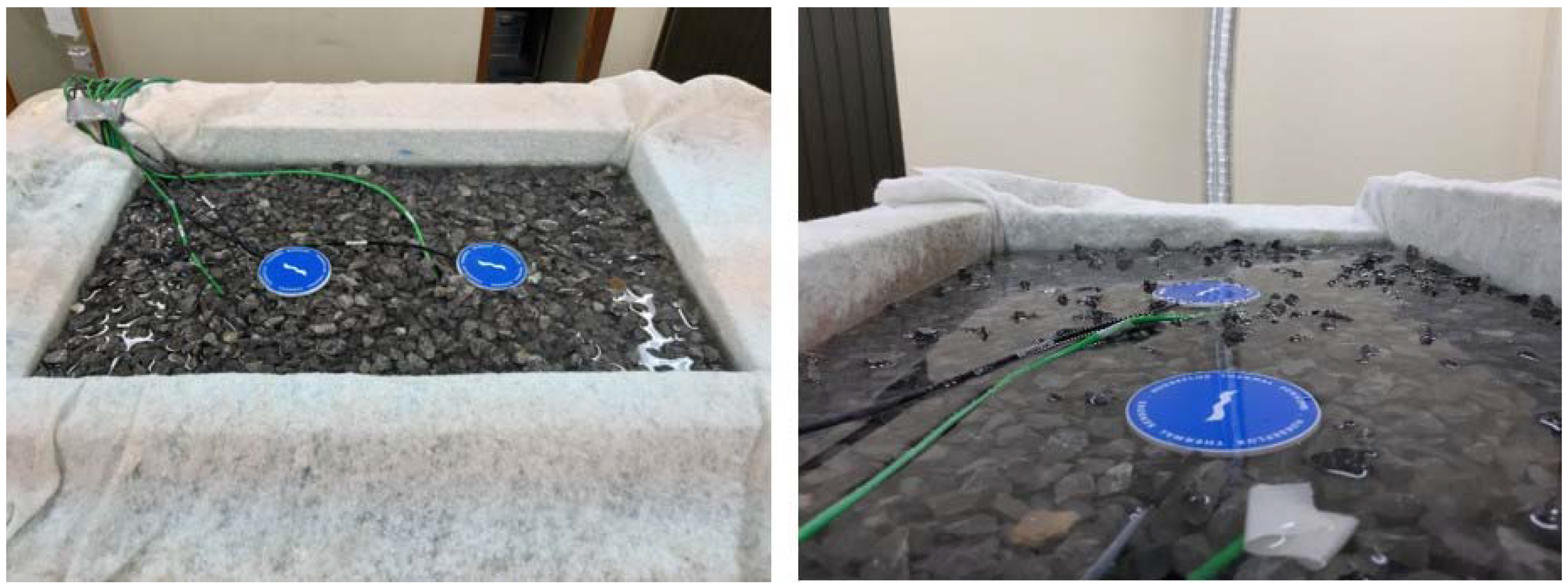

The cross-sections presented in this research (Figure 1) were installed in the test box, resting on top of the hot-box (Figure 2), while being isolated from the external environment by means of a 10 cm layer of a extruded polystyrene with a low thermal conductivity (0.033 ± 0.003 W/mK). Sensors consisted of 8 type K thermocouples (TC_xy) and 8 heat flux Hukseflux HFP01 (HF_x) that were installed at the upper and lower interfaces in all layers (Figure 1), allowing the collection of temperature and heat flux, respectively. Heat flux plate HFP01 is a sensor usually utilized for heat flux measurements in soil as well as through walls and building envelopes. The sensor specifications are as follows: Sensitivity (nominal): 60 × 10⁻⁶ V/(W/m²); Sensor thermal resistance: 71 × 10⁻⁴ K/(W/m²); Rated operating temperature range: −30 to +70 °C; Measurement range: −2000 to +2000 W/m². In addition, thermal resistance and thermal transmittance were calculated following the operational instructions for the equipment previously depicted in the standards [30,31]. Data acquisition from the tests was carried out by means of the TRSYS equipment by Hukseflux, shown in Figure 2, coupling the measurements from the thermocouples with the data registered by the heat flux sensors, providing the temperature differential.

The thermal transmittance is obtained using Equation (1) based on the simultaneous measurement of the average heat flux ($\mathsf{\Phi }$) and the temperature difference ($\mathsf{\Delta }\mathrm{T}$) registered in the thermocouples. Once the thermal transmittance is calculated, the thermal resistance and the equivalent thermal conductivity of the whole section can be estimated using Equations (2) and (3).

$$\mathrm{U} \left[\mathrm{W}/{\mathrm{m}}^2\mathrm{K}\right]=\mathsf{\Phi } \left[\mathrm{W}/{\mathrm{m}}^2\right] / \mathsf{\Delta }\mathrm{T} \left[\mathrm{K}\right]$$

(1)

$${\mathrm{U}}^{-1}={ \mathrm{R}}_{\mathrm{tot}}=\mathrm{R}+{\mathrm{R}}_{\mathrm{down}}+{\mathrm{R}}_{\mathrm{up}}$$

(2)

$${\mathsf{\lambda }}_{\mathrm{eq}}=\mathrm{a}/\mathrm{R}$$

(3)

where:

${\mathrm{R}}_{\mathrm{down} }\left[{\mathrm{m}}^2\mathrm{K}/\mathrm{W}\right]$, corresponds to the thermal resistance at the bottom part of the box, which is 0 in this case.

${\mathrm{R}}_{\mathrm{up} }\left[{\mathrm{m}}^2\mathrm{K}/\mathrm{W}\right]$, applies for the thermal resistance of the upper part of the blue roof.

${\mathrm{R}}_{ }\left[{\mathrm{m}}^2\mathrm{K}/\mathrm{W}\right]={\mathrm{R}}_{\mathrm{layer}1 }+{\mathrm{R}}_{\mathrm{layer}2 }$, describes the thermal resistance excluding the upper and bottom parts.

${\mathrm{R}}_{\mathrm{tot} }\left[{\mathrm{m}}^2\mathrm{K}/\mathrm{W}\right]$, corresponds to the total thermal resistance.

$a \left[m\right]$, represents the total thickness of the blue roof model.

${\mathsf{\lambda }}_{\mathrm{eq}} \left[\mathrm{W}/\mathrm{mK}\right]$, represents the equivalent thermal conductivity of the blue roof laboratory model.

2.2. Experimental Methodology

The experimental methodology consisted of the simulation of the two types of blue roofs outlined in Figure 1 under dry and wet conditions. Dry conditions were simulated without the presence of water, while wet conditions were achieved by the addition of water, keeping a constant presence of water up to the surface layer (Figure 3). To reach this water level, 158.0 ± 0.1 L were required for type 1 and 160.0 ± 0.1 L for type 2. Once the tests were finalized, 135.0 ± 0.1 L of water were extracted from the models.

A series of thermal ramps were programmed in the climatic generator equipment in order to carry out the thermal tests. These tests started at 20 °C, given that this was the ambient temperature in the laboratory. The temperature was progressively raised up to 55 °C. It took E(46.5;9.5) hours to reach this temperature, as the test was developed gradually to achieve a stable heat flow throughout the section.

The roof stabilized after reaching 55 °C, ensuring that the steady-state was achieved; Then, the data were registered during the next 10 h for the subsequent calculation of the thermal properties of the roof. These data were recorded using two heat flux sensors and two thermocouples at each measuring point, collecting data every 10 min.

A test temperature of 55 °C was selected since the standards (ISO 8990:1994 [30] and ASTM C1363-05 [31]) used to operate the equipment established that the temperature gradient between the outside and the inside of the roof must be greater than 15 °C at all times. The reason for this is to ensure the reliability of the thermal transmittance and the equivalent thermal conductivity values, according to the abovementioned standards.

2.3. Numerical Models

Finite element analysis (FEM), using the ANSYS Workbench 2021R2 software was utilized to assess the thermal behavior of the blue roofs. For this purpose, 2D models of the two studied cross-sections were developed, as shown in Figure 1.

The size of the mesh using hexahedral elements was calculated to be 10 mm. It was modelled using PLANE293, which is a flat element with 8 nodes, with a single degree of freedom, which is the temperature at each node. This element is suitable for steady-state analysis [32]. The mesh size in the contact zones between the different materials was minimized by means of the inflation tool using the following parameters: 5 mm maximum thickness, a number of layers of 10 and a growth rate of 1.2.

The thermal steady-state analysis was developed by establishing an adiabatic behavior on the side walls of the studied cross-sections as boundary conditions for the model. Furthermore, convection was modelled on the upper face of the roof, using an ambient temperature of 20 °C, and a convective surface coefficient of 5.0 W/K m², following the Annex C in ISO 6946 [33]. The temperature values obtained experimentally at the top and bottom parts of the roof were used as input data for the FEM model. This model, used in previous works [34], was used and it provides errors below a threshold of 2%.

Heat transfer by conduction occurs through the contact points. On the other side, heat transfer by convection takes place across the interface of the different layers. If heat transfer by radiation is not considered, heat transfer by conduction between two surfaces can be defined as (4) [35]:

$${\mathrm{Q}}_{\mathrm{TCC}}={\mathrm{k}}_{\mathrm{TCC}}*\left({\mathrm{T}}_{\mathrm{c},\mathrm{T}}-{\mathrm{T}}_{\mathrm{c},\mathrm{C}}\right)$$

(4)

where Q_TCC is the heat flux per unit area in the interlayer (W/m²); k_TCC is the thermal contact conductance coefficient (W/m² °C); T_c,T and T_c,C are the temperatures of the contact points on the target and contact surfaces. Parikh et al. [35] recommended a value for the thermal contact conductance coefficient of 2 kW/m² °C. This value was selected for this research in order to take into account the presence of microscopic irregularities in material surfaces.

Once the experimental results of the thermal behavior of the sections had been studied, the equivalent thermal conductivities of each of the layers were determined using a multi criteria optimization method based on DOE [36]. Finally, the optimized equivalent thermal conductivity values in all materials were determined using the Response Surface Optimization search ranges through a MOGA [37]. Firstly, the design variables (input and output parameters) were defined in order to carry out the DOE. Secondly, a response surface for prediction purposes was we developed; and finally, the objectives in the MOGA algorithm were we established. The input parameters are the temperature conditions in the experimental setup, while the output parameters are the equivalent thermal conductivity of each layer. Furthermore, the objective in the MOGA algorithm is the thermal transmittance results obtained experimentally.

3. Results and Discussion

3.1. Experimental Results

3.1.1. Thermal Behavior of the Whole Cross-Section

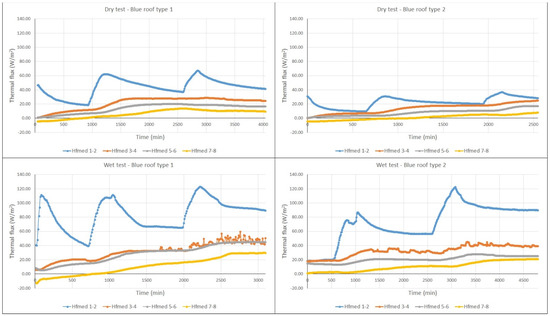

Figure 4 shows the heat flux for each type of blue roof studied both in dry and wet conditions. As the temperature rises through the temperature ramps, the flux becomes steady as further illustrated in Figure 4. The different durations of the tests depended on the stabilization of the system (see Section 2.2).

The sensors closer to the heat source in the experiments (sensors HF 1 and 2 located at the lower part of the sections) demonstrated higher variability.

An increase in variability is observed in the tests carried out under wet conditions during the final section of the testing, which could be associated with the evaporation process occurring at these elevated temperatures.

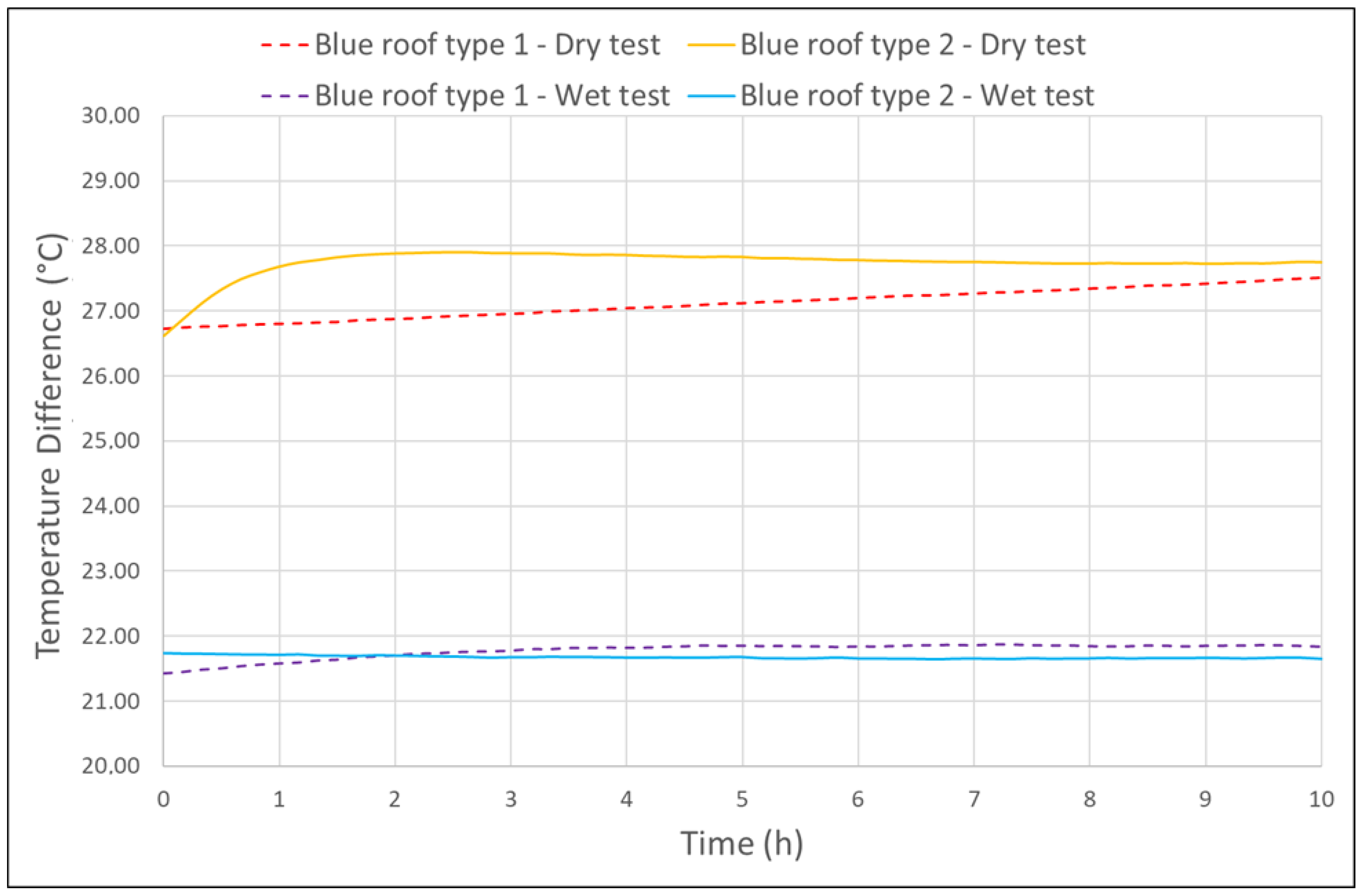

The temperature gradient between the bottom and the upper parts of the sections tested exceeded 15 °C during the last 10 h of the experiments (Figure 5), granting the stabilization of the system, as per stated in the standards (ISO 8990:1994 [30] and ASTM C1363-05 [31]) used to operate the equipment (see Section 2.2). This gradient represents the difference in temperature between the part of the system nearest to the heat source and the ambient temperature.

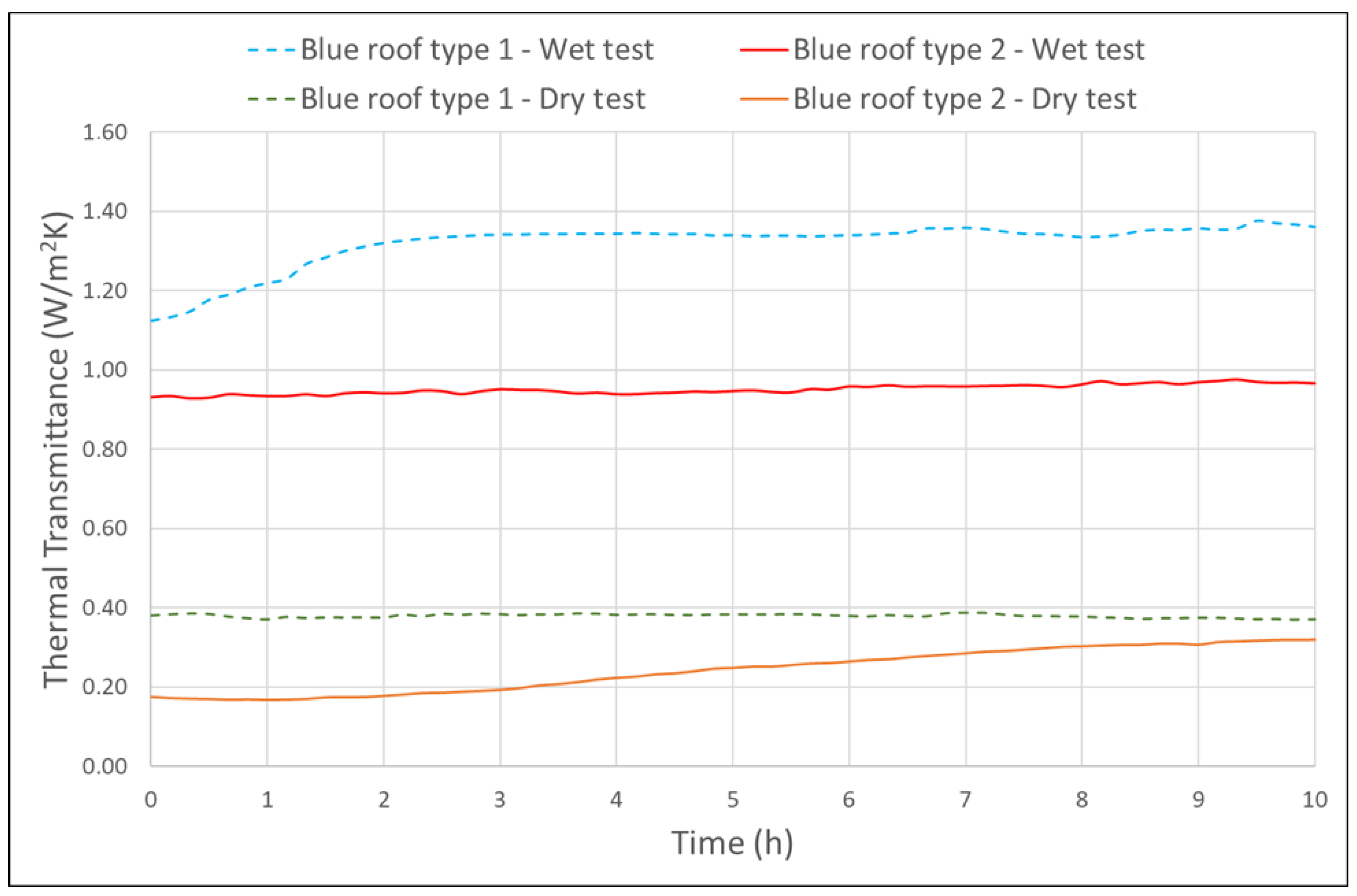

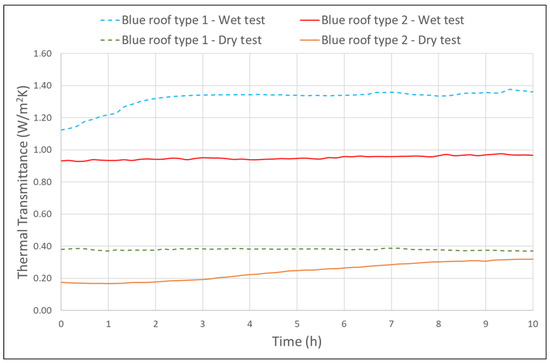

Figure 6 exhibits the thermal transmittance values during the last 10 h of the experiment once the temperature established to operate the system under steady-state conditions was reached (55 °C). The data collected under these conditions and the interval of time were representative for the calculation of the thermal performance of the two types of blue roofs tested.

The thermal transmittance values registered for each of the tests developed are gathered in

Table 1. Thermal transmittance values, absolute error and relative error of the blue roofs.

	Dry Test			Wet Test
	U (W/m2 K)	Absolute Error (W/m2 K)	Relative Error (%)	U (W/m2 K)	Absolute Error (W/m2 K)	Relative Error (%)
Blue roof type 1	0.38	0.01	3.30	1.19	0.16	13.99
Blue roof type 2	0.23	0.04	17.02	0.93	0.02	2.34

. These figures corresponded to the averaged values of the thermal transmittance once constant (Figure 6).

The type 2 blue roof laboratory model provides the best thermal properties from a potential water–energy nexus viewpoint, integrating GSHP elements into a roof, as shown in Figure 1 and Figure 2. The addition of expanded clay in the sub-base of the cross-section, replacing conventional limestone aggregates, enhances the insulation of the system in contrast with the ambient temperature. On another note, the presence of water, replicating the operation scenario of a blue roof in storm conditions, negatively affects the equivalent thermal conductivity, increasing its value over 60% in both types of laboratory models.

Table 1 and

Table 2. Equivalent thermal conductivity values, absolute error and relative error for the blue roof laboratory models.

	Dry Test			Wet Test
	λeq (W/mK)	Absolute Error (W/mK)	Relative Error (%)	λeq (W/mK)	Absolute Error (W/mK)	Relative Error (%)
Blue roof type 1	0.23	0.01	3.30	0.71	0.10	14.32
Blue roof type 2	0.14	0.02	17.02	0.56	0.01	2.34

show higher values for the relative errors in the dry test of section type 2 and the wet test of section type 1. This finding is due to the fact that the duration of these tests is longer than the other tests. Therefore, although the heat flux has been steady during the whole test, these tests should have a longer duration.

3.1.2. Effect of the Expanded Clay on the Thermal and Hydraulic Behaviors of Blue Roofs

The effect of the addition of expanded clay in the sub-base layer is discussed in further detail in the analysis of the thermal transmittance in this particular layer within the cross-section.

Table 3. Comparison of thermal transmittance values in the first layer.

	Dry Test			Wet Test
	U (W/m2 K)	Absolute Error (W/m2 K)	Relative Error (%)	U (W/m2 K)	Absolute Error (W/m2 K)	Relative Error (%)
Blue roof type 1 (arid)	2.65	0.07	2.49	4.37	0.14	3.16
Blue roof type 2 (expanded clay)	2.95	0.25	8.37	2.96	0.03	0.89

shows the comparison between the two types of materials utilized, revealing similar behaviors under dry conditions, which are slightly better than the blue roof type containing limestone aggregates (type 1). However, the expanded clay (type 2) evidences a superior performance under wet conditions, displaying similar behaviors in both dry and wet conditions (Table 3). The aggregate layer in type 1 produces an increase of 64.9% in the thermal transmittance.

On the other hand, an additional 2.0 ± 0.1 L of water were required to keep the level of water up to the surface layer in the type 2 section (expanded clay). Given that the volume occupied by the expanded clay is 41.6 ± 0.2 L, this implies that the water storage capacity of the type 2 roof is 4.8% higher than the type 1 roof. This means that type 2 could store a surplus of water per m² of 7.2 ± 0.2 L in comparison with type 1.

3.1.3. Assessment of the Results within the Context of the Spanish Technical Building Code

The Spanish Technical Building Code (CTE in its Spanish acronym) (see A-Nomenclature in Appendix A) is the set of standards that establish the requirements for buildings regarding security and livability [38]. The Basic Document HE Energy Saving states that the conditions must be accomplished by the building envelope [39], determining the thermal transmittance of its various elements for each climatic zone in Spain.

Table 4. Threshold values for the thermal transmittance in roofs directly in contact with outdoor conditions based on the Spanish CTE.

Element	Climatic Zone
	A	B	C	D	E
Covers in contact with outside airU (W/m2 K)	0.50	0.44	0.40	0.35	0.33

shows the threshold values for the thermal transmittance of the building envelope under each climatic area. All values were estimated for an absorptivity of 0.55.

The climate zones are defined according to the climatic severity of the different areas [40]. It is calculated using an average statistical range of temperatures during the winter and summer months for each zone [41].

Consequently, the type 1 blue roof is compatible with the climatic zones A, B and C based on its performance under dry conditions (U₁^dry = 0.38 W/m² K) if compared with the threshold values in Table 4. On the contrary, under dry conditions the type 2 model accomplishes thermal transmittance values for all climatic zones within the range displayed in Table 4 (U₂^dry = 0.23 W/m² K).

However, none of the laboratory models tested under wet conditions in this research meet the limit values established by the Spanish CTE. Nevertheless, this outcome must be put into context by the fact that all roofs have an extra bottom layer acting as a structural element that often improves the thermal properties of the building envelope. Therefore, more research would be recommended with the aim of assessing the effect of blue roofs operating under wet conditions, including the structural element underneath the cross-section of the types studied in this article.

3.2. Numerical Results

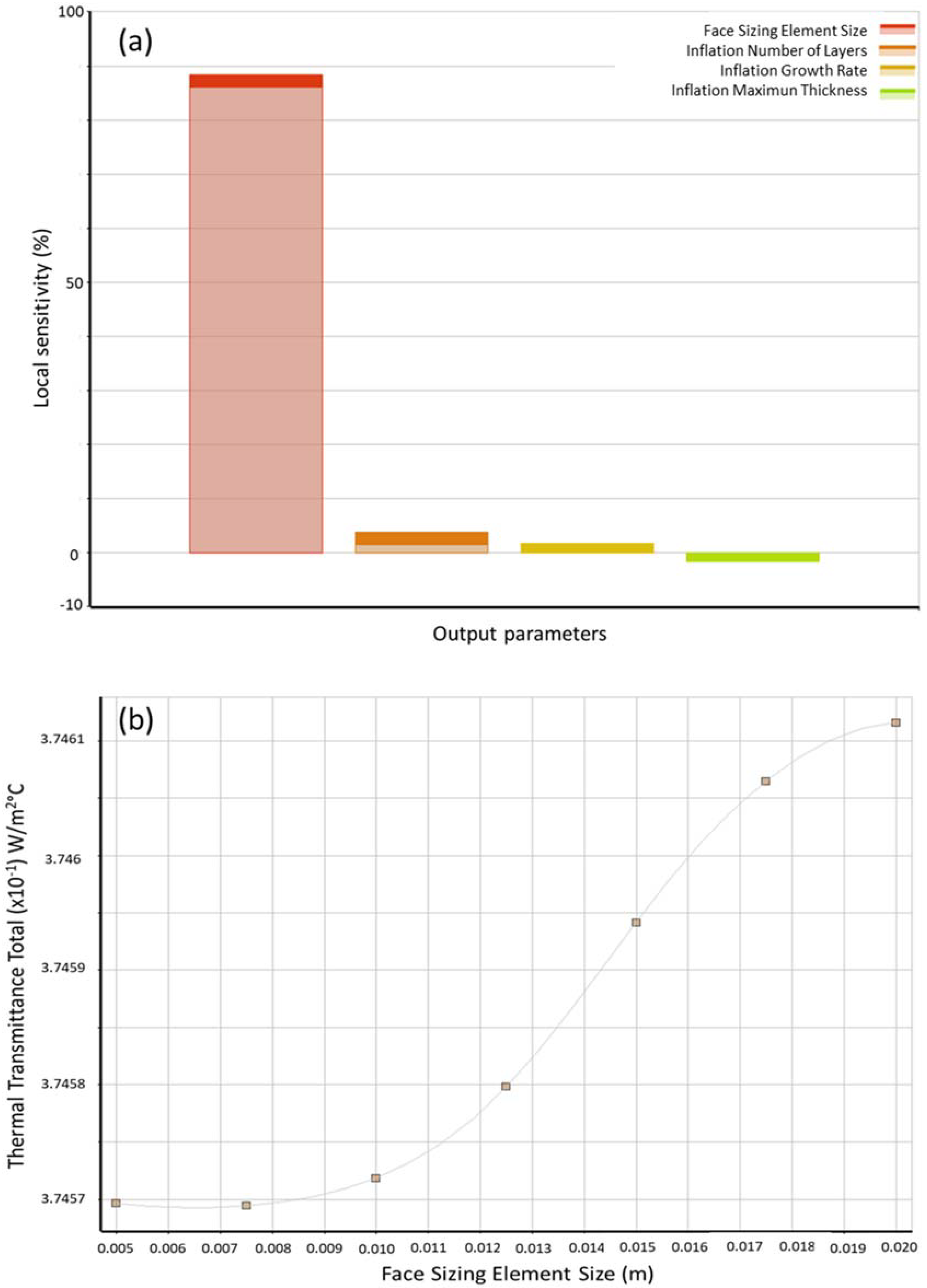

A sensitivity analysis of the mesh was carried out in order to obtain a better correlation between the experimental values and the numerical model. It was observed that the most influential parameter is the face sizing element, with a lesser impact of the parameters that define the inflation of the mesh at the interface (Figure 7a). The influence of the face sizing element on the results of the thermal transmittance of the total section was determined using DOE. The optimum mesh size was determined to be 10 mm based on these results (Figure 7b).

A new DOE analysis was carried out using the thermal conductivities of each of the materials used in the standard sections of the blue roofs as input parameters.

Table 5. Search ranges of the thermal conductivities of materials.

	Dry Test		Wet Test
Thermal Conductivity (W/mK)	Lower Bound	Upper Bound	Lower Bound	Upper Bound
Atlantis box	0.13	0.17	0.15	0.60
Limestone aggregates	1.15	1.45	1.30	2.00
Expanded clay	0.05	0.15	0.15	0.50

shows the search ranges for the equivalent thermal conductivity values of the materials forming the sections studied. The thermal conductivity values provided by the manufacturers were implemented in order to establish the search ranges for the dry tests. Conversely, the reference values used by other authors were used for the wet scenario [25,42].

The MOGA algorithm used an objective function to constrain the thermal transmittance values obtained experimentally with the aim of determining the optimized equivalent thermal conductivity values of the layers (see

Table 6. Equivalent thermal conductivity values of the layers.

Thermal Conductivity (W/mK)	Dry Test	Wet Test
Atlantis box	0.145 ± 0.002	0.56 ± 0.01
Limestone aggregates	1.3 ± 0.1	1.8 ± 0.1
Expanded clay	0.075 ± 0.007	0.381 ± 0.006

). Equivalent thermal conductivities were established using these search values (see Table 1). The results of the equivalent thermal conductivity obtained included the effects of convection and radiation in the holes, as well as the conduction inside the particles.

3.3. Constraints Identified in This Research

In addition to the dry and wet tests described above, saturated wet tests were carried out. These consisted of keeping a constant level of water up to the surface layer of the blue roof section, as was done by other authors in SUDS thermal studies [16]. The data obtained in these tests showed that the heat flow was transmitted through the water, thus the thermal properties of the different layers forming the blue roof were not available.

The temperature gradient between the bottom and upper parts of each layer achieved during the experiments conducted did not overcome 15 °C. Therefore, these results are not fully supported by the standards. However, this finding does not imply that the results gained in these experiments are incorrect. Further attention to this particular area may be needed in future research. Nevertheless, the difference in temperature between the bottom layer and the surface layer of the whole section exceeded 15 °C as can be seen in Figure 5, and this is supported by the standards.

The duration of the experiment was long due to the requirement to reach the steady-state conditions.

4. Conclusions

This study provides relevant information about the knowledge gap identified in previous research, which highlighted the need to expand the investigations on heat transfer processes within SUDS, as well as to determine the thermal properties of the materials usually utilized to design and construct SUDS [43], developing the understanding of the water-energy nexus carried out in other SUDS devices [44].

The following conclusions can be drawn from the results of this study:

• The test methodology proposed in this research has been found to be effective in determining the thermal properties of a blue roof. It improves other existing methodologies [24] by being able to assess the thermal properties of the entire section under dry and wet conditions. Furthermore, since this methodology is based on the use of standardized equipment, the results obtained can be easily compared across the world.
• The values obtained for the equivalent thermal transmittance of the blue roofs studied were compared with the values set by the Spanish CTE standards. It was determined that in dry conditions, section type 1 would be compatible with climate zones A, B and C, while section type 2 (with expanded clay in the base layer) would be compatible with all climate zones. In contrast, neither of the two types of roofs tested would be compatible with the values set by the CTE by themselves under wet conditions.
• The hydraulic and thermal improvement of the inclusion of expanded clay in the base of the blue roof has been quantified. It increased the hydraulic capacity by 4.8% and improved the thermal transmittance in both dry and wet conditions. The enhancement was more noticeable under wet conditions, where the limestone aggregate layer in section type 1 increased its thermal transmittance value by 64.9%.
• It was found that the presence of water increased the equivalent thermal conductivity in both sections by 60%. This worsened the thermal insulation capacity of both sections.
• The experimental data were used to carry out a numerical analysis in Ansys. With this analysis, the equivalent thermal conductivities of each of the layers that form the blue roof have been determined. With these results, scale alterations can be made in future designs using numerical models.

Following this hybrid methodology, based on the combination of numerical simulations and experimental tests, several future steps in this research area are proposed as follows:

(1)

Development of further laboratory tests, analyzing other SUDS techniques.

(2)

Advancement of improvements in the proposed methodology.

(3)

Application of numerical modelling to study the appropriate thermal behavior of SUDS, achieving optimized designs.

(4)

Continuation of the research area initiated by other authors such as Congedo et al. [45], applying it to a case study in the field.

(5)

Development of field experiments, monitoring the thermal behavior of SUDS, using these data to validate the numerical models.
