Cross-Case Analysis of the Energy Communities in Spain, Italy, and Greece: Progress, Barriers, and the Road Ahead
Abstract
:1. Introduction

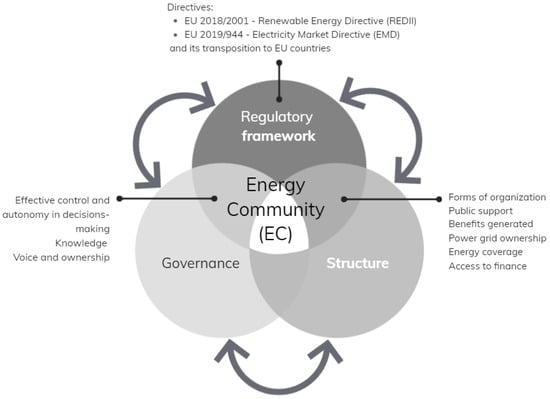

1.1. Conceptual and Regulatory Framework of Energy Communities
1.2. Contextual Framework of the Study: Energy Communities in South European Countries
2. Materials and Methods
3. Results
3.1. Case 1. Analysis of Energy Communities in Greece
- Non-profit Ecs: do not share the surplus use among their members, and
- For-profit Ecs: share the surplus use among their members.
- Forms of organisation: dispersed within the same administrative region. However, there is a proximity requirement that at least 50% of all members must live or own a property in the same region. In addition, they are categorised as non-profit and for-profit [25]. There are no data available about the share of non-profit and for-profit Ecs, but the vast majority are for-profit.
- Power grid owner: Ecs are not the owners of the power grid. Each member may hold, in addition to the mandatory shares, one or more optional shares, with a maximum participation limit of 20% in the cooperative capital, except for the local authorities, who can participate with a maximum of 50% (areas with population <3100 inhabitants), and 40% for the rest.
- Public economic support: they have not received any economic public support. However, public administrations can be members of Ecs.
- Size of the system per project: it ranges from 29.68 to 1000 kW. The average size is 697 kW.
- RES electricity covered by Ecs: the total installed power capacity equals 613 MW (as of May 2022).
- Heat/cooling covered by Ecs: In 2021, the photovoltaics owned by Ecs represented 12.7% of the total installed PV capacity in Greece. The share of heat/cooling covered by Ecs is only 0.1%.
3.2. Case 2. Analysis of Energy Communities in Italy
- Forms of organisation: Energy can be shared within the same market zone, but to access the incentives, customers must be connected to the same primary substation. Since the Ministry published the specific implementing decree of the DL199 of 8 November 2021, members had to be connected to the same secondary substation to access the incentives. In 2023, there are still delays in the publication of the regulation and financial support measures [35].
- Power grid owner: production facilities must be available to the community, not necessarily owned.
- Public economic support: Italy’s National Recovery and Resilience Plan 2021 (PNRR) [36] specifies the financial resources reserved for the energy transition, with at least 37% of its total resources to be earmarked for this purpose; namely EUR 2.2 billion in investment for the promotion of renewable energies through support to Ecs and collective self-production structures (Component 2).
- Use of technology: Ecs often use solar or hydroelectric power.
- Size of the system per project: detailed information can be found in the Orange Book [37].
- RES electricity covered by Ecs: the average size of the photovoltaic system is between 20–50 kWp. Ecs are using also mini-hydro.
- Heat/cooling covered by Ecs: Depending on the type of facility, it could be designed to cover 100% of the heating and cooling needs of the members. When more renewable energy is generated than is demanded by the HVAC/DHW systems, it is used to meet other energy needs.
- Governance activated by experimentation with new energy-saving technologies in residential structures: this initial model can then be extended to the condominium and surrounding neighbourhood, giving back a greater degree of organisation to the actors or active volunteers who initiated the ideas.
- Governance based on a collective initiative: at a later stage, governance can lead to the creation of a collective body, a cooperative, a living lab, or a community association for governance itself. The roles of organisations already present in the area can be integrated with the governance principles adopted by the community. As a result, a governance entity is created or an existing one is renewed by integrating its objectives with those of a community governance entity.
3.3. Case 3. Analysis of Energy Communities in Spain
- Top-down strategies: agreement between large energy companies and municipalities for creating shared self-consumption (mainly, using photovoltaic technology). Members pay a monthly fee in exchange for a percentage reduction in their electricity bills and have lower risks and therefore more financial backing (e.g., the agreement between CaixaBank and Edinor for implementing a business model).
- Bottom-up model: partners create the EC and try to bring in new entities such as municipalities or surrounding companies. They tend to have greater initial uncertainty and, therefore, less financial backing (e.g., the agreement between Fiare BancaEtica and Som Energia).
- Forms of organisation: Most of the initiatives are starting their activity on the basis of RD 244, which allows them to be configured as shared electricity self-consumption entities [26]. Under this legislation, they can create a collective installation with an anti-discharge mechanism that prevents the introduction of non-consumed renewable energy into the power grid, or they can be constituted as a subject that feeds surplus energy into the electricity system. In the second case, economic compensation will only be provided if the requirements set out in the legislation (RD 244) are met, i.e., that the renewable generation system does not exceed 100 kW of installed power. Their most common activity is sharing electricity self-consumption, so their installations are configured according to RD 244.
- Power grid owner: some Ecs have their own distribution network, but most of the installations use the distribution network for exchanging electricity between their users.
- Public economic support: Even though some Ecs have been created under European projects, investment grants vary between 30 and 60% (CE IMPLEMENTA program—idea) depending on the technology mix used (electric, thermal, electric mobility measures, energy efficiency solutions, demand-side management improvement measures).
- Use of technology: Although a couple of ECs also share thermal energy through Biomass District Heating, most of the initiatives put their faith in the self-consumption of electricity generated by solar photovoltaic installations to start their activity.
- Size of the system per project: they can have one or more generation points with a total capacity between 16 and 125 kWp. The power-per-user ratio varies between 0.5 and 1.5 kWp.
- RES electricity covered by ECs: In most cases, it is still too early to tell, since they have only been in operation for a fleeting time, but estimates foresee coverage ratios of between 40 and 60%. That is, with these initiatives, approximately half of the energy consumed by the ECs is covered by renewable production in the surrounding area.
- Heat/cooling covered by ECs: In the case of thermal energy, they provide heating and DHW but not cooling. ECs cover all the thermal needs of these users.
3.4. Cross-Case Analysis of Information from the Three Target Countries
4. Discussion
4.1. Possibilities and Common Challenges in the Development of ECs in Europe
4.2. Key Aspects of Governance and Citizen Participation in Implementing ECs
5. Conclusions and Implications of the Cross-Case Analysis for Further Research Activities
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Avelino, F.; Wittmayer, J.M.; Pel, B.; Weaver, P.; Dumitru, A.; Haxeltine, A.; Kemp, R.; Jørgensen, M.S.; Bauler, T.; Ruijsink, S.; et al. Transformative social innovation and (dis) empowerment. Tech. For. Soc. Chang. 2019, 145, 195–206. [Google Scholar] [CrossRef]
- Coy, D.; Makejpour, S.; Saeri, A.K.; Dargaville, R. Rethinking community empowerment in the energy transformation: A critical review of the definitions, drivers and outcomes. Ener. Res. Soc. Sci. 2021, 72, 101871. [Google Scholar] [CrossRef]
- European Commission. European Climate Pact. Communication from the Commission to the European Parliament, the Council, the European Economic and Social Committee and the Committee of the Regions; (Inform No. COM 2020 788); European Commission: Brussels, Belgium, 2022. Available online: https://europa.eu/climate-pact/system/files/2020-12/20201209%20European%20Climate%20Pact%20Communication.pdf (accessed on 18 August 2023).
- European Environment Agency. Energy Prosumers in Europe. Citizen Participation in the Energy Transition; EEA: Copenhagen, Denmark, 2022. Available online: europa.eu (accessed on 18 August 2023).
- Gjorgievski, V.Z.; Cundeva, S.; Georghiou, G.E. Social arrangements, technical designs and impacts of energy communities: A review. Renew. Energy 2021, 169, 1138–1156. [Google Scholar] [CrossRef]
- Biresselioglu, M.E.; Limoncuoglu, S.A.; Demir, M.H.; Reichl, J.; Burgstaller, K.; Sciullo, A.; Ferrero, E. Legal provisions and market conditions for energy communities in Austria, Germany, Greece, Italy, Spain, and Turkey: A comparative assessment. Sustainability 2021, 13, 11212. [Google Scholar] [CrossRef]
- Vaso, A. Regulatory Framework Citizens Energy Community in Albania; EUCENA: Tirane, Albania, 2021. [Google Scholar]
- Frieden, D.; Tuerk, A.; Roberts, J.; D’Herbemont, S.; Gubina, A.F.; Komel, B. Overview of Emerging Regulatory Frameworks on Collective Self-Consumption and Energy Communities in Europe. In Proceedings of the 16th International Conference on the European Energy Market (EEM), Ljubljana, Slovenia, 18–20 September 2019. [Google Scholar] [CrossRef]
- Caramizaru, A.; Uihlein, A. Energy Communities: An Overview of Energy and Social Innovation; Publications Office of the European Union: Luxembourg, 2020. [CrossRef]
- Kyriakopoulos, G.L. Energy Communities Overview: Managerial Policies, Economic Aspects, Technologies, and Models. J. Risk Financ. Manag. 2022, 15, 521. [Google Scholar] [CrossRef]
- Roversi, R.; Boeri, A.; Pagliula, S.; Turci, G. Energy Community in Action—Energy Citizenship Contract as Tool for Climate Neutrality. Smart Cities 2022, 5, 294–317. [Google Scholar] [CrossRef]
- Stamopoulos, D.; Dimas, P.; Sebos, I.; Tsakanikas, A. Does investing in renewable energy sources contribute to growth? A preliminary study on Greece’s National Energy and Climate Plan. Energry 2021, 14, 8537. [Google Scholar] [CrossRef]
- Friends of the Earth Europe. Unleashing the Power of Community Renewable Energy. 2018. Available online: https://energy-cities.eu/wp-content/uploads/2019/02/community_energy_booklet_2018_en.pdf (accessed on 18 August 2023).
- Sciullo, A.; Gilcrease, G.W.; Perugini, M.; Padovan, D.; Curli, B.; Gregg, J.S.; Arrobbio, O.; Meynaerts, E.; Delvaux, S.; Polo-Alvarez, L.; et al. Exploring Institutional and Socio-Economic Settings for the Development of Energy Communities in Europe. Energies 2022, 15, 1597. [Google Scholar] [CrossRef]
- Frieden, D.; Tuerk, A.; Roberts, J.; D’Herbemont, S.; Gubina, A.F.; Komel, B. Collective Self-Consumption and Energy Communities: Trends and Challenges in the Transposition of the EU Framework; COMPILE: Graz, Austria, 2020; Volume 10, p. 13140. [Google Scholar]
- Directive (EU) 2018/2001 of the European Parliament and of the Council of 11 December 2018 on the Promotion of the Use of Energy from Renewable Sources (Recast). (Text with EEA Relevance). No. PE/48/2018/REV/1. Available online: http://data.europa.eu/eli/dir/2018/2001/2018-12-21 (accessed on 18 August 2023).
- Directive (EU) 2019/944 of the European Parliament and of the Council of 5 June 2019 on Common Rules for the Internal Market for Electricity and Amending Directive 2012/27/EU (Text with EEA Relevance). No. PE/10/2019/REV/1. Available online: http://data.europa.eu/eli/dir/2019/944/oj (accessed on 18 August 2023).
- Jo, H.-C.; Byeon, G.; Kim, J.-Y.; Kim, S.-K. Optimal Scheduling for a Zero Net Energy Community Microgrid with Customer-Owned Energy Storage Systems. IEEE Trans. Power Syst. 2021, 36, 2273–2280. [Google Scholar] [CrossRef]
- Weckesser, T.; Dominković, D.F.; Blomgren, E.M.; Schledorn, A.; Madsen, H. Renewable Energy Communities: Optimal sizing and distribution grid impact of photo-voltaics and battery storage. Appl. Energy 2021, 301, 117408. [Google Scholar] [CrossRef]
- Cielo, A.; Margiaria, P.; Lazzeroni, P.; Mariuzzo, I.; Repetto, M. Renewable Energy Communities business models under the 2020 Italian regulation. J. Clean. Prod. 2021, 316, 128217. [Google Scholar] [CrossRef]
- Di Silvestre, M.L.; Ippolito, M.G.; Sanseverino, E.R.; Sciumè, G.; Vasile, A. Energy self-consumers and renewable energy communities in Italy: New actors of the electric power systems. Renew. Sustain. Energy Rev. 2021, 151, 111565. [Google Scholar] [CrossRef]
- Lode, M.L.; te Boveldt, G.; Coosemans, T.; Ramirez Camargo, L. A transition perspective on Energy Communities: A systematic literature review and research agenda. Renew. Sustain. Energy Rev. 2022, 163, 112479. [Google Scholar] [CrossRef]
- Lowitzsch, J.; Hoicka, C.E.; van Tulder, F.J. Renewable energy communities under the 2019 European Clean Energy Package–Governance model for the energy clusters of the future? Renew. Sustain. Energy Rev. 2020, 122, 109489. [Google Scholar] [CrossRef]
- Grignani, A.; Gozzellino, M.; Sciullo, A.; Padovan, D. Community Cooperative: A New Legal Form for Enhancing Social Capital for the Development of Renewable Energy Communities in Italy. Energies 2021, 14, 7029. [Google Scholar] [CrossRef]
- Fajardo, G.; Frantzeskaki, M. Las comunidades energéticas en Grecia. Rev. Est. Coop. 2021, 137, e71866. [Google Scholar] [CrossRef]
- Frieden, D.; Tuerk, A.; Antunes, A.R.; Athanasios, V.; Chronis, A.-G.; D’herbemont, S.; Kirac, M.; Marouço, R.; Neumann, C.; Catalayud, E.P.; et al. Are We on the Right Track? Collective Self-Consumption and Energy Communities in the European Union. Sustainability 2021, 13, 12494. [Google Scholar] [CrossRef]
- Next Generation EU. Recovery and Resilience Scoreboard. Thematic Analysis: Clean Power. 2021. Available online: https://ec.europa.eu/economy_finance/recovery-and-resilience-scoreboard/assets/thematic_analysis/1_Clean.pdf (accessed on 18 August 2023).
- Ministry of Environment and Energy. National Climate Change Adaptation Plan. PNIEC 2021–2023; Greek Government: Athens, Greece, 2021.
- Theodoisous, I.; Mantzaris, N. National Resources for the Just Transition; The Green Tank: Athens, Greece, 2023. [Google Scholar]
- The Green Tank. Energy Communities in the Lignite Regions of Greece; The Green Tank: Athens, Greece, 2021; Available online: https://thegreentank.gr/wp-content/uploads/2021/11/20211122_Brief_EnCom_EN.pdf (accessed on 18 August 2023).
- Agenzia Nazionale Per le Nuove Tecnologie, l’energia e lo Sviluppo Economico Sostenible (ENEA). Le. Cominità Energetiche in Italia. Una Guida Per Orientare i Cittadini nel Nuovo Mercato Dell’energia. 2020. Available online: enea.it (accessed on 1 September 2023).
- Ministry of Environment and Energy Security. National Climate Change Adaptation Plan PNIEC 2021–2023; Italian Government: Rome, Italy, 2020.
- Normattiva. Il Portale Della Legge Vigente. DECRETO-LEGGE 19 Maggio 2020, n. 34-Normattiva. Available online: https://www.normattiva.it/uri-res/N2Ls?urn:nir:stato:decreto.legge:2020;34 (accessed on 5 September 2023).
- Ministry of Ecologic Transition and Demographic Challenge. Plan de Recuperación, Transformación y Resiliencia; Spanish Government: Madrid, Spain, 2021.
- Tatti, A.; Ferroni, S.; Ferrando, M.; Motta, M.; Causone, F. The Emerging Trends of Renewable Energy Communities’ Development in Italy. Sustainability 2023, 15, 6792. [Google Scholar] [CrossRef]
- Ministry of Economy and Finance. The National Recovery and Resilience Plan (NRRP); Italian Government: Rome, Italy, 2021.
- Recerca Sistema Energetico. La Comunità Energetiche in Italia. Orange Book; Recerca Sistema Energetico: Rome, Italy, 2022; Available online: https://www.rse-web.it/wp-content/uploads/2022/02/OrangeBook-22-Le-Comunita-Energetiche-in-Italia-DEF.pdf (accessed on 18 August 2023).
- International Institute of Law and Environment (IIDMA). Comunidades Energéticas: Aportaciones Jurídicas Para su Desarrollo en España; IIDMA: Logrosán, Spain, 2021; Available online: https://www.iidma.org/attachments/Publicaciones/Informe_CCEE.pdf (accessed on 9 September 2023).
- Ministry of Ecologic Transition and Demographic Challenge. Estrategia Nacional Contra la Pobreza Energética 2019–2024; Spanish Government: Madrid, Spain, 2019.
- Ministry of Ecologic Transition and Demographic Challenge. National Climate Change Adaptation Plan. PNIEC 2021–2023; Spanish Government: Madrid, Spain, 2021.
- Osservatorio Italiano sulla Povertà Energetica. Energy Poverty. Available online: https://oipeosservatorio.it/en/energy-poverty/ (accessed on 8 August 2023).
- Marshall, G.R.; Hine, D.W.; East, M.J. Can community-based governance strengthen citizenship in support of climate change adaptation? Testing insights from Self-Determination Theory. Environ. Sci. Pol. 2017, 72, 1–9. [Google Scholar] [CrossRef]
- European Council. Infographic–Energy Price Rise Since 2021. Concil of the European Union, May 2023. Available online: https://www.consilium.europa.eu/en/infographics/energy-prices-2021/ (accessed on 5 September 2023).
- Eurostats. Development of Electricity Prices for Household Consumers. Eurostatis Statistics Explained, April 2023. Available online: https://ec.europa.eu/eurostat/statisticsexplained/index.php?title=File:Fig2_Development_of_electricity_prices_for_household_consumers.png (accessed on 5 September 2023).
- Falcón-Pérez, C.E. Energy communities as emerging initiatives fighting climate change. Act. Jur. Amb. 2023, 136, 1–58. [Google Scholar] [CrossRef]
- All NEMO Committee. CACM Annual Report 2022. June 2023. Available online: https://www.nemo-committee.eu/assets/files/cacm-annual-report-2022.pdf (accessed on 5 September 2023).
- Fajardo, G.; Frantzeskaki, M. La economía social y solidaria en Grecia. Marco jurídico, entidades y principales características. Rev. Est. Coop. 2017, 125, 49–88. [Google Scholar] [CrossRef]
- The Green Tank. Energy Communities in Greece: Current Status, Challenges and Policy Making Proposals. 2022. Energy Communities in Greece: Current Status, Challenges and policy Making Proposals—The Green Tank. Available online: https://thegreentank.gr/en/2022/09/29/energy-communities-in-greece-current-status-challenges-and-policy-making-proposals/ (accessed on 1 September 2023).
Topic | Questions |
---|---|
Legal form of EC | What is the legal form of your EC? |
Is your EC for-profit or non-profit? | |
When was the EC formed? | |
Membership and governance | How many members does your EC currently have? |
What is the regional distribution among your members? | |
What is the gender distribution of your members? | |
How is your EC governed? | |
Energy-related issues | Does your EC produce electricity? If yes, what technologies does it use? |
What is the installed capacity of the respective RES technologies? | |
How much energy does your EC produce? | |
Is the energy produced sold or self-consumed? | |
Does your EC produce heat? If yes, what technologies does it use? | |
Is your EC active in energy efficiency? And, in electromobility? | |
Barriers to starting up your EC | Please comment on the basic problems you faced in starting up your EC. |
Barriers to developing a project | Please comment on the basic problems you faced in developing a project. |
Did your EC have any privileges regarding the development of a project (e.g., priority in authorisation or grid access)? | |
Barriers to financing a project | How are projects financed by your EC? Please mention the main barriers to financing a project. |
Proposals for improvement of regulatory framework and investment environment | What are your proposals for improving the regulatory framework and investment environment in your country? |
Country | Region | Type a |
---|---|---|
Greece | Athens | Certified social cooperative |
Non-profit EC | ||
Policymaker | ||
Crete | For-profit EC | |
Italy | Rome | Public body |
Public company | ||
Spain | Valencia | Non-profit EC |
For-profit entity | ||
Basque Country | Non-profit cooperative | |
Researcher on an EU publicly funded project | ||
Canarias | Non-profit association | |
Galicia | Non-profit association | |
Non-profit ECs | ||
Public institution | ||
Cataluña | Non-profit cooperative | |
Non-profit cooperative | ||
Non-profit consultancy b | ||
Madrid | Member of a private company and EU public-funded project | |
National body | Policymaker |
Greece | Italy | Spain | |
---|---|---|---|
Scope in legal framework | Clear | Unclear | Unclear |
Tax issues | Clear | Unclear | Unclear |
Most common form | Cooperative society | Cooperative | Cooperative or Association |
Priority access to grid | Yes | No | No |
National guide to set it up | Yes | Yes | No |
Public funds | Not specific | EUR 2.2. billion funding for promoting REC and self-consumption and Resilience Plan | EUR 40 million in National Recovery, Transformation |
Geographical proximity requirement of members | At least 50% of members must live or own a property in the same Region. | Members must be connected to the same secondary substation to have incentives. | Members’ consumption points cannot be more than 2 km away from the generation point. |
Geographical proximity of stations | Stations within the Region of headquarters. | Plants and consumers must be subject to the same MV/LV transformer substation in CEC and pertain to the same building in collective self-consumption schemes. | There is no specific regulation. |
Power connection limits | Only when compensation from feed-in-tariffs. | It cannot exceed 200 kW to access the incentives. | Installed capacity under 100 kW and public energy auctions under 5 MW. |
Grid connection | Low or medium voltage | Low or medium voltage | Low or medium voltage |
Regulatory and administrative barriers | Same as private investments. | No, but there are issues that the regulations do not clarify. | No, but there are many issues that the regulations do not clarify. |
Social barriers/misinformation | No | No clear system for measuring it | No clear system for measuring it |
Greece | Italy | Spain | |
---|---|---|---|
No. ECs | 986 ECs (status May 2022) | 20 ECs (+7 under definition) | 14 ECs (+32 in process of consolidation) |
No. ECs with implemented projects | 163 | N/A | 46 |
No. individuals involved | ≈15,000 | It depends on its nature | 20–300 users (≈50 most of them) |
Technology | 99.7% photovoltaic | Solar or hydroelectric power (mini hydro) | Solar photovoltaic and some share thermal energy (Biomass) |
No. projects (until 2022) | 879 projects | 26 projects | 46 projects |
Average project size | 697 kW (29.68–1000 kW) | 20–50 kWp | 125–16 kWp |
Share of installed RES capacity owned by ECs in total installed capacity | 12.7% total installed PV capacity | Can even reach 100% | Coverage ratios: 40–60% |
Use of energy storage | No (legal framework in mid-2022) | Not always | Not currently |
Italy | Spain | Greece | |
---|---|---|---|
Model of governance | Associations, business groups or groups of citizens | Cooperative/association | Cooperative |
Categorisation for-profit/non-profit | No | No (Only one uses a for-profit scheme) | Yes |
Members sharing agreement | Community is responsible for distributing electricity shared between its participants | No specified | Maximum participation limit of 20% in the cooperative capital (except for Local Authorities) |
Voting | Not specified | One vote/member | One vote/member |
