Effective Solutions to Ecological and Water Environment Problems in the Sanjiang Plain: Utilization of Farmland Drainage Resources

by
Zijie Sang
1,2,
Ge Zhang
1,2,*,
Haiqing Wang
2,
Wangyang Zhang
2,
Yuxiu Chen
2,
Mingyang Han
2 and
Ke Yang
2
1
Engineering Research Center of Agricultural Microbiology Technology, Ministry of Education, Heilongjiang University, Harbin 150500, China
2
School of Hydraulic and Electric Power, Heilongjiang University, Harbin 150080, China
*
Author to whom correspondence should be addressed.
Sustainability 2023, 15(23), 16329; https://doi.org/10.3390/su152316329
Submission received: 27 October 2023 / Revised: 21 November 2023 / Accepted: 25 November 2023 / Published: 27 November 2023
(This article belongs to the Special Issue The 13th International Symposium on Cold Region Development Conference (ISCORD 2023))
Browse Figures
Versions Notes

Abstract

:
The Sanjiang Plain stands as a pivotal grain-producing region in China. Faced with population growth and the imperative of ensuring food security, the rapid expansion of agricultural land in the Sanjiang Plain has led to escalating ecological and water-environmental challenges, hindering the sustainable development of regional agriculture. This research aims to explore and propose practical measures for utilizing agricultural drainage resources to address the ecological and water-environmental issues resulting from agricultural expansion in the Sanjiang Plain, striving to achieve harmonious and sustainable economic and environmental growth. The discussion revolves around the potential alleviation of water quality, water quantity, and ecological health issues in the Sanjiang Plain through the proposed approach. Considering regional characteristics, the focus is on potential environmental drawbacks resulting from the improper application of the method. Building on these findings, effective strategies are presented to enhance the systematic operation of agricultural drainage resource utilization in the region. In conclusion, addressing ecological and water-environmental challenges stemming from local agricultural development is imperative for the Sanjiang Plain to realize sustainable development for the economy and the environment.

1. Introduction

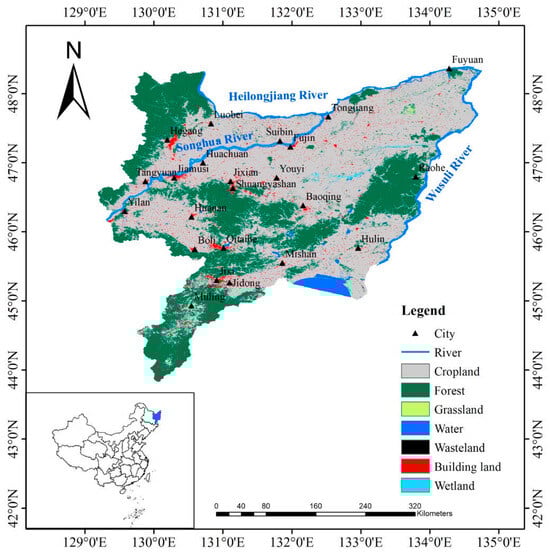

The Sanjiang Plain is widely recognized for its distinctive wetlands and farming landscapes, which are characterized by an abundance of ecological assets. The region in question is recognized as a significant area for grain production in northeast China [1]. Nevertheless, the Sanjiang Plain has experienced alterations in land use and land cover, resulting in the growth of agricultural land, a decline in wetland areas, and the emergence of persistent challenges pertaining to water supply and water quality [2]. According to statistical data, there has been a notable decline in wetland areas over the years, coinciding with the expansion of agricultural land and the degradation of wetlands. Specifically, between 1990 and 2000, wetland areas experienced a reduction of 7395 square kilometers. Subsequently, from 2000 to 2015, there was an additional decrease of 3238 square kilometers [3,4,5]. The primary purpose of groundwater extraction in the Sanjiang Plain is for agricultural irrigation. Over the period from 2000 to 2017, there was a notable increase in groundwater supplies, rising from 51.0 billion cubic meters to 101.9 billion cubic meters [6]. The intensification of farming practices has led to an increase in water contamination resulting from agricultural activities. Reports indicate that in nitrogen load testing in the Songhua River Basin, pollution from non-point sources, mainly agricultural fields, accounted for 74% of the pollution [7]. The aforementioned concerns not only have implications for the sustainable development of regional agriculture but also pose a significant threat to the equilibrium and well-being of the local ecosystem. Hence, it is crucial to implement strategies aimed at mitigating these issues and attaining sustainable management of water resources. Based on regional characteristics and development planning, the resourceful utilization of agricultural drainage offers a promising solution to the ecological and environmental issues in the Sanjiang Plain.
The resourceful utilization of agricultural drainage is an effective solution aimed at preventing further environmental degradation. As illustrated in Figure 1, the land use patterns in the Sanjiang Plain in 2021 indicate a prevailing presence of agricultural land, with a notable allocation of water resources towards agricultural activities, namely the cultivation of rice, which serves as the primary staple crop [8,9]. In recent times, there has been a notable increase in rice production within the Sanjiang Plain. This expansion has led to a significant challenge in managing agricultural drainage, resulting in the over-extraction of groundwater and the exacerbation of surface water pollution issues [10]. The resourceful utilization of agricultural drainage involves the recognition and exploration of agricultural drainage as a non-conventional water resource. When well controlled, it has the potential to optimize agricultural water usage, mitigate water scarcity, and concurrently enhance the ecological environment [11]. Hence, the utilization of agricultural drainage for irrigation has become a topic of growing interest in grain-producing regions like the Sanjiang Plain. This is primarily due to its significant contribution in addressing ecological, water, and environmental issues in the region. The fundamental principle underlying this approach involves considering agricultural drainage as an unconventional water resource. By implementing appropriate treatment and utilization methods, this water can be effectively employed for agricultural purposes. Consequently, this approach enhances water efficiency, alleviates strain on surface water and groundwater reserves, and mitigates the adverse environmental effects of wastewater.
Building upon the foundation laid by the aforementioned article, this paper aims to conduct a thorough exploration of the environmental effects and impacts associated with the resource utilization of agricultural drainage. Correspondingly, we propose effective measures to address these issues. As elucidated, the resource utilization of agricultural drainage has significant positive effects on mitigating the contradictions between water supply and demand, controlling non-point source pollution in regional agriculture, and maintaining the health of the regional ecological environment. Conversely, there are negative environmental effects, including soil pollution, crop yield reduction and pollution, and potential hazards to human health. To maximize the potential of resource utilization from agricultural drainage, we emphasize the importance of formulating relevant guidance policies, constructing artificial wetlands, introducing sewage stabilization systems, and adopting drip irrigation systems. These measures are anticipated to achieve comprehensive and sustainable resource utilization of agricultural drainage in the realm of agricultural water resource management.

2. Positive Environmental Effects of Farmland Drainage Resource Utilization

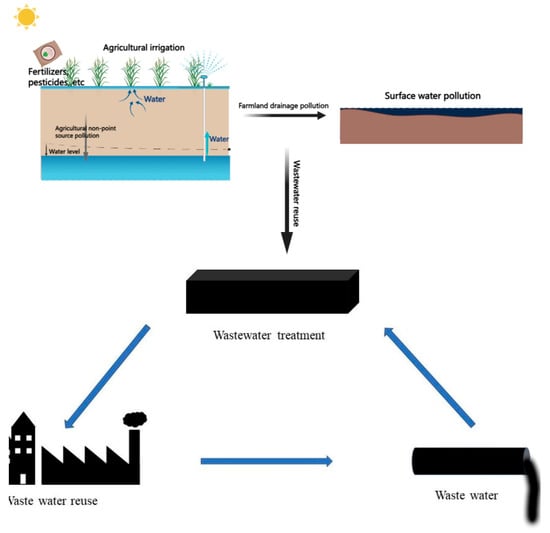

As depicted in Figure 2, a multitude of nations worldwide have used wastewater recycling strategies in order to address the prevalent problem of global water scarcity. The present discourse seeks to elaborate on the notion of resourceful utilization of agricultural drainage by placing significant focus on the effective gathering, utilization, and administration of agricultural drainage as a primary resource. The primary objective of this procedure is to attain water conservation, nutrient recovery, and the prevention of surface water and groundwater pollution, among various other advantages [12]. The primary task of utilizing farmland drainage resources is to achieve the effective recovery and treatment of water resources [13]. Therefore, it is necessary to design a reasonable drainage system to achieve efficient water transport. Typically, drainage facilities use pipeline drainage or underground drainage, ensuring both the rational transport of farmland drainage and meeting the requirements for drainage [14]. Secondly, wastewater treatment is essential because using untreated wastewater may pose risks of disease or death [15]. Generally, wastewater treatment includes preliminary treatment (physical, mechanical), primary treatment (physical–chemical, chemical), secondary treatment (biological, chemical), tertiary treatment (physical, chemical), and advanced treatment [16,17,18,19]. Among these, tertiary and advanced treatments enable safe use for various purposes, including garden irrigation and crop irrigation [20,21]. Subsequently, selecting appropriate water storage facilities, such as reservoirs or underground aquifers, is essential for storage [22]. Finally, upon entering the recycling system, the treated water is effectively utilized, including for irrigation and aquaculture [23,24].
The reuse of agricultural wastewater can be traced back to ancient China, around the Yin Dynasty in approximately in the 11th century BCE, when people began utilizing wastewater for aquaculture [25]. In the Chinese setting, there have been instances in history where the practice of agricultural drainage has been utilized as a method of irrigation for a prolonged duration. The city of Nanning, situated in China, has implemented the practice of agricultural drainage for a duration of 54 years. The efficacy of this approach in promoting irrigation has been demonstrated, resulting in a significant improvement in wheat and barley production, with yields increasing by a factor of three to four times the initial output [26]. In specific areas of Gansu, China, such as the Jinghe Irrigation District, agricultural drainage is used as a strategy when the water supply from the Yellow River is insufficient for irrigation purposes. The primary objective is to sustain an optimal level of crop yield [27]. Furthermore, there are specific regions, such as Yinchuan in Ningxia [28] and Baoji Li in Shandong, that continue to utilize agricultural drainage as a method of irrigation. The utilization and recycling of agricultural drainage not only offer potential opportunities for generating revenue within the agricultural industry, but also have a positive impact on the conservation of groundwater resources [29]. The effective and strategic application of agricultural drainage presents a potential solution for addressing ecological and environmental issues in the Sanjiang Plain area. Additionally, it can contribute significantly to the sustainable management of water resources, environmental preservation, and the reduction of excessive groundwater extraction.

2.1. Alleviating the Contradiction between Regional Water Supply and Demand

The Sanjiang Plain experiences a significant disparity between water availability and demand, principally attributed to the rapid expansion of agricultural activities and limited use of surface water resources [30]. Due to the dominant agricultural industry in the Sanjiang Plain, its primary objective is food production. Additionally, agriculture provides employment opportunities and income sources for the local rural population [31]. Based on survey data, it was observed that between 2004 and 2015, the percentage of water used for agricultural purposes saw an upward trend, rising from 71.8% to 88.0%. Additionally, the overall volume of surface water storage in the wetlands of the Sanjiang Plain exhibited a decline, decreasing from 14.46 billion metric tons to 4.70 billion metric tons by the year 2010 [32]. According to the water resource report of the Songliao River Basin, there was a notable change in the supply structure of water resources in the Sanjiang Plain from 2000 to 2017. During this period, the proportion of groundwater supply increased from 50.1% to 63.1% of the total water supply. Consequently, the supply structure shifted from a combination of surface water and groundwater to mostly relying on groundwater as the primary source of water supply [33]. The use of efficient agricultural drainage practices yields numerous advantages for both the environment and the agricultural sector. The practice of reusing agricultural drainage is a significant strategy for effectively addressing potential water resource scarcity concerns in the future [34]. According to statistical data, the use of wastewater for agricultural irrigation accounts for 70% of the overall agricultural water consumption. This practice facilitates the recycling and reuse of water resources, hence mitigating the need to take water from environmental sources [35,36,37,38]. Moreover, under some circumstances, agricultural drainage irrigation proves to be a more dependable water source in comparison to alternatives like rainfall and surface water. This enables farmers to provide a consistent water supply for their crops throughout the entire year [39]. A study conducted in an Arab region revealed that the utilization of treated wastewater for agricultural purposes resulted in a significant conservation of 70% of groundwater resources [40].
Hence, the implementation of efficient agricultural drainage practices in the Sanjiang Plain region would have a positive impact on the restoration of groundwater levels and the enhancement of groundwater recharge. Consequently, this would facilitate the promotion of comprehensive water resource management [41]. This approach successfully mitigates dependence on freshwater resources and mitigates the strain of excessive groundwater extraction [42].

2.2. Controlling Regional Agricultural Non-Point Source Pollution

The agricultural non-point source pollution encountered in the Sanjiang Plain commonly refers to ecosystem pollution caused by the excessive use of fertilizers and pesticides in the process of agricultural cultivation [43]. Research findings indicate that the utilization rates of nitrogen and phosphorus fertilizers in paddy fields are significantly low, with values of approximately 27.1% and 13.7%, respectively. Agricultural drainage results in the loss of residual fertilizers, hence contributing to soil pollution and serving as a significant driver of non-point source pollution in agriculture [44]. In order to mitigate the agricultural non-point source pollution challenges, it is imperative to explore novel approaches aimed at enhancing the ecological water environment inside the Sanjiang Plain. In this context, the effective utilization of agricultural drainage presents a possible answer.
Using treated agricultural wastewater for irrigation is an effective strategy for reducing the reliance on chemical fertilizers [45,46]. As depicted in Figure 3, following comprehensive treatment, the utilization of wastewater for irrigation purposes can contribute essential nutrients to the land. Multiple studies have provided evidence indicating that the use of irrigation rates at approximately 4000 m3/ha, along with treated wastewater concentrations ranging from 30–180 mg/L, might result in a notable enhancement in the soil’s sodium (Na) fertilizer value, with potential increases ranging from 100–720 kg/ha [47,48,49]. Consequently, the strategic application of agricultural drainage can effectively decrease reliance on chemical fertilizers, thereby limiting the potential for water pollution resulting from fertilizer usage. Hence, reducing fertilizer utilization is a crucial strategy for mitigating wetland degradation in the Sanjiang Plain [50].

2.3. Maintaining Regional Ecological Environment Health

According to statistical data, there was a significant decline of 80.06% in the overall wetland area inside the Sanjiang Plain during the period spanning from 1955 to 1980 [51]. Moreover, due to the substantial water requirements for agricultural purposes on the Sanjiang Plain, surface water needs to be improved, leading to excessive groundwater extraction. Between 2000 and 2014, the Sanjiang Plain’s groundwater resources experienced extreme extraction, resulting in an average yearly decline of 313 million cubic meters in groundwater storage [52]. Water eutrophication has been observed as a consequence of the widespread application of chemical fertilizers and pesticides. When the phosphorus concentration in water reaches a level of 0.02 mg/L, it has the potential to induce significant algal proliferation, ultimately resulting in the process of water eutrophication [53]. The substantial nitrogen content present in wastewater serves to effectively diminish the reliance on artificial fertilizers, augmenting soil production and mitigating the adverse effects of river eutrophication and freshwater ecosystem degradation. The implementation of wastewater for agricultural irrigation in the Mexicali Valley resulted in significant enhancements in soil productivity. This practice contributed organic matter and essential nutrients to the soil, benefiting around 85,000 hectares of agriculture. Moreover, it led to a notable reduction of 50% in river eutrophication [54].
In conclusion, the utilizing of unconventional water resources emerges as a vital alternative for safeguarding and mitigating the ongoing degradation of the natural water environment in the Sanjiang Plain. Resourceful utilization of agricultural drainage reduces the demand for chemical fertilizers in agriculture and increases the content of conventional ions in the soil, benefiting plant and crop growth. Moreover, it mitigates water contamination from the excessive application of fertilizers and offers assistance in safeguarding groundwater and wetland ecosystems.

3. Negative Environmental Effects of Reirrigation of Drained Farmland

Reirrigation of agricultural drainage water has become a common practice globally due to the oversupply of water resources caused by population growth and agricultural development. However, the use of untreated or improperly treated wastewater for irrigation in agriculture can have serious human health and environmental impacts [55], including the contamination of crops [56], the presence of pathogens and heavy metals [57], an increase in the risk of waterborne diseases [45], impaired soil health and fertility [45], and the contamination of groundwater.

3.1. Contamination of Soil

Untreated or improperly treated farm drainage water used for irrigation may lead to a reduction of organic matter in the soil [58], the accumulation of deleterious elements [59], changes in soil parameters [48], effects of microbial communities [60], and soil salinization problems [61,62]. According to a study conducted by [63], it was observed that pH levels exhibit variations at different depths within the soil profile. Specifically, the highest pH values were recorded between the 0–30 cm depth range, while the lowest were found within the 60–90 cm depth range. These findings highlight the significance of pH in influencing both plant growth and soil chemistry. Furthermore, it has been observed that this phenomenon also has an impact on the efficacy and bioavailability of the microbial population present in the soil [64]. Consequently, the significant increase in soil pH following irrigation with wastewater poses a considerable concern. This is primarily due to the fact that as pH rises, the organic matter included in the wastewater undergoes substantial dissolution, resulting in the production of black alkali on the soil surface [65].
The pH of the tertiary-treated wastewater at the West Melbourne Treatment Plant falls within the acceptable range of total dissolved solids (TDS) of 800 to 1500 mg/L. However, it is essential to note that the wastewater contains elevated levels of sodium and chloride, which necessitates careful management to mitigate the risks of soil salinization and acidification [12]. This phenomenon can be attributed to the possibility of a higher concentration of soluble salts within these substances or the occurrence of solidification processes [24].

3.2. Crop Yield Reduction and Pollution

The use of treated farm drainage water in irrigation has been observed to have a positive impact on crop growth and yield. However, the use of untreated farm drainage water may have detrimental effects on plant growth due to its interference with crucial biochemical processes, including metabolism, respiration inhibition, photosynthesis weakening, and stomatal opening obstruction [24,66]. In the case of radish plants that were irrigated with wastewater that had been previously utilized, it was seen that the highest concentration of iron was found in the roots, reaching approximately 1835 mg/kg. Similarly, the leaves of these plants exhibited a maximum iron accumulation of around 1247 mg/kg. Furthermore, other metallic elements such as manganese, zinc, nickel, copper, and cadmium were also detected in varying amounts [12]. While certain metals, like Cu, Ni, Zn, and Fe, have the potential to enhance plant growth to a certain degree [48], their excessive supply and uptake can have adverse effects on plants [48]. The absorption of excessive zinc in the soil by crops can lead to a range of negative consequences, including reduced seedling germination, leaf yellowing, and the gradual wilting of mature leaves [67]. Several research studies have indicated that the use of untreated wastewater for irrigation has resulted in a decrease in maize biomass [68]. The global annual consumption of antibiotics is anticipated to exceed 100,000 metric tons, posing a potential risk of sub-lethal antibiotic concentrations in irrigation water used for vegetable cultivation. The presence of antibiotics in the edible component of food crops might lead to the accumulation of resistant bacteria, hence increasing the risk. Consequently, it is imperative to establish minimum acceptable antibiotic criteria for water used in the irrigation of these crops [69,70].
Therefore, if wastewater is not treated correctly, the contaminants contained therein may adversely affect crop yields or lead to the accumulation of toxic substances in crops, thus posing a potential risk to human health.

3.3. Human Health Hazards

Untreated wastewater has the potential to harbor pathogenic microbes and hazardous compounds, posing a significant risk to human health [71,72]. Various microorganisms, such as Escherichia coli, fecal coliform, and Enterococcus, can be present in inadequately treated wastewater, potentially leading to the transmission of diseases such as Ascaris infection, cholera, typhoid fever, shigellosis outbreaks, nonspecific diarrhea, and other related health issues [55,73,74,75,76]. The consumption of vegetables that are irrigated with inadequately treated wastewater has the potential to elevate human exposure to persistent E. coli derived from wastewater irrigation, thereby amplifying the related risk [76].
As of 28 June 2018, a total of 36 individuals had been admitted to hospitals throughout several states in the United States as a result of contracting an E. coli infection. This infection has been traced back to the Yuma growing area, where samples of irrigation water were found to be contaminated with the bacteria [77]. Since 1994, the European Union (EU) has implemented a restriction on the use of antibiotics. However, it is worth noting that a significant proportion (up to 50%) of E. coli isolates found in irrigation water inside EU member states, including Belgium, continue to exhibit resistance to antibiotics [78]. Following experimentation, it was shown that the concentration of parasites in untreated wastewater surpassed the established threshold. This outcome has the potential to result in the contamination of soil and crops subsequent to irrigation. The quantity of parasite eggs in the soil was measured to be 750 eggs per 100 g, while the concentration of cysts was found to be 2.8 × 104 per 100 g. Additionally, the concentration of Giardia cysts in crops was seen to reach as high as 6.6 × 103 per kilogram [79].
Improper treatment of agricultural wastewater can pose serious threats to human health, including the risk of transmission of pathogenic microorganisms and parasites. Therefore, it is necessary to strengthen the quantitative assessment of microbial risk in the process of resource utilization in farmland drainage, especially in the measurement and evaluation of worm concentration. This will help to ensure the proper treatment of wastewater in order to maintain the safety of the environment and public health.

4. Effective Measures to Promote the Utilization of Farmland Drainage Resources

While the use of treated field drainage for crop irrigation brings obvious benefits, it also comes with some potential drawbacks. In order to maximize the benefits of drainage irrigation, human interventions are needed to reduce possible negative impacts.

4.1. Formulate Relevant Guidelines and Policies

The establishment of rules pertaining to the safe and suitable utilization of agricultural wastewater is of utmost importance in order to mitigate the occurrence of eutrophication and uphold the integrity of ecosystems 84]. It is imperative to consider the many types and distributions of pollutants present in wastewater, such as microorganisms, inorganic chemicals, and organic compounds, when formulating guidelines [80]. Furthermore, there is a need to enhance the quantitative evaluation of microbial risk, particularly in terms of measuring and assessing the concentration of worms [81]. It is recommended to engage in proactive involvement in public campaigns aimed at mitigating the potential health hazards associated with the transmission of diseases caused by contaminants present in wastewater [82]. Farmers and agricultural workers are required to implement a set of preventive measures while handling wastewater in order to minimize direct exposure to wastewater and thus mitigate potential health hazards [83].
In order to safely and effectively reuse treated wastewater, the World Health Organization (WHO) has published a four-volume series and provided accurate wastewater guidelines for local decision-makers [84]. As early as 1918, the California State Health Commission issued the first guidelines for wastewater reuse, expressly prohibiting the use of untreated wastewater for irrigating crops [85]. The new regulations for the minimum requirements of wastewater used in agricultural irrigation, released by the European Commission on 25 May 2020, have now come into effect. The latest guidance policies are expected to be implemented starting 26 June 2023. Table 1 outlines the quality requirements for wastewater reuse in agriculture [86].

4.2. Artificial Wetland

Artificial wetlands are considered an ecological type of wastewater treatment system, comprising multiple treatment modules, including biological, chemical, and physical components. As a result, artificial wetlands have been successfully employed to treat various types of wastewater, including agricultural, urban, and industrial wastewater [87]. Artificial wetlands represent an effective environmental treatment method capable of assisting in the removal of pollutants from wastewater. The primary mechanism for wastewater treatment in artificial wetlands relies on large plants and microorganisms present in the wetland, thereby achieving the removal of pollutants and high-load nutrient substances from the wastewater [88]. Research findings indicate that created wetlands have the capacity to eliminate 90% of the biochemical oxygen demand (BOD) present in wastewater over a span of 24 h. Consequently, these wetlands are widely recognized as an environmentally sustainable method for treating wastewater [89]. The integration of biological and physical filtering techniques enhances the efficacy of pollutant removal from wastewater [90]. Upon doing an analysis of the treated wastewater in the wetland, it was shown that the presence of pharmaceuticals was diminished by around 80%, hence preventing their release into adjacent rivers [91]. When treating wastewater using wetlands, calcium iron oxide particles can be added, and research indicates that this can reduce the phosphorus content in wastewater by 98% [92]. Wastewater treated through artificial wetlands may potentially lower the risk of pathogen transmission [93]. Additionally, it contributes to the elimination of antibiotics in wastewater [94]. The aforementioned practice aids in the preservation of water resource sustainability and facilitates the efficient safeguarding of such resources. Hence, to enhance the efficacy of wastewater reuse, it is imperative to integrate created wetlands with complementary technologies, thereby facilitating the amalgamation of farmland drainage resource utilization and environmental treatment approaches. This comprehensive application has the potential to effectively address the requirements of farmland drainage on the Sanjiang Plain, thereby ensuring the sustainable management and efficient conservation of water resources.

4.3. Sewage Stabilization System

The sewage stabilization pond system is a technology used to treat wastewater through sedimentation and sunlight, primarily for the removal of viruses and insect eggs in water [95,96]. Studies indicate that the extent of virus removal is closely related to the hydraulic retention time in the water, but sedimentation is not universally applicable for virus removal, and the sunlight-mediated mechanism depends on the characteristics of the water body [96].
To further enhance the efficiency of wastewater treatment, microorganisms such as algae or activated sludge can be introduced into the sewage treatment process to facilitate the degradation of organic and inorganic pollutants [97]. This microbial-based wastewater treatment approach is applicable to various pollutants present in wastewater. Additionally, introducing aerobic and anaerobic wastewater treatment processes can effectively remove biological micropollutants from wastewater [98]. Under aerobic conditions, microorganisms can oxidize and degrade some organic substances, while specific microorganisms can further degrade organic substances in the absence of oxygen. Therefore, combining sewage stabilization pond system technology with other wastewater treatment techniques can significantly improve the efficiency and effectiveness of wastewater treatment.

4.4. Drip Irrigation System

Drip irrigation, particularly underground drip irrigation, is widely recognized as an ecologically sustainable approach to sewage irrigation due to its ability to substantially mitigate potential environmental hazards and successfully decrease rates of nitrate leakage [36]. The main principle is to transport wastewater through pipelines to the roots of crops and then drip the water into the root zone of the plants. The advantage of drip irrigation systems lies in their ability to significantly reduce the contact between crops and recycled water, thereby effectively protecting the health of both farmers and consumers [99]. This irrigation technique is especially well-suited for the above-ground edible portions of plants, resulting in a more significant reduction in the impact on crops and soil [36]. However, drip irrigation devices are prone to clogging, and the main reasons for this issue may be suspended solids and microbial growth in wastewater. Regular maintenance and cleaning are crucial to addressing this problem [100]. In conclusion, the successful management of farmland drainage resources is a crucial undertaking that necessitates the efficient recycling and treatment of water resources, alongside careful consideration of nutrient supply and pollution removal. By employing a range of treatment technologies, including sewage treatment, artificial wetlands, phytoremediation, sewage stabilization ponds, and drip irrigation systems, it is possible to achieve a more sustainable utilization of wastewater. This approach serves to safeguard water supplies and ecosystems while simultaneously mitigating environmental and health hazards. Nevertheless, it is imperative to acknowledge that many systems possess inherent limitations and necessitate integration in order to enhance the caliber and effectiveness of wastewater reuse. By means of scientific direction and effective dissemination, collaborative efforts can be made to attain the safe and sustainable utilization of agricultural wastewater, thereby fostering the sustainable development of agriculture. The incorporation of microorganisms, such as algae or activated sludge, has been proposed as a significant factor in the treatment of wastewater. Microorganisms possess the ability to efficiently decompose both organic and inorganic contaminants found in wastewater, thereby enhancing the quality of water and mitigating detrimental impacts on the environment [101]. Simultaneously, cultivating crops that exhibit high rates of transpiration contributes to the secure and sustainable utilization of wastewater [102].

5. Conclusions

The implementation of farmland drainage resources presents a viable approach to addressing the ecological and water environment challenges in the Sanjiang Plain. The utilization of treated farmland drainage in agricultural irrigation not only enhances the overall efficiency of agricultural water usage but also presents several issues in terms of environmental and health considerations. This review aims to emphasize the varied character and intricate complexity of the aforementioned aspect. Utilizing farmland drainage as a resource presents a potential solution to address the conflict between regional water supply and demand. Additionally, it offers an effective means to manage agricultural non-point source pollution and uphold the overall ecological well-being of the region. The aforementioned positive impacts play a vital role in promoting the sustainable development and effective management of water resources in the Sanjiang Plain. Nevertheless, inadequate wastewater treatment can also result in adverse environmental consequences, such as soil contamination, diminished crop yields, pollution, and significant risks to human health. The effective promotion of beneficial environmental outcomes through the utilization of farmed drainage resources hinges on the recycling and treatment of drainage. Consequently, it is imperative to implement a range of efficacious strategies, includeing the development of pertinent guidelines and policies, the establishment of drainage recycling and treatment mechanisms, the construction of artificial wetlands, the adoption of sewage stabilization systems, and the promotion of drip irrigation systems. Overall, when appropriate risk protection measures are implemented, the practice of farmland drainage shows promising potential as a scientifically and practically viable substitute for traditional sources of irrigation water.

Author Contributions

Conceptualization, G.Z. and Z.S.; methodology, G.Z.; software, H.W. and Z.S.; validation, K.Y. and H.W.; investigation, Z.S. and W.Z.; resources, Y.C.; data curation, Z.S.; writing—original draft preparation, Z.S.; writing—review and editing, G.Z.; visualization, Z.S., M.H. and H.W.; funding acquisition, G.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Postdoctoral Funding Project in Heilongjiang Province (LBH-Z22293).

Data Availability Statement

Data sharing not applicable to this article as no datasets were generated or analyzed during the current study.

Acknowledgments

This work was supported by the School of Hydraulic and Electric Power, Heilongjiang University, and the Key Laboratory of Molecular Biology, College of Heilongjiang Province.

Conflicts of Interest

The authors declare no conflict of interest regarding the publication of this paper.

References

  1. Zhang, B.; Song, X.; Zhang, Y.; Han, D.; Tang, C.; Yang, L.; Wang, Z. The Renewability and Quality of Shallow Groundwater in Sanjiang and Songnen Plain, Northeast China. J. Integr. Agric. 2017, 16, 229–238. [Google Scholar] [CrossRef]
  2. Dong, G.; Bai, J.; Yang, S.; Wu, L.; Cai, M.; Zhang, Y.; Luo, Y.; Wang, Z. The Impact of Land Use and Land Cover Change on Net Primary Productivity on China’s Sanjiang Plain. Environ. Earth Sci. 2015, 74, 2907–2917. [Google Scholar] [CrossRef]
  3. Xiang, H.; Wang, Z.; Mao, D.; Zhang, J.; Xi, Y.; Du, B.; Zhang, B. What Did China’s National Wetland Conservation Program Achieve? Observations of Changes in Land Cover and Ecosystem Services in the Sanjiang Plain. J. Environ. Manag. 2020, 267, 110623. [Google Scholar] [CrossRef] [PubMed]
  4. Niu, Z.; Zhang, H.; Wang, X.; Yao, W.; Zhou, D.; Zhao, K.; Zhao, H.; Li, N.; Huang, H.; Li, C.; et al. Mapping Wetland Changes in China between 1978 and 2008. Chin. Sci. Bull. 2012, 57, 2813–2823. [Google Scholar] [CrossRef]
  5. Fu, J.; Liu, J.; Wang, X.; Zhang, M.; Chen, W.; Chen, B. Ecological Risk Assessment of Wetland Vegetation under Projected Climate Scenarios in the Sanjiang Plain, China. J. Environ. Manag. 2020, 273, 111108. [Google Scholar] [CrossRef]
  6. Ding, Y.F.; Cao, G.Z.; Li, Y.N. Groundwater development, Utilization, Management and Protection in Sanjiang Plain. In Proceedings of the Chinese Hydraulic Society, Yellow River Water Conservancy Commission: The Fifth Part of the Proceedings of the 2020 Academic Annual Meeting of the Chinese Hydraulic Society; China Water Conservancy and Hydropower Press: Beijing, China, 2020; Volume 6. [Google Scholar] [CrossRef]
  7. Cao, Y.; Tang, C.; Song, X.; Liu, C.; Zhang, Y. Characteristics of Nitrate in Major Rivers and Aquifers of the Sanjiang Plain, China. J. Environ. Monit. 2012, 14, 2624. [Google Scholar] [CrossRef]
  8. Yang, J.; Huang, X. The 30 m Annual Land Cover Dataset and Its Dynamics in China from 1990 to 2019. Earth Syst. Sci. Data 2021, 13, 3907–3925. [Google Scholar] [CrossRef]
  9. Zhu, X.; Li, Y.; Li, M.; Pan, Y.; Shi, P. Agricultural Irrigation in China. J. Soil Water Conserv. 2013, 68, 147A–154A. [Google Scholar] [CrossRef]
  10. Cao, D.; Feng, J.; Bai, L.; Xun, L.; Jing, H.; Sun, J.; Zhang, J. Delineating the Rice Crop Activities in Northeast China through Regional Parametric Synthesis Using Satellite Remote Sensing Time-Series Data from 2000 to 2015. J. Integr. Agric. 2021, 20, 424–437. [Google Scholar] [CrossRef]
  11. Tian, Z.Q.; Wang, X.; Xu, H.M. Evaluation of irrigation utilization of farmland drainage resources in Summer irrigation period based on water quality suitability in Hetao Irrigation District. Agric. Technol. Equip. 2022, 1, 86–89, 91. (In Chinese) [Google Scholar] [CrossRef]
  12. Muyen, Z.; Moore, G.A.; Wrigley, R.J. Soil Salinity and Sodicity Effects of Wastewater Irrigation in South East Australia. Agric. Water Manag. 2011, 99, 33–41. [Google Scholar] [CrossRef]
  13. Ofori, S.; Puškáčová, A.; Růžičková, I.; Wanner, J. Treated Wastewater Reuse for Irrigation: Pros and Cons. Sci. Total Environ. 2021, 760, 144026. [Google Scholar] [CrossRef] [PubMed]
  14. Ding, K.; Chang, X. Drainage and Ecological Service of Irrigation Schemes in China. Irrig. Drain. 2020, 69, 97–107. [Google Scholar] [CrossRef]
  15. Kaur, R.; Yadav, B.; Tyagi, R.D. Microbiology of hospital wastewater. In Current Developments in Biotechnology and Bioengineering; Elsevier: Amsterdam, The Netherlands, 2020; pp. 103–148. [Google Scholar] [CrossRef]
  16. Anjaneyulu, Y.; Sreedhara Chary, N.; Samuel Suman Raj, D. Decolourization of Industrial Effluents—Available Methods and Emerging Technologies—A Review. Rev. Environ. Sci. Bio/Technol. 2005, 4, 245–273. [Google Scholar] [CrossRef]
  17. Crini, G.; Lichtfouse, E. Advantages and Disadvantages of Techniques Used for Wastewater Treatment. Environ. Chem. Lett. 2018, 17, 145–155. [Google Scholar] [CrossRef]
  18. Ruzhitskaya, O.; Gogina, E. Methods for Removing of Phosphates from Wastewater. MATEC Web Conf. 2017, 106, 07006. [Google Scholar] [CrossRef]
  19. Cescon, A.; Jiang, J.-Q. Filtration Process and Alternative Filter Media Material in Water Treatment. Water 2020, 12, 3377. [Google Scholar] [CrossRef]
  20. Singh, A. A Review of Wastewater Irrigation: Environmental Implications. Resour. Conserv. Recycl. 2021, 168, 105454. [Google Scholar] [CrossRef]
  21. Vergine, P.; Salerno, C.; Libutti, A.; Beneduce, L.; Gatta, G.; Berardi, G.; Pollice, A. Closing the Water Cycle in the Agro-Industrial Sector by Reusing Treated Wastewater for Irrigation. J. Clean. Prod. 2017, 164, 587–596. [Google Scholar] [CrossRef]
  22. Asano, T. Planning and Implementation of Water Reuse Projects. Water Sci. Technol. 1991, 24, 1–10. [Google Scholar] [CrossRef]
  23. Saliu, T.D.; Oladoja, N.A. Nutrient Recovery from Wastewater and Reuse in Agriculture: A Review. Environ. Chem. Lett. 2021, 19, 2299–2316. [Google Scholar] [CrossRef]
  24. Sorinolu, A.J.; Tyagi, N.; Kumar, A.; Munir, M. Antibiotic Resistance Development and Human Health Risks during Wastewater Reuse and Biosolids Application in Agriculture. Chemosphere 2021, 265, 129032. [Google Scholar] [CrossRef] [PubMed]
  25. Angelakis, A.N.; Asano, T.; Bahri, A.; Jimenez, B.E.; Tchobanoglous, G. Water Reuse: From Ancient to Modern Times and the Future. Front. Environ. Sci. 2018, 6, 26. [Google Scholar] [CrossRef]
  26. Zhang, Q.H.; Zhou, Y.X. Discussion on the Foundation and Measures for the Development of Low-Salinity Water Irrigation. China Rural Water Resour. Hydropower 1998, 10, 12–13. [Google Scholar]
  27. Xu, C.D.; Zhang, P.; Liu, C.J. Analysis on the potential of regression water irrigation in Jingdong irrigation district. Water Sav. Irrig. 2009, 6, 36–38. (In Chinese) [Google Scholar] [CrossRef]
  28. Wang, S.; Xu, D.; Yang, J.; Fang, S. Drain water chemical characteristics and in the irrigation area of ningxia silver north irrigation effect. J. Water Conserv. 2011, 42, 166–172. [Google Scholar] [CrossRef]
  29. Chowdhury, S.; Al-Zahrani, M. Fuzzy Synthetic Evaluation of Treated Wastewater Reuse for Agriculture. Environ. Dev. Sustain. 2013, 16, 521–538. [Google Scholar] [CrossRef]
  30. Liu, D.; Liu, W.; Fu, Q.; Zhang, Y.; Li, T.; Imran, K.M.; Abrar, F.M. Two-Stage Multi-Water Sources Allocation Model in Regional Water Resources Management under Uncertainty. Water Resour. Manag. 2017, 31, 3607–3625. [Google Scholar] [CrossRef]
  31. Chen, J.; Sun, B.M.; Chen, D.; Wu, X.; Guo, L.Z.; Wang, G. Land Use Changes and Their Effects on the Value of Ecosystem Services in the Small Sanjiang Plain in China. Sci. World J. 2014, 2014, 752846. [Google Scholar] [CrossRef]
  32. Zou, Y.; Duan, X.; Xue, Z.; E, M.; Sun, M.; Lu, X.; Jiang, M.; Yu, X. Water Use Conflict between Wetland and Agriculture. J. Environ. Manag. 2018, 224, 140–146. [Google Scholar] [CrossRef]
  33. Water Resources Department of the Songliao River Basin. Songliao River Basin Water Resources Bulletin, 2001–2018; Water Resources Department of the Songliao River Basin: Changchun, China, 2018.
  34. Straatsma, M.; Droogers, P.; Hunink, J.; Berendrecht, W.; Buitink, J.; Buytaert, W.; Karssenberg, D.; Schmitz, O.; Sutanudjaja, E.H.; van Beek, L.P.H.; et al. Global to Regional Scale Evaluation of Adaptation Measures to Reduce the Future Water Gap. Environ. Model. Softw. 2020, 124, 104578. [Google Scholar] [CrossRef]
  35. Plutzer, J.; Ongerth, J.; Karanis, P. Giardia Taxonomy, Phylogeny and Epidemiology: Facts and Open Questions. Int. J. Hyg. Environ. Health 2010, 213, 321–333. [Google Scholar] [CrossRef] [PubMed]
  36. Zhang, Y.; Shen, Y. Wastewater Irrigation: Past, Present, and Future. WIREs Water 2017, 6, e1234. [Google Scholar] [CrossRef]
  37. Mojiri, A.; Amirossada, Z. Effects of Urban Wastewater on Accumulation of Heavy Metals in Soil and Corn (Zea mays L.) with Sprinkler Irrigation Method. Asian J. Plant Sci. 2011, 10, 233–237. [Google Scholar] [CrossRef]
  38. Bichai, F.; Polo-López, M.I.; Fernández Ibañez, P. Solar Disinfection of Wastewater to Reduce Contamination of Lettuce Crops by Escherichia Coli in Reclaimed Water Irrigation. Water Res. 2012, 46, 6040–6050. [Google Scholar] [CrossRef] [PubMed]
  39. Qadir, M.; Bahri, A.; Sato, T.; Al-Karadsheh, E. Wastewater Production, Treatment, and Irrigation in Middle East and North Africa. Irrig. Drain. Syst. 2009, 24, 37–51. [Google Scholar] [CrossRef]
  40. Balkhair, K.S.; El-Nakhlawi, F.S.; Ismail, S.M.; Al-Solimani, S.G. Treated wastewater use and its effect on water conservation, vegetative yeild, yield components and water use efficiency of some vegetable crops grown under two different irrigation systems in western region, Saudi Arabia. Eur. Sci. J. 2013, 9, 395–402. [Google Scholar]
  41. Alcalde-Sanz, L.; Gawlik, B.M. Minimum quality requirements for water reuse in agricultural irrigation and aquifer recharge. In Towards a Legal Instrument on Water Reuse at EU Level; European Union: Luxembourg, 2017; pp. 8–11. [Google Scholar]
  42. Odoemena, K.I.; Rowshon, K.; Hasfalina Binti, C.M. Advances in utilization of wastewater in agricultural practice: A technical note. Irrig. Drain. 2020, 69, 149–163. [Google Scholar] [CrossRef]
  43. Wu, Y.B.; Ji, J.J.; Song, Y.J.; Yin, T.B. Research status and prospect of agricultural non-point source pollution control. Reg. Gov. 2021, 41, 37–39. (In Chinese) [Google Scholar] [CrossRef]
  44. Yue, Y.B.; Sha, Z.M.; Zhao, Z.; Lu, X.X.; Zhang, J.X.; Zhao, Q.; Cao, L.K. Different rice planting patterns on the effects of nitrogen and phosphorus loss characteristics. J. Chin. Ecol. Agric. 2014, 22, 1424–1432. [Google Scholar] [CrossRef]
  45. Qadir, M.; Sharma, B.R.; Bruggeman, A.; Choukr-Allah, R.; Karajeh, F. Non-Conventional Water Resources and Opportunities for Water Augmentation to Achieve Food Security in Water Scarce Countries. Agric. Water Manag. 2007, 87, 2–22. [Google Scholar] [CrossRef]
  46. Aleisa, E.; Al-Zubari, W. Wastewater Reuse in the Countries of the Gulf Cooperation Council (GCC): The Lost Opportunity. Environ. Monit. Assess. 2017, 189, 553. [Google Scholar] [CrossRef]
  47. Jeong, H.; Bhattarai, R.; Adamowski, J.; Yu, D.J. Insights from Socio-Hydrological Modeling to Design Sustainable Wastewater Reuse Strategies for Agriculture at the Watershed Scale. Agric. Water Manag. 2020, 231, 105983. [Google Scholar] [CrossRef]
  48. Becerra-Castro, C.; Lopes, A.R.; Vaz-Moreira, I.; Silva, E.F.; Manaia, C.M.; Nunes, O.C. Wastewater Reuse in Irrigation: A Microbiological Perspective on Implications in Soil Fertility and Human and Environmental Health. Environ. Int. 2015, 75, 117–135. [Google Scholar] [CrossRef] [PubMed]
  49. Ganjegunte, G.; Ulery, A.; Niu, G.; Wu, Y. Effects of Treated Municipal Wastewater Irrigation on Soil Properties, Switchgrass Biomass Production and Quality under Arid Climate. Ind. Crops Prod. 2017, 99, 60–69. [Google Scholar] [CrossRef]
  50. Zhang, J.; Ma, K.; Fu, B. Wetland Loss under the Impact of Agricultural Development in the Sanjiang Plain, NE China. Environ. Monit. Assess. 2009, 166, 139–148. [Google Scholar] [CrossRef]
  51. Cheng, G.; Jin, H. Permafrost and Groundwater on the Qinghai-Tibet Plateau and in Northeast China. Hydrogeol. J. 2012, 21, 5–23. [Google Scholar] [CrossRef]
  52. Sun, Q.; Xu, C.; Gao, X.; Lu, C.; Cao, B.; Guo, H.; Yan, L.; Wu, C.; He, X. Response of Groundwater to Different Water Resource Allocation Patterns in the Sanjiang Plain, Northeast China. J. Hydrol. Reg. Stud. 2022, 42, 101156. [Google Scholar] [CrossRef]
  53. McDowell, R.W.; Sharpley, A.N. The Effects of Soil Carbon on Phosphorus and Sediment Loss from Soil Trays by Overland Flow. J. Environ. Qual. 2003, 32, 207–214. [Google Scholar] [CrossRef]
  54. Jiménez-Cisneros, B. Wastewater Reuse to Increase Soil Productivity. Water Sci. Technol. 1995, 32, 173–180. [Google Scholar] [CrossRef]
  55. Sinclair, R.G. Wastewater Irrigation and Health: Assessing and Mitigating Risk in Low-Income Countries. Int. J. Water Resour. Dev. 2010, 26, 704–709. [Google Scholar] [CrossRef]
  56. Qadir, M.; Wichelns, D.; Raschid-Sally, L.; McCornick, P.G.; Drechsel, P.; Bahri, A.; Minhas, P.S. The Challenges of Wastewater Irrigation in Developing Countries. Agric. Water Manag. 2010, 97, 561–568. [Google Scholar] [CrossRef]
  57. Akpor, O.B. Heavy Metal Pollutants in Wastewater Effluents: Sources, Effects and Remediation. Adv. Biosci. Bioeng. 2014, 2, 37. [Google Scholar] [CrossRef]
  58. Sánchez–González, A.; Chapela–Lara, M.; Germán–Venegas, E.; Fuentes-García, R.; del Río-Portilla, F.; Siebe, C. Changes in Quality and Quantity of Soil Organic Matter Stocks Resulting from Wastewater Irrigation in Formerly Forested Land. Geoderma 2017, 306, 99–107. [Google Scholar] [CrossRef]
  59. Yi, L.; Jiao, W.; Chen, X.; Chen, W. An Overview of Reclaimed Water Reuse in China. J. Environ. Sci. 2011, 23, 1585–1593. [Google Scholar] [CrossRef] [PubMed]
  60. Dang, Q.; Tan, W.; Zhao, X.; Li, D.; Li, Y.; Yang, T.; Li, R.; Zu, G.; Xi, B. Linking the Response of Soil Microbial Community Structure in Soils to Long-Term Wastewater Irrigation and Soil Depth. Sci. Total Environ. 2019, 688, 26–36. [Google Scholar] [CrossRef] [PubMed]
  61. Pedrero, F.; Grattan, S.R.; Ben-Gal, A.; Vivaldi, G.A. Opportunities for Expanding the Use of Wastewaters for Irrigation of Olives. Agric. Water Manag. 2020, 241, 106333. [Google Scholar] [CrossRef]
  62. Erel, R.; Eppel, A.; Yermiyahu, U.; Ben-Gal, A.; Levy, G.; Zipori, I.; Schaumann, G.E.; Mayer, O.; Dag, A. Long-Term Irrigation with Reclaimed Wastewater: Implications on Nutrient Management, Soil Chemistry and Olive (Olea europaea L.) Performance. Agric. Water Manag. 2019, 213, 324–335. [Google Scholar] [CrossRef]
  63. Angin, I.; Yaganoglu, A.V.; Turan, M. Effects of Long-Term Wastewater Irrigation on Soil Properties. J. Sustain. Agric. 2005, 26, 31–42. [Google Scholar] [CrossRef]
  64. Rickson, R.J. Handbook of Soil Sciences. Properties and Processes. Second Edition. Edited by P.M. Huang, Y. Li and M.E. Sumner. Boca Raton, FL: CRC Press (2011), Pp. 1442, £99.99. ISBN 978-1439803059.—Handbook of Soil Sciences. Resource Management and Environmental Impacts. Second Edition. Edited by P. M. Huang, Y. Li and M. E. Sumner. Boca Raton, FL: CRC Press (2011), Pp. 830, £89.00. ISBN 978-1439803073.—A Two-Volume Set Is Also Available: Pp. 2272, £159.00. ISBN 978-1439803035. Exp. Agric. 2012, 48, 603–604. [Google Scholar] [CrossRef]
  65. Sou/Dakouré, M.Y.; Mermoud, A.; Yacouba, H.; Boivin, P. Impacts of Irrigation with Industrial Treated Wastewater on Soil Properties. Geoderma 2013, 200–201, 31–39. [Google Scholar] [CrossRef]
  66. Gatta, G.; Libutti, A.; Beneduce, L.; Gagliardi, A.; Disciglio, G.; Lonigro, A.; Tarantino, E. Reuse of Treated Municipal Wastewater for Globe Artichoke Irrigation: Assessment of Effects on Morpho-Quantitative Parameters and Microbial Safety of Yield. Sci. Hortic. 2016, 213, 55–65. [Google Scholar] [CrossRef]
  67. Batarseh, M.I.; Rawajfeh, A.; Ioannis, K.K.; Prodromos, K.H. Treated Municipal Wastewater Irrigation Impact on Olive Trees (Olea europaea L.) at Al-Tafilah, Jordan. Water Air Soil Pollut. 2010, 217, 185–196. [Google Scholar] [CrossRef]
  68. Crouse, D.A. Soils and plant nutrients. In North Carolina Extension Gardener Handbook; NC State Extension Publications: Raleigh, NC, USA, 2018. [Google Scholar]
  69. Zhang, S.; Yao, H.; Lu, Y.; Shan, D.; Yu, X. Reclaimed Water Irrigation Effect on Agricultural Soil and Maize (Zea mays L.) in Northern China. Clean—Soil Air Water 2018, 46, 1800037. [Google Scholar] [CrossRef]
  70. Gudda, F.O.; Waigi, M.G.; Odinga, E.S.; Yang, B.; Carter, L.; Gao, Y. Antibiotic-Contaminated Wastewater Irrigated Vegetables Pose Resistance Selection Risks to the Gut Microbiome. Environ. Pollut. 2020, 264, 114752. [Google Scholar] [CrossRef] [PubMed]
  71. Khalid, S.; Shahid, M.; Natasha; Bibi, I.; Sarwar, T.; Shah, A.; Niazi, N. A Review of Environmental Contamination and Health Risk Assessment of Wastewater Use for Crop Irrigation with a Focus on Low and High-Income Countries. Int. J. Environ. Res. Public Health 2018, 15, 895. [Google Scholar] [CrossRef]
  72. Khan, M.M.; Siddiqi, S.A.; Farooque, A.A.; Iqbal, Q.; Shahid, S.A.; Akram, M.T.; Rahman, S.; Al-Busaidi, W.; Khan, I. Towards Sustainable Application of Wastewater in Agriculture: A Review on Reusability and Risk Assessment. Agronomy 2022, 12, 1397. [Google Scholar] [CrossRef]
  73. Kamizoulis, G. Setting Health Based Targets for Water Reuse (in Agriculture). Desalination 2008, 218, 154–163. [Google Scholar] [CrossRef]
  74. Mok, H.-F.; Barker, S.F.; Hamilton, A.J. A Probabilistic Quantitative Microbial Risk Assessment Model of Norovirus Disease Burden from Wastewater Irrigation of Vegetables in Shepparton, Australia. Water Res. 2014, 54, 347–362. [Google Scholar] [CrossRef]
  75. Okoh, A.I.; Sibanda, T.; Gusha, S.S. Inadequately Treated Wastewater as a Source of Human Enteric Viruses in the Environment. Int. J. Environ. Res. Public Health 2010, 7, 2620–2637. [Google Scholar] [CrossRef]
  76. O’Flaherty, E.; Solimini, A.G.; Pantanella, F.; De Giusti, M.; Cummins, E. Human Exposure to Antibiotic Resistant-Escherichia Coli through Irrigated Lettuce. Environ. Int. 2019, 122, 270–280. [Google Scholar] [CrossRef] [PubMed]
  77. Bottichio, L.; Keaton, A.; Thomas, D.; Fulton, T.; Tiffany, A.; Frick, A.; Mattioli, M.; Kahler, A.; Murphy, J.; Otto, M.; et al. Shiga Toxin–Producing Escherichia Coli Infections Associated With Romaine Lettuce—United States, 2018. Clin. Infect. Dis. 2019, 71, e323–e330. [Google Scholar] [CrossRef] [PubMed]
  78. Holvoet, K.; Sampers, I.; Callens, B.; Dewulf, J.; Uyttendaele, M. Moderate Prevalence of Antimicrobial Resistance in Escherichia Coli Isolates from Lettuce, Irrigation Water, and Soil. Appl. Environ. Microbiol. 2013, 79, 6677–6683. [Google Scholar] [CrossRef] [PubMed]
  79. Amahmid, O.; El Guamri, Y.; Rakibi, Y.; Yazidi, M.; Razoki, B.; Rassou, K.K.; Achaq, H.; Basla, S.; Zerdeb, M.A.; El Omari, M.; et al. Wastewater Reuse in Agriculture: A Review of Soil and Crops Parasitic Contamination, Associated Health Risks and Mitigation Approach. Environ. Health Eng. Manag. 2023, 10, 107–119. [Google Scholar] [CrossRef]
  80. Dickin, S.K.; Schuster-Wallace, C.J.; Qadir, M.; Pizzacalla, K. A Review of Health Risks and Pathways for Exposure to Wastewater Use in Agriculture. Environ. Health Perspect. 2016, 124, 900–909. [Google Scholar] [CrossRef] [PubMed]
  81. Jaramillo, M.; Restrepo, I. Wastewater Reuse in Agriculture: A Review about Its Limitations and Benefits. Sustainability 2017, 9, 1734. [Google Scholar] [CrossRef]
  82. Pratap, B.; Kumar, S.; Purchase, D.; Bharagava, R.N.; Dutta, V. Practice of Wastewater Irrigation and Its Impacts on Human Health and Environment: A State of the Art. Int. J. Environ. Sci. Technol. 2021, 20, 2181–2196. [Google Scholar] [CrossRef]
  83. Ungureanu, N.; Vlăduț, V.; Voicu, G. Water Scarcity and Wastewater Reuse in Crop Irrigation. Sustainability 2020, 12, 9055. [Google Scholar] [CrossRef]
  84. Victor, R.; Kotter, R.; O’Brien, G.; Mitropoulos, M.; Panayi, G. WHO Guidelines for the Safe Use of Wastewater, Excreta and Greywater, Volumes 1–4. Int. J. Environ. Stud. 2008, 65, 157–176. [Google Scholar] [CrossRef]
  85. Paranychianakis, N.V.; Salgot, M.; Snyder, S.A.; Angelakis, A.N. Water Reuse in EU States: Necessity for Uniform Criteria to Mitigate Human and Environmental Risks. Crit. Rev. Environ. Sci. Technol. 2014, 45, 1409–1468. [Google Scholar] [CrossRef]
  86. European Commission (EC). Regulation EU 2020/741 of the European Parliament and of the Council, on Minimum Requirements for Water Reuse; European Commission: Brussels, Belgium, 2020.
  87. Zhang, D.Q.; Gersberg, R.M.; Hua, T.; Zhu, J.; Tuan, N.A.; Tan, S.K. Pharmaceutical Removal in Tropical Subsurface Flow Constructed Wetlands at Varying Hydraulic Loading Rates. Chemosphere 2012, 87, 273–277. [Google Scholar] [CrossRef] [PubMed]
  88. Breitholtz, M.; Näslund, M.; Stråe, D.; Borg, H.; Grabic, R.; Fick, J. An Evaluation of Free Water Surface Wetlands as Tertiary Sewage Water Treatment of Micro-Pollutants. Ecotoxicol. Environ. Saf. 2012, 78, 63–71. [Google Scholar] [CrossRef] [PubMed]
  89. Rai, U.N.; Tripathi, R.D.; Singh, N.K.; Upadhyay, A.K.; Dwivedi, S.; Shukla, M.K.; Mallick, S.; Singh, S.N.; Nautiyal, C.S. Constructed Wetland as an Ecotechnological Tool for Pollution Treatment for Conservation of Ganga River. Bioresour. Technol. 2013, 148, 535–541. [Google Scholar] [CrossRef] [PubMed]
  90. Patil, Y.M.; Munavalli, G.R. Performance Evaluation of an Integrated On-Site Greywater Treatment System in a Tropical Region. Ecol. Eng. 2016, 95, 492–500. [Google Scholar] [CrossRef]
  91. White, J.R.; Belmont, M.A.; Metcalfe, C.D. Pharmaceutical Compounds in Wastewater: Wetland Treatment as a Potential Solution. Sci. World J. 2006, 6, 1731–1736. [Google Scholar] [CrossRef]
  92. Saaremäe, E.; Liira, M.; Poolakese, M.; Tamm, T. Removing Phosphorus with Ca-Fe Oxide Granules—A Possible Wetlands Filter Material. Hydrol. Res. 2013, 45, 368–378. [Google Scholar] [CrossRef]
  93. Adegoke, A.A.; Amoah, I.D.; Stenström, T.A.; Verbyla, M.E.; Mihelcic, J.R. Epidemiological Evidence and Health Risks Associated With Agricultural Reuse of Partially Treated and Untreated Wastewater: A Review. Front. Public Health 2018, 6, 337. [Google Scholar] [CrossRef]
  94. Rodriguez-Iruretagoiena, A.; Fdez-Ortiz de Vallejuelo, S.; Gredilla, A.; Ramos, C.G.; Oliveira, M.L.S.; Arana, G.; de Diego, A.; Madariaga, J.M.; Silva, L.F.O. Fate of Hazardous Elements in Agricultural Soils Surrounding a Coal Power Plant Complex from Santa Catarina (Brazil). Sci. Total Environ. 2015, 508, 374–382. [Google Scholar] [CrossRef]
  95. Mattle, M.J.; Vione, D.; Kohn, T. Conceptual Model and Experimental Framework to Determine the Contributions of Direct and Indirect Photoreactions to the Solar Disinfection of MS2, phiX174, and Adenovirus. Environ. Sci. Technol. 2014, 49, 334–342. [Google Scholar] [CrossRef]
  96. Verbyla, M.E.; Oakley, S.M.; Lizima, L.A.; Zhang, J.; Iriarte, M.; Tejada-Martinez, A.E.; Mihelcic, J.R. Taenia Eggs in a Stabilization Pond System with Poor Hydraulics: Concern for Human Cysticercosis? Water Sci. Technol. 2013, 68, 2698–2703. [Google Scholar] [CrossRef]
  97. Peña, A.; Delgado-Moreno, L.; Rodríguez-Liébana, J.A. A Review of the Impact of Wastewater on the Fate of Pesticides in Soils: Effect of Some Soil and Solution Properties. Sci. Total Environ. 2020, 718, 134468. [Google Scholar] [CrossRef] [PubMed]
  98. Rusănescu, C.O.; Rusănescu, M.; Constantin, G.A. Wastewater Management in Agriculture. Water 2022, 14, 3351. [Google Scholar] [CrossRef]
  99. Wang, Z.; Li, J.; Li, Y. Using Reclaimed Water for Agricultural and Landscape Irrigation in China: A Review. Irrig. Drain. 2017, 66, 672–686. [Google Scholar] [CrossRef]
  100. Li, J.; Chen, L.; Li, Y. Comparison of Clogging in Drip Emitters During Application of Sewage Effluent and Groundwater. Trans. ASABE 2009, 52, 1203–1211. [Google Scholar] [CrossRef]
  101. Paździor, K.; Bilińska, L.; Ledakowicz, S. A Review of the Existing and Emerging Technologies in the Combination of AOPs and Biological Processes in Industrial Textile Wastewater Treatment. Chem. Eng. J. 2019, 376, 120597. [Google Scholar] [CrossRef]
  102. Minhas, P.S.; Yadav, R.K.; Bali, A. Perspectives on Reviving Waterlogged and Saline Soils through Plantation Forestry. Agric. Water Manag. 2020, 232, 106063. [Google Scholar] [CrossRef]
Sustainability 15 16329 g001
Figure 1. Land use situation in the Sanjiang Plain in 2021.
Figure 1. Land use situation in the Sanjiang Plain in 2021.
Sustainability 15 16329 g001
Sustainability 15 16329 g002
Figure 2. Wastewater recycling.
Figure 2. Wastewater recycling.
Sustainability 15 16329 g002
Sustainability 15 16329 g003

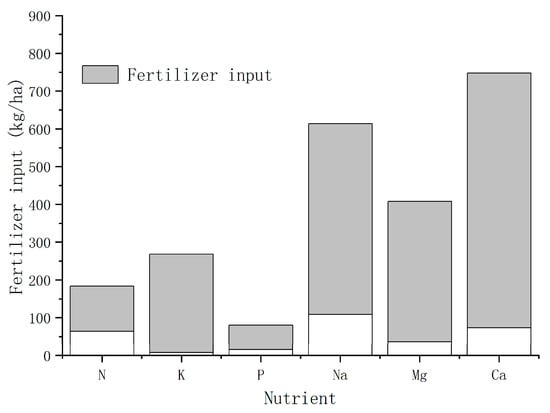

Figure 3. Fertilizer value provided by wastewater irrigated soil.
Figure 3. Fertilizer value provided by wastewater irrigated soil.
Sustainability 15 16329 g003
Table 1. Quality requirements for wastewater reuse in agriculture [86].
Table 1. Quality requirements for wastewater reuse in agriculture [86].
Reclaimed Water Quality ClassIndicative Technology TargetQuality Requirements
Escherichia coli (E. coli)
(No./100 mL)		Biochemical Oxygen Demand (BOD5)
(mg/L)		Total Suspended Solids
(TSS)
(mg/L)		Turbidity
(NTU)
ASecondary treatment, filtration, and disinfection≤10≤10≤10≤5
BSecondary treatment, and disinfection≤100In accordance with Directive 91/271/EEC-
CSecondary treatment, and disinfection≤1000-
DSecondary treatment, and disinfection≤10,000-
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Sang, Z.; Zhang, G.; Wang, H.; Zhang, W.; Chen, Y.; Han, M.; Yang, K. Effective Solutions to Ecological and Water Environment Problems in the Sanjiang Plain: Utilization of Farmland Drainage Resources. Sustainability 2023, 15, 16329. https://doi.org/10.3390/su152316329

AMA Style

Sang Z, Zhang G, Wang H, Zhang W, Chen Y, Han M, Yang K. Effective Solutions to Ecological and Water Environment Problems in the Sanjiang Plain: Utilization of Farmland Drainage Resources. Sustainability. 2023; 15(23):16329. https://doi.org/10.3390/su152316329

Chicago/Turabian Style

Sang, Zijie, Ge Zhang, Haiqing Wang, Wangyang Zhang, Yuxiu Chen, Mingyang Han, and Ke Yang. 2023. "Effective Solutions to Ecological and Water Environment Problems in the Sanjiang Plain: Utilization of Farmland Drainage Resources" Sustainability 15, no. 23: 16329. https://doi.org/10.3390/su152316329

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
