Analysis of CO₂ Emission Characteristics of Concrete Used at Construction Sites

Abstract

As the greenhouse gas reduction goal of 37% below business-as-usual (BAU) by 2030, the construction industry is recognized as an anti-environment industry for mass consumption/mass waste; thus, members of the industry are requested to make efforts to transform it into an environment-friendly industry. Concrete, a common construction material, is known to emit large amounts of environmentally hazardous waste during the processes related to its production, construction, maintenance, and demolition. The amount of greenhouse gas (GHG) emissions by the product is specified in a ready-mixed concrete report whenever concrete is sold commercially. Hence, there have been many studies addressing the quantitative evaluation and reduction of the environmental effects of concrete. This study aims to introduce a method for assessing the amount of carbon dioxide emission from the processes of producing concrete. Moreover, we measured the quantities of CO₂ emission of about 10 under-construction projects, including office buildings, apartment buildings, and high-rise residential buildings in South Korea. Using the assessment result, we analyzed the CO₂ reduction performance of an office building in South Korea and drew conclusions about measures for reducing CO₂ emission.

1. Introduction

The amount of energy consumption and CO₂ emission from the Korean construction industry accounts for 23% of the total industry energy consumption and 40% of the total CO₂ emission. As the greenhouse gas reduction goal of 37% below business-as-usual (BAU) by 2030, the construction industry is recognized as an anti-environment industry for mass consumption/mass waste; thus, it is necessary to make efforts to turn it to an environment-friendly industry [1]. Considering that CO₂ emission per capita in Korea increased by 113% from 1990, which represents the largest increase in CO₂ emission among OECD countries, Korea also needs detailed environmental policies for CO₂ reduction. Because concrete, which is the main material used in the construction industry, emits a large amount of CO₂ during the production of raw materials such as cement, aggregate, etc., research on CO₂ emission emitted from concrete production is direly needed.

The seven major building materials accounting for more than 90% of building greenhouse gas (GHG) emissions include concrete, a reinforcing rod, and section steel. Among the CO₂ emissions generated by these major building materials, concrete accounts for 70% [2].

The types of concrete (mix design, strength) used varies according to building structure, building type and region. In the Republic of Korea, in particular, the concrete mix design significantly differs depending on whether the concrete is used inland or in a coastal area for prevention of chloride-induced corrosion. Therefore, an assessment of CO₂ emission and an analysis of their characteristics against the concrete used in diverse construction sites is needed.

Therefore, the assessment of CO₂ emission is very important for achieving the national-level CO₂ reduction objective.

Recently, efforts to reduce CO₂ emission are being made through the use of procurement systems for low-CO₂-emission materials and the application of high-strength concrete at construction sites. As a part of such research, there is a demand for the establishment of a quantitative assessment method of CO₂ emission from concrete production to site procurement and a proposal of a CO₂ reduction plan at construction sites using this [3].

This study attempts an assessment of CO₂ emission against concrete among the major building materials and analyzes the characteristics on which building types (apartment, office) and regions (Seoul, Incheon, Ulsan) are dependent.

In addition, a CO₂ emission reduction plan is proposed based on the result of the assessment of CO₂ emission.

The concrete production was divided into the following stages: raw material, transportation, and manufacturing.

The input materials, transportation distance, and energy usage data of each stage were used for assessing CO₂ emission.

The CO₂ emission levels calculated as such were divided and based on material characteristics, building type, and local characteristics.

2. Literature Review

Kim et al. [4] analyzed the CO₂ emission reduction rate of long-life buildings using high durability and maintenance technologies for standard buildings. The CO₂ emission of the buildings was evaluated by dividing into construction, operation, maintenance/management, and dismantlement/disposal stage. Roh et al. [5] developed an embodied GHG assessment system for building materials in the Korea Green Building Certification System (G-SEED). For this purpose, green building certification systems and supporting assessment systems were analyzed in order to grasp the current trend of the GHG emission assessment on building materials. Roh et al. [6] developed and evaluated the applicability of an optimum design program for the CO₂ life cycle assessment (LCA) of a building that can be readily utilized during the planning and design phases. For this purpose, a database containing information about the CO₂-reducing performance and the cost of environmentally-friendly construction technologies that are applicable to apartment houses was constructed, and an interpretation program was built based on a simplified technique for assessing the life cycle CO₂ emission of an apartment house and the unit costs based on the inter-industry relation table. Yang et al. [7] analyzed a reliable procedure to assess the carbon dioxide (CO₂) uptake of concrete by carbonation during the service life of a structure and by the recycling of concrete after demolition. To generalize the amount of absorbable CO₂ per unit volume of concrete, the molar concentration of constituents in hardened cement paste was simplified as a function of the unit content of cement, and the degree of hydration of the cement paste was formulated as a function of the water-to-cement ratio. Kim et al. [8] evaluated the appropriateness and the reduction performance of the low-carbon-emission concrete mix design system and the deduced mix design results using an evolutionary algorithm (EA), the optimal mix design method, which minimizes the CO₂ emission of the concrete mix design. Park et al. [9] proposed a method to assess life cycle CO₂ emission using the compressive strength of concrete. The compressive strength of concrete used at construction sites was utilized to evaluate CO₂ emission. Additionally, comparisons according to the CO₂ characteristics of each concrete were also made.

Hasanbeigi et al. [10] analyzed the available information on process description, energy savings, environmental, and other benefits, costs, commercialization status, and references for emerging technologies to reduce the cement industry’s energy use and CO₂ emission. Ji et al. [11] proposed three methods (eco-efficiency, environmental priority strategy (EPS) system, and certified emission reduction (CER) price) to support the decision-making processes that simultaneously consider cost and CO₂ emission in acquiring an economical and environment-friendly design.

Yeo et al. [12] proposed an optimization approach developed with a view to allowing decision-makers to balance sustainability and economic objectives considering an RC frame under gravity and lateral loads. Gartner [13] analyzed the practicality of replacing Ordinary Portland cements with alternative hydraulic cements that could result in lower CO₂ emission per unit volume of concrete. Fraile et al. [14] proposed a methodology for the selection of structural alternatives in residential buildings, in which CO₂ emission have been used as a measure of environmental impact, according to the proposal of CEN/TC-350.

Garcia et al. [15] endeavored to determine whether the reduction in producing emissions of blended cements compensates for the reduced durability and CO₂ capture. Miller et al. [16] investigated the influence of design age, in addition to mix proportions and geometric aspects, on the GWP (Global Warming Potential) associated with making beams, columns, and a concrete building frame. Lee et al. [17] investigated a sustainable development method such as material, service life, and reusability of concrete in terms of CO₂ balance (emission–absorption) and life cycle CO₂ of concrete to suppress the reckless development in pursuit of economic benefits.

Tae et al. [18] evaluated the environmental performance of high-strength concrete used in high-rise buildings as a material of environmental load reduction. Yepes et al. [19] described a methodology to optimize cost and CO₂ emission when designing precast concrete road bridges with a double U-shape cross-section. To this end, a hybrid glowworm swarm optimization algorithm was used to combine the synergy effect of the local search with simulated annealing and the global search with glowworm swarm optimization.

3. Methodology of CO₂ Life Cycle Assessment for Concrete

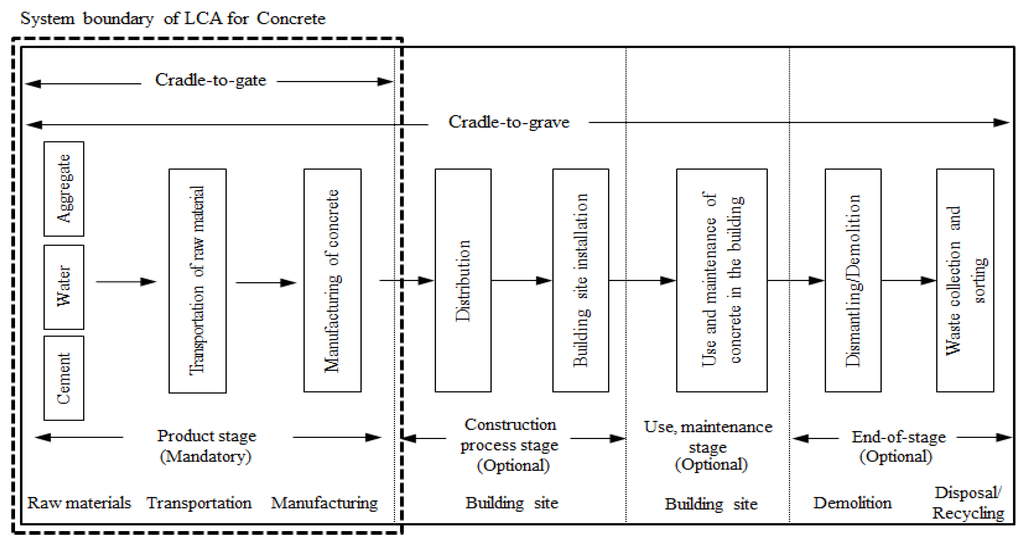

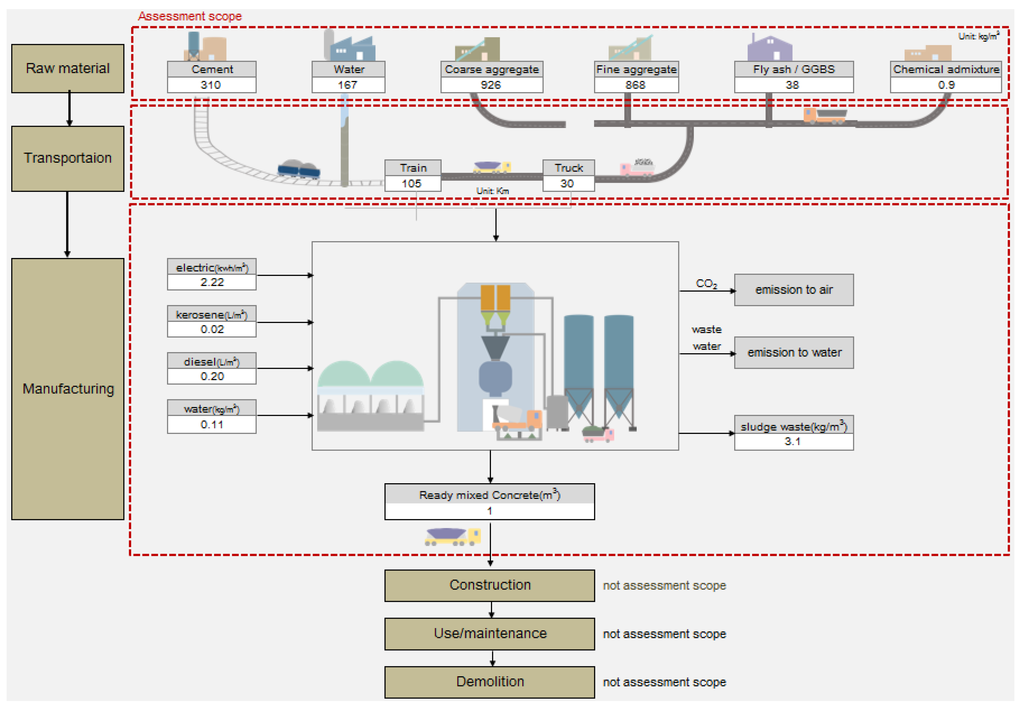

A system boundary was established for the life cycle CO₂ emission evaluation of concrete. The system boundary was selected as the product stage of concrete (cradle to gate) based on ISO 14044 [20] and ISO 21930 [21]. The product stage of concrete is divided into the raw material stage, the transportation stage, and the manufacturing stage [22]. The raw material stage refers to CO₂ emission during the production of major components of concrete such as cement, aggregate, and water. The transportation stage’s CO₂ emission occurs during the transportation of raw materials to the ready-mixed concrete manufacturing plant. The manufacturing stage’s CO₂ emission comes from electricity and oil used in the concrete batch plant. The system boundary for life cycle CO₂ emission of concrete is shown in Figure 1. Also, Figure 2 is the production process of concrete.

3.1. Raw Material

CO₂ emission from concrete production was calculated as the sum of the quantity of each ingredient used for producing 1 m³ of concrete and the CO₂ emission factor. The CO₂ emission factor for cement, aggregate, and water were based on the Korea LCI DB (Life Cycle Inventory DataBase). In addition, blast-furnace slag, fly ash, and chemical admixtures, which are not database units in Korea, were applied to the overseas LCI DB [23,24]. Equation (1) is used for calculating the CO₂ emission during the production of the raw material required for manufacturing 1 m³ of concrete.

Table 1. LCI DB of raw materials.

Material	Unit	Reference Basis
Ordinary Portland Cement	kg	National LCI DB (South Korea)
Coarse aggregate	kg	National LCI DB (South Korea)
Fine aggregate	kg	National LCI DB (South Korea)
Blast-furnace slag powder	kg	Overseas LCI DB (ecoinvent)
Fly ash	kg	Overseas LCI DB (ecoinvent)
Water	kg	National LCI DB (South Korea)
Chemical Admixture compound	kg	Overseas LCI DB (ecoinvent)

lists the CO₂ emission reference of each ingredient.

CO₂M = ∑(M(i) × CO₂ emission factor M)
(i = 1: cement, 2: aggregate, 3: admixture, 4: water)

(1)

CO₂M is the CO₂ emission quantity at the raw material stage for the production of a unit of concrete [kg-CO₂/m³], M(i) is the amount of material used [kg/m³] of concrete, and CO₂ emission factor M is the CO₂ emission factor [kg-CO₂/kg] for each material.

3.2. Transportation

For assessing the CO₂ emission due to transportation, the total quantity used and the load for each component were measured to calculate the number of vehicles required for transportation. The calculated number of vehicles, the distance, and the fuel efficiency of each vehicle were used for assessing the CO₂ emission. In this study, the truck’s speed and traffic were not considered. Equation (2) is used for calculating the CO₂ emission during the transportation process.

Table 2. LCI DB of transportation method.

Transportation Equipment	Unit	Reference Basis
Truck	km	National LCI DB (South Korea)
Train	km	National LCI DB (South Korea)

lists the CO₂ emission reference of each transportation method.

CO₂T = ∑[(M(i)/Lt) × (d/e) × CO₂ emission factor T]
(i = 1: cement, 2: coarse aggregate, 3: fine aggregate, 4: admixture)

(2)

Here, CO₂T is the quantity of CO₂ emitted during the transportation of a unit of produced concrete [kg-CO₂/m³], M(i) is the amount of material used [kg/m³] in the concrete, Lt is the transportation load [tons], d is the transportation distance [km], e is the fuel efficiency [km/L], and CO₂ emission factor T is the CO₂ emission factor [kg-CO₂/kg] of the energy resource.

3.3. Manufacturing

The CO₂ emitted from concrete manufacturing can be calculated using the amount of energy consumed by the manufacturing equipment for producing 1 m³ of concrete and converting that to CO₂. For this approach, the concrete manufacturing process must be divided, and the consumed energy must be calculated. The concrete manufacturing process can be divided into the following five stages: loading, storage, transportation, measurement for mixing, and mixing. The equipment required, the data related to the power, and the fossil fuel energy consumed in each stage are examined; then, by analyzing the ratio between the capacity of each piece of equipment and the total amount of electricity used, the energy consumed for manufacturing 1 m³ of concrete can be calculated. Equation (3) is used for calculating the CO₂ emission during the manufacturing process, and

Table 3. LCI DB of energy source.

Category	Unit	Reference Basis
Crude Oil	ℓ	National LCI DB (South Korea)
Diesel	ℓ	National LCI DB (South Korea)
Kerosene	ℓ	National LCI DB (South Korea)
LPG	m3	National LCI DB (South Korea)
Electricity	kwh	National LCI DB (South Korea)

lists the CO₂ emission reference of energy source.

CO₂F = ∑[(E(i)/R) × CO₂ emission factor F]
(i = 1: electricity usage, 2: oil usage, 3: water usage)

(3)

Here, CO₂F is the amount of CO₂ emitted during the concrete manufacturing stage for producing a unit of concrete [kg-CO₂/m³], R denotes the annual RMC production [m³/year], E(i) denotes the annual energy usage [unit/year], and CO₂ emission factor F is the CO₂ emission factor [kg-CO₂/kg] of an energy resource.

4. Analysis of CO₂ Emission for Concrete

The analyzed buildings were constructed in South Korea. These include three office buildings, four multipurpose buildings, and three apartment buildings; three of 10 buildings are located in Seoul, one in Busan, and 6 in Incheon. The characteristics of each project are summarized in

Table 4. Project characteristics.

	Category	Use	Regional Category	# of Floors	Gross Area (m2)
1	O-S-12	Office	Seoul	12	219,261
2	O-S-19		Seoul	19	22,997
3	O-I-45		Incheon	45	201,571
4	C-S-66	Commercial	Seoul	66	462,000
5	C-B-58		Busan	58	433,812
6	C-I-47		Incheon	47	204,553
7	C-I-49		Incheon	49	184,836
8	A-I-32	Apartment	Incheon	32	190,598
9	A-I-38		Incheon	38	121,225
10	A-I-27		Incheon	27	284,044

O: Office, C: Commercial, A: Apartment, S: Seoul, I: Incheon, B: Busan.

. Moreover, the CO₂ emission of concrete using construction projects was evaluated by the methodology of CO₂ life cycle assessment for concrete.

Assessment results were analyzed separately by the material type, the building type, and the local characteristics [25,26,27].

4.1. Material Characteristics

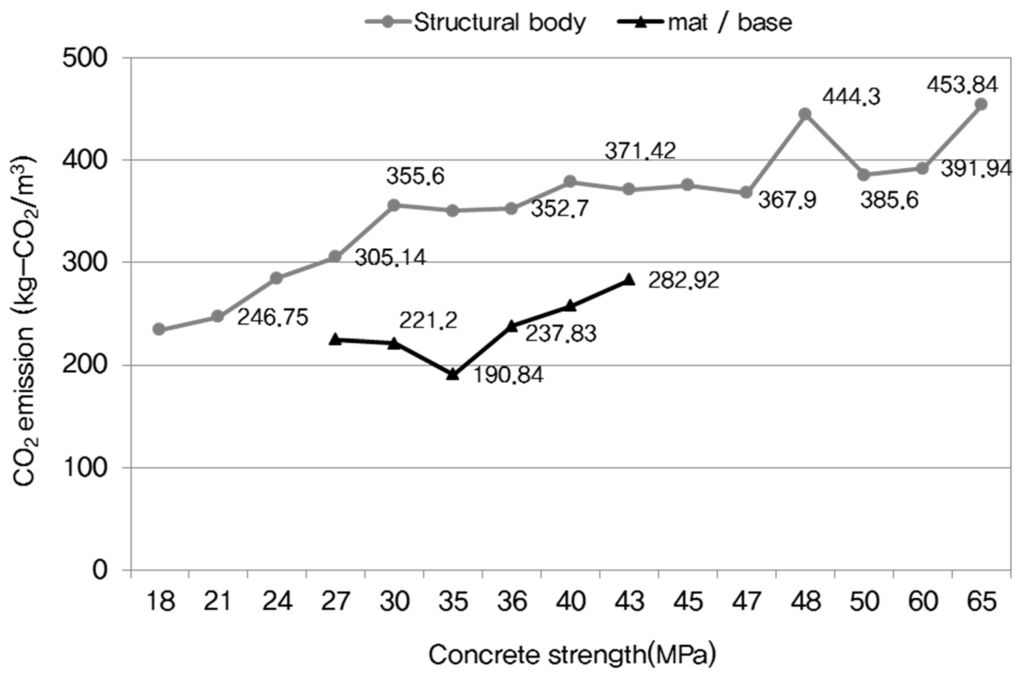

Material characteristics can be interpreted based on multiple variables such as strength, slump and flow, project, building usage, region, etc. The slump and flow of concrete did not have a large influence on CO₂ emission for the same compressive strength. This is because, generally, for the same slump and flow, water-reducing admixture and other similar materials are used for controlling slump and flow rather than material mixture. Therefore, a comparison of the same compressive strength concrete for multiple projects as a variable does not consider the “mixture per project” variable. In cases where the installation parts are different and strengths are the same, such as concrete for structure part installation or concrete for basis installation, the differences of slump and flow for the concrete may be compared. However, generally, in such cases, this is the reason for the difference in strength rather than differences in slump and flow for the case of using different installation parts when selecting concrete strength at a construction site [28].

The analysis of CO₂ emission was divided into the structure part and basis part. This is because much of the cement is substituted with blast-furnace slag for reducing heat generation during hydration to ensure that the CO₂ emission is very low. The compressive strength of concrete using the projects can be divided into 16 levels ranging from 18 MPa to 65 MPa, and further in terms of slump and flow; thus, in total, 41 comparison factor data can be obtained. According to Figure 3, with regard to the concrete used for structure as well as the basis, the CO₂ emission tends to increase with the strength; however, the increase in the latter case is 10% lower than that in the former case. This is because the concrete used for the basis contains a relatively lower amount of cement for hydration heat reduction, and admixture such as blast-furnace slag is added. As for the basis part, 60-MPa concrete results in 1.5-times higher CO₂ emission than 24-MPa concrete. As for the structures part, both blast-furnace slag and cement showed the same rate at 10%; in the case of the basis, the cement was substituted with ground granulated blast-furnace slag (GGBS). The reason for using a large quantity of blast-furnace slag is because the corporate policy of the assessment target construction company involves the usage of blast-furnace slag, and this usage was executed under a thorough concrete quality management and mix management scheme.

In the case of the O-S-12 and O-S-19 projects, both using concrete of 18-Mpa strength, the total amount of material for 1 m³ of RMC were almost similar at 2311 kg and 2323 kg, respectively, but there was a difference of about 38 kg-CO/m³ in their respective CO₂ emission levels, which stood at 252 kg-CO/m³ and 214.80 kg-CO/m³, respectively. This is because the amounts of cement used for these projects were 227 kg/m³ and 182 kg/m³, respectively, with blast-furnace slag and fly ash accounting for the difference. In the case of the same strength, the total mixed quantities of cement, aggregate, blast-furnace slag, and fly ash were similar, but the amount of cement used caused the difference in CO₂ emission. Furthermore, RMC of the 25-30-500 standard was used in the following 5 projects as shown in Figure 4: C-S-66, C-B-58, C-I-47, C-I-49, and A-I-32. Even for the same strength and slump, there were differences based on the installation part as in the cases of C-S-66 and C-B-58. Furthermore, and for cases such as C-S-66 and C-I-47, which were of the same type and had the same installation location, local differences led to the proposal of a mix design with increased use of fly ash for increasing resistance to salt attack, as is suited to coastal regions. In the case of the C-B-58 project, the material-stage emission was low because all cement was substituted with blast-furnace slag cement and blast-furnace fine particles, as can be inferred from

Table 5. CO₂ emission comparison of C-B-58, C-I-49 project.

Category	C-B-58 (30 MPa-500 mm slump)		C-I-49 (30 MPa-500 mm slump)
	Mix Design (kg/m3)	CO2 Emission	Mix Design (kg/m3)	CO2 Emission
Ordinary Cement	Not included	Not included	211	196.44
Water	160	1.12	160	1.12
Coarse aggregate	929	3.71	953	3.81
Fine aggregate	831	2.49	806	2.42
Blast-furnace slag powder	308	62.83	211	43.04
Admixture	4.92	1.23	4.01	1.00
Flyash	102	63.21	Not included	Not included

, which compares the various multipurpose projects considered. This is because the C-B-58 project mixed through technological review to reduce hydration heat and save costs during the installation of basic mat concrete.

4.2. Building Type Characteristics

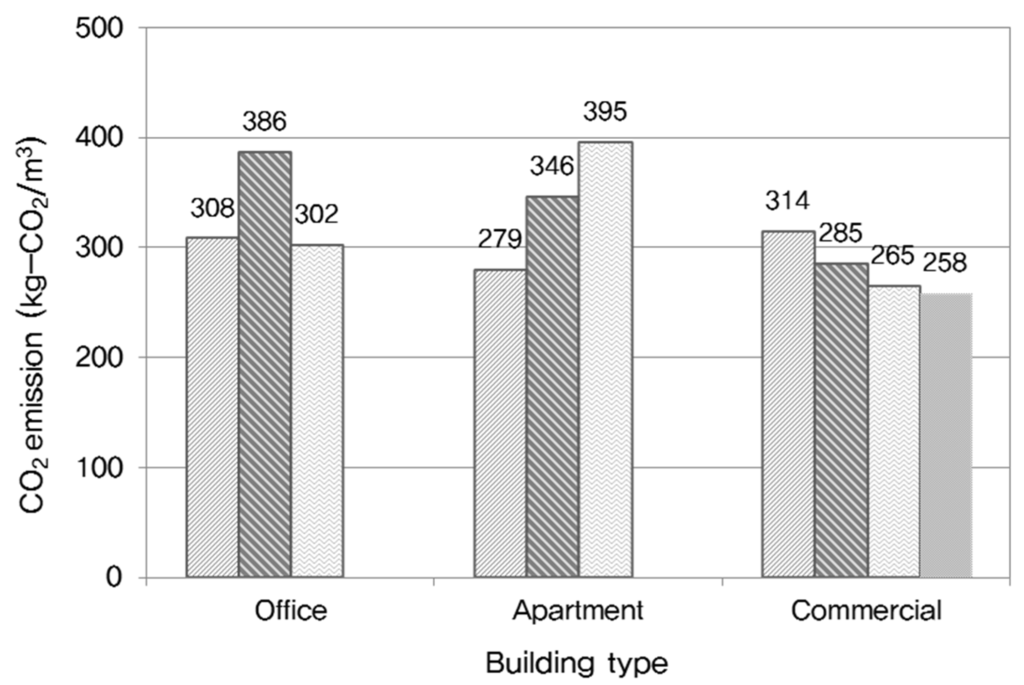

The characteristics of each building type are shown in Figure 5. For apartment buildings and offices, the CO₂ emission levels were similar, and multipurpose buildings had the lowest emissions overall. The increase in concrete strength led to an increase in CO₂ emission, but the multipurpose buildings using high-strength concrete emitted lower CO₂ than the other building types. This is because offices and apartment buildings used a higher amount of cement for high-strength concrete, whereas multipurpose buildings used an increased amount of blast-furnace ash or fly ash. For multipurpose buildings, the concrete installation cycle is very important, owing to their sizes and characteristics. Thus, multipurpose buildings warrant a considerable daily installation effort, which involves mixing against hydration heat, leading to different CO₂ emission levels. The reason that offices have less CO₂ emission than apartments is the decrease in concrete volume (m³) by applying high-strength concrete to office design [29,30].

4.3. Local Characteristics

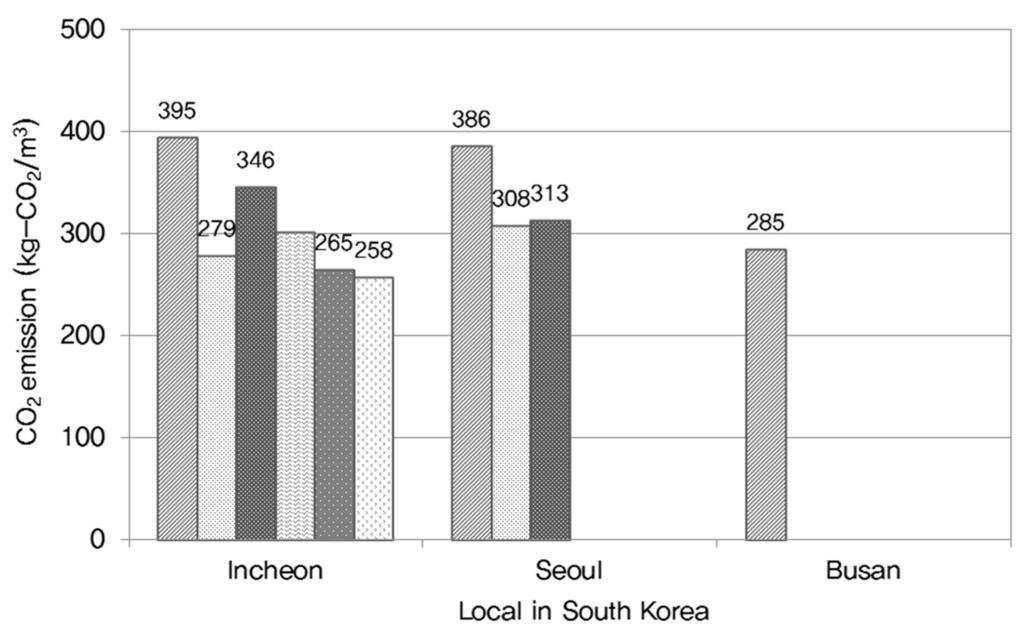

As shown in Figure 6, Seoul was found to have higher CO₂ emission compared to Incheon and Busan; Busan has just one case of an ultra-high-rise multipurpose building using high-liquidity RMC, so it should be excluded. In the comparison of Seoul and Incheon, it can be seen that the CO₂ emission of the former are higher than the latter by about 27 (kg-CO₂/m³). This is partly because Incheon has a greater distribution of multipurpose buildings with low CO₂ emission than Seoul does; furthermore, a greater amount of blast-furnace slag was used in Incheon for increasing the structure resistance to salt attack, since Incheon is a coastal city.

When analyzed for multipurpose buildings in each area, the Incheon-area ones have lower emissions than those in the other areas; this can be attributed to the salt-attack-resistant mix used in the region. As for the difference in CO₂ emission during the transportation stage among the three areas, the RMC company of the Incheon area mostly used local materials for aggregate, admixture, and compound except cement; similarly, the Seoul-area projects used aggregate from Seoul but admixture/compound from Incheon, thus resulting in lower CO₂ emission than the Busan-area projects [31,32].

5. Impact Analysis of the CO₂ Emission on Construction Planning

The CO₂ reduction plan according to the analysis of these 10 projects was applied to the construction site. This site is an RC structure office building with a gross area of 219,000 m² located in South Korea.

It contains four buildings with 5 underground floors and 12 aboveground floors as shown

Table 6. Target project for case study.

Project Overview
Area	Bundang-gu, Gyoenggi-do in South Korea
Purpose	Office, commercial
Builder	P Company in South Korea
Gross	219,000 m2
Building	16,270 m2
Land	28,192 m2
Period	2009.06–2012.02
Size	5 underground floors, 12 ground floors

.

The work done on site included a proposed plan for the pillar design change of the above project, where the original design strength was 30 MPa at 1532 m³, and an SRC structure, as summarized in

Table 7. Material fluctuation according to pillar strength change.

Category		Original Plan	ALT 1	ALT 2
Concrete (m3)	1532	525	-	30 MPa
	-	1007	1007	45 MPa
	-	-	430	50 MPa
Rebar (ton)	199	-		SD40
	-	589	618	SD50
Steel-frame	747	-	-	SM49

. The steel frame was deleted from the structure, and the structure itself was changed to the RC-type using high-strength concrete, for which the quantity of each material was compared for ALT 1 and 2. In the case of ALT 1, the pillar size was maintained at 800 mm × 800 mm, but high-strength concrete was used, and steel rebar was increased in addition to the removal of the steel frame. In the case of ALT 2, dimensions of the underground pillar were changed to 1100 mm × 800 mm, and the ground floor was maintained at 800 mm × 800 mm, but high-strength concrete was used for reducing the amount of concrete required. In this assessment, the method described above was applied, as summarized in

Table 8. Reduction technology of CO₂ emission for concrete.

Category	Detail Content	Note
Material Characteristics	Increased use of blast-furnace slag for hydration heat reduction	not applied
	Increased use of blast-furnace slag and fly ash in case of using the same strength	applied
	Reduced quantity by applying high-strength concrete	applied
	Assessment method for material procurement location distance when selecting RMC company	not applied
Building type Characteristics	Use of mix with low CO2 emission for ultra-high-rise even in case of buildings using low-strength	applied
Local Characteristics	Mix design according to local characteristics	applied

. Here, CO₂ emission per m³ of each RMC used an average value for 30 MPa, while the mixtures of strengths 45 MPa and 50 MPa used much admixture, such as blast-furnace slag. Thus far, the mix design of this project shows that more cement has been used than the blast-furnace slag, but as the framework progresses, the proportion of blast-furnace slag used will increase. The basic unit CO₂ emission of steel rebar and steel frame was assessed using data obtained through inter-industry analysis. The above items were analyzed for the application of eco-friendly construction methods and V.E. to the target project, and it is expected to be applicable across all processes if further studies based on this study are executed and methods for reducing CO₂ emission are developed. Table 7 lists the quantities of increase/decrease of RMC, steel rebar, and steel frame in the revised plan compared to those in the original, and

Table 9. CO₂ emission difference according to pillar change [Unit: kg-CO₂].

Category		Original Plan	ALT 1	ALT 2
Concrete	30 MPa	519,930	178,174	-
	45 MPa	-	299,985	299,985
	50 MPa	-		132,788
	80 MPa	-	-	-
Rebar	SD40	877	-	-
	SD50	-	2597	2725
Steel-frame	SM49	3869	-	-
Total		524,676	480,756	435,495
Reduction ratio (%)		-	15%	23%

lists the CO₂ emission deduced by applying the CO₂ basic unit per material to this quantity [33,34].

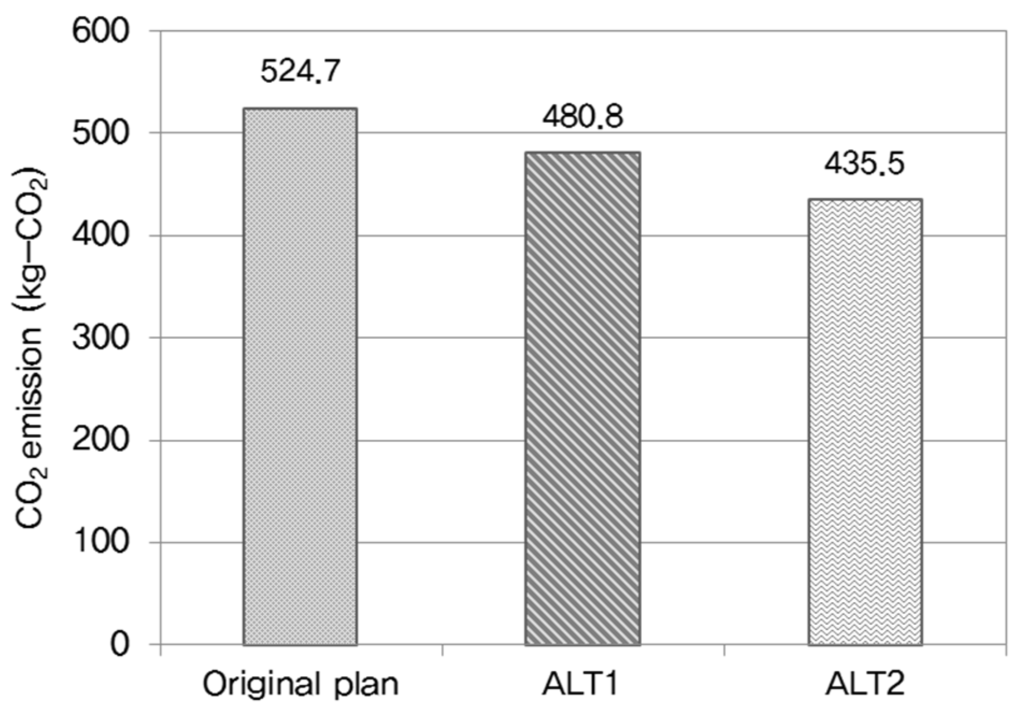

As shown in Figure 7, the RC structure showed less CO₂ emission than the SRC structure, and high-strength concrete showed less CO₂ emission than the low-strength concrete. The CO₂ emission of ALT 2 was 85% that of the original. Even for low-rise offices, the application of high-strength concrete can reduce the required concrete quantity as well as CO₂ emission. In the case of pillars, the use of high-strength CO₂ emission must result in increased slab concrete strength, and, accordingly focused management for concrete installation is necessary. Here, several CO₂ emission reduction methods may be proposed. The first step is the application of high-strength concrete. As can be inferred from the mix design comparison according to pillar strength change, CO₂ emission was reduced with the application of high-strength concrete. In the case of high-strength, the required quantities of concrete and steel rebar are reduced. This decrease led to the reduction of CO₂ emission. The second step is the mixture. It was found that CO₂ emission levels were different, even for the same strength and slump. When the construction company prepares a standard mix design for RMC, the use of blast-furnace slag can reduce the amount of cement, thus leading to decreased CO₂ emission. Especially for basic concrete, the substitution rate can be increased for saving a large amount of CO₂. If the mix design that can save raw cost by using high-strength concrete and blast-furnace slag in multipurpose buildings and similar structures is managed across the enterprise, high-strength concrete could be used in low-rise buildings without any additional cost. Finally, if the weight of RMC company selection is increased through analysis, considering the distance between the RMC company and the site, the material procurement source, and the production equipment during the selection of an RMC company, CO₂ emission could be reduced [35,36].

6. Discussion and Limitations

This study aimed to assess and analyze the CO₂ emission of concrete, which is used according to building type and region.

Then, it proposed a method to reduce CO₂ emission in the use of concrete in building construction. In addition, CO₂ emission was assessed by applying the proposed technology to the target building.

However, this study has the following limitations:

First, this study examined concrete only among diverse construction materials. Therefore, it is limited in assessing the CO₂ emission of buildings. Among the construction materials used during a construction stage, the following seven materials accounted for 95% of total CO₂ emission: ready-mixed concrete, reinforced rod, steel frame, paint, glass, concrete mix, and insulating material. Therefore, there should be further studies on the construction materials with high CO₂ emission to assess the CO₂ emission of buildings and propose their reduction technology.

Second, this study did not cover the CO₂ absorptions by concrete carbonation. Concrete loses alkalinity after CO₂ in the air is absorbed into concrete and generates chemical reactions. Concrete is not directly degraded by carbonation. If the carbonation of a reinforced concrete structure reaches up to the surface of a reinforcing rod beyond the cover thickness, the passivity layer around the reinforcing rod is destructed, initiating corrosion. From the perspective of ecological environment, concrete’s absorption of CO₂ in the air is beneficial. However, durability should be considered. In other words, the absorption of CO₂ absorptions during the construction and use of reinforced concrete structures should be assessed.

However, this study analyzed a construction stage (required) only in the LCA, without considering the use, maintenance, and destruction/disposal stages.

Third, a reliability test on the proposed CO₂ emission reduction technology is not enough because only one case was analyzed. Therefore, there should be further verifications through diverse case studies.

7. Conclusions and Future Work

Using the proposed concrete CO₂ emission assessment method, the characteristics of construction projects in terms of area and purpose were analyzed for the causes of differences in CO₂ emission based on concrete strength, structure type, and structure area. This was accomplished by assessing each stage of construction, i.e., material procurement, transportation, and manufacturing. In the analysis according to building types, CO₂ emission was found to decrease, from highest to lowest, apartment buildings, office buildings, and multipurpose buildings. This can be attributed to the increased use of blast-furnace slag and fly ash as a cement-replacement compound material in multipurpose buildings rather than using concrete of the same strength, as in the case of apartment buildings and offices. Under-construction projects were selected for the application/assessment of the developed CO₂ emission reduction method. As a result, the RC-structure, high-strength concrete application showed a reduction of about 17% in CO₂ emission compared to the SRC-structure, low-strength concrete. In RC-structure pillars, high-strength pillars were found to result in about a 10% reduction in CO₂ emission than low-strength concrete pillars.

The CO₂ emission reduction method at the construction stage can be summarized as the application of high-strength concrete, the standardization of reduction mix design using blast-furnace slag, and the selection of RMC companies with low CO₂ emission.

The CO₂, NO_x, and SO₂ emitted in concrete production affect the acidification and eutrophication as well as global warming. NO_x and SO₂ come down on the ground in such forms as acid rain and acid snow and are absorbed in lakes, rivers, and soil. The acidification and eutrophication caused by NO_x and SO₂ is a major cause of red tide and reinforced concrete structure degradation.

In the future, the LCA method and program (software) for various environmental load is needed and will be the topic of the next paper by the present researchers.
