Determining the Mechanisms that Influence the Surface Temperature of Urban Forest Canopies by Combining Remote Sensing Methods, Ground Observations, and Spatial Statistical Models

by
Shudi Zuo
1,2,3,
Shaoqing Dai
1,2,
Xiaodong Song
4,
Chengdong Xu
5,
Yilan Liao
5,
Weiyin Chang
6,
Qi Chen
7,
Yaying Li
1,3,
Jianfeng Tang
1,3,
Wang Man
8 and
Yin Ren
1,3,*
1
Key Lab of Urban Environment and Health, Institute of Urban Environment, Chinese Academy of Sciences, Xiamen 361021, China
2
University of Chinese Academy of Sciences, Beijing 100049, China
3
Ningbo Urban Environment Observation and Research Station-NUEORS, Chinese Academy of Sciences, Ningbo 315800, China
4
College of Geomatics & Municipal Engineering, Zhejiang University of Water Resources and Electric Power, Hangzhou 310018, China
5
State Key Laboratory of Resources and Environmental Information Systems, Institute of Geographic Sciences and Nature Resources Research, Chinese Academy of Sciences, Beijing 100101, China
6
College of Forestry, Fujian Agriculture and Forestry University, Fuzhou 350002, China
7
Department of Geography and Environment, University of Hawai’i at Manoa, Honolulu, HI 96822, USA
8
Department of Spatial Information Science and Engineering, Xiamen University of Technology, Xiamen 361024, China
*
Author to whom correspondence should be addressed.
Remote Sens. 2018, 10(11), 1814; https://doi.org/10.3390/rs10111814
Submission received: 14 September 2018 / Revised: 11 November 2018 / Accepted: 13 November 2018 / Published: 15 November 2018
(This article belongs to the Section Forest Remote Sensing)
Browse Figures
Versions Notes

Abstract

:
The spatiotemporal distribution pattern of the surface temperatures of urban forest canopies (STUFC) is influenced by many environmental factors, and the identification of interactions between these factors can improve simulations and predictions of spatial patterns of urban cool islands. This quantitative research uses an integrated method that combines remote sensing, ground surveys, and spatial statistical models to elucidate the mechanisms that influence the STUFC and considers the interaction of multiple environmental factors. This case study uses Jinjiang, China as a representative of a city experiencing rapid urbanization. We build up a multisource database (forest inventory, digital elevation models, population, and remote sensing imagery) on a uniform coordinate system to support research into the interactions that influence the STUFC. Landsat-5/8 Thermal Mapper images and meteorological data were used to retrieve the temporal and spatial distributions of land surface temperature. Ground observations, which included the forest management planning inventory and population density data, provided the factors that determine the STUFC spatial distribution on an urban scale. The use of a spatial statistical model (GeogDetector model) reveals the interaction mechanisms of STUFC. Although different environmental factors exert different influences on STUFC, in two periods with different hot spots and cold spots, the patch area and dominant tree species proved to be the main factors contributing to STUFC. The interaction between multiple environmental factors increased the STUFC, both linearly and nonlinearly. Strong interactions tended to occur between elevation and dominant species and were prevalent in either hot or cold spots in different years. In conclusion, the combining of multidisciplinary methods (e.g., remote sensing images, ground observations, and spatial statistical models) helps reveal the mechanism of STUFC on an urban scale.

Graphical Abstract

1. Introduction

With the acceleration of urbanization, more and more urban forest (definition: all the trees within the administrative boundaries of the city) distributed in highly populated environments has become an important part of urban landscapes [1]. Urban forest mainly includes urban forest land, trees in parks, trees along streets, and trees dispersed in residential land. In addition to their use for landscape decoration, residents appreciate the services provided by the branches and leaves of urban forest [2,3]. For example, the dense shade that limits heat re-emitted from pavement, walls, and adjacent objects, and the direct radiant heat from the sun. Water transpiration through leaves further reduces the radiant heat, and this cooling effect mitigates the urban heat island effect and improves the quality of the urban ecological environment [4]. A growing number of countries have started to place large-area monitoring of urban forest on their political agenda. Moreover, the target of forest-resource surveys in China, India, Sweden, and the UK has also expanded from traditional forests to urban forest [5,6].
The large-area monitoring of urban forest currently relies mainly on remote sensing images, combined with ground-survey methods to evaluate the various functional types and different spatial configurations [5,7,8]. This method is promising for large-area monitoring of forest resources [9,10]. However, the method uses remote sensing images as essential data input and ground surveys as auxiliary verification data instead of integrating multisource data [1]. Furthermore, the monitoring studies of urban forest ecological functions are limited to national and global scales, with quantitative studies on the urban scale being rare (the urban scale often means the area within city-level administrative boundaries). The transpiration cooling function of urban forest on the urban scale is strongly heterogeneous in both the spatial and temporal domains, and the quantitative study of spatiotemporal heterogeneity poses a new challenge for ecologists [2,11]. As various environmental factors interact (indirect effect), the diversity, complexity, nonlinearity, and heterogeneity of these factors influence the entire process of urban forest growth [12], and interactions between these environmental factors vary in strength [13]. The indirect effect of interactions compared with the direct effect from a single factor may have a greater impact on the urban forest cool island effect (the “cool-island effect refers to the air temperature of the surrounding area being cooler than that of the central area” [14]). However, interactions are difficult to quantify by using empirical equations or routine experimental methods. Environmental factors affecting the surface temperatures of urban forest canopies (STUFC) include biotic factors (e.g., dominant tree species, forest age, and canopy density) and abiotic factors (e.g., area, altitude, slope gradient, and site quality) [4,15]. Knowledge about interactions between these factors can improve simulations and predictions of the spatial patterns of urban cool islands.
Clarifying the mechanisms that influence the STUFC requires applying a combination of research methods to quantify the spatial heterogeneity of STUFC [16,17]. Remote sensing at various resolutions, ground surveys, and spatial statistical models have all been used by researchers to study how STUFC relates to environmental factors such as forest area, canopy density, vegetation richness, and vegetation index [2,18,19,20]. Overall, these studies indicate that the transpiration cool island effect of urban forest is complex and is influenced by many environmental factors. However, only a few studies have comprehensively investigated the quantitative relationship between multiple environmental factors and STUFC [21]. The influence of these multiple environmental factors on STUFC at the urban scale and the strength of the interactions between these factors remain unclear [22]. Therefore, a quantitative comprehensive study of STUFC spatial heterogeneity and its determining factors is in order.
The present study aims to clarify how multiple environmental factors interact and influence the STUFC. We focus on the interactions that occur in urban forest land and trees in park aggregations because many scholars have confirmed that urban forest land and trees in parks are the most important components that affect the urban cool island effect [23,24,25]. Combining Landsat-5/8 Thematic Mapper (TM) images with forest-management planning inventory (FMPI) data, we obtain the spatial distribution of STUFC on an urban scale. To accomplish these aims, we fuse multisource data (including remote sensing imagery and ground observations) and use spatial statistical analysis methods to determine the mechanisms. As a case study, we tested this method by using the urban forest of Jinjiang as a Chinese city representative of one that has undergone rapid urbanization in recent years. We address two main questions: (1) Which direct environmental factors most strongly influence the STUFC? (2) How do interactions between multiple environmental factors influence the STUFC?

2. Materials and Methods

2.1. Overview

To reveal the factors that influence the STUFC in cluster regions (hot and cold spots, the area with statistical significance that was calculated by using a spatial statistical method), we developed a hierarchical spatial statistical analysis method that could be widely applied elsewhere. The method consists of three main steps (Figure 1): First, we built up a raster and vector database for the integration and fusion of multiple sources of spatial data (including forest-management planning inventory (FMPI), digital elevation models, population, and remote sensing images). Second, we calculated the spatial distribution of STUFC from thermal remote sensing images and then applied hot-spot analysis with an optimal spatial analysis threshold to locate the hot and cold spots of the STUFC. Third, focusing on clustering regions, we qualitatively analyzed the interaction mechanisms related to multiple environmental factors as they affect STUFC. For an overview of the data sources, and other research methods, please see Appendix A in the Supplementary Materials.

2.2. Study Area

Jinjiang is located in southeastern China; its geographical coordinates are longitude 118°24′–118°43′, northern latitude 24°30′–24°54′ (Figure 2). The geographical location of Jinjiang is in the subtropical zone. This city is subject to the oceanic monsoon climate of the southern subtropics, which is characterized by high air temperature, rich light and heat, and abundant precipitation. The mean annual temperature is 18.3–21.3 °C; relative humidity is 76%, and mean annual precipitation is approximately 1130–1820 mm. The terrain is generally smooth and consists mainly of plains and hills. The elevation varies from sea level to 518 m.

2.3. Creation of a Multisource Spatial Database

Three types of data were used in this study, which covers the years 2004 and 2014. The first type was the FMPI data with 90% sampling accuracy, which was acquired from field surveys and observations and included the graphical data and the corresponding attribute database in 2004 and 2014. FMPI data, which are compiled by the national forestry bureau and its affiliations in China, provide forest ground survey data on a regional scale. The attribute database contains data on urban forest stands, soil, topography, and other environmental factors. The FMPI data used herein are extracted from the provincial FMPI data based on the administrative boundaries of city and mainly include urban forest land and trees in parks, but not trees along streets and water courses or trees in home gardens. The FMPI data for Jinjiang County were provided by the Forestry Department of Fujian Province, China.
By using large-scale sampling methods, this forest resource inventory collects detailed information about the characteristics and conditions of each type of forest. In each forest patch, only trees with a minimum diameter at breast height (DBH) of 8 cm were sampled. The forest inventory investigation recorded the forest data and graphical data from each forest patch to establish forest files for resource management, reasonable management, and continuous use. FMPI data contain (1) stand data (age, patch area, plantation density, DBH, tree height, and volume), (2) soil data (soil depth, humus depth, and site index), and (3) topographical data (elevation, slope degree, slope direction, and slope position). All factors were measured for all units within each forest patch, with the average being used as the factor value for each patch.
The accuracy of forest patch attributes was tested based on differences in volumes by combining systematic sampling and stratified sampling. According to the data, forest patches varied in size from 0.05 to 1400 ha in 2004 and from 0.01 to 1029.18 ha in 2014 and the average area went from 9.64 ± 63.08 ha to 3.90 ± 30.65 ha over the same period (mean ± SD). In 2004, 410.821 ha of a total 10,896.937 ha in patches were in small patches (<1.44 ha); in 2014, 887.352 ha of a total of 9565.680 ha in patches were in small patches. The total amount of Jinjiang urban forest were 2777 × 104 trees in 2004 and 2331 × 104 trees in 2014. The stem density was 2471 trees·ha−1 in 2004 and decreased to 2082 trees·ha−1 in 2014. The average DBH grew from 5.73 cm in 2004 to 10.30 cm in 2014. The main species of urban forest include Pinus massoniana, Acacia confusa, Eucalyptus grandis, Casuarina equisetifolia and Dimocarpus longan. From 2004 to 2014, the main species were Acacia confusa and Eucalyptus grandis (the other species decreased in number). On average, in 2004 and 2014, 97.73% and 82.45%, respectively, of all urban forest in Jinjiang was composed of small trees (with DBH < 15 cm) (Figure 3).
The second data type that characterizes anthropogenic activity contains the population density distribution raster data and the percent of impervious area represented by the buffer circles around the forest patches [26], which were calculated by using statistic year books and land-use vector data, respectively. The kernel density tool in the Arctool box of Arcmap 10.1 was used to interpolate the population density. In terms of the patch location, a 100 m buffer was appropriate, and the impervious surface area was calculated by using the spatial calculation tool of Arcmap.
The third data type was inverted STUFC maps from Landsat-5/8 TM remote sensing images in summer. The summer season (July to September) is the optimal time to study the urban forest cool island effect. The dense canopy provides the largest temperature gap between STUFC and non-forest land surface temperature. Moreover, people focus on the cooling effect of forest patches during summer more than during the other seasons. Because the heat island affects human health relatively little in winter, spring, and autumn, the few tree leaves that remain in these seasons provide only limited shade. Thus, images acquired during the summer season are ideal to discern STUFC variations and determine the contributions of various environmental factors over different years. For more detailed information, see Appendix A in the Supplementary Materials.

2.4. Inversion of Surface Temperature of Urban Forest Canopies

The STUFCs were inverted from the thermal infrared band (10.40–12.50 μm) of Landsat-5 TM images (Row 119/Path 43) acquired on 26 July 2004, 11 August 2004, and 12 September 2004 and of Landsat-8 images acquired on 6 July 2014, 22 July 2014 and 7 August 2014. The six images were acquired at approximately 10:00 a.m. local time, and the study area was always under clear atmospheric conditions. The average summer STUFC patches were calculated by using a single channel algorithm in terms of the three images of the same year [27].
First, TM and thermal infrared (TIR) data were applied to correct radiometric and geometrical distortions to ensure accurate calculations. The root mean square errors of the comparison with the ground control points were less than 0.50 pixels for each of the six images. Second, we used atmospheric correction methods for the data from the TM and TIR to eliminate how view angle and atmosphere affect surface reflectance. Third, we used the cubic convolution interpolation method to resample the thermal infrared band of Landsat 8 resolution from 100 to 30 m and of Landsat 5 resolution from 120 to 30 m so as to satisfy the resolution of the visible spectrum. Fourth, the STUFC was estimated by using the mono-window retrieval algorithm. Finally, the STUFC was normalized to evaluate the interactions among the multiple factors influencing urban forest temperature. Nondimensionalization can eliminate the influence of viewing angle and of the different image-acquisition times. A relative STUFC index TR, proposed by Zhao et al. [28], was used to normalize STUFC as follows:
TR = (STUFC − Tb)/Tb,
where STUFC is the surface temperatures of urban forest canopies of each pixel and Tb is the background surface temperature, which is defined as the average temperature of the study-area images. For details of the processes, see Appendix A in the Supplementary Materials.

Accuracy Assessment

The STUFC is linearly related to the near-surface air temperature [29], which provides a basis for testing remote sensing retrieval of STUFC. Thus, we used the daily average land surface temperature data measured at eight meteorological stations in Jinjiang to evaluate the accuracy of remote sensing retrieval of STUFC. We used the Pearson correlation coefficient to evaluate the linear relationship between observed daily-average land surface temperature data and STUFC estimated from remote sensing images and FMPI. The results show that STUFC correlate significantly with land surface temperature from meteorological stations (Pearson correlation coefficient of 0.903; p < 0.01; see Figure 4).

2.5. Spatial Statistical Analysis

2.5.1. Determination of Optimal Threshold Distance

To determine the optimal distance for distinguishing the surrounding patches, we calculated the local Getis–Ord Gi* statistics with threshold distances varying from 250 to 3500 m in 250 m intervals. The hot and cold spots and the number of neighboring FMPI polygons under these different threshold distances were used to determine the optimal threshold distance for spatial autocorrelation analysis [30,31]. The total area of hot and cold spots was relatively stable and the minimum number of neighbors for each patch always exceeded eight, which satisfies the normal distribution assumption of autocorrelation. Based on the Gi* normality assumption and the variation at every local neighborhood threshold, we determined the optimal threshold to be 2250 m for both 2004 and 2014 (see Table 1 and Figure S1 in Appendix C in the Supplementary Materials).

2.5.2. Statistical Analysis Based on Global Moran’s I and Local Getis–Ord Gi*

The global Moran’s I and the local Getis–Ord Gi* indexes were used to determine the statistical significance and to identify the spatial positioning of hot and cold spot cluster regions of STUFC on an optimized threshold distance [32,33]. The geographic analysis and extension module of Arcmap 10.1 was used to calculate both of these indexes.
The most commonly used index in spatial autocorrelation analysis is global Moran’s I [34], which uses the following formula:
I = n ∑ i = 1 n ∑ j = 1 n ( X i − X ¯ ) ( X j − X ¯ ) ( ∑ i = 1 n ∑ j = 1 n W i j ) ∑ i = 1 n ( X i − X ¯ ) 2 ,
where n is the number of observed space units (polygonal region or point), X ¯ is the statistical mean, Xi and Xj are the observed values in regions i and j, respectively, and Wij is the weight of region i relative to region j.
This study uses the spatial statistical method of local Getis–Ord Gi* to estimate the ratio of local values with different weights to the overall value based only on distance measurement standards, without considering the condition of boundary adjacency:
G i * ( d ) = ∑ i = 1 n W i j ( d ) X j ∑ j = 1 n X j
where d is the region size, Wij is the weight matrix of the sample points and region j, and x quantifies importance.

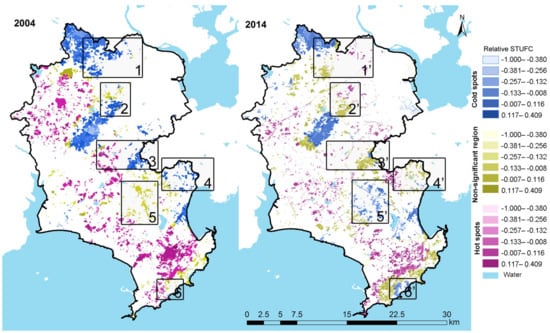

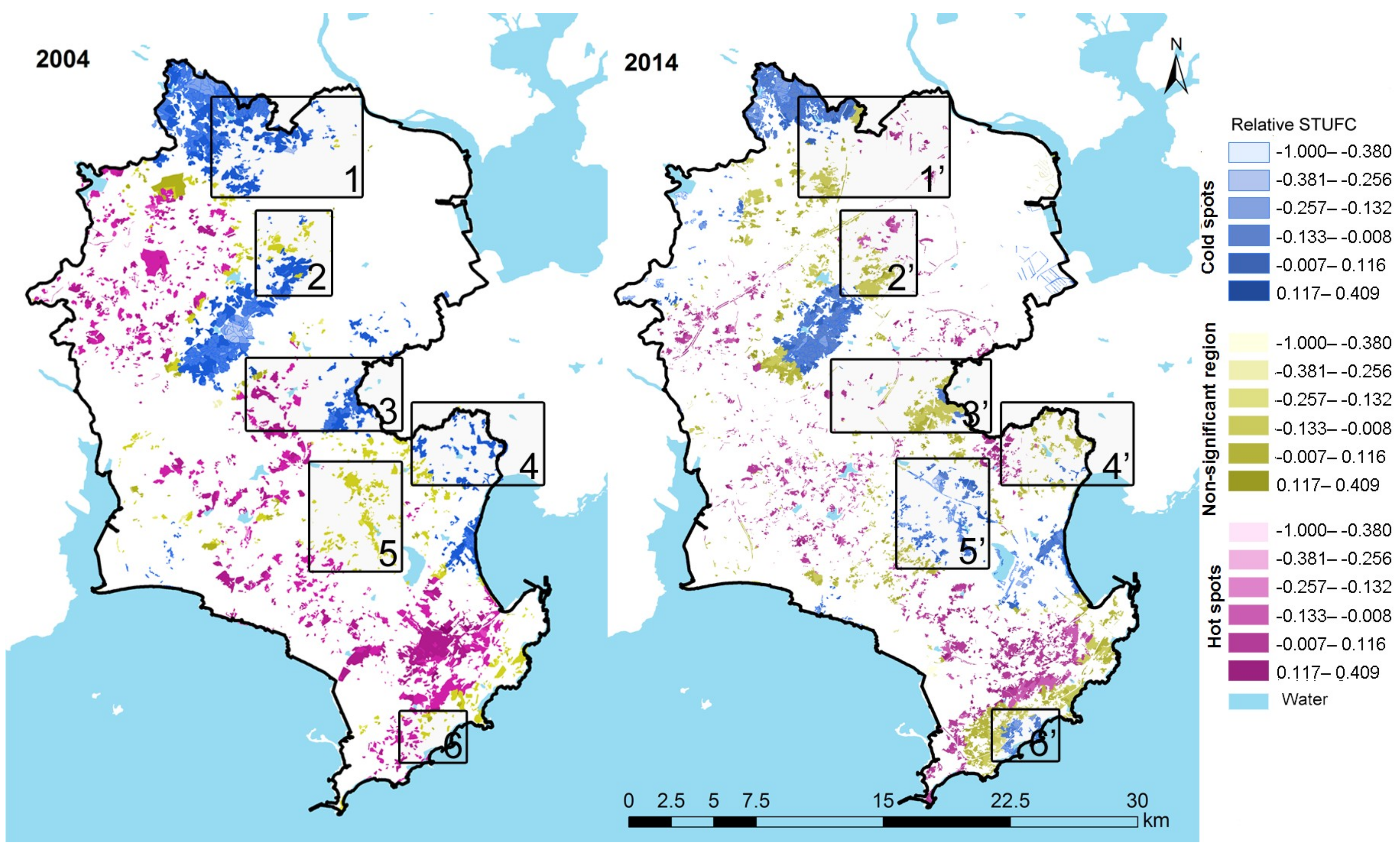

To compose a graph of STUFC clusters, the local Getis–Ord Gi* index was used with an optimal threshold distance of 2250 m. Regions with an absolute value Z greater than 1.65 (p < 0.1) calculated by Arcmap 10.1 [35] were considered significant. The significant areas were divided into hot spots and cold spots according to their Z score (the Z score is the standard deviation), and the remaining regions were considered nonsignificant [32]. Hot spots (Z ≥ 1.65) are areas of statistically significant clustering of high STUFC (90% confidence interval). Cold spots (Z ≤ −1.65) are locations of statistically significant clustering of low STUFC (90% confidence interval). Nonsignificant areas are defined as locations showing no significant spatial correlation (1.65 > Z > −1.65). See Appendix A in the Supplementary Materials for more information.

2.5.3. GeogDetector Modeling

The objects of an eco-environmental study are always characterized by spatial heterogeneity or autocorrelation. Heterogeneity may be detected by comparing the sum of the spatial variance of sub-areas with that of the total study area. The spatial correlation is based on the similarity of the spatial distributions between two factors. The GeogDetector model (http://www.geodetector.cn/) uses heterogeneity and autocorrelation to evaluate the contribution of the factors based on their q values [36]. It quantifies the interaction between factors X1 and X2 by comparing the sum of their q values with that of a new factor X3 = X1 ∩ X2, which it constructs [37]. Unlike basic statistical and geographic modeling tools that constrain data input, GeogDetector processes both categorical and numeric variables in parallel. To summarize, we identified the most dominant environmental factors affecting the STUFC and their impacts and also quantified the interactions between them.
To begin the modeling process, we assumed that multiple environmental factors jointly influence the STUFC and that the spatiotemporal distribution reflects these environmental factors. First, the average values of the attributes of the factors were calculated in terms of the forest patches, and then the values were classified according to the classification criteria of the FMPI documentation (e.g., SDe) [38]. The factors and STUFC values that were not classified in the manual were classified by using the Natural Breaks (Jenks) method (e.g., patch area) [39]. Finally, we regarded the normalized STUFC value as the explained variable and the classified environmental factor values as the explanatory variables and put them into the GeogDetector model to do the analysis. For additional details, please see Appendix A in the Supplementary Materials.

3. Results

3.1. The Surface Temperatures of Urban Forest Canopies, Stand Structure, and Anthropogenic Activity

The spatial distribution of STUFC reveals characteristics of spatial autocorrelation, which departs from the basic assumption that the traditional statistical methods are independent of each other. Therefore, we use herein spatial statistical methods that integrate spatial information into classical statistical analysis to reveal spatial distributions, patterns, processes, and relationships involving STUFC. This approach also clarified the spatial correlation between location-related STUFC and multiple influencing factors. The aggregated STUFC areas (absolute value of Z score ≥ 1.65 represents statistical significance) identified through the spatial statistical method were more suitable than the non-aggregated areas (1.65 > Z Score > −1.65) to determine the relationship and mechanisms.
Landsat 5 and 8 images from 2004 and 2014 were integrated with the corresponding FMPI data (there were 3300 stand patches in 2004 and 5963 stand patches in 2014). For each of these two years, a multisource dataset was generated from the same boundaries and coordinate system, in which the STUFC of patches corresponded to certain environmental factors. In 2004 and 2014, the relative average STUFC was −0.020 and −0.061, respectively (Figure 5).
From 2004 to 2014, as the urban forest structure changed, the standardized STUFC changed accordingly. Specifically, upon using the global Moran’s I, our analysis of STUFC was spatially autocorrelated, and its spatial clustering decreased (Moran’s I = 0.476 in 2004 and 0.178 in 2014; see Table 2). The total area of urban forest stands decreased by 1331.26 ha from 2004 to 2014 (10,896.94 ha in 2004; 9565.68 ha in 2014), while the average forest age increased by 5.09 years during the same time period (15.03 ± 7.91 years in 2004; 20.12 ± 10.86 years in 2014), and the average canopy density increased by 0.046 (0.31 in 2004; 0.39 in 2014). Urban forest stands became more fragmented between 2004 and 2014; the shape index of urban forest patches decreased from 301.5 to 182.4. The areas of dominant tree species such as Dimocarpuslongana, Casuarina equisetifolia, Acacia confusa, Pinusmassoniana, Eucalyptus grandis, and other broadleaved trees also changed. For example, the total stand areas of D. longana, C. equisetifolia, and P. massoniana decreased by 14.89%, 0.94%, and 0.96%, respectively, and the total urban forest areas of A. confusa and E. grandis increased by 4.69% and 18.13%, respectively. See Figures S2 and S3 in Appendix C of the Supplementary Materials for the variation of the urban forest characteristics.

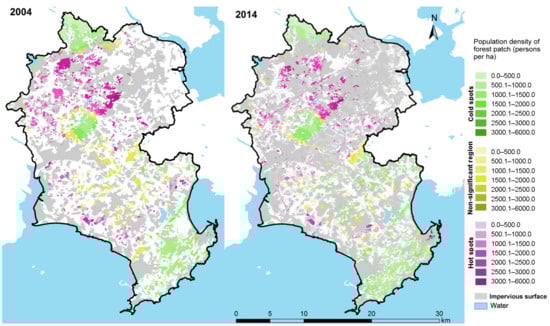

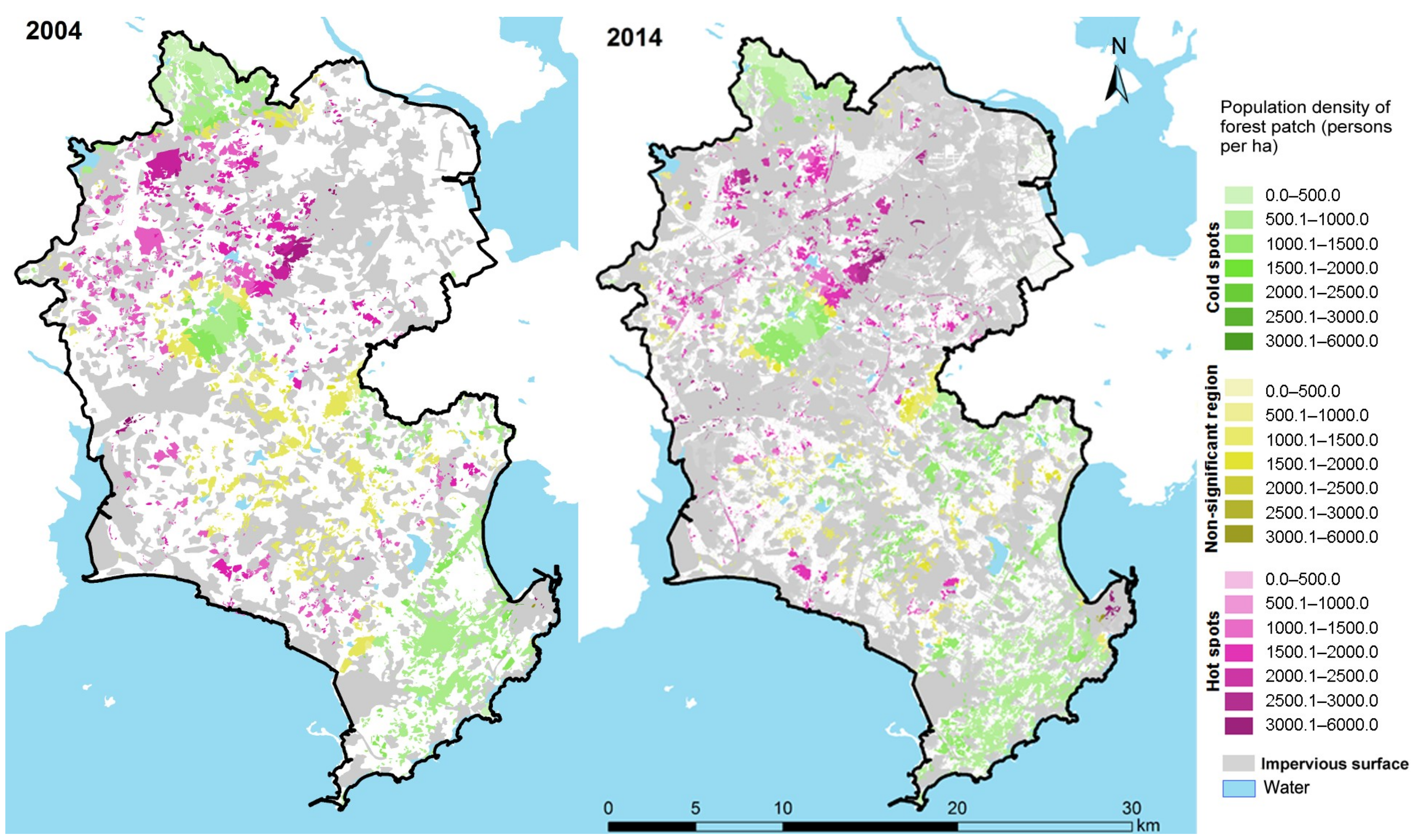

To quantify the effect of anthropogenic activity on STUFC population density and proportion of impervious area were used to represent anthropogenic activity. The average citywide population density of Jinjiang in 2004 was 1099.0 ± 511.4 people ha−1 versus 1187.3 ± 602.0 people ha−1 in 2014 (Figure 6). The aggregation degree (Moran’s I) of the STUFC decreased from 0.731 in 2004 to 0.642 in 2014. The impervious surface area surged. The proportion of impervious surface area within the 100 m buffer circle increased from 28.13 ± 24.85% to 42.45 ± 15.95%. These changes are very significant in our statistical analysis (p < 0.001, t-test).

3.2. Mechanisms that Influence Surface Temperatures of Urban Forest Canopies

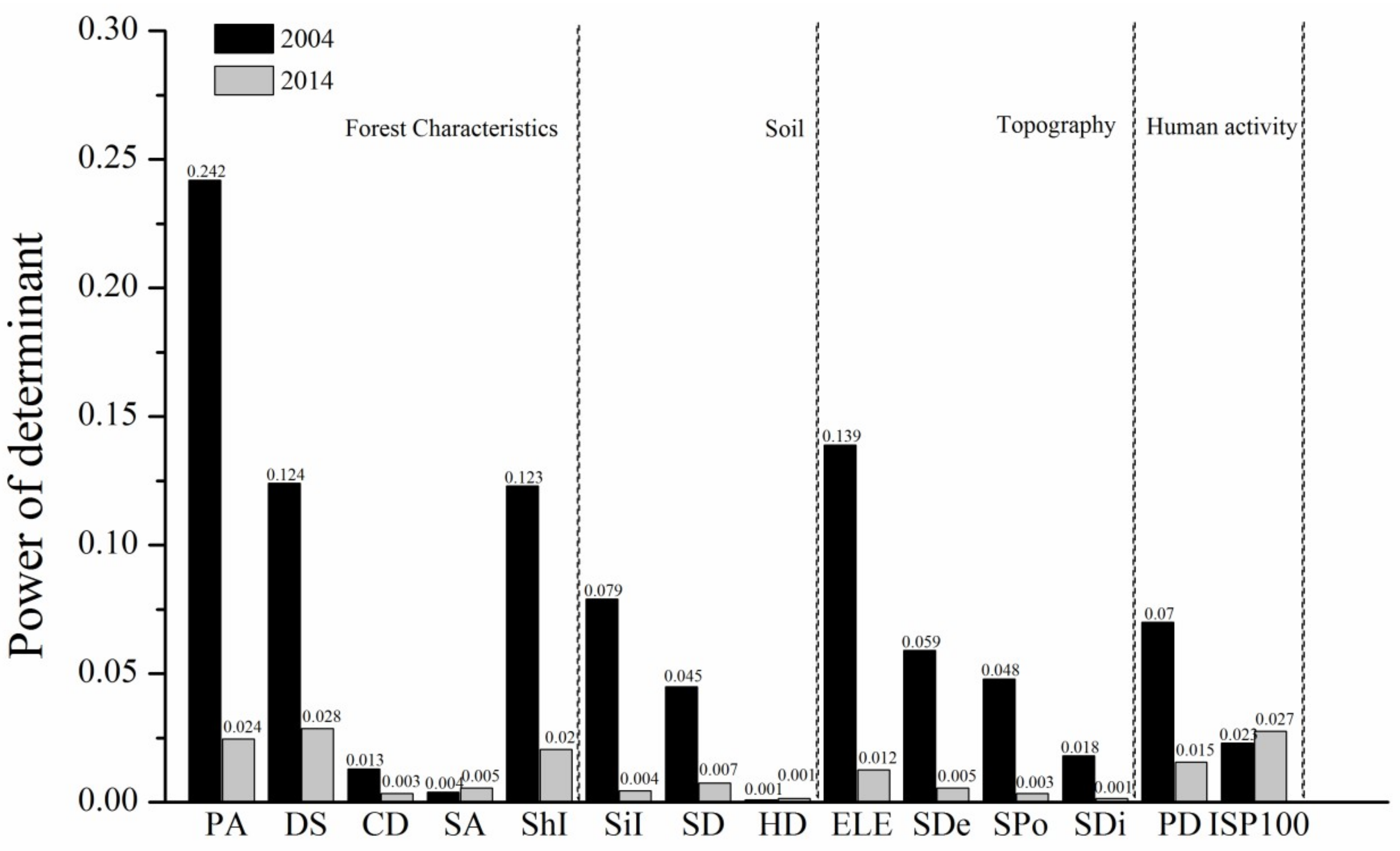

The mechanism influencing STUFC contains two parts: direct and indirect effects. Overall, although the dominant environmental factors affecting the direct effects on STUFC in different periods varied in the two periods, forest-stand groups remained the dominant environmental factors. Specially, forest stand and topography groups were the dominant environmental factors that influenced STUFC in 2004. In 2014, the dominant environmental factors were transformed to forest stand and anthropogenic activity groups. Specifically, the patch area and dominant tree species, which, compared to other environmental factors, were the main factors contributing to STUFC clustering (Figure 7, Table 3). The GeogDetector model revealed the mechanisms by which environmental factors impact the STUFC.

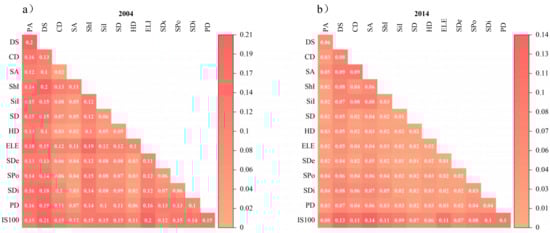

To further clarify the mechanisms in the hot and cold spots of STUFC, we used local Getis–Ord Gi* statistics. The patch area and dominant tree species were the main factors contributing to STUFC clustering (Figure 7, Table 3). The dominant species not only exerted a strong direct effect, but also interacted intensely with other environmental factors in cold and hot spots in the two periods. Among the different cluster regions and during the different time periods, both linear and nonlinear interactions were observed between the 12 selected factors we studied: q value of factor 1 ∩ q value of factor 2 > the sum of the q values of factors 1 and 2 (effect of factor 1 and of factor 2); q value of factor 1 ∩ q value of factor 2 > q value of factor 1 or q value of factor 2 (effect of factor 1 or of factor 2). See Figure 8 and Figures S4–S6 in Appendix C of the Supplementary Materials.

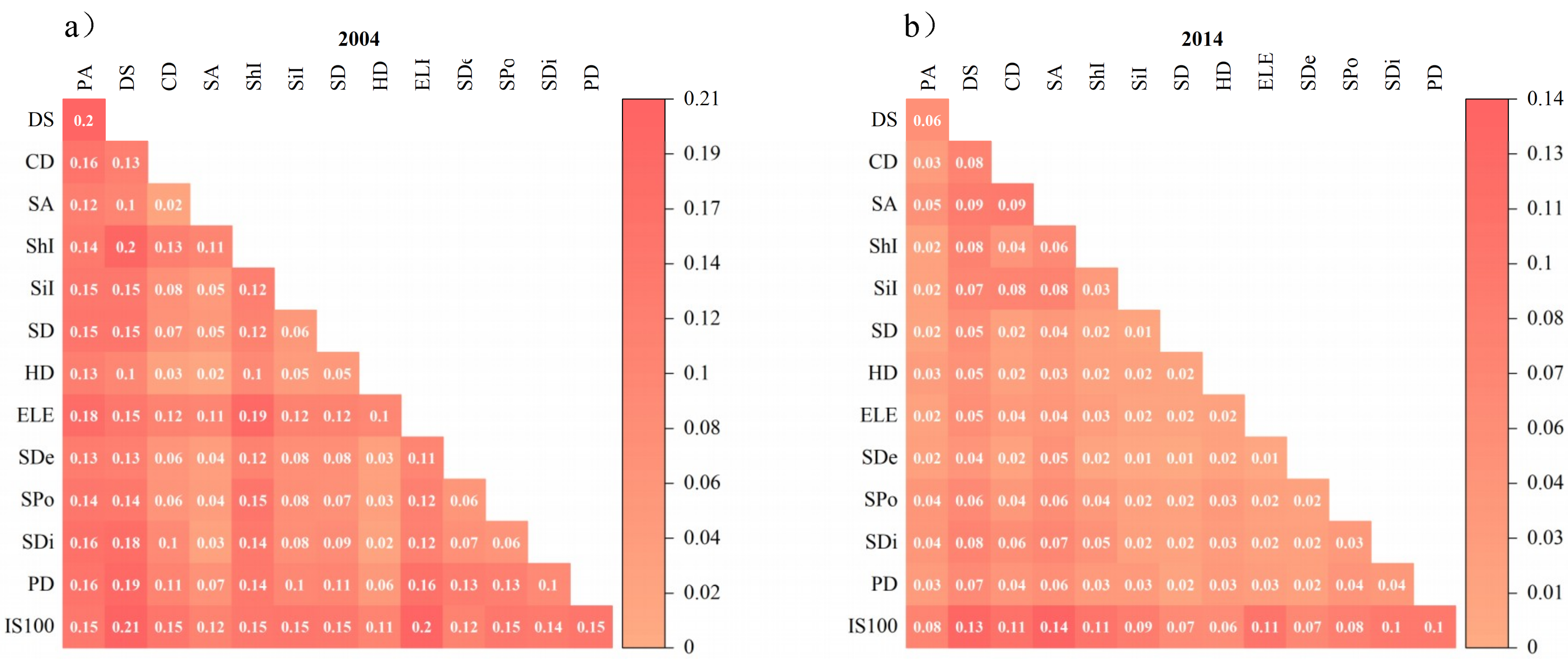

Meanwhile, environmental factors had varying impacts on STUFC in different clustering regions. For example, in 2014, the main influential factors in hot spots were dominant tree species (q value represents power of the determinant indicator of Geodetector model, q = 0.019), patch area (q = 0.013), and ISP100 (“ISP100” refers to the percent of impervious surface area within a 100 m radius of the patch edge.) (q = 0.012). The main influential factors in cold spots were ISP100 (q = 0.045), dominant tree species (q = 0.032), stand age (q = 0.016), and slope position (q = 0.016). Furthermore, the environmental factors with interactions varied during different time periods. For instance, for the cold-spot area, the major interaction factors changed from DS in 2004 to ISP100 in 2014 (see Figure 7 and Figures S4–S6 in Appendix C of the Supplementary Materials).

4. Discussion

4.1. Mechanisms that Impact the Surface Temperature of Urban Forest Canopies

The quantitative analysis of the GeogDetector spatial statistical model shows that the dominant species factor explained more STUFC heterogeneity than the other environmental factors, which indicates that differences in transpiration and shading between different tree species are the dominant reasons for STUFC on the city scale. The above result is consistent with the conclusion of green roof-temperature-reduction services [40]. The differences between transpiration and shading is mainly related to stomatal conductance and biological traits of leaves [41]. Studies mainly focus on the variational characteristics of stomatal conductance of different plant leaves and the influence of environmental factors on stomatal conductance [42,43,44,45,46]. However, the physiological mechanisms of leaf stomatal behavior are still not fully understood [46]. The comprehensive effects of multiple environmental factors on stomatal conductance have not been quantified, resulting in the use of fairly simple model assumptions and climate parameters in ecological-process models to calculate the transpiration rate of vegetation types [47].
Future research should thus consider the interaction between environmental factors and their cumulative effect on stomatal conductance [43,48]. We quantified the effects of tree species and multiple environmental factors on the heterogeneity of STUFC and inferred that the stomatal conductance of individual plants differing from the synergistic effects of multiple environmental factors, might result in differences in the transpiration of different tree species. These differences are cumulatively reflected on the regional scale and have larger impacts on the heterogeneity of STUFC than other environmental factors.
Furthermore, environmental factors not only directly affect the stomatal conductance of plant leaves, but also indirectly affect the shading by changing the biological characteristics of the plant’s morphology, structure, physiology, and phenology [49]. Studies have confirmed that the effect of shading by trees depends on the canopy structure, such as canopy size, tree shape, canopy density, branching pattern, and leaf density (e.g., leaf area and average leaf dip angle), the optical properties of the leaves, such as size, length, width, thickness, texture, and brightness, and the topography (slope and aspect relative to direction of sunlight) [50,51,52,53]. These biological traits on the regional scale correlate significantly with environmental factors [54]. However, the research methods are influenced by three main factors, including the size of the study area, the comparability of trees, and the availability of spatial attribute data. Most regional-scale surveys are based on the same environmental gradient consider the different species as a general object to study the relationship between biophysical traits, environmental factors, and shading effects, ignoring differences in the biological traits of various tree species [55]. Tsukaya emphasized that the biological characteristics of different tree species led to different response magnitudes and mechanisms in terms of changes in environmental factors [56]. For example, the blade size is the result of a combined effect of multiple environmental factors. Smaller blades reduce the boundary-layer resistance and heat loss, which is beneficial to maintain proper blade temperature in arid environments. The analysis of factors through the GeogDetector model, which breaks the basic assumptions of sample independence used in traditional statistical methods and insert spatial factors into the research model. We analyzed how biological differences affect shading on a regional scale. Such an analysis reveals that, compared with other environmental factors, the biological heterogeneity of tree species makes a major contribution to the STUFC heterogeneity.
Meanwhile, we should clearly understand that, at the regional scale, the formation of heterogeneity of STUFC is driven by the major factors and the combined effects of environmental conditions and various biological processes. The GeogDetector model indicates that the spatial interaction between various environmental factors and their linearly or nonlinearity enhanced STUFC in hot and cold spots. Thus, the synergetic interaction between two factors can have a greater influence than the direct effect of a single environmental factor, and the combined effect may even be greater than the sum of the direct effects of the two factors. For instance, in cold spots, the influence of DS and ISP100 impacts the STUFC in the two years. The strongest interaction between the two factors was DS ∩ ISP100 in 2004 but, in spite of the strong interaction ISP100 ∩ DS, this changed in 2014 to ISP100 ∩ SA. As seen in Figure 6, the impervious surface area in Jinjiang city expanded significantly from 2004 to 2014, which might explain the enhanced effect of ISP100 not only in cold spots but also in the hot spots, nonsignificant areas, and in the entire study area. As urban ecological processes continue, the evaluation of such interactions will become even more important [57]. Most often, previous studies of urban land surface temperature and its mechanisms have used classical multivariate statistical analyses to quantify the correlations between anthropogenic activity and land surface temperature [4,20]. Attributes such as landscape composition (e.g., vegetation coverage, impermeability, water proportion), spatial configuration (e.g., shape index, Shannon diversity index), and land surface temperature have been investigated, but these studies have ignored the complex effects and interactions of other environmental factors (e.g., soil and topography) [58]. Moreover, spatial analysis is often neglected in these statistical analyses, whereas nonspatial characteristics and attributes are included. The GeogDetector model uses spatial variance to evaluate geospatial data, in contrast with general statistical analysis methods. Therefore, this model is able to clarify the effects of geographical spatiotemporal changes caused by, and multiple environmental factors combined with, anthropogenic activity on STUFC.
In summary, our results indicate that, in 2004 and 2014, for the STUFC cluster regions (hot spots and cold spots), the interaction between dominant factors that have direct effects and other factors (e.g., dominant species or patch area ∩ other factors) affecting STUFC produces a stronger effect than do the other environmental factors (e.g., canopy density ∩ stand age). The interaction intensity changes with the progress of urbanization, which shows that, after considering the direct and indirect interactive effects, we should focus on the dominant factors that cause direct effect in the future planning of urban green space and the structural design ecological process models. These are the most important factors affecting the STUFC, whereas the interactions between them would have strong spatial and temporal heterogeneity.
This is consistent with the hypothesis of the variability of multi-factor interaction strength [54]. Specifically, the type of interaction may vary by category (such as linear, nonlinear, and independent), intensity (such as attenuation and enhancement), and symmetry (such as symmetric and asymmetric) based on the characteristics of species or individuals. However, previous studies suffer from knowledge deficits caused by their neglect of interaction between influencing factors that cause spatial-temporal heterogeneity. Recent quantitative studies of interactions have used control experiments and model simulations at the plot and regional scales [59,60,61,62]. The key challenge to reveal the mechanisms of macro-ecosystem ecological function is to quantify the interaction process of influential factors across temporal and spatial gradients, and to clarify the temporal and spatial heterogeneity based on quantitative results.

4.2. Recommendations for Further Study

Considering our research results, we advance two recommendations: First, STUFC research should combine the respective advantages of remote sensing, ground surveys, and spatial statistical analysis to solve regional-scale urban environmental problems and to elucidate how interactions between multiple environmental factors affect STUFC information pertaining to macro-spatial patterns and micro-forest stands must be integrated in new models, and a multi-source database at a unified spatiotemporal scale must be built. Second, the influential factors in cluster regions of STUFC must be identified in land surface temperature studies. As the dominant factor exerting direct and indirect effects on STUFC, tree species should be considered in future urban forest planning. Future quantitative studies on heterogeneity should be carried out on different spatiotemporal scales, in different cities and seasons, and with remote sensing imagery at various resolutions. This study reveals several environmental factors that are correlated with STUFC in urban areas (e.g., dominant tree species, stand area). However, the limited environmental factors selected in this study cannot fully express the driving mechanisms behind STUFC. Besides, the study is aimed at urban forest land and trees in parks and does not cover trees along streets and dispersed trees in residential land. In fact, although the number of trees along streets and dispersed trees in residential land is much lower than that in urban forest land and trees in parks, it still plays a role in the urban scale cold island effects. However, the resolution in the thermal band for Landsat images is 100–120 m, which is much greater than a street width or a residential green space. The mixed-pixel problem causes the contribution of the PA factor to the STUFC to be underestimated. The smaller the patch, the higher will be the proportion of these mixed pixels relative to pure pixels. Because of this resolution effect, the smaller patches might appear warmer than the large patches. Future research may consider investigating how these components of urban forest influence the cool island effect and use higher-resolution images (e.g., thermal images from unmanned aerial systems [63]).

5. Conclusions

Understanding the interaction between landscape patterns and processes should be reconsidered by using methods of modeling and analysis that use multiple sources of observation data and multi-disciplinary approaches.
This study advances traditional methods of analysis in this field by developing a novel modeling method that combines remote sensing imagery, FMPI data, spatial statistical modelling, and multiple environmental factors. It then integrates them into a spatial dataset with a unified scale to model urban forest regions with strong spatial heterogeneity. The results demonstrate that the degree of spatial clustering of STUFC decreases during rapid urbanization. Although different environmental factors exert different influences on STUFC, in two periods with different hot spots and cold spots, the patch area and dominant tree species are the main factors contributing to land surface temperature clustering in urban forest. The interaction between multiple environmental factors increases STUFC, both linearly and nonlinearly.
In conclusion, the combination of multidisciplinary methods (e.g., remote sensing images, ground observations, and spatial statistical models) helps reveal the mechanism of STUFC on an urban scale. This is done by quantitatively expressing nonlinear interactive systems on the urban scale.

Supplementary Materials

The following are available online at https://www.mdpi.com/2072-4292/10/11/1814/s1. Appendix A: The detailed information about the study, Appendix B: The references used in Appendix A, and Appendix C: Figures S1–S6.

Author Contributions

S.Z. interpreted the data and wrote the manuscript; S.D. visualized the data. X.S. provided the data resources. C.X. and Y.L. conceived of the methodology of Geodetector. W.C. took charge of the project administration. Q.C. was the tutor for land surface temperature inversion. Y.L. and J.T. did the investigation of the observation data. W.M. helped to visualize the data. Y.R. conceived the methodology and supervised the data analysis.

Funding

This work was supported by the National Science Foundation of China (31670645, 31470578, 31200363, 41801182, 41771462, and 41807502), the National Social Science Fund (17ZDA058), the National Key Research Program of China (2016YFC0502704), Fujian Provincial Department of S&T Project (2016T3032, 2016T3037, 2016Y0083, 2018T3018, and 2015Y0083), Xiamen Municipal Department of Science and Technology (3502Z20130037 and 3502Z20142016), the Key Laboratory of Urban Environment and Health of CAS (KLUEH-C-201701), the Key Program of the Chinese Academy of Sciences (KFZDSW-324), and the Youth Innovation Promotion Association CAS (2014267). We are grateful to the anonymous reviewers for their constructive suggestions.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Schnell, S.; Kleinn, C.; Ståhl, G. Monitoring trees outside forests: A review. Environ. Monit. Assess. 2015, 187, 600. [Google Scholar] [CrossRef] [PubMed]
  2. Quan, J.; Zhan, W.; Chen, Y.; Wang, M.; Wang, J. Time series decomposition of remotely sensed land surface temperature and investigation of trends and seasonal variations in surface urban heat islands. J. Geophys. Res. Atmos. 2016, 121, 2638–2657. [Google Scholar] [CrossRef] [Green Version]
  3. Guo, Z.D.; Hu, H.F.; Pan, Y.D.; Birdsey, R.A.; Fang, J.Y. Increasing biomass carbon stocks in trees outside forests in China over the last three decades. Biogeosciences 2014, 11, 4115–4122. [Google Scholar] [CrossRef]
  4. Kong, F.; Yin, H.; James, P.; Hutyra, L.R.; He, H.S. Effects of spatial pattern of greenspace on urban cooling in a large metropolitan area of eastern China. Landsc. Urban Plan. 2014, 128, 35–47. [Google Scholar] [CrossRef]
  5. Plieninger, T. Monitoring directions and rates of change in trees outside forests through multitemporal analysis of map sequences. Appl. Geogr. 2012, 32, 566–576. [Google Scholar] [CrossRef] [Green Version]
  6. Beckschäfer, P.; Schnell, S.; Kleinn, C. Monitoring and assessment of trees outside forests (TOF). In Agroforestry: Anecdotal to Modern Science; Dagar, J.C., Tewari, V.P., Eds.; Springer: Singapore, 2017; pp. 137–161. [Google Scholar]
  7. Cristóbal, J.; Jiménez-Muñoz, J.; Prakash, A.; Mattar, C.; Skoković, D.; Sobrino, J. An improved single-channel method to retrieve land surface temperature from the landsat-8 thermal band. Remote Sens. 2018, 10, 431. [Google Scholar] [CrossRef]
  8. Yuan, C.; Zhang, Y.; Liu, Z. A survey on technologies for automatic forest fire monitoring, detection, and fighting using unmanned aerial vehicles and remote sensing techniques. Can. J. For. Res. 2015, 45. [Google Scholar] [CrossRef]
  9. Hansen, M.C.; Loveland, T.R. A review of large area monitoring of land cover change using landsat data. Remote Sens. Environ. 2012, 122, 66–74. [Google Scholar] [CrossRef]
  10. Wallace, L.; Lucieer, A.; Watson, C.; Turner, D. Development of a uav-lidar system with application to forest inventory. Remote Sens. 2012, 4, 1519–1543. [Google Scholar] [CrossRef]
  11. Fu, P.; Weng, Q. A time series analysis of urbanization induced land use and land cover change and its impact on land surface temperature with Landsat imagery. Remote Sens. Environ. 2016, 175, 205–214. [Google Scholar] [CrossRef]
  12. Poisot, T.; Stouffer, D.B.; Gravel, D. Beyond species: Why ecological interaction networks vary through space and time. Oikos 2015, 124, 243–251. [Google Scholar] [CrossRef]
  13. Lischka, S.A.; Teel, T.L.; Johnson, H.E.; Reed, S.E.; Breck, S.; Don Carlos, A.; Crooks, K.R. A conceptual model for the integration of social and ecological information to understand human-wildlife interactions. Biol. Conserv. 2018, 225, 80–87. [Google Scholar] [CrossRef]
  14. Yang, X.; Li, Y.; Luo, Z.; Chan, P.W. The urban cool island phenomenon in a high-rise high-density city and its mechanisms. Int. J. Climatol. 2017, 37, 890–904. [Google Scholar] [CrossRef]
  15. Ren, Y.; Deng, L.Y.; Zuo, S.D.; Luo, Y.J.; Shao, G.F.; Wei, X.H.; Hua, L.Z.; Yang, Y.S. Geographical modeling of spatial interaction between human activity and forest connectivity in an urban landscape of southeast China. Landsc. Ecol. 2014, 29, 1741–1758. [Google Scholar] [CrossRef]
  16. Wang, J.F.; Zhang, T.L.; Fu, B.J. A measure of spatial stratified heterogeneity. Ecol. Indic. 2016, 67, 250–256. [Google Scholar] [CrossRef] [Green Version]
  17. Heino, J.; Melo, A.S.; Bini, L.M.; Altermatt, F.; Al-Shami, S.A.; Angeler, D.G.; Bonada, N.; Brand, C.; Callisto, M.; Cottenie, K.; et al. A comparative analysis reveals weak relationships between ecological factors and beta diversity of stream insect metacommunities at two spatial levels. Ecol. Evol. 2015, 5, 1235–1248. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Zhao, J.; Liu, X.; Dong, R. Landsenses ecology and ecological planning towards sustainable development. Int. J. Sustain. Dev. World Ecol. 2016, 293–297. [Google Scholar] [CrossRef]
  19. Lin, W.; Yu, T.; Chang, X.; Wu, W.; Zhang, Y. Calculating cooling extents of green parks using remote sensing: Method and test. Landsc. Urban Plan. 2015, 134, 66–75. [Google Scholar] [CrossRef]
  20. Zhou, W.; Qian, Y.; Li, X.; Li, W.; Han, L. Relationships between land cover and the surface urban heat island: Seasonal variability and effects of spatial and thematic resolution of land cover data on predicting land surface temperatures. Landsc. Ecol. 2014, 29, 153–167. [Google Scholar] [CrossRef]
  21. Connors, J.P.; Galletti, C.S.; Chow, W.T.L. Landscape configuration and urban heat island effects: Assessing the relationship between landscape characteristics and land surface temperature in Phoenix, Arizona. Landsc. Ecol. 2013, 28, 271–283. [Google Scholar] [CrossRef]
  22. Buyantuyev, A.; Wu, J.G. Urban heat islands and landscape heterogeneity: Linking spatiotemporal variations in surface temperatures to land-cover and socioeconomic patterns. Landsc. Ecol. 2010, 25, 17–33. [Google Scholar] [CrossRef]
  23. Spronken-Smith, R.A.; Oke, T.R. The thermal regime of urban parks in two cities with different summer climates. Int. J. Remote Sens. 1998, 19, 2085–2104. [Google Scholar] [CrossRef]
  24. Feyisa, G.L.; Dons, K.; Meilby, H. Efficiency of parks in mitigating urban heat island effect: An example from Addis Ababa. Landsc. Urban Plan. 2014, 123, 87–95. [Google Scholar] [CrossRef]
  25. Kong, F.; Yin, H.; Wang, C.; Cavan, G.; James, P. A satellite image-based analysis of factors contributing to the green-space cool island intensity on a city scale. Urban For. Urban Green. 2014, 13, 846–853. [Google Scholar] [CrossRef] [Green Version]
  26. Lu, D.S.; Weng, Q.H. Use of impervious surface in urban land-use classification. Remote Sens. Environ. 2006, 102, 146–160. [Google Scholar] [CrossRef]
  27. Qin, Z.; Karnieli, A.; Berliner, P. A mono-window algorithm for retrieving land surface temperature from landsat tm data and its application to the Israel-Egypt border region. Int. J. Remote Sens. 2001, 22, 3719–3746. [Google Scholar] [CrossRef]
  28. Zhao, J.Z.; Dai, D.B.; Lin, T.; Tang, L.N. Rapid urbanisation, ecological effects and sustainable city construction in Xiamen. Int. J. Sustain. Dev. World Ecol. 2010, 17, 271–272. [Google Scholar] [CrossRef]
  29. Brabyn, L.; Zawar-Reza, P.; Stichbury, G.; Cary, C.; Storey, B.; Laughlin, D.C.; Katurji, M. Accuracy assessment of land surface temperature retrievals from landsat 7 ETM + in the Dry Valleys of Antarctica using iButton temperature loggers and weather station data. Environ. Monit. Assess. 2014, 186, 2619–2628. [Google Scholar] [CrossRef] [PubMed]
  30. Ord, J.L.; Getis, A. Local spatial autocorrelation statistics: Distributional issues and an application. Geogr. Anal. 1995, 27, 286–306. [Google Scholar] [CrossRef]
  31. Barrell, J.; Grant, J. Detecting hot and cold spots in a seagrass landscape using local indicators of spatial association. Landsc. Ecol. 2013, 28, 2005–2018. [Google Scholar] [CrossRef]
  32. Mahboubi, P.; Parkes, M.; Stephen, C.; Chan, H.M. Using expert informed gis to locate important marine social-ecological hotspots. J. Environ. Manag. 2015, 160, 342–352. [Google Scholar] [CrossRef] [PubMed]
  33. Ren, Y.; Deng, L.Y.; Zuo, S.D.; Song, X.D.; Liao, Y.L.; Xu, C.D.; Chen, Q.; Hua, L.Z.; Li, Z.W. Quantifying the influences of various ecological factors on land surface temperature of urban forests. Environ. Pollut. 2016, 216, 519–529. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Cliff, A.D.; Ord, J.K. Spatial Processes: Models & Applications; Taylor & Francis: Abingdon, UK, 1981. [Google Scholar]
  35. Esri. How Spatial Autocorrelation (Global Moran’s I) Works. Available online: http://resources.arcgis.com/en/help/main/10.2/#/na/005p0000000t000000/ (accessed on 26 August 2018).
  36. Wang, J.F.; Li, X.H.; Christakos, G.; Liao, Y.L.; Zhang, T.; Gu, X.; Zheng, X.Y. Geographical detectors-based health risk assessment and its application in the neural tube defects study of the Heshun region, China. Int. J. Geogr. Inf. Sci. 2010, 24, 107–127. [Google Scholar] [CrossRef]
  37. Wang, J.F.; Hu, Y. Environmental health risk detection with GeogDetector. Environ. Model. Softw. 2012, 33, 114–115. [Google Scholar] [CrossRef]
  38. Fujian Forestry Department Forest Resource Management Center. Technical Regulations for Investigation and Design of Forest Resources in Fujian. 2006. Available online: http://www.fjlgy.com/SView347.aspx (accessed on 26 August 2018).
  39. Jenks, G.F. The data model concept in statistical mapping. Int. Yearbook Cartogr. 1967, 7, 186–190. [Google Scholar]
  40. Wolf, D.; Lundholm, J.T. Water uptake in green roof microcosms: Effects of plant species and water availability. Ecol. Eng. 2008, 33, 179–186. [Google Scholar] [CrossRef]
  41. Ballinas, M.; Barradas, V.L. Transpiration and stomatal conductance as potential mechanisms to mitigate the heat load in Mexico city. Urban For. Urban Green. 2016, 20, 152–159. [Google Scholar] [CrossRef]
  42. Bonan, G.B.; Williams, M.; Fisher, R.A.; Oleson, K.W. Modeling stomatal conductance in the earth system: Linking leaf water-use efficiency and water transport along the soil–plant–atmosphere continuum. Geosci. Model Dev. 2014, 7, 2193–2222. [Google Scholar] [CrossRef]
  43. Henneron, L.; Chauvat, M.; Archaux, F.; Akpa-Vinceslas, M.; Bureau, F.; Dumas, Y.; Mignot, L.; Ningre, F.; Perret, S.; Richter, C.; et al. Plant interactions as biotic drivers of plasticity in leaf litter traits and decomposability of Quercus petraea. Ecol. Monogr. 2017, 87, 321–340. [Google Scholar] [CrossRef] [Green Version]
  44. Drake, P.L.; Froend, R.H.; Franks, P.J. Smaller, faster stomata: Scaling of stomatal size, rate of response, and stomatal conductance. J. Exp. Bot. 2013, 64, 495–505. [Google Scholar] [CrossRef] [PubMed]
  45. Damour, G.; Simonneau, T.; Cochard, H.; Urban, L. An overview of models of stomatal conductance at the leaf level. Plant Cell Environ. 2010, 33, 1419–1438. [Google Scholar] [CrossRef] [PubMed]
  46. Lewis, J.D.; Phillips, N.G.; Logan, B.A.; Hricko, C.R.; Tissue, D.T. Leaf photosynthesis, respiration and stomatal conductance in six Eucalyptus species native to mesic and xeric environments growing in a common garden. Tree Physiol. 2011, 31, 997–1006. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Buckley, T.N.; Mott, K.A. Modelling stomatal conductance in response to environmental factors. Plant Cell Environ. 2013, 36, 1691–1699. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Manzoni, S.; Vico, G.; Katul, G.; Fay, P.A.; Polley, W.; Palmroth, S.; Porporato, A. Optimizing stomatal conductance for maximum carbon gain under water stress: A meta-analysis across plant functional types and climates. Funct. Ecol. 2011, 25, 456–467. [Google Scholar] [CrossRef]
  49. Gratani, L. Plant phenotypic plasticity in response to environmental factors. Adv. Bot. 2014, 2014, 208747. [Google Scholar] [CrossRef]
  50. Shashua-Bar, L.; Pearlmutter, D.; Erell, E. The cooling efficiency of urban landscape strategies in a hot dry climate. Landsc. Urban Plan. 2009, 92, 179–186. [Google Scholar] [CrossRef]
  51. Egerer, M.H.; Lin, B.B.; Threlfall, C.G.; Kendal, D. Temperature variability influences urban garden plant richness and gardener water use behavior, but not planting decisions. Sci. Total Environ. 2019, 646, 111–120. [Google Scholar] [CrossRef] [PubMed]
  52. Zamani, Z.; Heidari, S.; Hanachi, P. Reviewing the thermal and microclimatic function of courtyards. Renew. Sustain. Energy Rev. 2018, 93, 580–595. [Google Scholar] [CrossRef]
  53. Lee, I.; Voogt, J.; Gillespie, T. Analysis and comparison of shading strategies to increase human thermal comfort in urban areas. Atmosphere 2018, 9, 91. [Google Scholar] [CrossRef]
  54. Jenerette, G.D.; Harlan, S.L.; Buyantuev, A.; Stefanov, W.L.; Declet-Barreto, J.; Ruddell, B.L.; Myint, S.W.; Kaplan, S.; Li, X. Micro-scale urban surface temperatures are related to land-cover features and residential heat related health impacts in Phoenix, AZ USA. Landsc. Ecol. 2016, 31, 745–760. [Google Scholar] [CrossRef]
  55. Luo, W.; Jasiewicz, J.; Stepinski, T.; Wang, J.; Xu, C.; Cang, X. Spatial association between dissection density and environmental factors over the entire conterminous united states. Geophys. Res. Lett. 2016, 43, 692–700. [Google Scholar] [CrossRef]
  56. Tsukaya, H. Leaf shape: Genetic controls and environmental factors. Int. J. Dev. Biol. 2005, 49, 547–555. [Google Scholar] [CrossRef] [PubMed]
  57. He, Q.; Bertness, M.D. Extreme stresses, niches, and positive species interactions along stress gradients. Ecology 2014, 95, 1437–1443. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Heffernan, J.B.; Soranno, P.A.; Angilletta, M.J.; Buckley, L.B.; Gruner, D.S.; Keitt, T.H.; Kellner, J.R.; Kominoski, J.S.; Rocha, A.V.; Xiao, J.; et al. Macrosystems ecology: Understanding ecological patterns and processes at continental scales. Front. Ecol. Environ. 2014, 12, 5–14. [Google Scholar] [CrossRef] [Green Version]
  59. Duffy, J.E.; Reynolds, P.L.; Boström, C.; Coyer, J.A.; Cusson, M.; Donadi, S.; Douglass, J.G.; Eklöf, J.S.; Engelen, A.H.; Eriksson, B.K.; et al. Biodiversity mediates top–down control in eelgrass ecosystems: A global comparative-experimental approach. Ecol. Lett. 2015, 18, 696–705. [Google Scholar] [CrossRef] [PubMed]
  60. Xian, Y.; Wang, M.; Chen, W. Quantitative assessment on soil enzyme activities of heavy metal contaminated soils with various soil properties. Chemosphere 2015, 139, 604–608. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  61. Tian, Y.; Zheng, Y.; Wu, B.; Wu, X.; Liu, J.; Zheng, C. Modeling surface water-groundwater interaction in arid and semi-arid regions with intensive agriculture. Environ. Model. Softw. 2015, 63, 170–184. [Google Scholar] [CrossRef]
  62. Iwamura, T.; Lambin, E.F.; Silvius, K.M.; Luzar, J.B.; Fragoso, J.M.V. Agent-based modeling of hunting and subsistence agriculture on indigenous lands: Understanding interactions between social and ecological systems. Environ. Model. Softw. 2014, 58, 109–127. [Google Scholar] [CrossRef]
  63. Iizuka, K.; Watanabe, K.; Kato, T.; Putri, N.; Silsigia, S.; Kameoka, T.; Kozan, O. Visualizing the spatiotemporal trends of thermal characteristics in a peatland plantation forest in Indonesia: Pilot test using Unmanned Aerial Systems (UASs). Remote Sens. 2018, 10, 1345. [Google Scholar] [CrossRef]
Remotesensing 10 01814 g001 550

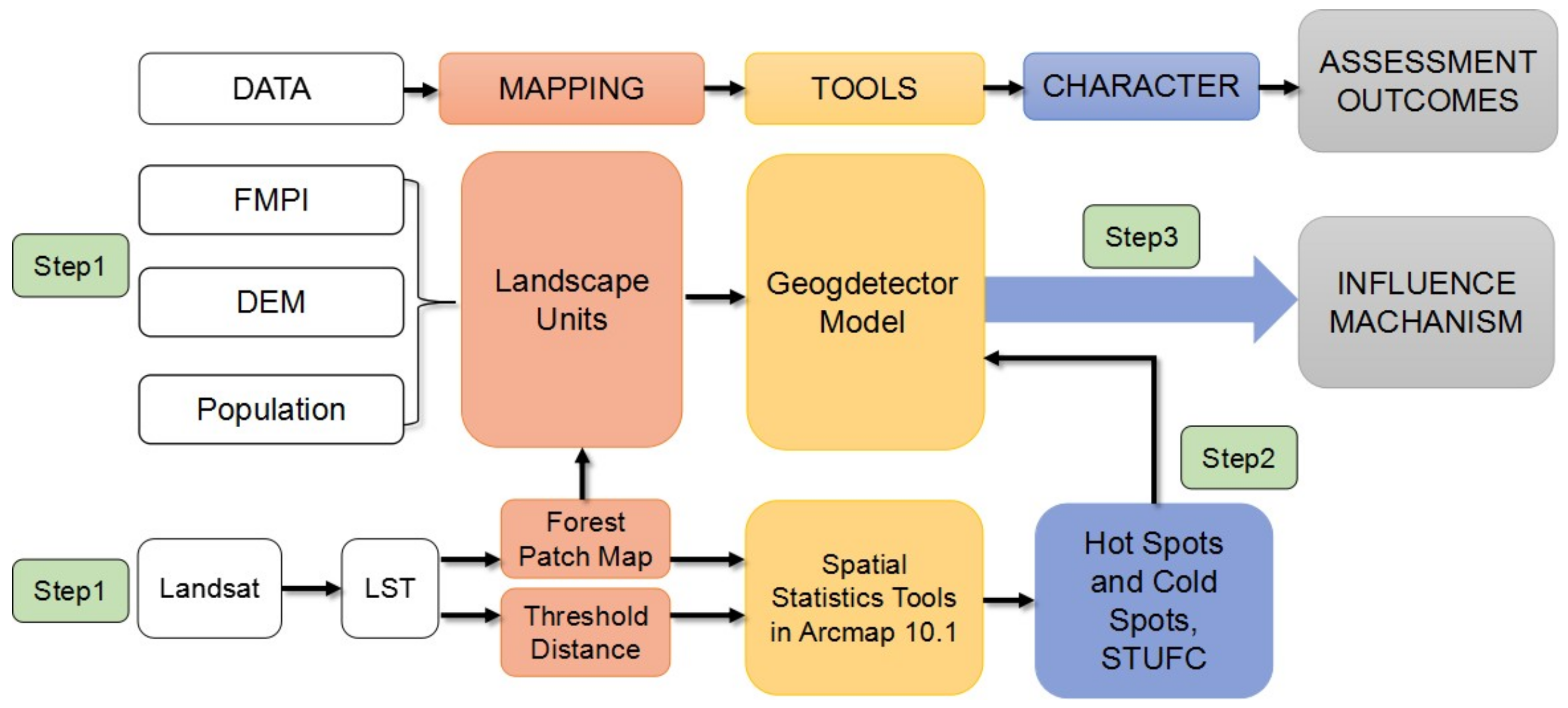

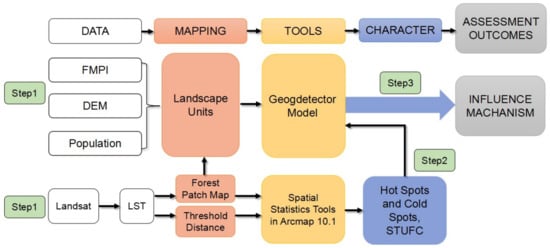

Figure 1. Flow chart describing the proposed methodology. The data were processed by combining Landsat-5/8 TM remote sensing images, FMPI, and the GeogDetector model.
Figure 1. Flow chart describing the proposed methodology. The data were processed by combining Landsat-5/8 TM remote sensing images, FMPI, and the GeogDetector model.
Remotesensing 10 01814 g001
Remotesensing 10 01814 g002 550

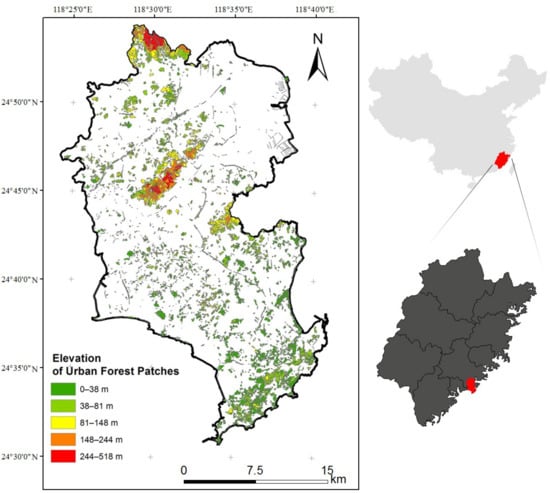

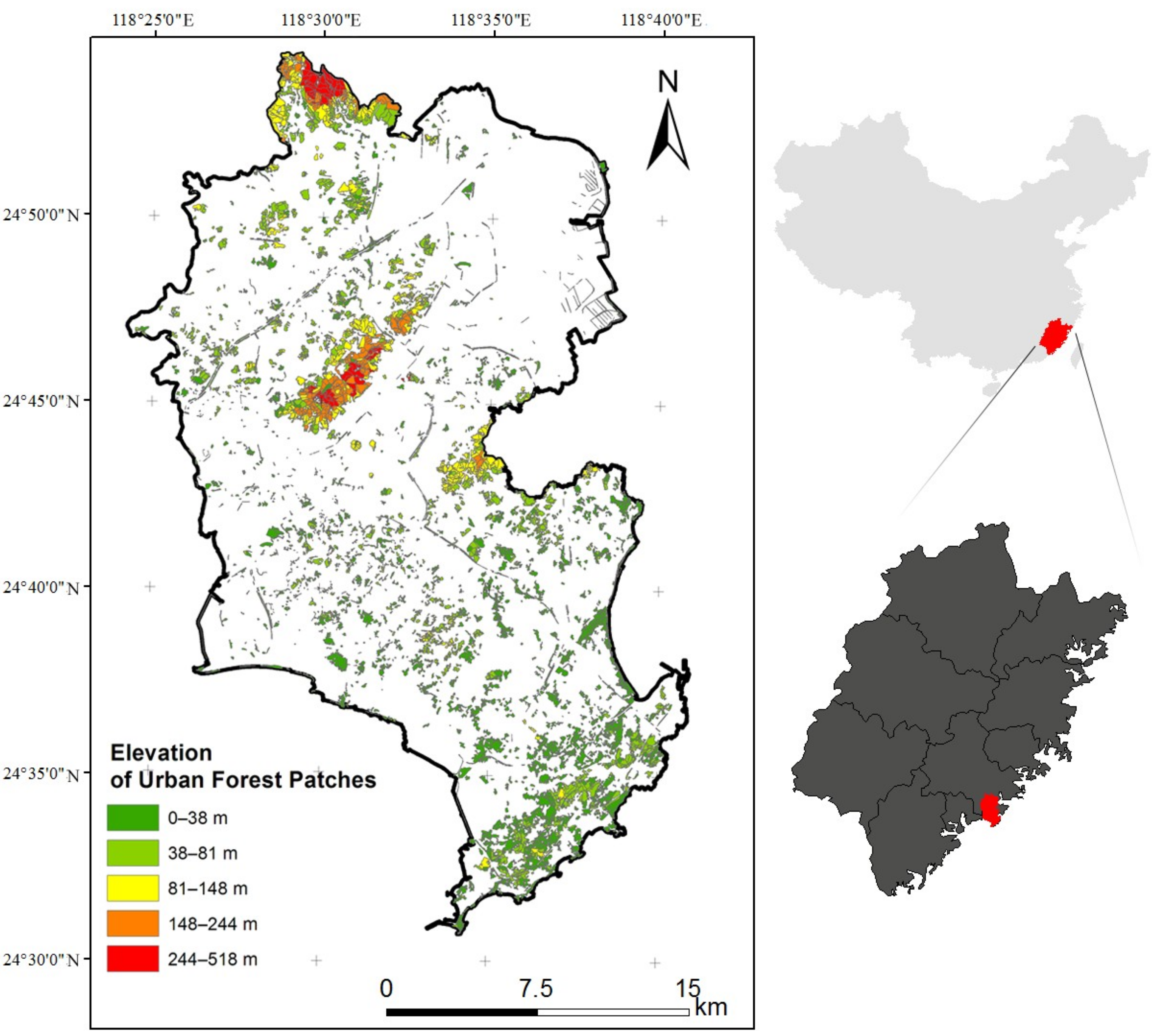

Figure 2. Map of study area. The inset shows the location in China.
Figure 2. Map of study area. The inset shows the location in China.
Remotesensing 10 01814 g002
Remotesensing 10 01814 g003 550

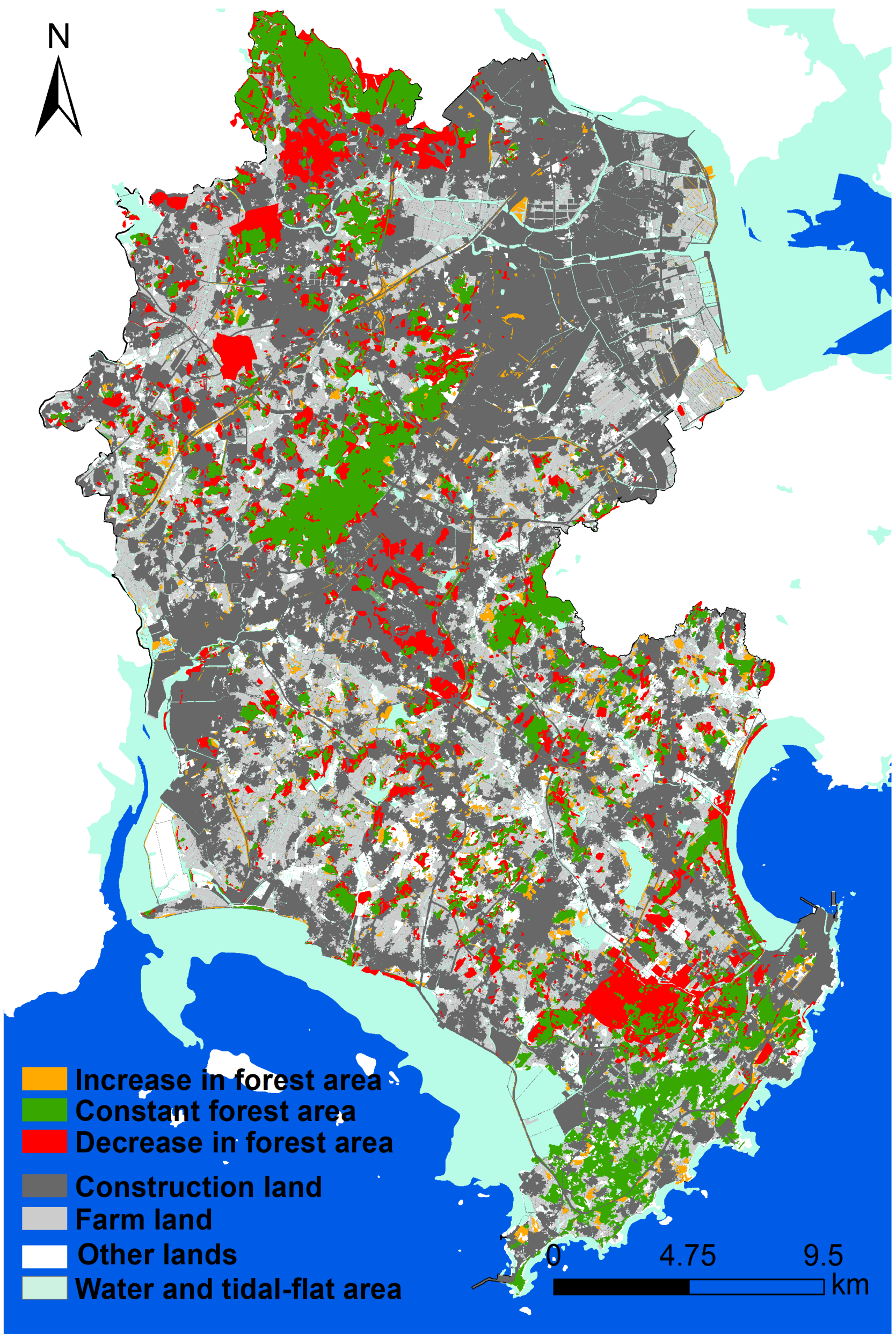

Figure 3. Changes in FMPI data in Jinjiang City between 2004 and 2014.
Figure 3. Changes in FMPI data in Jinjiang City between 2004 and 2014.
Remotesensing 10 01814 g003
Remotesensing 10 01814 g004 550

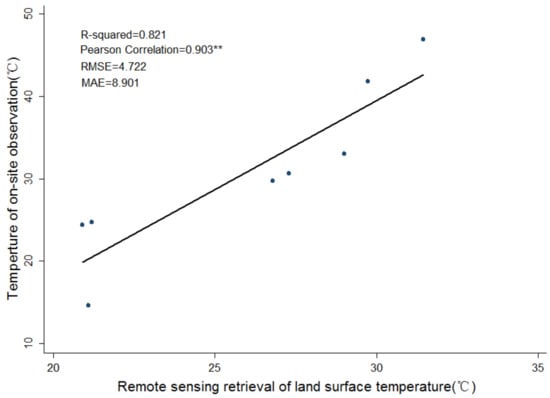

Figure 4. Comparison of STUFC between on-site observations and Landsat data.
Figure 4. Comparison of STUFC between on-site observations and Landsat data.
Remotesensing 10 01814 g004
Remotesensing 10 01814 g005 550
Figure 5. Spatial distribution of temperature in 2004 and 2014 obtained using a 2250 m threshold and local Getis–Ord Gi* statistics. Red (GiZscore ≥ 1.65) indicates a hot spot, blue (GiZscore ≤ −1.65) indicates a cold spot, yellow (1.65 > GiZscore > −1.65) indicates a nonsignificant area, and gray indicates altitude. The numbers indicate the main regions of mutual conversion of cold spots, hot spots, and nonsignificant areas.
Figure 5. Spatial distribution of temperature in 2004 and 2014 obtained using a 2250 m threshold and local Getis–Ord Gi* statistics. Red (GiZscore ≥ 1.65) indicates a hot spot, blue (GiZscore ≤ −1.65) indicates a cold spot, yellow (1.65 > GiZscore > −1.65) indicates a nonsignificant area, and gray indicates altitude. The numbers indicate the main regions of mutual conversion of cold spots, hot spots, and nonsignificant areas.
Remotesensing 10 01814 g005
Remotesensing 10 01814 g006 550
Figure 6. Population density in different cluster regions classified with local Getis–Ord Gi* statistics, which indicate population changes between 2004 and 2014.
Figure 6. Population density in different cluster regions classified with local Getis–Ord Gi* statistics, which indicate population changes between 2004 and 2014.
Remotesensing 10 01814 g006
Remotesensing 10 01814 g007 550
Figure 7. Degree of influence of forest attributes, soil, topography, and population on STUFC in Jinjiang City. PA, patch area (i.e., forest-stand area); DS, dominant species; CD, canopy density; SA, stand age (i.e., average forest-stand age); ShI, shape index; SI, site index; SD, soil depth; HD, humus depth; ELE, elevation; SDe, slope degree; SPo, slope position; SDi, slope direction; PD, population; ISP100 percent of impervious surface within 100 m radius.
Figure 7. Degree of influence of forest attributes, soil, topography, and population on STUFC in Jinjiang City. PA, patch area (i.e., forest-stand area); DS, dominant species; CD, canopy density; SA, stand age (i.e., average forest-stand age); ShI, shape index; SI, site index; SD, soil depth; HD, humus depth; ELE, elevation; SDe, slope degree; SPo, slope position; SDi, slope direction; PD, population; ISP100 percent of impervious surface within 100 m radius.
Remotesensing 10 01814 g007
Remotesensing 10 01814 g008 550
Figure 8. Influence (q value) of interactions in cold spot areas in 2004 and 2014.
Figure 8. Influence (q value) of interactions in cold spot areas in 2004 and 2014.
Remotesensing 10 01814 g008
Table
Table 1. Number of neighboring patches found around each hot and cold spot.
Table 1. Number of neighboring patches found around each hot and cold spot.
Threshold Radius (m)Mean Neighbors (SD)Minimum (Maximum) NeighborsHot & Cold Spots Cover % of Total Area
200420142004201420042014
25011.79 (6.19)11.52 (6.50)1 (29)1 (41)21.4111.06
50021.49 (11.22)26.03 (13.84)1 (109)1 (70)45.8333.51
75032.31 (17.48)38.97 (20.33)2 (139)1 (114)58.2142.51
100044.68 (23.90)61.05 (29.62)3 (179)2 (156)64.9650.23
125059.33 (31.07)79.96 (37.10)3 (219)3 (205)69.3955.01
150075.99 (38.69)106.28 (47.09)3 (261)5 (231)73.6158.5
175094.50 (46.45)132.44 (55.23)3 (302)5 (284)77.1661.91
2000114.21 (54.56)163.49 (66.97)3 (355)10 (332)80.5862.01
2250138.45 (60.45)197.08 (77.97)8 (285)12 (403)82.9462.55
2500157.14 (70.66)231.47 (89.36)14 (441)16 (473)84.6962.97
2750181.08 (79.60)267.98 (95.28)8 (493)18 (543)85.3463.25
3000206.54 (88.46)309.02 (113.87)10 (548)26 (586)84.7562.89
3250233.41 (97.31)349.45 (119.19)12 (592)27 (640)84.7363.07
3500261.04 (104.94)395.31 (139.24)12 (626)37 (690)85.4865.37
Table
Table 2. Global spatial autocorrelation statistics (Moran’s I) of STUFC in 2004 and 2014.
Table 2. Global spatial autocorrelation statistics (Moran’s I) of STUFC in 2004 and 2014.
Year20042014
Moran’s Index0.476 **0.178 **
Z-score129.78874.675
PatternClusteredClustered
Note: p-values of all areas are <0.001 in 2004 and 2014; ** indicates high significance.
Table
Table 3. Degree of influence of urban forest attributes, soil, topography, and population on STUFC in hot spots (HS), cold spots (CS), and nonsignificant regions (NS) in Jinjiang, China.
Table 3. Degree of influence of urban forest attributes, soil, topography, and population on STUFC in hot spots (HS), cold spots (CS), and nonsignificant regions (NS) in Jinjiang, China.
ALLHSCSNS
20042014200420142004201420042014
Forest CharacteristicsPA0.2420.0240.0560.0130.1200.0110.0140.020
DS0.1240.0280.0560.0190.0930.0320.0850.013
CD0.0130.0030.0250.0060.0180.0070.0390.005
SA0.0040.0050.0110.0040.0070.0160.0010.004
SoilShI0.1230.020.0500.0060.0920.0050.0180.015
SiI0.0790.0040.0010.0010.0390.0040.0060.003
SD0.0450.0070.011 0.001 0.045 0.000 0.005 0.007
HD0.0010.0010.0000.0000.0070.0150.0040.002
TopographyELE0.1390.0120.0060.0050.0990.0030.0050.006
SDe0.0590.0050.0120.0050.0260.0050.0010.002
SPo0.0480.0030.0230.0060.0270.0160.0100.004
SDi0.0180.0010.0310.0070.0130.015 0.0210.006
Anthropogenic activityPD0.070.0150.0110.0060.0530.0140.0070.009
ISP1000.0230.0270.013 0.0120.1080.0450.0210.030

Share and Cite

MDPI and ACS Style

Zuo, S.; Dai, S.; Song, X.; Xu, C.; Liao, Y.; Chang, W.; Chen, Q.; Li, Y.; Tang, J.; Man, W.; et al. Determining the Mechanisms that Influence the Surface Temperature of Urban Forest Canopies by Combining Remote Sensing Methods, Ground Observations, and Spatial Statistical Models. Remote Sens. 2018, 10, 1814. https://doi.org/10.3390/rs10111814

AMA Style

Zuo S, Dai S, Song X, Xu C, Liao Y, Chang W, Chen Q, Li Y, Tang J, Man W, et al. Determining the Mechanisms that Influence the Surface Temperature of Urban Forest Canopies by Combining Remote Sensing Methods, Ground Observations, and Spatial Statistical Models. Remote Sensing. 2018; 10(11):1814. https://doi.org/10.3390/rs10111814

Chicago/Turabian Style

Zuo, Shudi, Shaoqing Dai, Xiaodong Song, Chengdong Xu, Yilan Liao, Weiyin Chang, Qi Chen, Yaying Li, Jianfeng Tang, Wang Man, and et al. 2018. "Determining the Mechanisms that Influence the Surface Temperature of Urban Forest Canopies by Combining Remote Sensing Methods, Ground Observations, and Spatial Statistical Models" Remote Sensing 10, no. 11: 1814. https://doi.org/10.3390/rs10111814

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
