Feasibility of Acoustic Remote Sensing of Large Herring Shoals and Seafloor by Baleen Whales

Abstract

Recent research has found a high spatial and temporal correlation between certain baleen whale vocalizations and peak herring spawning processes in the Gulf of Maine. These vocalizations are apparently related to feeding activities with suggested functions that include communication, prey manipulation, and echolocation. Here, the feasibility of the echolocation function is investigated. Physical limitations on the ability to detect large herring shoals and the seafloor by acoustic remote sensing are determined with ocean acoustic propagation, scattering, and statistical theories given baleen whale auditory parameters. Detection is found to be highly dependent on ambient noise conditions, herring shoal distributions, baleen whale time-frequency vocalization spectra, and geophysical parameters of the ocean waveguide. Detections of large herring shoals are found to be physically feasible in common Gulf of Maine herring spawning scenarios at up to 10 ± 6 km in range for humpback parameters and 1 ± 1 km for minke parameters but not for blue and fin parameters even at zero horizontal range. Detections of the seafloor are found to be feasible up to 2 ± 1 km for blue and humpback parameters and roughly 1 km for fin and minke parameters, suggesting that the whales share a common acoustic sensation of rudimentary features of the geophysical environment.

1. Introduction

Recent research has found a high spatial and temporal correlation between certain baleen whale vocalizations and peak annual spawning processes of Atlantic herring (Clupea harengus) in the Gulf of Maine [1,2], indicating an apparent relationship between these vocalizations and feeding activities of baleen whales. Suggested functions of the vocalizations include communication [3,4,5,6], prey manipulation [7], and echolocation [8,9,10,11], given the fact that Atlantic herring is a keystone prey species common in the diets of many marine animals including large whales in the Gulf of Maine region [12,13,14]. Here, feasibility of the possible echolocation function is investigated for large and dense herring aggregations. This differs substantially from the possible ability of baleen whales to detect other whales by active acoustics, which has been previously discussed [15,16,17,18,19,20].

The approach is to first determine parameters relevant to possible active acoustic sensing in baleen whales, including source and receiver characteristics such as time-frequency vocalization spectra and auditory system aperture. Detection of large herring shoals and the seafloor is then investigated using theoretical and numerical methods developed for analyzing Ocean Acoustic Waveguide Remote Sensing (OAWRS) of fish shoals [21,22,23,24,25] given these active sensing parameters. Sensing resolution in cross-range is determined by spatial array theory and in range by incoherent energy analysis [1,2,21,22,23,24,25,26], since evidence suggests temporally coherent auditory processing is unlikely [27,28].

Typical well documented scenarios during the herring spawning season on Georges Bank [1,2,22,24,25] are investigated to determine ranges up to which detection of large herring shoals and the seafloor is feasible for given whale acoustic parameters. Detection of large herring shoals and the seafloor is found to be highly dependent on local ambient noise conditions at whale locations, herring shoal distribution, baleen whale vocalization parameters such as time duration and source spectra, as well as oceanographic conditions including sound speed structure, bathymetry, and seafloor scattering amplitudes along the acoustic propagation path.

2. Materials and Methods

2.1. Acoustic Parameters Relevant to Potential Active Acoustic Sensing in Baleen Whales and Corresponding Spatial Resolution

Baleen whale vocalization for potential active sensing is parameterized by call source level $SL$, time duration T, center frequency $\overline{f}$, and one-third octave frequency bandwidth $B{W}_{1/3}$ with center frequency $\overline{f}$ (

Table 1. Parameters of baleen whale’s auditory reception and signal detection used for detection range estimation in the Gulf of Maine scenario.

Baleen	$\mathit{S}\mathit{L}$	T	$\overline{\mathit{f}}$	${\mathit{B}\mathit{W}}_{\mathbf{1}\mathbf{/}\mathbf{3}}$	$\mathit{D}\mathit{T}$	$\mathit{A}\mathit{G}$	L	α	β	n
Whale Species	(dB re 1 μPa 1 m)	(s)	(Hz)	(Hz)	(dB)	(dB)	(m)	$\left(\frac{{\mathbf{P}\mathbf{a}}^{\mathbf{2}}}{{\mathbf{\left(}\mathbf{1}\mathit{\mu }\mathbf{P}\mathbf{a}\mathbf{\right)}}^2{\mathbf{\left(}\mathbf{m}\mathbf{/}\mathbf{s}\mathbf{\right)}}^{\mathit{n}}}\right)$	$\left(\frac{{\mathbf{P}\mathbf{a}}^2}{{\mathbf{\left(}\mathbf{1}\mathit{\mu }\mathbf{P}\mathbf{a}\mathbf{\right)}}^{\mathbf{2}}}\right)$
Fin	189 ± 5.6	0.8	20	5	3	0	3	1.88 × 10${}^8$	6.68 × 10${}^5$	0.6
Blue	189 ± 5.6	2	40	10	3	0	3	1.19 × 10${}^8$	2.51 × 10${}^6$	0.4
Minke	179 ± 5.6	0.1	315	72.5	3	1.4	1.5	5.96 × 10${}^6$	3.76 × 10${}^5$	0.6
Humpback	180 ± 5.6	1.44	450	100	3	3.7	2	1.26 × 10${}^6$	5.01 × 10${}^6$	1.1

$SL$ is the whale call source level [1], T is the time duration, $\overline{f}$ is the center frequency of baleen whale vocalizations relevant for target detection, ${BW}_{1/3}$ is the one-third octave bandwidth centered at frequency $\overline{f}$, $DT$ is the detection threshold, $AG$ is the array gain given whale acoustic parameters, L is the spatial distance between the two omni-directional receiver with spatial coherence, α is the waveguide propagation factor [35], β is the constant baseline ambient noise intensity, and n is the power law coefficient of wind-speed-dependent ambient noise. The parameter values for $SL$ are given in the form of mean ± standard deviation.

) following conventions for measuring these parameters in References [1,2,3,4].

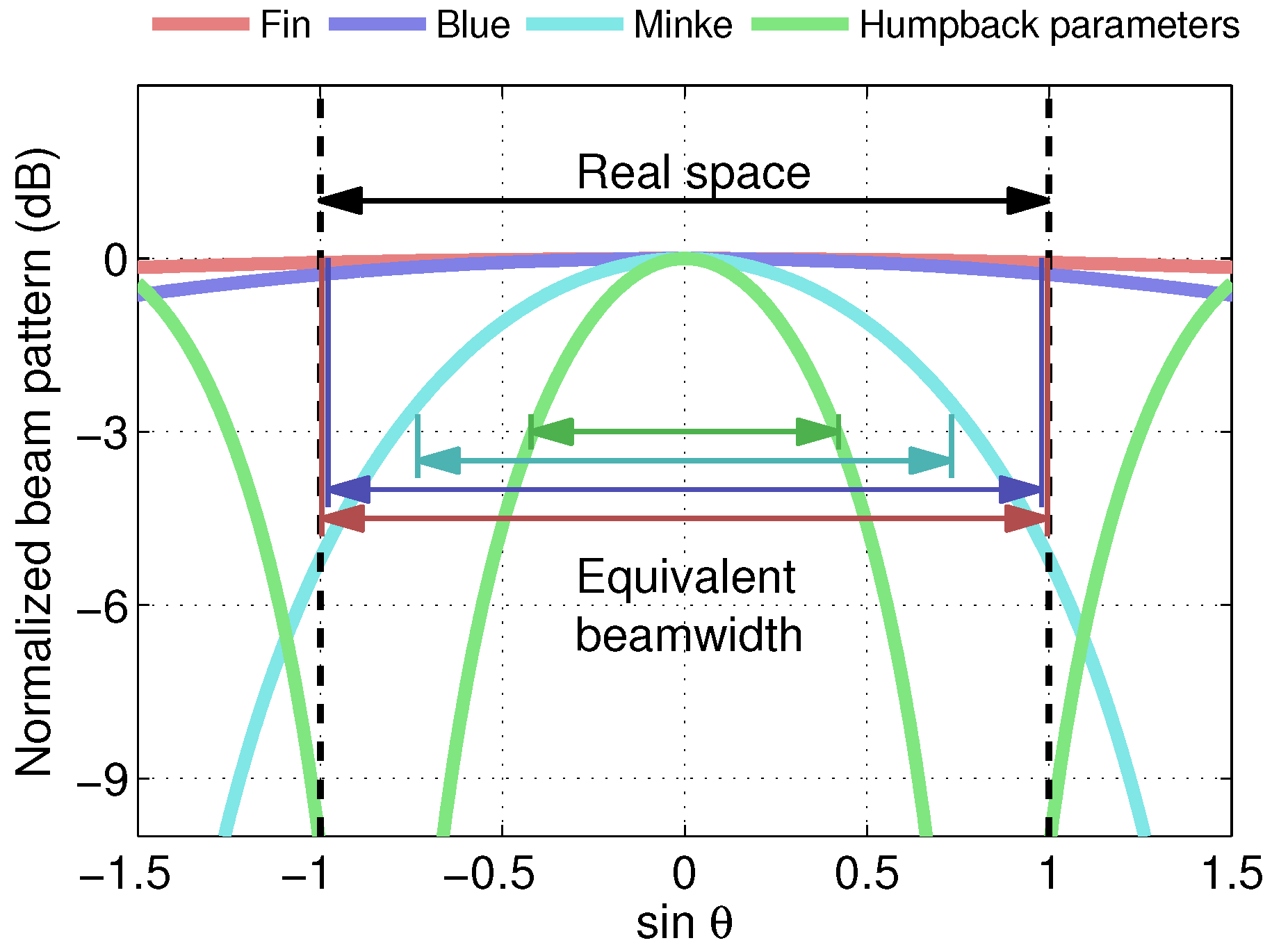

For potential active sensing, a baleen whale’s acoustic receiver is parameterized as a two-element spatially coherent array of omni-directional receivers of aperture L corresponding to the separation between ears, which is consistent with the small ear-dimensions to wavelength ratio of vocalizations and the low impedance contrast between tissue and sea water. The corresponding far-field beam pattern is obtained by spatial array theory (Figure 1) as:

$$B\left(\sin \theta \right)=\cos \left(\frac{\pi fL}{c}\sin \theta \right)$$

(1)

where θ is the angle from array broadside, f is the frequency, and c is the sound speed. The aperture and frequency are taken from Table 1 for the baleen whales considered. The angular resolution of this two element array is best for broadside steering and is given by equivalent beamwidth:

$$d\theta =2{\sin }^{-1}(\psi /2)$$

(2)

where

$$\psi ={\int }_{-1}^1{\left|B\left(\sin \theta \right)\right|}^{2}d\left(\sin \theta \right)=1+\frac{c}{2\pi fL}\sin \left(\frac{2\pi fL}{c}\right)$$

(3)

Cross-range resolution is then determined as $\rho d\theta$ at array broadside, at horizontal range ρ, for an effectively monostatic active sensing system. No ambiguity in directional sensing due to grating lobes [29] is expected because the grating lobes are located outside real space for given whale acoustic parameters (Table 1). Assuming incoherent energy analysis, range resolution $d\rho$ is $\frac{cT}{2}$, where the active signal duration T is given in Table 1 for the various baleen whales considered. The areal resolution of the parameterized active sensing system or the smallest area distinguishable by the sensing system, typically referred to as the resolution footprint, is then given by $\rho d\rho d\theta$ for monostatic geometries (Figure 2).

2.2. Detection of Scattered Returns from Herring Shoals and the Seafloor

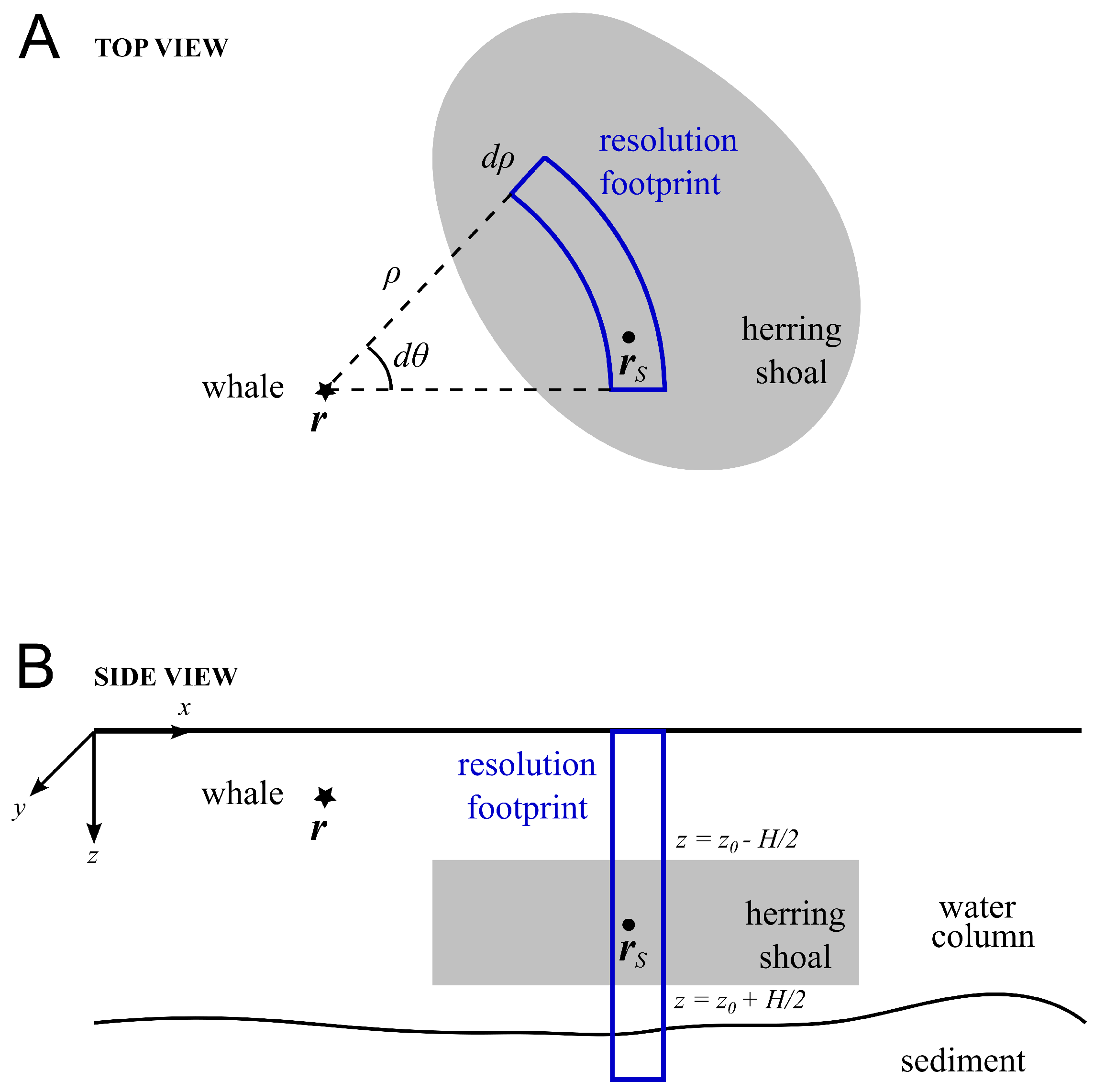

The expected magnitude square of the scattered field, $〈|{\mathrm{\Phi }}_F{|}^2〉$, received at location $\mathbf{r}$ from N omni-directional targets randomly distributed with uniform probability in a vertical layer of thickness H centered at $z=z_0$ within a resolution footprint $A_R\left({\mathit{\rho }}_{\mathit{C}}\right)$ centered at horizontal location ${\mathit{\rho }}_{\mathit{C}}$ can be determined from [23,30]:

$$10{\log }_{10}〈{\left|\frac{{\mathrm{\Phi }}_F}{{\mathrm{\Phi }}_{ref}}\right|}^2〉\approx SL+TLA+TS+10{\log }_{10}\frac{\langle n_A\rangle }{n_{A,ref}}$$

(4)

In Equation (4), ${\mathrm{\Phi }}_{ref}=1\mu$Pa is the reference acoustic pressure in water, $SL$ is the whale call source level with mean and standard deviation [1,2] given in Table 1 consistent with circular complex Gaussian random fields fluctuations [26], $TLA$ is the depth-averaged two-way transmission loss to individual targets integrated over one resolution footprint area [23] given in Equation (5), $TS=10{\log }_{10}〈{\left|\frac{S}{r_{ref}k}\right|}^2〉$ is the expected target strength of a single herring, S is the plane wave scatter function of a single herring, k is the acoustic wavenumber, $r_{ref}=1$ m is the reference length, $n_{A,ref}=1$ fish/m${}^2$ is the reference areal fish population density, and $\langle n_A\rangle =N/A_R\left({\mathit{\rho }}_{\mathit{C}}\right)$ is the expected areal density of the targets within a spatially varying resolution cell centered at horizontal location ${\mathit{\rho }}_{\mathit{C}}$. When the instantaneous bandwidth $BW$ of baleen whale vocalizations [1,2] is greater than the one-third octave bandwidth $B{W}_{1/3}$ given in Table 1, an adjusted whale call source level $S{L}_{adj}=SL+10{\log }_{10}\frac{B{W}_{1/3}}{BW}$ is used. The expected target strength of a single herring in a vertical layer is determined by parameters such as mean layer depth, shoal thickness, neutral buoyancy depth, and herring length. With mean and standard deviation of the parameters empirically determined in Reference [24] (

Table 2. Parameters of herring shoals.

Herring Shoals	${\mathit{z}}_{\mathbf{0}}$	H	${\mathit{z}}_{\mathit{n}\mathit{b}}$	l	$\mathbf{\langle }{\mathit{n}}_{\mathit{A}}\mathbf{\rangle }$
	(m)	(m)	(m)	(cm)	(fish/m${}^2$)
Deep	155 ± 6.5	50 ± 15.6	83 ± 31.3	24.2 ± 1.7	5.0
Shallow	25 ± 1.0	20 ± 6.2	20 ± 6.5	24.2 ± 1.7	1.0

$z_0$ is the mean depth of herring layer, H is the shoal thickness, $z_{nb}$ is the neutral buoyancy depth of herring, l is the fork length of herring, and $n_A$ is the areal population density of herring shoals. The parameter values for $z_0$, H, $z_{nb}$, and l are given in the form of mean ± standard deviation.

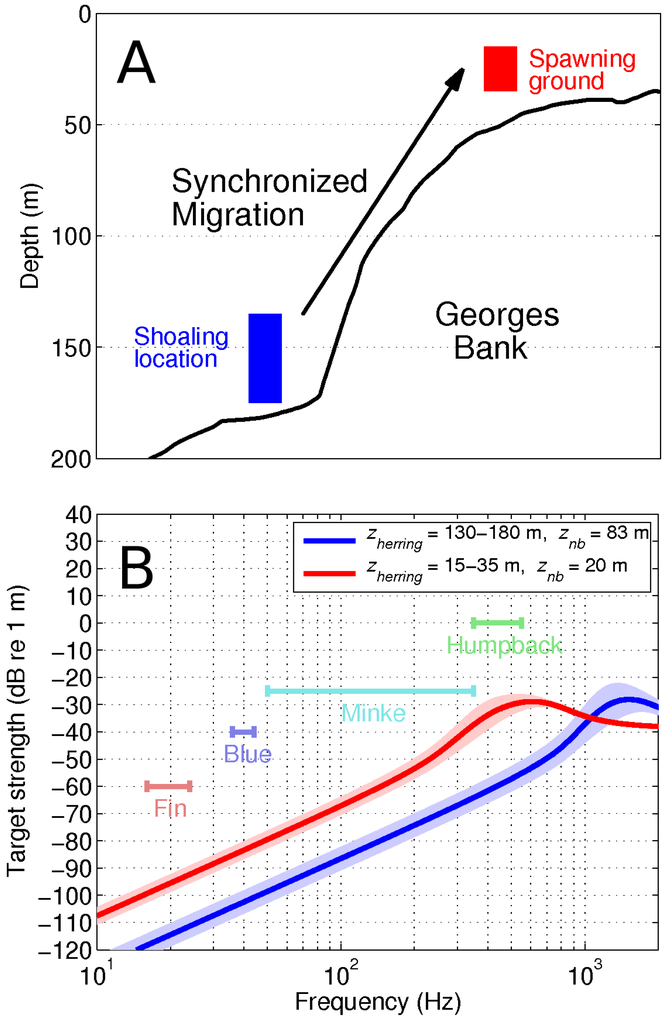

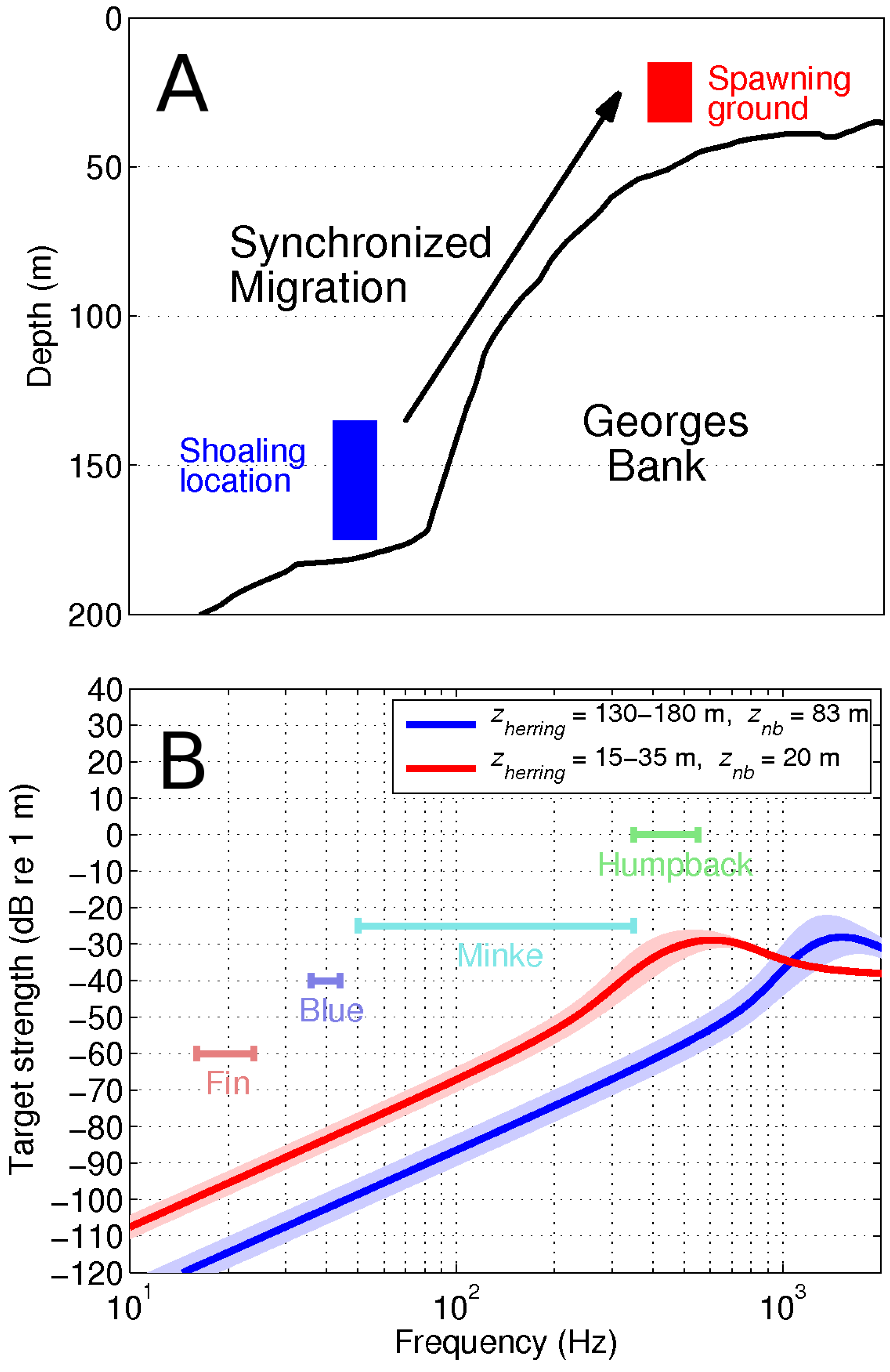

), $TS$ is determined using a swimbladder resonance model [31] for deep shoals as described in Appendix A. Similar analysis is performed for shallow shoals given measured constraints. The $TLA$ term in Equation (4) can be written [23] for monostatic sensing as:

$$TLA=10{\log }_{10}\left({\int }_{A_R\left({\mathit{\rho }}_{\mathit{C}}\right)}\frac{1}{H}{\int }_{z_0-H/2}^{z_0+H/2}{\left(4\pi \right)}^4\langle |G(\mathbf{r}|{\mathit{\rho }}_{\mathit{S}},z_S;f,c\left({\mathbf{r}}_{\mathbf{w}}\right),d\left({\mathbf{r}}_{\mathbf{w}}\right)){|}^4|{\mathit{\rho }}_{\mathit{S}},z_S\rangle \mathrm{d}{\mathbf{z}}_{\mathbf{S}}\mathrm{d}{{\mathit{\rho }}_{\mathit{S}}}^2/r_{ref}^{-2}\right)$$

(5)

where $G\left(\mathbf{r}\right|{\mathit{\rho }}_{\mathit{S}},z_S;f,c\left({\mathbf{r}}_{\mathbf{w}}\right),d\left({\mathbf{r}}_{\mathbf{w}}\right))$ is the Green function between the target location ${\mathbf{r}}_{\mathbf{S}}=({\mathit{\rho }}_{\mathit{S}},z_S)$ and the receiver location $\mathbf{r}$, and $c\left({\mathbf{r}}_{\mathbf{w}}\right)$ and $d\left({\mathbf{r}}_{\mathbf{w}}\right)$ are the sound speed and the density in the water column at any point ${\mathbf{r}}_{\mathbf{w}}$ in the propagation path, respectively. The areal integration in Equation (5) should be taken over the intersection between resolution footprint and the area occupied by herring when the herring distribution does not fully overlap with the resolution footprint. A parabolic equation model [32] is used to calculate the Green function from the whale location to the herring shoal in a range-dependent Gulf of Maine environment. The conditional expectation over the sound speed and the density in Equation (5) is determined by averaging 10 Monte-Carlo realizations, where the Green functions are calculated along the entire propagation path in range and depth for each realization. Each Monte-Carlo realization employs a different sound speed profile measured during the OAWRS 2006 experiment [24] every 500 m [33,34] along the propagation path.

The expected magnitude square of the scattered field $\langle |{\mathrm{\Phi }}_S{|}^2\rangle$ from the seafloor is determined from [25]:

$$\begin{gathered} \begin{array}{cc}\hfill 10{\log }_{10}〈{\left|\frac{{\mathrm{\Phi }}_S}{{\mathrm{\Phi }}_{ref}}\right|}^2〉& \approx SL+10{\log }_{10}\left({\int \int \int }_{V_R\left({\mathit{\rho }}_{\mathit{C}}\right)}{\left(4\pi \right)}^2\langle |G(\mathbf{r}|{\mathbf{r}}_{\mathbf{S}};f,c\left({\mathbf{r}}_{\mathbf{w}}\right),d\left({\mathbf{r}}_{\mathbf{w}}\right)){|}^4|{\mathbf{r}}_{\mathbf{S}}\rangle \mathrm{d}{{\mathbf{r}}_{\mathbf{S}}}^3/r_{ref}^{-1}\right)\hfill \\ \\ +10{\log }_{10}\left(〈{\left|A_S(f,{\mathrm{\Gamma }}_{\kappa },{\mathrm{\Gamma }}_d,V_C)\right|}^2〉/r_{ref}^{-1}\right)\hfill \end{array} \end{gathered}$$

(6)

where $SL$ is the whale call source level, $V_R\left({\mathit{\rho }}_{\mathit{C}}\right)$ is the volume of the resolution cell centered at horizontal location ${\mathit{\rho }}_{\mathit{C}}$, $G\left(\mathbf{r}\right|{\mathit{r}}_{\mathit{S}};f,c\left({\mathbf{r}}_{\mathbf{w}}\right),d\left({\mathbf{r}}_{\mathbf{w}}\right))$ is the Green function between the target location ${\mathbf{r}}_{\mathbf{S}}=({\mathit{\rho }}_{\mathit{S}},z_S)$ and the receiver location $\mathbf{r}$, $c\left({\mathbf{r}}_{\mathbf{w}}\right)$ and $d\left({\mathbf{r}}_{\mathbf{w}}\right)$ are the sound speed and the density at any point ${\mathbf{r}}_{\mathbf{w}}$ in the propagation path, respectively. The Green function and the conditional expectation over the water column sound speed and the density in Equation (6) are determined by following the same procedures given for those in Equation (5). The expected magnitude square of Rayleigh-Born seafloor scattering amplitude per coherence volume $\langle |A_S(f,{\mathrm{\Gamma }}_{\kappa },{\mathrm{\Gamma }}_d,V_C){|}^2\rangle$ is defined as [25]:

$$\langle |A_S(f,{\mathrm{\Gamma }}_{\kappa },{\mathrm{\Gamma }}_d,V_C){|}^2\rangle =k^4{V}_C\left[\mathrm{V}ar\left({\mathrm{\Gamma }}_{\kappa }\right)+F_d\mathrm{V}ar\left({\mathrm{\Gamma }}_d\right)+F_c\mathrm{C}ov({\mathrm{\Gamma }}_{\kappa },{\mathrm{\Gamma }}_d)\right]$$

(7)

where ${\mathrm{\Gamma }}_{\kappa }$ is the fractional change in seafloor compressibility, ${\mathrm{\Gamma }}_d$ is the fractional change in seafloor density, $V_C$ is the coherence volume of inhomogeneities, and $F_{\kappa }$ and $F_d$ are the proportionality constants of scattering contributions from dipole and cross terms to monopole scattering contributions, respectively. The frequency dependence of the expected magnitude square of Rayleigh-Born seafloor scattering amplitude per coherence volume $\langle |A_S(f,{\mathrm{\Gamma }}_{\kappa },{\mathrm{\Gamma }}_d,V_C){|}^2\rangle$ is measured during the OAWRS 2006 experiment [25] as:

$$\langle |A_S(f,{\mathrm{\Gamma }}_{\kappa },{\mathrm{\Gamma }}_d,V_C){|}^2\rangle =C\times f^q$$

(8)

where $C\approx 1.78\times {10}^{-8}$ m${}^{-1}$ Hz${}^{-q}$ is the proportionality constant, f is the frequency, and $q\approx 2.12$ is the power law coefficient of frequency dependence of the expected magnitude square of the seafloor scattering amplitude. The level of magnitude square of Rayleigh-Born seafloor scattering amplitude per coherence volume is assumed to vary with standard deviation up to 2 dB as empirically determined in Reference [25].

The expected magnitude square of ambient noise field is determined as [1,2]:

$$\langle |{\mathrm{\Phi }}_N{|}^2\rangle \approx \frac{1}{\tau }{\int }_{B{W}_{1/3}}|{\mathrm{\Phi }}_N^{data}{\left(f\right)|}^{2}df\approx \frac{1}{\tau }{|{\mathrm{\Phi }}_N^{data}\left(\overline{f}\right)|}^2\times B{W}_{1/3}$$

(9)

where τ is the measurement time, f is the frequency, ${\mathrm{\Phi }}_N^{data}\left(f\right)$ is the Fourier transform of the measured ambient noise field time series, ${\mathrm{\Phi }}_N^{data}\left(\overline{f}\right)$ is the Fourier transform of the measured ambient noise field time series evaluated at the center frequency $\overline{f}$ of baleen whale vocalizations given in Table 1, and $B{W}_{1/3}$ is the one-third octave frequency bandwidth of various baleen whale vocalizations given in Table 1. The expected magnitude square of the beamformed ambient noise field ${\mathrm{\Phi }}_{N,BF}$ is determined from:

$$10{\log }_{10}\frac{\langle |{\mathrm{\Phi }}_N{|}^2\rangle }{\langle |{\mathrm{\Phi }}_{N,BF}{|}^2\rangle }=AG$$

(10)

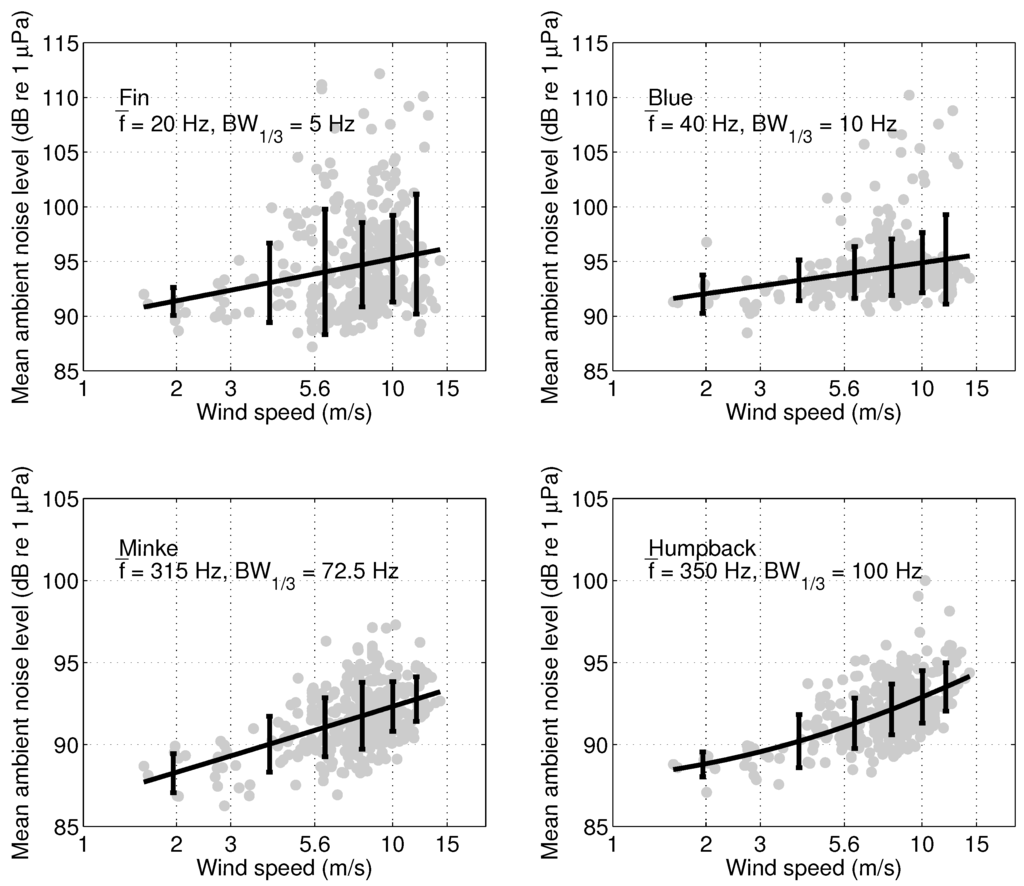

where $AG$ is the array gain of the receiver array given in Table 1. The wind-speed dependence of ambient noise is modeled as [2]:

$$〈{\left|\frac{{\mathrm{\Phi }}_N}{{\mathrm{\Phi }}_{ref}}\right|}^2〉=\alpha v^n+\beta$$

(11)

where ${\mathrm{\Phi }}_{ref}=1\mu$Pa is the reference acoustic pressure in water, v is the wind speed, n is the power law coefficient of wind-speed-dependent ambient noise, α is the waveguide propagation factor [35], and β is the constant baseline ambient noise intensity. The coefficients n, α, and β given in Table 1 are empirically determined [2] by least-square fitting between the measured and the modeled ambient noise levels as a function of measured wind speed during the OAWRS 2006 experiment [22] (Figure A1). The instantaneous measurements of ambient noise vary with 5.6 dB standard deviation [26].

For target detection under seafloor scattering limited detection conditions, the expected magnitude square of the scattered field from herring shoals should be greater than that of the scattered field from the seafloor by a factor that corresponds to detection threshold $DT$ given in Table 1:

$$10{\log }_{10}\frac{\langle |{\mathrm{\Phi }}_F{|}^2\rangle }{\langle |{\mathrm{\Phi }}_S{|}^2\rangle }\ge DT$$

(12)

where the maximum detection range is found when the equality holds. Similarly for target detection under noise limited conditions, the expected magnitude square of the scattered field from herring shoals should be greater than that of the beamformed ambient noise field ${\mathrm{\Phi }}_{N,BF}$ by a factor that corresponds to $DT$ given in Table 1:

$$10{\log }_{10}\frac{\langle |{\mathrm{\Phi }}_F{|}^2\rangle }{\langle |{\mathrm{\Phi }}_{N,BF}{|}^2\rangle }\ge DT$$

(13)

where the maximum detection range is found when the equality holds. The detection threshold $DT$ is determined by requiring that the scattered returns from fish targets stand at least one standard deviation [26,36] above background levels from seafloor scattering or ambient noise.

2.3. OAWRS Experiment during Peak Herring Spawning Processes in the Gulf of Maine in Fall 2006

An OAWRS experiment was conducted on the northern flank of Georges Bank during the peak annual Atlantic herring spawning period in the Fall of 2006 [1,22,24]. The spatial distribution of herring was instantaneously imaged and continuously monitored [22]. The spawning process was found to follow a regular diurnal pattern, where herring were diffusely scattered near the seafloor during daylight hours, formed dense and large shoals near the 180–200 m depth contours near sunset, and then migrated synchronously towards spawning grounds at depths less than 50 m in the evening as shown in Figure 3A [22].

Parabolic equation transmission loss modeling [32] was calibrated and verified with roughly one hundred two-way transmission loss measurements made from calibrated targets with known scattering properties [37] and thousands of one-way transmission loss measurements [24,36] during the same experiment. Herring target strength was determined by empirical fit to a resonance model [31] over multi-frequencies in ranges relevant to this study [24]. Thousands of baleen whale vocalizations were passively recorded and localized in the vicinity of large herring shoals and call parameters, as shown in Table 1, were determined [1,2]. Ambient noise levels that include wind-driven and shipping noise contributions were measured and fit to empirical models at baleen whale vocalization frequencies [1,2].

3. Results

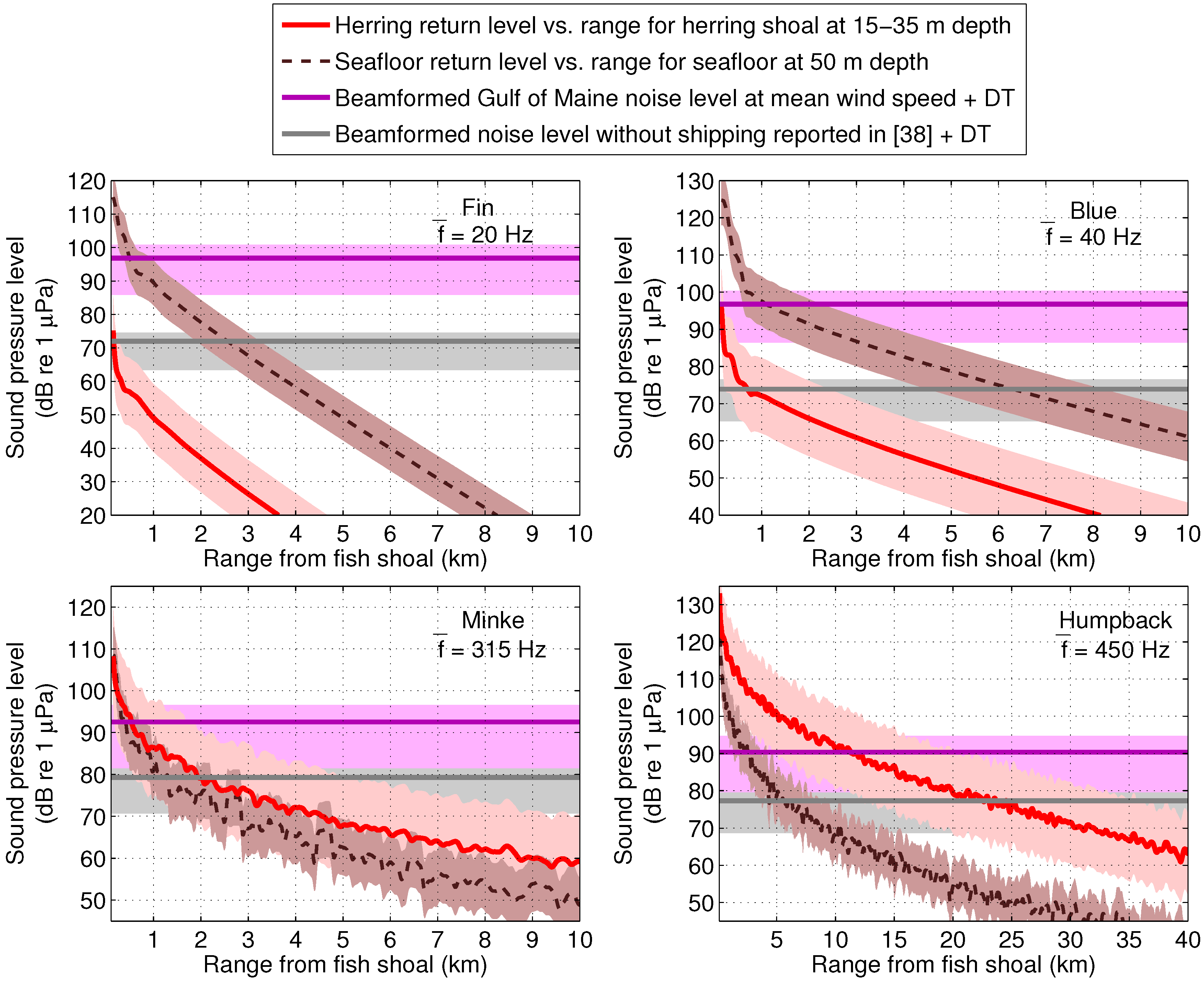

We find acoustic detections of herring shoals are physically feasible up to 10 ± 6 km in range for humpback (Megaptera novaeangliae) parameters and 1 ± 1 km for minke (Balaenoptera acutorostrata) parameters in common herring spawning scenarios of dense near-surface concentrations at 15–35 m depth, but not for herring concentrations at 130–180 m depth even at zero horizontal range (Figure 4 and Figure 5). This assumes detections are possible when scattered returns from herring shoals stand at least one standard deviation above mean ambient noise and seafloor scattering levels, and the measured ambient noise conditions, herring shoal distributions, baleen whale time-frequency vocalization spectra, and geophysical parameters of the ocean waveguide in the Gulf of Maine during the 2006 herring spawning period. The detection range of 1 ± 1 km, where spherical spreading dominates, suggests that the corresponding minke parameters are better suited to direct-path waterborne rather than waveguide acoustic sensing. For fin (Balaenoptera physalus) and blue (Balaenoptera musculus) parameters, we find detection of herring shoals is not feasible even at zero horizontal range (Figure 4 and Figure 5) for any of the shoal depths considered because the scattered intensity from the shoals is at least two orders of magnitude lower than those from the seafloor.

The observed variations in detection range are most strongly affected by the frequency dependence of resonant scattering from herring swimbladders. For shallow shoals, whale frequency ranges closer to the resonant scattering peak lead to greater detection ranges (Figure 3B). For deep shoals, all whale frequency ranges considered are too far below the resonant scattering peak to lead to detections. As herring shoals migrate to the south from the deep locations on the northern flank of Georges Bank to shallower than 50 m on Georges Bank (Figure 3A), it is found that the resonant frequency of herring swimbladders shifts to lower frequencies from roughly 1.5 kHz to roughly 600 Hz (Figure 3B). Herring target strength at baleen whale vocalization frequencies then increases by roughly two orders of magnitude (Figure 3B), which is the key factor enabling active acoustic detection of herring shoals for minke and humpback parameters.

We find seafloor detection is physically feasible up to 2 ± 1 km in range for blue and humpback parameters and roughly 1 km for fin and minke parameters. This assumes scattered returns from the seafloor stand at least one standard deviation above ambient noise levels (Figure 4 and Figure 5). This suggests that the baleen whales share a common acoustic sensation of rudimentary features of the geophysical environment.

4. Discussion

Little information exists on the mechanisms by which baleen whales detect prey [28,39,40]. Since the current analysis does not examine behavioral data, no conclusions can be drawn about whether the baleen whales considered actually employ active sensing to detect herring shoal prey. The analysis merely considers the physical feasibility of such sensing from an acoustic detection perspective. It is interesting, however, that the whale vocalization spectra do not appear to be optimized to take advantage of the peak resonant target strength of the deeper herring shoals, and only the humpback and perhaps the minke spectra are situated at or near the resonant peak for the shallower shoals.

Our analysis shows that local ambient noise is the primary limiting factor in detection of herring shoals for humpback and minke parameters as well as seafloor detections for the parameters of any whale considered (Figure 4 and Figure 5). It is possible that detections of herring shoals would then be feasible at much longer ranges under ocean ambient noise conditions without significant shipping traffic [38,41]. For example, under ambient noise conditions reported for Arafura and Timor Seas in Australia [38] with insignificant shipping, detections of herring shoals would be feasible up to 10–30 km in range for humpback parameters and 2–5 km for minke parameters (Figure 4). Similarly, detections of the seafloor would be feasible up to 5–8 km in range for blue parameters, 4–9 km for humpback parameters, 2–4 km for fin parameters, and 1–3 km for minke parameters (Figure 4 and Figure 5) under ocean ambient noise conditions without significant shipping. These estimates could represent possible detection ranges in ancient ocean environments that lacked shipping noise contributions.

5. Conclusions

The feasibility of acoustic remote sensing of large herring shoals and the seafloor by baleen whales has been investigated. We have found that it is physically feasible to detect dense near-surface herring shoals up to 10 ± 6 km in range with humpback acoustic parameters and 1 ± 1 km with minke acoustic parameters over ambient noise and seafloor scattering levels in the Gulf of Maine continental shelf environment. In contrast, detections of herring shoals are found to be unfeasible for fin and blue whale parameters even at zero horizontal range because scattered intensity from the seafloor are expected to be greater than the scattered intensity from herring shoals. These variations in detection range are primarily due to the strong frequency dependence of resonant scattering from herring swimbladders. We have found that detections of the seafloor are feasible up to 2 ± 1 km in range for blue and humpback parameters and roughly 1 km for fin and minke parameters over ambient noise, suggesting that the whales share a common acoustic sensation of rudimentary features of the geophysical environment.
